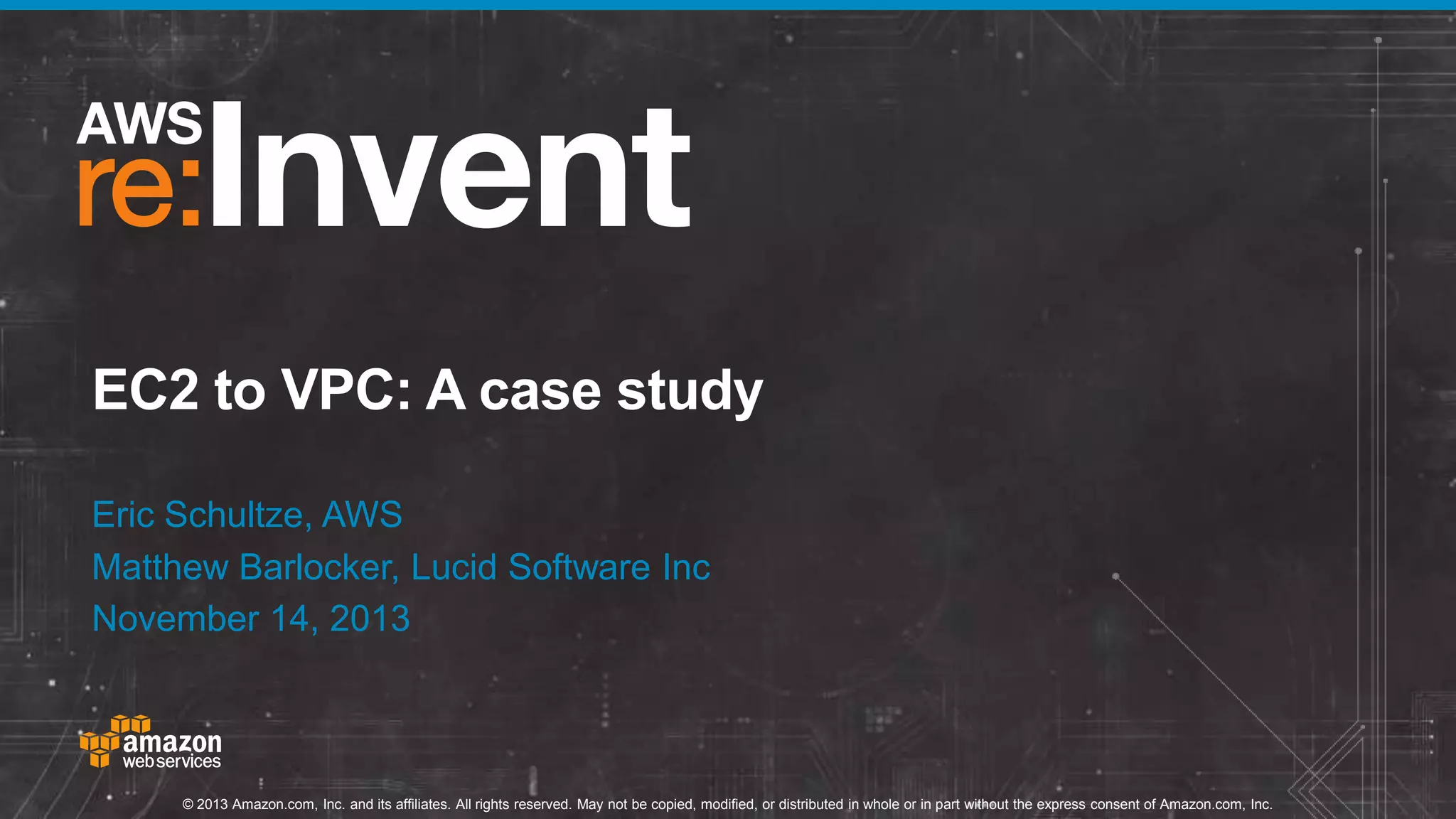

1. EC2 to VPC: A case study
Eric Schultze, AWS
Matthew Barlocker, Lucid Software Inc
November 14, 2013
© 2013 Amazon.com, Inc. and its affiliates. All rights reserved. May not be copied, modified, or distributed in whole or in part without the express consent of Amazon.com, Inc.

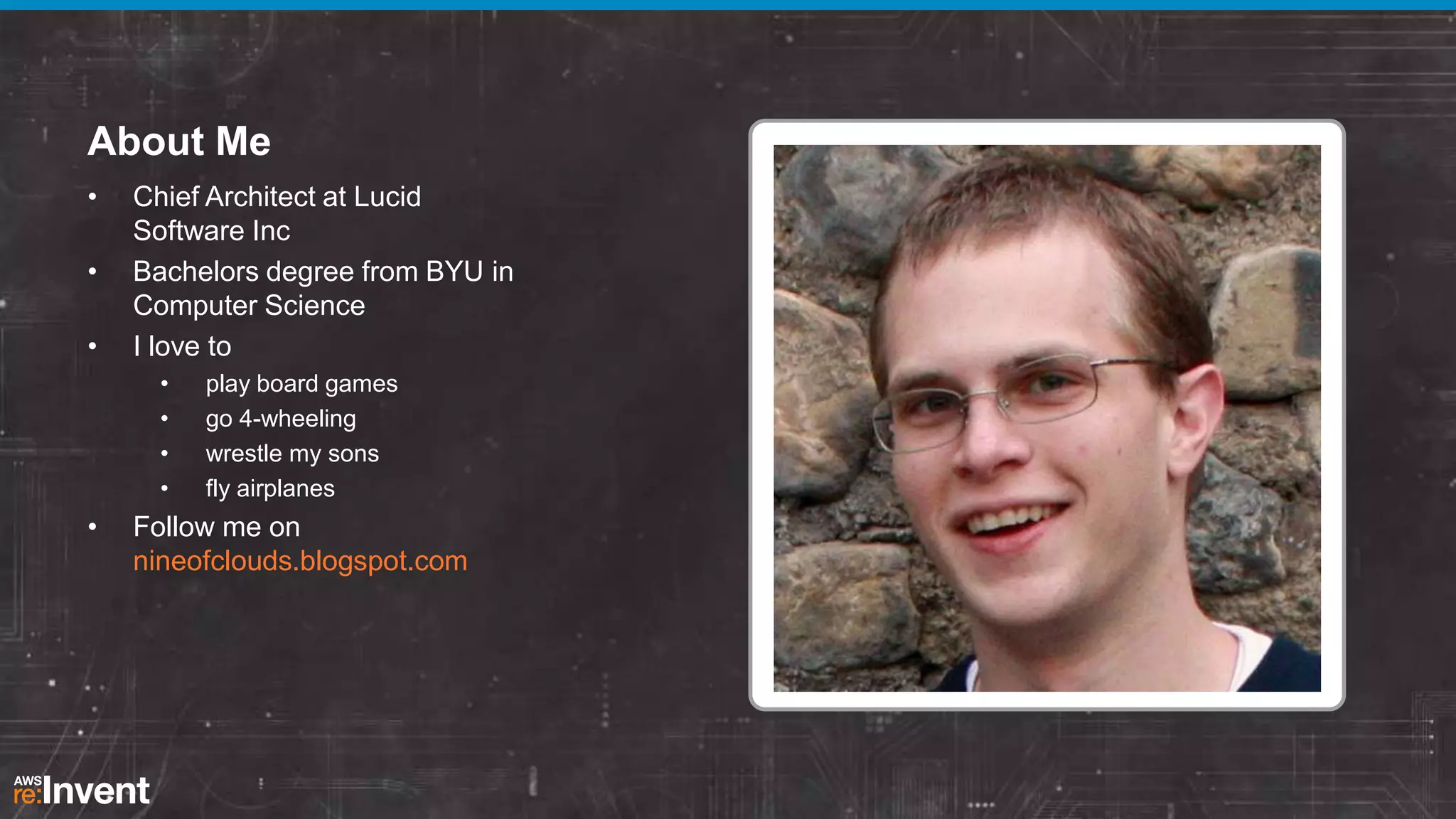

2. About Me
•
•
•
Chief Architect at Lucid
Software Inc
Bachelors degree from BYU in
Computer Science
I love to
•
•
•
•
•
play board games
go 4-wheeling
wrestle my sons
fly airplanes
Follow me on
nineofclouds.blogspot.com

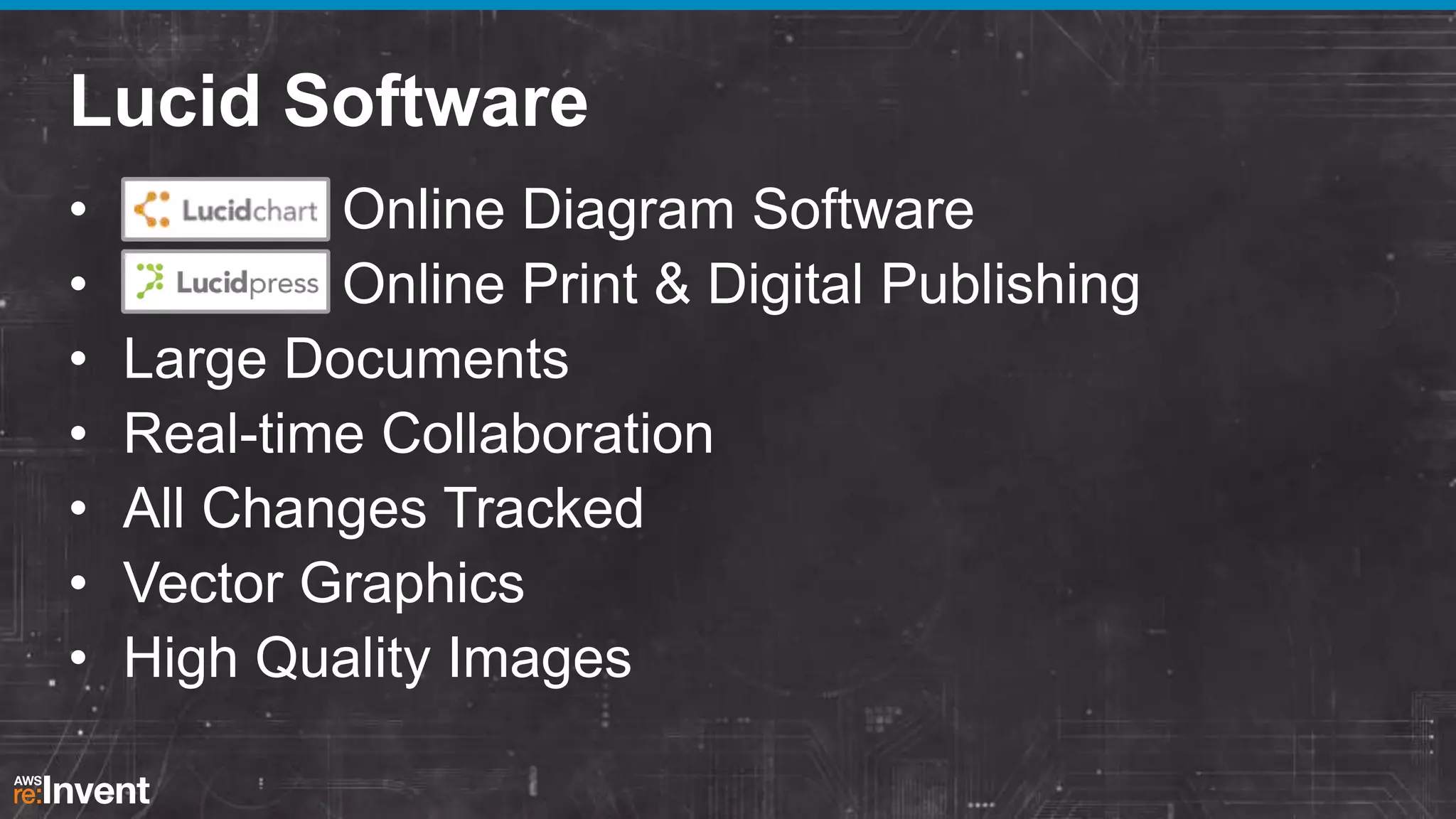

3. Lucid Software
•
•
•
•
•
•
•
Online Diagram Software
Online Print & Digital Publishing
Large Documents
Real-time Collaboration
All Changes Tracked
Vector Graphics
High Quality Images

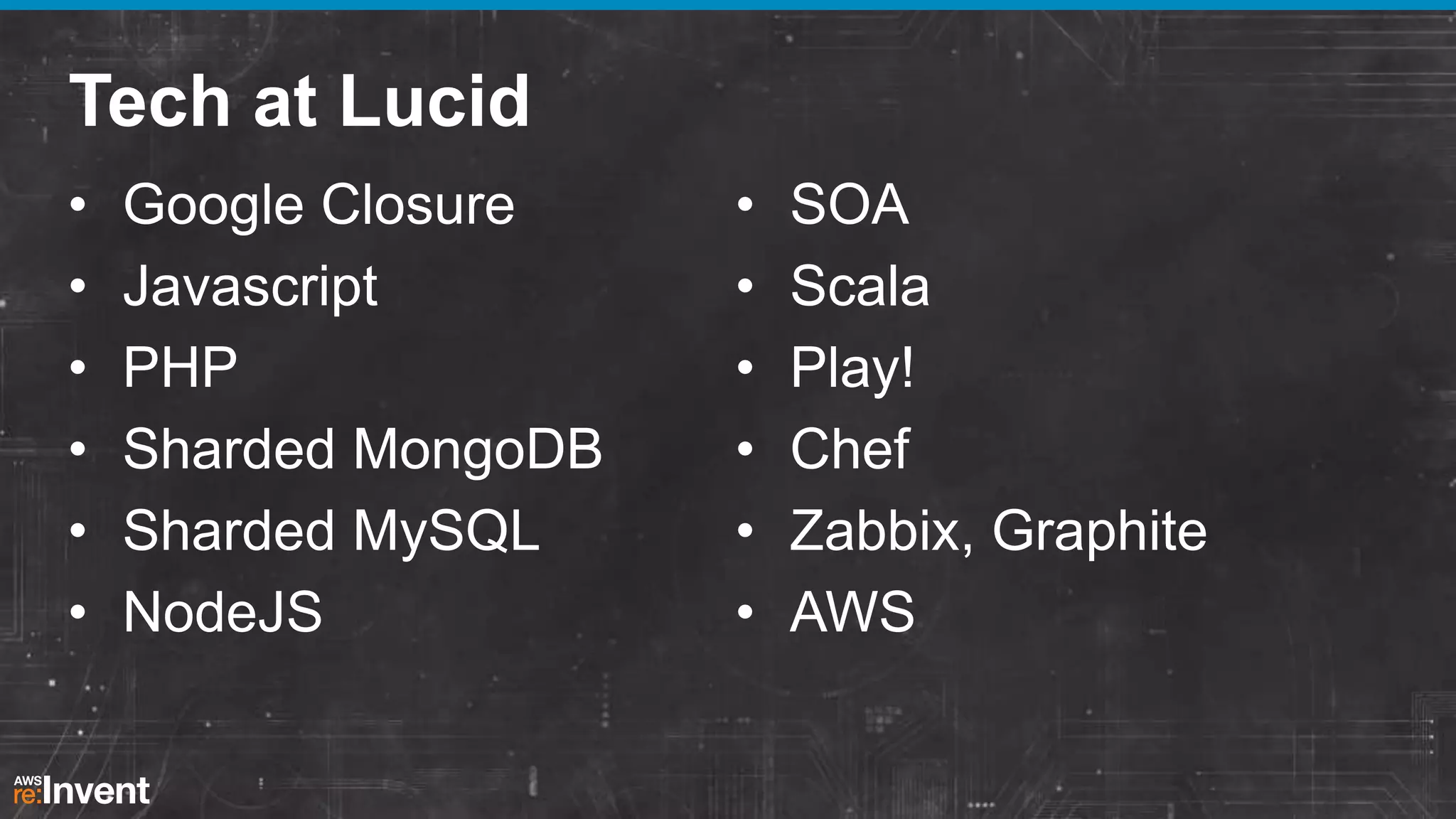

4. Tech at Lucid
•
•
•
•
•
•
Google Closure
Javascript
PHP
Sharded MongoDB
Sharded MySQL
NodeJS
•
•
•
•
•
•
SOA
Scala
Play!
Chef
Zabbix, Graphite
AWS

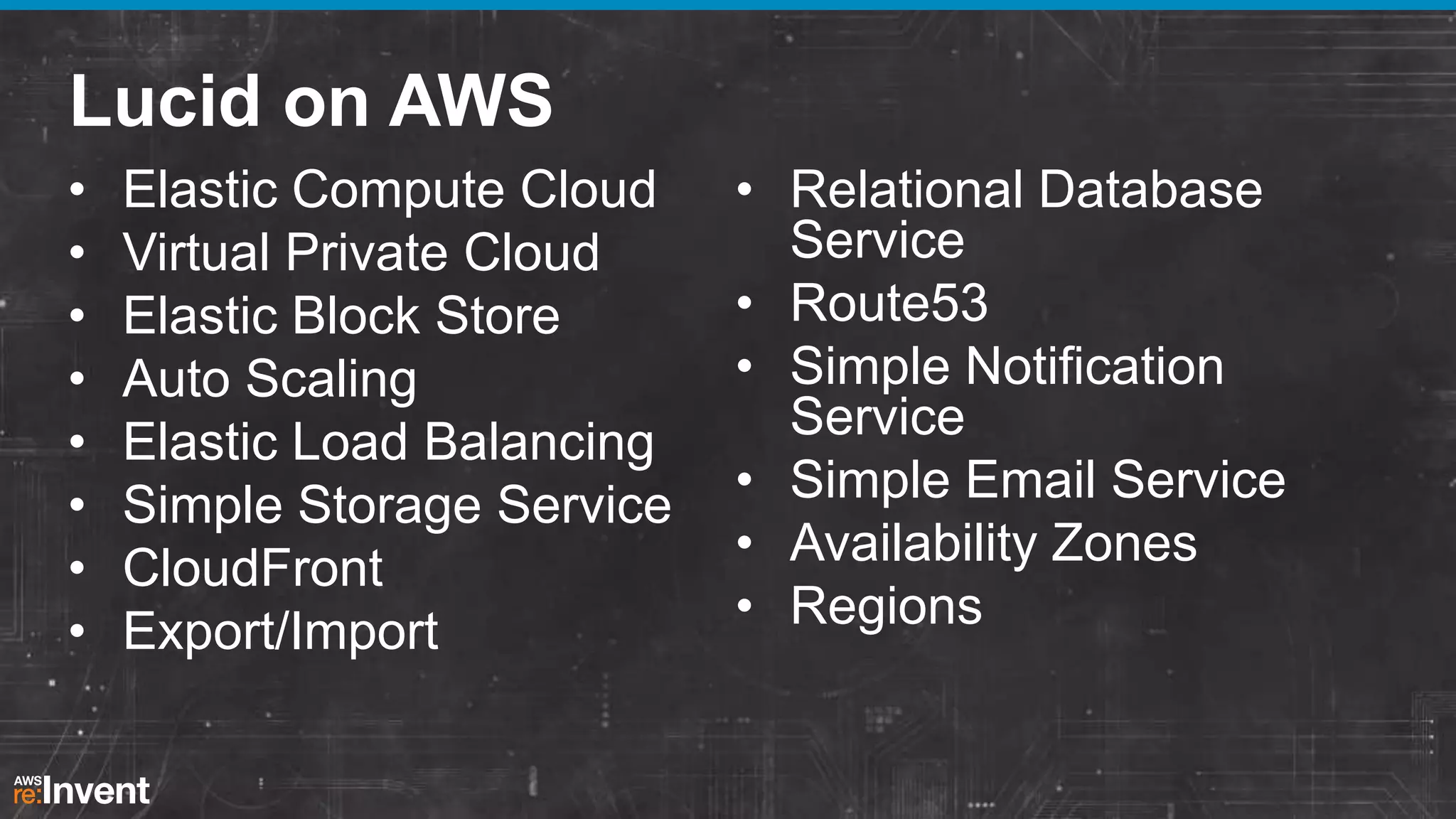

5. Lucid on AWS
•
•
•
•
•
•
•
•
Elastic Compute Cloud
Virtual Private Cloud
Elastic Block Store
Auto Scaling
Elastic Load Balancing
Simple Storage Service
CloudFront
Export/Import
• Relational Database
Service
• Route53
• Simple Notification
Service
• Simple Email Service
• Availability Zones
• Regions

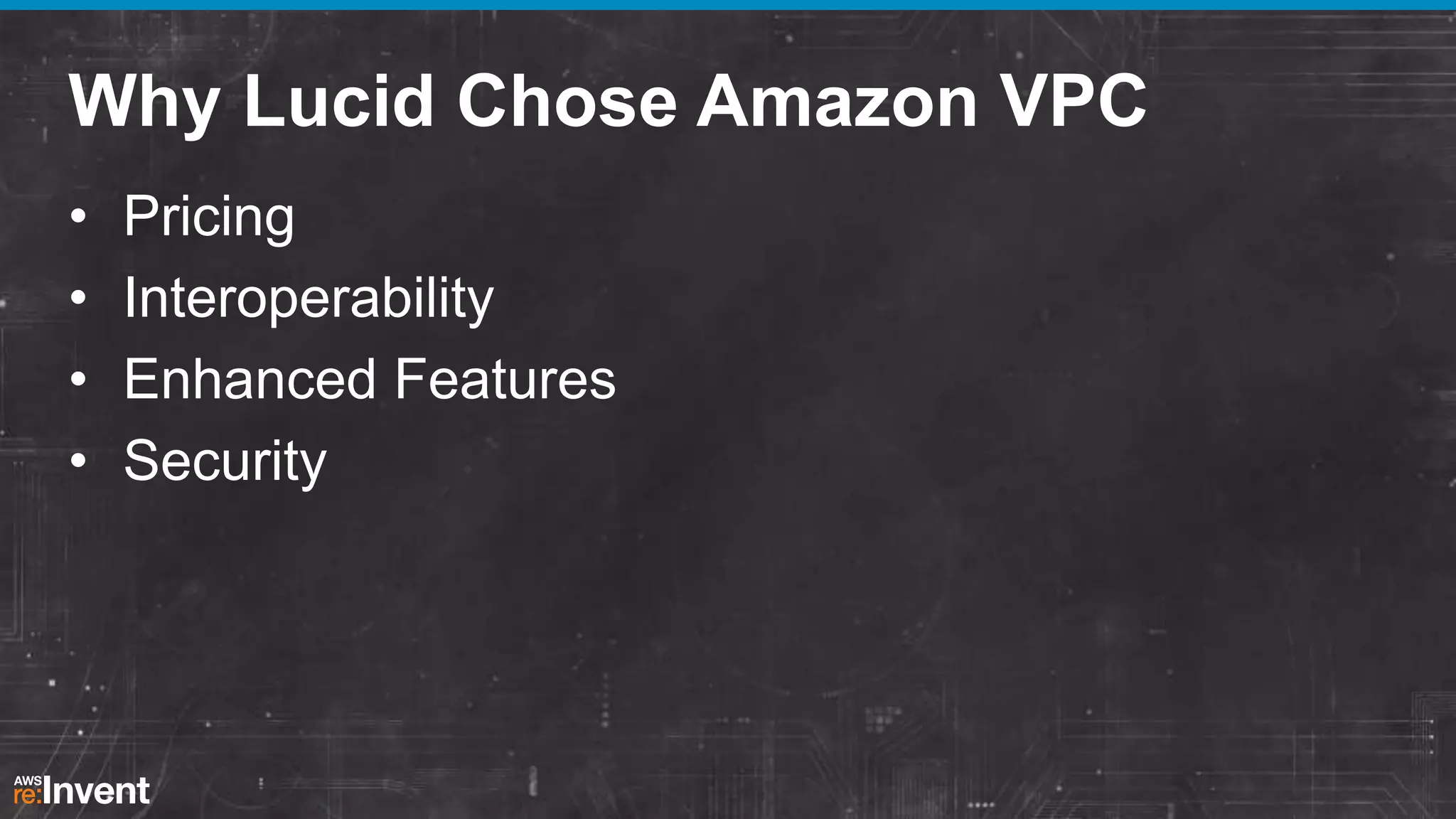

6. Why Lucid Chose Amazon VPC
•
•
•
•
Pricing
Interoperability
Enhanced Features
Security

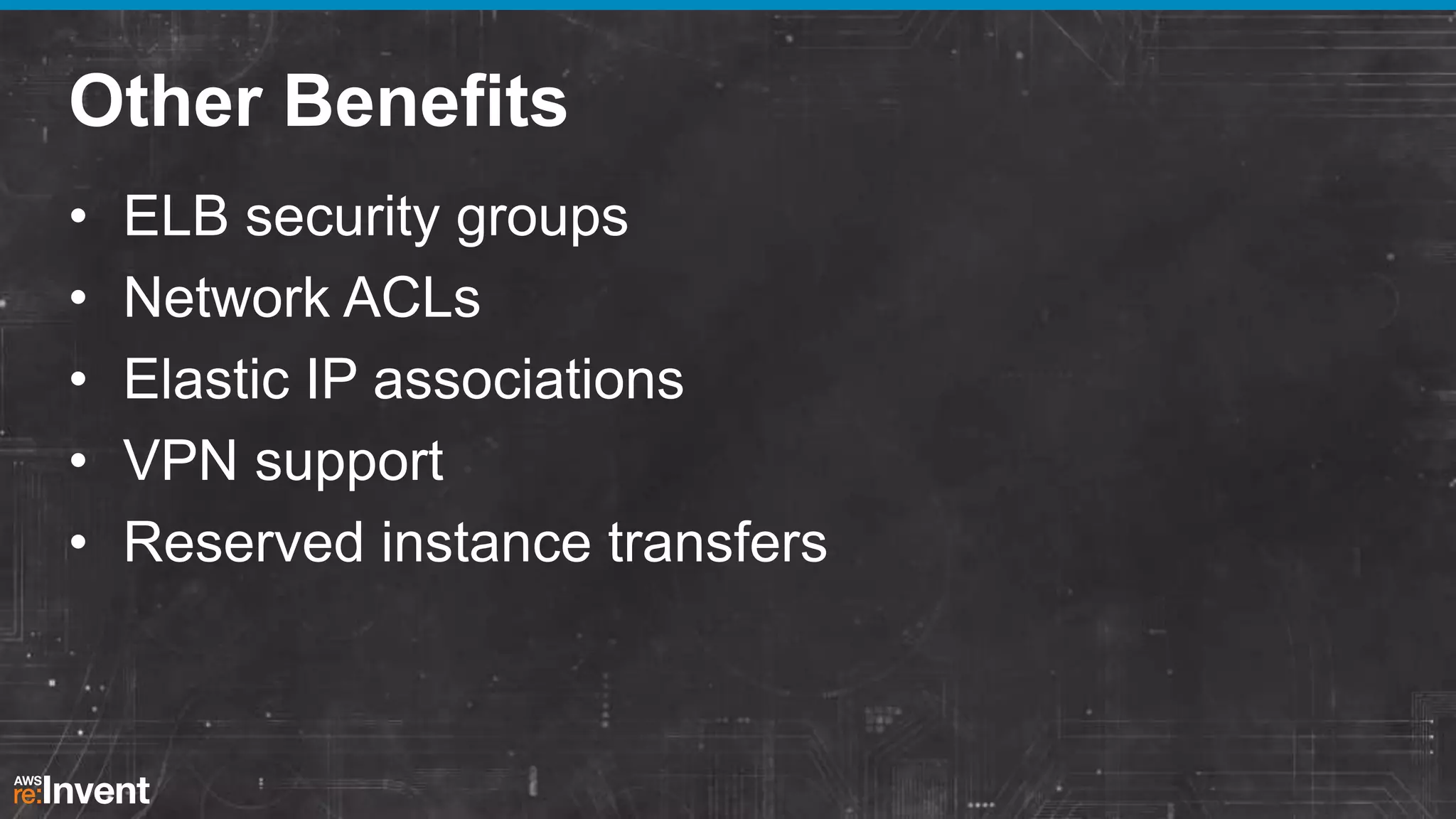

7. Other Benefits
•
•
•
•
•
ELB security groups
Network ACLs
Elastic IP associations
VPN support
Reserved instance transfers

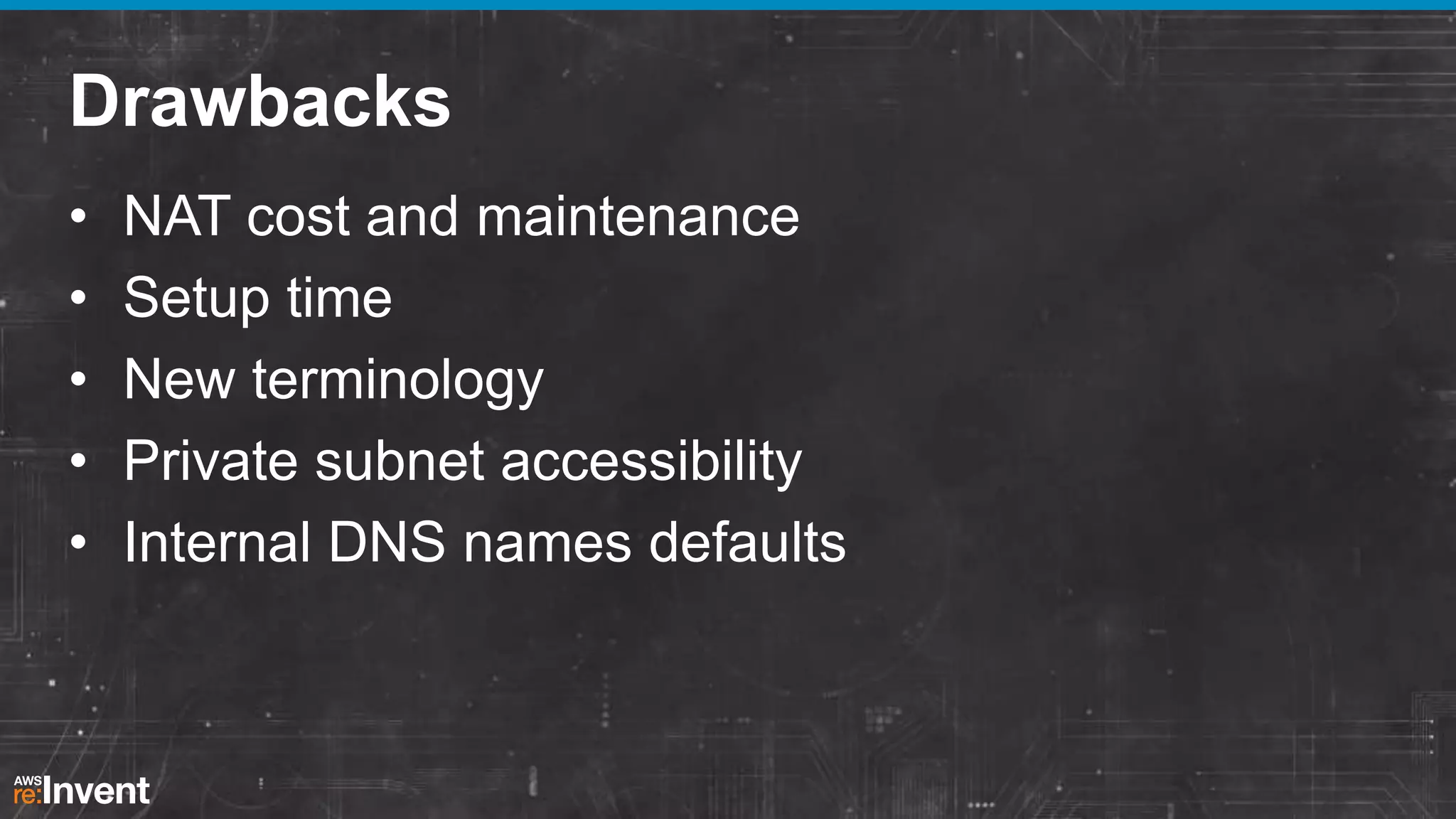

8. Drawbacks
•
•
•
•
•
NAT cost and maintenance
Setup time
New terminology
Private subnet accessibility
Internal DNS names defaults

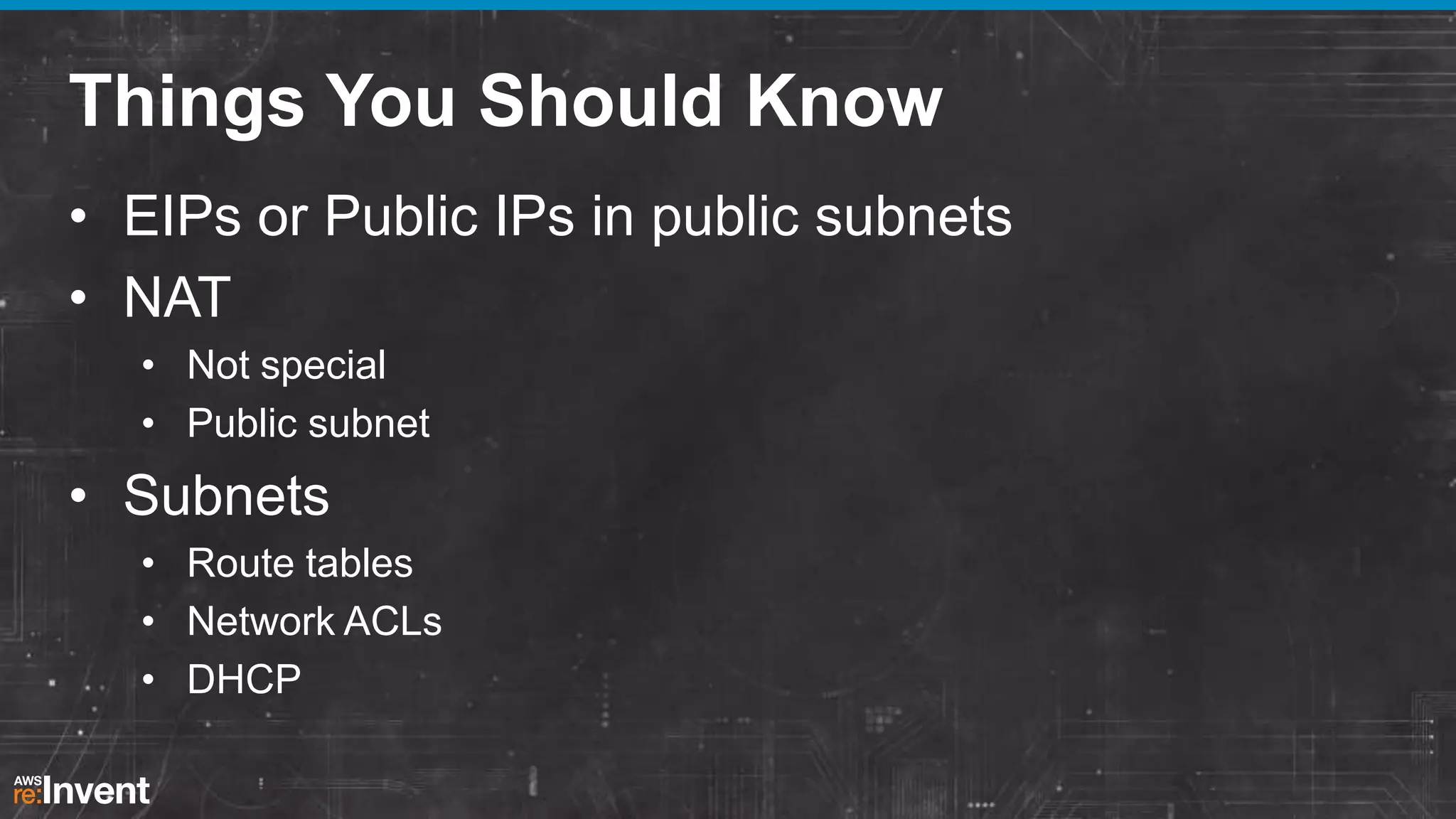

9. Things You Should Know
• EIPs or Public IPs in public subnets
• NAT
• Not special
• Public subnet
• Subnets
• Route tables
• Network ACLs
• DHCP

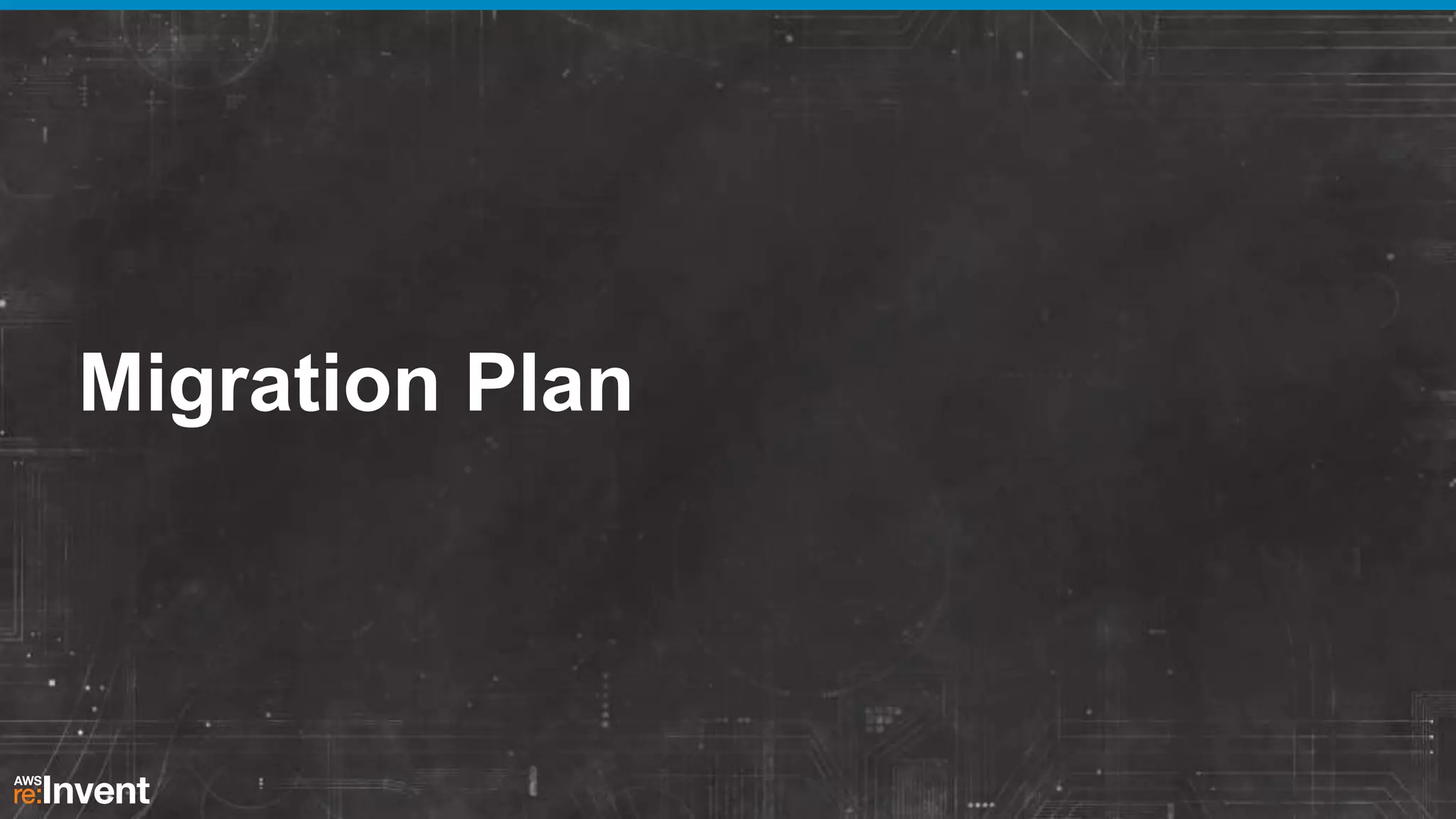

10. Migration Plan

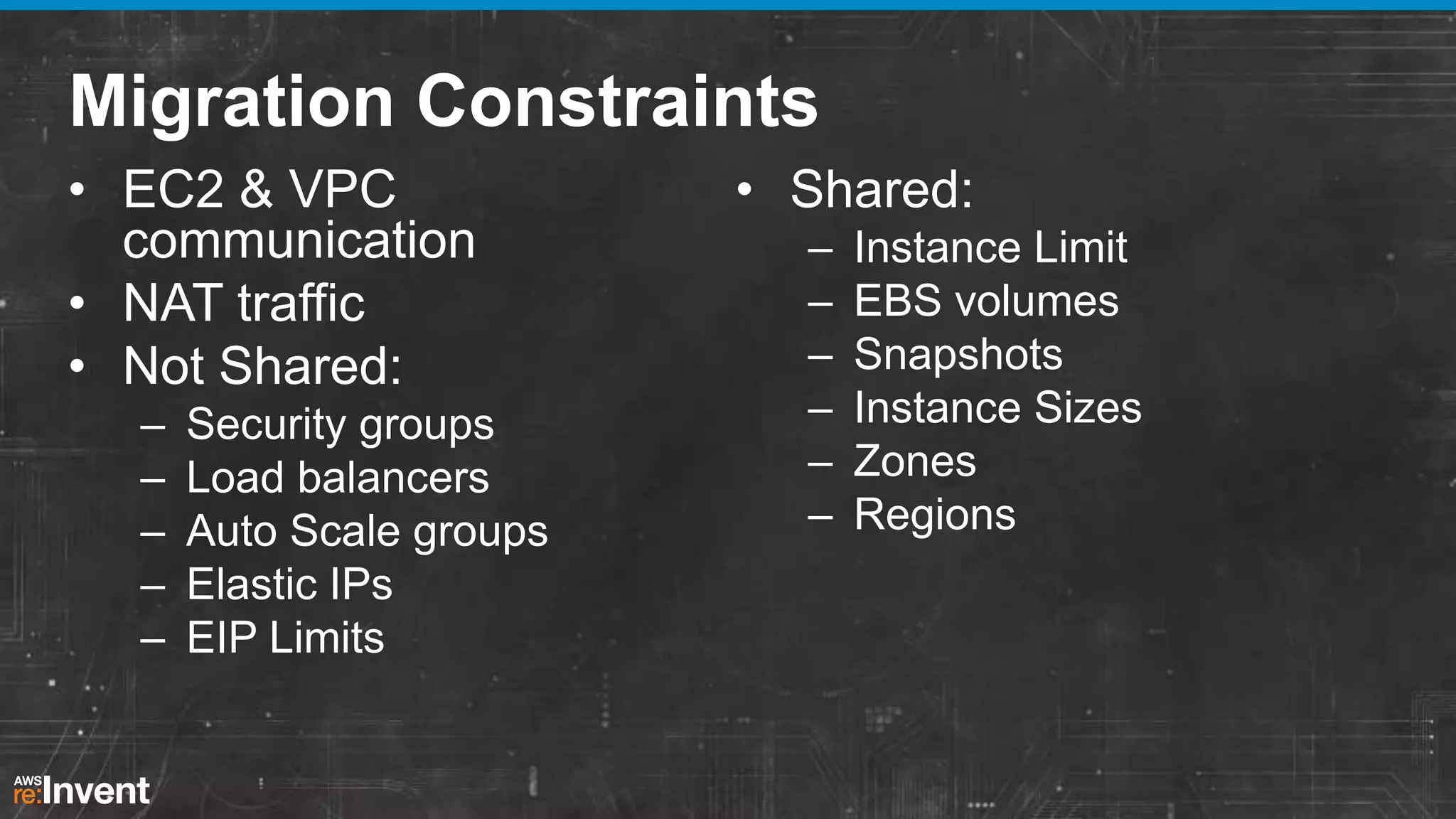

11. Migration Constraints
• EC2 & VPC
communication
• NAT traffic
• Not Shared:
–
–
–
–
–
Security groups
Load balancers
Auto Scale groups
Elastic IPs
EIP Limits
• Shared:
–
–
–
–
–
–
Instance Limit
EBS volumes
Snapshots
Instance Sizes
Zones
Regions

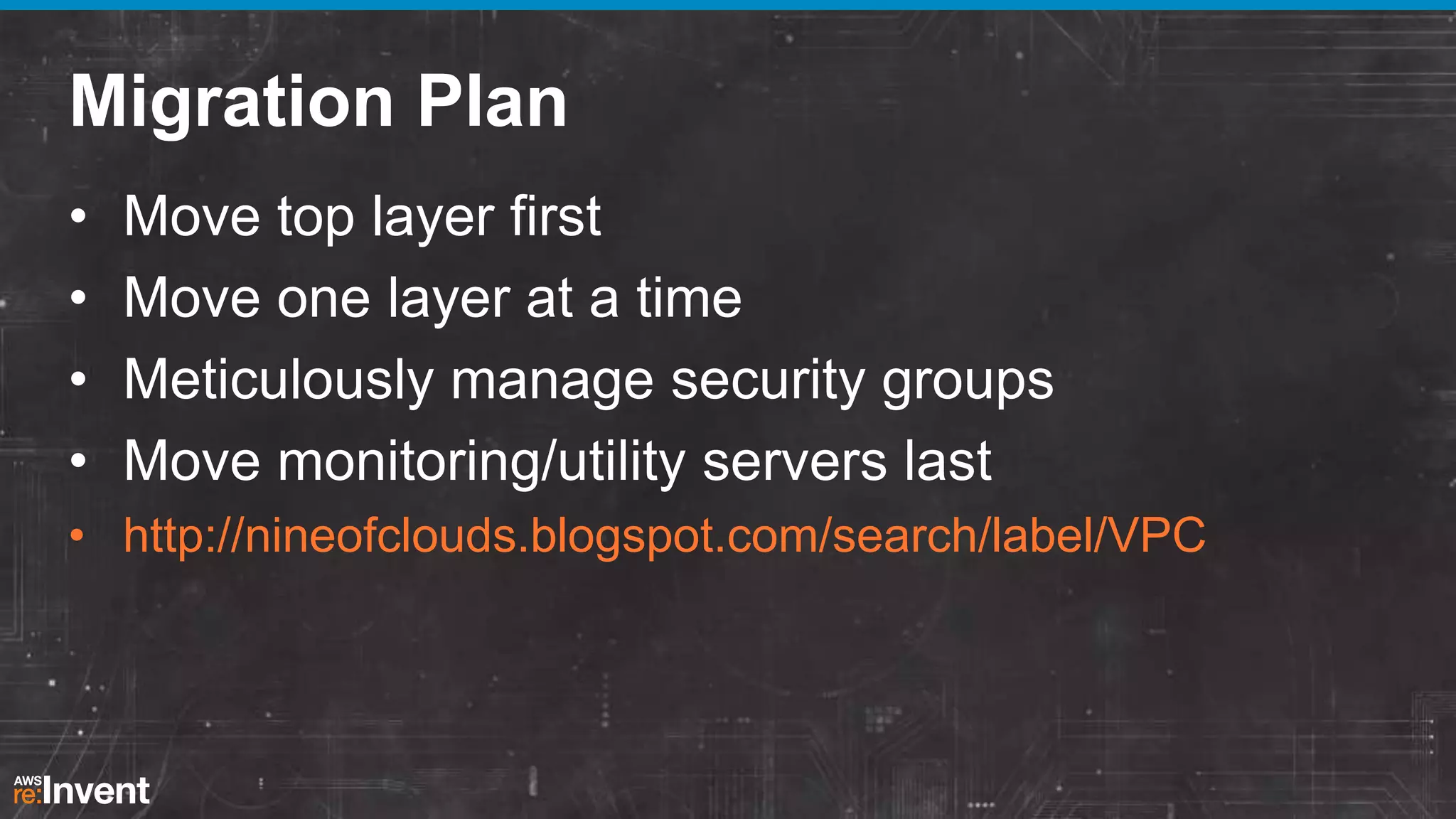

12. Migration Plan
•
•
•
•
Move top layer first
Move one layer at a time
Meticulously manage security groups
Move monitoring/utility servers last
• http://nineofclouds.blogspot.com/search/label/VPC

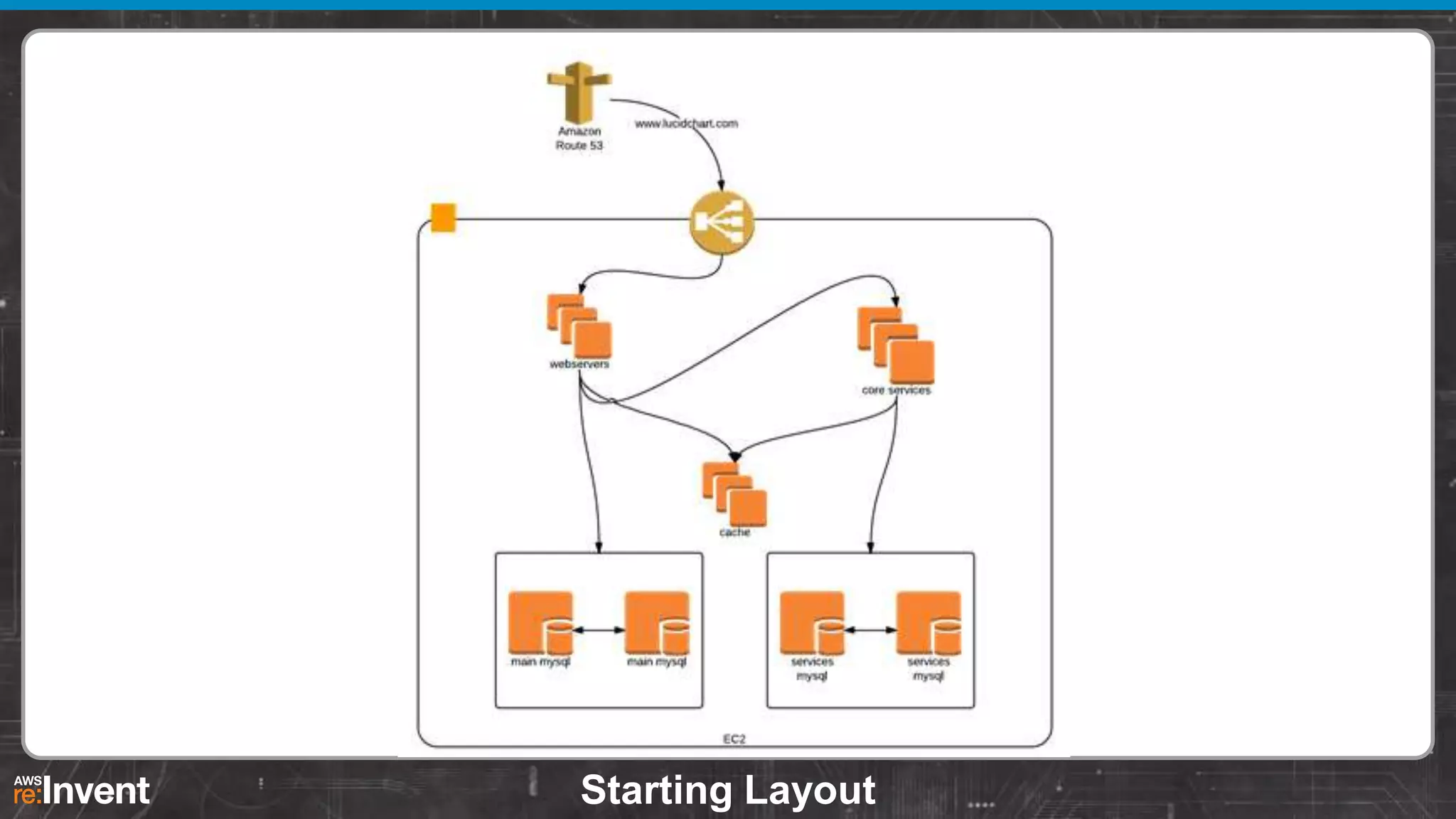

13. Starting Layout

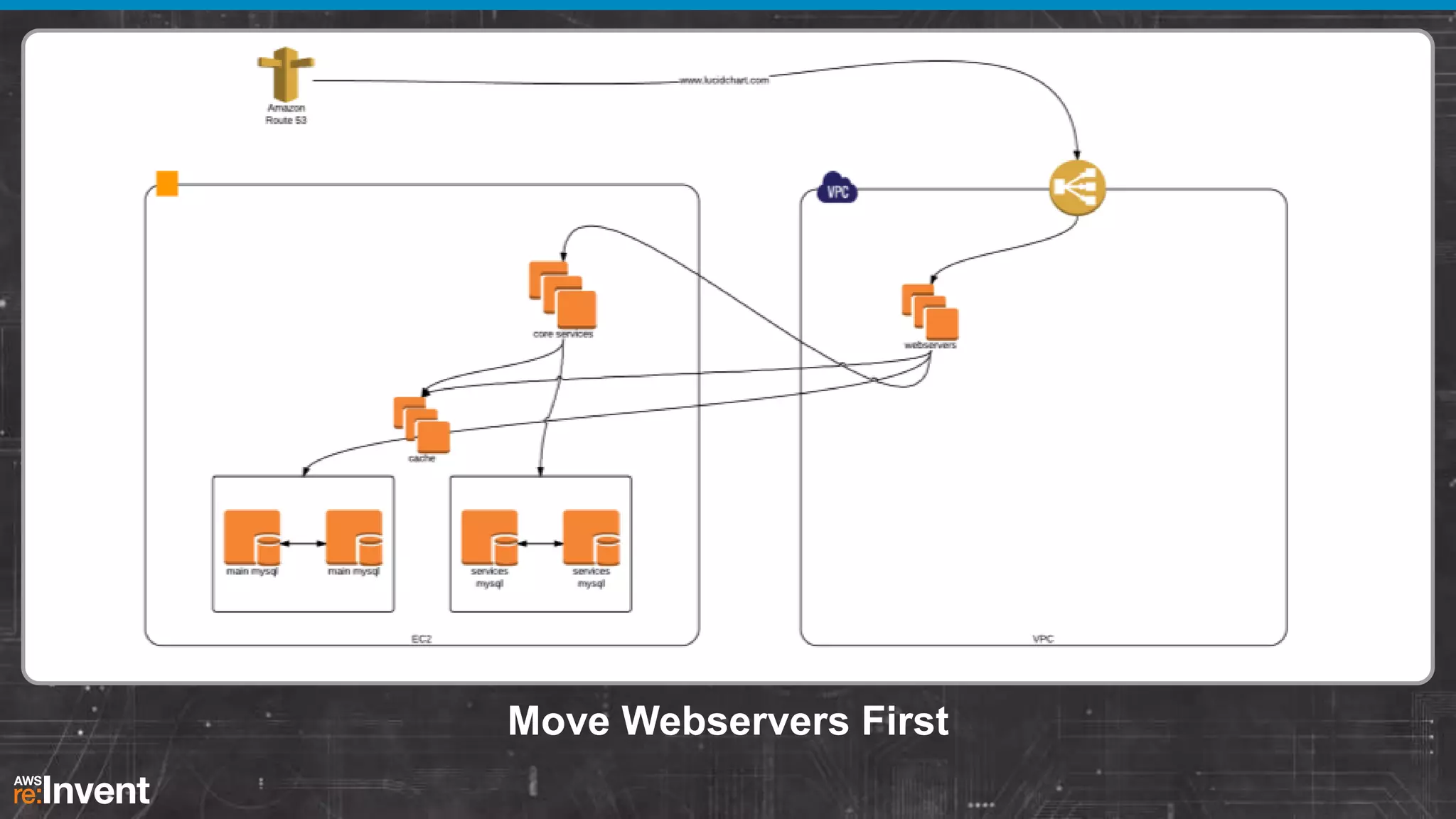

14. Move Webservers First

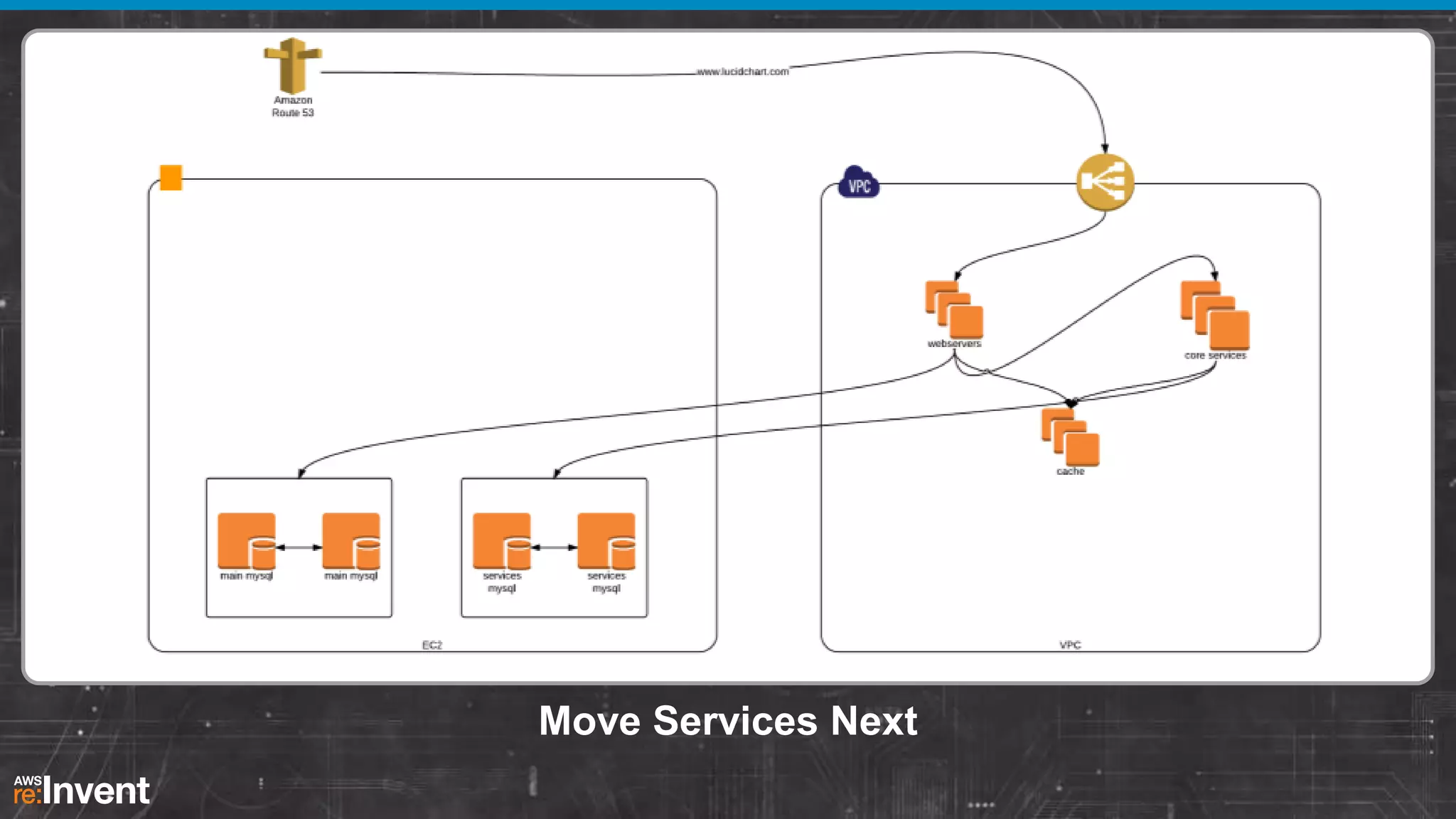

15. Move Services Next

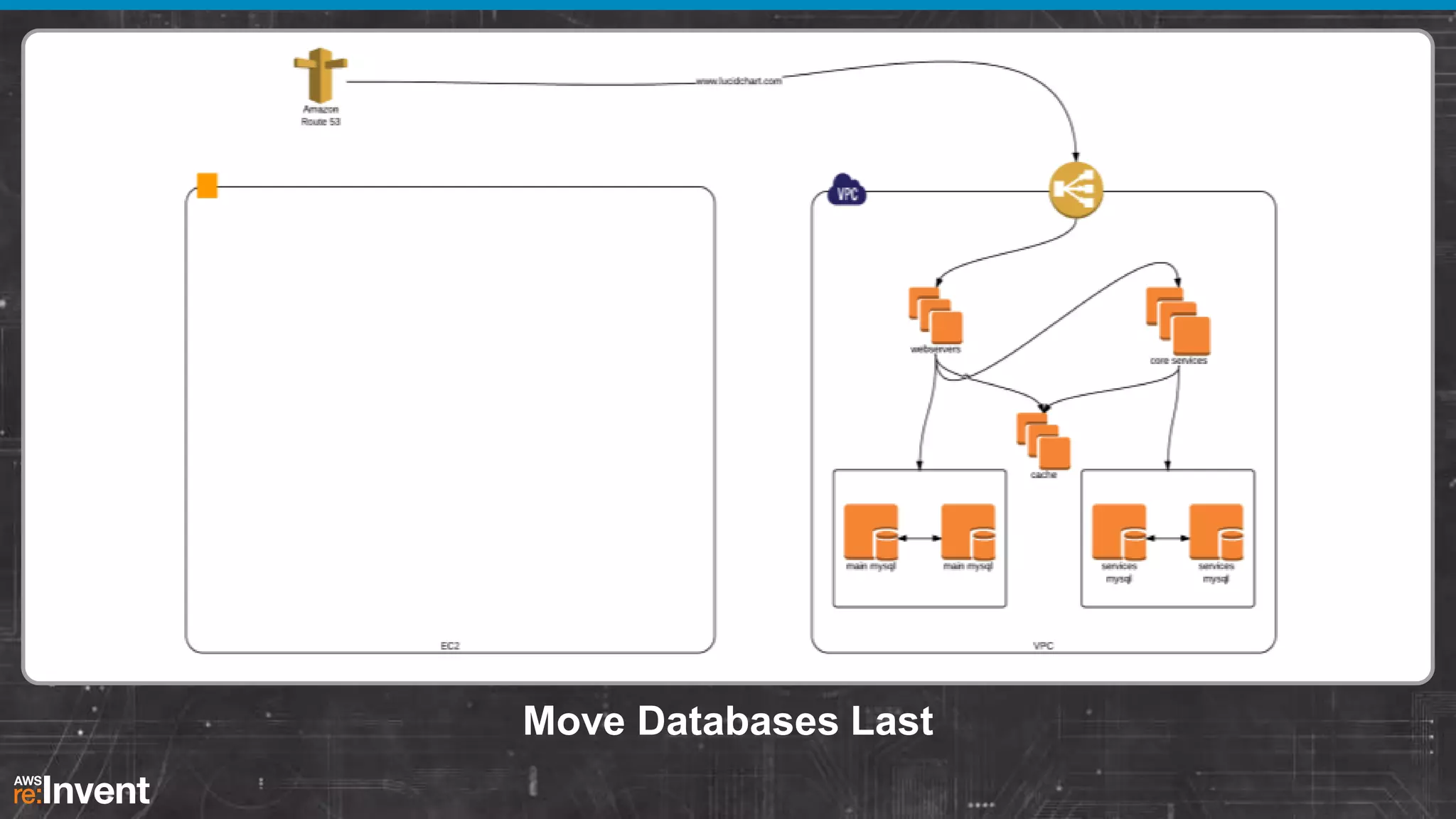

16. Move Databases Last

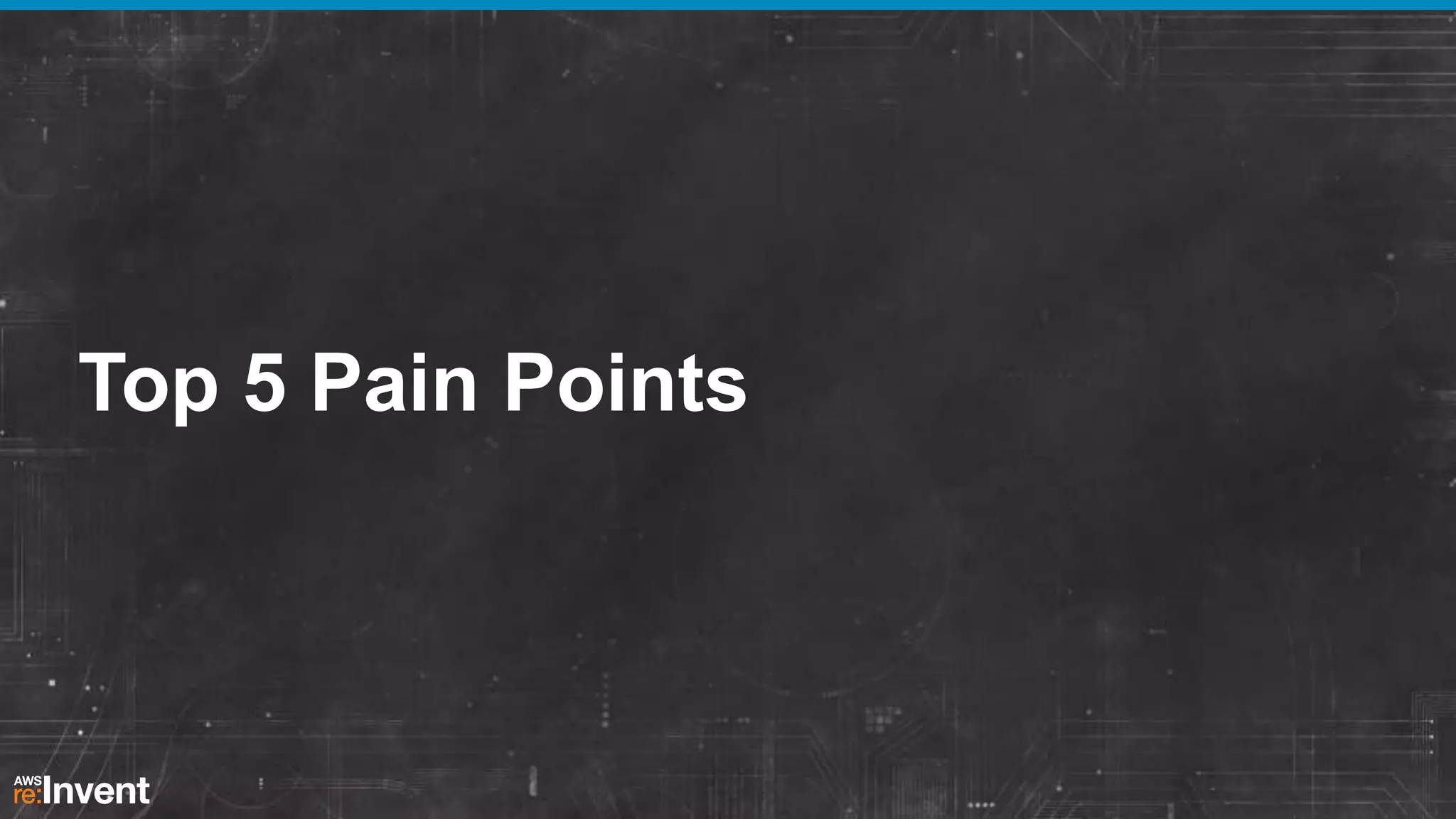

17. Top 5 Pain Points

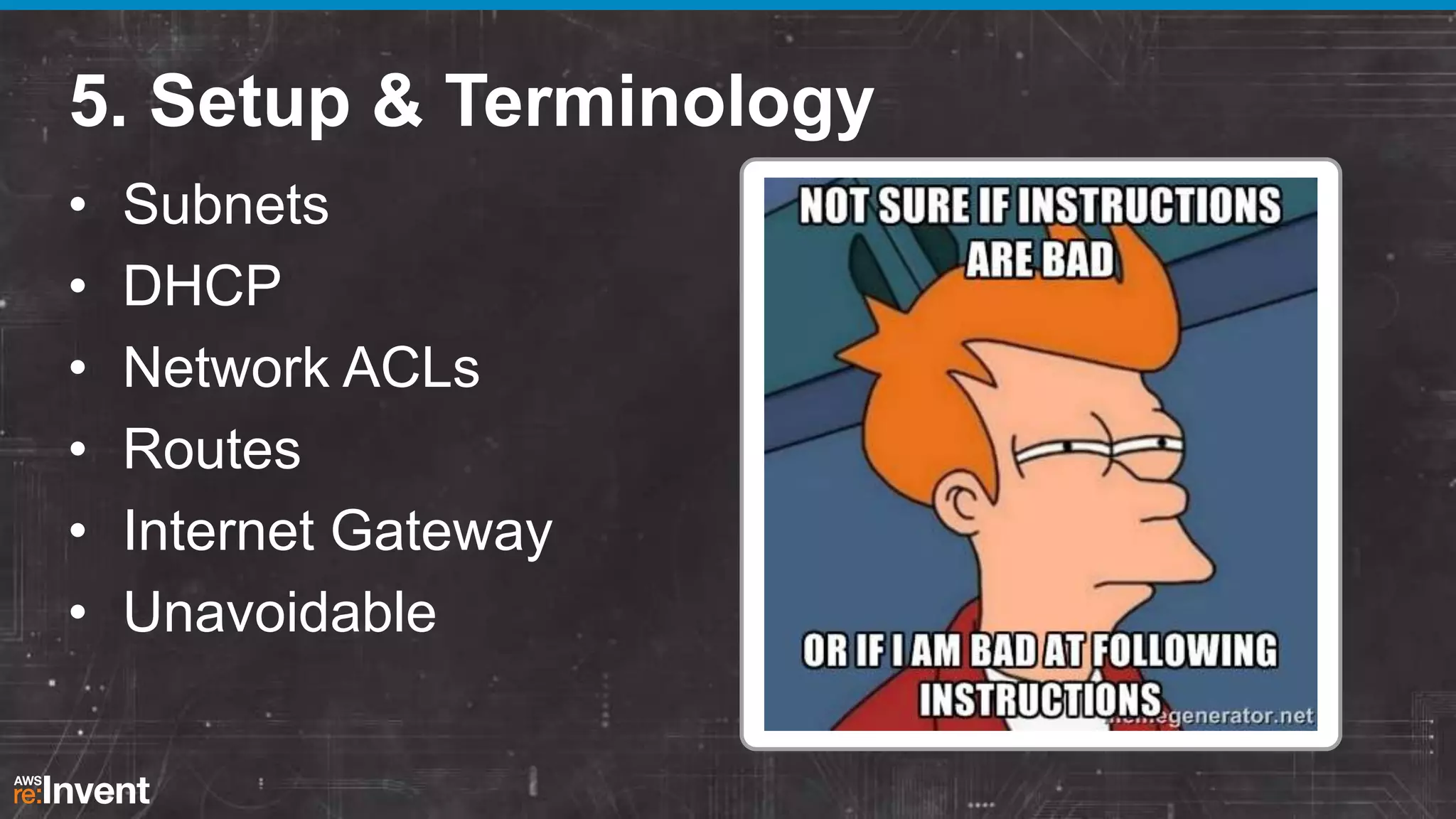

18. 5. Setup & Terminology
•
•
•
•
•
•
Subnets
DHCP
Network ACLs
Routes
Internet Gateway
Unavoidable

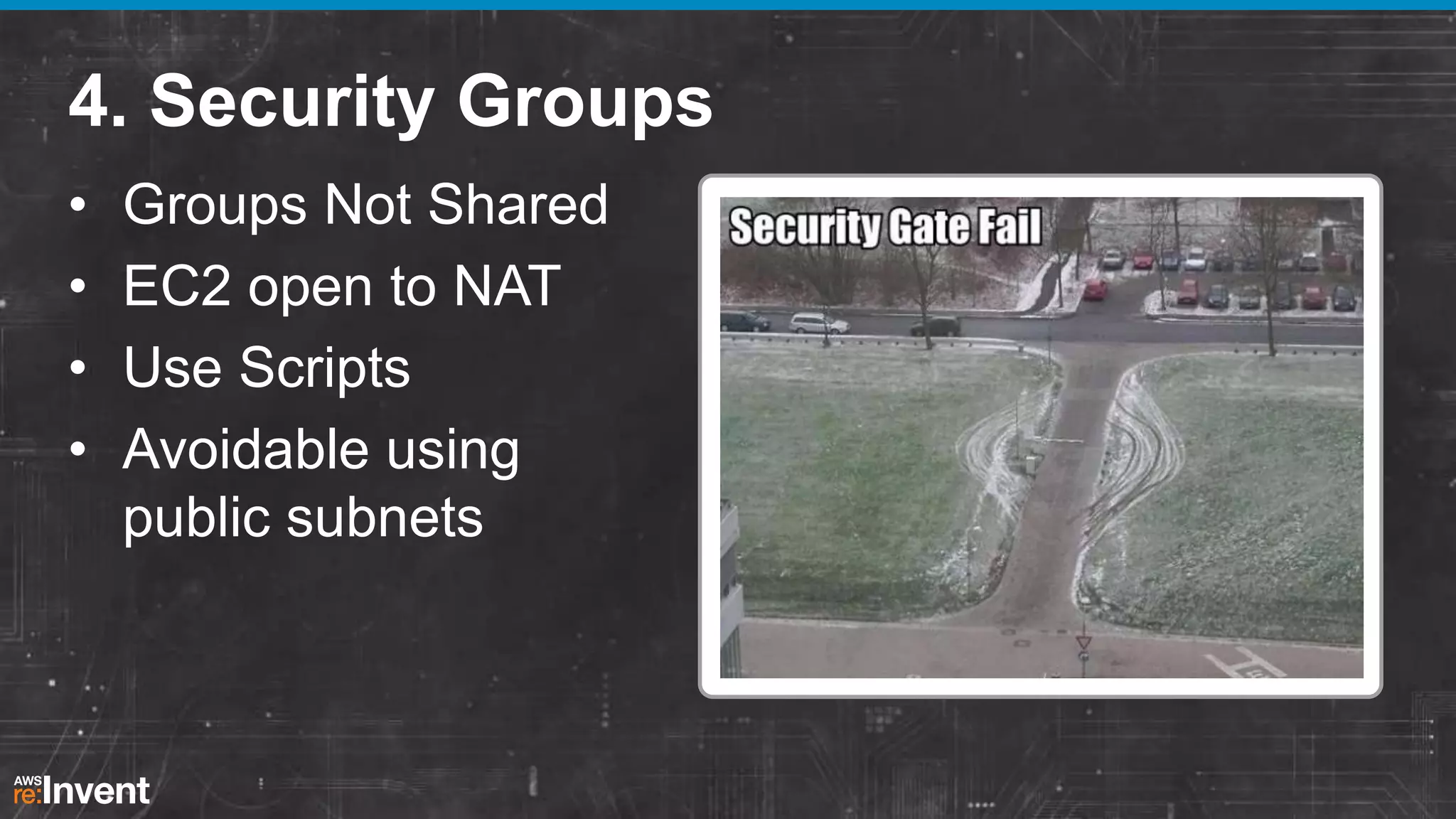

19. 4. Security Groups
•
•
•
•
Groups Not Shared
EC2 open to NAT
Use Scripts
Avoidable using
public subnets

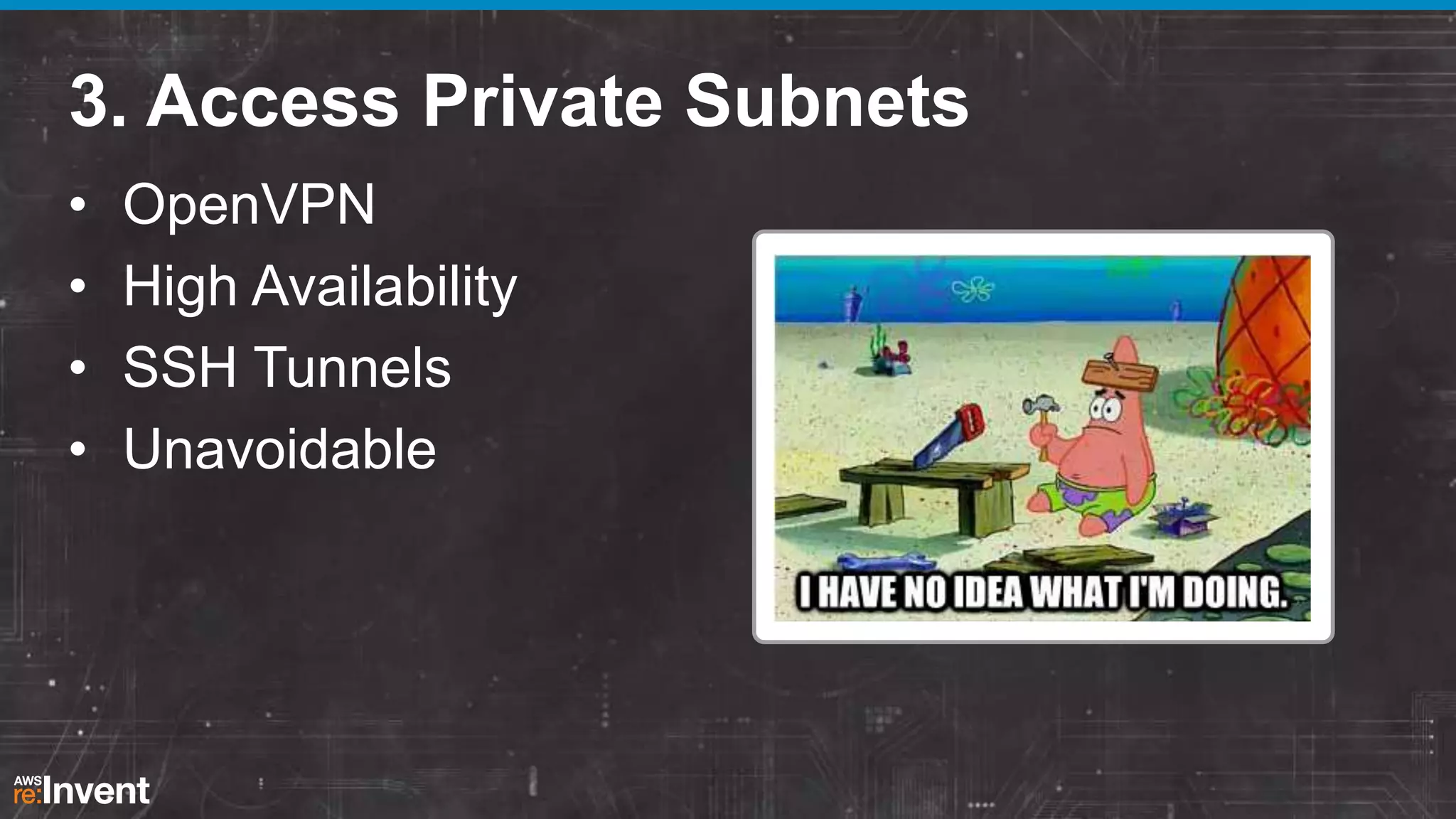

20. 3. Access Private Subnets
•
•
•
•
OpenVPN
High Availability
SSH Tunnels
Unavoidable

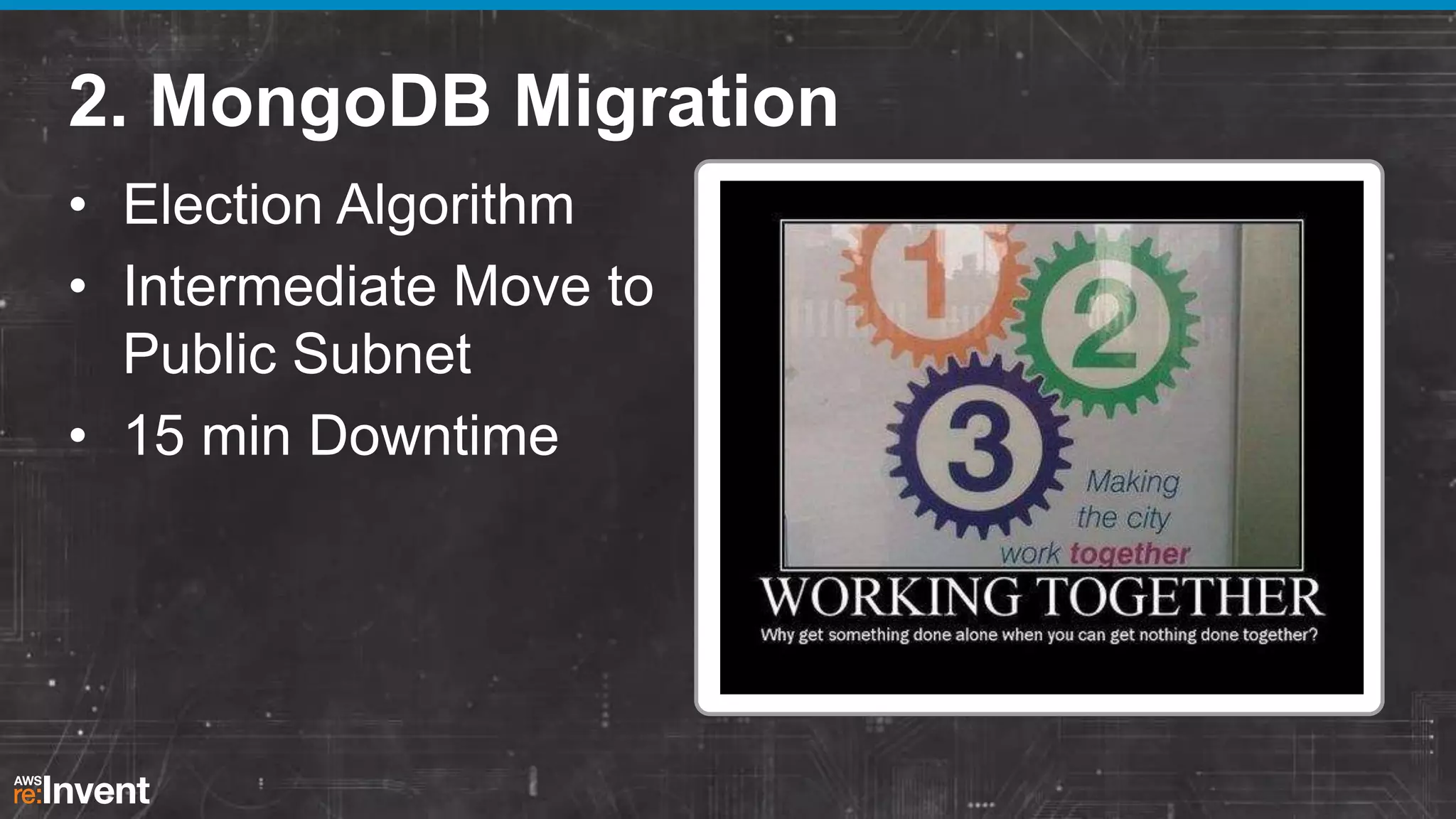

21. 2. MongoDB Migration
• Election Algorithm
• Intermediate Move to
Public Subnet
• 15 min Downtime

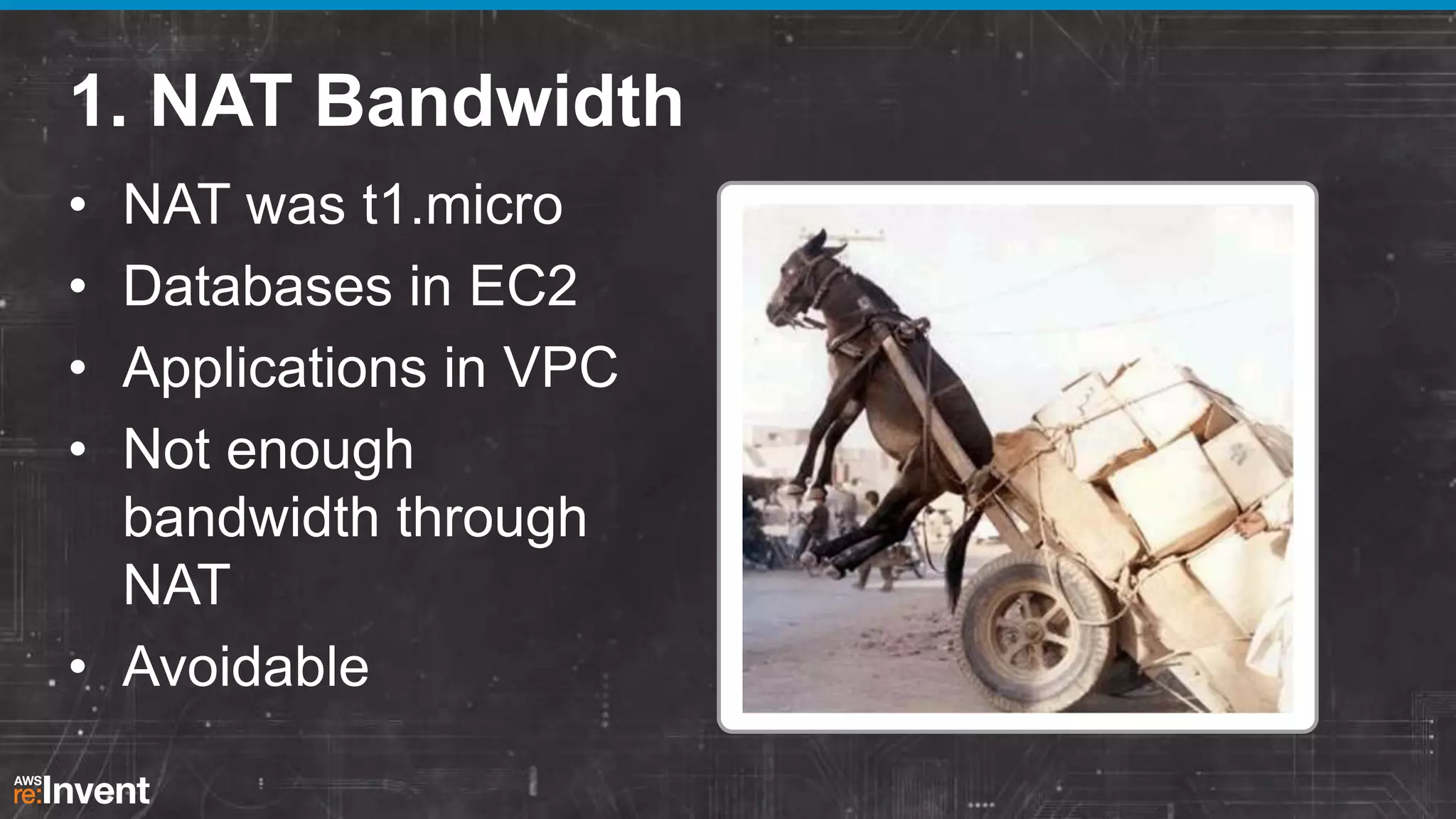

22. 1. NAT Bandwidth
•
•
•
•
NAT was t1.micro
Databases in EC2
Applications in VPC
Not enough
bandwidth through
NAT
• Avoidable

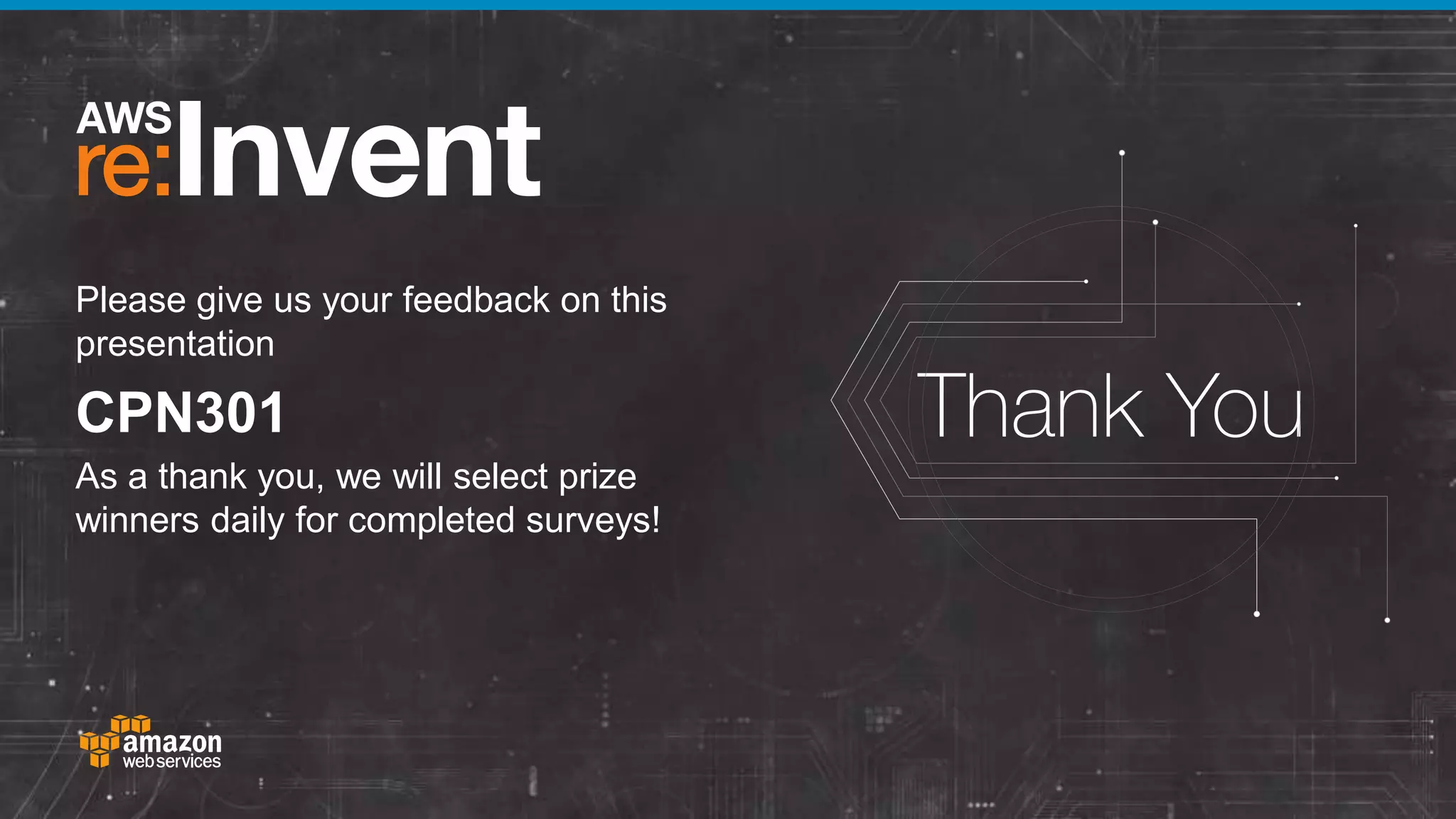

23. Please give us your feedback on this
presentation
CPN301
As a thank you, we will select prize
winners daily for completed surveys!
