AUGMENTED REALITY
Narendra Kumar Jha
1602-13-725-313
Contents
Introduction
Augmented reality
o Augmented reality vs Virtual reality
o History
o Augmenting our world
Implementation
Components of AR system
o Display technology
o Tracking & orientation
o Software requirement
Applications
Recent development
Limitations
Looking into future..
Conclusion
References
Introduction
Augmented reality will truly change the way we view the world. Picture
yourself walking or driving down the street with augmented-reality
displays, which will eventually look much like a normal pair of glasses,
informative graphics will appear in your field of view, and audio will
coincide with whatever you see. These enhancements will be refreshed
continually to reflect the movements of your head. In this article, we
will take a look at this future technology, its components and how it will
be used.
Augmented Reality
It is the process of superimposing digitally
rendered images onto our real world surroundings.
 Recent developments have made this technology
accessible using a Smartphone.
The world environment around us provides a
wealth of information that is difficult to duplicate in a
computer.
Also the computer cannot know on its own about
what we are looking for.
 With the help of advanced AR technology (e.g.
adding computer vision and object recognition) the
information about the surrounding real world of the
user becomes interactive and digitally manipulable.
Augmented reality vs Virtual reality
Augmented reality vs Virtual reality
Augmented reality is closer to the real
world. Augmented reality add graphics and
sounds to the natural world, as it exists.
Thus it augments the real world scene in
such a way that the user can maintain a
sense of presence in that world.
That is ,the user can interact with the real
world, and at the same time can see, both
the real and virtual world co-existing.
User is not cut off from the reality.
Virtual reality creates immersive,
computer generated environments which
replaces real world.
Here the head mounted displays block out
all the external world from the viewer and
they have no sense of presence.
Virtual reality serves for at totally
immersive environment . The senses are
under control of the system.
The user is completely immersed is an
artificial world and cut off from real
world.

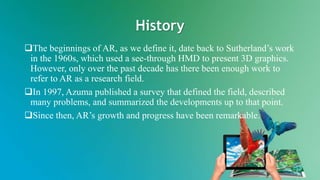

History
The beginnings of AR, as we define it, date back to Sutherland’s work
in the 1960s, which used a see-through HMD to present 3D graphics.
However, only over the past decade has there been enough work to
refer to AR as a research field.
In 1997, Azuma published a survey that defined the field, described
many problems, and summarized the developments up to that point.
Since then, AR’s growth and progress have been remarkable.
Augmenting Our World
The basic idea of augmented reality is to
superimpose graphics, audio and other sense
enhancements over a real-world environment in
real-time.
Sounds pretty simple. Besides, haven't
television networks been doing that with
graphics for decades?
These systems display graphics for only one
point of view. Next-generation augmented-
reality systems will display graphics for each
viewer's perspective.
How Does It Work?
Camera scans the target image.
Various parameters like distance from the target, orientation of the
camera with respect to target, are calculated from camera using
sensors.
The software application takes all these values and after using
processing techniques it overlays digital information over the target in
the display.
Implementation
To implement there are
three things that we require
to do,
i) find user’s location and
orientation (view)
ii) generating information
iii) augmenting it to user’s
view
Find user’s
location and
orientation
Generate data
Augment
generated data to
user’s view
Components of AR system
Here are the four components needed to make an augmented-reality
system work:
Display
Tracking system
Input device
Software application
Display technologies
Monitor Based Display
Head Mounted Displays:
Video see-through
Optical see-through

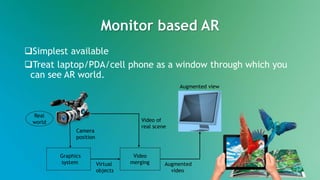

Monitor based AR
Simplest available
Treat laptop/PDA/cell phone as a window through which you
can see AR world.
Real
world
Camera
position
Augmented view
Virtual
objects
Graphics
system
Video of
real scene
Video
merging Augmented
video
Head-mounted displays
Head-mounted displays (HMDs) will enable us to view graphics and
text created by augmented-reality systems through a wearable
device.
There are two basic types of HMDs:
1. video see-through
2. optical see-through

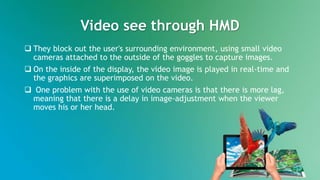

Video see through HMD
 They block out the user's surrounding environment, using small video
cameras attached to the outside of the goggles to capture images.
 On the inside of the display, the video image is played in real-time and
the graphics are superimposed on the video.
 One problem with the use of video cameras is that there is more lag,
meaning that there is a delay in image-adjustment when the viewer
moves his or her head.
Video see through HMD
Optical see through HMD
 Optical see through is not fully realized yet.
 It is supposed to consist of ordinary looking
pair of glasses that will have light source on
the side to project digital images onto the
glass.
Tracking and orientation
The biggest challenge facing developers of augmented reality
is the need to know where the user is located in reference to
his or her surroundings.
There's also the additional problem of tracking the movement
of users' eyes and heads.
AR system needs to know
1. Where is the user located (position)
2. Where is the user looking (orientation)
Tracking and orientation
Modern mobile augmented-reality systems use one or more of
the following tracking technologies: digital cameras and/or
optical sensors, accelerometers, GPS, gyroscopes, solid state
compass.
 These technologies offer varying levels of accuracy and
precision.
Tracking the user's hand(s) or a handheld input device can
provide a 6DOF (degrees of freedom) interaction technique.

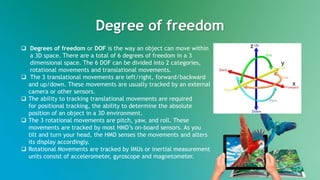

Degree of freedom
 Degrees of freedom or DOF is the way an object can move within
a 3D space. There are a total of 6 degrees of freedom in a 3
dimensional space. The 6 DOF can be divided into 2 categories,
rotational movements and translational movements.
 The 3 translational movements are left/right, forward/backward
and up/down. These movements are usually tracked by an external
camera or other sensors.
 The ability to tracking translational movements are required
for positional tracking, the ability to determine the absolute
position of an object in a 3D environment.
 The 3 rotational movements are pitch, yaw, and roll. These
movements are tracked by most HMD’s on-board sensors. As you
tilt and turn your head, the HMD senses the movements and alters
its display accordingly.
 Rotational Movements are tracked by IMUs or inertial measurement
units consist of accelerometer, gyroscope and magnetometer.
x
y
z
Input devices
Techniques include speech recognition systems that translate a user's spoken words into
computer instructions and gesture recognition systems that can interpret a user's body
movements by visual detection or from sensors embedded in a peripheral device such as
a wand, stylus, pointer, glove or other body wear.
Wearable computer analyzes the sensed visual and other data to synthesize and position
augmentations.
A wearable computer is a battery powered computer system worn on the user’s
body(belt, backpack etc).
It is designed for mobile & predominantly hand free operations often incorporating
head mounted display & speech input.

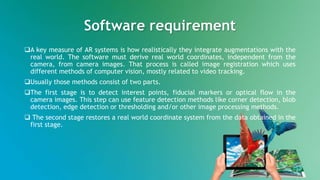

Software requirement
A key measure of AR systems is how realistically they integrate augmentations with the
real world. The software must derive real world coordinates, independent from the
camera, from camera images. That process is called image registration which uses
different methods of computer vision, mostly related to video tracking.
Usually those methods consist of two parts.
The first stage is to detect interest points, fiducial markers or optical flow in the
camera images. This step can use feature detection methods like corner detection, blob
detection, edge detection or thresholding and/or other image processing methods.
 The second stage restores a real world coordinate system from the data obtained in the
first stage.
Applications
AR in education:
In educational field, AR has been used to complement a standard
curriculum. Text, graphics, video and audio were superimposed
into a student’s real time environment. Textbooks, flashcards and
other educational reading material contained embedded “markers”
or triggers that, when scanned by an AR device, produced
supplementary information to the student rendered in a
multimedia format.
Anatomy students could visualize different systems of the human
body in three dimensions.
AR in industrial design:
AR allowed industrial designers to experience a product's design
and operation before completion. Volkswagen used AR for
comparing calculated and actual crash test imagery.
Applications
AR in architecture:
AR can aid in visualizing building projects. This was
demonstrated publicly by Trimble Navigation in 2004.
 AR can also be employed within an architect's work space,
rendering into their view animated 3D visualizations of
their 2D drawings.
Augmented reality is applied to present new projects, to
solve on-site construction challenges, and to enhance
promotional materials. Examples include the Daqri Smart
Helmet, an Android-powered hard hat.
Applications
AR in defence:
The military has been devising uses for augmented
reality for decades. The idea here is that an
augmented-reality system could provide troops with
vital information about their surroundings, such as
showing where entrances are on the opposite end of a
building, somewhat like X-ray vision.
Augmented reality displays could also highlight troop
movements, and give soldiers the ability to move to
where the enemy can't see them.
In combat, AR can serve as a networked
communication system that renders useful battlefield
data onto a soldier's goggles in real time. From the
soldier's viewpoint, people and various objects can be
marked with special indicators to warn of potential
danger.
Applications
AR in commerce:
AR is used to integrate print and video marketing.
Printed marketing material can be designed with
certain "trigger" images that, when scanned by an AR
enabled device using image recognition, activate a
video version of the promotional material.
AR can enhance product previews such as allowing a
customer to view what's inside a product's packaging
without opening it.
AR can also be used as an aid in selecting products
from a catalog or through a kiosk. Scanned images of
products can activate views of additional content
such as customization options and additional images
of the product in its use.
Applications
AR applied in the visual arts allows objects or places
to trigger artistic multidimensional experiences and
interpretations of reality.
AR has become common in sports telecasting. Sports
and entertainment venues are provided with see-
through and overlay augmentation through tracked
camera feeds for enhanced viewing by the audience.
AR can also be used to depict historic events
occurred at the historic places for the viewing of the
users.
AR is also used for navigation purposes and to locate
different places.
Recent development
HOLOLENS:
The Microsoft Hololens demos showed that
AR can be social, collaborative, and in the
real world. More importantly, you forget
that you’re even wearing it.
It is more about solving problems, creating
new products, and editing models in a 3D
environment to better visualize the final
product.
Limitations
Accurate tracking and orientation.
Update rate for generating the augmented image also limits the performance of AR.
The concept of modern augmented reality depends on the ability of the device to
record and analyze the environment in real time. Because of this, there are potential
legal concerns over privacy.
Failure in image registration may arise due to noise, time delays or distorted images.
People working in an augmented reality are more sensitive to alignment errors. Proper
calibration and alignment with the reference frame of the world is crucial.
Looking into future
Expanding a PC screen to real environment like program windows & icons appear as
virtual display in real space & are eye or gesture operated, by gazing or pointing.
Replacement of cell phones: eye dialing, insertion of information directly into
environment.
It may allow computer-generated imagery to interact with live entertainers and
audience.
By 2020, AR will find its way in many more fields and it will come within the reach of
common man.
Conclusion
Augmented reality is another step further into the digital age as we
will soon see our environments change dynamically either through a
Smartphone, glasses, car windshields and even windows in the near
future to display enhanced content and media right in front of us.
This has amazing applications that can very well allow us to live our
lives more productively, more safely, and more informatively.

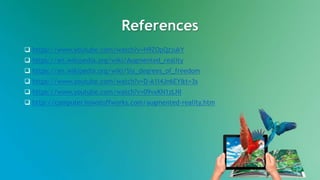

References
 https://www.youtube.com/watch?v=H9ZOpQzjukY
 https://en.wikipedia.org/wiki/Augmented_reality
 https://en.wikipedia.org/wiki/Six_degrees_of_freedom
 https://www.youtube.com/watch?v=D-A1l4Jn6EY&t=3s
 https://www.youtube.com/watch?v=09vxKN1zLNI
 http://computer.howstuffworks.com/augmented-reality.htm
Augmented reality

More Related Content

What's hot

Augmented reality ppt
Augmented reality pptAugmented reality ppt
Augmented reality ppt
Sourav Rout

Augmented reality
Augmented realityAugmented reality
Augmented reality
Shubham Pahune

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
Apurva Hyanki

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
Akash J Nair

Virtual reality VS Augmented Reality
Virtual reality VS Augmented RealityVirtual reality VS Augmented Reality
Virtual reality VS Augmented Reality
jahangir kiyani

Augmented reality ppt
Augmented reality pptAugmented reality ppt
Augmented reality ppt
Krunal Ambodkar

Augmented reality The future of computing
Augmented reality The future of computingAugmented reality The future of computing
Augmented reality The future of computing
Abhishek Abhi

Augmented reality ppt
Augmented reality pptAugmented reality ppt
Augmented reality ppt
Dark Side

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
Ajay Sankar

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
Medha Behera

Virtual Reality and Augmented Reality
Virtual Reality and Augmented RealityVirtual Reality and Augmented Reality
Virtual Reality and Augmented Reality
NikitaGour5

Presentation on Virtual reality
Presentation on Virtual realityPresentation on Virtual reality
Presentation on Virtual reality
Md. Salman Ahmed

virtual reality Barkha manral seminar on augmented reality.ppt
virtual reality Barkha manral seminar on augmented reality.pptvirtual reality Barkha manral seminar on augmented reality.ppt
virtual reality Barkha manral seminar on augmented reality.ppt
Barkha Manral

Virtual reality
Virtual realityVirtual reality
Virtual reality
chahat aggarwal

VR - Virtual reality
VR - Virtual realityVR - Virtual reality
VR - Virtual reality
Rohit Jain

Virtual Reality
Virtual RealityVirtual Reality
Virtual Reality
Akshay Patole

Augmented Reality (AR)
Augmented Reality (AR)Augmented Reality (AR)
Augmented Reality (AR)
Ravikeerthi Rao

Augmented reality
Augmented realityAugmented reality
Augmented reality
Niranjan Arya

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
rojalina nanda

Augmented Reality - the next big thing in mobile
Augmented Reality - the next big thing in mobileAugmented Reality - the next big thing in mobile
Augmented Reality - the next big thing in mobile
Hari Gottipati


What's hot (20)

Augmented reality ppt
Augmented reality pptAugmented reality ppt
Augmented reality ppt

Augmented reality
Augmented realityAugmented reality
Augmented reality

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Virtual reality VS Augmented Reality
Virtual reality VS Augmented RealityVirtual reality VS Augmented Reality
Virtual reality VS Augmented Reality

Augmented reality ppt
Augmented reality pptAugmented reality ppt
Augmented reality ppt

Augmented reality The future of computing
Augmented reality The future of computingAugmented reality The future of computing
Augmented reality The future of computing

Augmented reality ppt
Augmented reality pptAugmented reality ppt
Augmented reality ppt

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Virtual Reality and Augmented Reality
Virtual Reality and Augmented RealityVirtual Reality and Augmented Reality
Virtual Reality and Augmented Reality

Presentation on Virtual reality
Presentation on Virtual realityPresentation on Virtual reality
Presentation on Virtual reality

virtual reality Barkha manral seminar on augmented reality.ppt
virtual reality Barkha manral seminar on augmented reality.pptvirtual reality Barkha manral seminar on augmented reality.ppt
virtual reality Barkha manral seminar on augmented reality.ppt

Virtual reality
Virtual realityVirtual reality
Virtual reality

VR - Virtual reality
VR - Virtual realityVR - Virtual reality
VR - Virtual reality

Virtual Reality
Virtual RealityVirtual Reality
Virtual Reality

Augmented Reality (AR)
Augmented Reality (AR)Augmented Reality (AR)
Augmented Reality (AR)

Augmented reality
Augmented realityAugmented reality
Augmented reality

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Augmented Reality - the next big thing in mobile
Augmented Reality - the next big thing in mobileAugmented Reality - the next big thing in mobile
Augmented Reality - the next big thing in mobile


Viewers also liked

Augmented Reality ppt
Augmented Reality pptAugmented Reality ppt
Augmented Reality ppt
Khyati Ganatra

Augmented Reality Presentation
Augmented Reality PresentationAugmented Reality Presentation
Augmented Reality Presentation
SJSU

AR - Augmented Reality
AR - Augmented RealityAR - Augmented Reality
AR - Augmented Reality
drstupid

A Survey of Augmented Reality
A Survey of Augmented RealityA Survey of Augmented Reality
A Survey of Augmented Reality
Mark Billinghurst

Social Interaction Design For Augmented Reality: Patterns and Principles for ...
Social Interaction Design For Augmented Reality: Patterns and Principles for ...Social Interaction Design For Augmented Reality: Patterns and Principles for ...
Social Interaction Design For Augmented Reality: Patterns and Principles for ...
Joe Lamantia

Designing for an Augmented Reality world
Designing for an Augmented Reality worldDesigning for an Augmented Reality world
Designing for an Augmented Reality world
thomas.purves

Augmented Reality - From Marketing Buzzword To A Better Consumer Experience
Augmented Reality - From Marketing Buzzword To A Better Consumer ExperienceAugmented Reality - From Marketing Buzzword To A Better Consumer Experience
Augmented Reality - From Marketing Buzzword To A Better Consumer Experience
Matthew Szymczyk

Augmented Reality and Education: Learning connected to life - Reloaded
Augmented Reality and Education: Learning connected to life - ReloadedAugmented Reality and Education: Learning connected to life - Reloaded
Augmented Reality and Education: Learning connected to life - Reloaded
Raúl Reinoso

Introduction to Augmented Reality
Introduction to Augmented RealityIntroduction to Augmented Reality
Introduction to Augmented Reality
Mark Billinghurst

AUGMENTED REALITY
AUGMENTED REALITYAUGMENTED REALITY
Augmented Reality and Google Glass
Augmented Reality and Google GlassAugmented Reality and Google Glass
Augmented Reality and Google Glass
Marta Rauch

Tracxn Research — Augmented Reality Landscape, November 2016
Tracxn Research — Augmented Reality Landscape, November 2016Tracxn Research — Augmented Reality Landscape, November 2016
Tracxn Research — Augmented Reality Landscape, November 2016
Tracxn

Augmented Reality in Education
Augmented Reality in Education Augmented Reality in Education
Augmented Reality in Education
K3 Hamilton

AUGMENTED REALITY PPT's
AUGMENTED REALITY PPT'sAUGMENTED REALITY PPT's
AUGMENTED REALITY PPT's
Venu Gopal

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
Michael Bartl

Augmented Reality for Architects
Augmented Reality for ArchitectsAugmented Reality for Architects
Augmented Reality for Architects
Gaurav Kudalkar

Mobile Augmented Reality
Mobile Augmented RealityMobile Augmented Reality
Mobile Augmented Reality
Marios Bikos

"Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat...
"Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat..."Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat...
"Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat...
Edge AI and Vision Alliance

Augmented Reality (AR) in Education
Augmented Reality (AR) in EducationAugmented Reality (AR) in Education
Augmented Reality (AR) in Education
Steve Yuen


Viewers also liked (19)

Augmented Reality ppt
Augmented Reality pptAugmented Reality ppt
Augmented Reality ppt

Augmented Reality Presentation
Augmented Reality PresentationAugmented Reality Presentation
Augmented Reality Presentation

AR - Augmented Reality
AR - Augmented RealityAR - Augmented Reality
AR - Augmented Reality

A Survey of Augmented Reality
A Survey of Augmented RealityA Survey of Augmented Reality
A Survey of Augmented Reality

Social Interaction Design For Augmented Reality: Patterns and Principles for ...
Social Interaction Design For Augmented Reality: Patterns and Principles for ...Social Interaction Design For Augmented Reality: Patterns and Principles for ...
Social Interaction Design For Augmented Reality: Patterns and Principles for ...

Designing for an Augmented Reality world
Designing for an Augmented Reality worldDesigning for an Augmented Reality world
Designing for an Augmented Reality world

Augmented Reality - From Marketing Buzzword To A Better Consumer Experience
Augmented Reality - From Marketing Buzzword To A Better Consumer ExperienceAugmented Reality - From Marketing Buzzword To A Better Consumer Experience
Augmented Reality - From Marketing Buzzword To A Better Consumer Experience

Augmented Reality and Education: Learning connected to life - Reloaded
Augmented Reality and Education: Learning connected to life - ReloadedAugmented Reality and Education: Learning connected to life - Reloaded
Augmented Reality and Education: Learning connected to life - Reloaded

Introduction to Augmented Reality
Introduction to Augmented RealityIntroduction to Augmented Reality
Introduction to Augmented Reality

AUGMENTED REALITY
AUGMENTED REALITYAUGMENTED REALITY
AUGMENTED REALITY

Augmented Reality and Google Glass
Augmented Reality and Google GlassAugmented Reality and Google Glass
Augmented Reality and Google Glass

Tracxn Research — Augmented Reality Landscape, November 2016
Tracxn Research — Augmented Reality Landscape, November 2016Tracxn Research — Augmented Reality Landscape, November 2016
Tracxn Research — Augmented Reality Landscape, November 2016

Augmented Reality in Education
Augmented Reality in Education Augmented Reality in Education
Augmented Reality in Education

AUGMENTED REALITY PPT's
AUGMENTED REALITY PPT'sAUGMENTED REALITY PPT's
AUGMENTED REALITY PPT's

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Augmented Reality for Architects
Augmented Reality for ArchitectsAugmented Reality for Architects
Augmented Reality for Architects

Mobile Augmented Reality
Mobile Augmented RealityMobile Augmented Reality
Mobile Augmented Reality

"Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat...
"Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat..."Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat...
"Embedded Vision in Augmented Reality: Trends and Opportunities," a Presentat...

Augmented Reality (AR) in Education
Augmented Reality (AR) in EducationAugmented Reality (AR) in Education
Augmented Reality (AR) in Education


Similar to Augmented reality

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality
Md. Al-Faran Hasan Sadat

Augmented Reality By Jaseem Bhutto
Augmented Reality By Jaseem BhuttoAugmented Reality By Jaseem Bhutto
Augmented Reality By Jaseem Bhutto
Jaseem Bhutto

AN Introduction to Augmented Reality(AR)
AN Introduction to Augmented Reality(AR)AN Introduction to Augmented Reality(AR)
AN Introduction to Augmented Reality(AR)
Jai Sipani

AUGMENTED REALITY Documentation
AUGMENTED REALITY DocumentationAUGMENTED REALITY Documentation
AUGMENTED REALITY Documentation
Venu Gopal

Augumented Reality
Augumented RealityAugumented Reality
Augumented Reality
zgol

augmented reality
augmented realityaugmented reality
augmented reality
Dark Side

Augmented reality(my ppt)
Augmented reality(my ppt)Augmented reality(my ppt)
Augmented reality(my ppt)
Srilakshmi Alla

augmented_reality.ppt
augmented_reality.pptaugmented_reality.ppt
augmented_reality.ppt
AdityaKumar421752

augmented reality paper presentation
augmented reality paper presentationaugmented reality paper presentation
augmented reality paper presentation
Vaibhav Mehta

Augmented reality(ar) seminar
Augmented reality(ar) seminarAugmented reality(ar) seminar
Augmented reality(ar) seminar
Harshith Booragadda

Augmented reality
Augmented realityAugmented reality
Augmented reality
Shashi Bhushan

Augmented-Reality-ppt.pptx
Augmented-Reality-ppt.pptxAugmented-Reality-ppt.pptx
Augmented-Reality-ppt.pptx
MarvalousMohan

Augmented Reality Report by Singhan Ganguly
Augmented Reality Report by Singhan GangulyAugmented Reality Report by Singhan Ganguly
Augmented Reality Report by Singhan Ganguly
singhanganguly

Notes for AR.ppt
Notes for AR.pptNotes for AR.ppt
Notes for AR.ppt
Arumugam90

Virtual Reality(full)
Virtual Reality(full)Virtual Reality(full)
Virtual Reality(full)
Mahesh Singh Madai

Augmented reality
Augmented realityAugmented reality
Augmented reality
Kritiverma22

44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt
AjayPoonia22

44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt
Nagulahimasri

Augmented reality and virtual reality technology
Augmented reality and virtual reality technologyAugmented reality and virtual reality technology
Augmented reality and virtual reality technology
AMAN148668

Augmented reality
Augmented realityAugmented reality
Augmented reality
Praneeth Kakani


Similar to Augmented reality (20)

Augmented Reality
Augmented RealityAugmented Reality
Augmented Reality

Augmented Reality By Jaseem Bhutto
Augmented Reality By Jaseem BhuttoAugmented Reality By Jaseem Bhutto
Augmented Reality By Jaseem Bhutto

AN Introduction to Augmented Reality(AR)
AN Introduction to Augmented Reality(AR)AN Introduction to Augmented Reality(AR)
AN Introduction to Augmented Reality(AR)

AUGMENTED REALITY Documentation
AUGMENTED REALITY DocumentationAUGMENTED REALITY Documentation
AUGMENTED REALITY Documentation

Augumented Reality
Augumented RealityAugumented Reality
Augumented Reality

augmented reality
augmented realityaugmented reality
augmented reality

Augmented reality(my ppt)
Augmented reality(my ppt)Augmented reality(my ppt)
Augmented reality(my ppt)

augmented_reality.ppt
augmented_reality.pptaugmented_reality.ppt
augmented_reality.ppt

augmented reality paper presentation
augmented reality paper presentationaugmented reality paper presentation
augmented reality paper presentation

Augmented reality(ar) seminar
Augmented reality(ar) seminarAugmented reality(ar) seminar
Augmented reality(ar) seminar

Augmented reality
Augmented realityAugmented reality
Augmented reality

Augmented-Reality-ppt.pptx
Augmented-Reality-ppt.pptxAugmented-Reality-ppt.pptx
Augmented-Reality-ppt.pptx

Augmented Reality Report by Singhan Ganguly
Augmented Reality Report by Singhan GangulyAugmented Reality Report by Singhan Ganguly
Augmented Reality Report by Singhan Ganguly

Notes for AR.ppt
Notes for AR.pptNotes for AR.ppt
Notes for AR.ppt

Virtual Reality(full)
Virtual Reality(full)Virtual Reality(full)
Virtual Reality(full)

Augmented reality
Augmented realityAugmented reality
Augmented reality

44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt

44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt44328856-Augmented-Reality.ppt
44328856-Augmented-Reality.ppt

Augmented reality and virtual reality technology
Augmented reality and virtual reality technologyAugmented reality and virtual reality technology
Augmented reality and virtual reality technology

Augmented reality
Augmented realityAugmented reality
Augmented reality


Recently uploaded

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS
Celine George

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint
Julie Sarpy

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf
Scholarhat

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides
Celine George

View Inheritance in Odoo 17 - Odoo 17 Slides
View Inheritance in Odoo 17 - Odoo 17  SlidesView Inheritance in Odoo 17 - Odoo 17  Slides
View Inheritance in Odoo 17 - Odoo 17 Slides
Celine George

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254
NurFitriah45

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Murugan Solaiyappan

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
Nguyen Thanh Tu Collection

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book
lakitawilson

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS
Celine George

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17
Celine George

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx
AntonioJarligoCompra

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook
Celine George

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning
Celine George

1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx
UmeshTimilsina1

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW
Murugan Solaiyappan

modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025
NurFitriah45

matatag curriculum education for Kindergarten
matatag curriculum education for Kindergartenmatatag curriculum education for Kindergarten
matatag curriculum education for Kindergarten
SarahAlie1

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
Murugan Solaiyappan

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17
Celine George


Recently uploaded (20)

How to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POSHow to Manage Line Discount in Odoo 17 POS
How to Manage Line Discount in Odoo 17 POS

Allopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation PowerpointAllopathic M1 Srudent Orientation Powerpoint
Allopathic M1 Srudent Orientation Powerpoint

ASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdfASP.NET Core Interview Questions PDF By ScholarHat.pdf
ASP.NET Core Interview Questions PDF By ScholarHat.pdf

How to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 SlidesHow to Add a Filter in the Odoo 17 - Odoo 17 Slides
How to Add a Filter in the Odoo 17 - Odoo 17 Slides

View Inheritance in Odoo 17 - Odoo 17 Slides
View Inheritance in Odoo 17 - Odoo 17  SlidesView Inheritance in Odoo 17 - Odoo 17  Slides
View Inheritance in Odoo 17 - Odoo 17 Slides

modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254modul ajar kelas x bahasa inggris 24/254
modul ajar kelas x bahasa inggris 24/254

Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...
Lecture_Notes_Unit4_Chapter_8_9_10_RDBMS for the students affiliated by alaga...

BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...
BÀI TẬP BỔ TRỢ 4 KỸ NĂNG TIẾNG ANH LỚP 12 - GLOBAL SUCCESS - FORM MỚI 2025 - ...

NAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource BookNAEYC Code of Ethical Conduct Resource Book
NAEYC Code of Ethical Conduct Resource Book

How to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POSHow to Manage Large Scrollbar in Odoo 17 POS
How to Manage Large Scrollbar in Odoo 17 POS

Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17Mail Server Configuration Using App passwords in Odoo 17
Mail Server Configuration Using App passwords in Odoo 17

Parent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docxParent PD Design for Professional Development .docx
Parent PD Design for Professional Development .docx

Odoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On FacebookOdoo 17 Social Marketing - Lead Generation On Facebook
Odoo 17 Social Marketing - Lead Generation On Facebook

Odoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List ScanningOdoo 17 Events - Attendees List Scanning
Odoo 17 Events - Attendees List Scanning

1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx1. Importance_of_reducing_postharvest_loss.pptx
1. Importance_of_reducing_postharvest_loss.pptx

RDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEWRDBMS Lecture Notes Unit4 chapter12 VIEW
RDBMS Lecture Notes Unit4 chapter12 VIEW

modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025modul ajar kelas x bahasa inggris 2024-2025
modul ajar kelas x bahasa inggris 2024-2025

matatag curriculum education for Kindergarten
matatag curriculum education for Kindergartenmatatag curriculum education for Kindergarten
matatag curriculum education for Kindergarten

SEQUNCES Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES  Lecture_Notes_Unit4_chapter11_sequenceSEQUNCES  Lecture_Notes_Unit4_chapter11_sequence
SEQUNCES Lecture_Notes_Unit4_chapter11_sequence

How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17How to Create a New Article in Knowledge App in Odoo 17
How to Create a New Article in Knowledge App in Odoo 17


Augmented reality

  • 1. AUGMENTED REALITY Narendra Kumar Jha 1602-13-725-313
  • 2. Contents Introduction Augmented reality o Augmented reality vs Virtual reality o History o Augmenting our world Implementation Components of AR system o Display technology o Tracking & orientation o Software requirement Applications Recent development Limitations Looking into future.. Conclusion References
  • 3. Introduction Augmented reality will truly change the way we view the world. Picture yourself walking or driving down the street with augmented-reality displays, which will eventually look much like a normal pair of glasses, informative graphics will appear in your field of view, and audio will coincide with whatever you see. These enhancements will be refreshed continually to reflect the movements of your head. In this article, we will take a look at this future technology, its components and how it will be used.
  • 4. Augmented Reality It is the process of superimposing digitally rendered images onto our real world surroundings.  Recent developments have made this technology accessible using a Smartphone. The world environment around us provides a wealth of information that is difficult to duplicate in a computer. Also the computer cannot know on its own about what we are looking for.  With the help of advanced AR technology (e.g. adding computer vision and object recognition) the information about the surrounding real world of the user becomes interactive and digitally manipulable.
  • 5. Augmented reality vs Virtual reality
  • 6. Augmented reality vs Virtual reality Augmented reality is closer to the real world. Augmented reality add graphics and sounds to the natural world, as it exists. Thus it augments the real world scene in such a way that the user can maintain a sense of presence in that world. That is ,the user can interact with the real world, and at the same time can see, both the real and virtual world co-existing. User is not cut off from the reality. Virtual reality creates immersive, computer generated environments which replaces real world. Here the head mounted displays block out all the external world from the viewer and they have no sense of presence. Virtual reality serves for at totally immersive environment . The senses are under control of the system. The user is completely immersed is an artificial world and cut off from real world.
  • 7. History The beginnings of AR, as we define it, date back to Sutherland’s work in the 1960s, which used a see-through HMD to present 3D graphics. However, only over the past decade has there been enough work to refer to AR as a research field. In 1997, Azuma published a survey that defined the field, described many problems, and summarized the developments up to that point. Since then, AR’s growth and progress have been remarkable.
  • 8. Augmenting Our World The basic idea of augmented reality is to superimpose graphics, audio and other sense enhancements over a real-world environment in real-time. Sounds pretty simple. Besides, haven't television networks been doing that with graphics for decades? These systems display graphics for only one point of view. Next-generation augmented- reality systems will display graphics for each viewer's perspective.
  • 9. How Does It Work? Camera scans the target image. Various parameters like distance from the target, orientation of the camera with respect to target, are calculated from camera using sensors. The software application takes all these values and after using processing techniques it overlays digital information over the target in the display.
  • 10. Implementation To implement there are three things that we require to do, i) find user’s location and orientation (view) ii) generating information iii) augmenting it to user’s view Find user’s location and orientation Generate data Augment generated data to user’s view
  • 11. Components of AR system Here are the four components needed to make an augmented-reality system work: Display Tracking system Input device Software application
  • 12. Display technologies Monitor Based Display Head Mounted Displays: Video see-through Optical see-through
  • 13. Monitor based AR Simplest available Treat laptop/PDA/cell phone as a window through which you can see AR world. Real world Camera position Augmented view Virtual objects Graphics system Video of real scene Video merging Augmented video
  • 14. Head-mounted displays Head-mounted displays (HMDs) will enable us to view graphics and text created by augmented-reality systems through a wearable device. There are two basic types of HMDs: 1. video see-through 2. optical see-through
  • 15. Video see through HMD  They block out the user's surrounding environment, using small video cameras attached to the outside of the goggles to capture images.  On the inside of the display, the video image is played in real-time and the graphics are superimposed on the video.  One problem with the use of video cameras is that there is more lag, meaning that there is a delay in image-adjustment when the viewer moves his or her head.
  • 17. Optical see through HMD  Optical see through is not fully realized yet.  It is supposed to consist of ordinary looking pair of glasses that will have light source on the side to project digital images onto the glass.
  • 18. Tracking and orientation The biggest challenge facing developers of augmented reality is the need to know where the user is located in reference to his or her surroundings. There's also the additional problem of tracking the movement of users' eyes and heads. AR system needs to know 1. Where is the user located (position) 2. Where is the user looking (orientation)
  • 19. Tracking and orientation Modern mobile augmented-reality systems use one or more of the following tracking technologies: digital cameras and/or optical sensors, accelerometers, GPS, gyroscopes, solid state compass.  These technologies offer varying levels of accuracy and precision. Tracking the user's hand(s) or a handheld input device can provide a 6DOF (degrees of freedom) interaction technique.
  • 20. Degree of freedom  Degrees of freedom or DOF is the way an object can move within a 3D space. There are a total of 6 degrees of freedom in a 3 dimensional space. The 6 DOF can be divided into 2 categories, rotational movements and translational movements.  The 3 translational movements are left/right, forward/backward and up/down. These movements are usually tracked by an external camera or other sensors.  The ability to tracking translational movements are required for positional tracking, the ability to determine the absolute position of an object in a 3D environment.  The 3 rotational movements are pitch, yaw, and roll. These movements are tracked by most HMD’s on-board sensors. As you tilt and turn your head, the HMD senses the movements and alters its display accordingly.  Rotational Movements are tracked by IMUs or inertial measurement units consist of accelerometer, gyroscope and magnetometer. x y z
  • 21. Input devices Techniques include speech recognition systems that translate a user's spoken words into computer instructions and gesture recognition systems that can interpret a user's body movements by visual detection or from sensors embedded in a peripheral device such as a wand, stylus, pointer, glove or other body wear. Wearable computer analyzes the sensed visual and other data to synthesize and position augmentations. A wearable computer is a battery powered computer system worn on the user’s body(belt, backpack etc). It is designed for mobile & predominantly hand free operations often incorporating head mounted display & speech input.
  • 22. Software requirement A key measure of AR systems is how realistically they integrate augmentations with the real world. The software must derive real world coordinates, independent from the camera, from camera images. That process is called image registration which uses different methods of computer vision, mostly related to video tracking. Usually those methods consist of two parts. The first stage is to detect interest points, fiducial markers or optical flow in the camera images. This step can use feature detection methods like corner detection, blob detection, edge detection or thresholding and/or other image processing methods.  The second stage restores a real world coordinate system from the data obtained in the first stage.
  • 23. Applications AR in education: In educational field, AR has been used to complement a standard curriculum. Text, graphics, video and audio were superimposed into a student’s real time environment. Textbooks, flashcards and other educational reading material contained embedded “markers” or triggers that, when scanned by an AR device, produced supplementary information to the student rendered in a multimedia format. Anatomy students could visualize different systems of the human body in three dimensions. AR in industrial design: AR allowed industrial designers to experience a product's design and operation before completion. Volkswagen used AR for comparing calculated and actual crash test imagery.
  • 24. Applications AR in architecture: AR can aid in visualizing building projects. This was demonstrated publicly by Trimble Navigation in 2004.  AR can also be employed within an architect's work space, rendering into their view animated 3D visualizations of their 2D drawings. Augmented reality is applied to present new projects, to solve on-site construction challenges, and to enhance promotional materials. Examples include the Daqri Smart Helmet, an Android-powered hard hat.
  • 25. Applications AR in defence: The military has been devising uses for augmented reality for decades. The idea here is that an augmented-reality system could provide troops with vital information about their surroundings, such as showing where entrances are on the opposite end of a building, somewhat like X-ray vision. Augmented reality displays could also highlight troop movements, and give soldiers the ability to move to where the enemy can't see them. In combat, AR can serve as a networked communication system that renders useful battlefield data onto a soldier's goggles in real time. From the soldier's viewpoint, people and various objects can be marked with special indicators to warn of potential danger.
  • 26. Applications AR in commerce: AR is used to integrate print and video marketing. Printed marketing material can be designed with certain "trigger" images that, when scanned by an AR enabled device using image recognition, activate a video version of the promotional material. AR can enhance product previews such as allowing a customer to view what's inside a product's packaging without opening it. AR can also be used as an aid in selecting products from a catalog or through a kiosk. Scanned images of products can activate views of additional content such as customization options and additional images of the product in its use.
  • 27. Applications AR applied in the visual arts allows objects or places to trigger artistic multidimensional experiences and interpretations of reality. AR has become common in sports telecasting. Sports and entertainment venues are provided with see- through and overlay augmentation through tracked camera feeds for enhanced viewing by the audience. AR can also be used to depict historic events occurred at the historic places for the viewing of the users. AR is also used for navigation purposes and to locate different places.
  • 28. Recent development HOLOLENS: The Microsoft Hololens demos showed that AR can be social, collaborative, and in the real world. More importantly, you forget that you’re even wearing it. It is more about solving problems, creating new products, and editing models in a 3D environment to better visualize the final product.
  • 29. Limitations Accurate tracking and orientation. Update rate for generating the augmented image also limits the performance of AR. The concept of modern augmented reality depends on the ability of the device to record and analyze the environment in real time. Because of this, there are potential legal concerns over privacy. Failure in image registration may arise due to noise, time delays or distorted images. People working in an augmented reality are more sensitive to alignment errors. Proper calibration and alignment with the reference frame of the world is crucial.
  • 30. Looking into future Expanding a PC screen to real environment like program windows & icons appear as virtual display in real space & are eye or gesture operated, by gazing or pointing. Replacement of cell phones: eye dialing, insertion of information directly into environment. It may allow computer-generated imagery to interact with live entertainers and audience. By 2020, AR will find its way in many more fields and it will come within the reach of common man.
  • 31. Conclusion Augmented reality is another step further into the digital age as we will soon see our environments change dynamically either through a Smartphone, glasses, car windshields and even windows in the near future to display enhanced content and media right in front of us. This has amazing applications that can very well allow us to live our lives more productively, more safely, and more informatively.
  • 32. References  https://www.youtube.com/watch?v=H9ZOpQzjukY  https://en.wikipedia.org/wiki/Augmented_reality  https://en.wikipedia.org/wiki/Six_degrees_of_freedom  https://www.youtube.com/watch?v=D-A1l4Jn6EY&t=3s  https://www.youtube.com/watch?v=09vxKN1zLNI  http://computer.howstuffworks.com/augmented-reality.htm
