This document summarizes E.F. Codd's 1970 paper which proposed the relational model for data management in large database systems. It introduces some of the key concepts of the relational model, including representing data as n-ary relations and the use of a normal form to reduce data dependencies and inconsistencies. It also discusses some of the limitations of previous hierarchical and network models of data and how the relational model provides advantages in terms of data independence and a clearer logical representation of data.

1. TIM ANGLADE PROUDLY PRESENTS PART TWO
OF THE TOTALLY UNKOWN “FUN & PROFIT”
SERIES. A TALE OF TECH, INTRIGUE
&! FORBIDDEN LOVE. A WHIRLWIND OF
ADVENTURERS, PRODUCTION SYSTEMS
&!TROLLS. A STORY SO BIG, ITS TITLE HAD TO
HAVE ITS OWN INTRODUCTION TEXT. HERE IS…
NOSQL Profit!& forFun

2. @TIMANGLADE
Hit me up. I don’t bite… too hard.

3. AN ANNOUNCEMENT

4. NØSQL rope!Eu
LONDON, APRIL 20TH & 21ST
WORKSHOPS AND TRAINING ON THE 22ND
FOLLOW @NOSQLEU FOR DETAILS

5. A WARNING
This is Tech for Managers. Don’t Blame Me.

6. 40 YEARS
IN THE DESERT

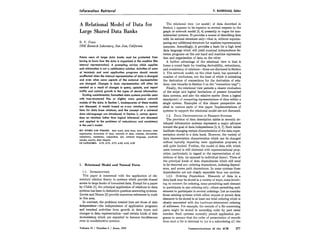

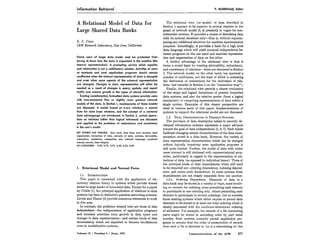

7. Information Retrieval P. BAXENDALE, Editor
A Relational Model of Data for
Large Shared Data Banks
E. F. CODD
IBM Research Laboratory, San Jose, California
Future users of large data banks must be protected from
having to know how the data is organized in the machine (the
internal representation). A prompting service which supplies
such information is not a satisfactory solution. Activities of users
at terminals and most application programs should remain
unaffected when the internal representation of data is changed
and even when some aspects of the external representation
are changed. Changes in data representation will often be
needed as a result of changes in query, update, and report
traffic and natural growth in the types of stored information.
Existing noninferential, formatted data systems provide users
with tree-structured files or slightly more general network
models of the data. In Section 1, inadequacies of these models
are discussed. A model based on n-ary relations, a normal
form for data base relations, and the concept of a universal
data sublanguage are introduced. In Section 2, certain opera-tions
on relations (other than logical inference) are discussed
and applied to the problems of redundancy and consistency
in the user’s model.
KEY WORDS AND PHRASES: data bank, data base, data structure, data
organization, hierarchies of data, networks of data, relations, derivability,
redundancy, consistency, composition, join, retrieval language, predicate
calculus, security, data integrity
CR CATEGORIES: 3.70, 3.73, 3.75, 4.20, 4.22, 4.29
1. Relational Model and Normal Form
1 .I. INTR~xJ~TI~N
This paper is concerned with the application of ele-mentary
relation theory to systems which provide shared
access to large banks of formatted data. Except for a paper
by Childs [l], the principal application of relations to data
systems has been to deductive question-answering systems.
Levein and Maron [2] provide numerous references to work
in this area.
In contrast, the problems treated here are those of data
independence-the independence of application programs
and terminal activities from growth in data types and
changes in data representation-and certain kinds of data
inconsistency which are expected to become troublesome
even in nondeductive systems.
Volume 13 / Number 6 / June, 1970

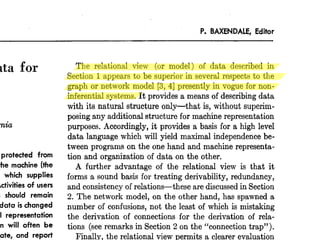

The relational view (or model) of data described in
Section 1 appears to be superior in several respects to the
graph or network model [3,4] presently in vogue for non-inferential
systems. It provides a means of describing data
with its natural structure only-that is, without superim-posing
any additional structure for machine representation
purposes. Accordingly, it provides a basis for a high level
data language which will yield maximal independence be-tween
programs on the one hand and machine representa-tion
and organization of data on the other.
A further advantage of the relational view is that it
forms a sound basis for treating derivability, redundancy,
and consistency of relations-these are discussed in Section
2. The network model, on the other hand, has spawned a
number of confusions, not the least of which is mistaking
the derivation of connections for the derivation of rela-tions
(see remarks in Section 2 on the “connection trap”).
Finally, the relational view permits a clearer evaluation
of the scope and logical limitations of present formatted
data systems, and also the relative merits (from a logical
standpoint) of competing representations of data within a
single system. Examples of this clearer perspective are
cited in various parts of this paper. Implementations of
systems to support the relational model are not discussed.
1.2. DATA DEPENDENCIESIN PRESENTS YSTEMS
The provision of data description tables in recently de-veloped
information systems represents a major advance
toward the goal of data independence [5,6,7]. Such tables
facilitate changing certain characteristics of the data repre-sentation
stored in a data bank. However, the variety of
data representation characteristics which can be changed
without logically impairing some application programs is
still quite limited. Further, the model of data with which
users interact is still cluttered with representational prop-erties,
particularly in regard to the representation of col-lections
of data (as opposed to individual items). Three of
the principal kinds of data dependencies which still need
to be removed are: ordering dependence, indexing depend-ence,
and access path dependence. In some systems these
dependencies are not clearly separable from one another.
1.2.1. Ordering Dependence. Elements of data in a
data bank may be stored in a variety of ways, some involv-ing
no concern for ordering, some permitting each element
to participate in one ordering only, others permitting each
element to participate in several orderings. Let us consider
those existing systems which either require or permit data
elements to be stored in at least one total ordering which is
closely associated with the hardware-determined ordering
of addresses. For example, the records of a file concerning
parts might be stored in ascending order by part serial
number. Such systems normally permit application pro-grams
to assume that the order of presentation of records
from such a file is identical to (or is a subordering of) the
Communications of the ACM 377

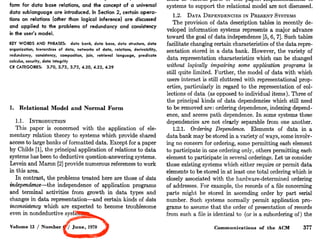

8. form for data base relations, and the concept of a universal
data sublanguage are introduced. In Section 2, certain opera-tions
on relations (other than logical inference) are discussed
and applied to the problems of redundancy and consistency
in the user’s model.
KEY WORDS AND PHRASES: data bank, data base, data structure, data
organization, hierarchies of data, networks of data, relations, derivability,
redundancy, consistency, composition, join, retrieval language, predicate
calculus, security, data integrity
CR CATEGORIES: 3.70, 3.73, 3.75, 4.20, 4.22, 4.29
1. Relational Model and Normal Form
1 .I. INTR~xJ~TI~N
This paper is concerned with the application of ele-mentary
relation theory to systems which provide shared
access to large banks of formatted data. Except for a paper
by Childs [l], the principal application of relations to data
systems has been to deductive question-answering systems.
Levein and Maron [2] provide numerous references to work
in this area.
In contrast, the problems treated here are those of data
independence-the independence of application programs
and terminal activities from growth in data types and
changes in data representation-and certain kinds of data
inconsistency which are expected to become troublesome
even in nondeductive systems.
Volume 13 / Number 6 / June, 1970
systems to support the relational model are not discussed.
1.2. DATA DEPENDENCIESIN PRESENTS YSTEMS
The provision of data description tables in recently de-veloped
information systems represents a major advance
toward the goal of data independence [5,6,7]. Such tables
facilitate changing certain characteristics of the data repre-sentation
stored in a data bank. However, the variety of
data representation characteristics which can be changed
without logically impairing some application programs is
still quite limited. Further, the model of data with which
users interact is still cluttered with representational prop-erties,
particularly in regard to the representation of col-lections
of data (as opposed to individual items). Three of
the principal kinds of data dependencies which still need
to be removed are: ordering dependence, indexing depend-ence,
and access path dependence. In some systems these
dependencies are not clearly separable from one another.
1.2.1. Ordering Dependence. Elements of data in a
data bank may be stored in a variety of ways, some involv-ing
no concern for ordering, some permitting each element
to participate in one ordering only, others permitting each
element to participate in several orderings. Let us consider
those existing systems which either require or permit data
elements to be stored in at least one total ordering which is
closely associated with the hardware-determined ordering
of addresses. For example, the records of a file concerning
parts might be stored in ascending order by part serial
number. Such systems normally permit application pro-grams
to assume that the order of presentation of records
from such a file is identical to (or is a subordering of) the
Communications of the ACM 377

9. WHAT DO YOU MEAN
BY “THE DESERT”?

10. THE GOOD
A strong ecosystem.

11. THE BAD
Databases on ACID.

12. THE UGLY
Paradigm Puzzlement.

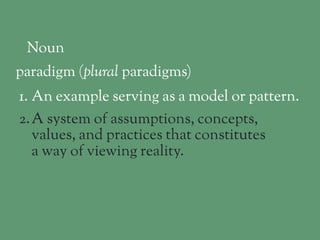

13. Noun
paradigm (plural!paradigms)
1. An example serving as a model or pattern.
2.A system of assumptions, concepts,
values, and practices that constitutes
a way of viewing reality.

14. S!Just L
say no

15. A NOT-SO-NOVEL
IDEA

16. Information Retrieval P. BAXENDALE, Editor
A Relational Model of Data for
Large Shared Data Banks
E. F. CODD
IBM Research Laboratory, San Jose, California
Future users of large data banks must be protected from
having to know how the data is organized in the machine (the
internal representation). A prompting service which supplies
such information is not a satisfactory solution. Activities of users
at terminals and most application programs should remain
unaffected when the internal representation of data is changed
and even when some aspects of the external representation
are changed. Changes in data representation will often be
needed as a result of changes in query, update, and report
traffic and natural growth in the types of stored information.
Existing noninferential, formatted data systems provide users
with tree-structured files or slightly more general network
models of the data. In Section 1, inadequacies of these models
are discussed. A model based on n-ary relations, a normal
form for data base relations, and the concept of a universal
data sublanguage are introduced. In Section 2, certain opera-tions
on relations (other than logical inference) are discussed
and applied to the problems of redundancy and consistency
in the user’s model.
KEY WORDS AND PHRASES: data bank, data base, data structure, data
organization, hierarchies of data, networks of data, relations, derivability,
redundancy, consistency, composition, join, retrieval language, predicate
calculus, security, data integrity
CR CATEGORIES: 3.70, 3.73, 3.75, 4.20, 4.22, 4.29
1. Relational Model and Normal Form
1 .I. INTR~xJ~TI~N
This paper is concerned with the application of ele-mentary
relation theory to systems which provide shared
access to large banks of formatted data. Except for a paper
by Childs [l], the principal application of relations to data
systems has been to deductive question-answering systems.
Levein and Maron [2] provide numerous references to work
in this area.
In contrast, the problems treated here are those of data
independence-the independence of application programs
and terminal activities from growth in data types and
changes in data representation-and certain kinds of data
inconsistency which are expected to become troublesome
even in nondeductive systems.
Volume 13 / Number 6 / June, 1970
The relational view (or model) of data described in
Section 1 appears to be superior in several respects to the
graph or network model [3,4] presently in vogue for non-inferential
systems. It provides a means of describing data
with its natural structure only-that is, without superim-posing
any additional structure for machine representation
purposes. Accordingly, it provides a basis for a high level
data language which will yield maximal independence be-tween
programs on the one hand and machine representa-tion
and organization of data on the other.
A further advantage of the relational view is that it
forms a sound basis for treating derivability, redundancy,
and consistency of relations-these are discussed in Section
2. The network model, on the other hand, has spawned a
number of confusions, not the least of which is mistaking
the derivation of connections for the derivation of rela-tions
(see remarks in Section 2 on the “connection trap”).
Finally, the relational view permits a clearer evaluation
of the scope and logical limitations of present formatted
data systems, and also the relative merits (from a logical
standpoint) of competing representations of data within a
single system. Examples of this clearer perspective are
cited in various parts of this paper. Implementations of
systems to support the relational model are not discussed.
1.2. DATA DEPENDENCIESIN PRESENTS YSTEMS
The provision of data description tables in recently de-veloped
information systems represents a major advance
toward the goal of data independence [5,6,7]. Such tables
facilitate changing certain characteristics of the data repre-sentation
stored in a data bank. However, the variety of
data representation characteristics which can be changed
without logically impairing some application programs is
still quite limited. Further, the model of data with which
users interact is still cluttered with representational prop-erties,
particularly in regard to the representation of col-lections
of data (as opposed to individual items). Three of
the principal kinds of data dependencies which still need
to be removed are: ordering dependence, indexing depend-ence,
and access path dependence. In some systems these
dependencies are not clearly separable from one another.
1.2.1. Ordering Dependence. Elements of data in a
data bank may be stored in a variety of ways, some involv-ing
no concern for ordering, some permitting each element
to participate in one ordering only, others permitting each
element to participate in several orderings. Let us consider
those existing systems which either require or permit data
elements to be stored in at least one total ordering which is
closely associated with the hardware-determined ordering
of addresses. For example, the records of a file concerning
parts might be stored in ascending order by part serial
number. Such systems normally permit application pro-grams
to assume that the order of presentation of records
from such a file is identical to (or is a subordering of) the
Communications of the ACM 377

17. P. BAXENDALE, Editor
Data for
California
protected from
the machine (the
which supplies
Activities of users
should remain
data is changed
representation
will often be
update, and report
stored information.
The relational view (or model) of data described in
Section 1 appears to be superior in several respects to the
graph or network model [3,4] presently in vogue for non-inferential
systems. It provides a means of describing data
with its natural structure only-that is, without superim-posing
any additional structure for machine representation
purposes. Accordingly, it provides a basis for a high level
data language which will yield maximal independence be-tween
programs on the one hand and machine representa-tion
and organization of data on the other.
A further advantage of the relational view is that it
forms a sound basis for treating derivability, redundancy,
and consistency of relations-these are discussed in Section
2. The network model, on the other hand, has spawned a
number of confusions, not the least of which is mistaking
the derivation of connections for the derivation of rela-tions
(see remarks in Section 2 on the “connection trap”).
Finally, the relational view permits a clearer evaluation
of the scope and logical limitations of present formatted

18. TWO WORDS
data warehousing.

19. THE ODD COUPLE
FAMILY

20. COUCHDB
MONGODB
RIAK
REDIS
TOKYOCABINET
NEO4J

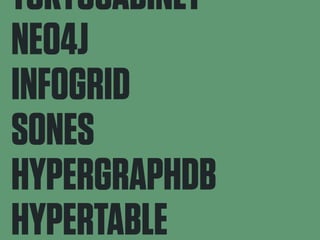

21. TOKYOCABINET
NEO4J
INFOGRID
SONES
HYPERGRAPHDB
HYPERTABLE
SIMPLEDB

22. HYPERTABLE
SIMPLEDB
TERRASTORE
HADOOP
MNESIA
CASSANDRA
HBASE

23. CASSANDRA
HBASE
JACKRABBIT
VOLDEMORT
GT.M
DYNOMITE
MEMCACHEDB

24. DYNOMITE
MEMCACHEDB
BIGTABLE
DYNAMO
SHERPA
ORACLE SPATIAL
ESRI ARCGIS

25. ORACLE SPATIAL
ESRI ARCGIS
SAND
CITRUSLEAF
NEPTUNE

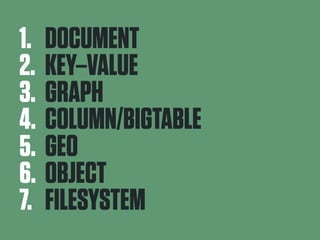

26. DOCUMENT
KEY–VALUE
GRAPH
COLUMN/BIGTABLE
GEO
OBJECT
FILESYSTEM
1.
2.
3.
4.
5.
6.
7.

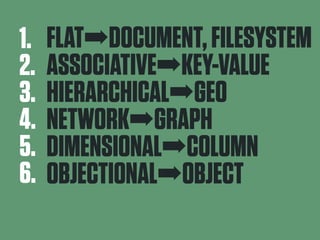

27. FLAT!DOCUMENT, FILESYSTEM
ASSOCIATIVE!KEY-VALUE
HIERARCHICAL!GEO
NETWORK!GRAPH
DIMENSIONAL!COLUMN
OBJECTIONAL!OBJECT
1.
2.
3.
4.
5.
6.

28. FOR THE SQL-ERS
I made a relational version of that.

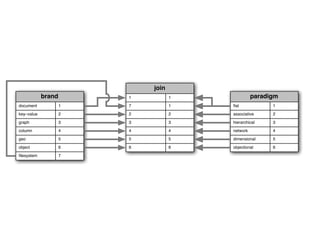

29. brand
document 1
key–value 2
graph 3
column 4
geo 5
object 6
filesystem 7
paradigm
1
2
4
flat
hierarchical
network
dimensional
3
associative
5
objectional 6
join
1 1
7 1
2 2
3 3
4 4
5 5
6 6

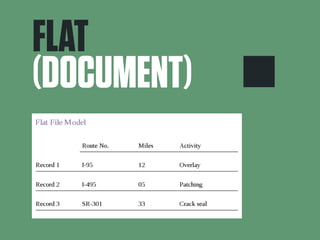

30. FLAT
(DOCUMENT)

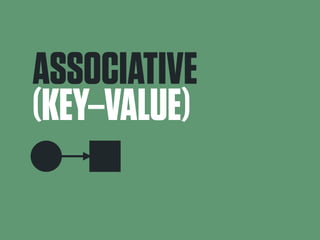

31. ASSOCIATIVE
(KEY–VALUE)

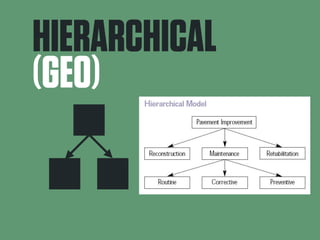

32. HIERARCHICAL
(GEO)

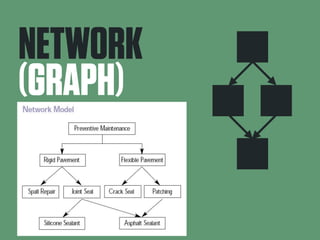

33. NETWORK
(GRAPH)

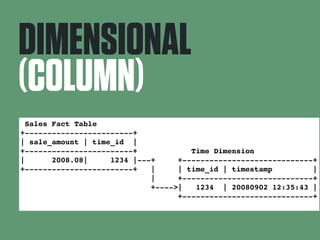

35. DIMENSIONAL
(COLUMN)
Sales Fact Table
+------------------------+
| sale_amount | time_id |
+------------------------+ Time Dimension
| 2008.08| 1234 |---+ +-----------------------------+
+------------------------+ | | time_id | timestamp |
| +-----------------------------+
+---->| 1234 | 20080902 12:35:43 |
+-----------------------------+

36. OBJECTIONAL
(OBJECT)

37. WHAT’S IN
A NAME?

38. ANTI-SQL?

39. ANTI-DATABASES?

40. A NEW STANDARD?

41. A NEW LANGUAGE?

42. NOT ONLY SQL?

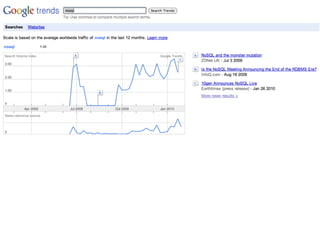

44. WHAT IS NOSQL ABOUT?

45. SQL VS. NOSQL
VS. NOSQL

46. 1. NOSQL SUCKS
No, really.

47. 2. IT’S NOT ABOUT
THE SIZE. IT’S
ABOUT HOW YOU
USE IT.

48. 3. IT’S NOT ROCKET
SCIENCE.

53. IT’S…
ALIVE !!!

54. THANK YOU!
NOSQL Profit!& forFun

55. SpeakerRate.com/timanglade

56. ?
