1. Amazon SimpleDB
Sean Collins

2. Sean Collins
www.coreitpro.com
contact@coreitpro.com

3. Tale of Two Cities
• Relational
• “Non-Relational”

4. Tale of Two Cities
• Relational

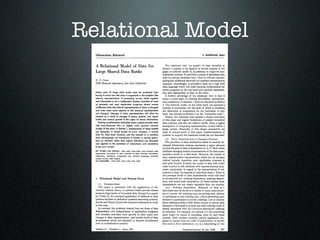

5. Relational Model
Information Retrieval P. BAXENDALE, Editor
A Relational Model of Data for The relational view (or model) of data described in
Section 1 appears to be superior in several respects to the
Large Shared Data Banks graph or network model [3,4] presently in vogue for non-
inferential systems. It provides a means of describing data
with its natural structure only-that is, without superim-
E. F. CODD posing any additional structure for machine representation
IBM Research Laboratory, San Jose, California purposes. Accordingly, it provides a basis for a high level
data language which will yield maximal independence be-
tween programs on the one hand and machine representa-
Future users of large data banks must be protected from tion and organization of data on the other.
having to know how the data is organized in the machine (the A further advantage of the relational view is that it
internal representation). A prompting service which supplies forms a sound basis for treating derivability, redundancy,
such information is not a satisfactory solution. Activities of users and consistency of relations-these are discussedin Section
at terminals and most application programs should remain 2. The network model, on the other hand, has spawned a
unaffected when the internal representation of data is changed number of confusions, not the least of which is mistaking
and even when some aspects of the external representation the derivation of connections for the derivation of rela-
are changed. Changes in data representation will often be tions (seeremarks in Section 2 on the “connection trap”).
needed as a result of changes in query, update, and report Finally, the relational view permits a clearer evaluation
traffic and natural growth in the types of stored information. of the scope and logical limitations of present formatted
Existing noninferential, formatted data systems provide users data systems, and also the relative merits (from a logical
with tree-structured files or slightly more general network standpoint) of competing representations of data within a
models of the data. In Section 1, inadequacies of these models single system. Examples of this clearer perspective are
are discussed. A model based on n-ary relations, a normal cited in various parts of this paper. Implementations of
form for data base relations, and the concept of a universal systems to support the relational model are not discussed.
data sublanguage are introduced. In Section 2, certain opera-
1.2. DATA DEPENDENCIES PRESENTSYSTEMS
IN
tions on relations (other than logical inference) are discussed
The provision of data description tables in recently de-
and applied to the problems of redundancy and consistency
veloped information systems represents a major advance
in the user’s model.
toward the goal of data independence [5,6,7]. Such tables
KEY WORDS AND PHRASES: data bank, data base, data structure, data facilitate changing certain characteristics of the data repre-
organization, hierarchies of data, networks of data, relations, derivability, sentation stored in a data bank. However, the variety of
redundancy, consistency, composition, join, retrieval language, predicate
calculus, security, data integrity
data representation characteristics which can be changed
CR CATEGORIES: 3.70, 3.73, 3.75, 4.20, 4.22, 4.29 without logically impairing some application programs is
still quite limited. Further, the model of data with which
users interact is still cluttered with representational prop-
erties, particularly in regard to the representation of col-
lections of data (as opposed to individual items). Three of
the principal kinds of data dependencies which still need
1. Relational Model and Normal Form to be removed are: ordering dependence, indexing depend-
ence, and accesspath dependence. In some systems these
1.I. INTR~xJ~TI~N dependencies are not clearly separable from one another.
This paper is concerned with the application of ele- 1.2.1. Ordering Dependence. Elements of data in a
mentary relation theory to systems which provide shared data bank may be stored in a variety of ways, someinvolv-
access large banks of formatted data. Except for a paper
to ing no concern for ordering, some permitting each element
by Childs [l], the principal application of relations to data to participate in one ordering only, others permitting each
systems has been to deductive question-answering systems. element to participate in several orderings. Let us consider
Levein and Maron [2] provide numerous referencesto work those existing systems which either require or permit data
in this area. elements to be stored in at least one total ordering which is
In contrast, the problems treated here are those of data closely associated with the hardware-determined ordering
independence-the independence of application programs of addresses.For example, the records of a file concerning
and terminal activities from growth in data types and parts might be stored in ascending order by part serial
changesin data representation-and certain kinds of data number. Such systems normally permit application pro-
inconsistency which are expected to become troublesome grams to assumethat the order of presentation of records
even in nondeductive systems. from such a file is identical to (or is a subordering of) the
Volume 13 / Number 6 / June, 1970 Communications of the ACM 377

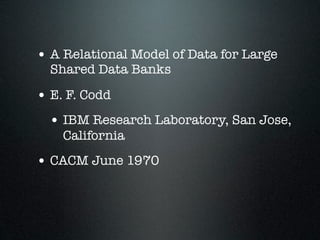

6. • A Relational Model of Data for Large
Shared Data Banks
• E. F. Codd
• IBM Research Laboratory, San Jose,
California
• CACM June 1970

7. • Data as Relations
• “In many commercial,
governmental, and scientific data
banks ... some of the relations are of
quite high degree... Accordingly, we
propose that users deal, not with
relations which are domain-ordered,
but with relationships”

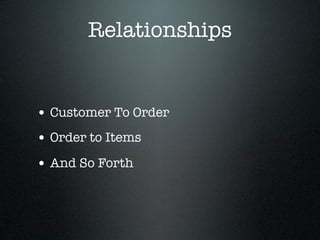

8. Relationships
• Customer To Order
• Order to Items
• And So Forth

9. Relational
• Provides SQL interface to developers
• ACID
• Atomicity
• Consistency
• Isolation
• Durability

10. Tale of Two Cities
• “Non-Relational”

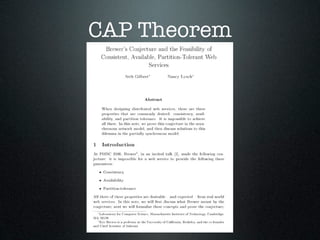

11. CAP Theorem

12. CAP Theorem
• Consistency
• Availability
• Partition-tolerance

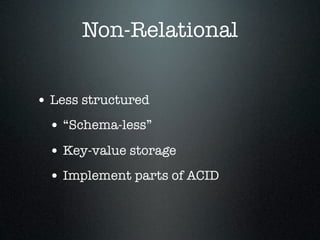

13. Non-Relational
• Less structured
• “Schema-less”
• Key-value storage
• Implement parts of ACID

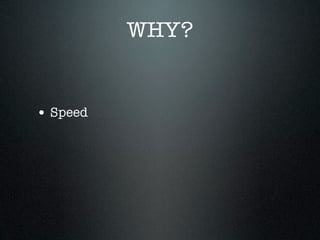

15. WHY?

16. WHY?
• Speed

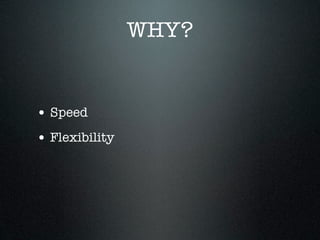

17. WHY?
• Speed
• Flexibility

18. WHY?
• Speed
• Flexibility
• Scale

20. Speed

21. Speed
• No JOINS

22. Speed
• No JOINS
• No special column types

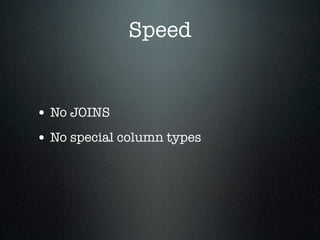

23. Speed
• No JOINS
• No special column types
• Concurrent operations

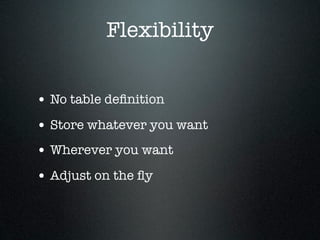

25. Flexibility

26. Flexibility
• No table definition
• Store whatever you want
• Wherever you want
• Adjust on the fly

28. Scalability

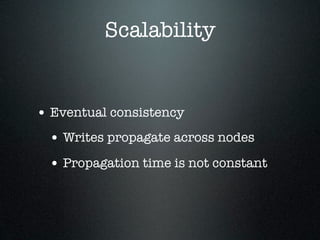

29. Scalability
• Eventual consistency
• Writes propagate across nodes
• Propagation time is not constant

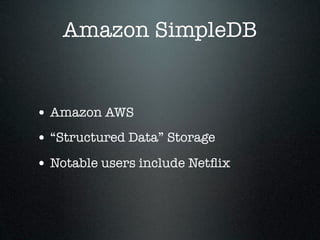

30. Amazon SimpleDB
• Amazon AWS
• “Structured Data” Storage
• Notable users include Netflix

31. SimpleDB Data Model
• Domain
• Item
• Name
• Attributes

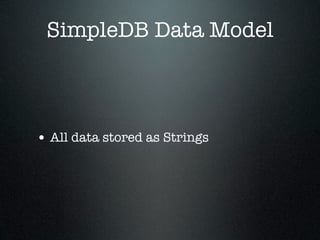

32. SimpleDB Data Model
• All data stored as Strings

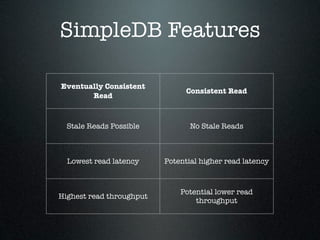

33. SimpleDB Features
Eventually Consistent
Consistent Read
Read
Stale Reads Possible No Stale Reads
Lowest read latency Potential higher read latency
Potential lower read
Highest read throughput
throughput

34. SimpleDB Features
• Conditional Transactions
• PUT/DELETE
• At the Item Level
• Based on Item Attributes

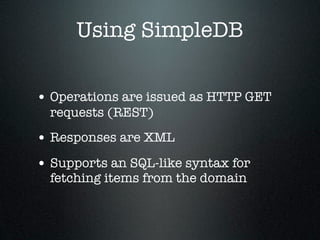

35. Using SimpleDB
• Operations are issued as HTTP GET
requests (REST)
• Responses are XML
• Supports an SQL-like syntax for
fetching items from the domain

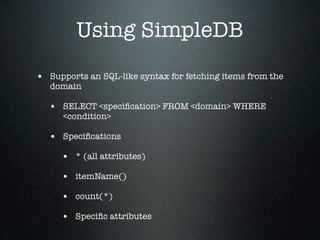

36. Using SimpleDB
• Supports an SQL-like syntax for fetching items from the
domain
• SELECT <specification> FROM <domain> WHERE
<condition>
• Specifications
• * (all attributes)
• itemName()
• count(*)
• Specific attributes

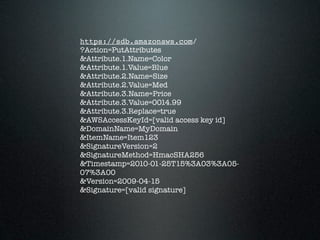

37. https://sdb.amazonaws.com/
?Action=PutAttributes
&Attribute.1.Name=Color
&Attribute.1.Value=Blue
&Attribute.2.Name=Size
&Attribute.2.Value=Med
&Attribute.3.Name=Price
&Attribute.3.Value=0014.99
&Attribute.3.Replace=true
&AWSAccessKeyId=[valid access key id]
&DomainName=MyDomain
&ItemName=Item123
&SignatureVersion=2
&SignatureMethod=HmacSHA256
&Timestamp=2010-01-25T15%3A03%3A05-
07%3A00
&Version=2009-04-15
&Signature=[valid signature]

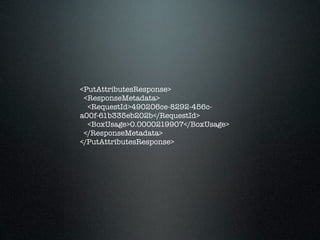

38. <PutAttributesResponse>
<ResponseMetadata>
<RequestId>490206ce-8292-456c-
a00f-61b335eb202b</RequestId>
<BoxUsage>0.0000219907</BoxUsage>
</ResponseMetadata>
</PutAttributesResponse>

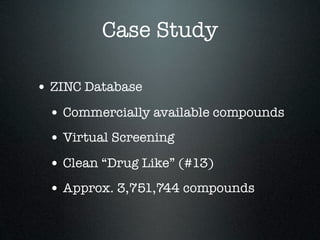

39. Case Study
• ZINC Database
• Commercially available compounds
• Virtual Screening
• Clean “Drug Like” (#13)
• Approx. 3,751,744 compounds

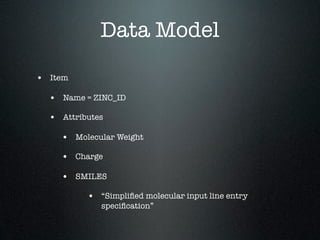

40. Data Model
• Item
• Name = ZINC_ID
• Attributes
• Molecular Weight
• Charge
• SMILES
• “Simplified molecular input line entry
specification”

41. Boto
• Provides a library for accessing
Amazon AWS services
• Encapsulates SimpleDB data in
Python objects
• Dictionaries
• Iterators
• etc..

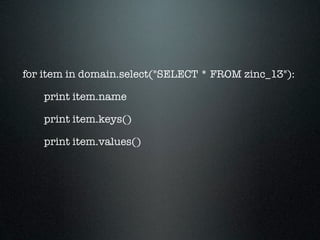

42. for item in domain.select("SELECT * FROM zinc_13"):
print item.name
print item.keys()
print item.values()

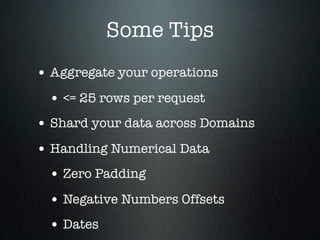

44. Some Tips
• Aggregate your operations
• <= 25 rows per request
• Shard your data across Domains
• Handling Numerical Data
• Zero Padding
• Negative Numbers Offsets
• Dates

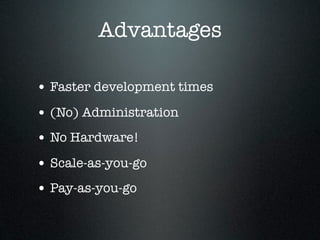

45. Advantages
• Faster development times
• (No) Administration
• No Hardware!
• Scale-as-you-go
• Pay-as-you-go

46. Pricing
• 1GB Free Storage
• $0.25/GB/mo Thereafter
• $0.10/GB Transfer In
• $.15/GB Out
• 25 Machine Hours Free/month
• $0.14/hr Thereafter

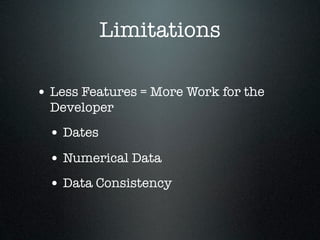

47. Limitations
• Less Features = More Work for the
Developer
• Dates
• Numerical Data
• Data Consistency

48. Limits
Limitations
Following is a table that describes current limits within Amazon SimpleDB.
Parameter Restriction
Domain size 10 GB per domain
Domain size 1 billion attributes per domain
Domain name 3-255 characters (a-z, A-Z, 0-9, '_', '-', and '.')
Domains per account 100
Attribute name-value pairs per item 256
Attribute name length 1024 bytes
Attribute value length 1024 bytes
Item name length 1024 bytes
Attribute name, attribute value, and item All UTF-8 characters that are valid in XML documents.
name allowed characters
Control characters and any sequences that are not valid in
XML are returned Base64-encoded. For more information,
see Working with XML-Restricted Characters .
Attributes per PutAttributes operation 256
Attributes requested per Select 256
operation
Items per BatchPutAttributesoperation 25
Maximum items in Selectresponse 2500
Maximum query execution time 5 seconds
Maximum number of unique attributes 20
per Selectexpression
Maximum number of comparisons per 20
Selectexpression
Maximum response size for Select 1MB
Copyright Information

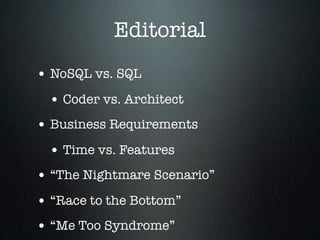

49. Editorial
• NoSQL vs. SQL
• Coder vs. Architect
• Business Requirements
• Time vs. Features
• “The Nightmare Scenario”
• “Race to the Bottom”
• “Me Too Syndrome”

50. Editorial
• Relational Databases Need to Catch Up
• Meet/Exceed developer
expectations
• Netflix wouldn’t have fork-lifted ~1
Billion Rows out of Oracle “just for
fun”

51. Q&A
