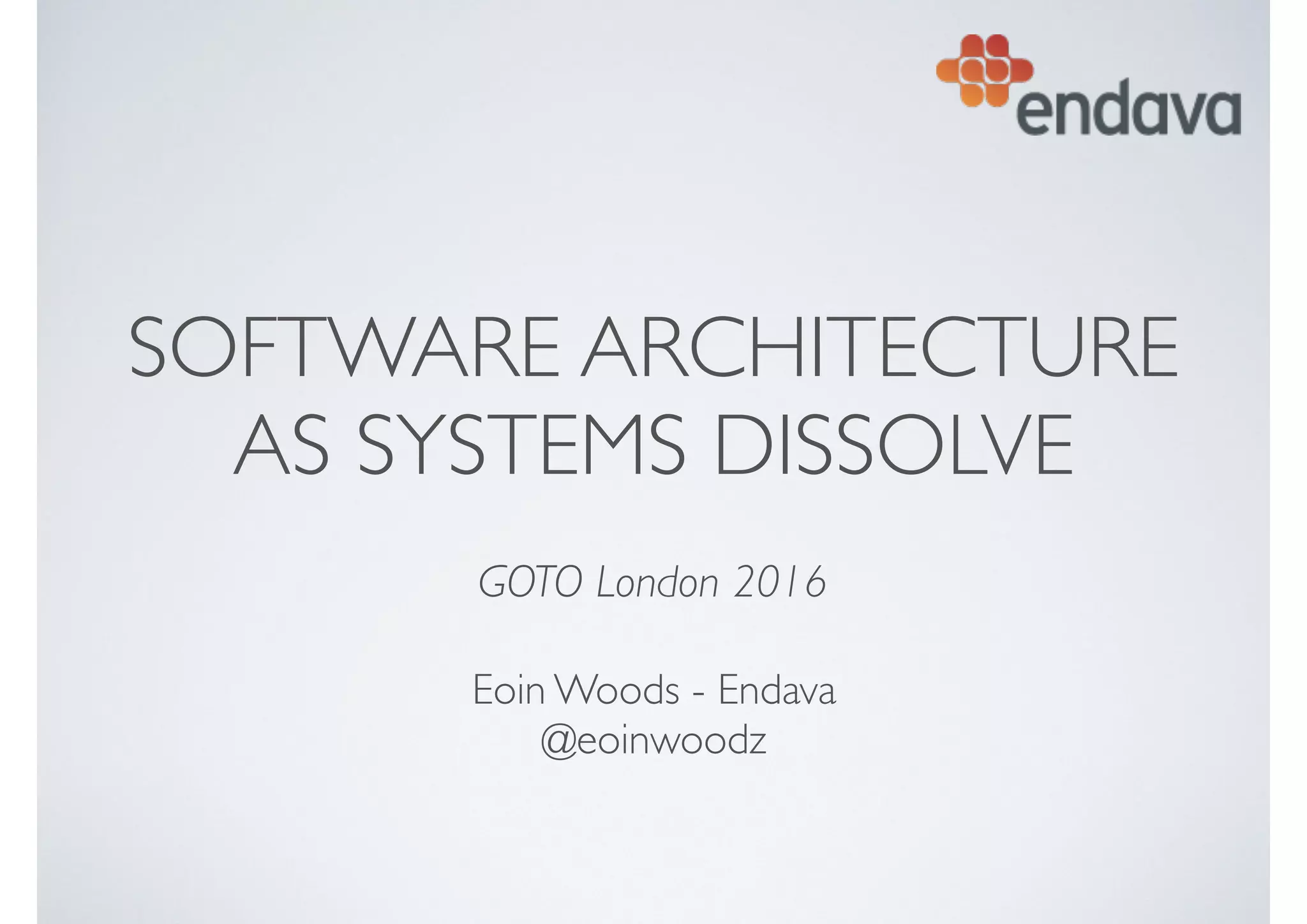

1. SOFTWARE ARCHITECTURE
AS SYSTEMS DISSOLVE
GOTO London 2016
Eoin Woods - Endava
@eoinwoodz

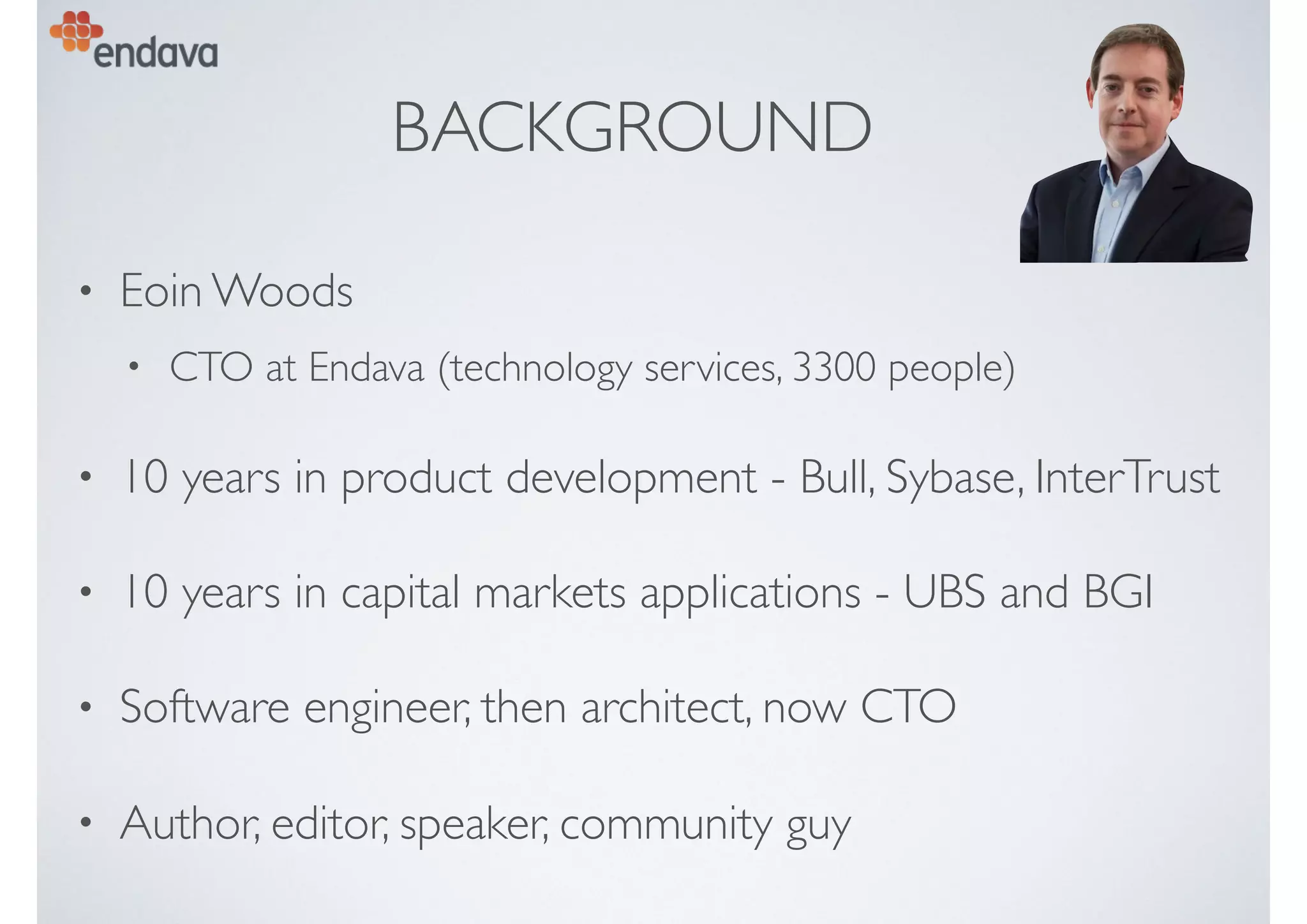

2. BACKGROUND
• Eoin Woods
• CTO at Endava (technology services, 3300 people)
• 10 years in product development - Bull, Sybase, InterTrust
• 10 years in capital markets applications - UBS and BGI
• Software engineer, then architect, now CTO
• Author, editor, speaker, community guy

3. SYSTEMS ARE DISSOLVING!

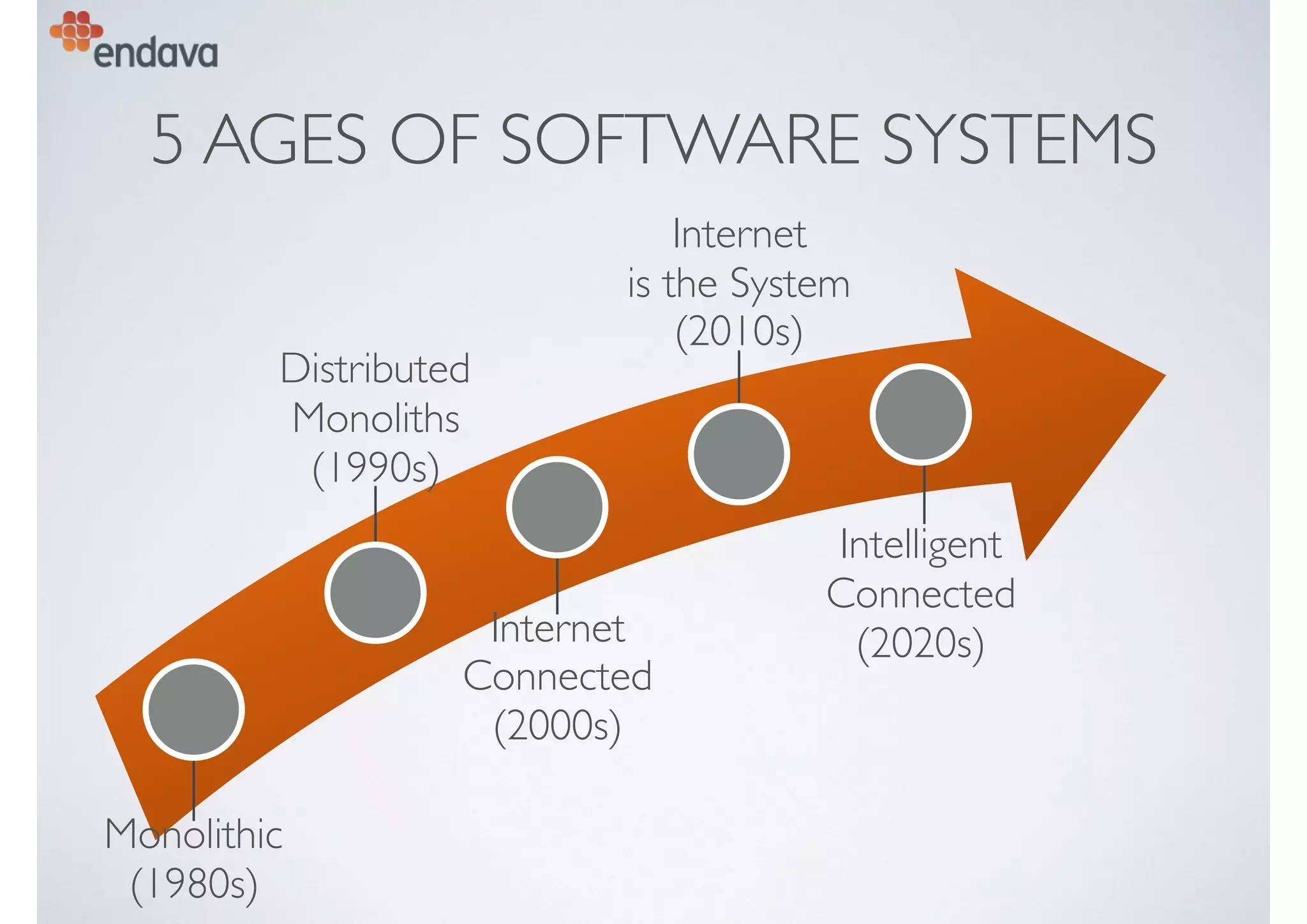

4. 5 AGES OF SOFTWARE SYSTEMS
Intelligent
Connected
(2020s)
Internet
is the System
(2010s)
Internet
Connected
(2000s)
Distributed
Monoliths
(1990s)
Monolithic
(1980s)

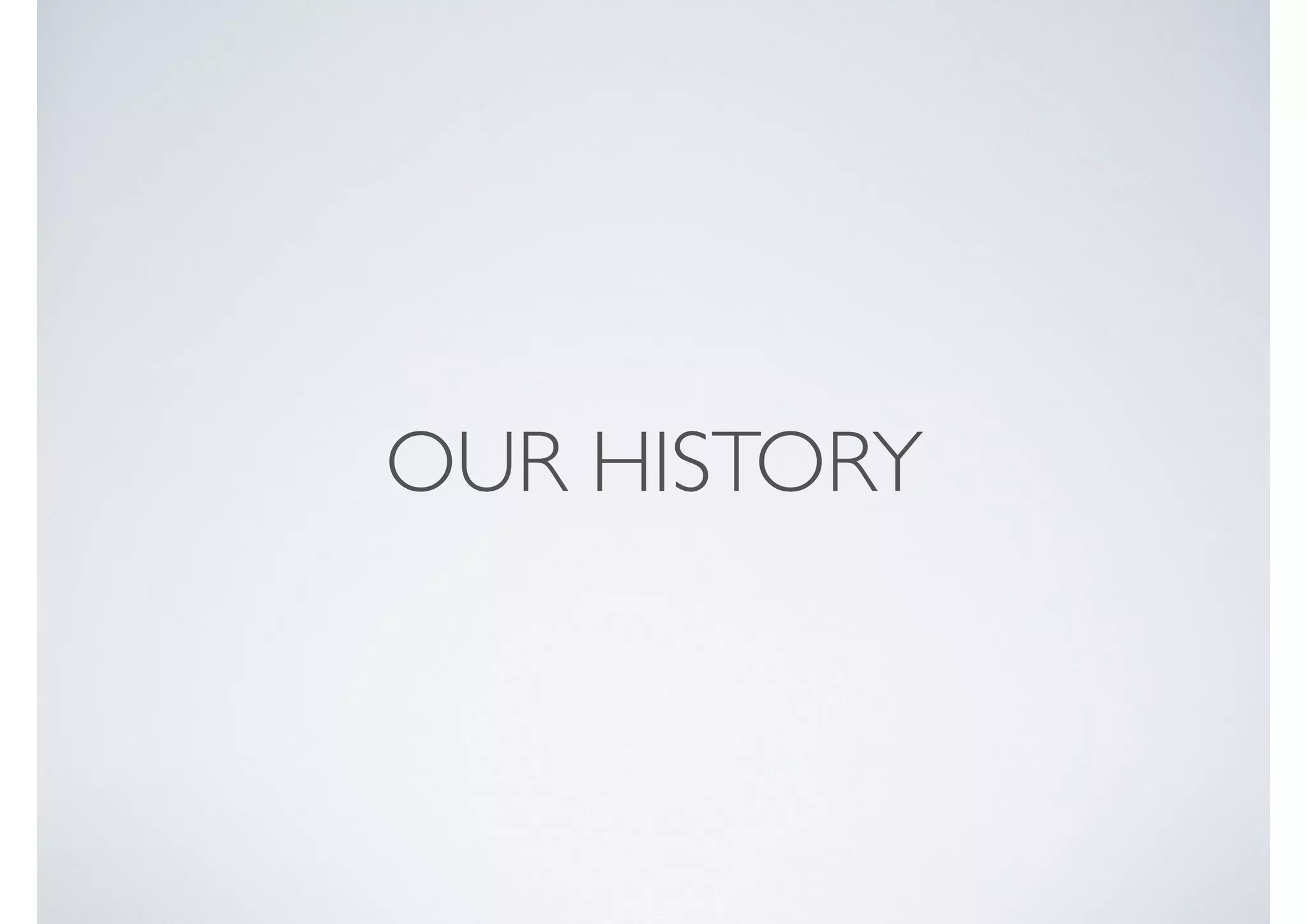

5. OUR HISTORY

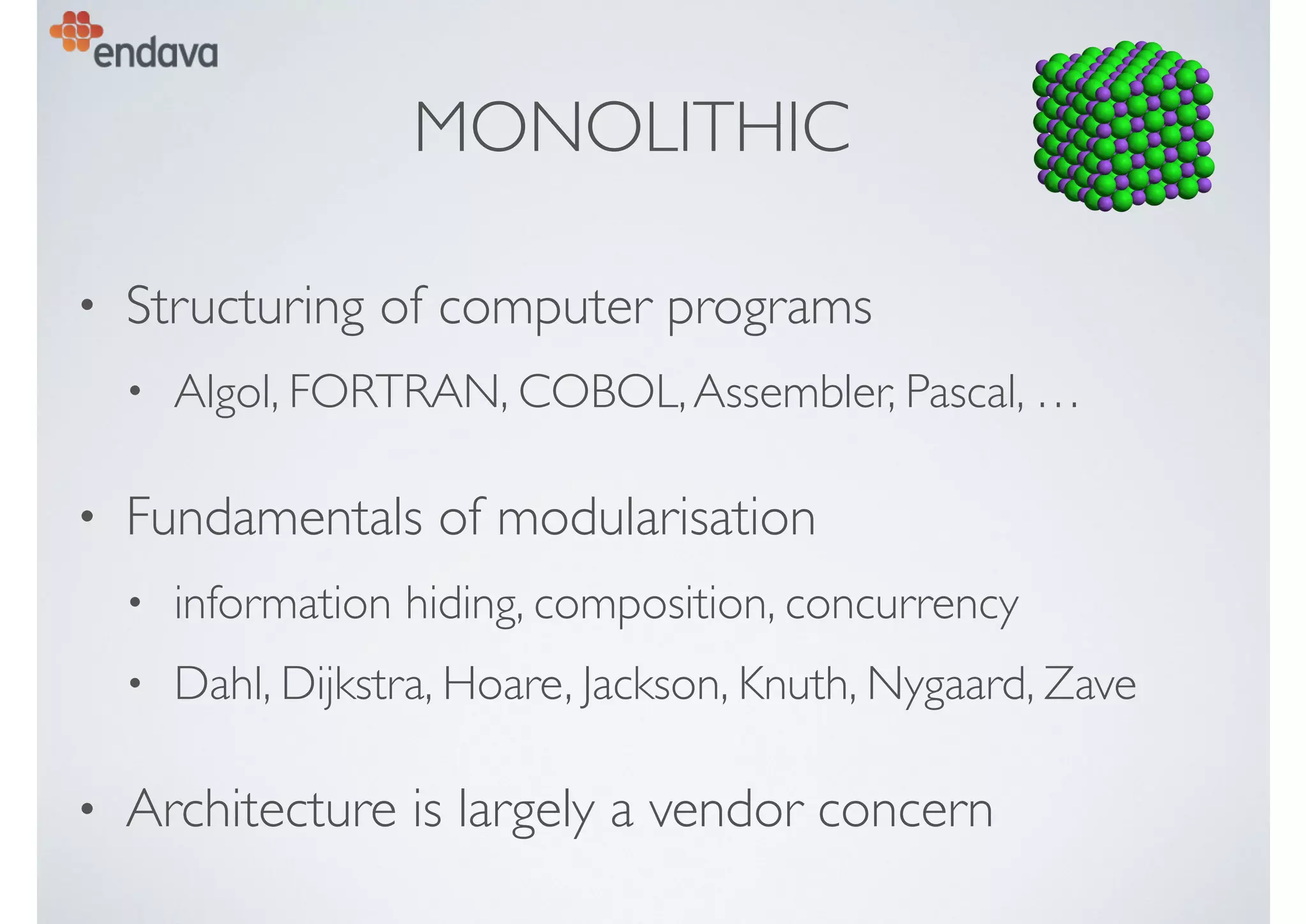

6. MONOLITHIC
• Structuring of computer programs
• Algol, FORTRAN, COBOL,Assembler, Pascal, …
• Fundamentals of modularisation
• information hiding, composition, concurrency
• Dahl, Dijkstra, Hoare, Jackson, Knuth, Nygaard, Zave
• Architecture is largely a vendor concern

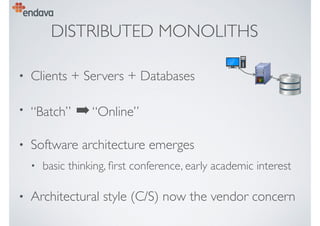

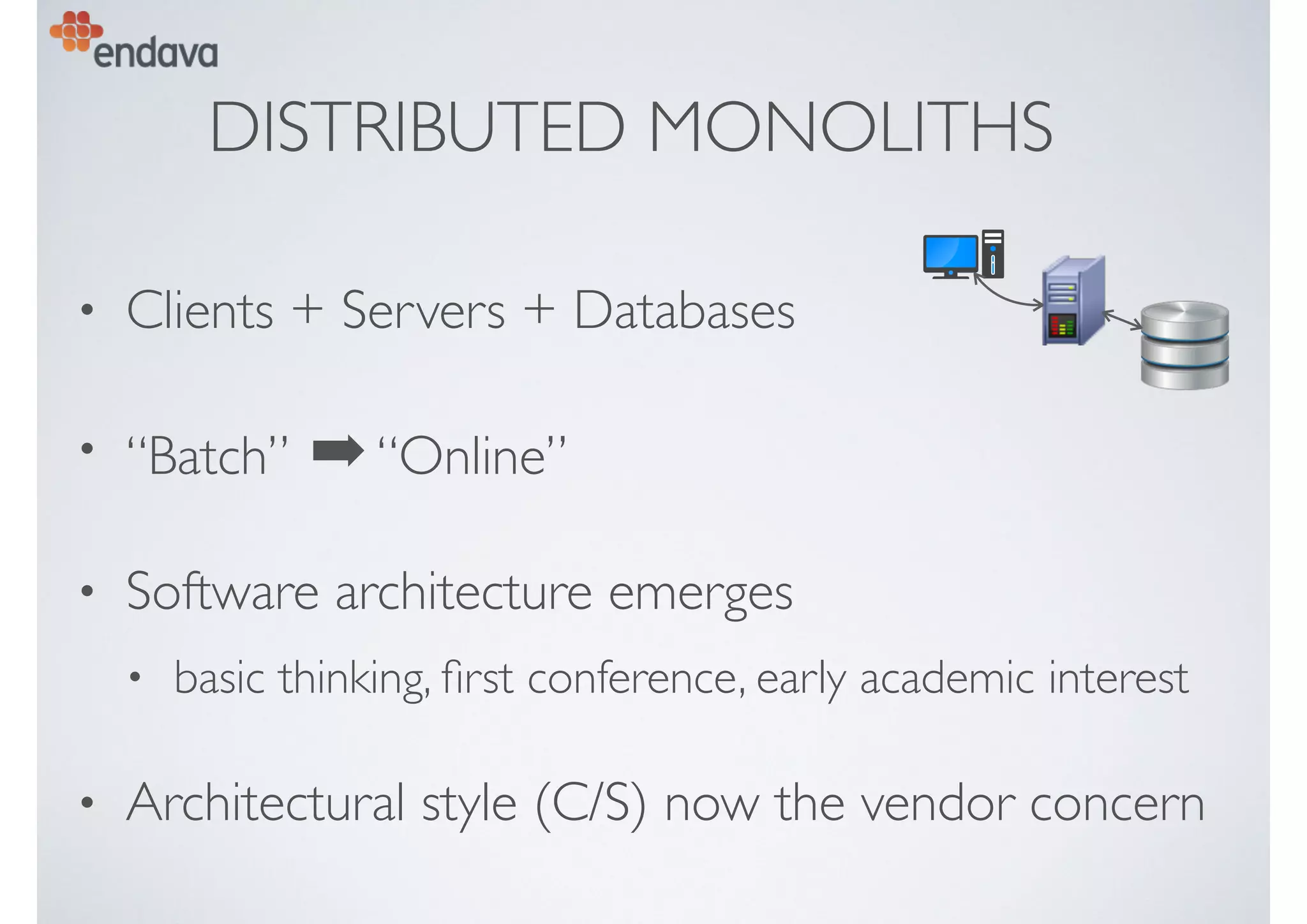

7. DISTRIBUTED MONOLITHS
• Clients + Servers + Databases
• “Batch” ➡“Online”
• Software architecture emerges
• basic thinking, first conference, early academic interest
• Architectural style (C/S) now the vendor concern

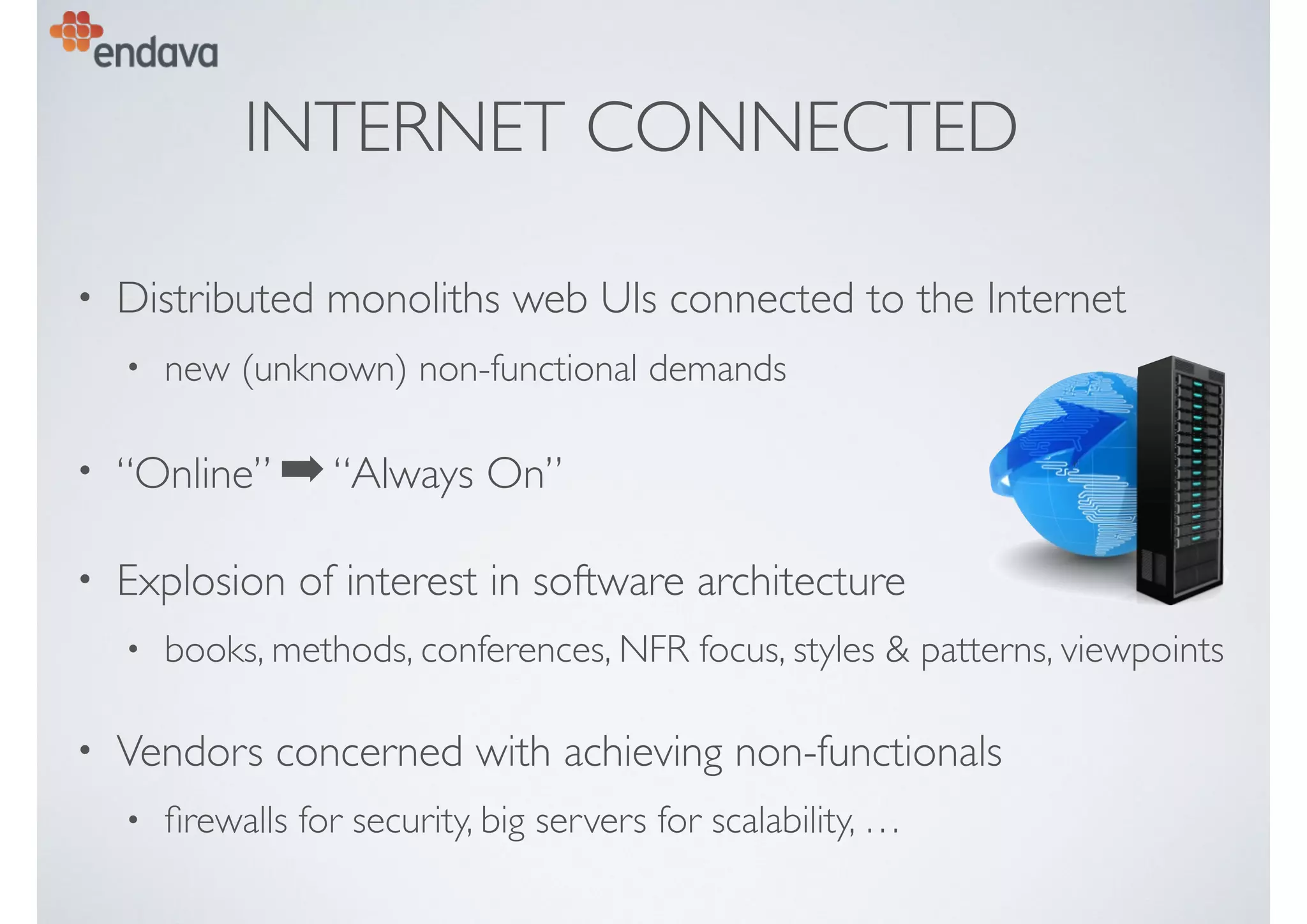

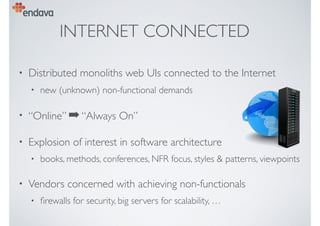

8. INTERNET CONNECTED
• Distributed monoliths web UIs connected to the Internet
• new (unknown) non-functional demands
• “Online” ➡“Always On”
• Explosion of interest in software architecture
• books, methods, conferences, NFR focus, styles & patterns, viewpoints
• Vendors concerned with achieving non-functionals
• firewalls for security, big servers for scalability, …

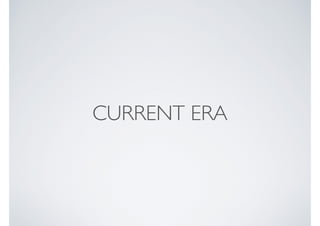

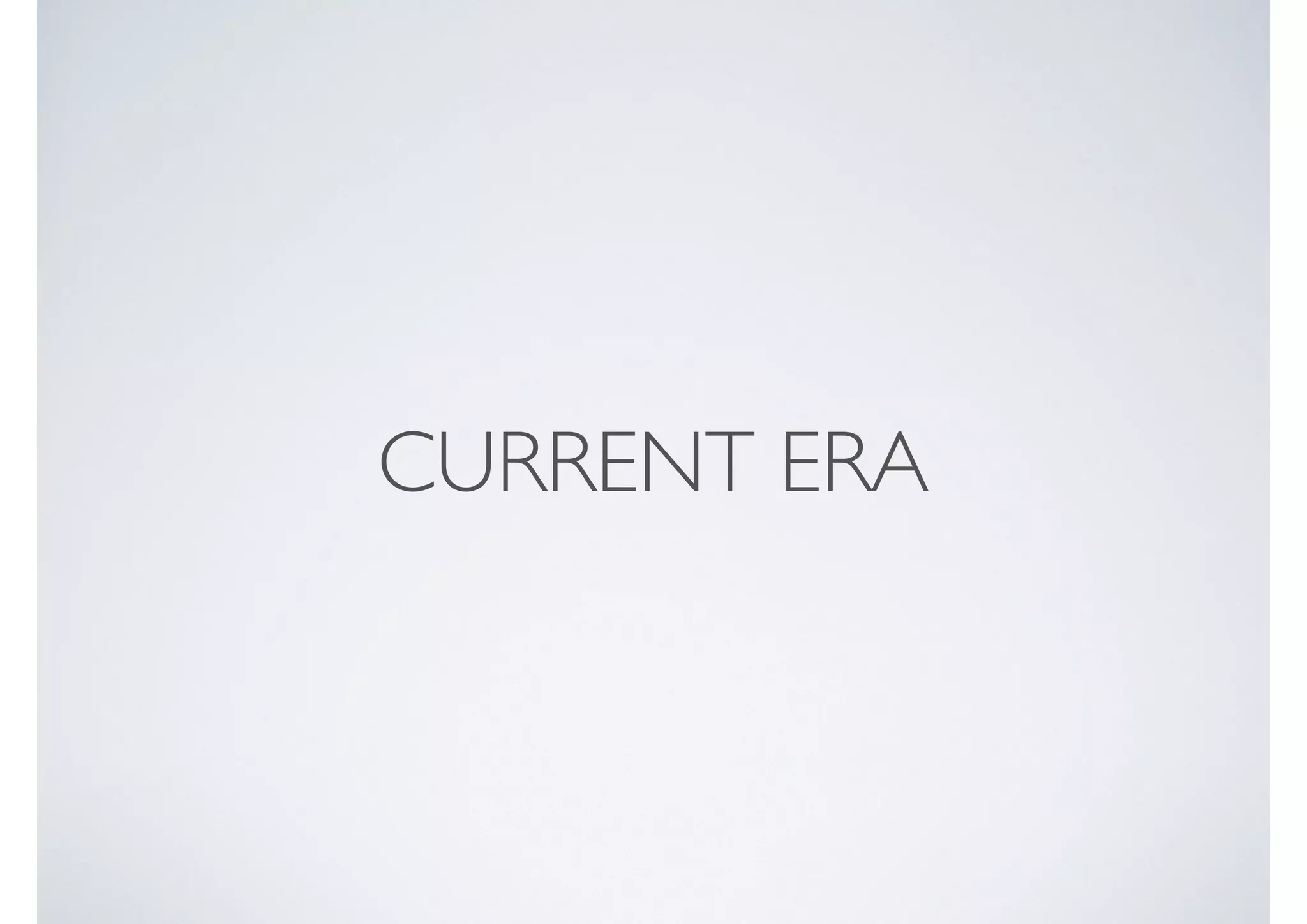

9. CURRENT ERA

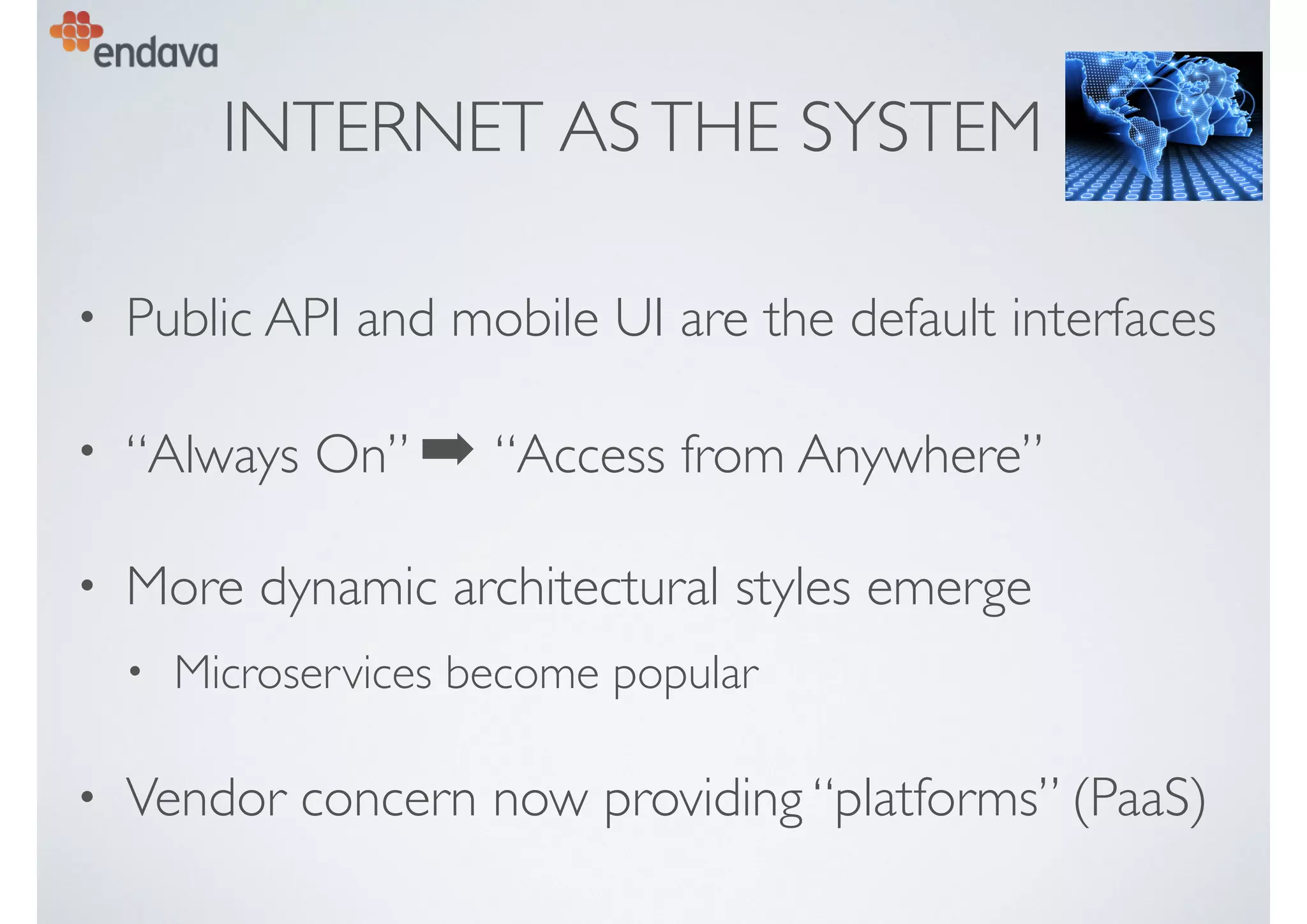

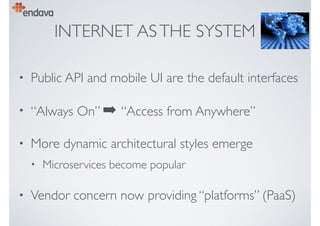

10. INTERNET ASTHE SYSTEM
• Public API and mobile UI are the default interfaces
• “Always On” ➡ “Access from Anywhere”
• More dynamic architectural styles emerge
• Microservices become popular
• Vendor concern now providing “platforms” (PaaS)

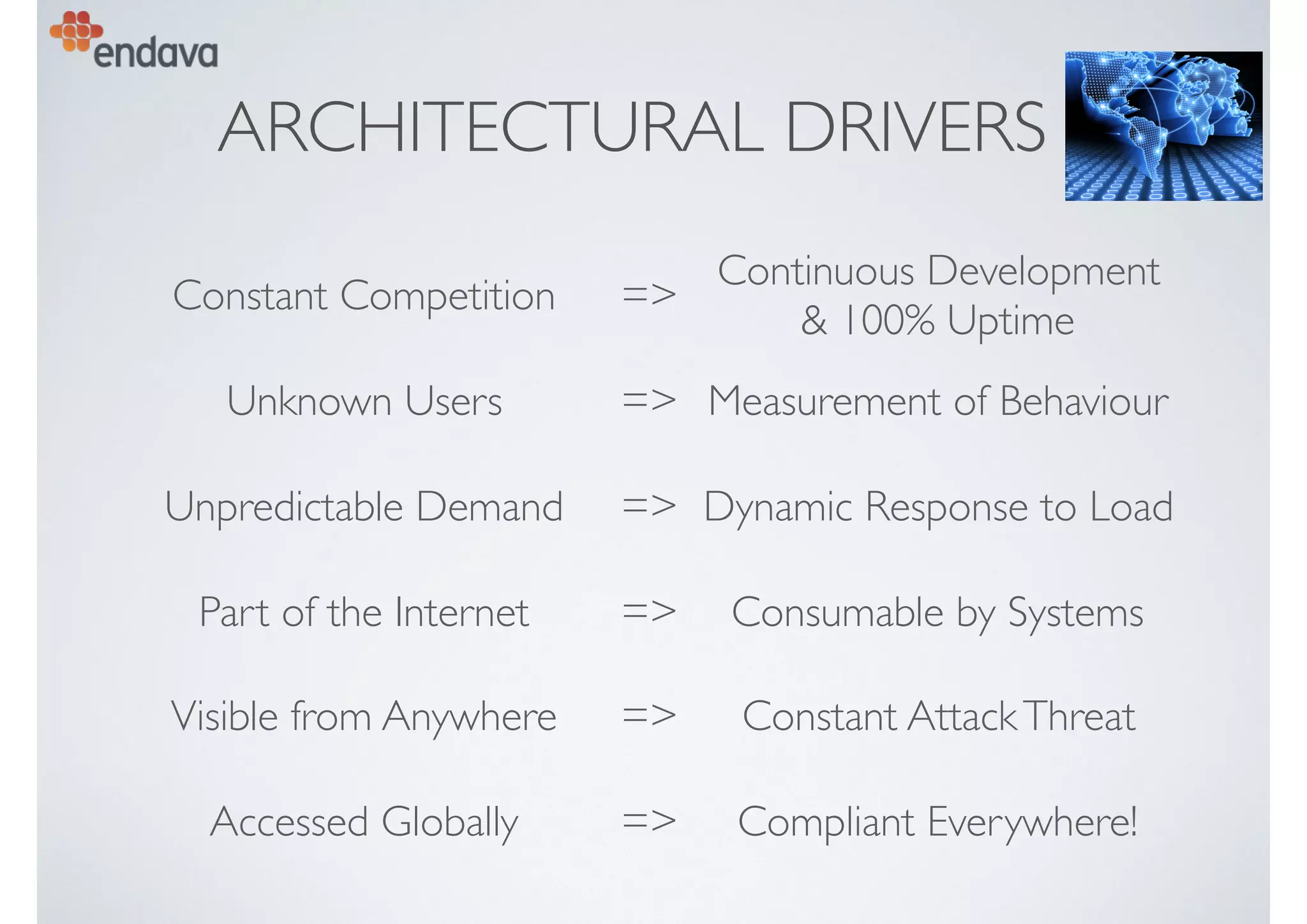

11. ARCHITECTURAL DRIVERS
Constant Competition =>
Continuous Development
& 100% Uptime
Unknown Users => Measurement of Behaviour
Unpredictable Demand => Dynamic Response to Load
Part of the Internet => Consumable by Systems
Visible from Anywhere => Constant AttackThreat
Accessed Globally => Compliant Everywhere!

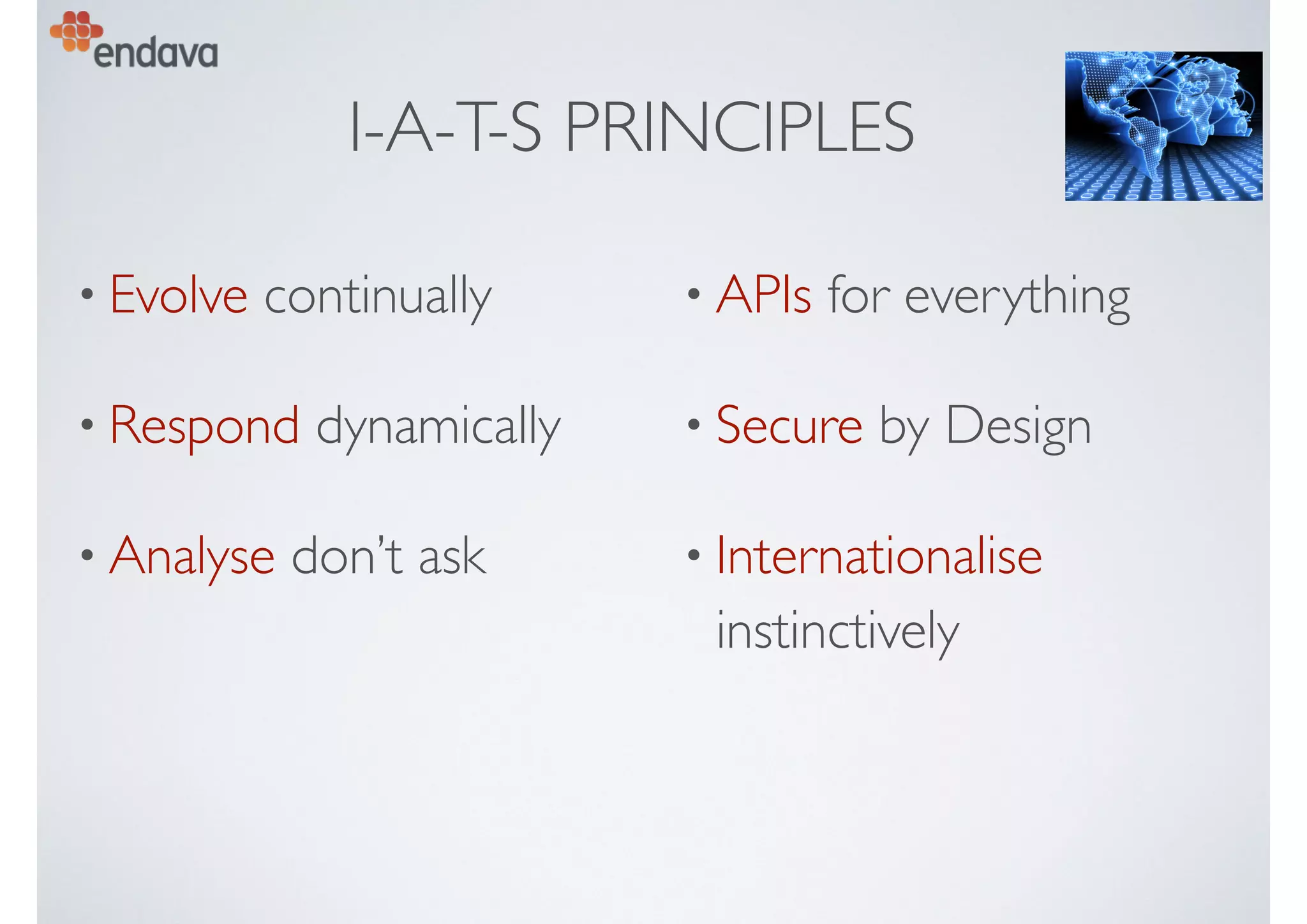

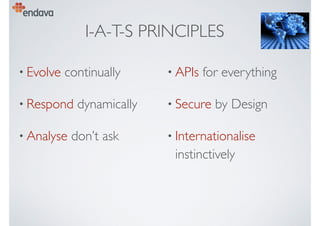

12. I-A-T-S PRINCIPLES
• Evolve continually
• Respond dynamically
• Analyse don’t ask
• APIs for everything
• Secure by Design
• Internationalise
instinctively

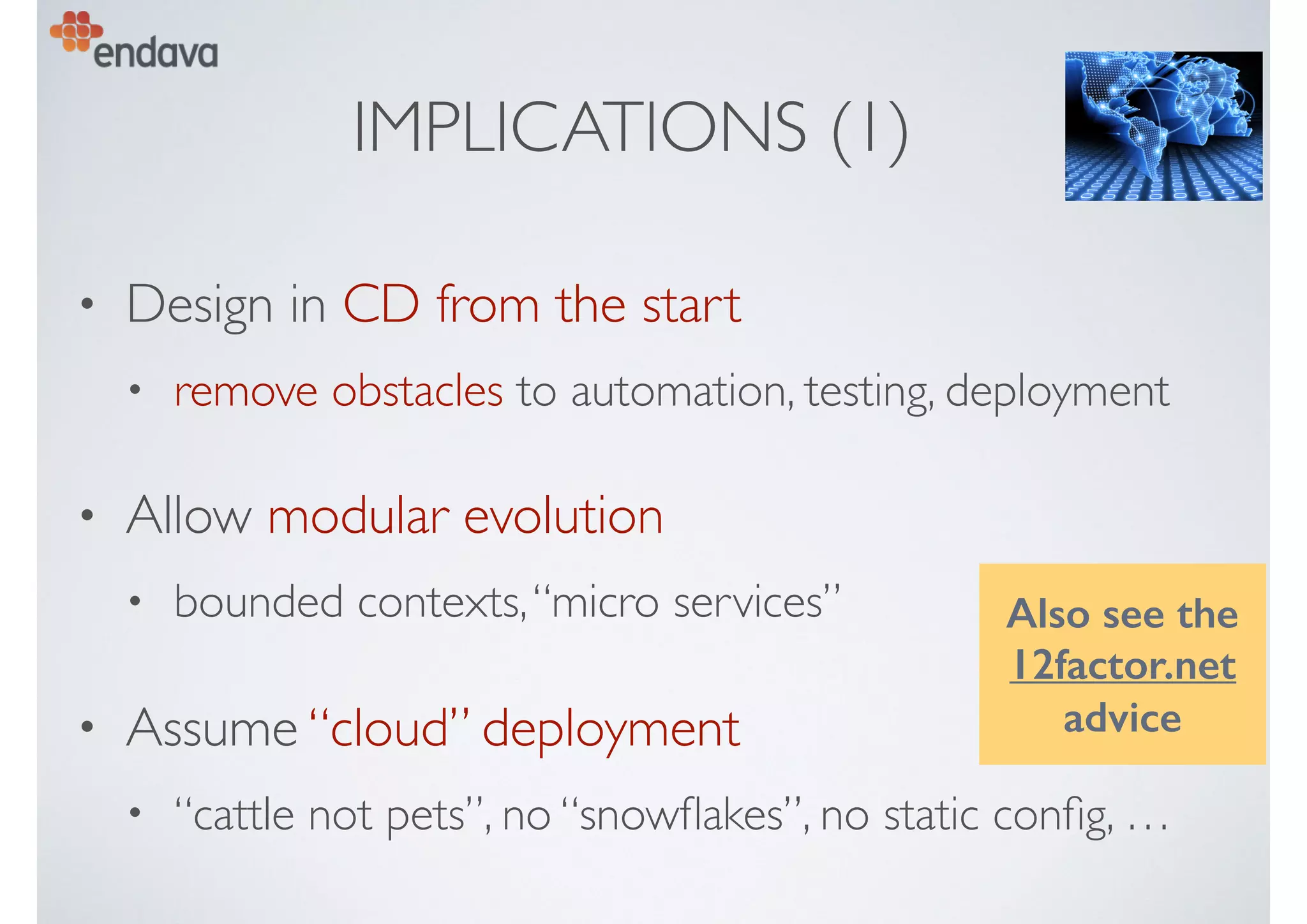

13. IMPLICATIONS (1)
• Design in CD from the start
• remove obstacles to automation, testing, deployment
• Allow modular evolution
• bounded contexts,“micro services”
• Assume “cloud” deployment
• “cattle not pets”, no “snowflakes”, no static config, …
Also see the
12factor.net
advice

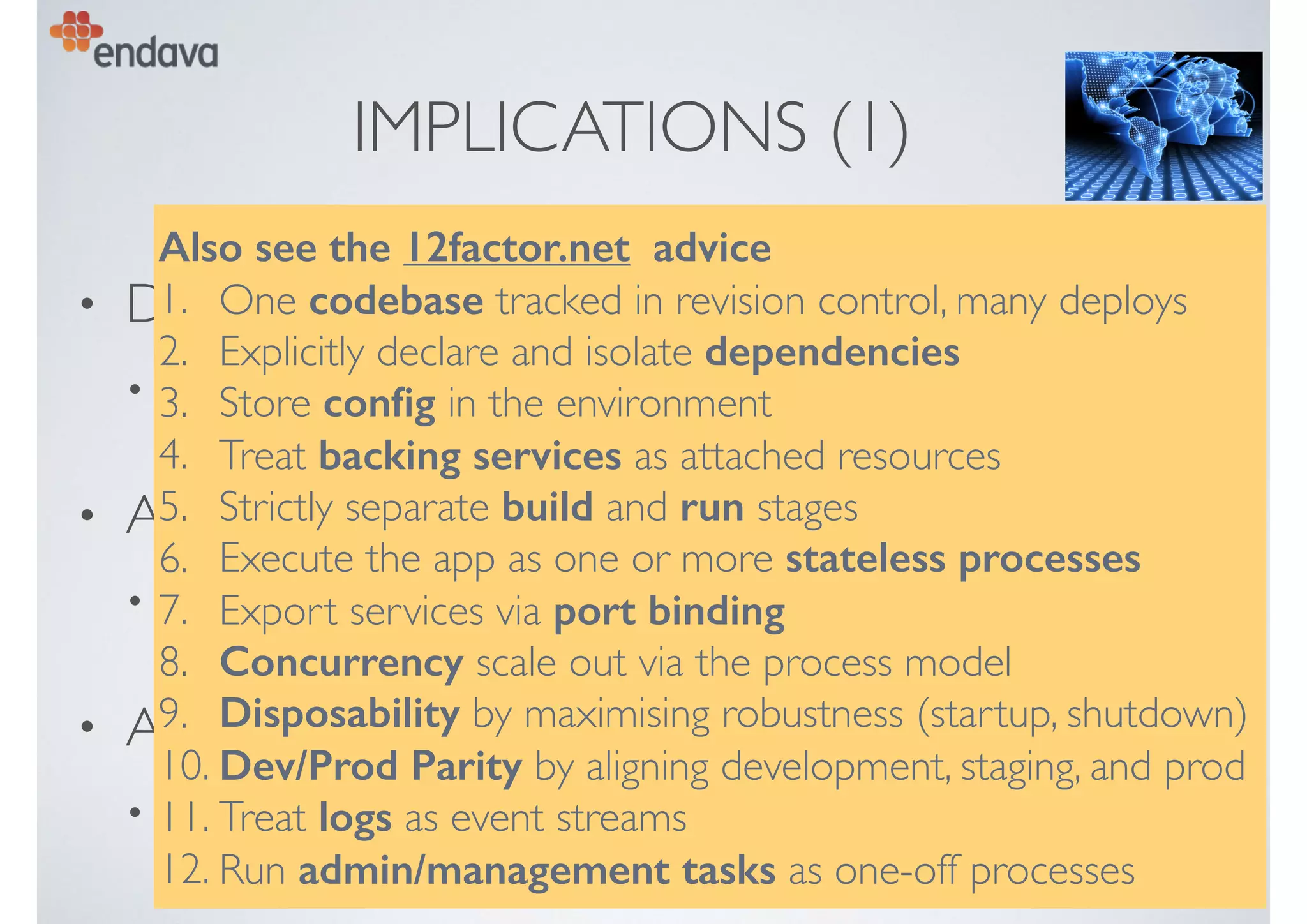

14. IMPLICATIONS (1)
• Design in CD from the start
• remove obstacles to automation, testing, deployment
• Allow modular evolution
• bounded contexts,“micro services”
• Assume “cloud” deployment
• “cattle not pets”, no “snowflakes”, no static config, …
Also see the 12factor.net advice
1. One codebase tracked in revision control, many deploys
2. Explicitly declare and isolate dependencies
3. Store config in the environment
4. Treat backing services as attached resources
5. Strictly separate build and run stages
6. Execute the app as one or more stateless processes
7. Export services via port binding
8. Concurrency scale out via the process model
9. Disposability by maximising robustness (startup, shutdown)
10. Dev/Prod Parity by aligning development, staging, and prod
11. Treat logs as event streams
12. Run admin/management tasks as one-off processes

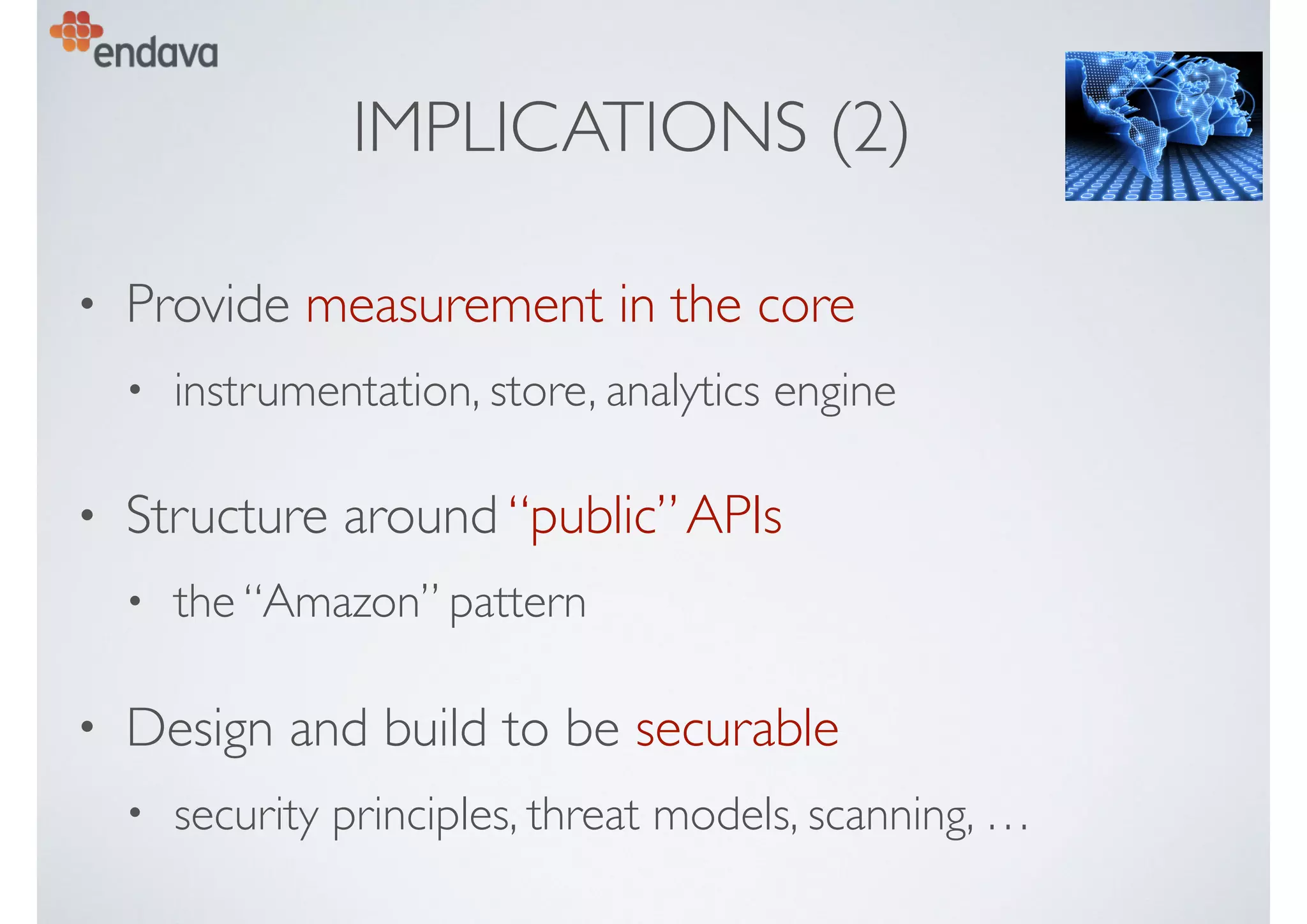

15. IMPLICATIONS (2)
• Provide measurement in the core
• instrumentation, store, analytics engine
• Structure around “public”APIs
• the “Amazon” pattern
• Design and build to be securable
• security principles, threat models, scanning, …

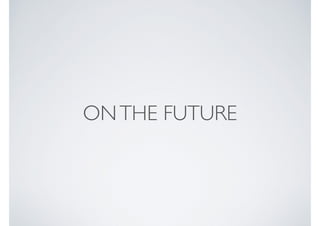

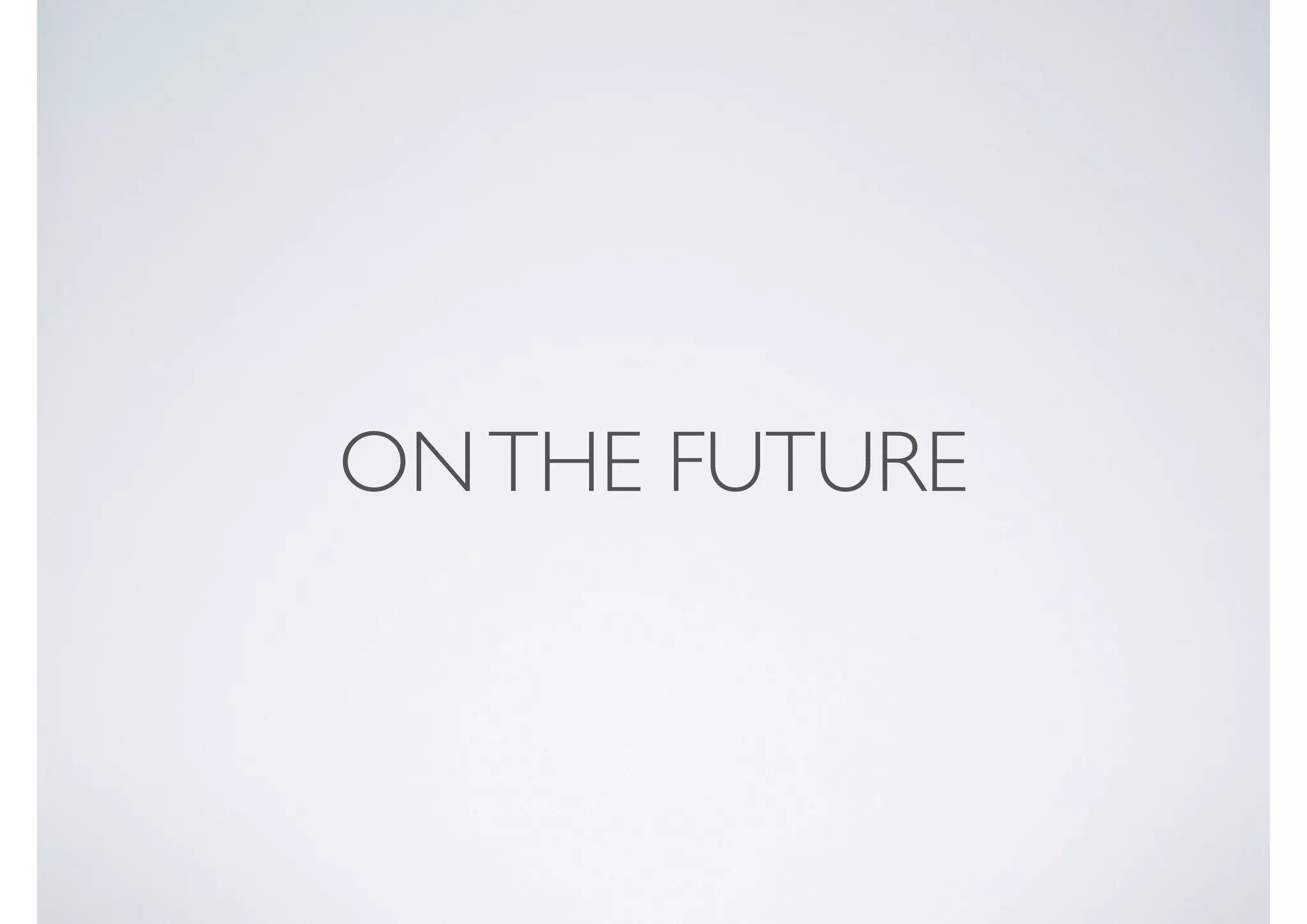

16. ONTHE FUTURE

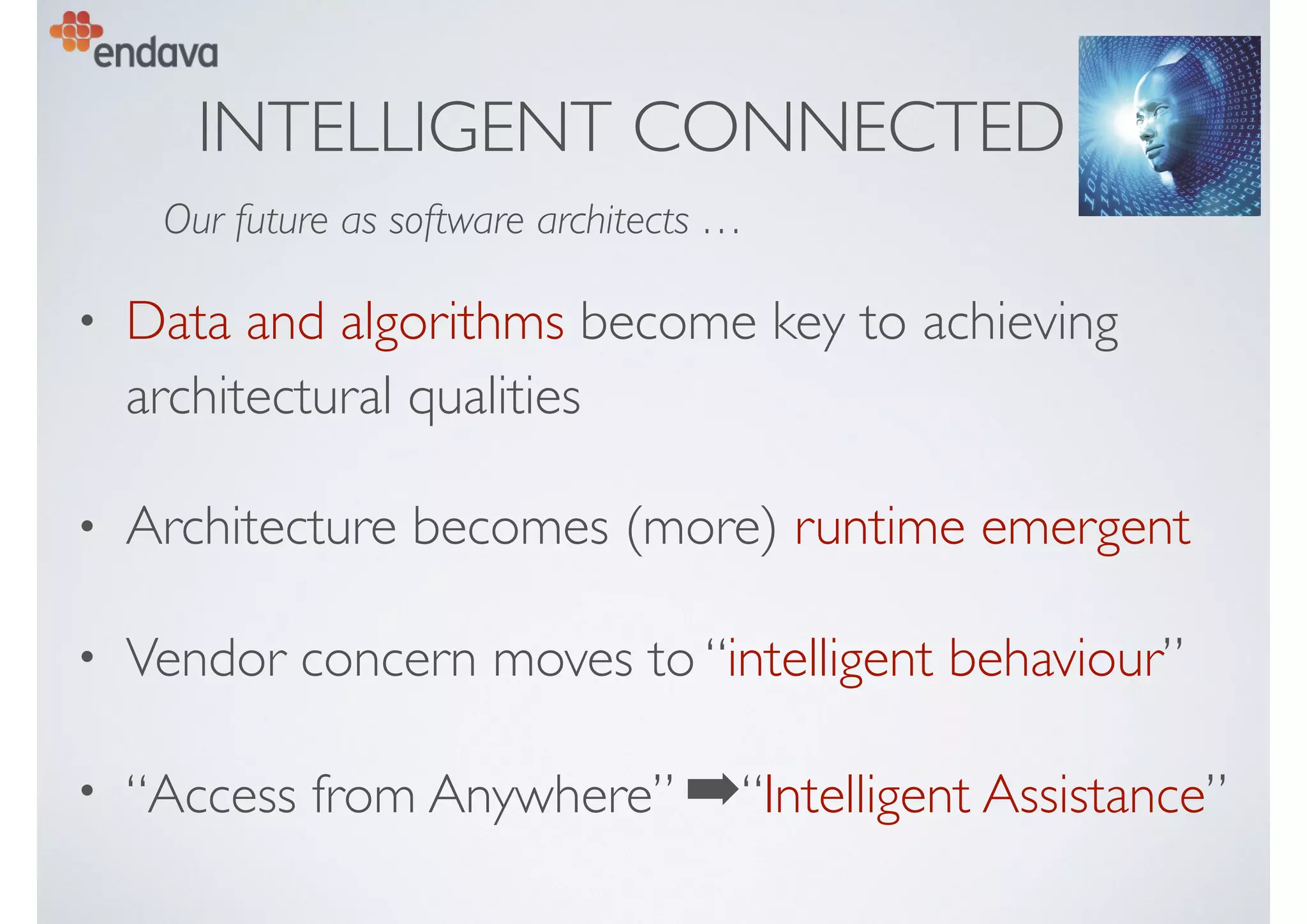

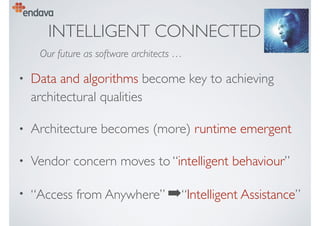

17. INTELLIGENT CONNECTED
• Data and algorithms become key to achieving
architectural qualities
• Architecture becomes (more) runtime emergent
• Vendor concern moves to “intelligent behaviour”
• “Access from Anywhere” ➡“Intelligent Assistance”
Our future as software architects …

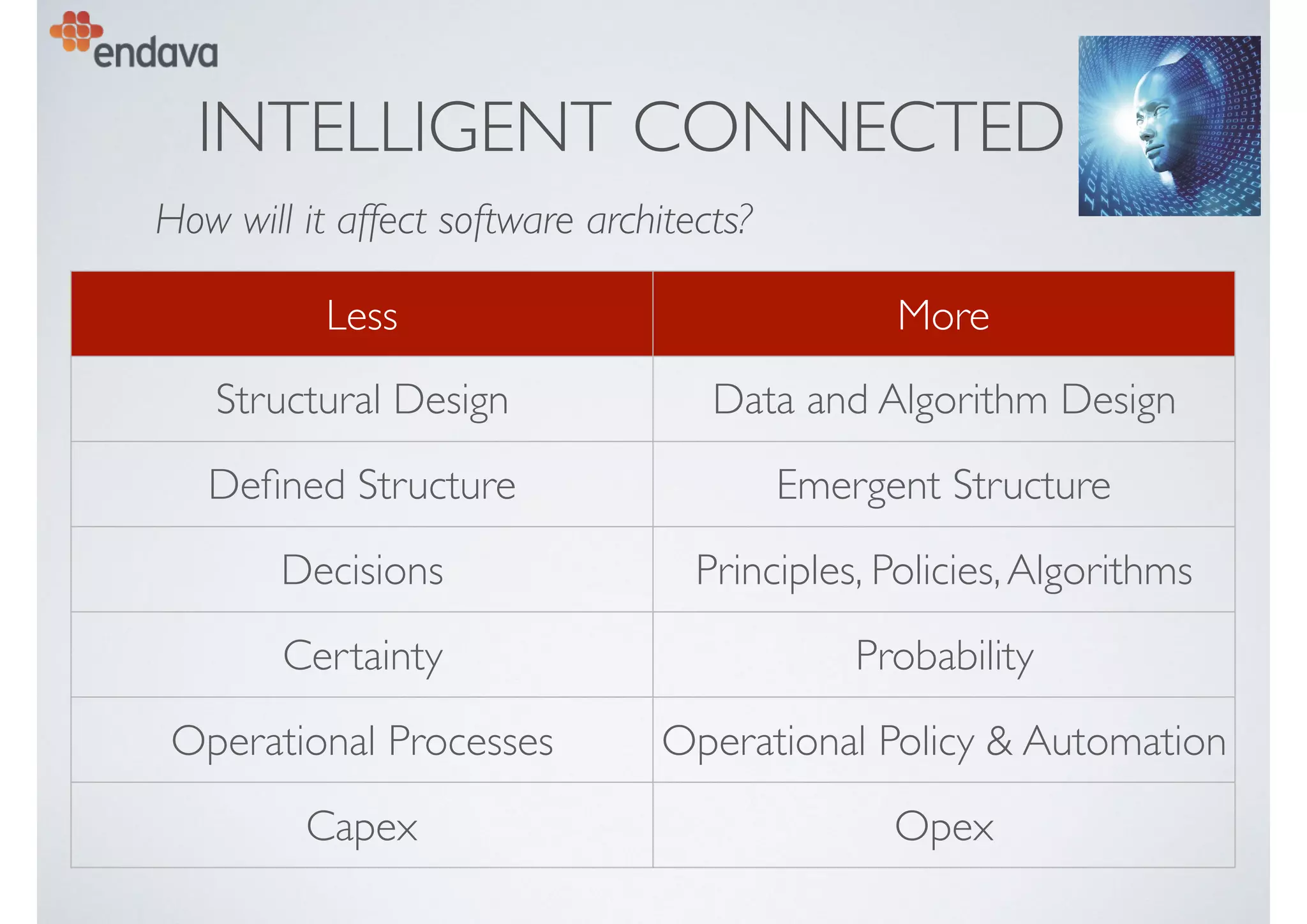

18. INTELLIGENT CONNECTED
Less More
Structural Design Data and Algorithm Design
Defined Structure Emergent Structure
Decisions Principles, Policies,Algorithms
Certainty Probability
Operational Processes Operational Policy & Automation
Capex Opex
How will it affect software architects?

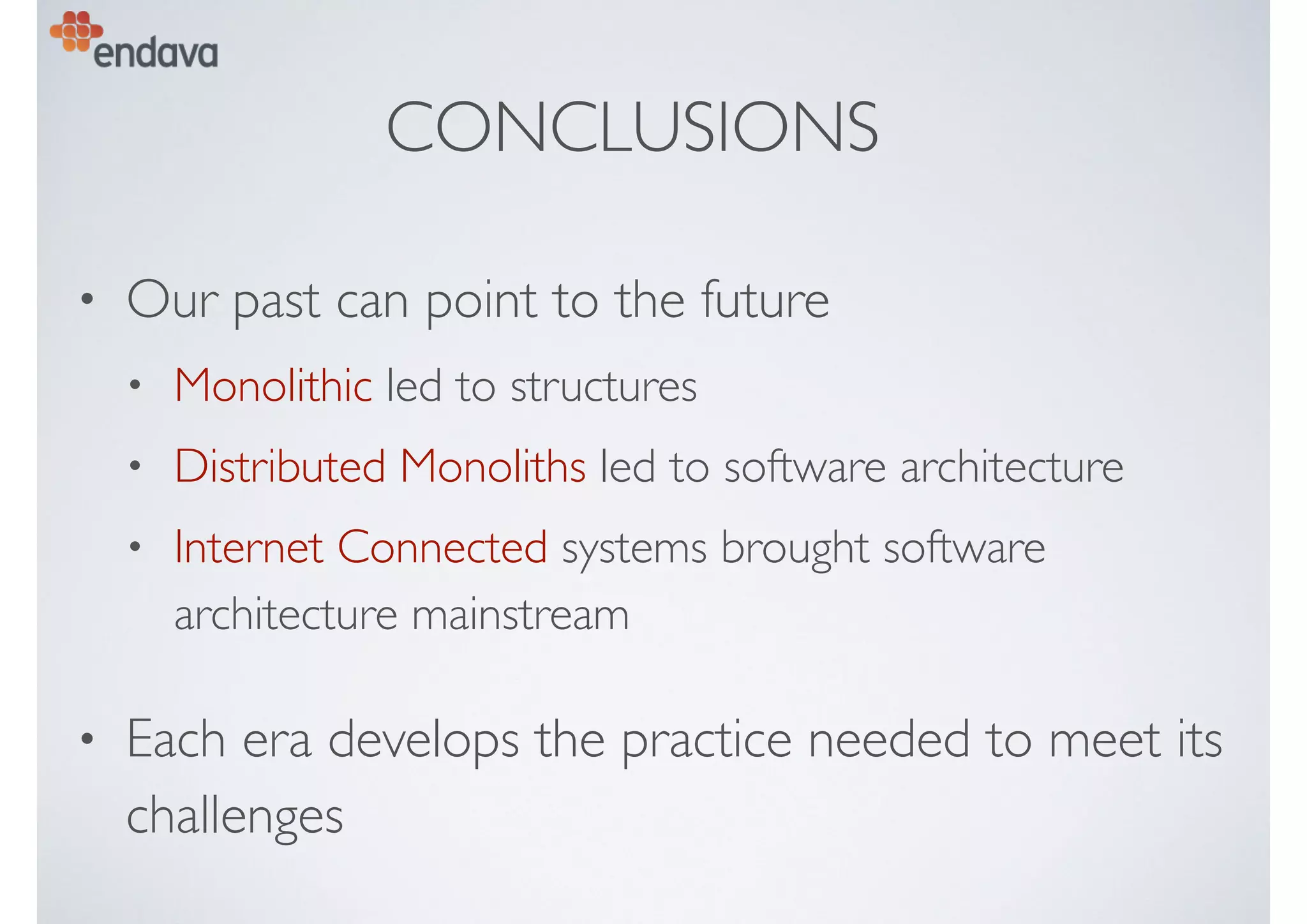

19. CONCLUSIONS
• Our past can point to the future
• Monolithic led to structures
• Distributed Monoliths led to software architecture
• Internet Connected systems brought software
architecture mainstream
• Each era develops the practice needed to meet its
challenges

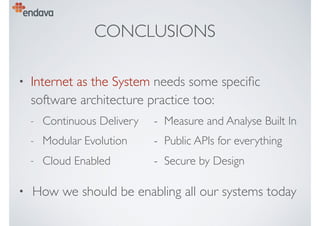

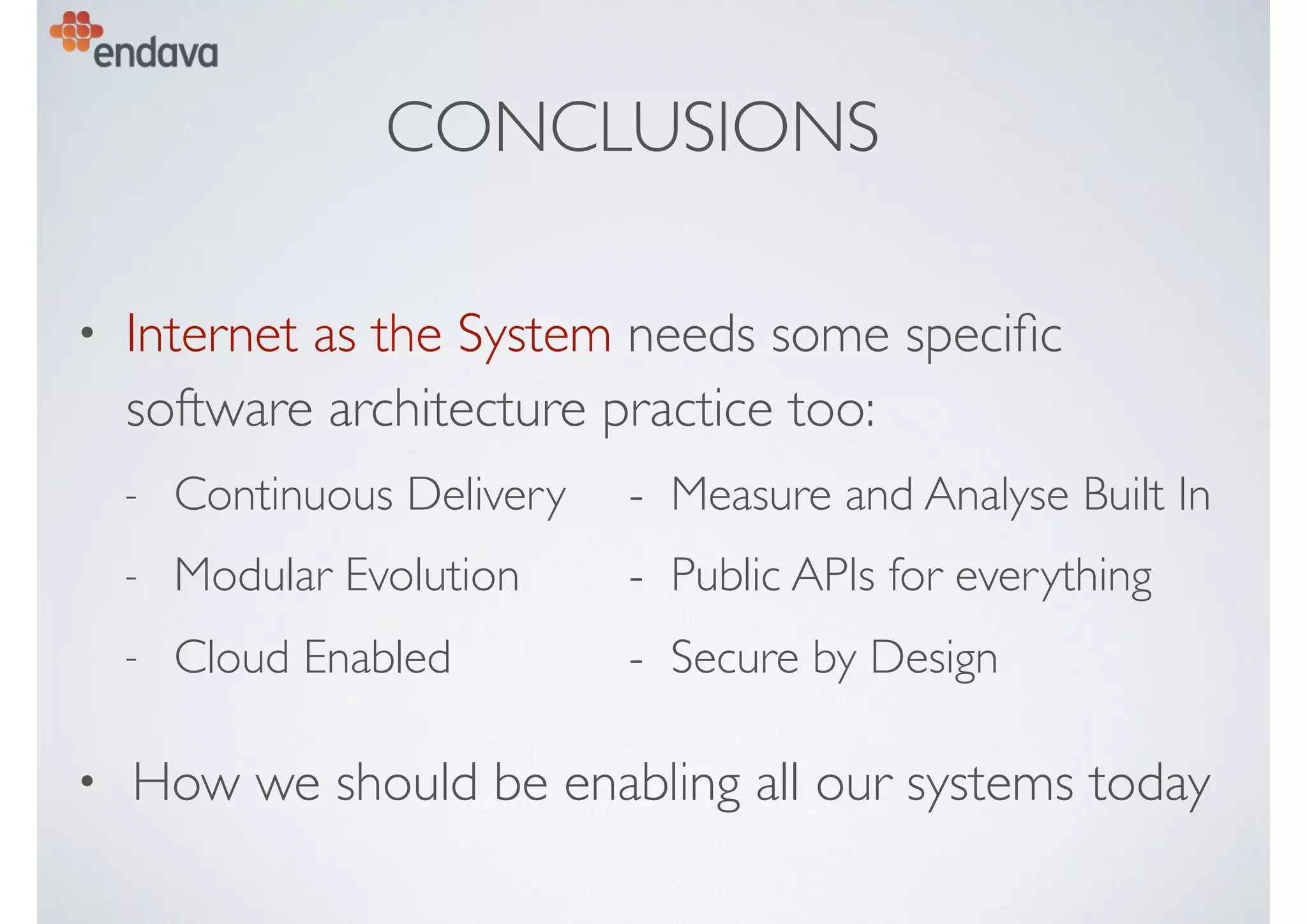

20. CONCLUSIONS
• Internet as the System needs some specific
software architecture practice too:
- Continuous Delivery - Measure and Analyse Built In
- Modular Evolution - Public APIs for everything
- Cloud Enabled - Secure by Design
• How we should be enabling all our systems today

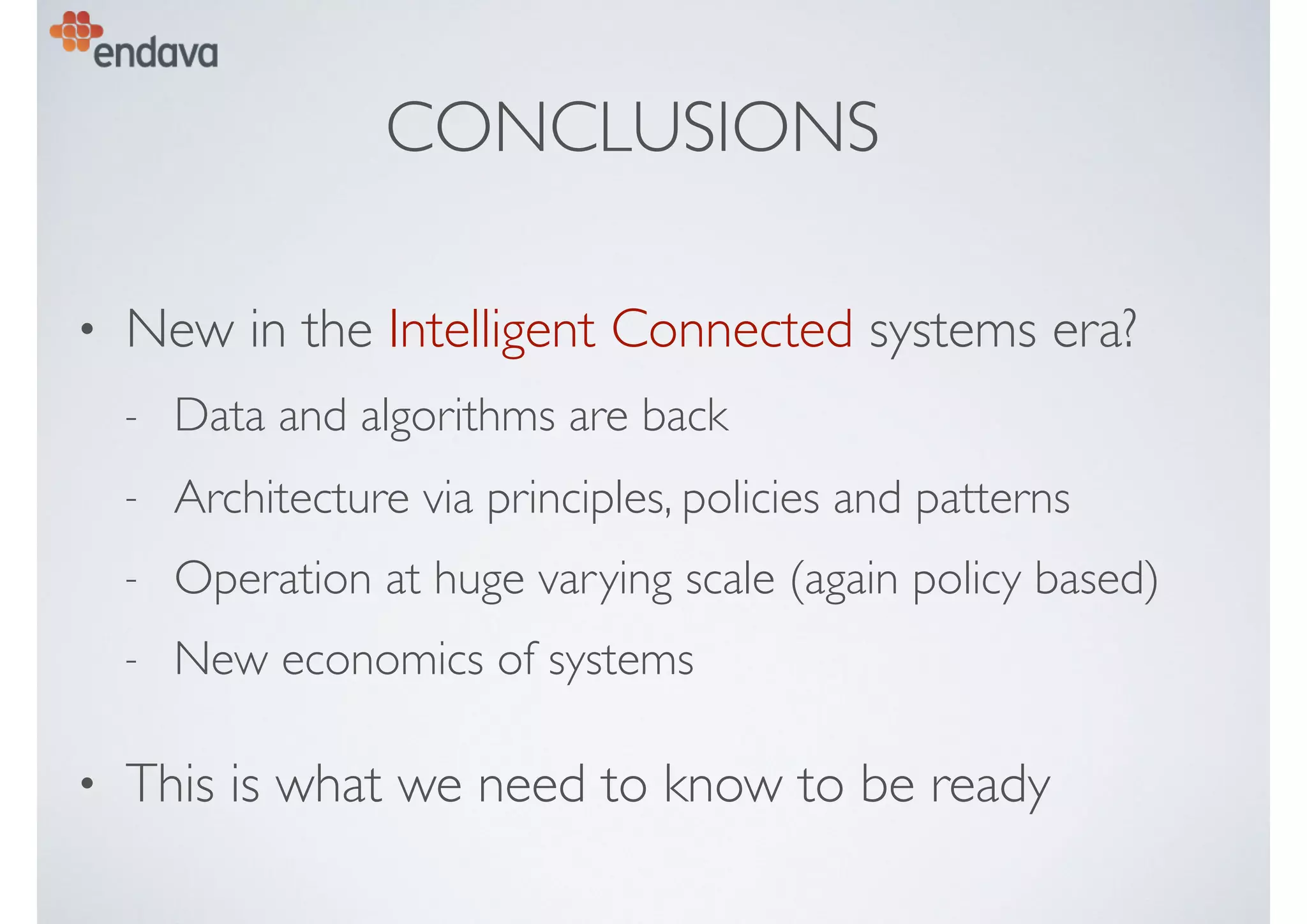

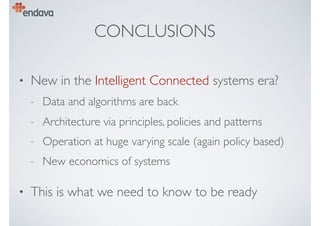

21. CONCLUSIONS
• New in the Intelligent Connected systems era?
- Data and algorithms are back
- Architecture via principles, policies and patterns
- Operation at huge varying scale (again policy based)
- New economics of systems
• This is what we need to know to be ready

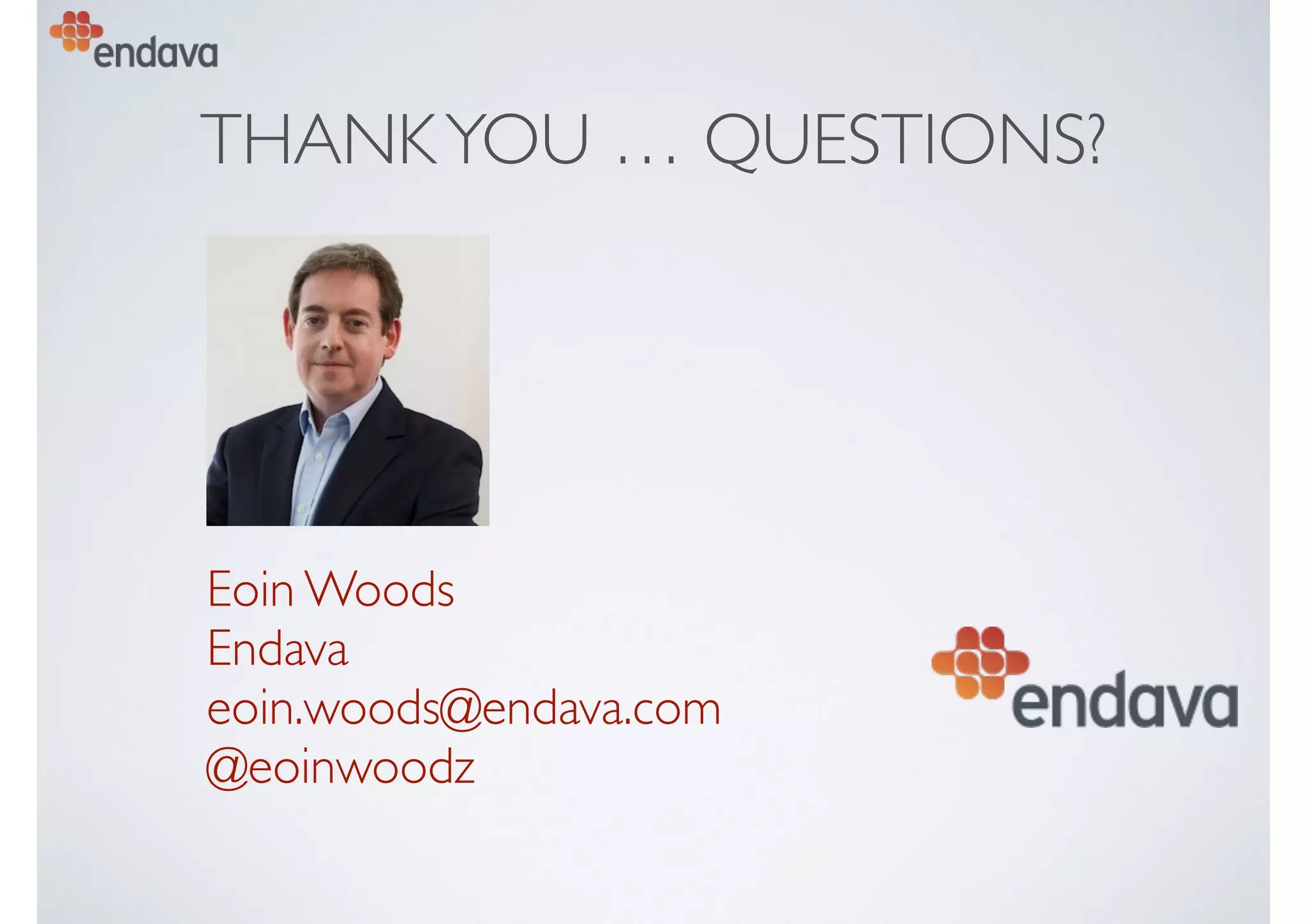

22. THANKYOU … QUESTIONS?
Eoin Woods
Endava
eoin.woods@endava.com
@eoinwoodz
