© 2017 MapR Technologies 19® 19MapR Confidential

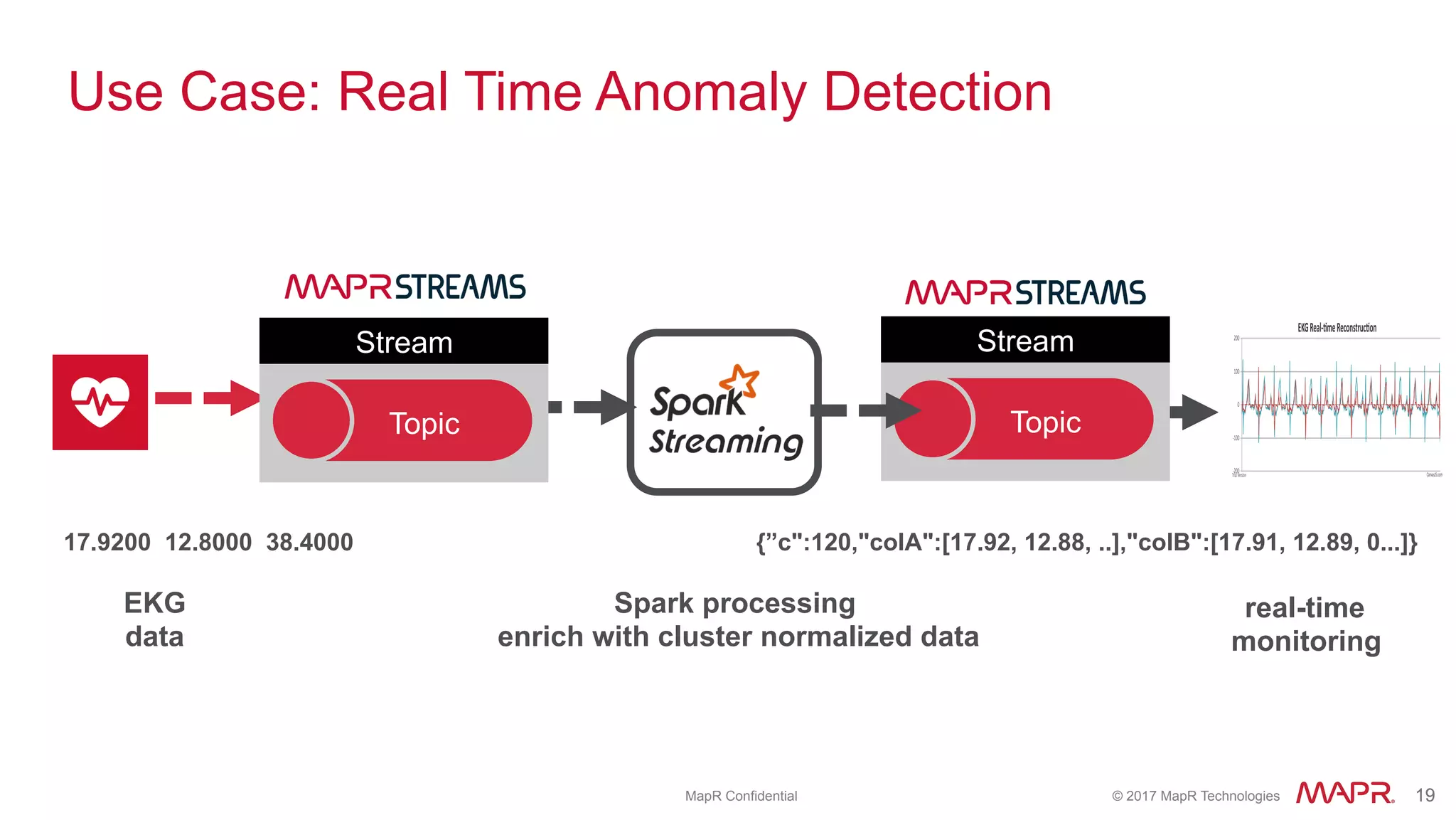

Use Case: Real Time Anomaly Detection
real-time
monitoring
read
EKG
data
Spark processing
enrich with cluster normalized data
Spark
Streaming
Stream
Topic
Stream
Topic
17.9200 12.8000 38.4000 {”c":120,"colA":[17.92, 12.88, ..],"colB":[17.91, 12.89, 0...]}](https://image.slidesharecdn.com/ekgmarch15final-170315184804/75/Applying-Machine-Learning-to-Live-Patient-Data-19-2048.jpg)
batch
time 0 to 1
batch
time 1 to 2
batch
time 2 to 3
dStream
Stored in memory
as an RDD
Stream
Topic](https://image.slidesharecdn.com/ekgmarch15final-170315184804/75/Applying-Machine-Learning-to-Live-Patient-Data-20-2048.jpg)
![®

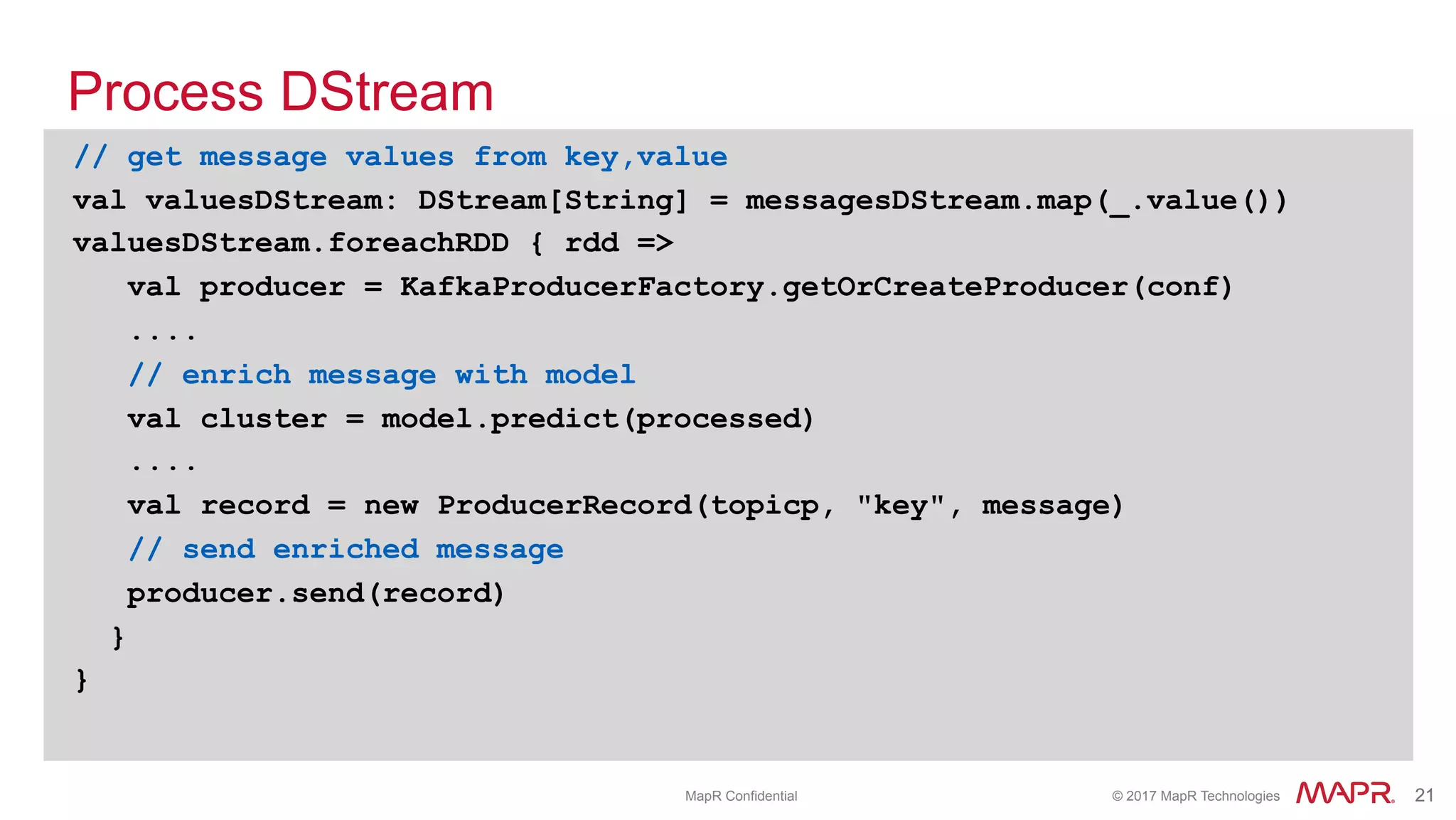

© 2017 MapR Technologies 21® 21MapR Confidential
Process DStream
// get message values from key,value
val valuesDStream: DStream[String] = messagesDStream.map(_.value())
valuesDStream.foreachRDD { rdd =>
val producer = KafkaProducerFactory.getOrCreateProducer(conf)
....
// enrich message with model
val cluster = model.predict(processed)
....
val record = new ProducerRecord(topicp, "key", message)
// send enriched message
producer.send(record)
}
}](https://image.slidesharecdn.com/ekgmarch15final-170315184804/75/Applying-Machine-Learning-to-Live-Patient-Data-21-2048.jpg)
![®
© 2017 MapR Technologies 23® 23MapR Confidential

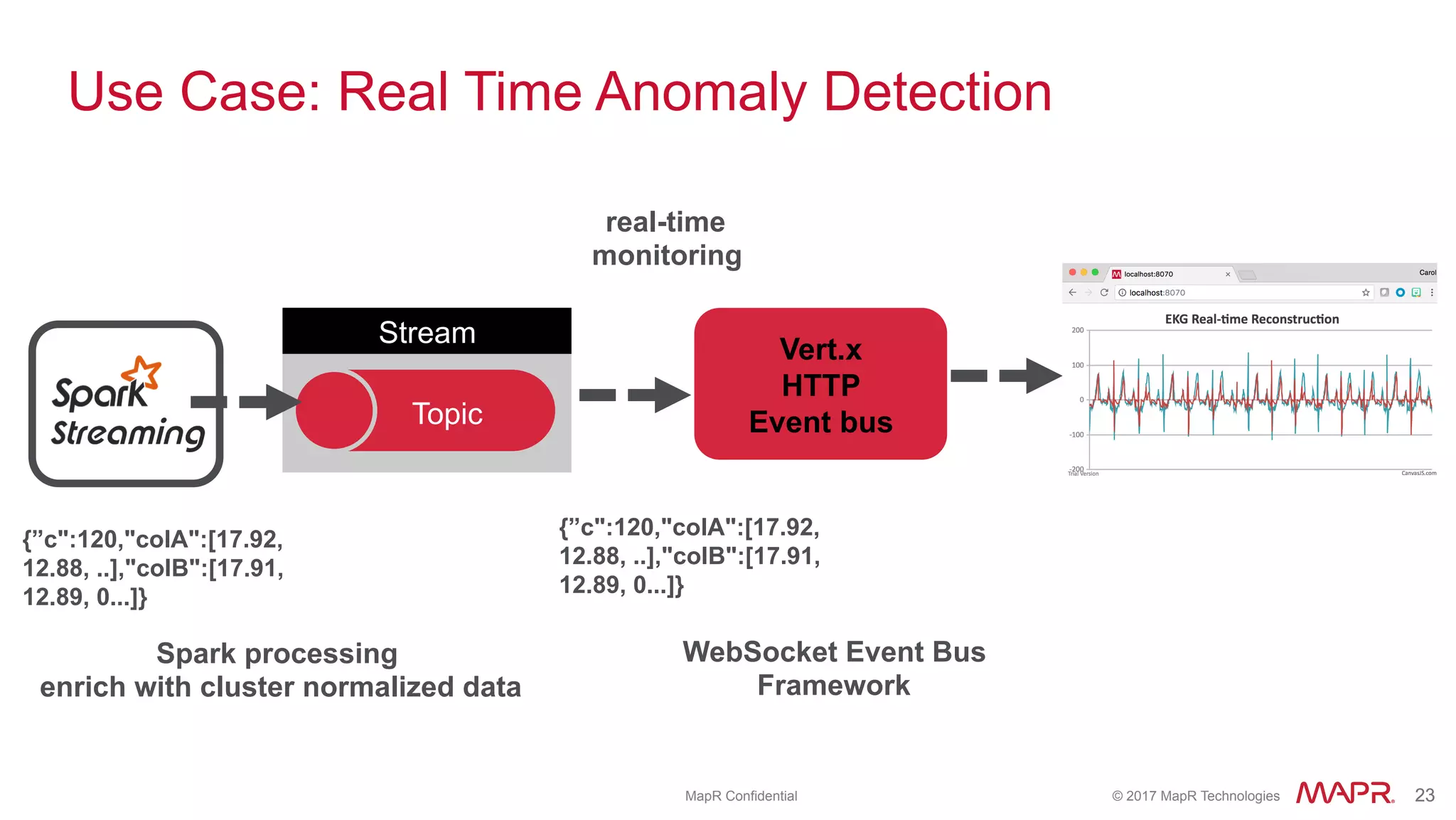

Use Case: Real Time Anomaly Detection
real-time
monitoring
read
Spark processing
enrich with cluster normalized data
Spark
Streaming
Stream
Topic
Vert.x
HTTP
Event bus
WebSocket Event Bus
Framework
{”c":120,"colA":[17.92,
12.88, ..],"colB":[17.91,
12.89, 0...]}
{”c":120,"colA":[17.92,
12.88, ..],"colB":[17.91,
12.89, 0...]}](https://image.slidesharecdn.com/ekgmarch15final-170315184804/75/Applying-Machine-Learning-to-Live-Patient-Data-23-2048.jpg)
Uploaded byCarol McDonald
Applying Machine Learning to Live Patient Data
This document discusses applying machine learning to live patient data for real-time anomaly detection. It describes using streaming data from medical devices like EKGs to build a machine learning model for identifying anomalies. The streaming data is processed using Spark Streaming and enriched with cluster assignments from a pre-trained K-means model before being sent to a dashboard for real-time monitoring of patient vitals.
More Related Content
Similar to Applying Machine Learning to Live Patient Data
Applying Machine Learning to Live Patient Data
- 1. ® © 2017 MapRTechnologies 1® 1MapR Confidential © 2017 MapR Technologies ® Applying Machine Learning to Live Patient Data Carol McDonald (@caroljmcdonald) & Joseph Blue (@joebluems) March 15, 2017
- 2. ® © 2017 MapRTechnologies 2® 2MapR Confidential Data-Driven Experience
- 3. ® © 2017 MapRTechnologies 3® 3MapR Confidential The Promise of Big Data in Healthcare SMARTERBIGGER FASTER
- 4. ® © 2017 MapRTechnologies 4® 4MapR Confidential Life moves pretty fast. If you don't stop and look around once in a while, you could miss it. Ferris Bueller, Fictional High School Student

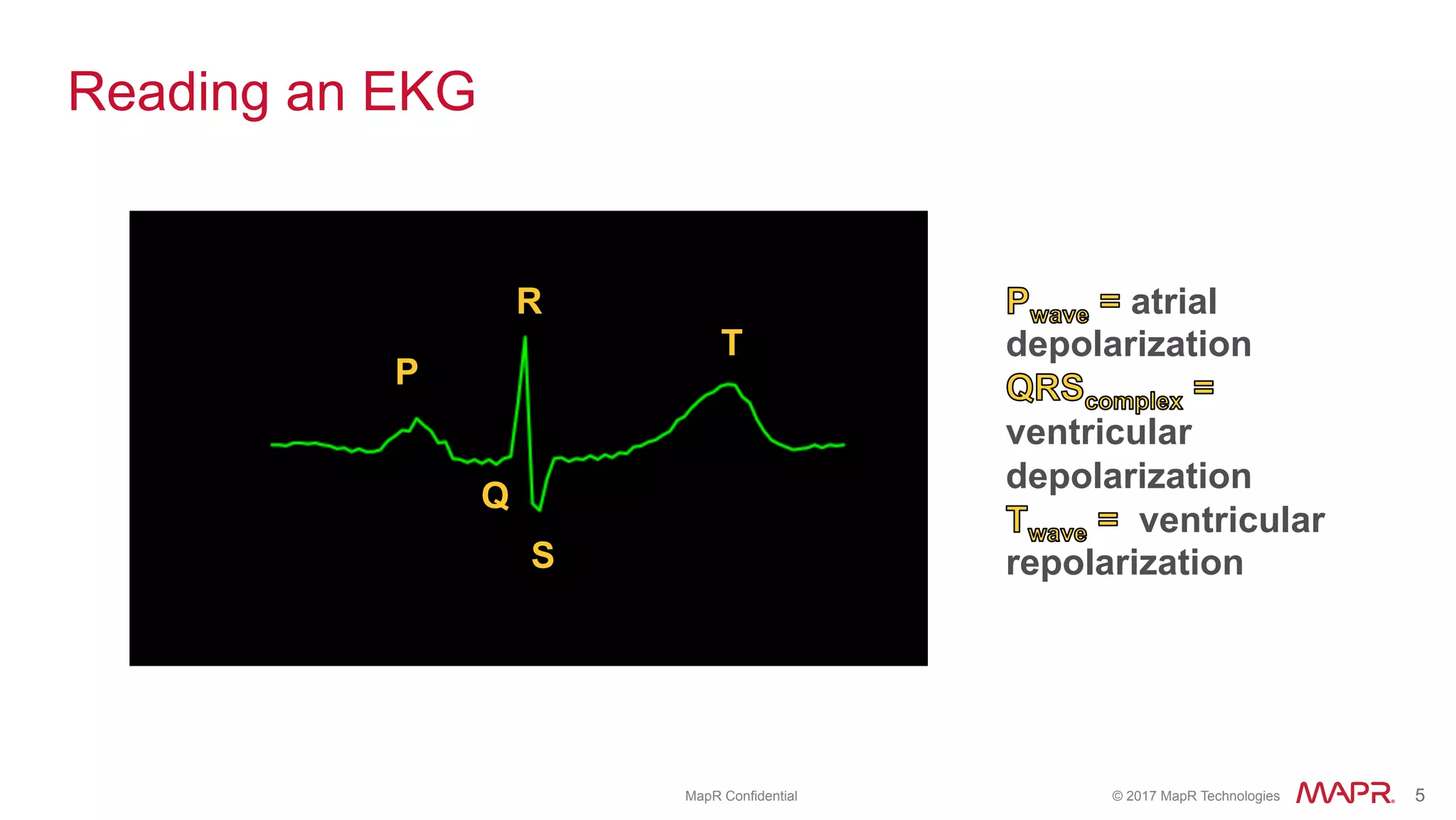

- 5. ® © 2017 MapRTechnologies 5® 5MapR Confidential Reading an EKG P Q R S T atrial depolarization ventricular depolarization ventricular repolarization

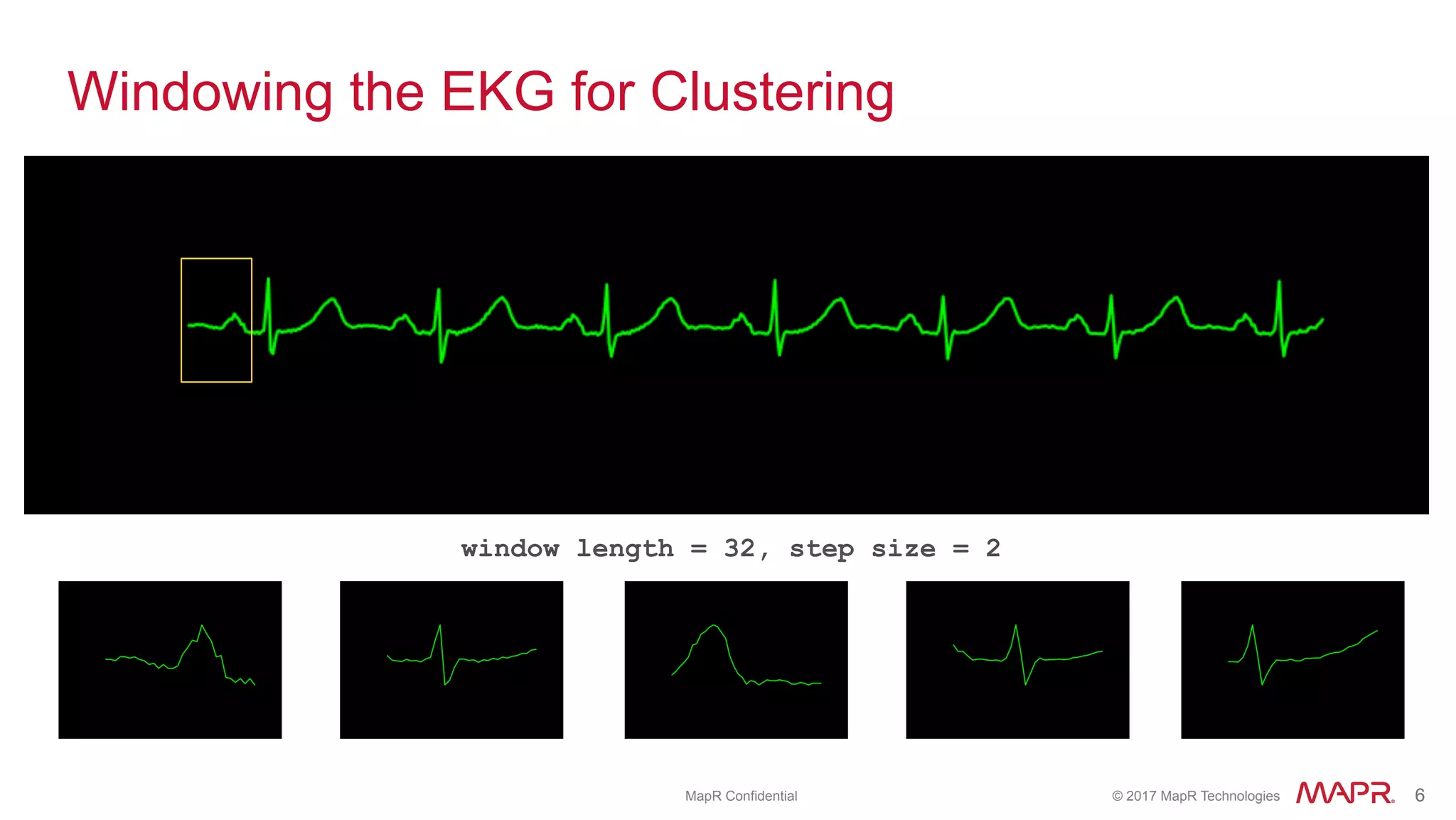

- 6. ® © 2017 MapRTechnologies 6® 6MapR Confidential Windowing the EKG for Clustering window length = 32, step size = 2

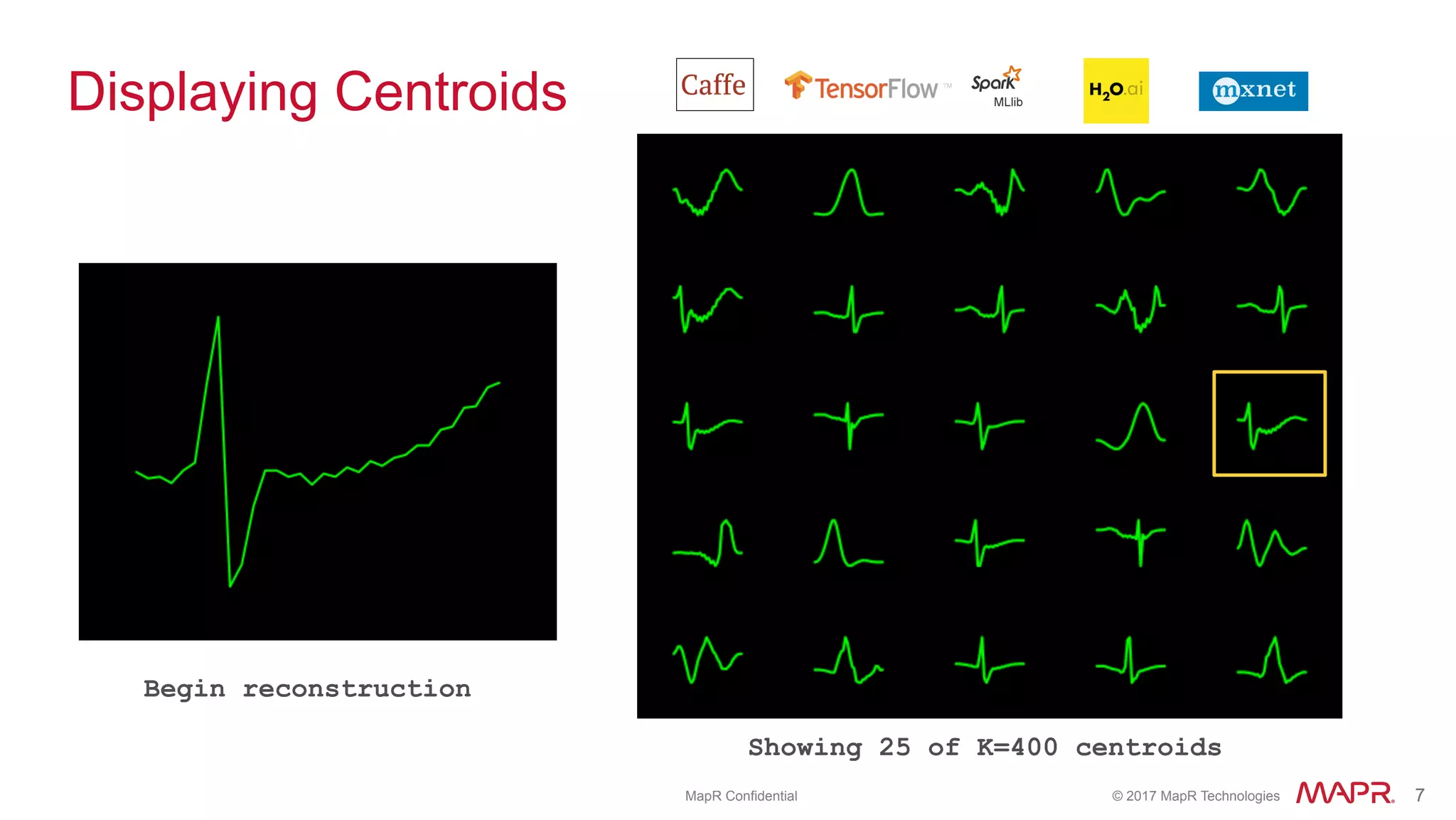

- 7. ® © 2017 MapRTechnologies 7® 7MapR Confidential Displaying Centroids Showing 25 of K=400 centroids Begin reconstruction
- 8. ® © 2017 MapRTechnologies 8® 8MapR Confidential Reconstructing the Signal 1 2 1 2 + window length = 32, step size = 16

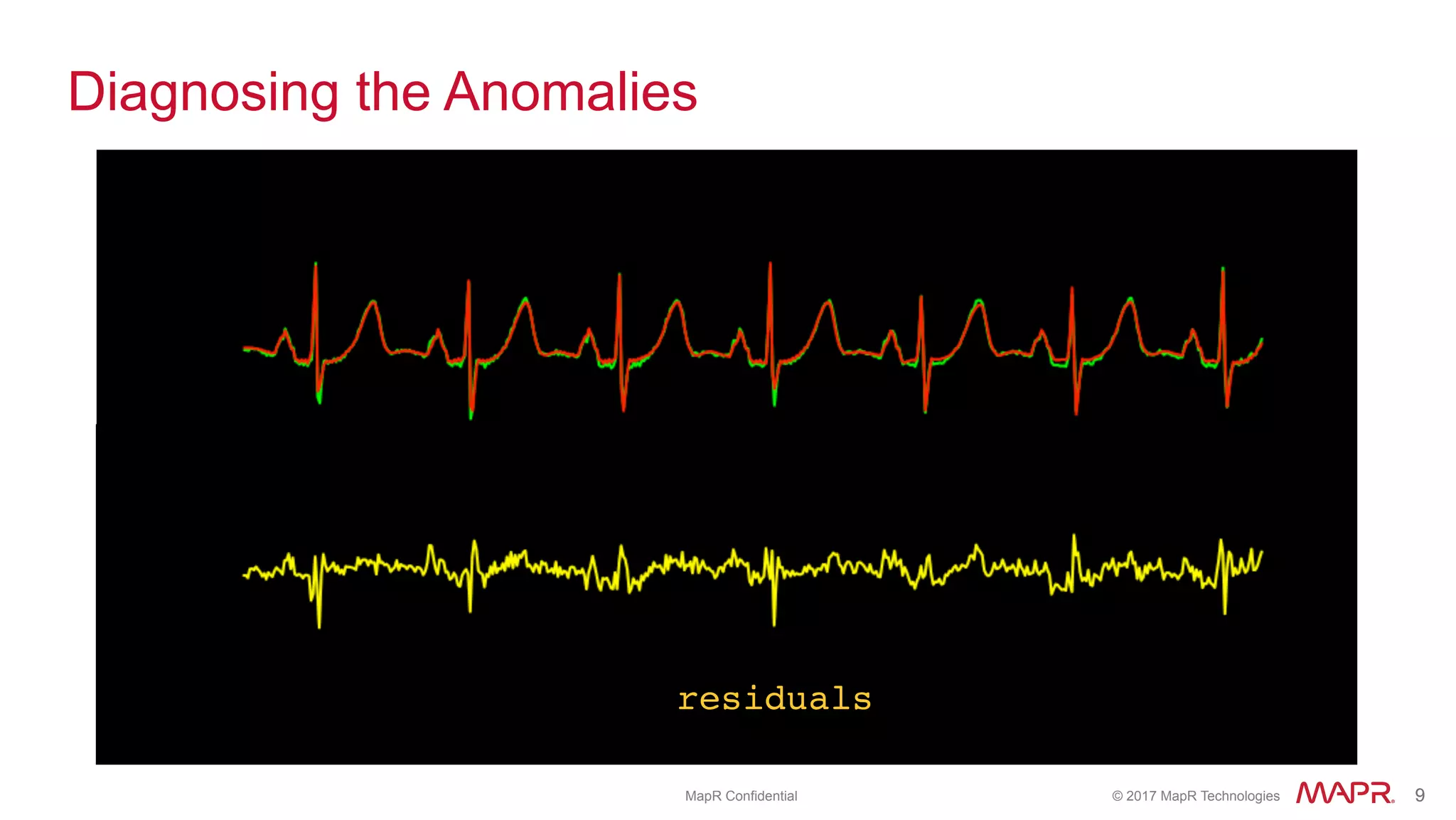

- 9. ® © 2017 MapRTechnologies 9® 9MapR Confidential Diagnosing the Anomalies residuals

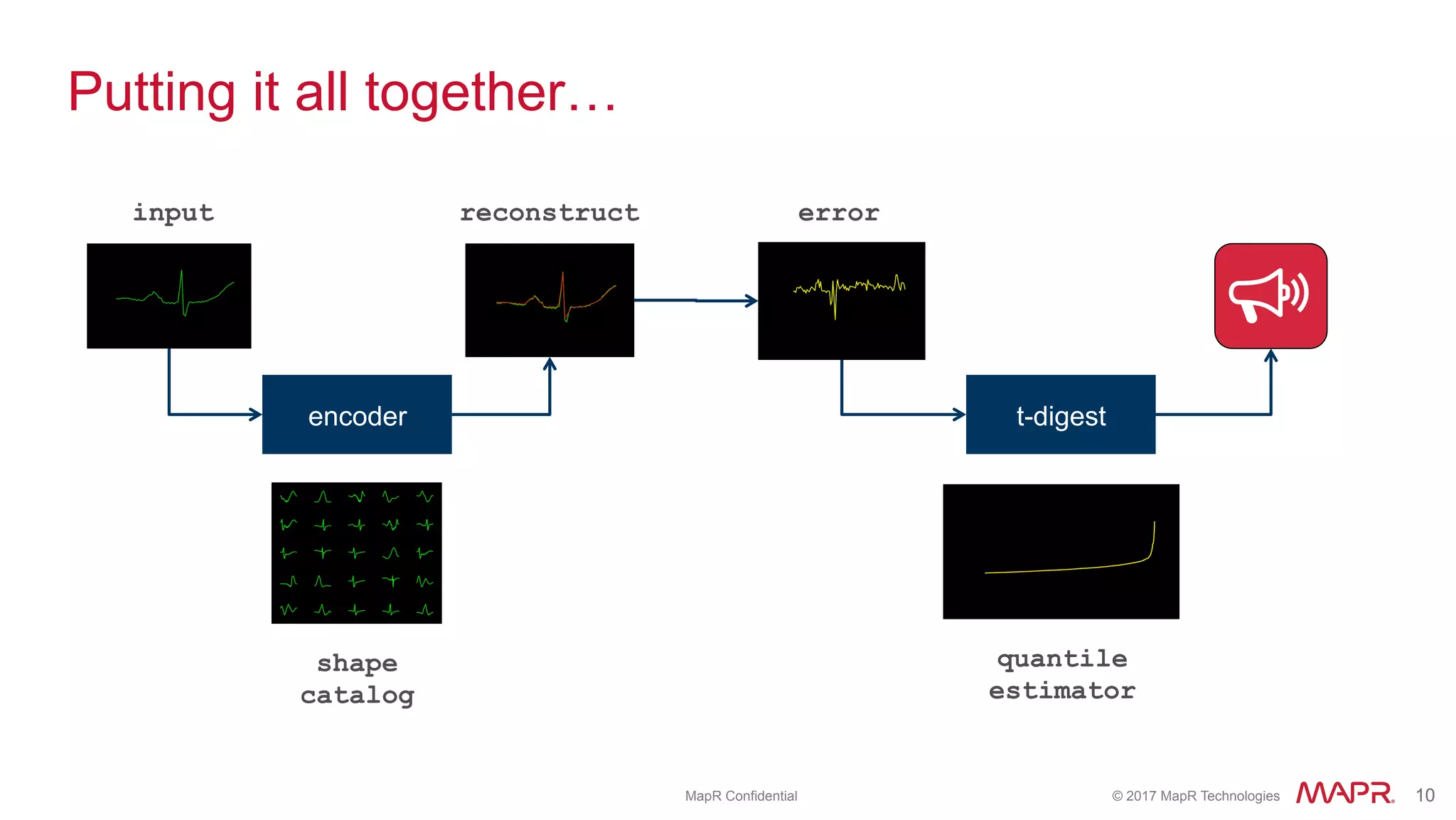

- 10. ® © 2017 MapRTechnologies 10® 10MapR Confidential Putting it all together… shape catalog input reconstruct encoder t-digest error quantile estimator
- 11. ® © 2017 MapRTechnologies 11® 11MapR Confidential © 2016 MapR Technologies© 2017 MapR Technologies Use Case Architecture

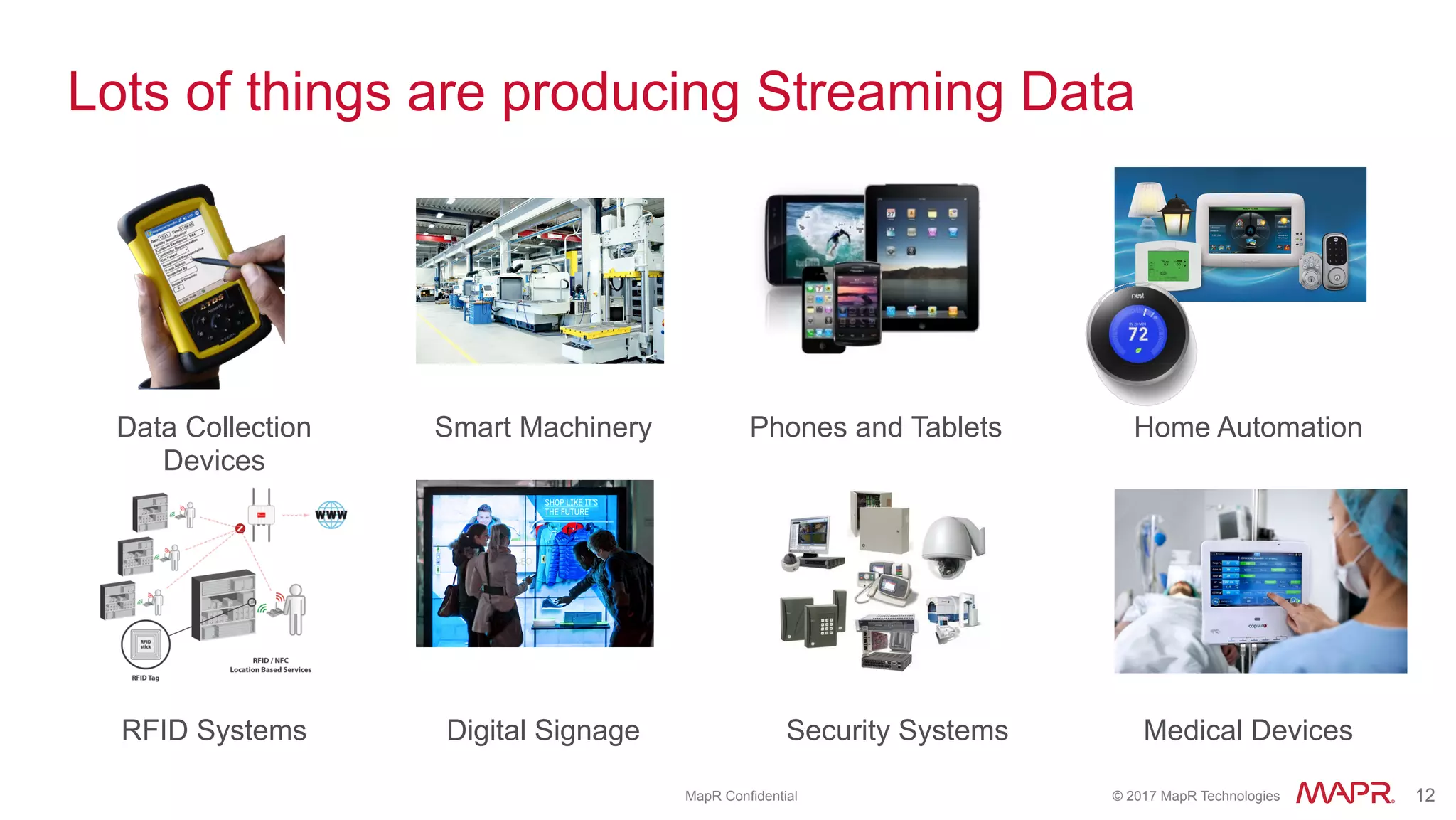

- 12. ® © 2017 MapRTechnologies 12® 12MapR Confidential Lots of things are producing Streaming Data Data Collection Devices Smart Machinery Phones and Tablets Home Automation RFID Systems Digital Signage Security Systems Medical Devices

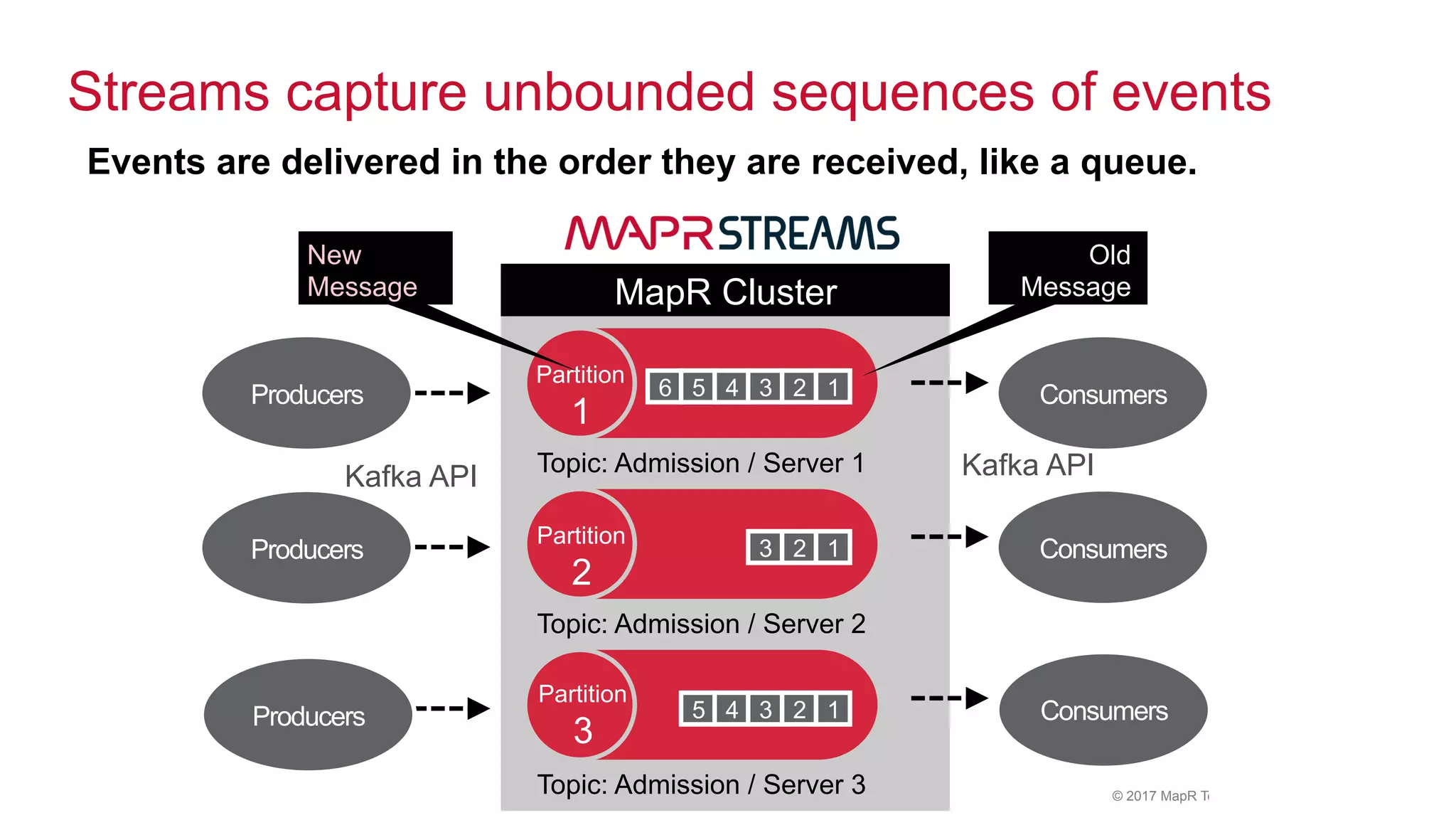

- 13. ® © 2017 MapRTechnologies 13® 13MapR Confidential Consumers MapR Cluster Topic: Admission / Server 1 Topic: Admission / Server 2 Topic: Admission / Server 3 Consumers Consumers Partition 1 Partition 2 Partition 3 6 5 4 3 2 1 3 2 1 5 4 3 2 1 Producers Producers Producers Streams capture unbounded sequences of events Old Message New Message Events are delivered in the order they are received, like a queue. Kafka API Kafka API

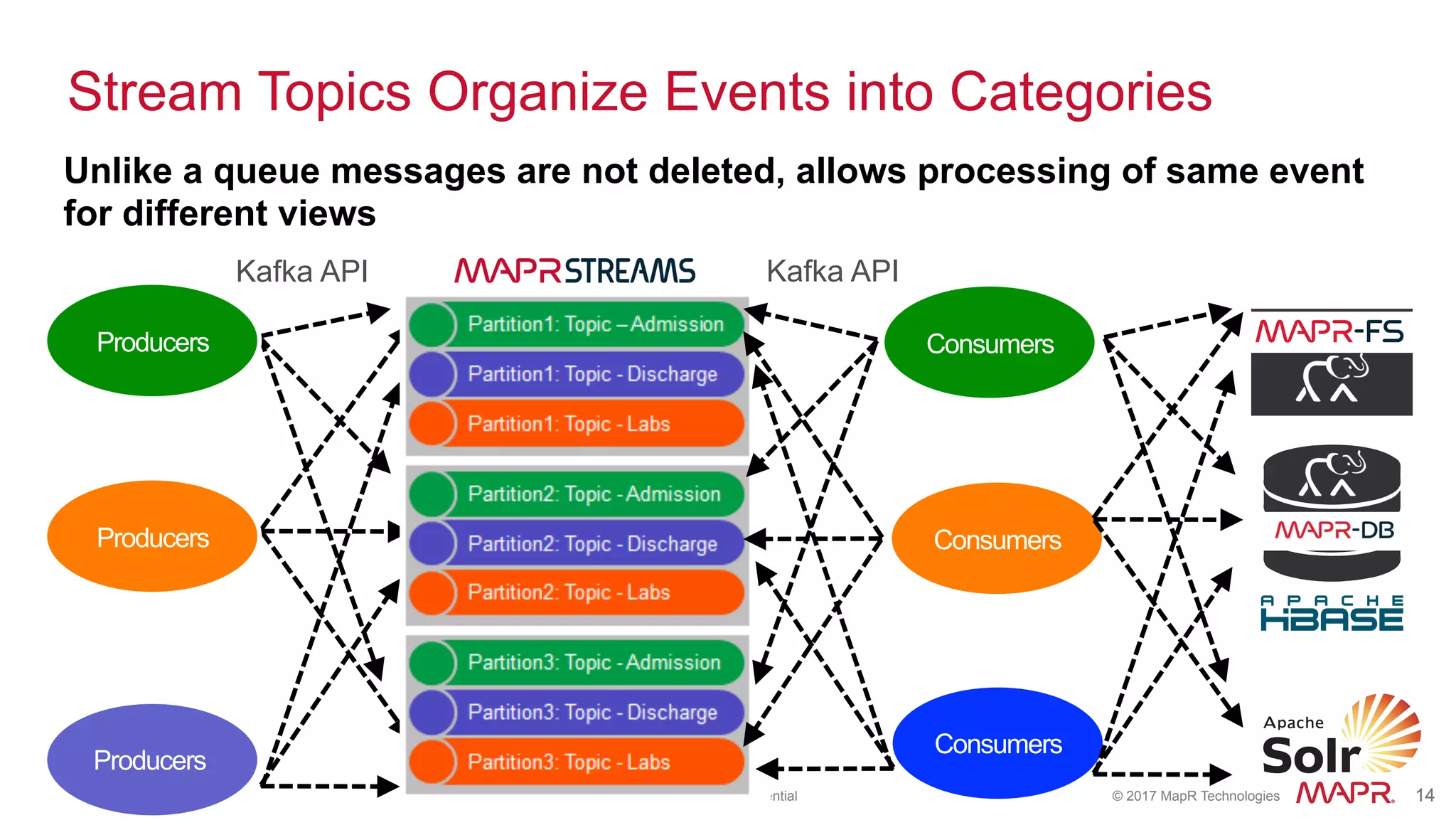

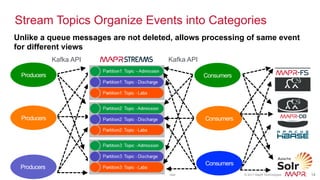

- 14. ® © 2017 MapRTechnologies 14® 14MapR Confidential Stream Topics Organize Events into Categories Consumers Consumers Consumers Producers Producers Producers MapR-FS Kafka API Kafka API Unlike a queue messages are not deleted, allows processing of same event for different views

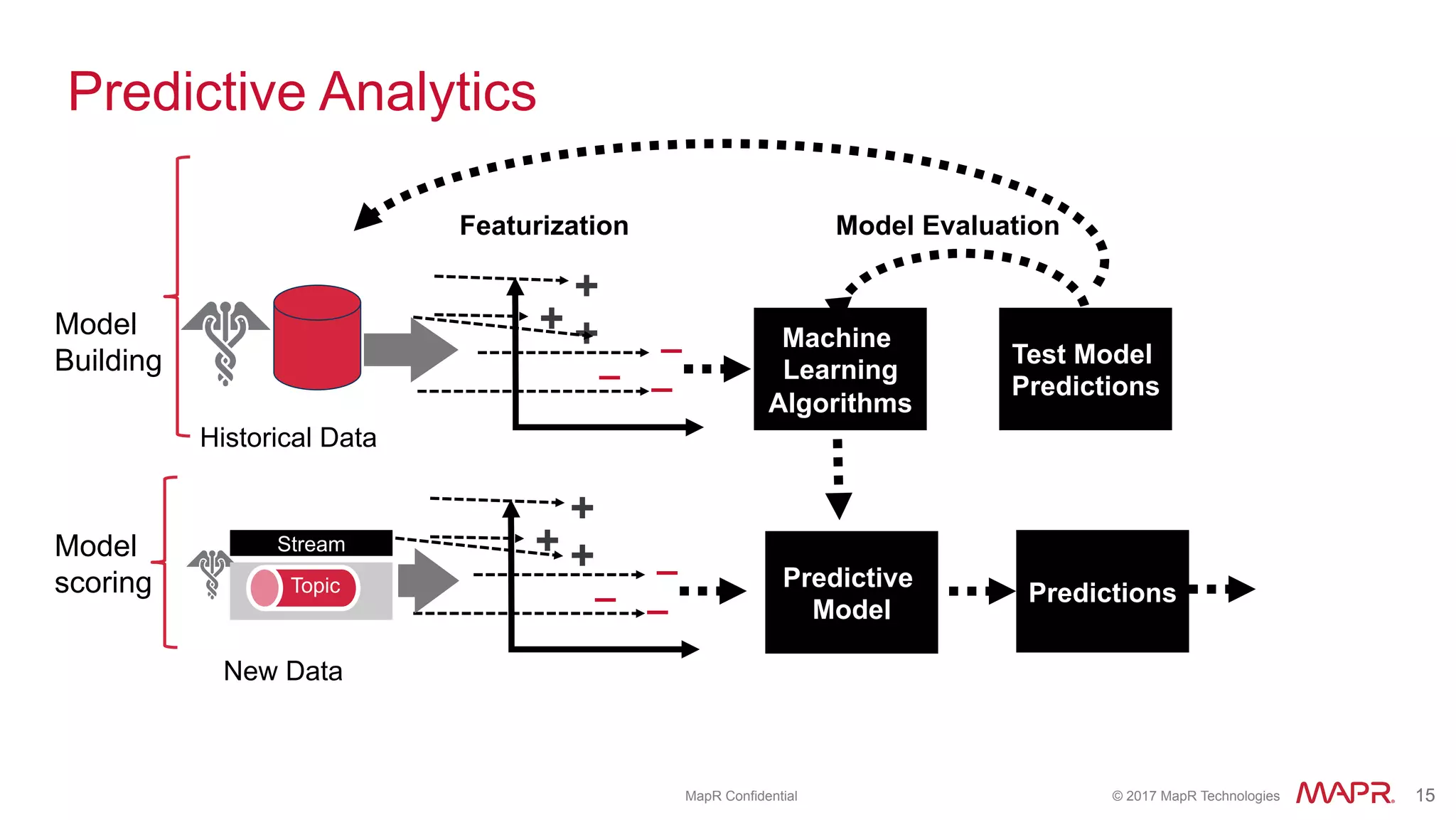

- 15. ® © 2017 MapRTechnologies 15® 15MapR Confidential Predictive Analytics Machine Learning Algorithms Test Model Predictions Model Evaluation Predictive Model Predictions Model Building Model scoring Featurization Historical Data + + ̶+ ̶ ̶ + + ̶+ ̶ ̶ New Data Stream Topic

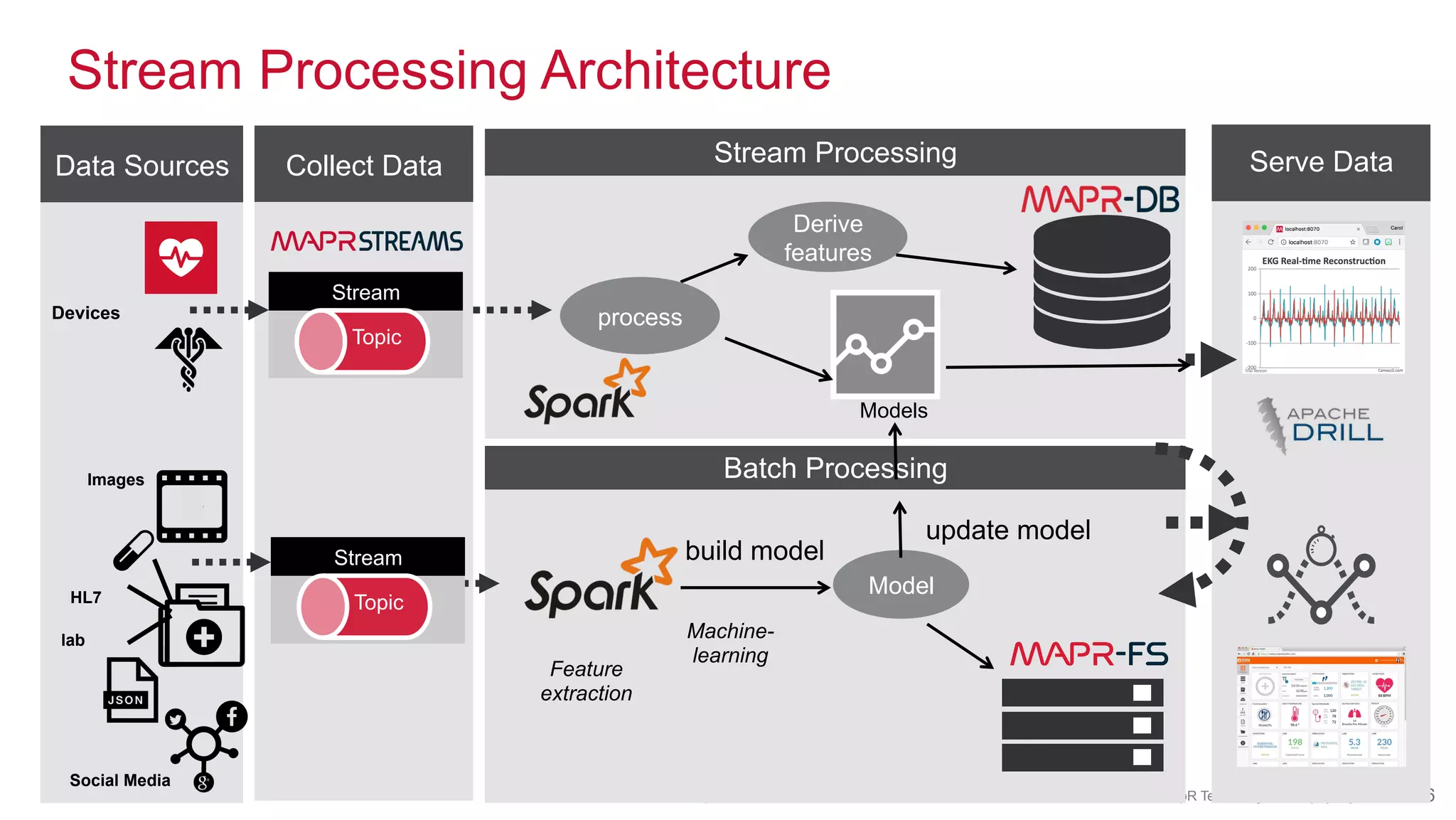

- 16. ® © 2017 MapRTechnologies 16® 16MapR Confidential Stream Processing Architecture Serve DataCollect DataData Sources Stream Processing Derive features process Batch Processing Model build model update model Machine- learning Models Devices Feature extraction Stream Topic Images HL7 Social Media lab Stream Topic

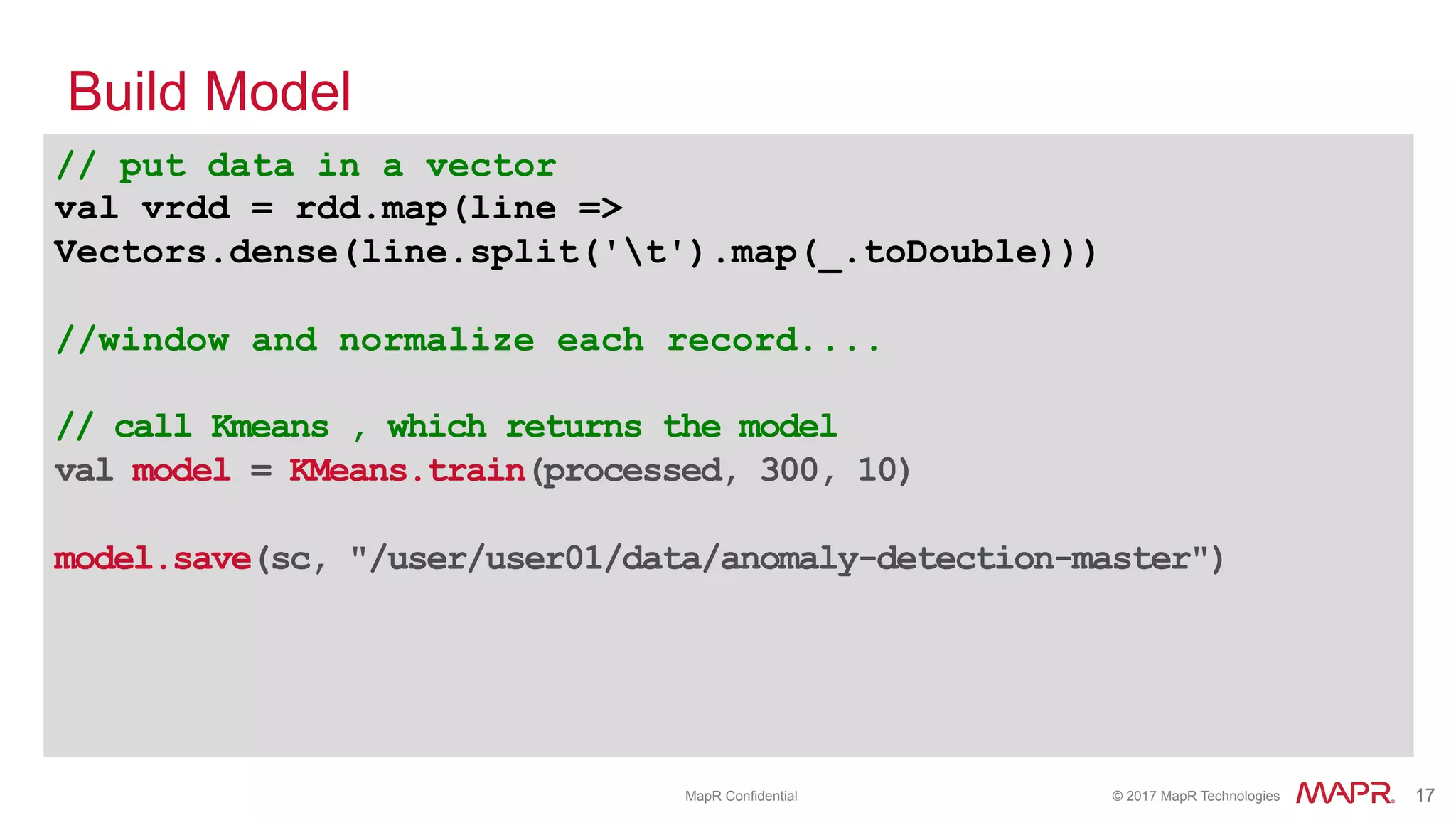

- 17. ® © 2017 MapRTechnologies 17® 17MapR Confidential // put data in a vector val vrdd = rdd.map(line => Vectors.dense(line.split('t').map(_.toDouble))) //window and normalize each record.... // call Kmeans , which returns the model val model = KMeans.train(processed, 300, 10) model.save(sc, "/user/user01/data/anomaly-detection-master") Build Model
- 18. ® © 2017 MapRTechnologies 18® 18MapR Confidential © 2016 MapR Technologies© 2017 MapR Technologies Use the Model with Streaming Data
- 19. ® © 2017 MapRTechnologies 19® 19MapR Confidential Use Case: Real Time Anomaly Detection real-time monitoring read EKG data Spark processing enrich with cluster normalized data Spark Streaming Stream Topic Stream Topic 17.9200 12.8000 38.4000 {”c":120,"colA":[17.92, 12.88, ..],"colB":[17.91, 12.89, 0...]}

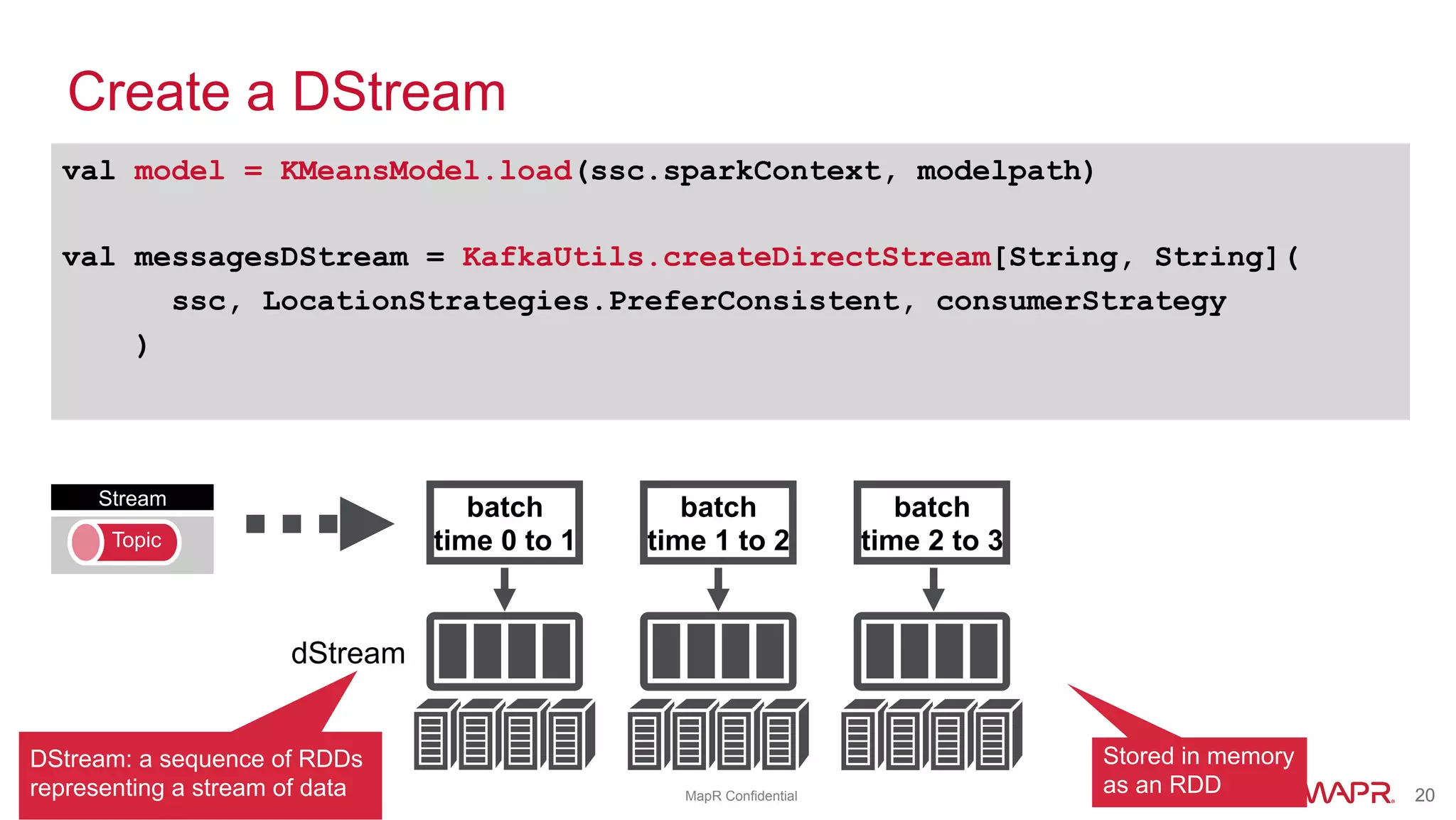

- 20. ® © 2017 MapRTechnologies 20® 20MapR Confidential Create a DStream DStream: a sequence of RDDs representing a stream of data val model = KMeansModel.load(ssc.sparkContext, modelpath) val messagesDStream = KafkaUtils.createDirectStream[String, String]( ssc, LocationStrategies.PreferConsistent, consumerStrategy ) batch time 0 to 1 batch time 1 to 2 batch time 2 to 3 dStream Stored in memory as an RDD Stream Topic
- 21. ® © 2017 MapRTechnologies 21® 21MapR Confidential Process DStream // get message values from key,value val valuesDStream: DStream[String] = messagesDStream.map(_.value()) valuesDStream.foreachRDD { rdd => val producer = KafkaProducerFactory.getOrCreateProducer(conf) .... // enrich message with model val cluster = model.predict(processed) .... val record = new ProducerRecord(topicp, "key", message) // send enriched message producer.send(record) } }

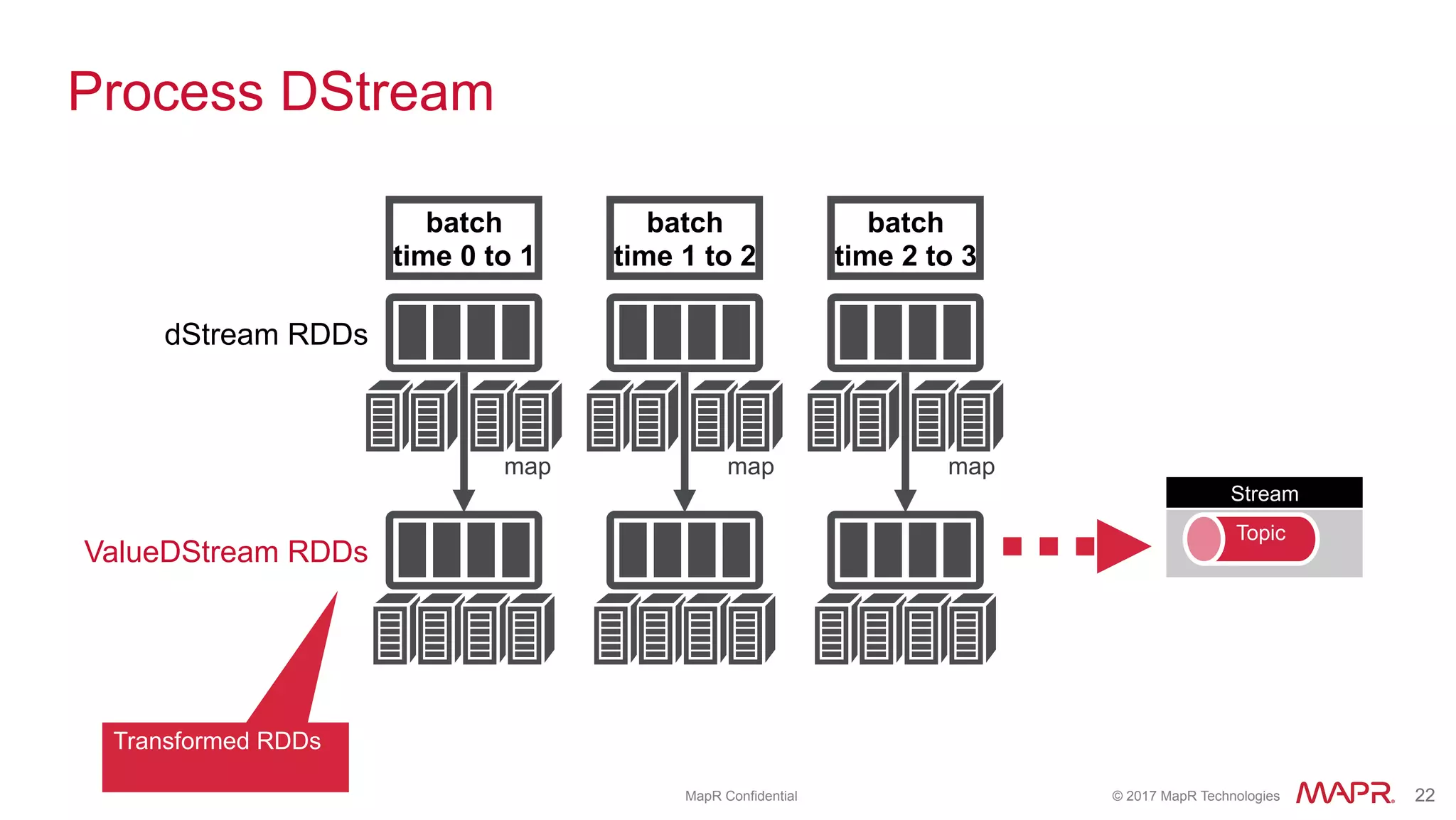

- 22. ® © 2017 MapRTechnologies 22® 22MapR Confidential Process DStream dStream RDDs batch time 2 to 3 batch time 1 to 2 batch time 0 to 1 ValueDStream RDDs Transformed RDDs map map map Stream Topic
- 23. ® © 2017 MapRTechnologies 23® 23MapR Confidential Use Case: Real Time Anomaly Detection real-time monitoring read Spark processing enrich with cluster normalized data Spark Streaming Stream Topic Vert.x HTTP Event bus WebSocket Event Bus Framework {”c":120,"colA":[17.92, 12.88, ..],"colB":[17.91, 12.89, 0...]} {”c":120,"colA":[17.92, 12.88, ..],"colB":[17.91, 12.89, 0...]}
- 24. ® © 2017 MapRTechnologies 24® 24MapR Confidential © 2016 MapR Technologies© 2017 MapR Technologies

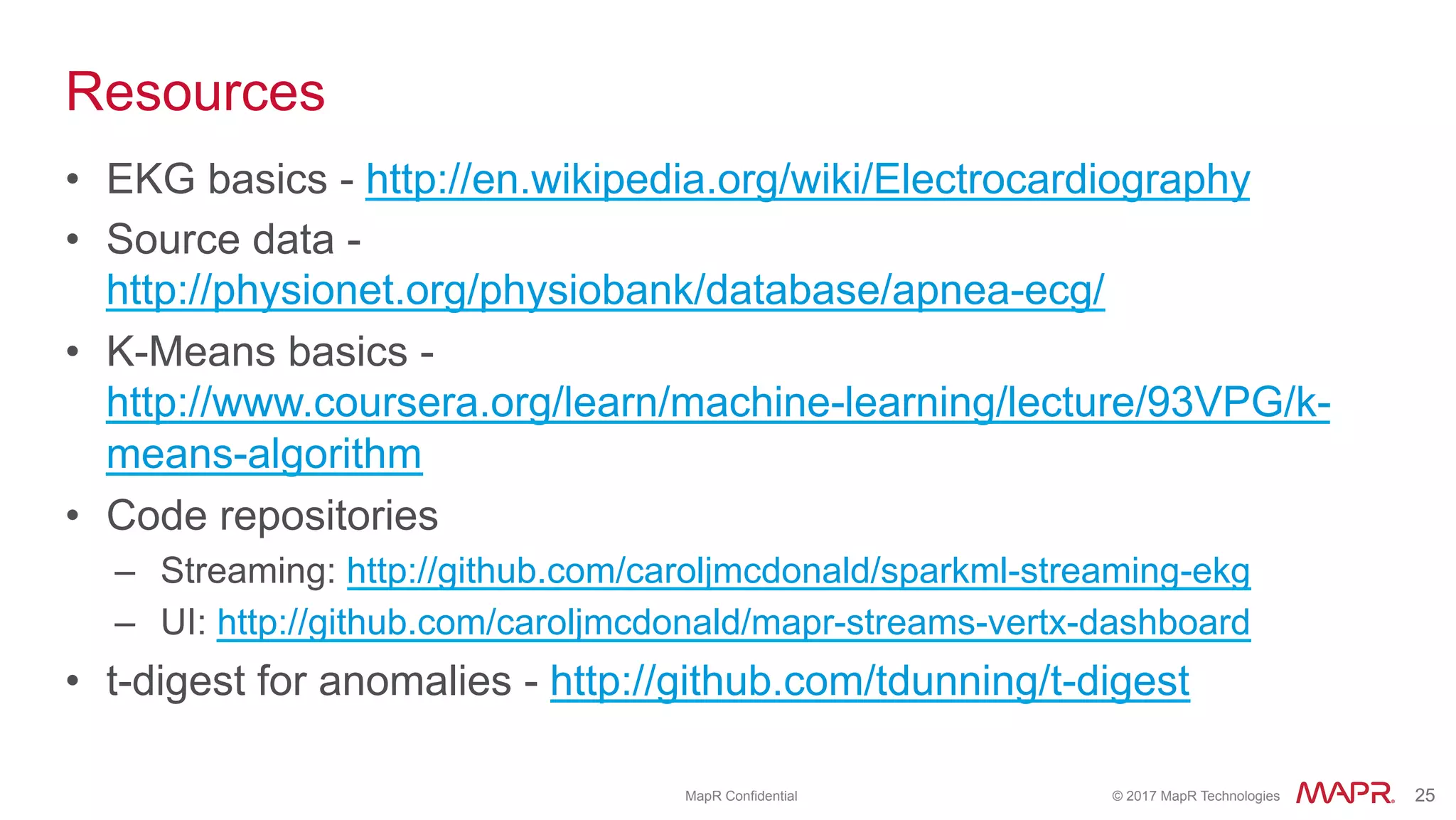

- 25. ® © 2017 MapRTechnologies 25® 25MapR Confidential Resources • EKG basics - http://en.wikipedia.org/wiki/Electrocardiography • Source data - http://physionet.org/physiobank/database/apnea-ecg/ • K-Means basics - http://www.coursera.org/learn/machine-learning/lecture/93VPG/k- means-algorithm • Code repositories – Streaming: http://github.com/caroljmcdonald/sparkml-streaming-ekg – UI: http://github.com/caroljmcdonald/mapr-streams-vertx-dashboard • t-digest for anomalies - http://github.com/tdunning/t-digest
- 26. ® © 2017 MapRTechnologies 26® 26MapR Confidential e-book available courtesy of MapR https://www.mapr.com/practical-machine- learning-new-look-anomaly-detection A New Look at Anomaly Detection by Ted Dunning and Ellen Friedman (published by O’Reilly)

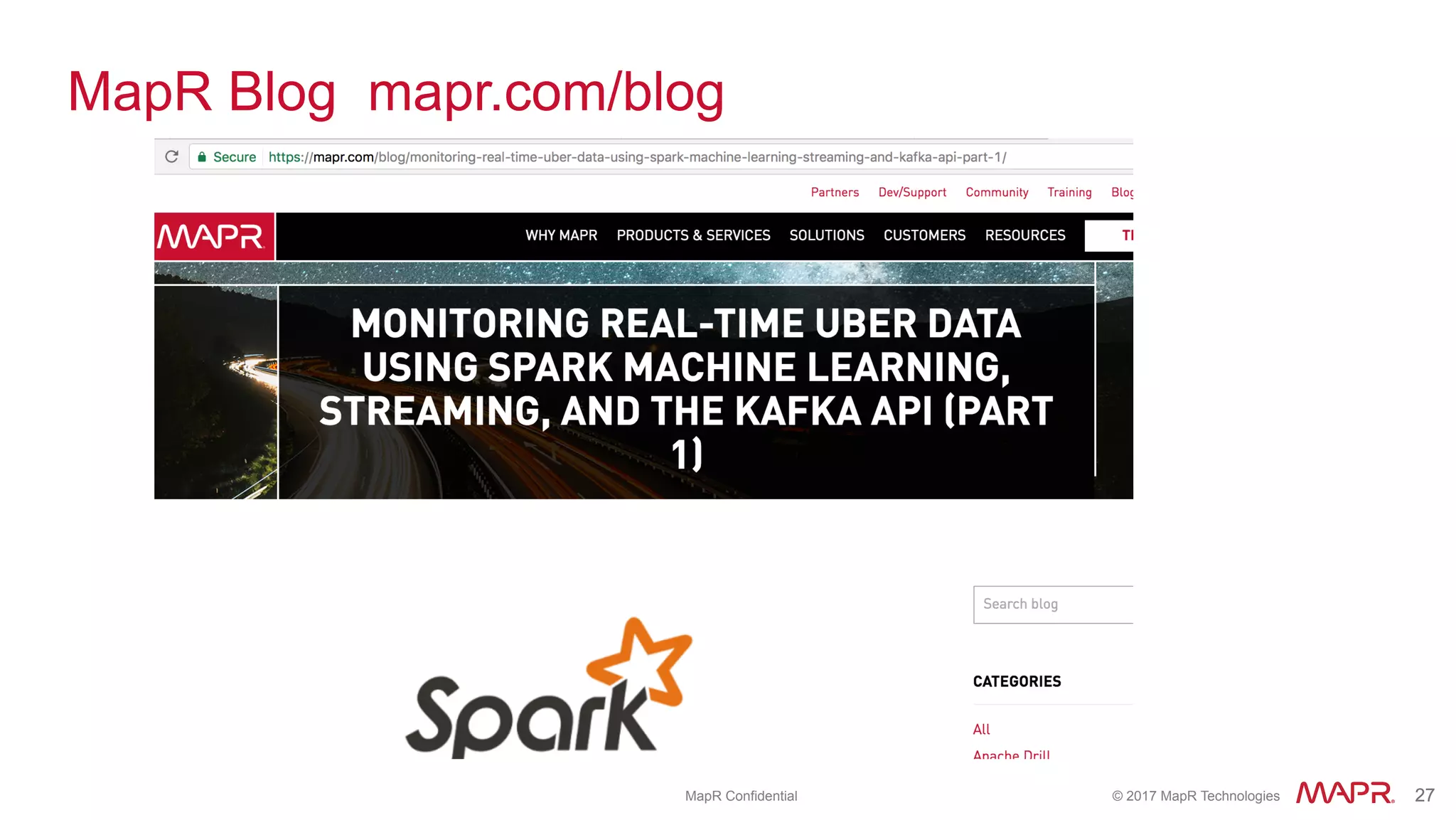

- 27. ® © 2017 MapRTechnologies 27® 27MapR Confidential MapR Blog mapr.com/blog
- 28. ® © 2017 MapRTechnologies 28® 28MapR Confidential Q&A @mapr Engage with us! mapr-technologies Carol McDonald (@caroljmcdonald) Joseph Blue (@joebluems)
