1. Appium with Real Devices
in Testdroid Cloud
January 8th 2014
Jouko Kaasila
Co-Founder and COO
Jouko.kaasila@bitbar.com
Saad Chaudry
Sr. Software Engineer
saad.chaudry@bitbar.com

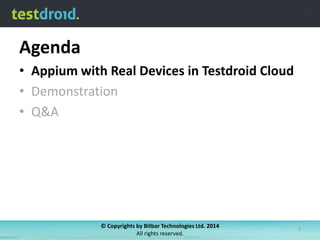

2. Agenda
• Appium with Real Devices in Testdroid Cloud
• Demonstration
• Q&A
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
2

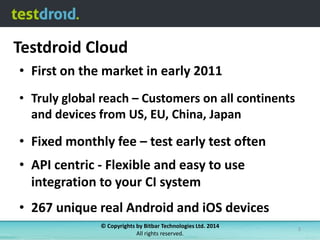

3. Testdroid Cloud
• First on the market in early 2011
• Truly global reach – Customers on all continents
and devices from US, EU, China, Japan
• Fixed monthly fee – test early test often
• API centric - Flexible and easy to use
integration to your CI system
• 267 unique real Android and iOS devices
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
3

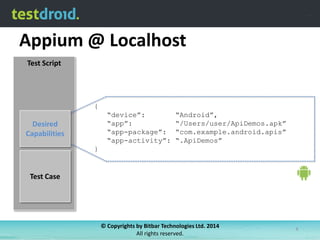

4. Appium @ Localhost
Test Script
{
“device”:
“app”:
“app-package”:
“app-activity”:
Desired
Capabilities
“Android”,
“/Users/user/ApiDemos.apk”
“com.example.android.apis”
“.ApiDemos”
}
Test Case
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
4

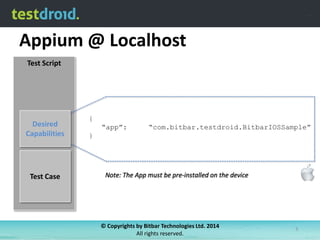

5. Appium @ Localhost
Test Script
Desired
Capabilities
{
“app”:
“com.bitbar.testdroid.BitbarIOSSample”
}
Test Case
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
5

6. Appium @ Localhost
Test Script
4723
WebDriver
http://localhost_4723/wd/hub
Appium Server
Desired
Capabilities
Test Case
Device
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
6

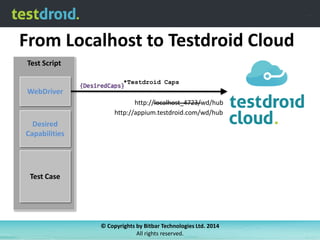

7. From Localhost to Testdroid Cloud
Test Script
*Testdroid Caps
WebDriver
http://localhost_4723/wd/hub
http://appium.testdroid.com/wd/hub
Desired
Capabilities
Test Case
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.

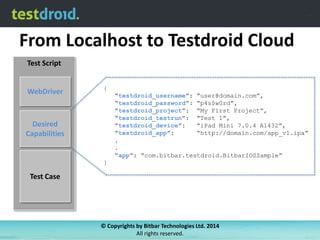

8. From Localhost to Testdroid Cloud
Test Script
WebDriver
{
“testdroid_username”: “user@domain.com”,
“testdroid_password”: “p4s$w0rd”,
“testdroid_project”: “My First Project”,
“testdroid_testrun”: “Test 1”,
“testdroid_device”:
“iPad Mini 7.0.4 A1432”,
“testdroid_app”:
“http://domain.com/app_v1.ipa”
.
.
“app”: “com.bitbar.testdroid.BitbarIOSSample”
Desired
Capabilities
}
Test Case
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.

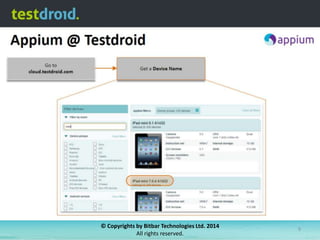

9. © Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
9

10. © Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
10

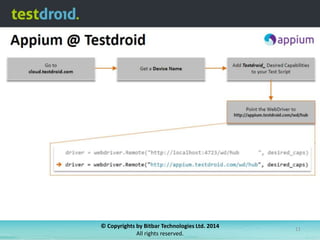

11. © Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
11

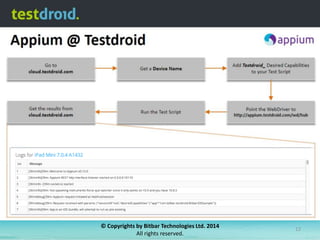

12. © Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
12

13. © Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
13

14. © Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
14

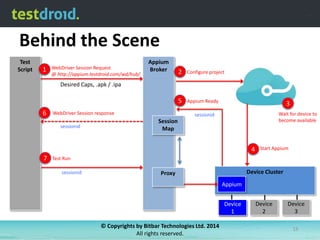

15. Behind the Scene
Test
Script
1
WebDriver Session Request
@ http://appium.testdroid.com/wd/hub/
Appium
Broker
2
Configure project
5
Appium Ready
Desired Caps, .apk / .ipa
6
WebDriver Session response
sessionid
3
Wait for device to
become available
sessionid
Session
Map
4
7
Start Appium
Test Run
sessionid
Device Cluster
Proxy
Appium
Device
Device
1
1
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
Device
2
Device
3
15

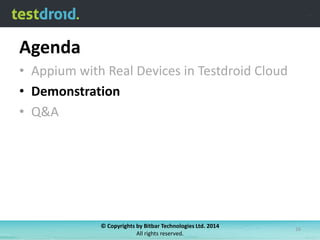

16. Agenda
• Appium with Real Devices in Testdroid Cloud
• Demonstration
• Q&A
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
16

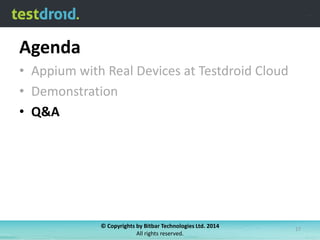

17. Agenda
• Appium with Real Devices at Testdroid Cloud
• Demonstration
• Q&A
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.
17
