1. Get a start with
for Mobile Automation (Android)
TPC DECEMBER 2016 MEETUP
BY ABHISHEK YADAV (@ABHISHEKKYD)

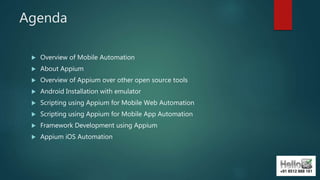

2. Agenda
 Overview of Mobile Automation
 About Appium
 Overview of Appium over other open source tools
 Android Installation with emulator
 Scripting using Appium for Mobile Web Automation
 Scripting using Appium for Mobile App Automation
 Framework Development using Appium
 Appium iOS Automation

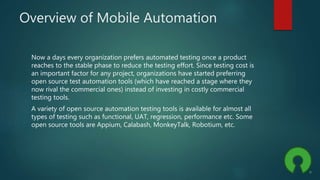

3. Overview of Mobile Automation
Now a days every organization prefers automated testing once a product
reaches to the stable phase to reduce the testing effort. Since testing cost is
an important factor for any project, organizations have started preferring
open source test automation tools (which have reached a stage where they
now rival the commercial ones) instead of investing in costly commercial
testing tools.
A variety of open source automation testing tools is available for almost all
types of testing such as functional, UAT, regression, performance etc. Some
open source tools are Appium, Calabash, MonkeyTalk, Robotium, etc.

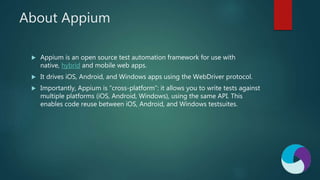

4. About Appium
 Appium is an open source test automation framework for use with
native, hybrid and mobile web apps.
 It drives iOS, Android, and Windows apps using the WebDriver protocol.
 Importantly, Appium is “cross-platform”: it allows you to write tests against
multiple platforms (iOS, Android, Windows), using the same API. This
enables code reuse between iOS, Android, and Windows testsuites.

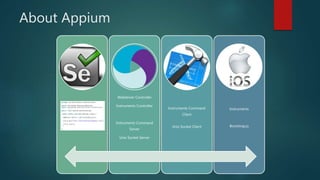

5. About Appium
Webdriver Controller
Instruments Controller
Instruments Command
Server
Unix Socket Server
Instruments Command
Client
Unix Socket Client
Instruments
Bootstrap.js

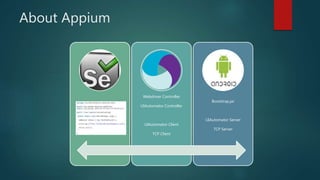

6. About Appium
Webdriver Controller
UIAutomator Controller
UIAutomator Client
TCP Client
Bootstrap.jar
UIAutomator Server
TCP Server

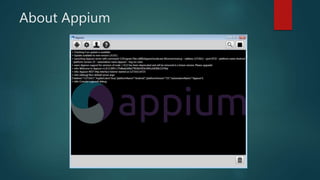

7. About Appium

8. Overview of Appium over other open
source tools
A huge number of mobile testing tools have been developed in recent years
to support mobile development. As more companies are developing mobile
products and the marketplace is seeing more devices, platforms, and versions,
testing your mobile apps is vital. When it comes choosing what mobile testing
tool is right for you, there is a huge array of options, each with different
strengths and weaknesses.

9. Overview of Appium over other open
source tools

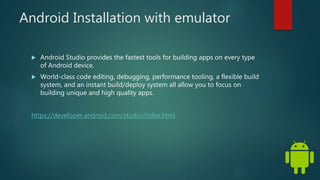

10. Android Installation with emulator
 Android Studio provides the fastest tools for building apps on every type
of Android device.
 World-class code editing, debugging, performance tooling, a flexible build
system, and an instant build/deploy system all allow you to focus on
building unique and high quality apps.
https://developer.android.com/studio/index.html

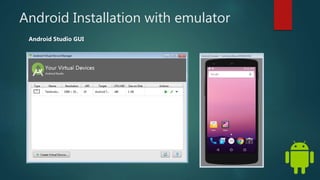

11. Android Installation with emulator
Android Studio GUI

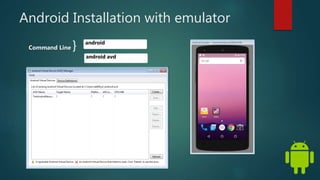

12. Android Installation with emulator
android
android avd
Command Line }

13. Scripting using Appium for Mobile
Web Automation
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("deviceName", "TestAndroid");
capabilities.setCapability("platformName", "Android");
capabilities.setCapability(CapabilityType.BROWSER_NAME, "browser");
capabilities.setCapability("platformVersion", "5.1");
driver = new AndroidDriver(new URL("http://127.0.0.1:4723/wd/hub"),
capabilities);
driver.manage().timeouts().implicitlyWait(80, TimeUnit.SECONDS);
driver.get("http://www.google.com");
WebElement keyword = driver.findElement(By.name("q"));
keyword.sendKeys("Hello Selenium");

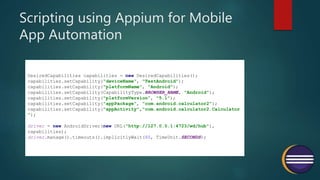

14. Scripting using Appium for Mobile
App Automation
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("deviceName", "TestAndroid");
capabilities.setCapability("platformName", "Android");
capabilities.setCapability(CapabilityType.BROWSER_NAME, "Android");
capabilities.setCapability("platformVersion", "5.1");
capabilities.setCapability("appPackage", "com.android.calculator2");
capabilities.setCapability("appActivity","com.android.calculator2.Calculator
");
driver = new AndroidDriver(new URL("http://127.0.0.1:4723/wd/hub"),
capabilities);
driver.manage().timeouts().implicitlyWait(80, TimeUnit.SECONDS);

15. Framework Development using
Appium
 Apache Maven
 Page Objects
 TestNG
 ReportNG
 Allure
 Cucumber (BDD)
 Jenkins

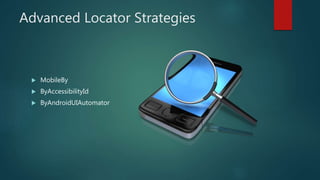

16. Advanced Locator Strategies
 MobileBy
 ByAccessibilityId
 ByAndroidUIAutomator

17. MobileBy
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("deviceName", "TestAndroid");
capabilities.setCapability("platformName", "Android");
capabilities.setCapability(CapabilityType.BROWSER_NAME, "Android");
capabilities.setCapability("platformVersion", "5.1");
capabilities.setCapability("appPackage", "com.android.calculator2");
capabilities.setCapability("appActivity","com.android.calculator2.Calculator");
driver = new AndroidDriver(new URL("http://127.0.0.1:4723/wd/hub"),
capabilities);
driver.manage().timeouts().implicitlyWait(80, TimeUnit.SECONDS);
driver.findElement(MobileBy.name("4")).click();

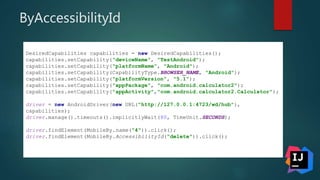

18. ByAccessibilityId
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("deviceName", "TestAndroid");
capabilities.setCapability("platformName", "Android");
capabilities.setCapability(CapabilityType.BROWSER_NAME, "Android");
capabilities.setCapability("platformVersion", "5.1");
capabilities.setCapability("appPackage", "com.android.calculator2");
capabilities.setCapability("appActivity","com.android.calculator2.Calculator");
driver = new AndroidDriver(new URL("http://127.0.0.1:4723/wd/hub"),
capabilities);
driver.manage().timeouts().implicitlyWait(80, TimeUnit.SECONDS);
driver.findElement(MobileBy.name("4")).click();
driver.findElement(MobileBy.AccessibilityId("delete")).click();

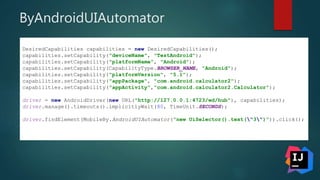

19. ByAndroidUIAutomator
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("deviceName", "TestAndroid");
capabilities.setCapability("platformName", "Android");
capabilities.setCapability(CapabilityType.BROWSER_NAME, "Android");
capabilities.setCapability("platformVersion", "5.1");
capabilities.setCapability("appPackage", "com.android.calculator2");
capabilities.setCapability("appActivity","com.android.calculator2.Calculator");
driver = new AndroidDriver(new URL("http://127.0.0.1:4723/wd/hub"), capabilities);
driver.manage().timeouts().implicitlyWait(80, TimeUnit.SECONDS);
driver.findElement(MobileBy.AndroidUIAutomator("new UiSelector().text("3")")).click();

20. Appium iOS Automation

21. Appium iOS Automation
 IosUIAutomation
driver.findElementByIosUIAutomation
("tableViews()[0].cells(1).textViews()
.firstWithPredicate("name == New Delhi And NCR")");

22. Selenium
Version

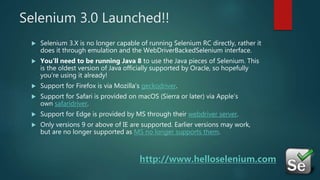

23. Selenium 3.0 Launched!!
 Selenium 3.X is no longer capable of running Selenium RC directly, rather it
does it through emulation and the WebDriverBackedSelenium interface.
 You’ll need to be running Java 8 to use the Java pieces of Selenium. This
is the oldest version of Java officially supported by Oracle, so hopefully
you’re using it already!
 Support for Firefox is via Mozilla’s geckodriver.
 Support for Safari is provided on macOS (Sierra or later) via Apple’s
own safaridriver.
 Support for Edge is provided by MS through their webdriver server.
 Only versions 9 or above of IE are supported. Earlier versions may work,
but are no longer supported as MS no longer supports them.
http://www.helloselenium.com

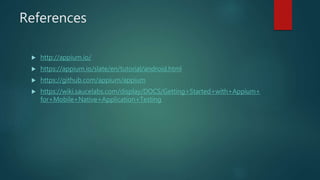

24. References
 http://appium.io/
 https://appium.io/slate/en/tutorial/android.html
 https://github.com/appium/appium
 https://wiki.saucelabs.com/display/DOCS/Getting+Started+with+Appium+
for+Mobile+Native+Application+Testing
