Appium
Mobile App Automation
On iOS Platform
(Apple's XCUITest)
Created by: Ambreen Khan
www.softwaretestingtrends.com
Contents
• Appium Background
• Appium Architecture
• Appium Installation on Mac
• Running Appium on Real Devices

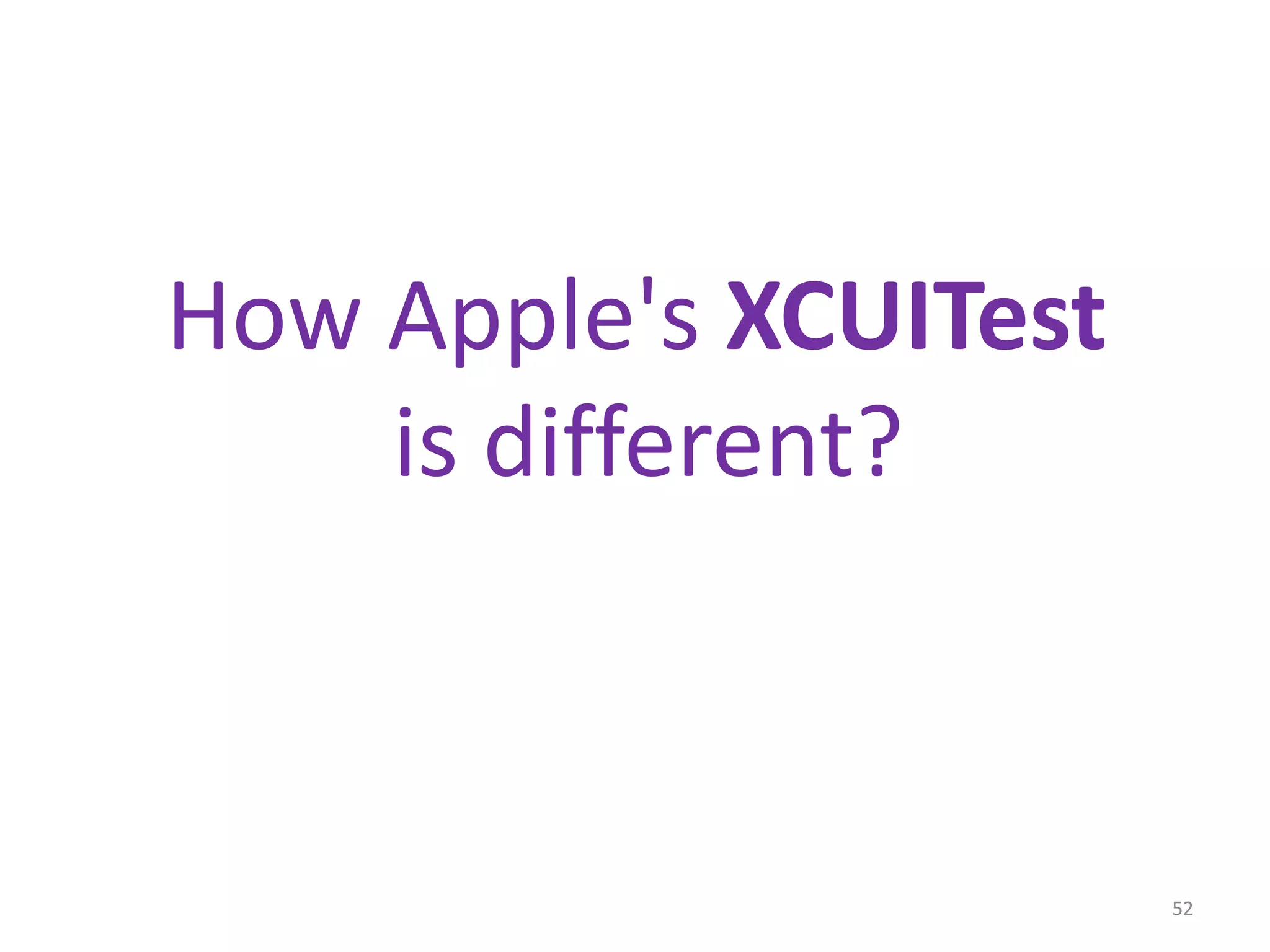

• How Apple's XCUITest is different?
2
Appium Background
3
What is Appium?
• Appium is an open source test automation
framework for use with native, hybrid and
mobile web apps.
• Appium is “cross-platform”, means it allows
you to write tests against multiple platforms
(iOS, Android, Windows), using the same API
(WebDriver API). This enables code reuse
between iOS, Android, and Windows test
suites.
4
What are different App Types
• Native apps are those written using the iOS,
Android, or Windows SDKs.
• Mobile web apps are web apps accessed
using a mobile browser (Appium supports
Safari on iOS and Chrome or the built-in
‘Browser’ app on Android).
• Hybrid apps have a wrapper around a
“webview” – a native control that enables
interaction with web content.
5
Appium Philosophy
• You shouldn’t have to recompile your app or
modify it in any way in order to automate it.
• You shouldn’t be locked into a specific language
or framework to write and run your tests.
• A mobile automation framework shouldn’t
reinvent the wheel when it comes to automation
APIs.
• A mobile automation framework should be open
source, in spirit and practice as well as in name!
6
Appium Architecture
7
Appium Architecture
• An HTTP server written in Node.js that creates
and handles WebDriver sessions.
• Appium web server follows same approach as
Selenium WebDriver
• Receives HTTP requests from client libraries
through JSON
• Handles received requests in different ways,
depending on platform it is running on.
8
Client/Server Architecture
Appium is at its heart a webserver that exposes
a REST API. It receives connections from a client,
listens for commands, executes those
commands on a mobile device, and responds
with an HTTP response representing the result
of the command execution.
9
Session
• Automation is always performed in the context of
a session.
• Clients initiate a session with a server in ways
specific to each library, but they all end up
sending a POST /session request to the server,
with a JSON object called the ‘desired
capabilities’ object.
• At this point the server will start up the
automation session and respond with a session
ID which is used for sending further commands.
10
Desired capabilities
• Desired capabilities are a set of keys and values
(i.e., a map or hash) sent to the Appium server to
tell the server what kind of automation session
we’re interested in starting up.
• There are also various capabilities which can
modify the behavior of the server during
automation.
• Example: Set the platformName capability
to iOS to tell Appium that we want an iOS
session, rather than an Android or Windows one.
11
Vendor-provided frameworks
used by Appium
The vendor-provided frameworks used by Appium:
• iOS: Apple's XCUITest (iOS 9.3 and up)
• iOS: Apple’s UIAutomation (iOS 9.3 and below)
• Android 5.0+: Google’s UiAutomator V2
• Android 4.2+: Google’s UiAutomator
• Android 2.3+: Google’s Instrumentation
(Instrumentation support is provided by bundling
a separate project, Selendroid)
• Windows: Microsoft’s WinAppDriver
12

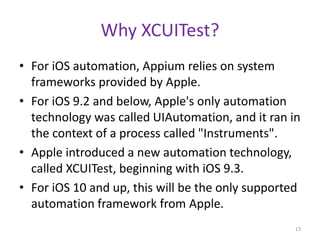

Why XCUITest?
• For iOS automation, Appium relies on system
frameworks provided by Apple.
• For iOS 9.2 and below, Apple's only automation
technology was called UIAutomation, and it ran in
the context of a process called "Instruments".
• Apple introduced a new automation technology,
called XCUITest, beginning with iOS 9.3.
• For iOS 10 and up, this will be the only supported
automation framework from Apple.
13
Why XCUITest?
• with iOS 10 / Xcode 8, Apple has removed the
older UIAutomation framework, which powered
Appium's iOS automation up to this point.
• When you specify a platformVersion of 10 or
higher, Appium will automatically use the
XCUITest automation backend.
• If you would like to run the XCUITest automation
backend with iOS 9.3, simply
specify automationName: XCUITest in your
desired capabilities.
14
Appium Installation
Mac O X
15
Software Requirements
• Java
• The Eclipse IDE
• Xcode (8.0 or later)
• Xcode Apple Developer Tools (iPhone simulator
SDK, command line tools)
• Homebrew
• Node and npm
• The Appium Server
• The Appium Client Library (Java)
• Selenium WebDriver Java library
16
Java
• Java - Download & install Java SE
Development kit 8 for Mac OS X
Link:
http://www.oracle.com/technetwork/pt/java/ja
vase/downloads/jdk8-downloads-2133151.html
17
The Eclipse IDE
• Download & install Eclipse IDE for Java
developers
Link: http://www.eclipse.org/downloads/index-
developer.php?osType=macosx
18
Xcode
• Install Xcode (Version 8.0 or above)
• Xcode can be downloaded free from Mac App
Store
Note: To test an app in iOS 10 or above with
Appium, we have to use Xcode 8 or newer with
Appium 1.6 or newer.
19
The Appium Server
• You can install & run an Appium server using
o node.js
o using the application
20
Before You install Appium Server…
Before you install Appium using node.js, you
should have:
• Homebrew
• NPM - node.js package manager
The Appium server is written in Node.js; that's
why we need it to download Appium
21
Homebrew
• A package manager for macOS that complements
macOS.
• Homebrew helps you install applications that are
not installed by default on your MAC.
• It's all git and ruby underneath.
• The standard script installs Homebrew
to /usr/local so that you don’t need sudo when
you brew install
• Homebrew is designed to work without using
sudo.
22
Install/Uninstall Homebrew
(commands for terminal)
• Installing Homebrew ruby -e "$(curl -fsSL
https://raw.githubusercontent.com/Homebrew/install/
master/install)"
• How do I uninstall Homebrew?
To uninstall Homebrew, paste the command below in a
terminal prompt.
ruby -e "$(curl -fsSL
https://raw.githubusercontent.com/Homebrew/install/m
aster/uninstall)"
• How to check available options on brew:
brew help, man brew
23
Homebrew Installation
24

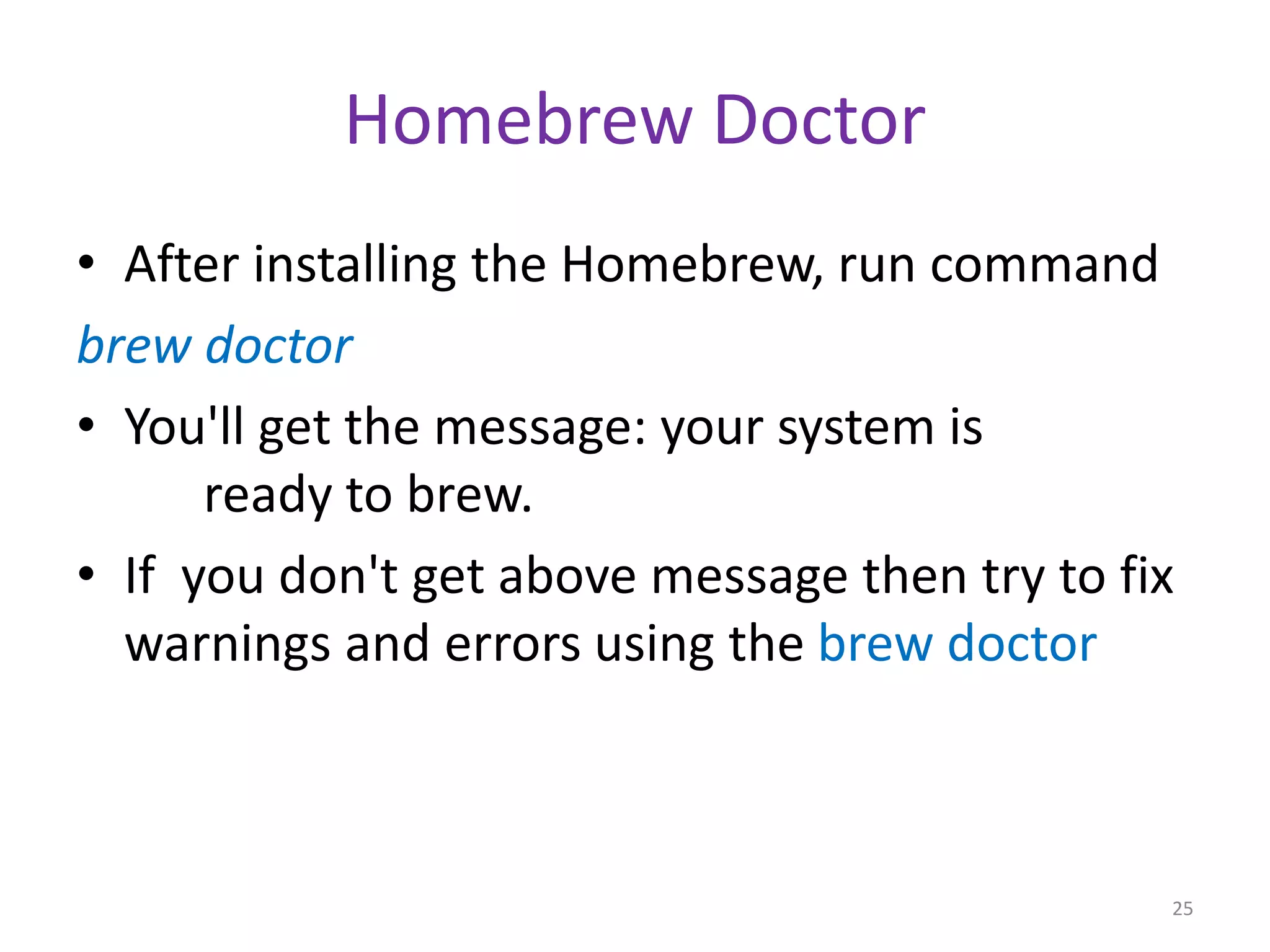

Homebrew Doctor
• After installing the Homebrew, run command
brew doctor
• You'll get the message: your system is
ready to brew.
• If you don't get above message then try to fix
warnings and errors using the brew doctor
25
NPM
• npm is a Node.js package manager
• It is an online repository of open source
Node.js projects.
• It is command-line utility to package
installation
26
Installing Node.js and/or npm
• Install node.js using brew.
brew install node
• Once you install node, you can check version:
node --version
npm —version
Note: Don’t use the big green install button on
nodejs.org website or all npm commands will
require sudo.
27

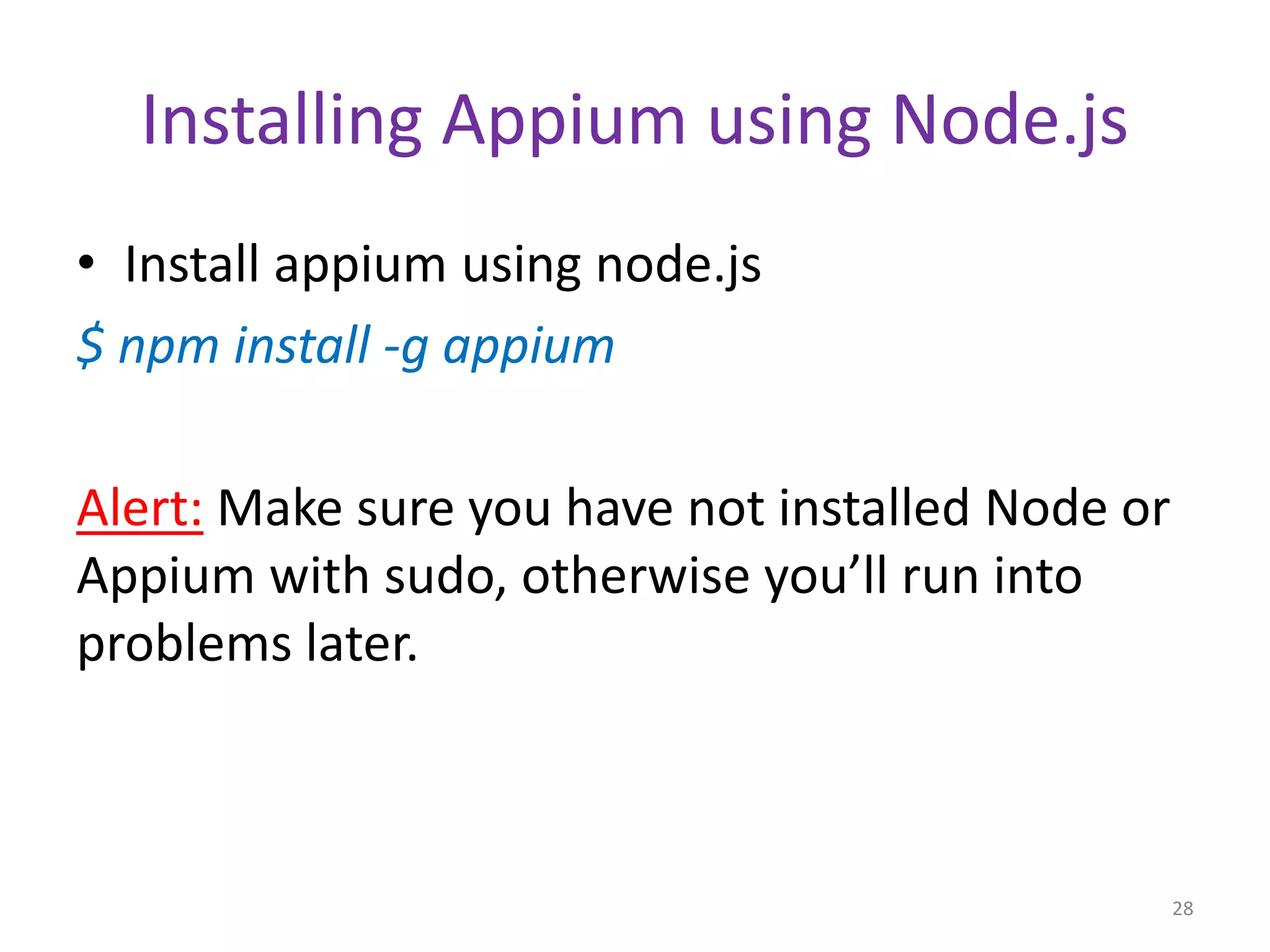

Installing Appium using Node.js
• Install appium using node.js
$ npm install -g appium
Alert: Make sure you have not installed Node or
Appium with sudo, otherwise you’ll run into
problems later.
28

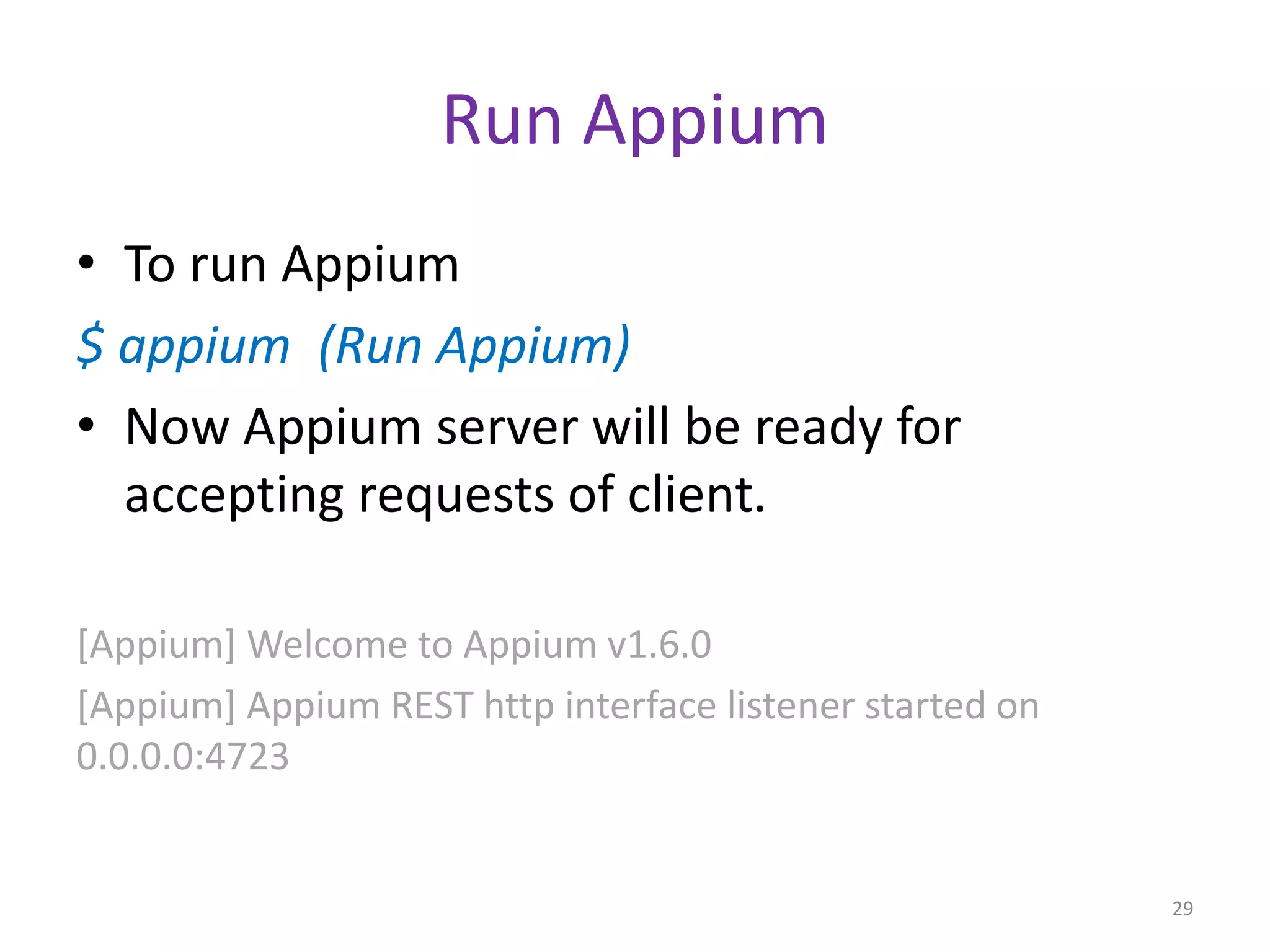

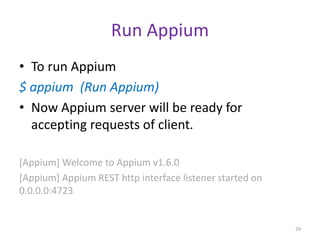

Run Appium
• To run Appium
$ appium (Run Appium)
• Now Appium server will be ready for
accepting requests of client.
[Appium] Welcome to Appium v1.6.0
[Appium] Appium REST http interface listener started on
0.0.0.0:4723
29
Appium Doctor
• To verify that all of Appium’s dependencies
are met you can use appium-doctor.
• Install it with:
$npm install -g appium-doctor
• run appium-doctor and supply the --ios or --
android flags to verify that all of the
dependencies are set up correctly.
$appium-doctor --ios
30

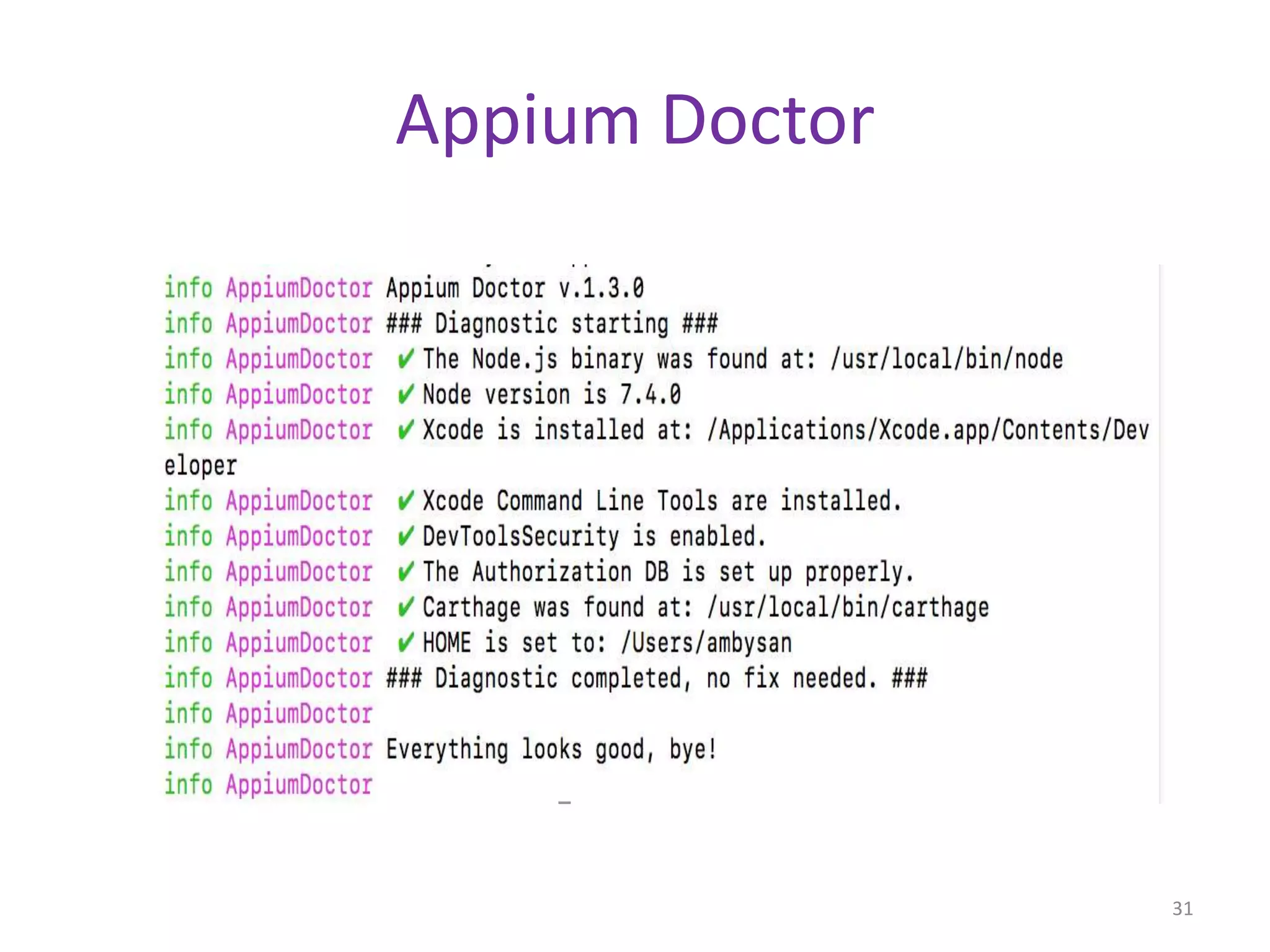

Appium Doctor
31
Stopping Appium Server
• Simply press CTRL+C in the same terminal
window to stop the Appium server.
32

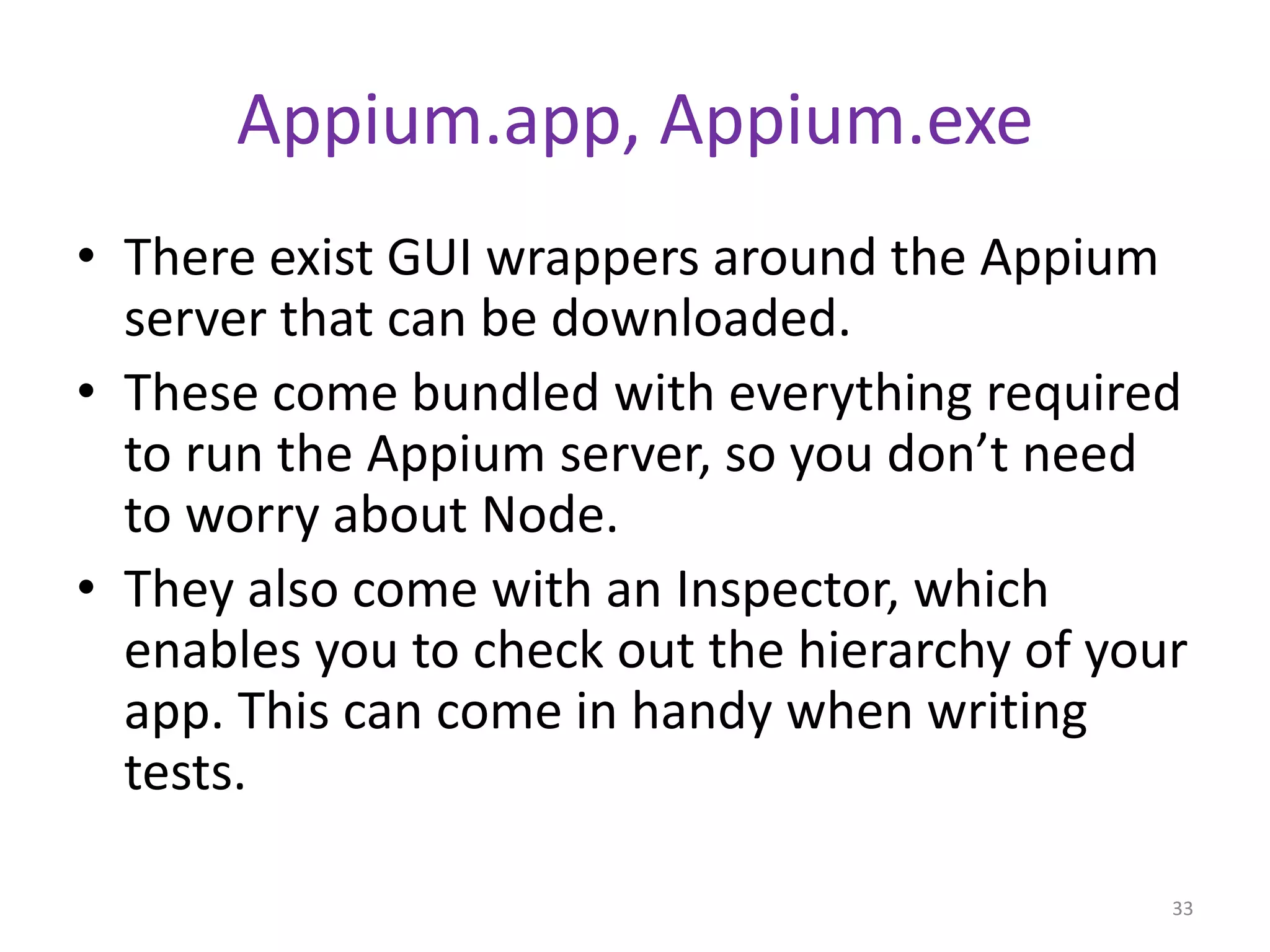

Appium.app, Appium.exe
• There exist GUI wrappers around the Appium
server that can be downloaded.
• These come bundled with everything required
to run the Appium server, so you don’t need
to worry about Node.
• They also come with an Inspector, which
enables you to check out the hierarchy of your
app. This can come in handy when writing
tests.
33

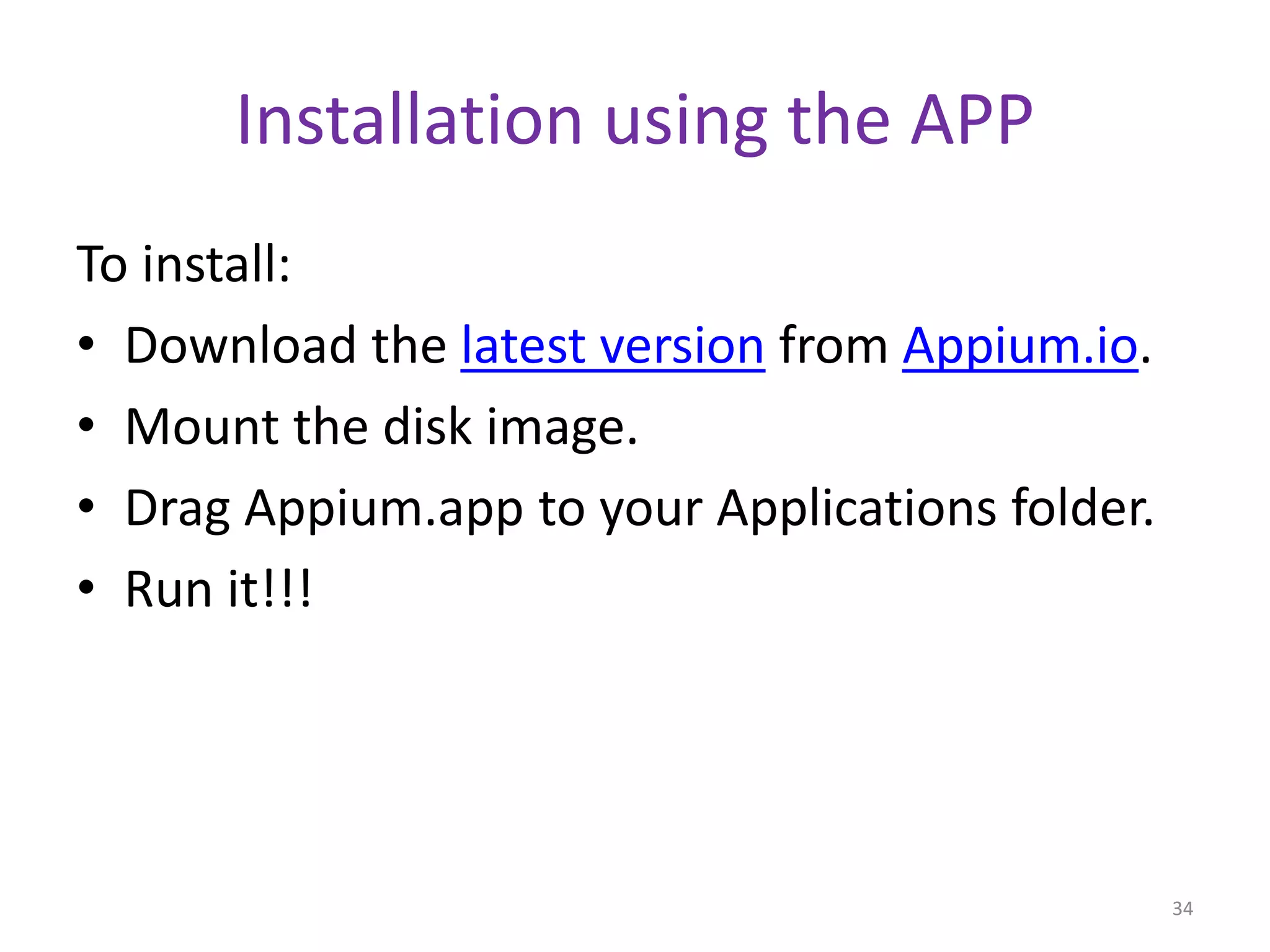

Installation using the APP
To install:
• Download the latest version from Appium.io.
• Mount the disk image.
• Drag Appium.app to your Applications folder.
• Run it!!!
34

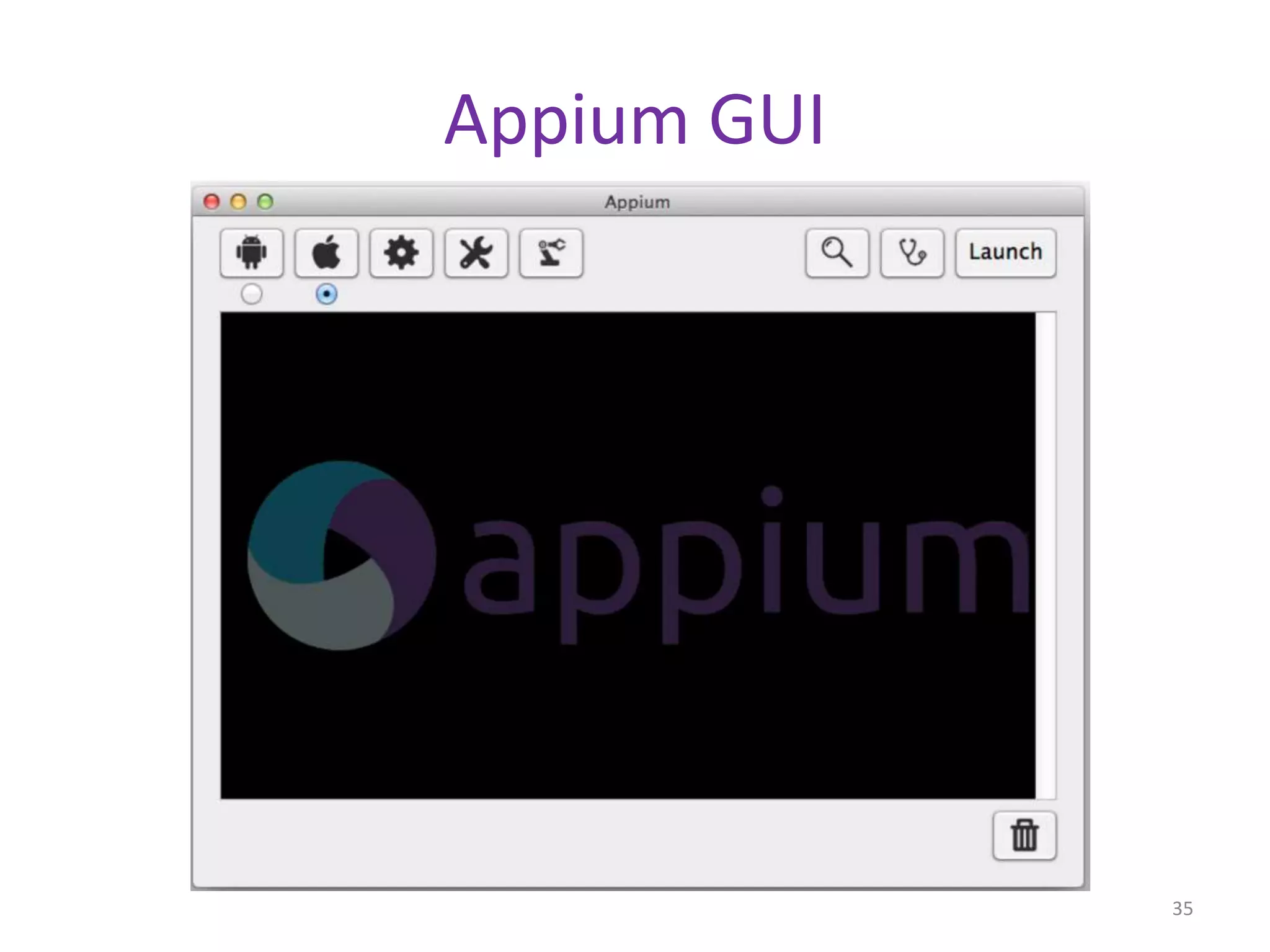

Appium GUI
35

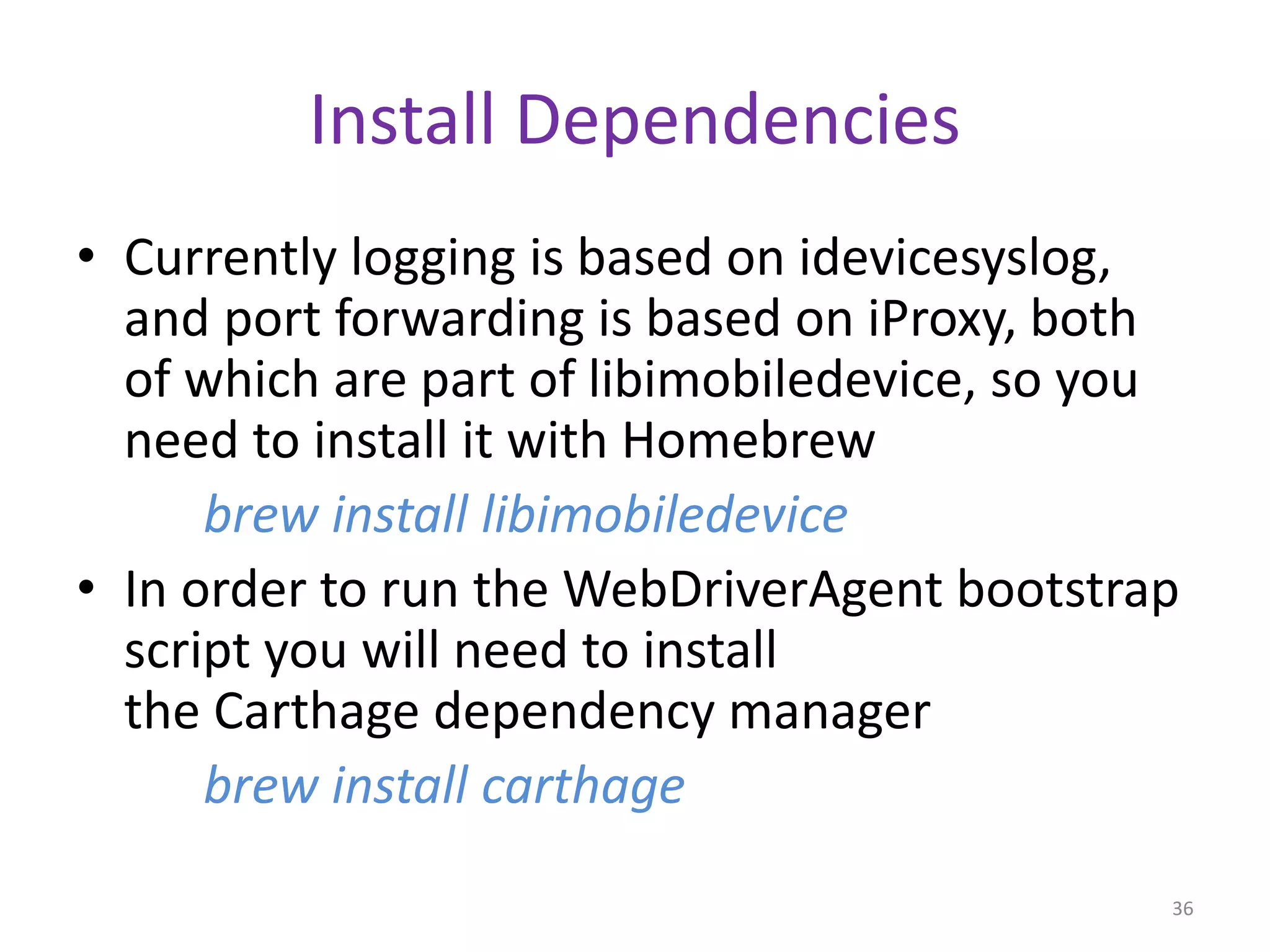

Install Dependencies
• Currently logging is based on idevicesyslog,
and port forwarding is based on iProxy, both
of which are part of libimobiledevice, so you
need to install it with Homebrew
brew install libimobiledevice
• In order to run the WebDriverAgent bootstrap
script you will need to install
the Carthage dependency manager
brew install carthage
36

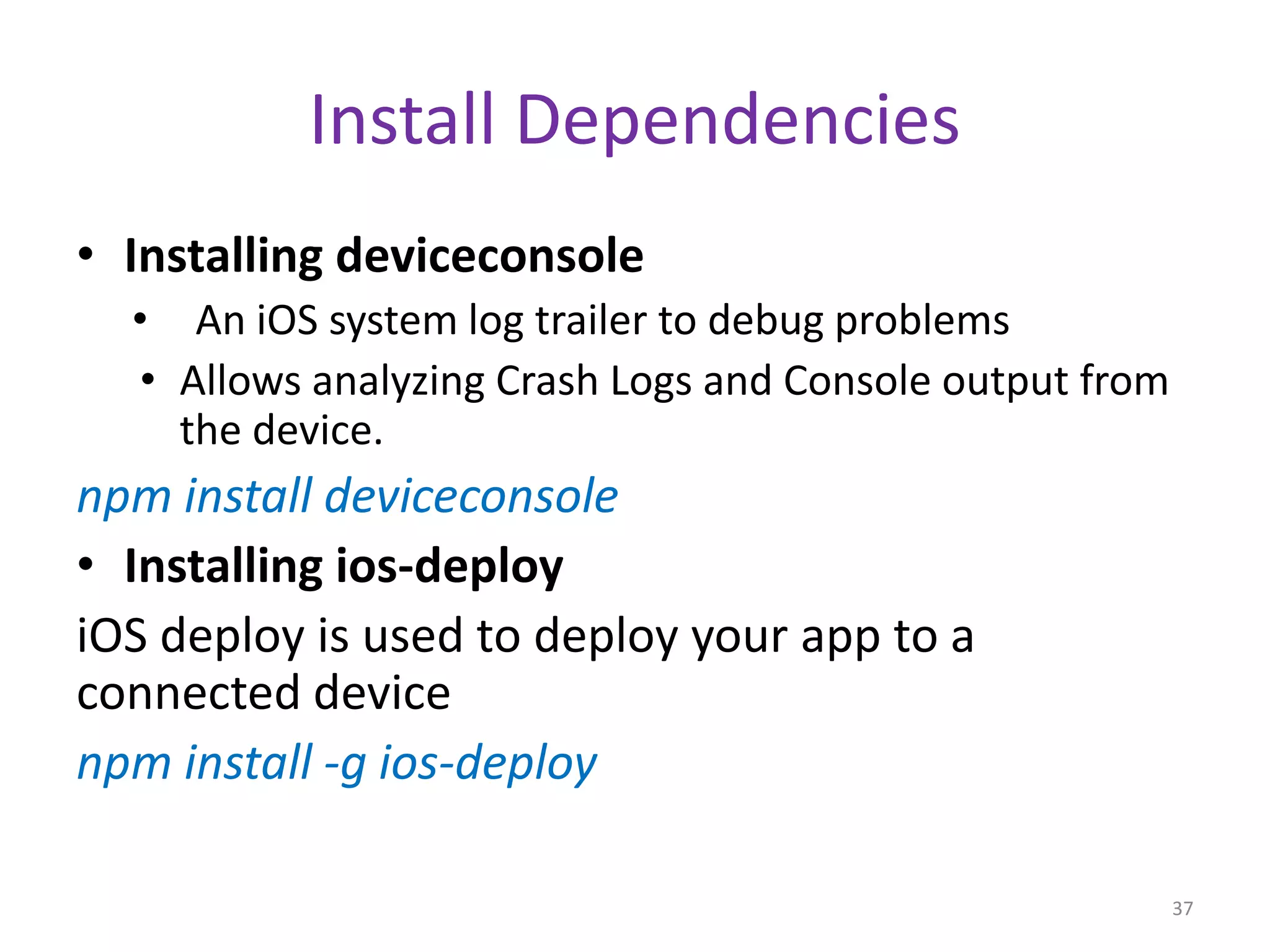

Install Dependencies
• Installing deviceconsole
• An iOS system log trailer to debug problems
• Allows analyzing Crash Logs and Console output from
the device.
npm install deviceconsole
• Installing ios-deploy
iOS deploy is used to deploy your app to a
connected device
npm install -g ios-deploy
37

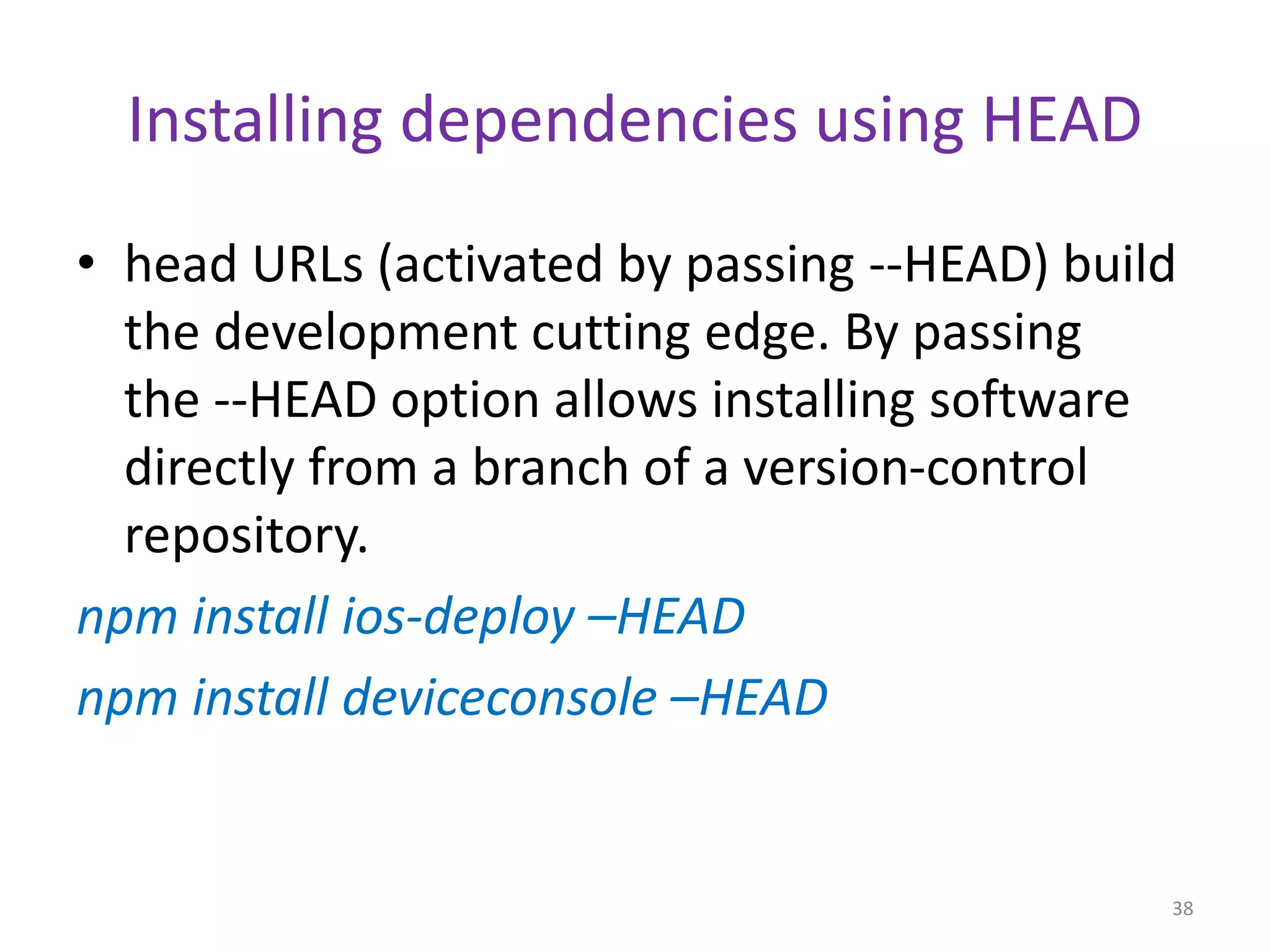

Installing dependencies using HEAD
• head URLs (activated by passing --HEAD) build
the development cutting edge. By passing
the --HEAD option allows installing software
directly from a branch of a version-control
repository.
npm install ios-deploy –HEAD
npm install deviceconsole –HEAD
38
Installing Xcode Command line tools
• To install Xcode command line tools run:
$ xcode-select --install
39
Selenium
Install following Selenium components
• Selenium Standalone Server
• Get selenium WebDriver language binding
library for Java from section 'Selenium Client
& WebDriver Language Bindings' present on
below link:
http://docs.seleniumhq.org/download/
40
Appium Clients
• There are client libraries (in Java, Ruby, Python,
PHP, JavaScript, and C#) which support Appium’s
extensions to the WebDriver protocol.
• When using Appium, you need to use these client
libraries instead of your regular WebDriver client.
Link:
https://search.maven.org/#search%7Cga%7C1%7Cg
%3Aio.appium%20a%3Ajava-client
41
Authorize use of iOS Simulator
• You need to authorize use of the iOS Simulator
by running the authorize-ios binary made
available through npm.
• Install the program by running
npm install -g authorize-ios
42

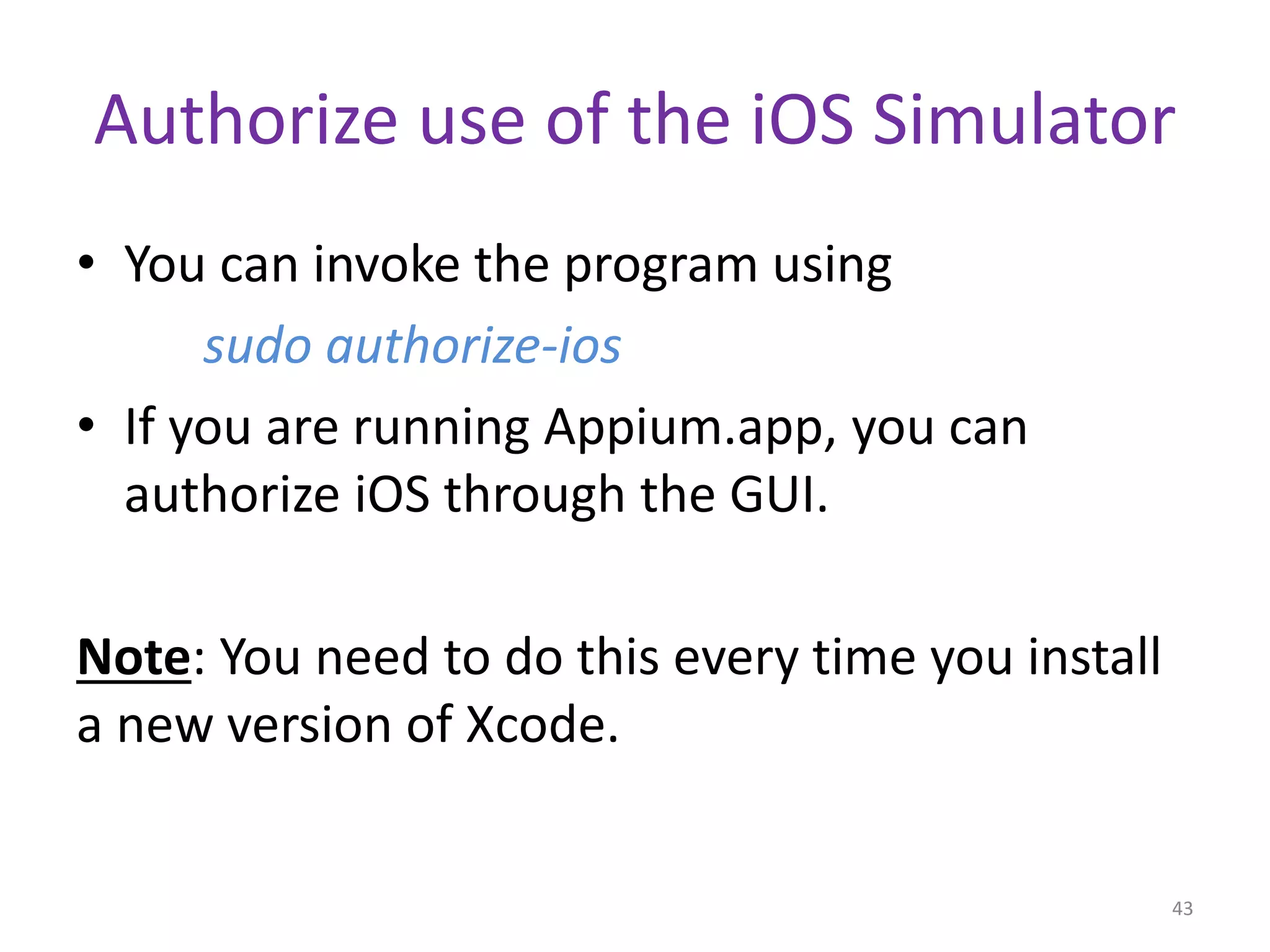

Authorize use of the iOS Simulator
• You can invoke the program using
sudo authorize-ios
• If you are running Appium.app, you can
authorize iOS through the GUI.
Note: You need to do this every time you install
a new version of Xcode.
43

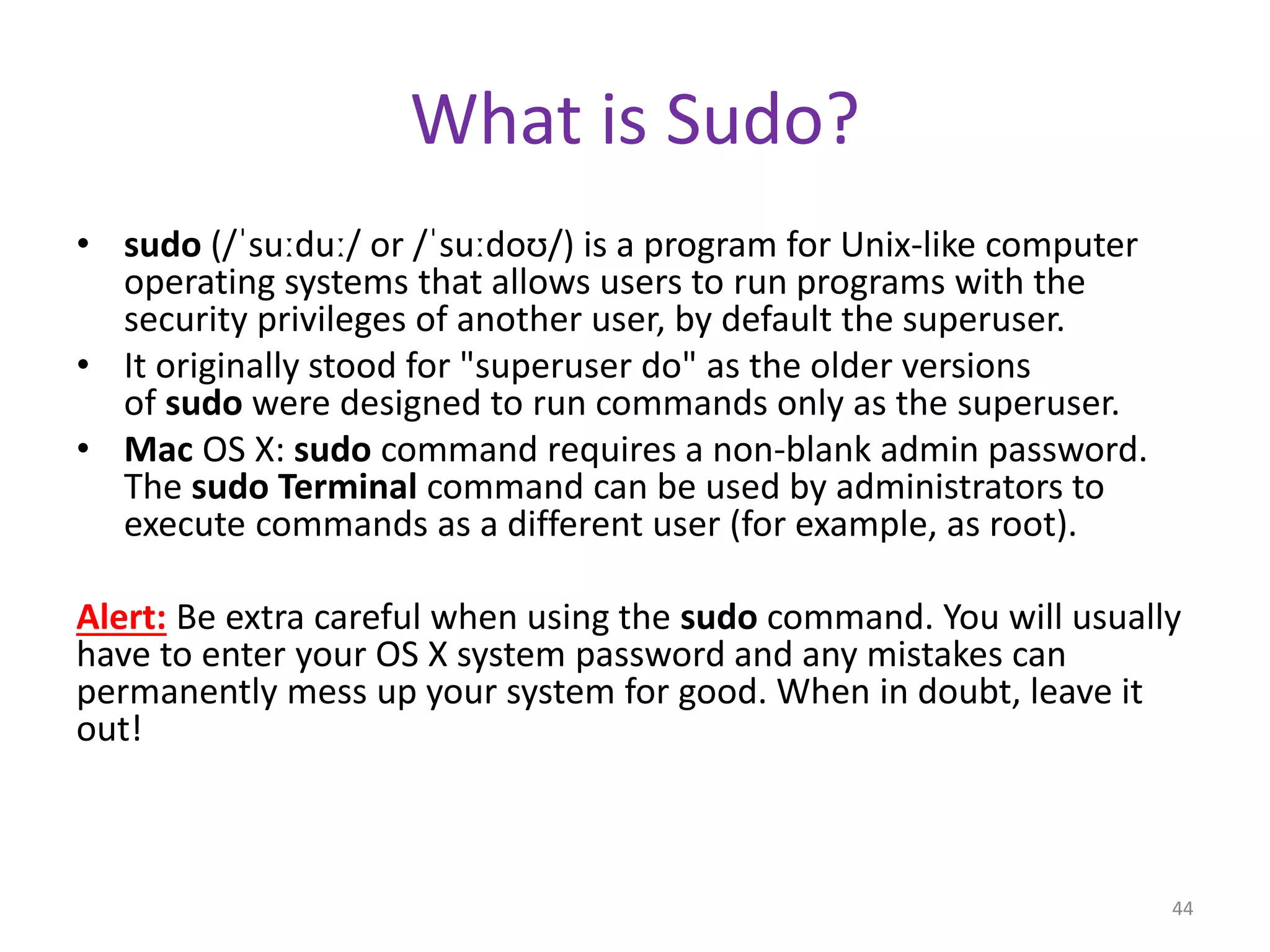

What is Sudo?
• sudo (/ˈsuːduː/ or /ˈsuːdoʊ/) is a program for Unix-like computer
operating systems that allows users to run programs with the
security privileges of another user, by default the superuser.
• It originally stood for "superuser do" as the older versions
of sudo were designed to run commands only as the superuser.
• Mac OS X: sudo command requires a non-blank admin password.
The sudo Terminal command can be used by administrators to
execute commands as a different user (for example, as root).
Alert: Be extra careful when using the sudo command. You will usually
have to enter your OS X system password and any mistakes can
permanently mess up your system for good. When in doubt, leave it
out!
44

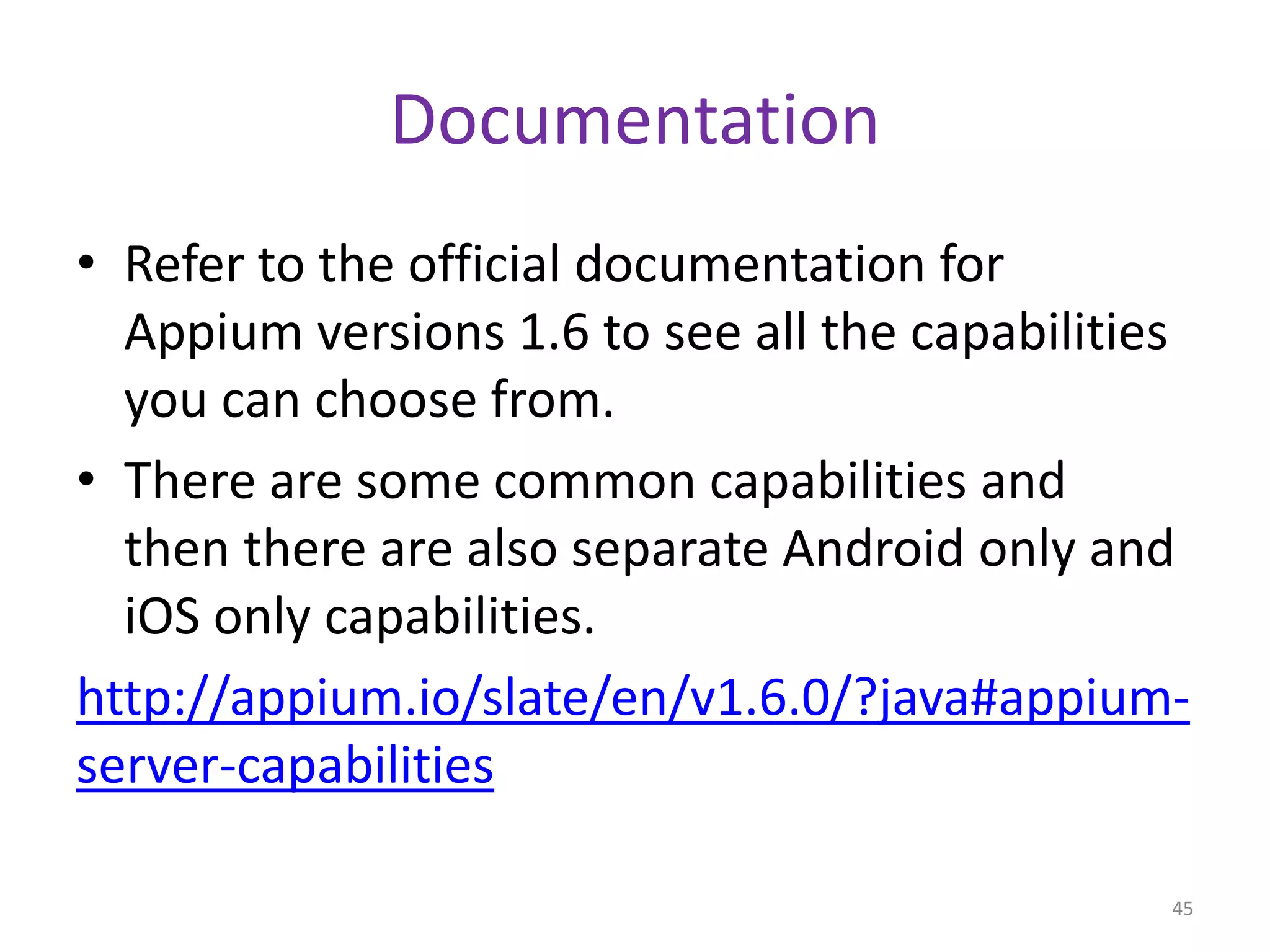

Documentation
• Refer to the official documentation for
Appium versions 1.6 to see all the capabilities
you can choose from.
• There are some common capabilities and
then there are also separate Android only and
iOS only capabilities.
http://appium.io/slate/en/v1.6.0/?java#appium-
server-capabilities
45

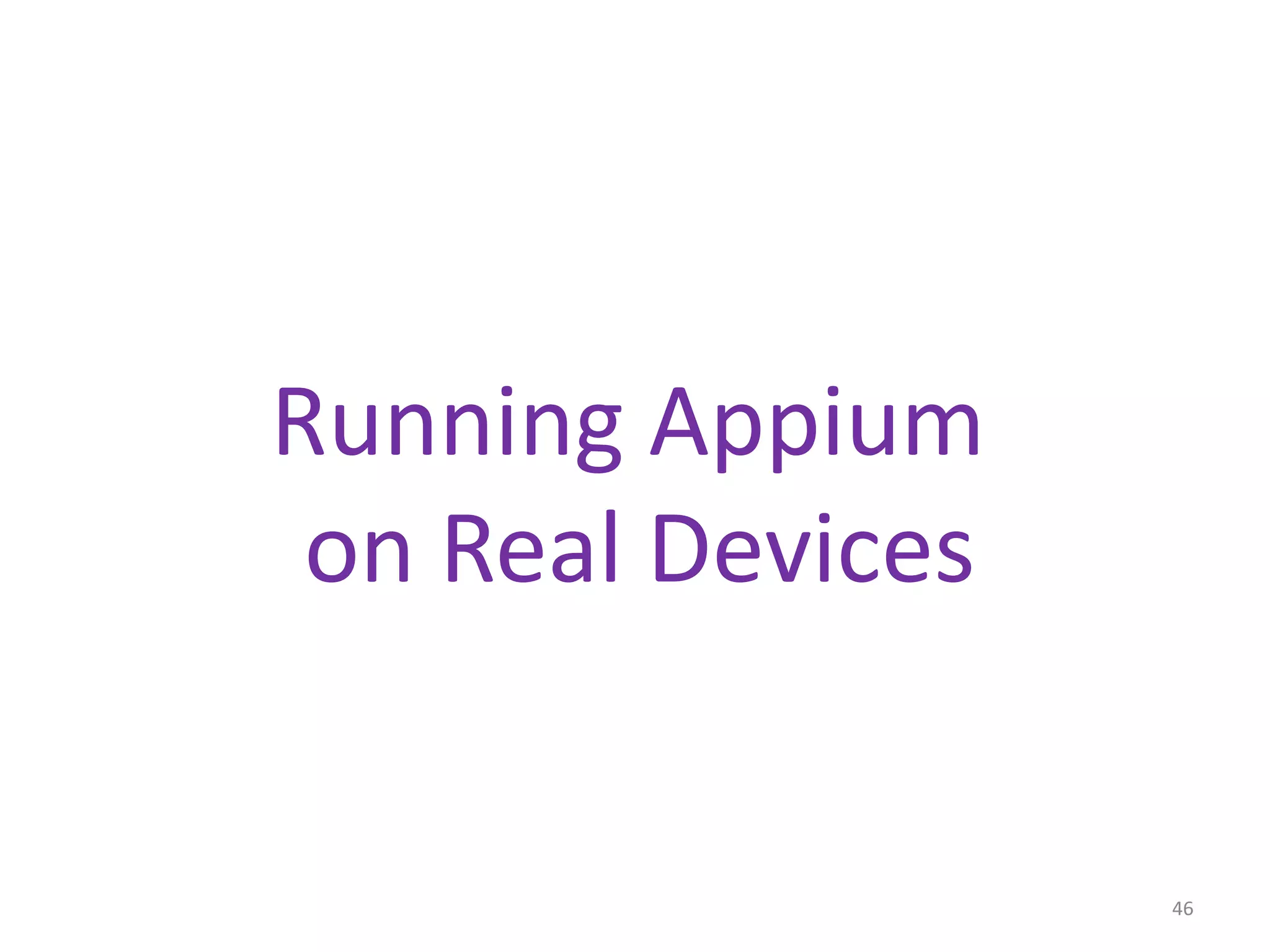

Running Appium
on Real Devices
46
Testing on real iOS Device
Why testing on real devices?
• There could be bugs that only show up when
your app is running on an actual iPhone or iOS
device.
• Testing your iOS app on a device is the best
way to gauge performance issues before you
go too far down the road.
47
Appium on real iOS devices
To get started on a real device, you will need the
following:
• An Apple Developer ID and a valid Developer Account
with a configured distribution certificate and
provisioning profile.
• An iPad or iPhone. Configure the device for
development and add the device to the member
center
• A signed .ipa file of your app, or the source code to
build one.
• A Mac with Xcode and the Xcode Command Line
Developer Tools.
48

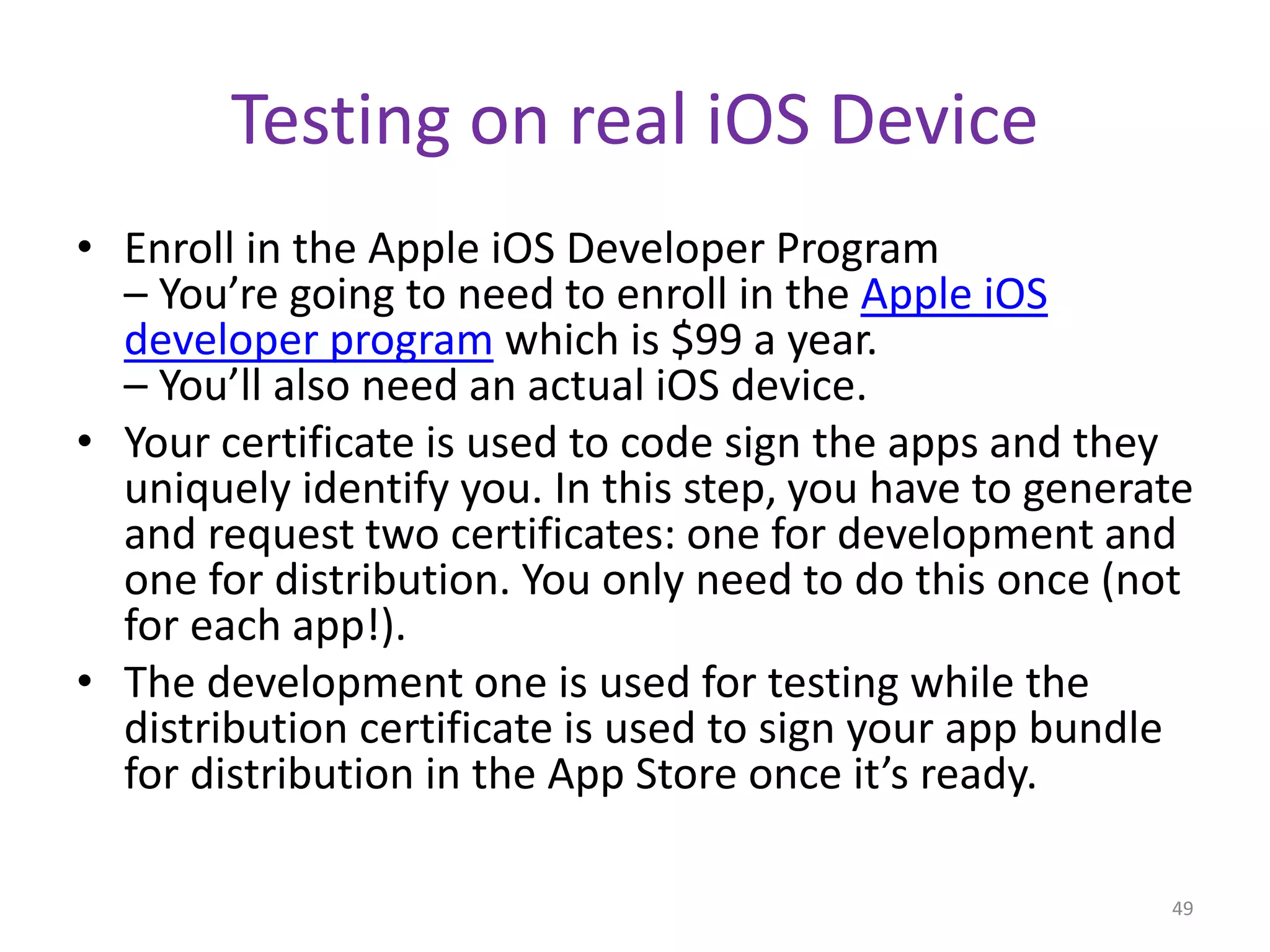

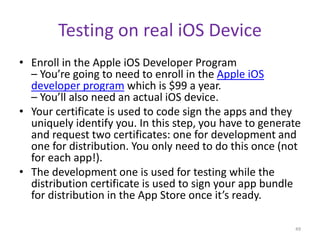

Testing on real iOS Device
• Enroll in the Apple iOS Developer Program
– You’re going to need to enroll in the Apple iOS
developer program which is $99 a year.
– You’ll also need an actual iOS device.
• Your certificate is used to code sign the apps and they
uniquely identify you. In this step, you have to generate
and request two certificates: one for development and
one for distribution. You only need to do this once (not
for each app!).
• The development one is used for testing while the
distribution certificate is used to sign your app bundle
for distribution in the App Store once it’s ready.
49

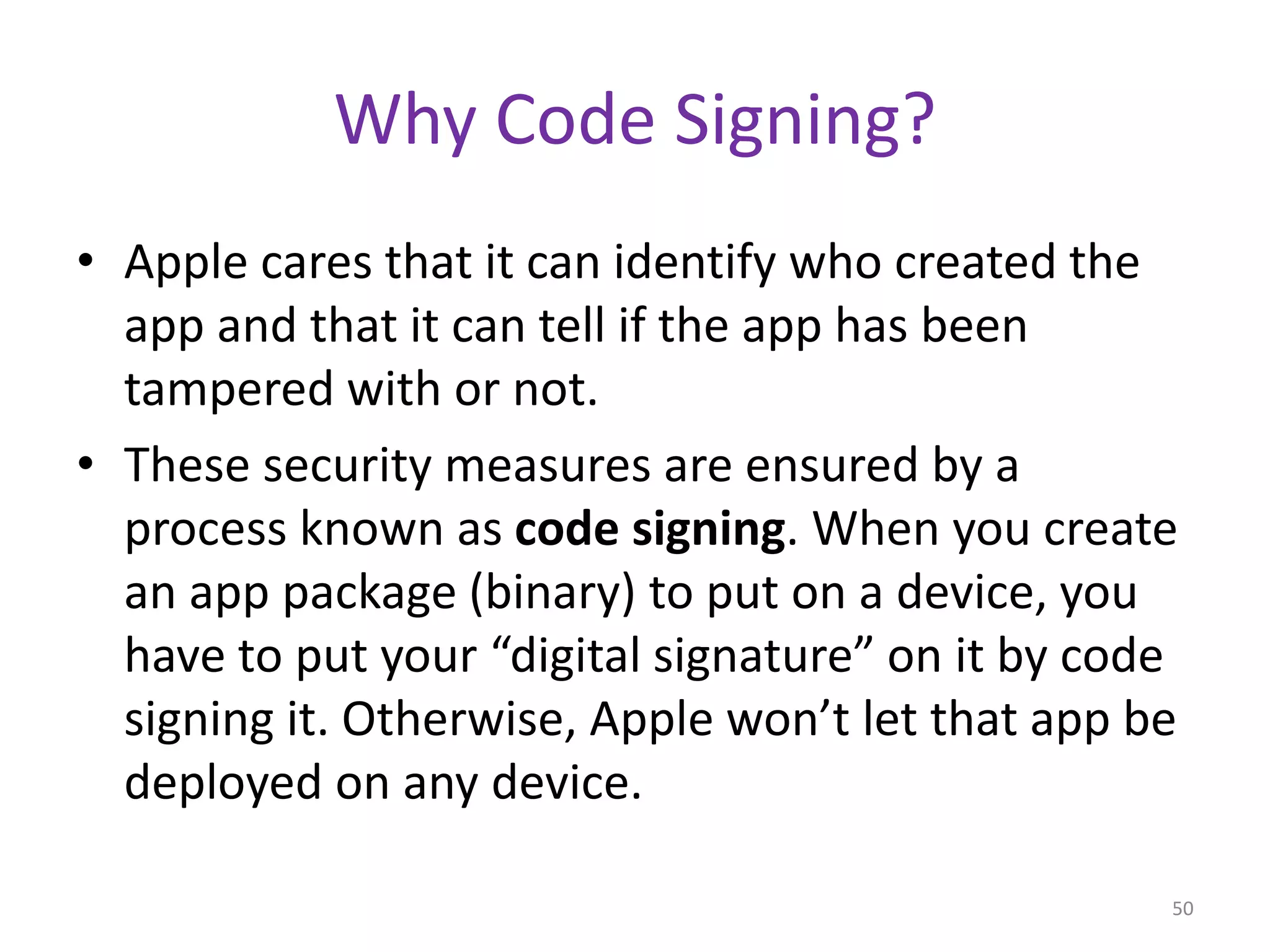

Why Code Signing?
• Apple cares that it can identify who created the
app and that it can tell if the app has been
tampered with or not.
• These security measures are ensured by a
process known as code signing. When you create
an app package (binary) to put on a device, you
have to put your “digital signature” on it by code
signing it. Otherwise, Apple won’t let that app be
deployed on any device.
50
Running your test
• Once your device and app are configured, you
can run tests on that device by passing the -
U or --udid flag to the server or
the udid desired capability, and the bundle ID
(if the app is installed on the device) or the
path to the .ipa or .apk file via the --app flag or
the app desired capability.
51
How Apple's XCUITest
is different?
52

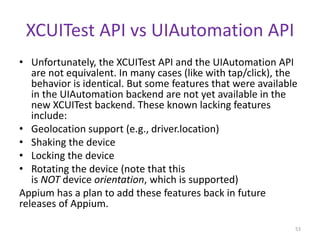

XCUITest API vs UIAutomation API
• Unfortunately, the XCUITest API and the UIAutomation API
are not equivalent. In many cases (like with tap/click), the
behavior is identical. But some features that were available
in the UIAutomation backend are not yet available in the
new XCUITest backend. These known lacking features
include:
• Geolocation support (e.g., driver.location)
• Shaking the device
• Locking the device
• Rotating the device (note that this
is NOT device orientation, which is supported)
Appium has a plan to add these features back in future
releases of Appium.
53

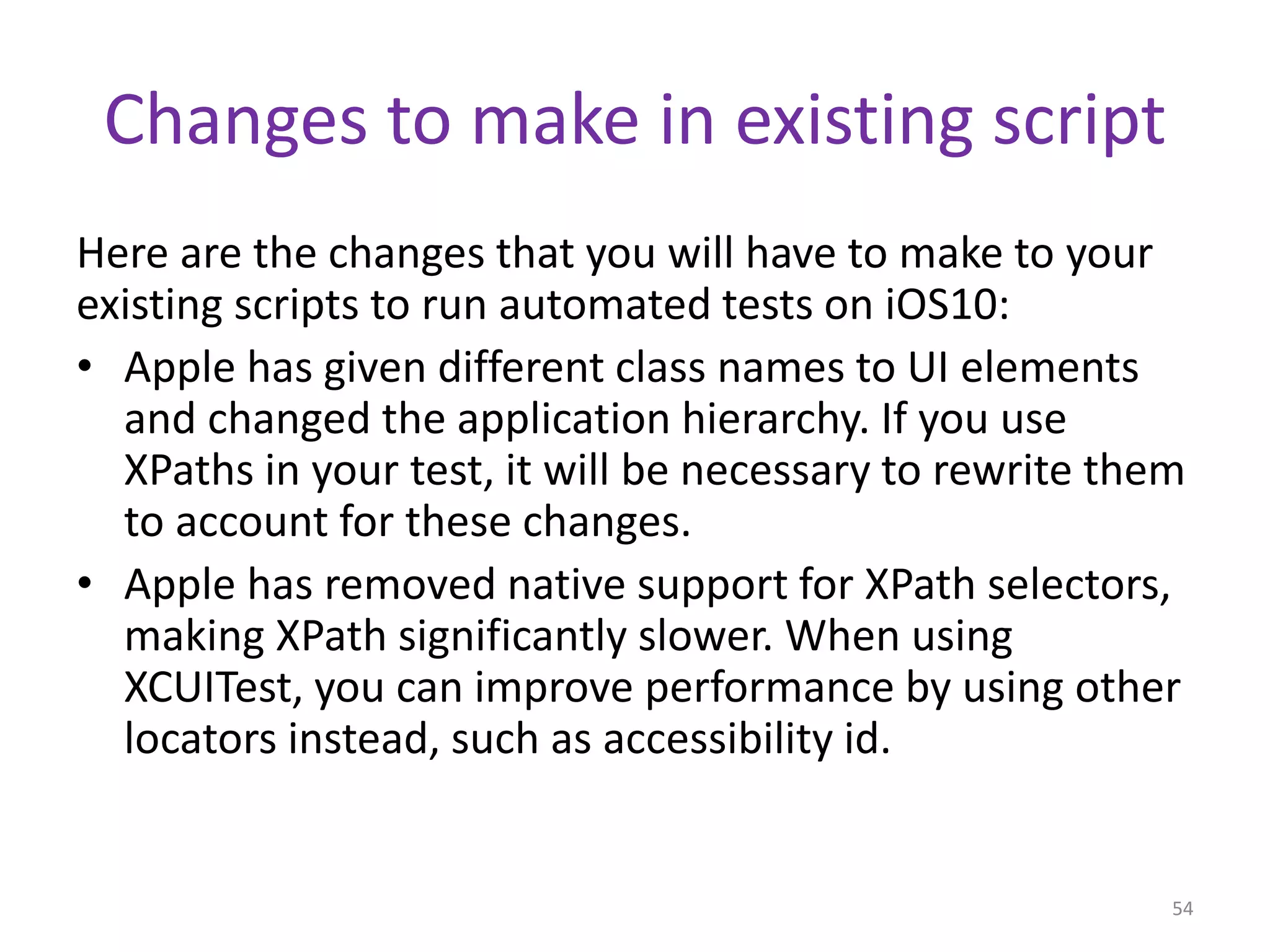

Changes to make in existing script
Here are the changes that you will have to make to your
existing scripts to run automated tests on iOS10:
• Apple has given different class names to UI elements
and changed the application hierarchy. If you use
XPaths in your test, it will be necessary to rewrite them
to account for these changes.
• Apple has removed native support for XPath selectors,
making XPath significantly slower. When using
XCUITest, you can improve performance by using other
locators instead, such as accessibility id.
54

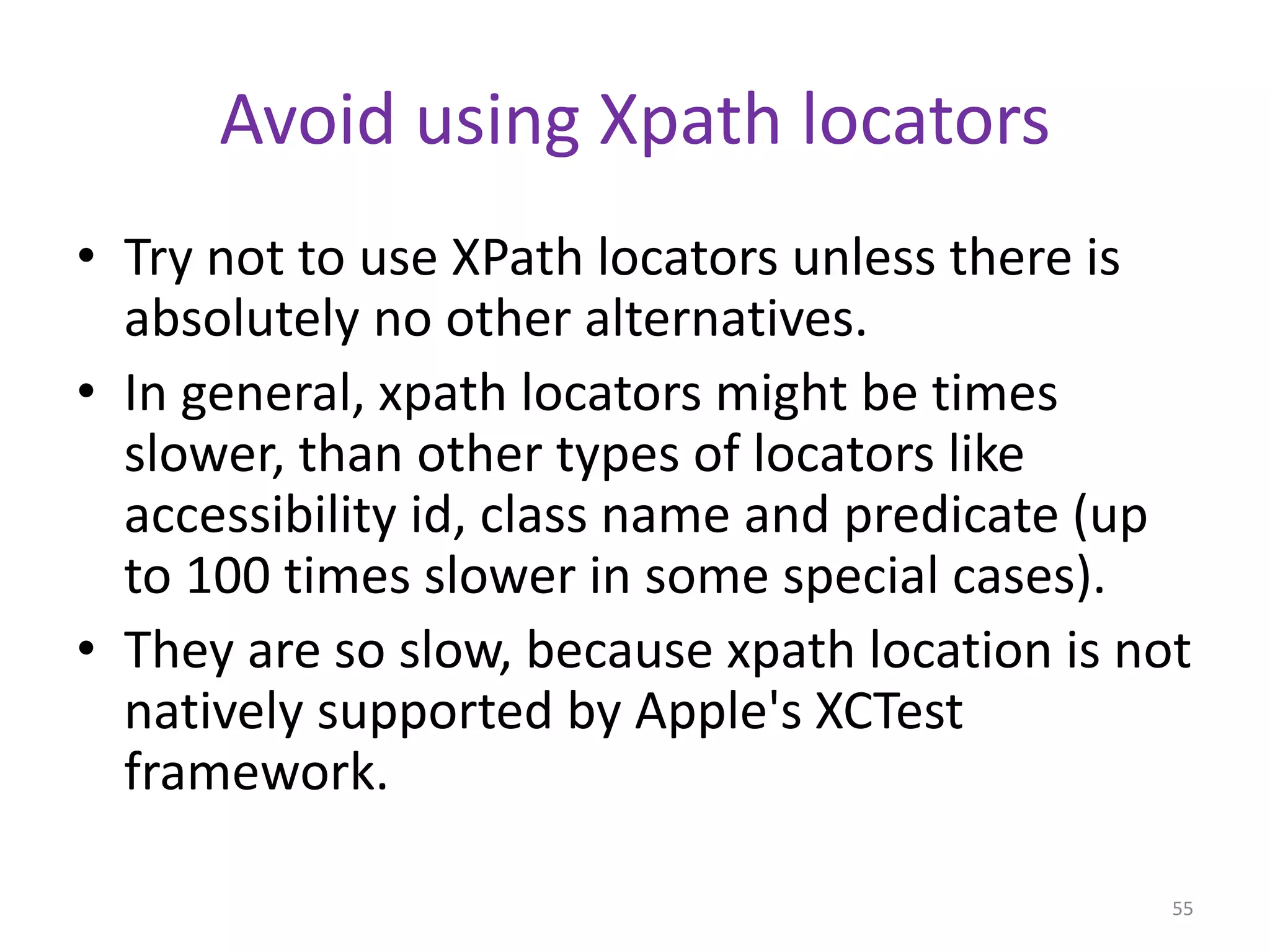

Avoid using Xpath locators
• Try not to use XPath locators unless there is
absolutely no other alternatives.
• In general, xpath locators might be times
slower, than other types of locators like
accessibility id, class name and predicate (up
to 100 times slower in some special cases).
• They are so slow, because xpath location is not
natively supported by Apple's XCTest
framework.
55

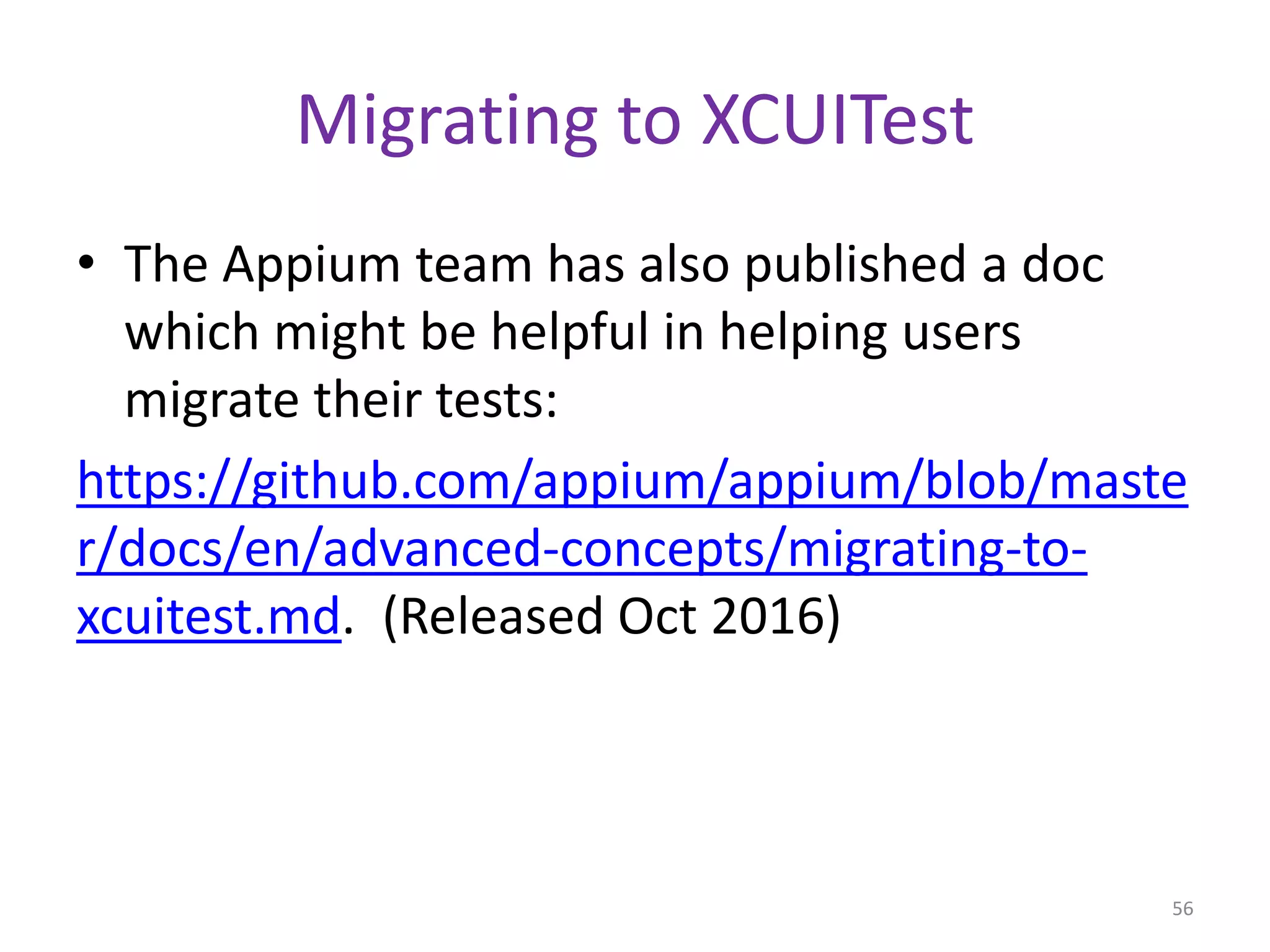

Migrating to XCUITest
• The Appium team has also published a doc
which might be helpful in helping users
migrate their tests:
https://github.com/appium/appium/blob/maste
r/docs/en/advanced-concepts/migrating-to-
xcuitest.md. (Released Oct 2016)
56

More Related Content

What's hot

Mobile Test Automation - Appium
Mobile Test Automation - AppiumMobile Test Automation - Appium
Mobile Test Automation - Appium
Maria Machlowska

Getting started with appium
Getting started with appiumGetting started with appium
Getting started with appium
Pratik Patel

Automation Testing With Appium
Automation Testing With AppiumAutomation Testing With Appium
Automation Testing With Appium
Knoldus Inc.

Appium overview
Appium overviewAppium overview
Appium overview
Abhishek Yadav

Appium Presentation
Appium Presentation Appium Presentation
Appium Presentation
OmarUsman6

Automation With Appium
Automation With AppiumAutomation With Appium
Automation With Appium
Knoldus Inc.

Mobile automation using Appium
Mobile automation using AppiumMobile automation using Appium
Mobile automation using Appium
Saroj Singh

Introduction To Mobile-Automation
Introduction To Mobile-AutomationIntroduction To Mobile-Automation
Introduction To Mobile-Automation
Mindfire Solutions

Test automation proposal
Test automation proposalTest automation proposal
Test automation proposal
Mihai-Cristian Fratila

Appium Architecture | How Appium Works | Edureka
Appium Architecture | How Appium Works | EdurekaAppium Architecture | How Appium Works | Edureka
Appium Architecture | How Appium Works | Edureka
Edureka!

Selenium 4 with Simon Stewart [Webinar]
Selenium 4 with Simon Stewart [Webinar]Selenium 4 with Simon Stewart [Webinar]
Selenium 4 with Simon Stewart [Webinar]
BrowserStack

Introduction to Automation Testing
Introduction to Automation TestingIntroduction to Automation Testing
Introduction to Automation Testing
Archana Krushnan

What is Appium? Edureka
What is Appium? EdurekaWhat is Appium? Edureka
What is Appium? Edureka
Edureka!

Test Automation and Selenium
Test Automation and SeleniumTest Automation and Selenium
Test Automation and Selenium
Karapet Sarkisyan

Create an architecture for web test automation
Create an architecture for web test automationCreate an architecture for web test automation
Create an architecture for web test automation
Elias Nogueira

Browser_Stack_Intro
Browser_Stack_IntroBrowser_Stack_Intro
Browser_Stack_Intro
Mithilesh Singh

Appium solution
Appium solutionAppium solution
Appium solution
Nael Abd Eljawad

Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...
Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...
Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...
Edureka!

Webinar: Selenium WebDriver - Automation Uncomplicated
Webinar: Selenium WebDriver - Automation UncomplicatedWebinar: Selenium WebDriver - Automation Uncomplicated
Webinar: Selenium WebDriver - Automation Uncomplicated
Edureka!

Automation Testing using Selenium Webdriver
Automation Testing using Selenium WebdriverAutomation Testing using Selenium Webdriver
Automation Testing using Selenium Webdriver
Pankaj Biswas


What's hot (20)

Mobile Test Automation - Appium
Mobile Test Automation - AppiumMobile Test Automation - Appium
Mobile Test Automation - Appium

Getting started with appium
Getting started with appiumGetting started with appium
Getting started with appium

Automation Testing With Appium
Automation Testing With AppiumAutomation Testing With Appium
Automation Testing With Appium

Appium overview
Appium overviewAppium overview
Appium overview

Appium Presentation
Appium Presentation Appium Presentation
Appium Presentation

Automation With Appium
Automation With AppiumAutomation With Appium
Automation With Appium

Mobile automation using Appium
Mobile automation using AppiumMobile automation using Appium
Mobile automation using Appium

Introduction To Mobile-Automation
Introduction To Mobile-AutomationIntroduction To Mobile-Automation
Introduction To Mobile-Automation

Test automation proposal
Test automation proposalTest automation proposal
Test automation proposal

Appium Architecture | How Appium Works | Edureka
Appium Architecture | How Appium Works | EdurekaAppium Architecture | How Appium Works | Edureka
Appium Architecture | How Appium Works | Edureka

Selenium 4 with Simon Stewart [Webinar]
Selenium 4 with Simon Stewart [Webinar]Selenium 4 with Simon Stewart [Webinar]
Selenium 4 with Simon Stewart [Webinar]

Introduction to Automation Testing
Introduction to Automation TestingIntroduction to Automation Testing
Introduction to Automation Testing

What is Appium? Edureka
What is Appium? EdurekaWhat is Appium? Edureka
What is Appium? Edureka

Test Automation and Selenium
Test Automation and SeleniumTest Automation and Selenium
Test Automation and Selenium

Create an architecture for web test automation
Create an architecture for web test automationCreate an architecture for web test automation
Create an architecture for web test automation

Browser_Stack_Intro
Browser_Stack_IntroBrowser_Stack_Intro
Browser_Stack_Intro

Appium solution
Appium solutionAppium solution
Appium solution

Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...
Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...
Selenium WebDriver Tutorial For Beginners | What Is Selenium WebDriver | Sele...

Webinar: Selenium WebDriver - Automation Uncomplicated
Webinar: Selenium WebDriver - Automation UncomplicatedWebinar: Selenium WebDriver - Automation Uncomplicated
Webinar: Selenium WebDriver - Automation Uncomplicated

Automation Testing using Selenium Webdriver
Automation Testing using Selenium WebdriverAutomation Testing using Selenium Webdriver
Automation Testing using Selenium Webdriver


Similar to Automation testing on ios platform using appium

appiumpresent-211128171811.pptx projet de presentation
appiumpresent-211128171811.pptx projet de presentationappiumpresent-211128171811.pptx projet de presentation
appiumpresent-211128171811.pptx projet de presentation
EnochBidima3

Appium overview (Selenium Israel #2, Feb. 2014)
Appium overview (Selenium Israel #2, Feb. 2014)Appium overview (Selenium Israel #2, Feb. 2014)
Appium overview (Selenium Israel #2, Feb. 2014)
danielputerman

ApppiumDoc_version2015
ApppiumDoc_version2015ApppiumDoc_version2015
ApppiumDoc_version2015
Amit DEWAN

Appium Overview - by Daniel Puterman
Appium Overview - by Daniel PutermanAppium Overview - by Daniel Puterman
Appium Overview - by Daniel Puterman
Applitools

Appium.pptx
Appium.pptxAppium.pptx
Appium.pptx
SameerAlam82

Appium- part 1
Appium- part 1Appium- part 1
Appium- part 1
Mithilesh Singh

Appium Meetup #2 - Mobile Web Automation Introduction
Appium Meetup #2 - Mobile Web Automation IntroductionAppium Meetup #2 - Mobile Web Automation Introduction
Appium Meetup #2 - Mobile Web Automation Introduction
snevesbarros

NCDevCon 2017 - Cross Platform Mobile Apps
NCDevCon 2017 - Cross Platform Mobile AppsNCDevCon 2017 - Cross Platform Mobile Apps
NCDevCon 2017 - Cross Platform Mobile Apps
John M. Wargo

Selenium Camp 2016 - Kiev, Ukraine
Selenium Camp 2016 -  Kiev, UkraineSelenium Camp 2016 -  Kiev, Ukraine
Selenium Camp 2016 - Kiev, Ukraine
Justin Ison

Appium understanding document
Appium understanding documentAppium understanding document
Appium understanding document
Akshay Pillay

[2015/2016] Apache Cordova
[2015/2016] Apache Cordova[2015/2016] Apache Cordova
[2015/2016] Apache Cordova
Ivano Malavolta

A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...
A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...
A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...
Amazon Web Services

Run somke test on AWS DeviceFarm
Run somke test on AWS DeviceFarmRun somke test on AWS DeviceFarm
Run somke test on AWS DeviceFarm
Naoki AINOYA

SRV312 DevOps on AWS: Building Systems to Deliver Faster
SRV312 DevOps on AWS: Building Systems to Deliver FasterSRV312 DevOps on AWS: Building Systems to Deliver Faster
SRV312 DevOps on AWS: Building Systems to Deliver Faster
Amazon Web Services

A tale of two pizzas: Developer tools at AWS
A tale of two pizzas: Developer tools at AWSA tale of two pizzas: Developer tools at AWS
A tale of two pizzas: Developer tools at AWS
Amazon Web Services

iOS Application Security
iOS Application SecurityiOS Application Security
iOS Application Security
Egor Tolstoy

Advanced Appium: SeleniumConf UK 2016
Advanced Appium: SeleniumConf UK 2016Advanced Appium: SeleniumConf UK 2016
Advanced Appium: SeleniumConf UK 2016
Dan Cuellar

CI&CD on AWS - Meetup Roma Oct 2016
CI&CD on AWS - Meetup Roma Oct 2016CI&CD on AWS - Meetup Roma Oct 2016
CI&CD on AWS - Meetup Roma Oct 2016
Paolo latella

DevOps on AWS: DevOps Day San Francisco
DevOps on AWS: DevOps Day San FranciscoDevOps on AWS: DevOps Day San Francisco
DevOps on AWS: DevOps Day San Francisco
Amazon Web Services

Automation using Javascript
Automation using JavascriptAutomation using Javascript
Automation using Javascript
khanhdang1214


Similar to Automation testing on ios platform using appium (20)

appiumpresent-211128171811.pptx projet de presentation
appiumpresent-211128171811.pptx projet de presentationappiumpresent-211128171811.pptx projet de presentation
appiumpresent-211128171811.pptx projet de presentation

Appium overview (Selenium Israel #2, Feb. 2014)
Appium overview (Selenium Israel #2, Feb. 2014)Appium overview (Selenium Israel #2, Feb. 2014)
Appium overview (Selenium Israel #2, Feb. 2014)

ApppiumDoc_version2015
ApppiumDoc_version2015ApppiumDoc_version2015
ApppiumDoc_version2015

Appium Overview - by Daniel Puterman
Appium Overview - by Daniel PutermanAppium Overview - by Daniel Puterman
Appium Overview - by Daniel Puterman

Appium.pptx
Appium.pptxAppium.pptx
Appium.pptx

Appium- part 1
Appium- part 1Appium- part 1
Appium- part 1

Appium Meetup #2 - Mobile Web Automation Introduction
Appium Meetup #2 - Mobile Web Automation IntroductionAppium Meetup #2 - Mobile Web Automation Introduction
Appium Meetup #2 - Mobile Web Automation Introduction

NCDevCon 2017 - Cross Platform Mobile Apps
NCDevCon 2017 - Cross Platform Mobile AppsNCDevCon 2017 - Cross Platform Mobile Apps
NCDevCon 2017 - Cross Platform Mobile Apps

Selenium Camp 2016 - Kiev, Ukraine
Selenium Camp 2016 -  Kiev, UkraineSelenium Camp 2016 -  Kiev, Ukraine
Selenium Camp 2016 - Kiev, Ukraine

Appium understanding document
Appium understanding documentAppium understanding document
Appium understanding document

[2015/2016] Apache Cordova
[2015/2016] Apache Cordova[2015/2016] Apache Cordova
[2015/2016] Apache Cordova

A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...
A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...
A Tale of Two Pizzas: Accelerating Software Delivery with Developer Tools - D...

Run somke test on AWS DeviceFarm
Run somke test on AWS DeviceFarmRun somke test on AWS DeviceFarm
Run somke test on AWS DeviceFarm

SRV312 DevOps on AWS: Building Systems to Deliver Faster
SRV312 DevOps on AWS: Building Systems to Deliver FasterSRV312 DevOps on AWS: Building Systems to Deliver Faster
SRV312 DevOps on AWS: Building Systems to Deliver Faster

A tale of two pizzas: Developer tools at AWS
A tale of two pizzas: Developer tools at AWSA tale of two pizzas: Developer tools at AWS
A tale of two pizzas: Developer tools at AWS

iOS Application Security
iOS Application SecurityiOS Application Security
iOS Application Security

Advanced Appium: SeleniumConf UK 2016
Advanced Appium: SeleniumConf UK 2016Advanced Appium: SeleniumConf UK 2016
Advanced Appium: SeleniumConf UK 2016

CI&CD on AWS - Meetup Roma Oct 2016
CI&CD on AWS - Meetup Roma Oct 2016CI&CD on AWS - Meetup Roma Oct 2016
CI&CD on AWS - Meetup Roma Oct 2016

DevOps on AWS: DevOps Day San Francisco
DevOps on AWS: DevOps Day San FranciscoDevOps on AWS: DevOps Day San Francisco
DevOps on AWS: DevOps Day San Francisco

Automation using Javascript
Automation using JavascriptAutomation using Javascript
Automation using Javascript


Recently uploaded

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …
908dutch

How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024
TaskSprint | Employee Efficiency Software

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups
SOCRadar

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript
attueb

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
Srinivas Dukka

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
ashiklo9823

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Natsoft Corporation

11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf
kalichargn70th171

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.
shivamt017

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
mohitd6

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
jealousviolet

Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
87tomato

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore
Nextskill Technologies

Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
neshakor5152

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Aardwolf Security

Attendance Tracking From Paper To Digital
Attendance Tracking From Paper To DigitalAttendance Tracking From Paper To Digital
Attendance Tracking From Paper To Digital
Task Tracker

Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
3610stuck

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移
Jersey (CHE-PING) Su

Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
revolutionary575

Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
shanihomely


Recently uploaded (20)

Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …Prada Group Reports Strong Growth in First Quarter …
Prada Group Reports Strong Growth in First Quarter …

How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024How To Fill Timesheet in TaskSprint: Quick Guide 2024
How To Fill Timesheet in TaskSprint: Quick Guide 2024

Top Chinese Government-backed APT Groups
Top Chinese Government-backed APT GroupsTop Chinese Government-backed APT Groups
Top Chinese Government-backed APT Groups

GT degree offer diploma Transcript
GT degree offer diploma TranscriptGT degree offer diploma Transcript
GT degree offer diploma Transcript

AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.
AWS DevOps-Tutorial CHANAKYA SRIYAN DUKKA.

Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...
Vip Girls Call ServiCe Hyderabad 0000000000 Pooja Best High Class Hyderabad A...

Blockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdfBlockchain in Agricultural Traceability Use Cases in 2024.pdf
Blockchain in Agricultural Traceability Use Cases in 2024.pdf

11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf11 Top Cross Browser Testing Tools to Know About.pdf
11 Top Cross Browser Testing Tools to Know About.pdf

Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.Shivam Pandit working on Php Web Developer.
Shivam Pandit working on Php Web Developer.

IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdfIoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf
IoT In Manufacturing_ Use Cases, Benefits, and Challenges.pdf

VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...
VVIP Girls Call Mumbai 9910780858 Provide Best And Top Girl Service And No1 i...

Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...
Verified Girls Call Mumbai 👀 9820252231 👀 Cash Payment With Room DeliveryDeli...

ERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in CoimbatoreERP Software Solutions Provider in Coimbatore
ERP Software Solutions Provider in Coimbatore

Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in CityGirls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City
Girls Call Mysore 000XX00000 Provide Best And Top Girl Service And No1 in City

Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docxComprehensive Vulnerability Assessments Process _ Aardwolf Security.docx
Comprehensive Vulnerability Assessments Process _ Aardwolf Security.docx

Attendance Tracking From Paper To Digital
Attendance Tracking From Paper To DigitalAttendance Tracking From Paper To Digital
Attendance Tracking From Paper To Digital

Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...
Mumbai Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service A...

當測試開始左移
當測試開始左移當測試開始左移
當測試開始左移

Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...
Busty Girls Call Mumbai 9930245274 Unlimited Short Providing Girls Service Av...

Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...
Russian Girls Call Mumbai 🎈🔥9930687706 🔥💋🎈 Provide Best And Top Girl Service ...


Automation testing on ios platform using appium

  • 1. Appium Mobile App Automation On iOS Platform (Apple's XCUITest) Created by: Ambreen Khan www.softwaretestingtrends.com
  • 2. Contents • Appium Background • Appium Architecture • Appium Installation on Mac • Running Appium on Real Devices • How Apple's XCUITest is different? 2
  • 4. What is Appium? • Appium is an open source test automation framework for use with native, hybrid and mobile web apps. • Appium is “cross-platform”, means it allows you to write tests against multiple platforms (iOS, Android, Windows), using the same API (WebDriver API). This enables code reuse between iOS, Android, and Windows test suites. 4
  • 5. What are different App Types • Native apps are those written using the iOS, Android, or Windows SDKs. • Mobile web apps are web apps accessed using a mobile browser (Appium supports Safari on iOS and Chrome or the built-in ‘Browser’ app on Android). • Hybrid apps have a wrapper around a “webview” – a native control that enables interaction with web content. 5
  • 6. Appium Philosophy • You shouldn’t have to recompile your app or modify it in any way in order to automate it. • You shouldn’t be locked into a specific language or framework to write and run your tests. • A mobile automation framework shouldn’t reinvent the wheel when it comes to automation APIs. • A mobile automation framework should be open source, in spirit and practice as well as in name! 6
  • 8. Appium Architecture • An HTTP server written in Node.js that creates and handles WebDriver sessions. • Appium web server follows same approach as Selenium WebDriver • Receives HTTP requests from client libraries through JSON • Handles received requests in different ways, depending on platform it is running on. 8
  • 9. Client/Server Architecture Appium is at its heart a webserver that exposes a REST API. It receives connections from a client, listens for commands, executes those commands on a mobile device, and responds with an HTTP response representing the result of the command execution. 9
  • 10. Session • Automation is always performed in the context of a session. • Clients initiate a session with a server in ways specific to each library, but they all end up sending a POST /session request to the server, with a JSON object called the ‘desired capabilities’ object. • At this point the server will start up the automation session and respond with a session ID which is used for sending further commands. 10
  • 11. Desired capabilities • Desired capabilities are a set of keys and values (i.e., a map or hash) sent to the Appium server to tell the server what kind of automation session we’re interested in starting up. • There are also various capabilities which can modify the behavior of the server during automation. • Example: Set the platformName capability to iOS to tell Appium that we want an iOS session, rather than an Android or Windows one. 11
  • 12. Vendor-provided frameworks used by Appium The vendor-provided frameworks used by Appium: • iOS: Apple's XCUITest (iOS 9.3 and up) • iOS: Apple’s UIAutomation (iOS 9.3 and below) • Android 5.0+: Google’s UiAutomator V2 • Android 4.2+: Google’s UiAutomator • Android 2.3+: Google’s Instrumentation (Instrumentation support is provided by bundling a separate project, Selendroid) • Windows: Microsoft’s WinAppDriver 12
  • 13. Why XCUITest? • For iOS automation, Appium relies on system frameworks provided by Apple. • For iOS 9.2 and below, Apple's only automation technology was called UIAutomation, and it ran in the context of a process called "Instruments". • Apple introduced a new automation technology, called XCUITest, beginning with iOS 9.3. • For iOS 10 and up, this will be the only supported automation framework from Apple. 13
  • 14. Why XCUITest? • with iOS 10 / Xcode 8, Apple has removed the older UIAutomation framework, which powered Appium's iOS automation up to this point. • When you specify a platformVersion of 10 or higher, Appium will automatically use the XCUITest automation backend. • If you would like to run the XCUITest automation backend with iOS 9.3, simply specify automationName: XCUITest in your desired capabilities. 14
  • 16. Software Requirements • Java • The Eclipse IDE • Xcode (8.0 or later) • Xcode Apple Developer Tools (iPhone simulator SDK, command line tools) • Homebrew • Node and npm • The Appium Server • The Appium Client Library (Java) • Selenium WebDriver Java library 16
  • 17. Java • Java - Download & install Java SE Development kit 8 for Mac OS X Link: http://www.oracle.com/technetwork/pt/java/ja vase/downloads/jdk8-downloads-2133151.html 17
  • 18. The Eclipse IDE • Download & install Eclipse IDE for Java developers Link: http://www.eclipse.org/downloads/index- developer.php?osType=macosx 18
  • 19. Xcode • Install Xcode (Version 8.0 or above) • Xcode can be downloaded free from Mac App Store Note: To test an app in iOS 10 or above with Appium, we have to use Xcode 8 or newer with Appium 1.6 or newer. 19
  • 20. The Appium Server • You can install & run an Appium server using o node.js o using the application 20
  • 21. Before You install Appium Server… Before you install Appium using node.js, you should have: • Homebrew • NPM - node.js package manager The Appium server is written in Node.js; that's why we need it to download Appium 21
  • 22. Homebrew • A package manager for macOS that complements macOS. • Homebrew helps you install applications that are not installed by default on your MAC. • It's all git and ruby underneath. • The standard script installs Homebrew to /usr/local so that you don’t need sudo when you brew install • Homebrew is designed to work without using sudo. 22
  • 23. Install/Uninstall Homebrew (commands for terminal) • Installing Homebrew ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/ master/install)" • How do I uninstall Homebrew? To uninstall Homebrew, paste the command below in a terminal prompt. ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/m aster/uninstall)" • How to check available options on brew: brew help, man brew 23
  • 25. Homebrew Doctor • After installing the Homebrew, run command brew doctor • You'll get the message: your system is ready to brew. • If you don't get above message then try to fix warnings and errors using the brew doctor 25
  • 26. NPM • npm is a Node.js package manager • It is an online repository of open source Node.js projects. • It is command-line utility to package installation 26
  • 27. Installing Node.js and/or npm • Install node.js using brew. brew install node • Once you install node, you can check version: node --version npm —version Note: Don’t use the big green install button on nodejs.org website or all npm commands will require sudo. 27
  • 28. Installing Appium using Node.js • Install appium using node.js $ npm install -g appium Alert: Make sure you have not installed Node or Appium with sudo, otherwise you’ll run into problems later. 28
  • 29. Run Appium • To run Appium $ appium (Run Appium) • Now Appium server will be ready for accepting requests of client. [Appium] Welcome to Appium v1.6.0 [Appium] Appium REST http interface listener started on 0.0.0.0:4723 29
  • 30. Appium Doctor • To verify that all of Appium’s dependencies are met you can use appium-doctor. • Install it with: $npm install -g appium-doctor • run appium-doctor and supply the --ios or -- android flags to verify that all of the dependencies are set up correctly. $appium-doctor --ios 30
  • 32. Stopping Appium Server • Simply press CTRL+C in the same terminal window to stop the Appium server. 32
  • 33. Appium.app, Appium.exe • There exist GUI wrappers around the Appium server that can be downloaded. • These come bundled with everything required to run the Appium server, so you don’t need to worry about Node. • They also come with an Inspector, which enables you to check out the hierarchy of your app. This can come in handy when writing tests. 33
  • 34. Installation using the APP To install: • Download the latest version from Appium.io. • Mount the disk image. • Drag Appium.app to your Applications folder. • Run it!!! 34
  • 36. Install Dependencies • Currently logging is based on idevicesyslog, and port forwarding is based on iProxy, both of which are part of libimobiledevice, so you need to install it with Homebrew brew install libimobiledevice • In order to run the WebDriverAgent bootstrap script you will need to install the Carthage dependency manager brew install carthage 36
  • 37. Install Dependencies • Installing deviceconsole • An iOS system log trailer to debug problems • Allows analyzing Crash Logs and Console output from the device. npm install deviceconsole • Installing ios-deploy iOS deploy is used to deploy your app to a connected device npm install -g ios-deploy 37
  • 38. Installing dependencies using HEAD • head URLs (activated by passing --HEAD) build the development cutting edge. By passing the --HEAD option allows installing software directly from a branch of a version-control repository. npm install ios-deploy –HEAD npm install deviceconsole –HEAD 38
  • 39. Installing Xcode Command line tools • To install Xcode command line tools run: $ xcode-select --install 39
  • 40. Selenium Install following Selenium components • Selenium Standalone Server • Get selenium WebDriver language binding library for Java from section 'Selenium Client & WebDriver Language Bindings' present on below link: http://docs.seleniumhq.org/download/ 40
  • 41. Appium Clients • There are client libraries (in Java, Ruby, Python, PHP, JavaScript, and C#) which support Appium’s extensions to the WebDriver protocol. • When using Appium, you need to use these client libraries instead of your regular WebDriver client. Link: https://search.maven.org/#search%7Cga%7C1%7Cg %3Aio.appium%20a%3Ajava-client 41
  • 42. Authorize use of iOS Simulator • You need to authorize use of the iOS Simulator by running the authorize-ios binary made available through npm. • Install the program by running npm install -g authorize-ios 42
  • 43. Authorize use of the iOS Simulator • You can invoke the program using sudo authorize-ios • If you are running Appium.app, you can authorize iOS through the GUI. Note: You need to do this every time you install a new version of Xcode. 43
  • 44. What is Sudo? • sudo (/ˈsuːduː/ or /ˈsuːdoʊ/) is a program for Unix-like computer operating systems that allows users to run programs with the security privileges of another user, by default the superuser. • It originally stood for "superuser do" as the older versions of sudo were designed to run commands only as the superuser. • Mac OS X: sudo command requires a non-blank admin password. The sudo Terminal command can be used by administrators to execute commands as a different user (for example, as root). Alert: Be extra careful when using the sudo command. You will usually have to enter your OS X system password and any mistakes can permanently mess up your system for good. When in doubt, leave it out! 44
  • 45. Documentation • Refer to the official documentation for Appium versions 1.6 to see all the capabilities you can choose from. • There are some common capabilities and then there are also separate Android only and iOS only capabilities. http://appium.io/slate/en/v1.6.0/?java#appium- server-capabilities 45
  • 47. Testing on real iOS Device Why testing on real devices? • There could be bugs that only show up when your app is running on an actual iPhone or iOS device. • Testing your iOS app on a device is the best way to gauge performance issues before you go too far down the road. 47
  • 48. Appium on real iOS devices To get started on a real device, you will need the following: • An Apple Developer ID and a valid Developer Account with a configured distribution certificate and provisioning profile. • An iPad or iPhone. Configure the device for development and add the device to the member center • A signed .ipa file of your app, or the source code to build one. • A Mac with Xcode and the Xcode Command Line Developer Tools. 48
  • 49. Testing on real iOS Device • Enroll in the Apple iOS Developer Program – You’re going to need to enroll in the Apple iOS developer program which is $99 a year. – You’ll also need an actual iOS device. • Your certificate is used to code sign the apps and they uniquely identify you. In this step, you have to generate and request two certificates: one for development and one for distribution. You only need to do this once (not for each app!). • The development one is used for testing while the distribution certificate is used to sign your app bundle for distribution in the App Store once it’s ready. 49
  • 50. Why Code Signing? • Apple cares that it can identify who created the app and that it can tell if the app has been tampered with or not. • These security measures are ensured by a process known as code signing. When you create an app package (binary) to put on a device, you have to put your “digital signature” on it by code signing it. Otherwise, Apple won’t let that app be deployed on any device. 50
  • 51. Running your test • Once your device and app are configured, you can run tests on that device by passing the - U or --udid flag to the server or the udid desired capability, and the bundle ID (if the app is installed on the device) or the path to the .ipa or .apk file via the --app flag or the app desired capability. 51
  • 52. How Apple's XCUITest is different? 52
  • 53. XCUITest API vs UIAutomation API • Unfortunately, the XCUITest API and the UIAutomation API are not equivalent. In many cases (like with tap/click), the behavior is identical. But some features that were available in the UIAutomation backend are not yet available in the new XCUITest backend. These known lacking features include: • Geolocation support (e.g., driver.location) • Shaking the device • Locking the device • Rotating the device (note that this is NOT device orientation, which is supported) Appium has a plan to add these features back in future releases of Appium. 53
  • 54. Changes to make in existing script Here are the changes that you will have to make to your existing scripts to run automated tests on iOS10: • Apple has given different class names to UI elements and changed the application hierarchy. If you use XPaths in your test, it will be necessary to rewrite them to account for these changes. • Apple has removed native support for XPath selectors, making XPath significantly slower. When using XCUITest, you can improve performance by using other locators instead, such as accessibility id. 54
  • 55. Avoid using Xpath locators • Try not to use XPath locators unless there is absolutely no other alternatives. • In general, xpath locators might be times slower, than other types of locators like accessibility id, class name and predicate (up to 100 times slower in some special cases). • They are so slow, because xpath location is not natively supported by Apple's XCTest framework. 55
  • 56. Migrating to XCUITest • The Appium team has also published a doc which might be helpful in helping users migrate their tests: https://github.com/appium/appium/blob/maste r/docs/en/advanced-concepts/migrating-to- xcuitest.md. (Released Oct 2016) 56
