1. Mobile Automation Testing Using APPIUM
Created By: Keshav Kashyap

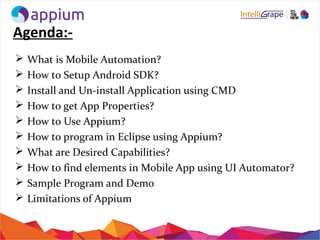

2. Agenda:-
 What is Mobile Automation?
 How to Setup Android SDK?
 Install and Un-install Application using CMD
 How to get App Properties?
 How to Use Appium?
 How to program in Eclipse using Appium?
 What are Desired Capabilities?
 How to find elements in Mobile App using UI Automator?
 Sample Program and Demo
 Limitations of Appium

3. What is Mobile Automation?

Mobile Automated testing provides a mechanism to
consistently repeat a test procedure and verify application
results. It can be effective both for regression testing as
well during development.

Testing mobile applications is different and more
complex than testing traditional desktop and web
applications.

Mobile applications need to be tested on a variety of
software platforms and versions, on diverse hardware and
form factors, and under different network connectivity
conditions.

Moreover, the rapid pace of mobile OS updates, the
frequent introduction of new devices and the customer
expectation of quick upgrades require additional test
cycles

4. Challenges in Mobile Automation Testing :-
Two Key Challenges in Mobile Application Test Automation
Mobile Platforms and Technology Coverage
The primary factor that determines an automation tool’s success is its ability to
work across platforms and technology stacks. The following challenges influence
automation success:
Device Diversity:
Multiple platforms and browsers.
Rendering differences.
Mobile devices with varied application run times.
Network Challenges:
•Multiple network types (e.g., GSM/GPRS/Wi-Fi/Wi-Max).
•Different speeds of connectivity across geographies.
•Multiple network operators with customized network features.
Hardware Challenges:
•Limitations in processing speed.
•Limitations of mobile memory size.

5. Pre-Requisites for Mobile Automation :-
• Eclipse should be installed
• Android SDK and APIs for recent versions of
Android
• Selenium Webdriver knowledge.
• Java knowledge.
• Basic Knowledge of Mobile.

6. Setup :-

Download Selenium Java zip archive and extract all the
files in a folder called Selenium.

Download Appium for Windows zip archive and extract
all files in a folder called Appium.

Download Appium Java client jar

Create a new java project in Eclipse and add Selenium and
Appium Java client Jar files

7. How to Setup Android SDK?
 Install and Setup JAVA
 Setup Java Path in Environment Variables.
 Setup Path in User Variable
 Setup JAVA_HOME in User Variable
C:Program FilesJavajdk1.7.0bin;
 Check that whether Java is installed on your system or not.
 Open cmd  type Java -version  Output will provide the installed version of
Java
 Install Android SDK OR Just Copy SDK folder shared by anyone.
If you don’t have SDK folder then you have to just click on the above installer_r16-
windows.exe. By default it will be installed in C:Program FilesAndroid. You have to
just copy the folder and paste it to some other drive. E.g.:- D:SDK
 Now setup ANDROID_HOME
 Setup Tools and Platform Tools Path in User Variable
 Restart the system (Strongly Recommended)

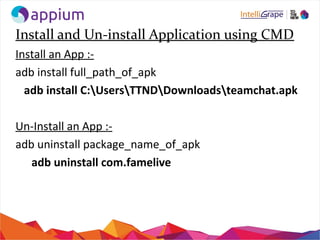

8. Install and Un-install Application using CMD
Install an App :-
adb install full_path_of_apk
adb install C:UsersTTNDDownloadsteamchat.apk
Un-Install an App :-
adb uninstall package_name_of_apk
adb uninstall com.famelive

9. How to get App Properties:-
• For app properties we have to use
command:-
D:SDKbuild-tools22.0.1aapt.exe dump
badging app_name.apk

10. What is Appium?:-
Appium is an Open source , Cross Platform test
automation tool for mobile apps
Hosted with GitHub
 Maintained by Dan Cuellar, Jonathan Lipps and
a number of other contributors
Supports automation of Native , Hybrid and
Mobile Web apps
Based on WebDriver JSON wire protocol
Based on Client-Server Architecture
Appium Server written in Node.js

11. Appium Architecture:-

12. How to Use or Run Appium?:-
Go to the Appium folder you downloaded earlier and run Appium.exe.
Click on General Settings button (second button) and verify URL you defined
in Eclipse matches the server address and port from the Appium app.
Click on Launch Button.

13. How to program in Eclipse using
Appium:-

14. What are Desired Capabilities?
Desired Capabilities are a set of keys and values sent to the Appium server to tell
the server what kind of automation session we’re interested in starting up.
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability(CapabilityType.BROWSER_NAME, “”);
capabilities.setCapability(“platformName”, “Android”);
capabilities.setCapability(CapabilityType.VERSION, “4.4”);
capabilities.setCapability(“deviceName”, “111bd508”);
capabilities.setCapability(“app”, app.getAbsolutePath());
capabilities.setCapability(“appPackage”, “com.example.android.contactmanager”);
capabilities.setCapability(“appActivity”, “.ContactManager”);
driver = new AndroidDriver(new URL(“http://127.0.0.1:4723/wd/hub”), capabilities);

15. Setup Mobile Device For Automation:-
• For setting up mobile devices, we have to verify
that whether developer options is enable or not.
• USB Debugging is allowed or not.
• For Real device, Android version must be 4.2 or
above.

16. Object Identification Using UI Automator:-
 Go to SDK folder and open the tools folder.
 Open uiautomatorviewer.
 On the actual device, open the app to the page you want to
automate.
 In UI Automator Viewer, click on Device screenshot
(second button).
 Click any element on the page and look in the Node detail
window (there you will find details about the selected
element: id, class, name, etc.)
 Use the info found (id, class) in Eclipse to click buttons, fill
input fields

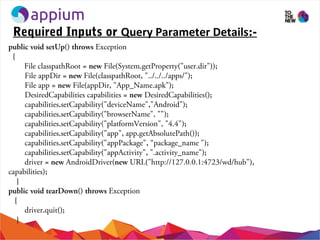

17. Required Inputs or Query Parameter Details:-
public void setUp() throws Exception
{
File classpathRoot = new File(System.getProperty("user.dir"));
File appDir = new File(classpathRoot, "../../../apps/");
File app = new File(appDir, "App_Name.apk");
DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("deviceName","Android");
capabilities.setCapability("browserName", "");
capabilities.setCapability("platformVersion", "4.4");
capabilities.setCapability("app", app.getAbsolutePath());
capabilities.setCapability("appPackage", “package_name ");
capabilities.setCapability("appActivity", ".activity_name");
driver = new AndroidDriver(new URL("http://127.0.0.1:4723/wd/hub"),
capabilities);
}
public void tearDown() throws Exception
{
driver.quit();
}

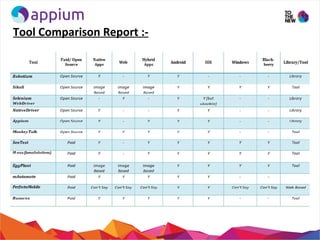

18. Tool Comparison Report :-

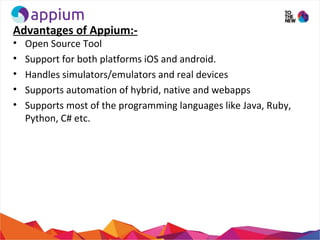

19. Advantages of Appium:-
• Open Source Tool
• Support for both platforms iOS and android.
• Handles simulators/emulators and real devices
• Supports automation of hybrid, native and webapps
• Supports most of the programming languages like Java, Ruby,
Python, C# etc.

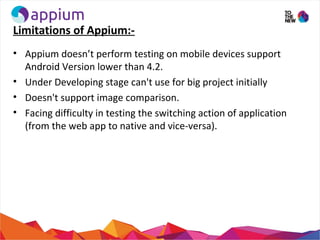

20. Limitations of Appium:-
• Appium doesn’t perform testing on mobile devices support
Android Version lower than 4.2.
• Under Developing stage can't use for big project initially
• Doesn't support image comparison.
• Facing difficulty in testing the switching action of application
(from the web app to native and vice-versa).
