Slides that I presented at appium meetup in San Fransisco, has details about setting appium with selenium grid.

1. © Sauce Labs, Inc.
Parallel testing with Appium!
Moiz Virani, Software engineer @ Sauce Labs, Inc
.

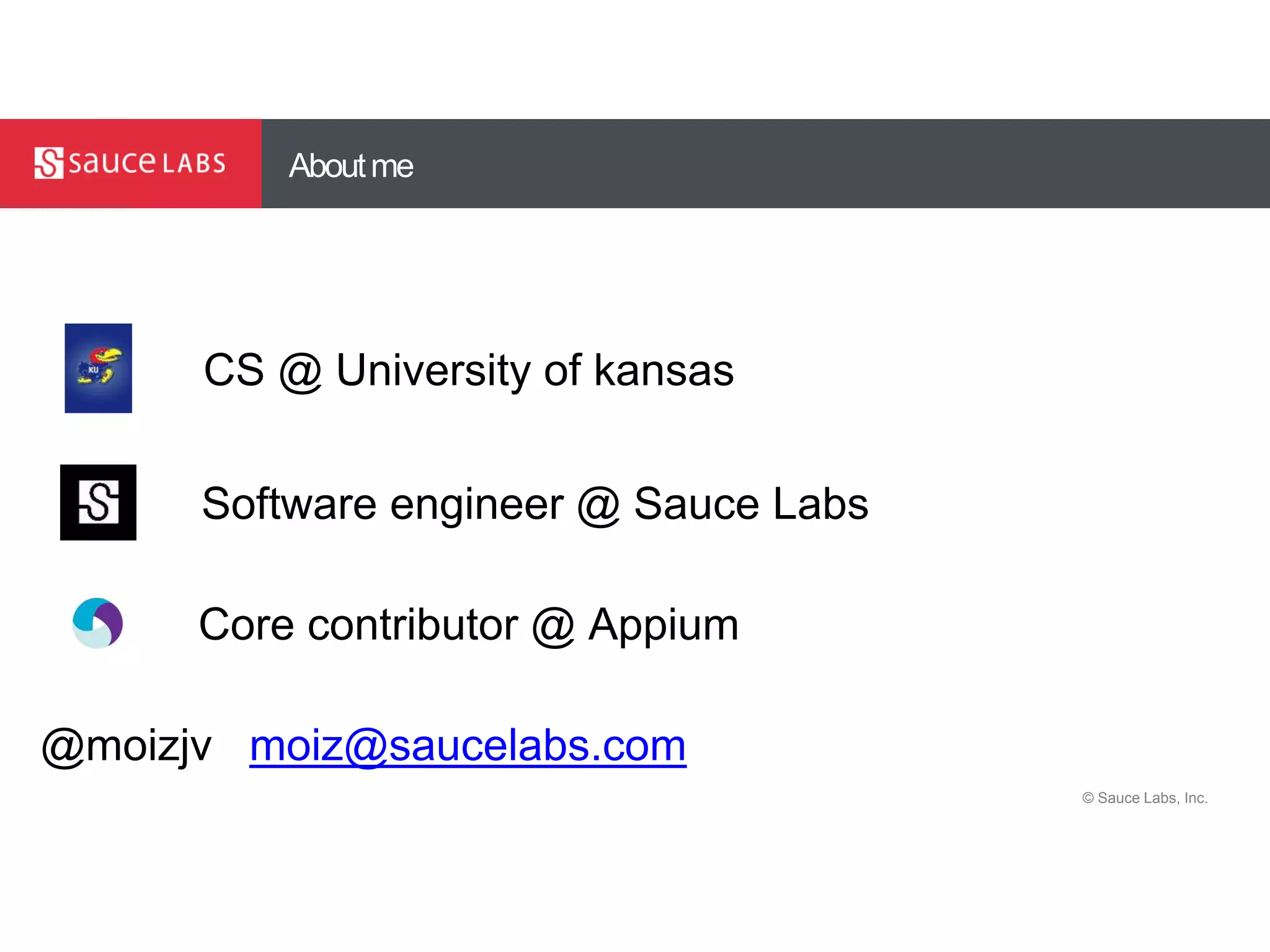

2. © Sauce Labs, Inc.
CS @ University of kansas
Software engineer @ Sauce Labs
Core contributor @ Appium
Aboutme
@moizjv moiz@saucelabs.com

3. © Sauce Labs, Inc.
Overview
• Introduction
• Appium architecture overview
• Selenium Grid
• Appium setup with grid
• Demo
• Scaling parallel tests
• Demo 2
• Conclusion

4. © Sauce Labs, Inc.
Appium
I promise to be awesome!

5. © Sauce Labs, Inc.
Appium
• Open source
• Selenium for mobile
• Client/Server architecture
• JSON wire protocol
• One device at a time with one server (present)
• Yes selenium grid for parallel testing
• Six language clients

6. © Sauce Labs, Inc.
Appium: How it works
Test
Script
Appium
Server
Device
Manipulat
ion
(adb, etc)
Device
Automation
(UI Automator)
Android
Device
HTTP

7. © Sauce Labs, Inc.
Parallel Tests
It is so fast!

8. © Sauce Labs, Inc.
Design principles :
• Atomic: small and concise
• Independent
• Organized
• Configurable
• https://github.com/saucelabs-test-frameworks/

9. © Sauce Labs, Inc.
Selenium Grid :
• Another web server - Hub
• Manages other webdrivers
• Manages appium servers
• Responsible for distributing
tests
• Appium server is here - Node

10. © Sauce Labs, Inc.
Steps for grid setup:
• Download Selenium-standalone.jar
j java -jar selenium-server-standalone-2.48.2.jar -role hub
ava -jar selenium-server-standalone-2.48.2.jar -role hub
• Start it with role as hub
• Start multiple emulators or devices (iOS limitation)

11. © Sauce Labs, Inc.
Steps for grid setup: Appium
• Currently appium can only handle one session at a time
• Start multiple appium sessions with different port
• Define configuration file to rester session with hub
• Register session with hub using —nodeconfig.json
• https://github.com/appium/appium/blob/master/docs/en/advanced-
concepts/grid.md
• example
https://github.com/moizjv/appium/blob/appium_meetup/android1.json
node . --port 4000 --nodeconfig ./android1.json -U emulator-5554 -bp 2252
node . --port 4000 --nodeconfig ./android1.json -U emulator-5554 -bp 2252

12. © Sauce Labs, Inc.
Running parallel tests
• Configure tests to run in parallel
• Point test to hub as remote driver
• Set capabilities to match registered remote driver
• Run the tests!!!

13. © Sauce Labs, Inc.
Demo
Live demos are dangerous!

14. © Sauce Labs, Inc.
Conclusion
• Parallel tests should be written to scale
• Presently iOS has limitation one simulator at a time
• Parallel testing strategy if done right can speed up testing
process significantly

15. © Sauce Labs, Inc.
Quiz
• What is the latest version of beta
• What is the latest version of appium
• What does appium use under the hood for Android ?
• What does appium use under the hood for iOS?

16. © Sauce Labs, Inc.
Questions?
Test more, test often
and succeed!
Happy Testing :)

17. © Sauce Labs, Inc.
Thank You.

18. © Sauce Labs, Inc.
Q and A!
