The document discusses strategies for coping with device fragmentation in Android testing, emphasizing tools and approaches offered by Bitbar, including Testdroid Recorder and Testdroid Server. It highlights problems faced by developers, like application failures and layout issues, and provides solutions through automated testing frameworks like Robotium and Robolectric. Best practices for testing ensure comprehensive coverage across devices and encourage developers to integrate test case creation with code development.

1. Strategies for coping with device fragmentation

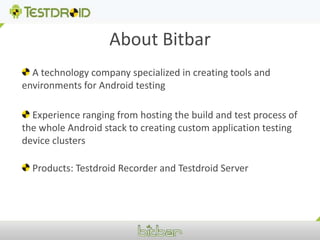

2. About Bitbar A technology company specialized in creating tools and environments for Android testing Experience ranging from hosting the build and test process of the whole Android stack to creating custom application testing device clusters Products: Testdroid Recorder and Testdroid Server

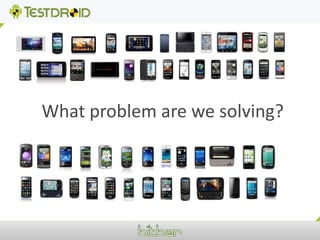

3. What problem are we solving?

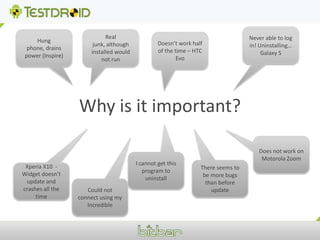

4. Never able to log in! Uninstalling… Galaxy SHung phone, drains power (Inspire)Real junk, although installed would not runDoesn’t work half of the time – HTC EvoWhy is it important?Does not work on Motorola ZoomI cannot get this program to uninstallThere seems to be more bugs than before updateXperia X10 - Widget doesn’t update and crashes all the timeCould not connect using my Incredible

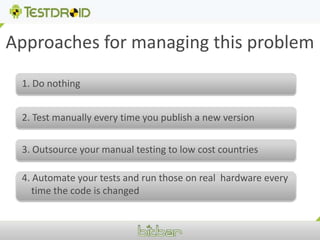

5. Approaches for managing this problem1. Do nothing2. Test manually every time you publish a new version3. Outsource your manual testing to low cost countries4. Automate your tests and run those on real hardware every time the code is changed

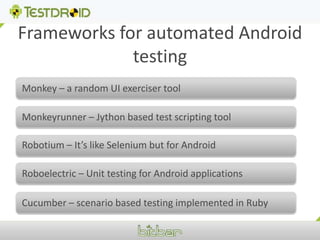

6. Frameworks for automated Android testingMonkey – a random UI exerciser toolMonkeyrunner – Jython based test scripting tool Robotium – It’s like Selenium but for Android Roboelectric – Unit testing for Android applications Cucumber – scenario based testing implemented in Ruby

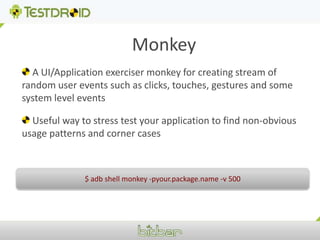

7. Monkey A UI/Application exerciser monkey for creating stream of random user events such as clicks, touches, gestures and some system level events Useful way to stress test your application to find non-obvious usage patterns and corner cases $ adb shell monkey -pyour.package.name -v 500

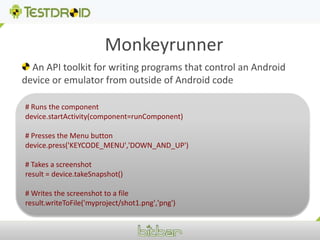

8. Monkeyrunner An API toolkit for writing programs that control an Android device or emulator from outside of Android code# Runs the componentdevice.startActivity(component=runComponent)# Presses the Menu buttondevice.press('KEYCODE_MENU','DOWN_AND_UP')# Takes a screenshotresult = device.takeSnapshot()# Writes the screenshot to a fileresult.writeToFile('myproject/shot1.png','png')

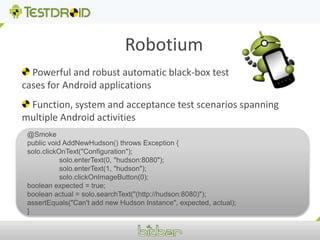

9. Robotium Powerful and robust automatic black-box test cases for Android applications Function, system and acceptance test scenarios spanning multiple Android activities@Smokepublic void AddNewHudson() throws Exception {solo.clickOnText("Configuration"); solo.enterText(0, "hudson:8080"); solo.enterText(1, "hudson"); solo.clickOnImageButton(0);boolean expected = true;boolean actual = solo.searchText("(http://hudson:8080)"); assertEquals("Can't add new Hudson Instance", expected, actual);}

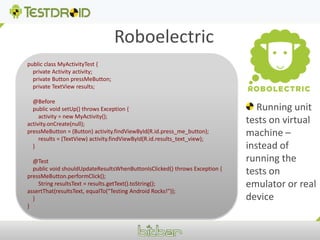

10. Roboelectricpublic class MyActivityTest { private Activity activity; private Button pressMeButton; private TextView results; @Before public void setUp() throws Exception { activity = new MyActivity();activity.onCreate(null);pressMeButton = (Button) activity.findViewById(R.id.press_me_button); results = (TextView) activity.findViewById(R.id.results_text_view); } @Test public void shouldUpdateResultsWhenButtonIsClicked() throws Exception {pressMeButton.performClick(); String resultsText = results.getText().toString();assertThat(resultsText, equalTo("Testing Android Rocks!")); }} Running unit tests on virtual machine – instead of running the tests on emulator or real device

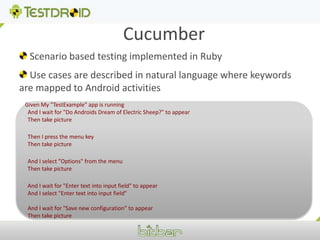

11. Cucumber Scenario based testing implemented in Ruby Use cases are described in natural language where keywords are mapped to Android activitiesGiven My ”TestExample" app is running And I wait for "Do Androids Dream of Electric Sheep?" to appear Then take picture Then I press the menu key Then take picture And I select ”Options" from the menu Then take picture And I wait for "Enter text into input field" to appear And I select "Enter text into input field" And I wait for "Save new configuration" to appear Then take picture

12. Running tests on AndroidInstrumentationTestRunner – the primary plumbing for running tests on Android Android Debug Bridge (ADB) – connects the devices and manages all debug information flow Asserts – rich validation capabilities enabled by JUnit. Helps validating test results, system outputs or practically anything. Mock objects – methods for creating mock system objects such as content, service and intent.

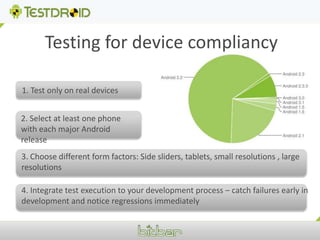

13. Testing for device compliancy1. Test only on real devices2. Select at least one phone with each major Android release3. Choose different form factors: Side sliders, tablets, small resolutions , large resolutions4. Integrate test execution to your development process – catch failures early in development and notice regressions immediately

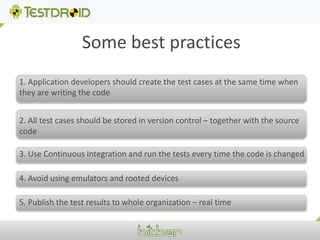

14. Some best practices 1. Application developers should create the test cases at the same time when they are writing the code2. All test cases should be stored in version control – together with the source code 3. Use Continuous Integration and run the tests every time the code is changed 4. Avoid using emulators and rooted devices5. Publish the test results to whole organization – real time

15. Typical failures 1. Application installation fails2. Application crashes during execution3. Scaling/Layout problems4. Application hangs if some resource is not available5. Problems in landscape/portrait mode

16. Our solution for multi device testingTestdroid RecorderAn Eclipse plugin that automates the manual tasks of writing tests for Android applicationsTestdroid ServerA server software that manages all aspects of automatically running tests on multiple Android devices simultaneously.

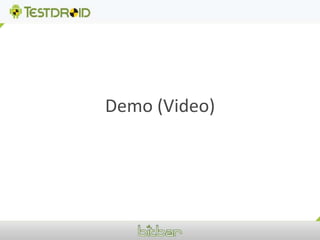

17. Demo (Video)

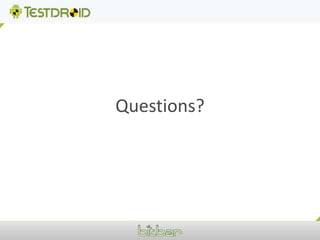

18. Questions?

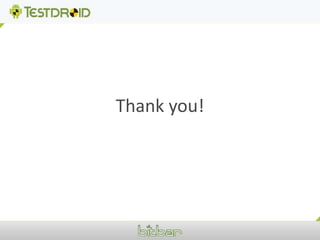

19. Thank you!
