Everything You Need To Know about Appium and Selenium
- 1. Perfecto Mobile CQLab Selenium & Appium Intro and Demo for Partners David Broerman Partner Enablement Manager Phone: 727. 225.2826 / Email: davidb@perfectomobile.com

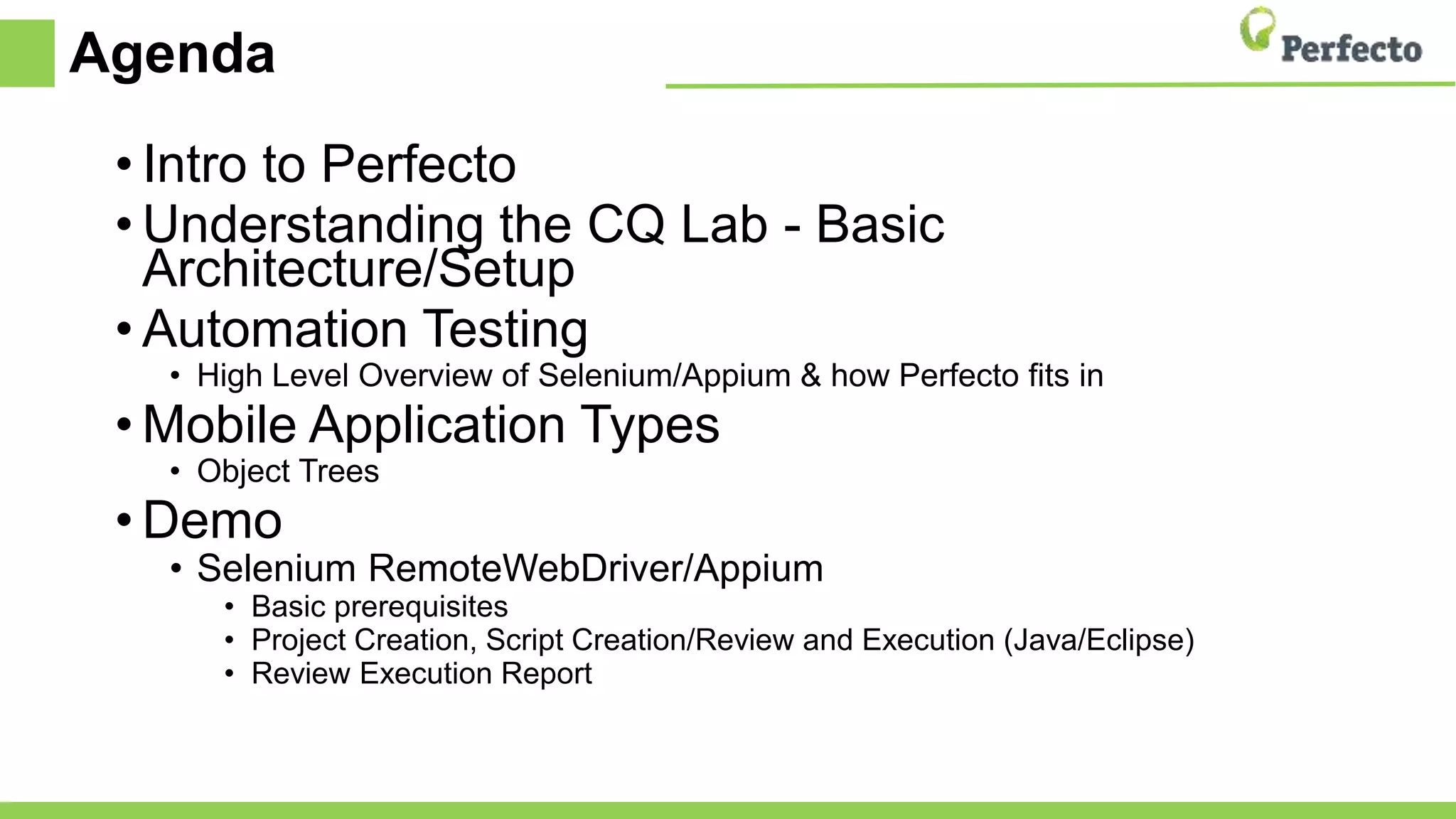

- 2. Agenda • Intro toPerfecto • Understanding the CQ Lab - Basic Architecture/Setup • Automation Testing • High Level Overview of Selenium/Appium & how Perfecto fits in • Mobile Application Types • Object Trees • Demo • Selenium RemoteWebDriver/Appium • Basic prerequisites • Project Creation, Script Creation/Review and Execution (Java/Eclipse) • Review Execution Report

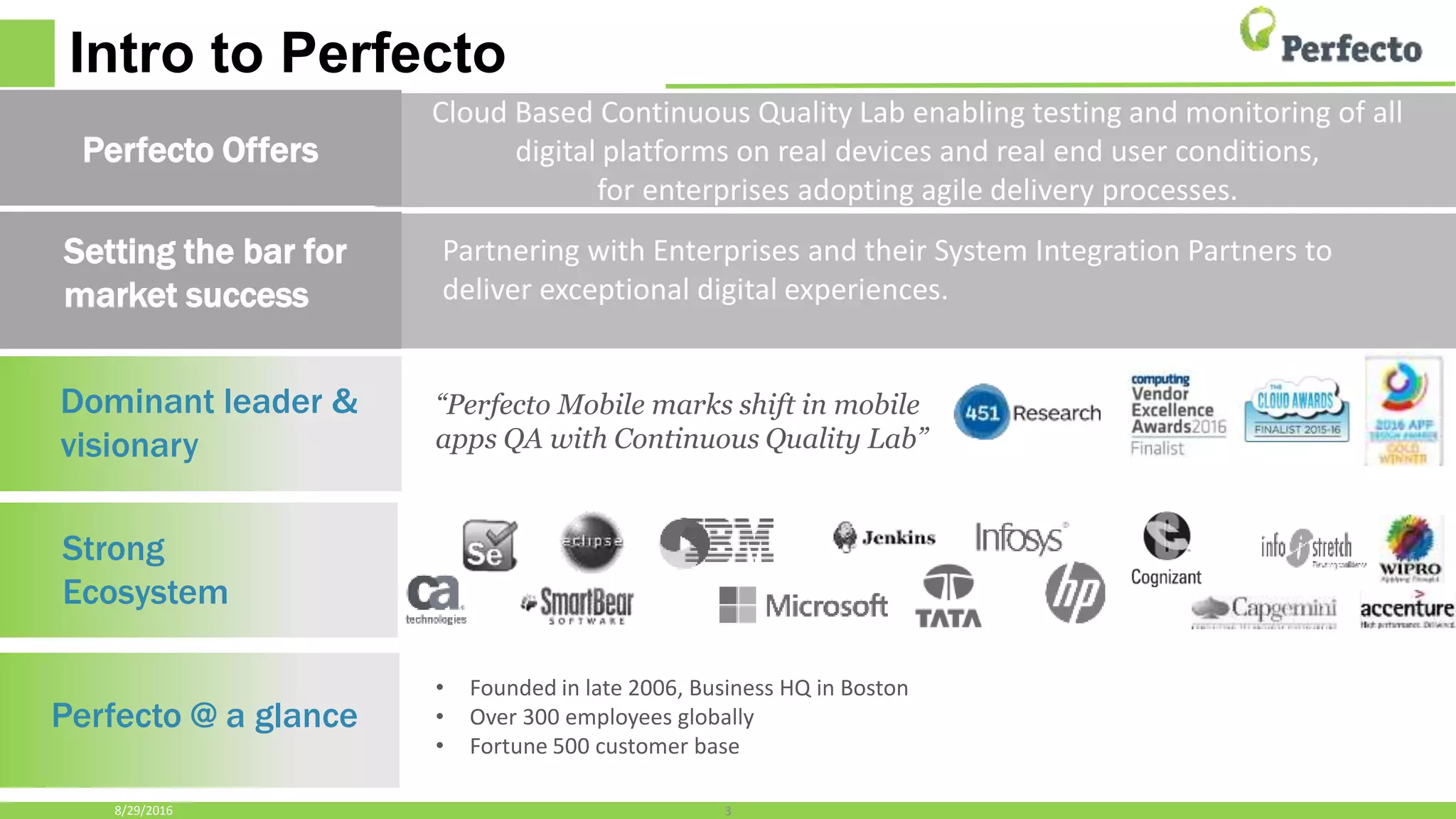

- 3. Intro to Perfecto Dominantleader & visionary Strong Ecosystem Perfecto @ a glance Partnering with Enterprises and their System Integration Partners to deliver exceptional digital experiences. “Perfecto Mobile marks shift in mobile apps QA with Continuous Quality Lab” 3 Setting the bar for market success • Founded in late 2006, Business HQ in Boston • Over 300 employees globally • Fortune 500 customer base 8/29/2016 Cloud Based Continuous Quality Lab enabling testing and monitoring of all digital platforms on real devices and real end user conditions, for enterprises adopting agile delivery processes. Perfecto Offers

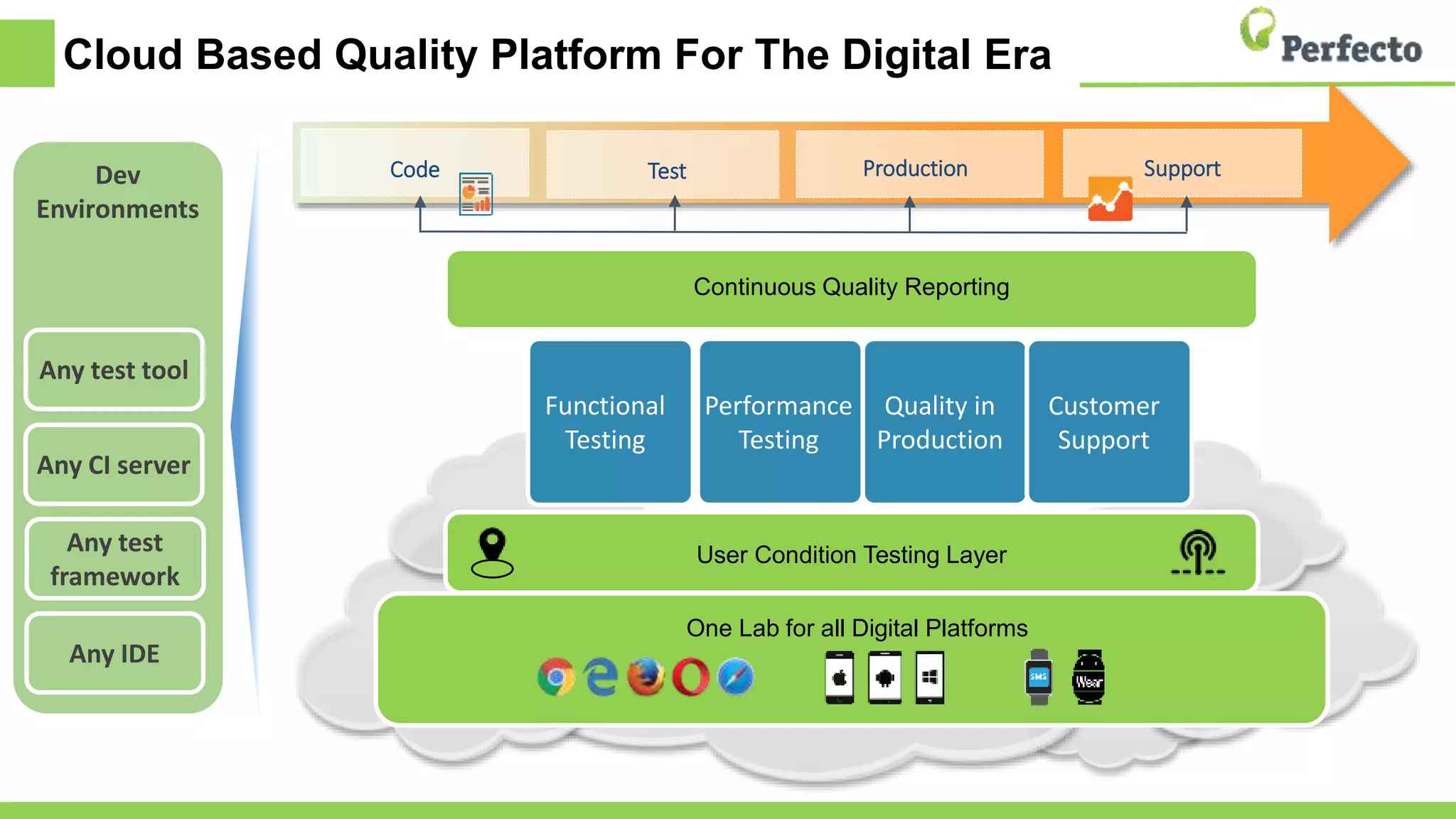

- 4. Dev Environments Cloud Based QualityPlatform For The Digital Era Any IDE Any test framework Any CI server Any test tool User Condition Testing Layer Functional Testing Performance Testing Quality in Production Customer Support One Lab for all Digital Platforms Code Test Production Support Continuous Quality Reporting

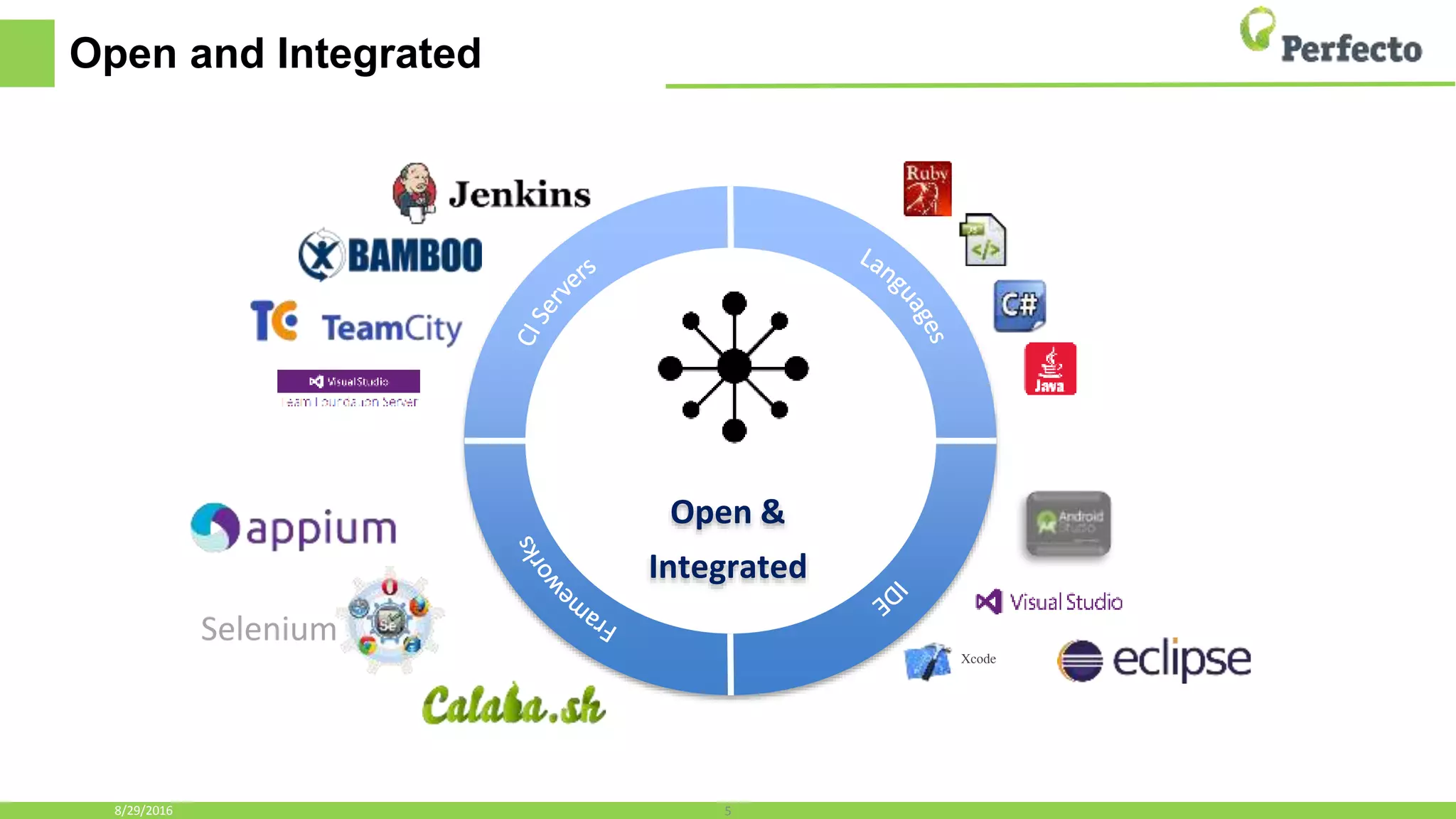

- 5. Open and Integrated 5 Open& Integrated Xcode Selenium 8/29/2016

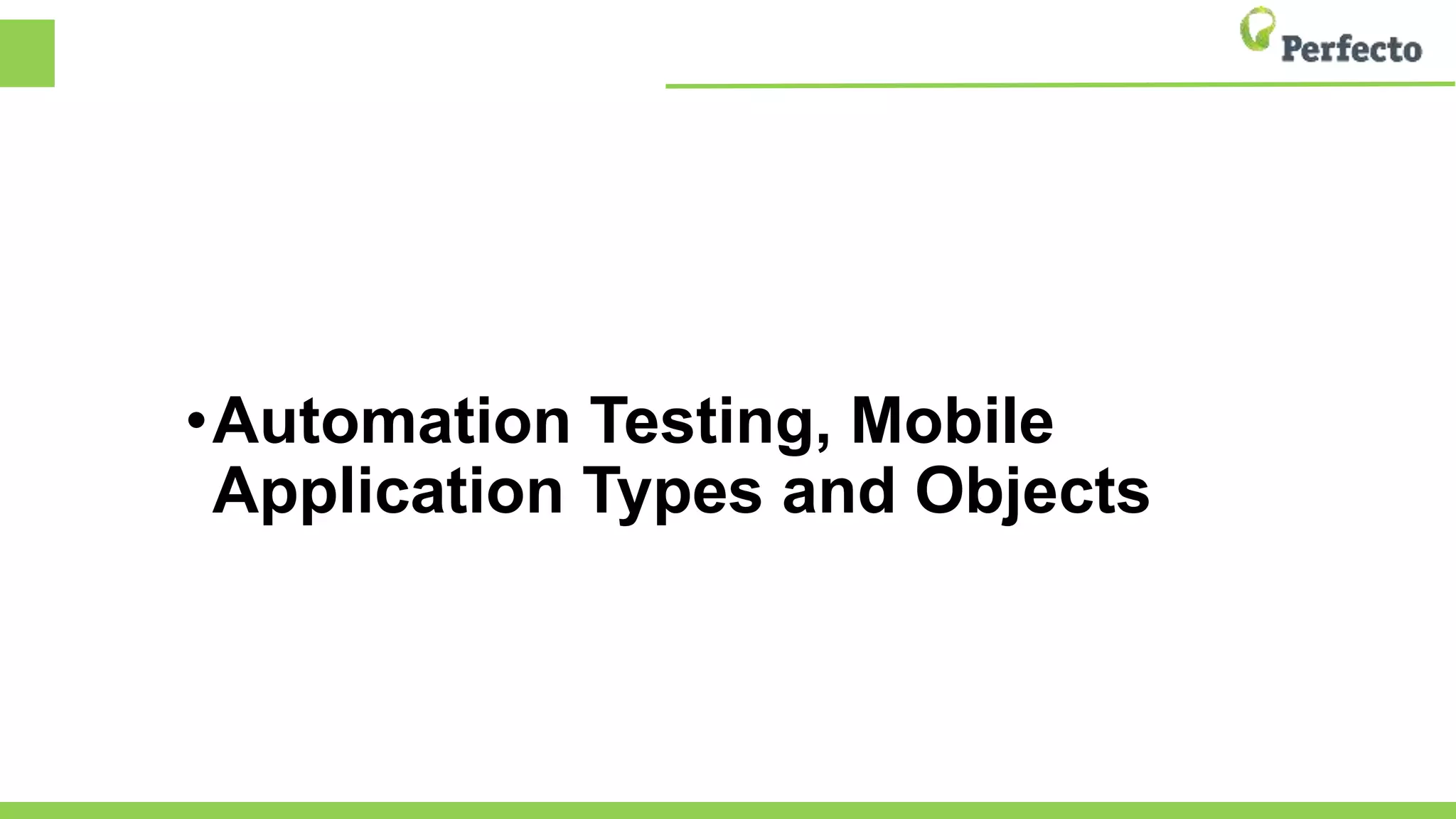

- 6. •Automation Testing, Mobile ApplicationTypes and Objects

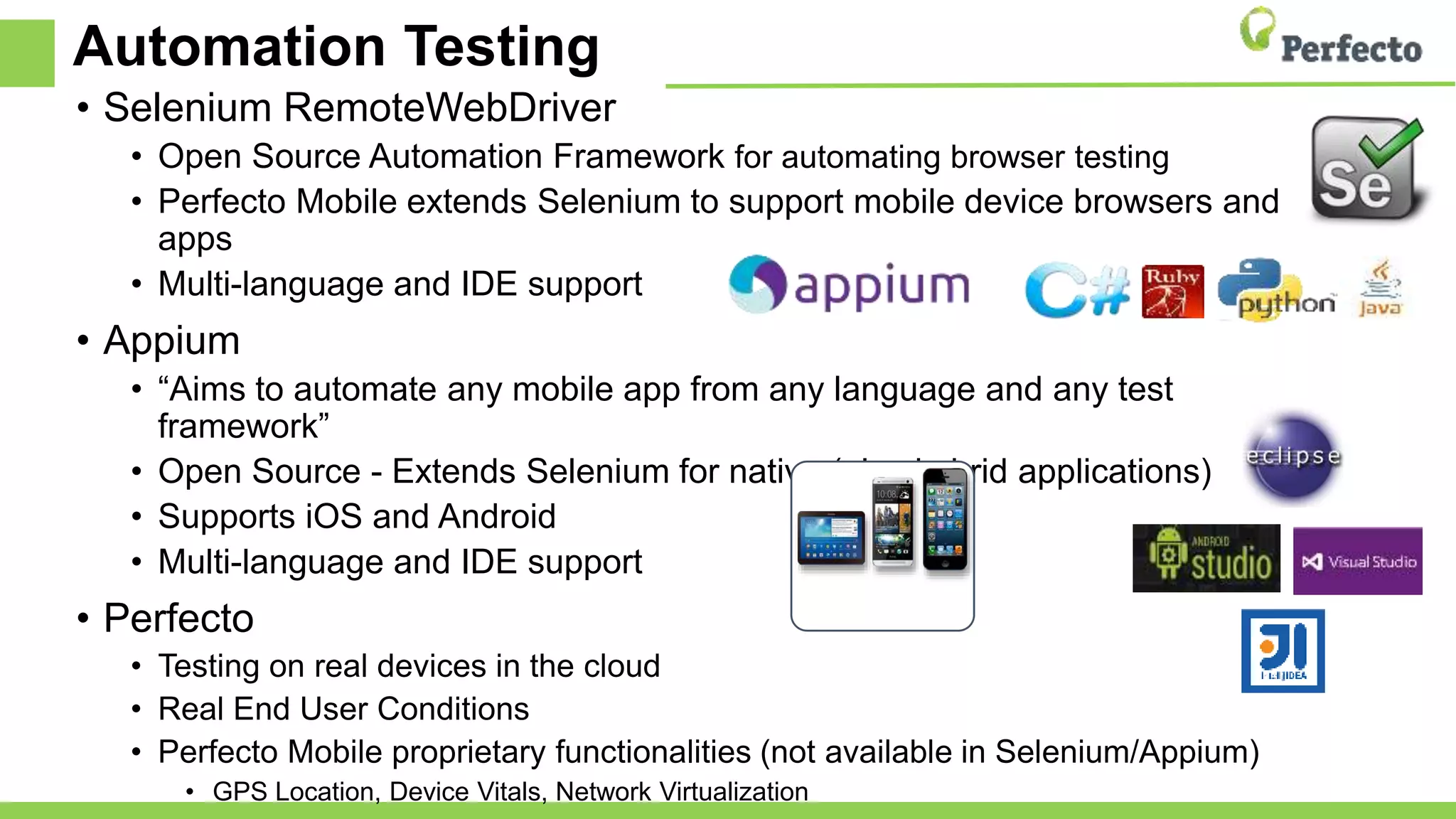

- 7. Automation Testing • SeleniumRemoteWebDriver • Open Source Automation Framework for automating browser testing • Perfecto Mobile extends Selenium to support mobile device browsers and apps • Multi-language and IDE support • Appium • “Aims to automate any mobile app from any language and any test framework” • Open Source - Extends Selenium for native (also hybrid applications) • Supports iOS and Android • Multi-language and IDE support • Perfecto • Testing on real devices in the cloud • Real End User Conditions • Perfecto Mobile proprietary functionalities (not available in Selenium/Appium) • GPS Location, Device Vitals, Network Virtualization

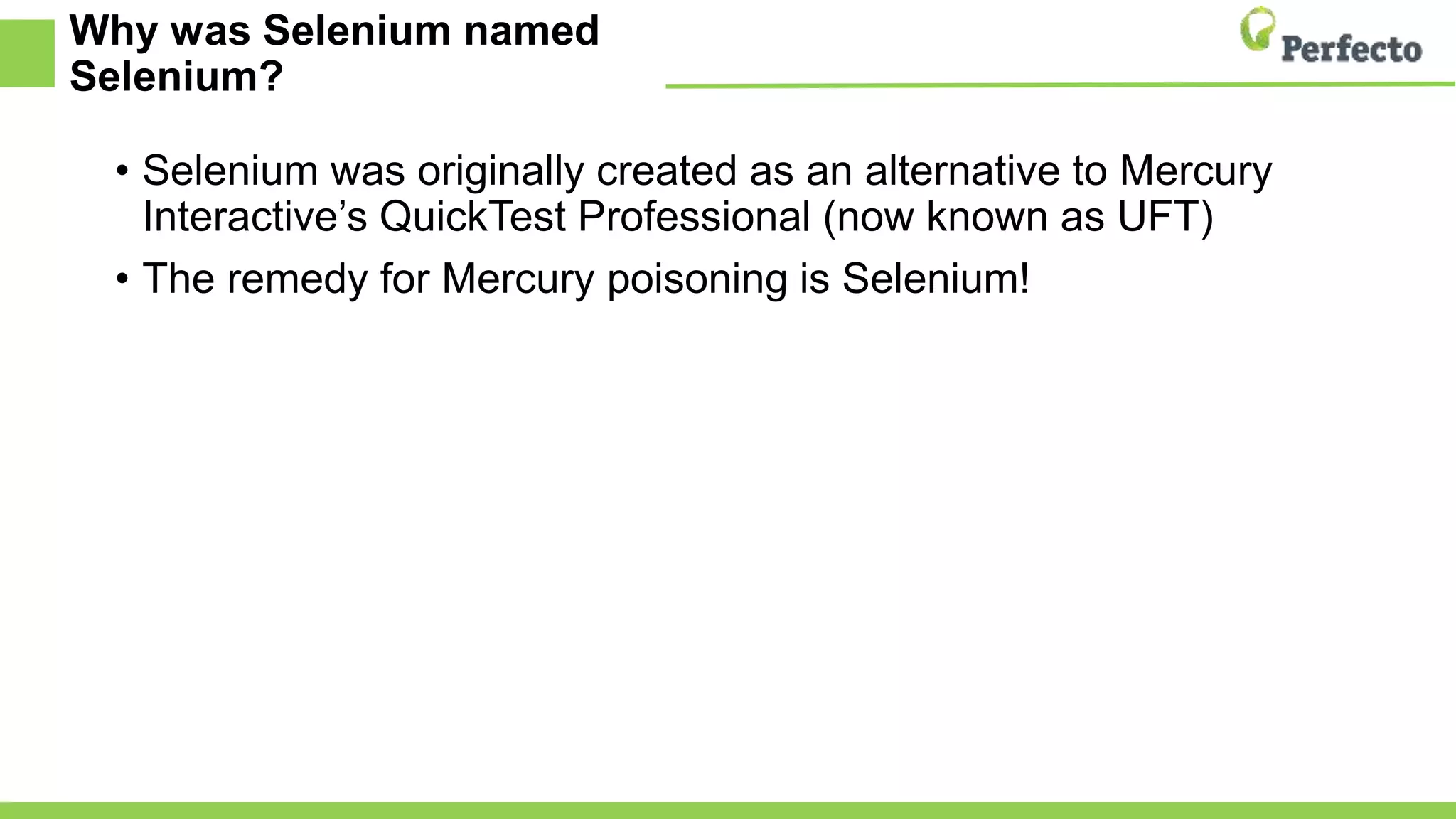

- 8. Why was Seleniumnamed Selenium? • Selenium was originally created as an alternative to Mercury Interactive’s QuickTest Professional (now known as UFT) • The remedy for Mercury poisoning is Selenium!

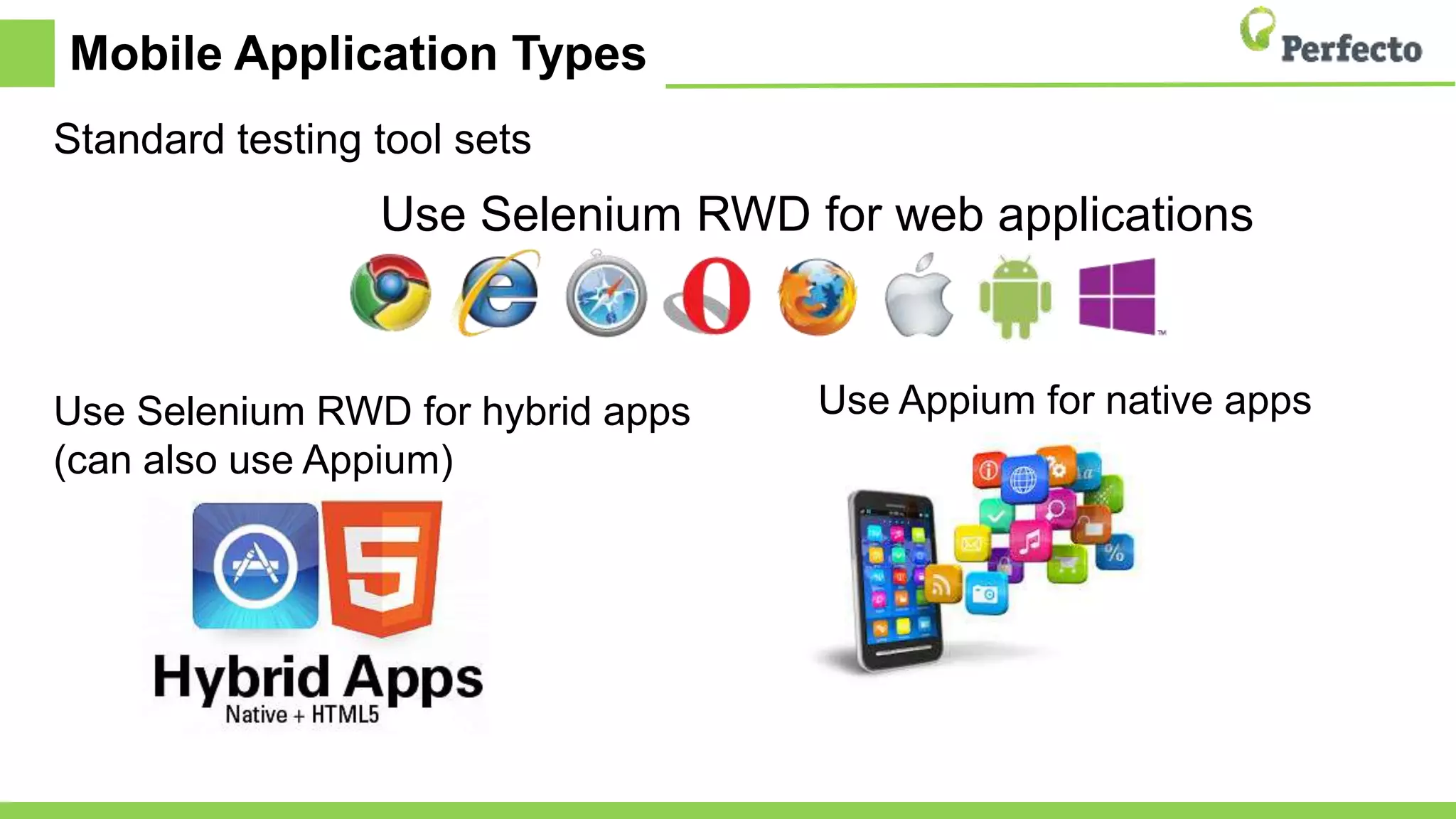

- 9. Mobile Application Types Standardtesting tool sets Use Selenium RWD for web applications Use Appium for native appsUse Selenium RWD for hybrid apps (can also use Appium)

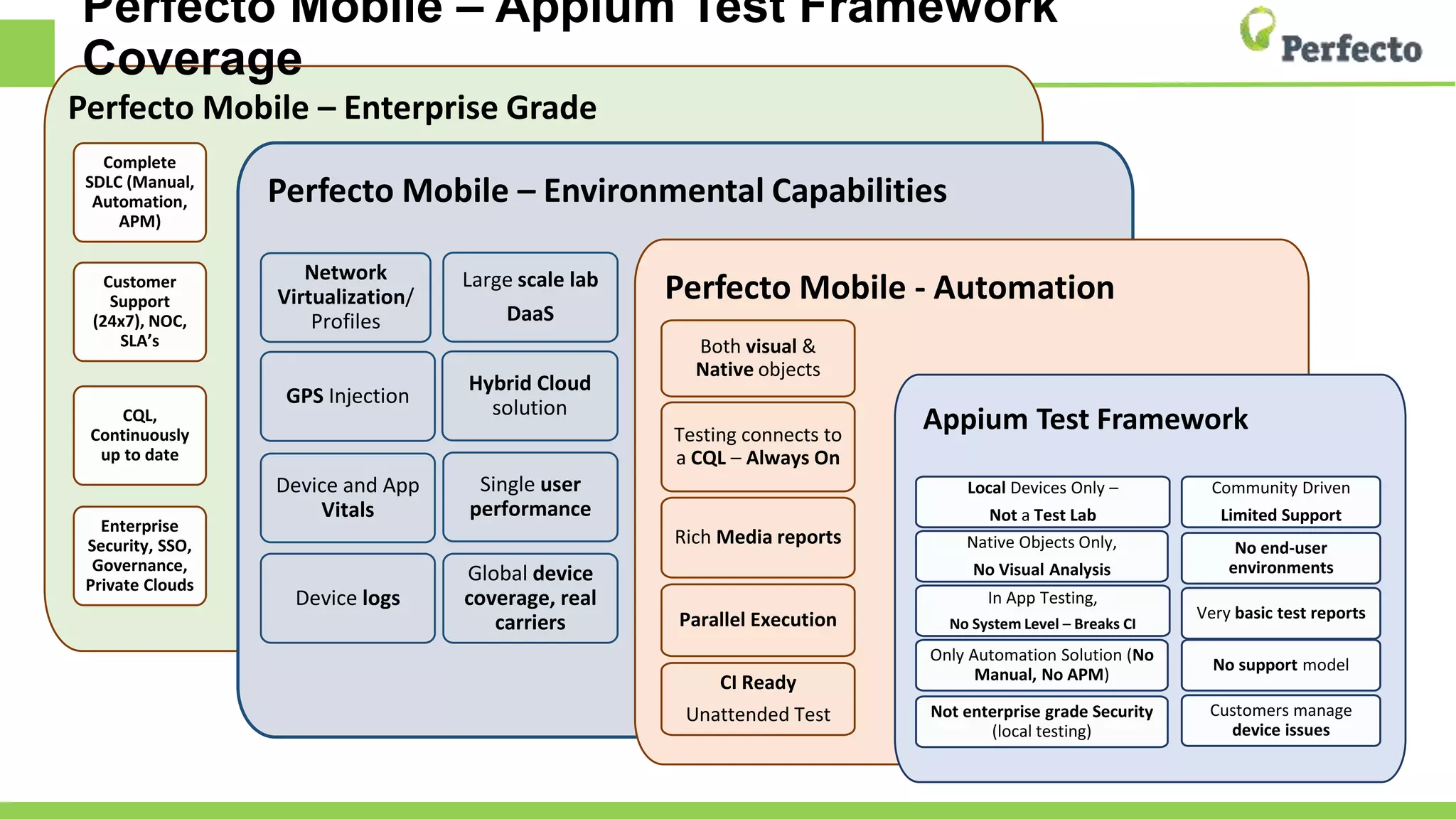

- 10. Perfecto Mobile –Enterprise Grade Complete SDLC (Manual, Automation, APM) Customer Support (24x7), NOC, SLA’s CQL, Continuously up to date Enterprise Security, SSO, Governance, Private Clouds Perfecto Mobile – Environmental Capabilities Network Virtualization/ Profiles Large scale lab DaaS Hybrid Cloud solution Single user performance Device and App Vitals GPS Injection Device logs Global device coverage, real carriers Perfecto Mobile - Automation Both visual & Native objects Testing connects to a CQL – Always On Rich Media reports Parallel Execution CI Ready Unattended Test Perfecto Mobile – Appium Test Framework Coverage Appium Test Framework Local Devices Only – Not a Test Lab Native Objects Only, No Visual Analysis In App Testing, No System Level – Breaks CI Only Automation Solution (No Manual, No APM) Not enterprise grade Security (local testing) Community Driven Limited Support No end-user environments Very basic test reports No support model Customers manage device issues

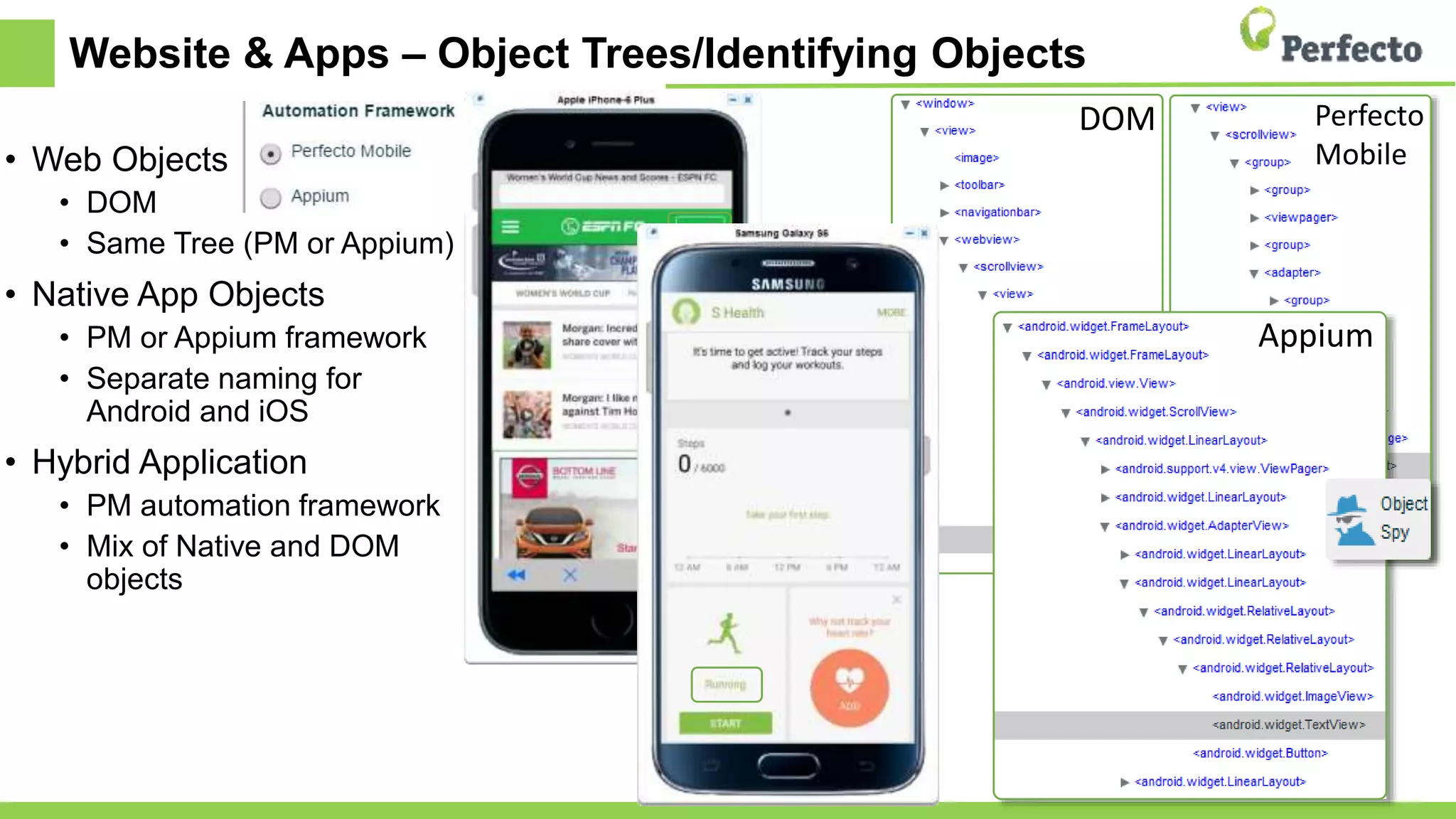

- 11. Website & Apps– Object Trees/Identifying Objects • Web Objects • DOM • Same Tree (PM or Appium) • Native App Objects • PM or Appium framework • Separate naming for Android and iOS • Hybrid Application • PM automation framework • Mix of Native and DOM objects DOM Perfecto Mobile Appium

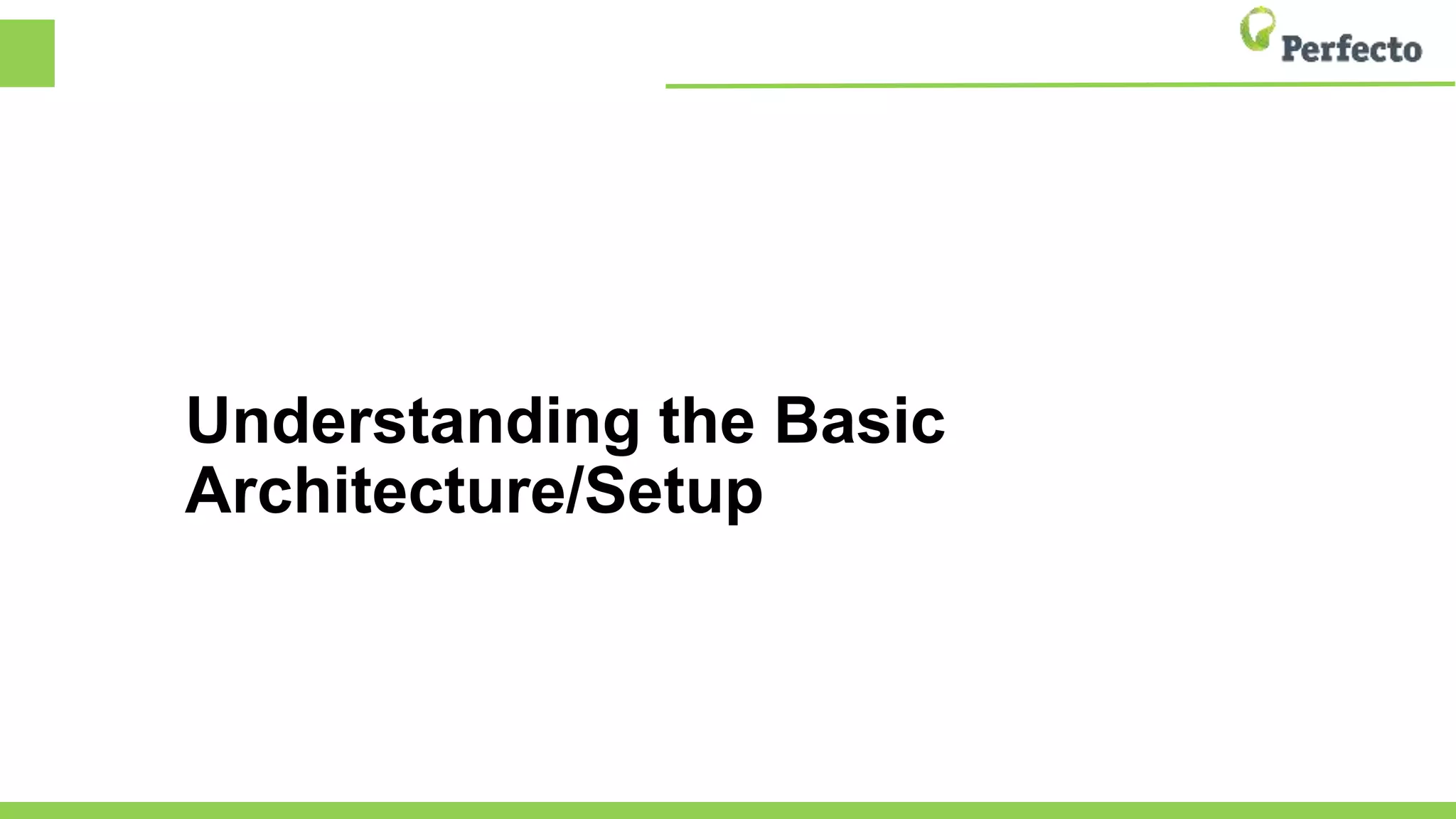

- 12.

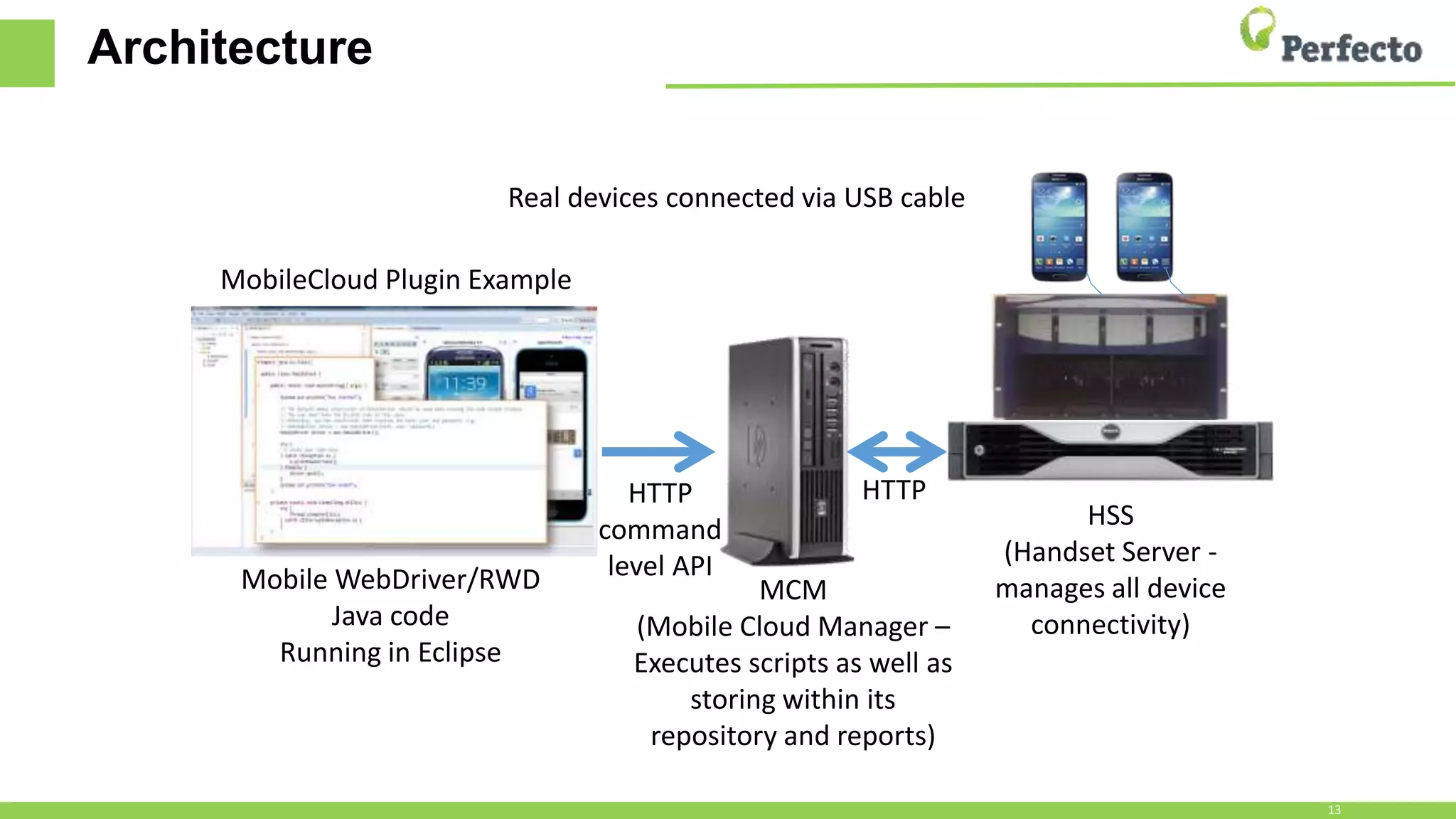

- 13. Architecture Mobile WebDriver/RWD Java code Runningin Eclipse HTTP command level API MCM (Mobile Cloud Manager – Executes scripts as well as storing within its repository and reports) HTTP HSS (Handset Server - manages all device connectivity) MobileCloud Plugin Example Real devices connected via USB cable 8/29/2016 13

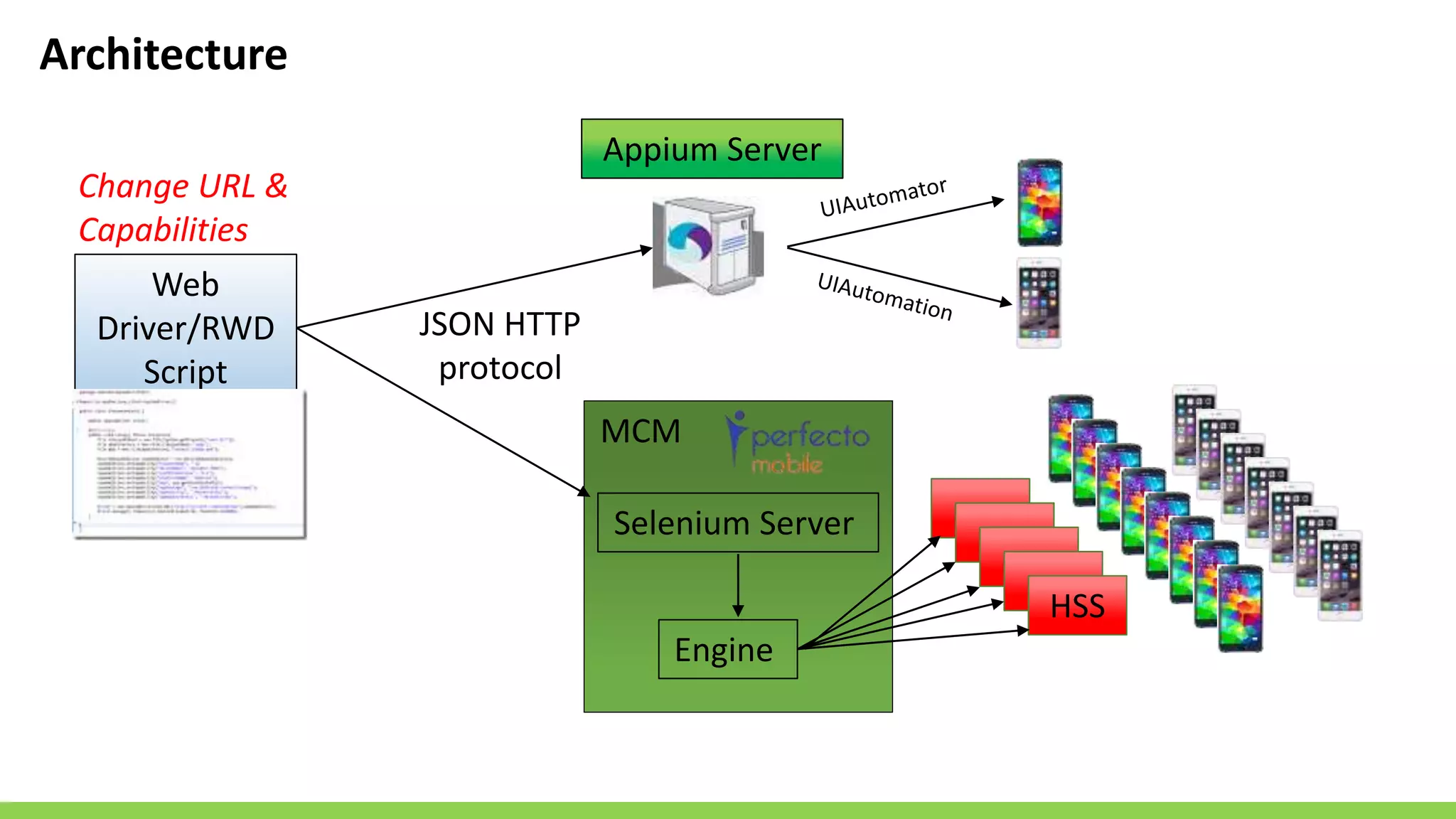

- 14. Web Driver/RWD Script Appium Server JSON HTTP protocol SeleniumServer Engine MCM HSS Change URL & Capabilities Architecture

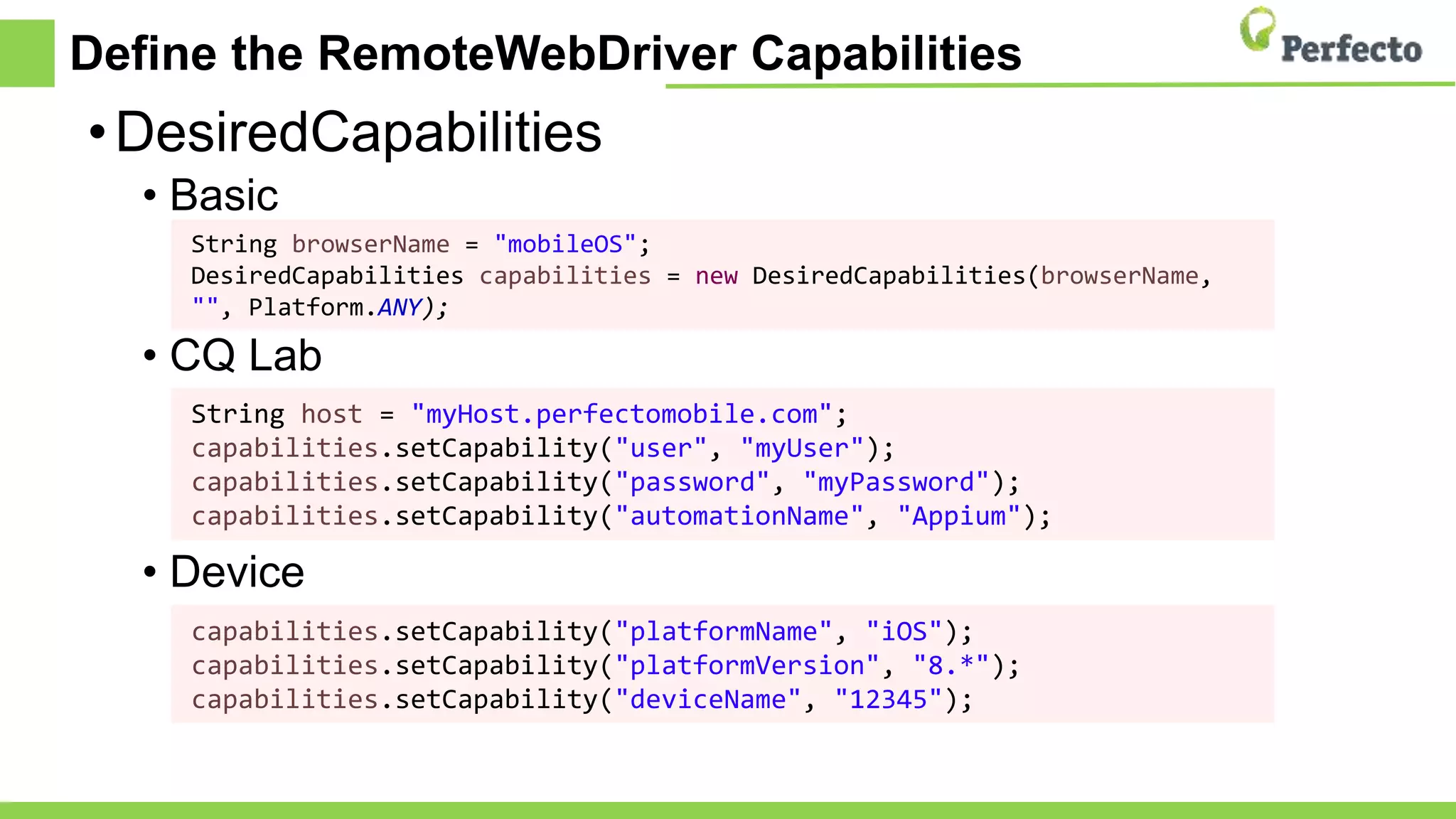

- 15. Define the RemoteWebDriverCapabilities •DesiredCapabilities • Basic • CQ Lab • Device String browserName = "mobileOS"; DesiredCapabilities capabilities = new DesiredCapabilities(browserName, "", Platform.ANY); String host = "myHost.perfectomobile.com"; capabilities.setCapability("user", "myUser"); capabilities.setCapability("password", "myPassword"); capabilities.setCapability("automationName", "Appium"); capabilities.setCapability("platformName", "iOS"); capabilities.setCapability("platformVersion", "8.*"); capabilities.setCapability("deviceName", "12345");

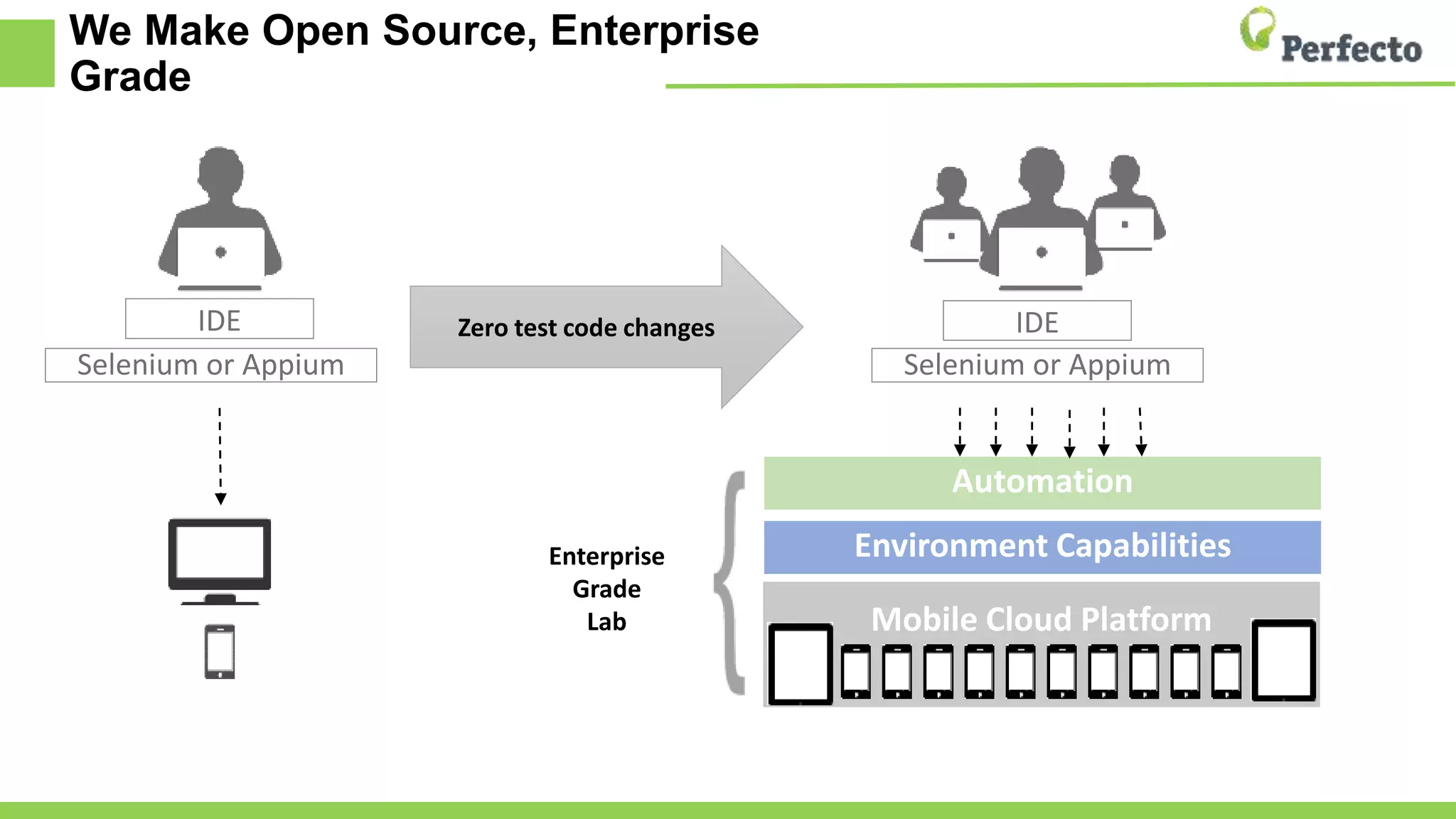

- 16. We Make OpenSource, Enterprise Grade Mobile Cloud Platform Environment Capabilities Automation Selenium or Appium IDEIDE Enterprise Grade Lab Zero test code changes Selenium or Appium

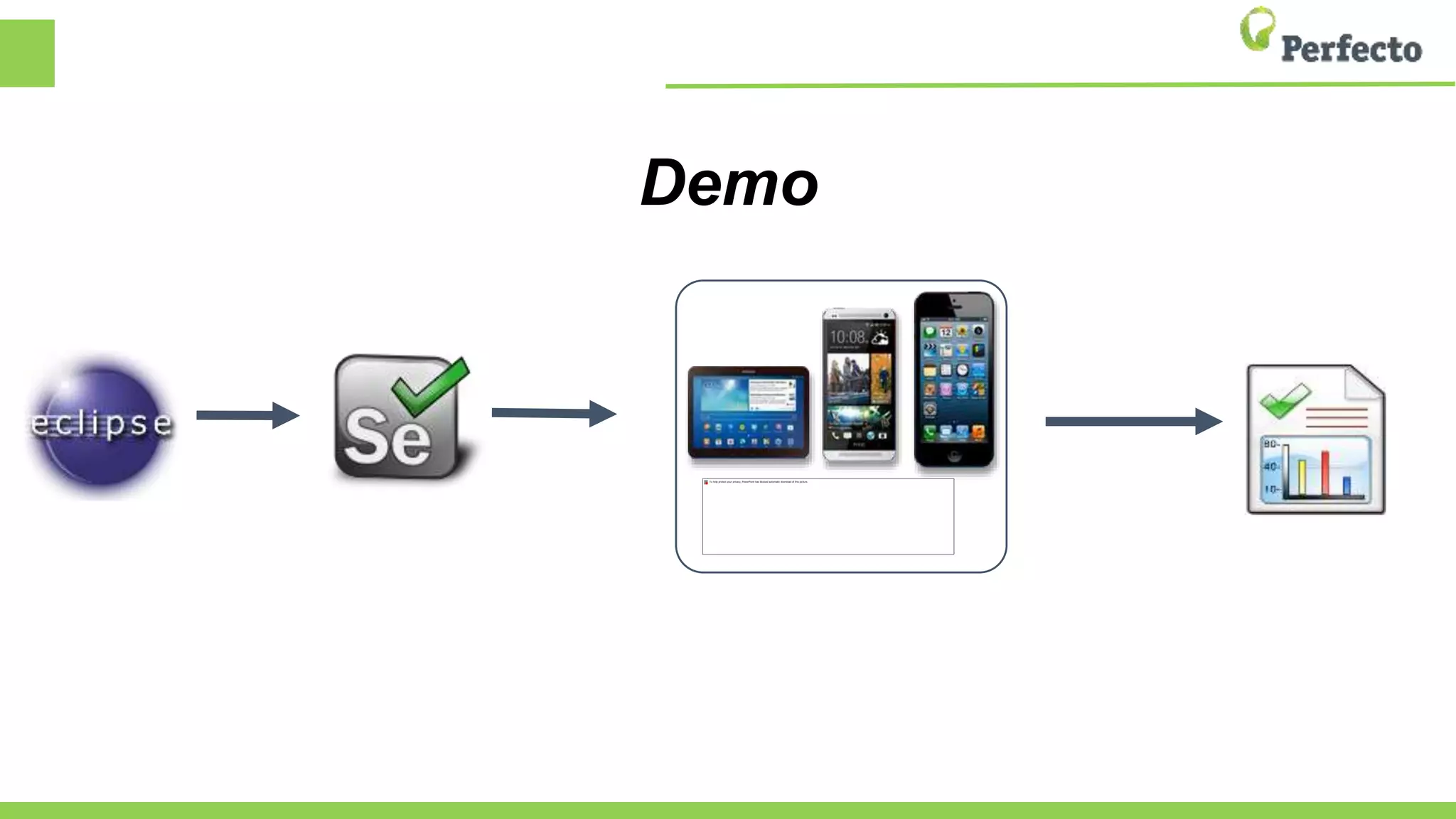

- 17.

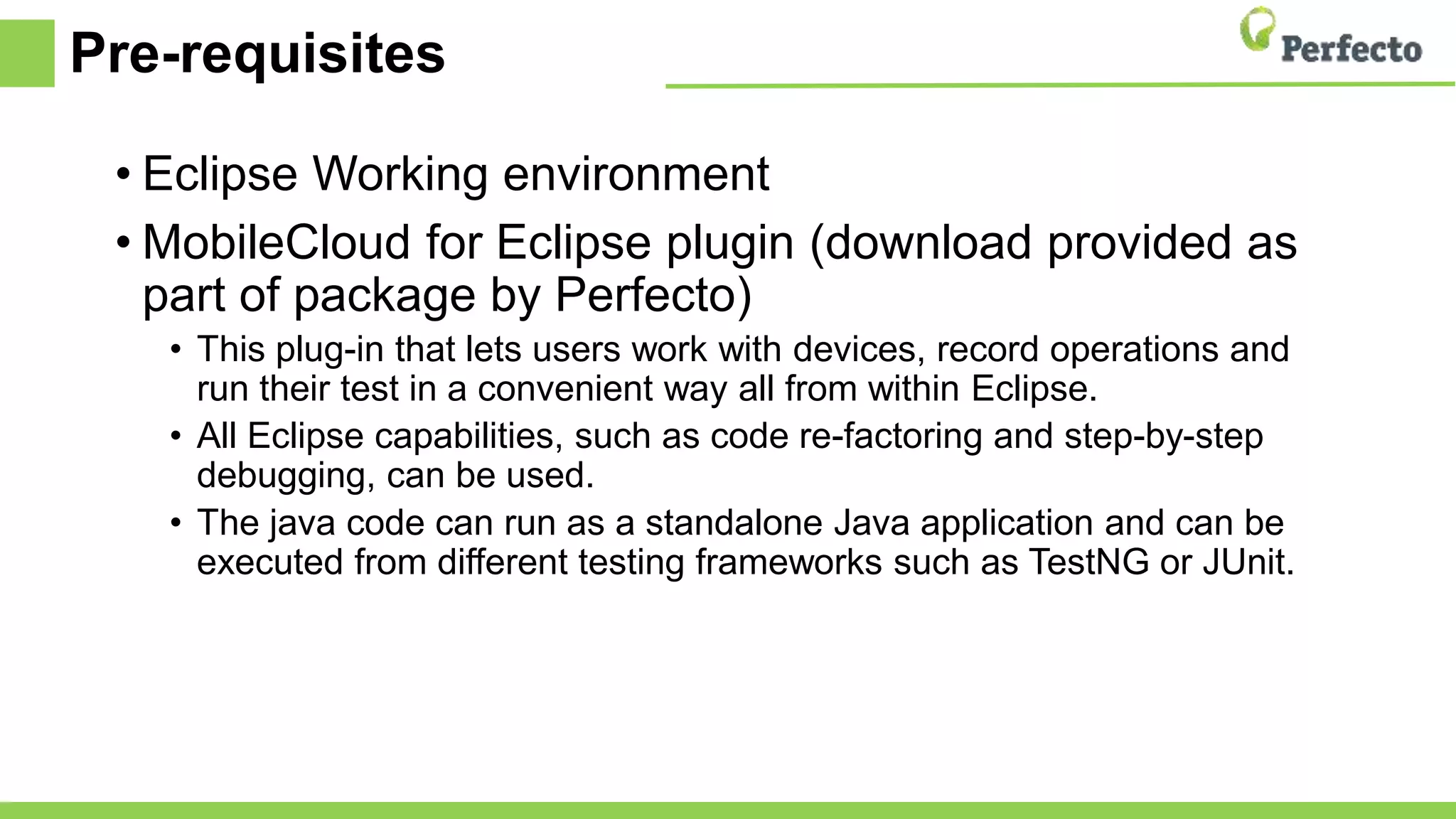

- 18. Pre-requisites • Eclipse Workingenvironment • MobileCloud for Eclipse plugin (download provided as part of package by Perfecto) • This plug-in that lets users work with devices, record operations and run their test in a convenient way all from within Eclipse. • All Eclipse capabilities, such as code re-factoring and step-by-step debugging, can be used. • The java code can run as a standalone Java application and can be executed from different testing frameworks such as TestNG or JUnit.
- 19. Perfecto Mobile CloudPlug-ins

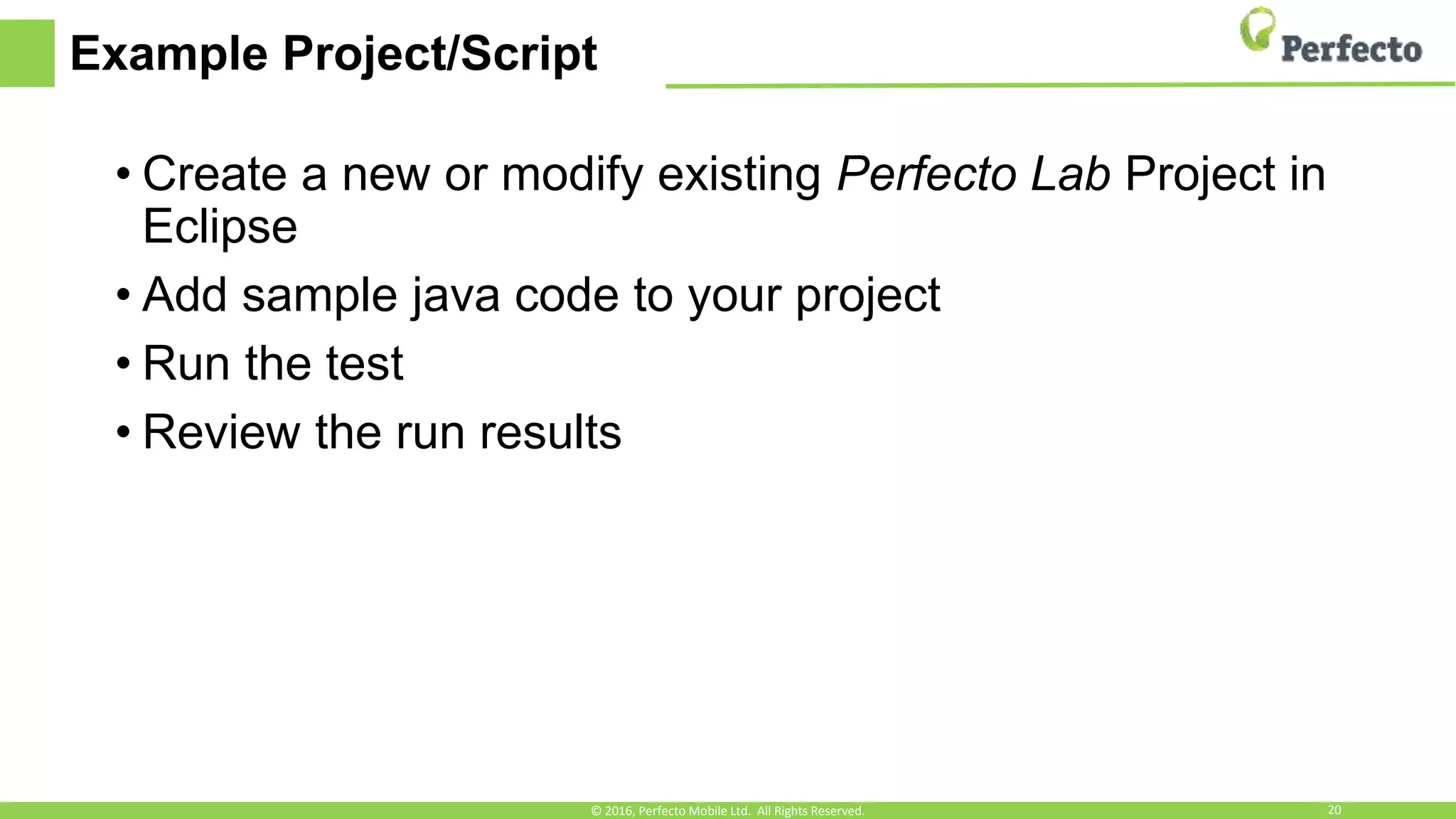

- 20. Example Project/Script • Createa new or modify existing Perfecto Lab Project in Eclipse • Add sample java code to your project • Run the test • Review the run results © 2016, Perfecto Mobile Ltd. All Rights Reserved. 20
- 21. Thank You David Broerman PartnerEnablement Manager Phone: 727. 225.2826 / Email: davidb@perfectomobile.com
Editor's Notes
- #3 Before getting started with the technical implementation of our solution, let’s begin with an introduction to the types of mobile applications, and automation testing using Selenium RWD and Appium. Next we will take a look at the Perfecto Mobile RWD extension to mobile devices (for web and hybrid applications) and Appium implementation (for native applications).
- #6 Slide objective – Perfecto is committed to helping enterprises leverage existing practices, assets and expertise Perfecto Mobile strives integrate with popular tools used by enterprises. Customers can leverage existing assets and expertise . Our support for various tools is constantly expanding. Some customers also take advantage of our published API to create custom extensions to different frameworks. Paypal’s integrated the open source Project Nemo, selenium-webdriver automation for node.js, using the API to provide its DevTest teams a tailor fit Java Script environment.
- #7 How does it work?
- #8 focus on two testing environments, supported by Perfecto Mobile: Selenium RemoteWebDriver and Appium. Selenium RemoteWebDriver Selenium is an open-source tool used for automating browser testing. (For more advanced users, familiar with WebDriver: RemoteWebDriver is an implementation class of the WebDriver interface that a test script developer can use to execute their test scripts via the RemoteWebDriver server on a remote machine.) Perfecto Mobile has extended RemoteWebDriver to support mobile web and hybrid applications (in the Perfecto Mobile Continuous Quality Lab – CQ Lab). Language support includes Java, Ruby, Python, C#... Appium Appium is an open-source automation testing framework that is based on the Selenium WebDriver; that’s extended with new classes to support mobile application testing. It contains specific classes for iOS and Android application testing. Perfecto Mobile supports the complete suite of Appium tools, in the CQ Lab, making it an Enterprise Grade Quality Solution. Also, Perfecto Mobile has extended the support to include proprietary Perfecto Mobile functionalities (that are not available in Selenium).
- #9 Selenium is an open source test engine that supports testing web based applications on desktop and mobile device browsers
- #10 As we have already established, there are three types of mobile applications – Web (regular/mobile browsers), Hybrid and Native. The standard Selenium RemoteWebDriver allows us to test desktop browsers; and Perfecto Mobile has extended this to include browsers running on mobile devices. Perfecto Mobile recommends using: Selenium RemoteWebDriver for testing web applications (regular and mobile browsers) Appium for native applications, and Selenium RemoteWebDriver for hybrid applications
- #12 Identifying objects on the different types of mobile applications can be done in many ways. In this course we will focus on using the following frameworks, according to Perfecto Mobile best practices: the DOM objects for testing web applications Appium framework for testing Native applications, and the Perfecto Mobile framework for testing hybrid applications This enables us to find, view properties, and perform interactions on the application using objects (such as a clicking on something on the device screen, selecting an image or text element, and setting text to an edit field). (For beginner users, a little more about identifying objects: Application User Interfaces are drawn to the screen based on a definition (that’s provided by the application) of how and where to draw the different UI Elements. The definition is a hierarchy of available UI Elements that can be described as an Object Tree. The Object Tree for Web applications uses a standard set of UI Element types to describe how to draw the User Interface. This is the DOM tree and the UI Elements in the standard can be used to describe any website or web application.) The Perfecto Mobile and Appium Frameworks: In the world of mobile applications, it is not as simple. Apple has its own proprietary set of UI Elements and this is different from the proprietary set used by Android. Perfecto Mobile created a framework that allows us to translate the competing UI Elements of the different application UI sets into a “canonical” set of UI Elements and describe the UI structure of an application using these generic UI Elements. This is the Perfecto Mobile framework Object Tree. Appium, that we will be using in the latter part of the course to test native apps, references the UI Elements using the names provided by the proprietary description files. This is the Appium framework Object Tree. The Perfecto Mobile framework identifies the objects in the application with the same standard. This means that the object tree representation of the elements will be the same on both iOS and Android applications. The Appium framework uses two different object tree representations – UI Automator for Android and UI Automation for iOS. This means that when we develop our automation test, according to this mode of work, we will need to create two separate tests (one for Android and another for iOS). (For advanced users, the Perfecto Mobile framework supports identification of the objects either with the application classes or based on a translated generic set of classes. This enables using the same objects for both Android and iOS applications, also referred to as ScriptOnce. This will be covered in later modules.) The framework we choose to work with will determine the object tree representation, in XML format, that we see and work with when using the Perfecto Mobile Object Spy. (For beginner users, each object is refined by a set of attributes that define what is actually displayed. For example, the text attribute defines the text to display.)
- #13 How does it work?
- #14 How does it work? Before we move forward on the MobileCloud Plugin and other details of the WebDriver, let’s take a quick look at the architecture that defines this solution. First, notice that we have a real device that is connected, via a USB cable, to the Perfecto Handset Server or HSS). Through this USB cable we get a live streaming from the device and are able to control the device; including any device real user commands/gestures (such as tap, swipe, click etc.). The HSS, which is responsible for managing all device connectivity, gets its commands from the MobileCloud manager (MCM) server. The MCM is the component responsible for executing all of the scripts as well as storing within its repository and reports. The MCM gets its commands via the HTTP command level API, which are locally generated by the MobileCloud WebDriver. Remember, Perfecto Mobile helps you implement continuous quality through our continuous quality lab as a service – embedding quality into every step of the lifecycle including unattended automation on real devices through our always on secure cloud offering that we manage. *Represents a classic deployment type. Other deployment types may be slightly different.
- #16 Before we create our driver instance, we need to define the DesiredCapabilities. (For beginner users, DesiredCapabilities is the java class that defines the list of information items needed to initialize the driver. Perfecto expanded the types of items in the list to include authentication information to connect to the CQ Lab and identify the device to use.) The DesiredCapabilities can be separated into three categories: CQ Lab capabilities: Perfecto Lab, username, and password, automationframework The default automation framework is Appium and can be used in native and web applications. In Hybrid applications the perfecto mobile framework must be selected/ Device capabilities: device characteristics Define the capabilities to select a device in the Lab according to device attributes, instead of a specific device ID; and define the CQ Lab credentials. Important Note: use either the deviceName capability OR the platformName & platformVersion capabilities. (Note: A specific device can still be selected using the deviceName capability.) Basic capabilities: selects the browser. Browser Name: chrome, mobileChrome, safari, mobileSafari, mobileOS, mobileDefault, perfectomobile (The Perfecto best practice is to use “mobileOS”, which will set the browser name as the default browser of the mobile OS. For example, mobileChrome for Android devices.) The Basic capabilities can be confusing because they are a RWD construction extended by Perfecto. Let’s understand how it works: 1. The mobile device to work on is selected by the device capability 2. on the mobile device, we want to work with a specific browser, selecting mobileOS is recommended and it will select the default Chrome for Android, Safari for Apple and IE for WindowsPhone. It is possible to define it with other values from the list. For more details on defining capabilities, go to https://community.perfectomobile.com/series/20208/posts/945255
- #17 To dive further into Perfecto’s approach with open source, let’s look at our Selenium and Appium implementation. Perfecto does more than simply hosting servers. Perfecto has extended capabilities of test Frameworks with key capabilities uniquely relevant to mobile app quality at the scale required by enterprises. Enterprise ready open source test frameworks require the ability to control mimicking the end user environment something not available in the currently available open source implementation. Additionally, important automation capabilities are also added. For example, teams utilizing other tools may be familiar performing object identification using either native properties or visual (OCR, Image) methods. Perfecto enables teams to use both for optimizing performance. Beyond the technical enhancements, Perfecto meets the security and support requirements enterprises commonly require. For example, access controls for users and devices are centrally managed with strong audit logs.
- #18 Show next slide –create and execute demo project, review results
- #19 Before you begin, you will need to have Eclipse installed, and you can then download the MobileCloud for Eclipse plugin which is provided as part of a package by Perfecto Mobile. You can get more information on plug ins, code samples, training, frequently asked questions on our Community Page at https://community.perfectomobile.com/ The plugin includes: Two project views and a project template Note: the plugin should be updated regularly according to Perfecto Mobile version updates. This is done just like any other plugins (From within Eclipse, go to Help > Check for updates). You do not have to download and install this plug in, it’s not mandatory…Perfecto built this plug in to make things easier around object spy and analysis, using jar files, and the dashboard.
- #21 Notes: Let’s review a sample test. Use Eclipse Project Named TrainingProjectExample RemoteWebDriverTest.java – run as java test Credentials in code: To run the sample remember to add your credentials and Lab URL String host = “myLab.perfectomobile.com"; capabilities.setCapability("user", “myUser"); capabilities.setCapability("password", “MyPassword"); Selenium and Perfecto Tree Uses BB&T U application – tried to login with username, password and validates error message for unsuccessful login Also opens device browser, goes to perfecto sample page, logs in and validates successful login
