How to Leverage Appium in Your Mobile App Testing

How to Leverage Appium in
Your Mobile App Testing
7 January 2014
Ville-Veikko Helppi

Saad Chaudry

Technical Product Manager

Sr. Software Engineer

ville-veikko.helppi@bitbar.com

saad.chaudry@bitbar.com

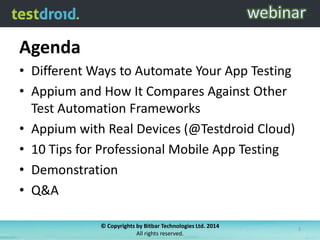

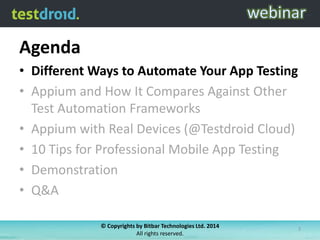

Agenda
• Different Ways to Automate Your App Testing
• Appium and How It Compares Against Other
Test Automation Frameworks
• Appium with Real Devices (@Testdroid Cloud)
• 10 Tips for Professional Mobile App Testing
• Demonstration
• Q&A
© Copyrights by Bitbar Technologies Ltd. 2014
All rights reserved.

2

Agenda
• Demonstration
• Q&A

3

Different Approaches To Testing


4

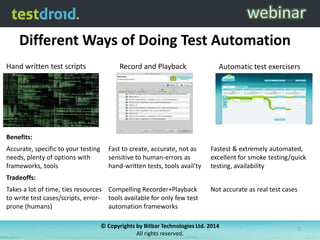

Different Ways of Doing Test Automation
Hand written test scripts

Record and Playback

Automatic test exercisers

Fast to create, accurate, not as
sensitive to human-errors as
hand-written tests, tools avail’ty

Fastest & extremely automated,
excellent for smoke testing/quick
testing, availability

Benefits:
Accurate, specific to your testing
needs, plenty of options with
frameworks, tools
Tradeoffs:
Takes a lot of time, ties resources Compelling Recorder+Playback
to write test cases/scripts, error- tools available for only few test
prone (humans)
automation frameworks

Not accurate as real test cases


5

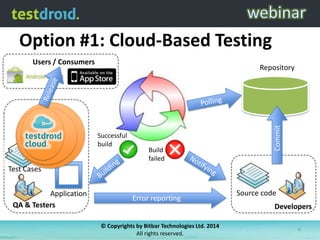

Option #1: Cloud-Based Testing
Users / Consumers

Successful
build

Build
failed

Commit

Repository

Test Cases
Application
QA & Testers

Error reporting

Source code
Developers


6

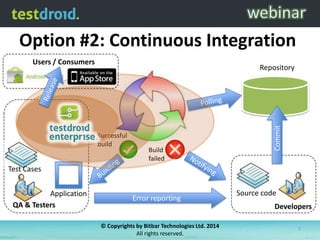

Option #2: Continuous Integration
Users / Consumers

Successful
build

Build
failed

Commit

Repository

Test Cases
Application
QA & Testers

Error reporting

Source code
Developers


7

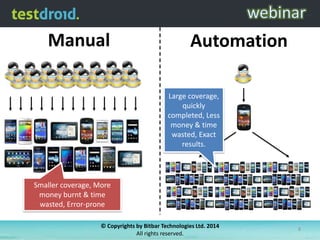

Manual

Automation
Large coverage,
quickly
completed, Less
money & time
wasted, Exact
results.

Smaller coverage, More
money burnt & time
wasted, Error-prone

8

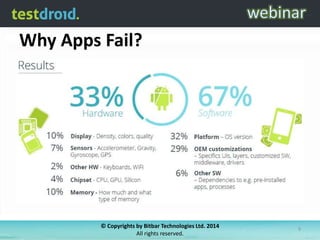

Why Apps Fail?


9

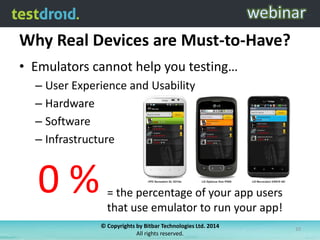

Why Real Devices are Must-to-Have?
• Emulators cannot help you testing…
– User Experience and Usability
– Hardware
– Software
– Infrastructure

0%

= the percentage of your app users
that use emulator to run your app!

10

How to Improve the App Quality
• Automate generic things as much as you can
• During the development your app changes –
the same must apply for testing!
• Carefully select (testing) technology & partner
• Use all 24 hours per day with test automation
• Cloud-based platform is the only solution to
get you quickly covered in the global markets

11

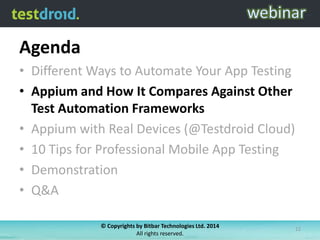

Agenda
• Demonstration
• Q&A

12

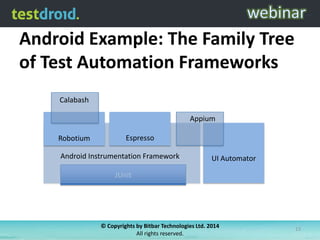

Android Example: The Family Tree
of Test Automation Frameworks
Calabash

Appium
Robotium

Espresso

Android Instrumentation Framework

UI Automator

JUnit


13

Appium Introduction
• Uses Selenium Webdriver (W3C working draft) as a
scripting framework
– Standard for browser automation – libs for various languages

• Supports native Android, native iOS and mobile web:
– Android via uiautomator (API level >=17) and Selendroid (API
level <17)
– iOS via UI Automation
– Mobile web as Selenium driver for Android and iOS

• You can write your Appium scripts on almost any
programming language (Haskell/Go/Clojure/Java/Ruby)

14

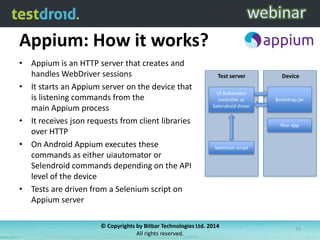

Appium: How it works?
• Appium is an HTTP server that creates and
handles WebDriver sessions
• It starts an Appium server on the device that
is listening commands from the
main Appium process
• It receives json requests from client libraries
over HTTP
• On Android Appium executes these
commands as either uiautomator or
Selendroid commands depending on the API
level of the device
• Tests are driven from a Selenium script on
Appium server

Test server

Device

UI Automator
controller or
Selendroid driver

Bootstrap.jar

Your app

Selenium script


15

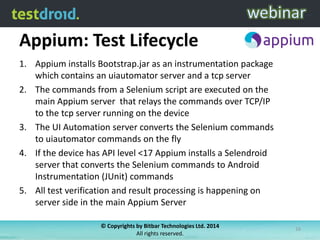

Appium: Test Lifecycle
1. Appium installs Bootstrap.jar as an instrumentation package
which contains an uiautomator server and a tcp server
2. The commands from a Selenium script are executed on the
main Appium server that relays the commands over TCP/IP
to the tcp server running on the device
3. The UI Automation server converts the Selenium commands
to uiautomator commands on the fly
4. If the device has API level <17 Appium installs a Selendroid
server that converts the Selenium commands to Android
Instrumentation (JUnit) commands
5. All test verification and result processing is happening on
server side in the main Appium Server

16

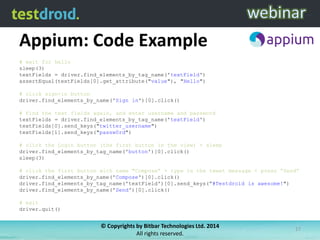

Appium: Code Example
# wait for hello
sleep(3)
textFields = driver.find_elements_by_tag_name('textField')
assertEqual(textFields[0].get_attribute("value"), "Hello")
# click sign-in button
driver.find_elements_by_name('Sign in')[0].click()

# find the text fields again, and enter username and password
textFields = driver.find_elements_by_tag_name('textField')
textFields[0].send_keys("twitter_username")
textFields[1].send_keys("passw0rd")
# click the Login button (the first button in the view) + sleep
driver.find_elements_by_tag_name('button')[0].click()
sleep(3)
# click the first button with name "Compose” + type in the tweet message + press “Send”
driver.find_elements_by_name('Compose')[0].click()
driver.find_elements_by_tag_name('textField')[0].send_keys(”#Testdroid is awesome!")
driver.find_elements_by_name('Send')[0].click()
# exit
driver.quit()


17

How Appium Compares to Others?
Appium

Robotium

uiautomator

Espresso

Calabash

Android

Yes

Yes

Yes

Yes

Yes

iOS

Yes

No

No

No

Yes

Mobile web

Yes

Yes

No

Yes

(Android & iOS)

(Android)

Limited to x.y
clicks

Scripting
Language

Almost any

Java

Java

Java

Ruby

Test creation
tools

Appium.app

Testdroid
Recorder

UI Automator
viewer

Hierarchy
Viewer

CLI

Supported
API levels

All

All

16 =>

8, 10, 15-19

All

Community

Active

Contributors

Google

Google

Pretty quiet

(Android)


18

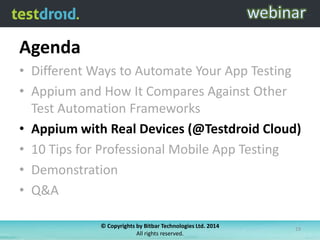

Agenda
• Demonstration
• Q&A

19

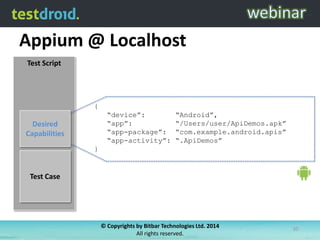

Appium @ Localhost
Test Script

{
“device”:
“app”:
“app-package”:
“app-activity”:

Desired
Capabilities

“Android”,
“/Users/user/ApiDemos.apk”
“com.example.android.apis”
“.ApiDemos”

}

Test Case


20

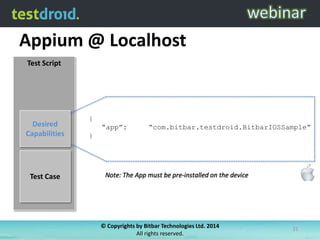

Appium @ Localhost
Test Script

Desired
Capabilities

{
“app”:

“com.bitbar.testdroid.BitbarIOSSample”

}

Test Case


21

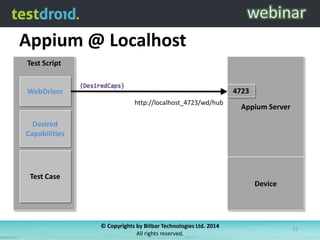

Appium @ Localhost
Test Script
4723

WebDriver
http://localhost_4723/wd/hub

Appium Server

Desired
Capabilities

Test Case

Device


22

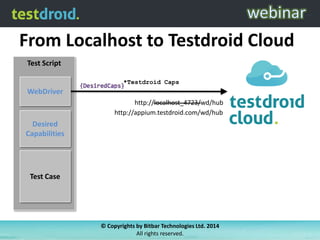

From Localhost to Testdroid Cloud
Test Script
*Testdroid Caps

WebDriver
http://localhost_4723/wd/hub
http://appium.testdroid.com/wd/hub

Desired
Capabilities

Test Case

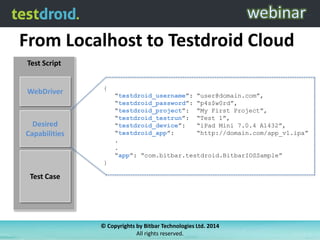

From Localhost to Testdroid Cloud
Test Script

WebDriver

{

“testdroid_username”: “user@domain.com”,
“testdroid_password”: “p4s$w0rd”,
“testdroid_project”: “My First Project”,
“testdroid_testrun”: “Test 1”,
“testdroid_device”:
“iPad Mini 7.0.4 A1432”,
“testdroid_app”:
“http://domain.com/app_v1.ipa”
.
.
“app”: “com.bitbar.testdroid.BitbarIOSSample”

Desired
Capabilities

}

Test Case



25


26


27


28


29


30


31


32


33


34

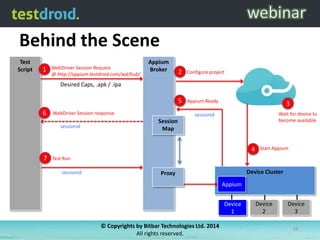

Behind the Scene
Test
Script

1

WebDriver Session Request
@ http://appium.testdroid.com/wd/hub/

Appium
Broker

2

Configure project

5

Appium Ready

Desired Caps, .apk / .ipa

6

WebDriver Session response

sessionid

3
Wait for device to
become available

sessionid

Session
Map

4
7

Start Appium

Test Run
sessionid

Device Cluster

Proxy
Appium
Device
Device
1
1

Device
2

Device
3
35

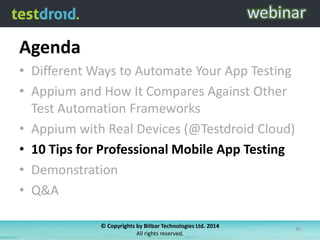

Agenda
• Demonstration
• Q&A

36

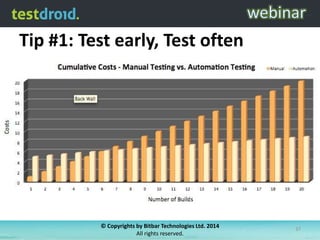

Tip #1: Test early, Test often


37

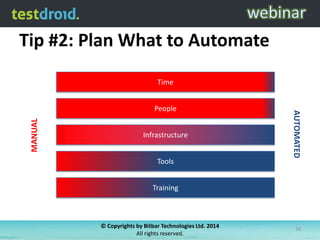

Tip #2: Plan What to Automate
Time

MANUAL

Infrastructure
Tools

AUTOMATED

People

Training


38

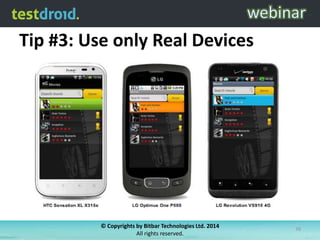

Tip #3: Use only Real Devices


39

Tip #4: Use Atomic Test Units

Test iteration #1

Test iteration #2


40

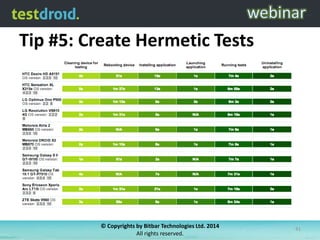

Tip #5: Create Hermetic Tests


41

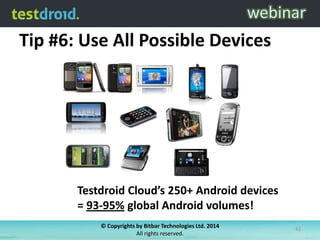

Tip #6: Use All Possible Devices

Testdroid Cloud’s 250+ Android devices
= 93-95% global Android volumes!

42

Tip #7: Separate Apps and Tests

Your App


43

Tip #8: Output Everything to Logs


44

Tip #9: End-to-End Testing


45

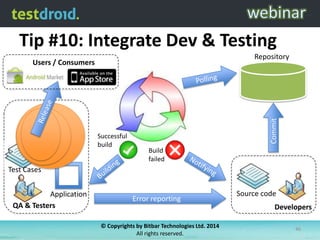

Tip #10: Integrate Dev & Testing
Repository

Successful
build

Commit

Users / Consumers

Build
failed

Test Cases
Application
QA & Testers

Error reporting

Source code
Developers


46

Agenda
• Demonstration
• Q&A

47

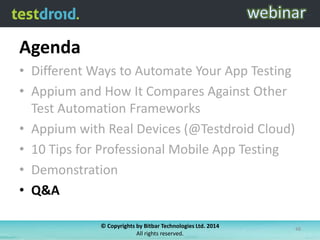

Agenda
• Demonstration
• Q&A

48


49
