The document discusses Bitbar's mobile app testing solutions, which include public, private, and on-premise device clouds to facilitate automated testing on real Android and iOS devices. It highlights the advantages of cloud testing, such as reduced infrastructure investment, faster deployment, and support for multiple testing tools, while addressing challenges like fragmentation and the necessity of real device testing. Additionally, it details the automated testing frameworks supported by Bitbar and provides insight into client-side execution of test scripts in a cloud environment.

2. Public Device Cloud
on-demand devices
(multitenant)
Hosted by Bitbar
Mobile app testing
on literally any real
Android and iOS
devices
Private / Reserved
Device Cloud
Hosted by Bitbar in
the US and/or Europe
Devices chosen by
and reserved only for
the Customer
On-Premise
Device Cloud
Automated mobile app
testing devices hosted
by the customer,
usually 30-500 devices

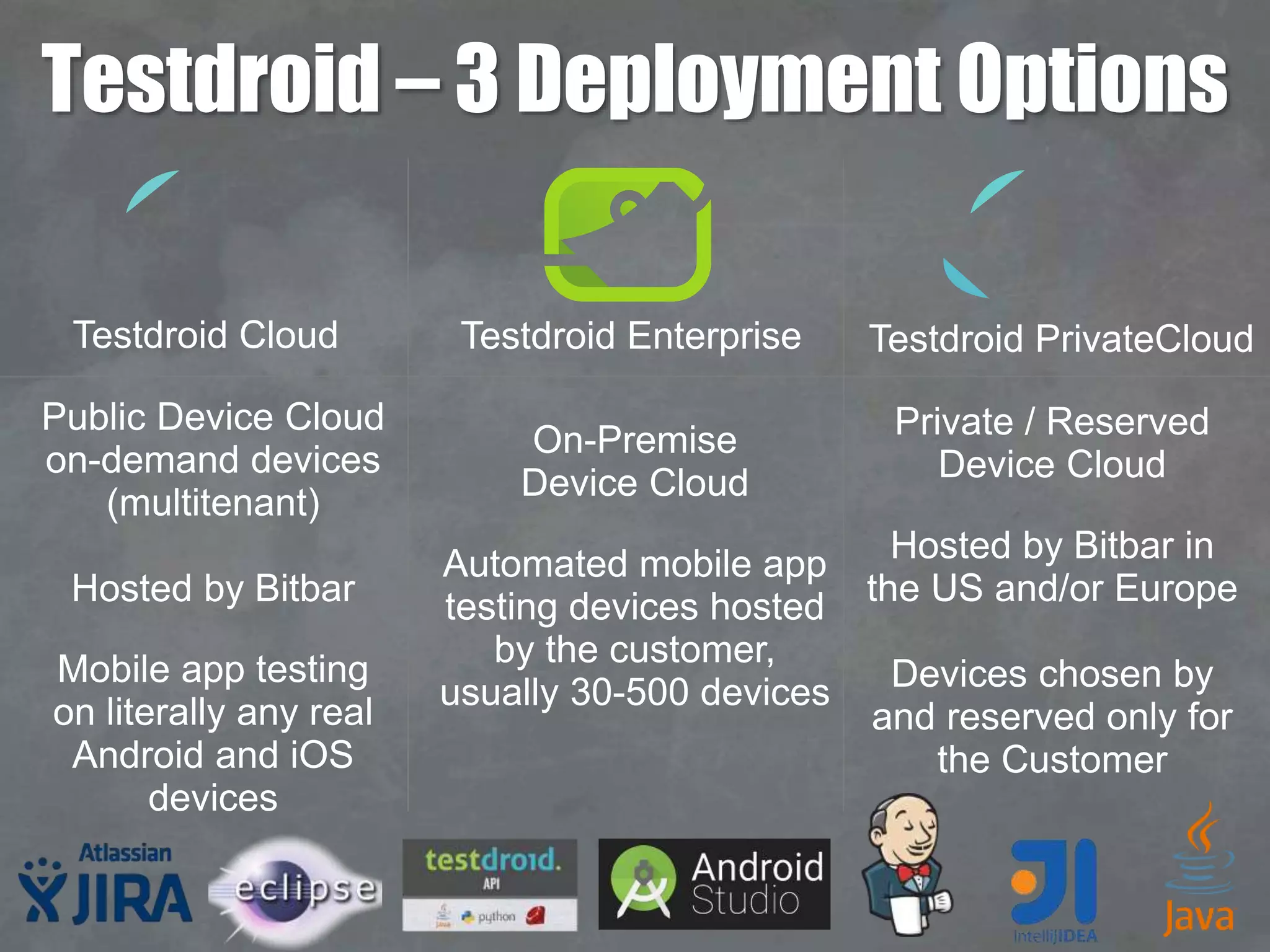

Testdroid – 3 Deployment Options
Testdroid Cloud Testdroid Enterprise Testdroid PrivateCloud

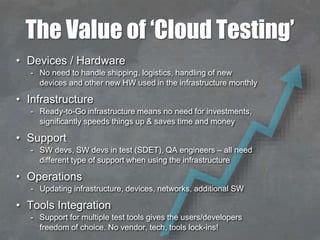

4. The Value of ‘Cloud Testing’
• Devices / Hardware
- No need to handle shipping, logistics, handling of new
devices and other new HW used in the infrastructure monthly
• Infrastructure
- Ready-to-Go infrastructure means no need for investments,
significantly speeds things up & saves time and money
• Support
- SW devs, SW devs in test (SDET), QA engineers – all need
different type of support when using the infrastructure
• Operations
- Updating infrastructure, devices, networks, additional SW
• Tools Integration
- Support for multiple test tools gives the users/developers
freedom of choice. No vendor, tech, tools lock-ins!

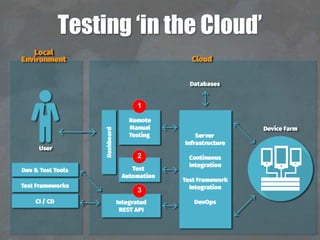

5. Testing ‘in the Cloud’
1
2
3

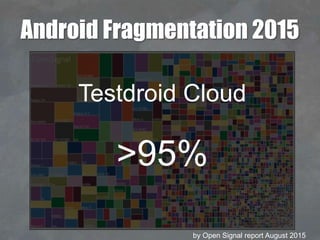

6. Android Fragmentation 2015
by Open Signal report August 2015
Testdroid Cloud
>95%

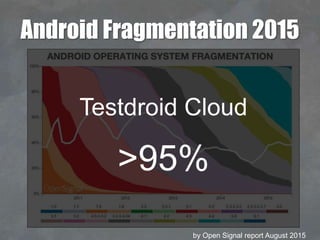

7. Android Fragmentation 2015
by Open Signal report August 2015
Testdroid Cloud
>95%

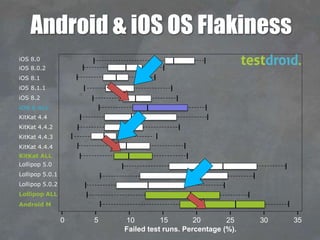

8. Android & iOS OS Flakiness
iOS 8.0
iOS 8.0.2
iOS 8.1
iOS 8.1.1
iOS 8.2
iOS 8 ALL
KitKat 4.4
KitKat 4.4.2
KitKat 4.4.3
KitKat 4.4.4
KitKat ALL
Lollipop 5.0
Lollipop 5.0.1
Lollipop 5.0.2
Lollipop ALL
Android M
0 5 10 15 20 25 30 35
Failed test runs. Percentage (%).

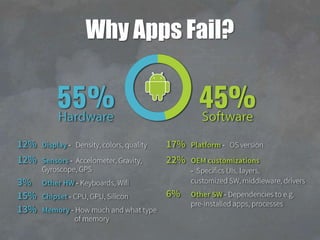

9. Why Apps Fail?

10. Why Real Devices Are Must-to-Have
• Emulators cannot help you to test...
• User Experience
• Usability
• Hardware
• Software
• Infrastructure
0 % = the percentage of your app users
that use emulator to run your app!

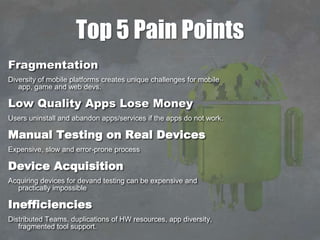

11. Top 5 Pain Points
Fragmentation
Diversity of mobile platforms creates unique challenges for mobile
app, game and web devs.
Low Quality Apps Lose Money
Users uninstall and abandon apps/services if the apps do not work.
Manual Testing on Real Devices
Expensive, slow and error-prone process
Device Acquisition
Acquiring devices for devand testing can be expensive and
practically impossible
Inefficiencies
Distributed Teams, duplications of HW resources, app diversity,
fragmented tool support.

12. Manual vs. Automation
Manual Automation

13. Manual vs. Automation
Smaller coverage, More
money burnt & time
wasted, Error-prone
Manual Automation
Large
coverage,
quickly
completed,
Less money &
time wasted,
Exact results.

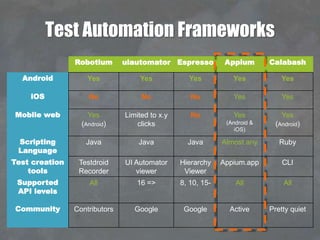

14. Test Automation Frameworks
Robotium uiautomator Espresso Appium Calabash
Android Yes Yes Yes Yes Yes
iOS No No No Yes Yes
Mobile web Yes
(Android)
Limited to x.y
clicks
No Yes
(Android &
iOS)
Yes
(Android)
Scripting
Language
Java Java Java Almost any Ruby
Test creation
tools
Testdroid
Recorder
UI Automator
viewer
Hierarchy
Viewer
Appium.app CLI
Supported
API levels
All 16 => 8, 10, 15- All All
Community Contributors Google Google Active Pretty quiet

15. APPIUM / SELENIUM IN THE CLOUD WITH
REAL DEVICES & REAL BROWSERS

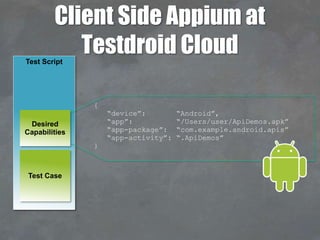

17. Client Side Appium at
Testdroid CloudTest Script
Test Case
Desired
Capabilities
{
“device”: “Android”,
“app”: “/Users/user/ApiDemos.apk”
“app-package”: “com.example.android.apis”
“app-activity”: “.ApiDemos”
}

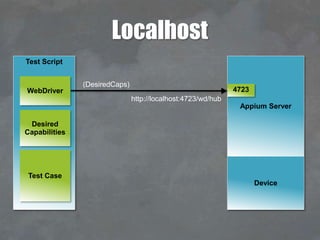

18. Test Script
Test Case
Desired
Capabilities
WebDriver
http://localhost:4723/wd/hub
Appium Server
4723
Device
Localhost
(DesiredCaps)

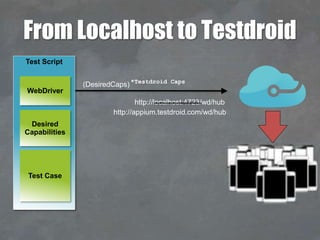

19. http://localhost:4723/wd/hub
*Testdroid Caps
http://appium.testdroid.com/wd/hub
(DesiredCaps)
Test Script
Test Case
Desired
Capabilities
WebDriver
From Localhost to Testdroid

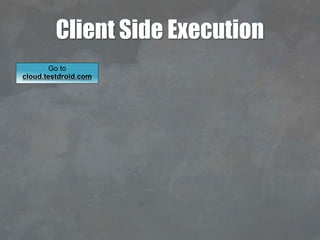

20. Client Side Execution
Go to
cloud.testdroid.com

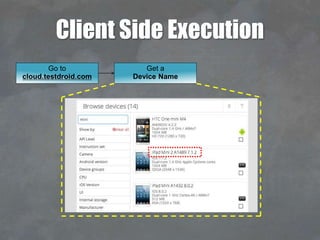

21. Client Side Execution
Get a
Device Name
Go to
cloud.testdroid.com

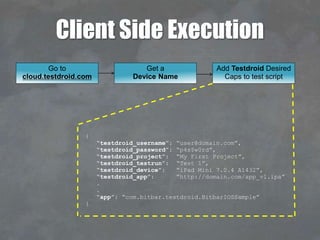

22. Client Side Execution
Add Testdroid Desired
Caps to test script
{
“testdroid_username”: “user@domain.com”,
“testdroid_password”: “p4s$w0rd”,
“testdroid_project”: “My First Project”,
“testdroid_testrun”: “Test 1”,
“testdroid_device”: “iPad Mini 7.0.4 A1432”,
“testdroid_app”: “http://domain.com/app_v1.ipa”
.
.
“app”: “com.bitbar.testdroid.BitbarIOSSample”
}
Get a
Device Name
Go to
cloud.testdroid.com

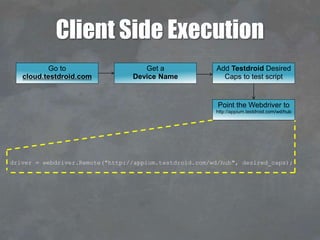

23. Client Side Execution
driver = webdriver.Remote("http://appium.testdroid.com/wd/hub", desired_caps);
Point the Webdriver to
http://appium.testdroid.com/wd/hub
Add Testdroid Desired
Caps to test script
Get a
Device Name
Go to
cloud.testdroid.com

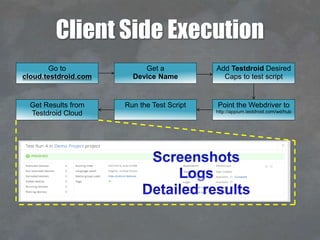

24. Client Side Execution
Run the Test ScriptGet Results from
Testdroid Cloud
Point the Webdriver to
http://appium.testdroid.com/wd/hub
Add Testdroid Desired
Caps to test script
Get a
Device Name
Go to
cloud.testdroid.com

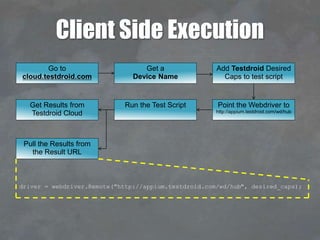

25. Client Side Execution
Pull the Results from
the Result URL
driver = webdriver.Remote("http://appium.testdroid.com/wd/hub", desired_caps);
Run the Test ScriptGet Results from
Testdroid Cloud
Point the Webdriver to
http://appium.testdroid.com/wd/hub
Add Testdroid Desired
Caps to test script
Get a
Device Name
Go to
cloud.testdroid.com

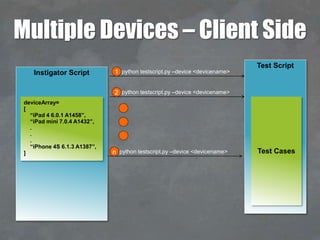

26. Multiple Devices – Client Side
python testscript.py –device <devicename>1
python testscript.py –device <devicename>2
python testscript.py –device <devicename>n
Test Script
Test Cases
Instigator Script
deviceArray=
[
“iPad 4 6.0.1 A1458”,
“iPad mini 7.0.4 A1432”,
.
.
.
“iPhone 4S 6.1.3 A1387”,
]

27. TESTDROID CLOUD AT GLANCE

28. THANK YOU!
More information about frameworks, devices
and testing at www.testdroid.com
