Windows Internals for Linux Kernel Developers

kTLV Windows Internals for Linux Kernel Developers @goldshtn
kTLV https://s.sashag.net/ktlv0316 @goldshtn
Sasha Goldshtein
@goldshtn
Windows Internals for
Linux Kernel Developers

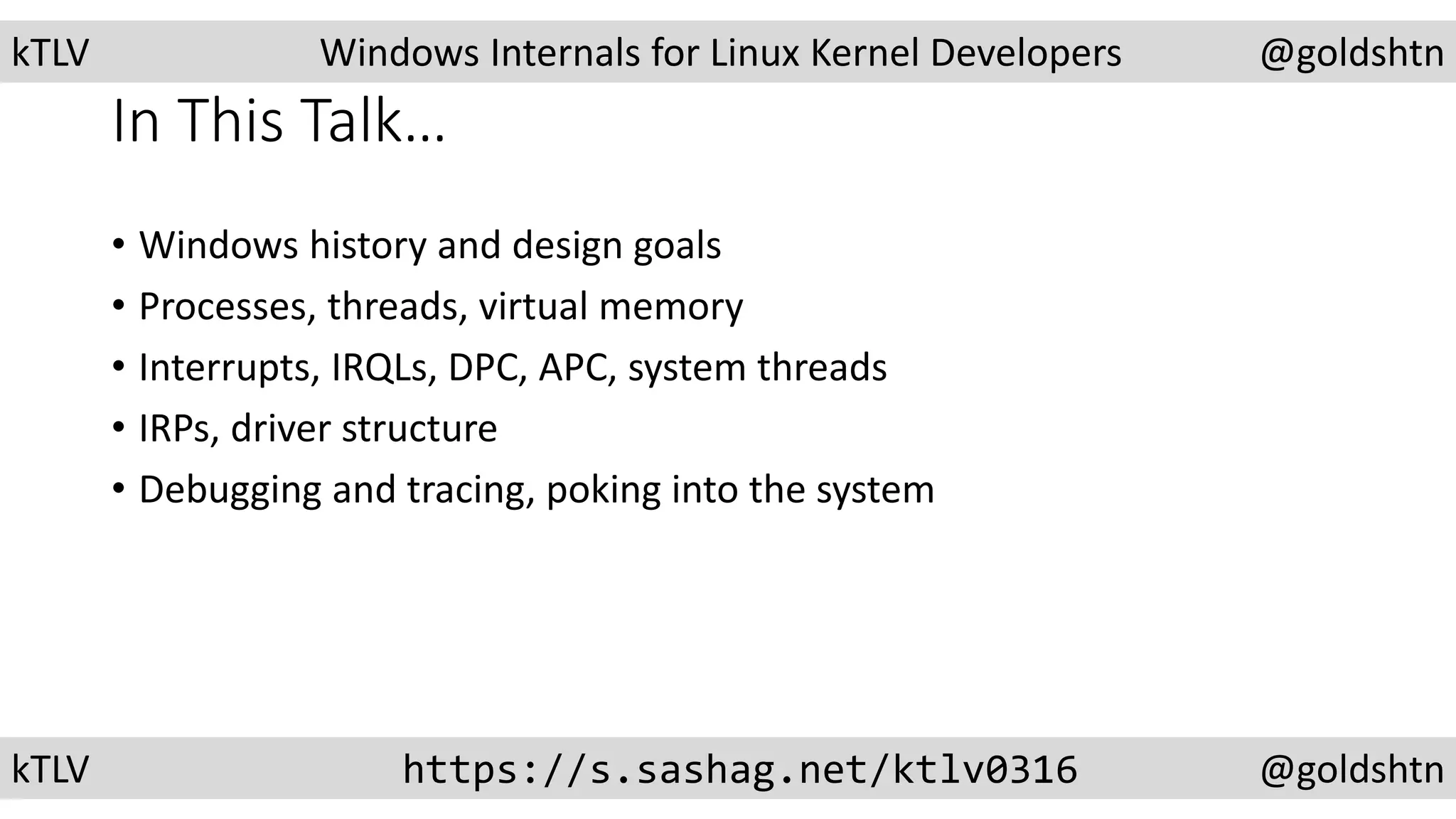

In This Talk…
• Windows history and design goals
• Processes, threads, virtual memory
• Interrupts, IRQLs, DPC, APC, system threads
• IRPs, driver structure
• Debugging and tracing, poking into the system

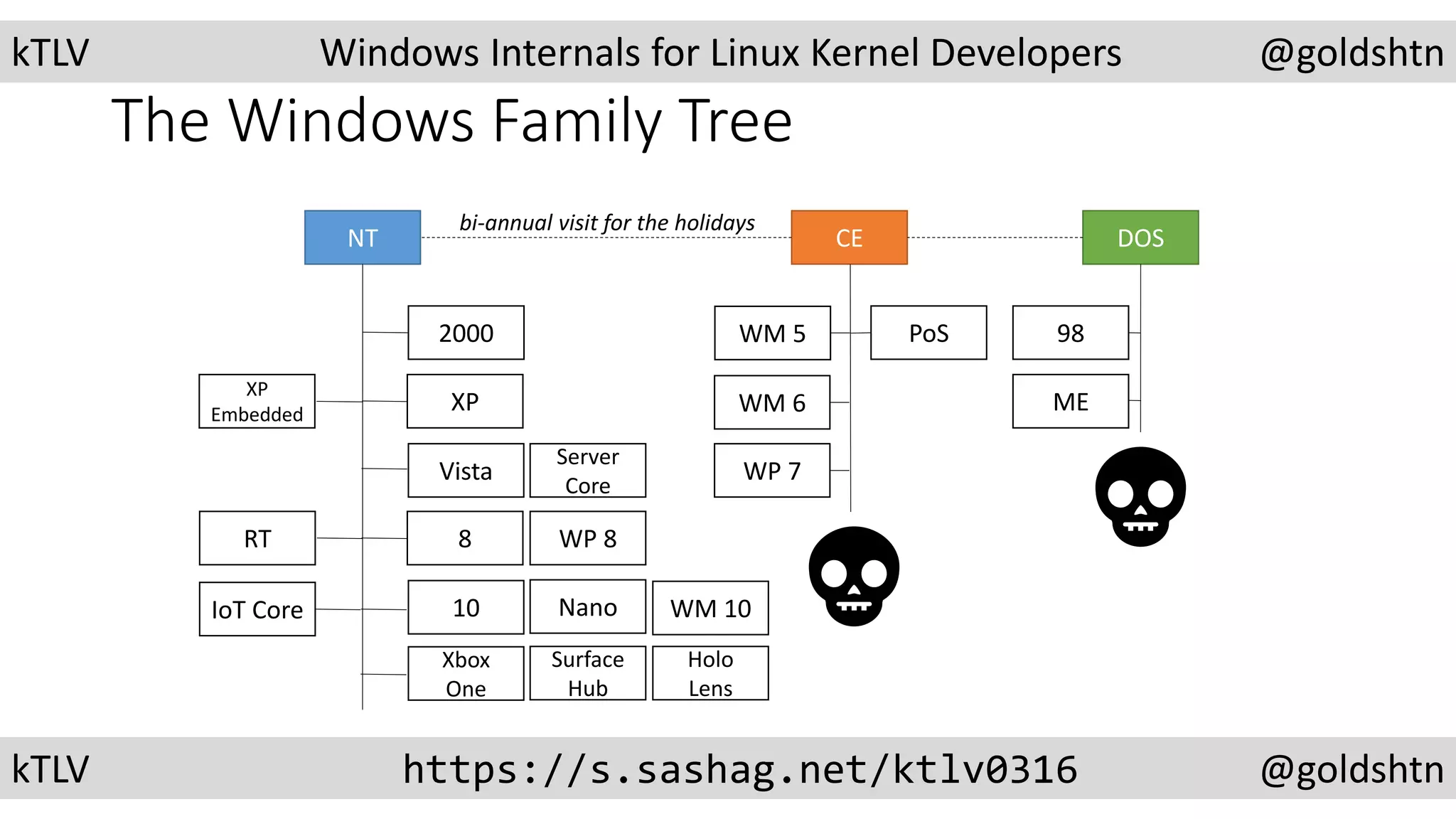

The Windows Family Tree
NT CE DOS
2000
XP
Vista
8RT
10IoT Core Nano
Server
Core
WM 6
WP 7
WP 8
PoS
💀
98
ME
💀
Xbox
One
XP
Embedded
bi-annual visit for the holidays
Surface
Hub
Holo
Lens
WM 10
WM 5

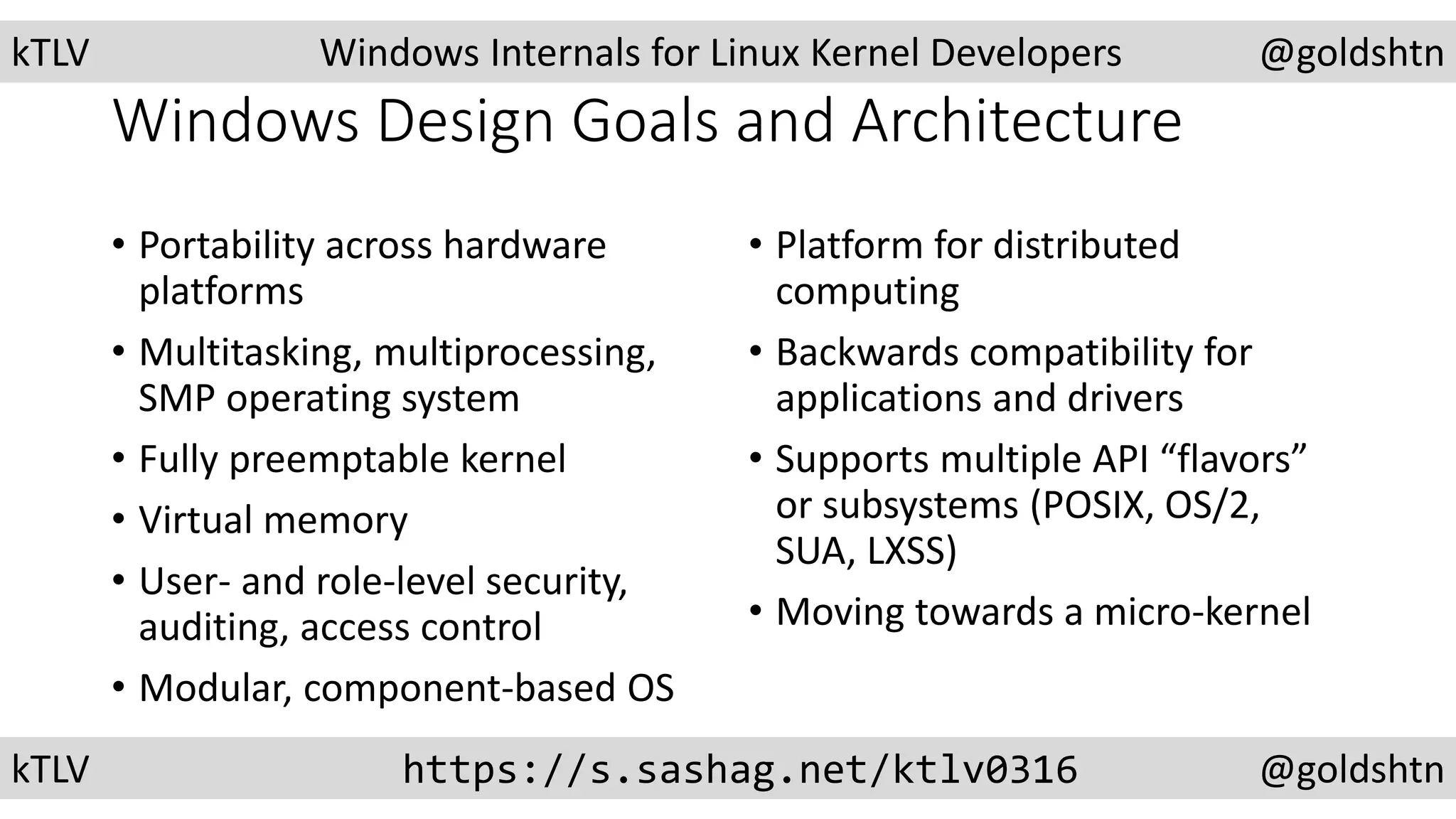

Windows Design Goals and Architecture
• Portability across hardware
platforms
• Multitasking, multiprocessing,
SMP operating system
• Fully preemptable kernel
• Virtual memory
• User- and role-level security,
auditing, access control
• Modular, component-based OS
• Platform for distributed
computing
• Backwards compatibility for
applications and drivers
• Supports multiple API “flavors”
or subsystems (POSIX, OS/2,
SUA, LXSS)
• Moving towards a micro-kernel

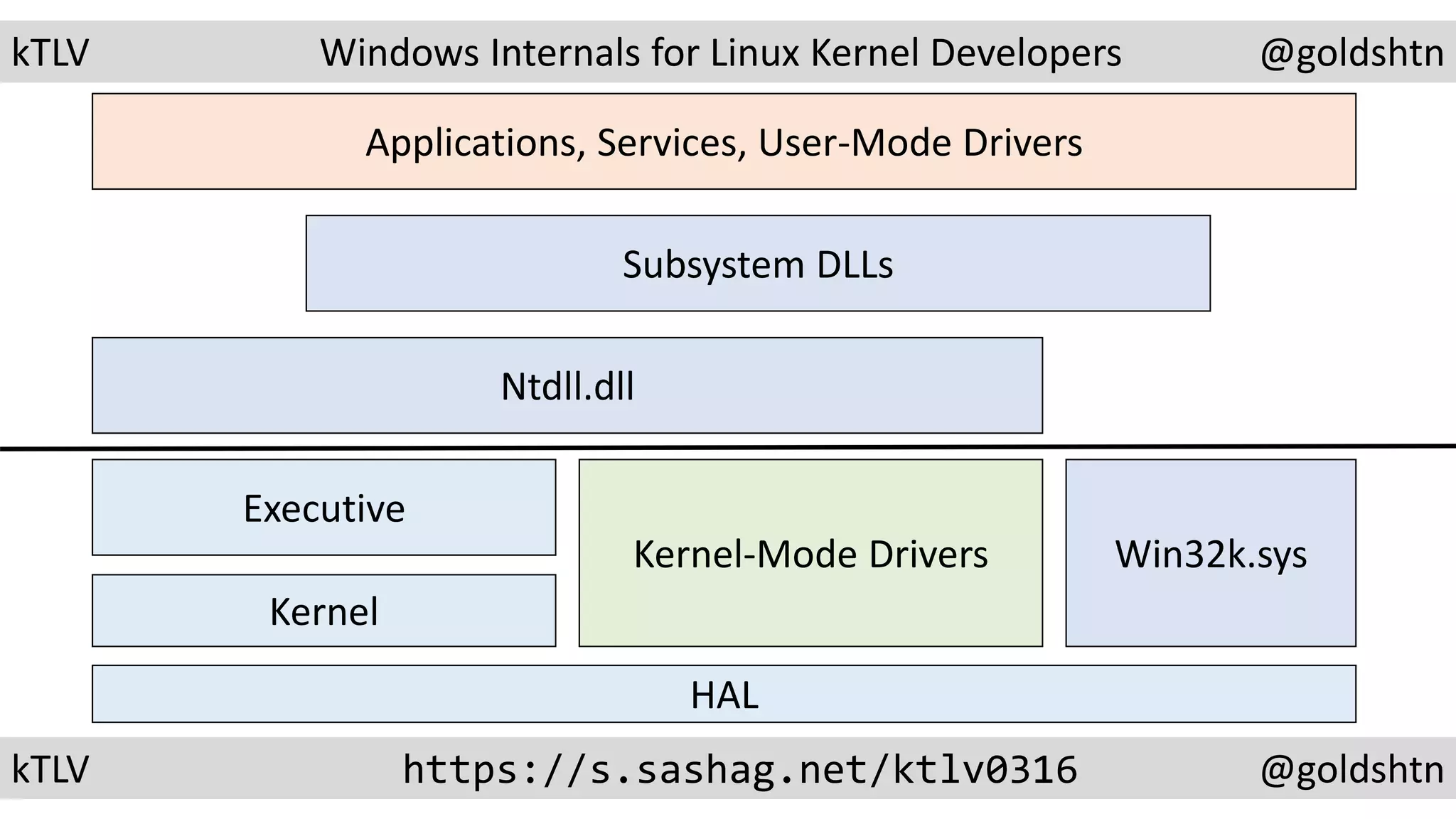

HAL
Kernel
Executive
Kernel-Mode Drivers Win32k.sys
Ntdll.dll
Subsystem DLLs
Applications, Services, User-Mode Drivers

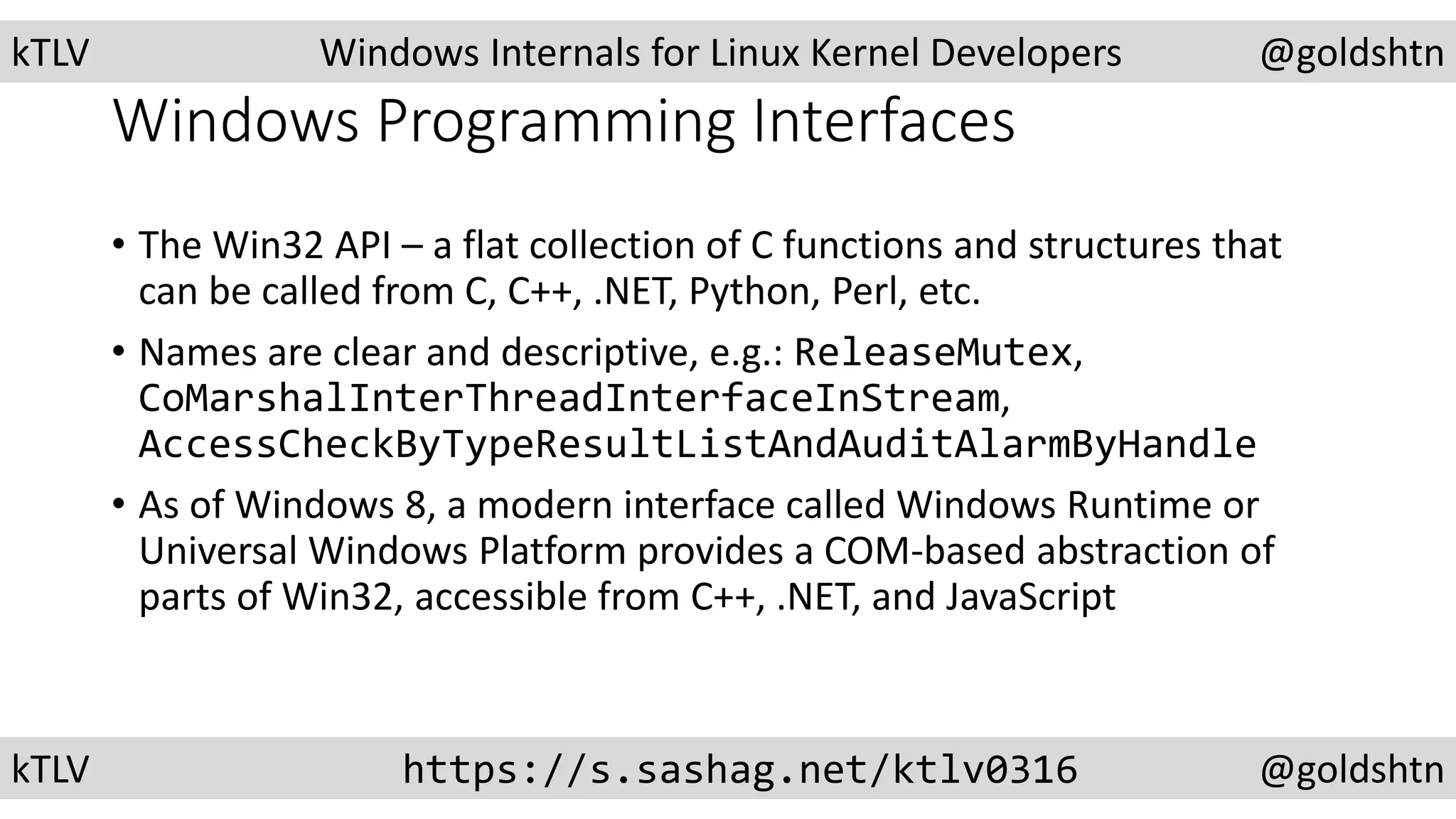

Windows Programming Interfaces
• The Win32 API – a flat collection of C functions and structures that
can be called from C, C++, .NET, Python, Perl, etc.
• Names are clear and descriptive, e.g.: ReleaseMutex,
CoMarshalInterThreadInterfaceInStream,
AccessCheckByTypeResultListAndAuditAlarmByHandle
• As of Windows 8, a modern interface called Windows Runtime or
Universal Windows Platform provides a COM-based abstraction of
parts of Win32, accessible from C++, .NET, and JavaScript

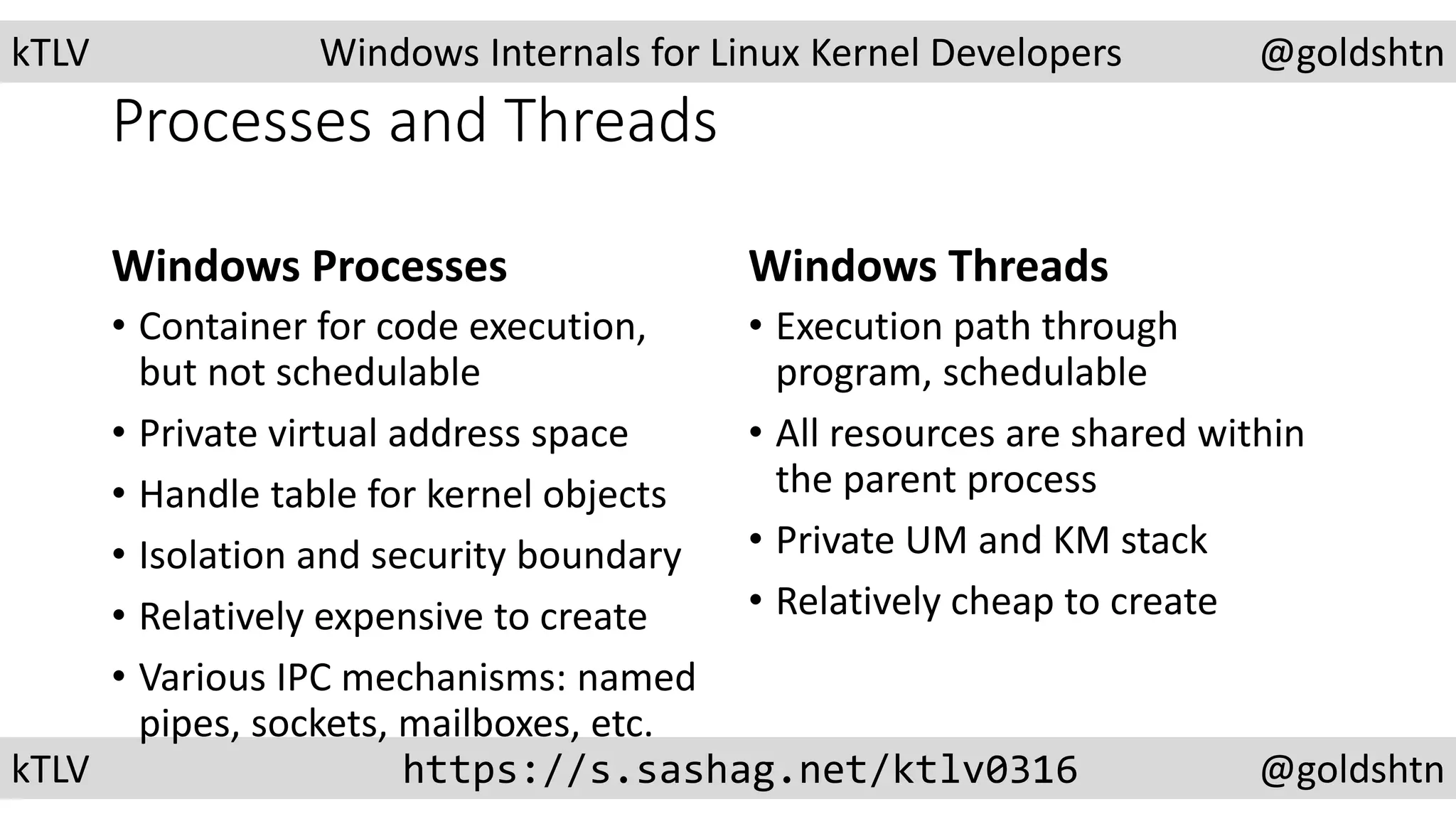

Processes and Threads
Windows Processes
• Container for code execution,
but not schedulable
• Private virtual address space
• Handle table for kernel objects
• Isolation and security boundary
• Relatively expensive to create
• Various IPC mechanisms: named
pipes, sockets, mailboxes, etc.
Windows Threads
• Execution path through
program, schedulable
• All resources are shared within
the parent process
• Private UM and KM stack
• Relatively cheap to create

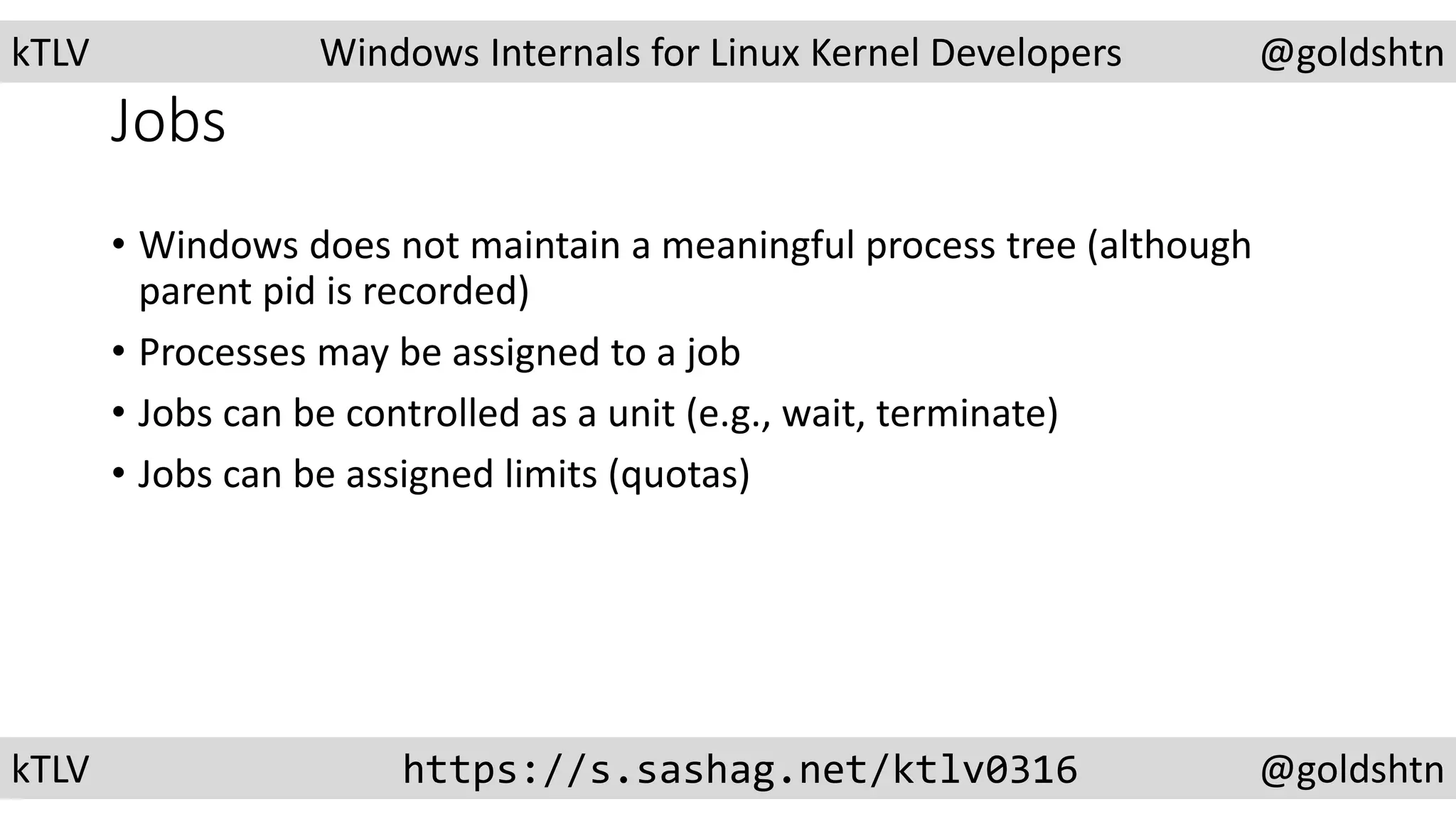

Jobs
• Windows does not maintain a meaningful process tree (although
parent pid is recorded)
• Processes may be assigned to a job
• Jobs can be controlled as a unit (e.g., wait, terminate)
• Jobs can be assigned limits (quotas)

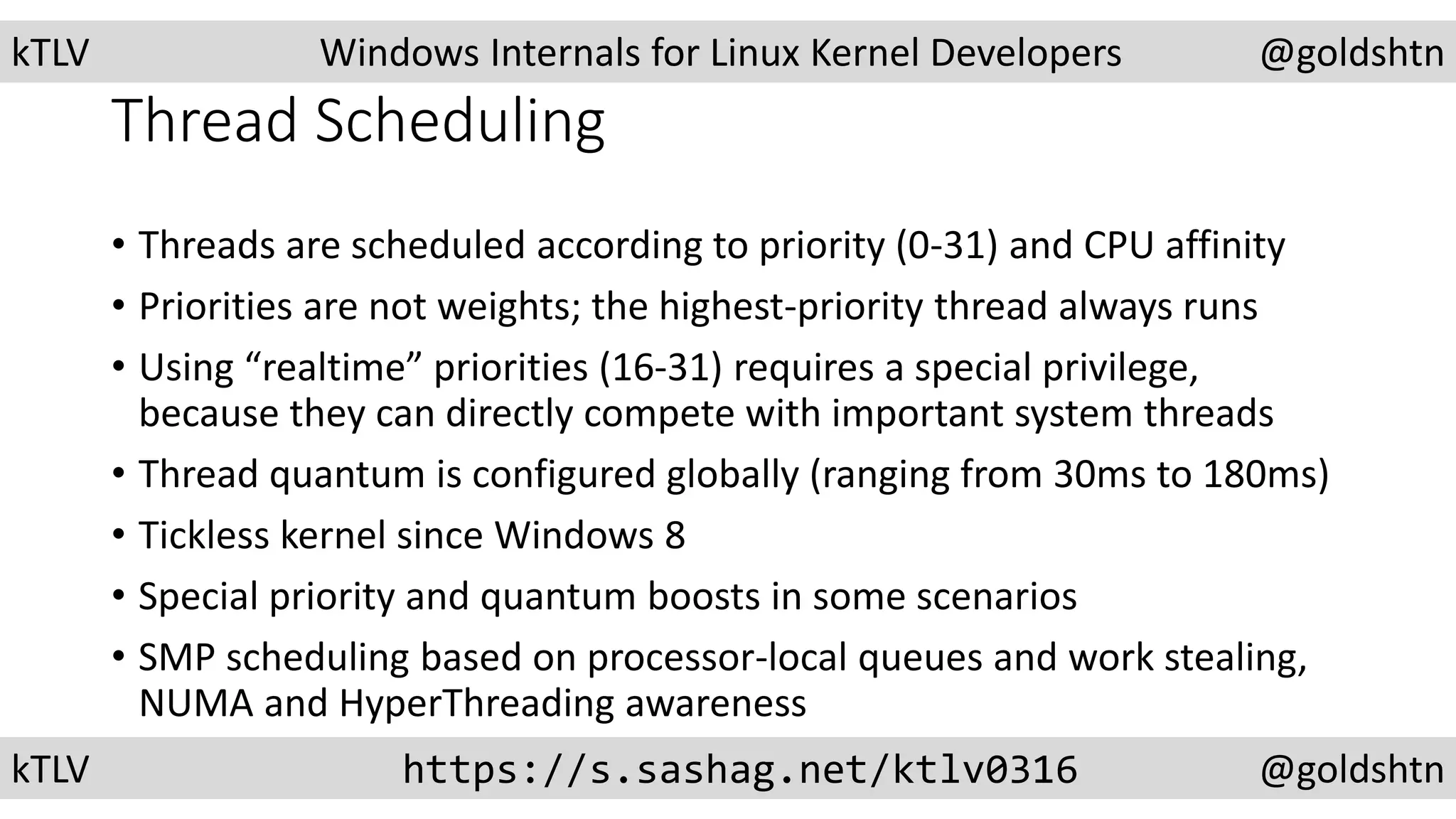

Thread Scheduling
• Threads are scheduled according to priority (0-31) and CPU affinity
• Priorities are not weights; the highest-priority thread always runs
• Using “realtime” priorities (16-31) requires a special privilege,
because they can directly compete with important system threads
• Thread quantum is configured globally (ranging from 30ms to 180ms)
• Tickless kernel since Windows 8
• Special priority and quantum boosts in some scenarios
• SMP scheduling based on processor-local queues and work stealing,
NUMA and HyperThreading awareness

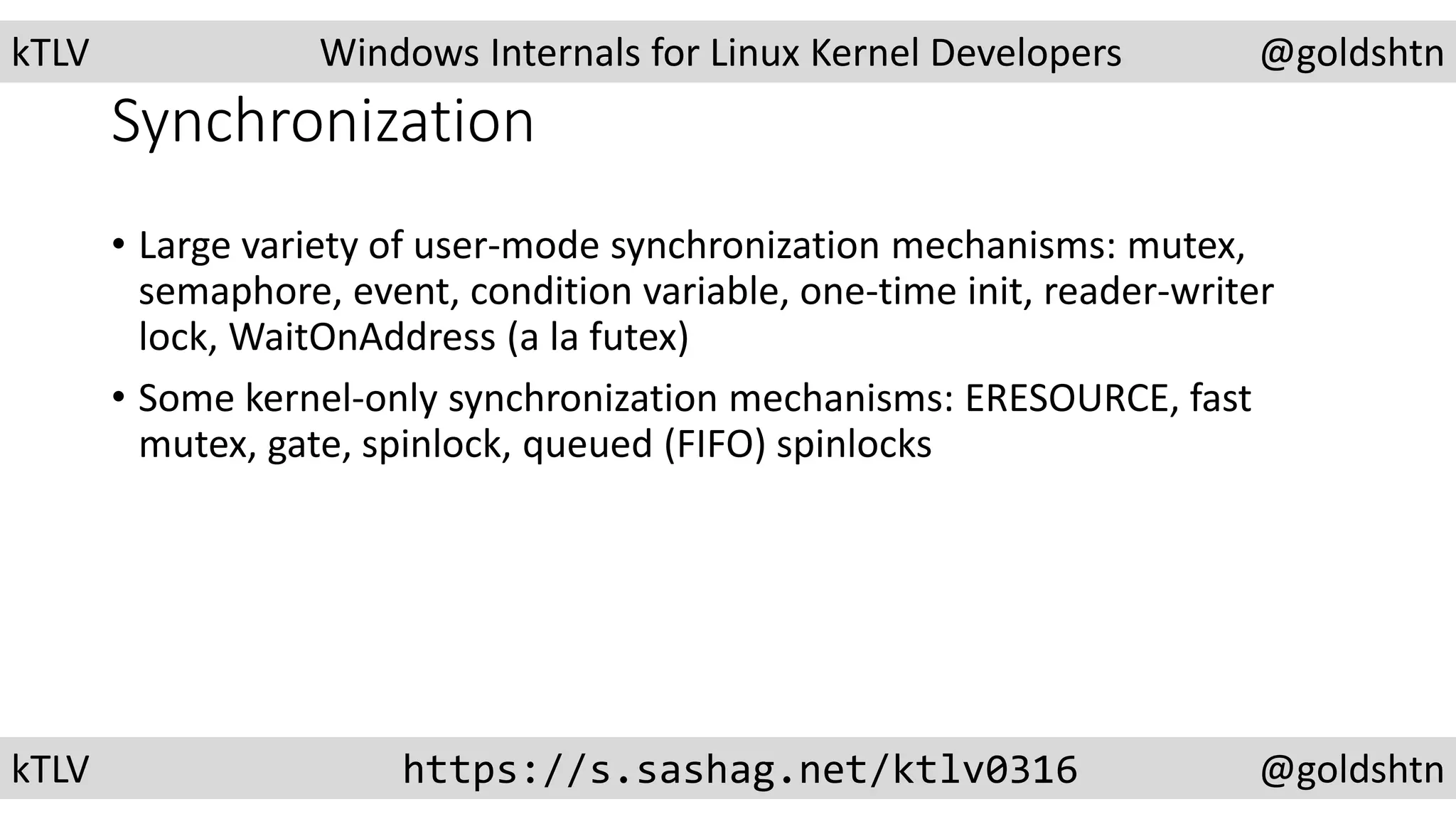

Synchronization
• Large variety of user-mode synchronization mechanisms: mutex,
semaphore, event, condition variable, one-time init, reader-writer
lock, WaitOnAddress (a la futex)
• Some kernel-only synchronization mechanisms: ERESOURCE, fast
mutex, gate, spinlock, queued (FIFO) spinlocks

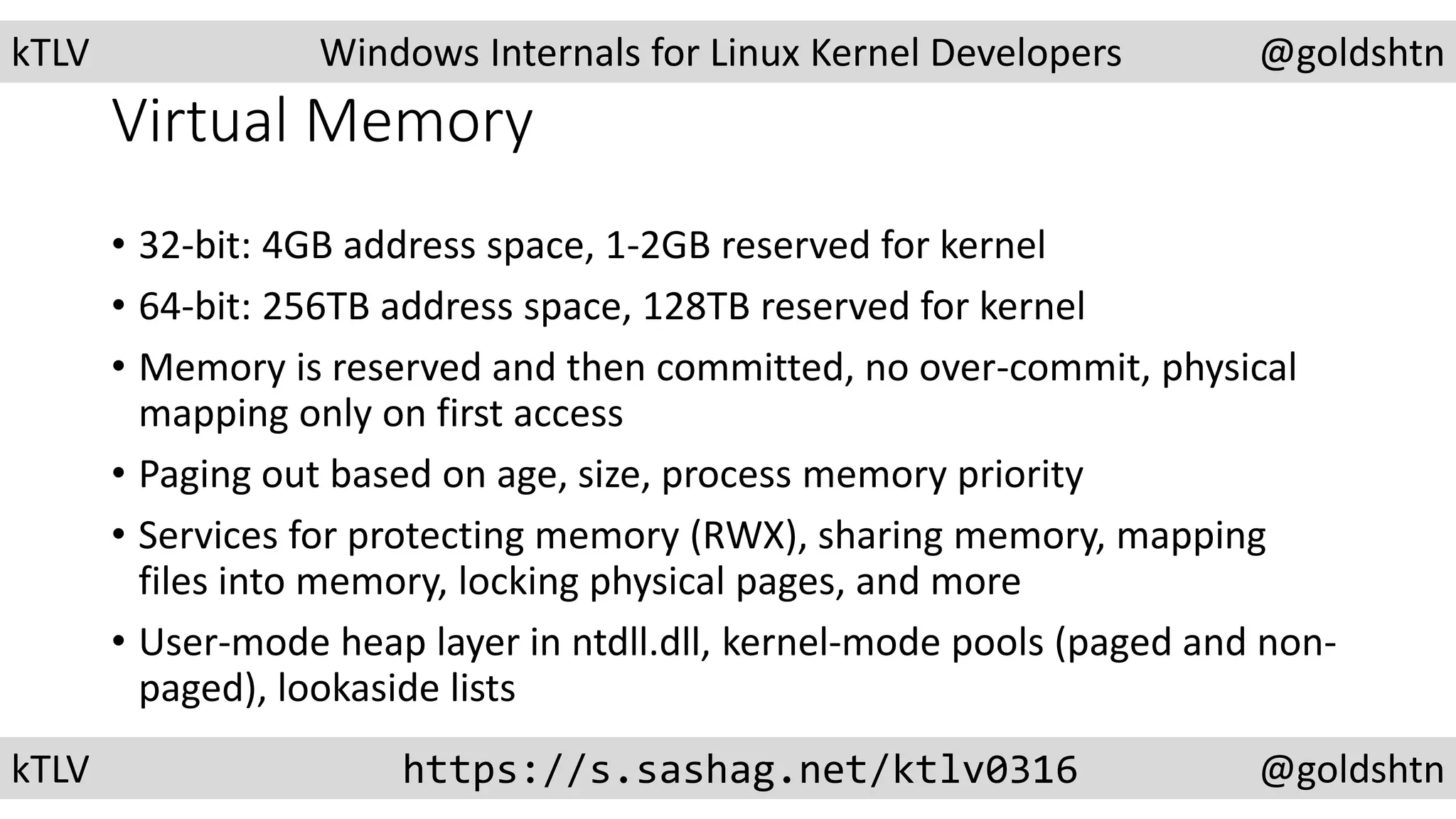

Virtual Memory
• 32-bit: 4GB address space, 1-2GB reserved for kernel
• 64-bit: 256TB address space, 128TB reserved for kernel
• Memory is reserved and then committed, no over-commit, physical
mapping only on first access
• Paging out based on age, size, process memory priority
• Services for protecting memory (RWX), sharing memory, mapping
files into memory, locking physical pages, and more
• User-mode heap layer in ntdll.dll, kernel-mode pools (paged and non-
paged), lookaside lists

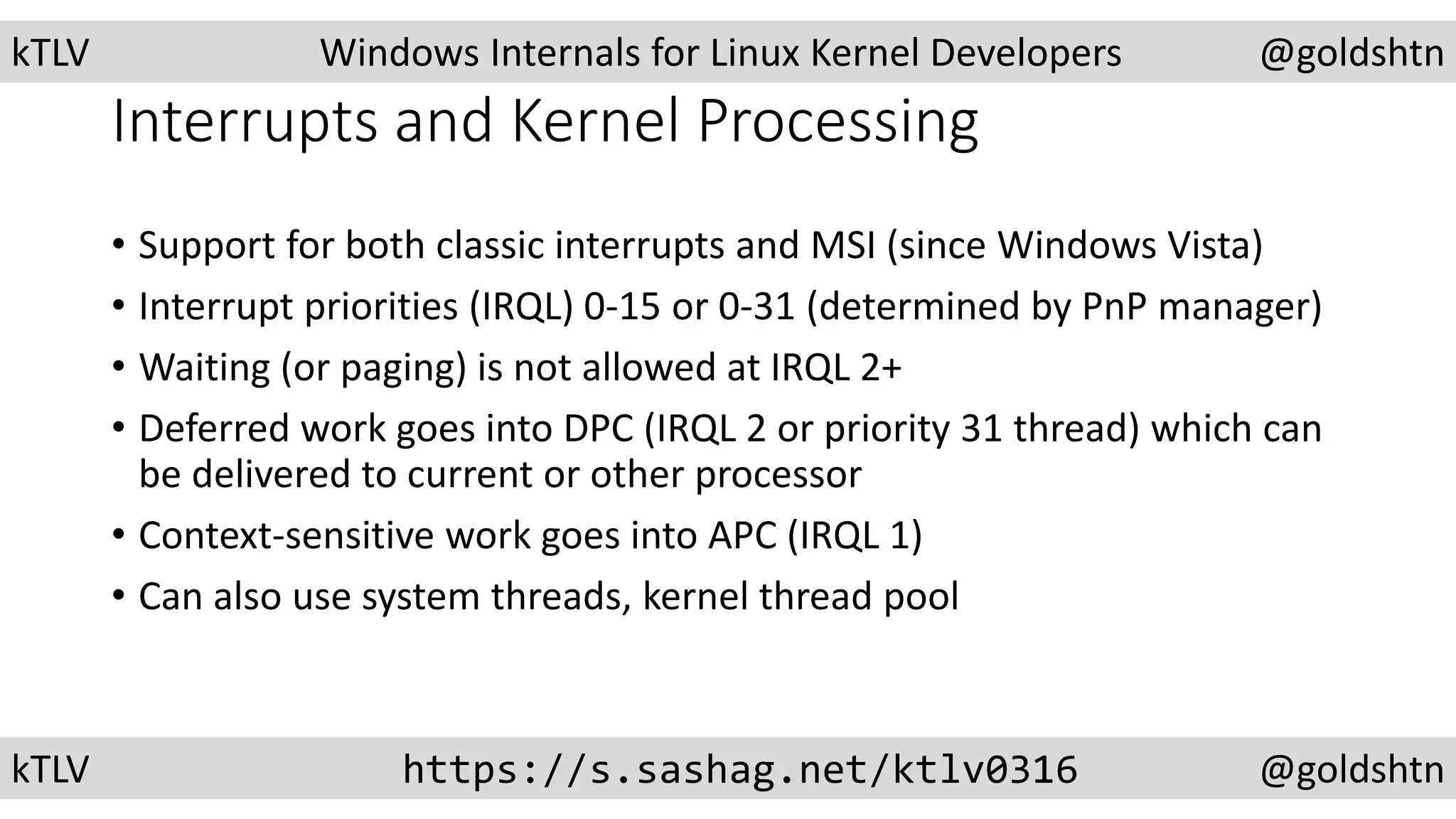

Interrupts and Kernel Processing
• Support for both classic interrupts and MSI (since Windows Vista)
• Interrupt priorities (IRQL) 0-15 or 0-31 (determined by PnP manager)
• Waiting (or paging) is not allowed at IRQL 2+
• Deferred work goes into DPC (IRQL 2 or priority 31 thread) which can
be delivered to current or other processor
• Context-sensitive work goes into APC (IRQL 1)
• Can also use system threads, kernel thread pool

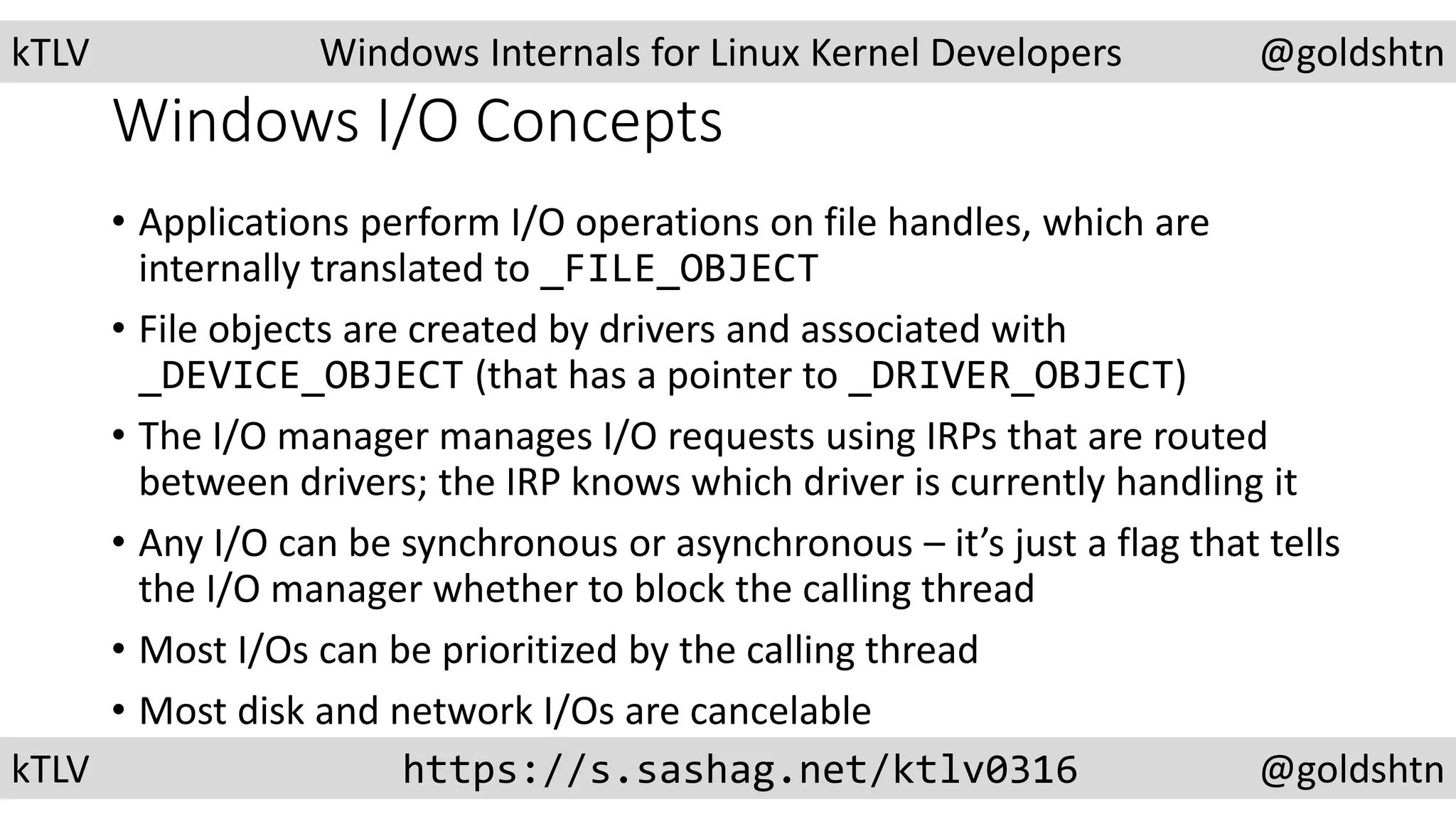

Windows I/O Concepts
• Applications perform I/O operations on file handles, which are
internally translated to _FILE_OBJECT
• File objects are created by drivers and associated with
_DEVICE_OBJECT (that has a pointer to _DRIVER_OBJECT)
• The I/O manager manages I/O requests using IRPs that are routed
between drivers; the IRP knows which driver is currently handling it
• Any I/O can be synchronous or asynchronous – it’s just a flag that tells
the I/O manager whether to block the calling thread
• Most I/Os can be prioritized by the calling thread
• Most disk and network I/Os are cancelable

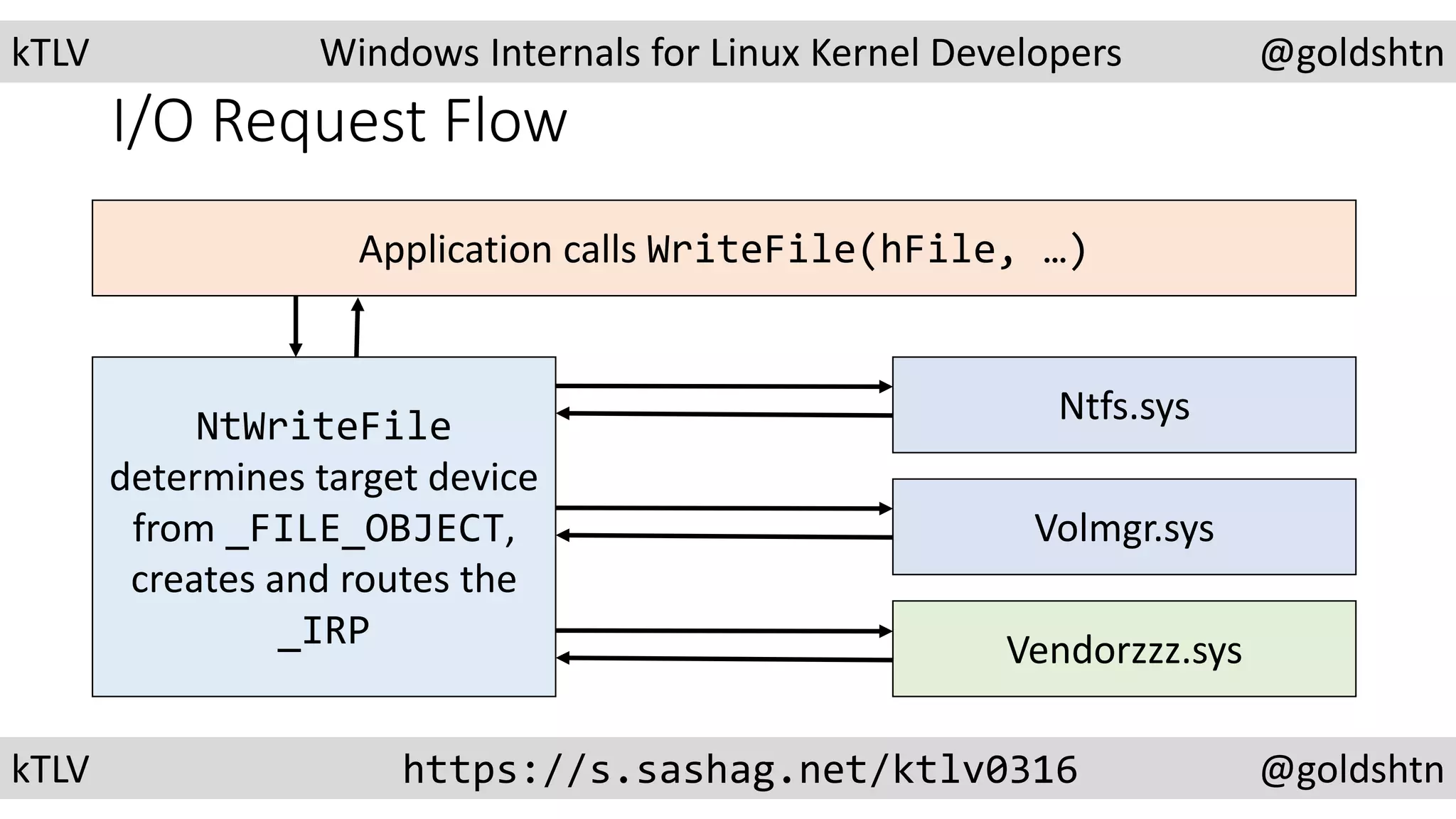

I/O Request Flow
NtWriteFile
determines target device
from _FILE_OBJECT,
creates and routes the
_IRP
Ntfs.sys
Application calls WriteFile(hFile, …)
Volmgr.sys
Vendorzzz.sys

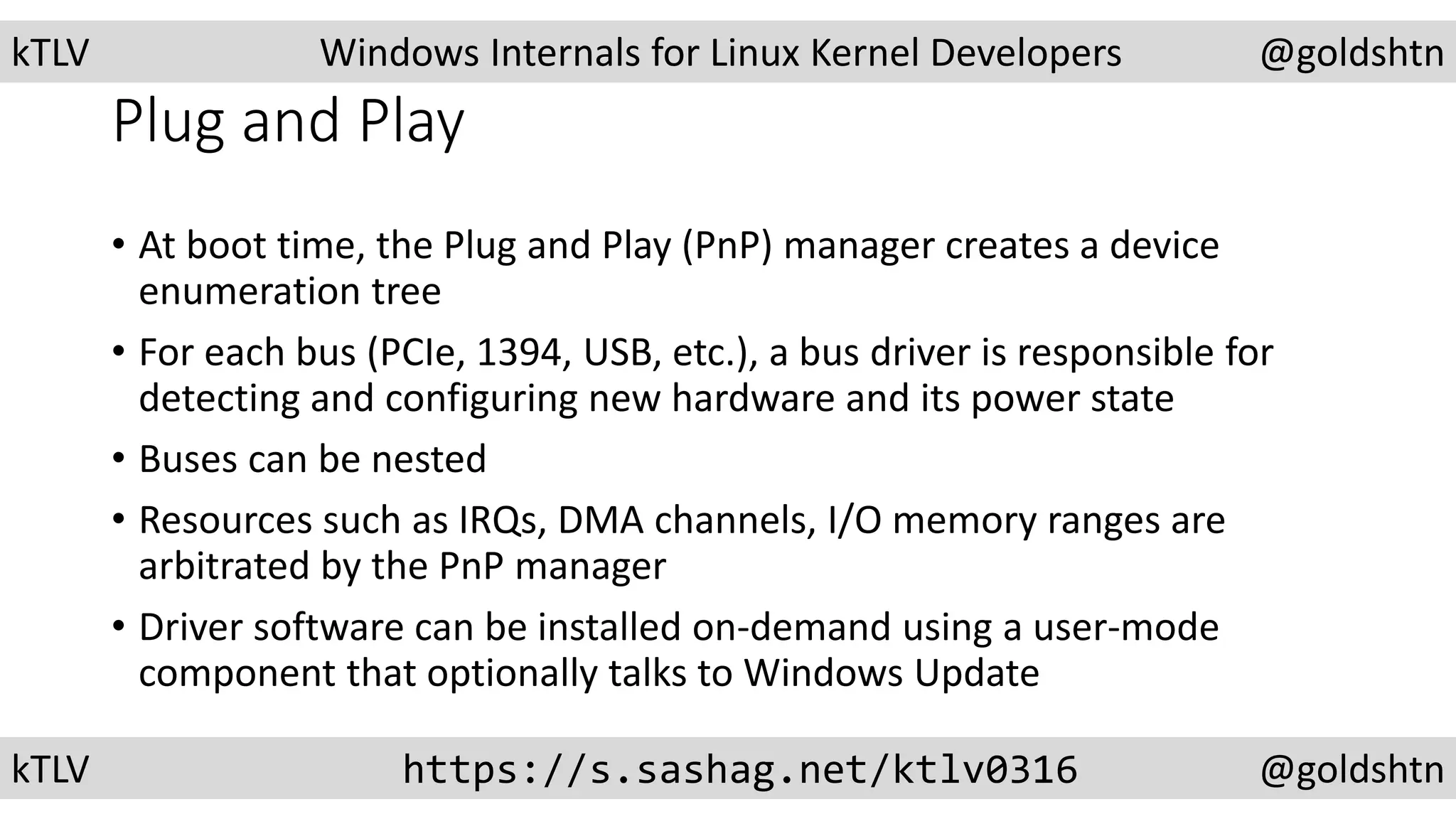

Plug and Play
• At boot time, the Plug and Play (PnP) manager creates a device
enumeration tree
• For each bus (PCIe, 1394, USB, etc.), a bus driver is responsible for
detecting and configuring new hardware and its power state
• Buses can be nested
• Resources such as IRQs, DMA channels, I/O memory ranges are
arbitrated by the PnP manager
• Driver software can be installed on-demand using a user-mode
component that optionally talks to Windows Update

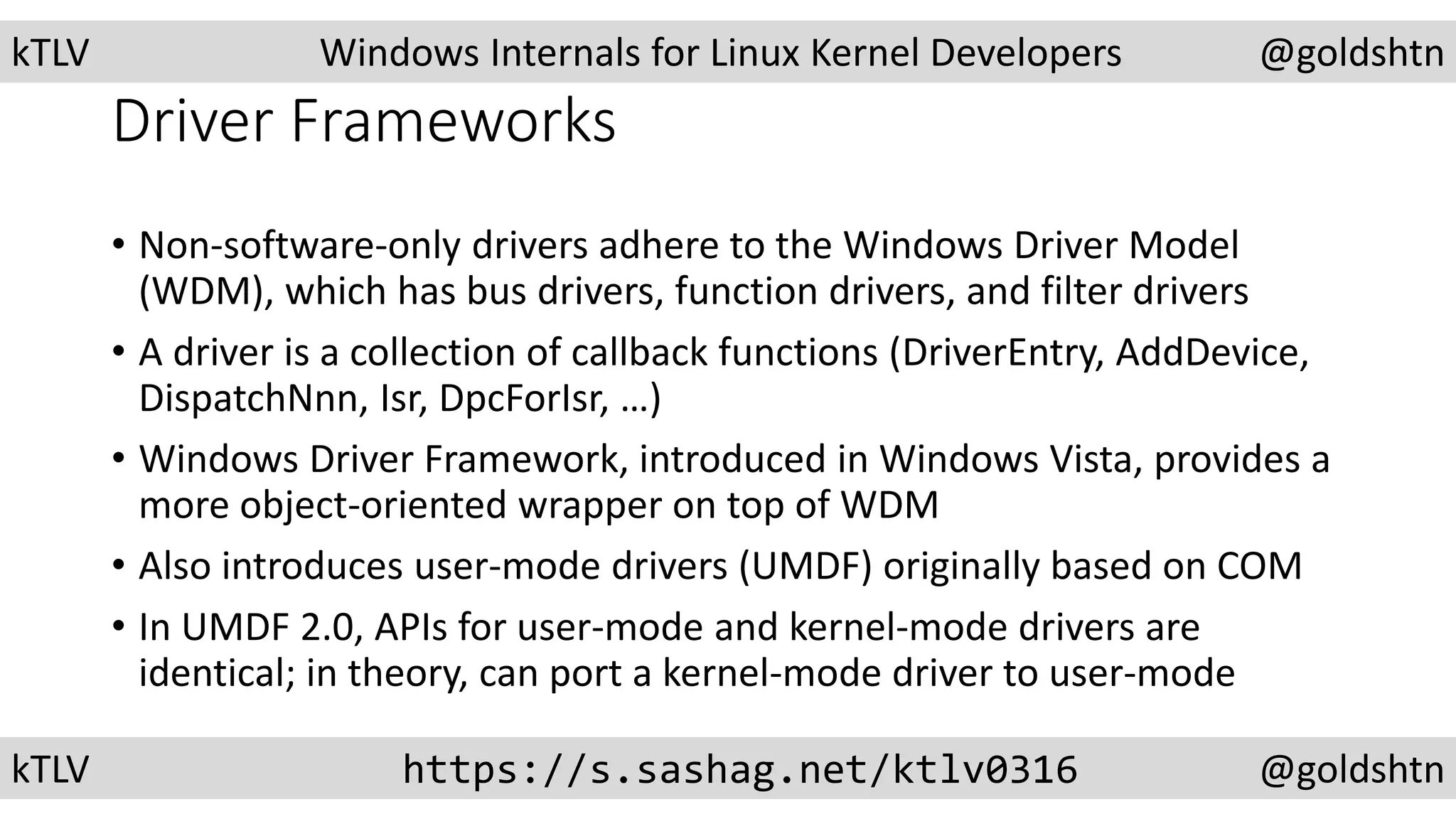

Driver Frameworks
• Non-software-only drivers adhere to the Windows Driver Model
(WDM), which has bus drivers, function drivers, and filter drivers
• A driver is a collection of callback functions (DriverEntry, AddDevice,
DispatchNnn, Isr, DpcForIsr, …)
• Windows Driver Framework, introduced in Windows Vista, provides a
more object-oriented wrapper on top of WDM
• Also introduces user-mode drivers (UMDF) originally based on COM
• In UMDF 2.0, APIs for user-mode and kernel-mode drivers are
identical; in theory, can port a kernel-mode driver to user-mode

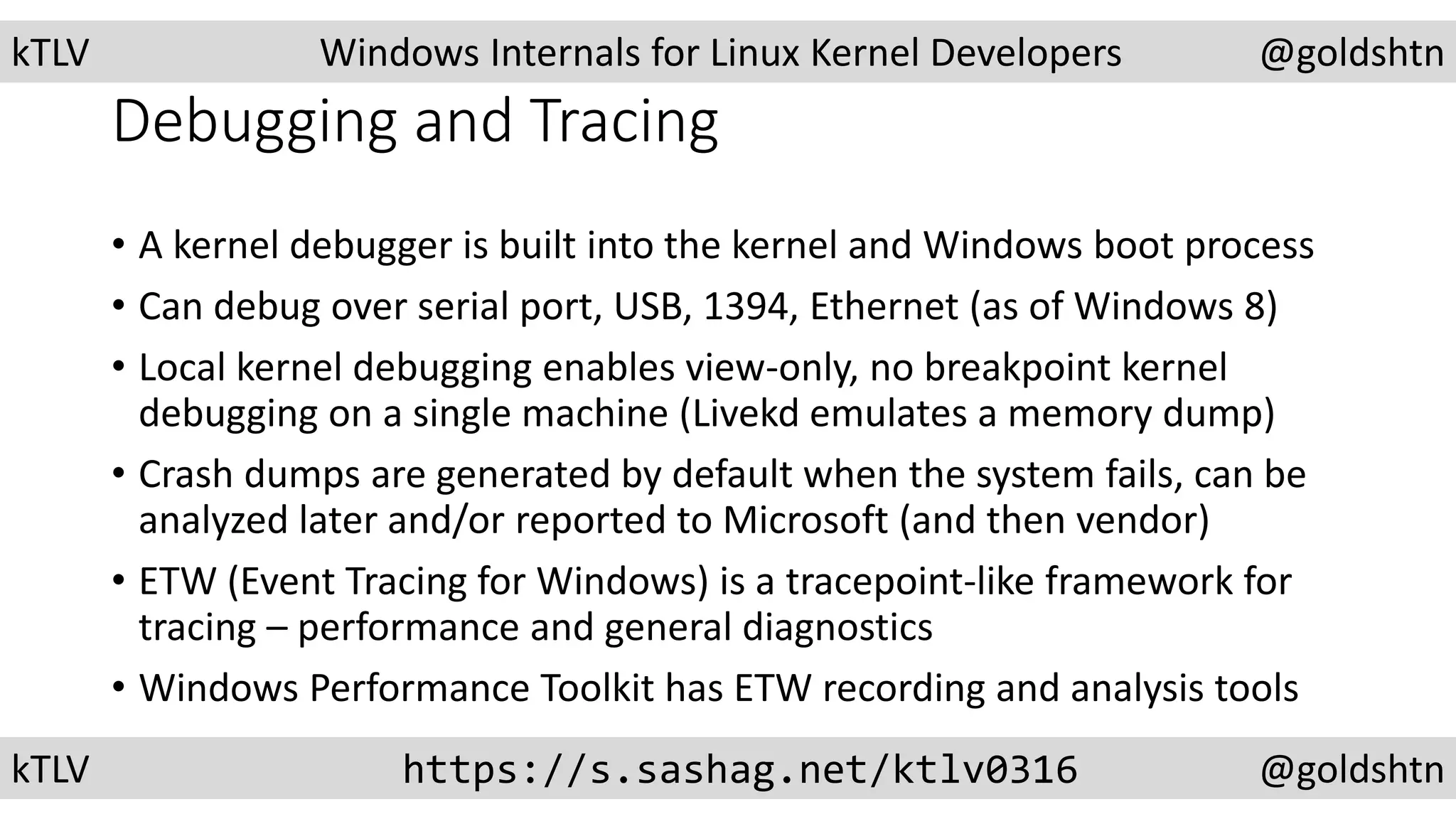

Debugging and Tracing
• A kernel debugger is built into the kernel and Windows boot process
• Can debug over serial port, USB, 1394, Ethernet (as of Windows 8)
• Local kernel debugging enables view-only, no breakpoint kernel
debugging on a single machine (Livekd emulates a memory dump)
• Crash dumps are generated by default when the system fails, can be
analyzed later and/or reported to Microsoft (and then vendor)
• ETW (Event Tracing for Windows) is a tracepoint-like framework for
tracing – performance and general diagnostics
• Windows Performance Toolkit has ETW recording and analysis tools

Thank You!
Sasha Goldshtein
@goldshtn
