RECENTADVANCES IN
ANTI-HISTAMINE
1
Dr.Akhil Nagar
RC Patel Institute of Pharmaceutical
Education and Research

2
Department of PharmaceuticalChemistry

3

4

5

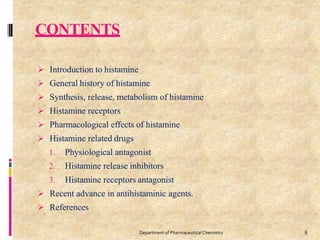

CONTENTS
6
 Introduction to histamine
 General history of histamine
 Synthesis, release, metabolism of histamine
 Histamine receptors
 Pharmacological effects of histamine
 Histamine related drugs
1. Physiological antagonist
2. Histamine release inhibitors

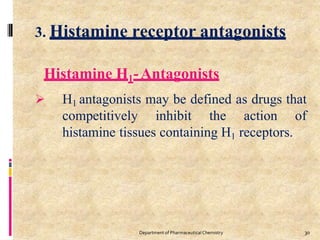

3. Histamine receptors antagonist
 Recent advance in antihistaminic agents.

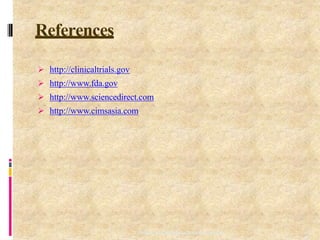

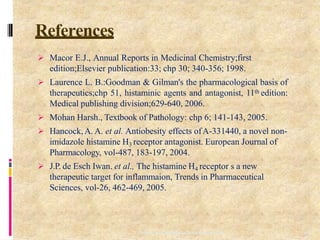

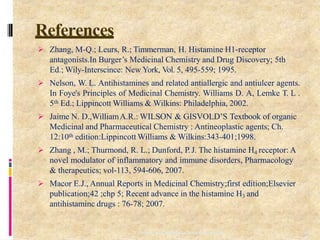

 References

Histamine:
 Histamine(1) is an endogenous substance β-imidazoylethylamine that
is present in essentially all mammalian tissues.
 It is the first autocoids to be synthesized.
 Henry Dale and Patrick Laidlaw identified and described the
properties of histamine in 1910-1911 (from: histos = tissue, with an
amine constituent).
 Histamine is an organic nitrogen compound involved in local
immune responses as well as regulating physiological function
in the gut and acting as a neurotransmitter.
7
4(5-)(2-aminoethyl)imidazole)

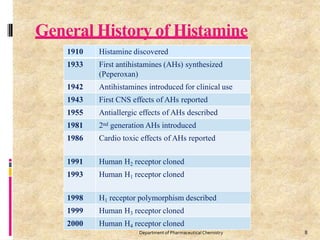

1910 Histamine discovered
1933 First antihistamines (AHs) synthesized
(Peperoxan)
1942 Antihistamines introduced for clinical use
1943 First CNS effects of AHs reported
1955 Antiallergic effects of AHs described
1981 2nd generation AHs introduced
1986 Cardio toxic effects of AHs reported
1991 Human H2 receptor cloned
1998 H1 receptor polymorphism described
8
General History of Histamine

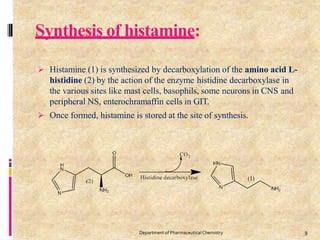

Synthesis of histamine:
 Histamine (1) is synthesized by decarboxylation of the amino acid L-
histidine (2) by the action of the enzyme histidine decarboxylase in
the various sites like mast cells, basophils, some neurons in CNS and
peripheral NS, enterochramaffin cells in GIT.
 Once formed, histamine is stored at the site of synthesis.
9

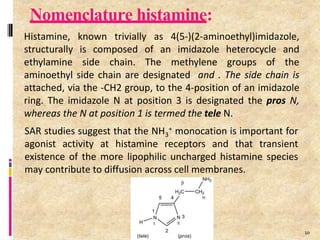

Nomenclature histamine:
Histamine, known trivially as 4(5-)(2-aminoethyl)imidazole,
structurally is composed of an imidazole heterocycle and
ethylamine side chain. The methylene groups of the
aminoethyl side chain are designated and . The side chain is
attached, via the -CH2 group, to the 4-position of an imidazole
ring. The imidazole N at position 3 is designated the pros N,
whereas the N at position 1 is termed the tele N.
10
SAR studies suggest that the NH3
+ monocation is important for
agonist activity at histamine receptors and that transient
existence of the more lipophilic uncharged histamine species
may contribute to diffusion across cell membranes.

Stereochemistry:
11
While histamine is an achiral molecule, histamine receptors exert
high stereoselectivity toward chiral ligands. Molecular modeling
and steric–activity relationship studies of the influence of
conformational isomerism suggest the importance of trans-
gauche rotameric structures in the receptor binding of histamine
the trans-rotamer of histamine possesses affinity for both H1-
and H2-receptors, and the gauche conformer is preferred for H3-
receptors, but not H1- or H2-receptors.

Release of histamine:
1. Tissue injury
 Any phsical and chemical that injure skin and mucosa tend to release
histamine from mast cells.
2.Allergic reaction
 Food: eggs, peanuts, milk products, grains, strawberries, etc
 Drugs: penicillins, sulfonamides, etc
 Venoms: fire ants, snake, bee, etc
 Foreign proteins: nonhuman insulin, serum proteins, etc
 Enzymes: chymopapain
12

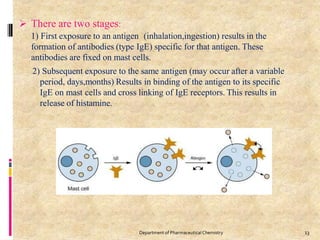

 There are two stages:
1) First exposure to an antigen (inhalation,ingestion) results in the
formation of antibodies (type IgE) specific for that antigen. These
antibodies are fixed on mast cells.
2) Subsequent exposure to the same antigen (may occur after a variable
period, days,months) Results in binding of the antigen to its specific
IgE on mast cells and cross linking of IgE receptors. This results in
release of histamine.
13

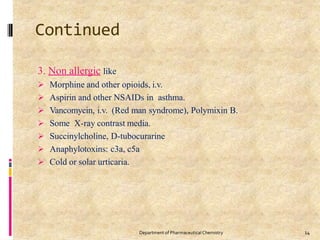

Continued
14
3. Non allergic like
 Morphine and other opioids, i.v.
 Aspirin and other NSAIDs in asthma.
 Vancomycin, i.v. (Red man syndrome), Polymixin B.
 Some X-ray contrast media.
 Succinylcholine, D-tubocurarine
 Anaphylotoxins: c3a, c5a
 Cold or solar urticaria.

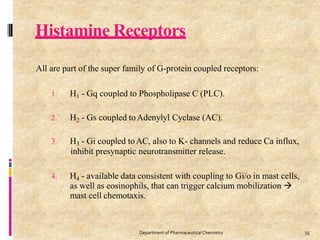

Histamine Receptors
15
All are part of the super family of G-protein coupled receptors:
1. H1 - Gq coupled to Phospholipase C (PLC).
2. H2 - Gs coupled toAdenylyl Cyclase (AC).
3. H3 - Gi coupled toAC, also to K- channels and reduce Ca influx,
inhibit presynaptic neurotransmitter release.
4. H4 - available data consistent with coupling to Gi/o in mast cells,
as well as eosinophils, that can trigger calcium mobilization 
mast cell chemotaxis.

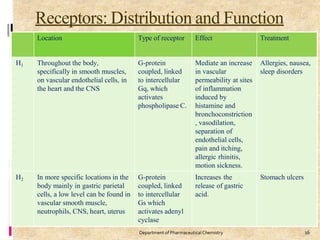

Receptors: Distribution and Function
16
Location Type of receptor Effect Treatment
H1 Throughout the body,
specifically in smooth muscles,
on vascular endothelial cells, in
the heart and the CNS
G-protein
coupled, linked
to intercellular
Gq, which
activates
phospholipase C.
Mediate an increase
in vascular
permeability at sites
of inflammation
induced by
histamine and
bronchoconstriction
, vasodilation,
separation of
endothelial cells,
pain and itching,
allergic rhinitis,
motion sickness.
Allergies, nausea,
sleep disorders
H2 In more specific locations in the
body mainly in gastric parietal
cells, a low level can be found in
vascular smooth muscle,
neutrophils, CNS, heart, uterus
G-protein
coupled, linked
to intercellular
Gs which
activates adenyl
cyclase
Increases the
release of gastric
acid.
Stomach ulcers

Location Type of receptor Effect Treatment
H3 Found mostly in the CNS, with a
high level in the thalamus,
G-protein
coupled, possibly
Feedback inhibition
of histamine
Obesity
caudate nucleus and cortex, also linked to synthesis and
a low level detected in small intercellular Gi release. They also
intestine, testis and prostate. control release of
DA, GABA, ACh,
5-HT & NE.
H4 They were recently discovered
in 2000. They are widely
Gi/o-protein
coupled
Anti-inflammatory In addition to
benefiting allergic
expressed in components of the conditions,
immune system such as the research in the h4
spleen, thymus and leukocytes. receptor may lead
to the treatment of
autoimmune
diseases.
(rheumatoid
arthritis and IBS)
and Mediate mast
cell chemotaxis.
17
Continued

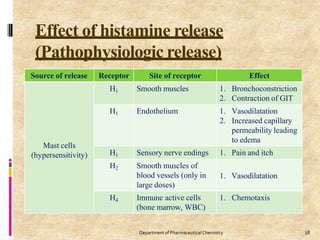

Effect of histamine release
(Pathophysiologic release)
18
Source of release Receptor Site of receptor Effect
Mast cells
(hypersensitivity)
H1 Smooth muscles 1. Bronchoconstriction
2. Contraction of GIT
H1 Endothelium 1. Vasodilatation
2. Increased capillary
permeability leading
to edema
H1 Sensory nerve endings 1. Pain and itch
H2 Smooth muscles of
blood vessels (only in
large doses)
1. Vasodilatation
H4 Immune active cells
(bone marrow, WBC)
1. Chemotaxis

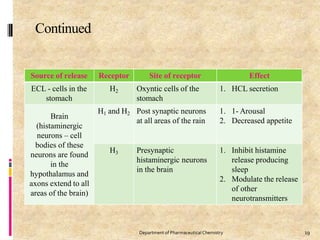

Continued
19
Source of release Receptor Site of receptor Effect
ECL - cells in the
stomach
H2 Oxyntic cells of the
stomach
1. HCL secretion
Brain
(histaminergic
neurons – cell
bodies of these
neurons are found
in the
hypothalamus and
axons extend to all
areas of the brain)
H1 and H2 Post synaptic neurons
at all areas of the rain
1. 1- Arousal
2. Decreased appetite
H3 Presynaptic
histaminergic neurons
in the brain
1. Inhibit histamine
release producing
sleep
2. Modulate the release
of other
neurotransmitters

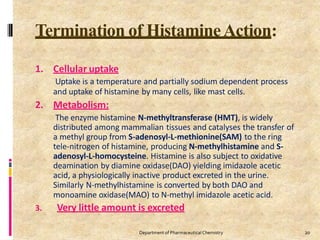

Termination of HistamineAction:
20
1. Cellular uptake
Uptake is a temperature and partially sodium dependent process
and uptake of histamine by many cells, like mast cells.
2. Metabolism:
The enzyme histamine N-methyltransferase (HMT), is widely
distributed among mammalian tissues and catalyses the transfer of
a methyl group from S-adenosyl-L-methionine(SAM) to the ring
tele-nitrogen of histamine, producing N-methylhistamine and S-
adenosyl-L-homocysteine. Histamine is also subject to oxidative
deamination by diamine oxidase(DAO) yielding imidazole acetic
acid, a physiologically inactive product excreted in the urine.
Similarly N-methylhistamine is converted by both DAO and
monoamine oxidase(MAO) to N-methyl imidazole acetic acid.
3. Very little amount is excreted

Histamine(2), N-methylhistamine(3), N-methylimidazole acetic acid(4),
Imidazole acetic acid(5), Imidazole acetic acid riboside(6)
HMT- histamine N-methyltransferase, DAO-diamine oxidase, PRT-
phosphoribosyl transferase
Metabolism of Histamine
21

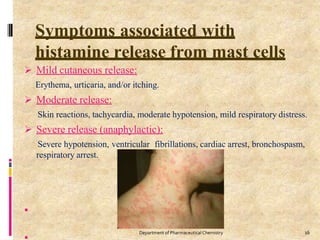

Symptoms associated with
histamine release from mast cells
 Mild cutaneous release:
Erythema, urticaria, and/or itching.
 Moderate release:
Skin reactions, tachycardia, moderate hypotension, mild respiratory distress.
 Severe release (anaphylactic):
Severe hypotension, ventricular fibrillations, cardiac arrest, bronchospasm,
respiratory arrest.

16

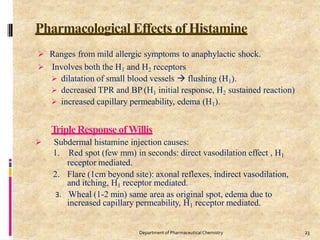

Pharmacological Effects of Histamine
23
 Ranges from mild allergic symptoms to anaphylactic shock.
 Involves both the H1 and H2 receptors
 dilatation of small blood vessels  flushing (H1).
 decreased TPR and BP (H1 initial response, H2 sustained reaction)
 increased capillary permeability, edema (H1).
TripleResponse ofWillis
 Subdermal histamine injection causes:
1. Red spot (few mm) in seconds: direct vasodilation effect , H1
receptor mediated.
2. Flare (1cm beyond site): axonal reflexes, indirect vasodilation,
and itching, H1 receptor mediated.
3. Wheal (1-2 min) same area as original spot, edema due to
increased capillary permeability, H1 receptor mediated.

SelectedActions of Histamine in Humans
24
Vascular
 H1 – in vascular endothelium NO and PG release 
vasodilation. In coronary vessels  vasoconstriction. Increased
permeability of post capillary venules
 H2 – in vascular smooth muscle cells  vasodilation mediated by
cAMP
Heart
 H1 - decreasedA
V conduction
 H2 - increased chronotropy,
decreased inotropy
 H1, H2 - increased automaticity

Continued

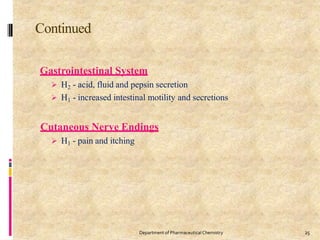

25
Gastrointestinal System
 H2 - acid, fluid and pepsin secretion
 H1 - increased intestinal motility and secretions
Cutaneous Nerve Endings
 H1 - pain and itching

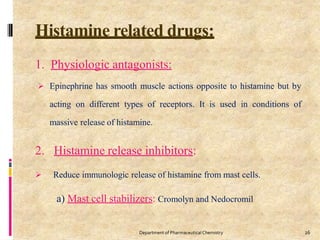

Histamine related drugs:
26
1. Physiologic antagonists:
 Epinephrine has smooth muscle actions opposite to histamine but by
acting on different types of receptors. It is used in conditions of
massive release of histamine.
2. Histamine release inhibitors:
 Reduce immunologic release of histamine from mast cells.
a) Mast cell stabilizers: Cromolyn and Nedocromil

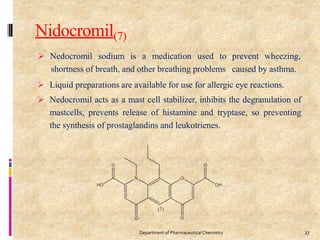

Nidocromil(7)
 Nedocromil sodium is a medication used to
shortness of breath, and other breathing problems
prevent wheezing,
caused by asthma.
 Liquid preparations are available for use for allergic eye reactions.
 Nedocromil acts as a mast cell stabilizer, inhibits the degranulation of
mastcells, prevents release of histamine and tryptase, so preventing
the synthesis of prostaglandins and leukotrienes.
27

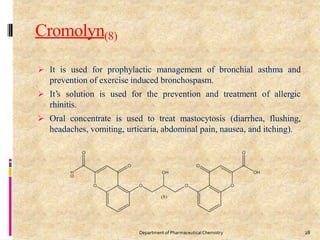

Cromolyn(8)
 It is used for prophylactic management of bronchial asthma and
prevention of exercise induced bronchospasm.
 It’s solution is used for the prevention and treatment of allergic
rhinitis.
 Oral concentrate is used to treat mastocytosis (diarrhea, flushing,
headaches, vomiting, urticaria, abdominal pain, nausea, and itching).
28

Lodoxamide(9)
 It is available in 0.1% solution.
 It is used in the treatment of
disorders including
ocular
vernal
vernal
keratitis.
 Adverse
conjuctivitis, vernal
reactions including
burning, stinging, or discomfort
on instillation.
Pemirolast(10)
 It is also available in 0.1% sterile
ophthalmic solution for topical
administration to the eye.
29
keratoconjuctivitis,  This drug product is for ocular
administration only and not for
injection or oral use.
 It should be used with caution
during pregnancy or while nursing,
since its safety has not been
studied under these circumstances.

3. Histamine receptor antagonists
30
Histamine H1-Antagonists
 H1 antagonists may be defined as drugs that
competitively inhibit the action of
histamine tissues containing H1 receptors.

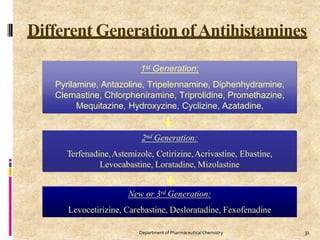

Different Generation ofAntihistamines
1st Generation:
Pyrilamine, Antazoline, Tripelennamine, Diphenhydramine,
Clemastine, Chlorpheniramine, Triprolidine, Promethazine,
Mequitazine, Hydroxyzine, Cyclizine, Azatadine,
2nd Generation:

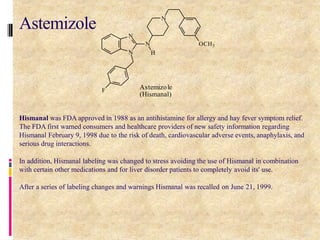

Terfenadine,Astemizole, Cetirizine,Acrivastine, Ebastine,
Levocabastine, Loratadine, Mizolastine
New or 3rd Generation:
Levocetirizine, Carebastine, Desloratadine, Fexofenadine
31

Different Generation ofAntihistamines
32

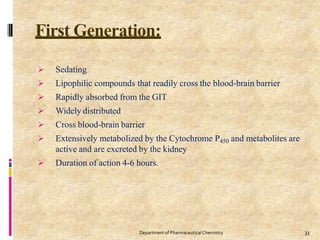

First Generation:
33
 Sedating
 Lipophilic compounds that readily cross the blood-brain barrier
 Rapidly absorbed from the GIT
 Widely distributed
 Cross blood-brain barrier
 Extensively metabolized by the Cytochrome P450 and metabolites are
active and are excreted by the kidney
 Duration of action 4-6 hours.

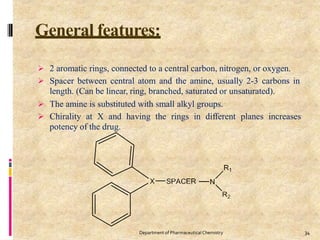

General features:
 2 aromatic rings, connected to a central carbon, nitrogen, or oxygen.
 Spacer between central atom and the amine, usually 2-3 carbons in
length. (Can be linear, ring, branched, saturated or unsaturated).
 The amine is substituted with small alkyl groups.
 Chirality at X and having the rings in different planes increases
potency of the drug.
34

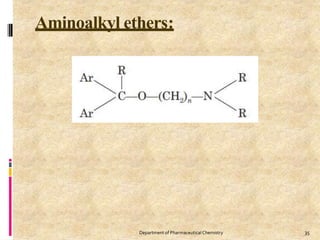

Aminoalkyl ethers:
35

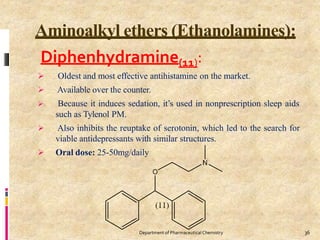

Aminoalkyl ethers (Ethanolamines):
 Oldest and most effective antihistamine on the market.
 Available over the counter.
 Because it induces sedation, it’s used in nonprescription sleep aids
such as Tylenol PM.
 Also inhibits the reuptake of serotonin, which led to the search for
viable antidepressants with similar structures.
 Oral dose: 25-50mg/daily
Diphenhydramine(11):
36

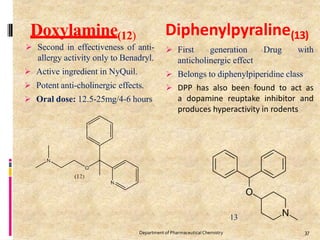

Doxylamine(12)
 Second in effectiveness of anti-
allergy activity only to Benadryl.
 Active ingredient in NyQuil.
 Potent anti-cholinergic effects.
 Oral dose: 12.5-25mg/4-6 hours
Diphenylpyraline(13)
 First generation Drug with
anticholinergic effect
 Belongs to diphenylpiperidine class
 DPP has also been found to act as
a dopamine reuptake inhibitor and
produces hyperactivity in rodents
37
13

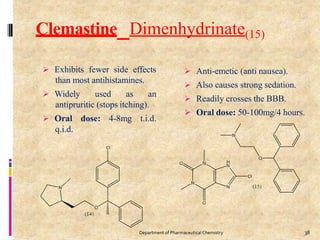

Clemastine Dimenhydrinate(15)
 Exhibits fewer side effects
than most antihistamines.
 Widely used as an
antipruritic (stops itching).
 Oral dose: 4-8mg t.i.d.
q.i.d.
 Anti-emetic (anti nausea).
 Also causes strong sedation.
 Readily crosses the BBB.
 Oral dose: 50-100mg/4 hours.
38

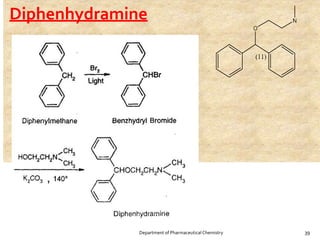

Diphenhydramine
39

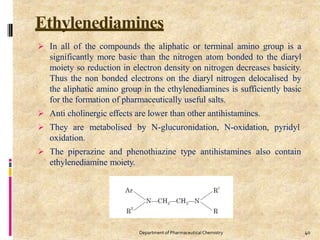

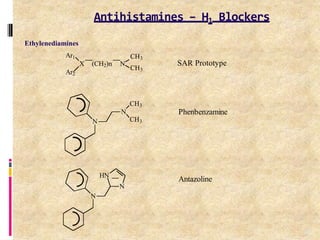

Ethylenediamines
40
 In all of the compounds the aliphatic or terminal amino group is a
significantly more basic than the nitrogen atom bonded to the diaryl
moiety so reduction in electron density on nitrogen decreases basicity.
Thus the non bonded electrons on the diaryl nitrogen delocalised by
the aliphatic amino group in the ethylenediamines is sufficiently basic
for the formation of pharmaceutically useful salts.
 Anti cholinergic effects are lower than other antihistamincs.
 They are metabolised by N-glucuronidation, N-oxidation, pyridyl
oxidation.
 The piperazine and phenothiazine type antihistamines also contain
ethylenediamine moiety.

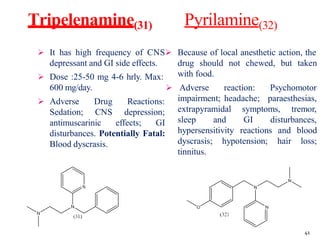

Tripelenamine(31) Pyrilamine(32)
depressant and GI side effects.
 Dose :25-50 mg 4-6 hrly. Max:
600 mg/day.
 Adverse
Sedation;
Drug Reactions:
CNS depression;
antimuscarinic effects; GI
disturbances. Potentially Fatal:
Blood dyscrasis.
 It has high frequency of CNS Because of local anesthetic action, the
drug should not chewed, but taken
with food.
 Adverse reaction:
impairment; headache;
Psychomotor
paraesthesias,
extrapyramidal symptoms, tremor,
disturbances,
sleep and GI
hypersensitivity reactions and blood
hair loss;
dyscrasis; hypotension;
tinnitus.
41

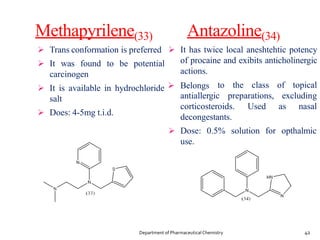

Methapyrilene(33)
 Trans conformation is preferred
 It was found to be potential
carcinogen
salt
 Does: 4-5mg t.i.d.
Antazoline(34)
 It has twice local aneshtehtic potency
of procaine and exibits anticholinergic
actions.
 It is available in hydrochloride  Belongs to the class of topical
antiallergic preparations, excluding
corticosteroids. Used as nasal
decongestants.
 Dose: 0.5% solution for opthalmic
use.
42

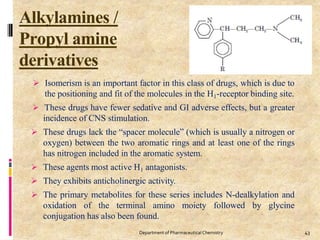

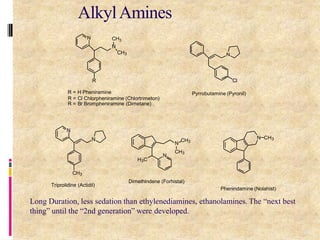

Alkylamines /
Propyl amine
derivatives
43
 Isomerism is an important factor in this class of drugs, which is due to
the positioning and fit of the molecules in the H1-receptor binding site.
 These drugs have fewer sedative and GI adverse effects, but a greater
incidence of CNS stimulation.
 These drugs lack the “spacer molecule” (which is usually a nitrogen or
oxygen) between the two aromatic rings and at least one of the rings
has nitrogen included in the aromatic system.
 These agents most active H1 antagonists.
 They exhibits anticholinergic activity.
 The primary metabolites for these series includes N-dealkylation and
oxidation of the terminal amino moiety followed by glycine
conjugation has also been found.

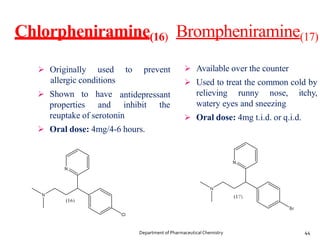

Chlorpheniramine(16) Brompheniramine(17)
 Originally used
allergic conditions
 Shown to
to prevent
antidepressant
properties
have
and inhibit the
reuptake of serotonin
 Oral dose: 4mg/4-6 hours.
 Available over the counter
 Used to treat the common cold by
relieving runny nose, itchy,
watery eyes and sneezing
 Oral dose: 4mg t.i.d. or q.i.d.
44

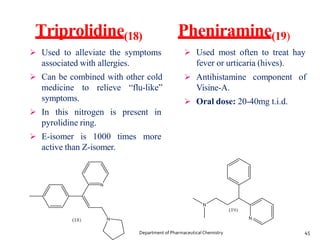

Triprolidine(18)
 Used to alleviate the symptoms
associated with allergies.
 Can be combined with other cold
medicine to relieve “flu-like”
symptoms.
 In this nitrogen is present in
pyrolidine ring.
 E-isomer is 1000 times more
active than Z-isomer.
Pheniramine(19)
 Used most often to treat hay
fever or urticaria (hives).
 Antihistamine component of
Visine-A.
 Oral dose: 20-40mg t.i.d.
45

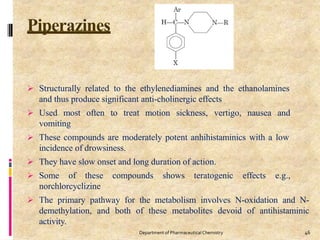

Piperazines
46
 Structurally related to the ethylenediamines and the ethanolamines
and thus produce significant anti-cholinergic effects
 Used most often to treat motion sickness, vertigo, nausea and
vomiting
 These compounds are moderately potent anhihistaminics with a low
incidence of drowsiness.
 They have slow onset and long duration of action.
 Some of these compounds shows teratogenic effects e.g.,
norchlorcyclizine
 The primary pathway for the metabolism involves N-oxidation and N-
demethylation, and both of these metabolites devoid of antihistaminic
activity.

Chlorcyclizine(20)
 This drug is used to treat motion
sickness, urticaria, hay fever,
and certain other allergic
conditions.
 Disubstitution or substitution of
halogen in the 2 or 3 positon of
the benzhydryl rings results in a
much lesss potent compounds.
Cetirizine(24)
47
It is primary acid metabolite
of hydroxyzine resulting from
complete oxidation of the
primary alcohol moiety. This
compound is zwitterionic and
relatively polar and thus does not
penetrate the BBB readily.
 It has no cardiac side effects.
 Oral dose: 5-10mg q.d.

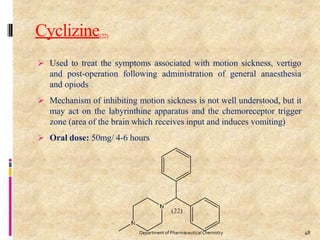

Cyclizine(22)
 Used to treat the symptoms associated with motion sickness, vertigo
and post-operation following administration of general anaesthesia
and opiods
 Mechanism of inhibiting motion sickness is not well understood, but it
may act on the labyrinthine apparatus and the chemoreceptor trigger
zone (area of the brain which receives input and induces vomiting)
 Oral dose: 50mg/ 4-6 hours
48

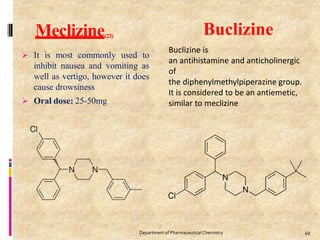

Meclizine(23)
 It is most commonly used to
inhibit nausea and vomiting as
well as vertigo, however it does
cause drowsiness
 Oral dose: 25-50mg
49
Buclizine
Buclizine is
an antihistamine and anticholinergic
of
the diphenylmethylpiperazine group.
It is considered to be an antiemetic,
similar to meclizine

Tricyclics
50
 These drugs are structurally related to tricyclic antidepressants, which
explains why they have cholinergic side effects
 Tricyclics compounds mainly contains phenothiazine and
dibenzocycloheptane and dibenzocycloheptane derivates.
 Here unbranched propyl chain is required as linkage between tricyle and
amino group for antihistaminic activity.
 Concurrent use of the alcoholic beverages and other CNS depressents
with the phenothiazines should be avoided.
 The combination of lengthening of the side chain and substitution of
lipophilic groups in the 2 position of the aromatic ring results in compounds
with decreased antihistaminic activity, and increased psychotherapeutic
properties.
Phenothiazine

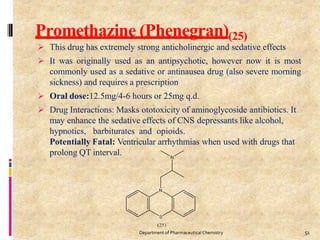

Promethazine (Phenegran)(25)
 This drug has extremely strong anticholinergic and sedative effects
 It was originally used as an antipsychotic, however now it is most
commonly used as a sedative or antinausea drug (also severe morning
sickness) and requires a prescription
 Oral dose:12.5mg/4-6 hours or 25mg q.d.
 Drug Interactions: Masks ototoxicity of aminoglycoside antibiotics. It
may enhance the sedative effects of CNS depressants like alcohol,
hypnotics, barbiturates and opioids.
Potentially Fatal: Ventricular arrhythmias when used with drugs that
prolong QT interval.
51

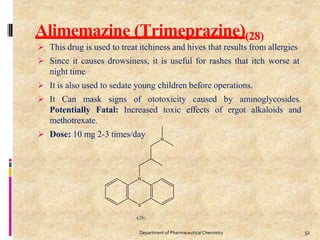

Alimemazine (Trimeprazine)(28)
 This drug is used to treat itchiness and hives that results from allergies
 Since it causes drowsiness, it is useful for rashes that itch worse at
night time
 It is also used to sedate young children before operations.
 It Can mask signs of ototoxicity caused by aminoglycosides.
Potentially Fatal: Increased toxic effects of ergot alkaloids and
methotrexate.
 Dose: 10 mg 2-3 times/day
52

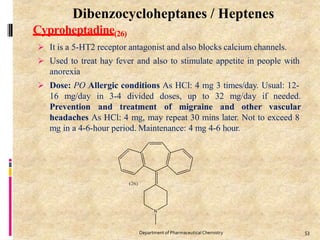

Cyproheptadine(26)
 It is a 5-HT2 receptor antagonist and also blocks calcium channels.
 Used to treat hay fever and also to stimulate appetite in people with
anorexia
 Dose: PO Allergic conditions As HCl: 4 mg 3 times/day. Usual: 12-
16 mg/day in 3-4 divided doses, up to 32 mg/day if
Prevention and treatment of migraine and other
needed.
vascular
headaches As HCl: 4 mg, may repeat 30 mins later. Not to exceed 8
mg in a 4-6-hour period. Maintenance: 4 mg 4-6 hour.
53
Dibenzocycloheptanes / Heptenes

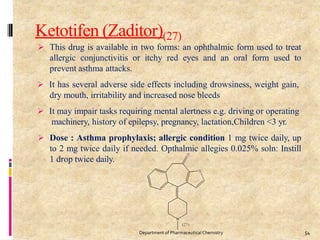

Ketotifen (Zaditor)(27)
 This drug is available in two forms: an ophthalmic form used to treat
allergic conjunctivitis or itchy red eyes and an oral form used to
prevent asthma attacks.
 It has several adverse side effects including drowsiness, weight gain,
dry mouth, irritability and increased nose bleeds
 It may impair tasks requiring mental alertness e.g. driving or operating
machinery, history of epilepsy, pregnancy, lactation,Children <3 yr.
 Dose : Asthma prophylaxis; allergic condition 1 mg twice daily, up
to 2 mg twice daily if needed. Opthalmic allegies 0.025% soln: Instill
1 drop twice daily.
54

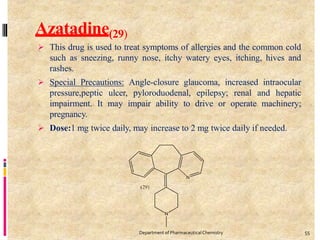

Azatadine(29)
 This drug is used to treat symptoms of allergies and the common cold
such as sneezing, runny nose, itchy watery eyes, itching, hives and
rashes.
 Special Precautions: Angle-closure glaucoma, increased intraocular
pressure,peptic ulcer, pyloroduodenal, epilepsy; renal and hepatic
impairment. It may impair ability to drive or operate machinery;
pregnancy.
 Dose:1 mg twice daily, may increase to 2 mg twice daily if needed.
55

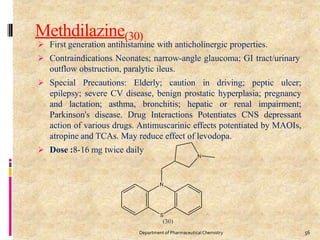

Methdilazine(30)
 First generation antihistamine with anticholinergic properties.
 Contraindications Neonates; narrow-angle glaucoma; GI tract/urinary
outflow obstruction, paralytic ileus.
 Special Precautions: Elderly; caution in driving; peptic ulcer;
epilepsy; severe CV disease, benign prostatic hyperplasia; pregnancy
and lactation; asthma, bronchitis; hepatic or renal impairment;
Parkinson's disease. Drug Interactions Potentiates CNS depressant
action of various drugs. Antimuscarinic effects potentiated by MAOIs,
atropine and TCAs. May reduce effect of levodopa.
 Dose :8-16 mg twice daily
56

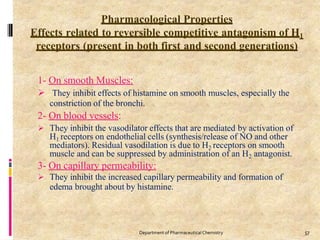

Pharmacological Properties
Effects related to reversible competitive antagonism of H1
receptors (present in both first and second generations)
57
1- On smooth Muscles:
 They inhibit effects of histamine on smooth muscles, especially the
constriction of the bronchi.
2- On blood vessels:
 They inhibit the vasodilator effects that are mediated by activation of
H1 receptors on endothelial cells (synthesis/release of NO and other
mediators). Residual vasodilation is due to H2 receptors on smooth
muscle and can be suppressed by administration of an H2 antagonist.
3- On capillary permeability:
 They inhibit the increased capillary permeability and formation of
edema brought about by histamine.

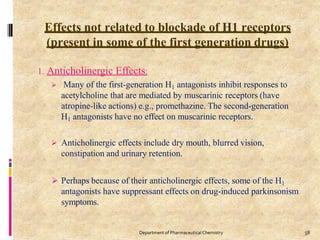

Effects not related to blockade of H1 receptors
(present in some of the first generation drugs)
58
1. Anticholinergic Effects:
 Many of the first-generation H1 antagonists inhibit responses to
acetylcholine that are mediated by muscarinic receptors (have
atropine-like actions) e.g., promethazine. The second-generation
H1 antagonists have no effect on muscarinic receptors.
 Anticholinergic effects include dry mouth, blurred vision,
constipation and urinary retention.
 Perhaps because of their anticholinergic effects, some of the H1
antagonists have suppressant effects on drug-induced parkinsonism
symptoms.

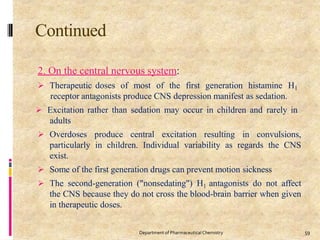

Continued
59
2. On the central nervous system:
 Therapeutic doses of most of the first generation histamine H1
receptor antagonists produce CNS depression manifest as sedation.
 Excitation rather than sedation may occur in children and rarely in
adults
 Overdoses produce central excitation resulting in convulsions,
particularly in children. Individual variability as regards the CNS
exist.
 Some of the first generation drugs can prevent motion sickness
 The second-generation ("nonsedating") H1 antagonists do not affect
the CNS because they do not cross the blood-brain barrier when given
in therapeutic doses.

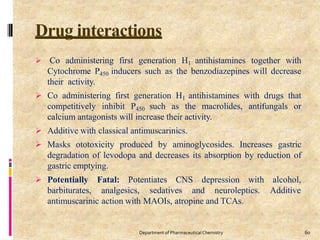

Drug interactions
60
 Co administering first generation H1 antihistamines together with
Cytochrome P450 inducers such as the benzodiazepines will decrease
their activity.
 Co administering first generation H1 antihistamines with drugs that
competitively inhibit P450 such as the macrolides, antifungals or
calcium antagonists will increase their activity.
 Additive with classical antimuscarinics.
 Masks ototoxicity produced by aminoglycosides. Increases gastric
degradation of levodopa and decreases its absorption by reduction of
gastric emptying.
 Potentially Fatal: Potentiates CNS depression with
barbiturates, analgesics, sedatives and neuroleptics.
alcohol,
Additive
antimuscarinic action with MAOIs, atropine and TCAs.

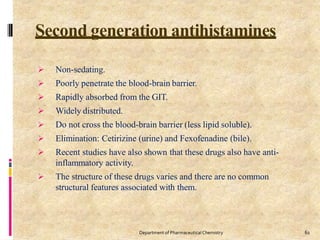

Second generation antihistamines
61
 Non-sedating.
 Poorly penetrate the blood-brain barrier.
 Rapidly absorbed from the GIT.
 Widely distributed.
 Do not cross the blood-brain barrier (less lipid soluble).
 Elimination: Cetirizine (urine) and Fexofenadine (bile).
 Recent studies have also shown that these drugs also have anti-
inflammatory activity.
 The structure of these drugs varies and there are no common
structural features associated with them.

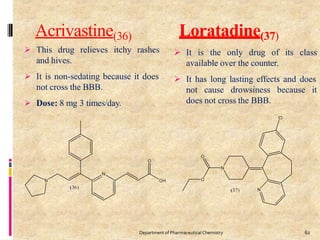

Acrivastine(36) Loratadine(37)
 This drug relieves itchy rashes
and hives.
 It is non-sedating because it does
not cross the BBB.
 Dose: 8 mg 3 times/day.
 It is the only drug of its class
available over the counter.
 It has long lasting effects and does
not cause drowsiness because it
does not cross the BBB.
62

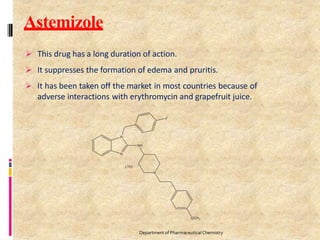

Astemizole
 This drug has a long duration of action.
 It suppresses the formation of edema and pruritis.
 It has been taken off the market in most countries because of
adverse interactions with erythromycin and grapefruit juice.

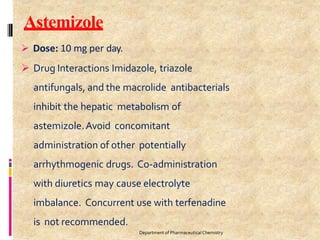

Astemizole
 Dose: 10 mg per day.
 Drug Interactions Imidazole, triazole
antifungals, and the macrolide antibacterials
inhibit the hepatic metabolism of
astemizole.Avoid concomitant
administration of other potentially
arrhythmogenic drugs. Co-administration
with diuretics may cause electrolyte
imbalance. Concurrent use with terfenadine
is not recommended.

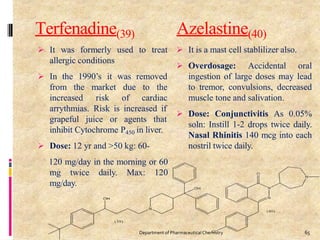

Terfenadine(39)
to treat
 It was formerly used
allergic conditions
 In the 1990’s it was removed
from the
increased
market
risk
due to the
of cardiac
arrythmias. Risk is increased if
grapeful juice or agents that
inhibit Cytochrome P450 in liver.
 Dose: 12 yr and >50 kg: 60-
120 mg/day in the morning or 60
mg twice daily. Max: 120
mg/day.
Azelastine(40)
 It is a mast cell stablilizer also.
 Overdosage: Accidental oral
ingestion of large doses may lead
to tremor, convulsions, decreased
muscle tone and salivation.
 Dose: Conjunctivitis As 0.05%
soln: Instill 1-2 drops twice daily.
Nasal Rhinitis 140 mcg into each
nostril twice daily.
65

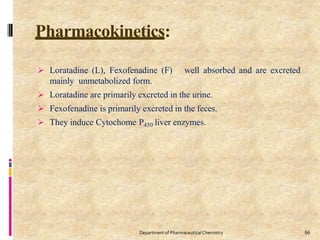

Pharmacokinetics:
66
 Loratadine (L), Fexofenadine (F) well absorbed and are excreted
mainly unmetabolized form.
 Loratadine are primarily excreted in the urine.
 Fexofenadine is primarily excreted in the feces.
 They induce Cytochome P450 liver enzymes.

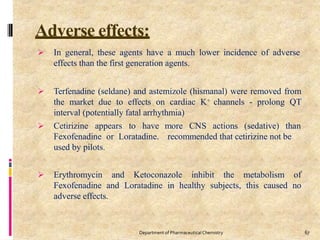

Adverse effects:
67
 In general, these agents have a much lower incidence of adverse
effects than the first generation agents.
 Terfenadine (seldane) and astemizole (hismanal) were removed from
the market due to effects on cardiac K+ channels - prolong QT
interval (potentially fatal arrhythmia)
more CNS actions (sedative) than
recommended that cetirizine not be
 Cetirizine appears to have
Fexofenadine or Loratadine.
used by pilots.
 Erythromycin and Ketoconazole inhibit the metabolism of
Fexofenadine and Loratadine in healthy subjects, this caused no
adverse effects.

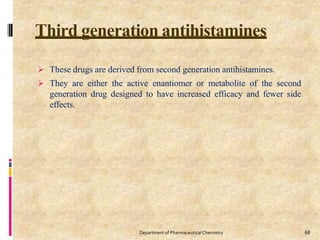

Third generation antihistamines
68
 These drugs are derived from second generation antihistamines.
 They are either the active enantiomer or metabolite of the second
generation drug designed to have increased efficacy and fewer side
effects.

Levocetirizine(45)
 This drug is the active R(-)enantiomer of cetirizine and is believed to
be more effective and have fewer adverse side effects.
 Also it is not metabolized and is likely to be safer than other drugs due
to a lack of possible drug interactions (Tillement).
 It does not cross the BBB and does not cause significant drowsiness.
 It has been shown to reduce asthma attacks by 70% in children.
 Dose: PO 10 mg once daily.
69

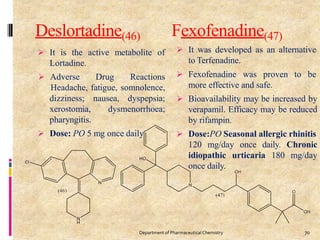

Deslortadine(46)
 It is the active metabolite of
Lortadine.
 Adverse Drug Reactions
Headache, fatigue, somnolence,
nausea, dyspepsia;
dysmenorrhoea;
dizziness;
xerostomia,
pharyngitis.
 Dose: PO 5 mg once daily
Fexofenadine(47)
 It was developed as an alternative
to Terfenadine.
 Fexofenadine was proven to be
more effective and safe.
 Bioavailability may be increased by
verapamil. Efficacy may be reduced
by rifampin.
 Dose:PO Seasonal allergic rhinitis
120 mg/day once daily. Chronic
idiopathic urticaria 180 mg/day
once daily.
70

71
Cromoglicic acid (Cromolyn, Cromoglycate,
Cromoglicate)
It is traditionally described as a mast cell stabilizer, and is
commonly marketed as the sodium salt sodium
cromoglicate or cromolyn sodium.
This drug prevents the release of inflammatory chemicals such
as histamine from mast cells.
Cromoglicic acid has been the non-corticosteroid treatment of
choice in the treatment of asthma, for which it has largely been
replaced by leukotriene receptor antagonists because of their
convenience (and perceived safety).

Clinical Uses ofAntihistamines H1 antagonist
72
 Allergic rhinitis (common cold).
 Allergic conjunctivitis (pink eye).
 Allergic dermatological conditions.
 Urticaria (hives).
 Angioedema (swelling of the skin).
 Pruritis (atopic dermatitis, insect bites).
 Anaphylactic reactions (severe allergies).
 Nausea and vomiting (first generation H1-antihistamines).
 Sedation (first generation H1-antihistamines).

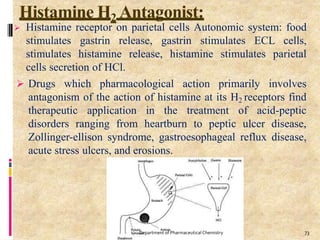

Histamine H2 Antagonist:

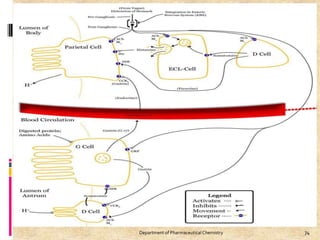

 Histamine receptor on parietal cells Autonomic system: food
stimulates gastrin release, gastrin stimulates ECL cells,
stimulates histamine release, histamine stimulates parietal
cells secretion of HCl.
 Drugs which pharmacological action primarily involves
antagonism of the action of histamine at its H2 receptors find
therapeutic application in the treatment of acid-peptic
disorders ranging from heartburn to peptic ulcer disease,
Zollinger-ellison syndrome, gastroesophageal reflux disease,
acute stress ulcers, and erosions.
73

74

Development in H2 antagoinst
 Must bind but not activate H2 receptor site
 Addition of a functional group to bind with another binding region
and prevent the conformational change
 Addition of aromatic ring was unsuccessful.
 Addition of non-polar, hydrophobic substituents, none antagonists,
 Histamine produces agonist activity on both H1 and H2 receptors
but methylation at 4 position of the imidazole heterocyle (48) of
the histamine produces selective agonist at atrial histamine
receptors (H2)
75

4-Methylhistamine(48)
 Not an antagonist, but highly H2 selective Conformational isomers
show preferential binding.
4-methylhistamine
Conformation I
4-methylhistamine
Conformation II
76

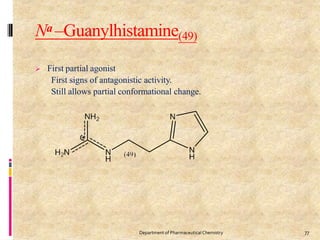

Na –Guanylhistamine(49)
 First partial agonist
First signs of antagonistic activity.
Still allows partial conformational change.
77

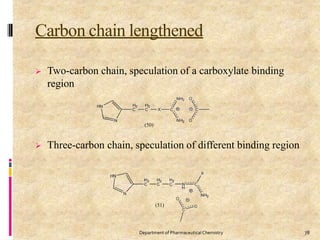

Carbon chain lengthened
 Two-carbon chain, speculation of a carboxylate binding
region
 Three-carbon chain, speculation of different binding region
(50)
78
(51)

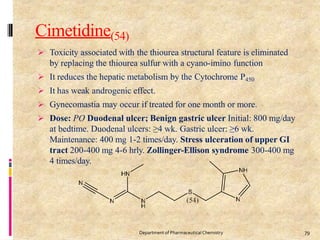

Cimetidine(54)
 Toxicity associated with the thiourea structural feature is eliminated
by replacing the thiourea sulfur with a cyano-imino function
 It reduces the hepatic metabolism by the Cytochrome P450
 It has weak androgenic effect.
 Gynecomastia may occur if treated for one month or more.
 Dose: PO Duodenal ulcer; Benign gastric ulcer Initial: 800 mg/day
at bedtime. Duodenal ulcers: ≥4 wk. Gastric ulcer: ≥6 wk.
Maintenance: 400 mg 1-2 times/day. Stress ulceration of upper GI
tract 200-400 mg 4-6 hrly. Zollinger-Ellison syndrome 300-400 mg
4 times/day.
79

Famotidine(55)
 Increased prolactin levels or impotent have been reported.
 No observable inhibition of cytochrome P-450.
 It is also useful in Zollinger-ellison syndrome.
 Absorption is lower (40 to 45% bioavilable).
 Dose: PO Benign gastric and duodenal ulceration 40 mg/day at
bedtime for 4-8 week. GERD 20 mg twice daily for 6-12 week. May
continue to prevent recurrence. Zollinger-Ellison syndrome Initial:
20 mg/6 hour, up to 800 mg/day if needed. Dyspepsia 10 mg twice
daily. Benign gastric and duodenal ulceration 20 mg/12 hour.
80

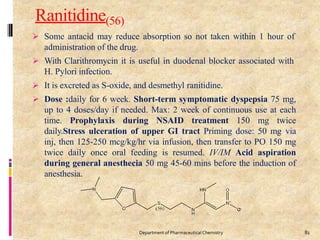

Ranitidine(56)
 Some antacid may reduce absorption so not taken within 1 hour of
administration of the drug.
 With Clarithromycin it is useful in duodenal blocker associated with
H. Pylori infection.
 It is excreted as S-oxide, and desmethyl ranitidine.
 Dose :daily for 6 week. Short-term symptomatic dyspepsia 75 mg,
up to 4 doses/day if needed. Max: 2 week of continuous use at each
time. Prophylaxis during NSAID treatment 150 mg twice
daily.Stress ulceration of upper GI tract Priming dose: 50 mg via
inj, then 125-250 mcg/kg/hr via infusion, then transfer to PO 150 mg
twice daily once oral feeding is resumed. IV/IM Acid aspiration
during general anesthecia 50 mg 45-60 mins before the induction of
anesthesia.
81

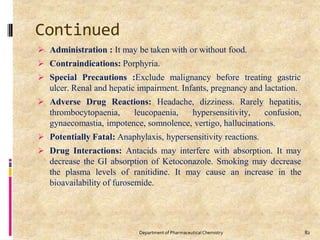

Continued
82
 Administration : It may be taken with or without food.
 Contraindications: Porphyria.
 Special Precautions :Exclude malignancy before treating gastric
ulcer. Renal and hepatic impairment. Infants, pregnancy and lactation.
 Adverse Drug Reactions: Headache, dizziness. Rarely hepatitis,
thrombocytopaenia, leucopaenia, hypersensitivity, confusion,
gynaecomastia, impotence, somnolence, vertigo, hallucinations.
 Potentially Fatal: Anaphylaxis, hypersensitivity reactions.
 Drug Interactions: Antacids may interfere with absorption. It may
decrease the GI absorption of Ketoconazole. Smoking may decrease
the plasma levels of ranitidine. It may cause an increase in the
bioavailability of furosemide.

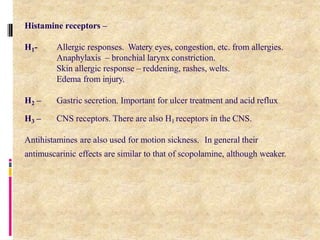

Histamine receptors –
83
H1- Allergic responses. Watery eyes, congestion, etc. from allergies.
Anaphylaxis – bronchial larynx constriction.
Skin allergic response – reddening, rashes, welts.
Edema from injury.
H2 – Gastric secretion. Important for ulcer treatment and acid reflux
H3 – CNS receptors. There are also H1 receptors in the CNS.
Antihistamines are also used for motion sickness. In general their
antimuscarinic effects are similar to that of scopolamine, although weaker.

HN N
NH2
H
HN N
NH2
H
CH3
HN N
NH2
H3C
HN
NH2
H
H
3
N H C

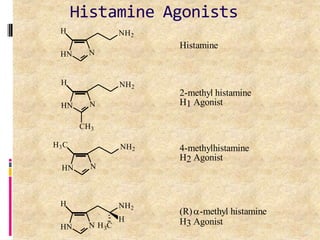

(R)-methyl histamine
H3 Agonist
84
4-methylhistamine
H2 Agonist
2-methyl histamine
H1 Agonist
Histamine
Histamine Agonists

Ethylenediamines
Ar1
Ar2
X (CH2)n N
CH3
CH3
N
N
CH3
CH3
N
HN
N
SAR Prototype
85
Phenbenzamine
Antazoline
Antihistamines – H1 Blockers

H
O
N
CH3
CH3
R1
N
CH3
CH3
O

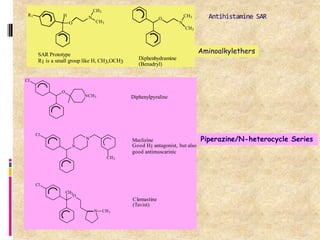

SAR Prototype
R1 is a small group like H, CH3,OCH3
Diphenhydramine
(Benadryl)
Aminoalkylethers
O
NCH3
Cl
Cl
N
N
Cl
CH3
O
Diphenylpyraline
Meclizine
Good H1 antagonist, but also
good antimuscarinic
CH3
Clemastine
(Tavist)
N CH3
Piperazine/N-heterocycle Series
86
Antihistamine SAR

AlkylAmines
Long Duration, less sedation than ethylenediamines, ethanolamines. The “next best
thing” until the “2nd generation” were developed.
N CH3
N
CH3
R
N
N
N
H3C
Cl
Pyrrobutamine (Pyronil)
R = H Pheniramine
R = Cl Chlorpheniramine (Chlortrimeton)
R = Br Brompheniramine (Dimetane)
CH3
Triprolidine (Actidil)
N
CH3
CH3
N
Dimethindene (Forhistal)
N CH3
Phenindamine (Nolahist)
87

N
NCH3
S
N
CH2CH2N(CH3)2
S
N
CH2CHN(CH3)2
CH3

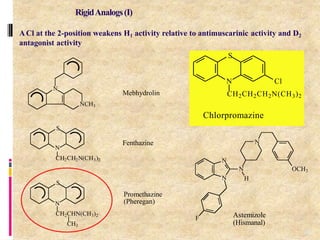

Mebhydrolin
Fenthazine
Promethazine
(Pheregan)
ACl at the 2-position weakens H1 activity relative to antimuscarinic activity and D2
antagonist activity
S
N Cl
CH2CH2CH2N(CH3)2
Chlorpromazine
N
N
N
N
OCH3
H
F Astemizole
(Hismanal)
88
RigidAnalogs(I)

Cl
O OCH2CH3
N
N
CH3
N
S
Cl
N
N
H
Primethixene
89
Loratadine (Claritin) Desloratadine (Clarinex)
RigidAnalogs (II)

Hismanal was FDA approved in 1988 as an antihistamine for allergy and hay fever symptom relief.
The FDA first warned consumers and healthcare providers of new safety information regarding
Hismanal February 9, 1998 due to the risk of death, cardiovascular adverse events, anaphylaxis, and
serious drug interactions.
In addition, Hismanal labeling was changed to stress avoiding the use of Hismanal in combination
with certain other medications and for liver disorder patients to completely avoid its' use.
After a series of labeling changes and warnings Hismanal was recalled on June 21, 1999.
N
N
N
N
OCH3
H
F Astemizole
(Hismanal)
90
Astemizole

Terfenadine was discontinued when it became apparent that there was a high
frequency of heart arrythmia associated with the drug. Fexofenadine is a
metabolite and is the activated form responsible for antihistamine activity. In
patients with compromised liver metabolism, or when the presence of other
drugs limited the metabolism of terfenadine, persistent levels resulted in the
observed arrythmias. Therefore, the fexofenadine replaced terfenadine (1997).
VentricularArrythmias are not good!
N
OH
O
Cl
F
Haloperidol (Haldol)
Prototype butyrophenone antipsychotic
10x Chlorpromazine
91
Antihistamines“related”tobutyrophenones

N
OH
OH
OH
COOH
N
OH
[OX]

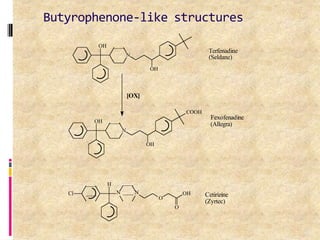

Terfenadine
(Seldane)
Fexofenadine
(Allegra)
N N
O
Cl
H
OH
O
Cetirizine
(Zyrtec)
92
Butyrophenone-like structures

O CH3
N
CH3
N
N
CH3
Cl
N
Cl
NH
N
N
O
Cl
OH
O
Diphenhydramine
93
Meclizine
Desloratadine
Cetirizine
Linking the first generation with Non-sedative
Antihistamines.
Big Picture - Bottom Line
Structural Summary

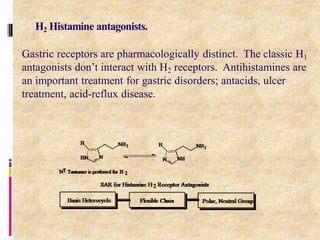

Gastric receptors are pharmacologically distinct. The classic H1
antagonists don’t interact with H2 receptors. Antihistamines are
an important treatment for gastric disorders; antacids, ulcer
treatment, acid-reflux disease.
H2 Histamine antagonists.
94

S
CH3
H
N
H
N
H
N
HN
H3C
S
CH3
H
N
H
N
S
N
HN
CN
H3C
N
CH3
H
N
H
N
S
N
HN
CH2N(CH3)2
CHNO2
CH3
H
N
N
C(NH2)2
NSO2NH2
NH2
S
N
S

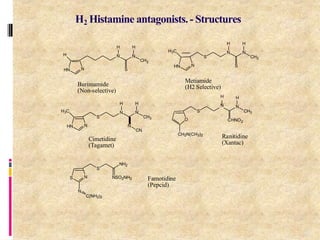

Burimamide
(Non-selective)
95
Metiamide
(H2 Selective)
H
N
S
O
Cimetidine
(Tagamet)
Ranitidine
(Xantac)
Famotidine
(Pepcid)
H2 Histamine antagonists.- Structures

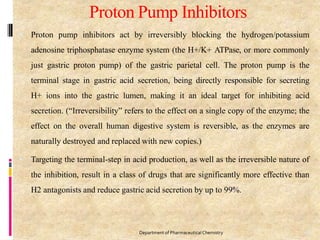

Proton Pump Inhibitors
96
 Proton pump inhibitors act by irreversibly blocking the hydrogen/potassium
adenosine triphosphatase enzyme system (the H+/K+ ATPase, or more commonly
just gastric proton pump) of the gastric parietal cell. The proton pump is the
terminal stage in gastric acid secretion, being directly responsible for secreting
H+ ions into the gastric lumen, making it an ideal target for inhibiting acid
secretion. (“Irreversibility” refers to the effect on a single copy of the enzyme; the
effect on the overall human digestive system is reversible, as the enzymes are
naturally destroyed and replaced with new copies.)
 Targeting the terminal-step in acid production, as well as the irreversible nature of
the inhibition, result in a class of drugs that are significantly more effective than
H2 antagonists and reduce gastric acid secretion by up to 99%.

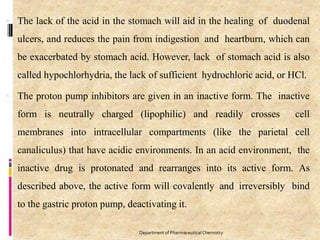

 The lack of the acid in the stomach will aid in the healing of duodenal
ulcers, and reduces the pain from indigestion and heartburn, which can
be exacerbated by stomach acid. However, lack of stomach acid is also
called hypochlorhydria, the lack of sufficient hydrochloric acid, or HCl.
 The proton pump inhibitors are given in an inactive form. The inactive
form is neutrally charged (lipophilic) and readily crosses cell
membranes into intracellular compartments (like the parietal cell
canaliculus) that have acidic environments. In an acid environment, the
inactive drug is protonated and rearranges into its active form. As
described above, the active form will covalently and irreversibly bind
to the gastric proton pump, deactivating it.
97

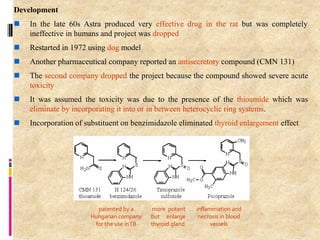

Development
 In the late 60s Astra produced very effective drug in the rat but was completely
ineffective in humans and project was dropped
 Restarted in 1972 using dog model
 Another pharmaceutical company reported an antisecretory compound (CMN 131)
 The second company dropped the project because the compound showed severe acute
toxicity
 It was assumed the toxicity was due to the presence of the thioamide which was
eliminate by incorporating it into or in between heterocyclic ring systems.
 Incorporation of substituent on benzimidazole eliminated thyroid enlargement effect
patented by a
Hungarian company
for the use inTB
more potent
but enlarge
thyroid gland
inflammation and
necrosis in blood
vessels
91

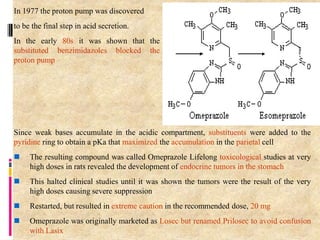

In 1977 the proton pump was discovered
to be the final step in acid secretion.
In the early 80s it was shown that the
substituted benzimidazoles blocked the
proton pump
Since weak bases accumulate in the acidic compartment, substituents were added to the
pyridine ring to obtain a pKa that maximized the accumulation in the parietal cell
 The resulting compound was called Omeprazole Lifelong toxicological studies at very
high doses in rats revealed the development of endocrine tumors in the stomach
 This halted clinical studies until it was shown the tumors were the result of the very
high doses causing severe suppression
 Restarted, but resulted in extreme caution in the recommended dose, 20 mg
 Omeprazole was originally marketed as Losec but renamed Prilosec to avoid confusion
with Lasix

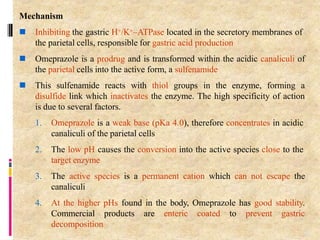

Mechanism
 Inhibiting the gastric H+/K+–ATPase located in the secretory membranes of
the parietal cells, responsible for gastric acid production
 Omeprazole is a prodrug and is transformed within the acidic canaliculi of
the parietal cells into the active form, a sulfenamide
 This sulfenamide reacts with thiol groups in the enzyme, forming a
disulfide link which inactivates the enzyme. The high specificity of action
is due to several factors.
1. Omeprazole is a weak base (pKa 4.0), therefore concentrates in acidic
canaliculi of the parietal cells
2. The low pH causes the conversion into the active species close to the
target enzyme
3. The active species is a permanent cation which can not escape the
canaliculi
4. At the higher pHs found in the body, Omeprazole has good stability.
Commercial products are enteric coated to prevent gastric
decomposition
93

94
CH3
O
NH
CH3
O
O
N
S
N

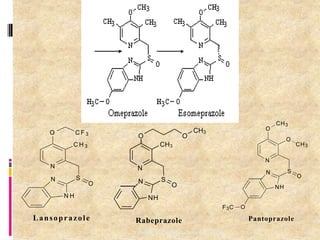

Rabeprazole
NH
CH3
O
F3C O
O
N
S
N
O
CH3
Pantoprazole
O
O
N
S
N H
N
C F 3
C H 3
Lansoprazole

94
Metabolism of proton pump inhibitors:
Metabolism of omeprazole and other proton pump inhibitors occurs
primarily in the liver. The sulphonated, hydroxylated, and O-
demethylated metabolites have been reported as products. The
oxidative metabolism of omeprazole is catalyzed principally by CYP2C19.
Different PPI depend differently on CYP2C19 for the oxidative
metabolism, and the enantiomer show variation of independence on
CYP2C19 and other pathways. Pantaprazole and lansoprazole show
greater metabolism via CYP2C19. The enantiomer being affected
differently than Rabeprazole, which is metabolized only to a small extent
by oxidative CYP450 enzyme.

 The pH at which half of the maximum rate of activation occurs is 3.0 for
Pantoprazole, 4.0 for Omeprazole and 5.0 for Lansoprazole
 Dexlansoprazole was approved in 2008
 All PPIs are rapidly converted at pH less than 2.0, but above 5.0,
Rabeprazole has been shown to have a faster rate of activation and thus
proton pump inhibition
 Differences in structure result in differences in pharmacokinetics, however,
differences in oral bioavailability are not clinically important
 All PPIs have similar potencies
 Undergo first pass metabolism primarily by CYP3A4 and CYP2C19
 All the PPIs are chiral because of the sulfur. Both isomers are converted
into the nonchiral active species at the same rate. In in vivo, the S
omeprazole (esomeprazole) produced higher plasma concentrations
because it undergoes less metabolism by CYP 2C19 and thus produces 70%
higherAUC than Omeprazole.
The pKa and the hydrophobicity of the PPIs determine the extent to which
it accumulates in the canalicular lumen. The rate of enzyme inhibition
corresponds to the rate of sulfenamide formation.
Which one is faster acting?
95

References
10
6
 Zhang, M-Q.; Leurs, R.; Timmerman, H. Histamine H1-receptor
antagonists.In Burger’s Medicinal Chemistry and Drug Discovery; 5th
Ed.; Wily-Interscince: New York, Vol. 5, 495-559; 1995.
 Nelson, W. L. Antihistamines and related antiallergic and antiulcer agents.
In Foye's Principles of Medicinal Chemistry. Williams D. A, Lemke T. L .
5th Ed.; Lippincott Williams & Wilkins: Philadelphia, 2002.
 Jaime N. D.,WilliamA.R.: WILSON & GISVOLD’S Textbook of organic
Medicinal and Pharmaceutical Chemistry : Antineoplastic agents; Ch.
12:10th edition:Lippincott Williams & Wilkins:343-401;1998.
 Zhang , M.; Thurmond, R. L.; Dunford, P.J. The histamine H4 receptor: A
novel modulator of inflammatory and immune disorders, Pharmacology
& therapeutics; vol-113, 594-606, 2007.
 Macor E.J., Annual Reports in Medicinal Chemistry;first edition;Elsevier
publication;42 ;chp 5; Recent advance in the histamine H3 and
antihistaminc drugs : 76-78; 2007.

References
10
7
 Macor E.J., Annual Reports in Medicinal Chemistry;first
edition;Elsevier publication:33; chp 30; 340-356; 1998.
 Laurence L. B.:Goodman & Gilman's the pharmacological basis of
therapeutics;chp 51, histaminic agents and antagonist, 11th edition:
Medical publishing division;629-640, 2006.
 Mohan Harsh., Textbook of Pathology: chp 6; 141-143, 2005.
 Hancock,A. A. et al. Antiobesity effects ofA-331440, a novel non-
imidazole histamine H3 receptor antagonist. European Journal of
Pharmacology, vol-487, 183-197, 2004.
 J.P. de Esch Iwan. et al., The histamine H4 receptor s a new
therapeutic target for inflammaion, Trends in Pharmaceutical
Sciences, vol-26, 462-469, 2005.

References
10
8
 http://clinicaltrials.gov
 http://www.fda.gov
 http://www.sciencedirect.com
 http://www.cimsasia.com

THANK YOU
10
9

antihistaminic presentation

More Related Content

What's hot

Similar to antihistaminic presentation

More from Akhil Nagar

Recently uploaded

antihistaminic presentation
