This document discusses repetitive system administration tasks and proposes Ansible as a solution. It describes how Ansible works using agentless SSH to automate tasks like software installation, configuration, and maintenance across multiple servers. Key aspects covered include Ansible's inventory, modules, playbooks, templates, variables, roles and Docker integration. Ansible Tower is also introduced as a GUI tool for running Ansible jobs. The document recommends Ansible for anyone doing the same tasks across multiple servers to gain efficiencies over manual processes.

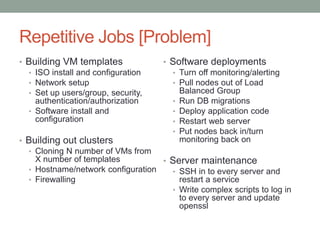

2. Repetitive Jobs [Problem]
• Building VM templates
• ISO install and configuration
• Network setup
• Set up users/group, security,
authentication/authorization
• Software install and
configuration
• Building out clusters
• Cloning N number of VMs from
X number of templates
• Hostname/network configuration
• Firewalling
• Software deployments
• Turn off monitoring/alerting
• Pull nodes out of Load
Balanced Group
• Run DB migrations
• Deploy application code
• Restart web server
• Put nodes back in/turn
monitoring back on
• Server maintenance
• SSH in to every server and
restart a service
• Write complex scripts to log in
to every server and update
openssl

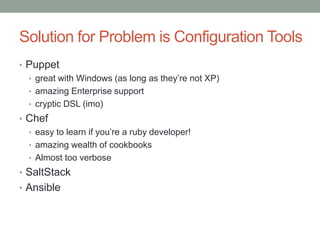

3. Solution for Problem is Configuration Tools
• Puppet
• great with Windows (as long as they’re not XP)
• amazing Enterprise support
• cryptic DSL (imo)
• Chef
• easy to learn if you’re a ruby developer!
• amazing wealth of cookbooks
• Almost too verbose
• SaltStack
• Ansible

4. Why Ansible?
• Agentless!
• Uses SSH (with one python requirement)
• Easy-to-read Syntax as YAML file
• Push-Based
• Ansible Scales Down
• Built-in-Modules
• Full power at the CLI (open source!)
• Even more features available in enterprise (Tower)

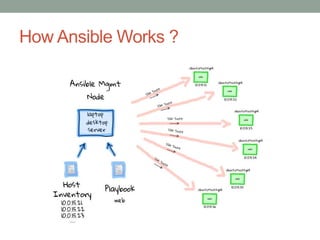

5. How Ansible Works ?

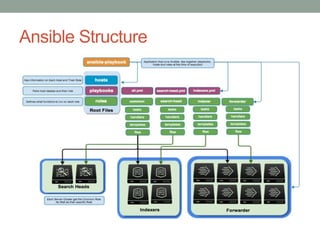

6. Ansible Structure

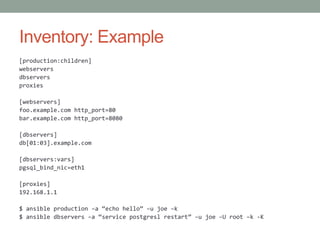

7. Inventory: Example
[production:children]
webservers
dbservers
proxies
[webservers]
foo.example.com http_port=80
bar.example.com http_port=8080
[dbservers]
db[01:03].example.com
[dbservers:vars]
pgsql_bind_nic=eth1
[proxies]
192.168.1.1
$ ansible production –a “echo hello” –u joe –k
$ ansible dbservers –a “service postgresl restart” –u joe –U root –k -K

8. Modules
• can be written in any language as long as they output
JSON
• take parameters and conditions to define desired state
• handles processing of system resources, services,
packages, files, etc. in idempotent fashion
• “seek to avoid changes to the system unless a change
needs to be made”
• ansible comes preloaded with a plethora of modules
• tons of community pull requests

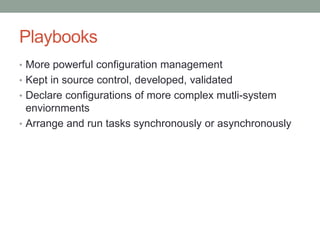

9. Playbooks
• More powerful configuration management
• Kept in source control, developed, validated
• Declare configurations of more complex mutli-system
enviornments
• Arrange and run tasks synchronously or asynchronously

10. Playbooks: Example
---
- hosts: all
remote_user: vagrant
sudo: true
sudo_user: root
vars_files:
- roles/vars/webserver.encrypt
vars:
lifecycle: dev
roles:
- roles/debian
- roles/vmware-tools
- roles/local-users
- roles/sudoers
- roles/iptables
- roles/clamav
- roles/java-jdk-7
- roles/postgres
- roles/apache
- roles/tomcat-7
- { role: roles/tc-native, when: native== 'true' }
- roles/ansible
- roles/git
- roles/liquibase
- roles/cleanup
post_tasks:
- name: Reboot the Server
command: '/sbin/reboot'
- name: Wait for Server to come back
wait_for: host='{{inventory_hostname}} ’port='22’
sudo: no
delegate_to: localhost
- name: Wait for Services to start fully
wait_for: port='{{item}}' delay='5' timeout='600'
with_items:
- '8009' #ajp
- '8080' #tomcat
- '80' #httpd

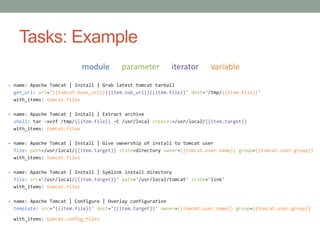

11. Tasks: Example
module parameter iterator variable
- name: Apache Tomcat | Install | Grab latest tomcat tarball
get_url: url='{{tomcat.base_url}}{{item.sub_url}}{{item.file}}' dest='/tmp/{{item.file}}'
with_items: tomcat.files
- name: Apache Tomcat | Install | Extract archive
shell: tar -xvzf /tmp/{{item.file}} -C /usr/local creates=/usr/local/{{item.target}}
with_items: tomcat.files
- name: Apache Tomcat | Install | Give ownership of install to tomcat user
file: path=/usr/local/{{item.target}} state=directory owner={{tomcat.user.name}} group={{tomcat.user.group}}
with_items: tomcat.files
- name: Apache Tomcat | Install | Symlink install directory
file: src='/usr/local/{{item.target}}' path='/usr/local/tomcat' state='link'
with_items: tomcat.files
- name: Apache Tomcat | Configure | Overlay configuration
template: src=‘{{item.file}}' dest='{{item.target}}' owner={{tomcat.user.name}} group={{tomcat.user.group}}
with_items: tomcat.config_files

12. Variables:
• Simple YAML format
• Can create arrays and hashes
• Can substitute vars into vars
• Vars can be defined at many levels (default, role
,playbook)
• Can test conditionals on vars and require them
• Can be filtered and manipulated with jinja2
• Can be matched to regex!

13. Templates
• Templates are interpreted by jinja2
• stub out files
• fill variables in differently depending on conditions
• Powerful conditionals
• Loops and iterators
• Replace a file completely every time?
• Yes. We configure for an end state.

14. Handlers
• Written just like a regular task
• Only run if triggered by the notify directive
• Indicates a change in the system state
• Any module can be used for the handler action
Handler
- name: Restart Tomcat
service: name=tomcat state=restarted
Task
- name: Apache Tomcat | Configure | Overlay configuration
template: src=‘{{item.file}}' dest='{{item.target}}’
with_items: tomcat.config_files
notify: Restart Tomcat

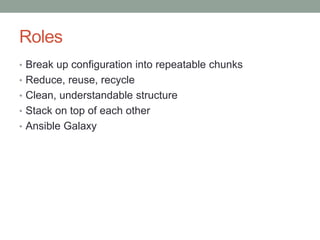

15. Roles
• Break up configuration into repeatable chunks
• Reduce, reuse, recycle
• Clean, understandable structure
• Stack on top of each other
• Ansible Galaxy

16. Docker and Ansible

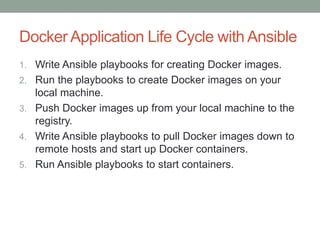

17. Docker Application Life Cycle with Ansible
1. Write Ansible playbooks for creating Docker images.
2. Run the playbooks to create Docker images on your
local machine.
3. Push Docker images up from your local machine to the
registry.
4. Write Ansible playbooks to pull Docker images down to
remote hosts and start up Docker containers.
5. Run Ansible playbooks to start containers.

18. Ansible Tower
is a user friendly web-based Graphical User Interface (GUI) that lowers the
entry barrier of using Ansible.

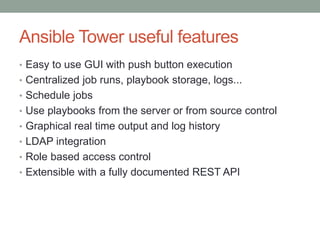

19. Ansible Tower useful features
• Easy to use GUI with push button execution
• Centralized job runs, playbook storage, logs...
• Schedule jobs
• Use playbooks from the server or from source control
• Graphical real time output and log history
• LDAP integration
• Role based access control
• Extensible with a fully documented REST API

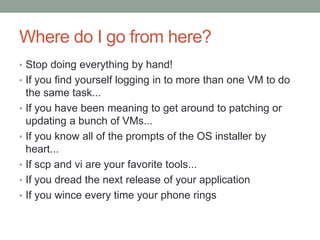

20. Where do I go from here?
• Stop doing everything by hand!
• If you find yourself logging in to more than one VM to do
the same task...
• If you have been meaning to get around to patching or
updating a bunch of VMs...
• If you know all of the prompts of the OS installer by
heart...
• If scp and vi are your favorite tools...
• If you dread the next release of your application
• If you wince every time your phone rings

21. Use Ansible
• Get more sleep
• Require less coffee
