An AI accelerator ASIC architecture
1. A scalable AI accelerator
ASIC platform
K. Le, January 17, 2019
Presented for information only. No guarantee for accuracy
and correctness.
2. 2 1/17/2019K. Le

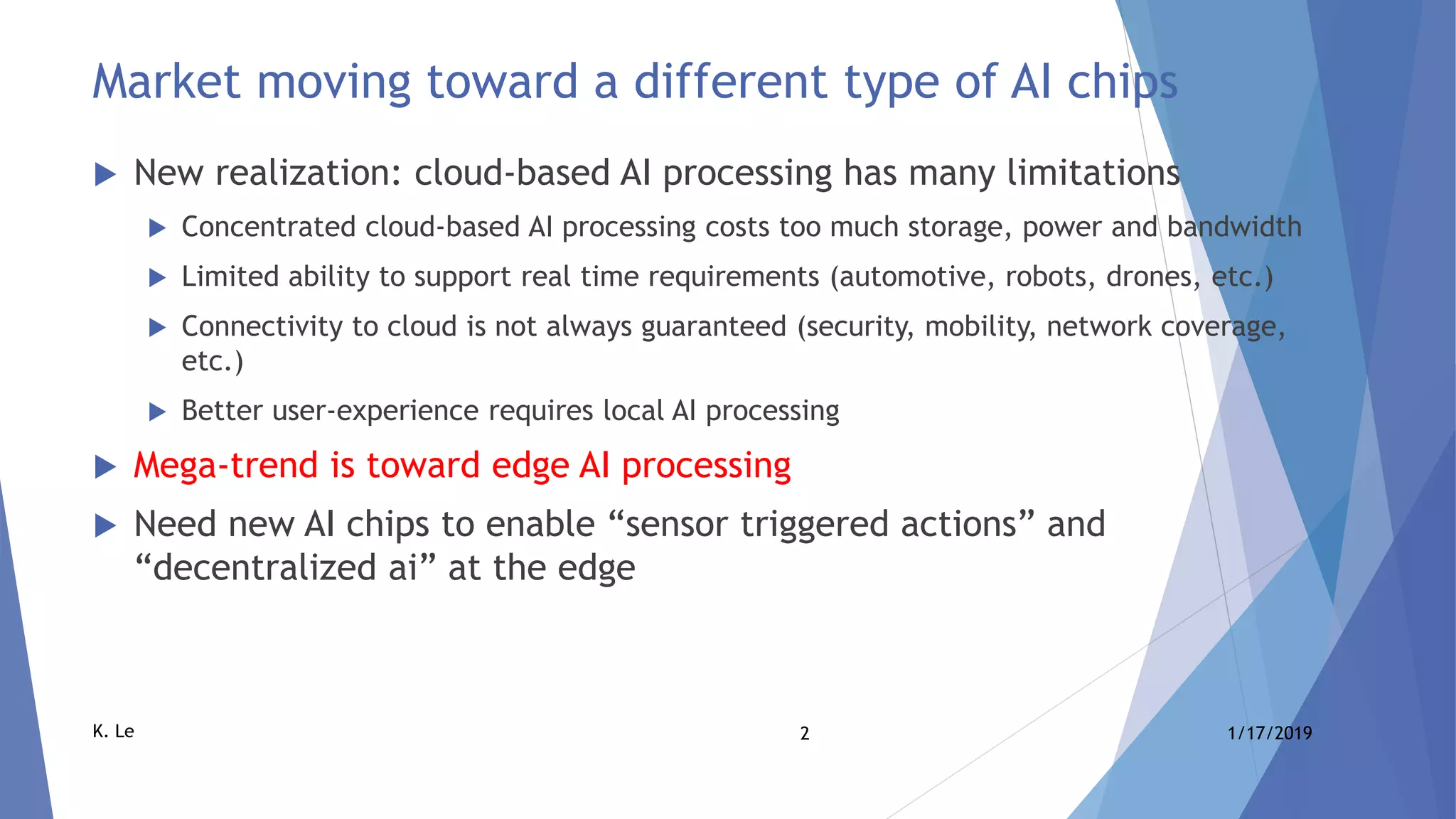

Market moving toward a different type of AI chips
New realization: cloud-based AI processing has many limitations
Concentrated cloud-based AI processing costs too much storage, power and bandwidth
Limited ability to support real time requirements (automotive, robots, drones, etc.)
Connectivity to cloud is not always guaranteed (security, mobility, network coverage,
etc.)
Better user-experience requires local AI processing
Mega-trend is toward edge AI processing
Need new AI chips to enable “sensor triggered actions” and
“decentralized ai” at the edge
3. 3 1/17/2019K. Le
Required edge AI processing functions
Audio
speech recognition
identification, security
language processing/translation
Video
image recognition
pattern/object/face recognition
Environmental/physical condition
pressure, tension, force, temperature, noise, heart beat, humidity, etc.
5. 5 1/17/2019K. Le
High level architecture
Based on a scalable AI
compute fabric
Pipelined flow for fast
learning and inferring
Flexible architecture suitable
for cloud, gateway and edge
ai
Allows up-scaling to multi-
chip solutions
AI Compute
Fabric
Input Data Buffer,
Memory & Control
Output Data Buffer,
Memory & Control
Control
Processor
IO
Inter
face
s
ROM/
SRAM
PLL &
PM
M
u
l
t
i
p
l
e
D
a
t
a
S
t
r
e
a
m
s
• AI COMPUTE FABRIC
• MULTIPLE PARALLEL DATA
STREAMS
• SCALABLE AND PARTITIONABLE
• ENERGY EFFICIENT
• FAST (UP TO 2-4GHZ)
• CONTROL PROCESSOR (ANDES,
ARM, MIPS, RISC-V, ETC.)
• LEARNING (CALCULATIONS,
ALGORITHM EXECUTION,
COMPARING, MODEL UPDATES)
• INFERRING [ALGORITHM UPDATE,
DECISION MAKING)
• IO INTERFACE TO MULTI-CHIP
SOLUTIONS
6. 6 1/17/2019K. Le
Detailed diagram
@250mHz FABRIC frequency, MAXIMUM THROUGHPUT
of a 1-cluster AI accelerator is 4 giga byte ops
(2 bytes x 8 PE) x 1 cluster x 0.25Ghz -> 4 giga byte
operations per second
128-bit input and output data buffers allow scaling
of fabric frequency without throttling
Control processor can be V-type, ARM Cortex, etc.
operating at 100-250mhz
Two independent clock domains – fabric and control
Power: <2W on 14-16FF @250MHz
Die size: 15 to 20mm2
AI Compute
Fabric
(1 block of 8x8
PEs)
128-bit Wide Output
Data Buffer
Control
Processor
IO
Inter
face
Cont
rol
32KB
L1 /
0.5MB
L2
SRAM
PLLs
32 Gbps Interface
(32 1 Gpbs LVDS)
128-bit Wide Input
Data Buffer
32 Gbps Interface
(32 1 Gpbs LVDS)
Vertical
Fabric
Flow
Control
Power
Mgmt
ROM/Se
curity
GPIO
s
/
LVDS
Horizontal Fabric
Control
GPIOs/LVDS
JTAG/T
est
CPU
LPDDR
Contro
ller &
PHY
7. 7 1/17/2019K. Le
AI accelerator ASIC platform: multi-chip solutions
Up-scalable SOC & system
architecture
Suitable for massive data
processing
Connectivity to server racks or
cloud via network
AI Compute Fabric
Input Data Buffer,
Memory & Control
Output Data Buffer,
Memory & Control
AI Compute Fabric
Input Data Buffer,
Memory & Control
Output Data Buffer,
Memory & Control
AI Compute Fabric
Input Data Buffer,
Memory & Control
Output Data Buffer,
Memory & Control
AI Compute Fabric
Input Data Buffer,
Memory & Control
Output Data Buffer,
Memory & Control
Host IO: PCIe-4
Switch & Flow
Control SOC
To Cloud
Or Cards/
Racks
Host IO: PCIe-4
8. 8 1/17/2019K. Le
Processing Fabric
An example is the “piperench” coarse-grained reconfigurable
architecture from Carnegie-Mellon U.
9. 9 1/17/2019K. Le
Fabric: local cluster
Local Fabric architecture offers:
8x8 local cluster configuration
sufficient for most applications
Byte-wide processing elements
Easy Scalability to 8 bytes per local
cluster
Predictable Performance
Ample Routing resources
Pipe-lined flow architecture
Faster and more power efficient than
CPU/GPU architectures
Might add local mem blocks for
reverse machine learning applications
8
Note: H- and V-bus widths to be optimized
Expandable to 16b, 32b, 64b, etc.
word widths
P
E
P
E
P
E
…
P
E
P
E
P
E
…
…
…
…
P
E
P
E
P
E
…
8
8-bit Wide
V-Local (8-bit)* V-Local (8-bit)*
H-Local
(8-bit)*
H-Local
(8-bit)*
H-Local
(8-bit)*
M
u
l
t
i
p
l
e
C
o
m
p
u
t
e
S
t
r
e
a
m
s
Compute Stream A
Compute Stream B Compute Stream N
Local Mem Local Mem Local Mem
10. 10 1/17/2019K. Le
Fabric: global clusters
Global fabric architecture offers:
Easy scalability to any (X,Y)
configurations to fit particular
applications
Pipe-lined flow architecture
Higher performance and efficiency
Note: H- and V-bus widths to be optimized
8x8
PEs
8x8
PEs
8x8
PEs
…
8x8
PEs
8x8
PEs
8x8
PEs
…
…
…
…
8x8
PEs
8x8
PEs
8x8
PEs
…
Y
Local Clusters
V-Global (8/16-bit)* V-Global (8/16-bit)*
H-Global
(8/16-bit)*
H-Global
(8/16-bit)*
H-Global
(8/16-bit)*
x
M
u
l
t
i
p
l
e
C
o
m
p
u
t
e
S
t
r
e
a
m
s
…
Compute Stream
11. 11 1/17/2019K. Le
Fast parallel
computational fabric
Parallel computational tasks
mapped at compiler-level to
multiple kernels concurrently
executed inside fabric
On-chip HW task-master
control
schedule
monitor
8x8
PEs
8x8
PEs
8x8
PEs
…
8x8
PEs
8x8
PEs
8x8
PEs
…
…
…
…
8x8
PEs
8x8
PEs
8x8
PEs
…
Local Clusters
M
u
l
t
i
p
l
e
C
o
m
p
u
t
e
S
t
r
e
a
m
s
…
Kernel A Kernel B
Kernel C
TASK
MASTER
13. 13 1/17/2019K. Le
Processing Element
Proposed by Lu Wan, Chen Dong and Deming
Chen of U. of ILLInois, Urbana-Champaign
(2012)
Advantages:
Complete
High-performance by-pass path
Compatible with fabric architecture
Changes from original:
No on-the-fly fabric reconfiguration, done at
compile time
PE To be re-optimized (add barrel shifter?)
15. 15 1/17/2019K. Le
AI accelerator ASIC: high
performance platform
@1GHz FABRIC frequency, MAXIMUM THROUGHPUT of a
4x4 cluster AI accelerator asic is 256 Giga byte OPS
(2 bytes x 8 PE) x 4x4 Clusters x 1 Ghz -> 256 giga byte
operations per second
@1GHz FABRIC frequency, MAXIMUM THROUGHPUT of a
8x8 cluster AI accelerator asic is 1 TOPS
Fabric can probably operate at up to 4GHz in 14LPP -> 4
TOPS
512-bit input and output data buffers allow scaling of
fabric frequency to over 1GHz without significant
throttling
Control processor can be 32- or 64-bit (andes n9 or v-
type, arm cortex, etc.) operating at 300-500mhz
Two independent clock domains – fabric and control
Power: 10-12W on 14/16FF (7W for PCIe-4, 2-3W for
fabric, 2w for all others)
Die size: should not exceed 50-60mm2
1GHz
AI Compute
Fabric
(4x4 blocks of
8x8 PEs)
512-bit Wide Output
Data Buffer
32- or 64-bit
Control
Processor
IO
Inter
face
Cont
rol
64KB
L1 /
1MB
L2
SRAM
PLLs32 PCIe-4 SerDes
512-bit Wide Input
Data Buffer
32 PCIe-/4 SerDes
Vertical
Fabric
Flow
Control
Power
Mgmt
ROM/
Securi
ty
GPIO
s
/
LVDS
Horizontal Fabric
Control
GPIOs/LVDS
JTAG/T
est
This architecture utilizes a dedicated CPU for AI tasks in the SOC.
CPU
LPDDR
Contro
ller &
PHY
Fabric
LPDDR
Control
ler &
PHY
Editor's Notes
160 zetta bytes by 2025 from AI devices
2.6 billion connected AI devices
CPU and memory contain the known agents, model representations, and algorithms for ML. Needs DDR (128b) for large data sets and complex models and algos.
PCIe-4 switch and interface to rack or cloud
CPU and memory contain the known agents, model representations, and algorithms for ML. Needs DDR (128b) for large data sets and complex models and algos.
