1. 1 October 2015
IBM Power Linux
Introduce PowerKVM an Open Virtualization choice for Linux Systems
Zainal Abidin <Zainal.Abidin@Avnet.com>Pacet - October 22, 2015

2. 2 October 2015
Today Agenda
• Intro
• Why Linux?
• Power System Technology
• Virtualizations on Power System
• PowerKVM Architecture & Strategy
• Live Demo
• Q & A

3. 3 October 2015
Intro

4. 4 October 2015
2.880 Core Power 7 15 TB RAM
80 teraflops
200 million pages
of content
Waitless Computing for Digital Era
Hardware of IBM Watson

5. 5 October 2015
Why Linux?

6. 6 October 2015

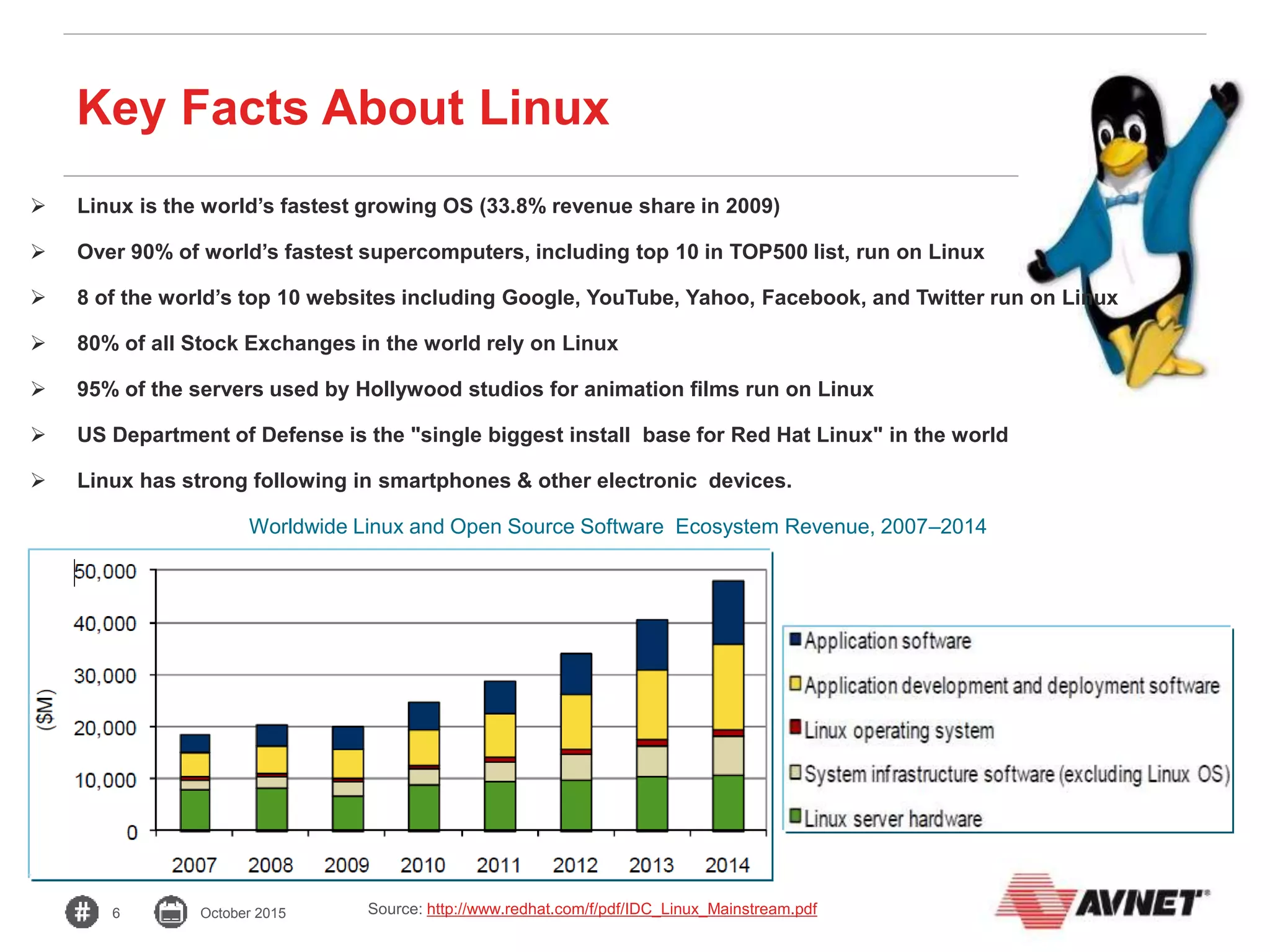

Key Facts About Linux
 Linux is the world’s fastest growing OS (33.8% revenue share in 2009)
 Over 90% of world’s fastest supercomputers, including top 10 in TOP500 list, run on Linux
 8 of the world’s top 10 websites including Google, YouTube, Yahoo, Facebook, and Twitter run on Linux
 80% of all Stock Exchanges in the world rely on Linux
 95% of the servers used by Hollywood studios for animation films run on Linux
 US Department of Defense is the "single biggest install base for Red Hat Linux" in the world
 Linux has strong following in smartphones & other electronic devices.
Worldwide Linux and Open Source Software Ecosystem Revenue, 2007–2014
Source: http://www.redhat.com/f/pdf/IDC_Linux_Mainstream.pdf

7. 7 October 2015

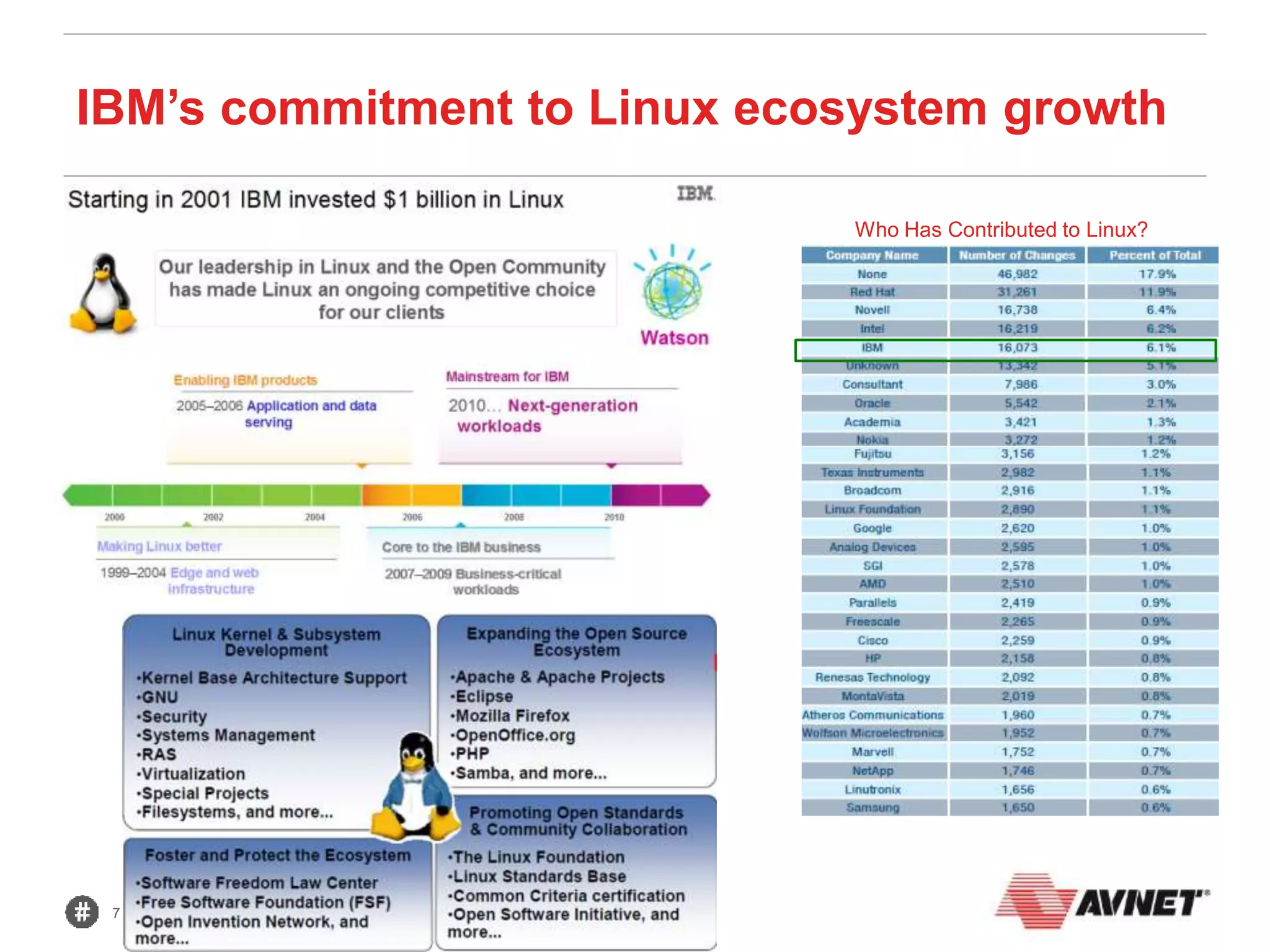

IBM’s commitment to Linux ecosystem growth
Learn about Power
Systems Linux centers
Beijing, China
Austin, TX
New York, NY
Montpellier, France
Who Has Contributed to Linux?

8. 8 October 2015
IBM continues its commitment to Linux growth
Power Systems intends to invest
a billion dollars in solutions for Linux
and open source workloads,
adding to prior investments by IBM
during the last decade on a wide
range of open initiatives.
$1 Billion….again
IBM Press Release
Wall Street Journal Coverage
And, we recently opened a Power
Systems Linux Center in Montpellier,
France, joining our centers around the
world dedicated to Linux developers.
Learn about Power
Systems Linux centers
Beijing, China
Austin, TX
New York, NY
Montpellier, France
Request briefing or training session
Request porting assistance
OpenPOWER
Consortium

9. 9 October 2015
Power Systems Technology

10. 10 October 2015

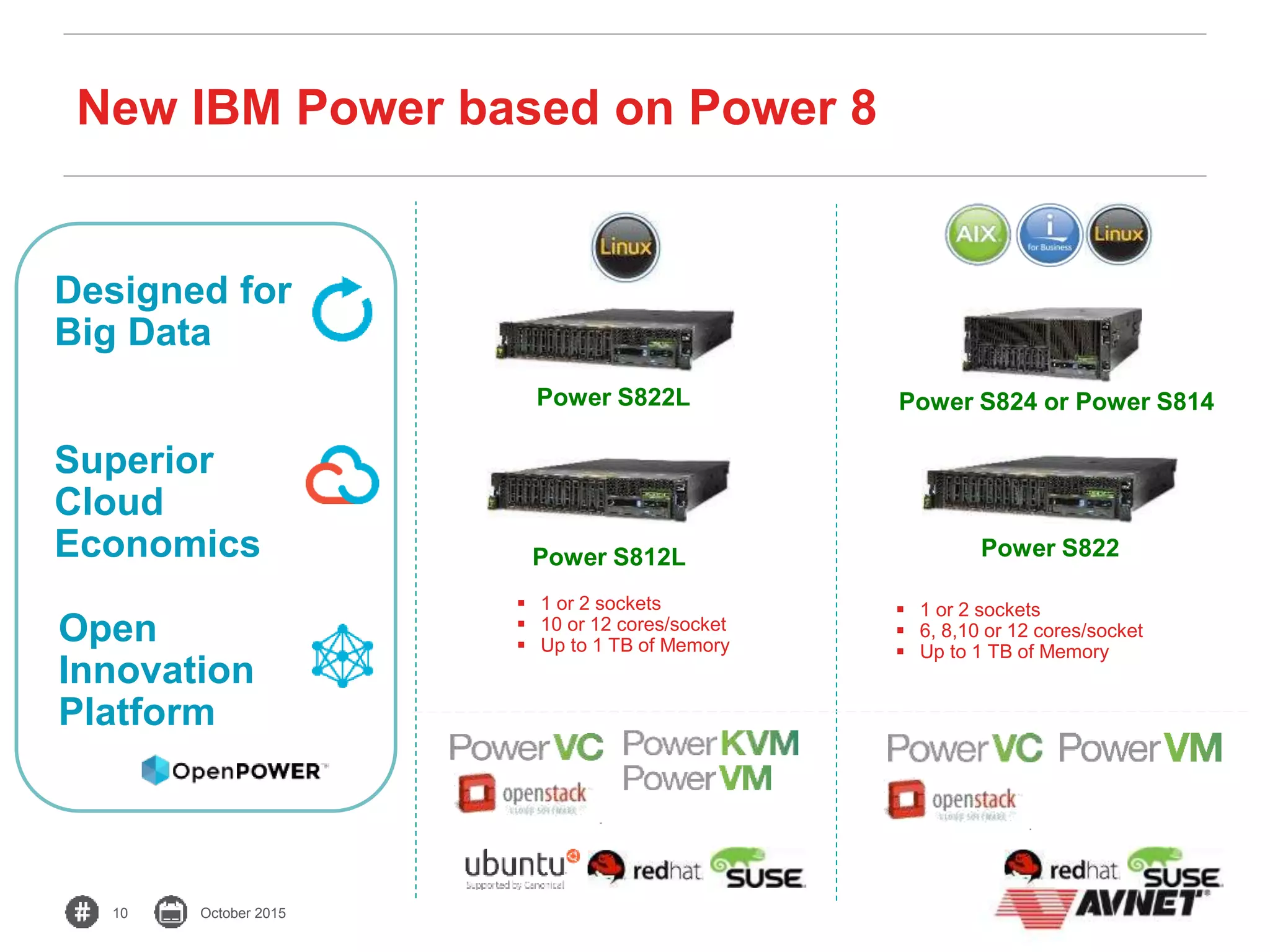

New IBM Power based on Power 8
Power S822L
 1 or 2 sockets
 10 or 12 cores/socket
 Up to 1 TB of Memory
Power S824 or Power S814
 1 or 2 sockets
 6, 8,10 or 12 cores/socket
 Up to 1 TB of Memory
Power S822Power S812L
Designed for
Big Data
Superior
Cloud
Economics
Open
Innovation
Platform

11. 11 October 2015

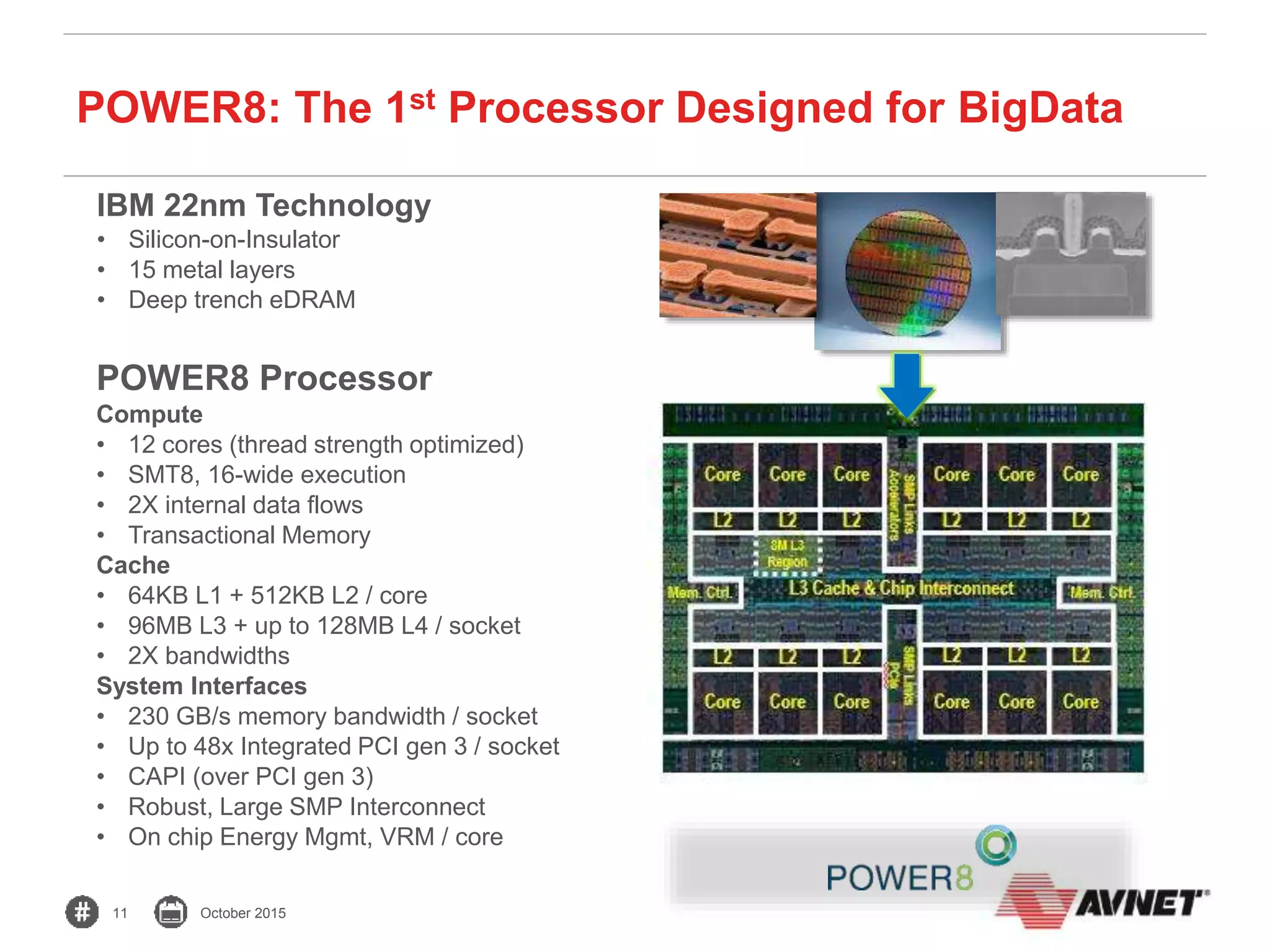

POWER8: The 1st Processor Designed for BigData
IBM 22nm Technology
• Silicon-on-Insulator
• 15 metal layers
• Deep trench eDRAM
POWER8 Processor
Compute
• 12 cores (thread strength optimized)
• SMT8, 16-wide execution
• 2X internal data flows
• Transactional Memory
Cache
• 64KB L1 + 512KB L2 / core
• 96MB L3 + up to 128MB L4 / socket
• 2X bandwidths
System Interfaces
• 230 GB/s memory bandwidth / socket
• Up to 48x Integrated PCI gen 3 / socket
• CAPI (over PCI gen 3)
• Robust, Large SMP Interconnect
• On chip Energy Mgmt, VRM / core

12. 12 October 2015

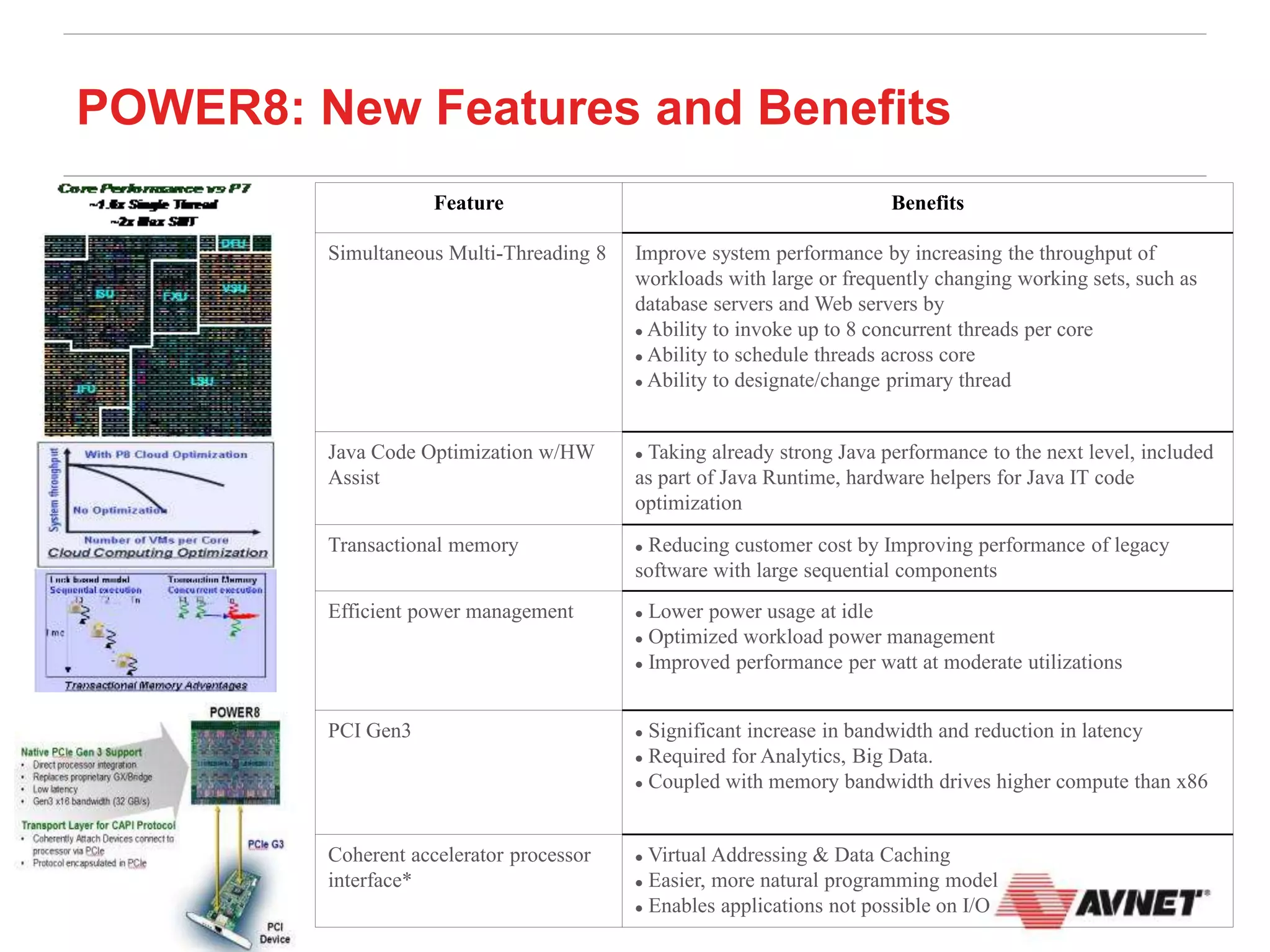

POWER8: New Features and Benefits
Feature Benefits
Simultaneous Multi-Threading 8 Improve system performance by increasing the throughput of
workloads with large or frequently changing working sets, such as
database servers and Web servers by
 Ability to invoke up to 8 concurrent threads per core
 Ability to schedule threads across core
 Ability to designate/change primary thread
Java Code Optimization w/HW
Assist
 Taking already strong Java performance to the next level, included
as part of Java Runtime, hardware helpers for Java IT code
optimization
Transactional memory  Reducing customer cost by Improving performance of legacy
software with large sequential components
Efficient power management  Lower power usage at idle
 Optimized workload power management
 Improved performance per watt at moderate utilizations
PCI Gen3  Significant increase in bandwidth and reduction in latency
 Required for Analytics, Big Data.
 Coupled with memory bandwidth drives higher compute than x86
Coherent accelerator processor
interface*
 Virtual Addressing & Data Caching
 Easier, more natural programming model
 Enables applications not possible on I/O

13. 13 October 2015
Chip Family
Core
Frequency
(GHz)
L1 and L2
Cache per
Core
Approximate
Cache per
Core (MB)
Intel EN E5-v2 (8+ core) 1.7 – 2.4
64 KB
256 KB
2.81
Intel EP E5-v3 (8+ core) 1.8 – 3.2
64 KB
256 KB
2.81
Intel E7-v2 (8+ core) 2.0 – 3.2
64 KB
256 KB
2.81
POWER8 (8+ core) 3.4 – 4.35
96 KB
512 KB
19.27
System z EC12 5.50
160 KB
2 MB
20.82
Cache and Core Speed

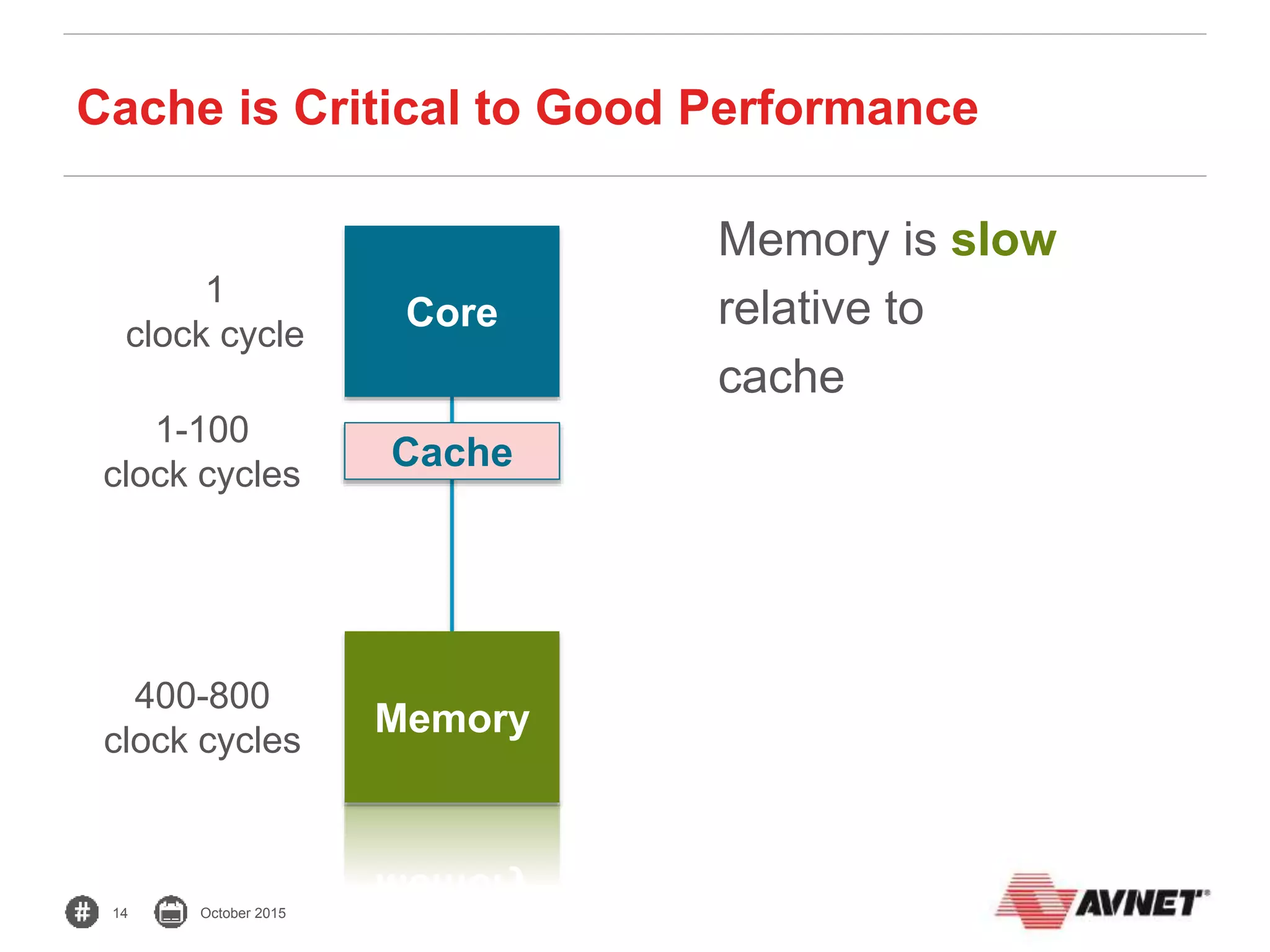

14. 14 October 2015
Core
Cache
Memory
Memory is slow
relative to
cache
1-100
clock cycles
400-800
clock cycles
1
clock cycle
Cache is Critical to Good Performance

15. 15 October 2015

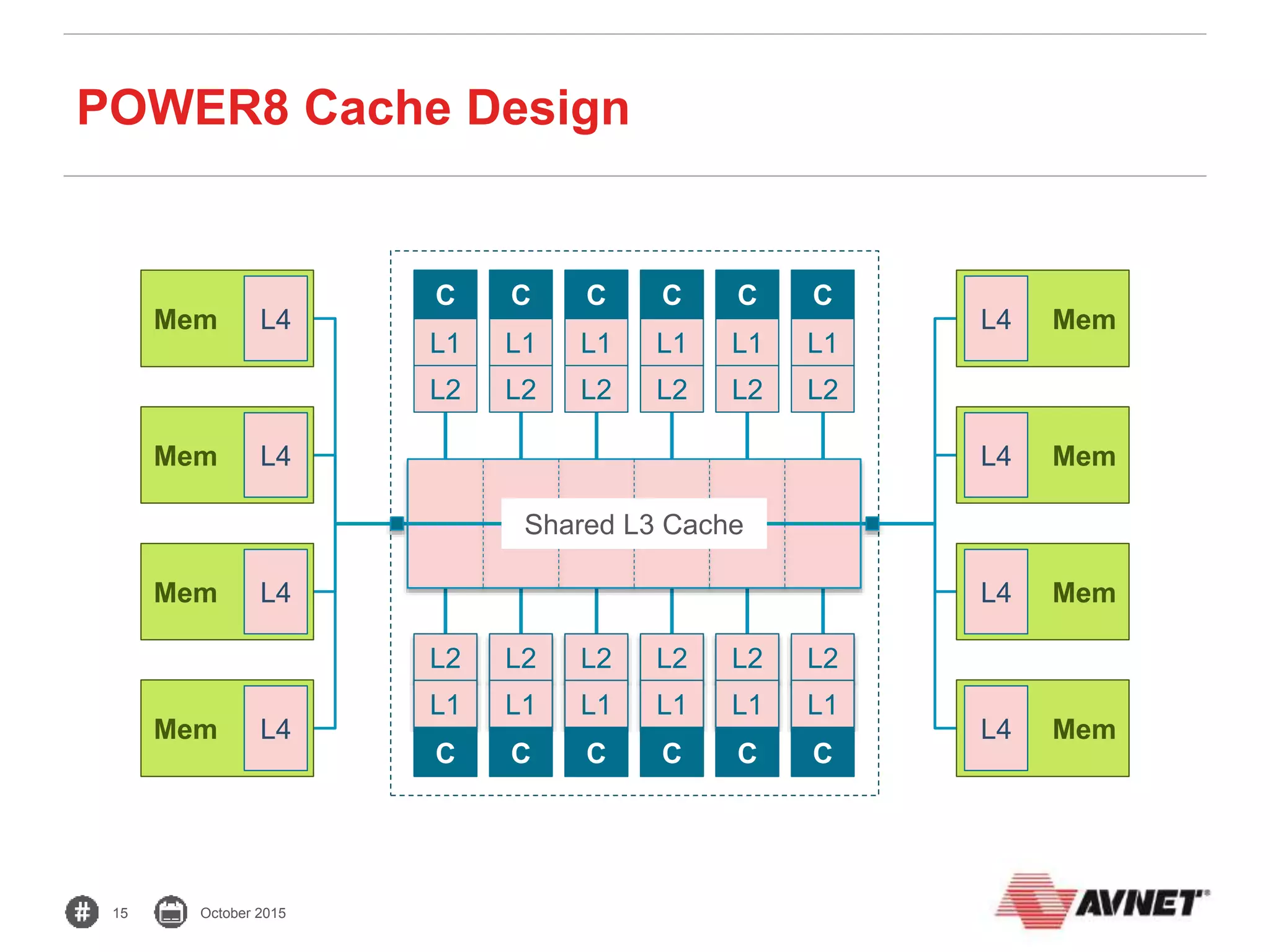

POWER8 Cache Design
L2 L2 L2 L2 L2 L2
L1 L1 L1 L1 L1 L1
C C C C C C
L2
L1
L2
L1
L2
L1
L2
L1
L2
L1
L2
L1
C C C C C C
Shared L3 Cache
Mem L4
Mem L4
Mem L4
Mem L4
MemL4
MemL4
MemL4
MemL4

16. 16 October 2015

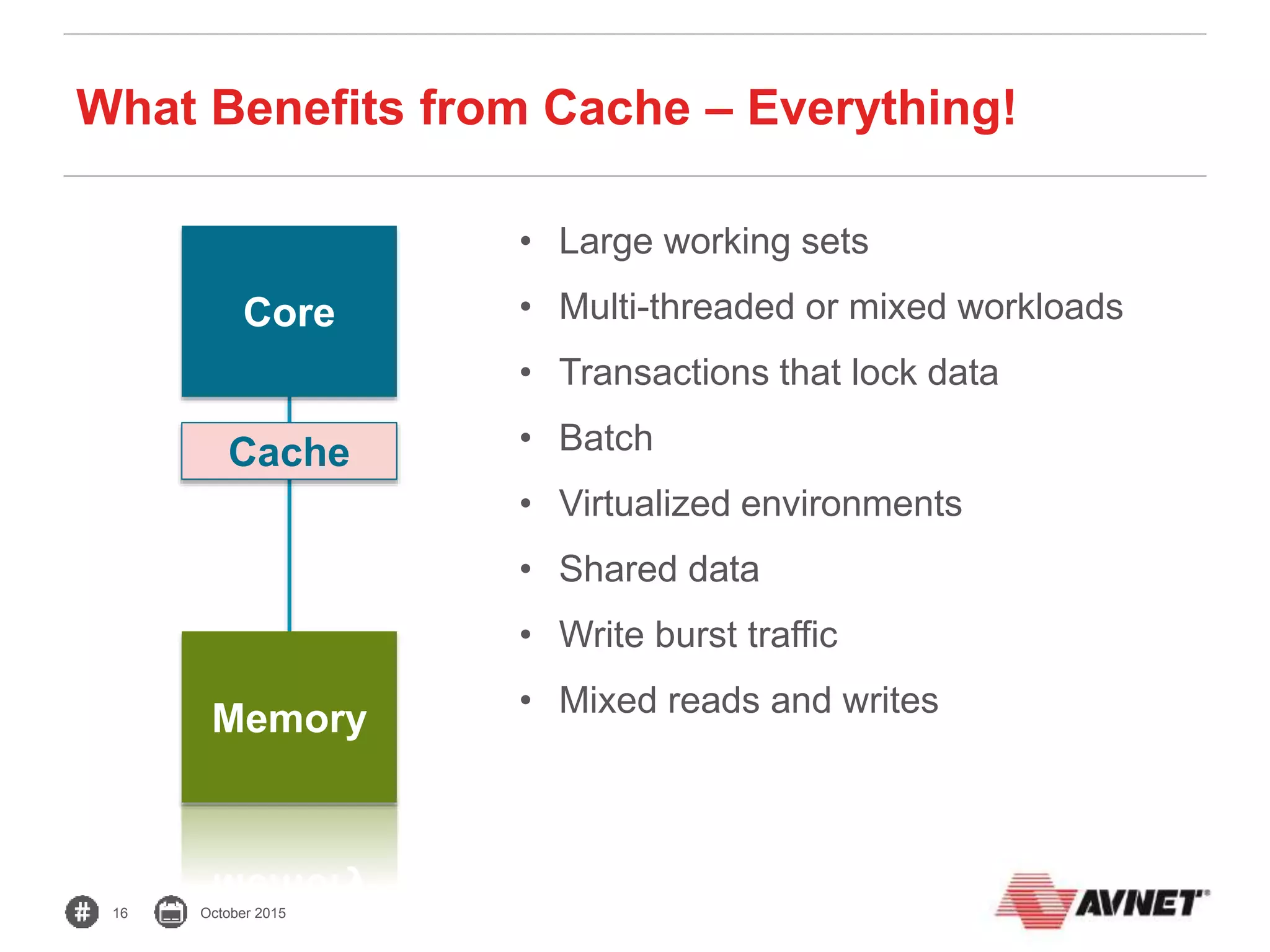

Core
Cache
Memory
What Benefits from Cache – Everything!
• Large working sets
• Multi-threaded or mixed workloads
• Transactions that lock data
• Batch
• Virtualized environments
• Shared data
• Write burst traffic
• Mixed reads and writes

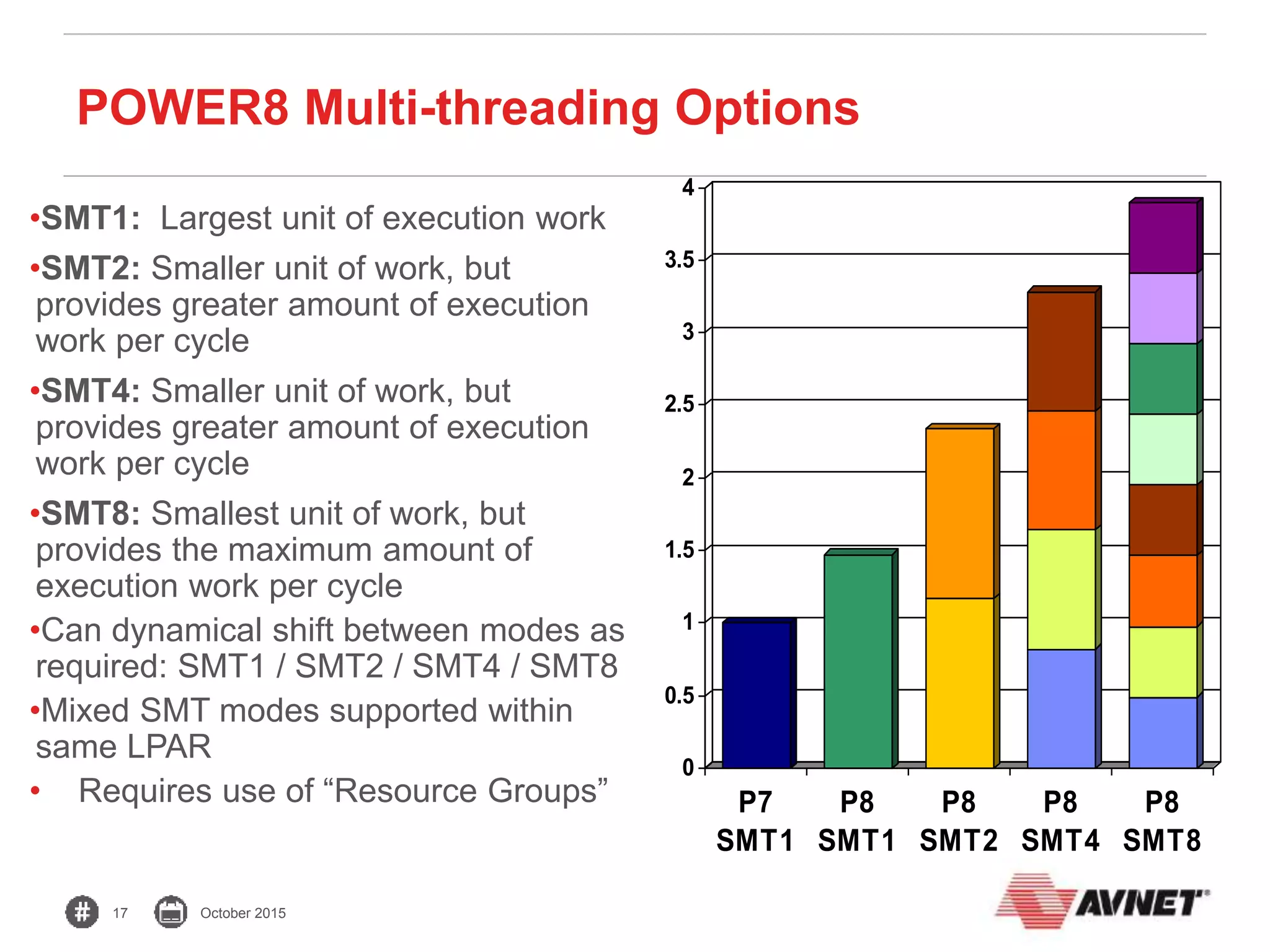

17. 17 October 2015
0
0.5
1
1.5
2
2.5
3
3.5
4
P7
SMT1
P8
SMT1
P8
SMT2
P8
SMT4
P8
SMT8
•SMT1: Largest unit of execution work
•SMT2: Smaller unit of work, but
provides greater amount of execution
work per cycle
•SMT4: Smaller unit of work, but
provides greater amount of execution
work per cycle
•SMT8: Smallest unit of work, but
provides the maximum amount of
execution work per cycle
•Can dynamical shift between modes as
required: SMT1 / SMT2 / SMT4 / SMT8
•Mixed SMT modes supported within
same LPAR
• Requires use of “Resource Groups”
POWER8 Multi-threading Options

18. 18 October 2015

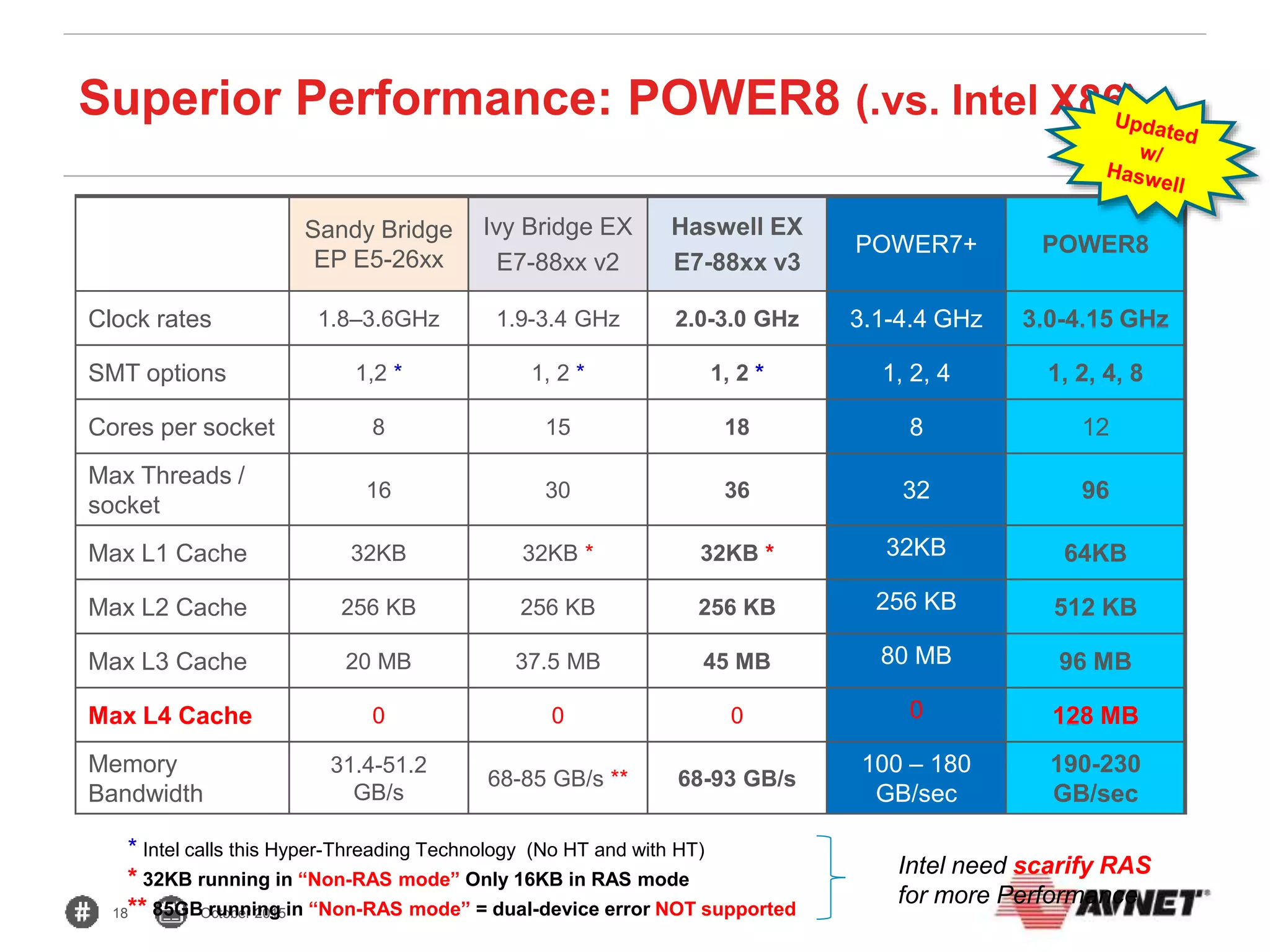

Superior Performance: POWER8 (.vs. Intel X86)
Sandy Bridge
EP E5-26xx
Ivy Bridge EX
E7-88xx v2
Haswell EX
E7-88xx v3
POWER7+ POWER8
Clock rates 1.8–3.6GHz 1.9-3.4 GHz 2.0-3.0 GHz 3.1-4.4 GHz 3.0-4.15 GHz
SMT options 1,2 * 1, 2 * 1, 2 * 1, 2, 4 1, 2, 4, 8
Cores per socket 8 15 18 8 12
Max Threads /
socket
16 30 36 32 96
Max L1 Cache 32KB 32KB * 32KB * 32KB 64KB
Max L2 Cache 256 KB 256 KB 256 KB 256 KB 512 KB
Max L3 Cache 20 MB 37.5 MB 45 MB 80 MB 96 MB
Max L4 Cache 0 0 0 0 128 MB
Memory
Bandwidth
31.4-51.2
GB/s
68-85 GB/s ** 68-93 GB/s
100 – 180
GB/sec
190-230
GB/sec
* Intel calls this Hyper-Threading Technology (No HT and with HT)
* 32KB running in “Non-RAS mode” Only 16KB in RAS mode
** 85GB running in “Non-RAS mode” = dual-device error NOT supported
Intel need scarify RAS
for more Performance

19. 19 October 2015

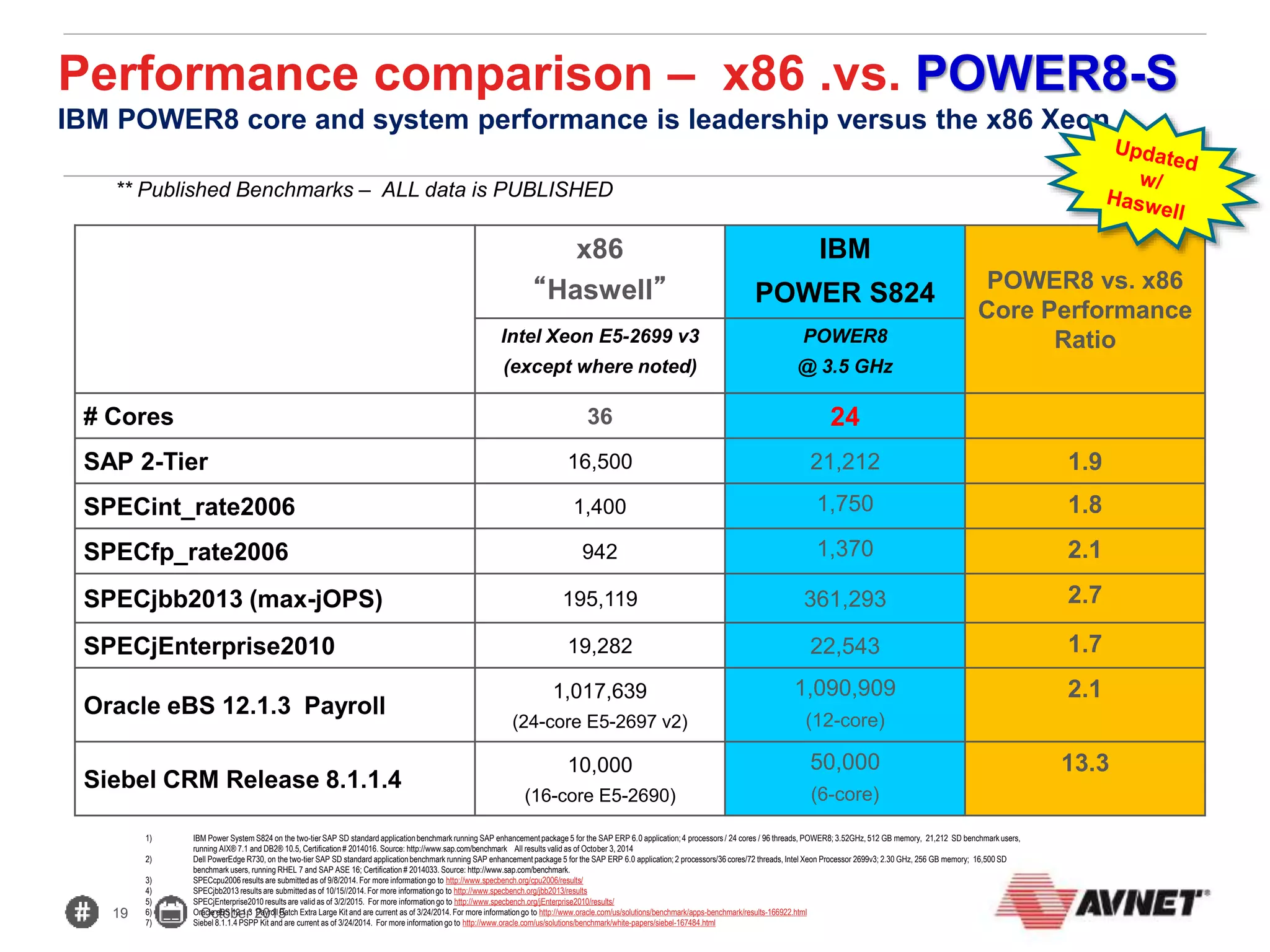

** Published Benchmarks – ALL data is PUBLISHED
Performance comparison – x86 .vs. POWER8-S
IBM POWER8 core and system performance is leadership versus the x86 Xeon
x86
“Haswell”
IBM
POWER S824 POWER8 vs. x86
Core Performance
RatioIntel Xeon E5-2699 v3
(except where noted)
POWER8
@ 3.5 GHz
# Cores 36 24
SAP 2-Tier 16,500 21,212 1.9
SPECint_rate2006 1,400 1,750 1.8
SPECfp_rate2006 942 1,370 2.1
SPECjbb2013 (max-jOPS) 195,119 361,293 2.7
SPECjEnterprise2010 19,282 22,543 1.7
Oracle eBS 12.1.3 Payroll
1,017,639
(24-core E5-2697 v2)
1,090,909
(12-core)
2.1
Siebel CRM Release 8.1.1.4
10,000
(16-core E5-2690)
50,000
(6-core)
13.3
1) IBM Power System S824 on the two-tier SAP SD standard applicationbenchmark running SAP enhancement package 5 for the SAP ERP 6.0 application;4 processors / 24 cores / 96 threads, POWER8; 3.52GHz, 512 GB memory, 21,212 SD benchmark users,
running AIX® 7.1 and DB2® 10.5, Certification# 2014016. Source: http://www.sap.com/benchmark All results valid as of October 3, 2014
2) Dell PowerEdge R730, on the two-tier SAP SD standard applicationbenchmark running SAP enhancement package 5 for the SAP ERP 6.0 application; 2 processors/36 cores/72 threads, Intel Xeon Processor 2699v3; 2.30 GHz, 256 GB memory; 16,500 SD
benchmark users, running RHEL 7 and SAP ASE 16; Certification# 2014033. Source: http://www.sap.com/benchmark.
3) SPECcpu2006 results are submittedas of 9/8/2014. For more informationgo to http://www.specbench.org/cpu2006/results/
4) SPECjbb2013 results are submittedas of 10/15//2014. For more informationgo to http://www.specbench.org/jbb2013/results
5) SPECjEnterprise2010 results are valid as of 3/2/2015. For more informationgo to http://www.specbench.org/jEnterprise2010/results/
6) Oracle eBS 12.1.3 Payroll Batch Extra Large Kit and are current as of 3/24/2014. For more informationgo to http://www.oracle.com/us/solutions/benchmark/apps-benchmark/results-166922.html
7) Siebel 8.1.1.4 PSPP Kit and are current as of 3/24/2014. For more information go to http://www.oracle.com/us/solutions/benchmark/white-papers/siebel-167484.html

20. 20 October 2015

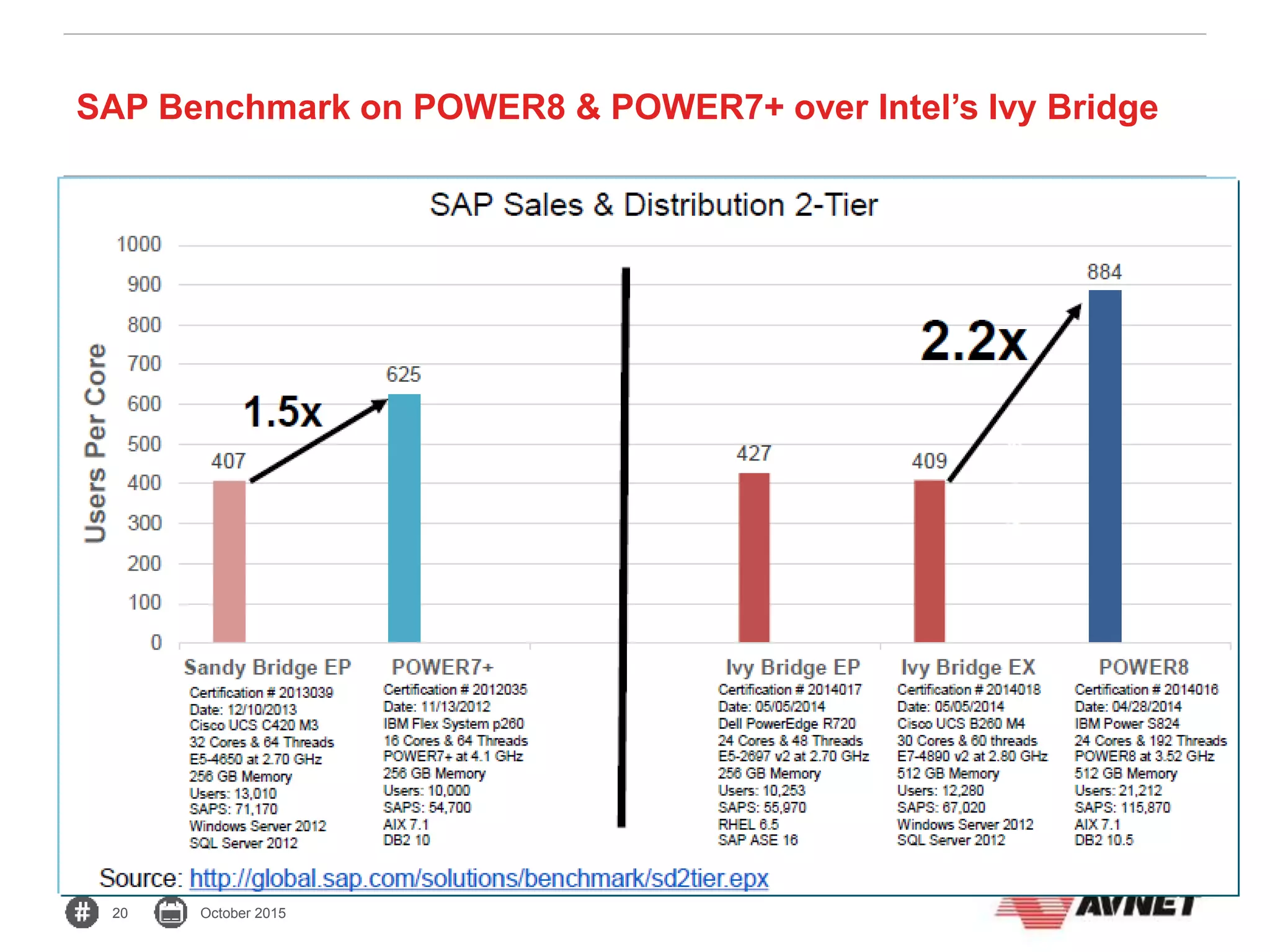

SAP Benchmark on POWER8 & POWER7+ over Intel’s Ivy Bridge

21. 21 October 2015
Virtualization on Power System

22. 22 October 2015

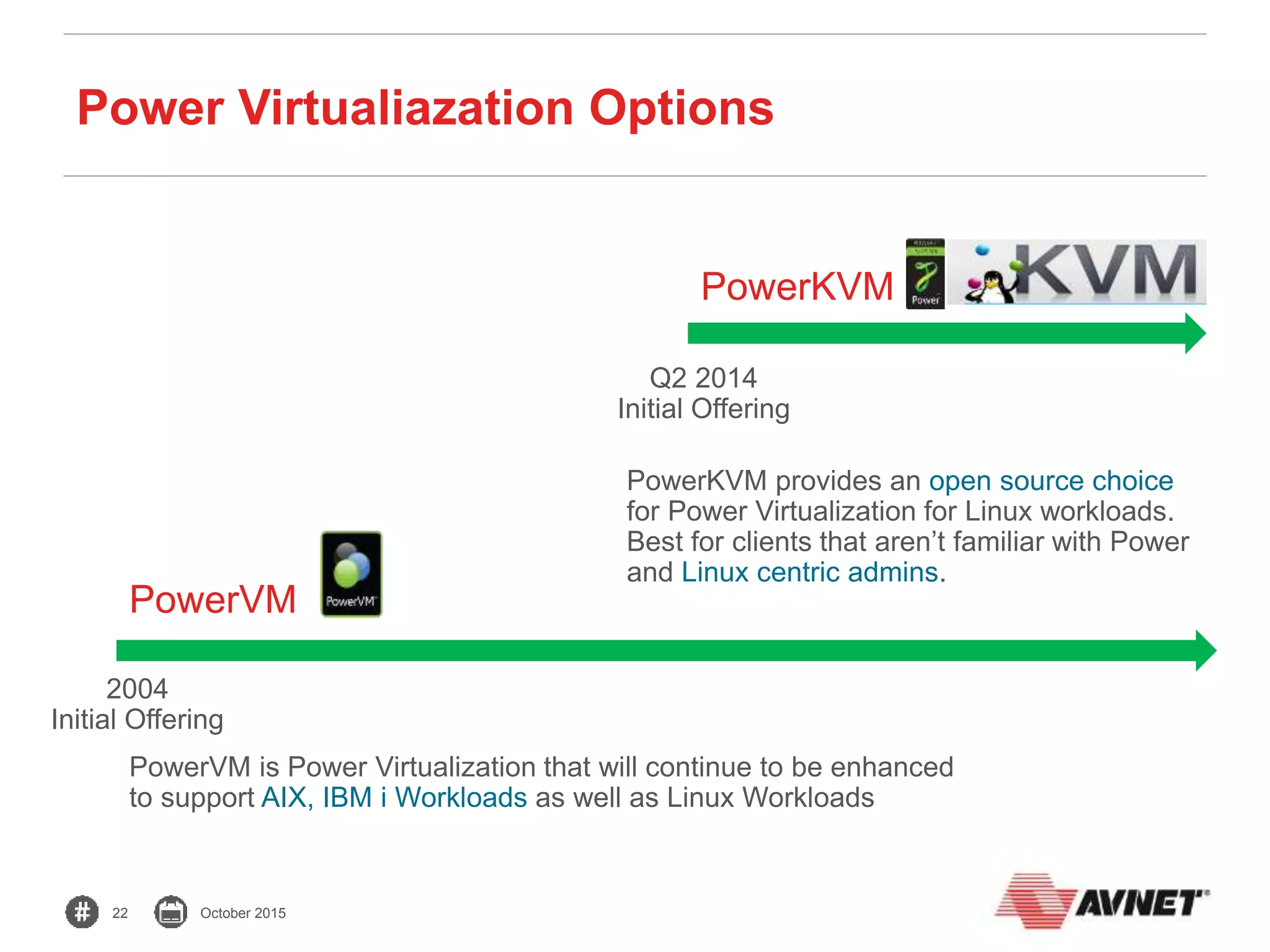

Power Virtualiazation Options
PowerKVM
PowerVM
PowerVM is Power Virtualization that will continue to be enhanced
to support AIX, IBM i Workloads as well as Linux Workloads
2004
Initial Offering
Q2 2014
Initial Offering
PowerKVM provides an open source choice
for Power Virtualization for Linux workloads.
Best for clients that aren’t familiar with Power
and Linux centric admins.

23. 23 October 2015

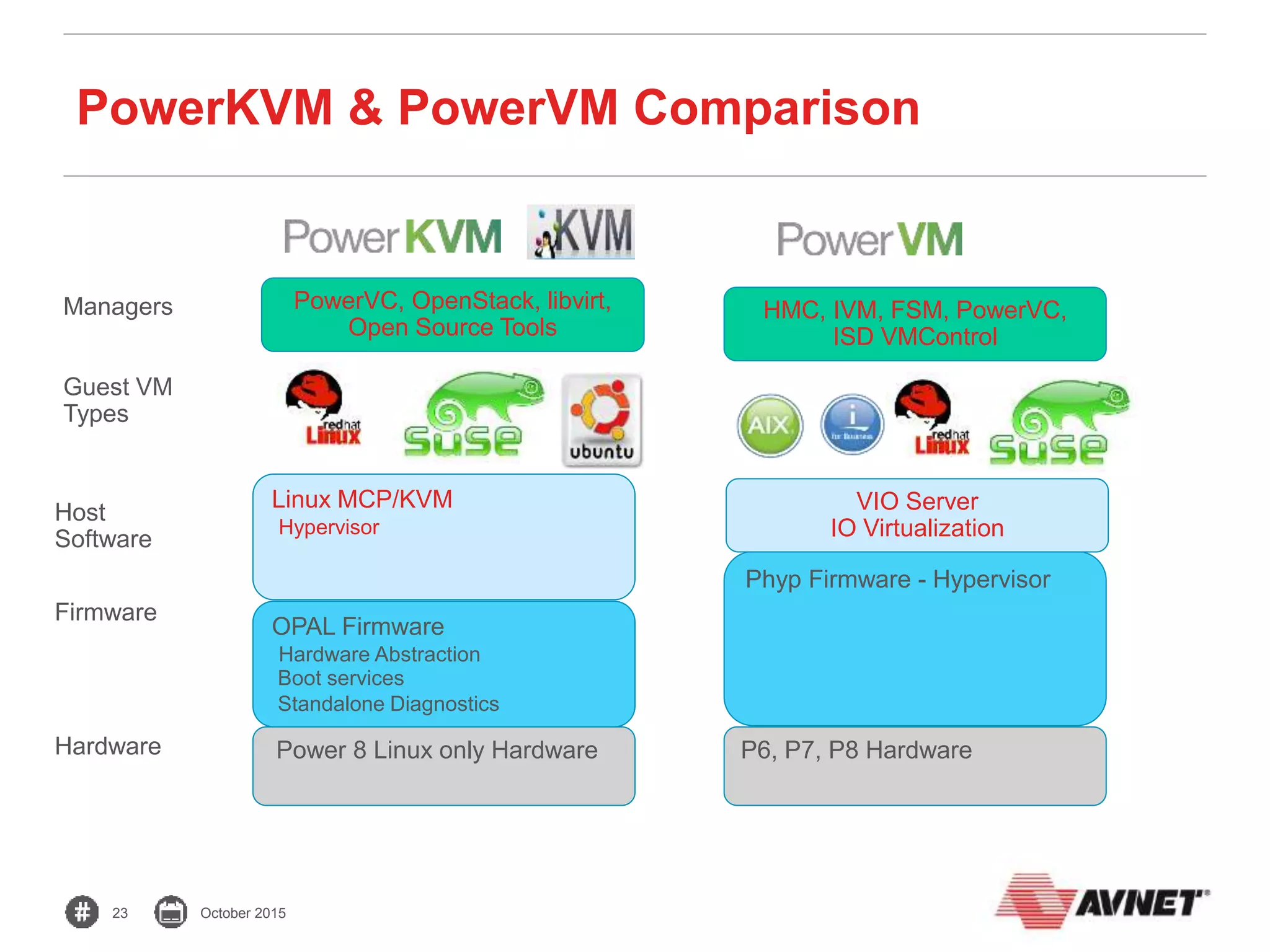

PowerKVM & PowerVM Comparison
Power 8 Linux only Hardware
Firmware
Host
Software
Hardware
OPAL Firmware
Hardware Abstraction
Boot services
Standalone Diagnostics
P6, P7, P8 Hardware
Phyp Firmware - Hypervisor
Linux MCP/KVM
Hypervisor
Guest VM
Types
Managers
VIO Server
IO Virtualization
HMC, IVM, FSM, PowerVC,
ISD VMControl
PowerVC, OpenStack, libvirt,
Open Source Tools

24. 24 October 2015

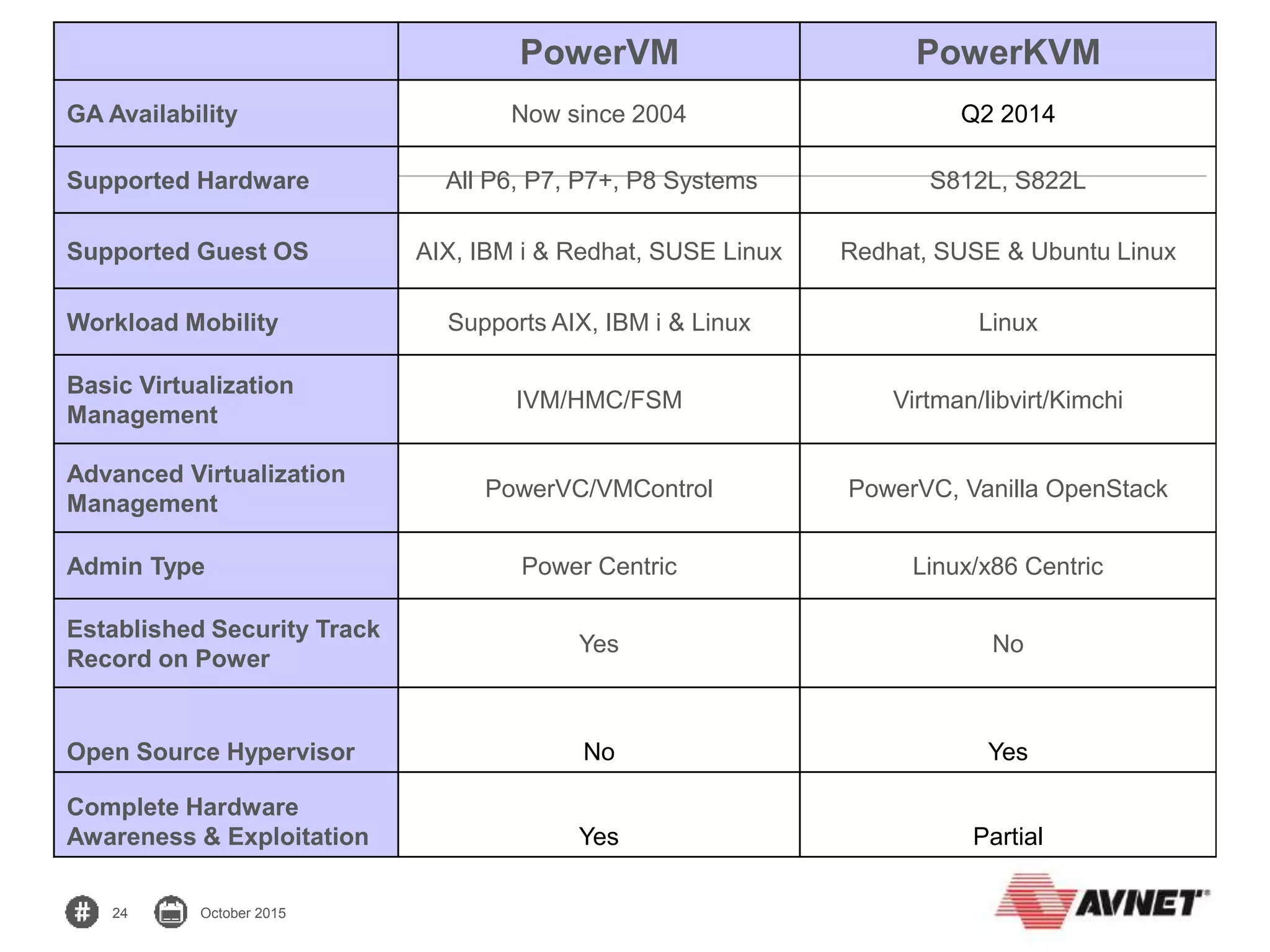

PowerVM PowerKVM
GA Availability Now since 2004 Q2 2014
Supported Hardware All P6, P7, P7+, P8 Systems S812L, S822L
Supported Guest OS AIX, IBM i & Redhat, SUSE Linux Redhat, SUSE & Ubuntu Linux
Workload Mobility Supports AIX, IBM i & Linux Linux
Basic Virtualization
Management
IVM/HMC/FSM Virtman/libvirt/Kimchi
Advanced Virtualization
Management
PowerVC/VMControl PowerVC, Vanilla OpenStack
Admin Type Power Centric Linux/x86 Centric
Established Security Track
Record on Power
Yes No
Open Source Hypervisor No Yes
Complete Hardware
Awareness & Exploitation Yes Partial

25. 25 October 2015
PowerKVM

26. 26 October 2015
PowerKVM - Open Virtualization for Power Linux Servers
PowerKVM provides simple, robust, cost effective server virtualization
built on open source for Linux workloads running on Power
Systems
PowerKVM Solution
 Simplifies configuration and operation
of server virtualization
 Provides an Open Source Virtualization
Choice
 Lower cost virtualization alternative for
Linux Workloads
 Flexibility and agility leveraging the
Open Source Community
 KVM is the original hypervisor focus for
OpenStack
Client Pain Points
Complexity and time required
implement server virtualization
Virtualization vendor lock-in
Total cost of ownership for
server virtualization solutions
Closed inflexible solutions
Lack of seamless integration
with new cloud technologies like
OpenStack
PowerKVM

27. 27 October 2015

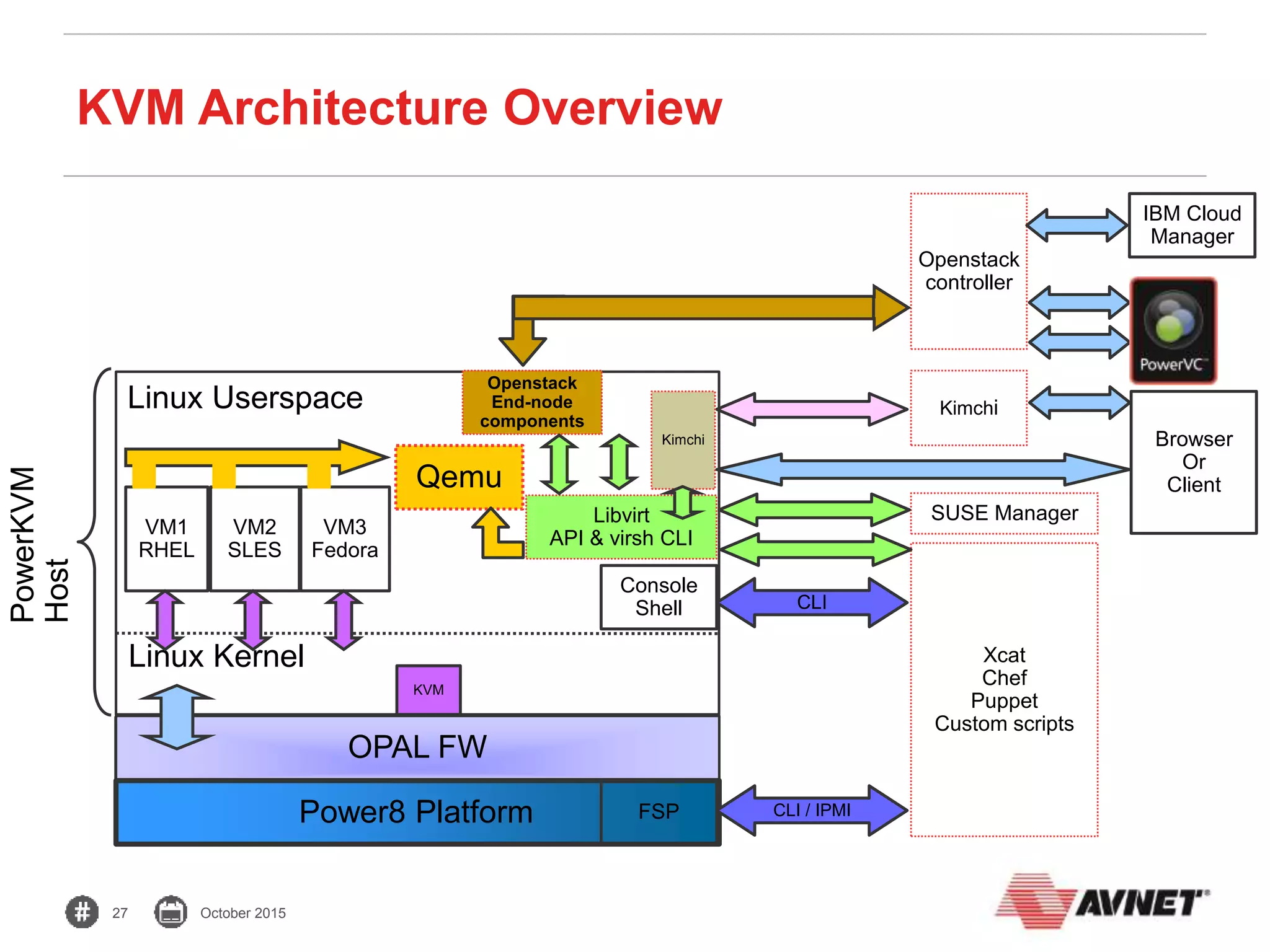

KVM Architecture Overview
Power8 Platform
OPAL FW
Qemu
VM1
RHEL
VM2
SLES
Libvirt
API & virsh CLI
Linux Kernel
PowerKVM
Host
Console
Shell CLI
Linux Userspace
Openstack
End-node
components
Kimchi
Openstack
controller
Xcat
Chef
Puppet
Custom scripts
IBM Cloud
Manager
Kimchi Browser
Or
Client
CLI / IPMIFSP
SUSE Manager
KVM
VM3
Fedora

28. 28 October 2015

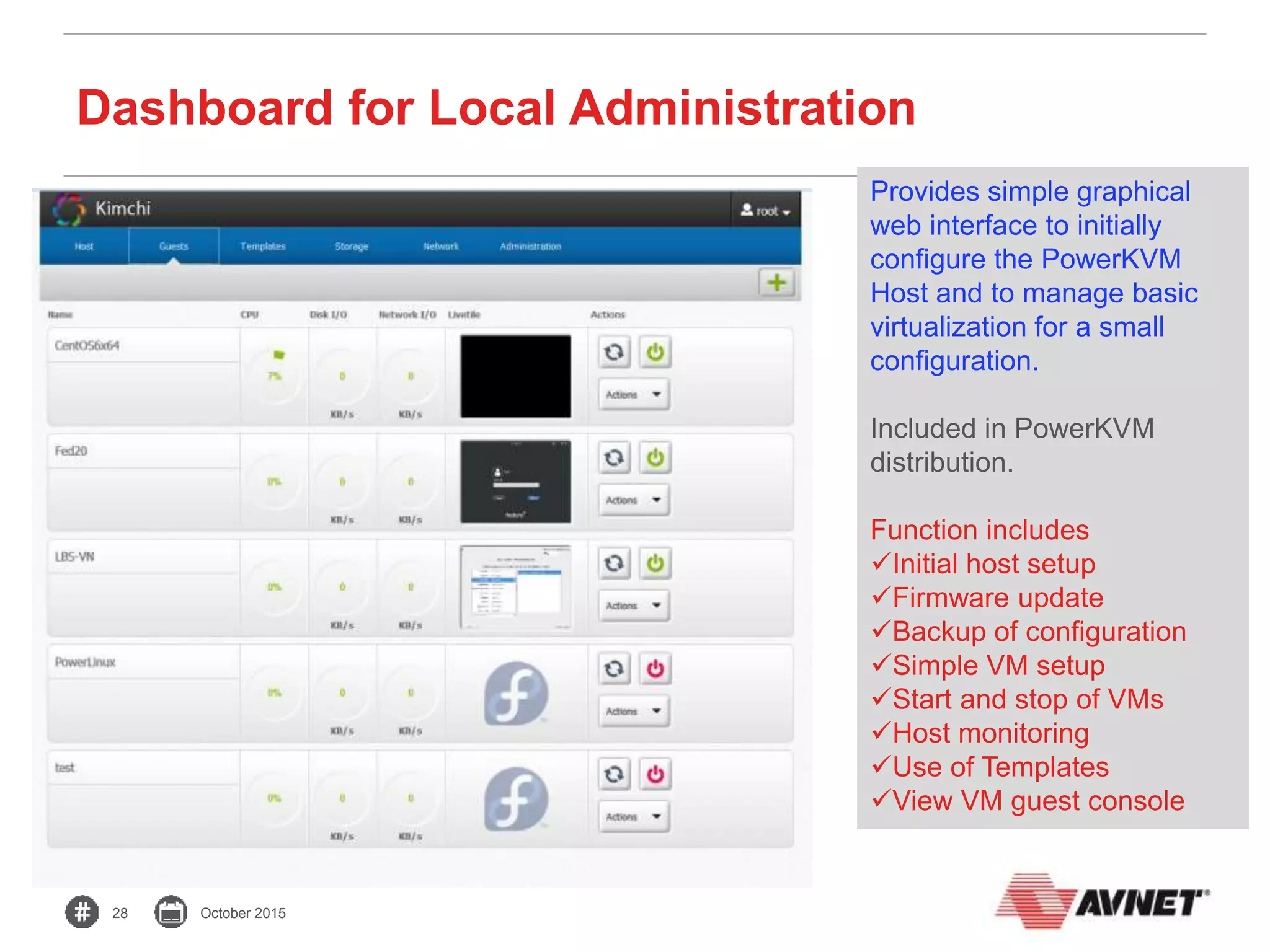

Dashboard for Local Administration
Provides simple graphical
web interface to initially
configure the PowerKVM
Host and to manage basic
virtualization for a small
configuration.
Included in PowerKVM
distribution.
Function includes
Initial host setup
Firmware update
Backup of configuration
Simple VM setup
Start and stop of VMs
Host monitoring
Use of Templates
View VM guest console

29. 29 October 2015

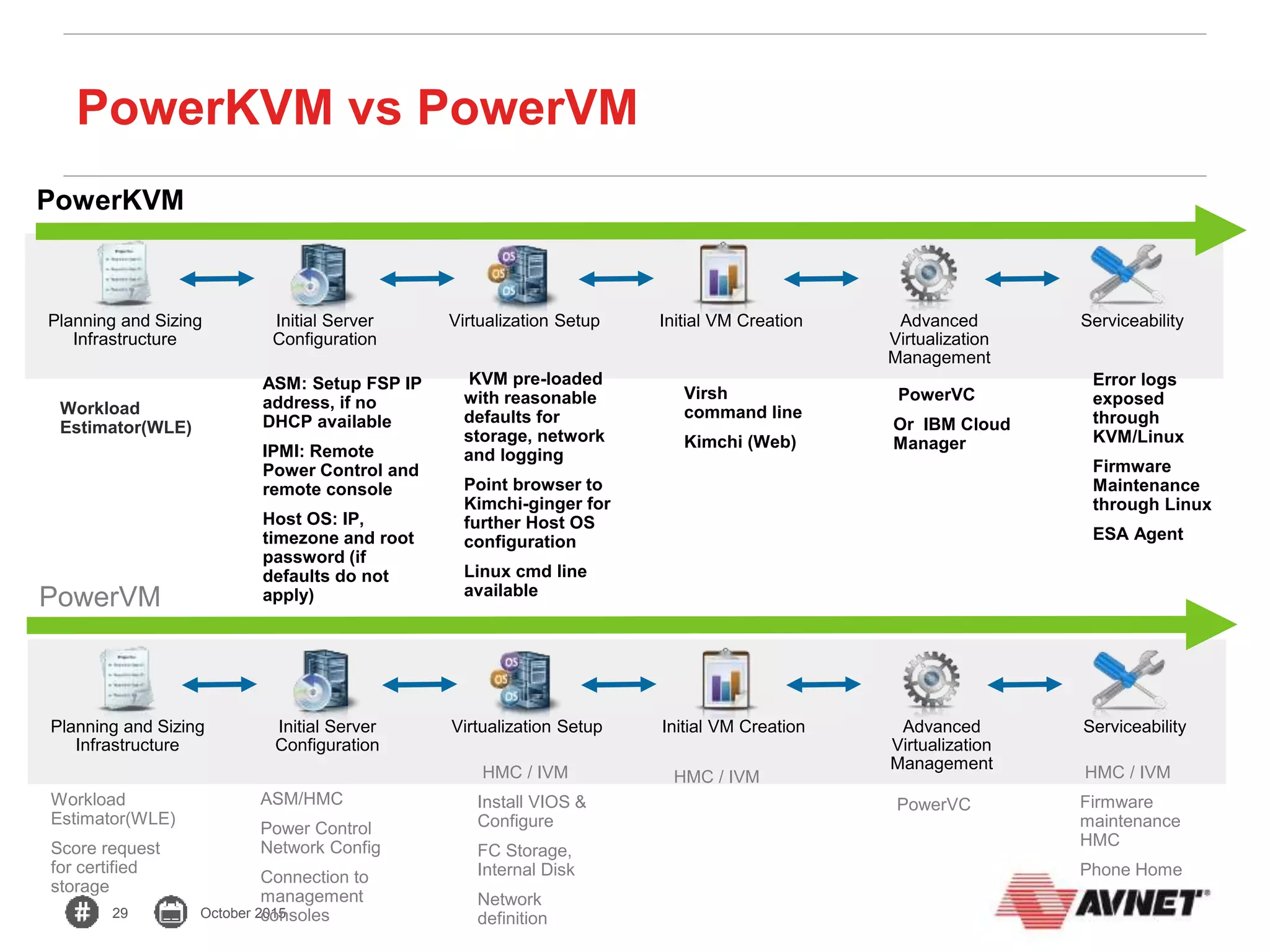

PowerKVM vs PowerVM
Planning and Sizing
Infrastructure
Initial Server
Configuration
Virtualization Setup Initial VM Creation Advanced
Virtualization
Management
Serviceability
Workload
Estimator(WLE)
Score request
for certified
storage
ASM/HMC
Power Control
Network Config
Connection to
management
consoles
HMC / IVM
Install VIOS &
Configure
FC Storage,
Internal Disk
Network
definition
HMC / IVM
Firmware
maintenance
HMC
Phone Home
PowerVM
HMC / IVM
PowerVC
Planning and Sizing
Infrastructure
Initial Server
Configuration
Virtualization Setup Initial VM Creation Advanced
Virtualization
Management
Serviceability
Workload
Estimator(WLE)
ASM: Setup FSP IP
address, if no
DHCP available
IPMI: Remote
Power Control and
remote console
Host OS: IP,
timezone and root
password (if
defaults do not
apply)
KVM pre-loaded
with reasonable
defaults for
storage, network
and logging
Point browser to
Kimchi-ginger for
further Host OS
configuration
Linux cmd line
available
Error logs
exposed
through
KVM/Linux
Firmware
Maintenance
through Linux
ESA Agent
PowerKVM
Virsh
command line
Kimchi (Web)
PowerVC
Or IBM Cloud
Manager

30. 30 October 2015

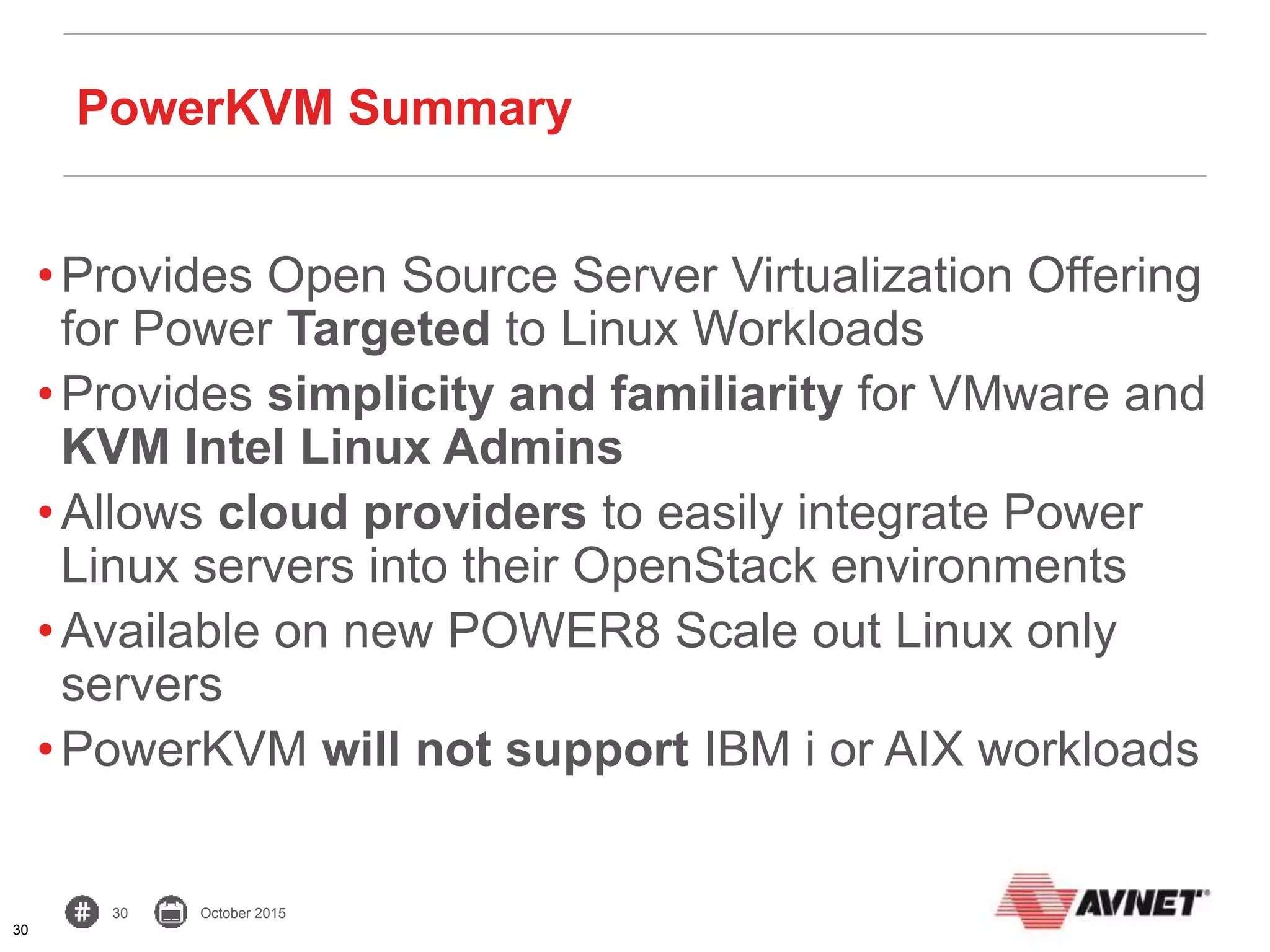

•Provides Open Source Server Virtualization Offering
for Power Targeted to Linux Workloads
•Provides simplicity and familiarity for VMware and
KVM Intel Linux Admins
•Allows cloud providers to easily integrate Power
Linux servers into their OpenStack environments
•Available on new POWER8 Scale out Linux only
servers
•PowerKVM will not support IBM i or AIX workloads
30
PowerKVM Summary

31. 31 October 2015

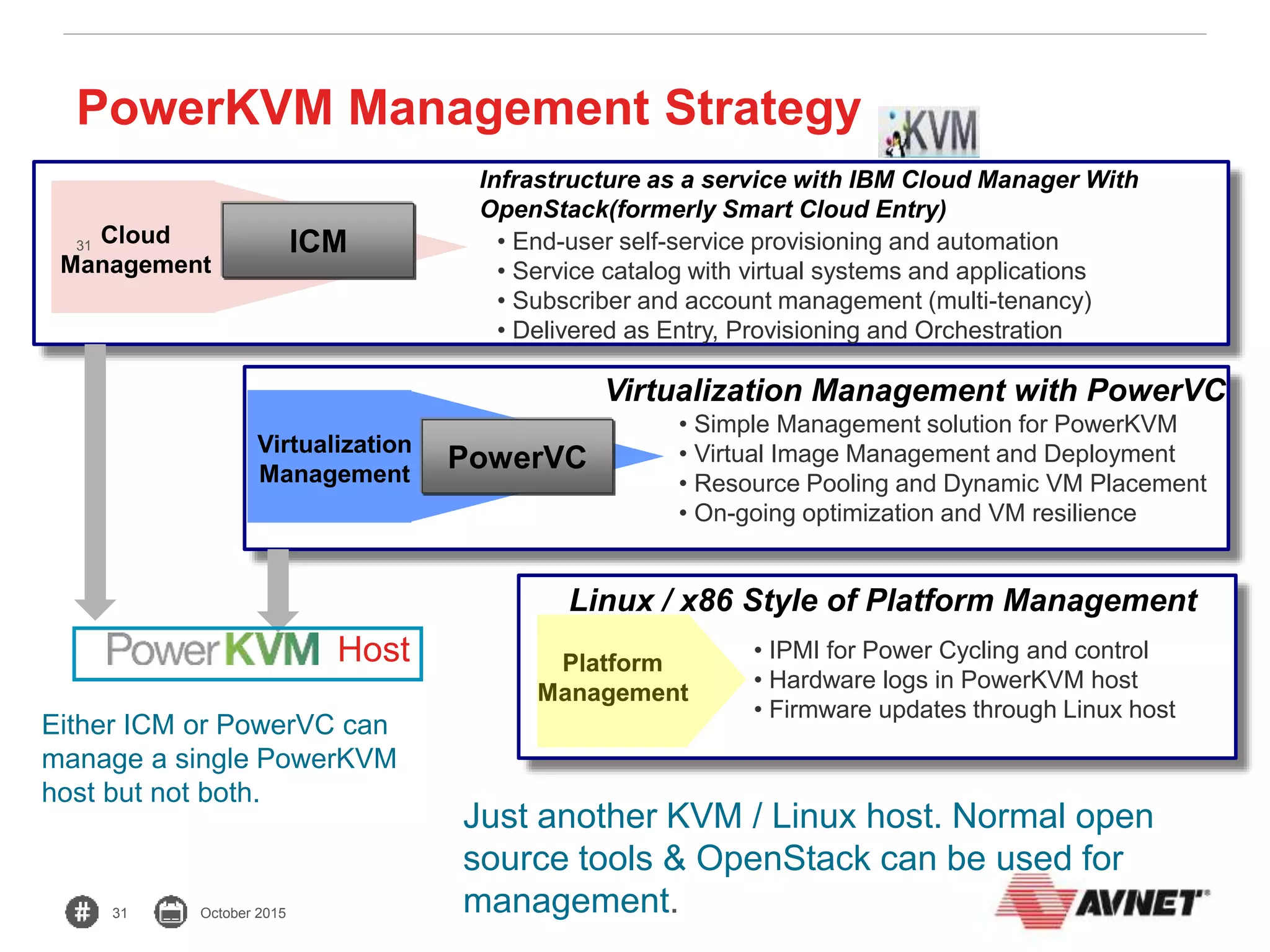

Platform
Management
Virtualization
Management
Cloud
Management
PowerVC
ICM
Infrastructure as a service with IBM Cloud Manager With
OpenStack(formerly Smart Cloud Entry)
Virtualization Management with PowerVC
Linux / x86 Style of Platform Management
• IPMI for Power Cycling and control
• Hardware logs in PowerKVM host
• Firmware updates through Linux host
• Simple Management solution for PowerKVM
• Virtual Image Management and Deployment
• Resource Pooling and Dynamic VM Placement
• On-going optimization and VM resilience
• End-user self-service provisioning and automation
• Service catalog with virtual systems and applications
• Subscriber and account management (multi-tenancy)
• Delivered as Entry, Provisioning and Orchestration
Just another KVM / Linux host. Normal open
source tools & OpenStack can be used for
management.
31
Host
Either ICM or PowerVC can
manage a single PowerKVM
host but not both.
PowerKVM Management Strategy

32. 32 October 2015

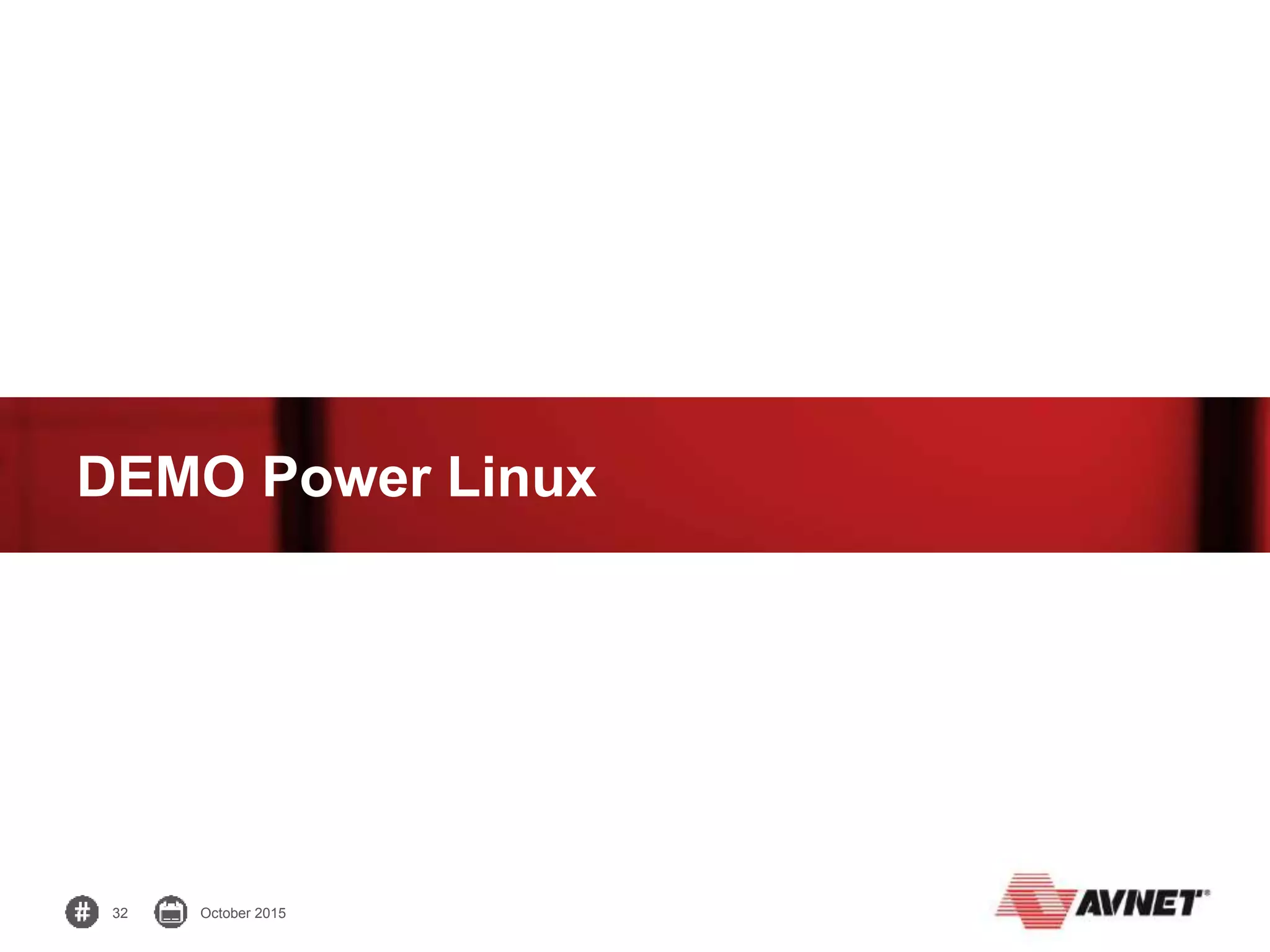

DEMO Power Linux

33. 33 October 2015

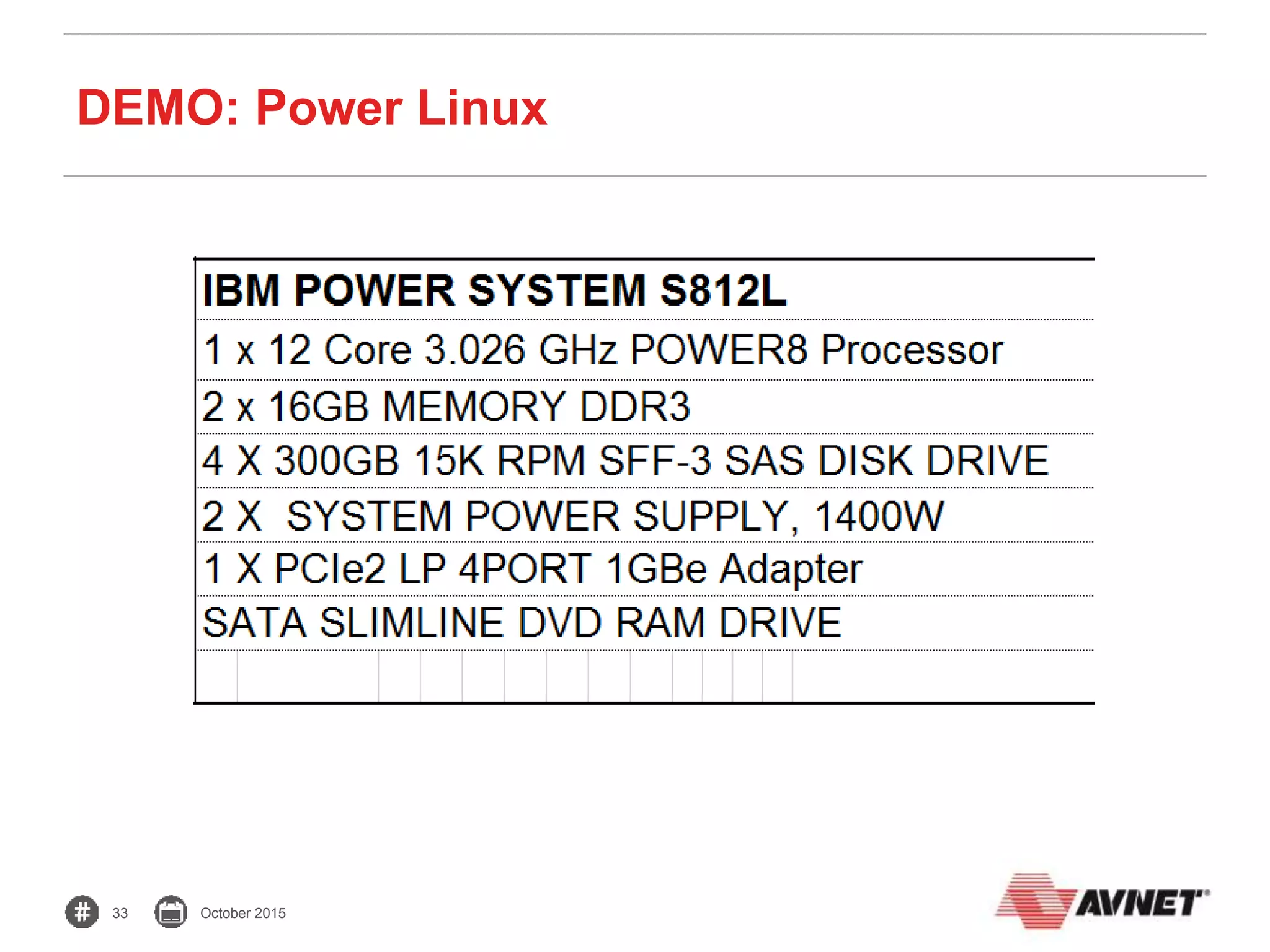

DEMO: Power Linux

34. 34 October 2015
THANK YOU
Zainal – 081 615 295 592

35. 35 October 2015
35 © Copyright IBM Corporation 2014
Linux Myth
myth buster
Power provides platforms
with comparable TCA to x86
Power is too
expensive for
running Linux

36. 36 October 2015

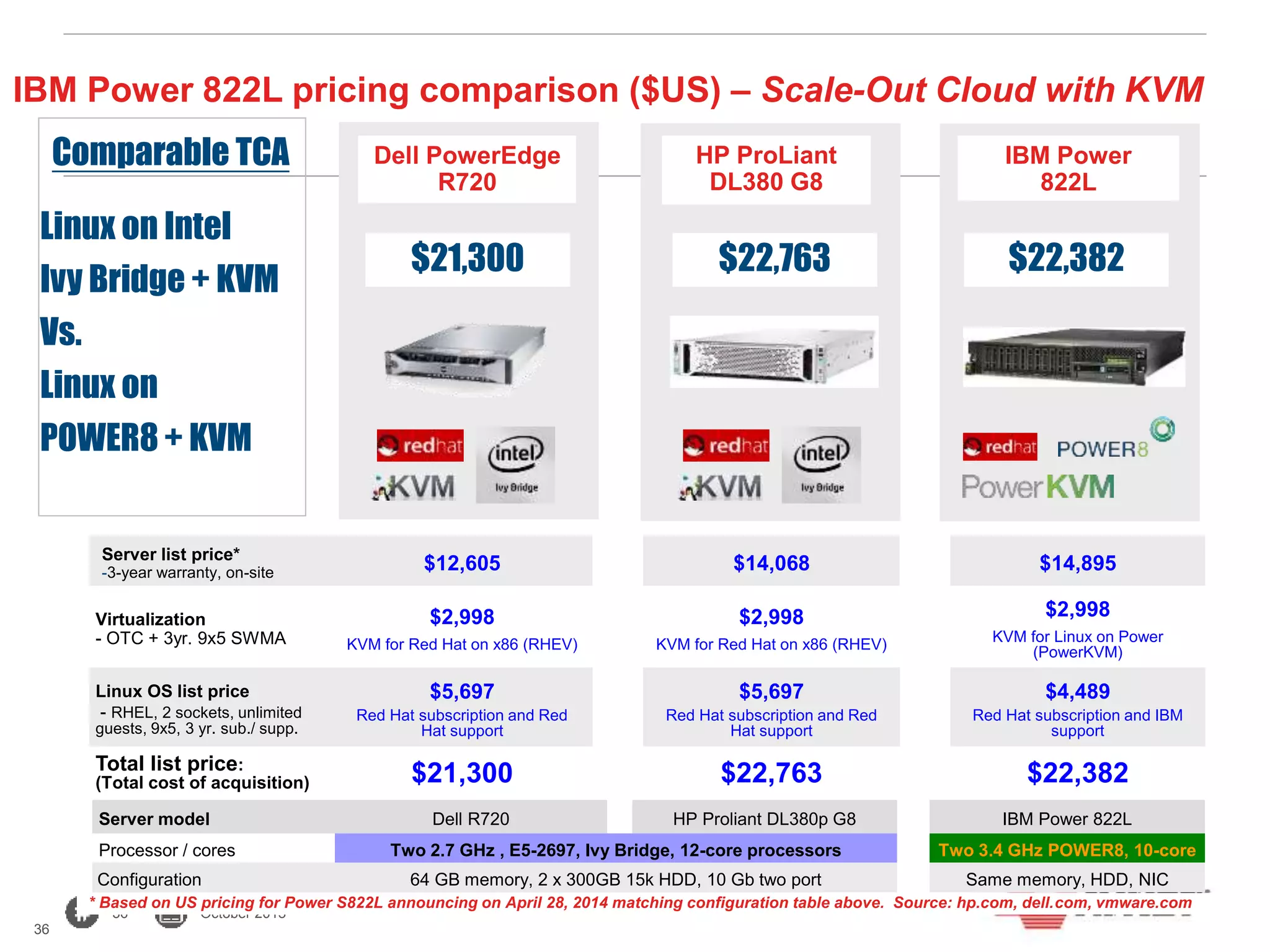

IBM Power 822L pricing comparison ($US) – Scale-Out Cloud with KVM
Comparable TCA
Linux on Intel
Ivy Bridge + KVM
Vs.
Linux on
POWER8 + KVM
Dell PowerEdge
R720
HP ProLiant
DL380 G8
IBM Power
822L
$21,300 $22,763 $22,382
Server list price*
-3-year warranty, on-site $12,605 $14,068 $14,895
Virtualization
- OTC + 3yr. 9x5 SWMA
$2,998
KVM for Red Hat on x86 (RHEV)
$2,998
KVM for Red Hat on x86 (RHEV)
$2,998
KVM for Linux on Power
(PowerKVM)
Linux OS list price
- RHEL, 2 sockets, unlimited
guests, 9x5, 3 yr. sub./ supp.
$5,697
Red Hat subscription and Red
Hat support
$5,697
Red Hat subscription and Red
Hat support
$4,489
Red Hat subscription and IBM
support
Total list price:
(Total cost of acquisition) $21,300 $22,763 $22,382
Server model Dell R720 HP Proliant DL380p G8 IBM Power 822L
Processor / cores Two 2.7 GHz , E5-2697, Ivy Bridge, 12-core processors Two 3.4 GHz POWER8, 10-core
Configuration 64 GB memory, 2 x 300GB 15k HDD, 10 Gb two port Same memory, HDD, NIC
* Based on US pricing for Power S822L announcing on April 28, 2014 matching configuration table above. Source: hp.com, dell.com, vmware.com
36

37. 37 October 2015
Linux on Power - ISVs and Open Source Ecosystem
Analytics Open Source Cross
Industry
Regional Database
Available for All PowerLinux servers
Netweaver
Tools
Oracle 10g (Client)
37
