Socionext is developing low power ARM server solutions including the SC2A11 multicore processor and SC2A20 SoC switch. They aim to build scalable small core systems with optimized performance and power efficiency compared to traditional servers. Socionext has integrated their solutions into a prototype low power scalable server and is developing the necessary software including UEFI, Linux, and applications to support various server workloads.

1. Socionext ARM Server Solution
9 March, 2017
High Performance SoC Business Unit
Socionext Inc.

2. 1

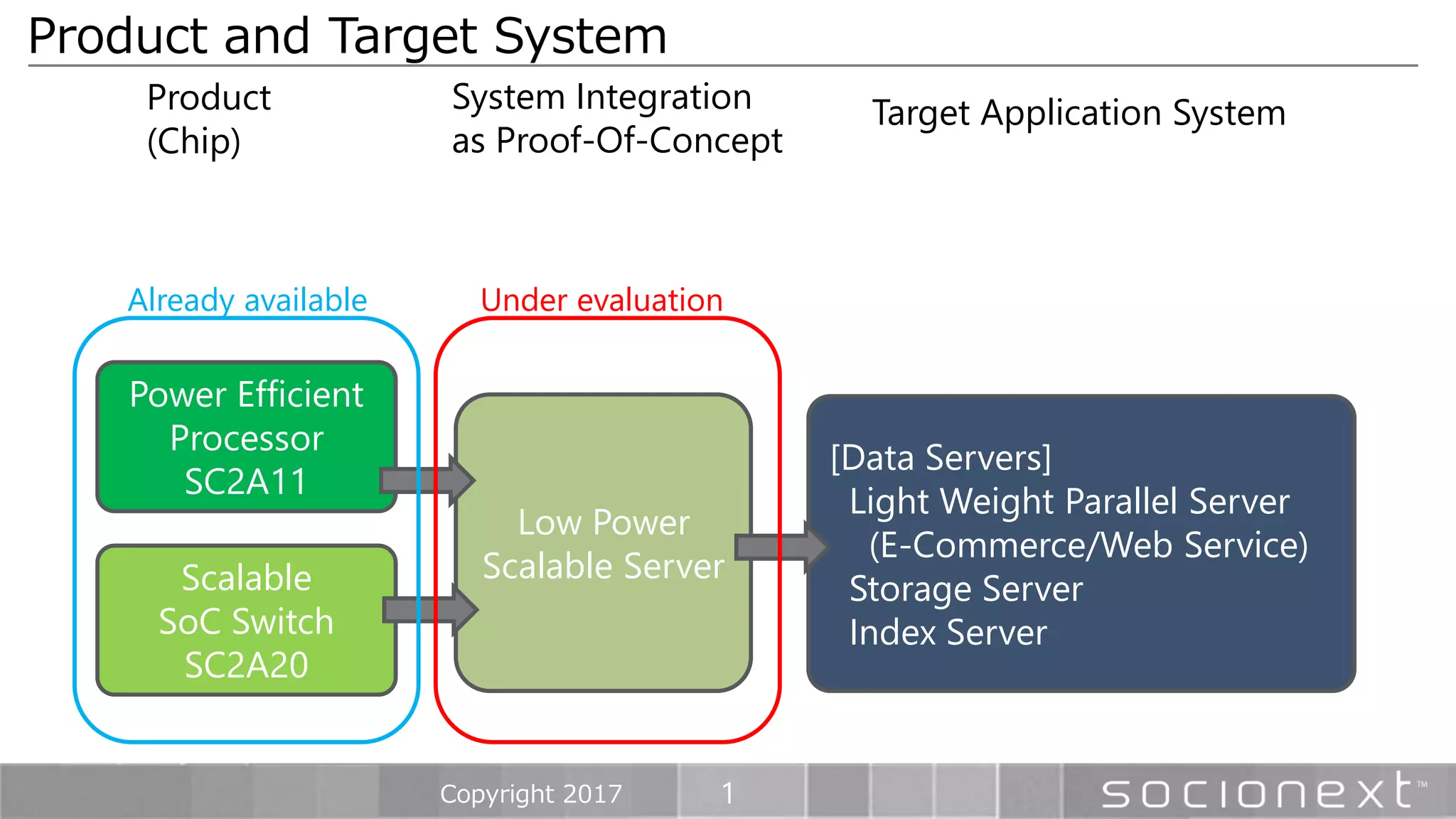

Product and Target System
Copyright 2017
Power Efficient
Processor
SC2A11
Scalable
SoC Switch
SC2A20
Product
(Chip)
Low Power
Scalable Server
System Integration
as Proof-Of-Concept
[Data Servers]
Light Weight Parallel Server
(E-Commerce/Web Service)
Storage Server
Index Server
Target Application System
Already available Under evaluation

3. 2

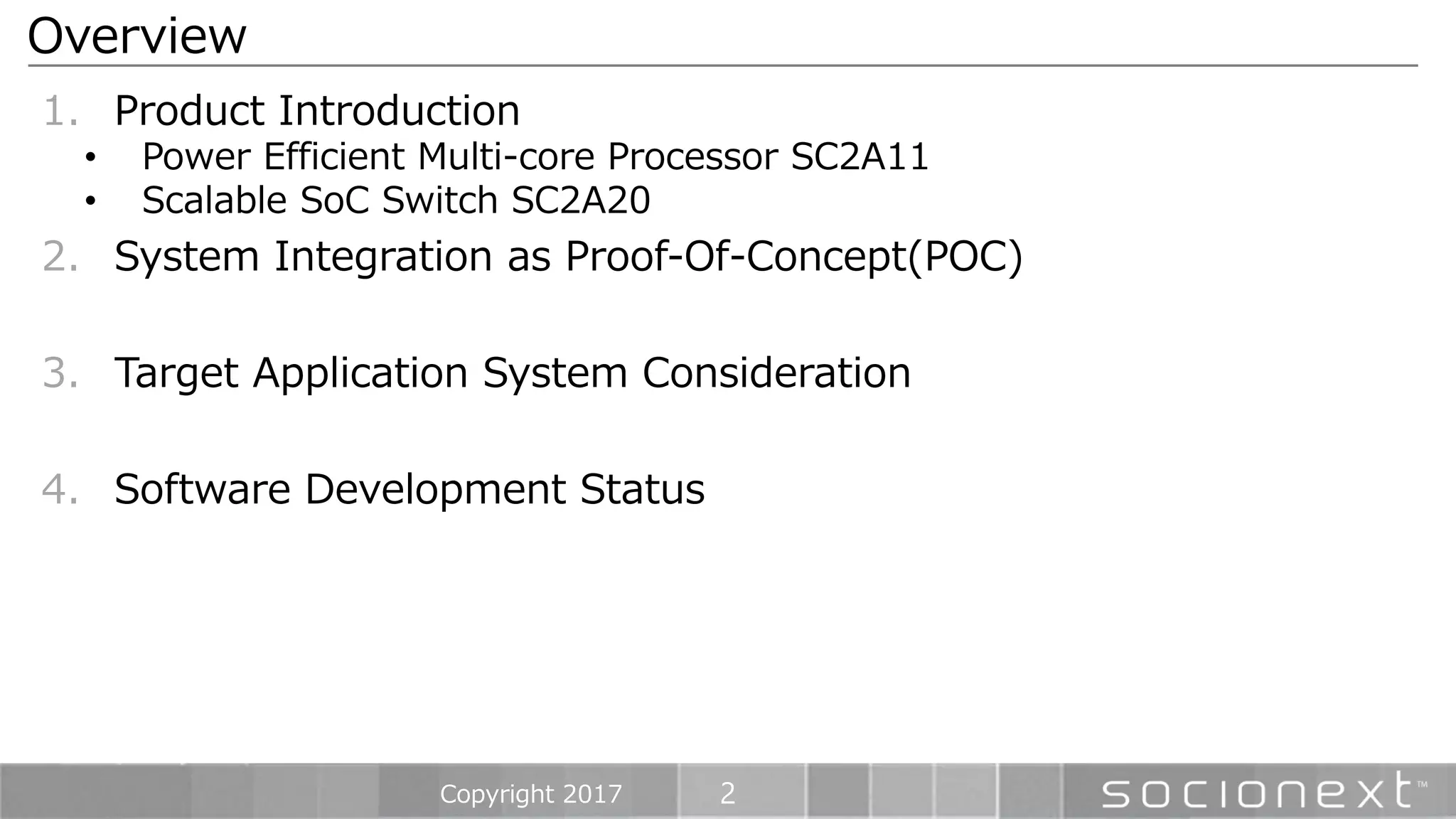

1. Product Introduction
• Power Efficient Multi-core Processor SC2A11
• Scalable SoC Switch SC2A20
2. System Integration as Proof-Of-Concept(POC)
3. Target Application System Consideration
4. Software Development Status
Overview
Copyright 2017

4. 3
1. Product Introduction
 Power Efficient MultiCore Processor SC2A11
 Scalable SoC Switch SC2A20
Copyright 2017

5. 4

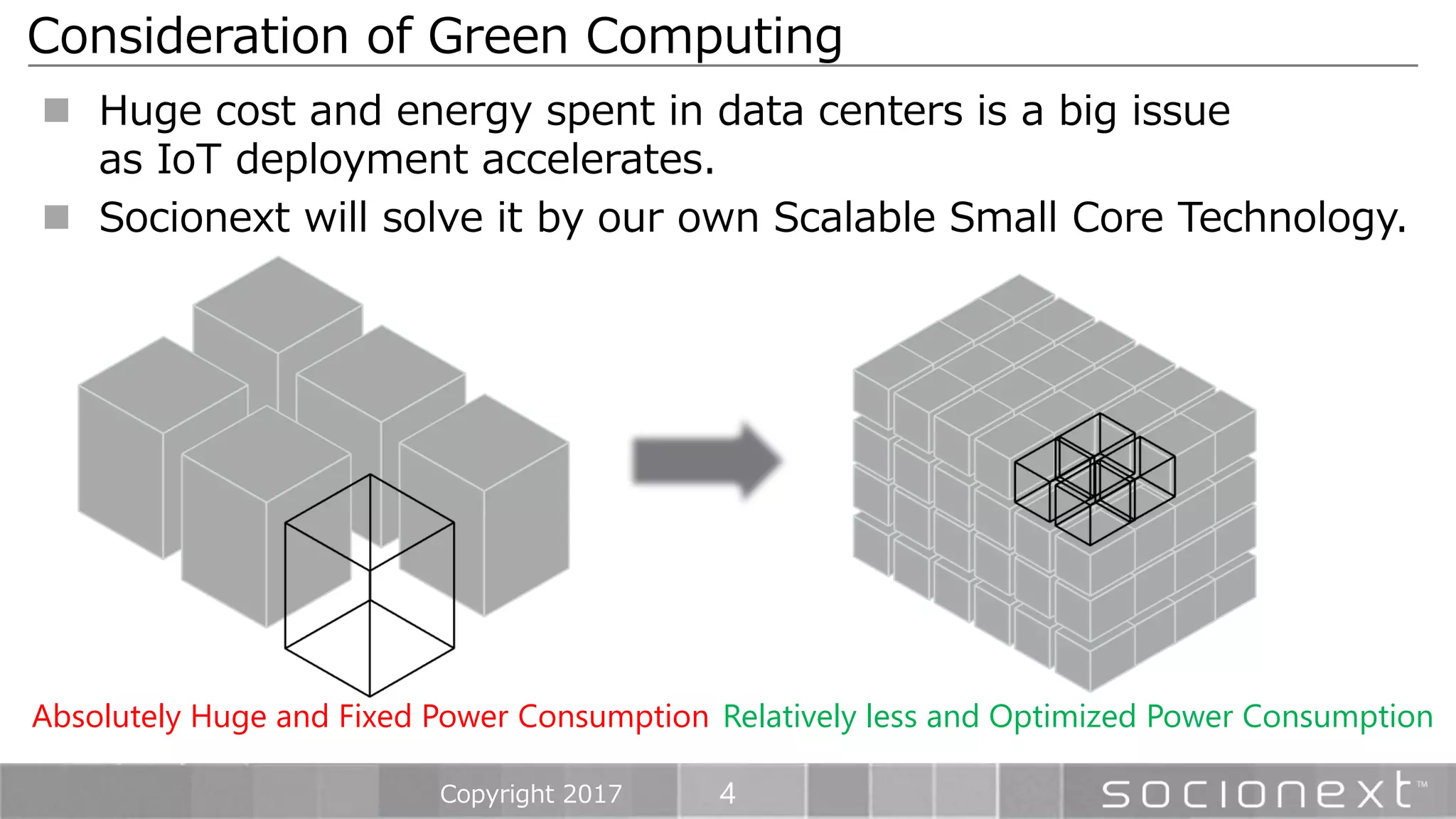

 Huge cost and energy spent in data centers is a big issue
as IoT deployment accelerates.
 Socionext will solve it by our own Scalable Small Core Technology.
Consideration of Green Computing
Copyright 2017
Absolutely Huge and Fixed Power Consumption Relatively less and Optimized Power Consumption

6. 5

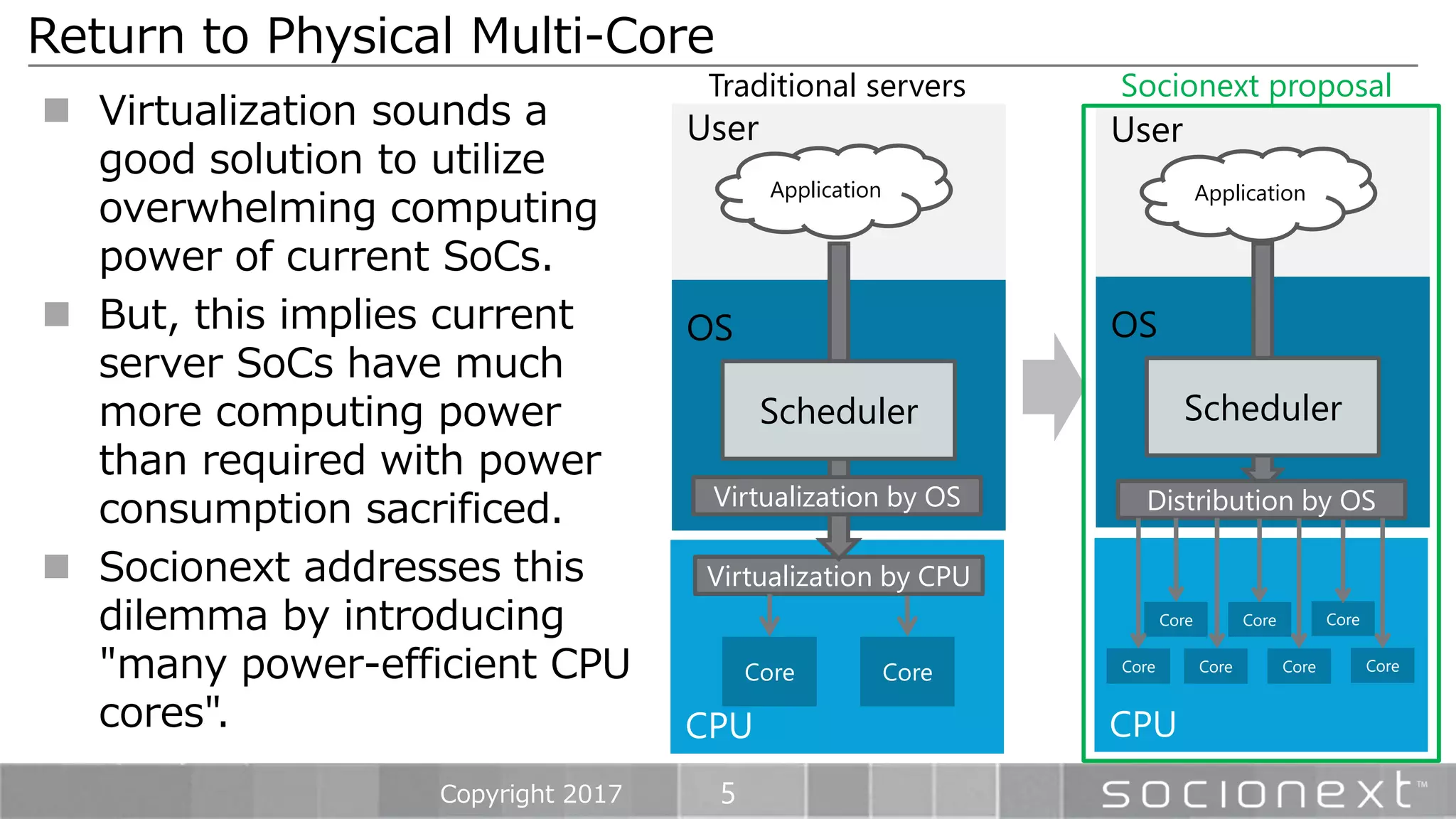

 Virtualization sounds a
good solution to utilize
overwhelming computing
power of current SoCs.
 But, this implies current
server SoCs have much
more computing power
than required with power
consumption sacrificed.
 Socionext addresses this
dilemma by introducing
"many power-efficient CPU
cores".
Return to Physical Multi-Core
Copyright 2017
CPUCPU
User
OS
Virtualization by CPU
CoreCore
User
Application
Virtualization by OS
Scheduler
OS
Scheduler
Distribution by OS
Core CoreCore
Core CoreCoreCore
Application
Traditional servers Socionext proposal

7. 6

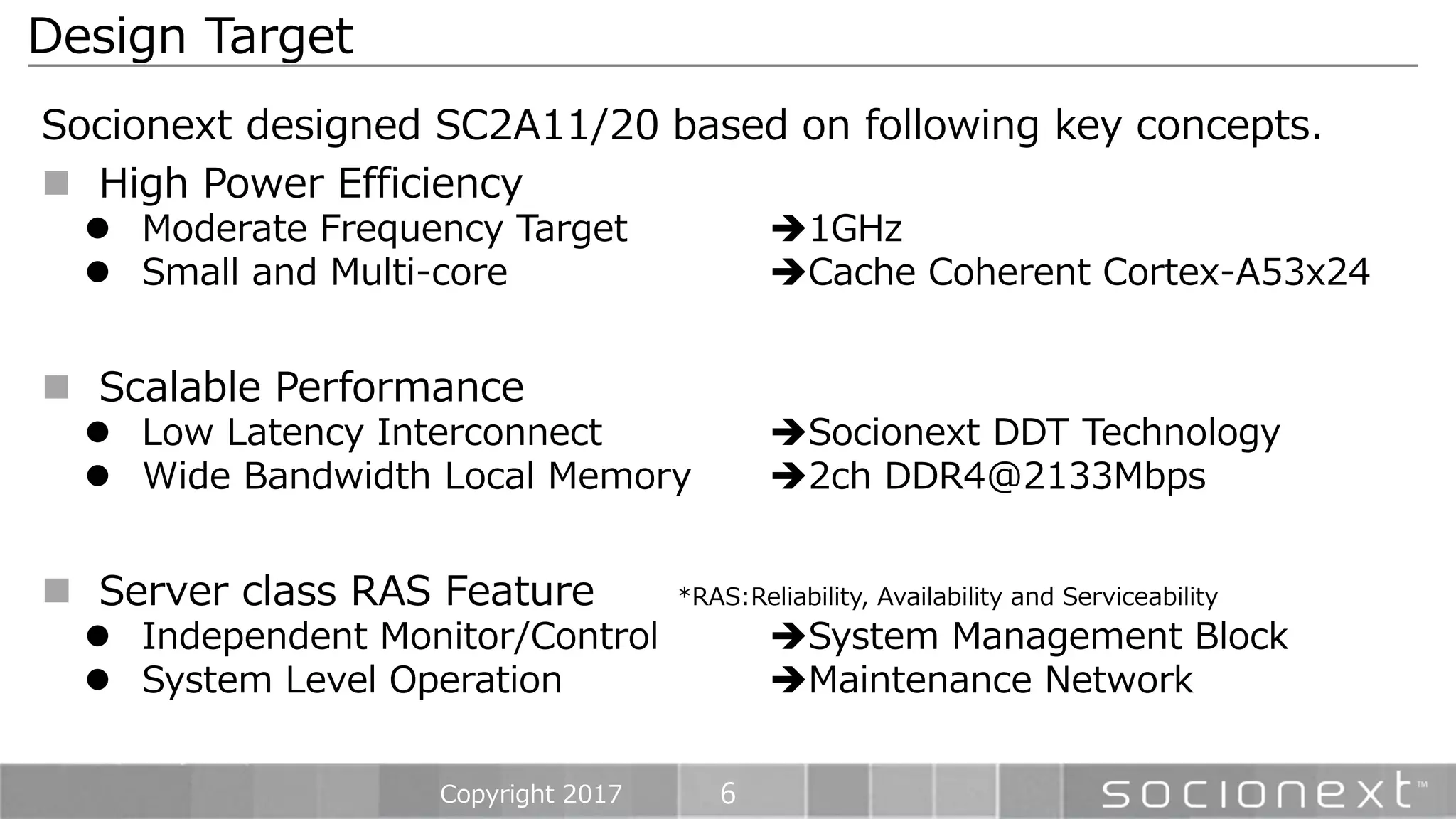

Socionext designed SC2A11/20 based on following key concepts.
 High Power Efficiency
 Moderate Frequency Target 1GHz
 Small and Multi-core Cache Coherent Cortex-A53x24
 Scalable Performance
 Low Latency Interconnect Socionext DDT Technology
 Wide Bandwidth Local Memory 2ch DDR4@2133Mbps
 Server class RAS Feature *RAS:Reliability, Availability and Serviceability
 Independent Monitor/Control System Management Block
 System Level Operation Maintenance Network
Design Target
Copyright 2017

8. 7

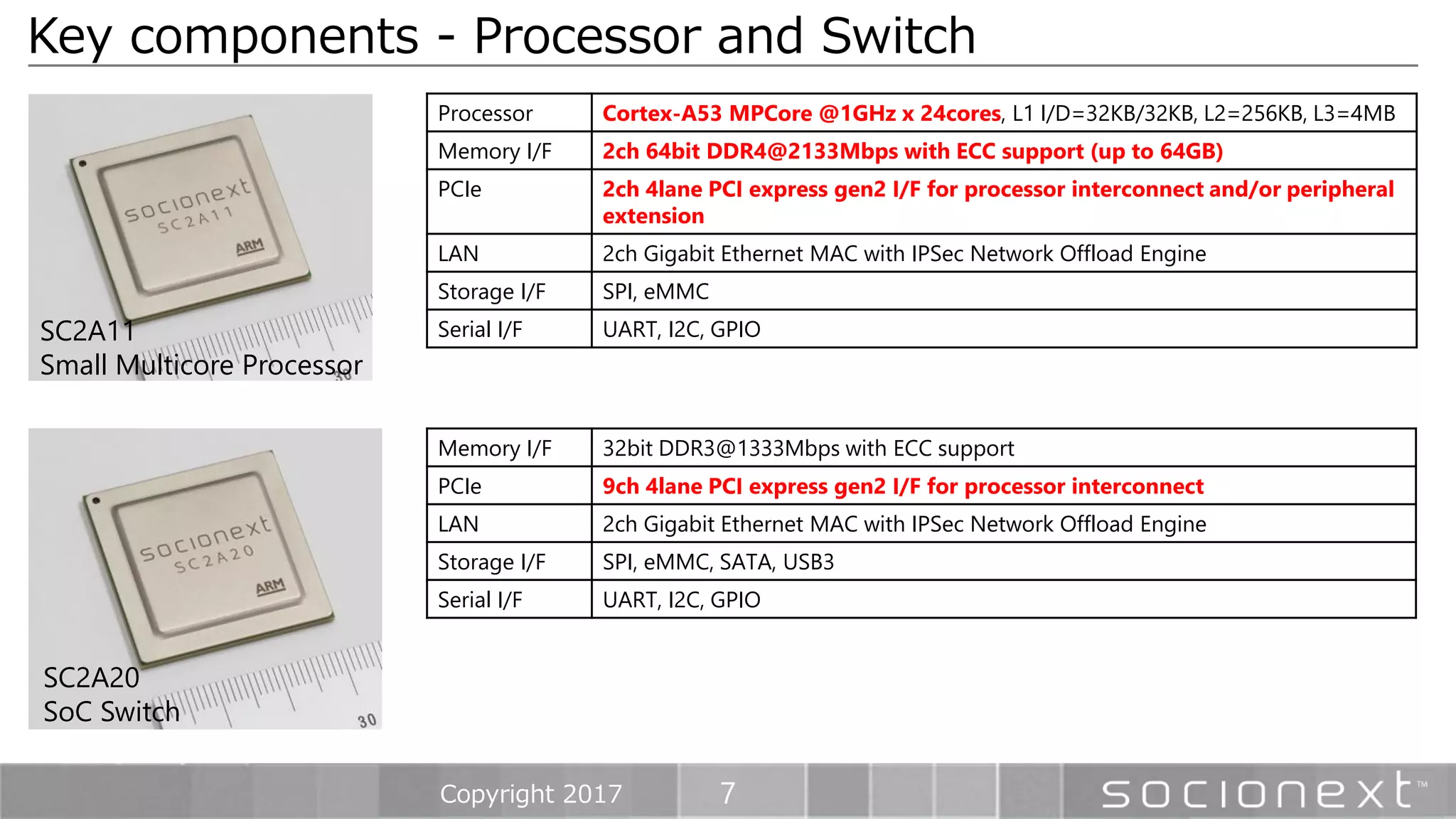

Key components - Processor and Switch
Copyright 2017
Processor Cortex-A53 MPCore @1GHz x 24cores, L1 I/D=32KB/32KB, L2=256KB, L3=4MB
Memory I/F 2ch 64bit DDR4@2133Mbps with ECC support (up to 64GB)
PCIe 2ch 4lane PCI express gen2 I/F for processor interconnect and/or peripheral
extension
LAN 2ch Gigabit Ethernet MAC with IPSec Network Offload Engine
Storage I/F SPI, eMMC
Serial I/F UART, I2C, GPIO
Memory I/F 32bit DDR3@1333Mbps with ECC support
PCIe 9ch 4lane PCI express gen2 I/F for processor interconnect
LAN 2ch Gigabit Ethernet MAC with IPSec Network Offload Engine
Storage I/F SPI, eMMC, SATA, USB3
Serial I/F UART, I2C, GPIO
SC2A11
Small Multicore Processor
SC2A20
SoC Switch

9. 8

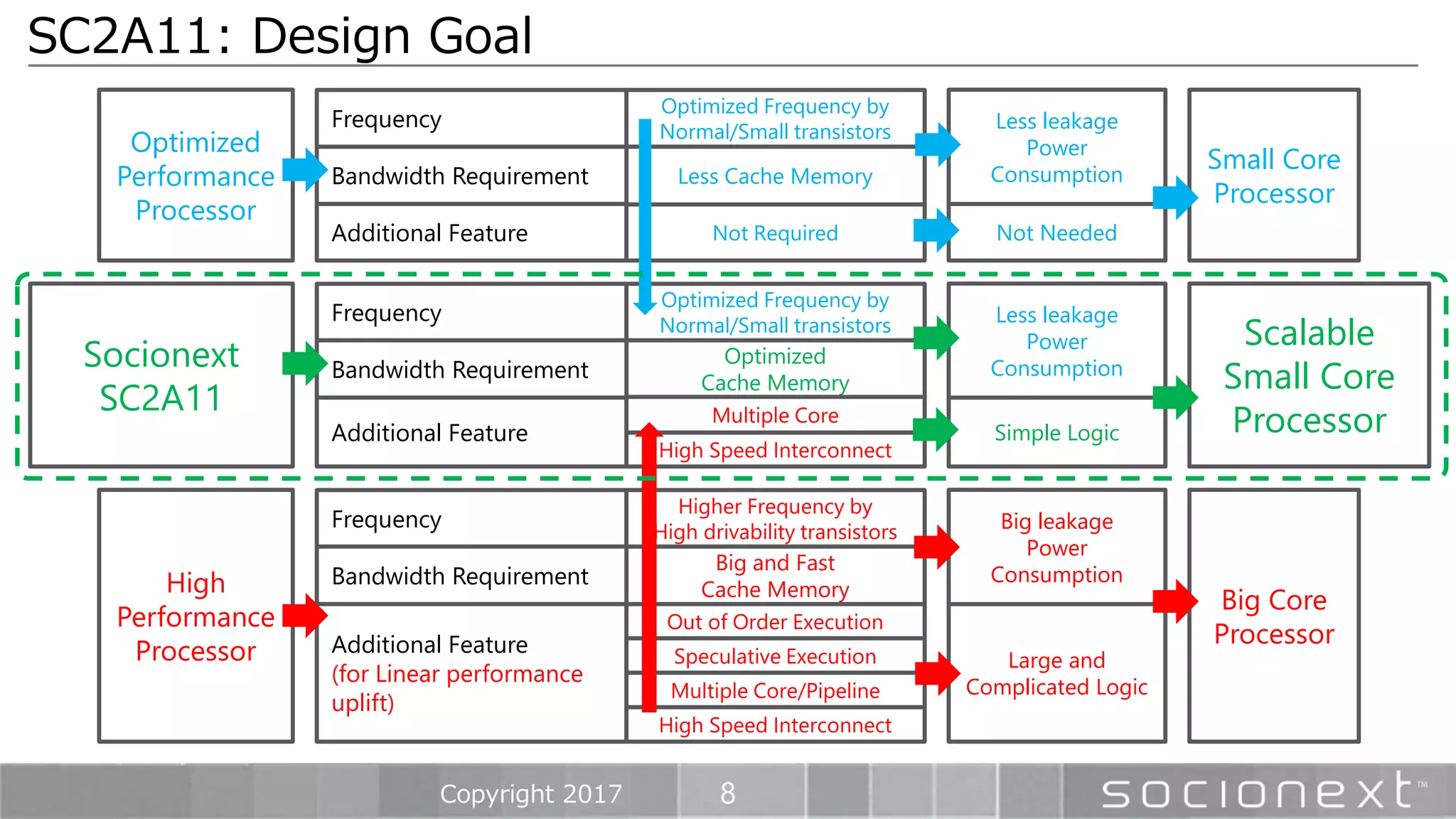

SC2A11: Design Goal
Copyright 2017
High
Performance
Processor
Frequency
Higher Frequency by
High drivability transistors Big leakage
Power
Consumption
Big and Fast
Cache Memory
Bandwidth Requirement
Additional Feature
(for Linear performance
uplift)
Out of Order Execution
Speculative Execution
Multiple Core/Pipeline
Large and
Complicated Logic
Big Core
Processor
High Speed Interconnect
Optimized
Performance
Processor
Frequency
Optimized Frequency by
Normal/Small transistors Less leakage
Power
ConsumptionLess Cache MemoryBandwidth Requirement
Additional Feature Not Required Not Needed
Small Core
Processor
Socionext
SC2A11
Frequency
Optimized Frequency by
Normal/Small transistors Less leakage
Power
Consumption
Optimized
Cache Memory
Bandwidth Requirement
Additional Feature
High Speed Interconnect
Simple Logic
Scalable
Small Core
ProcessorMultiple Core

10. 9

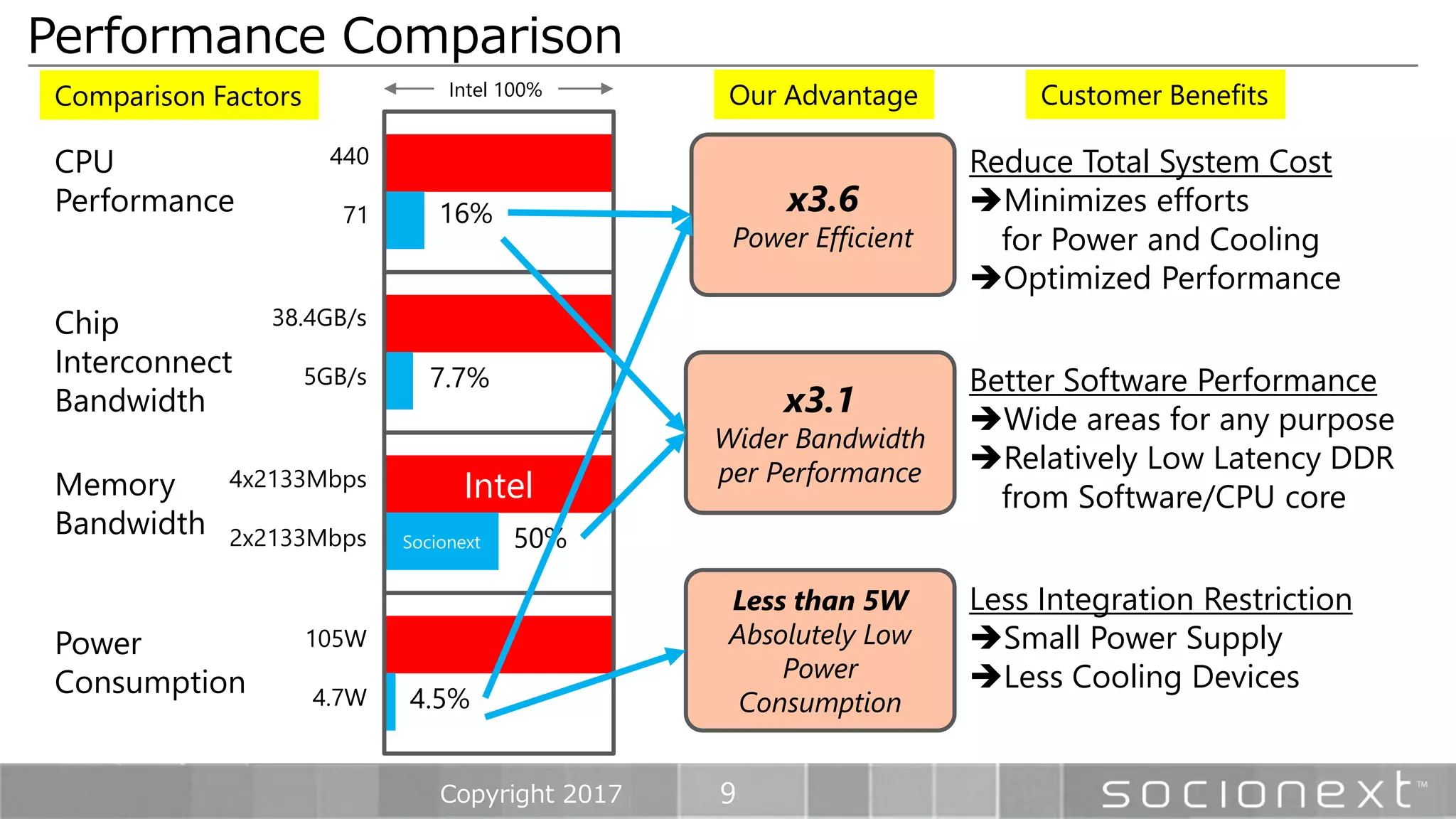

Performance Comparison
Copyright 2017
Intel
Socionext
440
71
38.4GB/s
5GB/s
4x2133Mbps
2x2133Mbps
105W
4.7W
16%
7.7%
50%
4.5%
CPU
Performance
Chip
Interconnect
Bandwidth
Memory
Bandwidth
Power
Consumption
x3.6
Power Efficient
x3.1
Wider Bandwidth
per Performance
Less than 5W
Absolutely Low
Power
Consumption
Reduce Total System Cost
Minimizes efforts
for Power and Cooling
Optimized Performance
Better Software Performance
Wide areas for any purpose
Relatively Low Latency DDR
from Software/CPU core
Less Integration Restriction
Small Power Supply
Less Cooling Devices
Intel 100% Customer BenefitsOur AdvantageComparison Factors

11. 10
2. System Integration as
Proof-Of-Concept(POC)
Copyright 2017

12. 11

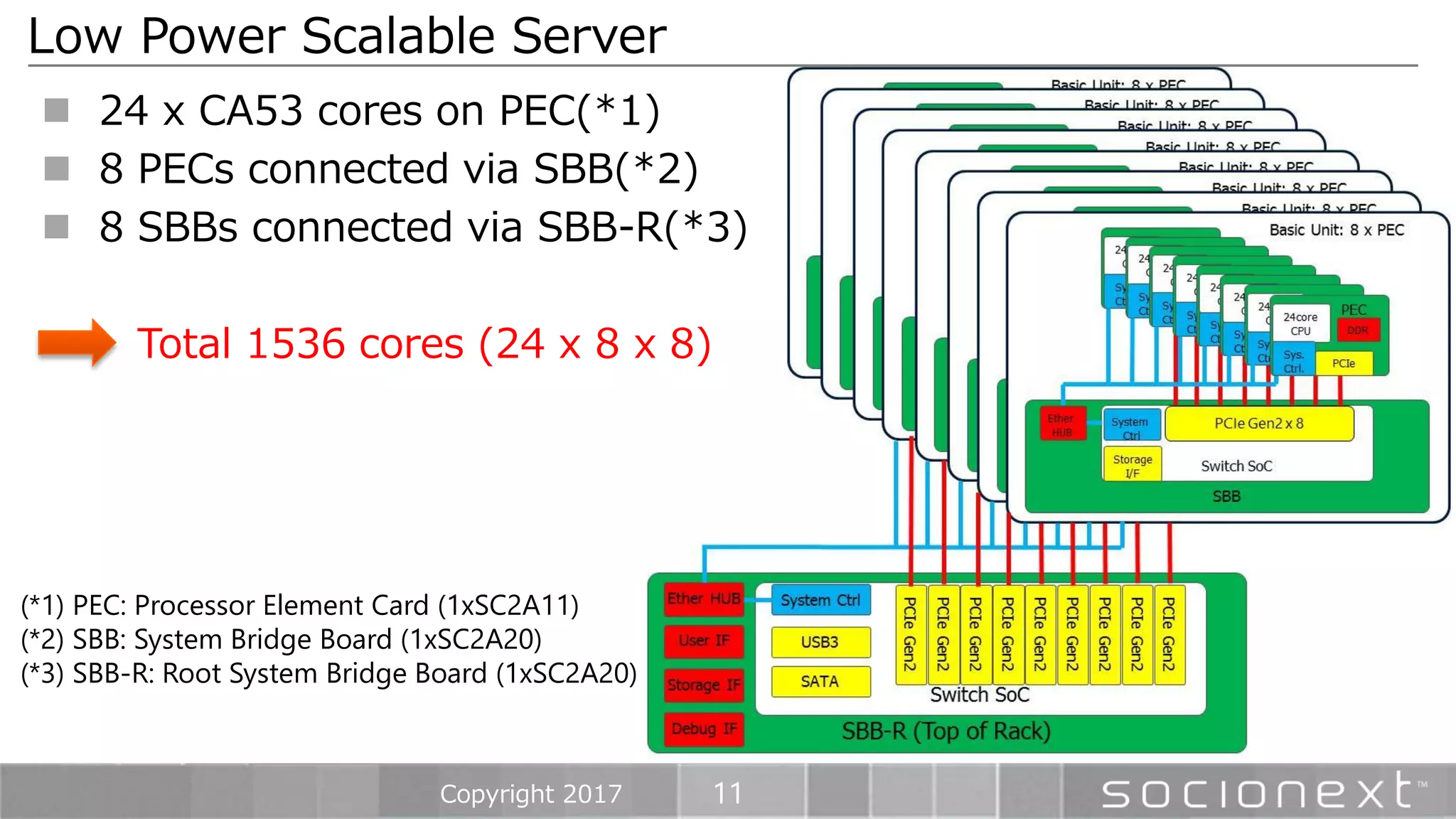

Low Power Scalable Server
Copyright 2017
(*1) PEC: Processor Element Card (1xSC2A11)
(*2) SBB: System Bridge Board (1xSC2A20)
(*3) SBB-R: Root System Bridge Board (1xSC2A20)
 24 x CA53 cores on PEC(*1)
 8 PECs connected via SBB(*2)
 8 SBBs connected via SBB-R(*3)
Total 1536 cores (24 x 8 x 8)

13. 12

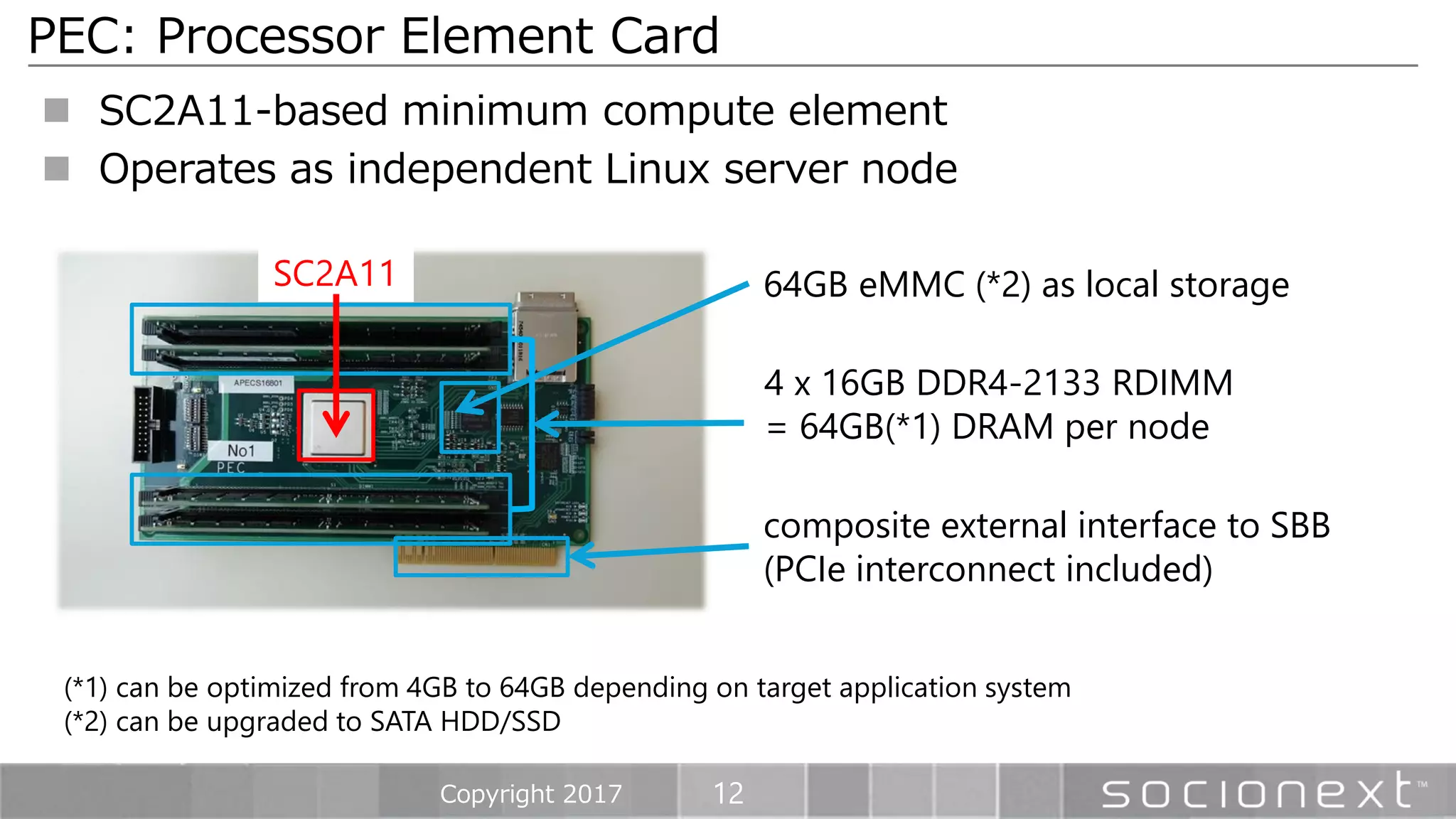

PEC: Processor Element Card
Copyright 2017
64GB eMMC (*2) as local storage
4 x 16GB DDR4-2133 RDIMM
= 64GB(*1) DRAM per node
 SC2A11-based minimum compute element
 Operates as independent Linux server node
SC2A11
(*1) can be optimized from 4GB to 64GB depending on target application system
(*2) can be upgraded to SATA HDD/SSD
composite external interface to SBB
(PCIe interconnect included)

14. 13

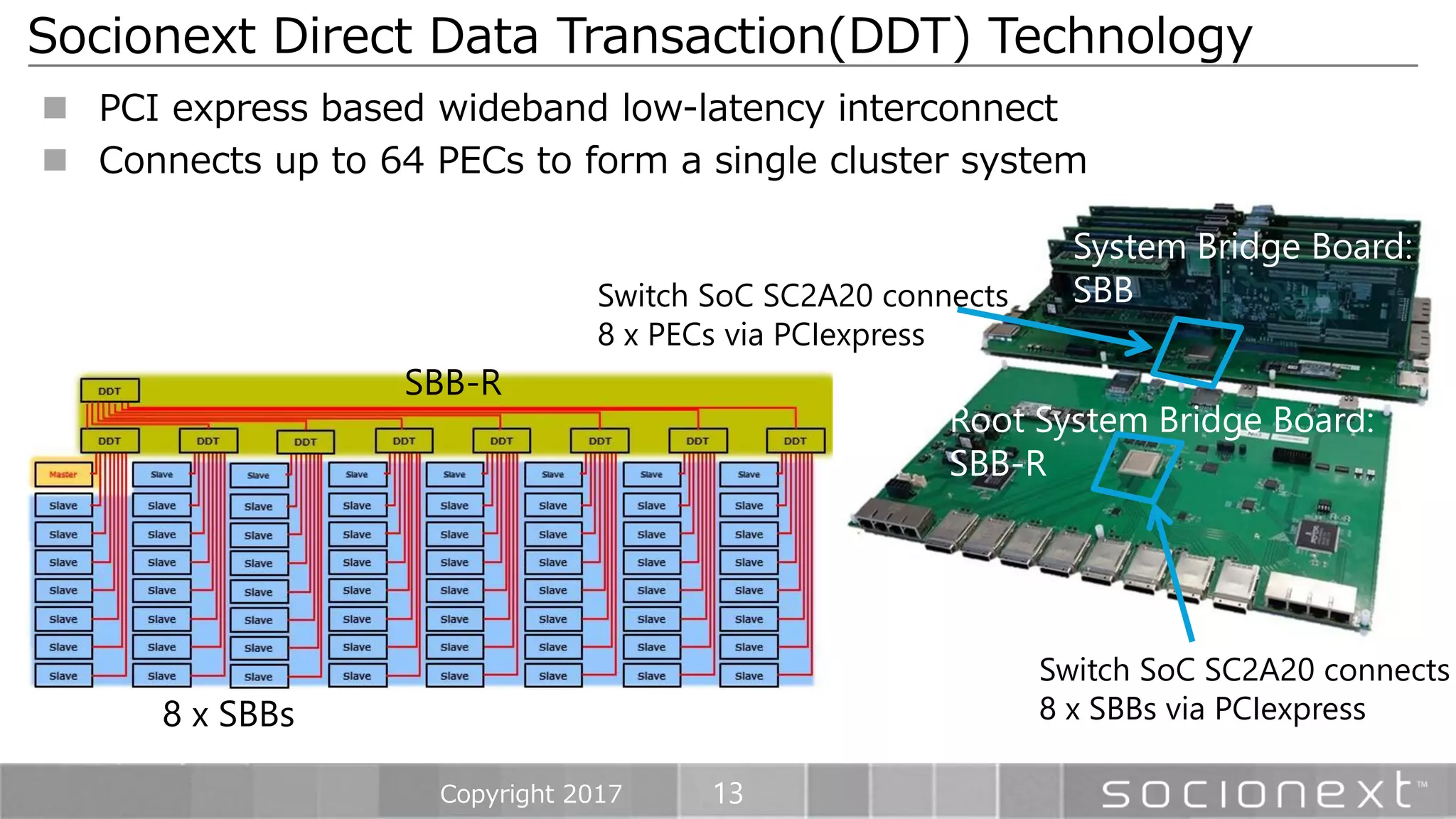

 PCI express based wideband low-latency interconnect
 Connects up to 64 PECs to form a single cluster system
Socionext Direct Data Transaction(DDT) Technology
Copyright 2017
System Bridge Board:
SBB
Root System Bridge Board:
SBB-R
Switch SoC SC2A20 connects
8 x PECs via PCIexpress
Switch SoC SC2A20 connects
8 x SBBs via PCIexpress
SBB-R
8 x SBBs

15. 14

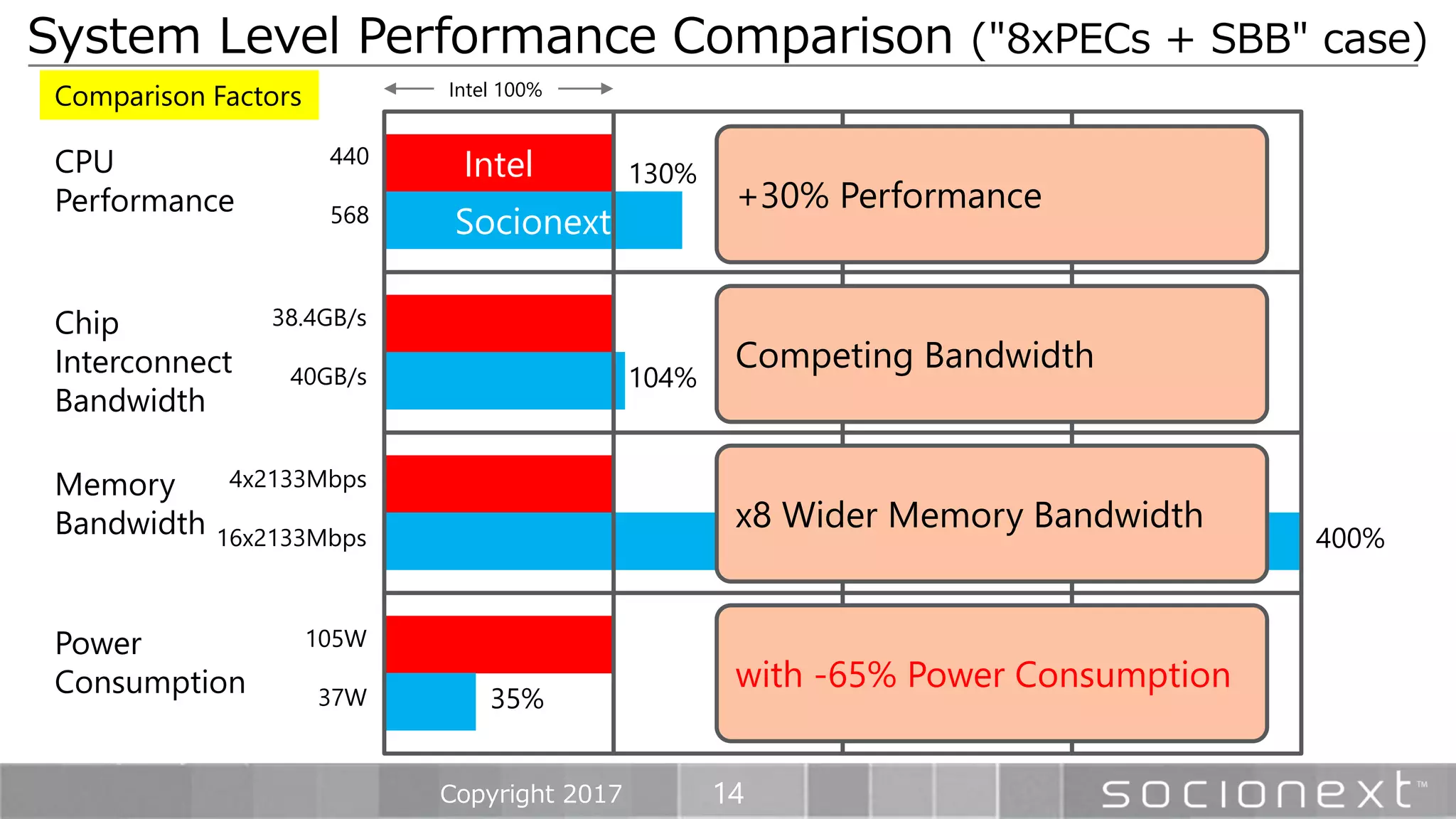

System Level Performance Comparison ("8xPECs + SBB" case)
Copyright 2017
Intel
Socionext
440
568
38.4GB/s
40GB/s
4x2133Mbps
16x2133Mbps
105W
37W
130%
104%
400%
35%
CPU
Performance
Chip
Interconnect
Bandwidth
Memory
Bandwidth
Power
Consumption
+30% Performance
Competing Bandwidth
x8 Wider Memory Bandwidth
with -65% Power Consumption
Intel 100%Comparison Factors

16. 15

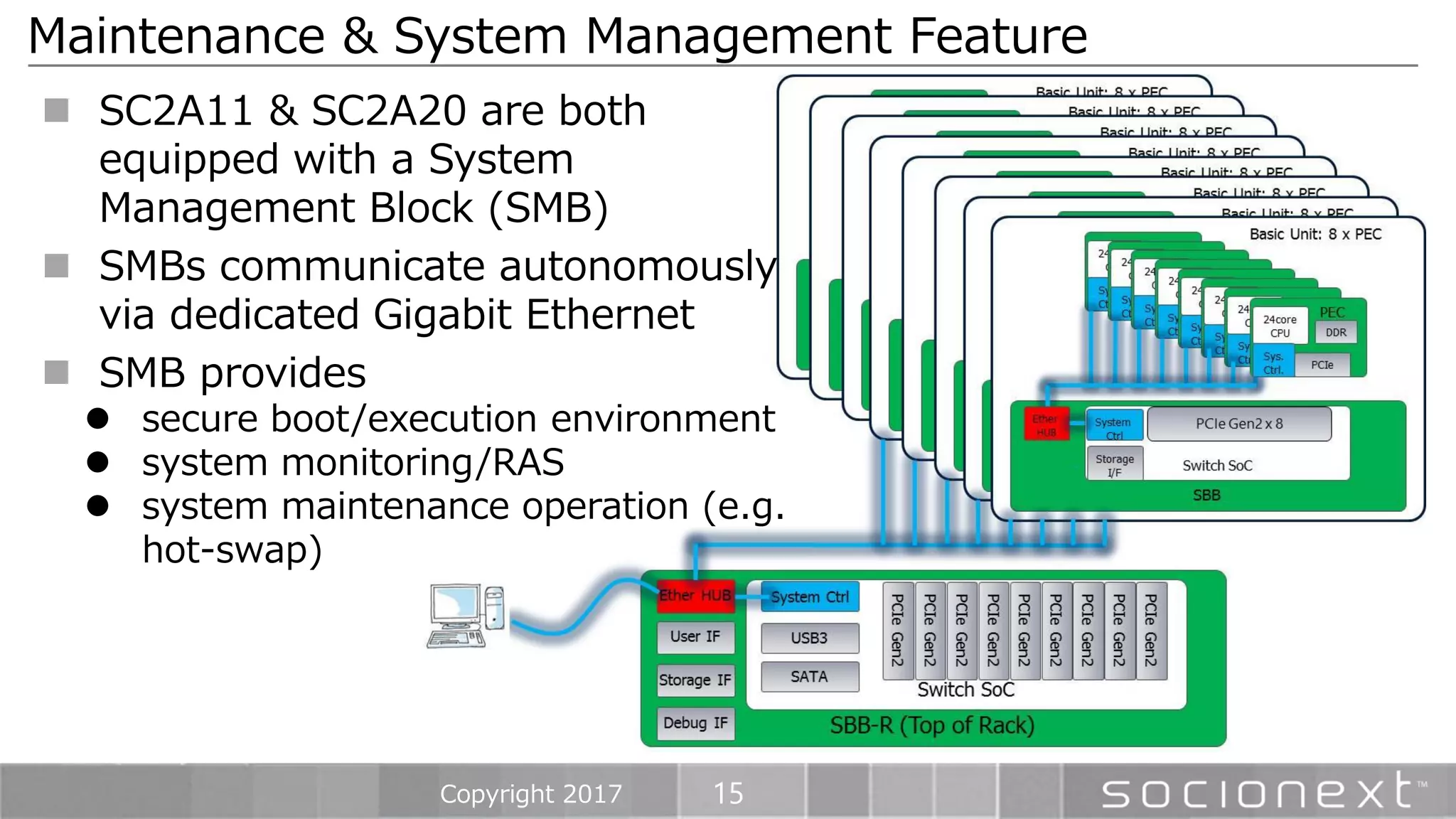

Maintenance & System Management Feature
Copyright 2017
 SC2A11 & SC2A20 are both
equipped with a System
Management Block (SMB)
 SMBs communicate autonomously
via dedicated Gigabit Ethernet
 SMB provides
 secure boot/execution environment
 system monitoring/RAS
 system maintenance operation (e.g.
hot-swap)

17. 16
3. Target Application System
Consideration
Copyright 2017

18. 17

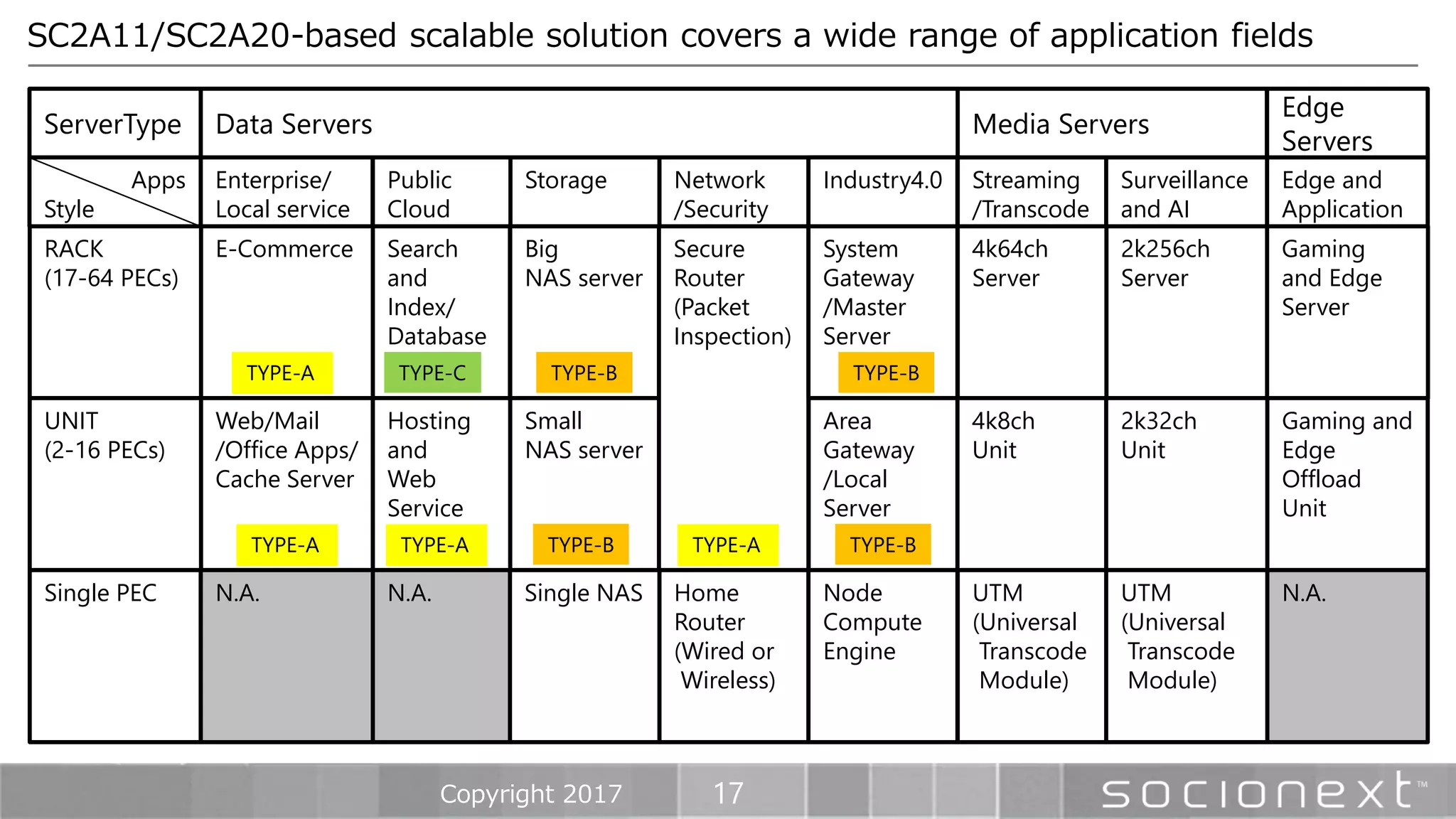

SC2A11/SC2A20-based scalable solution covers a wide range of application fields
Copyright 2017
RACK
(17-64 PECs)
E-Commerce Search
and
Index/
Database
Big
NAS server
4k64ch
Server
2k256ch
Server
UNIT
(2-16 PECs)
Web/Mail
/Office Apps/
Cache Server
Hosting
and
Web
Service
Small
NAS server
Secure
Router
(Packet
Inspection)
4k8ch
Unit
2k32ch
Unit
Single PEC N.A. N.A. Single NAS Home
Router
(Wired or
Wireless)
UTM
(Universal
Transcode
Module)
UTM
(Universal
Transcode
Module)
Apps
Style
Enterprise/
Local service
Public
Cloud
Storage Network
/Security
Streaming
/Transcode
Surveillance
and AI
Gaming
and Edge
Server
Gaming and
Edge
Offload
Unit
N.A.
Edge and
Application
ServerType Data Servers Media Servers
Edge
Servers
System
Gateway
/Master
Server
Area
Gateway
/Local
Server
Node
Compute
Engine
Industry4.0
TYPE-A
TYPE-A TYPE-A
TYPE-C TYPE-B
TYPE-B
TYPE-B
TYPE-BTYPE-A

19. 18

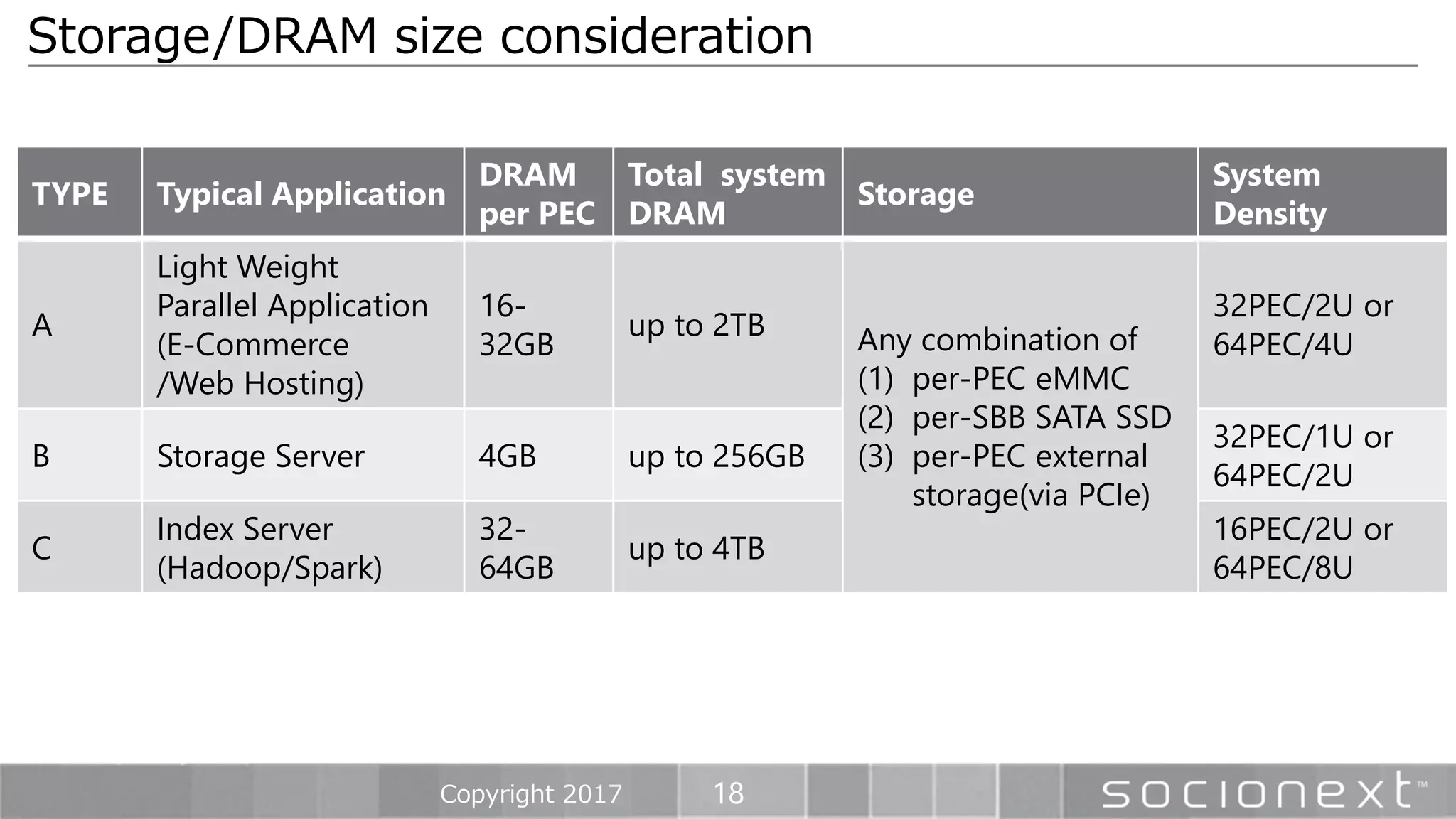

Storage/DRAM size consideration
Copyright 2017
TYPE Typical Application
DRAM
per PEC
Total system
DRAM
Storage
System
Density
A
Light Weight
Parallel Application
(E-Commerce
/Web Hosting)
16-
32GB
up to 2TB Any combination of
(1) per-PEC eMMC
(2) per-SBB SATA SSD
(3) per-PEC external
storage(via PCIe)
32PEC/2U or
64PEC/4U
B Storage Server 4GB up to 256GB
32PEC/1U or
64PEC/2U
C
Index Server
(Hadoop/Spark)
32-
64GB
up to 4TB
16PEC/2U or
64PEC/8U

20. 19
4. Software Development Status
Copyright 2017

21. 20

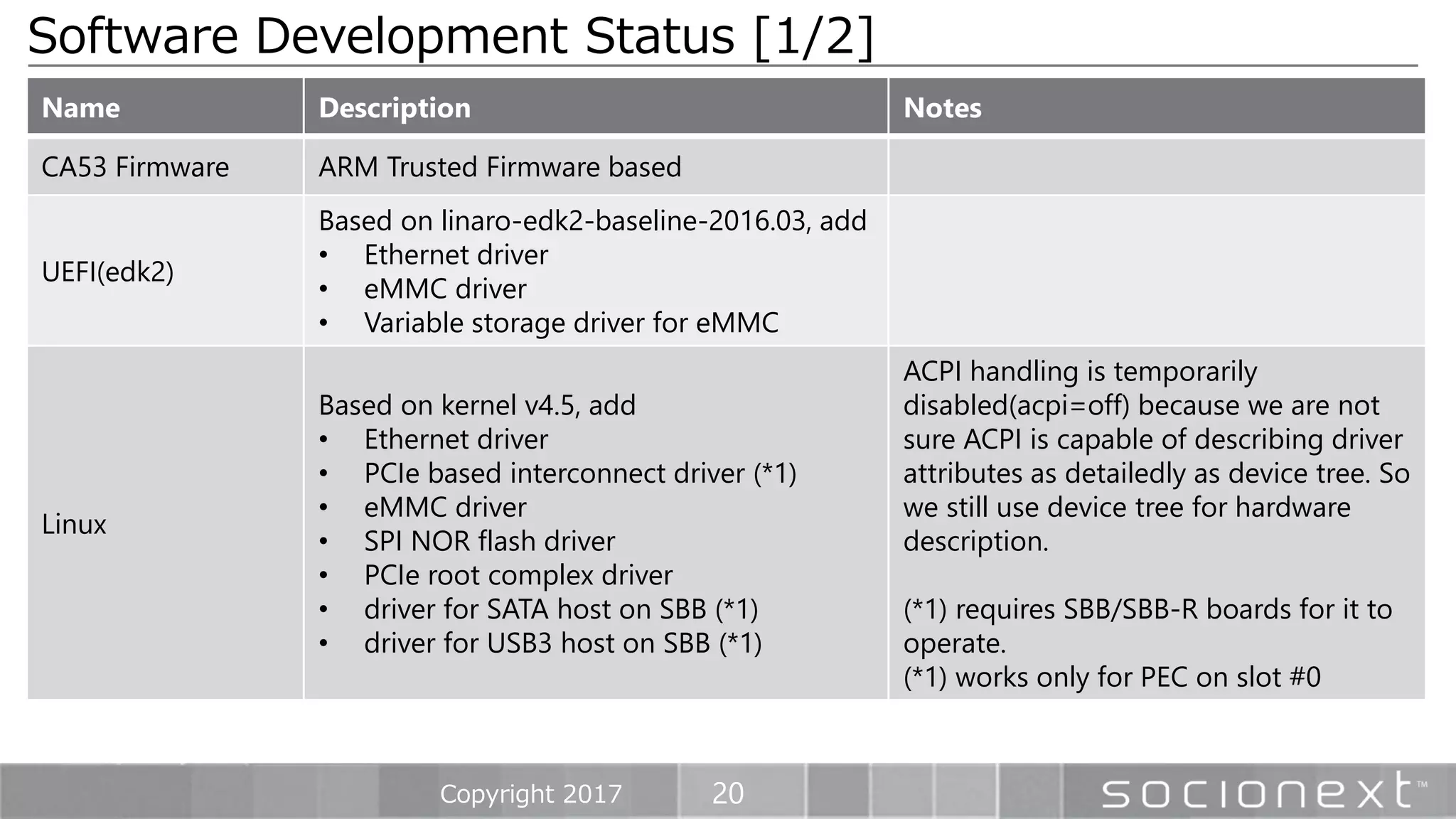

Software Development Status [1/2]
Copyright 2017
Name Description Notes
CA53 Firmware ARM Trusted Firmware based
UEFI(edk2)
Based on linaro-edk2-baseline-2016.03, add
• Ethernet driver
• eMMC driver
• Variable storage driver for eMMC
Linux
Based on kernel v4.5, add
• Ethernet driver
• PCIe based interconnect driver (*1)
• eMMC driver
• SPI NOR flash driver
• PCIe root complex driver
• driver for SATA host on SBB (*1)
• driver for USB3 host on SBB (*1)
ACPI handling is temporarily
disabled(acpi=off) because we are not
sure ACPI is capable of describing driver
attributes as detailedly as device tree. So
we still use device tree for hardware
description.
(*1) requires SBB/SBB-R boards for it to
operate.
(*1) works only for PEC on slot #0

22. 21

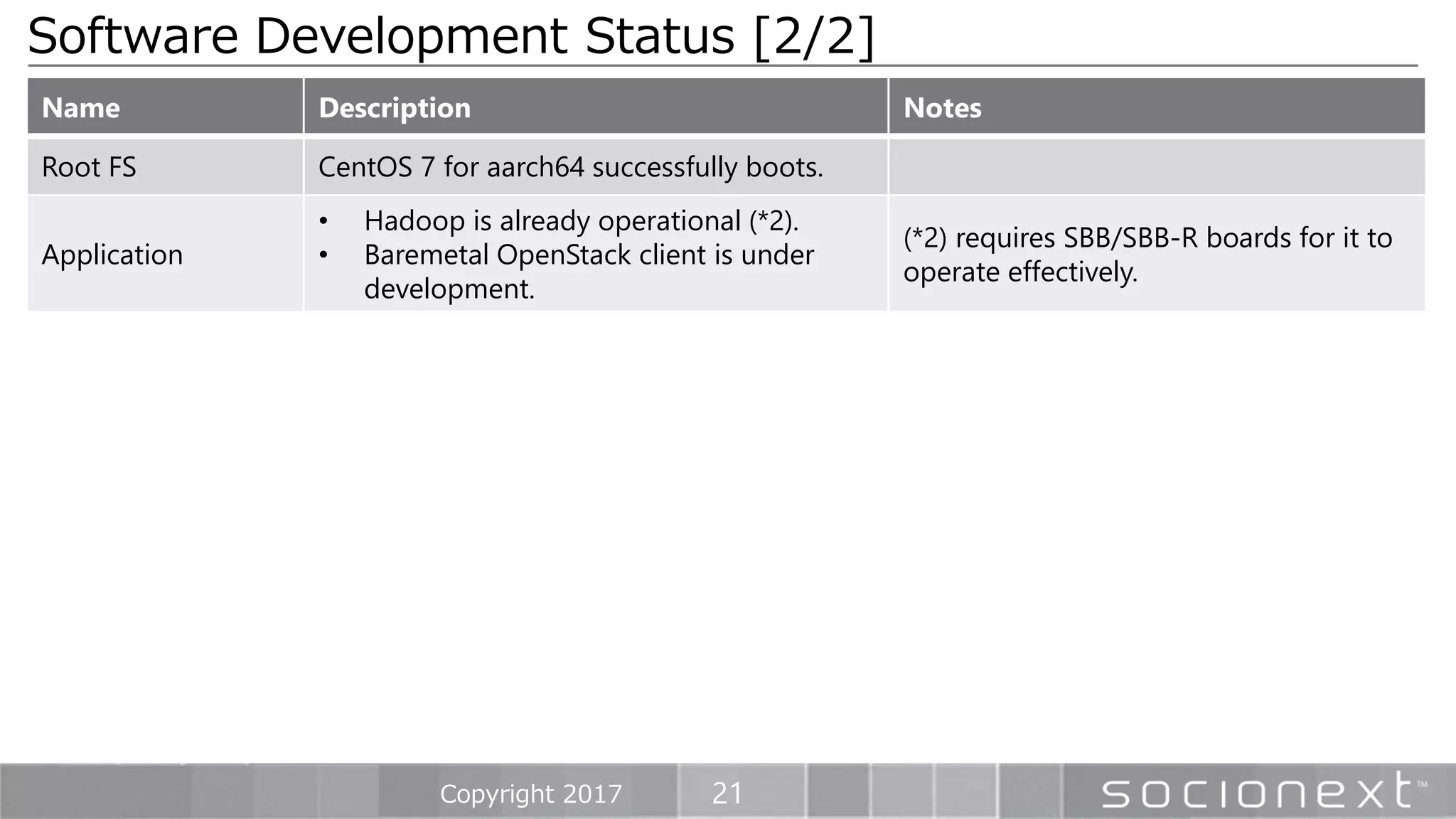

Software Development Status [2/2]
Copyright 2017
Name Description Notes
Root FS CentOS 7 for aarch64 successfully boots.
Application
• Hadoop is already operational (*2).
• Baremetal OpenStack client is under
development.
(*2) requires SBB/SBB-R boards for it to
operate effectively.
