The document provides an overview of robots and robotics, including definitions, history, components, and applications. Key topics covered include robot kinematics, dynamics, types of sensors, and various robotic systems based on mobility and task performance. Additionally, it discusses applications in different fields such as agriculture, underwater exploration, and space missions.

1. NAME- X Y Z
ROLL NO.- 871898654
B.TECH MECHATRONICS

3. Introduction to robots and
robotics
Robot Kinematics
Robot Dynamics
Sensors
Robot Vision

4. 4
Introduction to Robots and Robotics
A Few Questions
 What is a robot?
 What is robotics?
 Why do we study robotics?
 How can we teach a robot to perform a particular task?
 What are possible applications of robots?
 Can a human being be replaced by a robot?,
and so on.

5. 5
A Brief History of Robotics
Year Events and Development
1954 First patent on manipulator by
George Devol, the father of robot
1956 Joseph Engelberger started the
first robotics company: Unimation
1962 General Motors used the
manipulator: Unimate in die-
casting application

6. 6
3 Hs in Robotics
3 Hs of human beings are copied into Robotics, such as
Hand
Head
Heart

8. 8
A Robotic System
Various
Components
1.Base
2.Links and Joints
3.End-effector /
gripper
4.Wrist
5.Drive / Actuator
6.Controller
7. Sensors

9. 9
Connectivity / Degrees of Freedom of a Joint
Rigid bodies connection
Joints with 1 dof
Revolute Joint (R)

10. 10
Joints with One dof
Prismatic Joint (P)

11. 11
Joints with two dof
Cylindrical Joint (C)

12. 12
Joints with three dof
Ball and Socket Joint / Spherical Joint (𝑺′)

13. 13
Representation of the Joints
Revolute joint (R)
Prismatic joint (P)
Cylindrical joint (C)

14. 14
Representation of the Joints
Spherical joint (𝑺′)
Hooke joint (U)
Twisting joint (T)
Kinematic Diagram

16. 16
 Based on the Type of Tasks Performed
1. Point-to-Point Robots
Examples:
Unimate 2000
T3

17. 17
Continuous Path Robots
Examples:
PUMA
CRS

18. 18
Revolute Coordinate or
Articulated Coordinate Robots
 Rotary movement about three
independent axes
 Represented as TRR
 Suitable for handling
parts/components in
manufacturing system
 Rigidity and accuracy may not
be good enough
 Examples: T3, PUMA

19. 19
• Based on Mobility Levels
1. Robots with fixed base (also known as manipulators)
Serial Parallel
PUMA, CRS Stewart platform
Manipulators

20. 20
• Based on Mobility Levels (contd.)
2. Mobile robots
Wheeled robots Tracked robots Multi-legged robots
Mobile robots

21. 21
• Based on Mobility Levels (contd.)
2. Mobile robots
Wheeled Robot Six-legged Robot

22. 22
Workspace of Manipulators
volume of space reached…….
Dextrous Reachable
Workspace

24. 24
Resolution
Programming resolution
Smallest allowable position
increment in robot
programme
Basic Resolution Unit
BRU = 0.01 inch/0.1degree
Control resolution
Smallest change in position
that the feedback device
can measure say 0.36
degrees per pulse

25. 25
Accuracy (mm)
It is the precision with which a computed point can be reached
Repeatability (mm)
It is defined as the precision with which a robot re-position itself to a
previous taught point

26. 26
Specification of a Robot
 Control type
 Drive system
 Coordinate system
 Teaching/Programming methods
 Accuracy, Repeatability, Resolution
 Pay-load capacity
 Weight of the manipulator
 Applications
 Range and speed of arms and wrist
 Sensors used
 End-effector/ gripper used

28. 28
Robot Dynamics
 To determine joint torques/forces
 Robotic joint torque consists of inertia,
centrifugal and Coriolis and gravity
terms
Inertia Term
Depends on mass distribution of the links
and it is expressed in terms of moment
of inertia tensor

29. 29
Inverse Dynamics

30. 30
Forward Dynamics

32. 32
1.
SENSORS
Classification of Sensors
Internal Sensors
Ex. Position sensors,
velocity sensors,
Acceleration sensors,
Force/Moment sensor
External Sensors
Ex. Temperature sensors,
Visual sensor, Proximity
sensor, Acoustic sensor

33. 33
2. SENSORS
Classification of Sensors (Cont.)
Contact Sensors
(Physical contact between sensor
mounted on robot and object)
Non-Contact Sensors
(No physical contact)
Proximity sensor
Visual sensor
Acoustic sensor
Range sensor
Touch sensor/ Tactile
sensor/ Binary sensor
(indicates presence or
absence of an object)
Ex. Micro-switch, Limit
switch
Force sensor/ Analog
sensor (not only the
contact is made but also
the force is measured)
Ex. Sensors using strain
gauges

34. 34
Connected to robot’s wrist
Micro – switches
Figure: Micro – switches placed on two
fingers of a robotic hand
Finger

36. 36
Robot Vision
• To extract, characterize and interpret objects
present in an image/photograph captured using a
camera.

37. 37
Steps to be Followed
• Step 1: Capturing image of the environment using CCD camera.
• Step 2: Light intensity is measured along a particular direction
say Y using Electron Beam Scanner (in which the charge
accumulated in photo-sites is proportional to light intensity).
Analog plot of light intensity is digitized and it is known as A/D
conversion or digitizing.

38. 38
Robot Vision

39. 39
Steps to be Followed (contd.)
• Step 3: Image is stored as an array of pixels (each pixel may
have different light intensity values). It is known as frame
grabbing.
• Step 4: Preprocessing of the data collected in Step 3 is done for
noise reduction, restoration of lost information etc.

40. 40

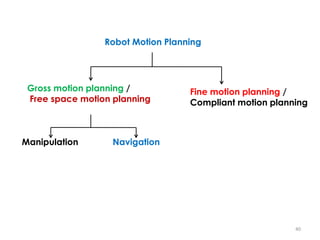

Robot Motion Planning
Gross motion planning /
Free space motion planning
Fine motion planning /
Compliant motion planning
Manipulation Navigation

41. 41
Task identification Motion Planning Kinematics
Trajectory planning
Dynamics
Control scheme
Motor action
Sequence of Robotic Action

42. 42
Intelligent Robot – Adaptive Motion Planner & Controller
(AI to be merged with Robotics); Ex. Robot Soccer
Ultimate Goal of the RoboCup: “By the mid-21st century, a
team of autonomous humanoid robots shall beat the
human World Cup champion team under the official
regulations of FIFA”

43. 43
Application Areas
 Arc Welding
 Spot Welding
 Spray Painting
 Pick and Place Operation
 Grinding
 Drilling
 Milling
Applications of Robots

44. 44
Under-Water Applications
Purposes
 To explore various resources
 To study under-water environment
 To carry out drilling, pipe-line survey, inspection and
repair of ships

45. 45
Space Applications
 For carrying out on-orbit services, assembly job
and interplanetary missions
 Spacecraft deployment and retrieval, survey of
outside space shuttle; assembly, testing,
maintenance of space stations; transport of
astronauts to various locations
 Robo-nauts
 Free-flying robots
 Planetary exploration rovers

46. 46
In Agriculture
For spraying pesticides
For spraying fertilizers in liquid form
Cleaning weeds
Sowing seeds
Inspection of plants

47. 47

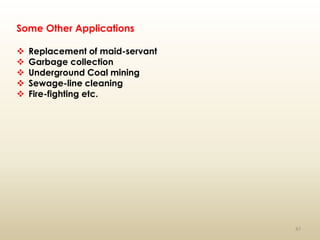

Some Other Applications
 Replacement of maid-servant
 Garbage collection
 Underground Coal mining
 Sewage-line cleaning
 Fire-fighting etc.
