Algal Biofuel
- 1. Steve Keller Vijay Upadhyay Kaiser Hussain Zachary Hess

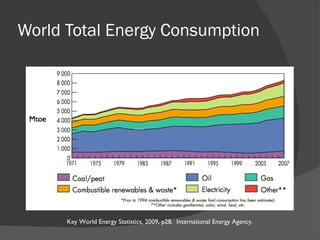

- 2. World Total EnergyConsumption Key World Energy Statistics, 2009, p28. International Energy Agency.

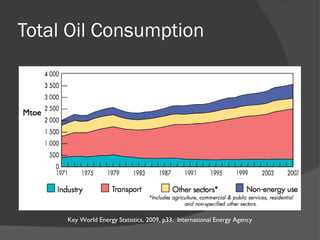

- 3. Total Oil ConsumptionKey World Energy Statistics, 2009, p33. International Energy Agency
- 4. Key World EnergyStatistics, 2009, p20. International Energy Agency

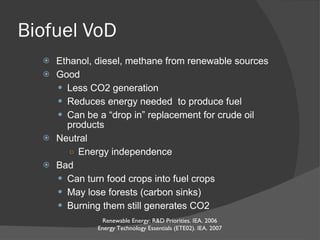

- 5. Biofuel VoD Ethanol,diesel, methane from renewable sources Good Less CO2 generation Reduces energy needed to produce fuel Can be a “drop in” replacement for crude oil products Neutral Energy independence Bad Can turn food crops into fuel crops May lose forests (carbon sinks) Burning them still generates CO2 Renewable Energy: R&D Priorities. IEA. 2006 Energy Technology Essentials (ETE02). IEA. 2007

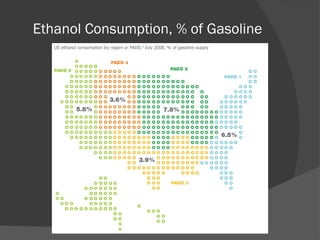

- 6. Ethanol Consumption, %of Gasoline

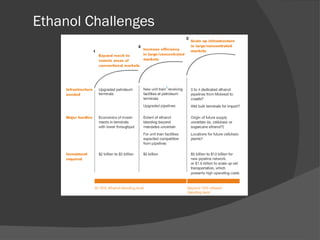

- 7.

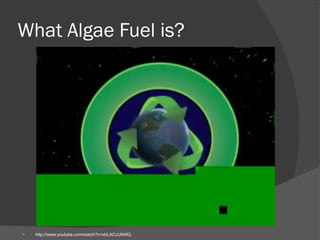

- 8. What Algae Fuelis? http://www.youtube.com/watch?v=xbLACcUN4fQ

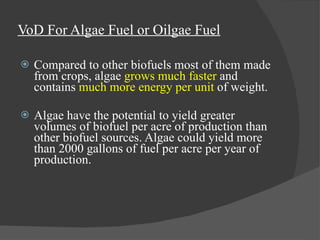

- 9. VoD For AlgaeFuel or Oilgae Fuel Compared to other biofuels most of them made from crops, algae grows much faster and contains much more energy per unit of weight. Algae have the potential to yield greater volumes of biofuel per acre of production than other biofuel sources. Algae could yield more than 2000 gallons of fuel per acre per year of production.

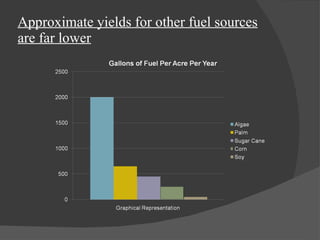

- 10. Approximate yields forother fuel sources are far lower
- 11. Advantages The yieldsof oil and fuels from algae are much higher (10-100 times) than competing energy crops. Algae can grow practically anywhere, thus ensuring that there is no competition with food crops. Algae are excellent bioremediation agents - they have the potential to absorb massive amounts of CO 2 and can play an important role in sewage and wastewater treatment. Algae are the only feedstock that have the potential to completely replace world's consumption of transportation fuels. Resource: http://www.oilgae.com/ref/report/digest/digest.html

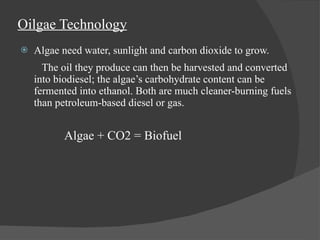

- 12. Oilgae Technology Algaeneed water, sunlight and carbon dioxide to grow. The oil they produce can then be harvested and converted into biodiesel; the algae’s carbohydrate content can be fermented into ethanol. Both are much cleaner-burning fuels than petroleum-based diesel or gas. Algae + CO2 = Biofuel

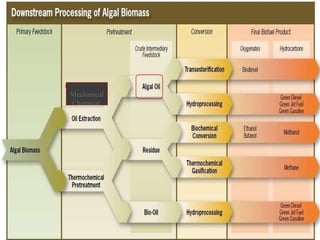

- 13.

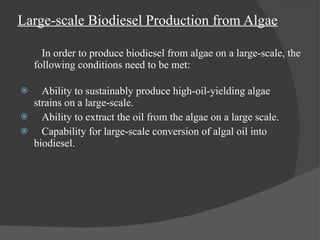

- 14. Large-scale Biodiesel Productionfrom Algae In order to produce biodiesel from algae on a large-scale, the following conditions need to be met: Ability to sustainably produce high-oil-yielding algae strains on a large-scale. Ability to extract the oil from the algae on a large scale. Capability for large-scale conversion of algal oil into biodiesel.

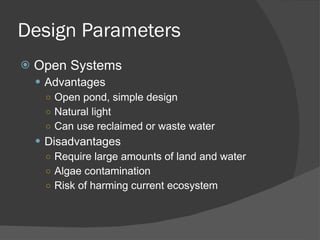

- 15. Design Parameters OpenSystems Advantages Open pond, simple design Natural light Can use reclaimed or waste water Disadvantages Require large amounts of land and water Algae contamination Risk of harming current ecosystem

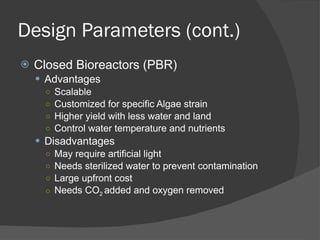

- 16. Design Parameters (cont.)Closed Bioreactors (PBR) Advantages Scalable Customized for specific Algae strain Higher yield with less water and land Control water temperature and nutrients Disadvantages May require artificial light Needs sterilized water to prevent contamination Large upfront cost Needs CO 2 added and oxygen removed
- 17. Design Parameters (cont.)Algae Purchase from private culture collections Grown in natural water bodies Genetically Engineered Databank of algae strains Licensing patents Highest Yields

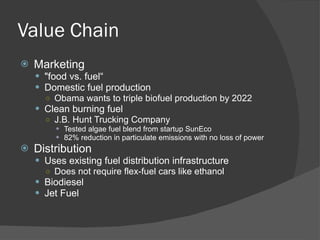

- 18. Value Chain Marketing"food vs. fuel“ Domestic fuel production Obama wants to triple biofuel production by 2022 Clean burning fuel J.B. Hunt Trucking Company Tested algae fuel blend from startup SunEco 82% reduction in particulate emissions with no loss of power Distribution Uses existing fuel distribution infrastructure Does not require flex-fuel cars like ethanol Biodiesel Jet Fuel
- 19. Value Chain Salesand Service US State and Federal blending mandates In 2010, EPA renewable fuel standard require biofuels make up 8.25% (13 billion gallons) of gasoline sales $1 per gallon blenders' tax credit for biodiesel 2004-2009, expected to be renewed in 2010 European Union Exempt from fuel taxes

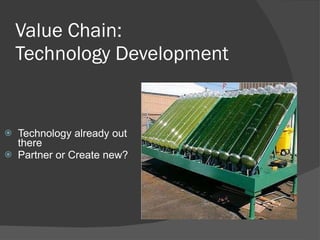

- 20. Value Chain: Technology Development Technology already out there Partner or Create new?
- 21. Value Chain: ProductDesign Product design based on a partnership Generally, biofuel made from the oil produced by algae in the reactors or pools siphoned to other pools based on oil content until able to be extracted to be made into biofuel. Location?

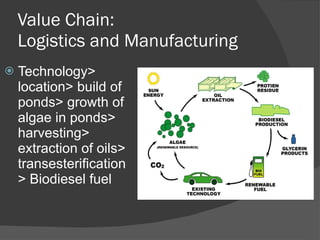

- 22. Value Chain: Logisticsand Manufacturing Technology> location> build of ponds> growth of algae in ponds> harvesting> extraction of oils> transesterification> Biodiesel fuel

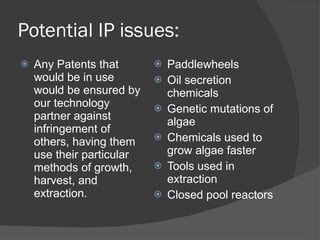

- 23. Potential IP issues:Any Patents that would be in use would be ensured by our technology partner against infringement of others, having them use their particular methods of growth, harvest, and extraction. Paddlewheels Oil secretion chemicals Genetic mutations of algae Chemicals used to grow algae faster Tools used in extraction Closed pool reactors

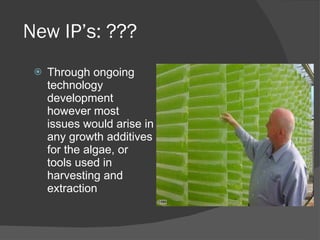

- 24. New IP’s: ???Through ongoing technology development however most issues would arise in any growth additives for the algae, or tools used in harvesting and extraction

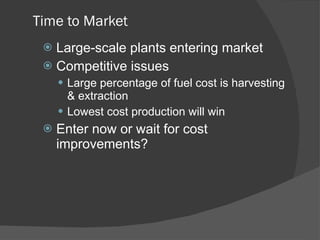

- 25. Time to MarketLarge-scale plants entering market Competitive issues Large percentage of fuel cost is harvesting & extraction Lowest cost production will win Enter now or wait for cost improvements?
- 26.

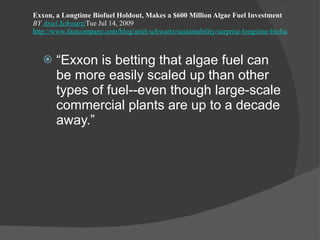

- 27. Exxon, a LongtimeBiofuel Holdout, Makes a $600 Million Algae Fuel Investment BY Ariel Schwartz Tue Jul 14, 2009 http://www.fastcompany.com/blog/ariel-schwartz/sustainability/surprise-longtime-biofuel-holdout-exxon-makes-600-million-algae-f?nav=inform-rl “ Exxon is betting that algae fuel can be more easily scaled up than other types of fuel--even though large-scale commercial plants are up to a decade away.”

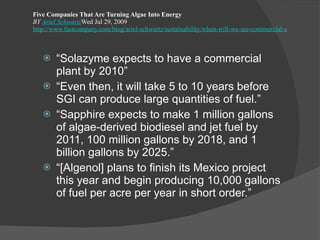

- 28. Five Companies ThatAre Turning Algae Into Energy BY Ariel Schwartz Wed Jul 29, 2009 http://www.fastcompany.com/blog/ariel-schwartz/sustainability/when-will-we-see-commercial-scale-algae-fuel?nav=inform-rl “ Solazyme expects to have a commercial plant by 2010” “ Even then, it will take 5 to 10 years before SGI can produce large quantities of fuel.” “ Sapphire expects to make 1 million gallons of algae-derived biodiesel and jet fuel by 2011, 100 million gallons by 2018, and 1 billion gallons by 2025.” “ [Algenol] plans to finish its Mexico project this year and begin producing 10,000 gallons of fuel per acre per year in short order.”

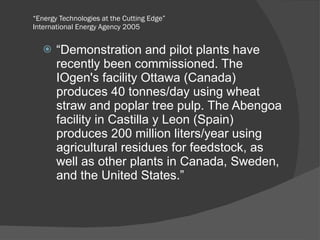

- 29. “ Energy Technologiesat the Cutting Edge” International Energy Agency 2005 “ Demonstration and pilot plants have recently been commissioned. The IOgen's facility Ottawa (Canada) produces 40 tonnes/day using wheat straw and poplar tree pulp. The Abengoa facility in Castilla y Leon (Spain) produces 200 million liters/year using agricultural residues for feedstock, as well as other plants in Canada, Sweden, and the United States.”
- 30. Ralph Sims, MichaelTaylor, Jack Saddler, Warren Mabee. “From 1st to 2nd Generation Biofuel Technologies” International Energy Agency. November 2008 “ This section briefly describes the potential for algal feedstock and several of the advanced conversion technologies. Some are already reasonably close to market (such as hydrogenated biodiesel).” “ Catalytic hydrogenation and cracking of oils and fats is not strictly a new process and is already entering the market.”

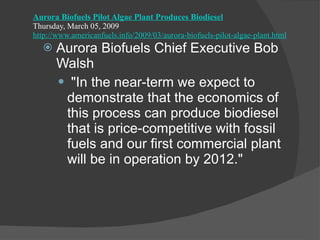

- 31. Aurora Biofuels PilotAlgae Plant Produces Biodiesel Thursday, March 05, 2009 http://www.americanfuels.info/2009/03/aurora-biofuels-pilot-algae-plant.html Aurora Biofuels Chief Executive Bob Walsh "In the near-term we expect to demonstrate that the economics of this process can produce biodiesel that is price-competitive with fossil fuels and our first commercial plant will be in operation by 2012."

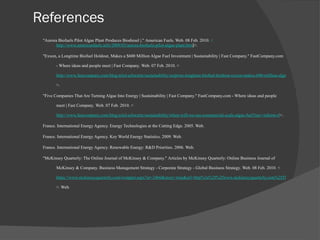

- 32. References "Aurora BiofuelsPilot Algae Plant Produces Biodiesel |." American Fuels . Web. 08 Feb. 2010. < http://www.americanfuels.info/2009/03/aurora-biofuels-pilot-algae-plant.htm l >. "Exxon, a Longtime Biofuel Holdout, Makes a $600 Million Algae Fuel Investment | Sustainability | Fast Company." FastCompany.com - Where ideas and people meet | Fast Company . Web. 07 Feb. 2010. < http://www.fastcompany.com/blog/ariel-schwartz/sustainability/surprise-longtime-biofuel-holdout-exxon-makes-600-million-algae-f?nav=inform-rl >. "Five Companies That Are Turning Algae Into Energy | Sustainability | Fast Company." FastCompany.com - Where ideas and people meet | Fast Company . Web. 07 Feb. 2010. < http://www.fastcompany.com/blog/ariel-schwartz/sustainability/when-will-we-see-commercial-scale-algae-fuel?nav=inform-rl >. France. International Energy Agency. Energy Technologies at the Cutting Edge . 2005. Web. France. International Energy Agency. Key World Energy Statistics . 2009. Web. France. International Energy Agency. Renewable Energy: R&D Priorities . 2006. Web. "McKinsey Quarterly: The Online Journal of McKinsey & Company." Articles by McKinsey Quarterly: Online Business Journal of McKinsey & Company. Business Management Strategy - Corporate Strategy - Global Business Strategy . Web. 08 Feb. 2010. < https://www.mckinseyquarterly.com/wrapper.aspx?ar=2466&story=true&url=http%3a%2f%2fwww.mckinseyquarterly.com%2fThe_ethanol_challenge_for_the_United_States_2466%3fpagenum%3d1%23interactive&pgn=etch09_exhibit >. Web.

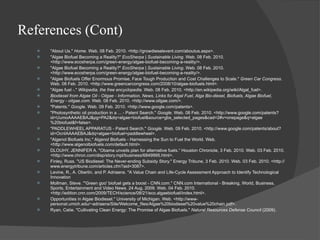

- 33. References (Cont) "AboutUs." Home . Web. 08 Feb. 2010. <http://growdieselevent.com/aboutus.aspx>. "Algae Biofuel Becoming a Reality?" EcoSherpa | Sustainable Living . Web. 08 Feb. 2010. <http://www.ecosherpa.com/green-energy/algae-biofuel-becoming-a-reality/>. "Algae Biofuel Becoming a Reality?" EcoSherpa | Sustainable Living . Web. 08 Feb. 2010. <http://www.ecosherpa.com/green-energy/algae-biofuel-becoming-a-reality/>. "Algae Biofuels Offer Enormous Promise, Face Tough Production and Cost Challenges to Scale." Green Car Congress . Web. 08 Feb. 2010. <http://www.greencarcongress.com/2008/10/algae-biofuels.html>. "Algae fuel -." Wikipedia, the free encyclopedia . Web. 08 Feb. 2010. <http://en.wikipedia.org/wiki/Algal_fuel>. Biodiesel from Algae Oil - Oilgae - Information, News, Links for Algal Fuel, Alga Bio-diesel, Biofuels, Algae Biofuel, Energy - oilgae.com . Web. 08 Feb. 2010. <http://www.oilgae.com/>. "Patents." Google . Web. 09 Feb. 2010. <http://www.google.com/patents>. "Photosynthetic oil production in a ... - Patent Search." Google . Web. 08 Feb. 2010. <http://www.google.com/patents?id=UumoAAAAEBAJ&pg=PA2&dq=algae+biofuel&source=gbs_selected_pages&cad=2#v=onepage&q=algae%20biofuel&f=false>. "PADDLEWHEEL APPARATUS - Patent Search." Google . Web. 09 Feb. 2010. <http://www.google.com/patents/about?id=OcnIAAAAEBAJ&dq=algae+biofuel+paddlewheel>. "Algenol Biofuels Inc." Algenol Biofuels - Harnessing the Sun to Fuel the World. Web. <http://www.algenolbiofuels.com/default.html>. DLOUHY, JENNIFER A. "Obama unveils plan for alternative fuels.“ Houston Chronicle, 3 Feb. 2010. Web. 03 Feb. 2010. <http://www.chron.com/disp/story.mpl/business/6849995.html>. Finley, Russ. "US Biodiesel: The Never-ending Subsidy Story." Energy Tribune, 3 Feb. 2010. Web. 03 Feb. 2010. <http://www.energytribune.com/articles.cfm?aid=3087>. Levine, R., A. Oberlin, and P. Adriaens. "A Value Chain and Life-Cycle Assessment Approach to Identify Technological Innovation Mollman, Steve. "'Green goo' biofuel gets a boost - CNN.com." CNN.com International - Breaking, World, Business, Sports, Entertainment and Video News. 24 Aug. 2009. Web. 04 Feb. 2010. <http://edition.cnn.com/2009/TECH/science/08/21/eco.algaebiofuel/index.html>. Opportunities in Algae Biodiesel." University of Michigan. Web. <http://www-personal.umich.edu/~adriaens/Site/Welcome_files/Algae%20biodiesel%20value%20chain.pdf>. Ryan, Catie. "Cultivating Clean Energy: The Promise of Algae Biofuels." Natural Resources Defense Council (2009).
