Who Am I ?
Interop - Speaker 2014 Las Vegas / NYC (Wifi Tools)
Cisco Live - Speaker 2013 Orlando (Deployment of 802.11ac)
Published Technical Editor – Sybex
Project: CCNA Wireless Study Guide by Todd Lammle
Published Technical Editor – Cisco Press
Project: Designing and Deploying 802.11 Wireless Networks: A Practical Guide to Implementing
802.11n and 802.11ac Wireless Networks For Enterprise-Based Applications (2nd Edition)
(Networking Technology) by Jim Geier
Started WiFi in late 90’s
Wireless Architect @ Houston Methodist Hospital – 5 years
• Manage 3,000 Access points
• 11,000 concurrent clients / 26,000 total
• Deployed our first AWO (All Wireless Office) 300 users / 800 devices
Independent Consultant (training, site survey, security, deployment and troubleshooting)
Vendor and Vendor neutral certifications
Blog: www.my80211.com , www.nostringsattachedshow.com, Cisco Support Community and Aruba.
Aruba MVP 2014
Cisco VIP 2012,2013 and 2014

3. 3
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
In the next 60 minutes
Take (2) things away from this session you didn’t know
before then this session was a success!!
“I personally define my own success in how I can help
others on their journey in WiFi”

4. CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
4 #AirheadsConf
Agenda
Designing WiFi Networks for RF Coverage / Capacity
(Overview)
The Methodology of Troubleshooting WiFi Networks
WiFi Tools and Monitoring For WiFi Networks

5. 5
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Designing WiFi Networks for
RF Coverage / Capacity
• Designing WiFi for RF Coverage and Capacity

6. 6
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Designing WiFi Networks for
RF Coverage / Capacity
We need to understand the technical reasons
“WHY”
there is a difference in design approach when
comparing coverage and density designs ..

7. 7
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Fundamentals

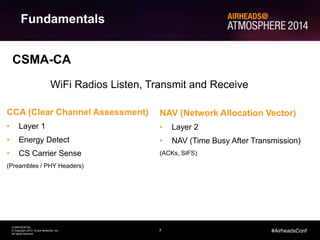

CSMA-CA
NAV (Network Allocation Vector)
• Layer 2
• NAV (Time Busy After Transmission)
(ACKs, SIFS)
CCA (Clear Channel Assessment)
• Layer 1
• Energy Detect
• CS Carrier Sense
(Preambles / PHY Headers)
WiFi Radios Listen, Transmit and Receive

8. 8
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

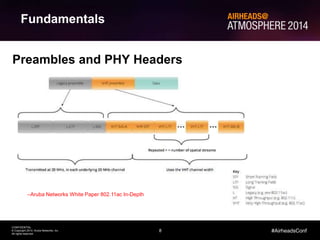

Fundamentals
Preambles and PHY Headers
–Aruba Networks White Paper 802.11ac In-Depth

9. 9
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Fundamentals

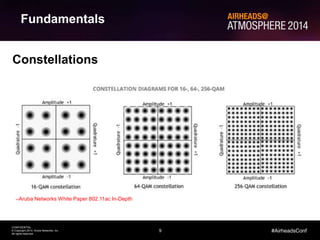

Constellations
–Aruba Networks White Paper 802.11ac In-Depth

10. 10
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Fundamentals
Constellations
QPSK – 2 bits per modulation symbol at
90 degrees phase 4 wave forms
(phases)

11. 11
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Fundamentals

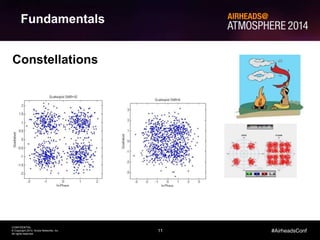

Constellations

12. 12
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

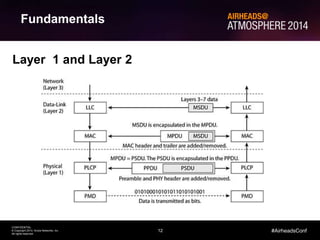

Fundamentals
Layer 1 and Layer 2

13. 13
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Fundamentals

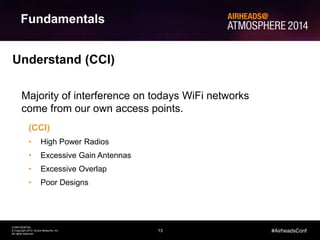

Understand (CCI)
Majority of interference on todays WiFi networks
come from our own access points.
(CCI)
• High Power Radios
• Excessive Gain Antennas
• Excessive Overlap
• Poor Designs

14. 14
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Fundamentals
TX Power and CSMA-CA
x
x
x
x
x
x
x x
x
x
x
x
x x
x
x
x
x
x
x
x
x
x
x x
x
x
x
x
x x
x
x
x
x
x x
x
x
x
x
x x
x
x
x
x
x
x
x
x
x
x x
x
x
x
x
x
x
x
x
x
x
x
x x
x
x
x
x
x x
x
x
x
x
x
x
x
x
x
x x
x
x
x
x
x
x
x
x
x
x
x
x x
x
x
x
x
x x x
x
x
x
x
x x
x
x
x
x
x

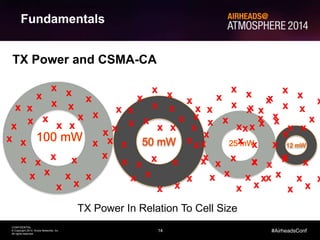

TX Power In Relation To Cell Size

15. 15
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Designing for WiFi Coverage
and Capacity
Typical Questions to Ask
Type of applications
• Real time (Voice / Video)
• EMR (Electronic Medical Record)
• PoS (Point of Sale)
• WMS (Warehouse Management System)
Type of WiFi devices
• Laptops
• Handhelds
• Phones
How many WiFi devices
UP/DOWN Bandwidth (Mbps) Requirements
Bands 2.4 GHz / 5 GHz
Area of coverage
Seamless Roaming Requirements*
WiFi Design
WiFi Grade
• Data
• Voice
• Vocera*
• RTLS
• Density (Indoor / Outdoor)
Identify High density areas
• Conference Rooms
• Lecture Halls
Security Requirements
• PCI
• HIPAA

16. 16
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

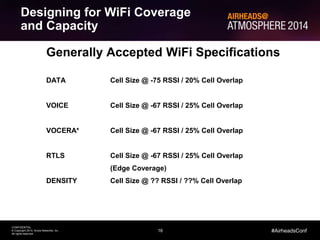

Generally Accepted WiFi Specifications
DATA Cell Size @ -75 RSSI / 20% Cell Overlap
VOICE Cell Size @ -67 RSSI / 25% Cell Overlap
VOCERA* Cell Size @ -67 RSSI / 25% Cell Overlap
RTLS Cell Size @ -67 RSSI / 25% Cell Overlap
(Edge Coverage)
DENSITY Cell Size @ ?? RSSI / ??% Cell Overlap
Designing for WiFi Coverage
and Capacity

17. 17
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

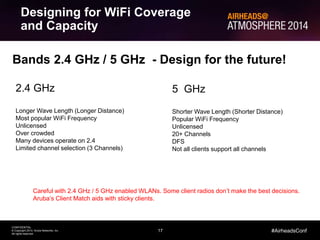

Bands 2.4 GHz / 5 GHz - Design for the future!
2.4 GHz
Longer Wave Length (Longer Distance)
Most popular WiFi Frequency
Unlicensed
Over crowded
Many devices operate on 2.4
Limited channel selection (3 Channels)
5 GHz
Shorter Wave Length (Shorter Distance)
Popular WiFi Frequency
Unlicensed
20+ Channels
DFS
Not all clients support all channels
Careful with 2.4 GHz / 5 GHz enabled WLANs. Some client radios don’t make the best decisions.
Aruba’s Client Match aids with sticky clients.
Designing for WiFi Coverage
and Capacity

18. 18
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

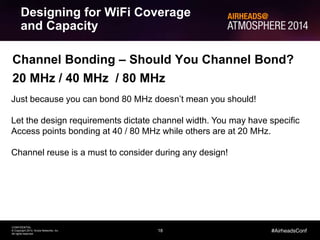

Channel Bonding – Should You Channel Bond?
20 MHz / 40 MHz / 80 MHz
Just because you can bond 80 MHz doesn’t mean you should!
Let the design requirements dictate channel width. You may have specific
Access points bonding at 40 / 80 MHz while others are at 20 MHz.
Channel reuse is a must to consider during any design!
Designing for WiFi Coverage
and Capacity

19. 19
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

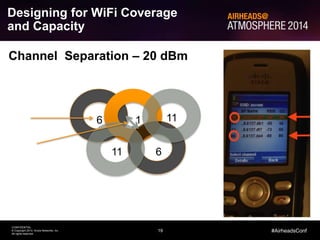

Channel Separation – 20 dBm
6 1 11
11 6
Designing for WiFi Coverage
and Capacity

20. 20
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

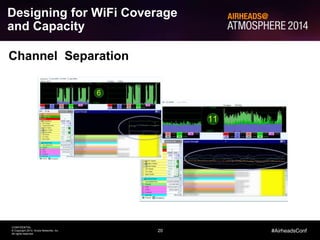

Channel Separation
Designing for WiFi Coverage
and Capacity

21. 21
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

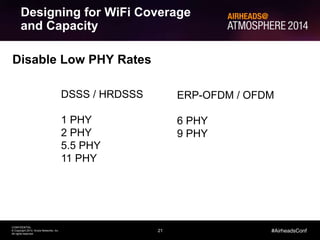

Disable Low PHY Rates
Designing for WiFi Coverage
and Capacity
DSSS / HRDSSS
1 PHY
2 PHY
5.5 PHY
11 PHY
ERP-OFDM / OFDM
6 PHY
9 PHY

22. 22
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

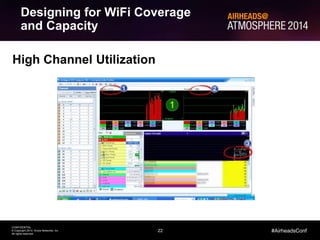

High Channel Utilization
Designing for WiFi Coverage
and Capacity

23. 23
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

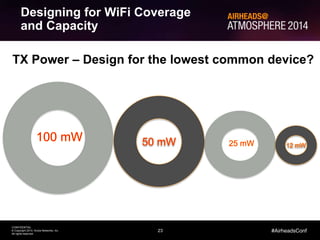

TX Power – Design for the lowest common device?
Designing for WiFi Coverage
and Capacity

24. 24
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

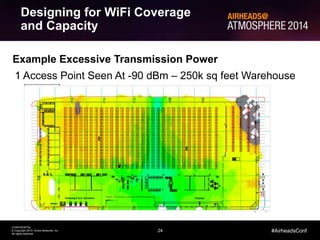

Example Excessive Transmission Power
1 Access Point Seen At -90 dBm – 250k sq feet Warehouse
Designing for WiFi Coverage
and Capacity

25. 25
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Example Excessive Transmission Power
-60 dBm
-70 dBm
-80 dBm
100% CCC or CCI
Designing for WiFi Coverage
and Capacity

26. 26
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

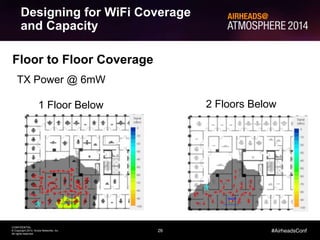

Floor to Floor Coverage
1 Floor Below 2 Floors Below
TX Power @ 6mW
Designing for WiFi Coverage
and Capacity

27. 27
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

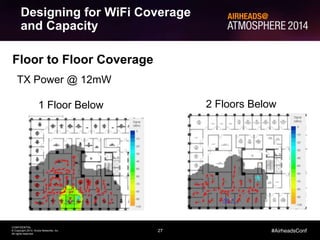

Floor to Floor Coverage
1 Floor Below 2 Floors Below
TX Power @ 12mW
Designing for WiFi Coverage
and Capacity

28. 28
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Floor to Floor Coverage
1 Floor Below 2 Floors Below

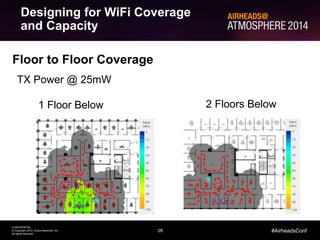

TX Power @ 25mW
Designing for WiFi Coverage
and Capacity

29. 29
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Floor to Floor Coverage
1 Floor Below 2 Floors Below

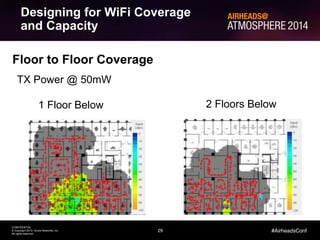

TX Power @ 50mW
Designing for WiFi Coverage
and Capacity

30. 30
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

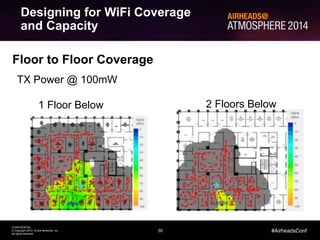

Floor to Floor Coverage
1 Floor Below 2 Floors Below
TX Power @ 100mW
Designing for WiFi Coverage
and Capacity

31. 31
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

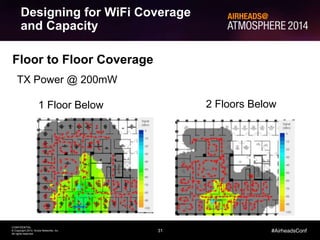

Floor to Floor Coverage
1 Floor Below 2 Floors Below
TX Power @ 200mW
Designing for WiFi Coverage
and Capacity

32. 32
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

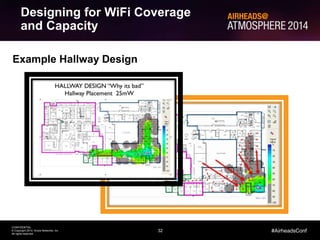

Example Hallway Design
Designing for WiFi Coverage
and Capacity

33. 33
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

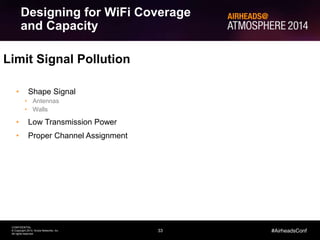

Limit Signal Pollution
• Shape Signal
• Antennas
• Walls
• Low Transmission Power
• Proper Channel Assignment
Designing for WiFi Coverage
and Capacity

34. 34
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Do The Math – Maximize Your Performance
Designing for WiFi Coverage
and Capacity
Application Bandwidth Requirements
• Web Browsing
• Video
• VoIP
Client Device Types
Maximum Clients Per Cell

35. 35
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Outdoor – These Fundamentals Apply
Mining
Oil / Gas
Stadium
Green Area
Designing for WiFi Coverage
and Capacity

36. 36
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Success Starts Here
• Small cells low power
• Shape your signal
• Disable the low PHY rates
• Proper channel plan
• Proper cell overlap
• Know your application requirements
• Know your clients
Designing for WiFi Coverage
and Capacity

37. 37
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
The Methodology of
Troubleshooting WiFi Networks
• The Methodology of Troubleshooting WiFi
Networks

38. 38
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

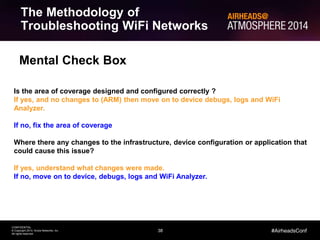

The Methodology of
Troubleshooting WiFi Networks
Is the area of coverage designed and configured correctly ?
If yes, and no changes to (ARM) then move on to device debugs, logs and WiFi
Analyzer.
If no, fix the area of coverage
Where there any changes to the infrastructure, device configuration or application that
could cause this issue?
If yes, understand what changes were made.
If no, move on to device, debugs, logs and WiFi Analyzer.
Mental Check Box

39. 39
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
The Methodology of
Troubleshooting WiFi Networks
What is the issue from the end user perspective. Get detailed description of the problem.
Drop voice calls; Static calls; One way speech; Slow connection; Can’t Connect ; Specific Apps don’t
work; Multicast feature not working “Call to many”.
What device(s) are involved ?
Inspect device for damage; Driver Rev.; Configuration.
Can the issue be reproduced ?
ALWAYS try and get the device to fail yourself; Reproduce the failure. In almost all cases if you can get it
to fail. You can resolve the problem quicker. Test against known working devices side by side.
Is anyone else having a similar issue ?
If so, then track down these users and question them and compare stories. Best to do one on one
discussion and not group.
Are there any commonalities or differences in data collected ?
Is this isolated to a certain area of coverage; Certain population of devices or users.
When did this problem start happening?
Correlate to any possible network changes or pushes.

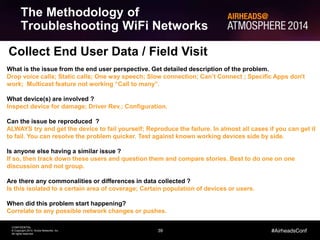

Collect End User Data / Field Visit

40. 40
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
The Methodology of
Troubleshooting WiFi Networks

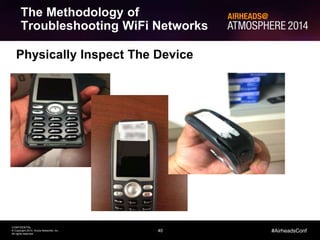

Physically Inspect The Device

41. 41
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
The Methodology of
Troubleshooting WiFi Networks

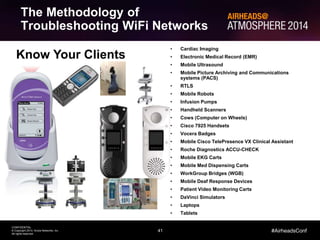

Know Your Clients
• Cardiac Imaging
• Electronic Medical Record (EMR)
• Mobile Ultrasound
• Mobile Picture Archiving and Communications
systems (PACS)
• RTLS
• Mobile Robots
• Infusion Pumps
• Handheld Scanners
• Cows (Computer on Wheels)
• Cisco 7925 Handsets
• Vocera Badges
• Mobile Cisco TelePresence VX Clinical Assistant
• Roche Diagnostics ACCU-CHECK
• Mobile EKG Carts
• Mobile Med Dispensing Carts
• WorkGroup Bridges (WGB)
• Mobile Deaf Response Devices
• Patient Video Monitoring Carts
• DaVinci Simulators
• Laptops
• Tablets

42. 42
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
The Methodology of
Troubleshooting WiFi Networks
Clients Hear RSSI Differently

43. 43
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For
WiFi Networks
• WiFi Tools and Monitoring For WiFi Networks

44. 44
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks
Spectrum Analyzer

45. 45
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf

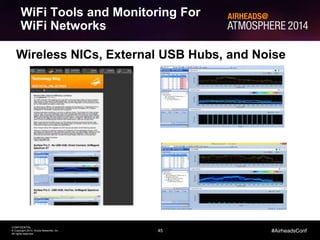

Wireless NICs, External USB Hubs, and Noise
WiFi Tools and Monitoring For
WiFi Networks

46. 46
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks

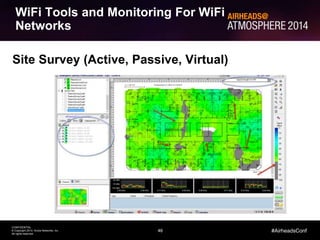

Site Survey (Active, Passive, Virtual)

47. 47
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks

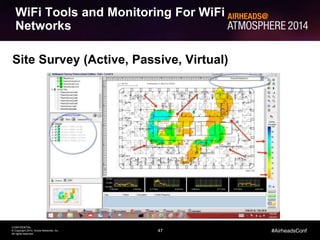

Site Survey (Active, Passive, Virtual)

48. 48
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks

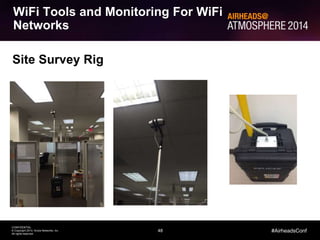

Site Survey Rig

49. 49
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks

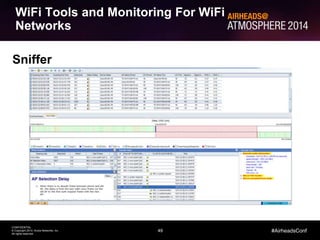

Sniffer

50. 50
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks

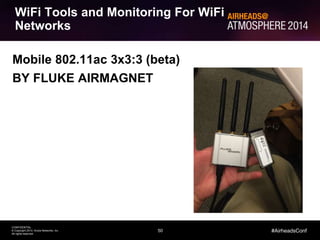

Mobile 802.11ac 3x3:3 (beta)
BY FLUKE AIRMAGNET

51. 51
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
WiFi Tools and Monitoring For WiFi
Networks

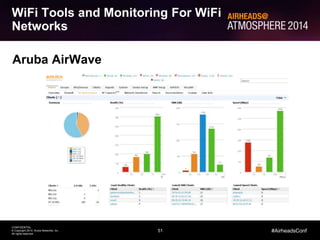

Aruba AirWave

52. 52
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
#AirheadsConf
Education
“Having a powerful tool in
knowledgeable hands is the
difference between owning a
wireless problem or having a
wireless problem owning you”

53. 53
Thank You
#AirheadsConf
CONFIDENTIAL
© Copyright 2014. Aruba Networks, Inc.
All rights reserved
