The current uptrend in faster computational power has led to a more mature eco-system for image processing and video analytics. By using deep neural networks for image recognition and object detection we can achieve better than human accuracies. Industrial sectors led by retail and finance want to take advantage of these latest developments in real-time analysis of video content for fraud detection, surveillance and many other applications. There are a couple of challenges involved in the real word implementation of a video analytics solution: 1) Most video analytics use-cases are effective only when response times are in milliseconds. Requirement of performing at very low latencies gives rise to a need for software and hardware acceleration 2) Such solutions will need wide-spread deployment and are expected to have low TCO. To address these two key challenges we propose a video analytics solution leveraging Spark Structured Streaming + DL framework (like Intel’s Analytics-Zoo & Tensorflow) built on a heterogenous CPU + FPGA hardware platform. The proposed solution provides >3x acceleration in performance to a video analytics pipeline when compared to a CPU only implementation while requiring zero code change on the application side as well as achieving more than 2x decrease in TCO. Our video analytics pipeline includes ingestion of video stream + H.264 decode to image frames + image transformation + image inferencing, that uses a deep neural network. FPGA based solution offloads the entire pipeline computation to the FPGA while CPU only solution implements the pipeline using OpenCV + Spark Structured Streaming + Intel’s Analytics-Zoo DL library. Key Take aways: 1. Optimizing performance of Spark Streaming + DL pipeline 2. Acceleration of video analytics pipeline using FPGA to deliver high throughput at low latency and reduced TCO. 3. Performance data for benchmarking CPU and CPU + FPGA based solution.

1. WIFI SSID:Spark+AISummit | Password: UnifiedDataAnalytics

2. Bhoomika Sharma, Megh Computing

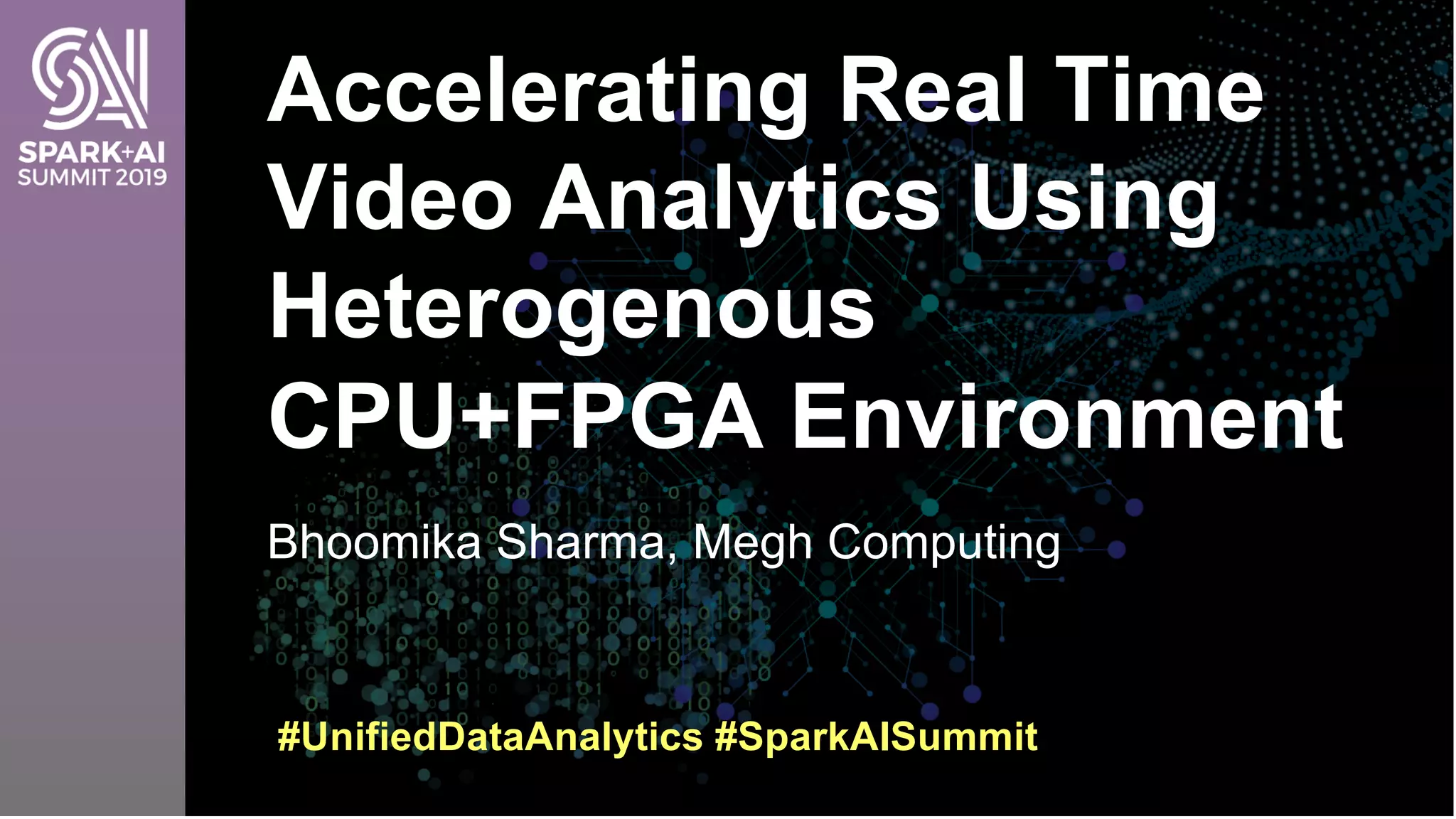

Accelerating Real Time
Video Analytics Using
Heterogenous
CPU+FPGA Environment
#UnifiedDataAnalytics #SparkAISummit

3. Megh Computing
• A startup based in Portland, Oregon, USA with
development office in Bangalore, India
• Vision of enabling third wave of computing in data
center
• Mission of accelerating real-time analytics using FPGA
3#UnifiedDataAnalytics #SparkAISummit

4. Agenda
1. Introduction to real-time analytics.
2. Existing software based real-time video analytics
solutions.
3. Video analytics pipeline acceleration using
CPU+FPGA platform.
4. Benchmarking between CPU and CPU+FPGA based
solution.
4#UnifiedDataAnalytics #SparkAISummit

5. Real-Time Analytics
5

6. Why Real-Time ?
6#UnifiedDataAnalytics #SparkAISummit
Real
Time
Secs Mins Hours Days Months
Time
ValueofDatatoDecisionMaking
Information Half-Life
in Decision Making
Time Critical
Decisions
Traditional “Batch”
Business Intelligence
Predictive/
Preventive
Actionable
Reactive
Historical

7. Real-Time Insights
7#UnifiedDataAnalytics #SparkAISummit
Hard Real
Time
< 1 𝜇s
Regular
Trading
100 𝜇s
Fraud
Prevention
ms
Edge
Computing
10s ms
Dashboard
(Inference)
100s ms
Operational
Insights
seconds

8. Existing Real-Time Analytics
Solution
8#UnifiedDataAnalytics #SparkAISummit
*ETL = Extract Transform Load

9. Real-Time Video Analytics
9#UnifiedDataAnalytics #SparkAISummit
Extracting values from video to impact business
Object Detection Fraud DetectionYOU ARE BEING
WATCHED
Image Source: Pinterest, Towards Data Science, pointofsale.com

10. Main Phases of Video Analytics
Pipeline
10#UnifiedDataAnalytics #SparkAISummit
Ingest Transform Infer

11. CPU Software-Based Solutions
11

12. Architecture of CPU based
Pipeline
12#UnifiedDataAnalytics #SparkAISummit
RTSP = Real Time Streaming Protocol

13. • FFMpeg Library
• H.264 Decoding
• Extracting Image
Transform Phase
13#UnifiedDataAnalytics #SparkAISummit
Persistent
Megh
Microservice
RTSP
Video
Stream
Frame
JavaCV
Image Extraction and Transformation

14. Inference Phase
14#UnifiedDataAnalytics #SparkAISummit
- Reads from
custom data
source
Persistent
Megh
Microservice
Spark
Structured
Streaming
Deep
Learning
Inference
Frame
Processed

15. From DStreams to Structured
Streaming
15#UnifiedDataAnalytics #SparkAISummit
• Based on Simple
DataFrame API
• Handles Backpressure
Ease of Use
• Output tables are always
consistent with all the
records
Consistency

16. Custom Connector:
reading from custom data source
16#UnifiedDataAnalytics #SparkAISummit
Spark Driver
Micro Batch Reader
Input Partition 1
Input Partition 2
Input Partition n
Commit
Commit
Commit
Spark Worker
Spark Worker
Megh Micro Service
Input Partition Reader
Input Partition Reader
Megh Micro Service
Reader Config
Plan
Input
Partitions
Input Partition Reader
Read Data of Size n
Reader Config
Reader Config

17. Code Snippet
17#UnifiedDataAnalytics #SparkAISummit
Reads data
from custom
data source
Load Properties
for Custom
source
val streamData = SQLContext
.getOrCreate(sc)
.sparkSession
.readStream
.format(
“com.meghcomputing.videoanalytics.spark.receivers.
MeghImageSourceV2")
.options(Map (
"MEGH_RPC_HOST" -> prop.getProperty("rpc.server.host"),
"MEGH_RPC_PORT" -> prop.getProperty("rpc.server.port"),
"MEGH_MAX_RECORD" -> prop.getProperty(“rpc.max.record")
))
.load()

18. Deep Learning Inference
18#UnifiedDataAnalytics #SparkAISummit
CAT
? ?
Deep Learning Topology

19. Deep Learning Inference
19#UnifiedDataAnalytics #SparkAISummit
- Unified Analytics + AI Platform
- Bi - BigDL for Deep Learning
- Pretrained Squeezenet Quantized
Model

20. Code Snippet
20#UnifiedDataAnalytics #SparkAISummit
val predictImageUDF = udf(
(uri: String, data: Array[Byte], latency: String) => {
val st = System.nanoTime()
val featureSteps = featureTransformersBC.value.clonePreprocessing()
val localModel = modelBroadCast.value
val labels = labelBroadcast.value
val bytesData = Base64.getDecoder.decode(data)
val imf = ImageFeature(bytesData, uri = uri)
val imgSet: ImageSet = ImageSet.array(Array(imf))
var inputTensor = featureSteps(imgSet.toLocal().array.iterator).next()
inputTensor = inputTensor.reshape(Array(1) ++ inputTensor.size())
val prediction = localModel
.doPredict(inputTensor)
.toTensor[Float]
.squeeze()
.toArray()
val predictClass = prediction.zipWithIndex.maxBy(_._1)._2
if (predictClass < 0 || predictClass > (labels.length - 1)) {
"unknown" }
val labelName: String = labels(predictClass.toInt).toString()
labelName
}
}
)
• Classify image into its
category
• Predicts labels
• Broadcasting model,
labels and
transformation steps to
all worker
• Transforming image data
to analytics zoo default
ImageFeature type

21. Performance of CPU based
solution
21#UnifiedDataAnalytics #SparkAISummit
Infrastructure Cluster with one worker
node with Xeon Bronze
Processor
Video Specification 1080p Resolution
Throughput ~22 FPS
Latency > 250 ms
*FPS = Frames Per Second

22. Challenges with existing
software-based solutions
22#UnifiedDataAnalytics #SparkAISummit
Latency
• Does not
always meet
real time
requirement
Throughput
• Non-Linear
relation with
number of
nodes
TCO
• Increases with
an increase in
input feeds
*TCO = Total Cost of Ownership

23. Hardware Accelerators –
Alternate Solution
23#UnifiedDataAnalytics #SparkAISummit
CPU
• General Purpose
Architecture
• Non-
Deterministic
Latency
• Sub-optimal
Resource
Utilization
GPU
• Suitable for High
Batch
• Non-
Deterministic
Latency
• Sub-optimal
Resource
Utilization
FPGA
• Direct I/O for
Ingestion
• Deterministic
Latency
• Efficient
Resource
Utilization
1st Wave 2nd Wave 3rd Wave

24. FPGA In Brief
24#UnifiedDataAnalytics #SparkAISummit
• Field Programmable Gate Array
• Customizable Hardware
• Direct I/O for ingestion
• Processing at line rates
• Support for parallel processing

25. Heterogenous CPU+FPGA
Solution
25

26. Heterogenous CPU+FPGA based
pipeline
26#UnifiedDataAnalytics #SparkAISummit
*FU = Functional Unit

27. Performance of CPU+FPGA based
solution
27#UnifiedDataAnalytics #SparkAISummit
Infrastructure Cluster with one worker
node with 2 Arria10
FPGA and Xeon
Bronze Processor
Video Specification 1080p Resolution
Throughput ~240 FPS
Latency < 100 ms

28. Distributed System Configuration
28#UnifiedDataAnalytics #SparkAISummit

29. Megh Solution Stack:
reduces complexity of programming FPGA
29#UnifiedDataAnalytics #SparkAISummit

30. Benchmarking and Demo
30

31. Video Analytics Value Proposition:
Higher Throughput for same CPU configuration
31#UnifiedDataAnalytics #SparkAISummit
Server Cost Estimates: Dell.com
PEFORMANCE (Throughput): > 10x
0
50
100
150
200
250
300
CPU FPGA
Performance (fps)
Throughput of the complete pipeline, including H.264 video
decoding and Deep Learning inferencing, measured in fps
on the target configuration
8 Channels CPU CPU + FPGA
CPU Xeon E5 3106
Bronze (1 server, 2
sockets)
Xeon E5 3106
Bronze (1 server, 2
sockets)
FPGA Arria 10 (2 cards)
Power 150W 250W
(150W + 2 * 50W)
Cost $6,000 $16,000
($6000 + 2 * $5000)
Throughput ~22 fps
(max on CPU)
~240 fps
(max ~400 fps)
Latency > 250ms < 100 ms

32. Video Analytics Value Proposition:
Lower TCO per channel for same throughput
32#UnifiedDataAnalytics #SparkAISummit
Server Cost Estimates: Dell.com
8 Channels CPU CPU + FPGA
CPU Xeon E5 8180
Platinum (2 servers,
4 sockets)
Xeon E5 3106
Bronze (1 server, 2
sockets)
FPGA Arria 10 (2 cards)
Power 800W
(400W * 2)
250W
(150W + 2 * 50W)
Cost $60,000
($30000 * 2)
$16,000
($6000 + 2 * $5000)
Throughput ** 240 fps
(max: 150fps * 2)
240 fps
(max ~400 fps)
Latency > 250ms < 100 ms
Total cost of system to process a channel of video stream including H.264
video decoding and Deep Learning inference based on costs for 8 channels
COST SAVING (TCO): Cost < 3x
$0
$1,000
$2,000
$3,000
$4,000
$5,000
$6,000
$7,000
$8,000
CPU FPGA
TCO (per channel)
** projected throughput

33. Summary
• Structured Streaming for Real-Time analytics.
• Optimized Structured Streaming for Custom Data Source.
• Megh solution reduces end to end latency by offloading entire
video analytics pipeline to FPGA,.
• TCO while using CPU+FPGA setup reduces by 3x.
• Difficulty in programming FPGA is mitigated by Megh Solution
Stack/SDK.
33#UnifiedDataAnalytics #SparkAISummit

34. More Information
34#UnifiedDataAnalytics #SparkAISummit
megh.com
info@meghcomputing.com
+1-888-428-2396
Twitter: meghcomputing
LinkedIn: megh-computing-inc
Megh Computing, Inc.
1600 NE Compton Drive Suite 202
Hillsboro, OR 97006
Megh Computing Pvt Ltd
11 O’Shaughnessy Road Suite 202
Bangalore - 560025

35. Thank You
info@meghcomputing.com
