1) The document discusses different types of voltage regulators including series regulators, switching regulators, series op-amp regulators, and IC voltage regulators. 2) Series regulators use a power transistor connected in series to provide a stable output voltage, while switching regulators rapidly switch the power transistor on and off for improved efficiency. 3) IC voltage regulators like the 78XX series integrate the complete regulator circuit onto a single microchip for low cost, high reliability, and small size.

1. VOLTAGE REGULATOR
You can replace
the placeholder
image in this slide.
BY
ABINAYA.S
115011013880
B.TECH/ECE/2NDYEAR
TECHNICALCOMMUNICATION
XTC407

2. INTRODUCTION
 The function of a voltage regulator is to
provide a stable dc voltage for powering other
electronic circuits.
 A voltage regulator should be capable of
providing substantial output current
 Voltage regulators are classified as ; series
regulator, switching regulator.

3. SERIES REGULATOR
Series regulator use a power transistor connected in series between the unregulated
dc input and the load1
The output voltage is controlled by the continuous voltage drop taking place
across the series pass transistor.2
The transistor conduct in the active or linear region , these regulator are also
called linear regulators.3
Linear regulators may have fixed or variable output voltage and could be positive
or negative4

4. SWITCHING REGULATOR
1
operate the power
transistor as a high
frequency on/off .
so that the power transistor does
not conduct current continuously.
2
This gives improved efficiency
over series regulator.
3

5. ASERIES OP-MP REGULATOR
A regulated power supply
using discrete components.3
its independent of the load
current ,temperature and ac
line voltage variations.
2
A voltage regulator is an
electronic circuit that
provides a stable dc voltage1

6. IC VOLTAGE REGULATORS
1
With the advent of micro electronic ,its is possible to incorporate
the complete circuit
2
this gives low cost ,high reliability ,reduction in size and excellent
performance .
3 Example ;monolithic regulator are 78XX/79XX series and 723
general purpose regulators

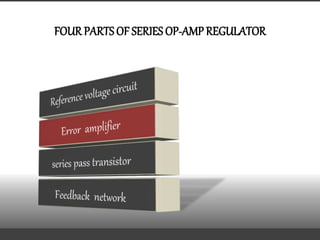

7. FOUR PARTS OF SERIES OP-AMP REGULATOR

8. FIXED VOLTAGE SERIES REGULATOR
 78xx series are three terminal ,positive fixed voltage regulators.
 There are seven output voltge options available such as 5,6,8,12,15,18,and 24v
.in 78xx ,the last two numbers (xxx) indicate the output voltage.
 There are also available 79xx series of fixed output ,negative voltage regulators
which are complements to the 78xx series devices .

9. PLASTIC PACKAGE
(TO- 3 TYPES )
PLASTIC PACKAGE
(TO -220 TYPE)
TWO TYPES OF FIXED VOLTAGE
