1. The REPORT Procedure
Seema Shelke

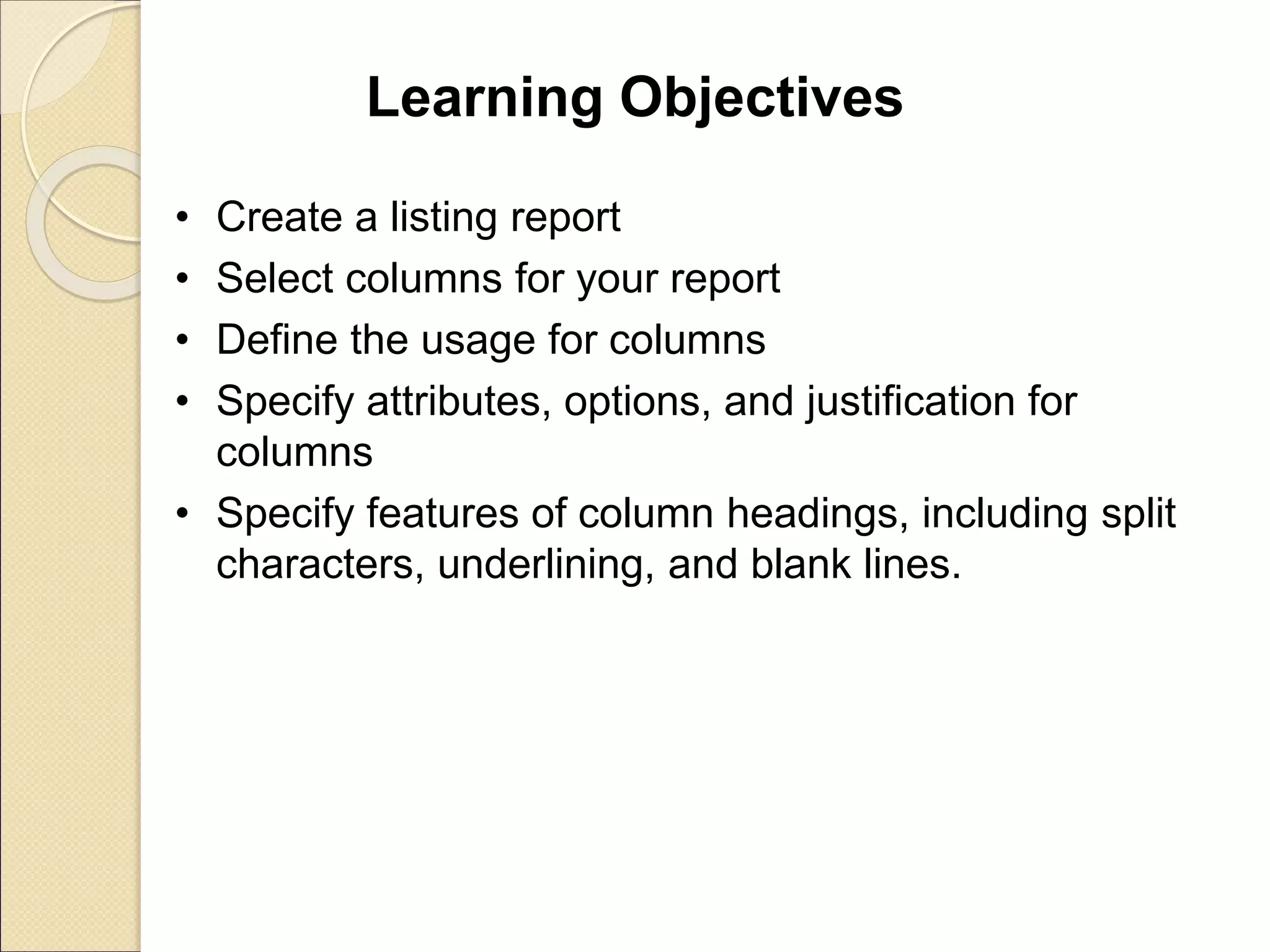

2. Learning Objectives
• Create a listing report
• Select columns for your report
• Define the usage for columns
• Specify attributes, options, and justification for
columns
• Specify features of column headings, including split
characters, underlining, and blank lines.

3. Features
 PROC REPORT enables you to
• create listing reports
• create summary reports
• enhance reports
• request separate subtotals and grand totals
• calculate columns
• generate reports in an interactive point-and-click or
programming environments.

4. Creating a Default List Report
General form of a simple PROC REPORT step:
PROC REPORT <DATA=SAS-data-set> <options>;
RUN;
Options includes:
WINDOWS | WD invokes the procedure in an
interactive REPORT window
(default).
NOWINDOWS | NOWD displays the report in the
OUTPUT window.

5. Sample Data used for reporting
• The mylib.fitness dataset contains the medical
records for a sample of patients.
• This dataset contains variables such as PatID,
First_Name, Last_Name,Gender, Age, Height,
Weight,Smoking,and Race.

6. Creating a Default List Report
proc report data=mylib.fitness ;
run;
proc report data=mylib.fitness nowd;
run;
SAS Listing Output

7. Creating a Default List Report
SAS HTML Output:

8. The REPORT Procedure
 The PROC Report displays
• each data value the way it is stored in the data set, or
formatted value if a format is stored with the data
• variable names or labels as report column headings
• a default width for the report columns
• character values left-justified
• numeric values right-justified
• observations in the order in which they are stored in the
data set.

9. Selecting Variables
Use a COLUMN statement to select and order the
variables that appear in the report.
General form of the COLUMN statement:
COLUMN variable(s);
where variable(s) is one or more variable names, separated
by blanks.

10. Selecting Variables
proc report data=mylib.fitness nowd ;
column patid gender age height_cm weight_kg;
run;
SAS Output

11. Selecting Observations
 Use WHERE statement to select the observations for
your report.
proc report data=mylib.fitness nowd;
column patid gender race age height_cm weight_kg;
where race in ('Black' ,'Asian');
run;
SAS Output
Displays only the records where race is Black or Asian

12. The DEFINE Statement
 You can enhance the report by using DEFINE
statements to
• define how each variable is used in the report
• assign formats to variables
• specify column headings and column widths
• justify the variable values and column headings within
the report columns
• change the order of the rows in the report.

13. The DEFINE Statement
General form of the DEFINE statement:
DEFINE variable / <usage> <attribute(s)> <option(s)>
<justification> <'column-heading'> ;
Where,
• variable is the name of the variable to define.
• usage specifies how to use the variable. Valid options are ACROSS,
ANALYSIS, COMPUTED, DISPLAY, GROUP, and ORDER.
• attribute(s) specifies attributes for the variable, including FORMAT=,
WIDTH=, and SPACING=.
• option(s) specifies formatting options, including DESCENDING,
NOPRINT, NOZERO, and PAGE.
• <justification> specifies column justification (CENTER, LEFT, or
RIGHT).
• 'column-heading' specifies a label for the column heading.

14. Defining Column Attributes
If there is a format stored in the descriptor portion of the
data set, it is the default format.
The default column width is,
• the variable’s length for character variables
• 9 for numeric variables
• the format width if there is a format stored in the descriptor
portion of the data set.
WIDTH= column-width : specifies the width of a column.
FORMAT= format : assigns a format to a variable.

15. Defining Column Attributes
If there is a label stored in the descriptor portion of the
data set, it is the default header.
‘report-column-header’ : defines the column header.
SPACING= horizontal positions : Specifies how many
blank characters to leave between the selected
column and the column immediately to its left. The
default is 2.

16. Defining Column Attributes
1. Add format to display height and weight with decimals.
2. Increase the column widths
3. Increase the spacing
4. Change column headings
proc report data=mylib.fitness nowd;
column patid gender age height_cm weight_kg;
define patid/'Patient ID';
define height_cm / format =6.2 width=11 spacing=5
'Height (cm)';
define weight_kg / format=5.2 width=11 spacing=5
'Weight (kg)';
run;

17. Defining Column Attributes
SAS Listing Output SAS HTML Output
Note: Width and spacing attributes in the Define statement
has no effect on HTML output.

18. Splitting Column Headings across
Multiple Lines
To split character,
• Use the default slash (/) as the split character.
• Define a split character by using the SPLIT= option in the
PROC REPORT statement.
proc report data=mylib.fitness nowd;
column patid gender age height_cm weight_kg;
define patid/'Patient ID';
define height_cm / format =6.2 width=6 spacing=5
'Height/(cm)';
define weight_kg / format=5.2 width=6 spacing=5
'Weight/(kg)';
run;

19. Splitting Column Headings across
Multiple Lines
SAS Output:

20. Specifying Column Justification
To specify justification, add option CENTER, LEFT, or
RIGHT in the DEFINE statement.
proc report data=mylib.fitness nowd split='*';
column patid gender age height_cm weight_kg;
define patid/'Patient ID' left;
define age/ center;
define height_cm / format =6.2 width=6 spacing=5
'Height*(cm)' center;
define weight_kg / format=5.2 width=6 spacing=5
'Weight*(kg)' center;
run;

21. Specifying Column Justification
SAS Output:

22. Enhancing the Heading’s Appearance
• HEADLINE : underlines all column headings and the
spaces between them.
• HEADSKIP : writes a blank line beneath all column
headings or after the underline if the HEADLINE option is
used.
These options have no effect on HTML output.
proc report data=mylib.fitness nowd headline headskip;
column patid gender age height_cm weight_kg;
define patid/'Patient ID';
define height_cm / format =6.2 width=6 spacing=5
'Height/(cm)';
define weight_kg / format=5.2 width=6 spacing=5
'Weight/(kg)';
run;

23. Enhancing the Heading’s Appearance
SAS Output:

24. Variable Usage
PROC REPORT uses each variable in one of six ways,
• DISPLAY
• ORDER
• GROUP
• ACROSS
• ANALYSIS
• COMPUTED
By default, PROC REPORT uses,
• character variables as display variables
• numeric variables as analysis variables, which are used to
calculate the SUM (default) statistic.

25. Defining Order Variables
ORDER : orders the rows in the report.
• Orders the report in ascending (default) order. Include the
DESCENDING option in the DEFINE statement to force the order
to be descending.
• Suppresses repetitious printing of values.
• Does not need data to be previously sorted.
proc report data=mylib.fitness nowd ;
column gender patid age height_cm weight_kg smoking race;
define gender/order width=6;
define patid/ 'Patient ID' width=10 left;
define age/ width=3 center;
define height_cm / format =6.2 width=11 spacing=5 'Height/(cm)' center;
define weight_kg / format=5.2 width=11 spacing=5 'Weight/(kg)' center;
run;

26. Defining Order variables
SAS Output:
Displays the data in order by Gender.

27. Defining Group Variables
 Use the REPORT procedure to create a summary report by
defining variables as group variables.
 To define a group variable, specify the GROUP usage option
in the DEFINE statement.
 All observations whose group variables have the same values
are collapsed into a single row in the report.
 You can define more than one variable as a group variable.
 Nesting of group variables is determined by the order
of the variables in the COLUMN statement.
 If you have a group variable, there must be no display or
order variables.
 Group variables produce summary reports (observations
collapsed into groups).
 Display and order variables produce listing reports(one row
for each observation).

28. Defining Group Variables
proc report data=mylib.fitness nowd ;
column gender smoking weight_kg ;
define gender/group width=6;
define smoking/group width=7;
define weight_kg / format=5.2 width=11 'Weight/(kg)' center;
run;
SAS Output
Displays the total weight gender wise and smoking habit wise
Note: The default statistic for the analysis variables is SUM.

29. Defining Analysis Variables
• The default statistic for analysis variables is SUM.
• To specify a statistic other than SUM (default), specify
the statistic as an attribute in the DEFINE statement
• Below are the few statistics that can be used in Proc
Report;
N Number of nonmissing values
MEAN Average value
MIN Minimum value
MAX Maximum value
STD Standard Deviation

30. Defining Analysis Variables
proc report data=mylib.fitness nowd ;
column gender smoking height_cm weight_kg;
define gender/group width=6;
define smoking/group width=7;
define height_cm / mean format =6.2 width=19 spacing=5
'Average Height/(cm)' center;
define weight_kg / mean format=5.2 width=19 spacing=5
'Average Weight/(kg)' center;
run;
SAS Output

31. Defining Across Variables
• Variables can also be defined as Across variables
which are functionally similar to group variables.
However, PROC REPORT displays the groups that it
creates for an across variable horizontally rather than
vertically.
proc report data=mylib.fitness nowd ;
column gender smoking height_cm weight_kg;
define gender/across width=6;
define smoking/across width=7;
define height_cm / mean format =6.2 width=19 spacing=5
'Average Height/(cm)' center;
define weight_kg / mean format=5.2 width=19 spacing=5
'Average Weight/(kg)' center;
run;

32. Defining Across Variables
SAS Output:
Notes:
• For each across variable, the table cells contain a frequency
count for each unique value.
• For each analysis variable, the table cells represent the sum of
all the variable's values.

33. Defining Computed Variables
 Computed variables are the new variables that you define for
the report. They are not present in the input dataset.
 Computed variables can be either numeric or character
variables.
 You cannot change the usage of a computed variable.
 To add a computed variable in Proc Report,
• Include the computed variable in the COLUMN statement.
• Define the variable's usage as COMPUTED in the DEFINE
statement.
• Compute the value of the variable in a compute block that is
associated with the variable.
 The position of a computed variable is very important. You
can't base the calculation of a computed variable on any
variable that appears to its right in the report. So in COLUMN
statement specify the computed variable to the right of the
variables that are used in its calculation.

34. Defining Computed Variables
proc report data=mylib.fitness nowd ;
column first_name last_name gender race age
smoking weight_kg height_cm bmi;
define first_name/'First Name' width=10;
define last_name/'Last Name' width=9;
define smoking/width=7;
define height_cm / format =6.2 width=6 'Height (cm)';
define weight_kg / format=5.2 width=6 'Weight (kg)';
define bmi / computed 'Body Mass Index' format=5.2
width=15;
compute bmi;
bmi= weight_kg.sum/(height_cm.sum*0.01)**2;
endcomp;
run;
Computed
variable

35. Defining Computed Variables
SAS Output:
Computes the variable Body Mass Index using weight and
height data.

36. Thank You !
