By :- Dr. Bindesh D. Patel, PT
Deputy Registrar
P P Savani University
Colles’ fracture

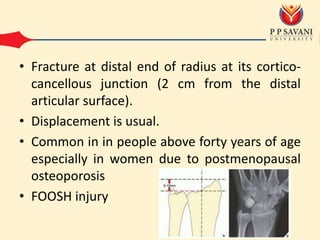

• Fracture at distal end of radius at its cortico-
cancellous junction (2 cm from the distal
articular surface).
• Displacement is usual.
• Common in in people above forty years of age
especially in women due to postmenopausal
osteoporosis
• FOOSH injury

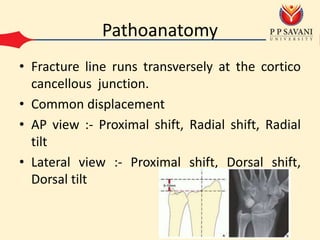

Pathoanatomy
• Fracture line runs transversely at the cortico
cancellous junction.
• Common displacement
• AP view :- Proximal shift, Radial shift, Radial
tilt
• Lateral view :- Proximal shift, Dorsal shift,
Dorsal tilt
• Some amount of comminution can happen.
• Some of associated injuries are
– Fracture of styloid process of ulna
– Rupture of ulnar collateral ligament, triangular
cartilage of ulna
– Subluxation of radio ulnar joint due to rupture of
interosseous radio-ulnar ligament

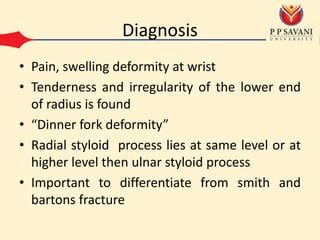

Diagnosis
• Pain, swelling deformity at wrist
• Tenderness and irregularity of the lower end
of radius is found

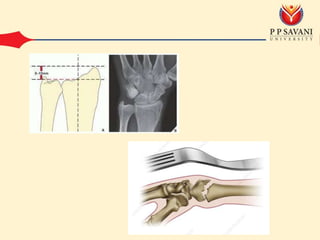

• “Dinner fork deformity”
• Radial styloid process lies at same level or at
higher level then ulnar styloid process
• Important to differentiate from smith and
bartons fracture
Treatment
• Undisplace fracture:- immobilization in below
elbow plaster cast
• Displaced :- Closed reduction and
immobilization
• 6 week immobilization
• Chances of redisplacement is higher in
comminuted fracture
• Adult with dominant hand, surgery is
recommended

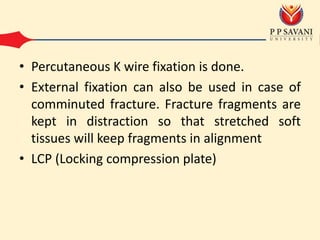

• Percutaneous K wire fixation is done.
• External fixation can also be used in case of
comminuted fracture. Fracture fragments are
kept in distraction so that stretched soft
tissues will keep fragments in alignment
• LCP (Locking compression plate)

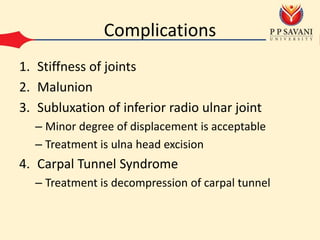

Complications
1. Stiffness of joints
2. Malunion
3. Subluxation of inferior radio ulnar joint
– Minor degree of displacement is acceptable
– Treatment is ulna head excision
4. Carpal Tunnel Syndrome
– Treatment is decompression of carpal tunnel
5. Sudecks osteodystrophy
– Commonest cause of sudecks dystrophy
– Noticed after removal of plaster cast
– Patient complaints of pain, stiffness and swelling
of the hand.
– Overlying skin appears stretched and glossy
– Treatment is physiotherapy.

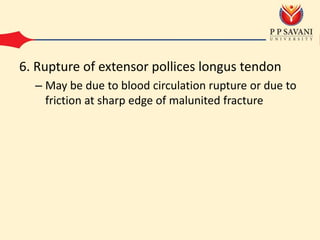

6. Rupture of extensor pollices longus tendon
– May be due to blood circulation rupture or due to
friction at sharp edge of malunited fracture
By :- Dr. Bindesh D. Patel, PT
Deputy Registrar
P P Savani University
Smith’s fracture
• It is reverse of colles’ fracture
• Seen in adult and in elderly patient
• Distal fragment displaces ventrally and tilts
ventrally
• Treatment is closed reduction and plaster cast
immobilization
• Complications are same as colles’ fracture
By :- Dr. Bindesh D. Patel, PT
Deputy Registrar
P P Savani University
Barton’s fracture

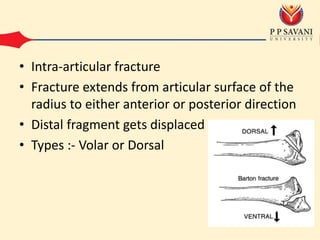

• Intra-articular fracture
• Fracture extends from articular surface of the
radius to either anterior or posterior direction
• Distal fragment gets displaced
• Types :- Volar or Dorsal

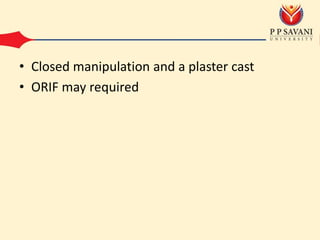

• Closed manipulation and a plaster cast
• ORIF may required
Thank you
Please share the video and subscribe my
channel.
