SPICE MODEL of 2SA1300 in SPICE PARK

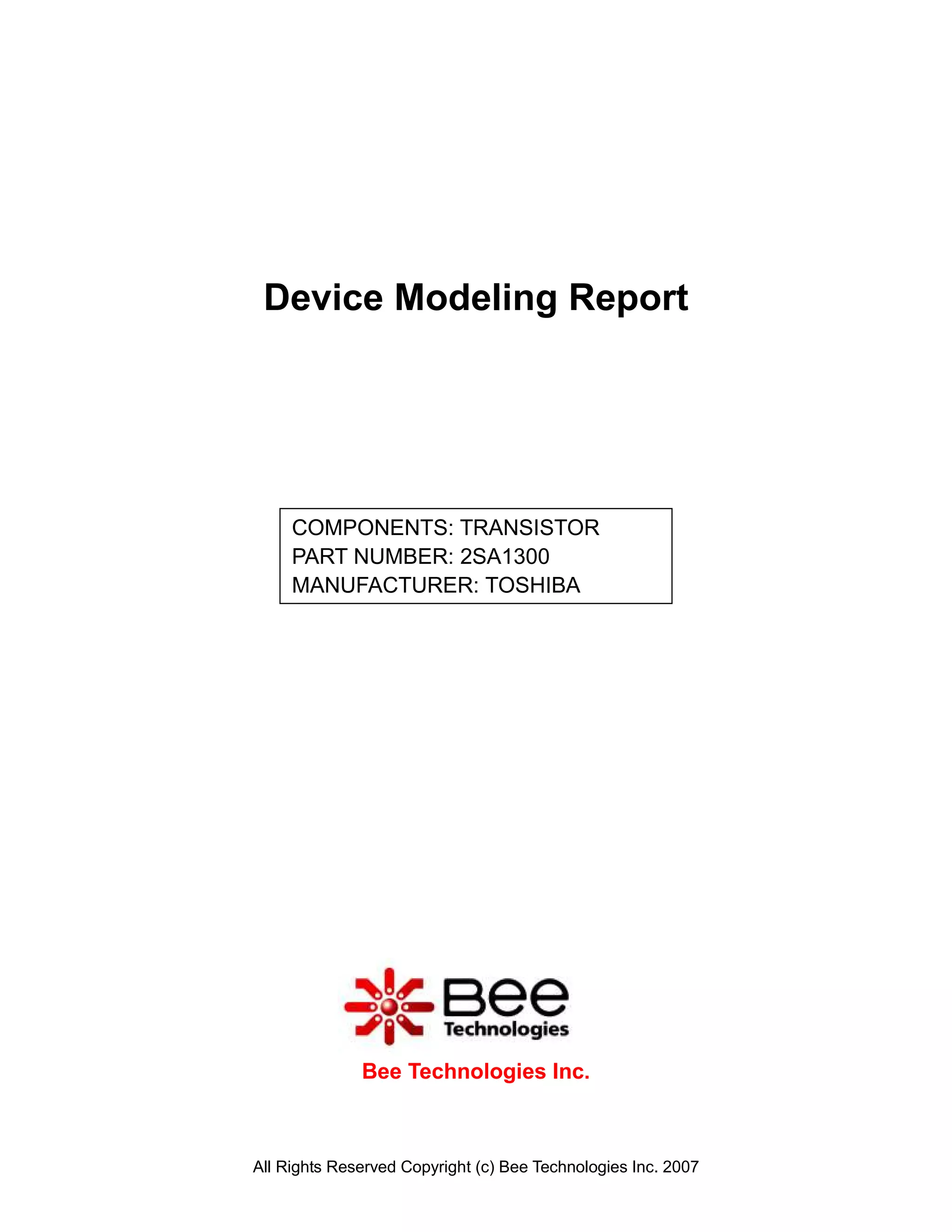

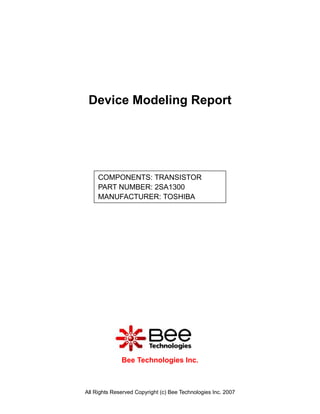

1. Device Modeling Report
COMPONENTS: TRANSISTOR
PART NUMBER: 2SA1300
MANUFACTURER: TOSHIBA
Bee Technologies Inc.
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
2. TRANSISTOR MODEL
PSpice
model Model description
parameter
IS Saturation Current
BF Ideal Maximum Forward Beta
NF Forward Current Emission Coefficient
VAF Forward Early Voltage
IKF Forward Beta Roll-off Knee Current
ISE Non-ideal Base-Emitter Diode Saturation Current
NE Non-ideal Base-Emitter Diode Emission Coefficient
BR Ideal Maximum Reverse Beta
NR Reverse Emission Coefficient
VAR Reverse Early Voltage
IKR Reverse Beta Roll-off Knee Current
ISC Non-ideal Base-Collector Diode Saturation Current
NC Non-ideal Base-Collector Diode Emission Coefficient
NK Forward Beta Roll-off Slope Exponent
RE Emitter Resistance
RB Base Resistance
RC Series Collector Resistance
CJE Zero-bias Emitter-Base Junction Capacitance
VJE Emitter-Base Junction Potential
MJE Emitter-Base Junction Grading Coefficient
CJC Zero-bias Collector-Base Junction Capacitance
VJC Collector-base Junction Potential
MJC Collector-base Junction Grading Coefficient
Coefficient for Onset of Forward-bias Depletion
FC
Capacitance
TF Forward Transit Time
XTF Coefficient for TF Dependency on Vce
VTF Voltage for TF Dependency on Vce
ITF Current for TF Dependency on Ic
PTF Excess Phase at f=1/2pi*TF
TR Reverse Transit Time
EG Activation Energy
XTB Forward Beta Temperature Coefficient
XTI Temperature Coefficient for IS
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
3. Reverse
Reverse Early Voltage Characteristic
Ic
VAR
Vce
Y=aX+b
(X1,Y1)
(X2,Y2)
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
4. Reverse DC Beta Characteristic (Ie vs. hFE)
Measurement
Simulation
Emitter Current
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
5. Forward
Forward Early Voltage Characteristic
Ic (X2,Y2)
Y=aX+b (X1,Y1)
Vce
VAF
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
6. C-B Capacitance Characteristics
Measurement
Simulation
E-B Capacitance Characteristics
Measurement
Simulation
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
7. Transistor hFE-IC Characteristics
Circuit Simulation Result
10K
1.0K
100
10
-10mA -2.0A
IC(Q1)/ IB(Q1)
IC(Q1)
Evaluation Circuit
Q1
Q2SA1300
-1Vdc
I1 V1
0Adc
0
All Rights Reserved Copyright (c) Bee Technologies Inc. 2007
