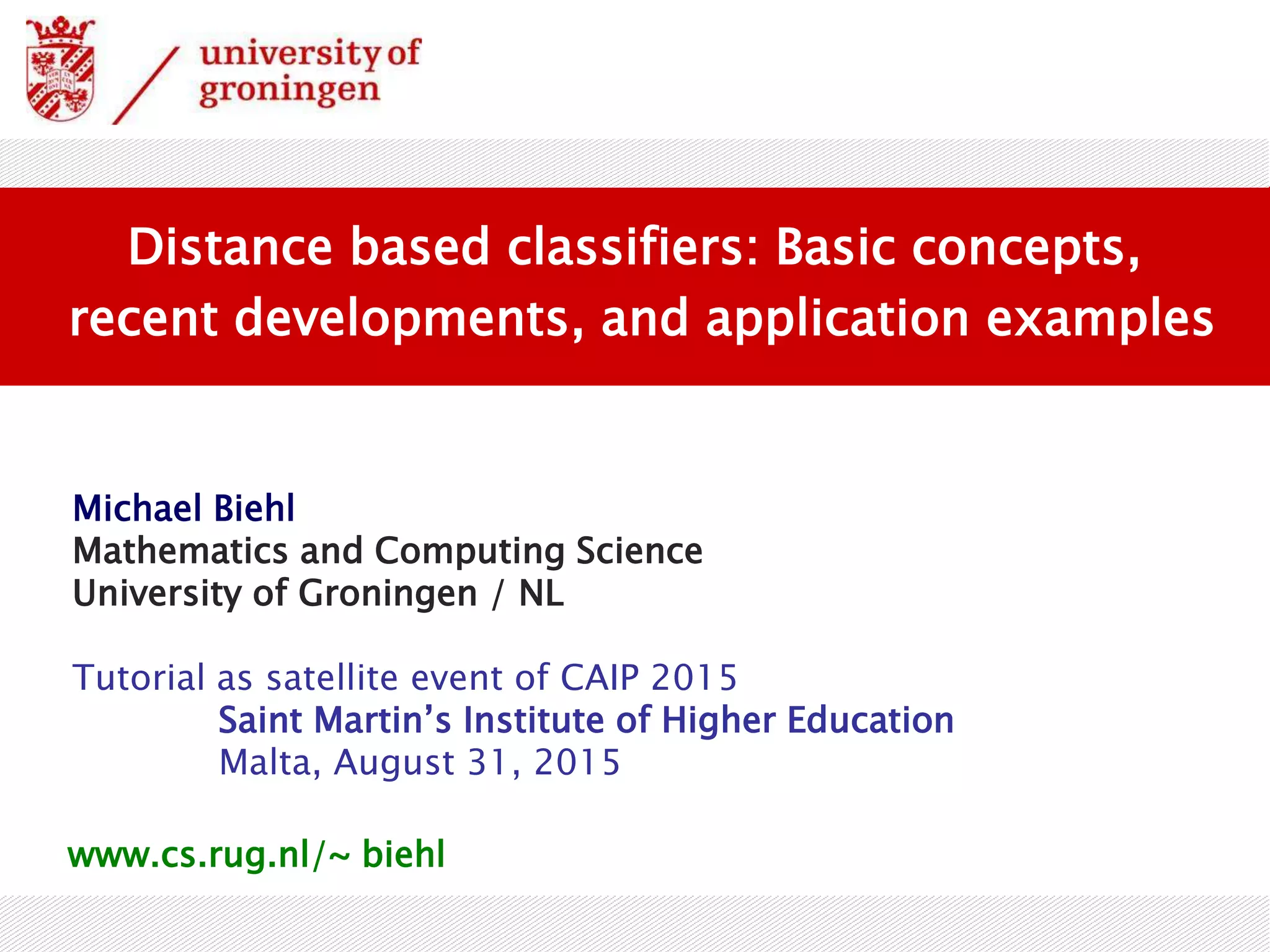

2015: Distance based classifiers: Basic concepts, recent developments and application examples

Michael Biehl
Mathematics and Computing Science
University of Groningen / NL
Tutorial as satellite event of CAIP 2015
Saint Martin’s Institute of Higher Education
Malta, August 31, 2015
Distance based classifiers: Basic concepts,
recent developments, and application examples
www.cs.rug.nl/~ biehl

St. Martin’s Institute, August 2015
1) Distance based classifieres, Learning Vector Quantization
classification problems
distance based classifiers, from KNN to prototypes
the basic scheme: LVQ1
cost function based training: GLVQ
Application: classification of adrenal tumors (I)
Receiver Operator Characteristics
performance evaluation by (cross-) validation
2) GLVQ implementation
stochastic gradient descent, learning rate schedule
batch gradient descent, step size control
Demo: GLVQ with the no-nonsense GMLVQ toolbox

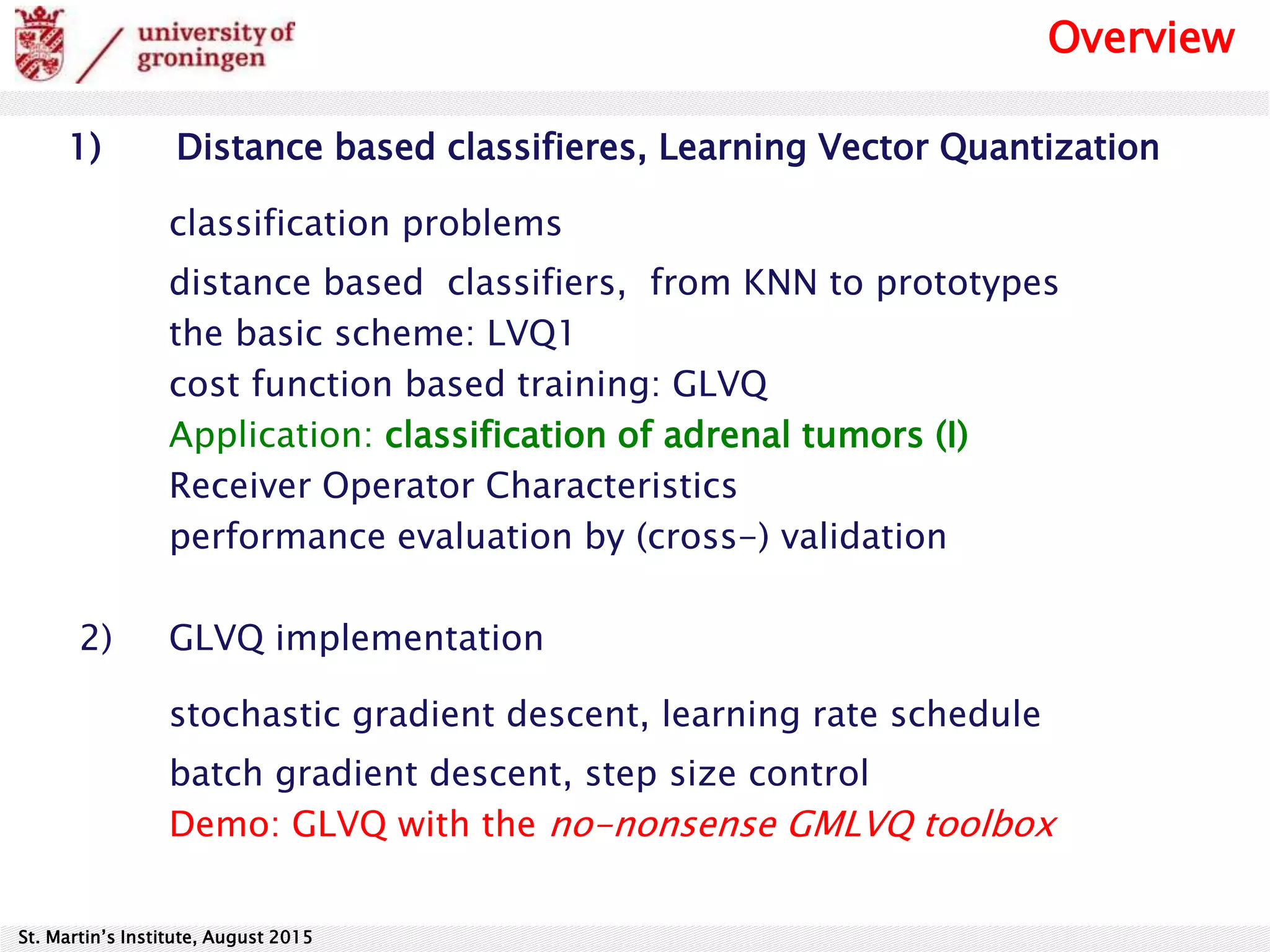

Overview

3) Alternative distance measures and Relevance Learning
Fixed distance measures:
Minkowski measures, Kernelized distances, Divergences
Application example: detection of Cassava Mosaic Disease
Adaptive distance measures
Matrix Relevance Learning Vector Quantizaion
Application example: Adrenal Tumors cont‘d
Demos: GMLVQ with the no-nonsense GMLVQ toolbox
Application example: Early diagnosis of Rheumatoid Arthritis
Uniqueness, regularization and singularity control
Challenges in bio-medical data analysis
Concluding remarks, references
Overview

1) Distance based classifiers,
Learning Vector Quantization

St. Martin’s Institute, August 2015 5
classification problems
- character/digit/speech recognition
- medical diagnoses
- pixel-wise segmentation in image processing
- object recognition/scene analysis
- fault detection in technical systems
- ...
machine learning approach:
extract information from example data
parameterized in a learning system (neural network, LVQ, SVM...)
working phase: application to novel data
here only: supervised learning , classification:

distance based classification
assignment of data (objects, observations,...)
to one or several classes (crisp/soft) (categories, labels)
based on comparison with reference data (samples, prototypes)
in terms of a distance measure (dis-similarity, metric)
representation of data (a key step!)
- collection of qualitative/quantitative descriptors
- vectors of numerical features
- sequences, graphs, functional data
- relational data, e.g. in terms of pairwise (dis-) similarities

K-NN classifier
a simple distance-based classifier
- store a set of labeled examples
- classify a query according to the
label of the Nearest Neighbor
(or the majority of K NN)
- local decision boundary acc.
to (e.g.) Euclidean distances
?
- piece-wise linear class borders
parameterized by all examples
feature space
+ conceptually simple, no training required, one parameter (K)
- expensive storage and computation, sensitivity to “outliers”
can result in overly complex decision boundaries

prototype based classification
a prototype based classifier [Kohonen 1990, 1997]
- represent the data by one or
several prototypes per class
- classify a query according to the
label of the nearest prototype
(or alternative schemes)
- local decision boundaries according
to (e.g.) Euclidean distances
- piece-wise linear class borders
parameterized by prototypes
feature space
?
+ less sensitive to outliers, lower storage needs, little computational
effort in the working phase
- training phase required in order to place prototypes,
model selection problem: number of prototypes per class, etc.

What about the curse of dimensionality ?
concentration of norms/distances for large N
„distance based methods are bound to fail in high dimensions“ ?
LVQ:
- prototypes are not just random data points
- carefully selected representatives of the data
- distances of a given data point to prototypes are compared
projection to non-trivial
low-dimensional subspace!
[Ghosh et al., 2007, Witoelar et al., 2010]
models of LVQ training, analytical treatment in the limit
successful training needs training examples
see also:

set of prototypes
carrying class-labels
based on dissimilarity / distance measure
nearest prototype classifier (NPC):
given - determine the winner with
Nearest Prototype Classifier (NPC)
minimal requirements:
- assign to class
standard example:
squared Euclidean

∙ identification of prototype vectors from labeled example data
∙ distance based classification (e.g. Euclidean)
N-dimensional data, feature vectors
• initialize prototype vectors
for different classes
competititve learning: LVQ1 [Kohonen, 1990]
• identify the winner
(closest prototype)
• present a single example
• move the winner
- closer towards the data (same class)
- away from the data (different class)

∙ identification of prototype vectors from labeled example data
∙ distance based classification (e.g. Euclidean)
N-dimensional data, feature vectors
∙ tesselation of feature space
[piece-wise linear]
∙ distance-based classification
[here: Euclidean distances]
∙ generalization ability
correct classification of new data
∙ aim: discrimination of classes
( ≠ vector quantization
or density estimation )



sequential presentation of labelled examples
… the winner takes it all:
learning rate
many heuristic variants/modifications: [Kohonen, 1990,1997]
- learning rate schedules ηw (t) [Darken & Moody, 1992]
- update more than one prototype per step
iterative training procedure:
randomized initial , e.g. close to the class-conditional means
LVQ1
LVQ1 update step:

LVQ1 update step:
LVQ1-like update for
generalized distance:
requirement:
update decreases (increases) distance if classes coincide (are different)
LVQ1

cost function based LVQ
one example: Generalized LVQ [Sato & Yamada, 1995]
sigmoidal (linear for small arguments), e.g.
E approximates number of misclassifications
linear
E favors large margin separation of classes, e.g.
two winning prototypes:
minimize
small , large
E favors class-typical prototypes

cost function based LVQ
There is nothing objective about objective functions
James L. McClelland

GLVQ
training = optimization with respect to prototype position,
e.g. single example presentation, stochastic gradient descent,
update of two prototypes per step
based on non-negative, differentiable distance
requirement:

GLVQ
e.g. single example presentation, stochastic sequence of examples,
based on non-negative, differentiable distance

GLVQ
e.g. single example presentation, stochastic sequence of examples,
based on Euclidean distance
moves prototypes towards / away from
sample with prefactors

related schemes
Many variants of LVQ
intuitive schemes: LVQ2, LVQ2.1, LVQ3, OLVQ, ...
cost function based: RSLVQ (likelihood ratios) ...
Supervised Neural Gas (NG)
many prototypes, rank based update
Supervised Self-Organizing Maps (SOM)
neighborhood relations, topology preserving mapping
Radial Basis Function Networks (RBF)
hidden units = centroids (prototypes) with Gaussian activation

An example problem:
classification of adrenal tumors
Wiebke Arlt , Angela Taylor
Dave J. Smith, Peter Nightingale
P.M. Stewart, C.H.L. Shackleton
et al.
Petra Schneider
Han Stiekema
Michael Biehl
Johann Bernoulli Institute for
Mathematics and Computer Science
University of Groningen
School of Medicine
Queen Elizabeth Hospital
University of Birmingham/UK
(+ several centers in Europe)
tumor classification
[Arlt et al., J. Clin. Endocrinology & Metabolism, 2011]

∙ adrenal tumors are common (1-2%)
and mostly found incidentally
∙ adrenocortical carcinomas (ACC) account
for 2-11% of adrenal incidentalomas
( ACA: adrenocortical adenomas )
∙ conventional diagnostic tools lack sensitivity
and are labor and cost intensive (CT, MRI)
www.ensat.org
adrenal
gland
∙ idea: tumor classification based on steroid excretion profile

- urinary steroid excretion (24 hours)
- 32 potential biomarkers
- biochemistry imposes correlations, grouping of steroids

ACApatient#
ACCpatient#
# steroid marker
102 patients with benign ACA
45 patients with malignant ACC
color coded excretion values
(logarithmic scale, relative to healthy controls)
data set:

Generalized LVQ , training and performance evaluation
∙ data divided in 90% training and 10% test set
∙ determine prototypes by (stochastic) gradient descent
typical profiles (1 per class)
∙ apply classifier to test data
evaluate performance (error rates)
∙ employ Euclidean distance measure
in the 32-dim. feature space
∙ repeat and average over many random splits

ACA
ACC
prototypes:
steroid excretion
in ACA/ACC

∙ Receiver Operator Characteristics (ROC) [Fawcett, 2000]
obtained by introducing a biased NPC:
false positive rate
(1-specificity)
truepositiverate
(sensitivity)
θ = 0
Area under Curve
all tumors classified as ACA
- no false alarms
- no true positives detected
all tumors classified as ACC
- all true positives detected
- max. number of false alarms
(NPC)

ROC characteristics (averaged over splits of the data set)
AUC=0.87
GLVQ performance:

brief excursion: gradient descent
stochastic gradient descent: convergence requires
decreasing learning rate with ‘time’ (number of steps t ),
e.g. as
condition [Robbins and Monro, 1954]:
?
alternatives:
- more general optimization schemes
(conjugate gradient, line search, second order derivatives…)
- adaptive learning rates
- …

batch gradient descent
batch gradient-based descent w.r.t. GLVQ costs
concatenated prototype vector
update in the direction of
the negative (full) gradient
step size for normalized gradient

batch gradient descent
too small:
slow convergence
too large:
over-shooting
zig-zagging
oscillatory behavior
divergence
Waypoint averaging
[Papari, Biehl, Bunte, 2011]
(here: modified default step)
default: increase αw by factor, e.g. 1.1
if E(mean over k last ) < E (next )
replace next by mean
reduce αw by a factor, e.g. 2/3
end

- collection of Matlab code (no toolboxes required)
includes example data sets and limited documentation
- mainly for demo-purposes (do not use for critical applications)
efficiency, programming style, etc. were not in the focus
“no nonsense” GMLVQ code collection
provides: single runs, visualization of the data set
leave-one-out, subset validation procedure
variants/options: GLVQ, [GRLVQ], GMLVQ
null-space projection
singularity-control
A no-nonsense beginners’ tool for G(M)LVQ:
http://www.cs.rug.nl/~biehl/No-Nonsense-GMLVQ.zip

example demo
>> load twoclass-difficult.mat (98 examples, 34-dim. feature vectors, binary labels)
>> [gmlvq_system,curves_single,param_set]=run_single(fvec,lbl,100)
learning curves
and step sizes
prototypes

example demo
>> load twoclass-difficult.mat
training set ROC visualization (features 33, 34)

example demo
avg. validation set ROCavg. learning curves
>> [gmlvq_mean,roc_val,lcurves_mean,lcurves_std,param_set]=…
run_validation(fvec,lbl,50);
GLVQ without relevances
…
learning curves, averages over 5 validation runs
with 10 % of examples left out for testing
avg. prototypes

http://matlabserver.cs.rug.nl/gmlvqweb/web/
More sophisticated Matlab code: [K. Bunte]
(more options, training by non-linear optimization etc.)
Relevance and Matrix adaptation in Learning Vector
Quantization (GLVQ, GRLVQ, GMLVQ and LiRaM LVQ):
http://www.cs.rug.nl/~biehl/
more links
Pre- and re-prints etc.:

3) Alternative distance measures
and relevance learning

fixed, pre-defined distance measures:
GLVQ (or more general cost function based LVQ):
can be based on general, differentiable distances,
e.g. Minkowski measures
Alternative distance measures
possible work-flow
- select several distance measures according to prior knowledge
or a driven-choice in a preprocessing step
- compare performance of various measures
examples: Kernelized distances
Divergences (statistics)

Kernelized distances
rewrite squared Euclidean
distance in terms of dot-product
distance measure associated with general inner product or
kernel function
e.g. Gaussian Kernel
implicit mapping to high-dimensional space for
better separability of classes, similar: Support Vector Machine

Divergence Based LVQ:
Detection of Cassava Mosaic Disease
Ernest Mwebaye
John Quinn
Jennifer Aduwo
Petra Schneider
Michael Biehl
Johann Bernoulli Institute
Department of Computer Sciene
Makerere University, Kampala
Namulonge Crop Research Center, Uganda
41
Thomas Villmann
Sven Haase
Frank-Michael Schleif
University of Applied Sciences, Mittweida
University Bielefeld, Germany
divergence based LVQ
[Neurocomputing, 2011]

healthyMosaic
Example: detection of Mosaic disease in Cassava (maniok) plants
Makerere University and Namulonge Crop Research Center, Uganda
LVQ classifiers based on histogram specific distance measures
divergences (statistics) for non-negative, possibly normalized data
(densities, spectral data, more general functional data)
leaf images

Squared Euclidean distance:
Cauchy-Schwartz divergence
(a) (b) (c)

example family: γ-divergences
non-symmetric (in general) includes: Kullback-Leibler
violates triangle inequality Cauchy-Schwarz
Euclidean

http://www.air.ug/mcrops/

Adaptive distance measures
46

relevance learning:
- employ a parameterized distance measure
with only the mathematical form fixed in advance
- update its parameters in the training process
together with prototype training
- adaptive, data driven dissimilarity
example: Matrix Relevance LVQ
data-driven optimization of prototypes
and relevance matrix
in the same training process (≠ pre-processing )
Relevance Learning

Quadratic distance measure
generalized quadratic distance:
variants:
one global, several local, class-wise relevance matrices Λ(j)
→ piecewise quadratic decision boundaries
rectangular discriminative low-dim. representation
e.g. for visualization [Bunte et al., 2012]
diagonal matrices: single feature weights [Bojer et al., 2001]
[Hammer et al., 2002]
scaling of features, general linear transformation of feature space
potential normalization:

But this is just Mahalonobis distance…
[Mahalonobis, 1936]
S covariance matrix of random vectors
(calculated once from the data, fixed definition, not adaptive)
if you insist…
(‘two point version’)
So it is a generalized Mahalonobis distance ?
No.
a generalized
broccoli
a generalization
of Ohm’s Law

Relevance Matrix LVQ
optimization of prototypes and distance measure
WTA
Matrix-LVQ1

Generalized Matrix LVQ
(GMLVQ)
optimization of prototypes and distance measure

heuristic interpretation
summarizes
- the contribution of the original dimension
- the relevance of original features for the classification
interpretation assumes implicitly:
features have equal order of magnitude
e.g. after z-score-transformation →
(averages over data set)
standard Euclidean distance for
linearly transformed features

optimization of
prototype positions
distance measure(s)
in one training process
(≠ pre-processing)
motivation:
improved performance
- weighting of features and pairs of features
simplified classification schemes
- elimination of non-informative, noisy features
- discriminative low-dimensional representation
insight into the data / classification problem
- identification of most discriminative features
- incorporation of prior knowledge (e.g. structure of Ω)

related schemes
Relevance LVQ variants
local, rectangular, structured, restricted... relevance matrices
for visualization, functional data, texture recognition, etc.
relevance learning in Robust Soft LVQ, Supervised NG, etc.
combination of distances for mixed data ...
Relevance Learning related schemes in supervised learning ...
RBF Networks [Backhaus et al., 2012]
Neighborhood Component Analysis [Goldberger et al., 2005]
Large Margin Nearest Neighbor [Weinberger et al., 2006, 2010]
and many more!
Linear Discriminant Analysis (LDA)
one prototype per class + global matrix,
different objective function!

Classification of adrenal tumors (cont‘d)
Wiebke Arlt , Angela Taylor
Dave J. Smith, Peter Nightingale
P.M. Stewart, C.H.L. Shackleton
et al.
Petra Schneider
Han Stiekema
Michael Biehl
Johann Bernoulli Institute for
Mathematics and Computer Science
School of Medicine
Queen Elizabeth Hospital
University of Birmingham/UK
(+ several centers in Europe)
[Arlt et al., J. Clin. Endocrinology & Metabolism, 2011]
[Biehl et al., Europ. Symp. Artficial Neural Networks (ESANN), 2012]

∙ adrenocortical tumors, difficult differential diagnosis:
ACC: adrenocortical carcinomas
ACA: adrenocortical adenomas
∙ idea: steroid metabolomics
tumor classification based on urinary steroid excretion
32 candidate steroid markers:
adrenocortical tumors

Generalized Matrix LVQ , ACC vs. ACA classification
∙ data divided in 90% training, 10% test set
∙ determine prototypes
evaluate performance (error rates, ROC)
∙ adaptive generalized quadratic distance measure
parameterized by
data set: 24 hrs. urinary steroid excretion
102 patients with benign ACA
45 patients with malignant ACC

Generalized Matrix LVQ , ACC vs. ACA classification
∙ data divided in 90% training, 10% test set, (z-score transformed)
∙ determine prototypes
evaluate performance (error rates, ROC)
∙ adaptive generalized quadratic distance measure
parameterized by
tumor classification (cont’d)
[Arlt et al., 2011]
[Biehl et al., 2012]

off-diagonal
diagonal elements
fraction of runs (random splits) in which a
steroid is rated among 9 most relevant markers
subset of 9 selected steroids ↔ technical realization (patented, University
of Birmingham/UK)
Relevance matrix

off-diagonaldiagonal elements
19
ACA
ACC
discriminative
e.g. steroid 19

off-diagonaldiagonal elements
8
ACA ACC
non-trivial role:
steroid 8 among the most relevant!

highly discriminative
combination of markers!
weaklydiscriminativemarkers
12
8

ROC characteristics
clear improvement due to
adaptive distances
(1-specificity)
(sensitivity)
8
GMLVQ
GRLVQ
diagonal rel.
Euclidean
full matrix
AUC
0.87
0.93
0.97

observation / theory :
low rank of resulting relevance matrix
often: single relevant eigendirection
eigenvalues
in ACA/ACC
classification
intrinsic regularization
nominally ~ NxN adaptive parameters in Matrix LVQ
reduce to ~ N effective degrees of freedom
low-dimensional representation
facilitates, e.g., visualization of labeled data sets
theory: stationarity of Matrix RLVQ
Biehl et al. Stationarity of Matrix Relevance LVQ
Proc. IJCNN 2015

visualization of the data set
ACA
ACC

modified batch gradient descent
batch gradient-based descent w.r.t. costs
concatenated prototype vector
elements of Ω
updates in the direction of
the normalized gradients
waypoint averaging and step size control
separately for and

example demo
>> load twoclass-difficult.mat (98 34-dim. feature vectors, binary classification)
prototypes and
relevance matrix
learning curves
and step sizes

example demo
>> load twoclass-difficult.mat
training set ROC visualization of the data set

example demo
avg. validation set ROCavg. prototypes and relevance matrix
>> [gmlvq_mean,roc_val,lcurves_mean,lcurves_std,param_set]=…
run_validation(fvec,lbl,50);
GMLVQ
…
learning curves, averages over 5 validation runs
with 10 % of examples left out for testing

a multi-class problem
visualization of 18-dim. data setavg. prototypes and rel. matrix
>> load uci-segmenation-sampled
>> [gmlvq_system, curves_single,param_set]=run_single(fvec,lbl,50)

Singularity control
Note:
singularity of relevance matrix can lead to numerical instabilities
and over-simplification effects
singularity control: penalty term
derivative
-> modified matrix update
(implemented in the no-nonsense gmlvq code collection)

Uniqueness
(I) uniqueness of Ω, given Λ
matrix square root is not unique
irrelevant rotations, reflections, symmetries….
canonical representation in terms of eigen-decomposition of Λ:
- pos. semi-definite
symmetric solution
(Matlab: “sqrtm”)

simple example:
contributions cancel exactly if
-> disregarded in the classification
of the training data
but naïve interpretation of diagonal
suggests high relevance, could cause
non-trivial effect for novel data
consider two identical, entirely
irrelevant features, e.g.
Uniqueness
(II) uniqueness of relevance matrix for given data set ?

(II) uniqueness
given transformation:
are in the null-space of
is possible if the rows of
→ identical mapping of examples, different for
possible to extend by prototypes
is singular if
features are correlated, dependent
Uniqueness

regularization
training process yields
determine with eigenvectors and eigenvalues
regularization:
(K<J ) retain the eigenspace corresponding to largest eigenvalues
removes also span of small non-zero eigenvalues
(K=J ) removes all null-space contributions, unique solution
with minimal Euclidean norm of row vectors
equivalent: (Moore-Penrose-Inverse X+ )
(implemented in the no-nonsense gmlvq code collection)

regularization
regularized mapping
after/during training
pre-processing of data
(PCA)
mapped feature space
fixed K
prototypes yet unknown
example: diagnosis of
rheumatoid arthritis
retains original features
flexible K
may include prototypes
example: Wine data set
Strickert, Hammer, Villmann, Biehl, IEEE SCCI 2013
Regularization and improved interpretation of linear data mappings
and adaptive distance measures

illustrative example
infra-red spectral data: 124 wine spamples
256 wavelengths 30 training data
94 test spectra
alcoholcontent
high
low
medium
GMLVQ classification
[UCI ML repository]

GMLVQ
best performance
7 dimensions remaining
over-fitting
effect
null-space correction
P=30 dimensions

original
regularized
regularization
- enhances generalization
- smoothens relevance profile/matrix
- removes ‘false relevances’
- improves interpretability of Λ
raw relevance matrix
posterior regularization

Early diagnosis of Rheumatoid Arthritis
Expression of chemokines CXCL4 and CXCL7 by synovial
macrophages defines an early stage of rheumatoid arthritis
Ann. of the Rheumatic Diseases, 2015 (available online)
L. Yeo, N. Adlard, M. Biehl, M. Juarez, M. Snow
C.D. Buckley, A. Filer, K. Raza, D. Scheel-Toellner

uninflamed control established RA early inflammation
resolving early RA
cytokine based diagnosis of RA
at earliest possible stage ?
ultimate goals:
understand pathogenesis and
mechanism of progression
rheumatoid arthritis (RA)

mRNA extraction real-time PCRtissue sectionsynovium
synovial tissue cytokine expression
IL1A IL17F FASL CXCL4 CCL15 TGFB1 KITLG
IL1B IL18 CD70 CXCL5 CCL16 TGFB2 MST1
IL1RN IL19 CD30L CXCL6 CCL17 TGFB3 SPP1
IL2 IL20 4-1BB-L CXCL7 CCL18 EGF SFRP1
IL3 IL21 TRAIL CXCL9 CCL19 FGF2 ANXA1
IL4 IL22 RANKL CXCL10 CCL20 TGFA TNFRSF13B
IL5 IL23A TWEAK CXCL11 CCL21 IGF2 IL6R
IL6 IL24 APRIL CXCL12 CCL22 VEGFA NAMPT
IL7 IL25 BAFF CXCL13 CCL23 VEGFB C1QTNF3
IL8 IL26 LIGHT CXCL14 CCL24 MIF VCAM1
IL9 IL27 TL1A CXCL16 CCL25 LIF LGALS1
IL10 IL28A GITRL CCL1 CCL26 OSM LGALS9
IL11 IL29 FASLG CCL2 CCL27 ADIPOQ LGALS3
IL12A IL32 IFNA1 CCL3 CCL28 LEP LGALS12
IL12B IL33 IFNA2 CCL4 XCL1 GHRL
IL13 LTA IFNB1 CCL5 XCL2 RETN
IL14 TNF IFNG CCL7 CX3CL1 CTLA4
IL15 LTB CXCL1 CCL8 CSF1 EPO
IL16 OX40L CXCL2 CCL11 CSF2 TPO
IL17A CD40L CXCL3 CCL13 CSF3 FLT3LG
panel of 117 cytokines
• cell signaling proteins
• regulate immune response
• produced by, e.g.
T-cells, macrophages,
lymphocytes, fibroblasts, etc.

GMLVQ analysis
pre-processing:
• log-transformed expression values (117 dim. data, 47 samples in total)
• 21 leading principal components explain ca. 90% of the total variation
Two two-class problems: (A) established RA vs. uninflamed controls
(B) early RA vs. resolving inflammation
• 1 prototype per class, global relevance matrix, distance measure:
• leave-one-out validation
evaluation in terms of Receiver Operating Characteristics

false positive rate
truepositiveratetruepositiverate
diagonal Λii vs. cytokine index i
established RA vs.
uninflamed control
early RA vs.
resolving inflammation
Matrix Relevance LVQ
diagonal relevancesleave-one-out
intialization
of LVQ system

CXCL4 chemokine (C-X-C motif) ligand 4
CXCL7 chemokine (C-X-C motif) ligand 7
direct study on protein level, staining / imaging of sinovial tissue:
macrophages : predominant source of CXCL4/7 expression
protein level studies
• high levels of CXCL4 and CXLC7
in the first 12 weeks of synovitis
in early RA
• expression on macrophages
outside of blood vessels
discriminates
early RA / resolving cases
(2 PhD thesis projects)

false positive rate
truepositiveratetruepositiverate
diagonal Λii vs. cytokine index i
established RA vs.
uninflamed control
early RA vs.
resolving inflammation
relevant cytokines
macrophage
stimulating 1
diagonal relevancesleave-one-out

four class problem
one prototype per class
and one global matrix
trained in one go
low-rank relevance
matrix (rank ≈ 2)
visualization of data
set in terms of
eigenvectors of Λ
Niels Kluiter
research internship
at JBI Groningen

four class problem
- extract binary classifiers (healthy vs. est. RA, resolving vs. early RA)
by restricting the system to the corresponding prototypes
for varying number K of PCs used as feature vectors
- determine corresponding ROC performances
robust in a range
of 14 < K < 20
healthy vs. est. RA
K=16: AUC = 0.92
early vs. resolving RA
K=16: AUC = 0.79
to do: nested L1O-val.

four class problem
read off problem-
specific relevances
from eigenvectors
of Λ
control
vs. est. RA
resolving
vs.earlyRA

Some challenges in biomedical data,
further application examples

challenges in bio-medical data
A. Filer, A. Clark, M. Juarez, J. Falconer et al.
- micro-array gene expression data
high-dimensional (~50000 probes)
PCA + GMLVQ
(work in progress)
early Arthritis vs. resolving inflammations
- preliminary result:
better than random classification
close inspection of high relevance genes:
system discriminates male/female patients
prediction reflects higher prevalence of RA in female patients
leave-one-out
“accuracy is not enough”

interpretability
- important: understand the basis of decisions
- white-box approaches for classification/regression etc.
- insights into the data and problem at hand
- e.g. selection of most discriminative bio-markers
challenges
relevance of steroid markers
wwwensat.org
adenomas (ACA)
carcinomas (ACC)
W. Arlt, M. Biehl et al.
Urine steroid metabolomics as a biomarker tool for detecting
malignancy in adrenal tumors J. of Clin. Endocrinology &
Metabolism 96: 3775-3784 (2011).

large amounts of data , e.g. image data bases
life lines (longitudinal patient data)
prescription data bases [E. Hak, K. Taxis]
challenges
A
B
C
D
query images
retrieval:
√ - same class
× - different classs
UMCG data base of skin lesion images
K. Bunte, M. Biehl, M.F. Jonkman, N. Petkov Learning Effective Color
Features for Content Based Image Retrieval in Dermatology. Pattern
Recognition 44 (2011) 1892-1902.

high-dimensional data, e.g. medical images (CT, MRI, PET …)
gene expression, DNA sequences, …
challenges
projection on first eigenvector of Λ
projectiononfirsteigenvectorofΛ
M. Biehl, K. Bunte, P. Schneider Analysis
of Flow Cytometry Data by Matrix
Relevance Learning Vector Quantization
PLOS One 8: e59401 (2013)
- low-dim. representation
- feature selection
- visualization
high-throughput flow cytometry
~ 10k cells x30 markers/sample
 derive 186 features
 GMLVQ, low-dim. projection

incomplete data
challenges
- missing values, noise, uncertain labels…
imputation, semi-supervised learning
- complementary data sets…
learning from privileged information, transfer learning
mixed data
- combination of different sources / technical platforms
suitable adaptive & integrative (dis-) similarity measures
E. Mwebaze, G. Bearda, M. Biehl, D. Zühlke Combining dissimilarity
measures for prototype-based classification Proc. of the 23rd European
Symposium on Artificial Neural Networks ESANN 2015, d-side publishing,
31-36 (2015)

distances combined
...
N-dim. vector M-bin histogram temporal sequence
Euclidean divergence (mis-)alignment
combined distance measure, e.g.
+source-specific prototypes
relevance learning!
E. Mwebaze, G. Bearda, M. Biehl, D. Zühlke Combining dissimilarity
measures for prototype-based classification Proc. of the 23rd European
Symposium on Artificial Neural Networks ESANN 2015, d-side publishing,
31-36 (2015)

challenges
imbalanced data sets
- prevalence of diseases (screening vs. differential diagnosis)
- role of false positive / false negatives
T. Villmann, M. Kaden, W. Herrmann, M. Biehl
Learning Vector Quantization for ROC-optimization
possible
working points

causal relations vs. correlation
challenges
- predictive power vs. causal dependence ?
www.causality.inf.ethz.ch/
data/LUCAS.html
E. Mwebaze, J. Quinn, M. Biehl
Causal Relevance Learning for Robust Classification under Interventions
Proc. 19th Europ. Symp. on Artificial Neural Networks ESANN 2011

challenges
data not given as vectors in a Euclidean space,
e.g. symbolic sequences of different length
known: pairwise dis-similarities, e.g. edit-distance
‘relational data’ given as matrix
loooooooongword
shrtwrd
pseudo-Euclidean embedding
prototypes expressed as
Non-vectorial data:

non-vectorial data
distances
Training: updates w.r.t. prototype coefficients, e.g. LVQ1-like or GLVQ
Working phase: WTA classification of novel data:
distance from known example data
distance from protoypes
[Hammer, Schleif, Zhu, 2011] [Hammer & Hasenfuss, 2010]
prototypes

CAIP contributions
Gert-Jan de Vries, Steffen Pauws and Michael Biehl.
Facial Expression Recognition using Learning Vector Quantization
Thomas Villmann, Marika Kaden, David Nebel and Michael Biehl.
Learning Vector Quantization with Adaptive Cost-based
Outlier-Rejection

a review article
For a recent review and further references see:
M. Biehl, B. Hammer, T. Villmann Distance measures for prototype
based classification
In: BrainComp, Proc. of the International Workshop on Brain-
Inspired Computing. Cetraro/Italy, July 2013
L. Grandinetti, T. Lippert, N. Petkov (editors)
Springer Lecture Notes in Computer Science Vol 8603
pp. 100-116 (2014)
check
www.cs.rug.nl/~biehl
for more references and application examples

2015: Distance based classifiers: Basic concepts, recent developments and application examples

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to 2015: Distance based classifiers: Basic concepts, recent developments and application examples

Similar to 2015: Distance based classifiers: Basic concepts, recent developments and application examples (20)

More from University of Groningen

More from University of Groningen (15)

Recently uploaded

Recently uploaded (20)

2015: Distance based classifiers: Basic concepts, recent developments and application examples
