1. Michael Biehl, Aleke Nolte
Johann Bernoulli Institute for
Mathematics and Computer Science
University of Groningen, NL
SUNDIAL H2020 Network
www.cs.rug.nl/~biehl
www.astro.rug.nl/~sundial/
pre- reprints, available code

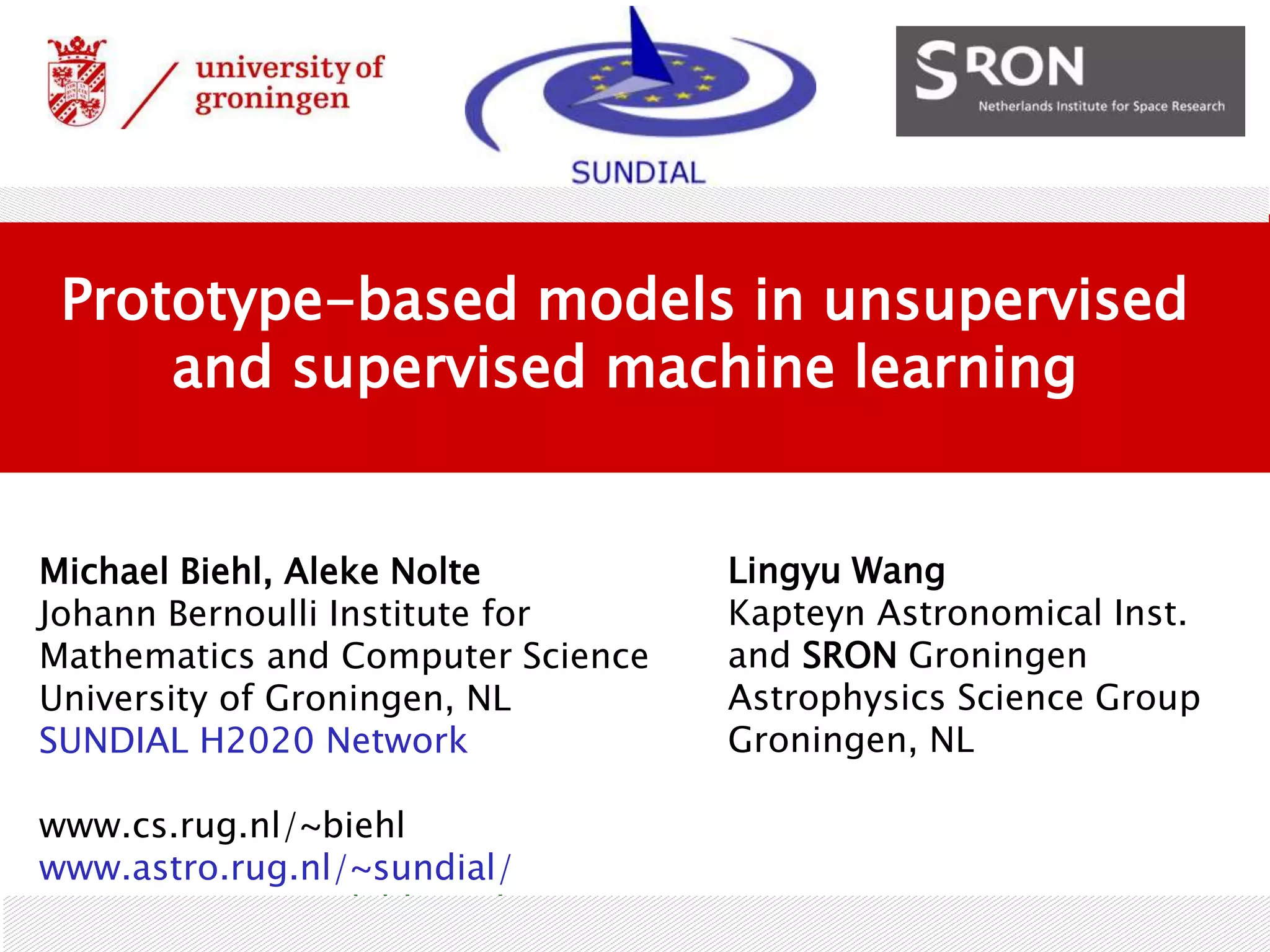

Prototype-based models in unsupervised
and supervised machine learning
Lingyu Wang
Kapteyn Astronomical Inst.
and SRON Groningen
Astrophysics Science Group
Groningen, NL

2. Astroinformatics, Cape Town, November 2017 2
Overview
Introduction / Motivation
prototypes, exemplars
neural activation / learning
Supervised Learning
Learning Vector Quantization (LVQ)
Adaptive distances and relevance learning
Unsupervised Learning
Vector Quantization (VQ), competitive learning
Kohonen’s Self-Organizing Map (SOM)
Illustration:
SOM-clustering of galaxy data, post-labelling
Supervised classification, LVQ+relevance learning

3. Astroinformatics, Cape Town, November 2017
Introduction
prototypes, exemplars:
representation of information in terms of
typical representatives (e.g. of a class of objects),
much debated concept in cognitive psychology
machine learning: prototype- (and distance-) based systems
- easy to implement, highly flexible, online training
- white box: parameterization in the space of observed data
- yield interpretable classifiers/regression systems
- help to detect bias in training data, other artifacts
- provide insights into data set / problem at hand
Accuracy is not enough! [Paulo Lisboa]

4. Astroinformatics, Cape Town, November 2017
4
Introduction
neural interpretation: activation and learning in a shallow network
external stimulus to a network of neurons
response according to weights (= expected inputs)
activation: BMU - best matching unit (and neighbors)
learning -> even stronger response to the same stimulus in future
weights represent different expected stimuli (prototypes)

5. Astroinformatics, Cape Town, November 2017
based on dis-similarity/distance measure
assignment to prototypes: e.g. Nearest Prototype Scheme
given vector xμ , determine winner
(BMU)
→ assign xμ to prototype w*
most popular example: (squared) Euclidean distance
Vector Quantization (VQ)
VQ system: set of prototypes
data: set of feature vectors
Vector Quantization: identify typical representatives of data
which capture essential features

6. Astroinformatics, Cape Town, November 2017 6
random sequential (repeated) presentation of data
… the Winner Takes it All (WTA):
initially: randomized wk, e.g. in randomly selected data points
Competitive Learning
η (<1): learning rate, step size of update
competitive VQ: competition without neighborhood cooperativeness
stochastic gradient descent minimization of the
Quantization Error
(here: sq. Euclidean)

7. Astroinformatics, Cape Town, November 2017
Self-Organizing Map (SOM)
T. Kohonen. Self-Organizing Maps (Springer 1995, 1997, 2001)
neighborhood cooperativeness on a pre-defined low-dim. lattice
d-dim. lattice A of
neurons (prototypes)
- update BMU and lattice neighborhood:
where
range ρ w.r.t. distances in lattice A
upon presentation of xμ :
- determine the Best Matching Unit
at position s in the lattice

8. Astroinformatics, Cape Town, November 2017 8
prototype lattice deforms, reflecting the density of observations
© Wikipedia
SOM: provides topology/neighborhood preserving
low-dimensional representation
e.g. for inspection and visualization of structured datasets
Frequently:
unsupervised analysis, post-hoc comparison with classes of data
Self-Organizing Map

9. Astroinformatics, Cape Town, November 2017 9
Hubble’s galaxy classification scheme
http://astro.physics.uiowa.edu/ITU/labs/general-astronomy/counting-galaxies/part-1-counting-galaxies.html
Illustration: Galaxy Characteristics

10. Astroinformatics, Cape Town, November 2017
10
11
12
.
.
41
Illustration: Galaxy Characteristics
Numerical features describing a catalogue of galaxies
work in progress - details not (yet) disclosed
GAMA: Galaxy and
Mass Assembly Survey
www.gama-survey.org
reduced
set of 10
selected
features
full set
of 41
features
(semi-major)
(semi-minor)
logistic normalization:

11. Astroinformatics, Cape Town, November 2017
class 1
class 3
class 4
7
class 5
class 6
class 2 8,9
1 - elliptical E0-E6
3 – “early type spirals”
4 – “early type barred spirals”
5 – “intermediate type spirals”
6 – “intermediate type, barred”
7 – “late type spirals & irregulars”
Illustration: Galaxy Classification
2 - Little Blue Spheroids (LBS)
“
8,9 – artefacts, stars
Kelvin et al., MNRAS 439: 1245-1269, 2014.

12. Astroinformatics, Cape Town, November 2017 12
SOM: (rectangular grid, ‘medium size’)
unsupervised clustering
based on 10 manually selected features
data set of ~ 5000 samples
post-labelling of prototypes
(majority of represented samples)
according to human classification
note: map with p.b.c. (toroidal)
Self-Organizing Map
SOM toolbox:
http://www.cis.hut.fi/somtoolbox/
init:lininit, training:long, hape:toroid, mapsize:regular, lattice:rect,
2
2
2
2
2
2
2
7
7
7
7
7
5
5
5
5
5
5
5
3
1
1
1
1
1
1
1
2
2
2
2
2
2
7
7
2
7
5
5
5
5
5
5
1
3
3
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
7
7
5
5
5
5
5
3
3
3
1
3
1
1
1
1
1
2
2
2
2
2
2
2
2
2
7
1
7
1
5
1
1
3
3
3
3
3
3
1
1
1
1
2
2
2
2
2
7
2
7
7
7
7
7
3
5
5
3
3
3
3
3
3
3
3
3
1
1
7
7
2
2
7
2
7
7
7
7
7
7
5
7
5
5
5
3
3
3
3
3
3
3
3
7
5
2
2
2
7
7
7
7
7
7
5
5
5
5
5
5
5
3
3
3
3
3
3
3
3
2
1
2
2
7
7
7
7
7
7
7
5
5
5
5
5
5
5
3
3
3
3
3
3
3
1
5
2
7
2
2
7
7
7
7
7
5
5
5
5
5
5
5
5
5
3
1
1
1
3
1
5
5
7
2
7
2
2
7
7
7
7
5
5
5
5
5
5
5
5
3
3
1
1
1
3
3
3
1
2
2
2
2
2
7
7
7
7
5
5
5
5
5
5
5
5
6
6
3
1
1
1
1
1
1
2
2
2
2
2
2
7
7
7
7
7
5
7
5
5
5
5
5
6
3
1
1
1
1
1
2
1
2
2
2
2
2
7
7
7
7
7
5
5
5
5
5
5
3
3
1
1
1
1
1
1
datadim: 10, normalizaton: logistic , size: regular , features: ExcelVarslct

13. Astroinformatics, Cape Town, November 2017 13
SOM (rectangular grid, ‘medium size’)
unsupervised clustering
pie-charts:
percentage at which classes
are assigned to a particular unit
Self-Organizing Map
observations / suggestions:
- LBS appear well separated
- overlap of 1 / 3 and 5 / 7
with smooth transtions
- 6 and 5 mix/overlap
- “small classes” 4,8,9 hardly
represented
to do: inspect prototypes, U-matrix, ...
meta-clustering

14. Astroinformatics, Cape Town, November 2017
∙ identification of prototype vectors from labeled example data
∙ distance based classification (e.g. Euclidean)
Supervised Competitive Learning
N-dimensional data, feature vectors
• initialize prototype vectors
for different classes
Learning Vector Quantization here: heuristic LVQ1 [Kohonen, 1990]
• identify the winner
(closest prototype)
• present a single example
• move the winner
- closer towards the data (same class)
- away from the data (different class)
Alternatives: cost function based training
e.g. Generalized LVQ [ GLVQ: Sato and Yamada, 1995]

15. Astroinformatics, Cape Town, November 2017
∙ identification of prototype vectors from labeled example data
∙ distance based classification (e.g. Euclidean)
Learning Vector Quantization
N-dimensional data, feature vectors
∙ distance-based classification
[here: Euclidean distances]
∙ generalization ability
correct classification of new data
∙ aim: discrimination of classes
( ≠ vector quantization
or density estimation )


Nearest Prototype Classifier

16. Astroinformatics, Cape Town, November 2017 16
Distance Measures
fixed distance measures:
- select distance measures (prior knowledge, pre-processing)
- compare performance of various measures
relevance learning: adaptive distance measures
- fix only parametric form of distance measure
- data driven adaptation:
determine prototypes and distance parameters
in the same training process (e.g. cost function based GLVQ)
Example: Generalized Matrix Relevance LVQ
(Adaptive)
[Schneider, Biehl, Hammer, 2009]

17. Astroinformatics, Cape Town, November 2017
Generalized Relevance Matrix LVQ (GMLVQ)
adaptive quadratic distance in LVQ:
normalization:
summarizes
- the contribution of the original dimension j
- relevance of original features for the classification
standard (squared) Euclidean distance for
linearly transformed features
: relevance of pairs (i,j) of features

18. Astroinformatics, Cape Town, November 2017 18
- restriction to classes with significant number of samples
- sub-sampling in order to achieve balanced training sets (5×743)
- use of all 41 features
- avgerages over random splits in 90% training, 10% test set
GMLVQ analysis
one prototype
per class
1 2
3 5
7
confusion matrix of the NPC
61.3 10.4 20.1 7.5 0.7
3.1 90.5 0 1.9 4.5
16.5 1.7 68.0 13.6 0.2
1.6 7.8 10.0 73.6 7.0
1.3 13.0 0.3 13.8 71.
6
predicted
trueclass

19. Astroinformatics, Cape Town, November 2017 19
diagonal of the relevance matrix:
continuous weights
- alternative set of features ?
projection of the data set on leading
eigenvectors of Λ: discriminative
low-dim. representation:
e.g. strong overlap of classes 1 / 3
(elliptical / early type spirals)
- agrees only partially
with hand-crafted set ()
correlations between features?
GMLVQ analysis

20. Astroinformatics, Cape Town, November 2017 20
Summary
Prototype-based systems in machine learning:
represent data in terms of exemplars, white box
parameterization of clustering / classification / regression
Unsupervised Learning
data reduction, vector quantization, clustering
low-dimensional representation, topology preserving SOM
Supervised Learning
example: LVQ for classification with adaptive distance
Generalized Matrix Relevance LVQ (GMLVQ) *
white box, transparent, intuitive, powerful
accuracy is not enough: insight into problem / data set
e.g. with respect to feature selection / weighting
* GMLVQ (matlab) toolboxes: www.cs.rug.nl/~biehl

21. Astroinformatics, Cape Town, November 2017 21
Unsupervised Learning
Neural Gas (NG)
Generative Topographic Map (GTM)
Relevance learning in dimension reduction
Regression
Ordinal Regresssion in GMVLQ
Radial Basis Function networks (RBF)
Probabilistic classification
likelihood-based classifiers (Robust Soft LVQ)
Distances / Similarities
unconventional, problem-specific similarity measures
e.g. functional data (time series, spectra, histograms...)
non-vectorial data, relational data
relevances: weak/strong, bounds
...
there is a lot more...

22. Astroinformatics, Cape Town, November 2017 22
review: WIRES Cognitive Science (2016)
