1. Programming in R
?

2. If/else

3. Logical Operators

7. going further

9. SBSM035 - Stats/
Bioinformatics/
Programming
Reproducible Research &
Sustainable Software
@yannick__ http://yannick.poulet.org

10. Why care?

13. Aquaculture in
Offshore Zones
LETTERS I BOOKS I POLICY FORUM I EDUCATION FORUM I PERSPECTIVES
operations that reveal little, if any, negative
impact on the environment or local ecosys-tems
(2, 3). Naylor criticizes the National
industry governed by regulations with a rational
basis in the ecology of the oceans and the eco-nomic
realities of the marketplace.
1878
in the classroom
1880 1882
perspectives

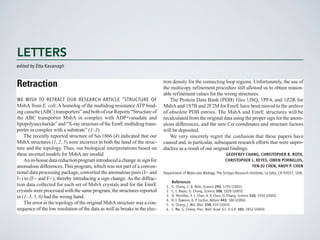

LETTERS
edited by Etta Kavanagh
Retraction
WE WISH TO RETRACT OUR RESEARCH ARTICLE “STRUCTURE OF
MsbA from E. coli: A homolog of the multidrug resistance ATP bind-ing
cassette (ABC) transporters” and both of our Reports “Structure of
the ABC transporter MsbA in complex with ADP•vanadate and
lipopolysaccharide” and “X-ray structure of the EmrE multidrug trans-porter
in complex with a substrate” (1–3).
The recently reported structure of Sav1866 (4) indicated that our
MsbA structures (1, 2, 5) were incorrect in both the hand of the struc-ture
and the topology. Thus, our biological interpretations based on
these inverted models for MsbA are invalid.
An in-house data reduction program introduced a change in sign for
anomalous differences. This program, which was not part of a conven-tional
data processing package, converted the anomalous pairs (I+ and
I-) to (F- and F+), thereby introducing a sign change. As the diffrac-tion
data collected for each set of MsbA crystals and for the EmrE
crystals were processed with the same program, the structures reported
in (1–3, 5, 6) had the wrong hand.
The error in the topology of the original MsbA structure was a con-sequence
of the low resolution of the data as well as breaks in the elec-tron
density for the connecting loop regions. Unfortunately, the use of
the multicopy refinement procedure still allowed us to obtain reason-able
refinement values for the wrong structures.
The Protein Data Bank (PDB) files 1JSQ, 1PF4, and 1Z2R for
MsbA and 1S7B and 2F2M for EmrE have been moved to the archive
of obsolete PDB entries. The MsbA and EmrE structures will be
recalculated from the original data using the proper sign for the anom-alous
differences, and the new Ca coordinates and structure factors
will be deposited.
We very sincerely regret the confusion that these papers have
caused and, in particular, subsequent research efforts that were unpro-ductive
as a result of our original findings.
GEOFFREY CHANG, CHRISTOPHER B. ROTH,
CHRISTOPHER L. REYES, OWEN PORNILLOS,
YEN-JU CHEN, ANDY P. CHEN
Department of Molecular Biology, The Scripps Research Institute, La Jolla, CA 92037, USA.
References
1. G. Chang, C. B. Roth, Science 293, 1793 (2001).
2. C. L. Reyes, G. Chang, Science 308, 1028 (2005).
3. O. Pornillos, Y.-J. Chen, A. P. Chen, G. Chang, Science 310, 1950 (2005).
4. R. J. Dawson, K. P. Locher, Nature 443, 180 (2006).
5. G. Chang, J. Mol. Biol. 330, 419 (2003).
6. C. Ma, G. Chang, Proc. Natl. Acad. Sci. U.S.A. 101, 2852 (2004).
Downloaded from www.sciencemag.org on September 24, 2014

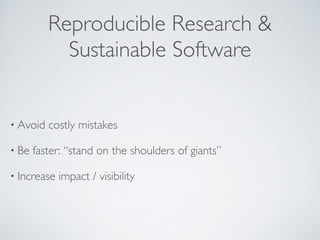

14. Reproducible Research &
Sustainable Software
• Avoid costly mistakes
• Be faster: “stand on the shoulders of giants”
• Increase impact / visibility

15. “Big data” biology
is hard.

16. “Big data” biology
is hard.
• Biology/life is complex
• Field is young.
• Biologists lack computational training.
• Generally, analysis tools suck.
• badly written
• badly tested
• hard to install
• output quality… often questionable.
• Understanding/visualizing/massaging data is hard.
• Datasets continue to grow!

17. We need great tools.

18. Some sources of inspiration

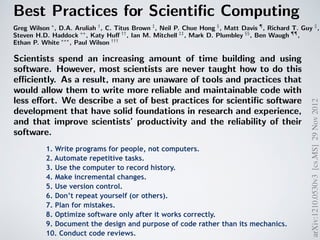

20. 1210.0530v3 [cs.MS] 29 Nov 2012
steve@practicalcomputing.org),††University ofWisconsin (khuff@cae.wisc.Mary University of London (mark.plumbley@eecs.qmul.ac.uk),¶¶University University (ethan@weecology.org), and †††University of Wisconsin (wilsonp@Scientists spend an increasing amount of time building and using
software. However, most scientists are never taught how to do this
efficiently. As a result, many are unaware of tools and practices that
would allow them to write more reliable and maintainable code with
less effort. We describe a set of best practices for scientific software
development that have solid foundations in research and experience,
and that improve scientists’ productivity and the reliability of their
software.
1. Write programs for people, not computers.
Scientists writing software need to write correctly and can be easily read and programmers (especially the author’s future cannot be easily read and understood it is to know that it is actually doing what it is be productive, software developers must therefore aspects of human cognition into account: human working memory is limited, human (Best Practices for Scientific Computing
Greg Wilson ∗, D.A. Aruliah †, C. Titus Brown ‡, Neil P. Chue Hong §, Matt Davis ¶, Richard T. Guy ∥,
Steven H.D. Haddock ∗∗, Katy Huff ††, Ian M. Mitchell ‡‡, Mark D. Plumbley §§, Ben Waugh ¶¶,
Ethan P. White ∗∗∗, Paul Wilson †††
∗Software Carpentry (gvwilson@software-carpentry.org),†University of Ontario Institute of Technology (Dhavide.Aruliah@State University (ctb@msu.edu),§Software Sustainability Institute (N.ChueHong@epcc.ed.ac.uk),¶Space Telescope (mrdavis@stsci.edu),∥University of Toronto (guy@cs.utoronto.ca),∗∗Monterey Bay Aquarium Research Institute
(steve@practicalcomputing.org),††University ofWisconsin (khuff@cae.wisc.edu),‡‡University of British Columbia (mitchell@Mary University of London (mark.plumbley@eecs.qmul.ac.uk),¶¶University College London (b.waugh@ucl.ac.uk),∗∗∗University (ethan@weecology.org), and †††University of Wisconsin (wilsonp@engr.wisc.edu)
Scientists spend an increasing amount of time building and using
software. However, most scientists are never taught how to do this
efficiently. As a result, many are unaware of tools and practices that
would allow them to write more reliable and maintainable code with
less effort. We describe a set of best practices for scientific software
development that have solid foundations in research and experience,
and that improve scientists’ productivity and the reliability of their
software.
Software is as important to modern scientific research as
telescopes and test tubes. From groups that work exclusively
on computational problems, to traditional laboratory and field
scientists, more and more of the daily operation of science re-volves
around computers. This includes the development of
new algorithms, managing and analyzing the large amounts
of data that are generated in single research projects, and
combining disparate datasets to assess synthetic problems.
Scientists typically develop their own software for these
purposes because doing so requires substantial domain-specific
and open source software development [61, studies of scientific computing [4, 31, development in general (summarized in practices will guarantee efficient, error-free but used in concert they will reduce errors in scientific software, make it easier the authors of the software time and effort focusing on the underlying scientific questions.
Software is as important to modern scientific research as
telescopes and test tubes. From groups that work exclusively
on computational problems, to traditional laboratory and field
scientists, more and more of the daily operation of science re-volves
around computers. This includes the development of
new algorithms, managing and analyzing the large amounts
of data that are generated in single research projects, and
combining disparate datasets to assess synthetic problems.
arXiv:1210.0530v3 [cs.MS] 29 Nov 2012
1. Write programs for people, not computers.
2. Automate repetitive tasks.
3. Use the computer to record history.
4. Make incremental changes.
5. Use version control.
6. Don’t repeat yourself (or others).
7. Plan for mistakes.
8. Optimize software only after it works correctly.
9. Document the design and purpose of code rather than its mechanics.!
10. Conduct code reviews.

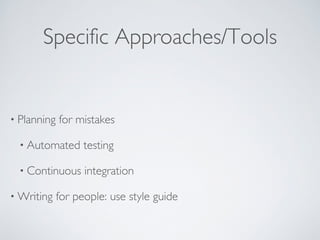

23. Specific Approaches/Tools
• Planning for mistakes
• Automated testing
• Continuous integration
•Writing for people: use style guide

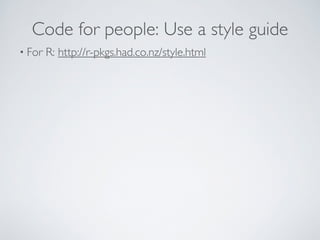

24. Code for people: Use a style guide
• For R: http://r-pkgs.had.co.nz/style.html

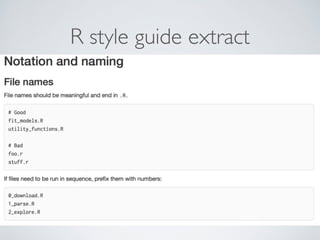

25. R style guide extract

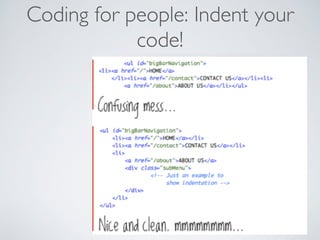

26. understand and improve your code in 6
Coding for people: Indent your
approximate Damian Conway
code!
characters

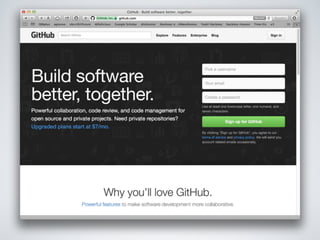

http://github.com/

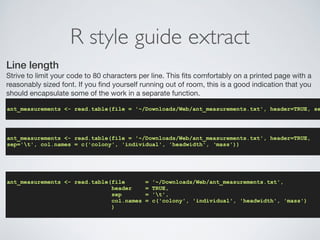

27. R style guide extract
Line length
Strive to limit your code to 80 characters per line. This fits comfortably on a printed page with a
reasonably sized font. If you find yourself running out of room, this is a good indication that you
should encapsulate some of the work in a separate function.
!
ant_measurements <- read.table(file = '~/Downloads/Web/ant_measurements.txt', header=TRUE, sep='!
ant_measurements <- read.table(file = '~/Downloads/Web/ant_measurements.txt', header=TRUE,
sep='t', col.names = c('colony', 'individual', 'headwidth', ‘mass'))
!
ant_measurements <- read.table(file = '~/Downloads/Web/ant_measurements.txt',
header = TRUE,
sep = 't',
col.names = c('colony', 'individual', 'headwidth', 'mass')
)

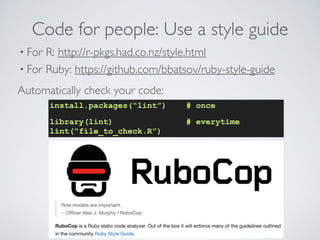

28. Code for people: Use a style guide
• For R: http://r-pkgs.had.co.nz/style.html
• For Ruby: https://github.com/bbatsov/ruby-style-guide
Automatically check your code:
install.packages(“lint”) # once
library(lint) # everytime
lint(“file_to_check.R”)

29. Eliminate redundancy
DRY: Don’t Repeat Yourself

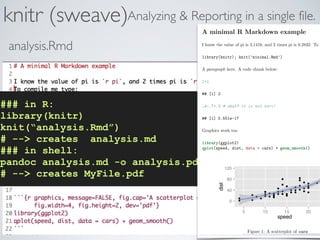

30. knitr (sweave)Analyzing & Reporting in a single file.
analysis.Rmd
A minimal R Markdown example
I know the value of pi is 3.1416, and 2 times pi is 6.2832. To compile library(knitr); knit(minimal.Rmd)
A paragraph here. A code chunk below:
1+1
## [1] 2
### in R:
library(knitr)
knit(“analysis.Rmd”)
# -- creates analysis.md
### in shell:
pandoc analysis.md -o analysis.pdf
# -- creates MyFile.pdf
.4-.7+.3 # what? it is not zero!
## [1] 5.551e-17
Graphics work too
library(ggplot2)
qplot(speed, dist, data = cars) + geom_smooth()
● ●
●
●
●
●
● ● ●
●
●
● ● ● ●
●
● ●
●
●
●
●
●
●
● ●
● ●
●
● ●
● ●
●
●
●
●
●
● ● ● ●
●
●
120
80
40
0
5 10 15 20 speed
dist
Figure 1: A scatterplot of cars

31. Organize mindfully

32. Education
A Quick Guide to Organizing Computational Biology
Projects
William Stafford Noble1,2*
1 Department of Genome Sciences, School of Medicine, University of Washington, Seattle, Washington, United States of America, 2 Department of Computer Science and
Engineering, University of Washington, Seattle, Washington, United States of America
Introduction
Most bioinformatics coursework focus-es
on algorithms, with perhaps some
components devoted to learning pro-gramming
skills and learning how to
use existing bioinformatics software. Un-fortunately,
for students who are prepar-ing
for a research career, this type of
curriculum fails to address many of the
day-to-day organizational challenges as-sociated
with performing computational
experiments. In practice, the principles
behind organizing and documenting
computational experiments are often
learned on the fly, and this learning is
strongly influenced by personal predilec-tions

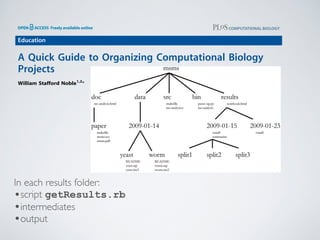

In each results folder:
•script getResults.rb
•intermediates
•output
Figure 1. Directory structure for a sample project. Directory names are in large typeface, and filenames are in smaller typeface. Only a subset of
the files are shown here. Note that the dates are formatted ,year.-,month.-,day. so that they can be sorted in chronological order. The
source code src/ms-analysis.c is compiled to create bin/ms-analysis and is documented in doc/ms-analysis.html. The README
files in the data directories specify who downloaded the data files from what URL on what date. The driver script results/2009-01-15/runall
automatically generates the three subdirectories split1, split2, and split3, corresponding to three cross-validation splits. The bin/parse-sqt.
as well as by chance interactions
with collaborators or colleagues.
The purpose of this article is to describe
one good strategy for carrying out com-putational
experiments. I will not describe
profound issues such as how to formulate
hypotheses, design experiments, or draw
conclusions. Rather, I will focus on
understanding your work or who may be
evaluating your research skills. Most com-monly,
however, that ‘‘someone’’ is you. A
few months from now, you may not
remember what you were up to when you
created a particular set of files, or you may
not remember what conclusions you drew.
You will either have to then spend time
reconstructing your previous experiments
or lose whatever insights you gained from
those experiments.
This leads to the second principle,
which is actually more like a version of
Murphy’s Law: Everything you do, you
will probably have to do over again.
Inevitably, you will discover some flaw in
your initial preparation of the data being
analyzed, or you will get access to new
data, or you will decide that your param-eterization
of a particular model was not
broad enough. This means that the
experiment you did last week, or even
the set of experiments you’ve been work-ing
on over the past month, will probably
under a common root directory. The
exception to this rule is source code or
scripts that are used in multiple projects.
Each such program might have a project
directory of its own.
Within a given project, I use a top-level
organization that is logical, with chrono-logical
organization at the next level, and
logical organization below that. A sample
project, called msms, is shown in Figure 1.
At the root of most of my projects, I have a
data directory for storing fixed data sets, a
results directory for tracking computa-tional
experiments peformed on that data,
a doc directory with one subdirectory per
manuscript, and directories such as src
for source code and bin for compiled
binaries or scripts.
Within the data and results directo-ries,
it is often tempting to apply a similar,
logical organization. For example, you
may have two or three data sets against
which you plan to benchmark your
algorithms, so you could create one
directory for each of them under data.
with this approach, the distinction be-tween
data and results may not be useful.
Instead, one could imagine a top-level
directory called something like experi-ments,
with subdirectories with names like
2008-12-19. Optionally, the directory
name might also include a word or two
indicating the topic of the experiment
The Lab Notebook
In parallel with this chronological
directory structure, I find it useful to
maintain a chronologically organized lab
notebook. This is a document that resides
in the root of the results directory and
that records your progress in detail.
Entries in the notebook should be dated,
These types of entries provide a complete
picture of the development of the project
over time.
In practice, I ask members of my
research group to put their lab notebooks
online, behind password protection if
necessary. When I meet with a member
of my lab or a project team, we can refer
py script is called by both of the runall driver scripts.
doi:10.1371/journal.pcbi.1000424.g001

33. Track versions of everything

34. Github: Facebook for code

36. Github: Facebook for code
• Easy versioning
• Random people use your stuff
• And find problems and fix and improve it!
• Greater impact / better planet
• Easily update
• Easily collaborate
• Identify trends
• Build online reputation
Demo

37. Learn how:
https://try.github.io/levels/1/challenges/1

38. Programming languages

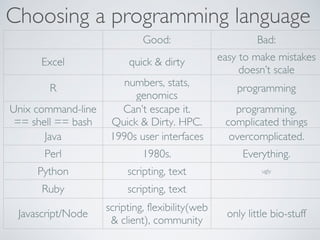

39. Choosing a programming language
Good: Bad:
Excel quick dirty easy to make mistakes
doesn’t scale
R numbers, stats,
genomics
programming
Unix command-line
== shell == bash
Can’t escape it.
Quick Dirty. HPC.
programming,
complicated things
Java 1990s user interfaces overcomplicated.
Perl 1980s. Everything.
Python scripting, text ugly
Ruby scripting, text
Javascript/Node scripting, flexibility(web
client), community only little bio-stuff

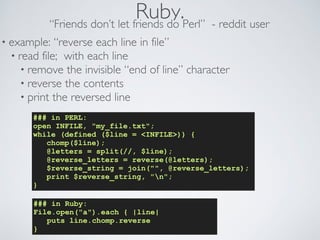

40. Ruby. “Friends don’t let friends do Perl” - reddit user
• example: “reverse each line in file”
• read file; with each line
• remove the invisible “end of line” character
• reverse the contents
• print the reversed line
### in PERL:
open INFILE, my_file.txt;
while (defined ($line = INFILE)) {
chomp($line);
@letters = split(//, $line);
@reverse_letters = reverse(@letters);
$reverse_string = join(, @reverse_letters);
print $reverse_string, n;
}
### in Ruby:
File.open(a).each { |line|
puts line.chomp.reverse
}

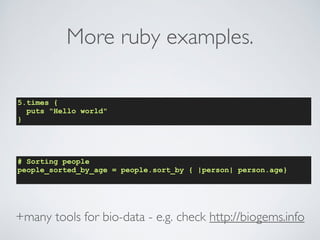

41. More ruby examples.
5.times {
puts Hello world
}
# Sorting people
people_sorted_by_age = people.sort_by { |person| person.age}
+many tools for bio-data - e.g. check http://biogems.info

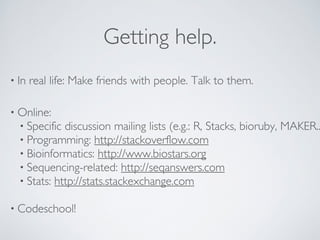

42. Getting help.
• In real life: Make friends with people. Talk to them.
• Online:
• Specific discussion mailing lists (e.g.: R, Stacks, bioruby, MAKER...)
• Programming: http://stackoverflow.com

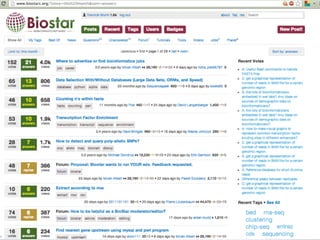

• Bioinformatics: http://www.biostars.org
• Sequencing-related: http://seqanswers.com
• Stats: http://stats.stackexchange.com
!
• Codeschool!

45. “Can you BLAST this for me?”

46. Anurag Priyam,
Sure, I can
help you…
Mechanical engineering student, IIT Kharagpur

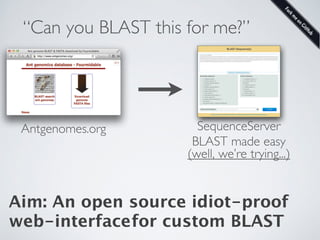

47. “Can you BLAST this for me?”
Antgenomes.org SequenceServer
BLAST made easy
(well, we’re trying...)
Aim: An open source idiot-proof
web-interface for custom BLAST

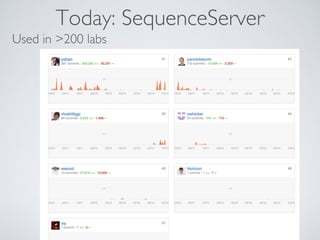

48. Today: SequenceServer
Used in 200 labs

49. Anurag Priyam,
Sure, I can
help you…
Mechanical engineering student, IIT Kharagpur

51. xkcd
