1N4001-1N4007

1N4001 - 1N4007
Features
•

Low forward voltage drop.

•

High surge current capability.

DO-41
COLOR BAND DENOTES CATHODE

General Purpose Rectifiers (Glass Passivated)
Absolute Maximum Ratings*
Symbol

TA = 25°C unless otherwise noted

Parameter

Value

Units

4001

4002

4003

4004

4005

4006 4007

50

100

200

400

600

800

VRRM

Peak Repetitive Reverse Voltage

IF(AV)

Average Rectified Forward Current,
.375 " lead length @ TA = 75°C
Non-repetitive Peak Forward Surge
Current
8.3 ms Single Half-Sine-Wave
Storage Temperature Range

-55 to +175

°C

Operating Junction Temperature

-55 to +175

°C

IFSM

Tstg
TJ

1000

V

1.0

A

30

A

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Thermal Characteristics
Symbol

Parameter

Value

Units

PD

Power Dissipation

3.0

W

RθJA

Thermal Resistance, Junction to Ambient

50

°C/W

Electrical Characteristics
Symbol

TA = 25°C unless otherwise noted

Parameter

Device
4001

4002

4003

4004

Units
4005

4006 4007

VF

Forward Voltage @ 1.0 A

1.1

V

Irr

Maximum Full Load Reverse Current, Full
Cycle
TA = 75°C
Reverse Current @ rated VR TA = 25°C
TA = 100°C
Total Capacitance
VR = 4.0 V, f = 1.0 MHz

30

µA

5.0
500

µA
µA
pF

IR
CT

2001 Fairchild Semiconductor Corporation

15

1N4001-1N4007, Rev. C
(continued)

1.6

20

1.4

10

1.2

4

Forward Current, IF [A]

Average Rectified Forward Current, IF [A]

Typical Characteristics

1
SINGLE PHASE
HALF WAVE
60HZ
RESISTIVE OR
INDUCTIVE LOAD
.375" 9.0 mm LEAD
LENGTHS

0.8
0.6
0.4
0.2
0

1
0.4
0.2
0.1

T J = 25ºC
Pulse Width = 300µS
µ
2% Duty Cycle

0.04
0.02

0

20

40
60
80 100 120 140
Ambient Temperature [ºC]

160

0.01
0.6

180

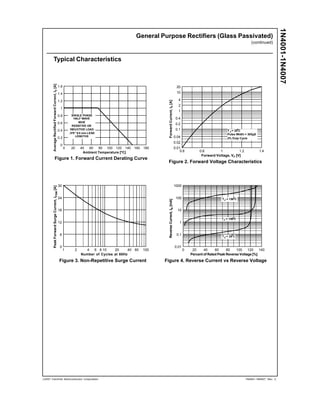

Figure 1. Forward Current Derating Curve

0.8
1
1.2
Forward Voltage, VF [V]

1.4

Figure 2. Forward Voltage Characteristics

30

1000

24

100

Reverse Current, IR [mA]

Peak Forward Surge Current, IFSM [A]

2

18

12

6

0

1

2

4 6 8 10
20
40 60
Number of Cycles at 60Hz

100

Figure 3. Non-Repetitive Surge Current

2001 Fairchild Semiconductor Corporation

TJ = 150ºC

10
TJ = 100ºC

1

0.1

0.01

T J = 25ºC

0

20
40
60
80
100 120
140
Percent of Rated Peak Reverse Voltage [%]

Figure 4. Reverse Current vs Reverse Voltage

1N4001-1N4007, Rev. C

1N4001-1N4007

General Purpose Rectifiers (Glass Passivated)

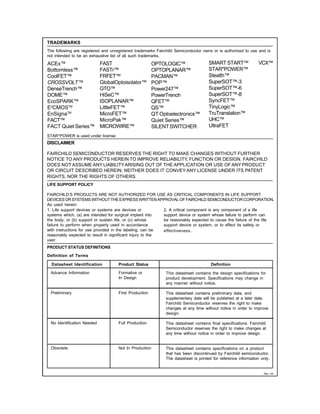

TRADEMARKS
