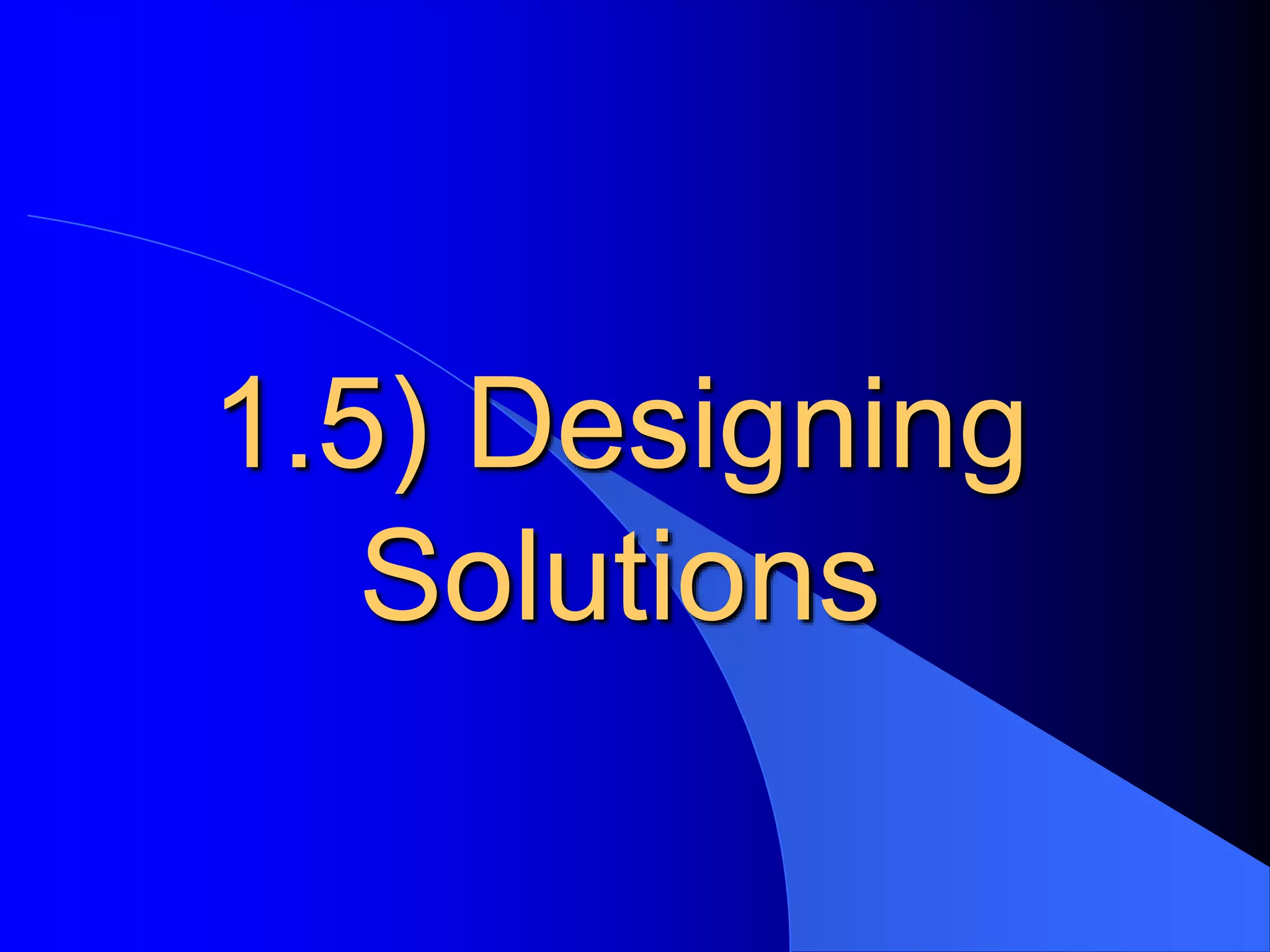

1.5) Designing
Solutions

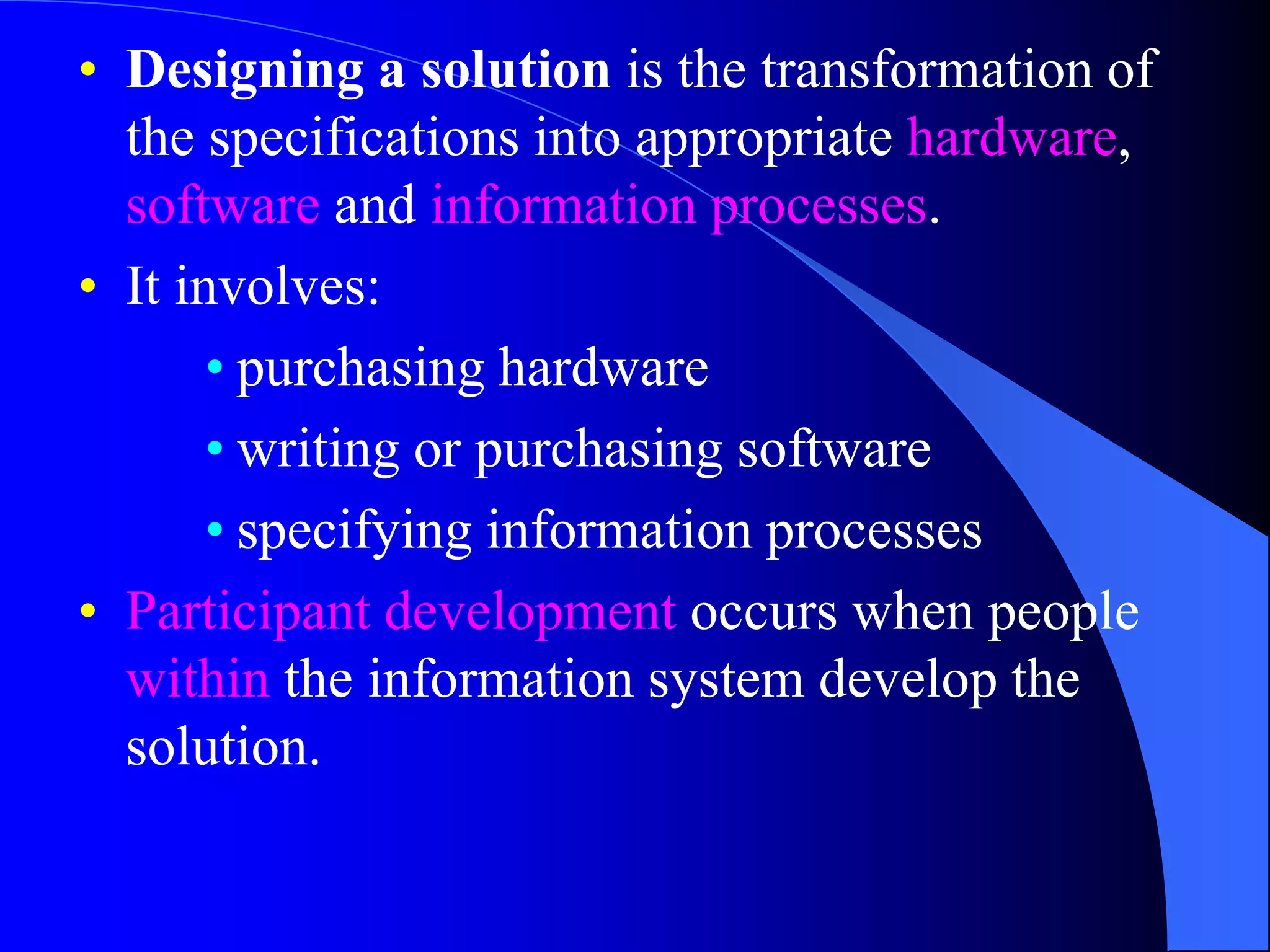

• Designing a solution is the transformation of
the specifications into appropriate hardware,
software and information processes.
• It involves:
• purchasing hardware
• writing or purchasing software
• specifying information processes
• Participant development occurs when people
within the information system develop the
solution.

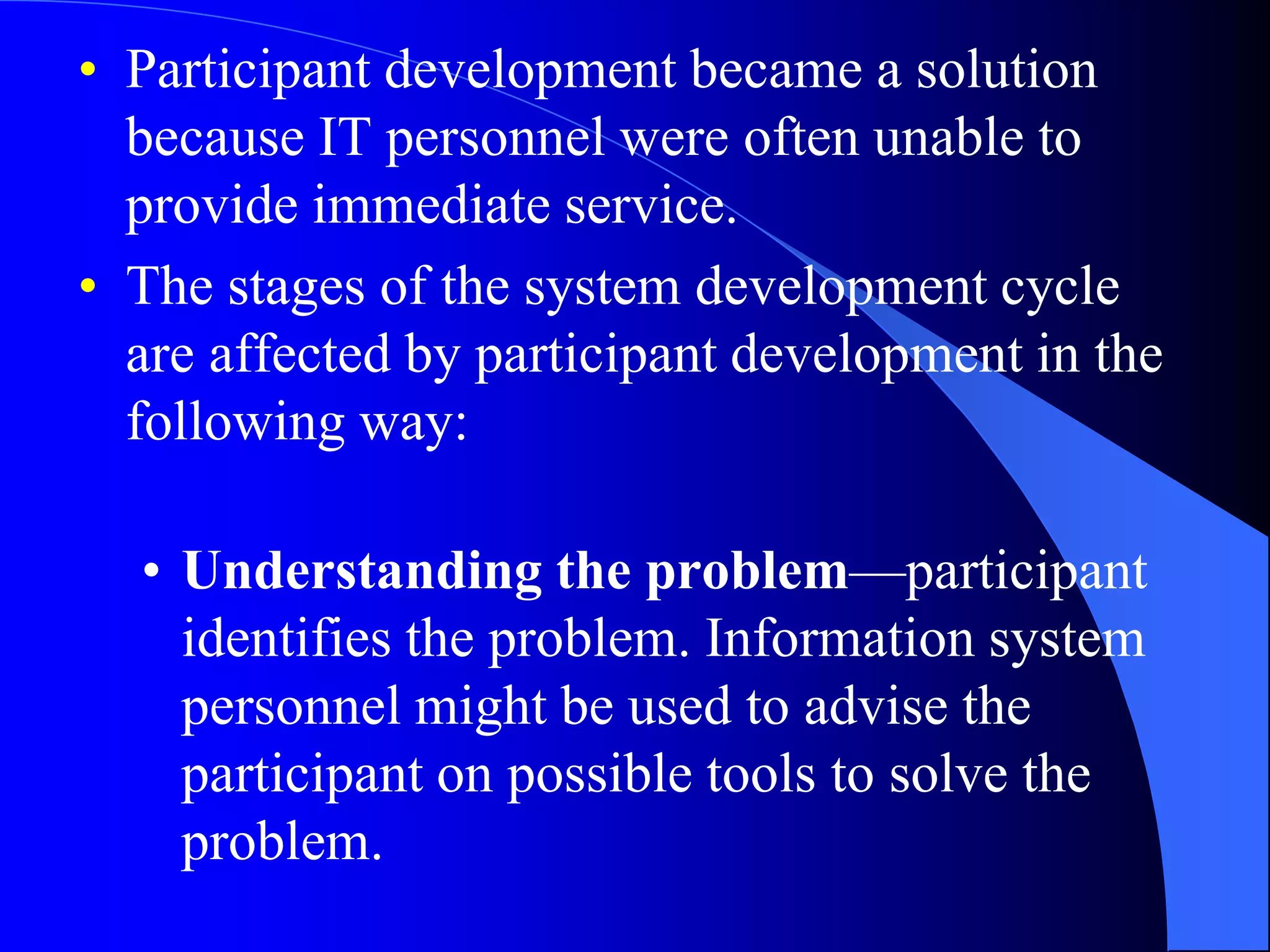

• Participant development became a solution
because IT personnel were often unable to
provide immediate service.
• The stages of the system development cycle
are affected by participant development in the
following way:
• Understanding the problem—participant
identifies the problem. Information system
personnel might be used to advise the
participant on possible tools to solve the
problem.
• Making decisions—participant chooses an
appropriate solution.
• Designing solutions—participant develops
the solution, often using guided processes
found in application packages. The
participant may require some training

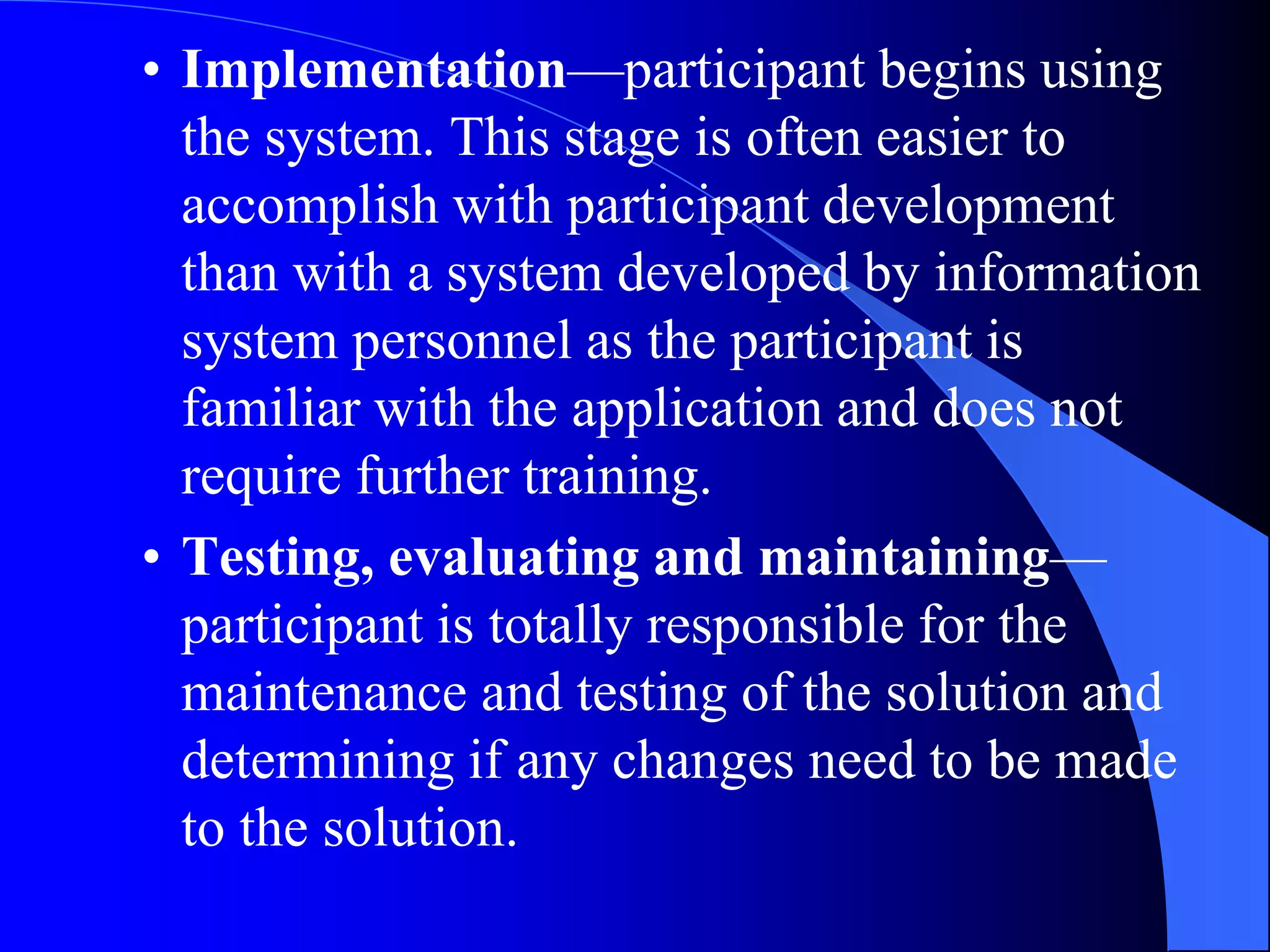

• Implementation—participant begins using
the system. This stage is often easier to
accomplish with participant development
than with a system developed by information
system personnel as the participant is
familiar with the application and does not
require further training.
• Testing, evaluating and maintaining—
participant is totally responsible for the
maintenance and testing of the solution and
determining if any changes need to be made
to the solution.

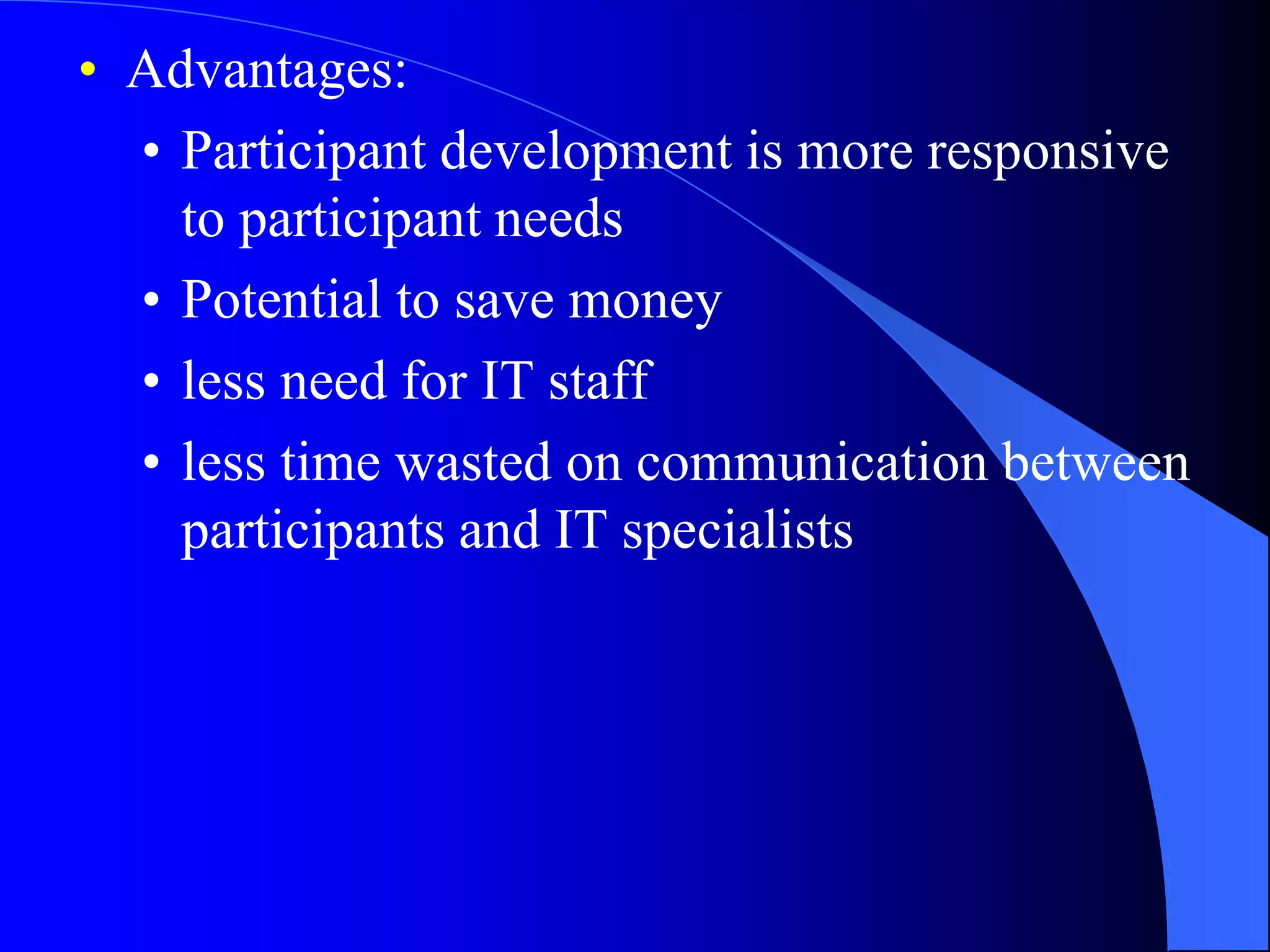

• Advantages:
• Participant development is more responsive
to participant needs
• Potential to save money
• less need for IT staff
• less time wasted on communication between
participants and IT specialists

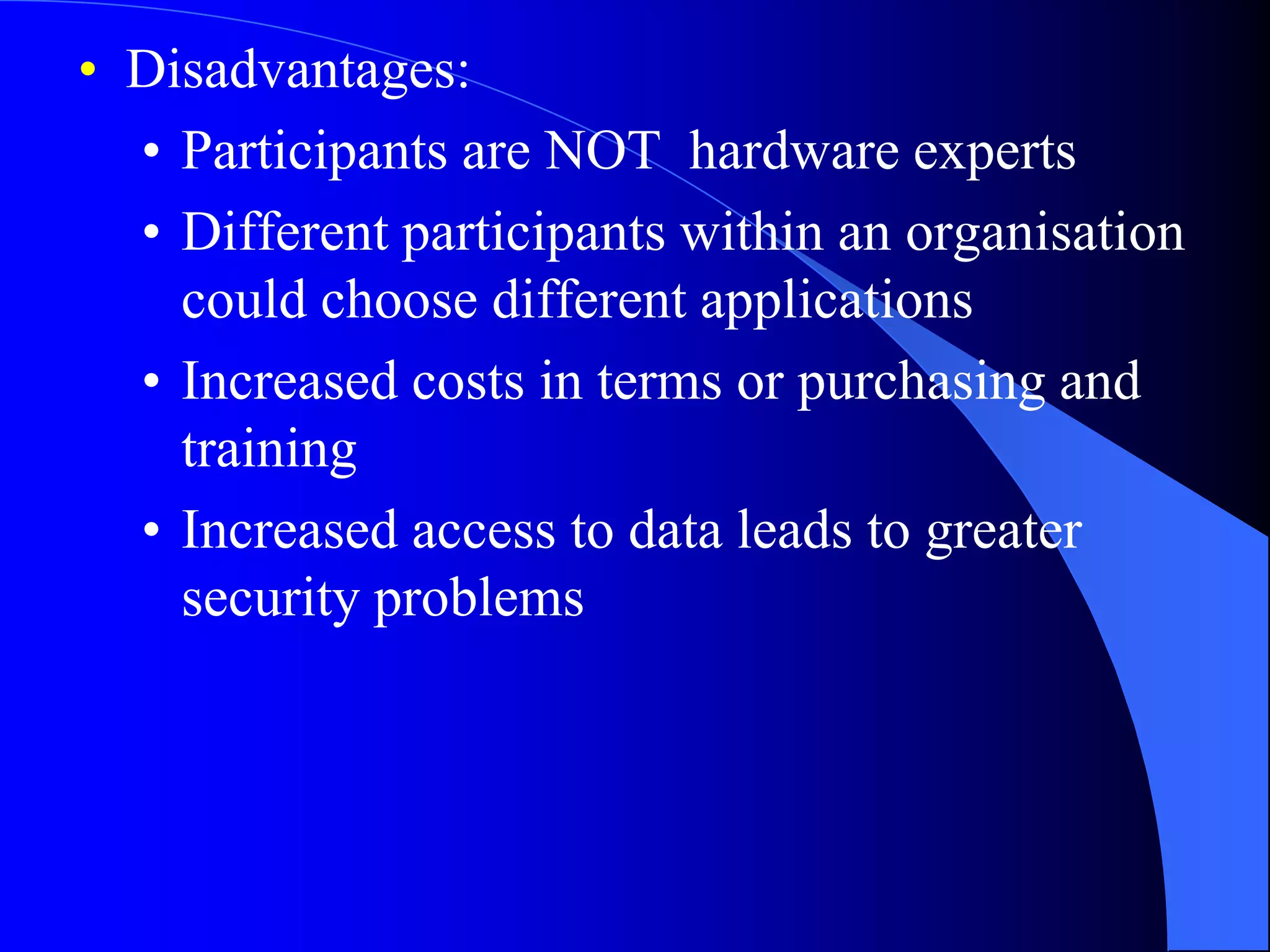

• Disadvantages:
• Participants are NOT hardware experts
• Different participants within an organisation
could choose different applications
• Increased costs in terms or purchasing and
training
• Increased access to data leads to greater
security problems

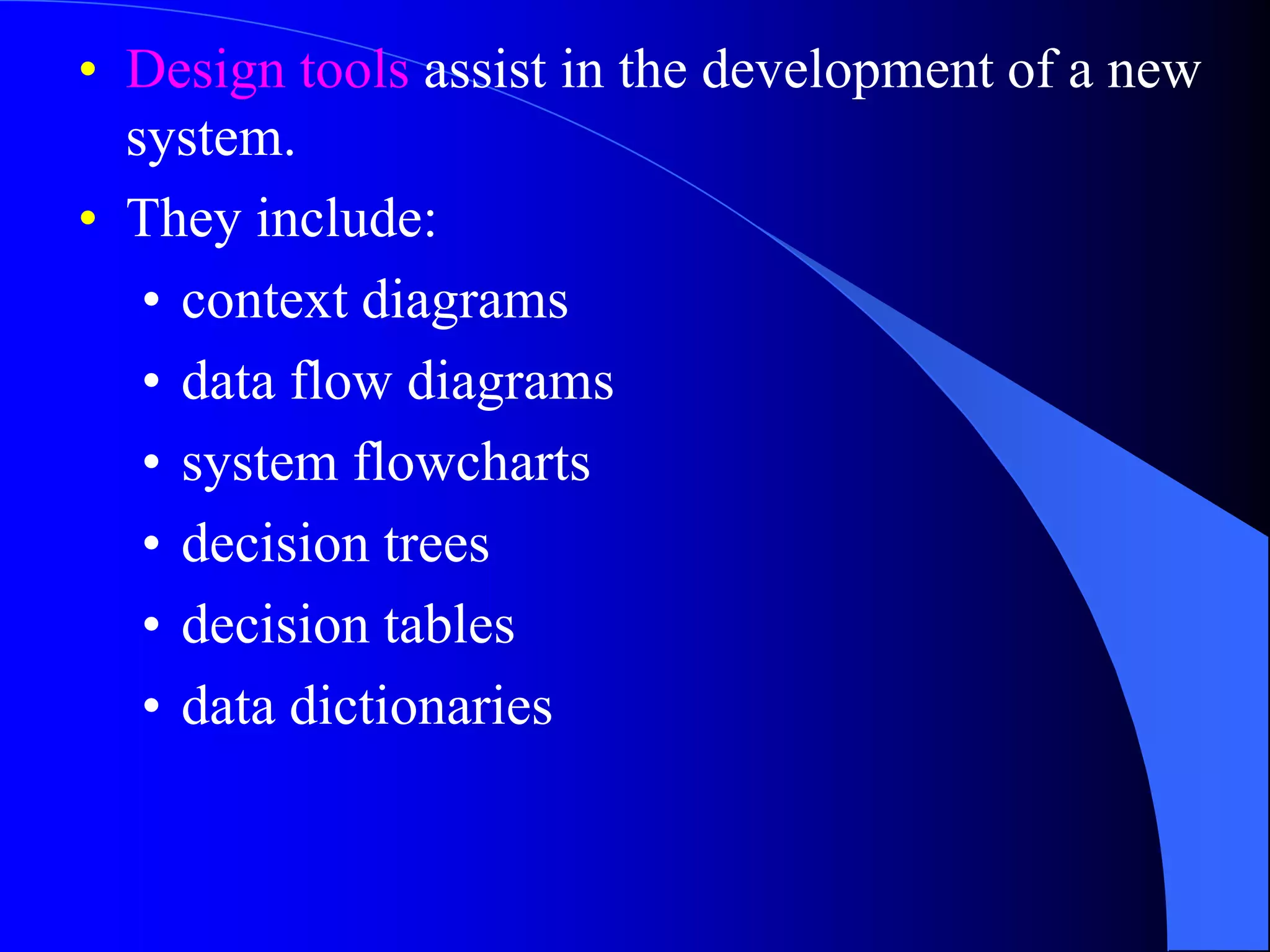

• Design tools assist in the development of a new
system.
• They include:
• context diagrams
• data flow diagrams
• system flowcharts
• decision trees
• decision tables
• data dictionaries

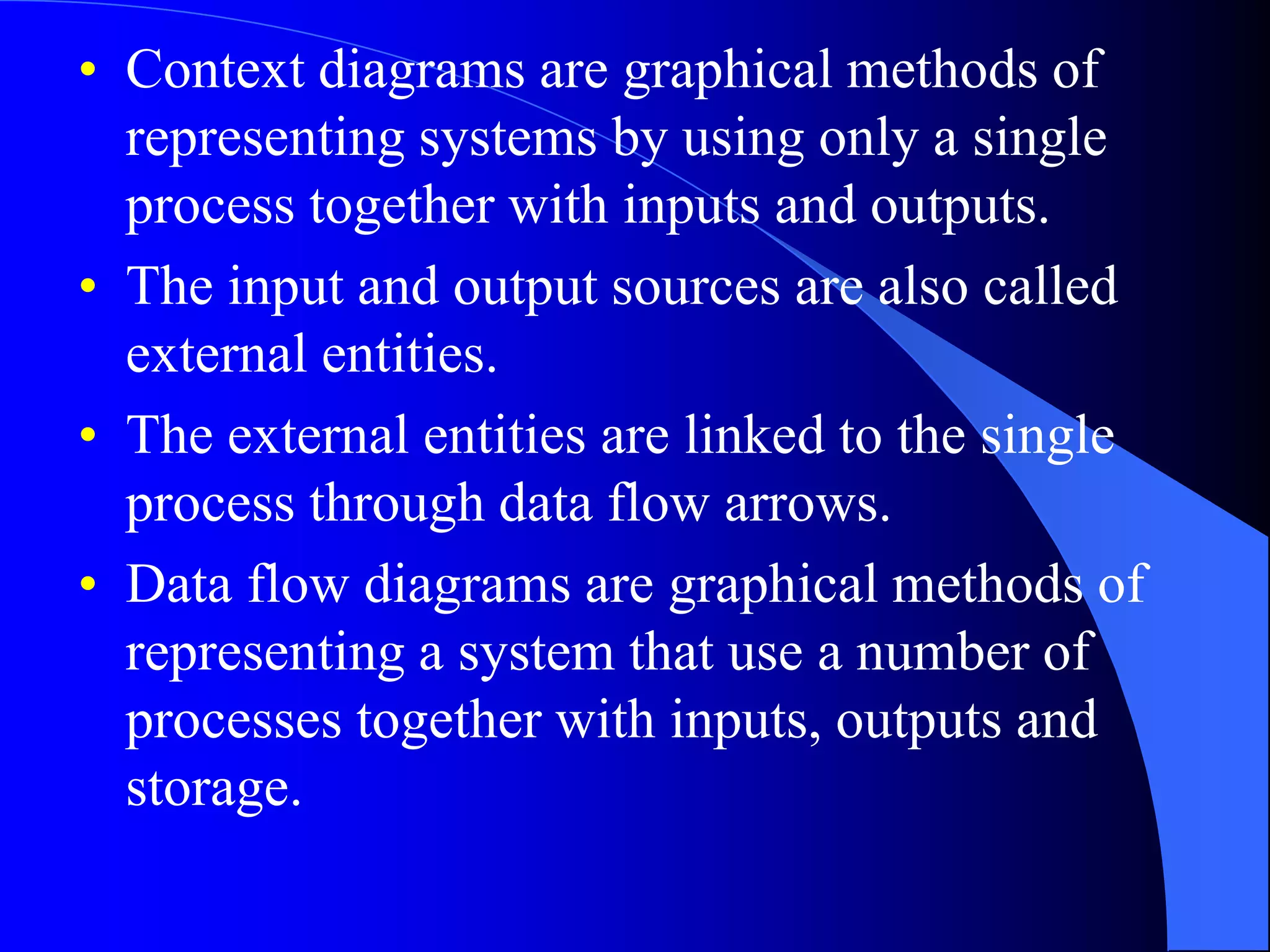

• Context diagrams are graphical methods of
representing systems by using only a single
process together with inputs and outputs.
• The input and output sources are also called
external entities.
• The external entities are linked to the single
process through data flow arrows.
• Data flow diagrams are graphical methods of
representing a system that use a number of
processes together with inputs, outputs and
storage.

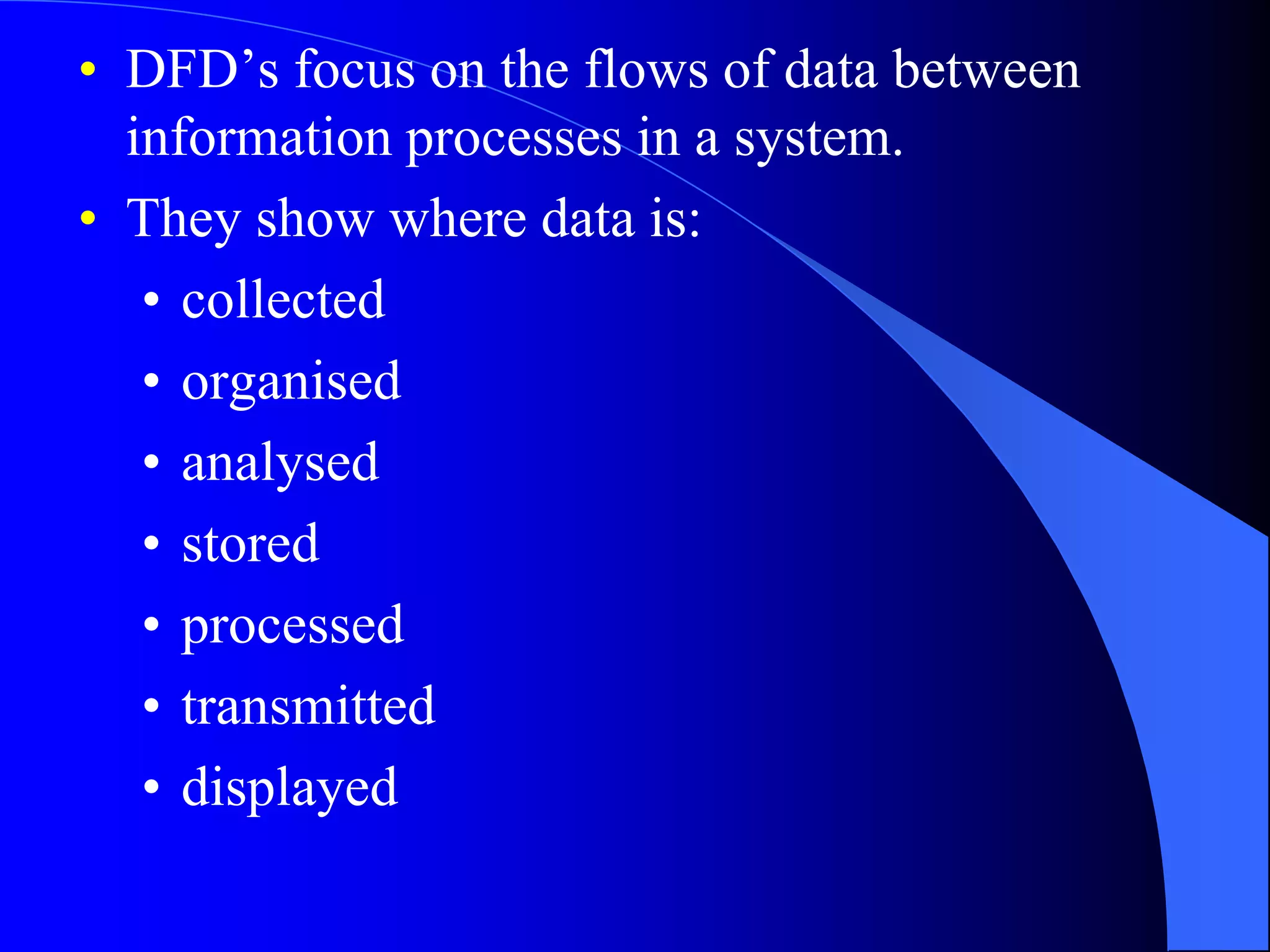

• DFD’s focus on the flows of data between
information processes in a system.
• They show where data is:
• collected
• organised
• analysed
• stored
• processed
• transmitted
• displayed

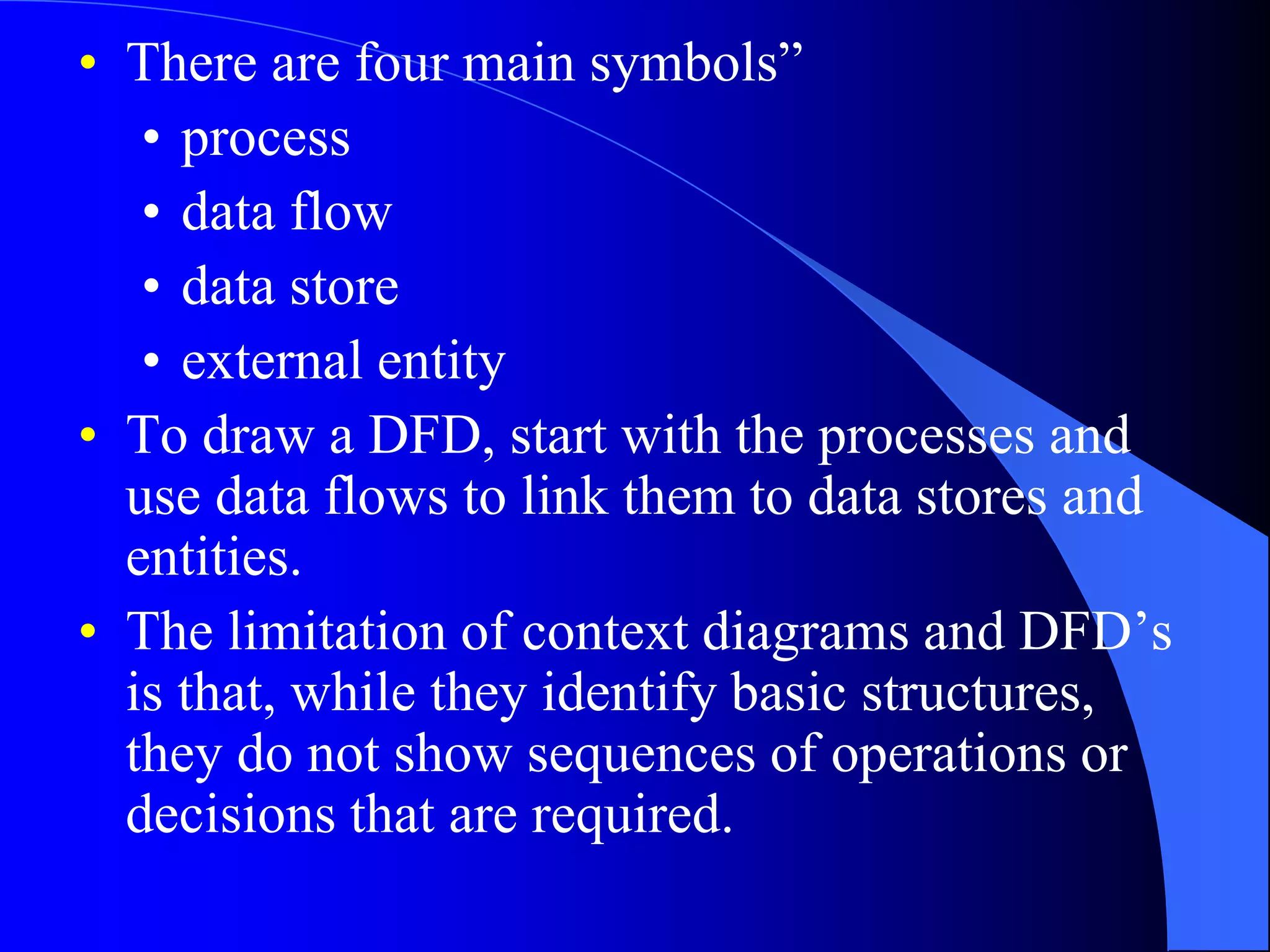

• There are four main symbols”
• process
• data flow
• data store
• external entity
• To draw a DFD, start with the processes and
use data flows to link them to data stores and
entities.
• The limitation of context diagrams and DFD’s
is that, while they identify basic structures,
they do not show sequences of operations or
decisions that are required.

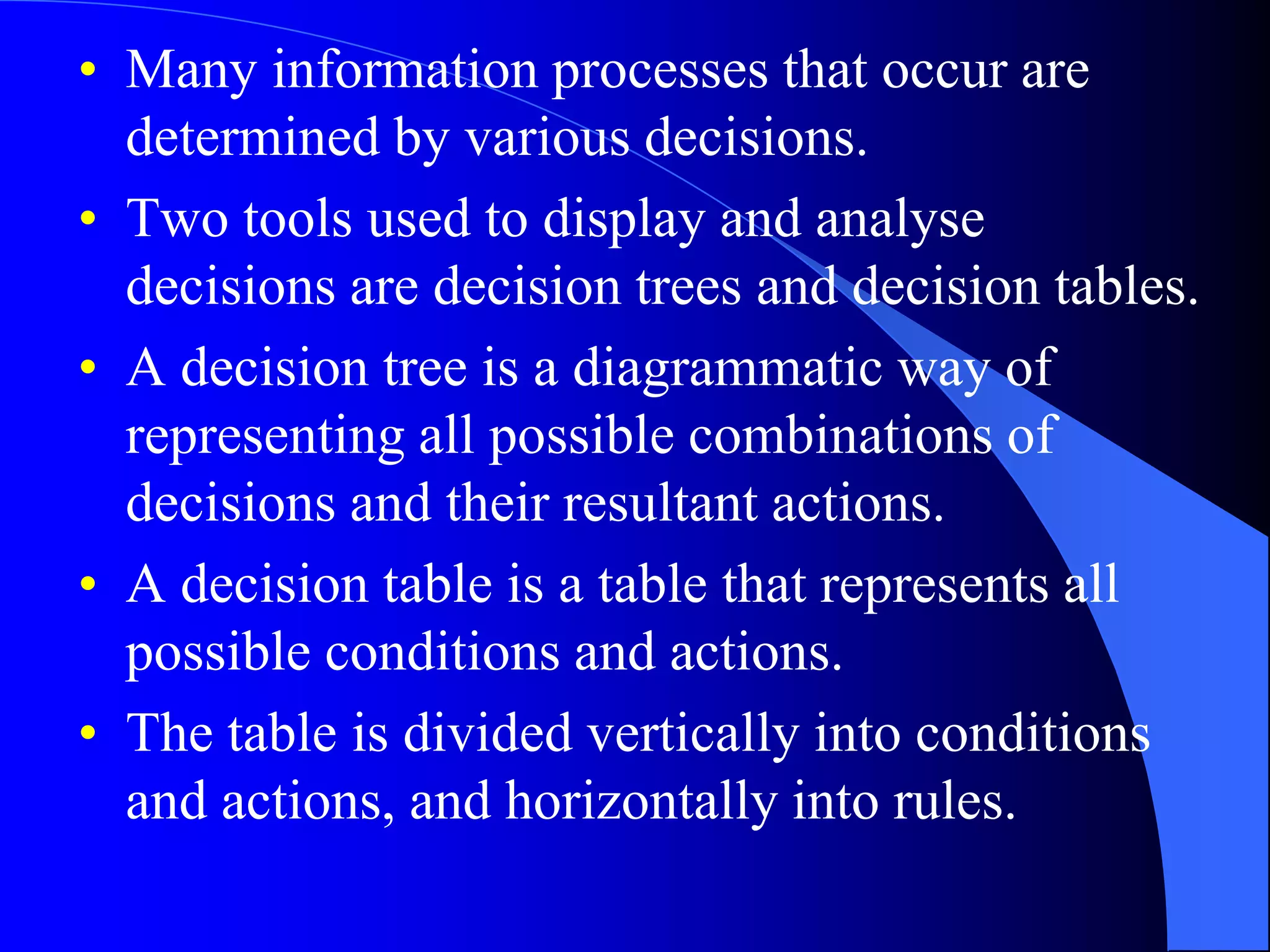

• Many information processes that occur are
determined by various decisions.
• Two tools used to display and analyse
decisions are decision trees and decision tables.
• A decision tree is a diagrammatic way of
representing all possible combinations of
decisions and their resultant actions.
• A decision table is a table that represents all
possible conditions and actions.
• The table is divided vertically into conditions
and actions, and horizontally into rules.

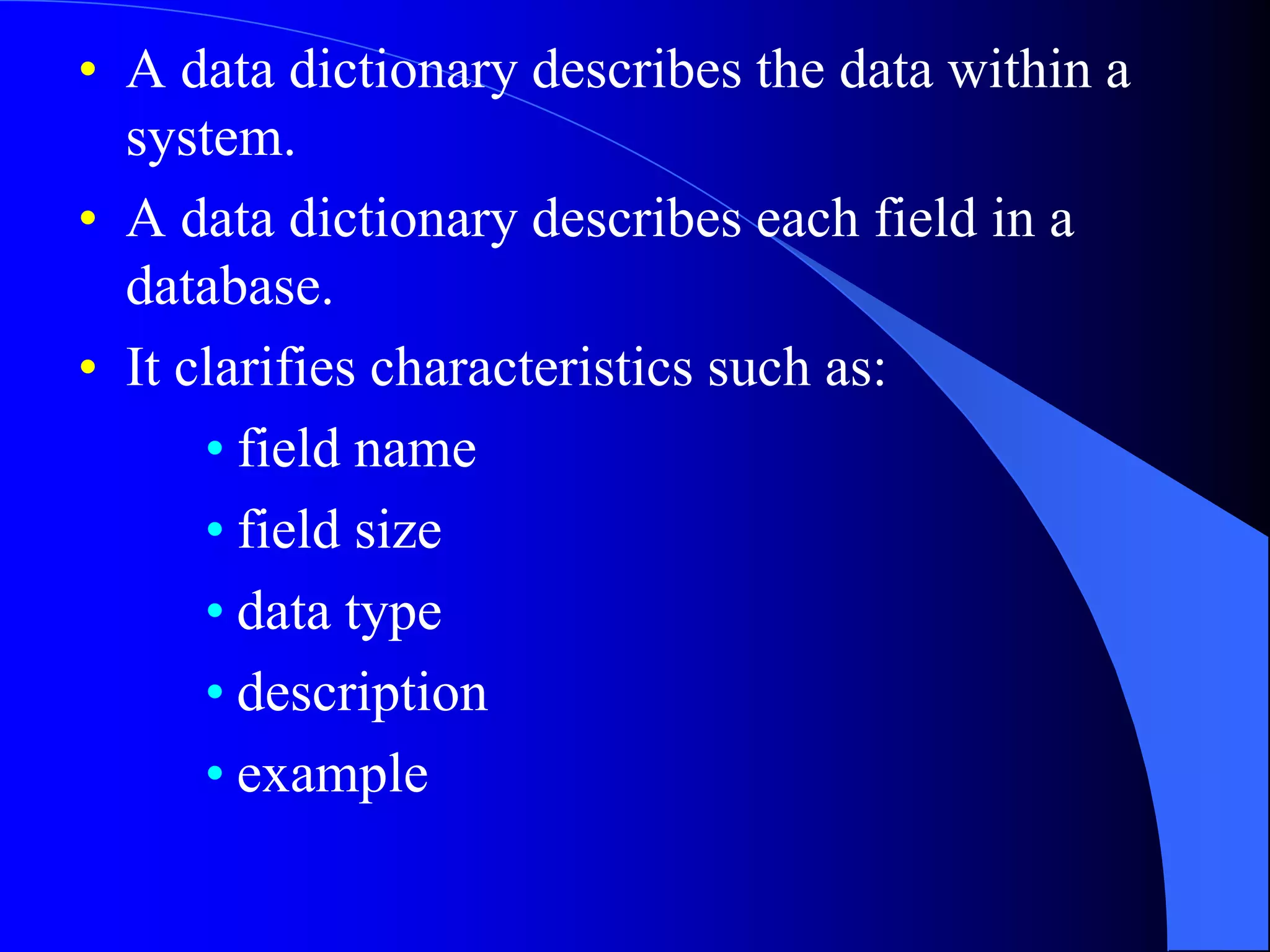

• A data dictionary describes the data within a
system.
• A data dictionary describes each field in a
database.
• It clarifies characteristics such as:
• field name
• field size
• data type
• description
• example

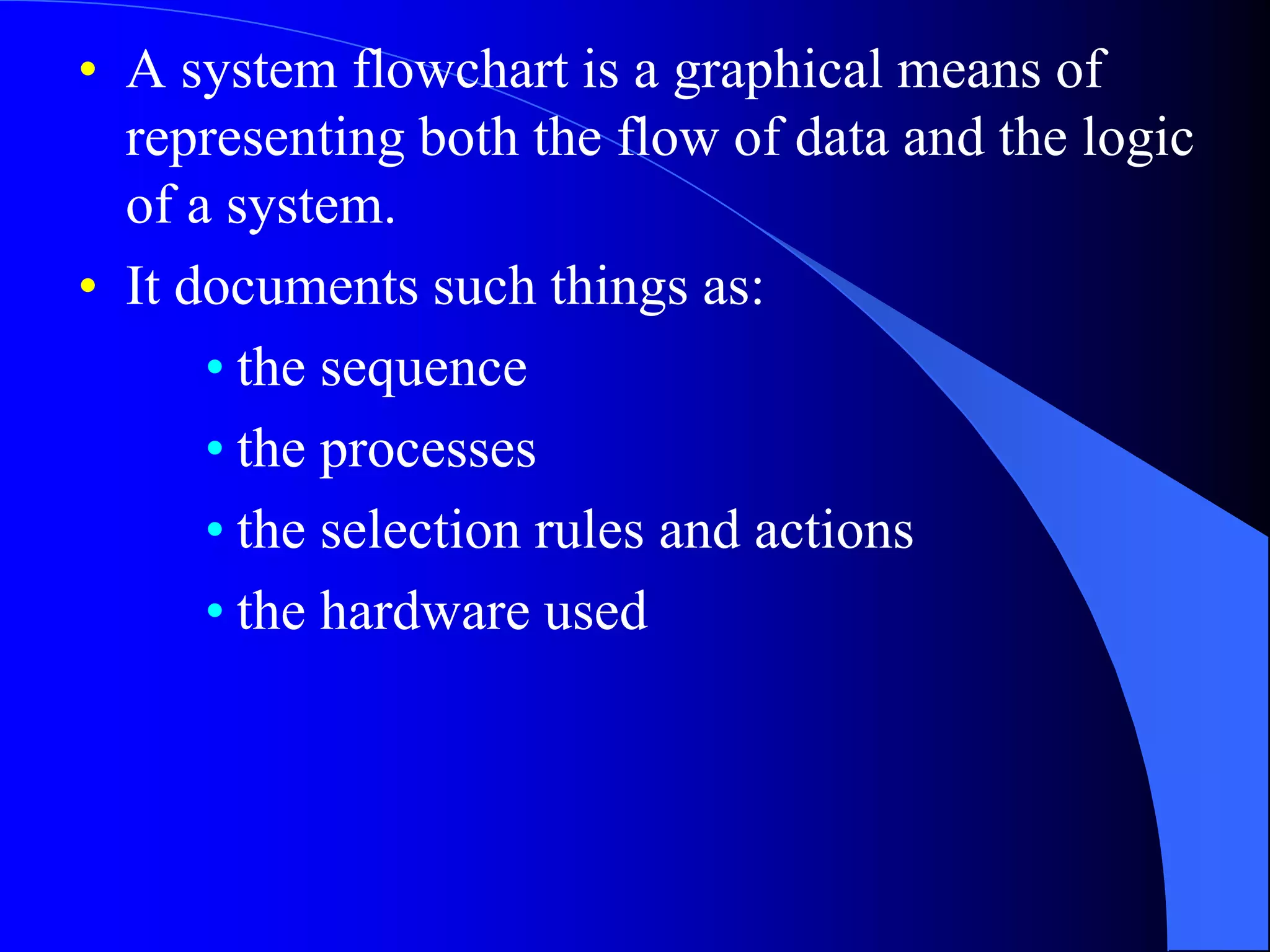

• A system flowchart is a graphical means of
representing both the flow of data and the logic
of a system.
• It documents such things as:
• the sequence
• the processes
• the selection rules and actions
• the hardware used

IPT HSC 1.5) Designing Solutions

  • 1.
  • 2.
    • Designing asolution is the transformation of the specifications into appropriate hardware, software and information processes. • It involves: • purchasing hardware • writing or purchasing software • specifying information processes • Participant development occurs when people within the information system develop the solution.
  • 3.
    • Participant developmentbecame a solution because IT personnel were often unable to provide immediate service. • The stages of the system development cycle are affected by participant development in the following way: • Understanding the problem—participant identifies the problem. Information system personnel might be used to advise the participant on possible tools to solve the problem.
  • 4.
    • Making decisions—participantchooses an appropriate solution. • Designing solutions—participant develops the solution, often using guided processes found in application packages. The participant may require some training
  • 5.
    • Implementation—participant beginsusing the system. This stage is often easier to accomplish with participant development than with a system developed by information system personnel as the participant is familiar with the application and does not require further training. • Testing, evaluating and maintaining— participant is totally responsible for the maintenance and testing of the solution and determining if any changes need to be made to the solution.
  • 6.
    • Advantages: •Participant development is more responsive to participant needs • Potential to save money • less need for IT staff • less time wasted on communication between participants and IT specialists
  • 7.
    • Disadvantages: •Participants are NOT hardware experts • Different participants within an organisation could choose different applications • Increased costs in terms or purchasing and training • Increased access to data leads to greater security problems
  • 8.
    • Design toolsassist in the development of a new system. • They include: • context diagrams • data flow diagrams • system flowcharts • decision trees • decision tables • data dictionaries
  • 9.
    • Context diagramsare graphical methods of representing systems by using only a single process together with inputs and outputs. • The input and output sources are also called external entities. • The external entities are linked to the single process through data flow arrows. • Data flow diagrams are graphical methods of representing a system that use a number of processes together with inputs, outputs and storage.
  • 10.
    • DFD’s focuson the flows of data between information processes in a system. • They show where data is: • collected • organised • analysed • stored • processed • transmitted • displayed
  • 11.
    • There arefour main symbols” • process • data flow • data store • external entity • To draw a DFD, start with the processes and use data flows to link them to data stores and entities. • The limitation of context diagrams and DFD’s is that, while they identify basic structures, they do not show sequences of operations or decisions that are required.
  • 12.
    • Many informationprocesses that occur are determined by various decisions. • Two tools used to display and analyse decisions are decision trees and decision tables. • A decision tree is a diagrammatic way of representing all possible combinations of decisions and their resultant actions. • A decision table is a table that represents all possible conditions and actions. • The table is divided vertically into conditions and actions, and horizontally into rules.
  • 13.
    • A datadictionary describes the data within a system. • A data dictionary describes each field in a database. • It clarifies characteristics such as: • field name • field size • data type • description • example
  • 14.
