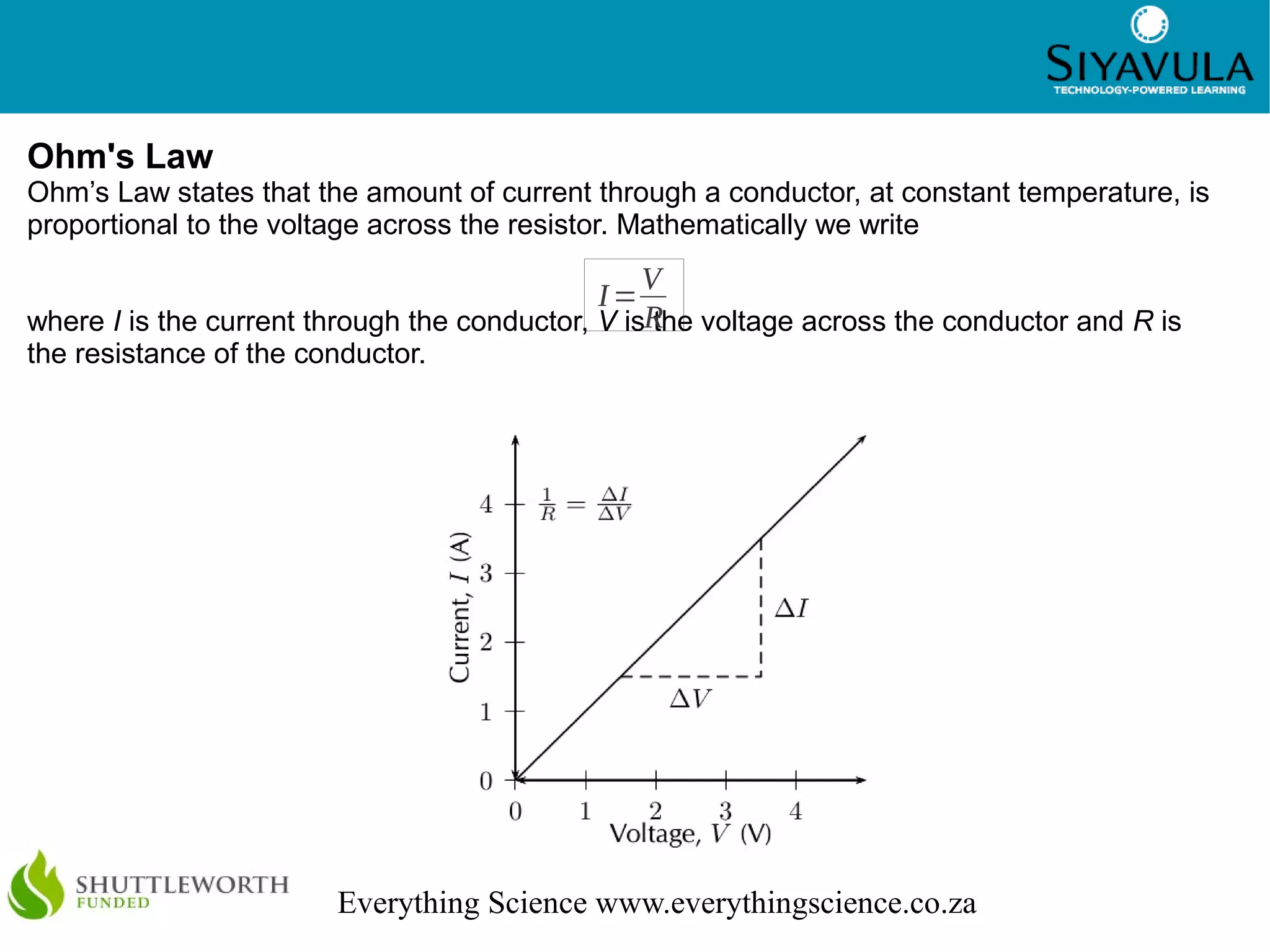

Ohm's Law
Ohm’s Law states that the amount of current through a conductor, at constant temperature, is
proportional to the voltage across the resistor. Mathematically we write
where I is the current through the conductor, V is the voltage across the conductor and R is
the resistance of the conductor.
I=
V
R

3. 3
Everything Science www.everythingscience.co.za

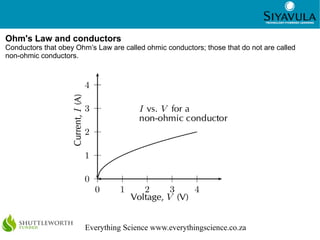

Ohm's Law and conductors
Conductors that obey Ohm’s Law are called ohmic conductors; those that do not are called
non-ohmic conductors.

4. 4
Everything Science www.everythingscience.co.za
Series and parallel circuits
The equivalent resistance of
resistors in parallel (Rp
) can be
calculated as follows:
The equivalent resistance of
resistors in series (Rs
) can be
calculated as follows:
Rs=R1+R2+R3+... 1
Rp
=
1
R1
+
1
R2
+
1
R3
+...

5. 5
Everything Science www.everythingscience.co.za
More on series and parallel circuits
IT=I1=I2=I3 VT =V 1+V2+V3
In a series circuit the amount of current is the
same through any component in the circuit.
And the total voltage of the circuit has to be
equal to the sum of the voltages over all
three resistors. This can be expressed as
(assuming three resistors):
In a parallel circuit the voltage is equal
across all components in the circuit. And all
the currents through each resistor must add
up to the total current in the circuit. This can
be expressed as (assuming three resistors):
VT =V 1=V 2=V 3 IT =I1+I2+I3

6. 6
Everything Science www.everythingscience.co.za

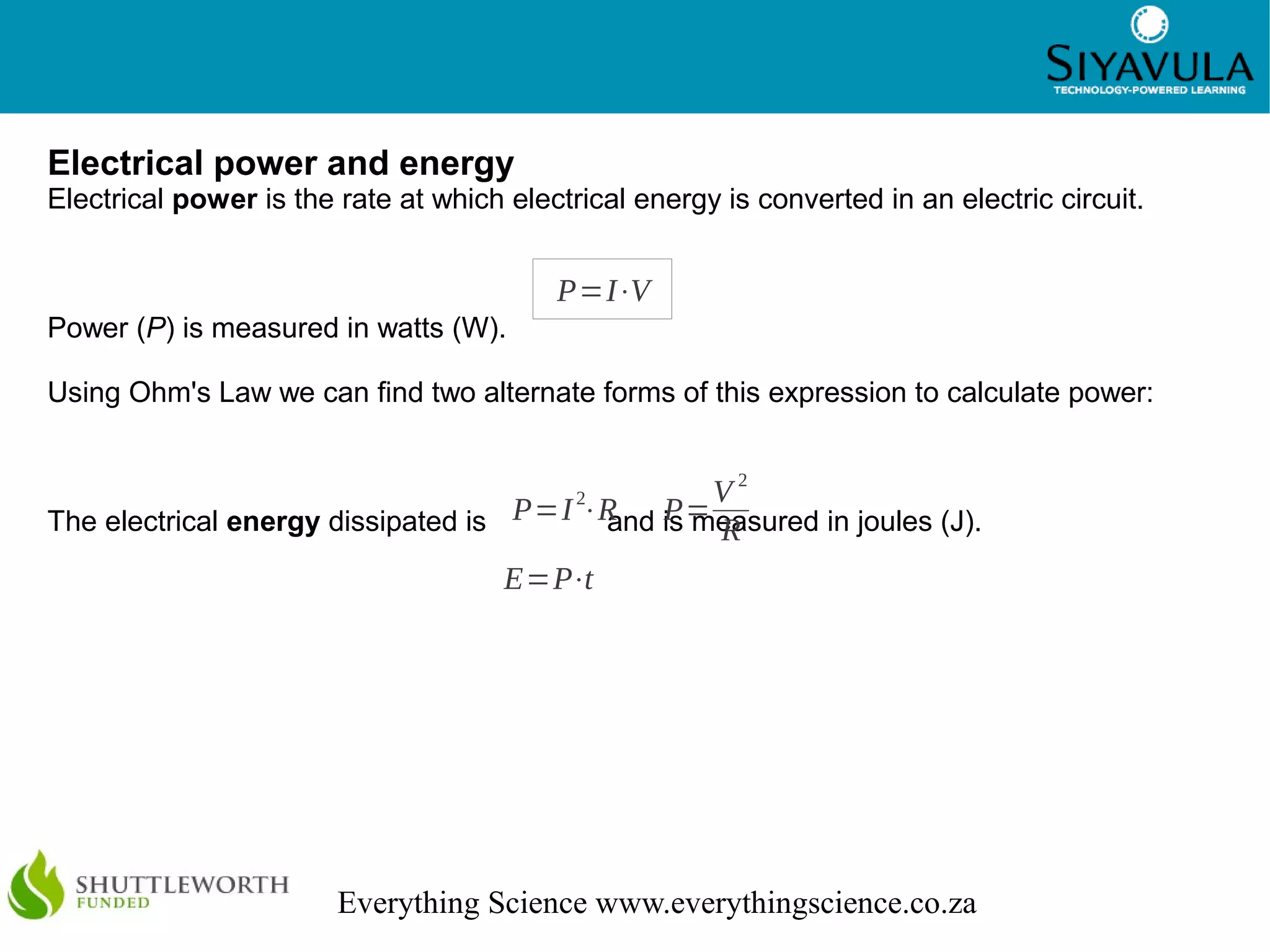

Electrical power and energy
Electrical power is the rate at which electrical energy is converted in an electric circuit.
Power (P) is measured in watts (W).
Using Ohm's Law we can find two alternate forms of this expression to calculate power:
The electrical energy dissipated is and is measured in joules (J).
P=I⋅V
P=I2
⋅R P=
V 2
R
E=P⋅t

7. 7
Everything Science www.everythingscience.co.za

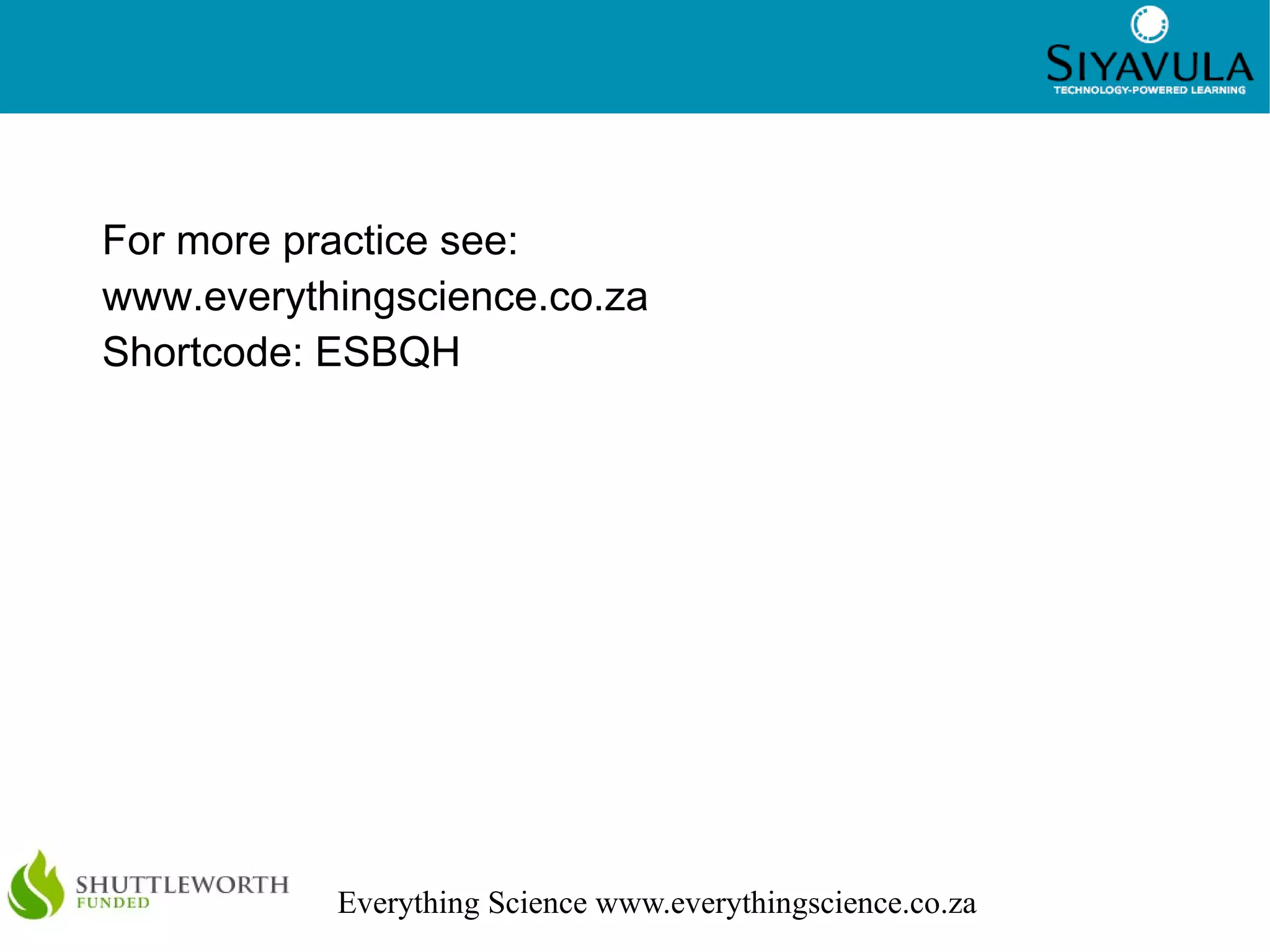

For more practice see:
