3. Angle is :
• Angle is union of two rays with
a common start point.
• The common point is called
«Vertex» of the angle and the
two rays are called "sides“ of
the angle.

4. i.e.: In the figure opposite:
• The Vertex of the angle is B
and the two sides of the angle
are BA & BC .
• BA ∪ B C = (ABC)
and is written as  ABC or
 CBA or  B .

5. Degree Measure System
 degree measure depends on dividing the circle
into 360 equal arcs in length, then:
1- The central angle subtends one of these arcs, its
measure equals one degree (1o)
2- Each degree is subdivided into 60 equal
divisions , each division is called a minute and is
denoted by (1')
3- Each minute is subdivided into 60 equal
divisions, each division is called " a second" and is
denoted by (1'')
i.e.: 1c = 60' and 1' = 60''

6. Directed Angle
 We shall now put a further
emphasis on the order of the
two rays forming the angle,
then it is written in the form
of an ordered pair (OA , OB)
 OA is the initial side and OB is the terminal
side of the angle of vertex O as in figure (1) .

7.  If the initial side is OB and
the terminal side is OA , then
it is written as ( OB , OA ) in
figure (2).

8.  The directed angle
 AOB = ( OA , OB )
 The directed angle
 BOA = ( OB , OA )

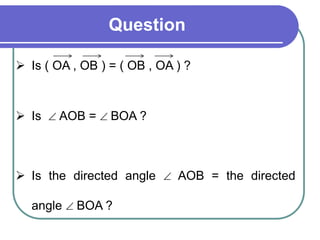

9. Question
 Is ( OA , OB ) = ( OB , OA ) ?
 Is  AOB =  BOA ?
 Is the directed angle  AOB = the directed
angle  BOA ?

10. Standard position of the
directed angle
An directed angle is in the standard position if it
satisfies the next two conditions :
1) Its vertex is the origin of rectangular coordinate
system.
2) Its initial side lies on the positive direction of
the x-axis.

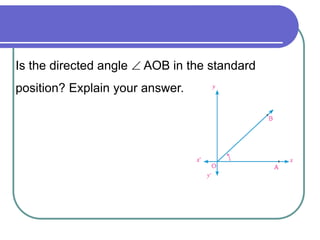

11. Is the directed angle  AOB in the standard
position? Explain your answer.

12. Exercise (1) :
Which one of the following ordered pairs
expresses a directed angle in its standard
position?

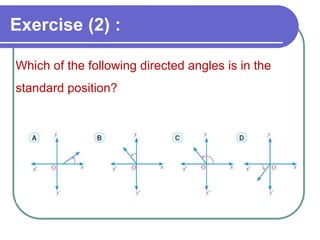

13. Exercise (2) :
Which of the following directed angles is in the
standard position?

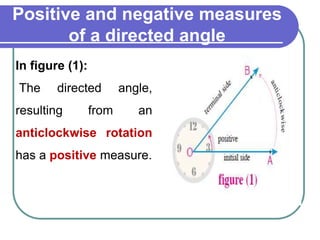

14. Positive and negative measures
of a directed angle
In figure (1):
The directed angle,
resulting from an
anticlockwise rotation
has a positive measure.

15. In figure (2):
The directed angle,
resulting from a
clockwise rotation has
a negative measure.

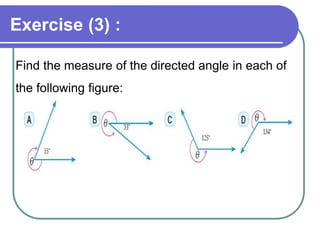

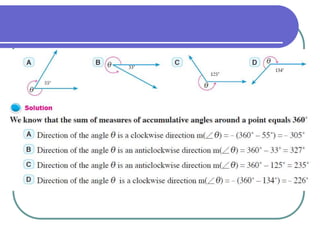

16. Exercise (3) :
Find the measure of the directed angle in each of
the following figure:

17. Is

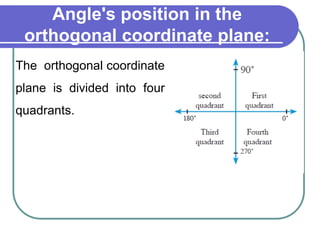

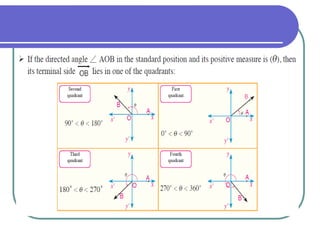

18. Angle's position in the
orthogonal coordinate plane:
The orthogonal coordinate
plane is divided into four
quadrants.

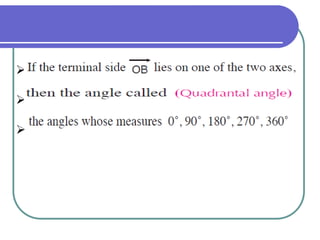

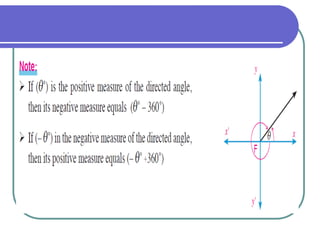

20. 



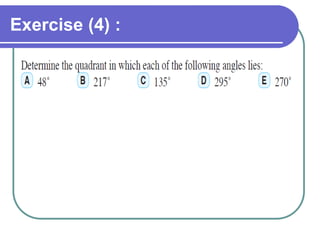

21. Exercise (4) :

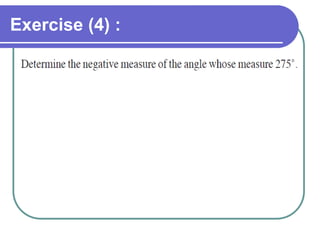

24. Exercise (4) :

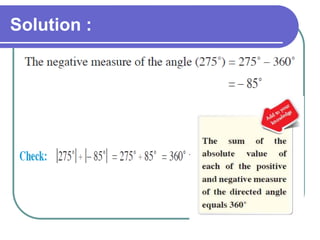

25. Solution :

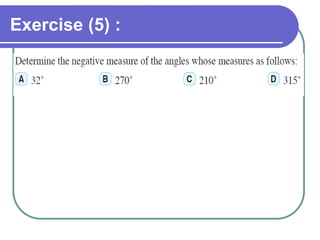

26. Exercise (5) :

27. Exercise (6) :

29. Exercise (7) :

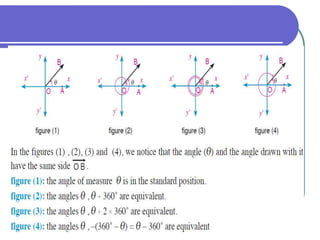

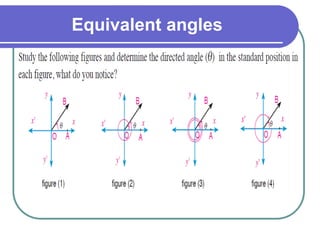

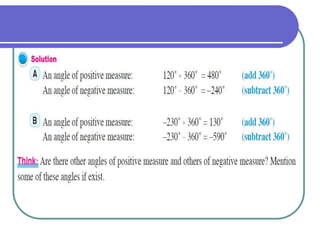

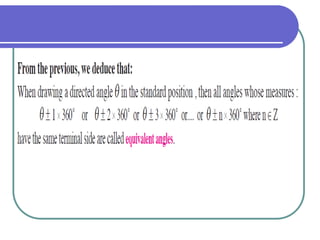

30. Equivalent angles

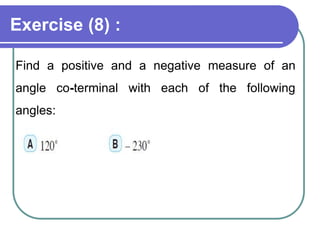

33. Exercise (8) :
Find a positive and a negative measure of an
angle co-terminal with each of the following
angles:

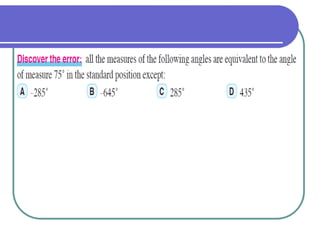

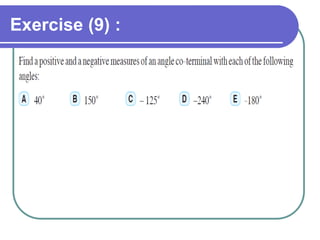

35. Exercise (9) :

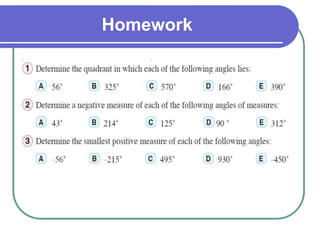

37. Homework
