1. Ankle and Foot
Saurab Sharma, MPT
Lecturer

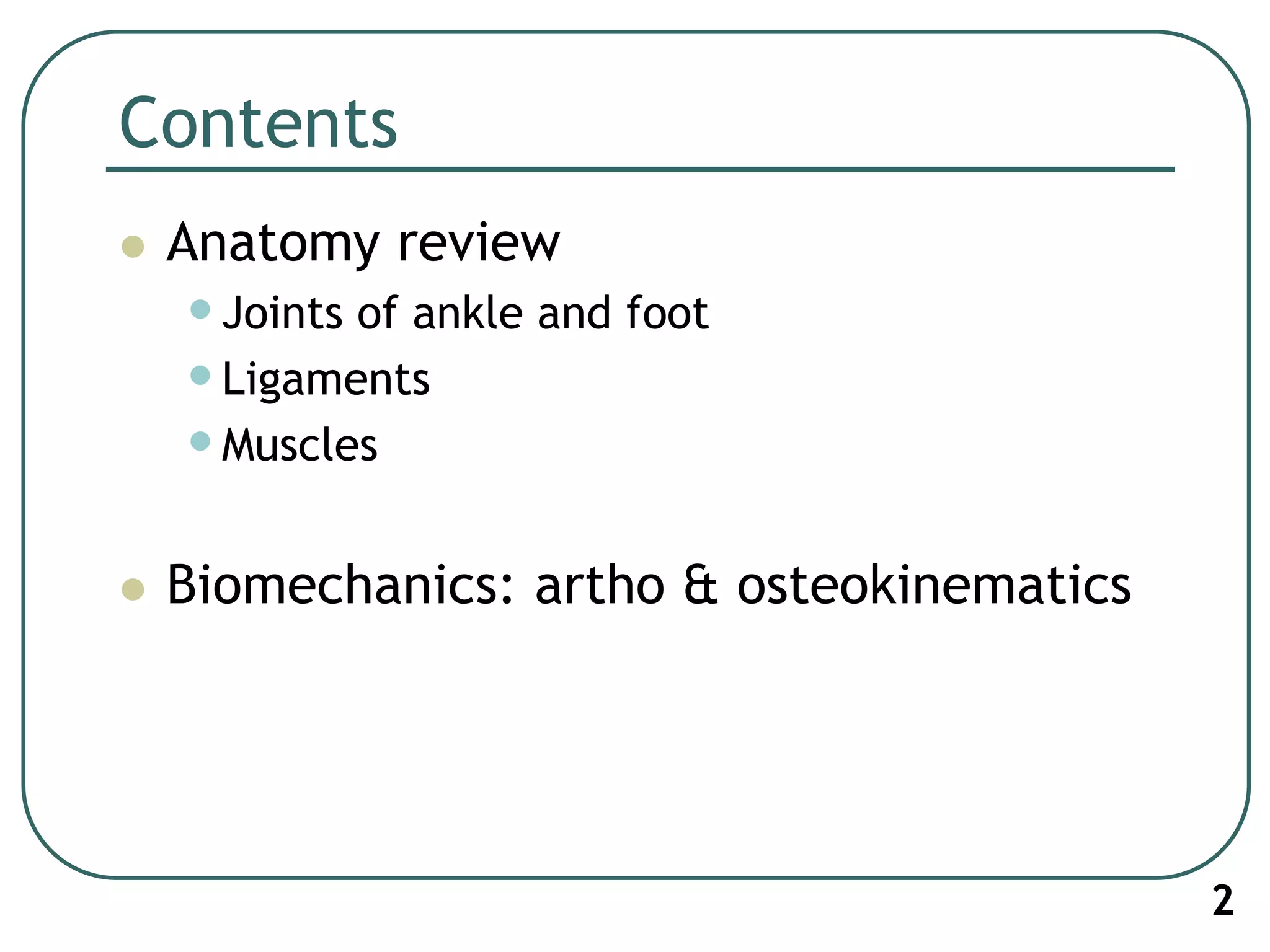

2. Contents
 Anatomy review
•Joints of ankle and foot
•Ligaments
•Muscles
 Biomechanics: artho & osteokinematics
2

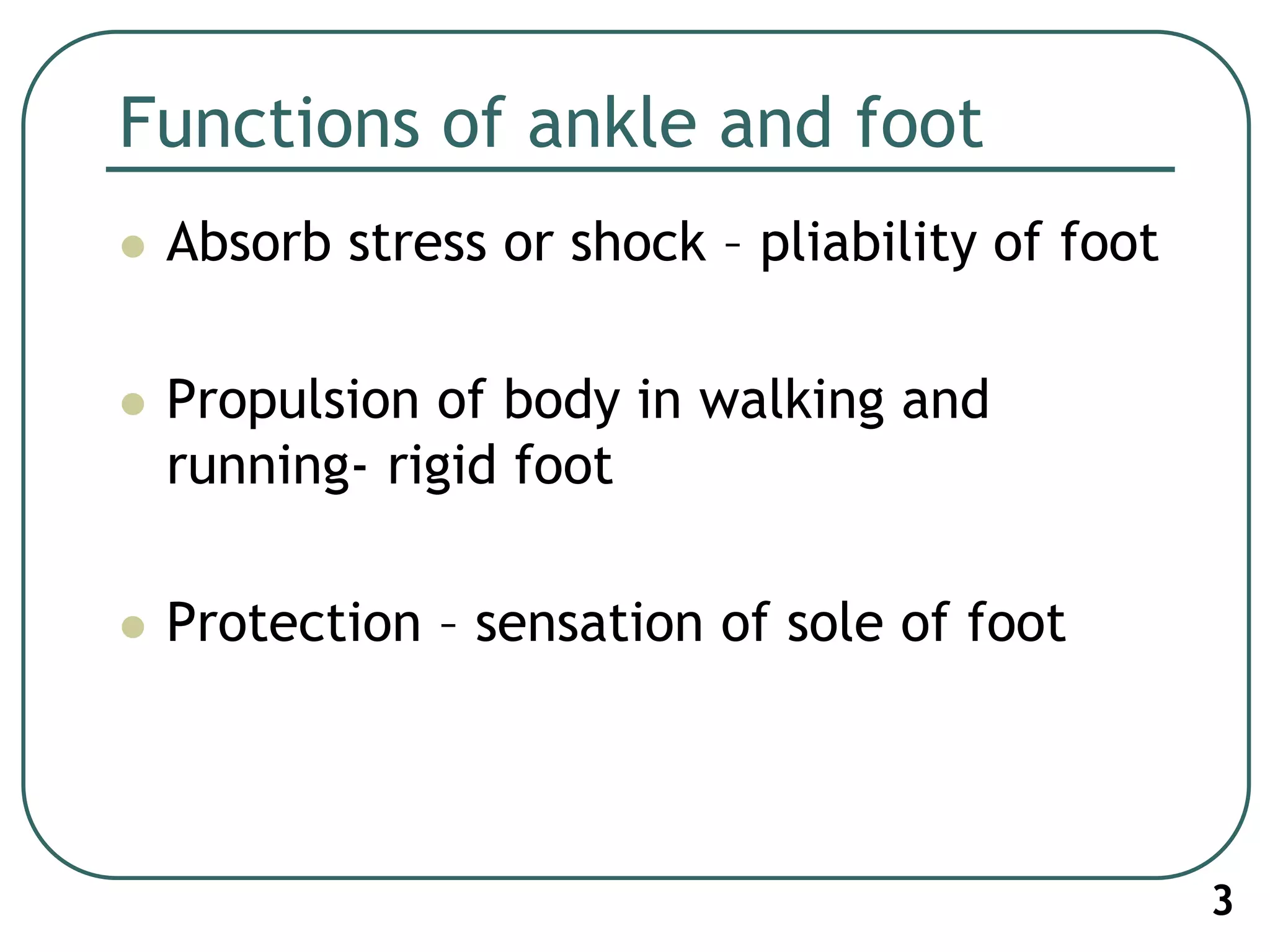

3. Functions of ankle and foot
 Absorb stress or shock – pliability of foot
 Propulsion of body in walking and
running- rigid foot
 Protection – sensation of sole of foot
3

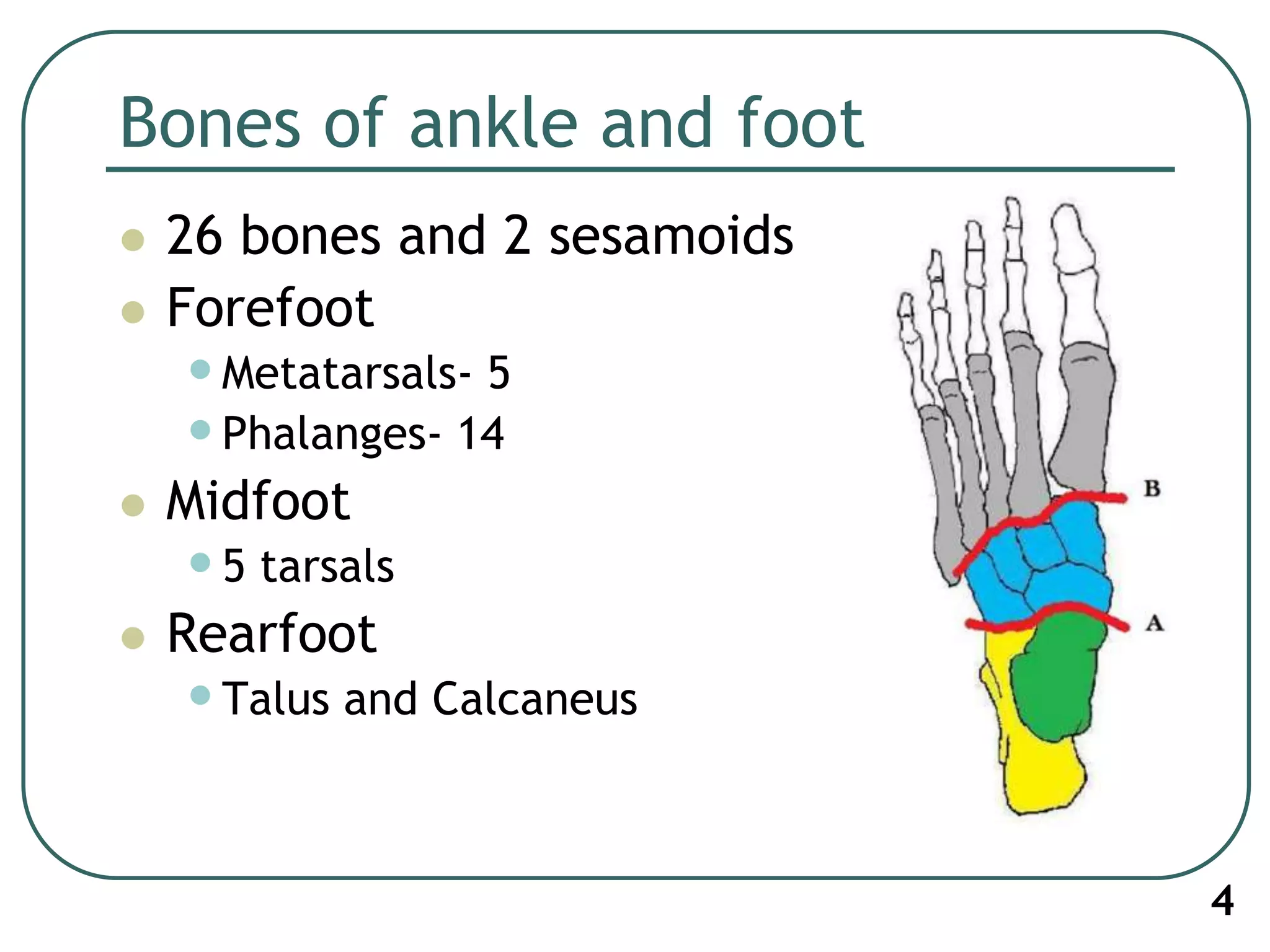

4. Bones of ankle and foot
 26 bones and 2 sesamoids
 Forefoot
•Metatarsals- 5
•Phalanges- 14
 Midfoot
•5 tarsals
 Rearfoot
•Talus and Calcaneus
4

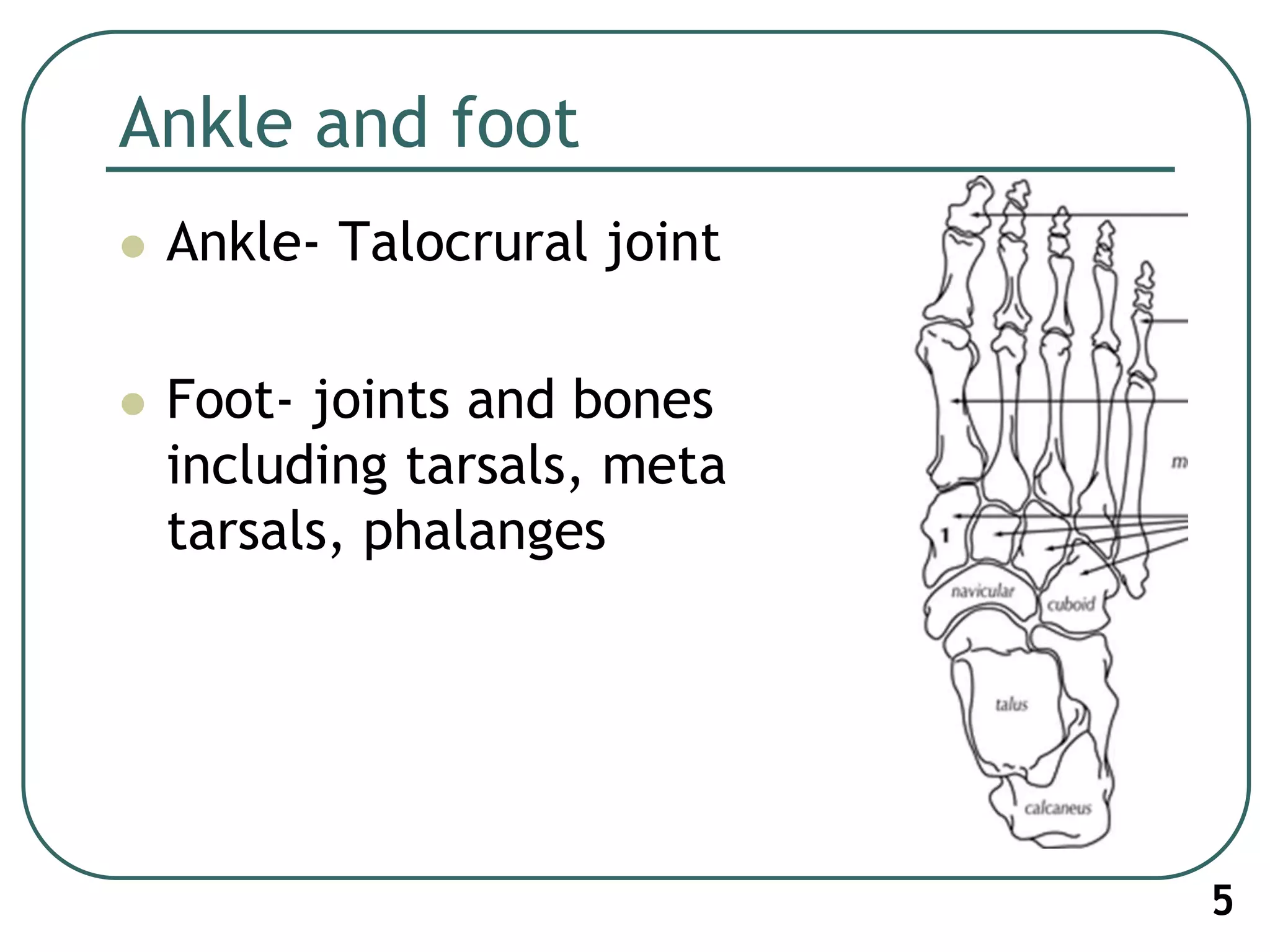

5. Ankle and foot
 Ankle- Talocrural joint
 Foot- joints and bones
including tarsals, meta
tarsals, phalanges
5

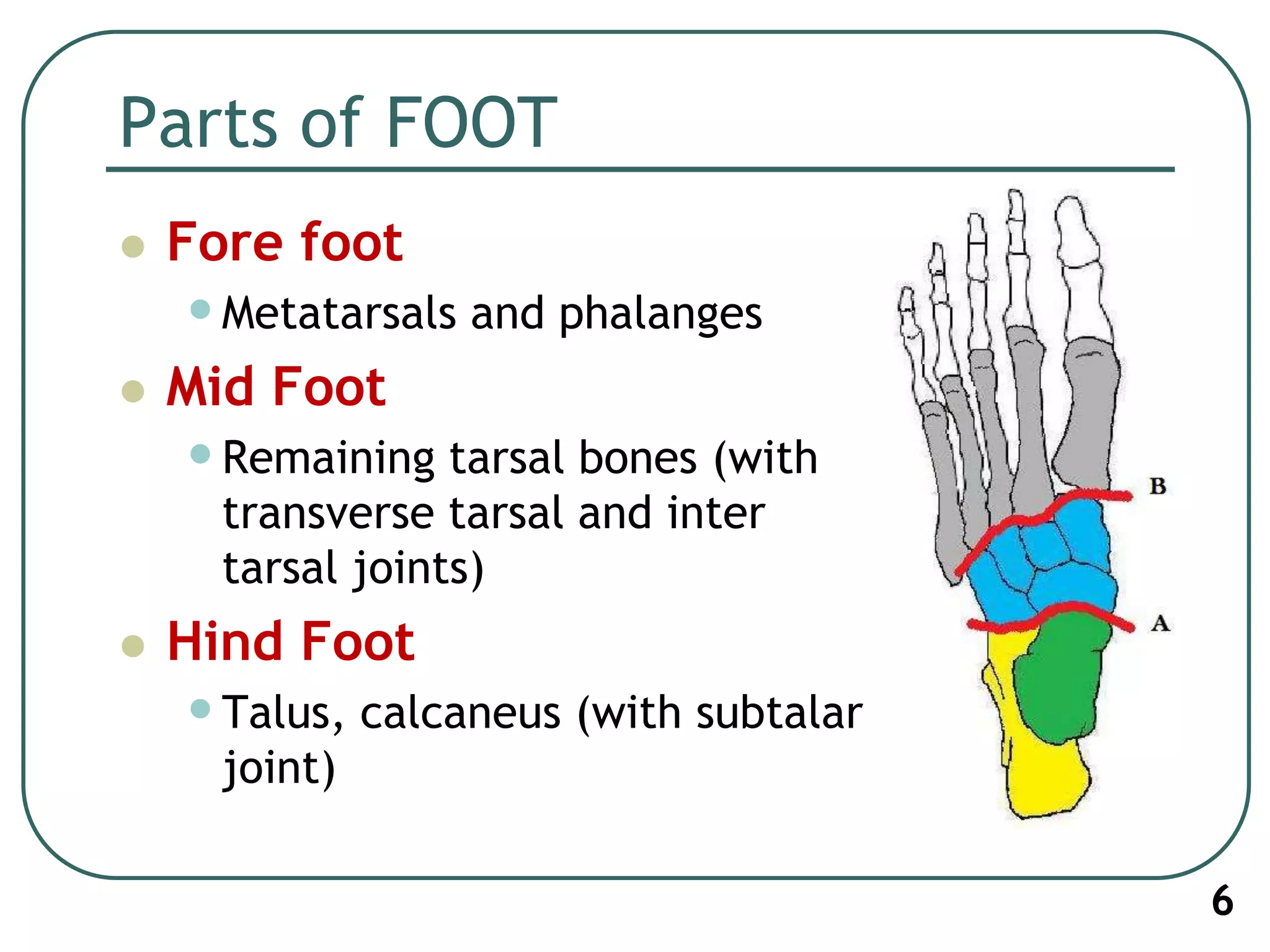

6. Parts of FOOT
 Fore foot
•Metatarsals and phalanges
 Mid Foot
•Remaining tarsal bones (with
transverse tarsal and inter
tarsal joints)
 Hind Foot
•Talus, calcaneus (with subtalar
joint)
6

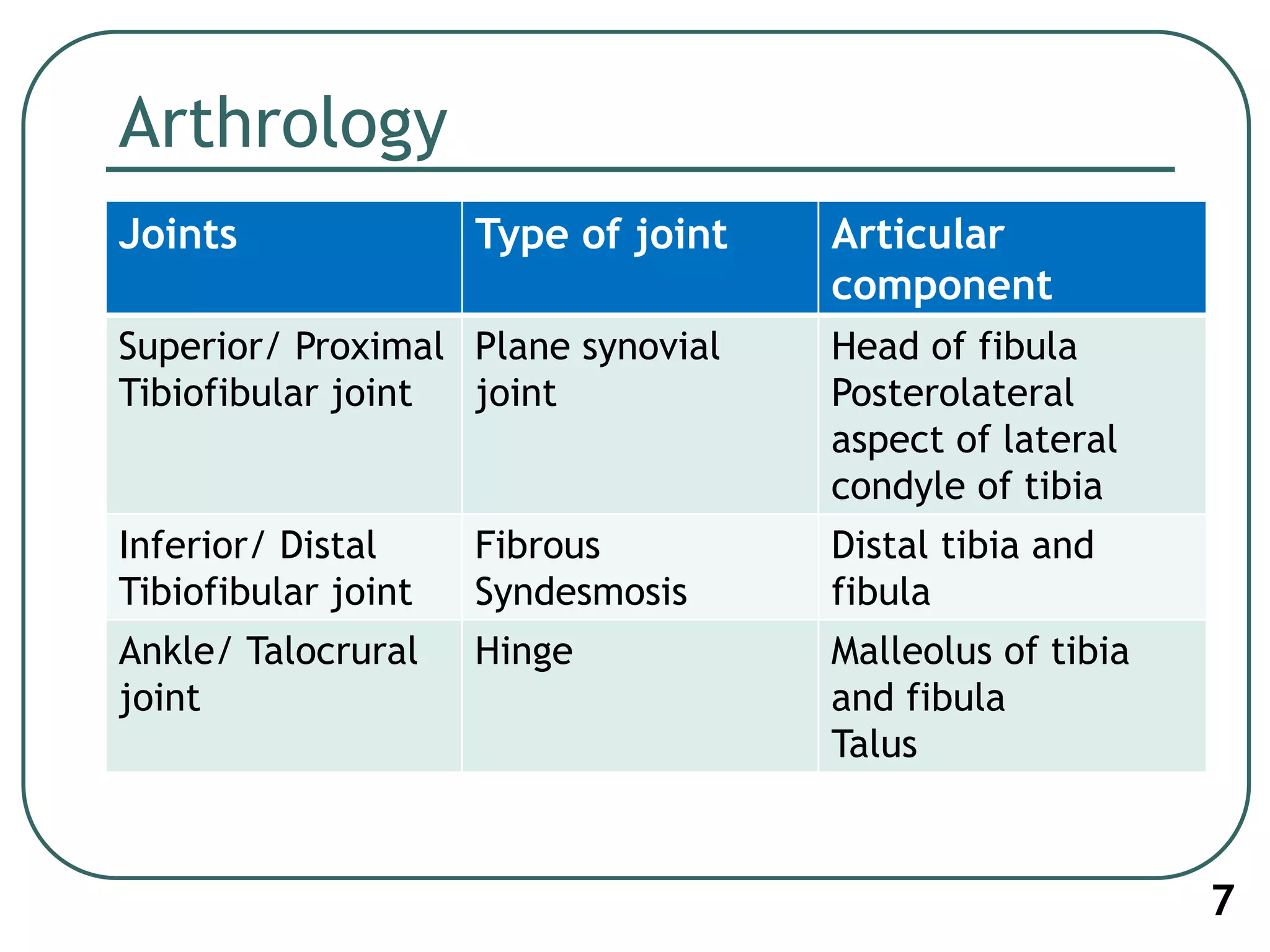

7. Arthrology
7
Joints Type of joint Articular
component
Superior/ Proximal
Tibiofibular joint
Plane synovial
joint
Head of fibula
Posterolateral
aspect of lateral
condyle of tibia
Inferior/ Distal
Tibiofibular joint
Fibrous
Syndesmosis
Distal tibia and
fibula
Ankle/ Talocrural
joint
Hinge Malleolus of tibia
and fibula
Talus

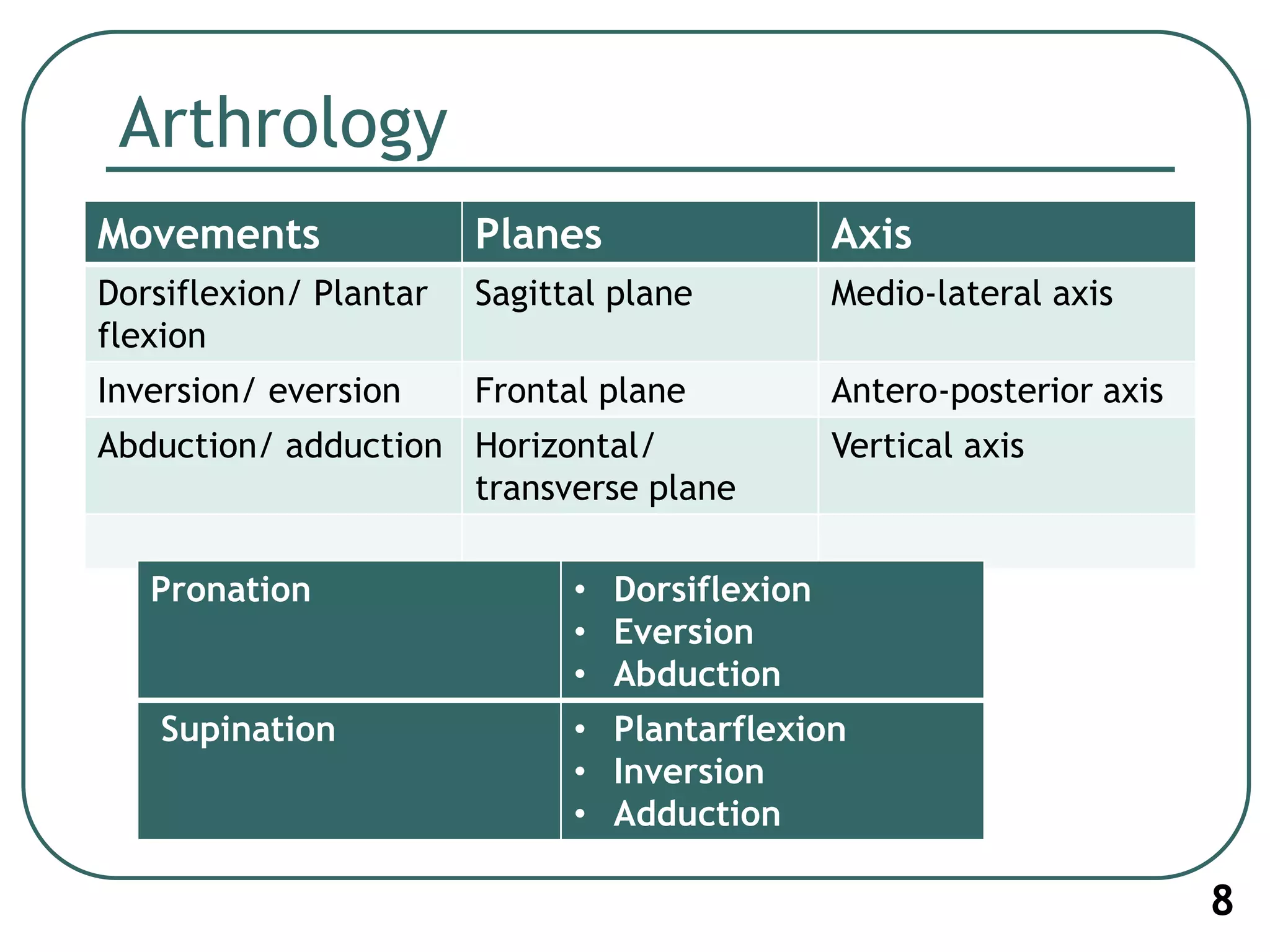

8. Arthrology
Movements Planes Axis
Dorsiflexion/ Plantar
flexion
Sagittal plane Medio-lateral axis
Inversion/ eversion Frontal plane Antero-posterior axis
Abduction/ adduction Horizontal/
transverse plane
Vertical axis
Pronation • Dorsiflexion
• Eversion
• Abduction
Supination • Plantarflexion
• Inversion
• Adduction
8

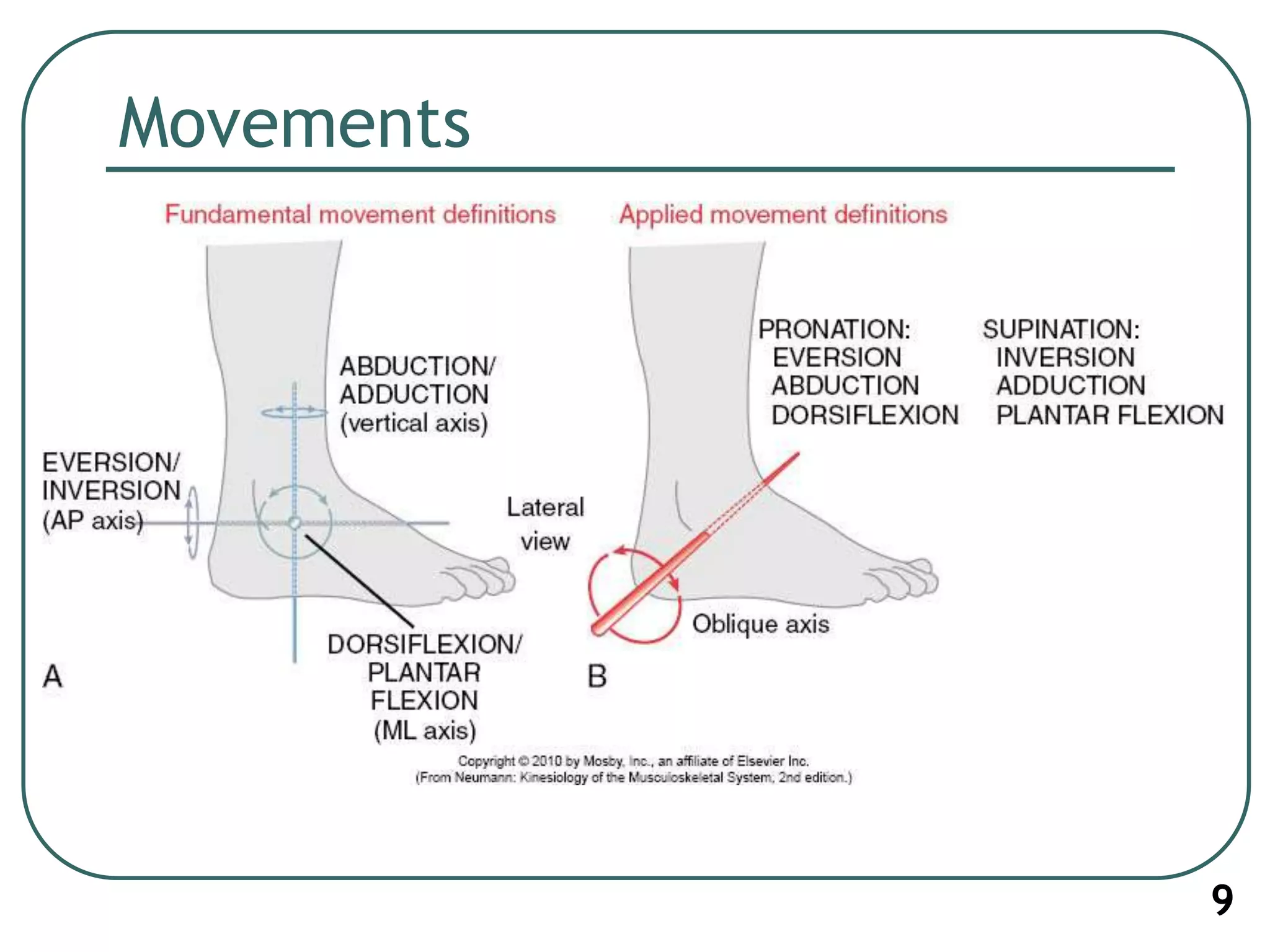

9. Movements
9

10. Talocrural articulation (Mortise)
10Neumann 2010

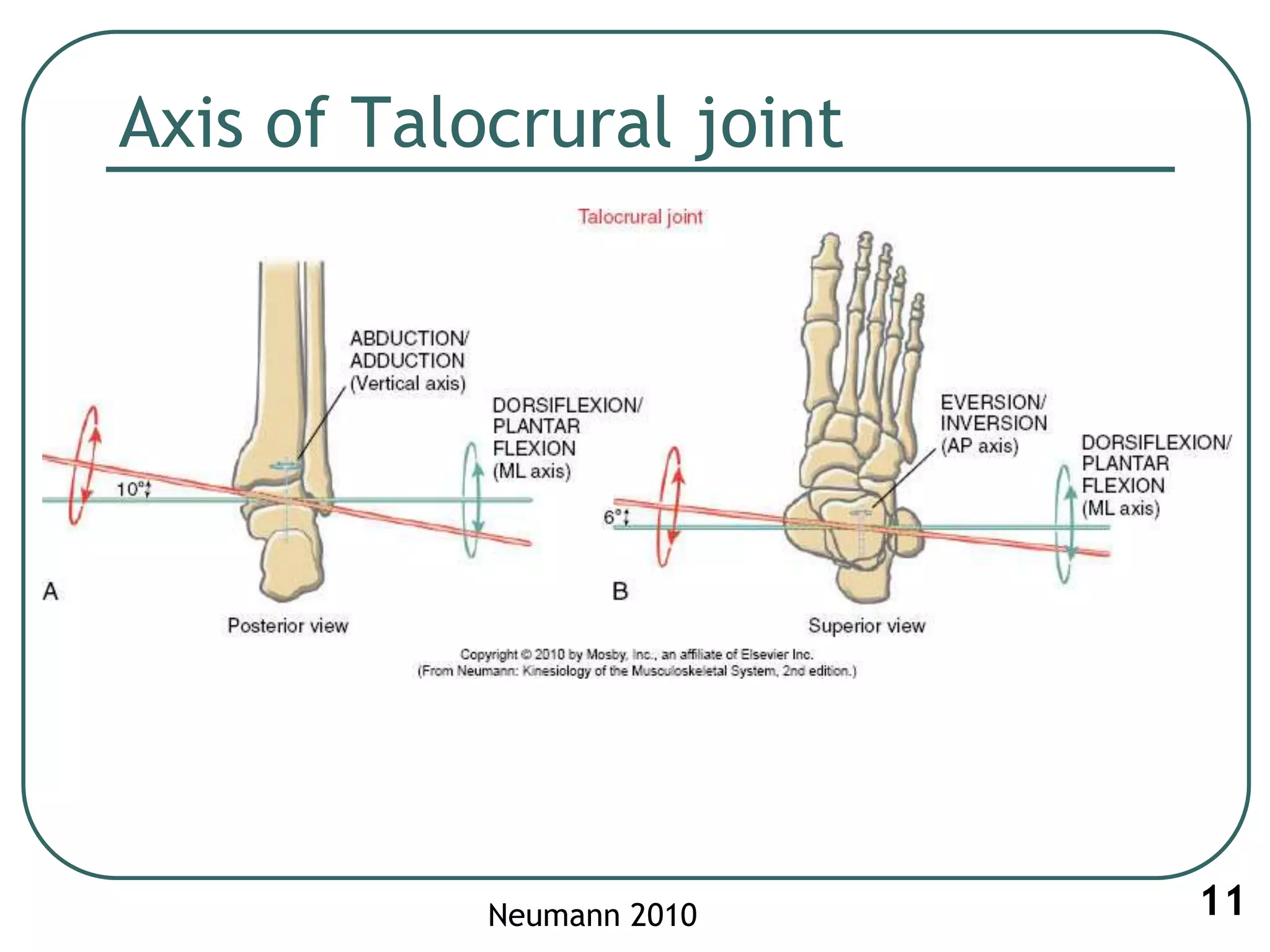

11. Axis of Talocrural joint
11Neumann 2010

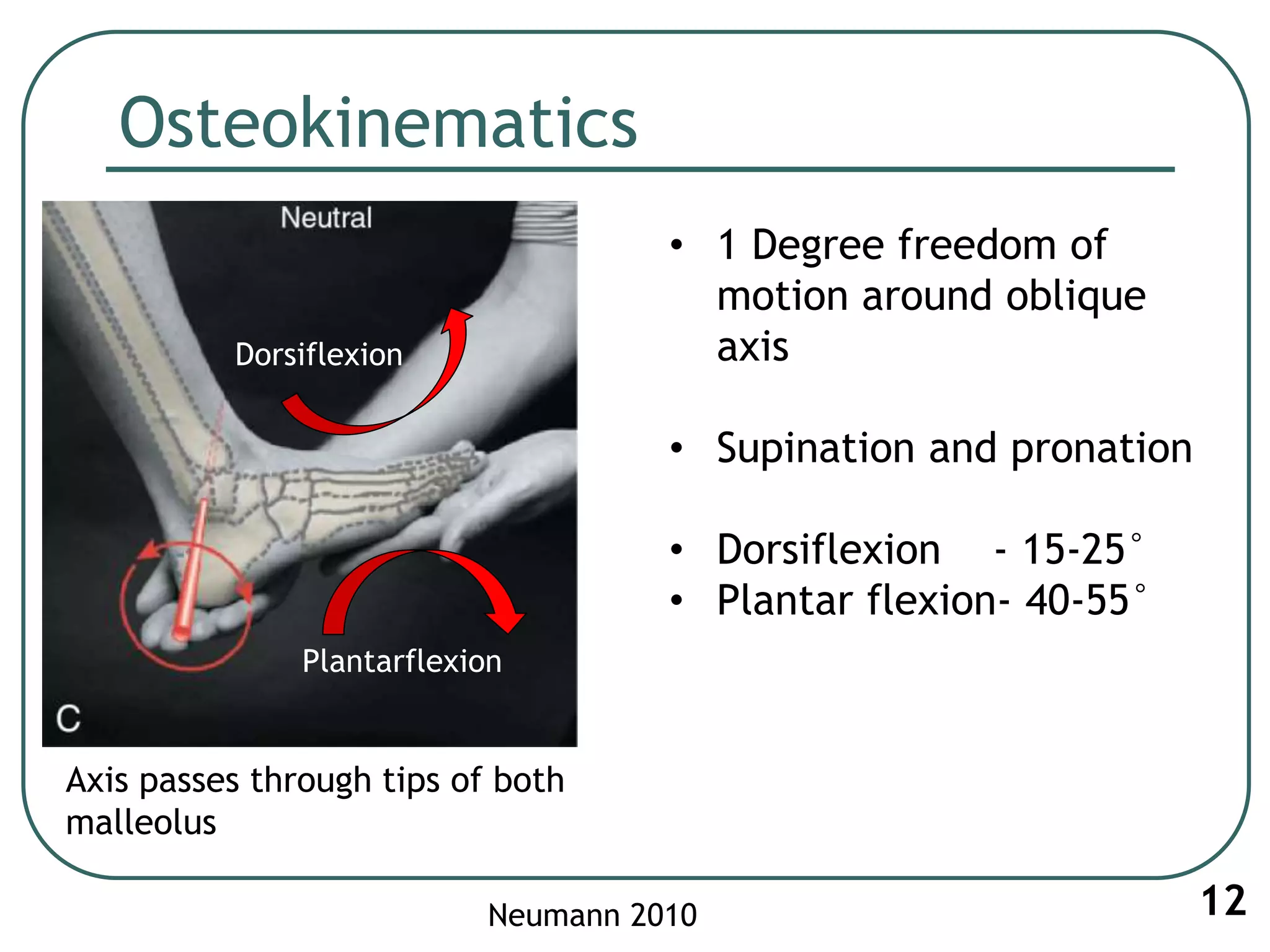

12. Osteokinematics
12Neumann 2010
• 1 Degree freedom of
motion around oblique
axis
• Supination and pronation
• Dorsiflexion - 15-25°
• Plantar flexion- 40-55°
Axis passes through tips of both
malleolus
Dorsiflexion
Plantarflexion

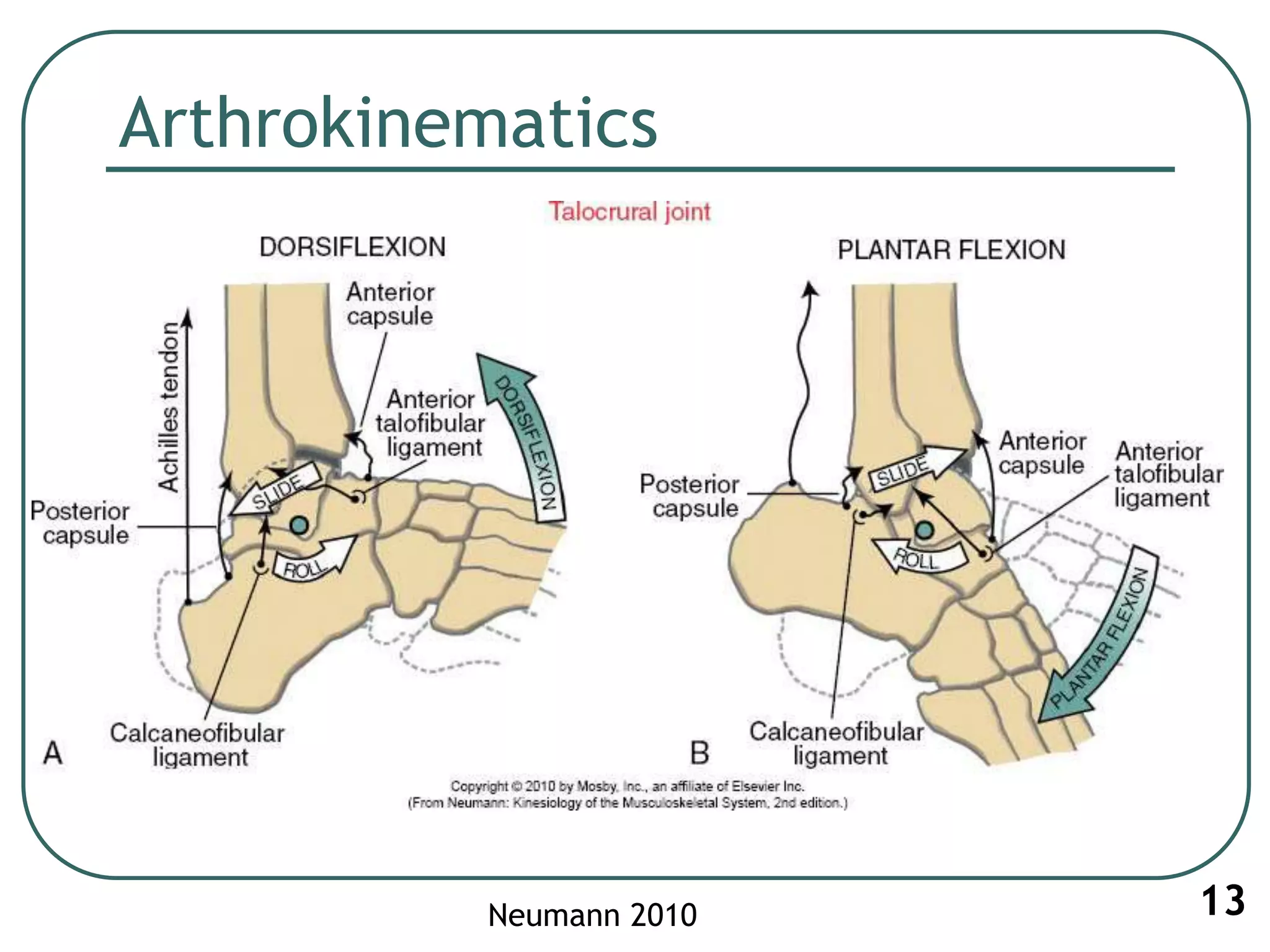

13. Arthrokinematics
13Neumann 2010

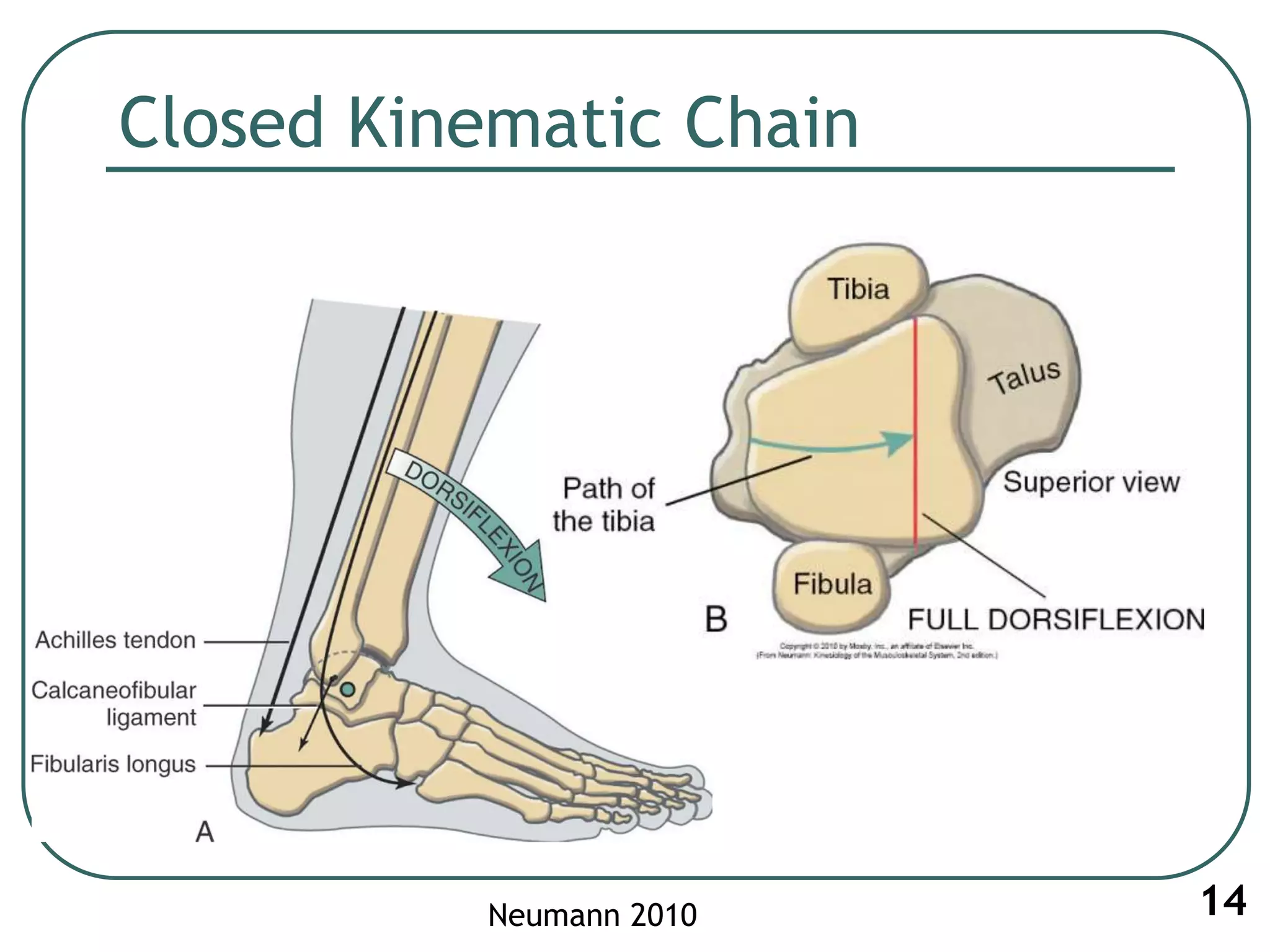

14. Closed Kinematic Chain
14Neumann 2010

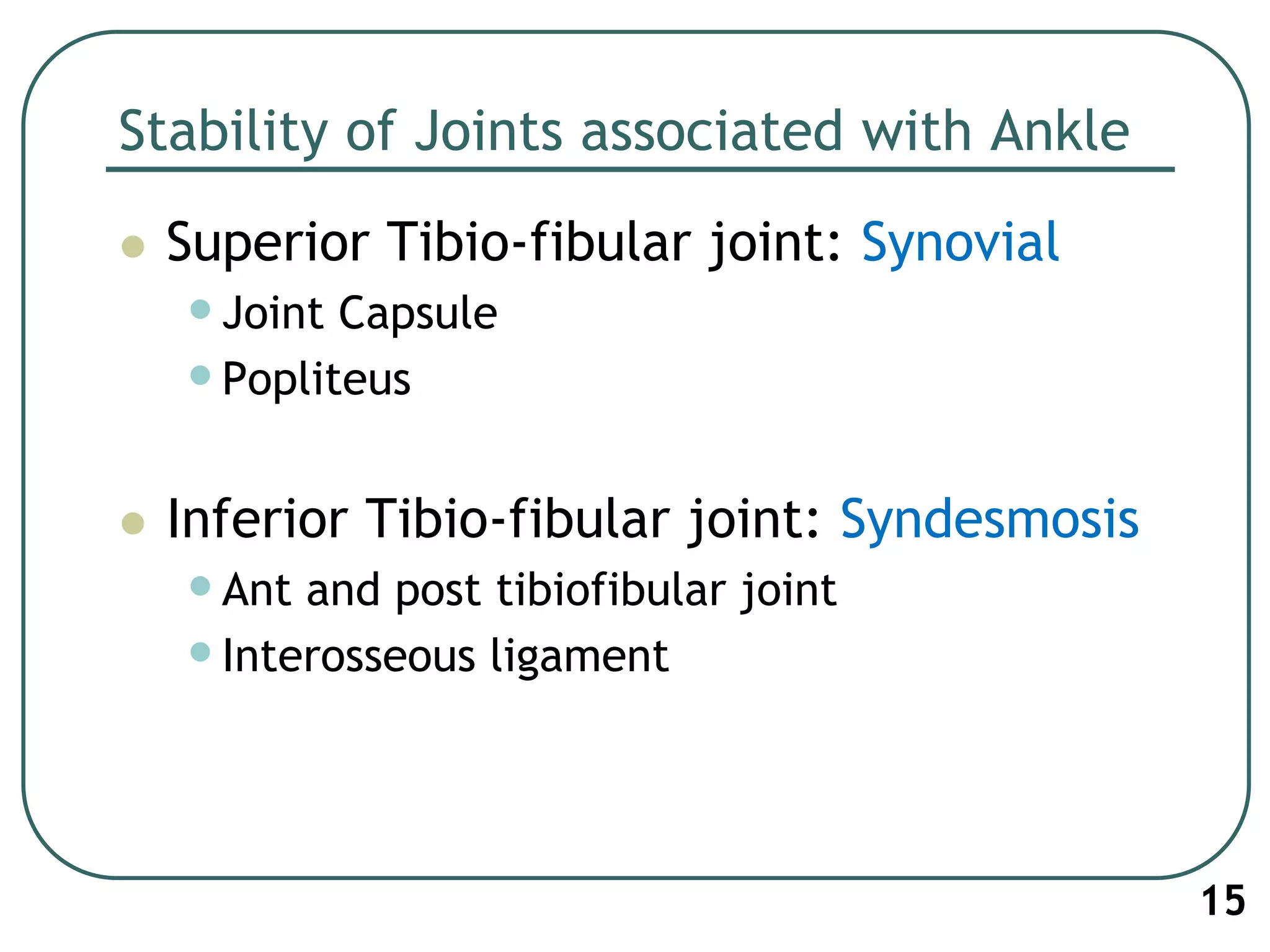

15. Stability of Joints associated with Ankle
 Superior Tibio-fibular joint: Synovial
•Joint Capsule
•Popliteus
 Inferior Tibio-fibular joint: Syndesmosis
•Ant and post tibiofibular joint
•Interosseous ligament
15

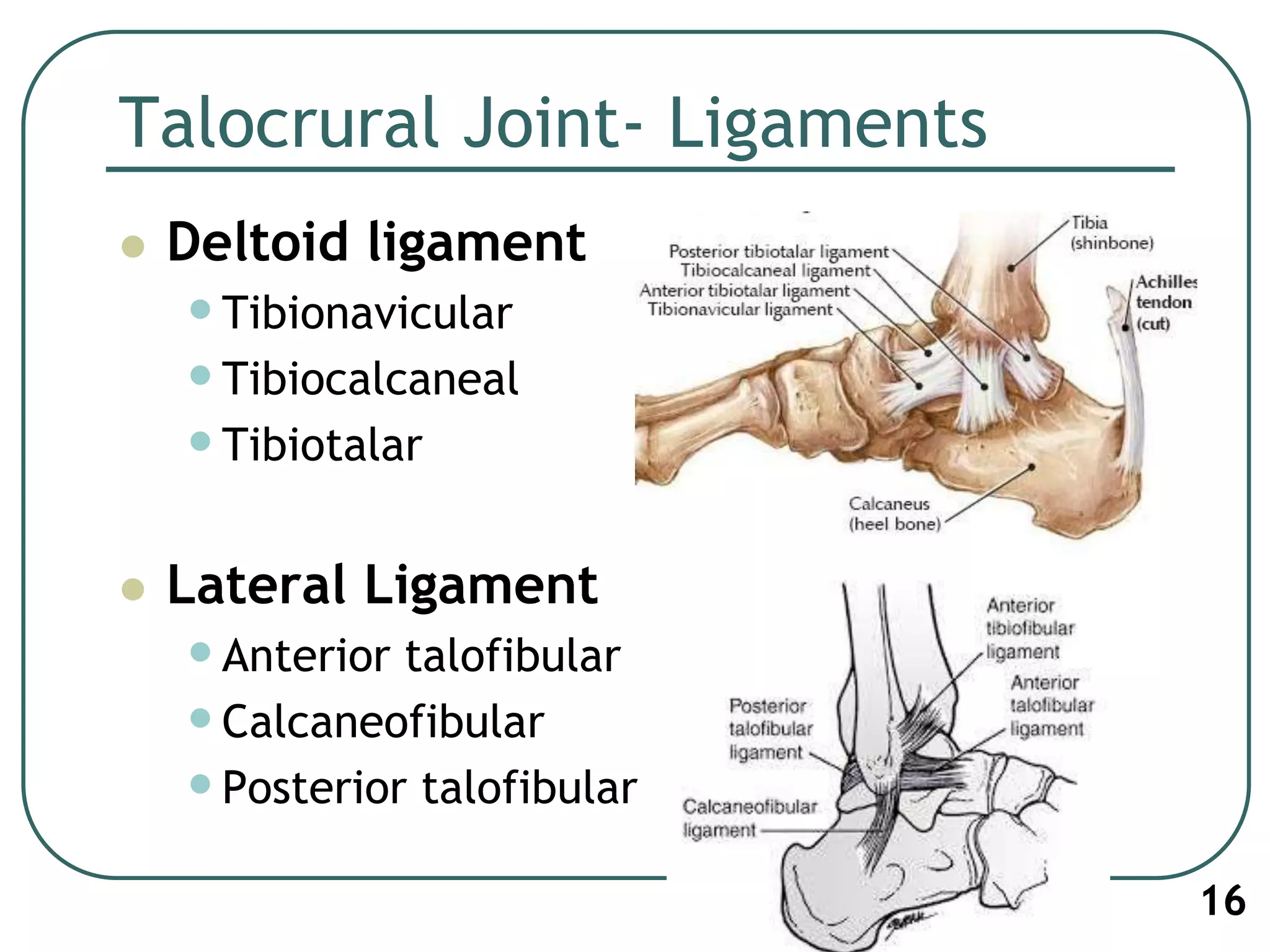

16. Talocrural Joint- Ligaments
 Deltoid ligament
•Tibionavicular
•Tibiocalcaneal
•Tibiotalar
 Lateral Ligament
•Anterior talofibular
•Calcaneofibular
•Posterior talofibular
16

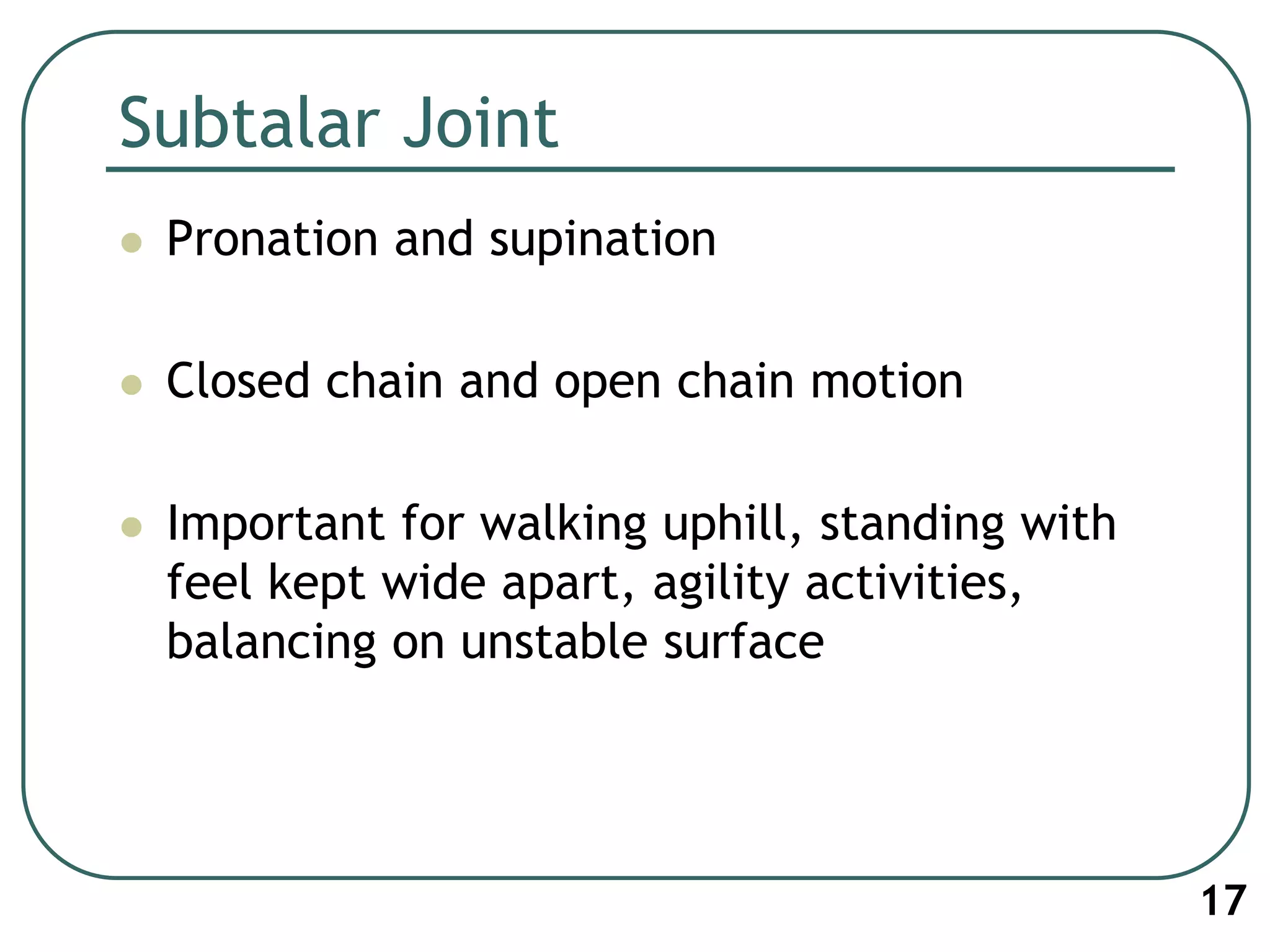

17. Subtalar Joint
 Pronation and supination
 Closed chain and open chain motion
 Important for walking uphill, standing with
feel kept wide apart, agility activities,
balancing on unstable surface
17

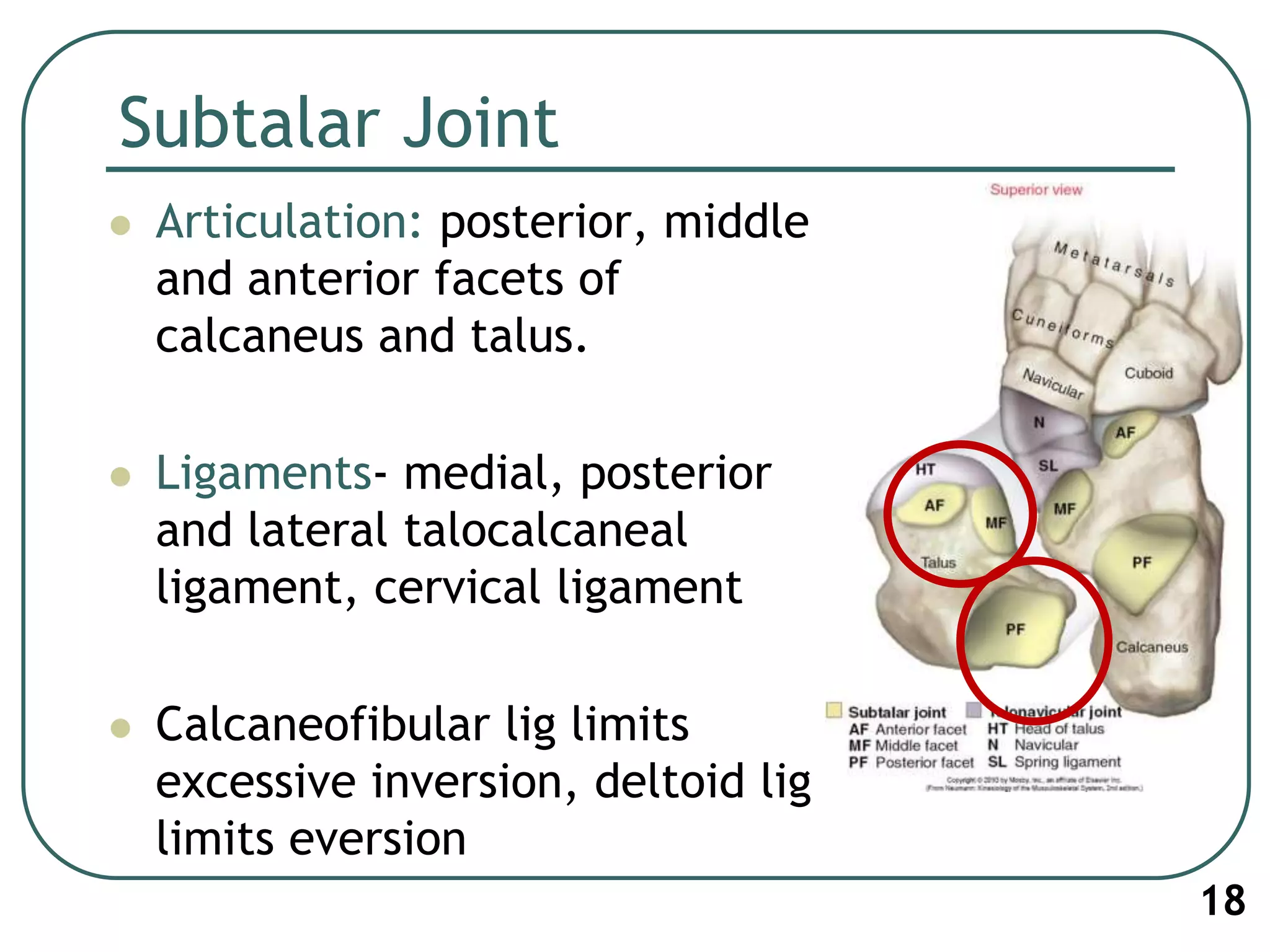

18. Subtalar Joint
 Articulation: posterior, middle
and anterior facets of
calcaneus and talus.
 Ligaments- medial, posterior
and lateral talocalcaneal
ligament, cervical ligament
 Calcaneofibular lig limits
excessive inversion, deltoid lig
limits eversion
18

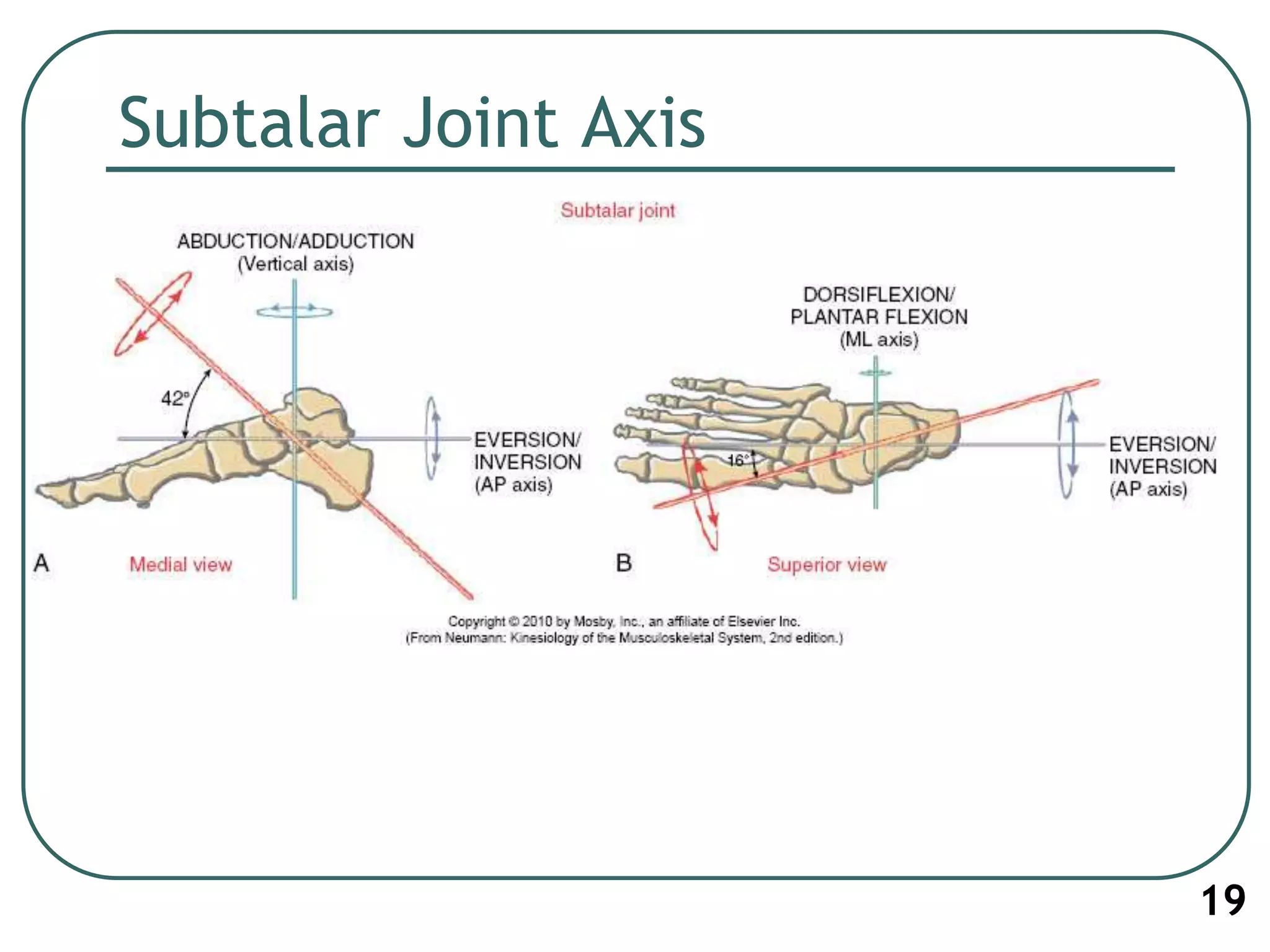

19. Subtalar Joint Axis
19

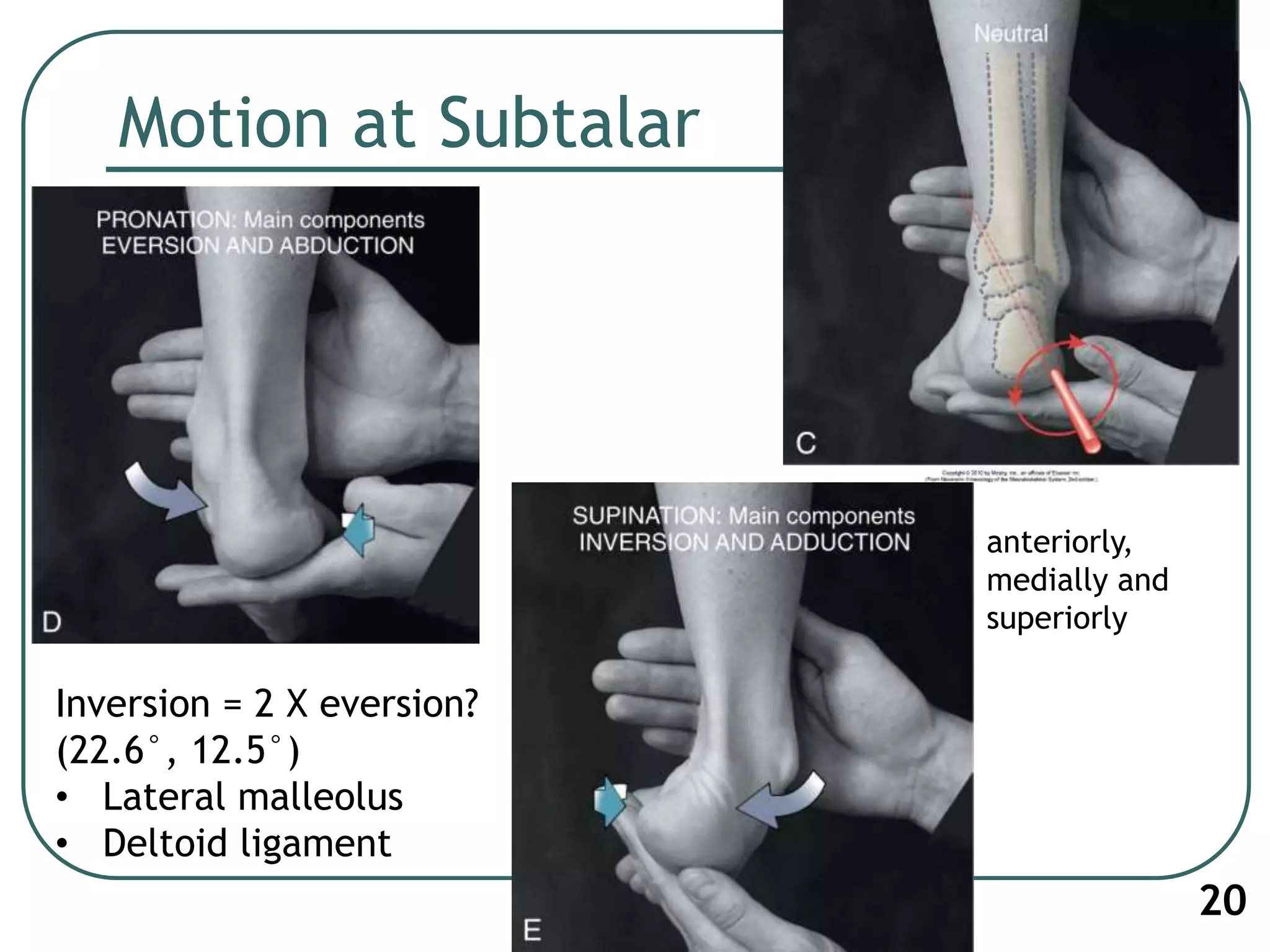

20. Motion at Subtalar
20
anteriorly,
medially and
superiorly
Inversion = 2 X eversion?
(22.6°, 12.5°)
• Lateral malleolus
• Deltoid ligament

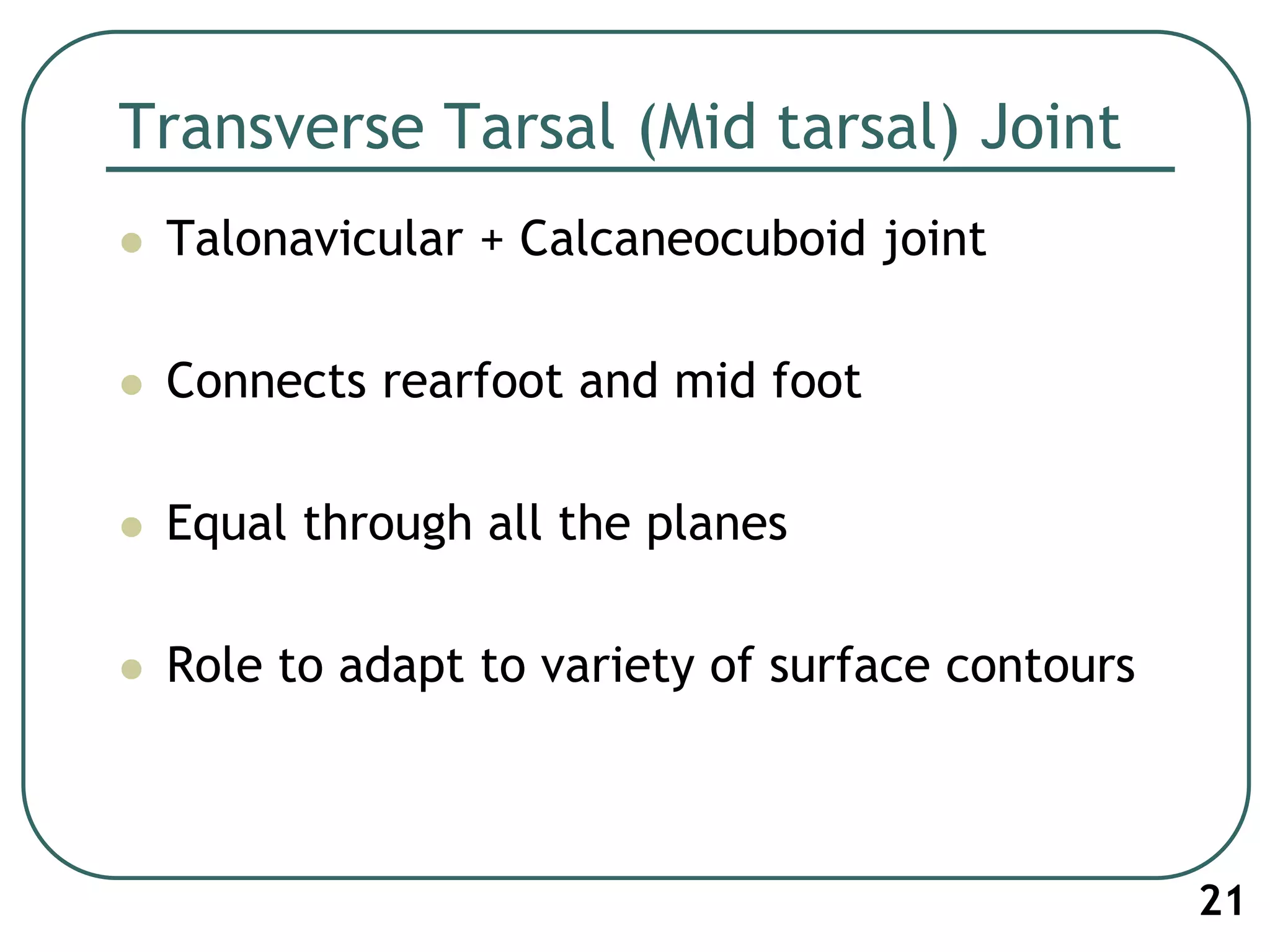

21. Transverse Tarsal (Mid tarsal) Joint
 Talonavicular + Calcaneocuboid joint
 Connects rearfoot and mid foot
 Equal through all the planes
 Role to adapt to variety of surface contours
21

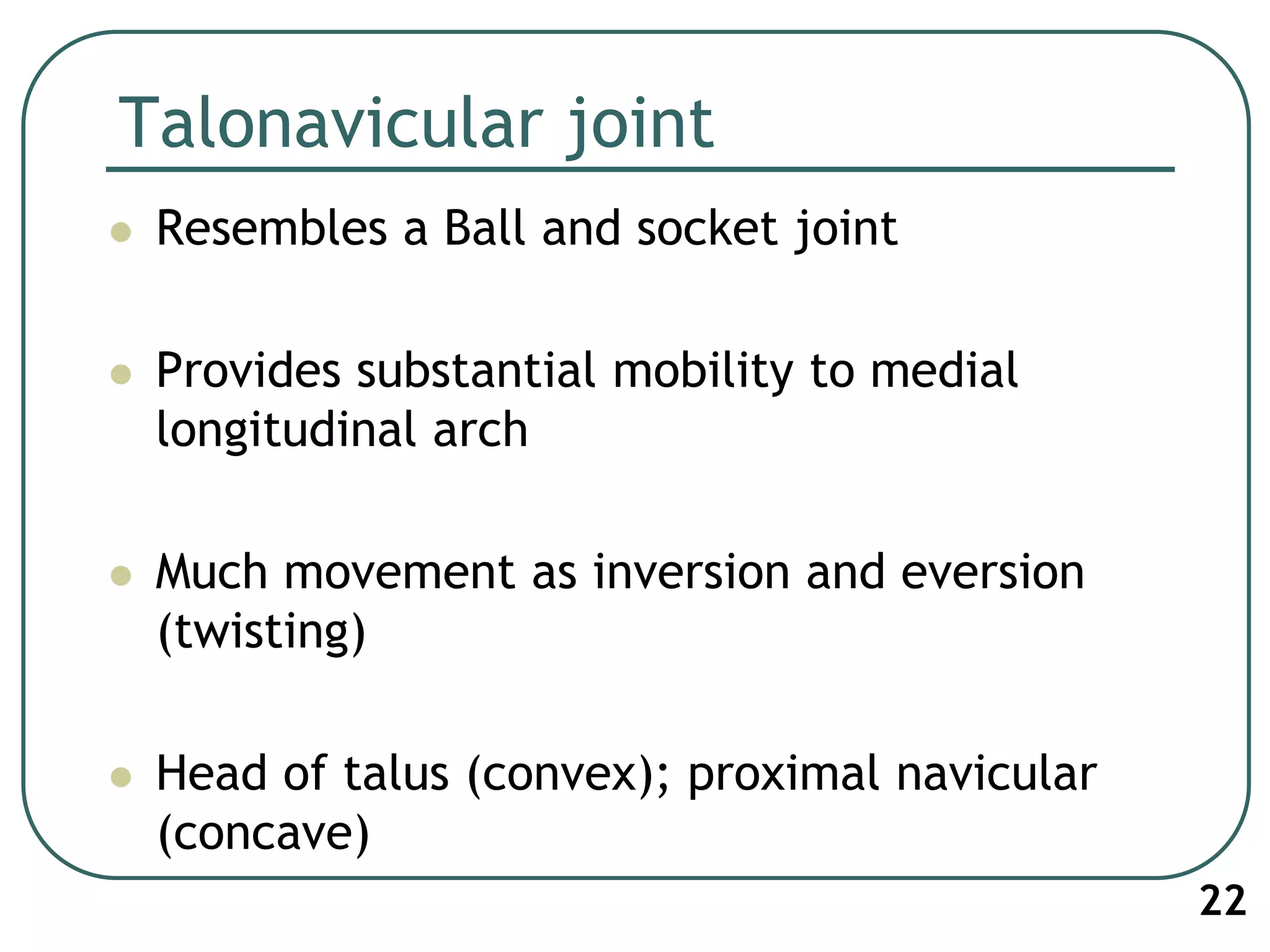

22. Talonavicular joint
 Resembles a Ball and socket joint
 Provides substantial mobility to medial
longitudinal arch
 Much movement as inversion and eversion
(twisting)
 Head of talus (convex); proximal navicular
(concave)
22

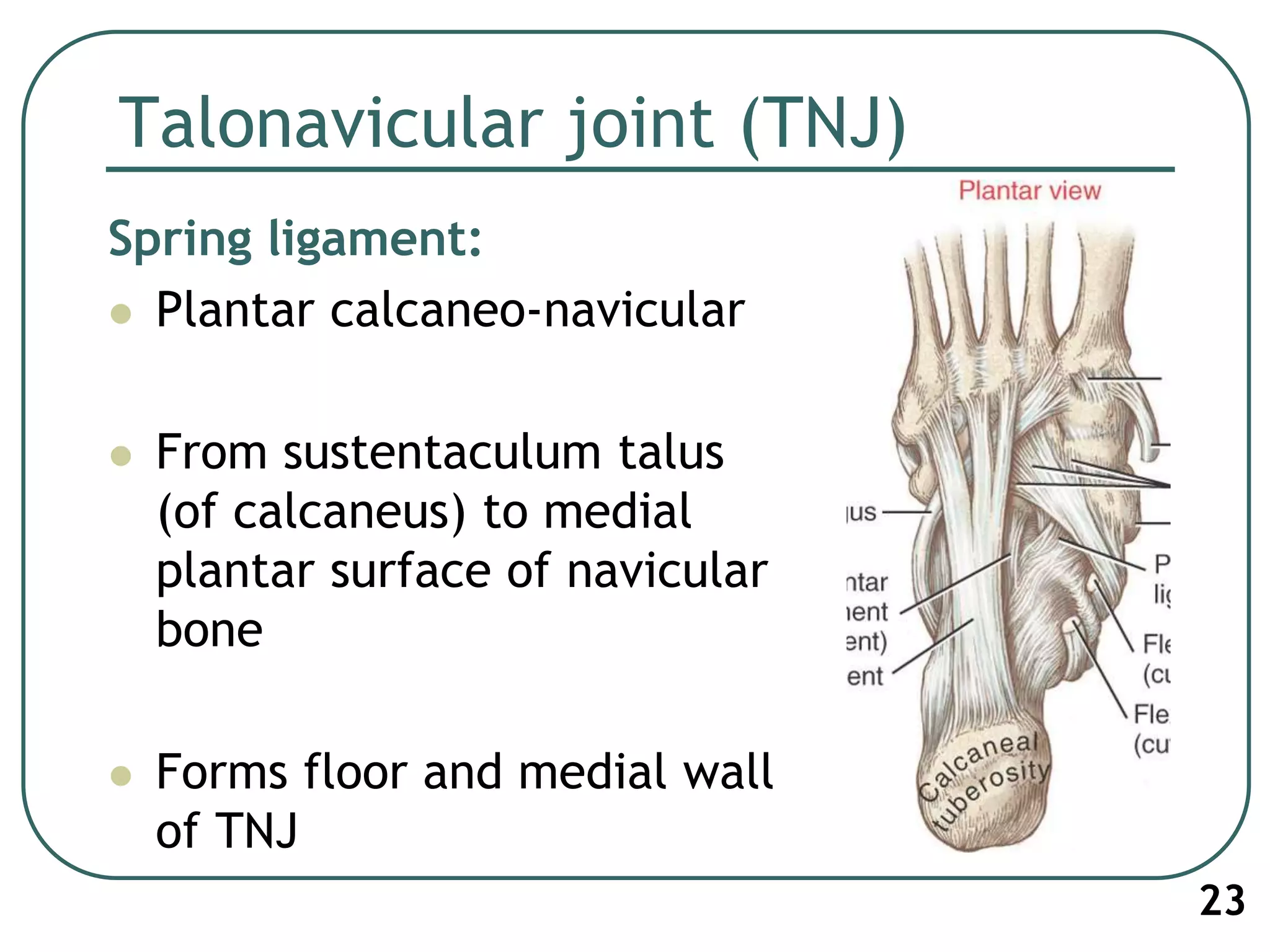

23. Talonavicular joint (TNJ)
Spring ligament:
 Plantar calcaneo-navicular
 From sustentaculum talus
(of calcaneus) to medial
plantar surface of navicular
bone
 Forms floor and medial wall
of TNJ
23

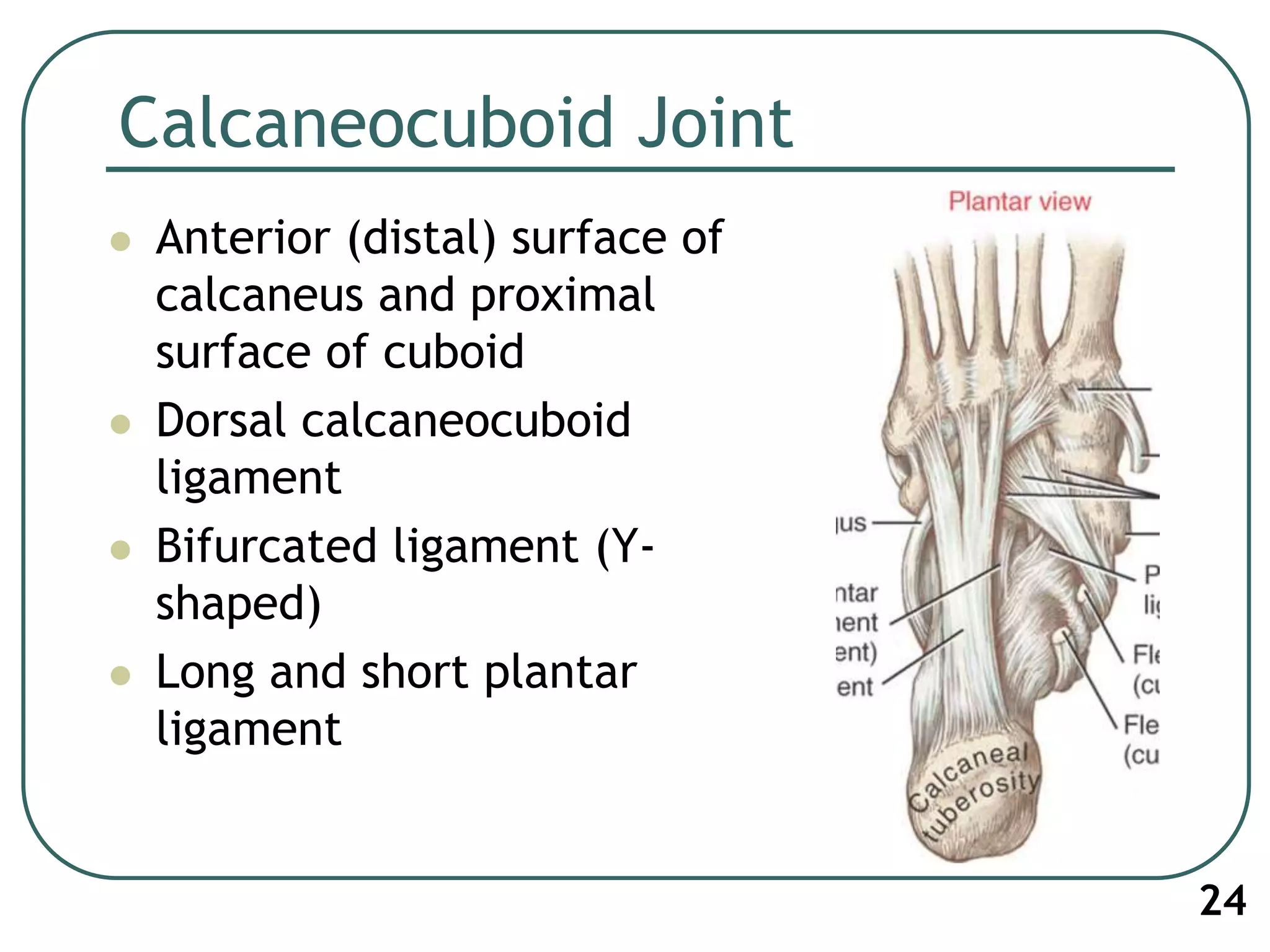

24. Calcaneocuboid Joint
 Anterior (distal) surface of
calcaneus and proximal
surface of cuboid
 Dorsal calcaneocuboid
ligament
 Bifurcated ligament (Y-
shaped)
 Long and short plantar
ligament
24

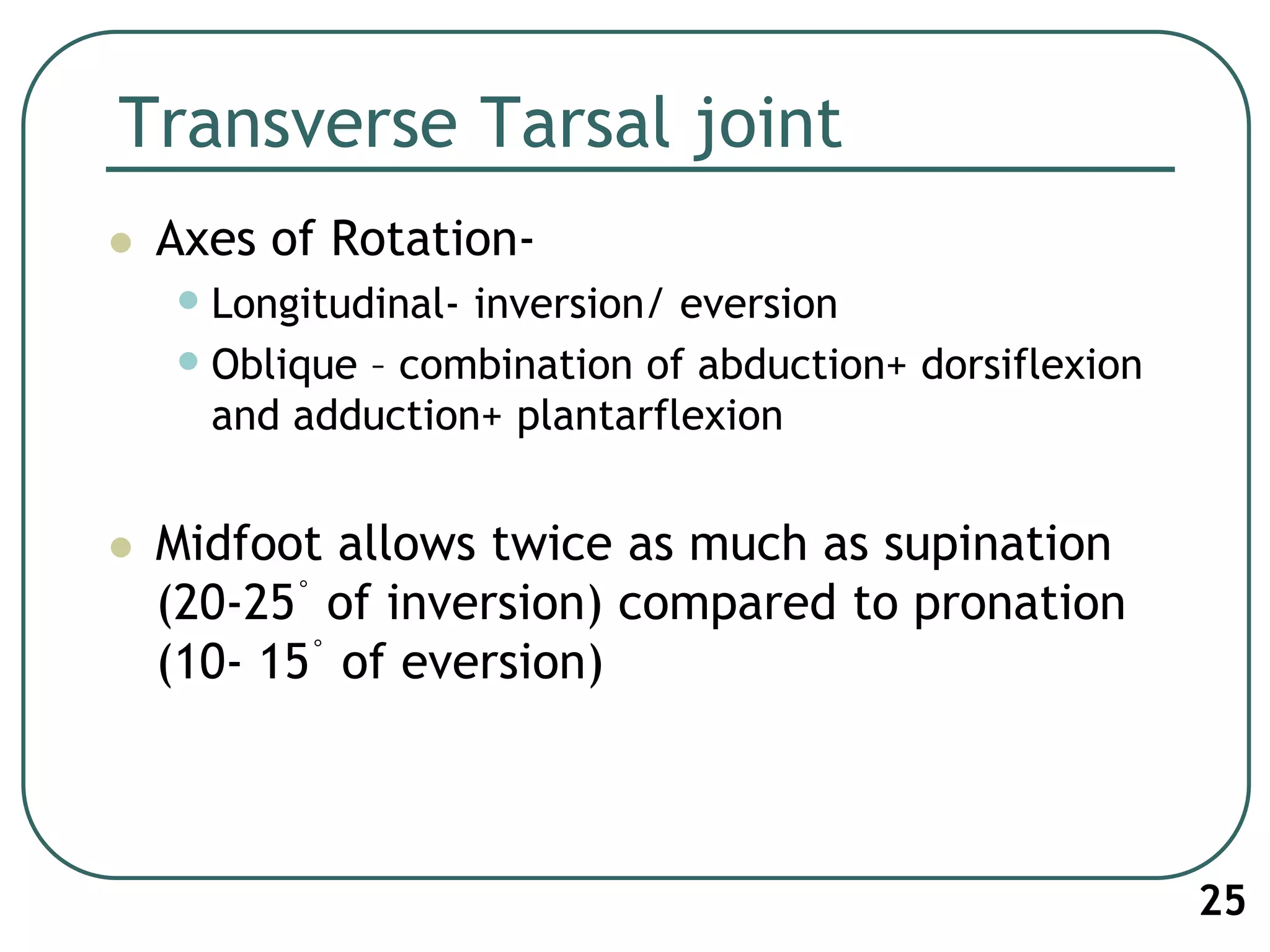

25. Transverse Tarsal joint
 Axes of Rotation-
•Longitudinal- inversion/ eversion
•Oblique – combination of abduction+ dorsiflexion
and adduction+ plantarflexion
 Midfoot allows twice as much as supination
(20-25° of inversion) compared to pronation
(10- 15° of eversion)
25

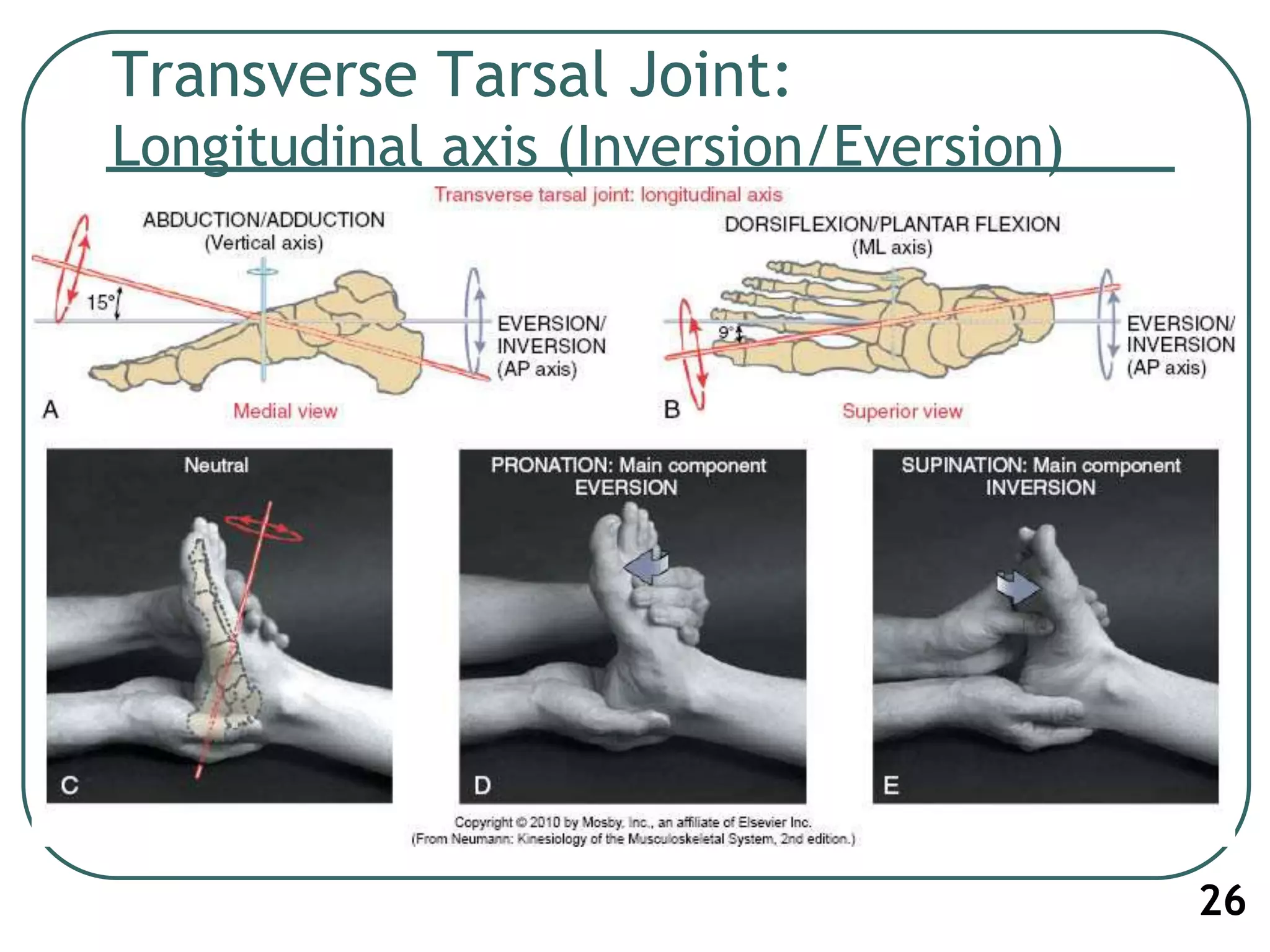

26. Transverse Tarsal Joint:
Longitudinal axis (Inversion/Eversion)
26

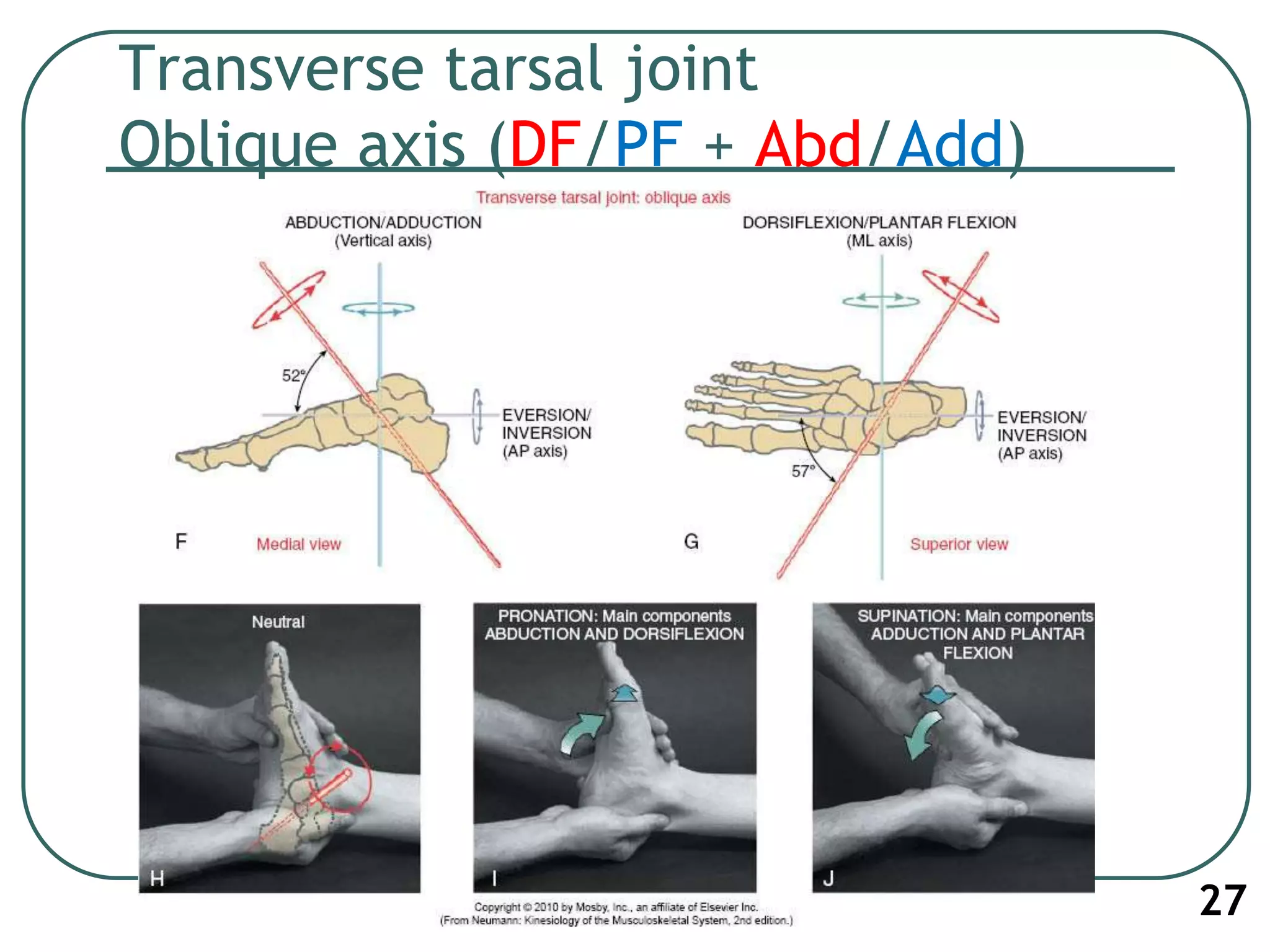

27. Transverse tarsal joint
Oblique axis (DF/PF + Abd/Add)
27

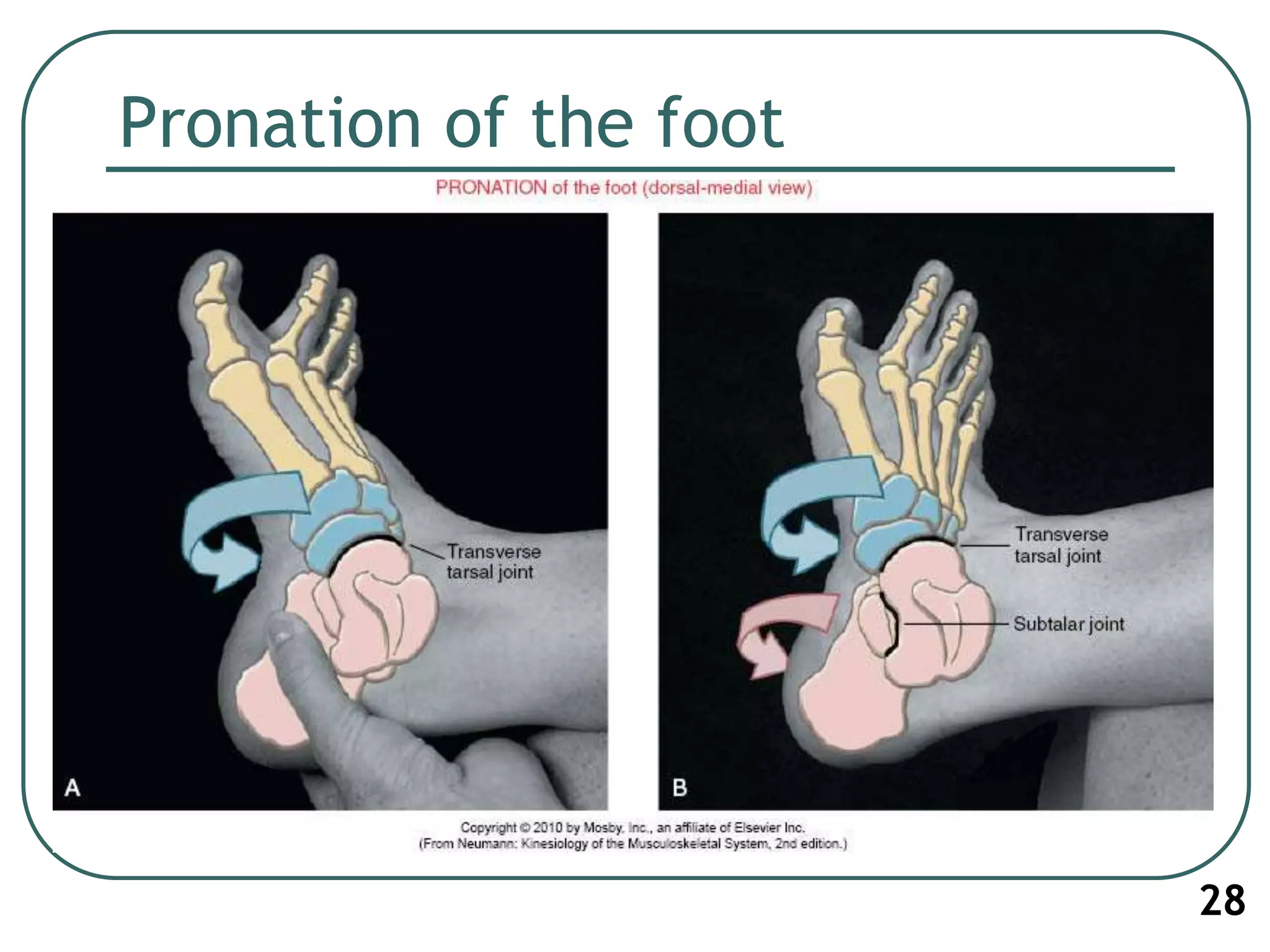

28. Pronation of the foot
28

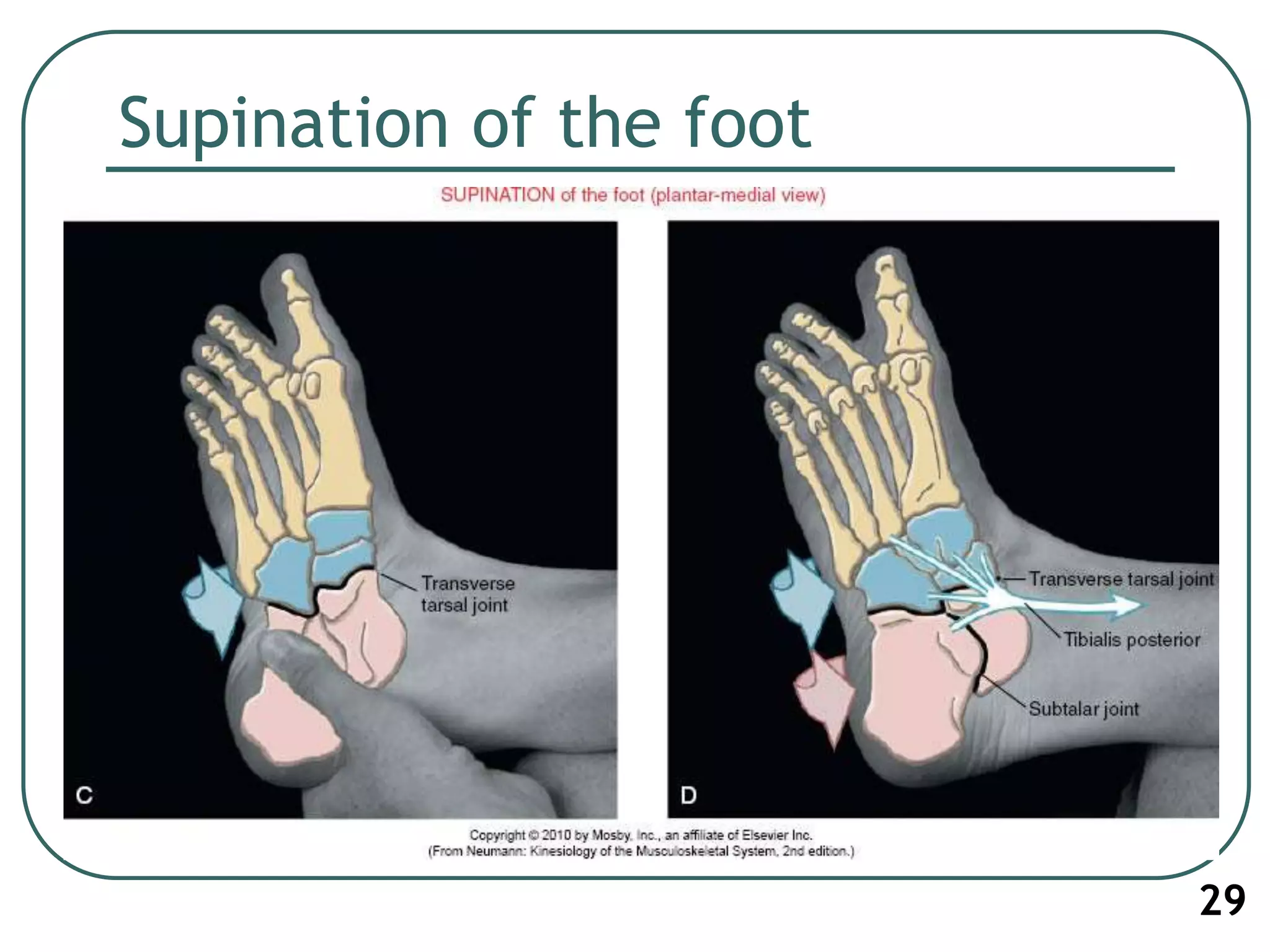

29. Supination of the foot
29

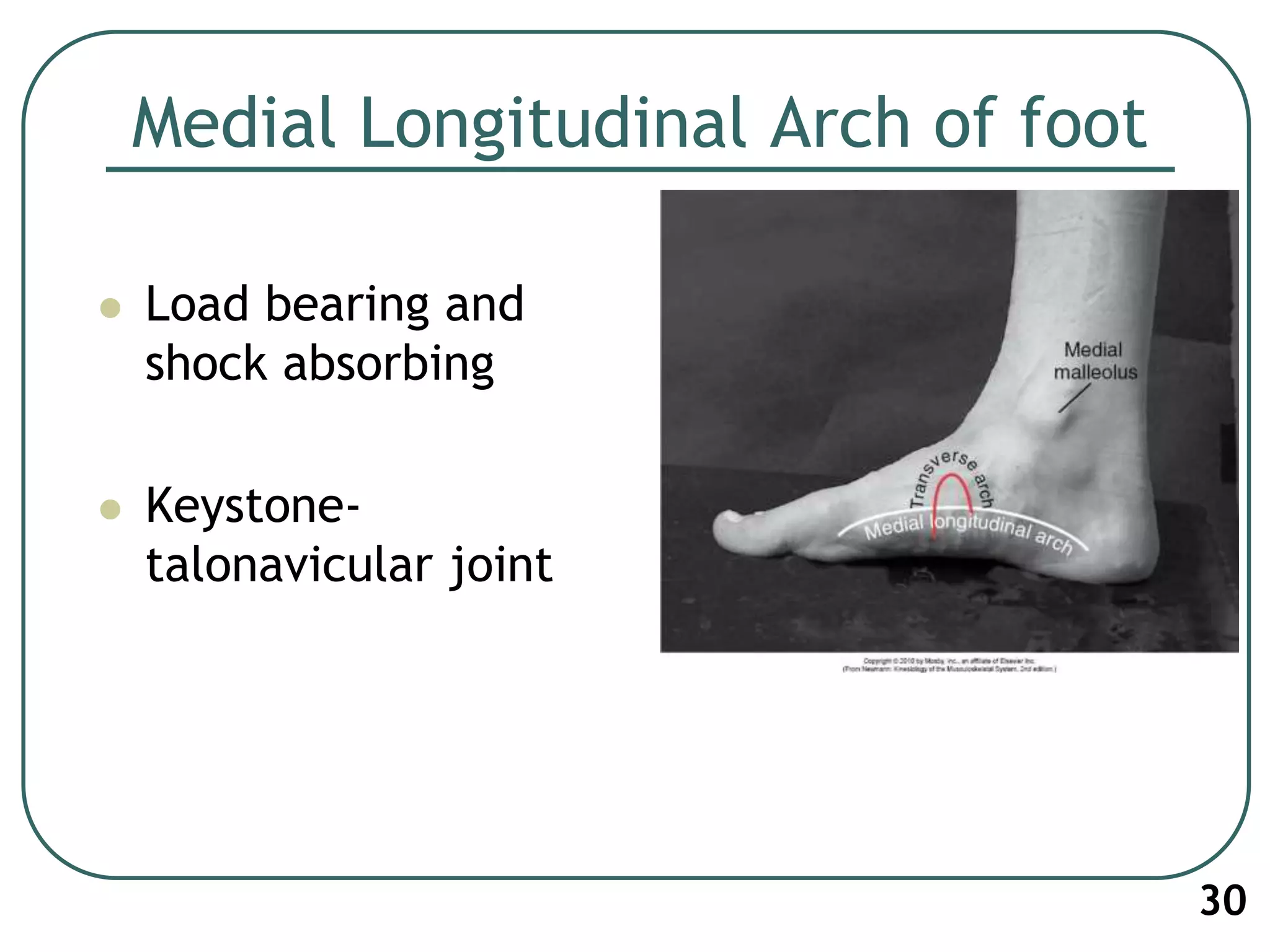

30. Medial Longitudinal Arch of foot
 Load bearing and
shock absorbing
 Keystone-
talonavicular joint
30

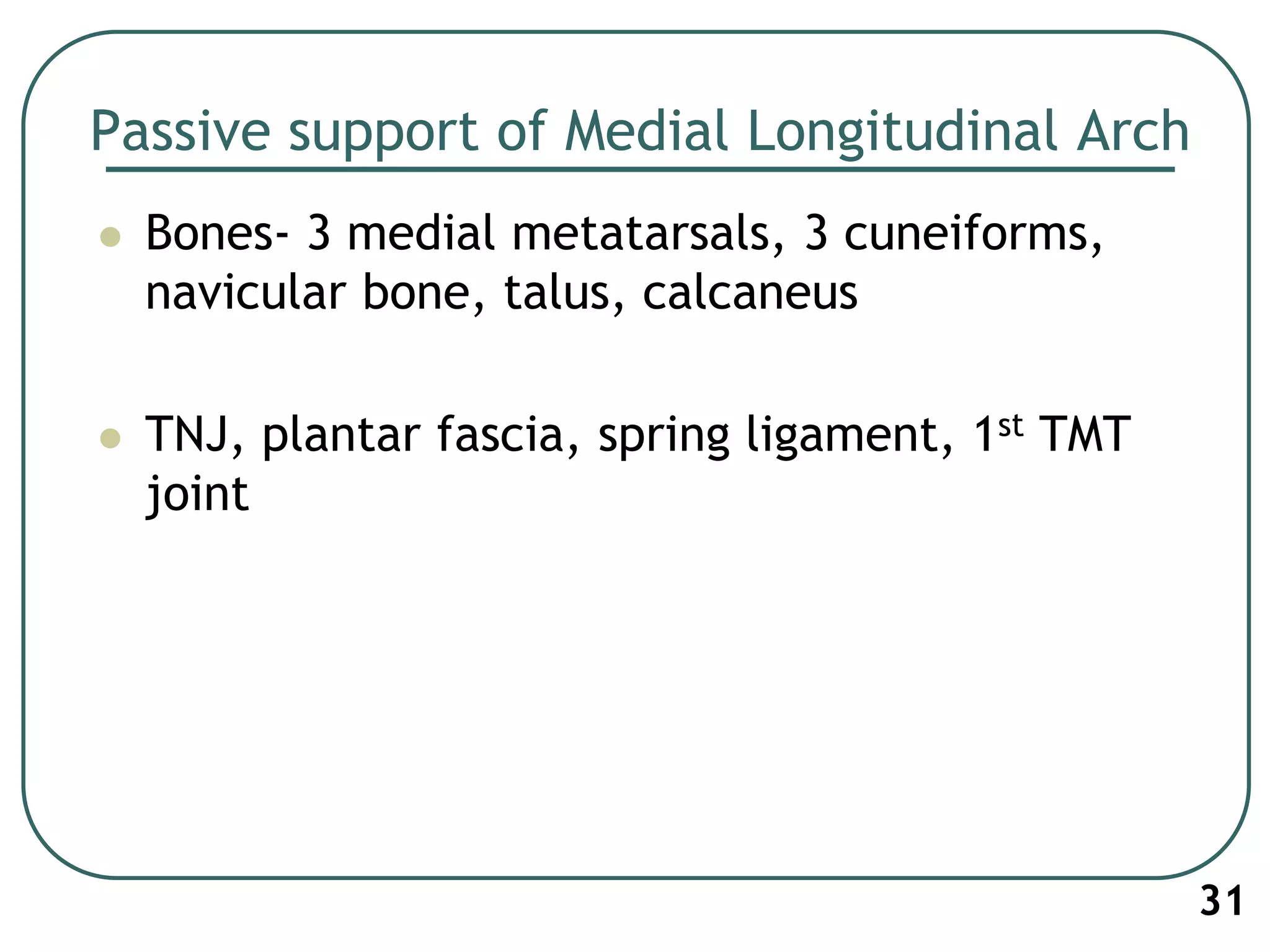

31. Passive support of Medial Longitudinal Arch
 Bones- 3 medial metatarsals, 3 cuneiforms,
navicular bone, talus, calcaneus
 TNJ, plantar fascia, spring ligament, 1st TMT
joint
31

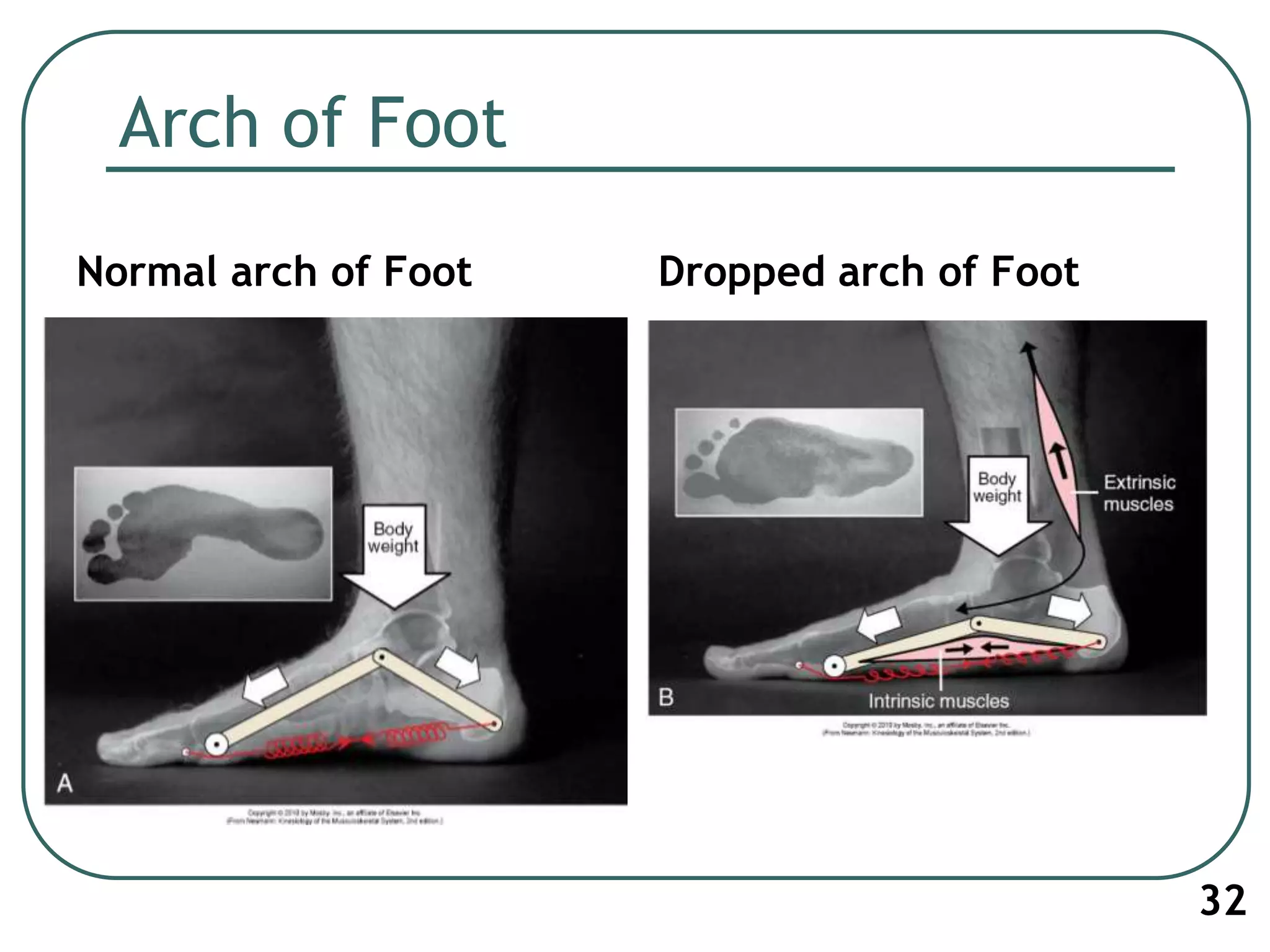

32. Arch of Foot
Normal arch of Foot Dropped arch of Foot
32

33. Pes Cavus (Increased Arch)
33

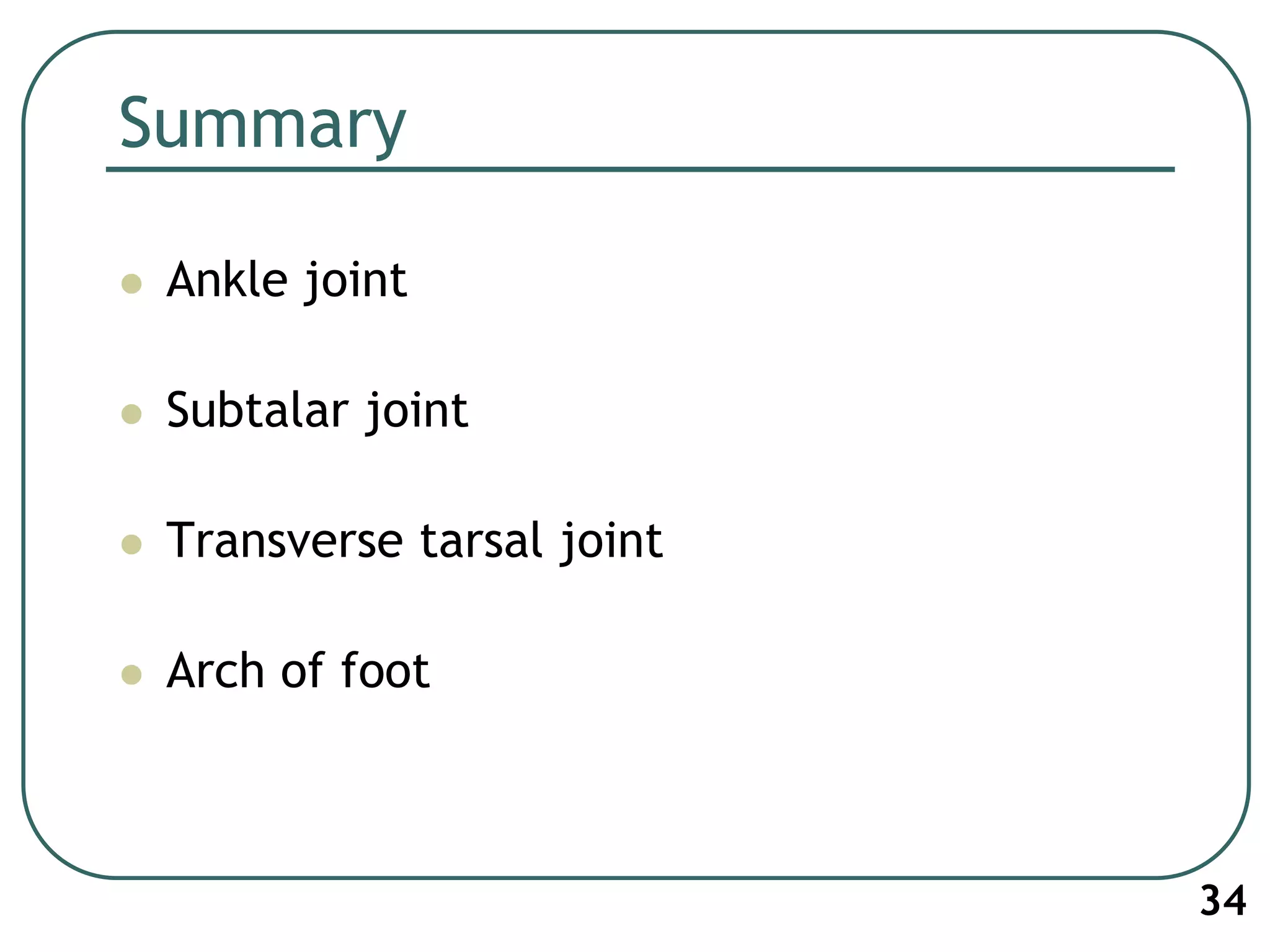

34. Summary
 Ankle joint
 Subtalar joint
 Transverse tarsal joint
 Arch of foot
34

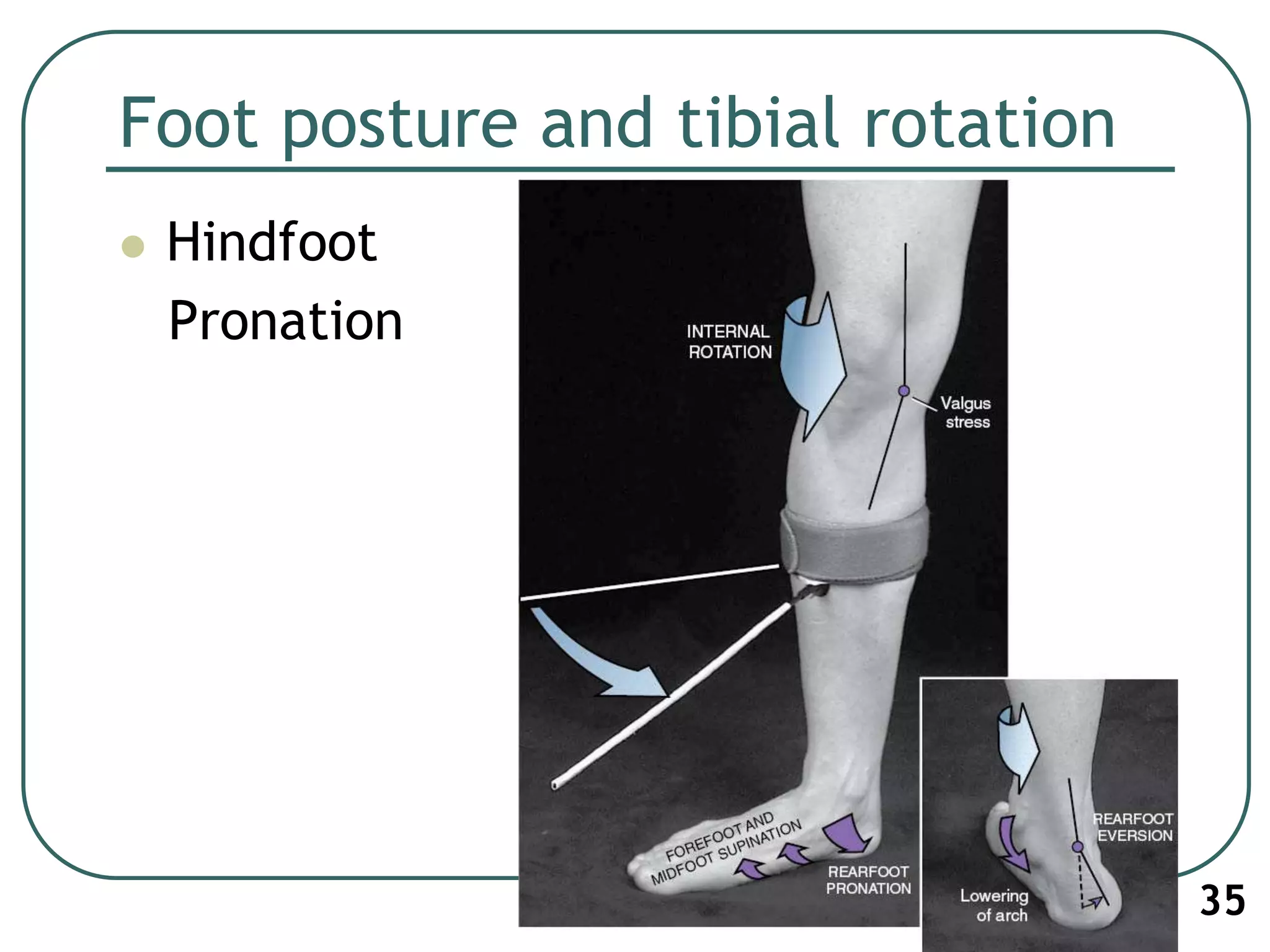

35. Foot posture and tibial rotation
 Hindfoot
Pronation
35

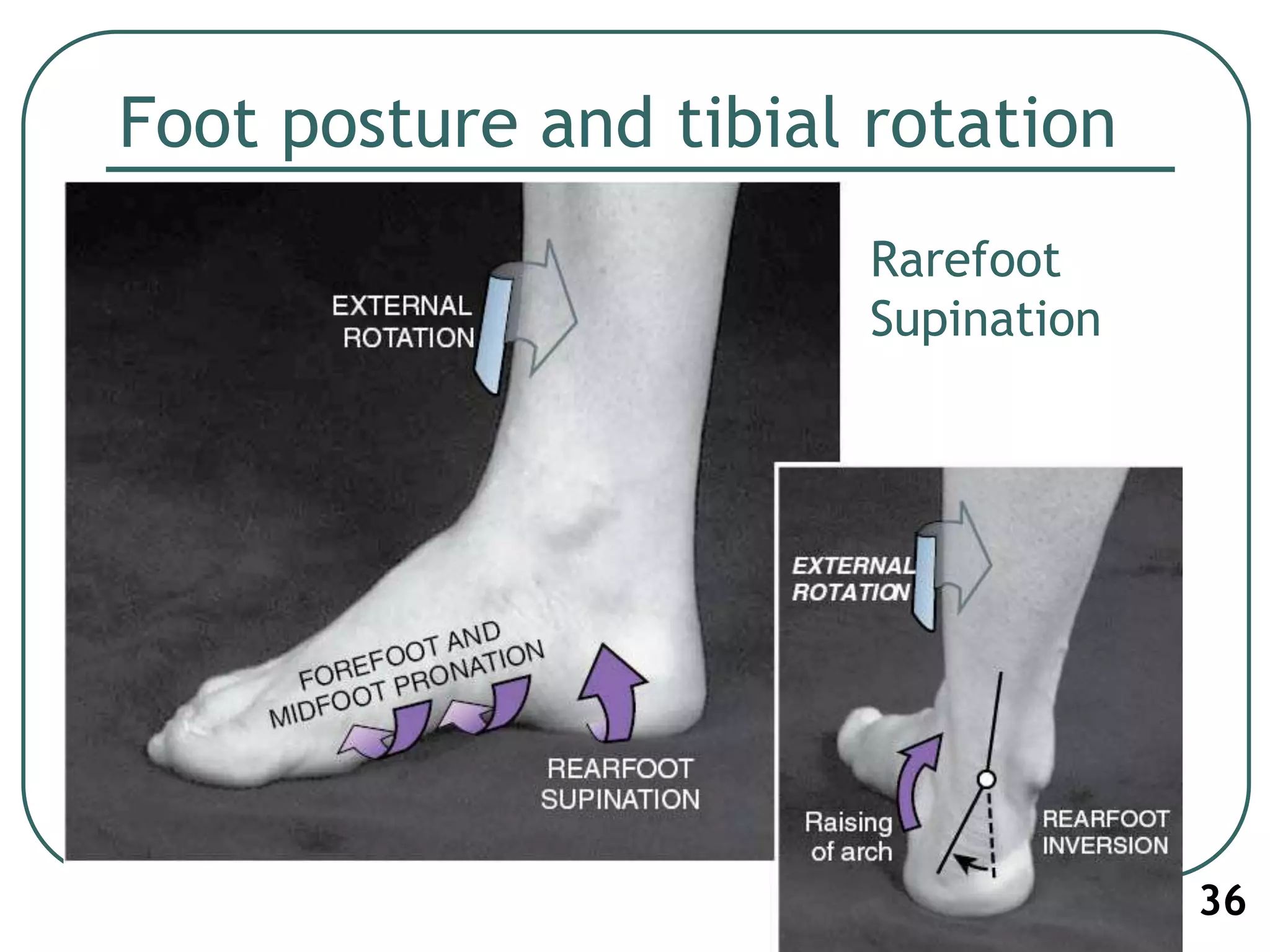

36. Foot posture and tibial rotation
36
Rarefoot
Supination

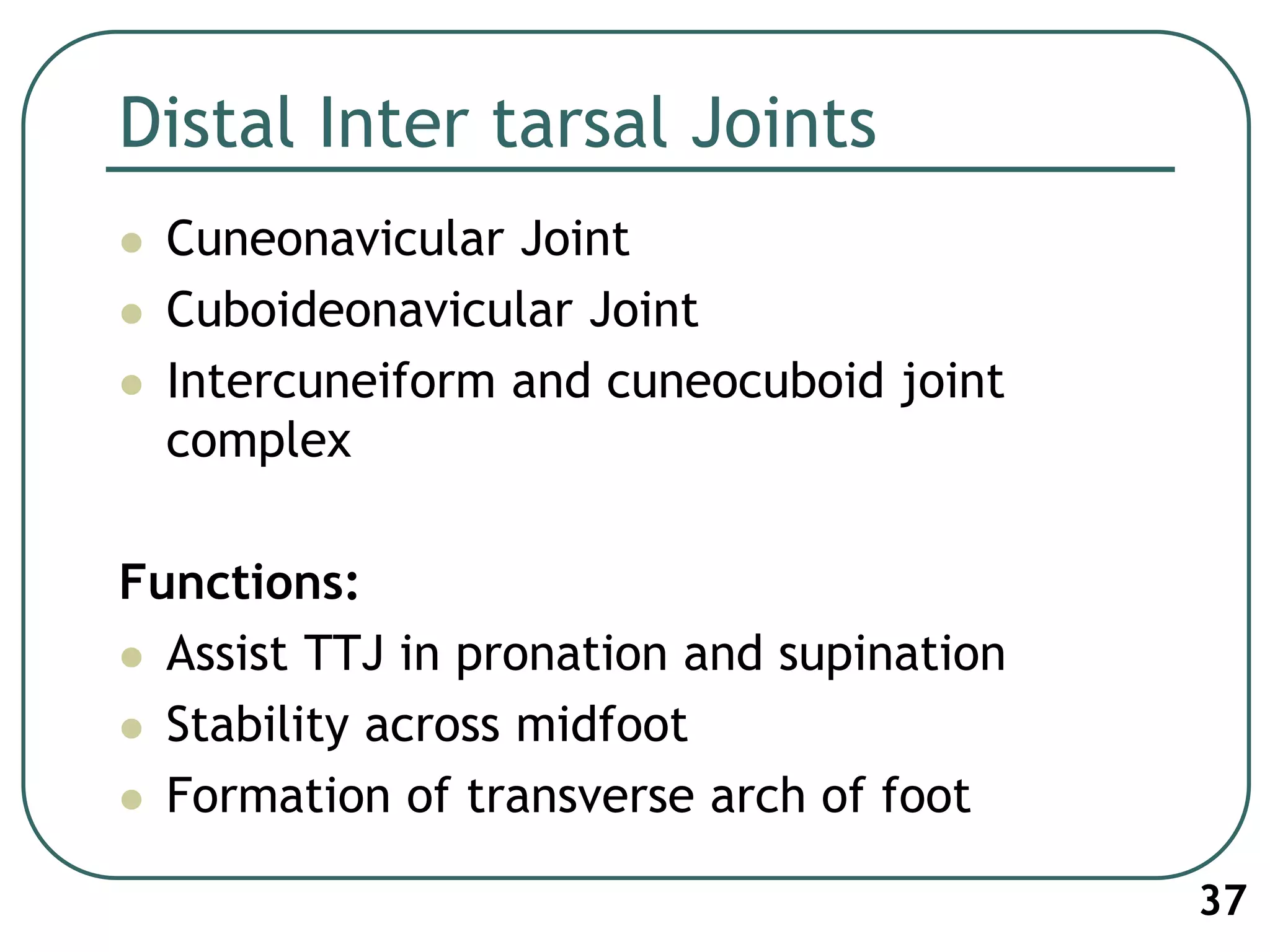

37. Distal Inter tarsal Joints
 Cuneonavicular Joint
 Cuboideonavicular Joint
 Intercuneiform and cuneocuboid joint
complex
Functions:
 Assist TTJ in pronation and supination
 Stability across midfoot
 Formation of transverse arch of foot
37

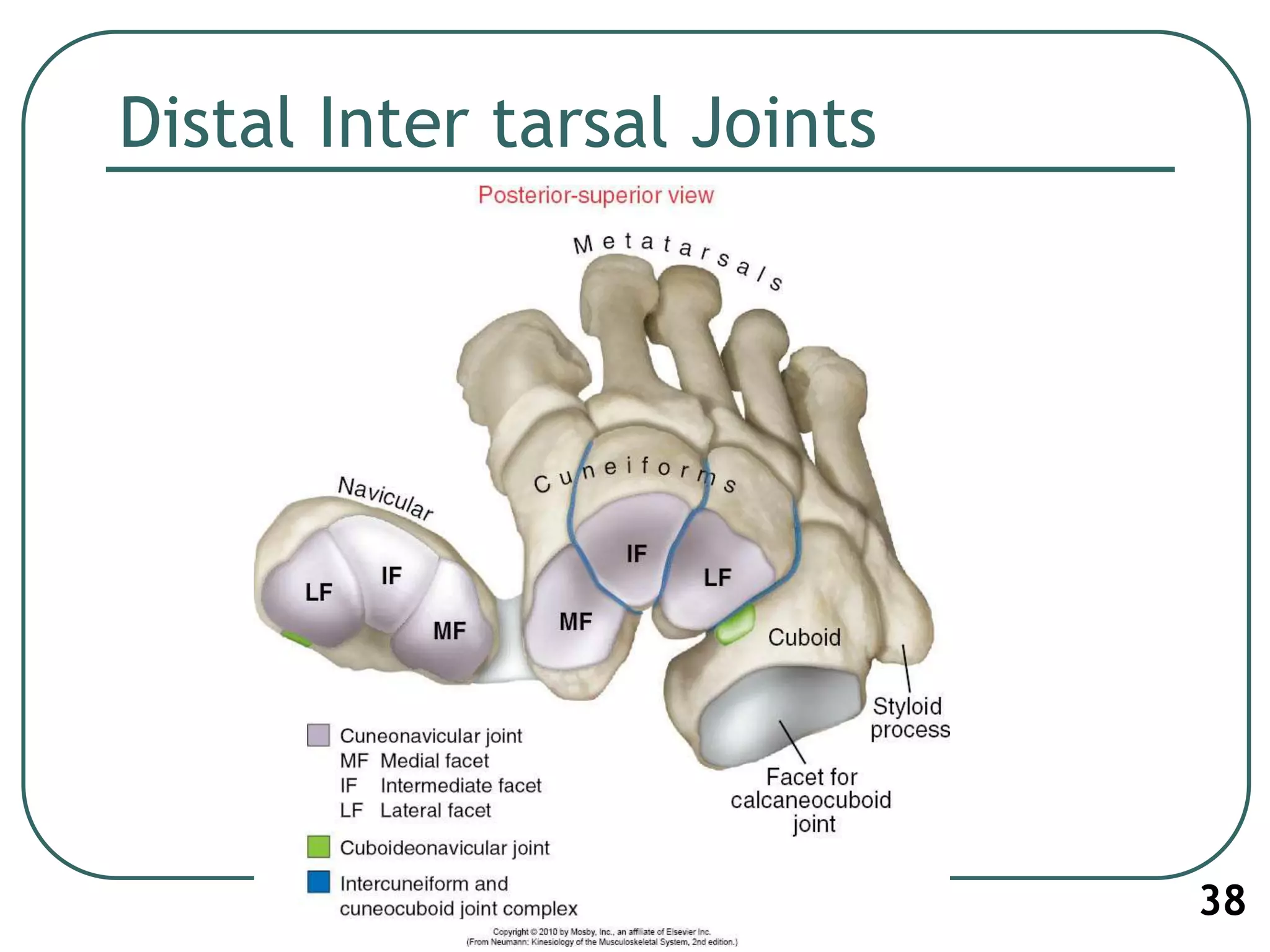

38. Distal Inter tarsal Joints
38

39. TMT joint (Lisfranc’s Joint)
 Separates forefoot and midfoot
 Base of metatarsals + distal surfaces of
cuneiform and cuboid
 Ligaments: dorsal, plantar and iterosseous
ligaments
 Capsule: well developed for 1st TMT joint
39

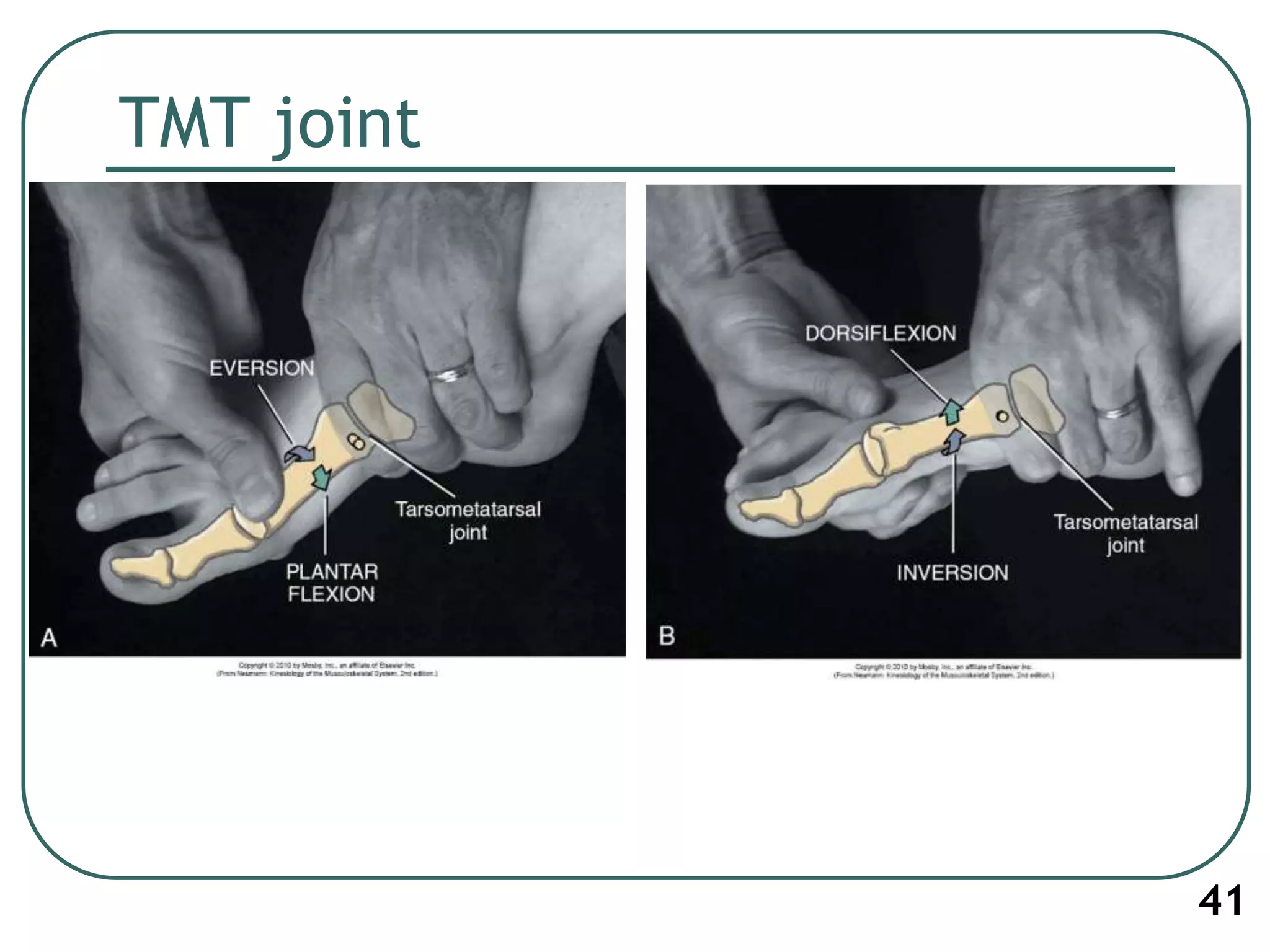

40. TMT joint
41

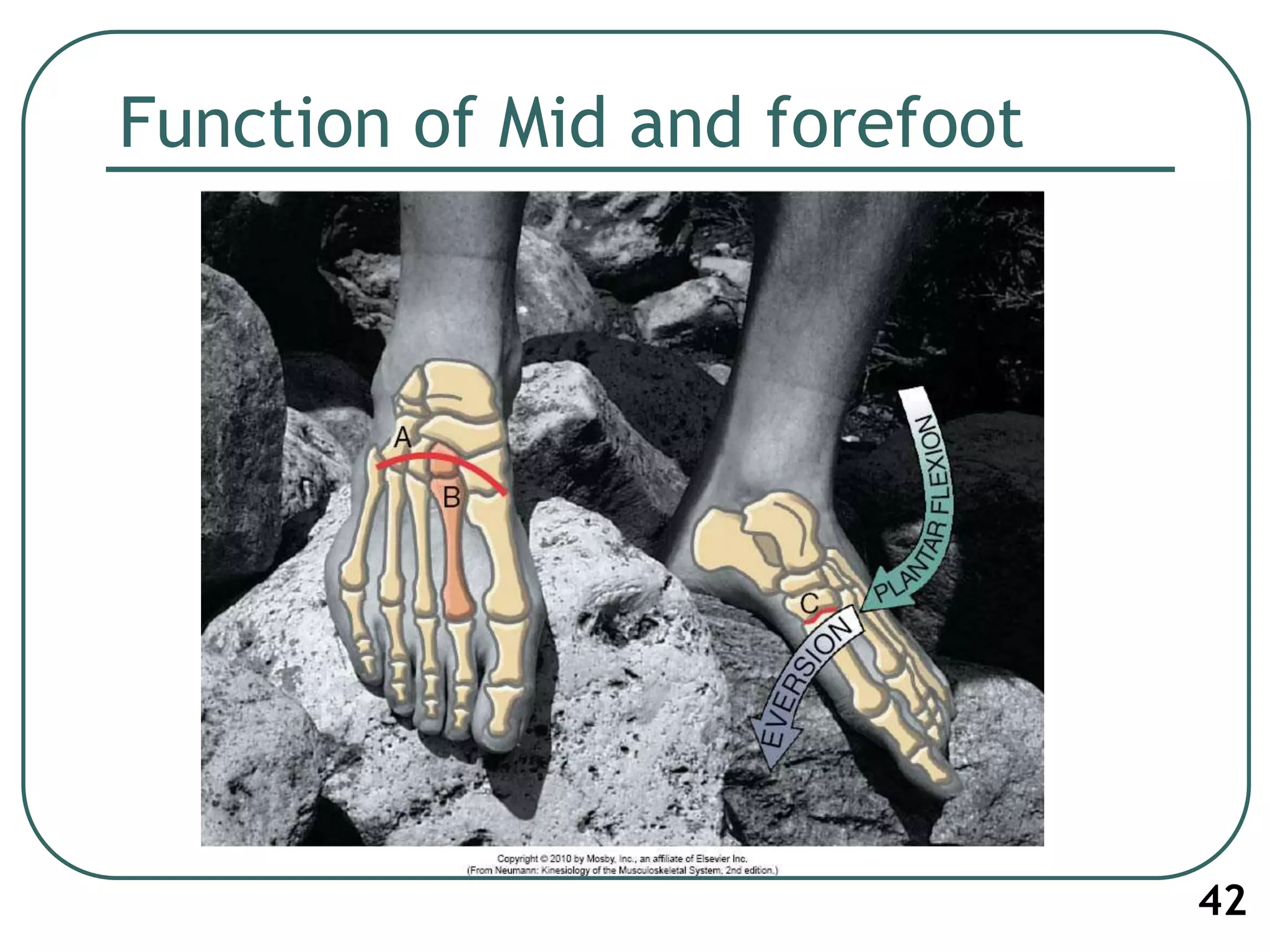

41. Function of Mid and forefoot
42

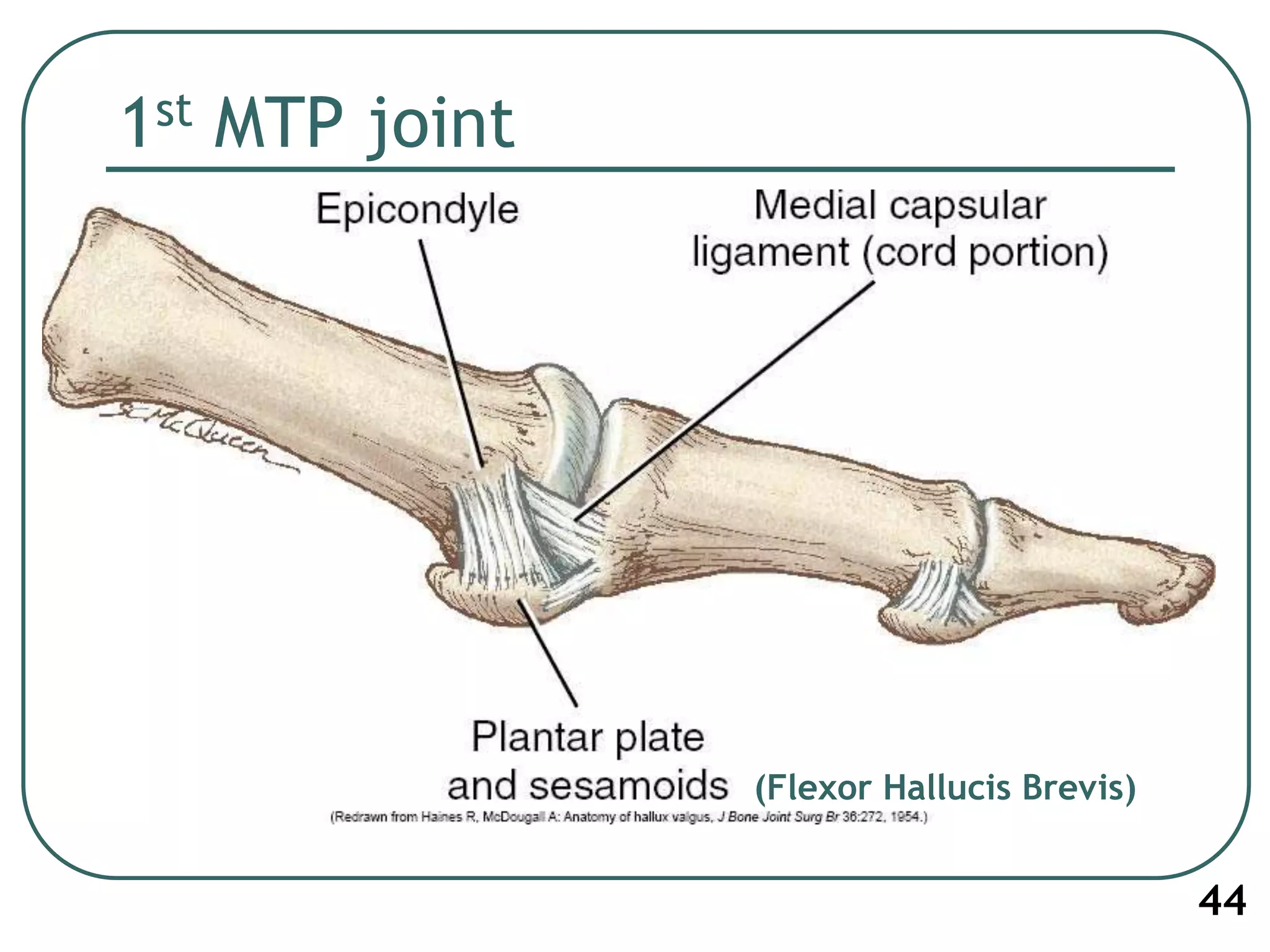

42. 1st MTP joint
44
(Flexor Hallucis Brevis)

43. Hallux Valgus
45

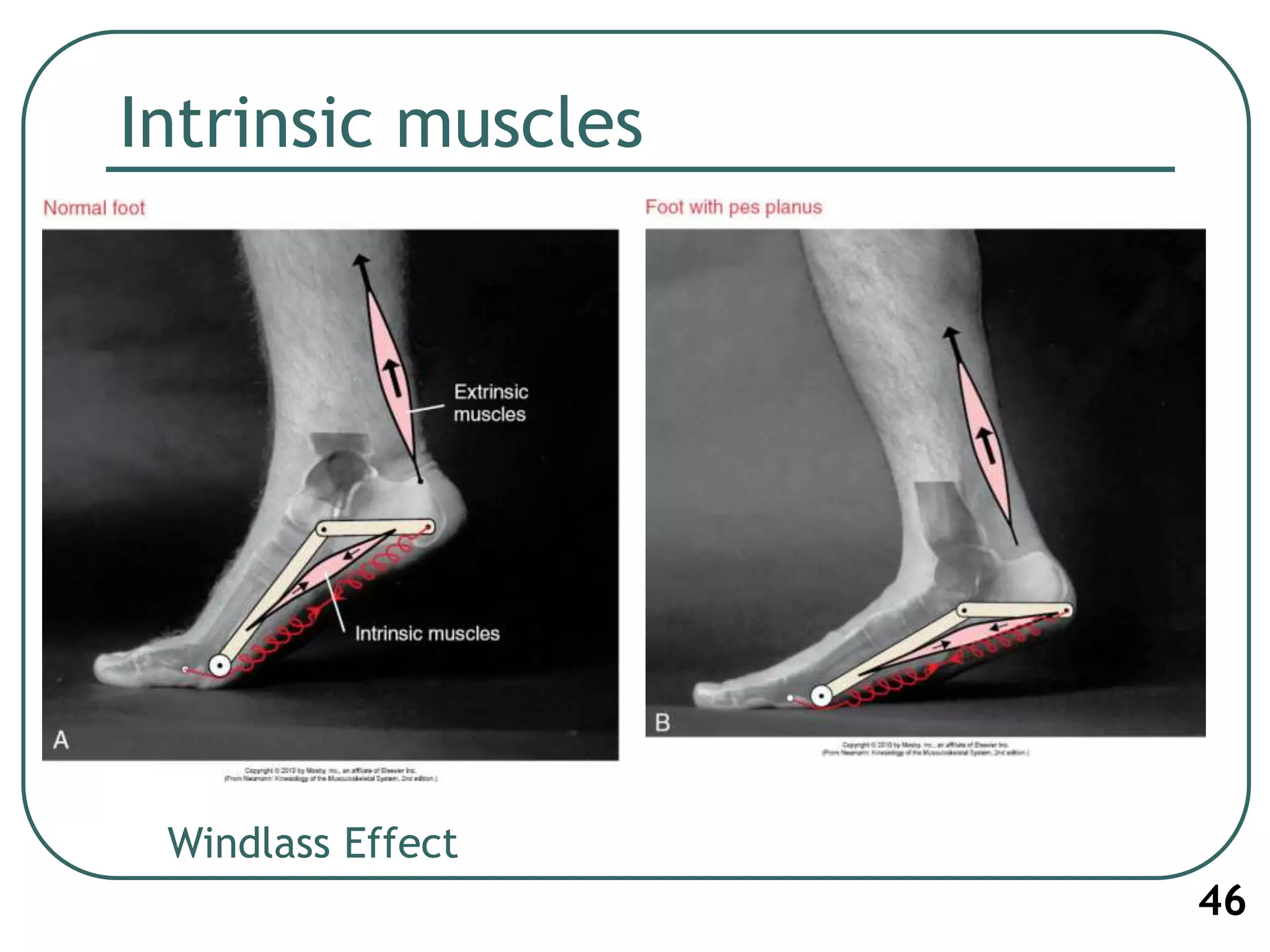

44. Intrinsic muscles
46
Windlass Effect

45. Summary!!!!
47
