08 ajax

AJAX Data Transfer
Client-Server Apps - The Easy Way

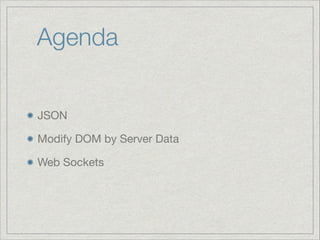

Agenda
JSON

Modify DOM by Server Data

Web Sockets

Communication
Diﬀerent systems use
diﬀerent data formats

Each platform has its
own logic

Need to decide on a
language or protocol

Requirements

What do we need from
such a protocol ?

Requirements
Wide server support

Wide client support

Easy to debug

Pass ﬁrewalls

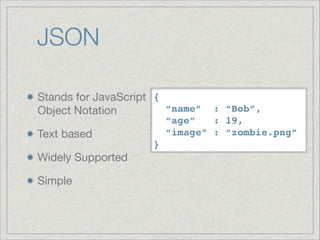

JSON
Stands for JavaScript {!
“name”
Object Notation

Text based

Widely Supported

Simple

: “Bob”,!
“age”
: 19,!
“image” : “zombie.png” 

}

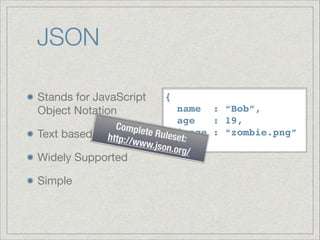

JSON
Stands for JavaScript
Object Notation

Text based

name : “Bob”,!
age
: 19,!
Comple
te Rule image : “zombie.png” 
set:
http://w
ww.jso}
n.org/

Widely Supported

Simple

{!

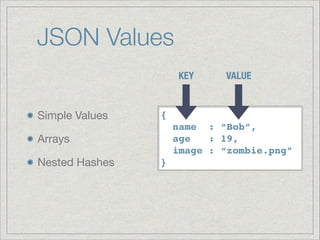

JSON Values
KEY

Simple Values

{!
name : “Bob”,!
age
: 19,!
image : “zombie.png” 

Arrays

Nested Hashes

VALUE

}

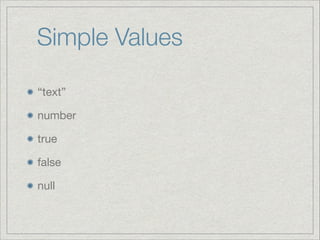

Simple Values
“text”

number

true

false

null

Arrays
A list of comma separated values enclosed in
brackets

[1, 2, 3]

[“a”, “b”, “c”]

[1, 2, [“a”, “b”], “hello”, true]

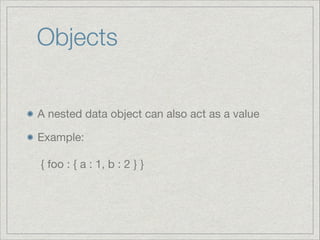

Objects
A nested data object can also act as a value

Example: 
 
{ foo : { a : 1, b : 2 } }

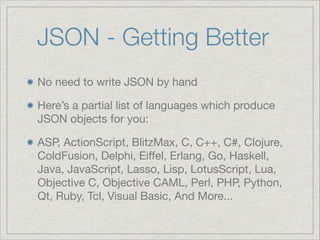

JSON - Getting Better
No need to write JSON by hand

Here’s a partial list of languages which produce
JSON objects for you:

ASP, ActionScript, BlitzMax, C, C++, C#, Clojure,
ColdFusion, Delphi, Eiﬀel, Erlang, Go, Haskell,
Java, JavaScript, Lasso, Lisp, LotusScript, Lua,
Objective C, Objective CAML, Perl, PHP, Python,
Qt, Ruby, Tcl, Visual Basic, And More...

JSON Alternatives

XML

Dedicated Format

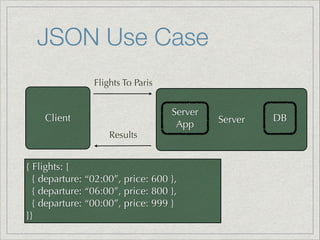

JSON Use Case
Flights To Paris

Client
Results

Server
App

{ Flights: [
{ departure: “02:00”, price: 600 },
{ departure: “06:00”, price: 800 },
{ departure: “00:00”, price: 999 }
]}

Server

DB

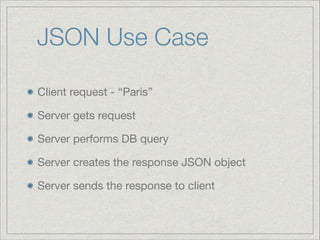

JSON Use Case
Client request - “Paris”

Server gets request

Server performs DB query

Server creates the response JSON object

Server sends the response to client

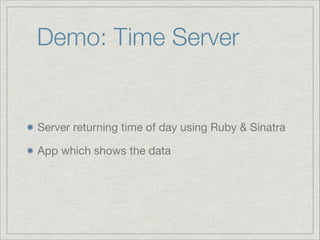

Demo: Time Server

Server returning time of day using Ruby & Sinatra

App which shows the data

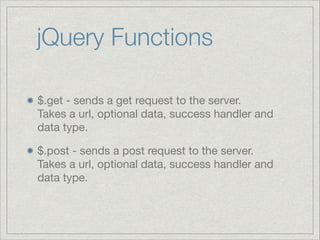

jQuery Functions
$.get - sends a get request to the server.  
Takes a url, optional data, success handler and
data type.

$.post - sends a post request to the server.  
Takes a url, optional data, success handler and
data type.

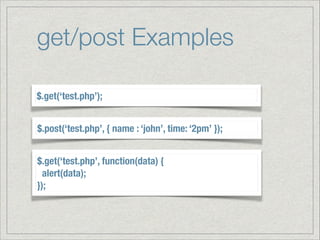

get/post Examples
$.get(‘test.php’);
$.post(‘test.php’, { name : ‘john’, time: ‘2pm’ });
$.get(‘test.php’, function(data) {
alert(data); 
});

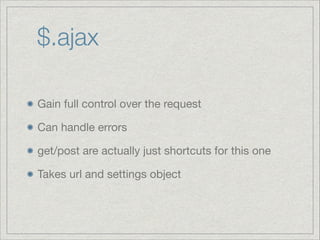

$.ajax
Gain full control over the request

Can handle errors

get/post are actually just shortcuts for this one

Takes url and settings object

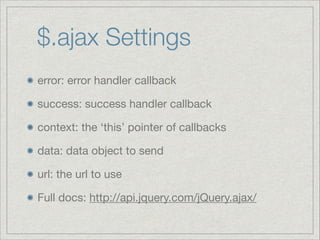

$.ajax Settings
error: error handler callback

success: success handler callback

context: the ‘this’ pointer of callbacks

data: data object to send

url: the url to use

Full docs: http://api.jquery.com/jQuery.ajax/

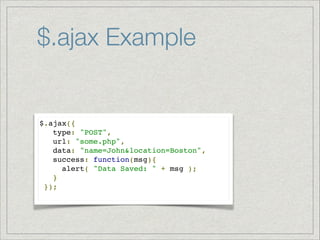

$.ajax Example

$.ajax({!
type: "POST",!
url: "some.php",!
data: "name=John&location=Boston",!
success: function(msg){!
alert( "Data Saved: " + msg );!
}!
});!

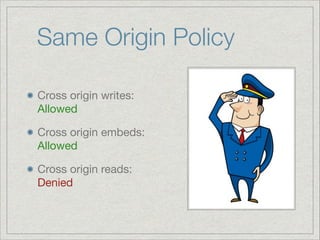

Same Origin Policy
Cross origin writes:
Allowed

Cross origin embeds:  
Allowed

Cross origin reads: 
Denied

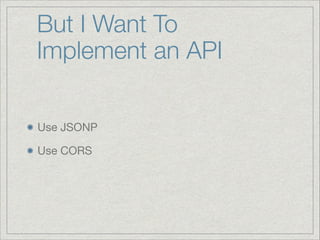

But I Want To
Implement an API
Use JSONP

Use CORS

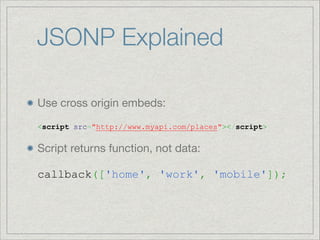

JSONP Explained
Use cross origin embeds: 
 

<script src="http://www.myapi.com/places"></script>

Script returns function, not data: 
 
callback(['home', 'work', 'mobile']);

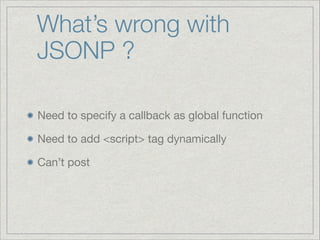

What’s wrong with
JSONP ?
Need to specify a callback as global function

Need to add <script> tag dynamically

Can’t post

CORS Goal

Diﬀerentiate good cross origin request from a
malicious one

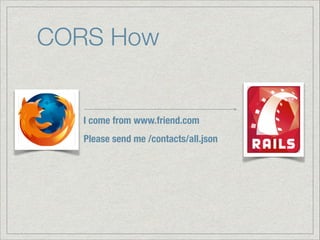

CORS How

I come from www.friend.com
Please send me /contacts/all.json

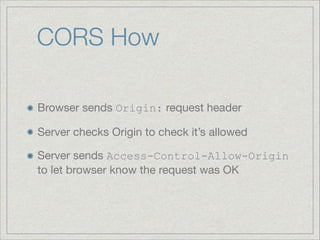

CORS How
Browser sends Origin: request header

Server checks Origin to check it’s allowed

Server sends Access-Control-Allow-Origin
to let browser know the request was OK

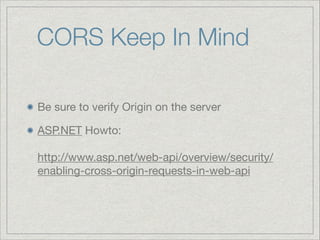

CORS Keep In Mind
Be sure to verify Origin on the server

ASP.NET Howto: 
 
http://www.asp.net/web-api/overview/security/
enabling-cross-origin-requests-in-web-api

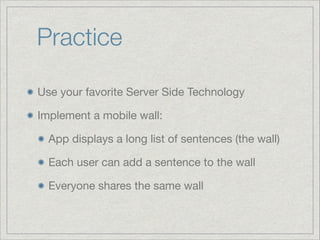

Practice
Use your favorite Server Side Technology

Implement a mobile wall:

App displays a long list of sentences (the wall)

Each user can add a sentence to the wall

Everyone shares the same wall

Handlebar
Mustache
JS Templating lib that rocks

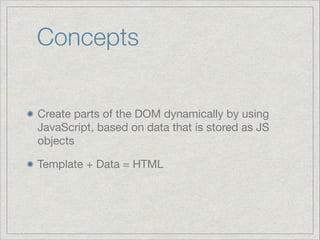

Concepts
Create parts of the DOM dynamically by using
JavaScript, based on data that is stored as JS
objects

Template + Data = HTML

Use Cases
Data is collected from
the server

Data is retrieved form
local storage

Data is aggregated
from multiple sources

Translations
http://loveandasandwich.deviantart.com/art/MustacheMonsterssss-201209873

Selected Libraries
mustache.js

handlebars

ejs

pure.js

underscore.js

And many more...

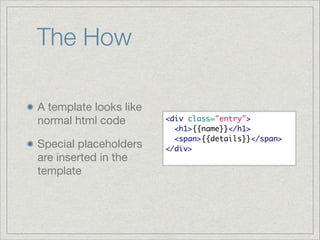

The How
A template looks like
normal html code

Special placeholders
are inserted in the
template

<div class="entry">
<h1>{{name}}</h1>
<span>{{details}}</span>
</div>

The How
Each template is
rendered with a
context.

The context is a
JavaScript object that
provides values for the
placeholders

{
name: "Jimmy Jones",
details: "A friend of Ghandi"
}

Combined
<div class="entry">
  <h1>{{name}}</h1>
  <span>{{details}}</span>
</div>

+

{
  name: "Jimmy Jones",
  details: "A friend of Ghandi"
}

<div class="entry">
  <h1>Jimmy Jones</h1>
  <span> A friend of Ghandi </span>
</div>

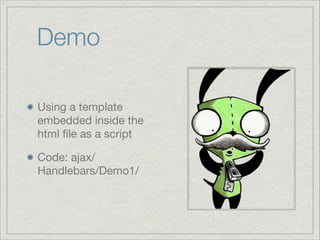

Demo
Using a template
embedded inside the
html ﬁle as a script

Code: ajax/
Handlebars/Demo1/

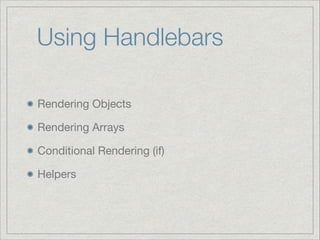

Using Handlebars
Rendering Objects

Rendering Arrays

Conditional Rendering (if)

Helpers

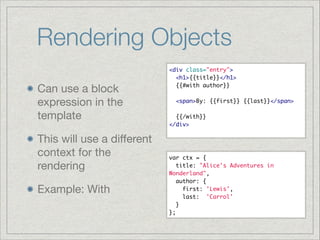

Rendering Objects
Can use a block
expression in the
template

This will use a diﬀerent
context for the
rendering

Example: With

<div class="entry">
  <h1>{{title}}</h1>
  {{#with author}}

!
  <span>By: {{first}} {{last}}</span>

!
  {{/with}}
</div>

var ctx = {
  title: "Alice's Adventures in
Wonderland",
  author: {
    first: 'Lewis',
    last: 'Carrol'
  }
};

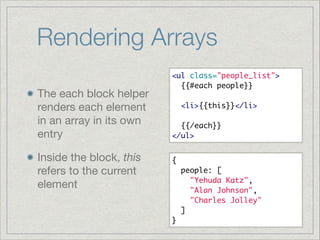

Rendering Arrays
The each block helper
renders each element
in an array in its own
entry

Inside the block, this
refers to the current
element

<ul class="people_list">
  {{#each people}}
!
  <li>{{this}}</li>
!
  {{/each}}
</ul>
{
  people: [
    "Yehuda Katz",
    "Alan Johnson",
    "Charles Jolley"
  ]
}

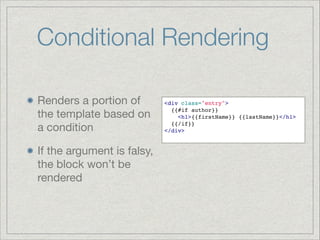

Conditional Rendering
Renders a portion of
the template based on
a condition

If the argument is falsy,
the block won’t be
rendered

<div class="entry">!
  {{#if author}}!
    <h1>{{firstName}} {{lastName}}</h1>!
  {{/if}}!
</div>!

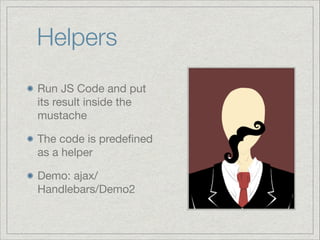

Helpers
Run JS Code and put
its result inside the
mustache

The code is predeﬁned
as a helper

Demo: ajax/
Handlebars/Demo2

Demo: Handlebars data
from server

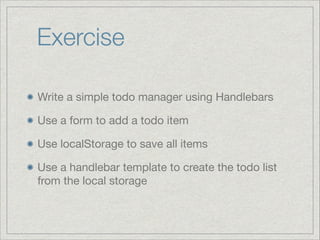

Exercise
Write a simple todo manager using Handlebars

Use a form to add a todo item

Use localStorage to save all items

Use a handlebar template to create the todo list
from the local storage

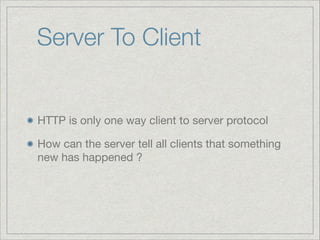

Server To Client

HTTP is only one way client to server protocol

How can the server tell all clients that something
new has happened ?

Server To Client
Client frequent
refreshes

Web Comet

Coined as a play on
Ajax

Web Sockets
Demo:
http://rumpetroll.com/

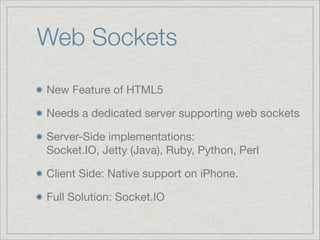

Web Sockets
New Feature of HTML5

Needs a dedicated server supporting web sockets

Server-Side implementations: 
Socket.IO, Jetty (Java), Ruby, Python, Perl

Client Side: Native support on iPhone.

Full Solution: Socket.IO

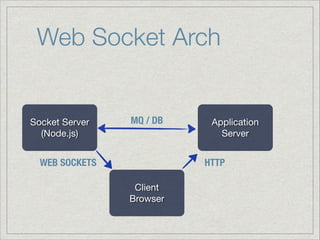

Web Socket Arch

Socket Server

(Node.js)

MQ / DB

WEB SOCKETS

Application
Server

HTTP
Client

Browser

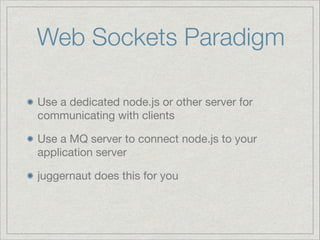

Web Sockets Paradigm
Use a dedicated node.js or other server for
communicating with clients

Use a MQ server to connect node.js to your
application server

juggernaut does this for you

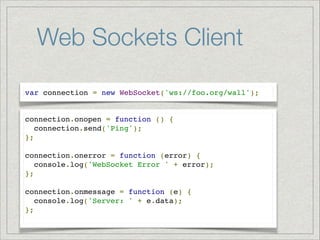

Web Sockets Client
var connection = new WebSocket('ws://foo.org/wall');

connection.onopen = function () {!
connection.send('Ping'); !
};!
!
connection.onerror = function (error) {!
console.log('WebSocket Error ' + error);!
};!
!
connection.onmessage = function (e) {!
console.log('Server: ' + e.data);!
};!

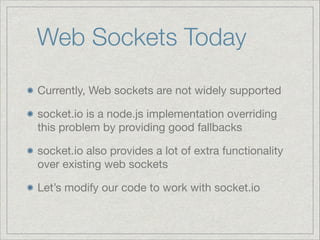

Web Sockets Today
Currently, Web sockets are not widely supported

socket.io is a node.js implementation overriding
this problem by providing good fallbacks

socket.io also provides a lot of extra functionality
over existing web sockets

Let’s modify our code to work with socket.io

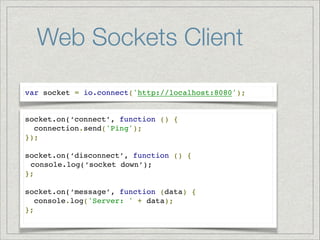

Web Sockets Client
var socket = io.connect('http://localhost:8080');

socket.on(‘connect’, function () {!
connection.send('Ping'); !
});!
!
socket.on(‘disconnect’, function () {!
console.log(‘socket down’);!
};!
!
socket.on(‘message’, function (data) {!
console.log('Server: ' + data);!
};!

Thank You

Ynon Perek

ynonperek@yahoo.com

ynonperek.com
