1. C++/Qt Design
Patterns
Ynon Perek
ynon@ynonperek.com
http://ynonperek.com
Sunday, May 5, 13

2. Good Code Bad Code
Sunday, May 5, 13

3. When OO
Goes Wrong
Sunday, May 5, 13

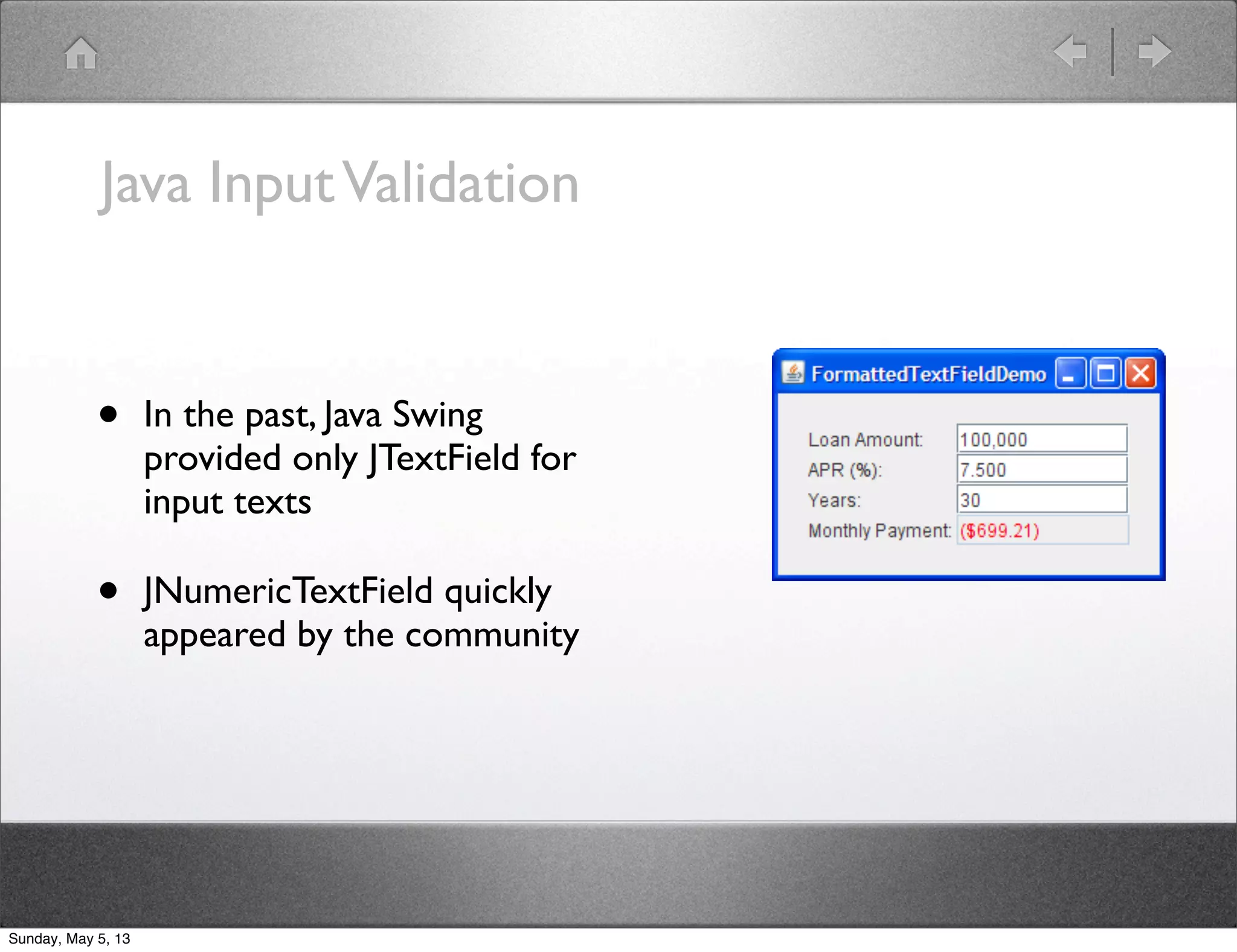

4. Java InputValidation
• In the past, Java Swing
provided only JTextField for
input texts
• JNumericTextField quickly
appeared by the community
Sunday, May 5, 13

5. Java InputValidation
Sunday, May 5, 13

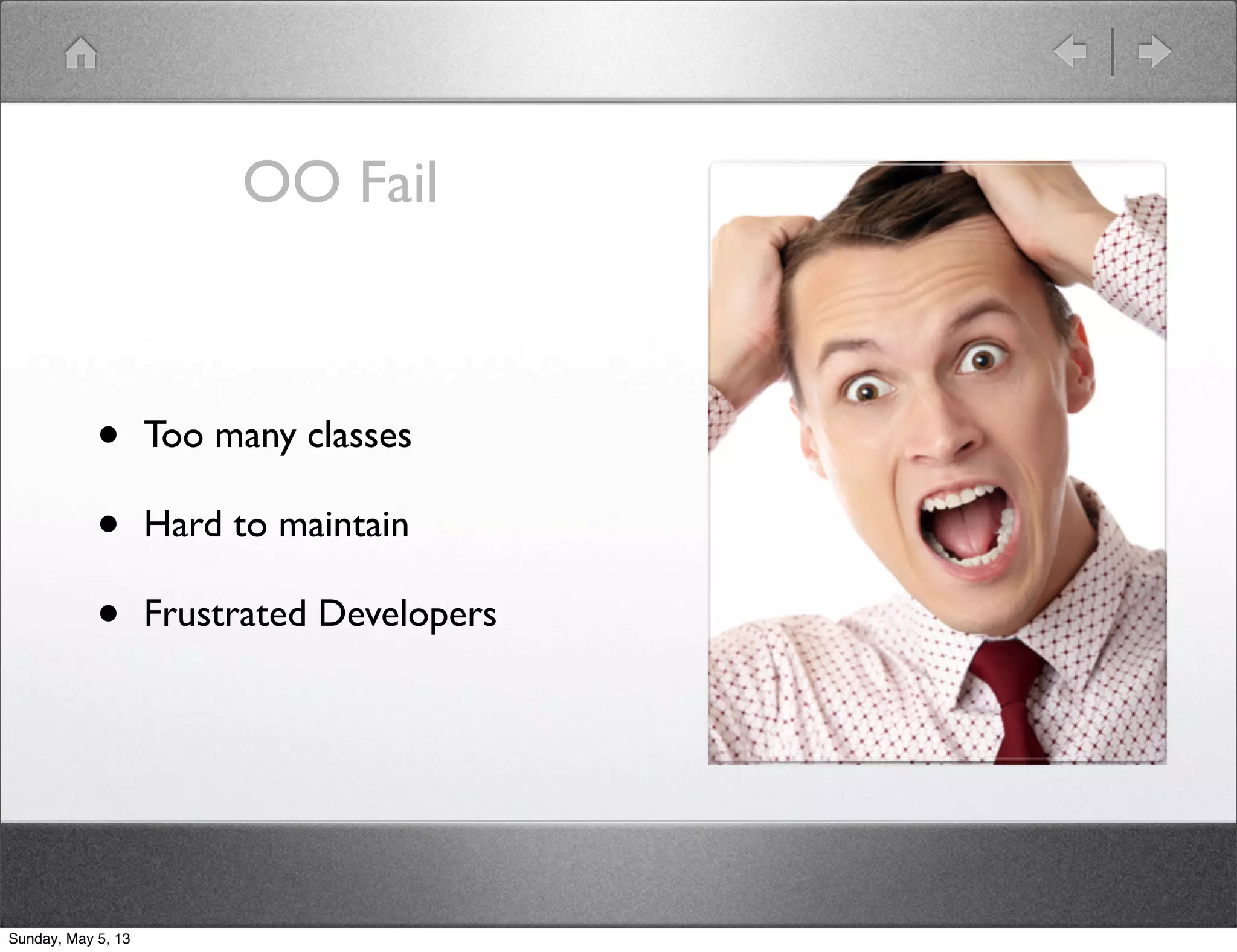

6. OO Fail
• Too many classes
• Hard to maintain
• Frustrated Developers
Sunday, May 5, 13

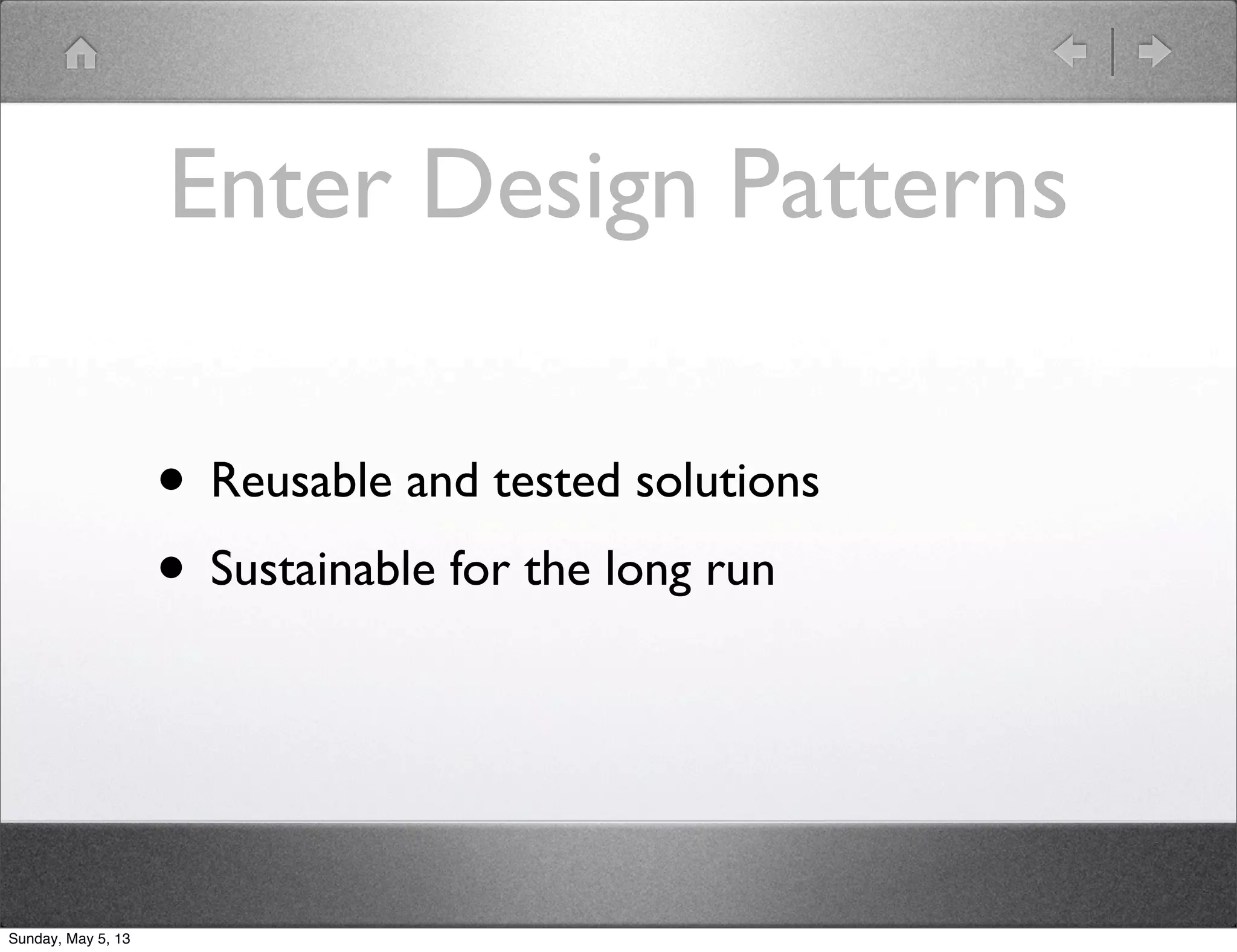

7. Enter Design Patterns
• Reusable and tested solutions
• Sustainable for the long run
Sunday, May 5, 13

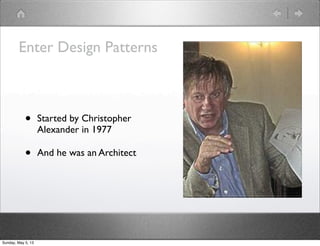

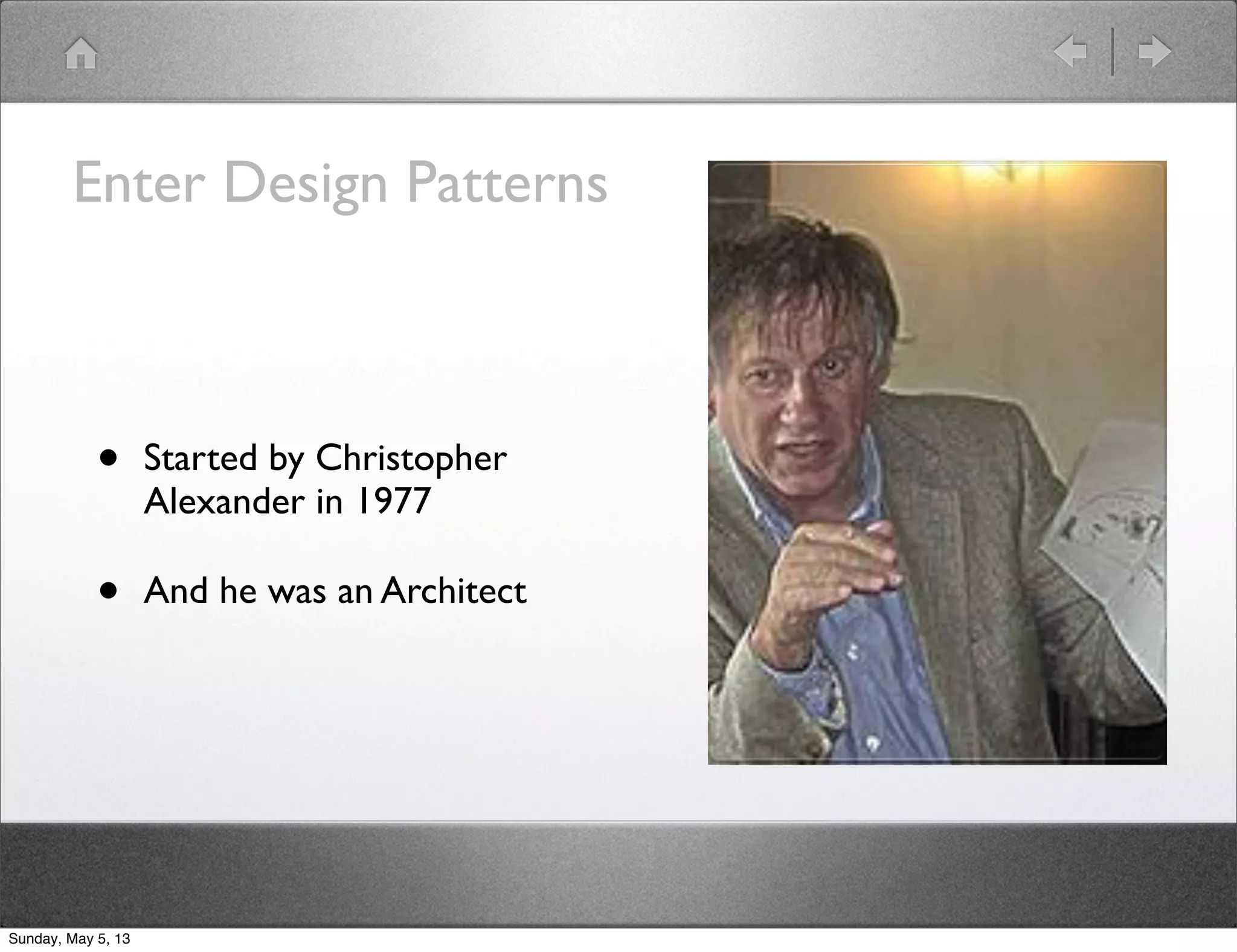

8. Enter Design Patterns
• Started by Christopher
Alexander in 1977
• And he was an Architect
Sunday, May 5, 13

9. Example: Street Caffe
“The street cafe
provides a unique
setting, special to
cities: a place where
people can sit lazily,
legitimately, be on
view, and watch the
world go by...”
Sunday, May 5, 13

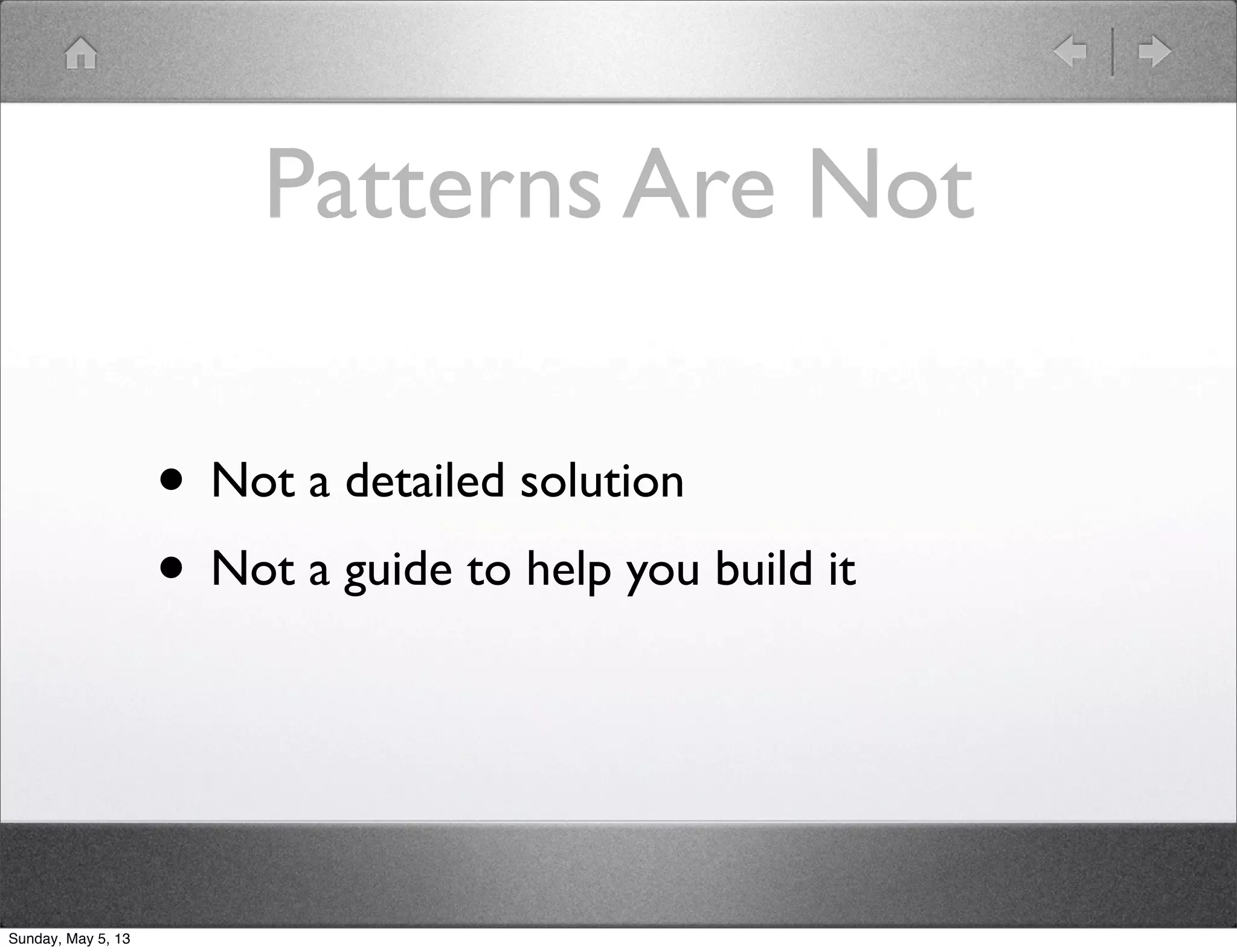

10. Patterns Are Not
• Not a detailed solution
• Not a guide to help you build it
Sunday, May 5, 13

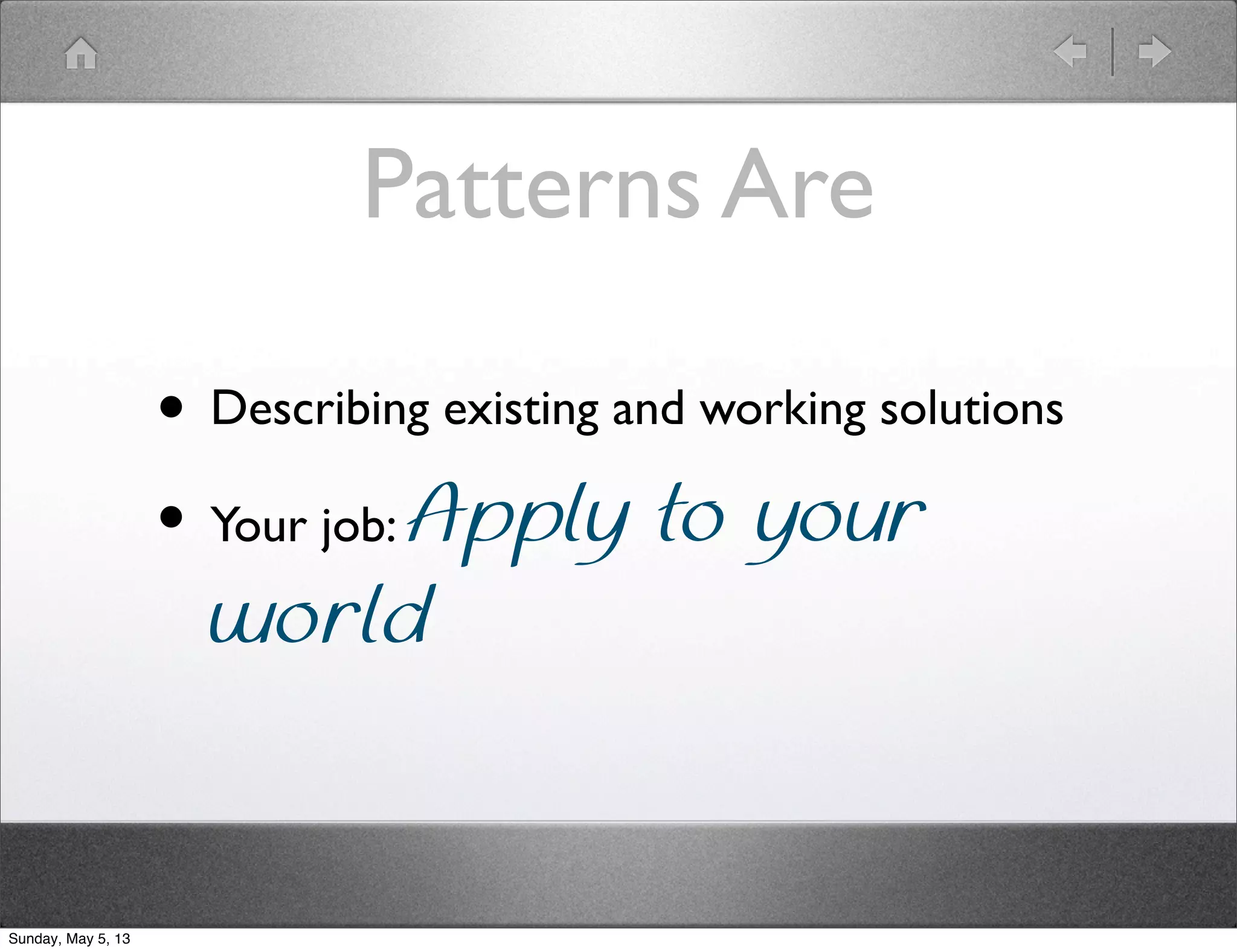

11. Patterns Are
• Describing existing and working solutions
• Your job: Apply to your
world
Sunday, May 5, 13

12. Patterns In Software
• Defined by GoF
• Categorized:
• Creational
• Behavioral
• Structural
Sunday, May 5, 13

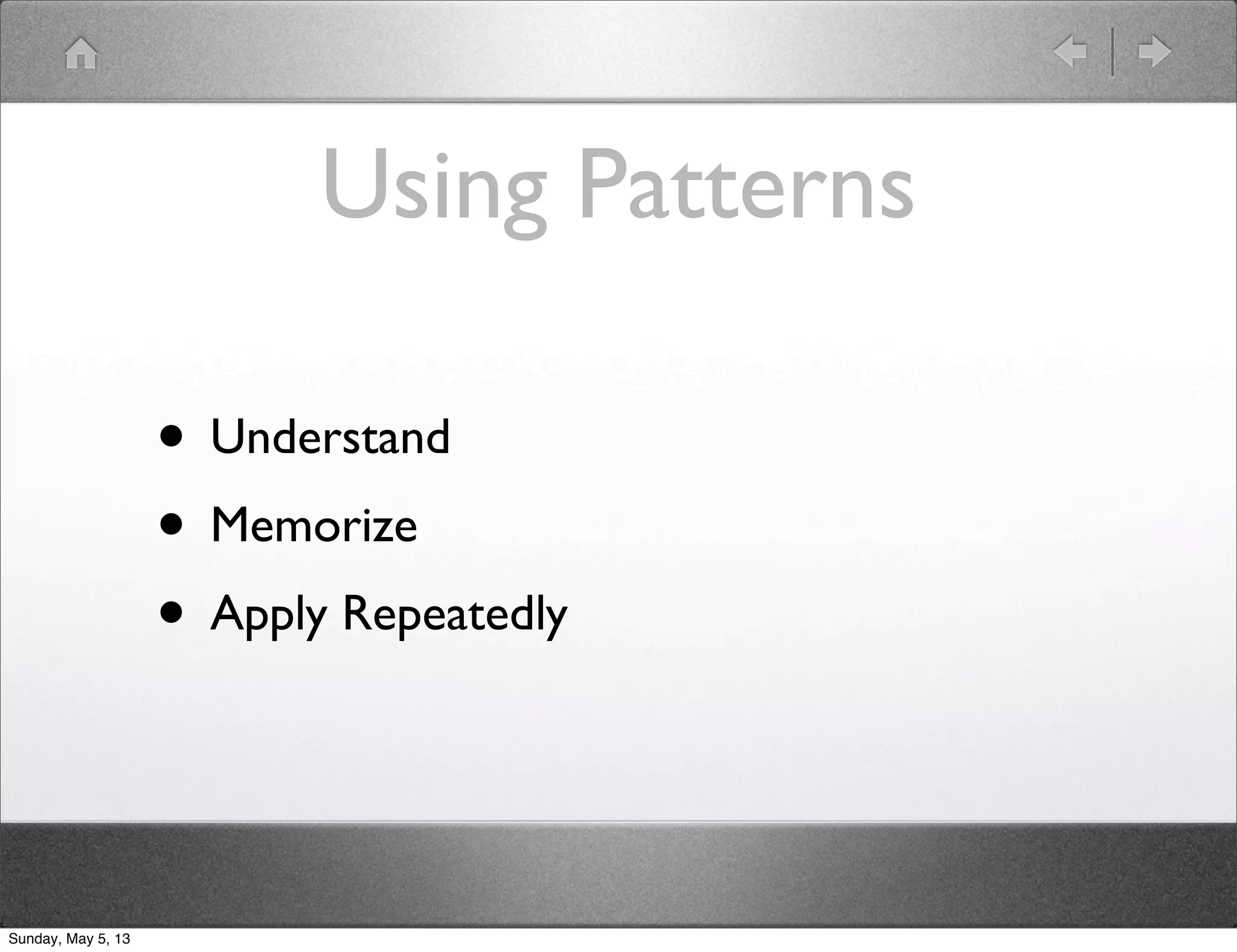

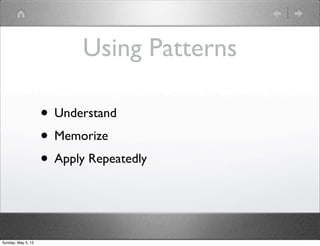

13. Using Patterns
• Understand
• Memorize
• Apply Repeatedly
Sunday, May 5, 13

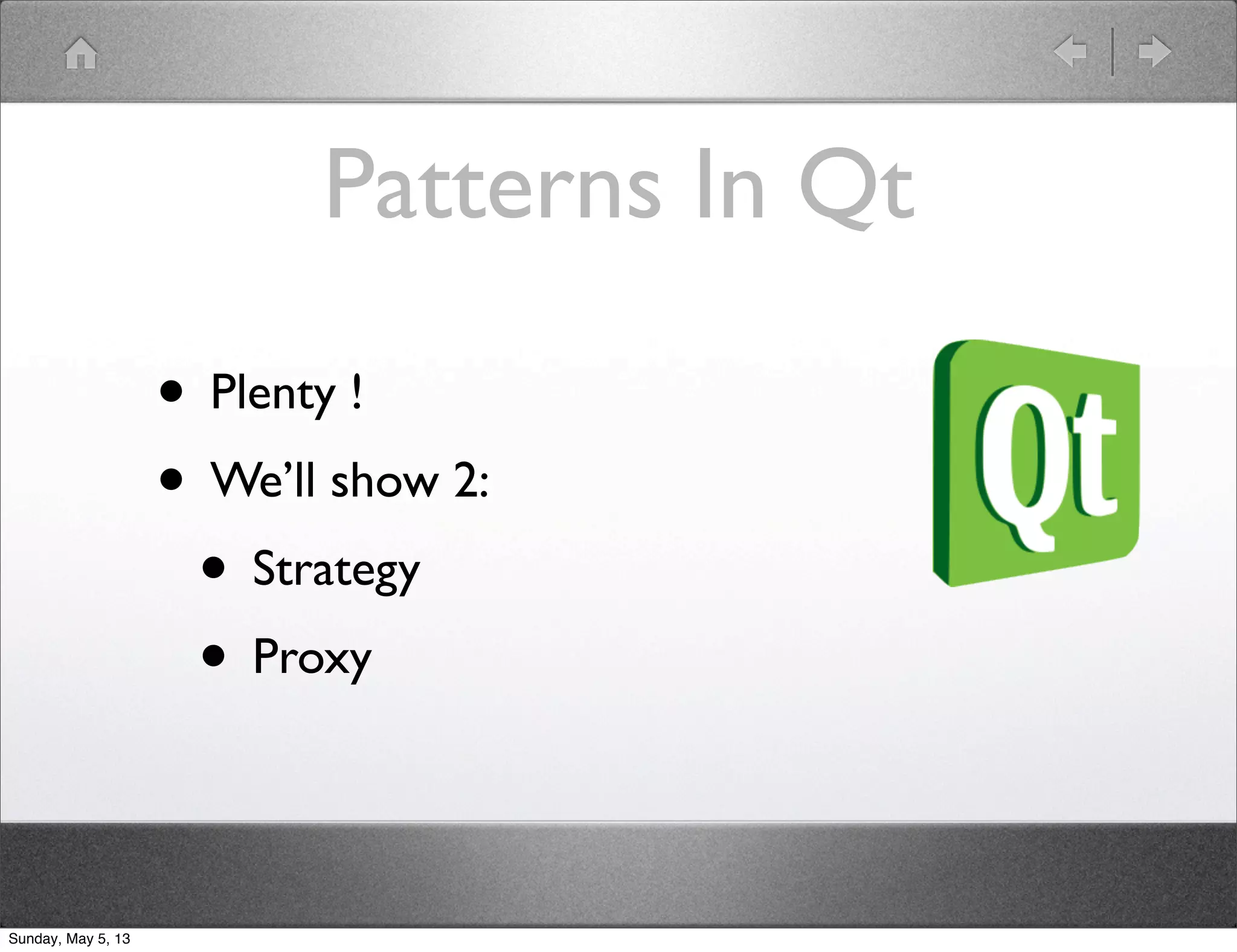

14. Patterns In Qt
• Plenty !
• We’ll show 2:
• Strategy
• Proxy
Sunday, May 5, 13

15. Strategy Pattern
Sunday, May 5, 13

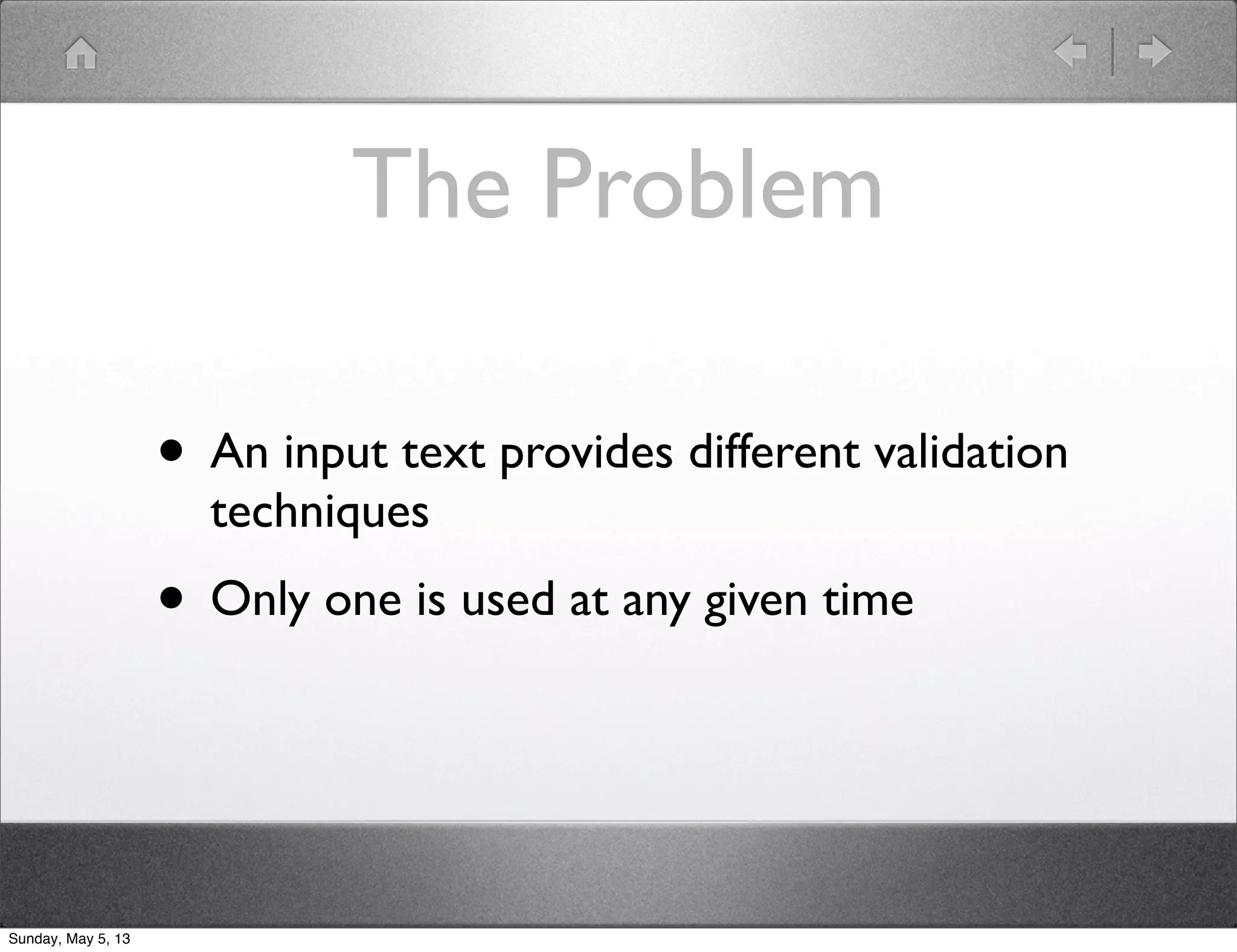

16. The Problem
• An input text provides different validation
techniques
• Only one is used at any given time
Sunday, May 5, 13

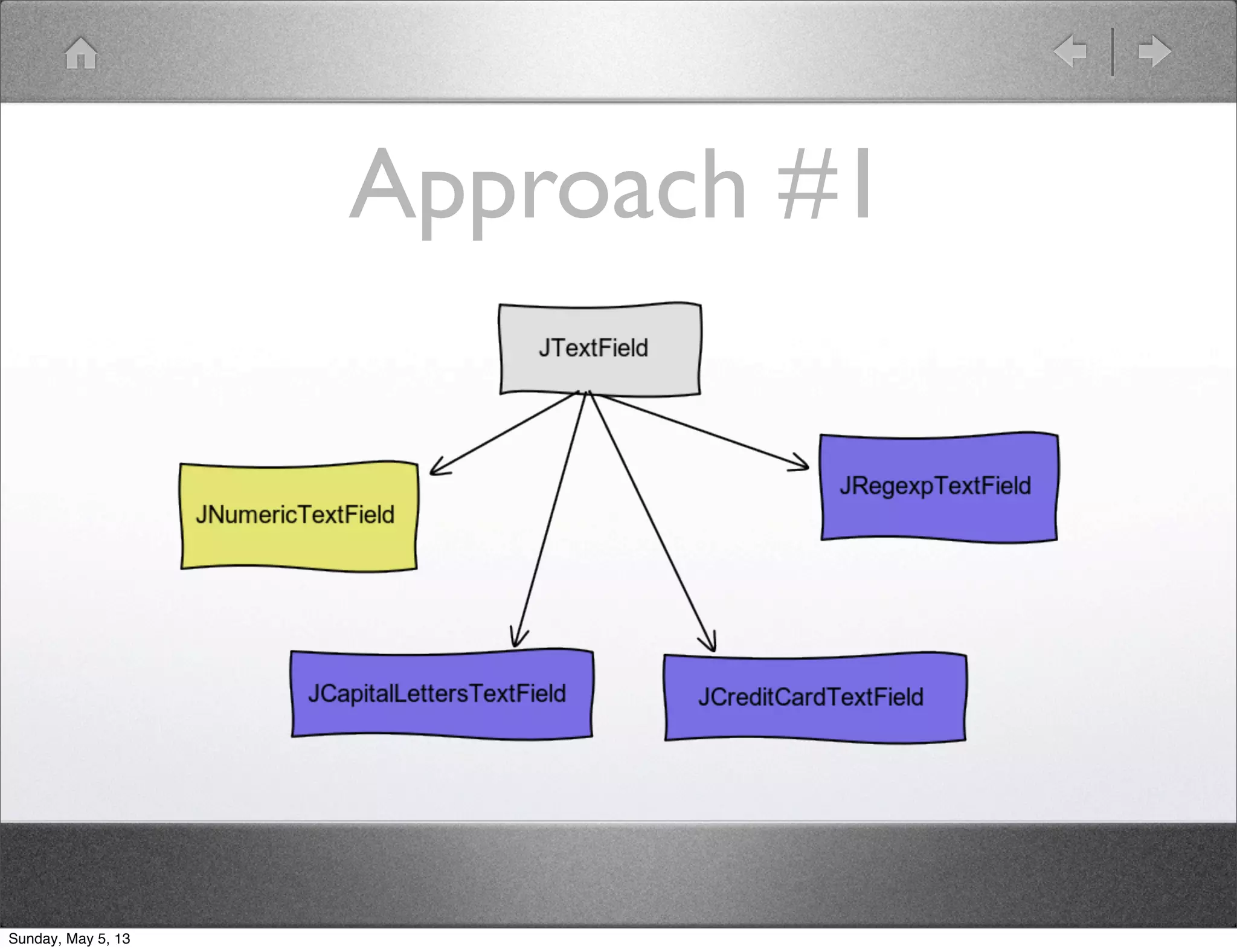

17. Approach #1
Sunday, May 5, 13

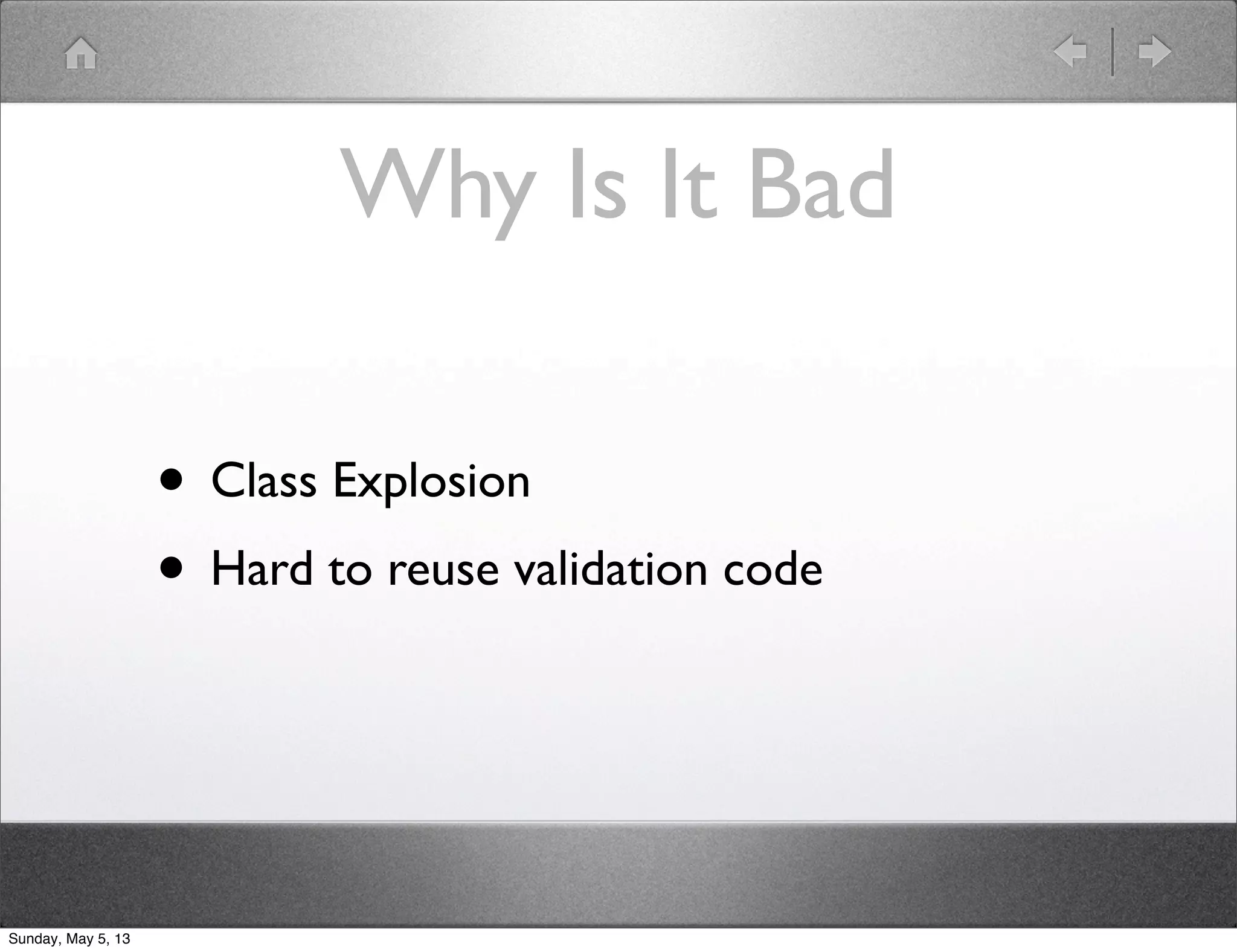

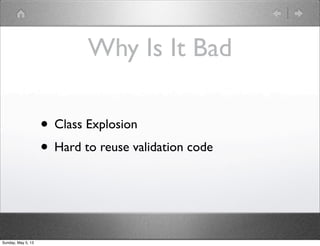

18. Why Is It Bad
• Class Explosion
• Hard to reuse validation code
Sunday, May 5, 13

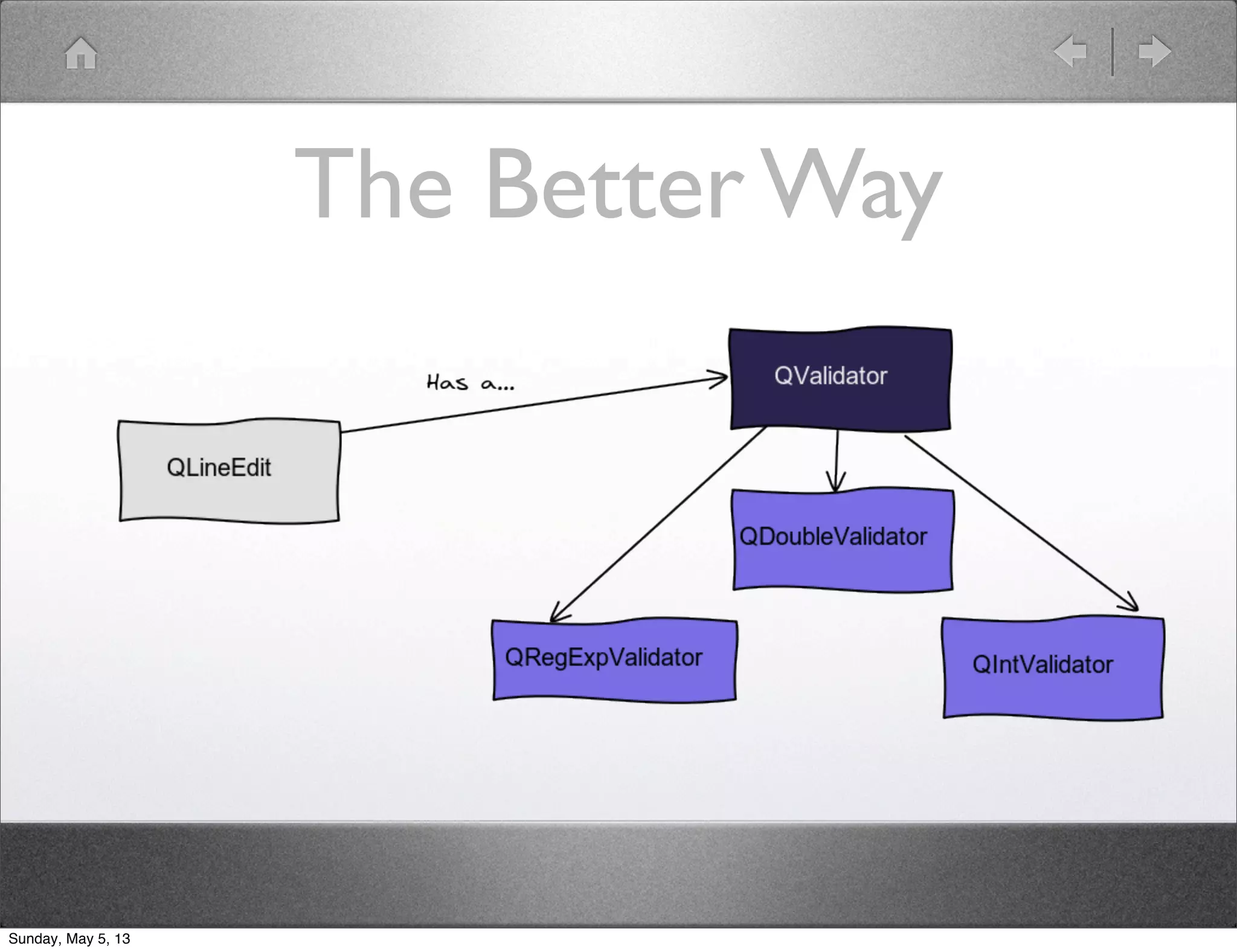

19. The Better Way
Sunday, May 5, 13

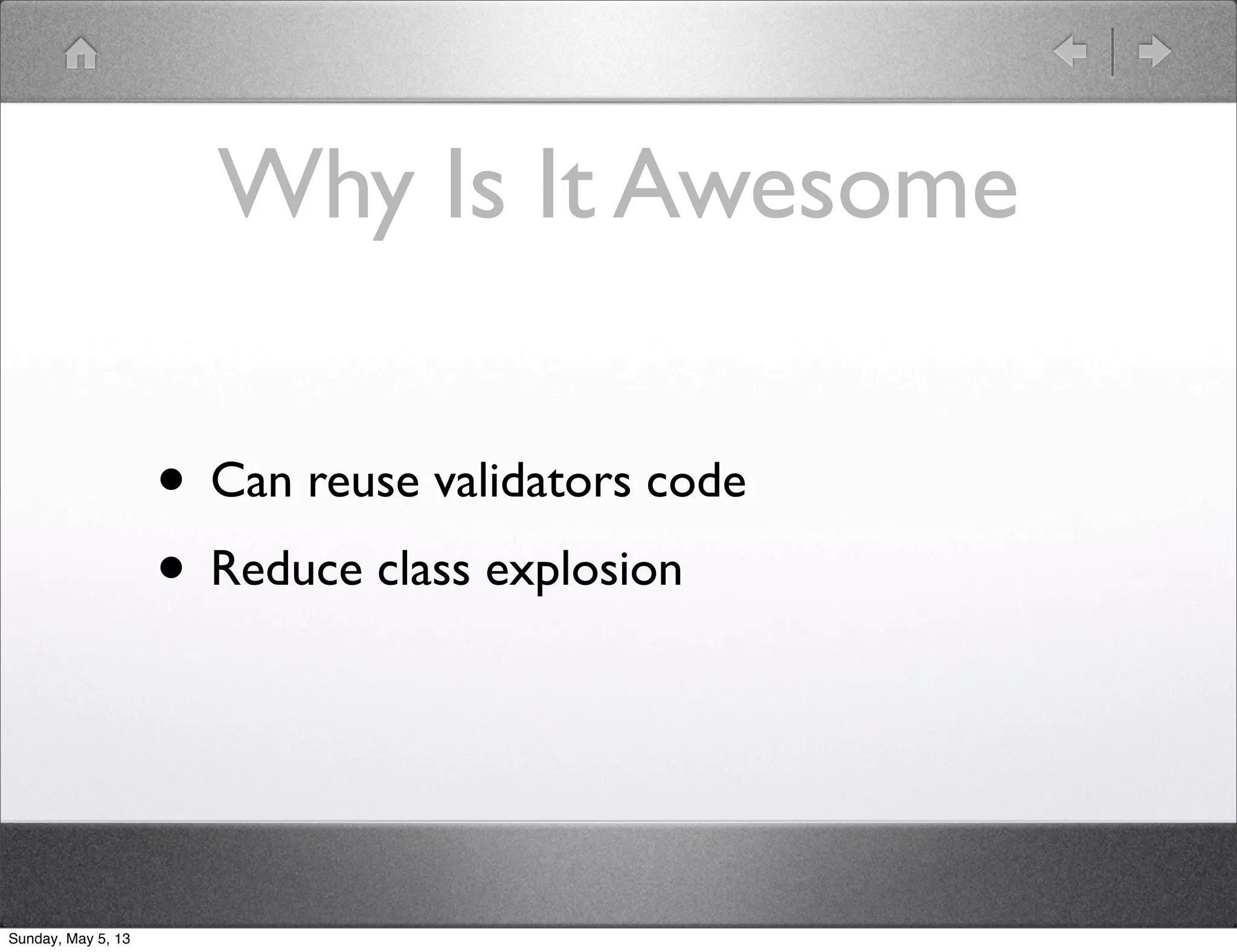

20. Why Is It Awesome
• Can reuse validators code
• Reduce class explosion
Sunday, May 5, 13

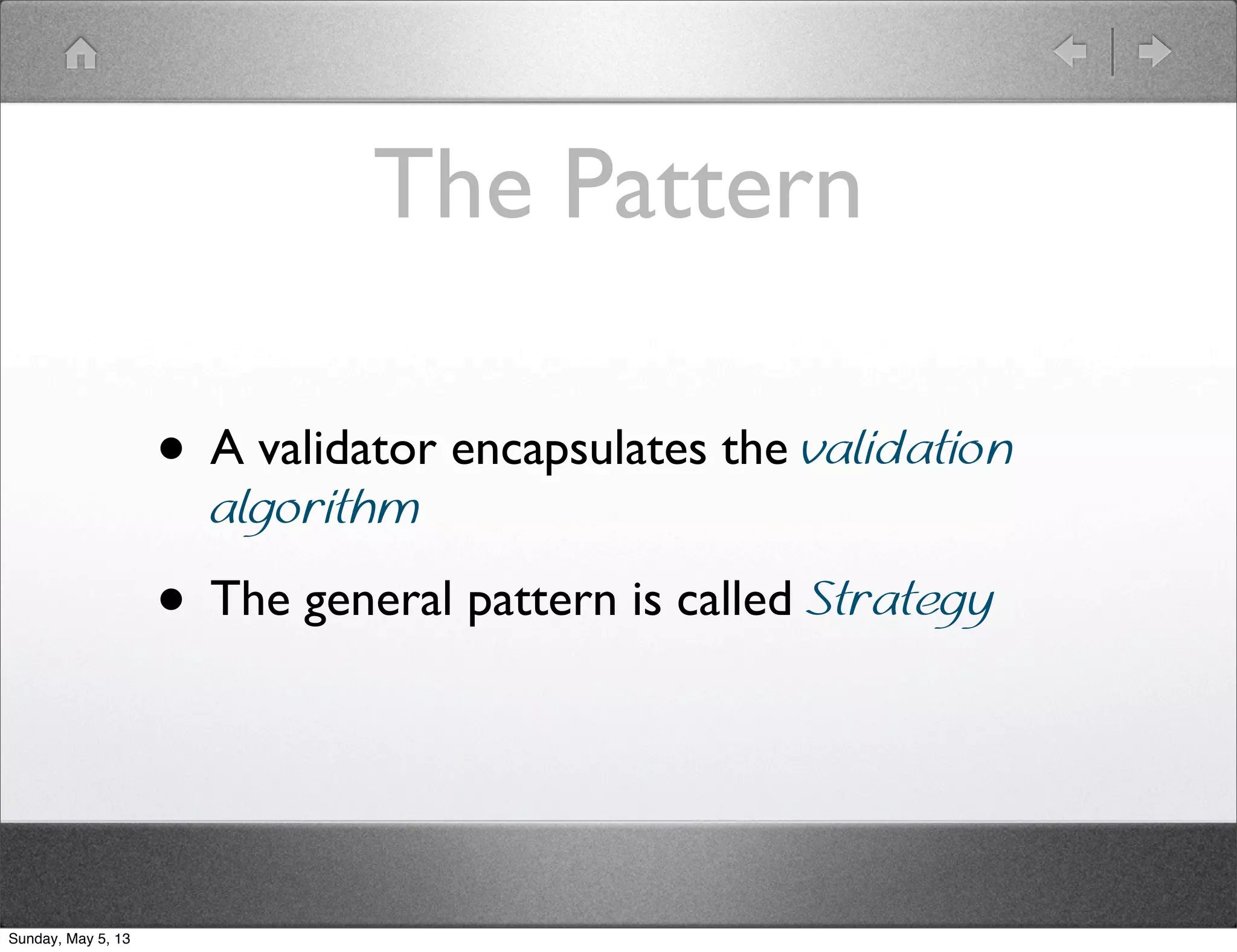

21. The Pattern
• A validator encapsulates the validation
algorithm
• The general pattern is called Strategy
Sunday, May 5, 13

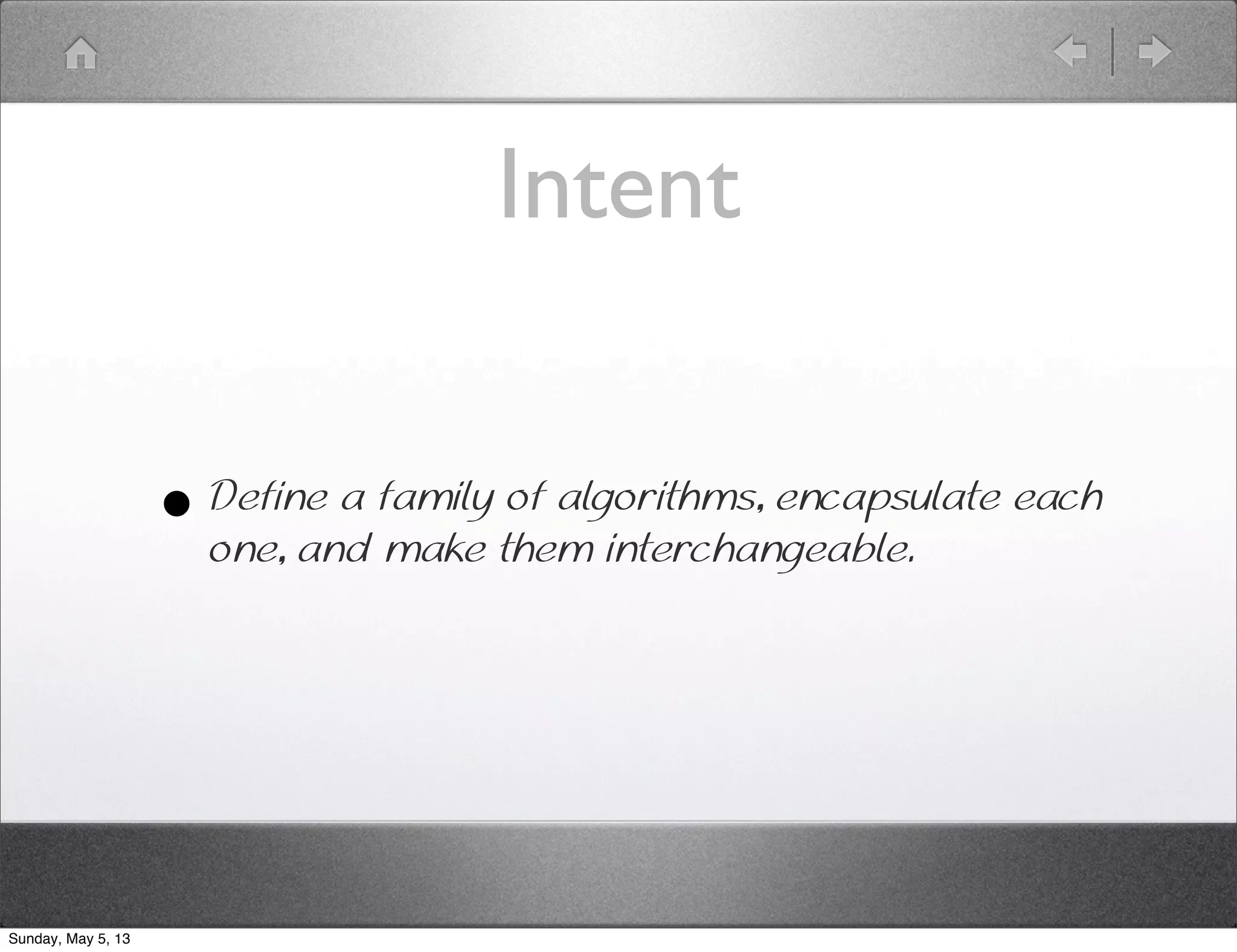

22. Intent
• Define a family of algorithms, encapsulate each
one, and make them interchangeable.
Sunday, May 5, 13

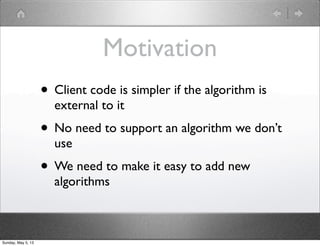

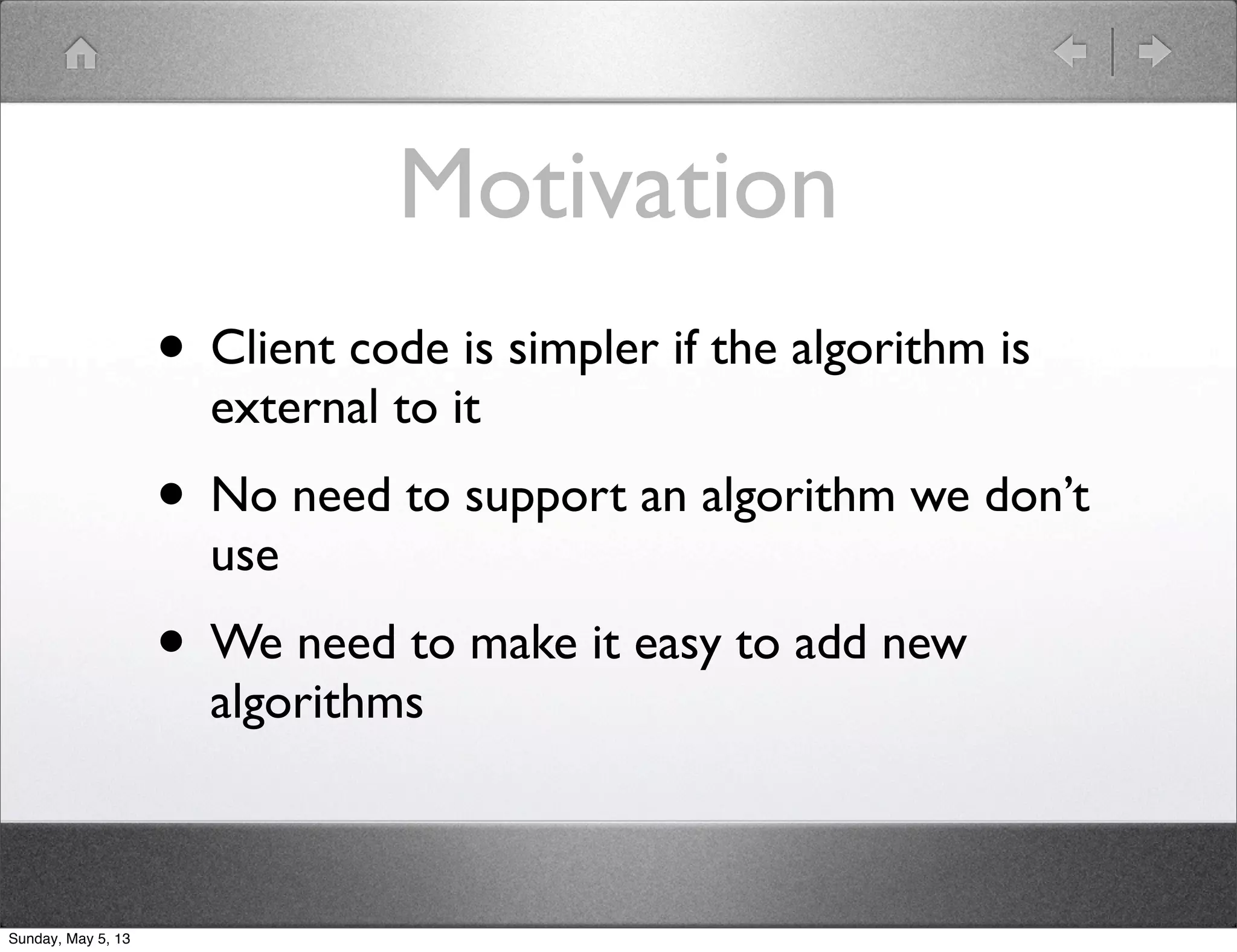

23. Motivation
• Client code is simpler if the algorithm is
external to it
• No need to support an algorithm we don’t
use
• We need to make it easy to add new
algorithms
Sunday, May 5, 13

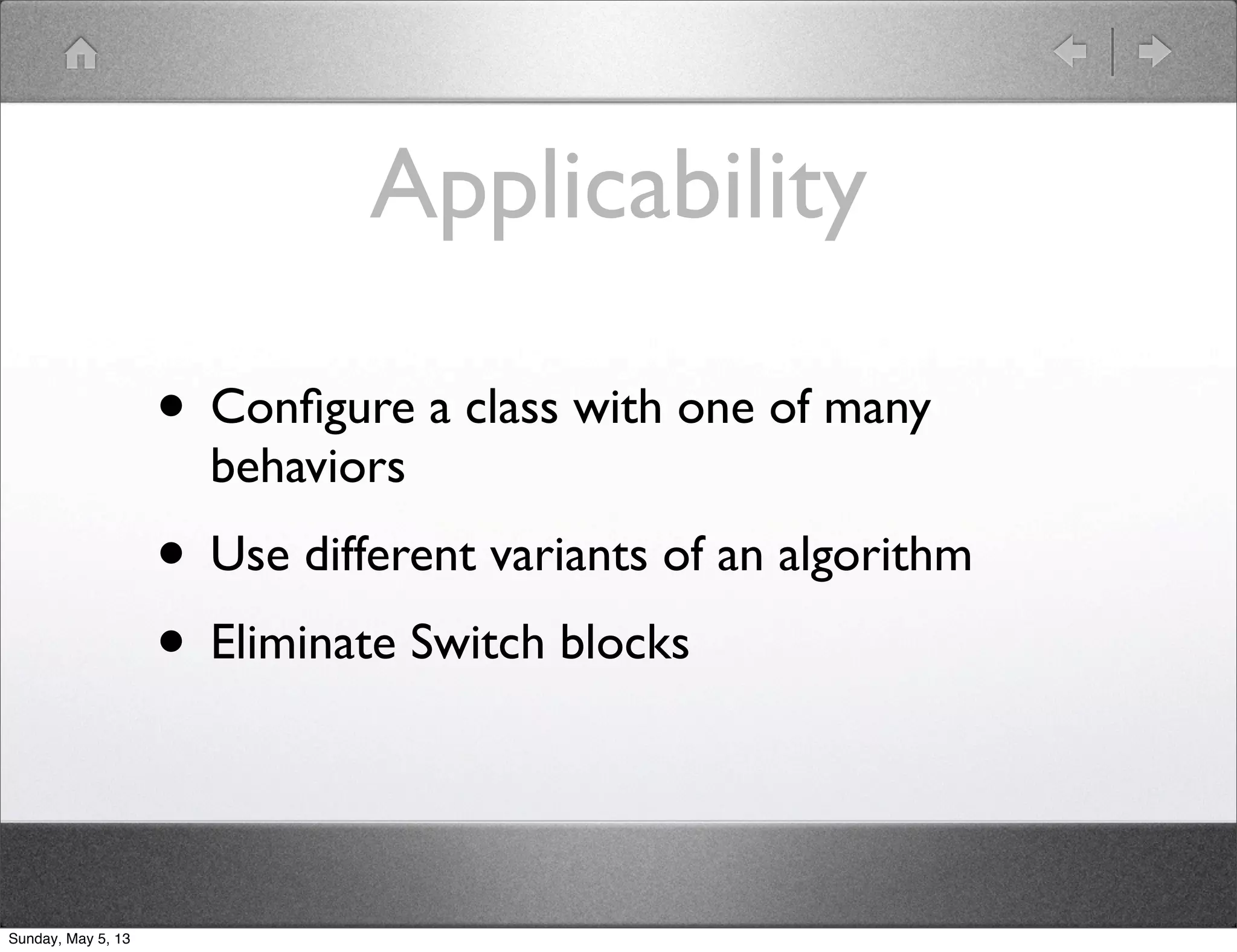

24. Applicability
• Configure a class with one of many
behaviors
• Use different variants of an algorithm
• Eliminate Switch blocks
Sunday, May 5, 13

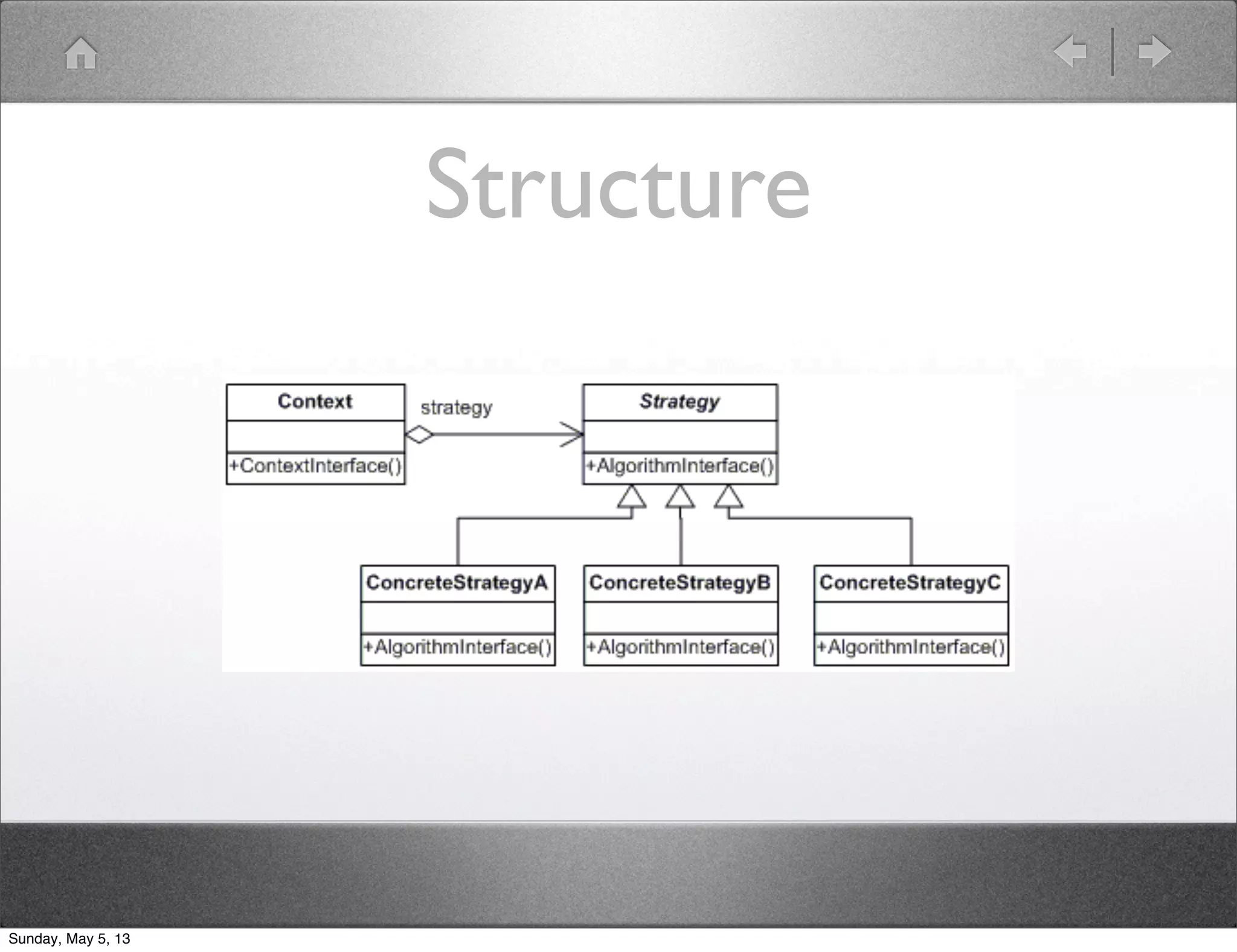

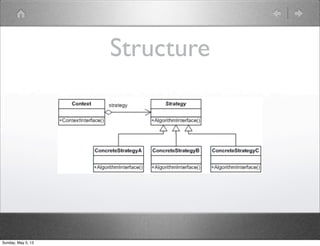

25. Structure
Sunday, May 5, 13

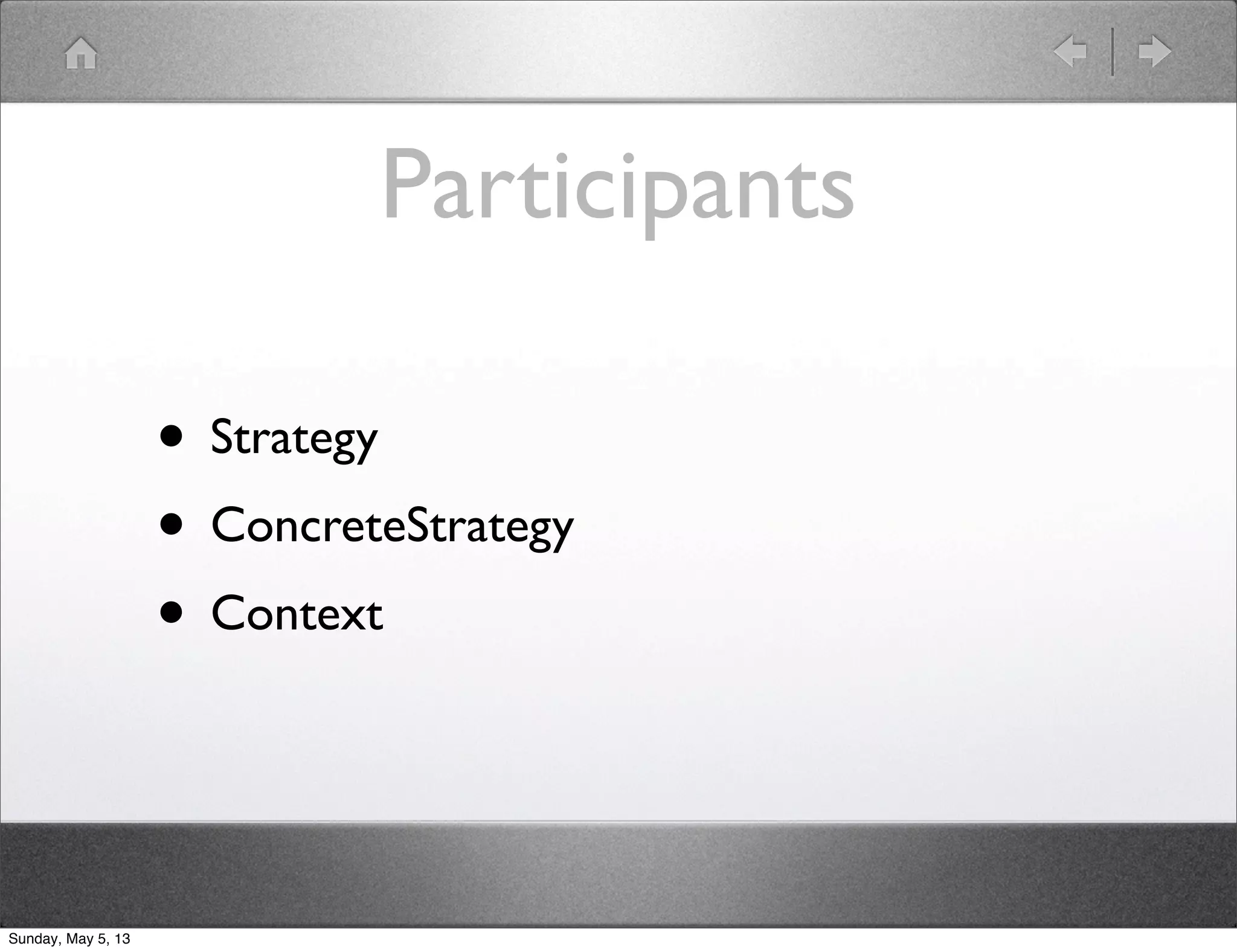

26. Participants
• Strategy
• ConcreteStrategy
• Context
Sunday, May 5, 13

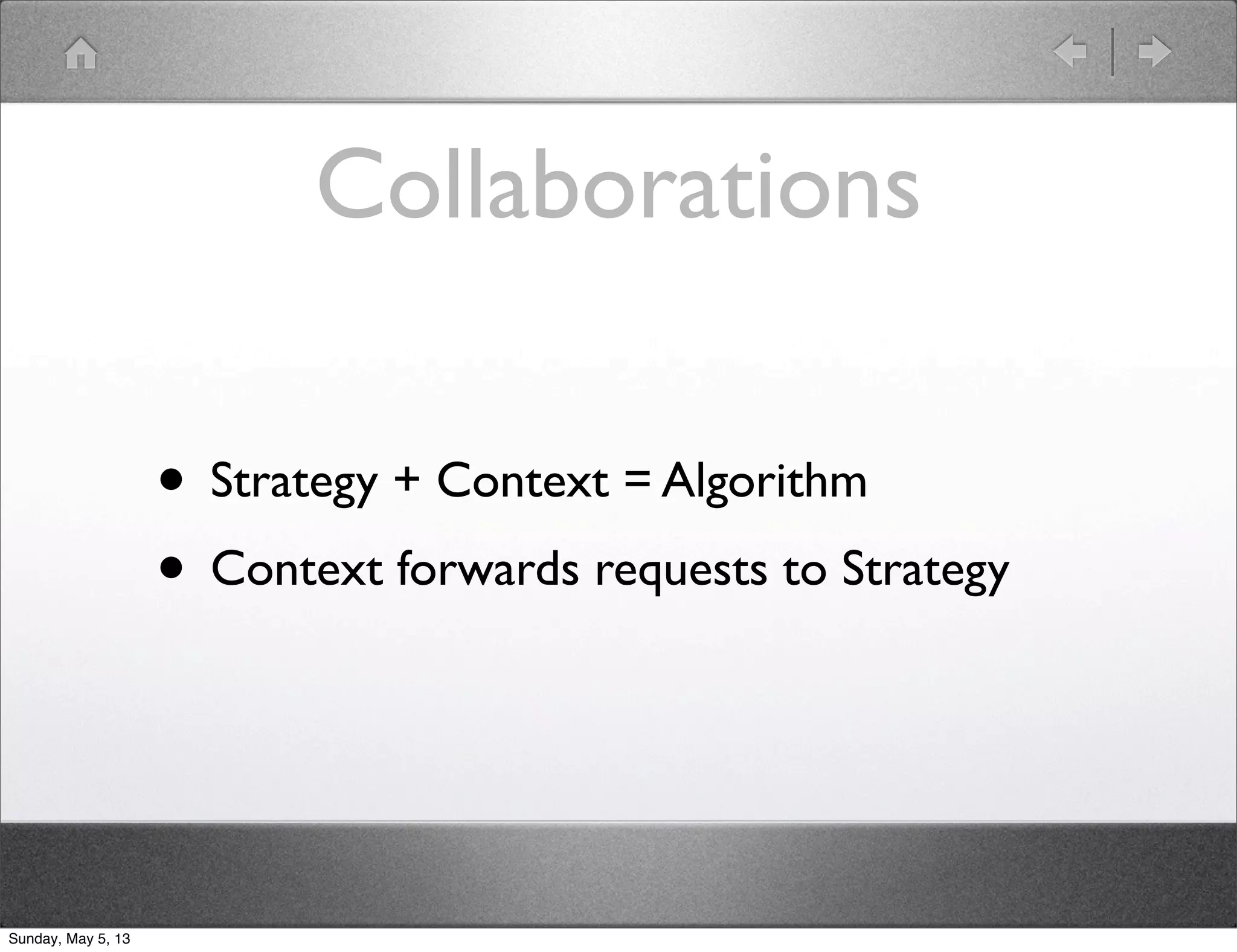

27. Collaborations
• Strategy + Context = Algorithm
• Context forwards requests to Strategy
Sunday, May 5, 13

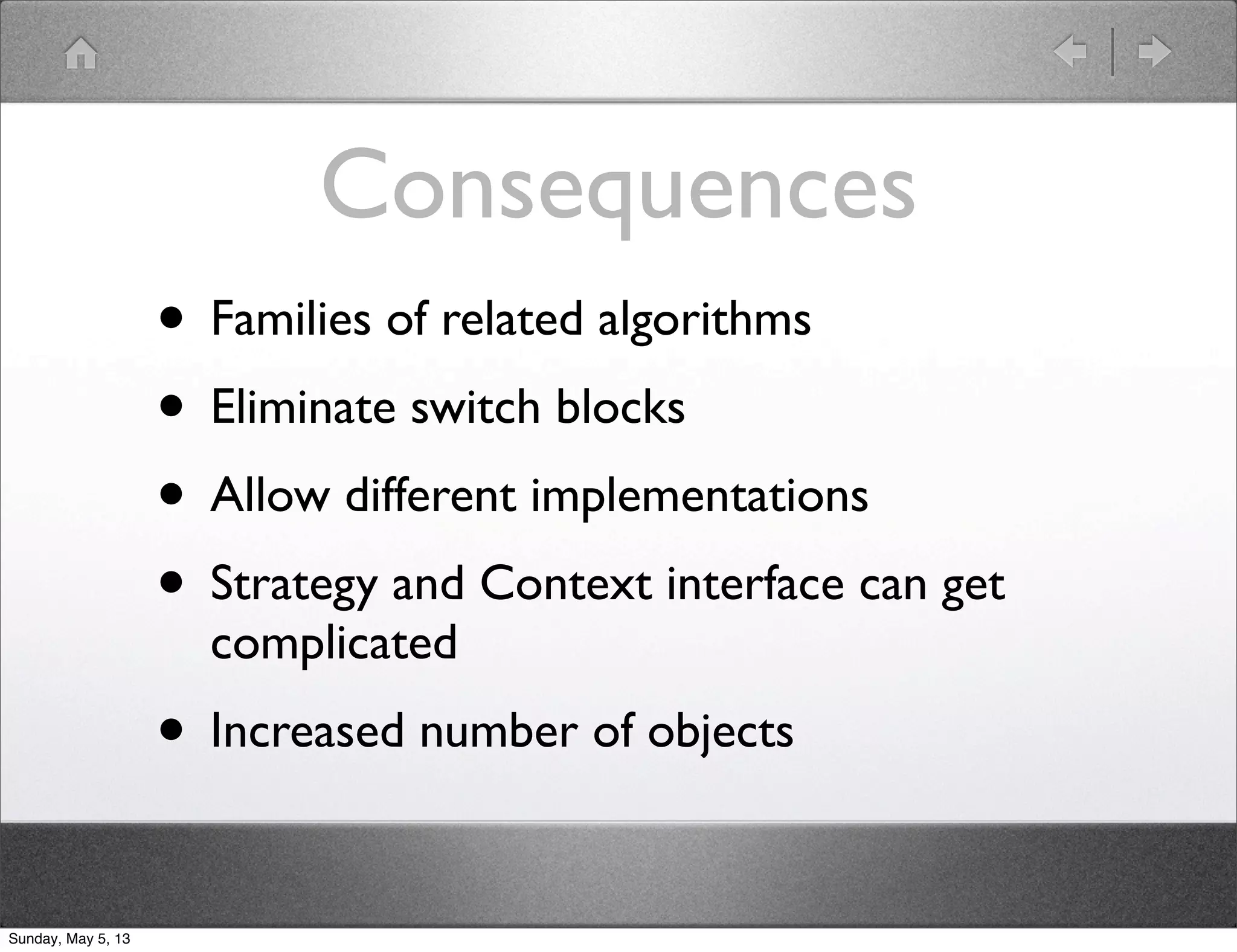

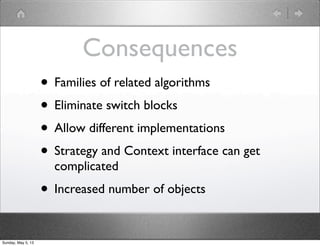

28. Consequences
• Families of related algorithms
• Eliminate switch blocks
• Allow different implementations
• Strategy and Context interface can get
complicated
• Increased number of objects
Sunday, May 5, 13

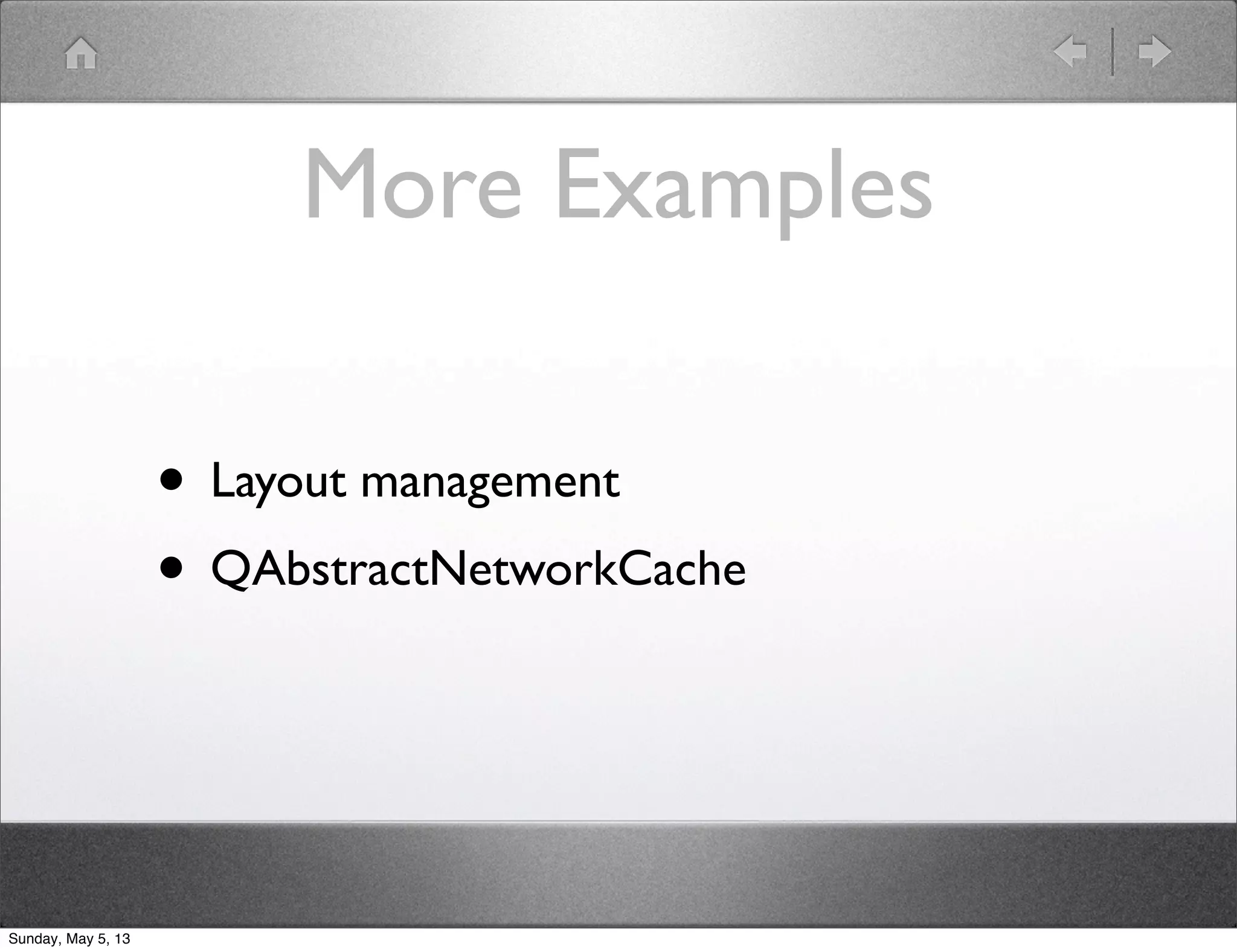

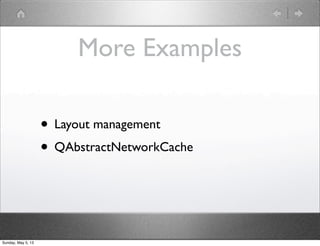

29. More Examples
• Layout management
• QAbstractNetworkCache
Sunday, May 5, 13

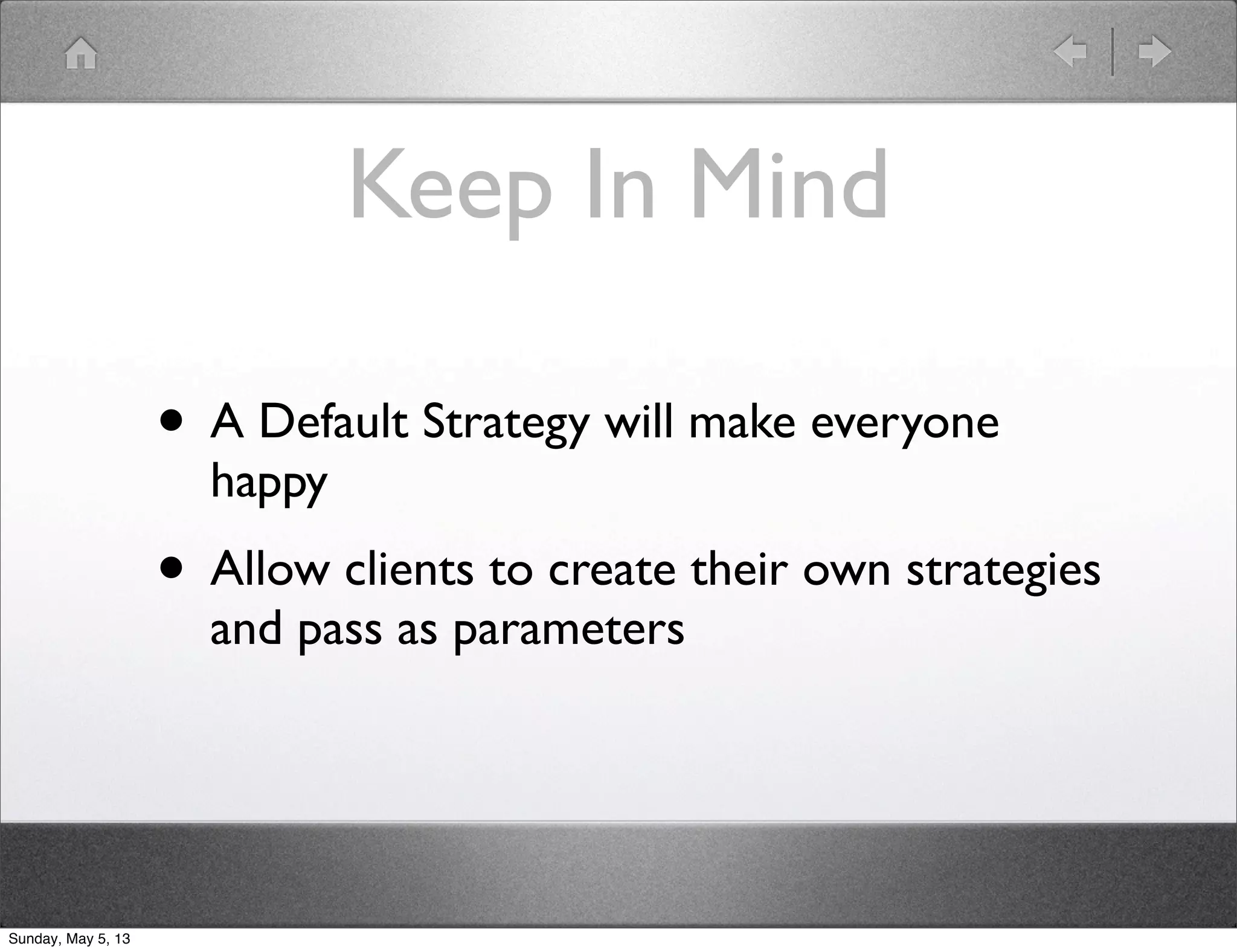

30. Keep In Mind
• A Default Strategy will make everyone
happy
• Allow clients to create their own strategies
and pass as parameters
Sunday, May 5, 13

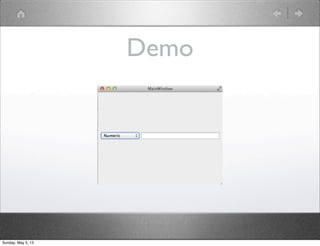

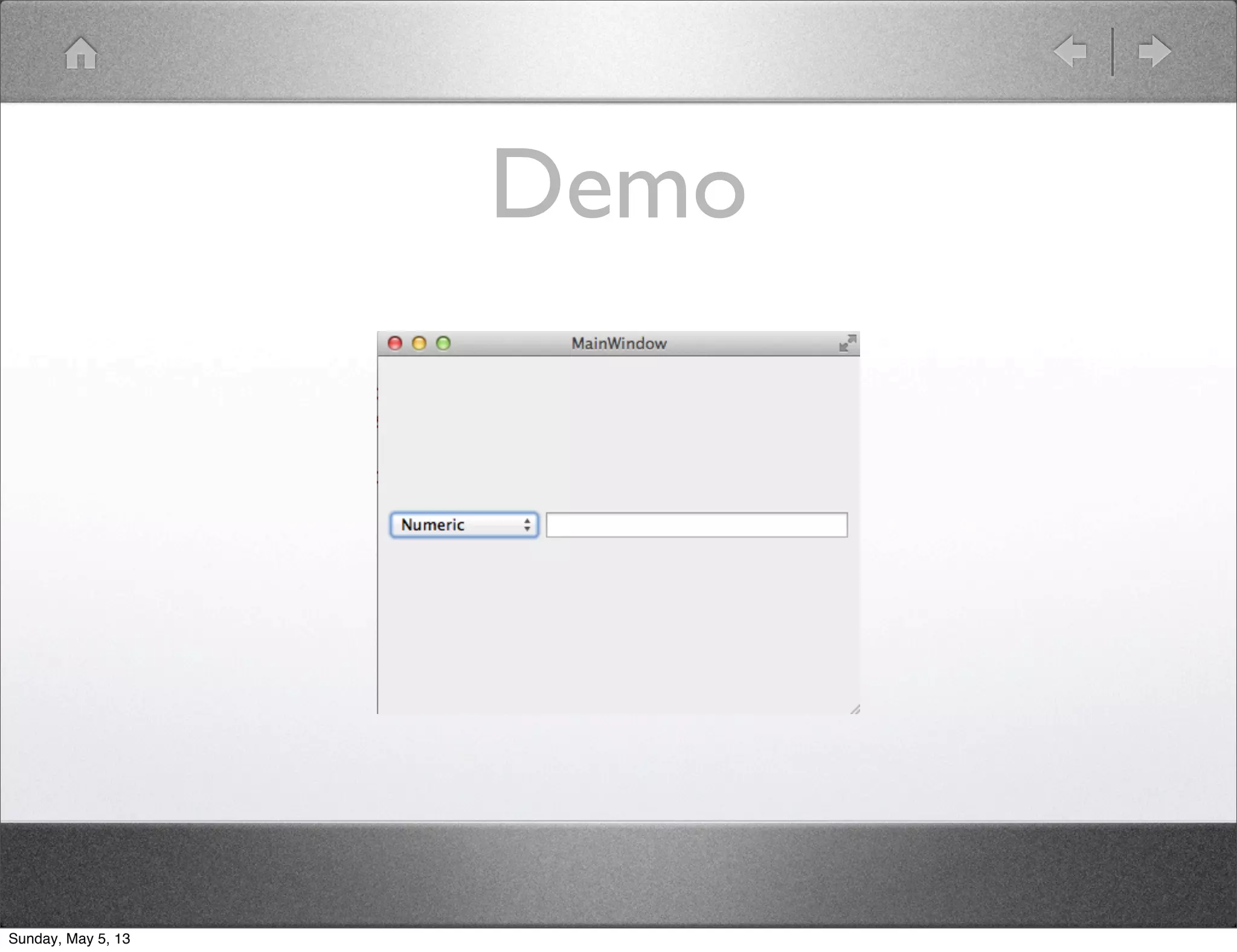

31. Demo
Sunday, May 5, 13

32. Q & A
Sunday, May 5, 13

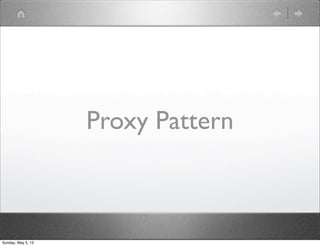

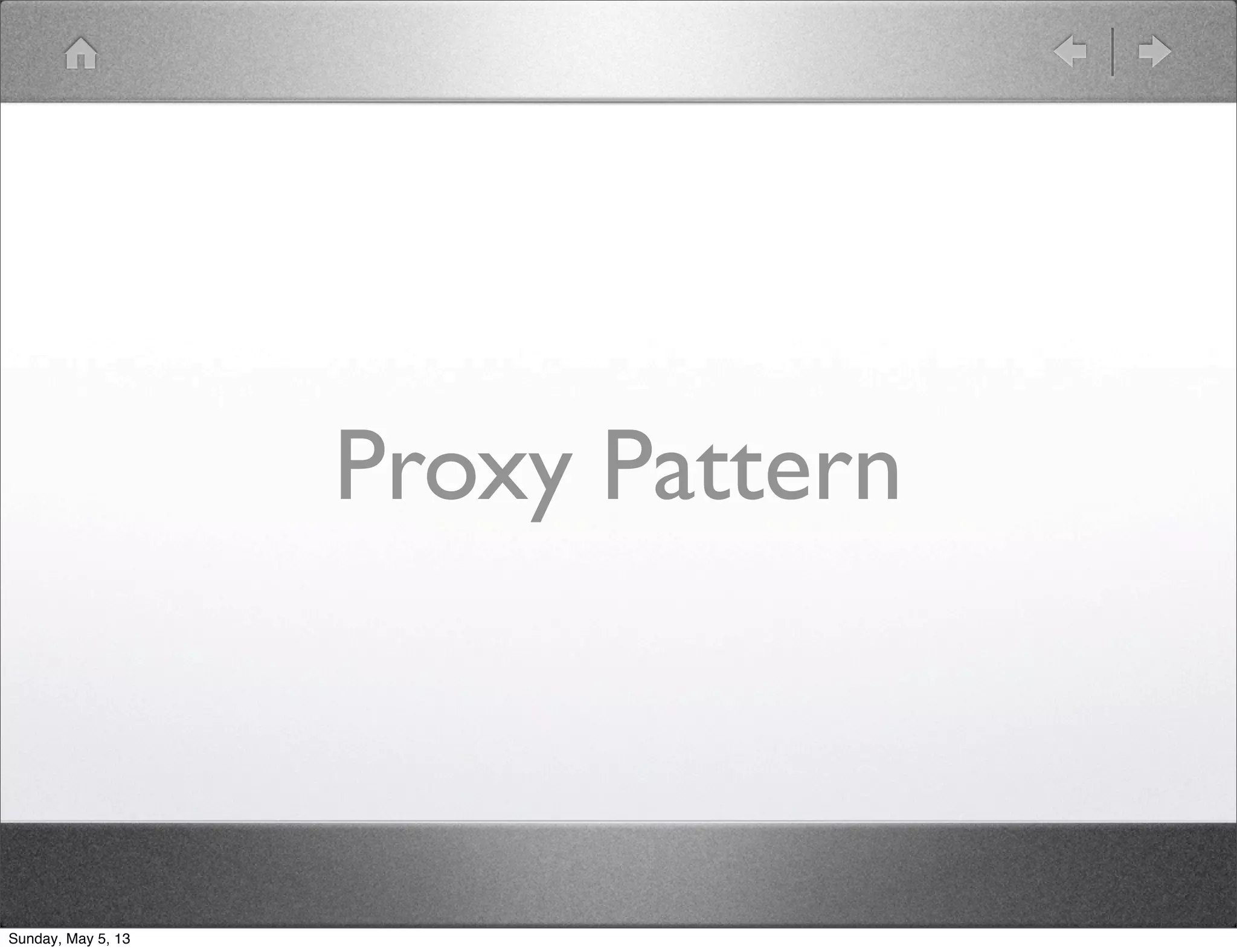

33. Proxy Pattern
Sunday, May 5, 13

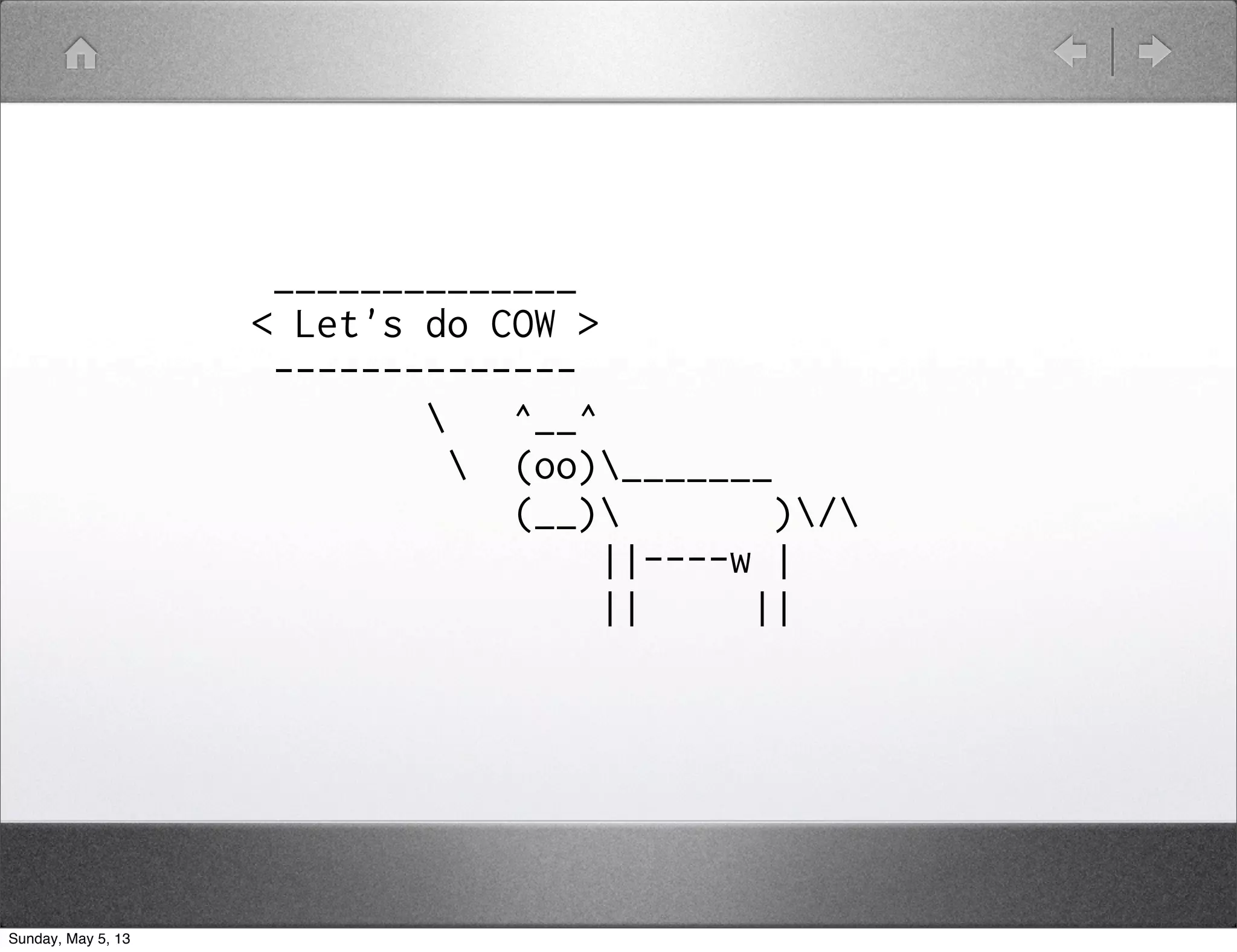

34. ______________
< Let's do COW >
--------------
^__^
(oo)_______
(__) )/
||----w |
|| ||
Sunday, May 5, 13

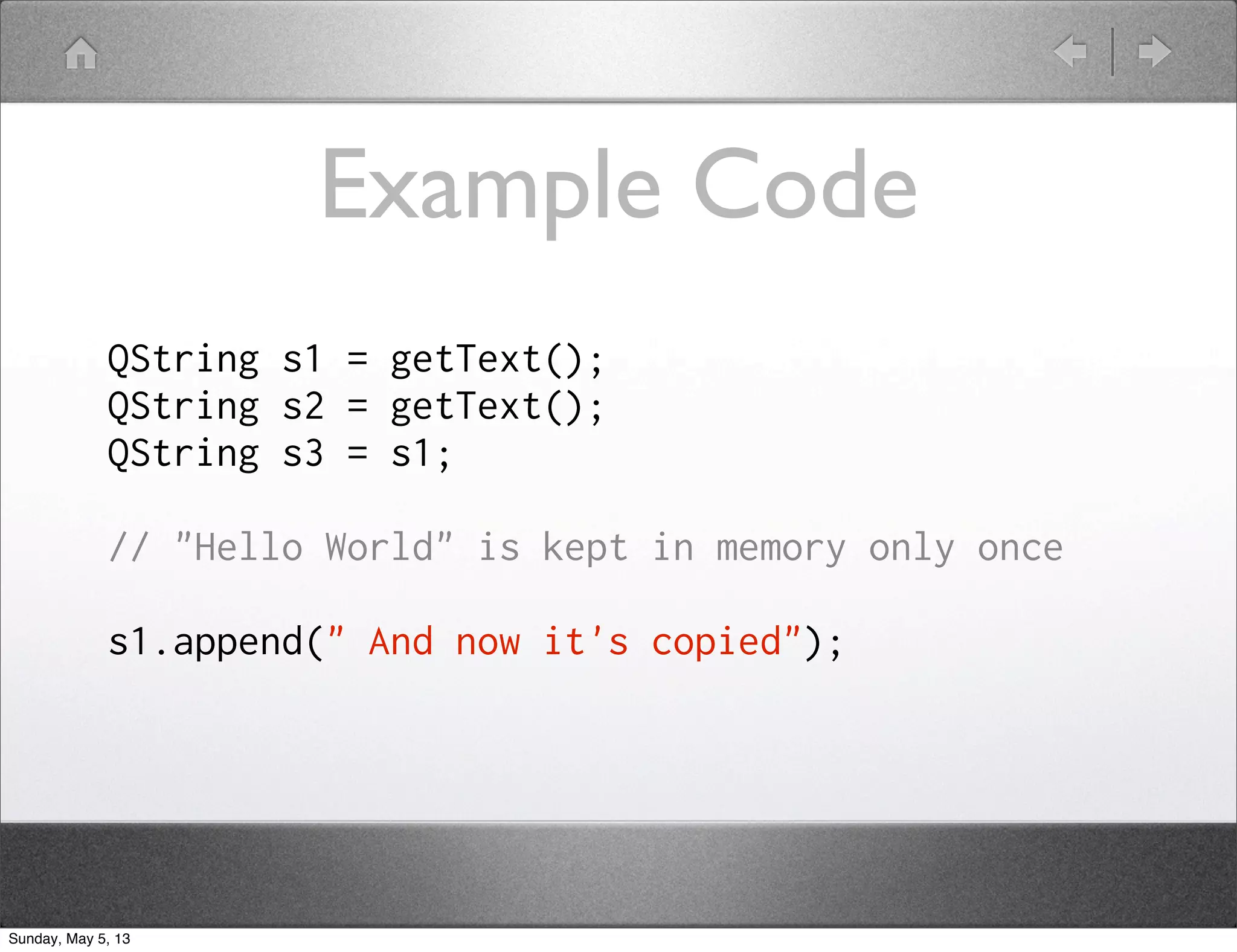

35. Example Code
QString s1 = getText();
QString s2 = getText();
QString s3 = s1;
// "Hello World" is kept in memory only once
s1.append(" And now it's copied");
Sunday, May 5, 13

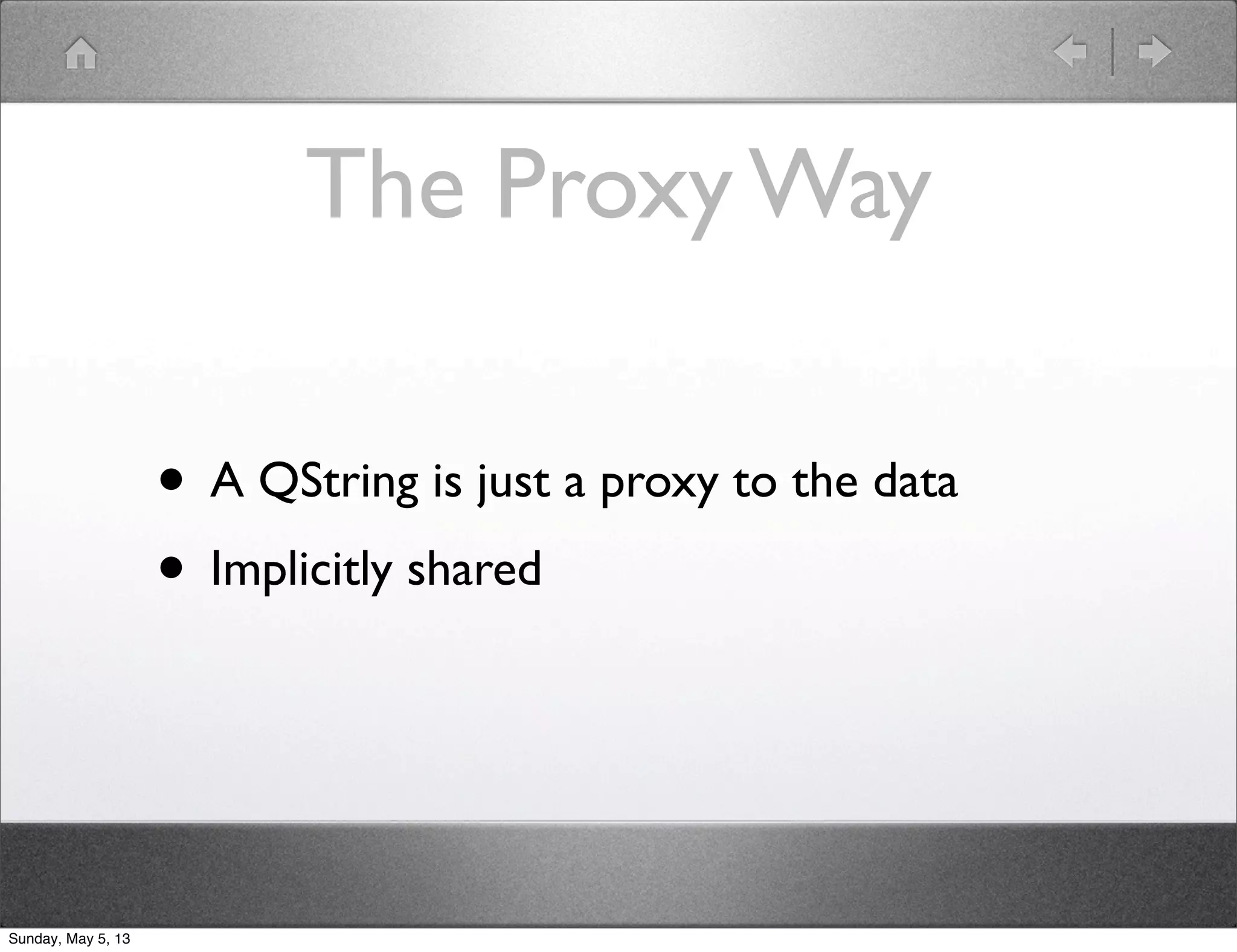

36. The Proxy Way
• A QString is just a proxy to the data
• Implicitly shared
Sunday, May 5, 13

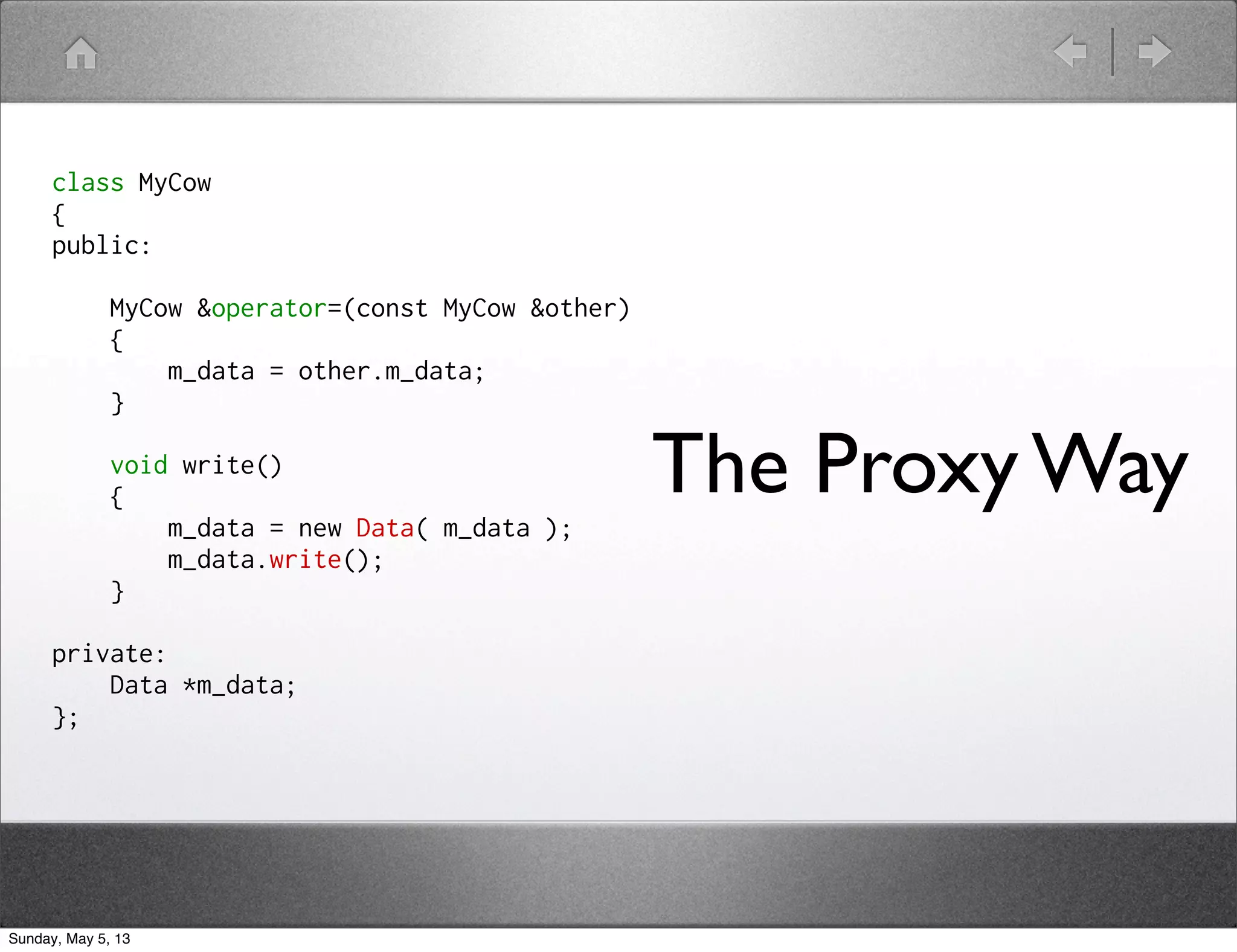

37. class MyCow
{
public:
MyCow &operator=(const MyCow &other)
{
m_data = other.m_data;
}
void write()
{
m_data = new Data( m_data );
m_data.write();
}
private:
Data *m_data;
};
The Proxy Way
Sunday, May 5, 13

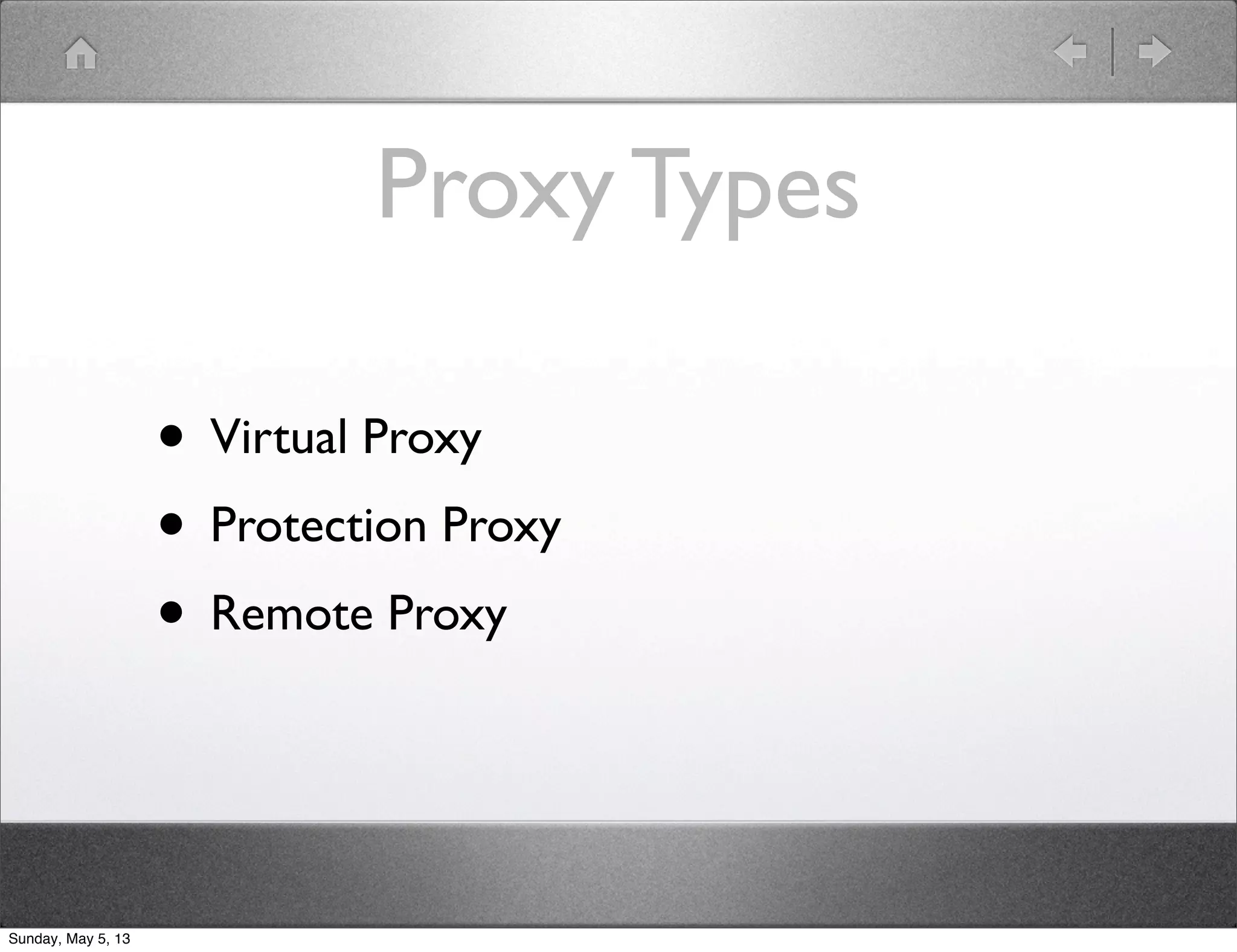

38. Proxy Types
• Virtual Proxy
• Protection Proxy
• Remote Proxy
Sunday, May 5, 13

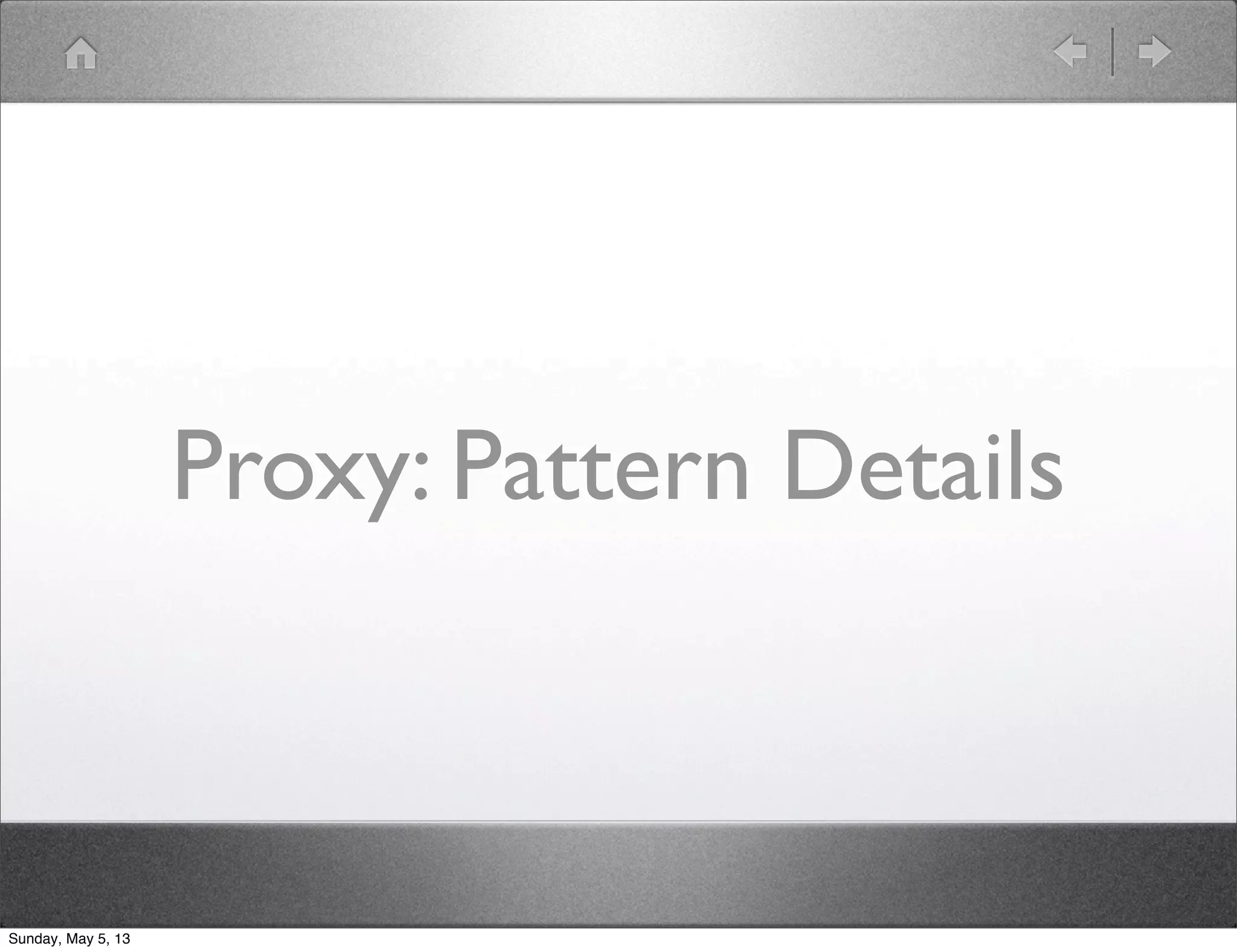

39. Proxy: Pattern Details
Sunday, May 5, 13

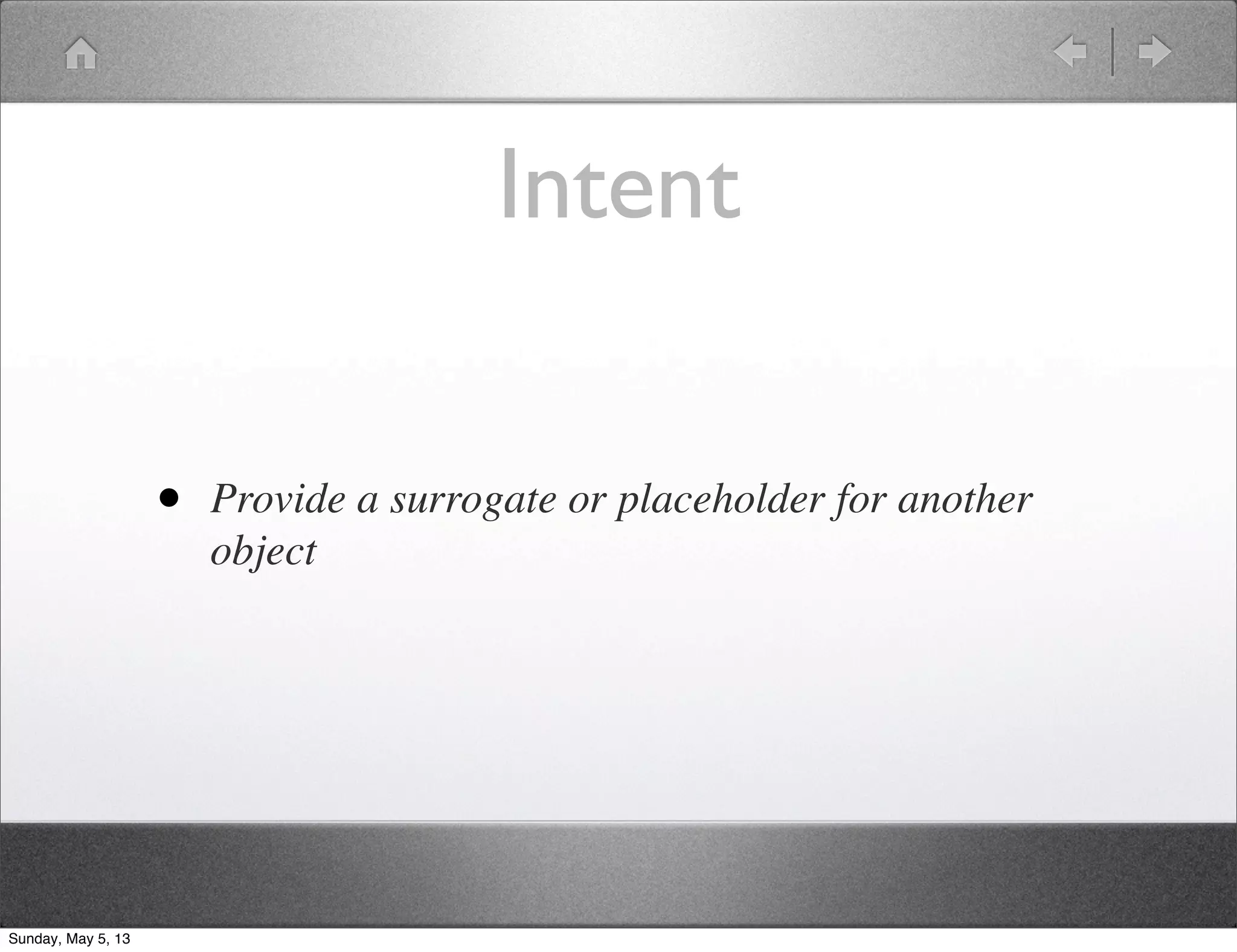

40. Intent
• Provide a surrogate or placeholder for another
object
Sunday, May 5, 13

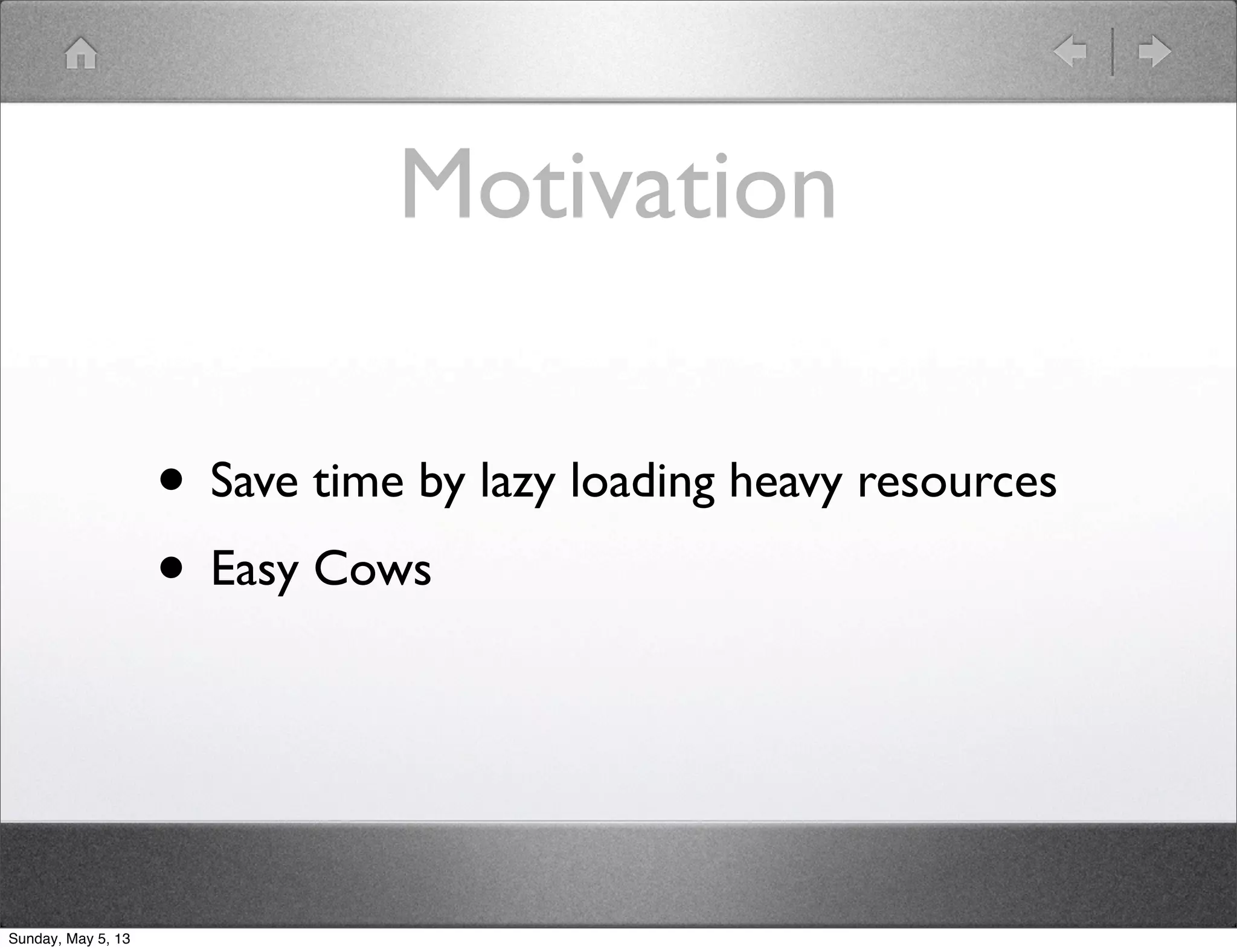

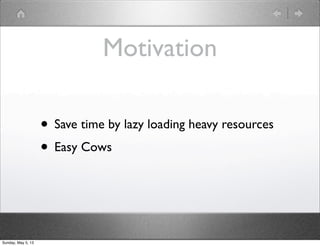

41. Motivation
• Save time by lazy loading heavy resources
• Easy Cows
Sunday, May 5, 13

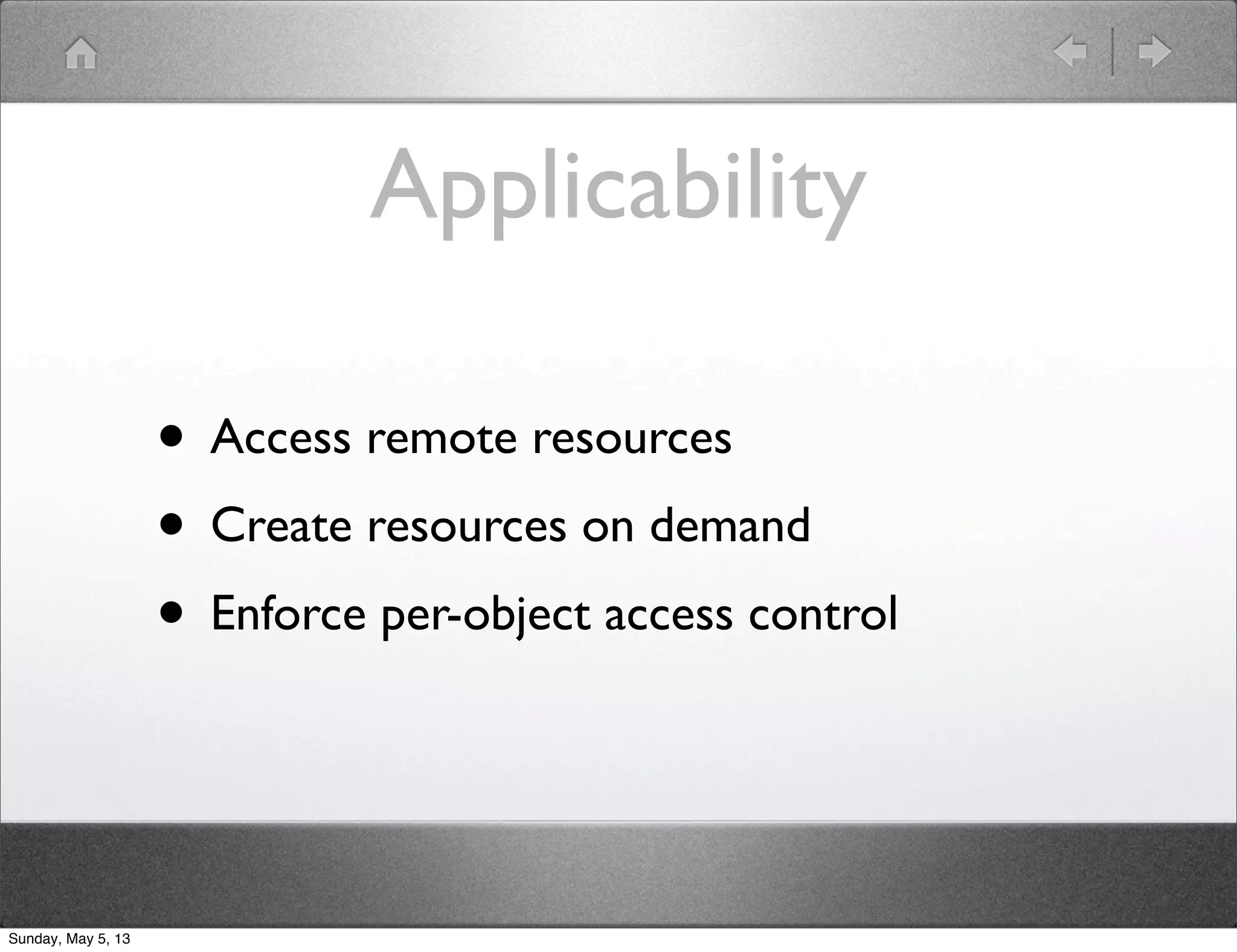

42. Applicability
• Access remote resources
• Create resources on demand
• Enforce per-object access control
Sunday, May 5, 13

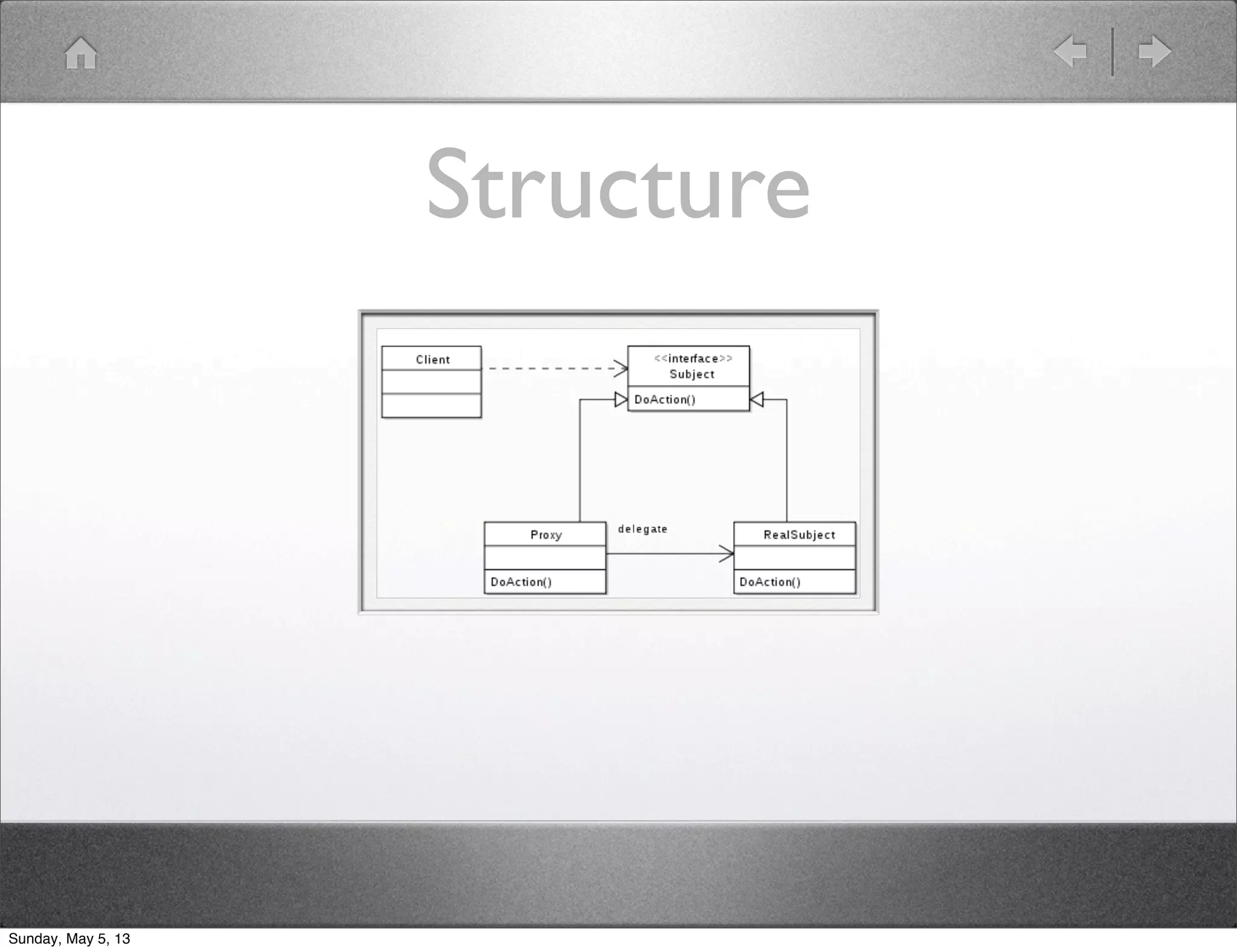

43. Structure
Sunday, May 5, 13

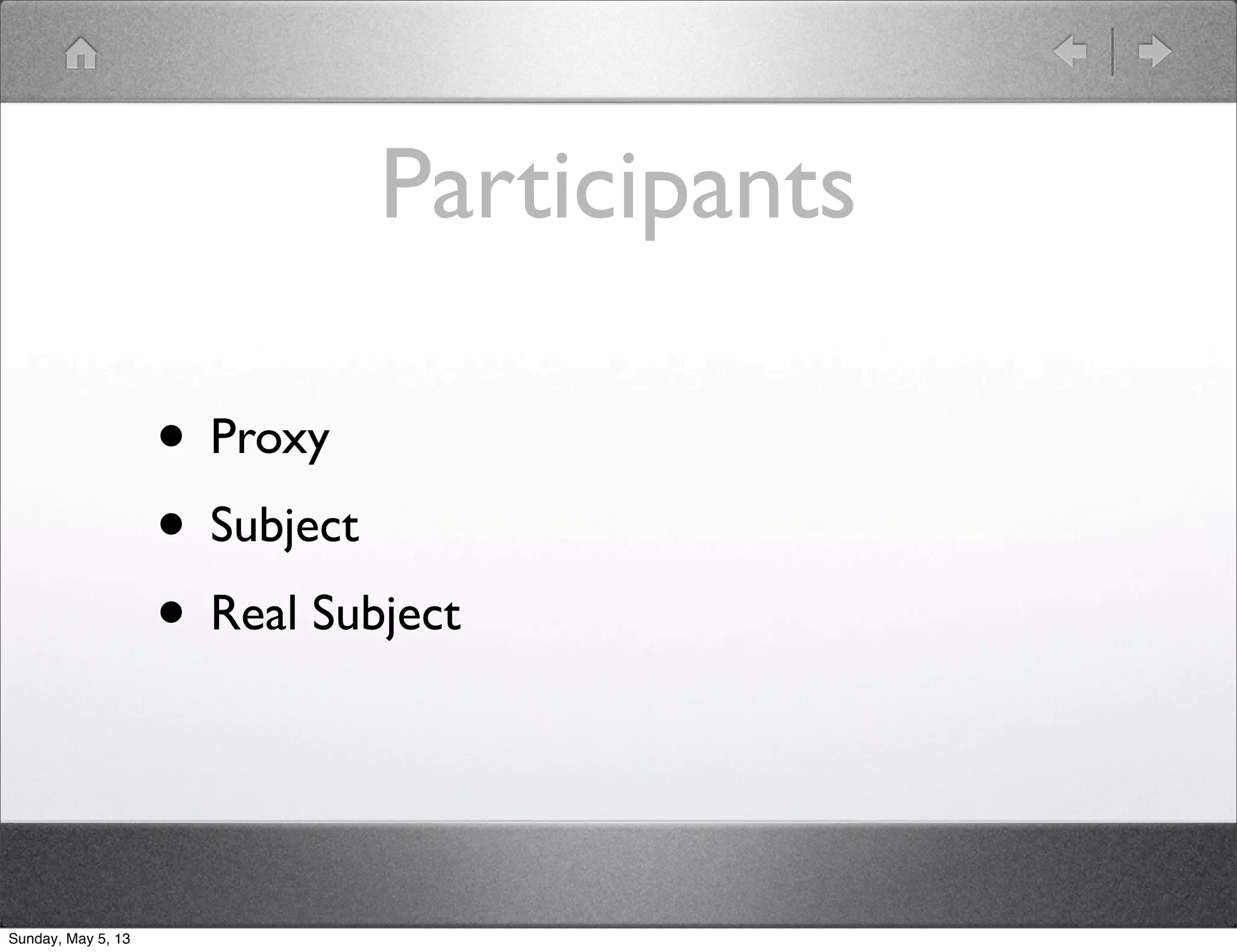

44. Participants
• Proxy
• Subject
• Real Subject
Sunday, May 5, 13

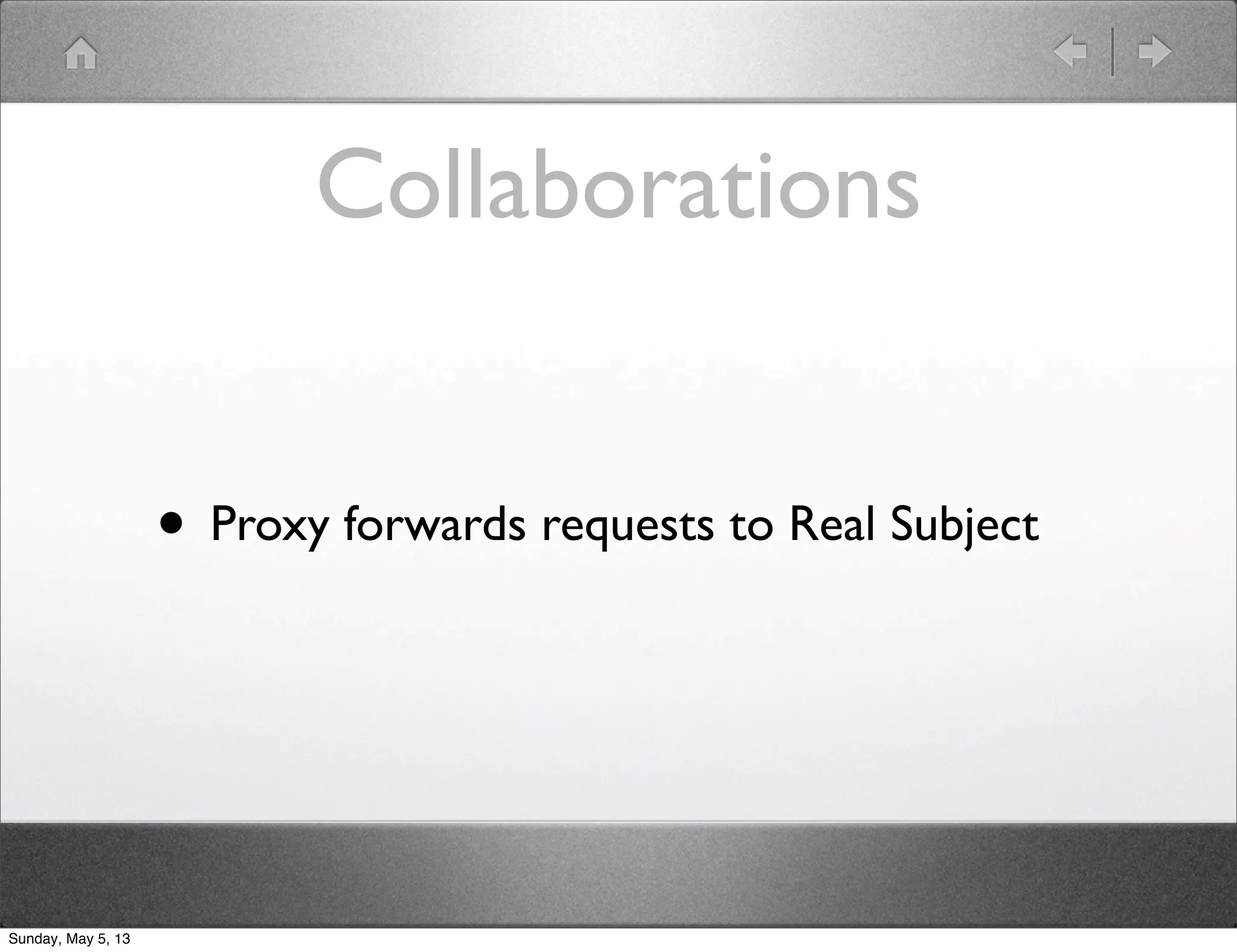

45. Collaborations
• Proxy forwards requests to Real Subject
Sunday, May 5, 13

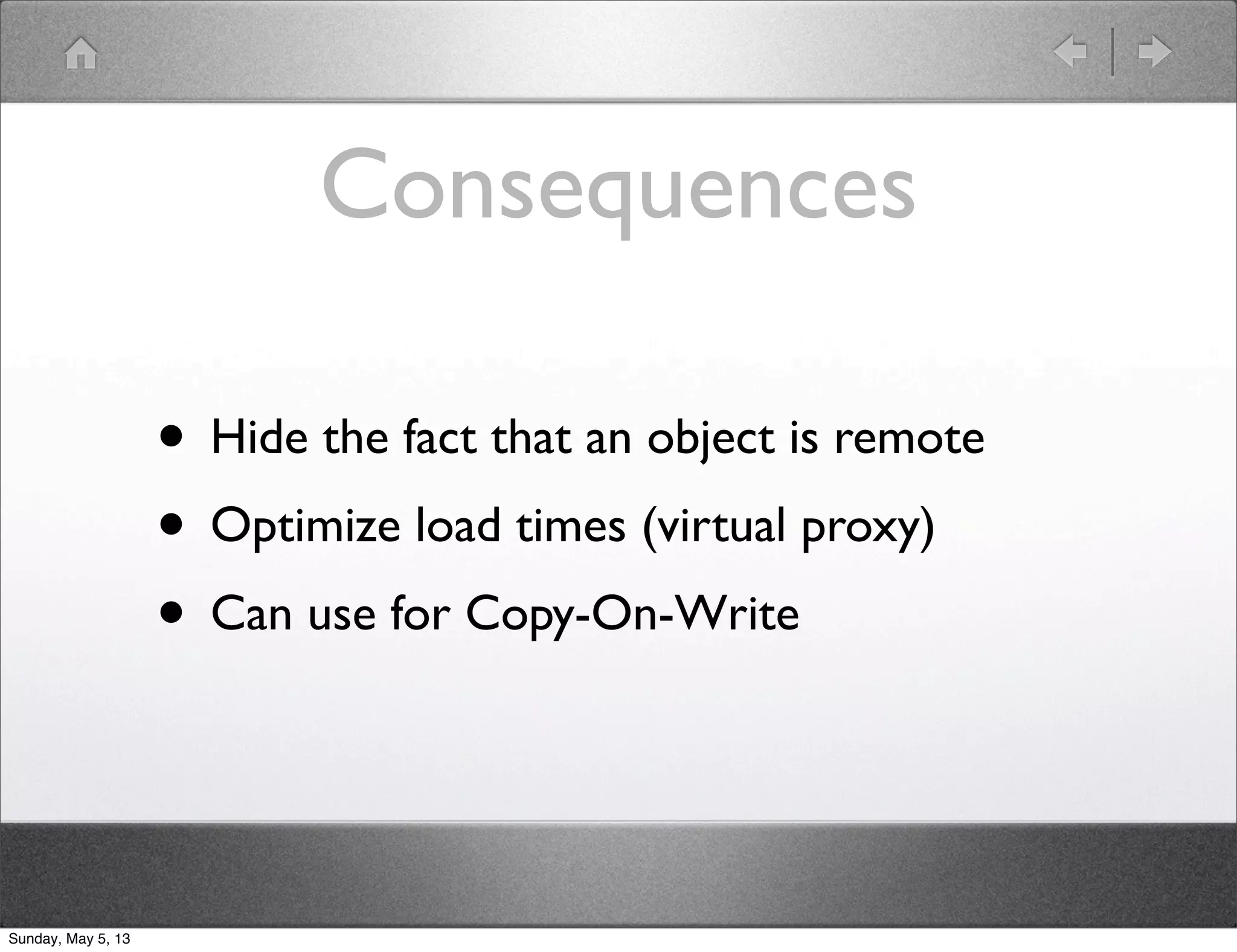

46. Consequences
• Hide the fact that an object is remote
• Optimize load times (virtual proxy)
• Can use for Copy-On-Write
Sunday, May 5, 13

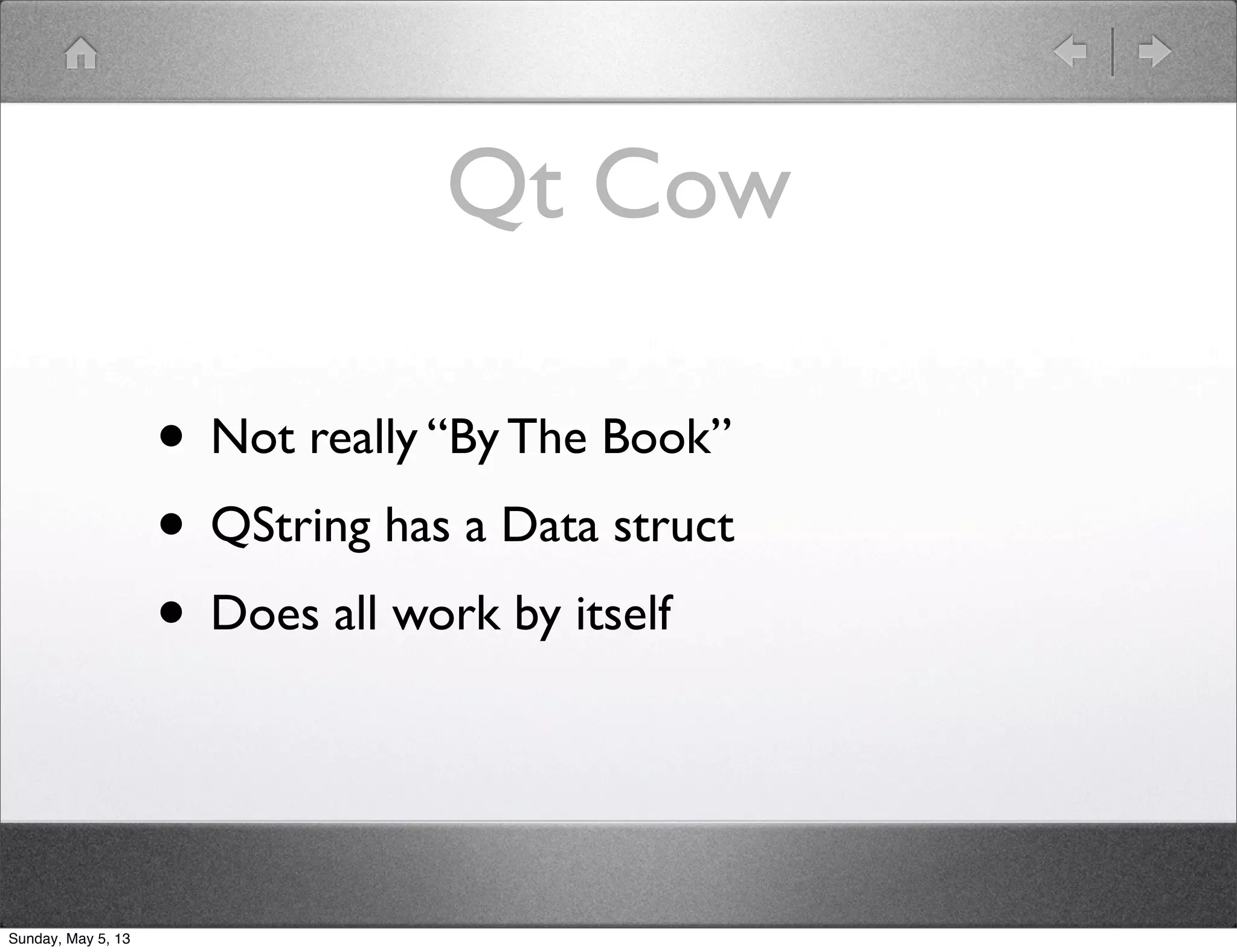

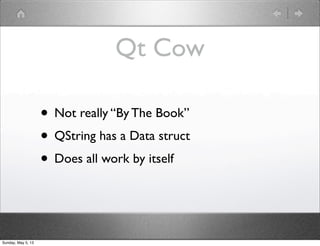

47. Qt Cow
• Not really “By The Book”
• QString has a Data struct
• Does all work by itself
Sunday, May 5, 13

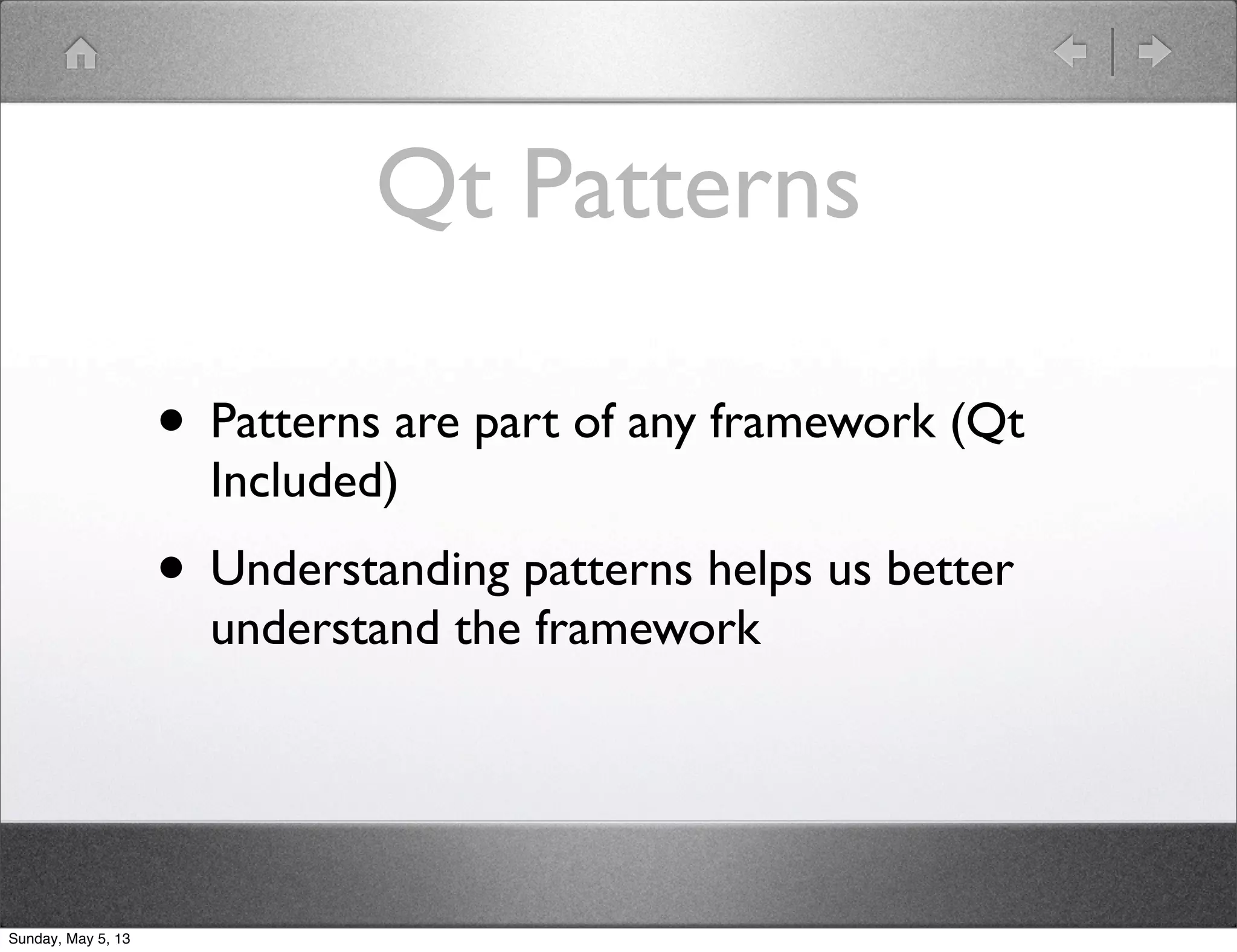

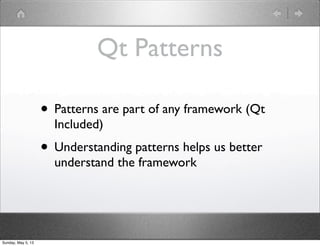

48. Qt Patterns
• Patterns are part of any framework (Qt
Included)
• Understanding patterns helps us better
understand the framework
Sunday, May 5, 13

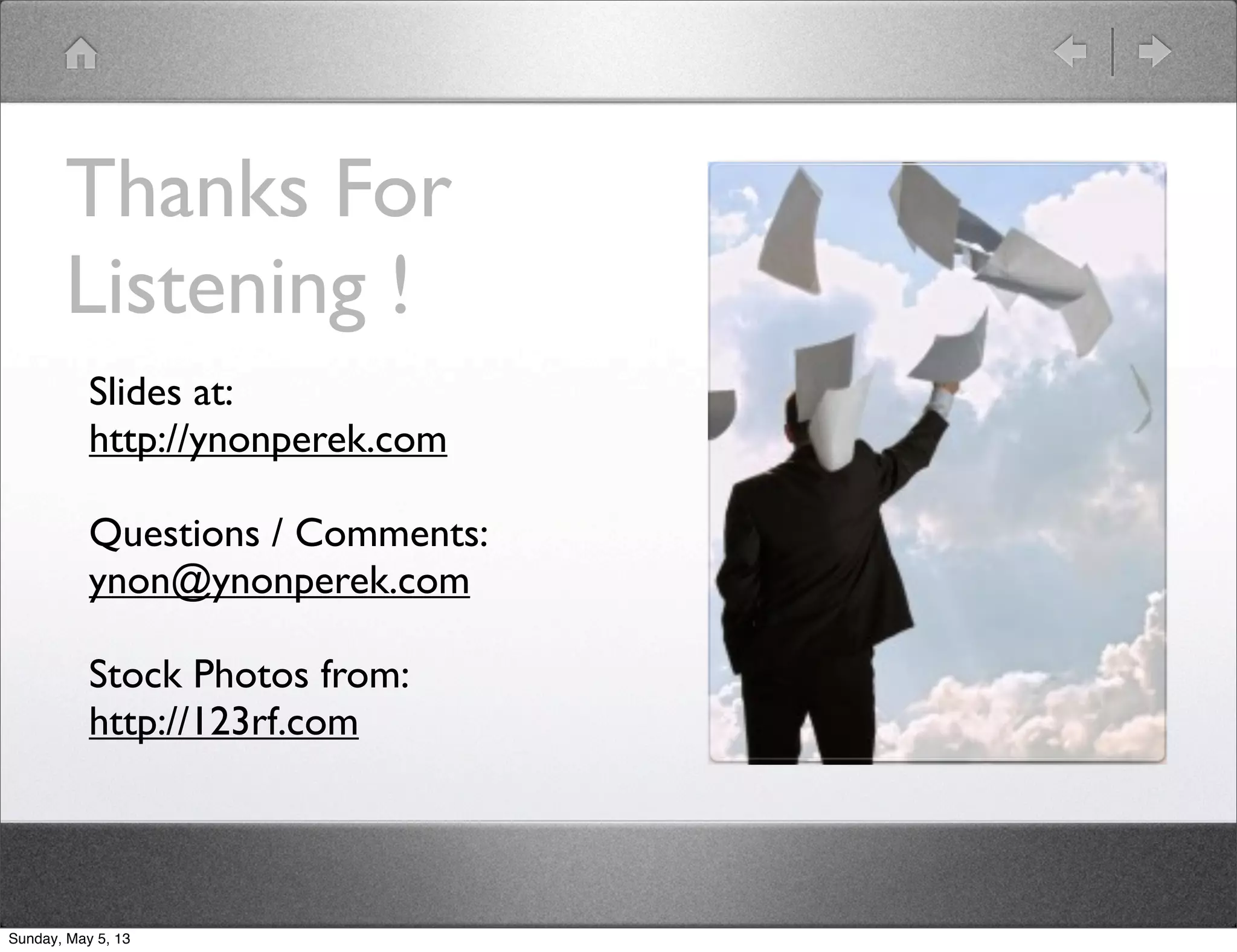

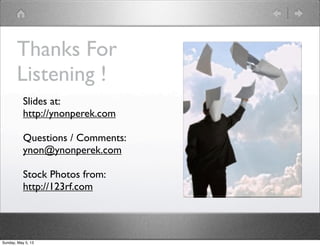

49. Thanks For
Listening !
Slides at:
http://ynonperek.com
Questions / Comments:
ynon@ynonperek.com
Stock Photos from:
http://123rf.com
Sunday, May 5, 13

50. Thanks For Listening
Sunday, May 5, 13
