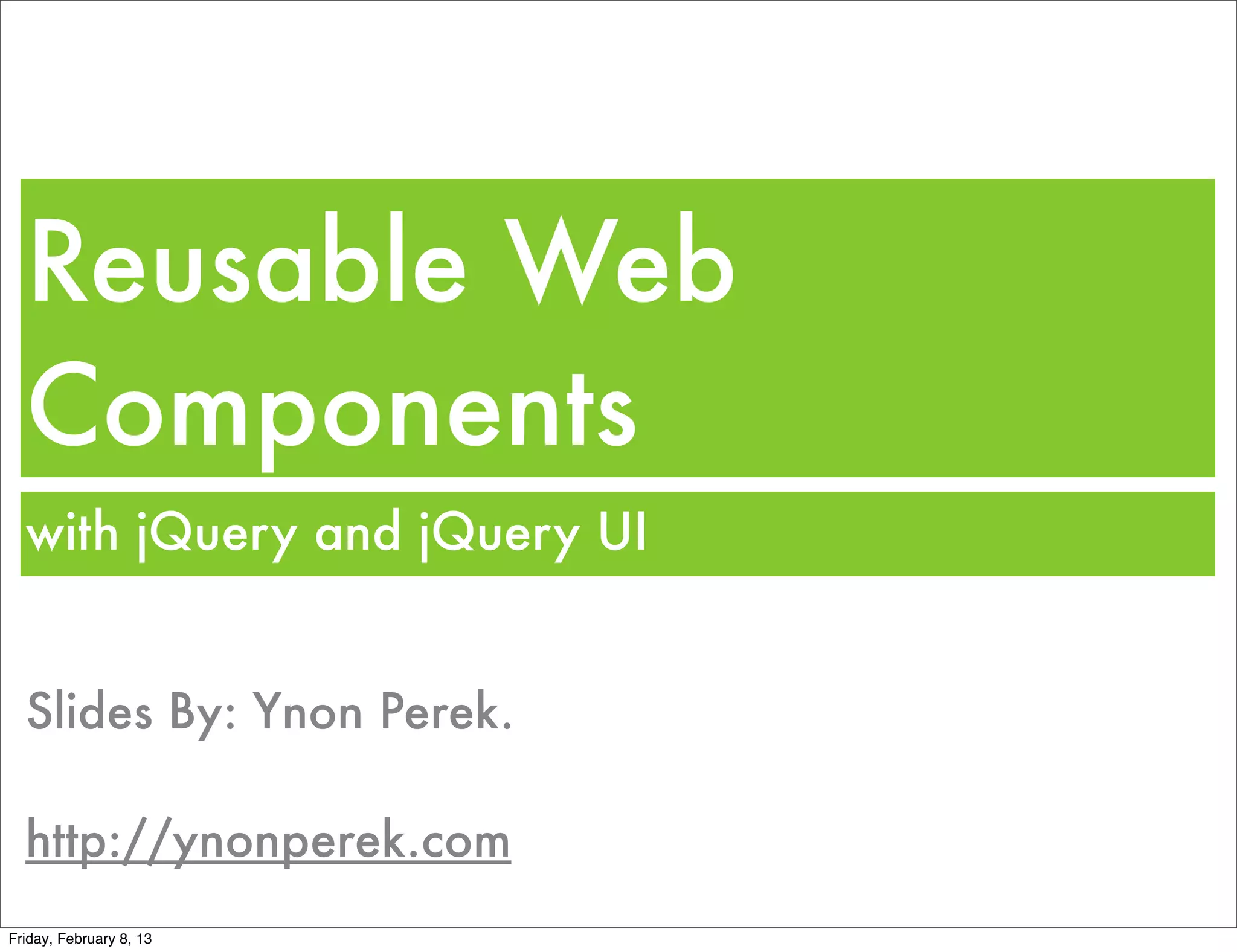

Writing Reusable Web Components with jQuery and jQuery UI

Reusable Web
Components
with jQuery and jQuery UI

Slides By: Ynon Perek.

http://ynonperek.com
Friday, February 8, 13

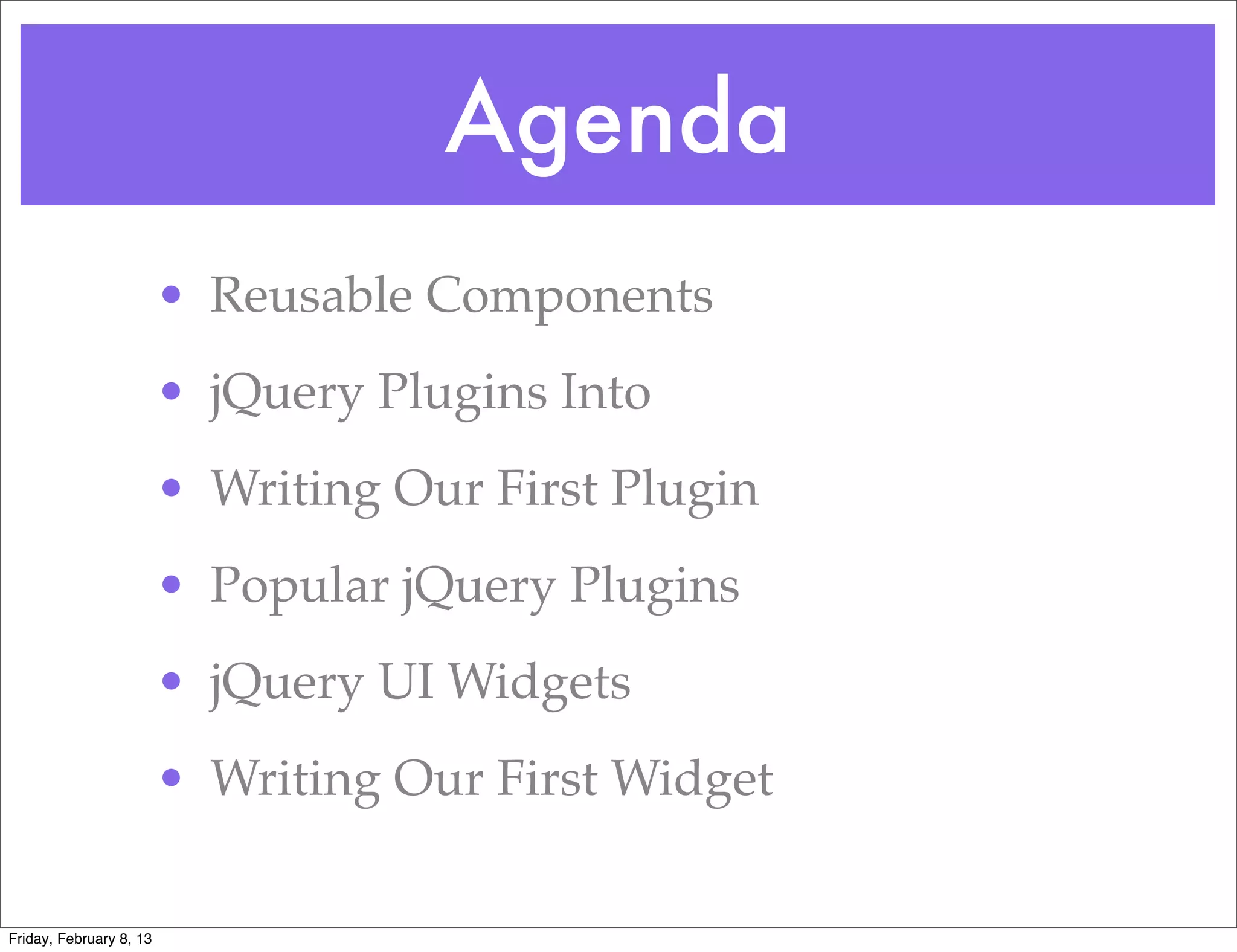

Agenda
• Reusable Components
• jQuery Plugins Into
• Writing Our First Plugin
• Popular jQuery Plugins
• jQuery UI Widgets
• Writing Our First Widget

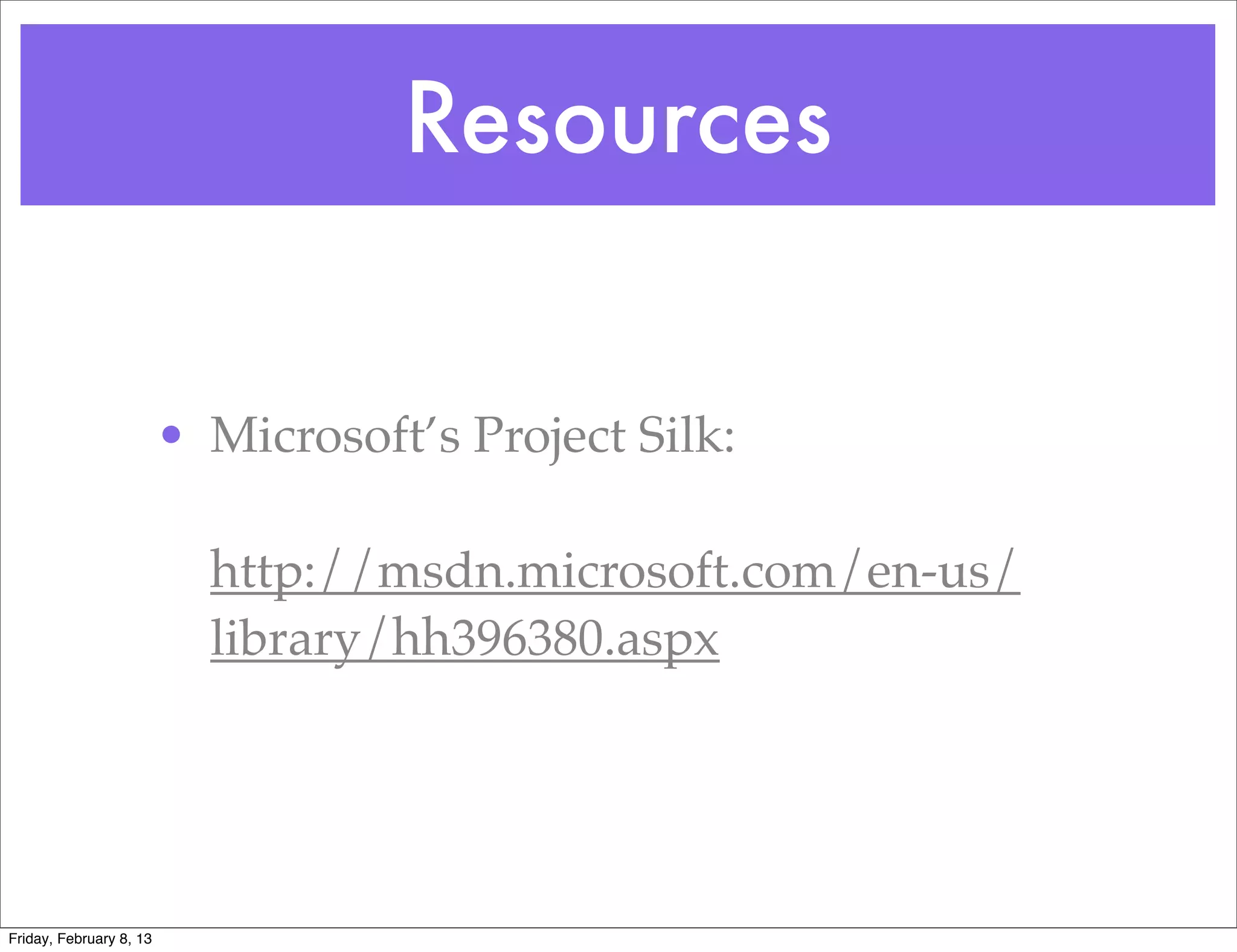

Resources

• Microsoft’s Project Silk:

http://msdn.microsoft.com/en-us/
library/hh396380.aspx

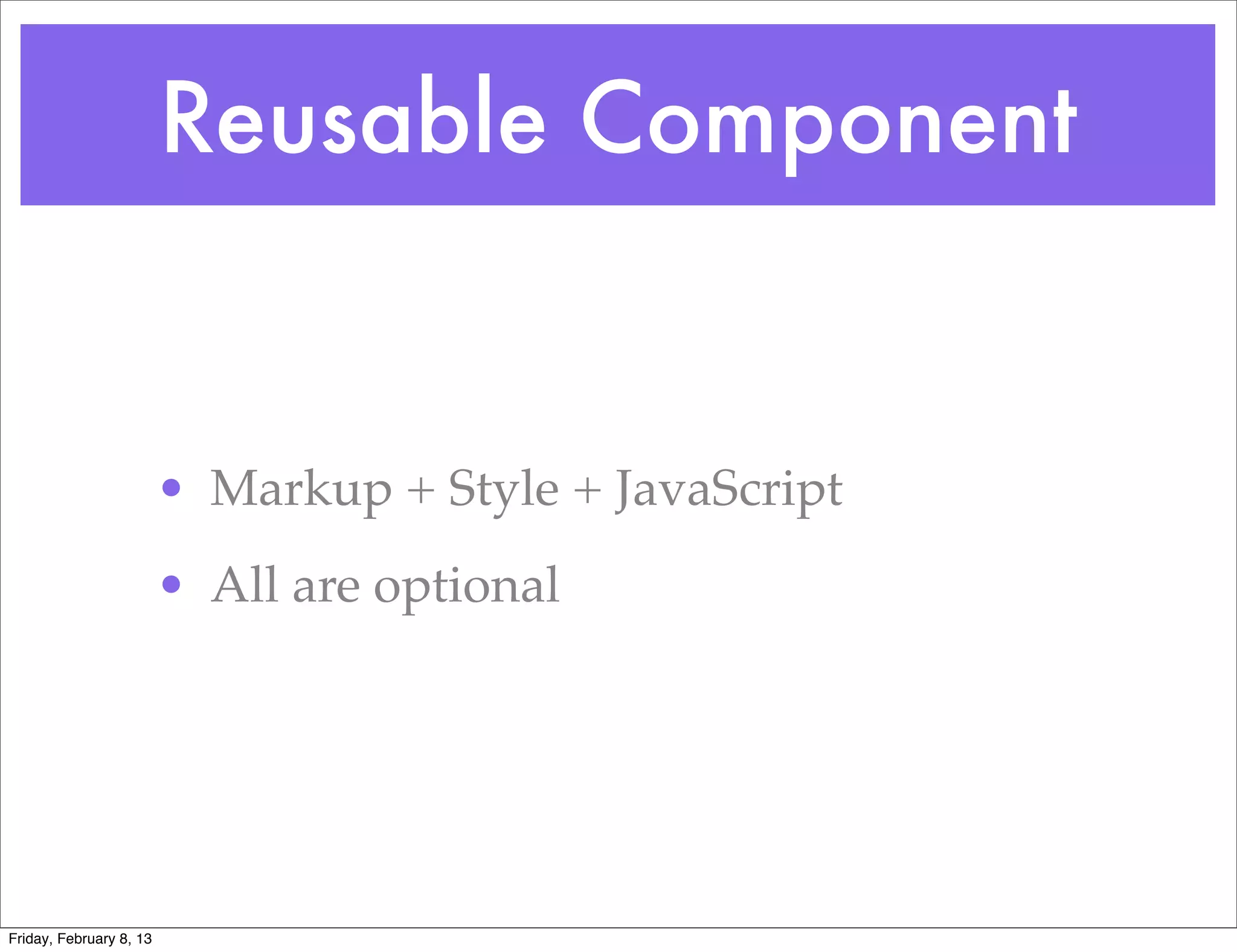

Reusable Component

• Markup + Style + JavaScript
• All are optional

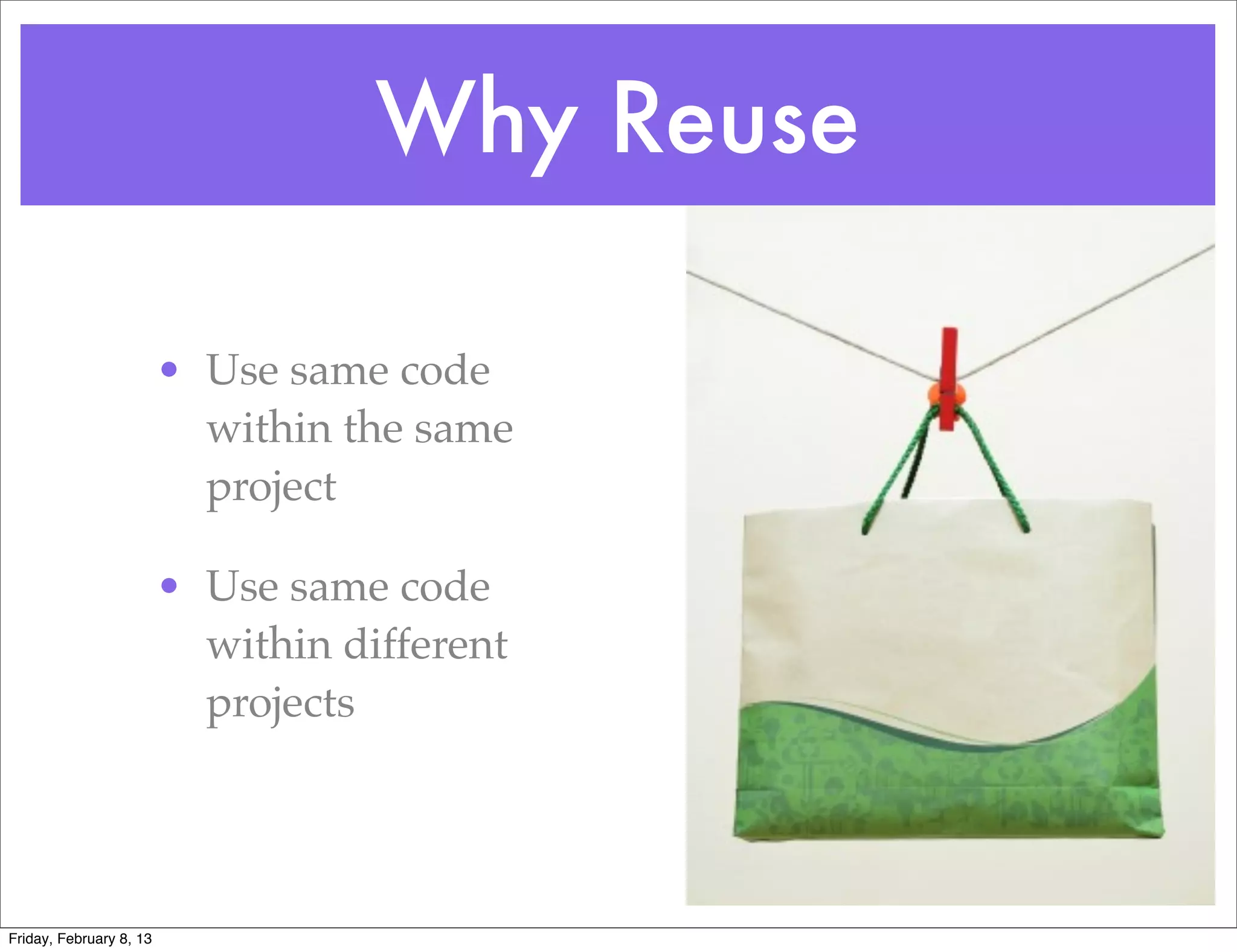

Why Reuse

• Use same code
within the same
project

• Use same code
within different
projects


The Hows

• Roll Your Own

• Extend Existing
Framework


jQuery Plugins

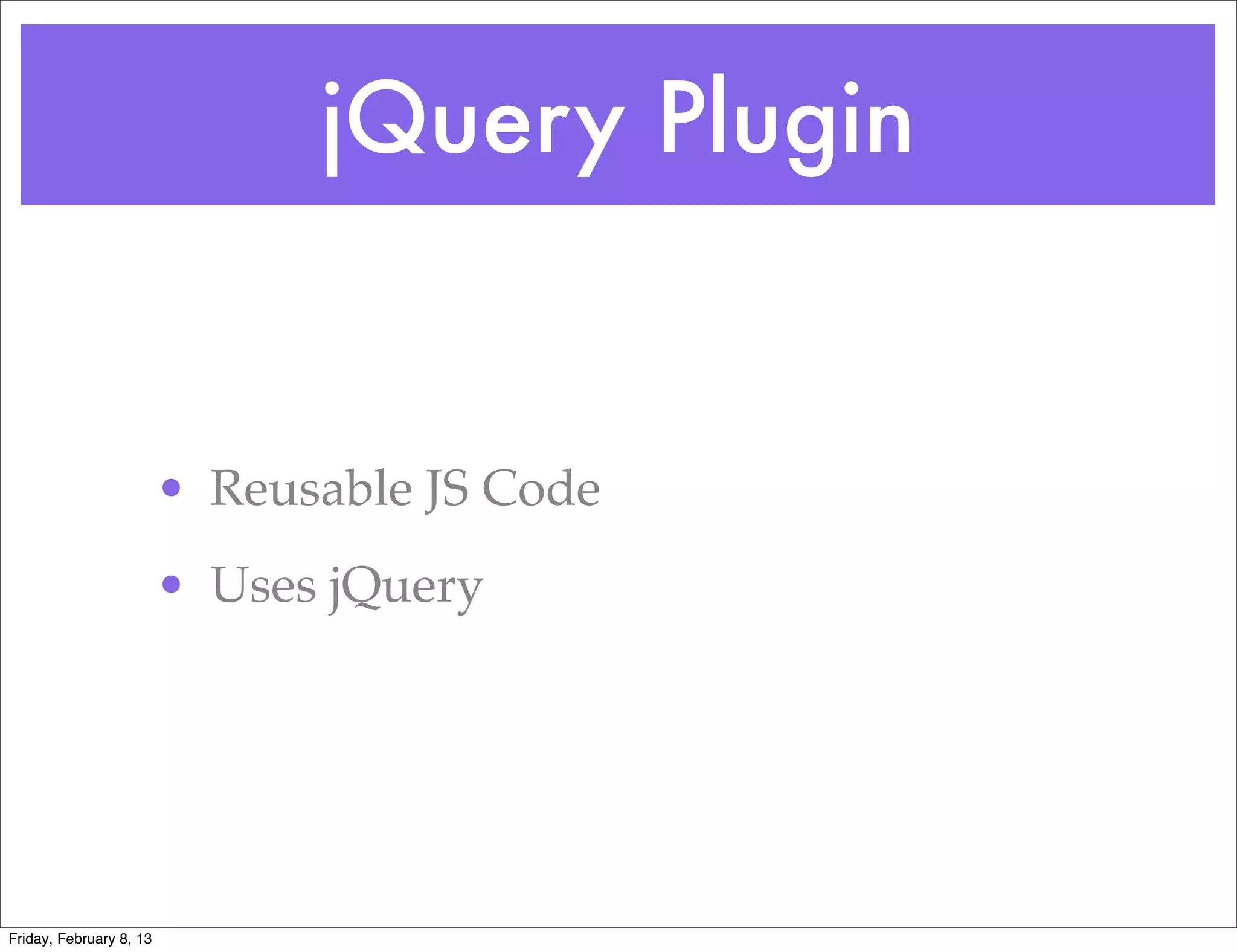

jQuery Plugin

• Reusable JS Code
• Uses jQuery

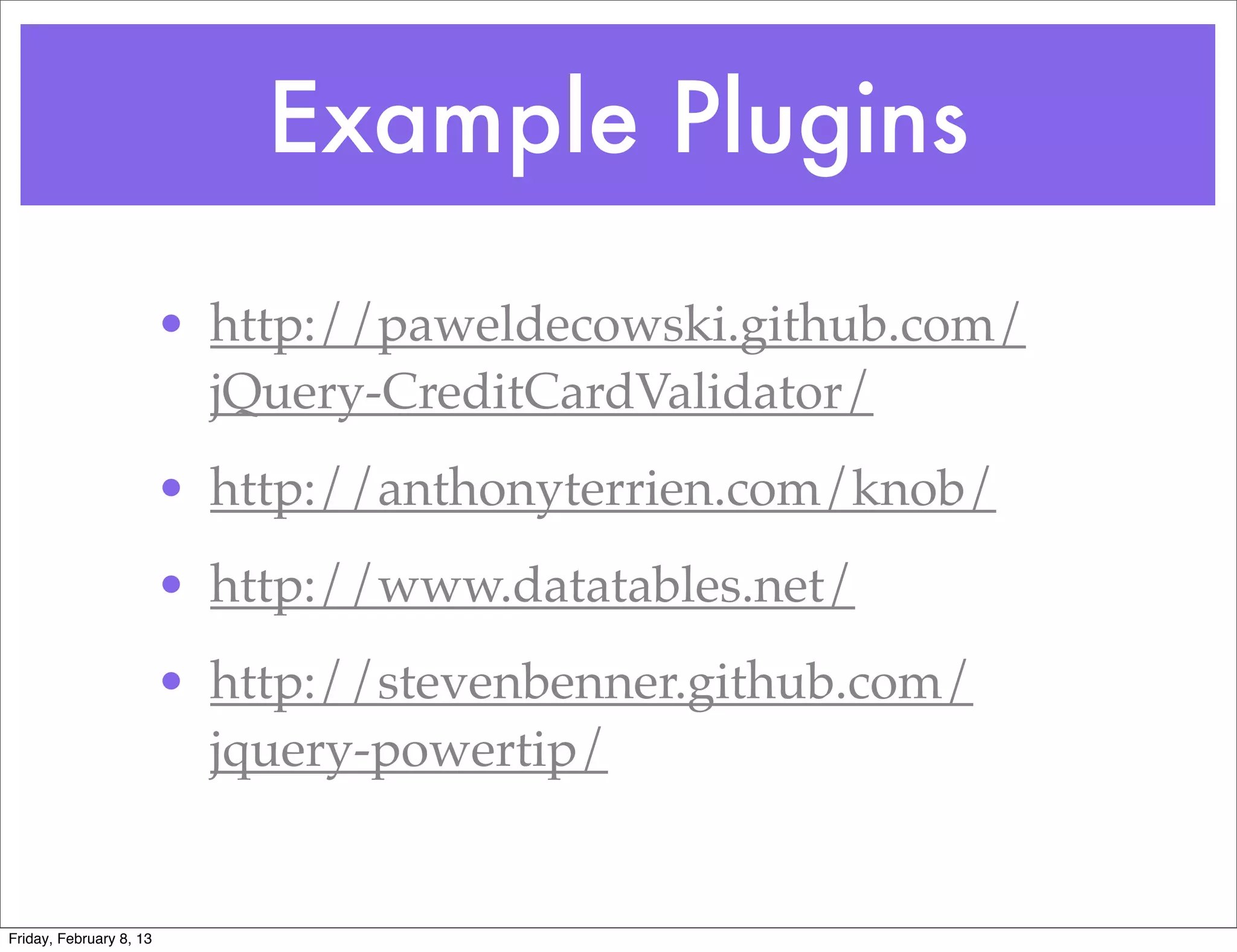

Example Plugins
• http://paweldecowski.github.com/
jQuery-CreditCardValidator/
• http://anthonyterrien.com/knob/
• http://www.datatables.net/
• http://stevenbenner.github.com/
jquery-powertip/

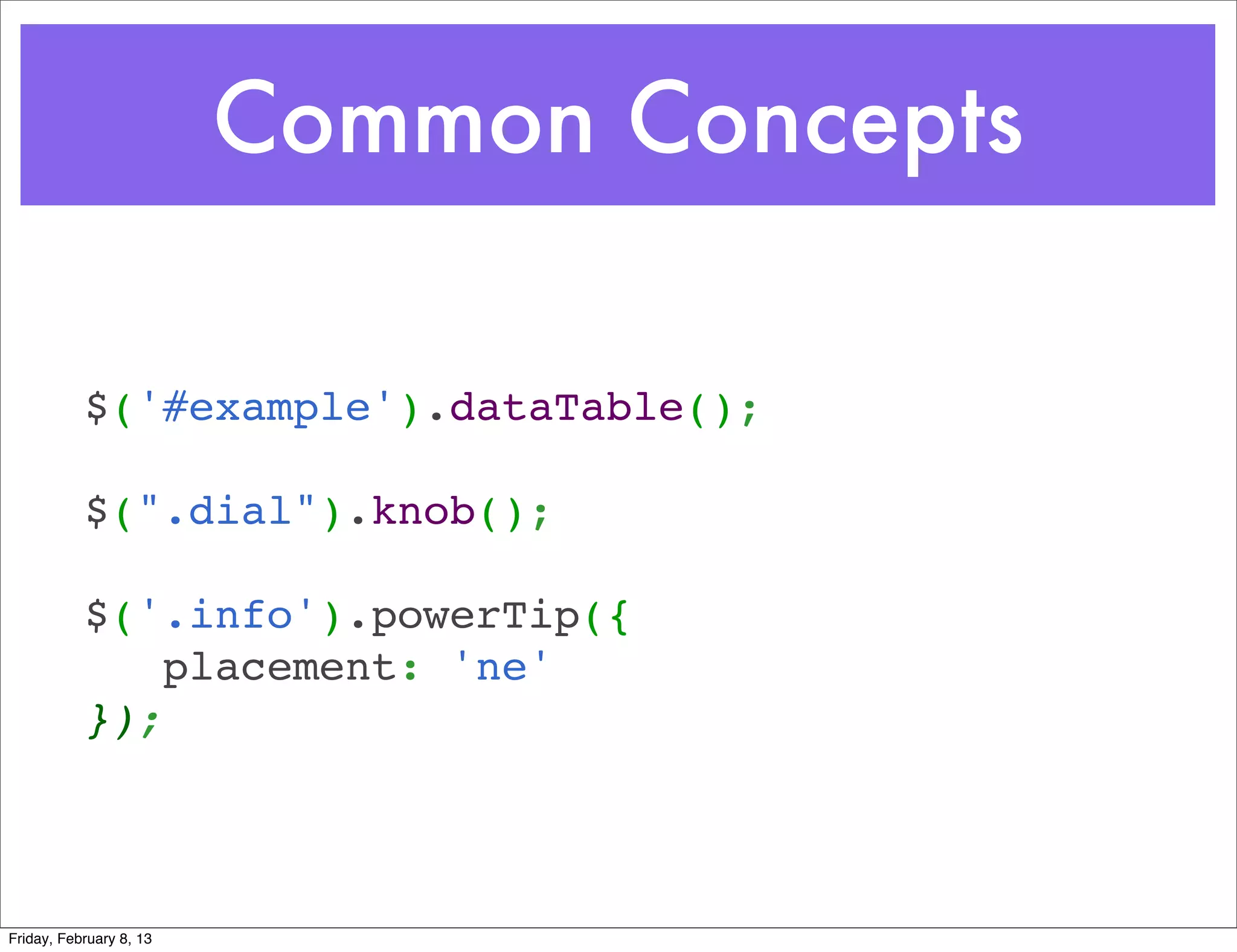

Common Concepts

$('#example').dataTable();

$(".dial").knob();

$('.info').powerTip({
placement: 'ne'
});

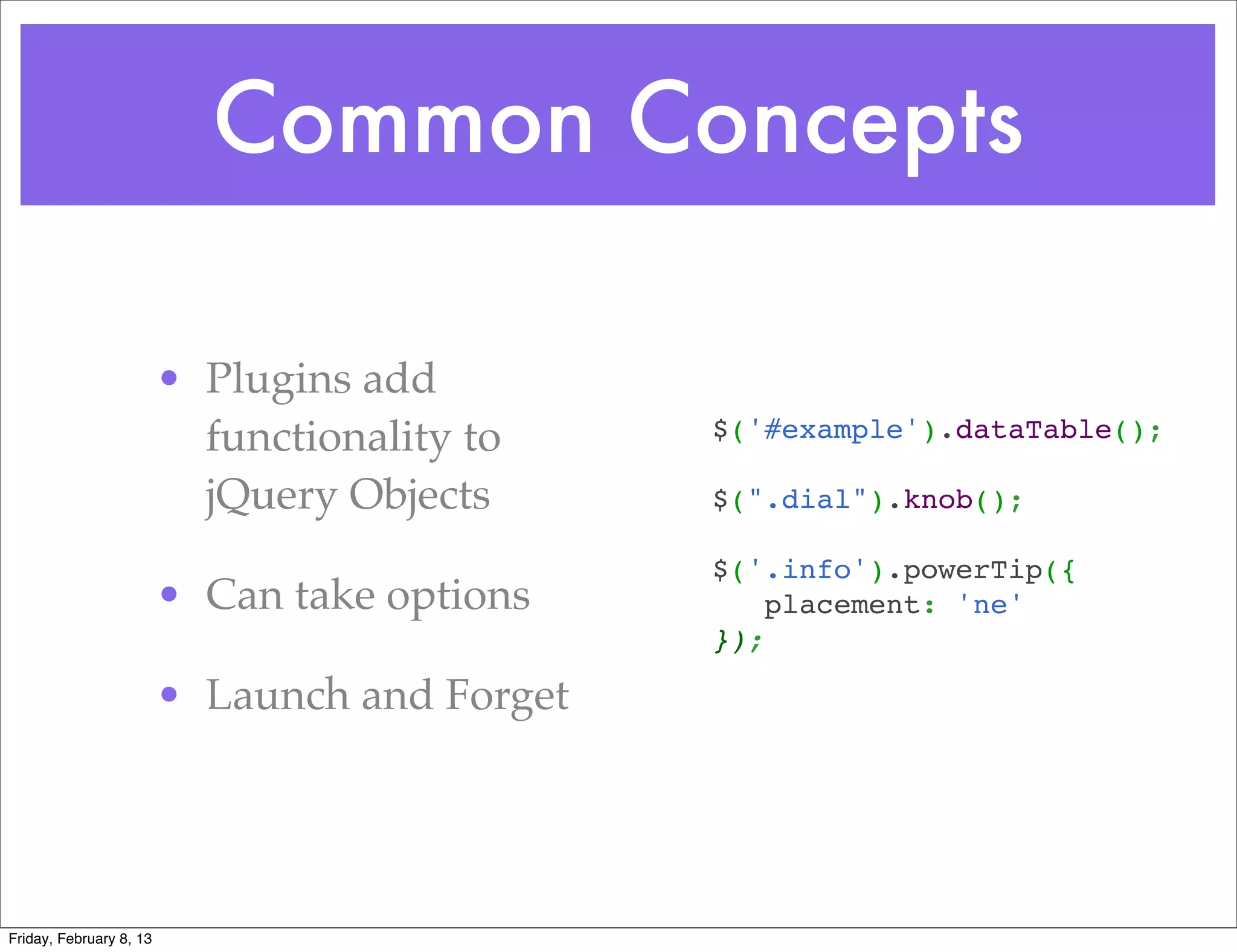

Common Concepts

• Plugins add
functionality to $('#example').dataTable();

jQuery Objects $(".dial").knob();

$('.info').powerTip({
• Can take options placement: 'ne'
});

• Launch and Forget

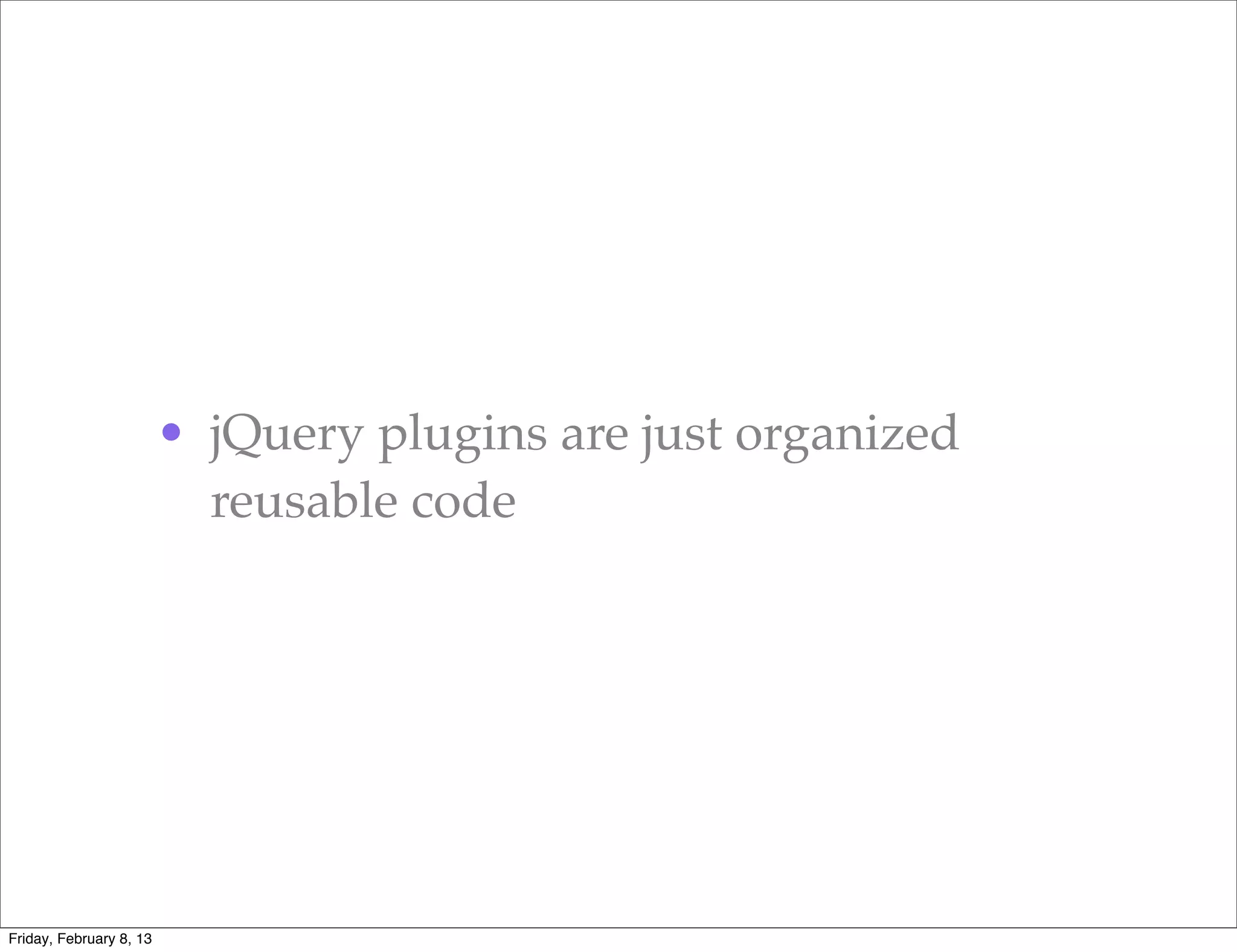

• jQuery plugins are just organized
reusable code

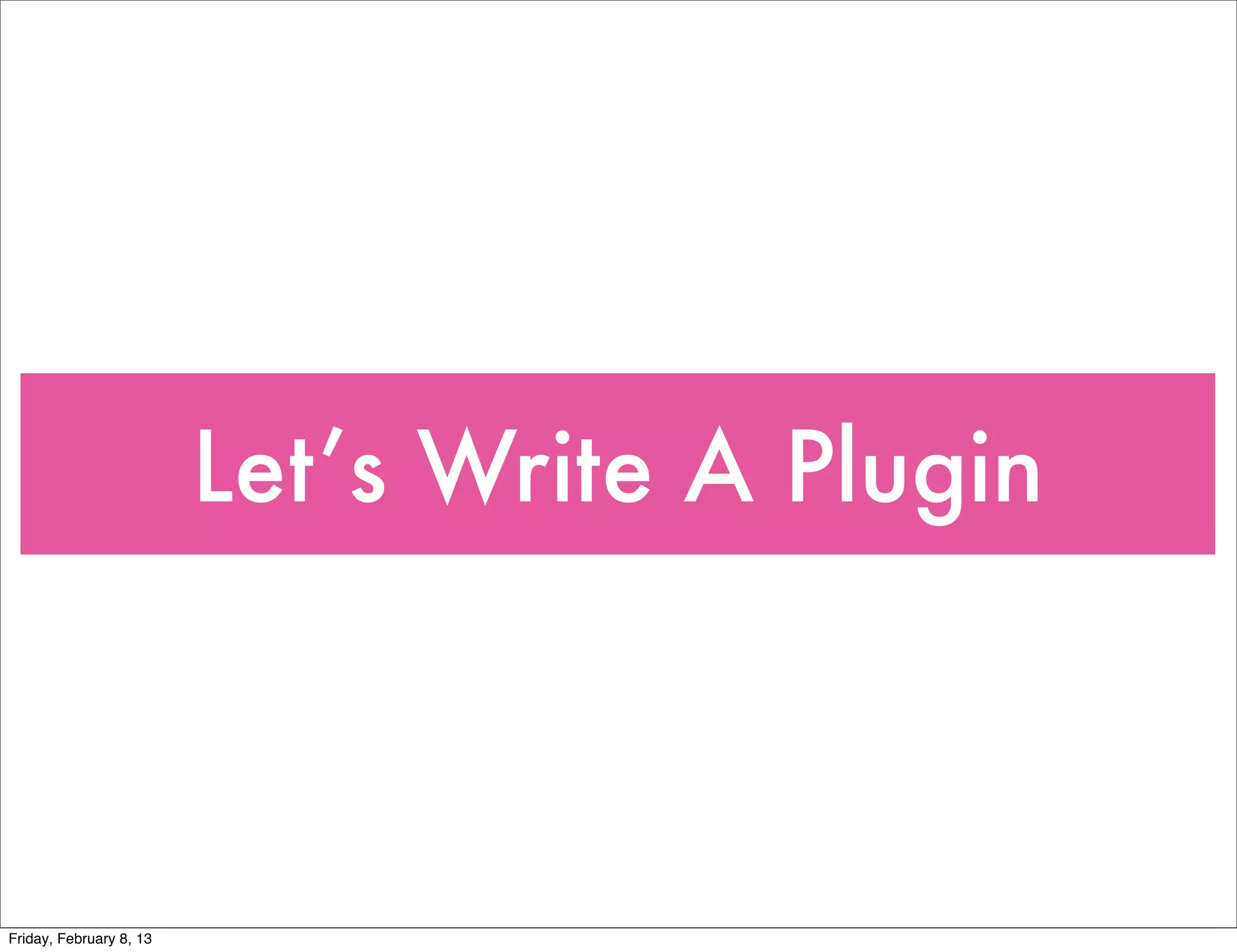

Let’s Write A Plugin

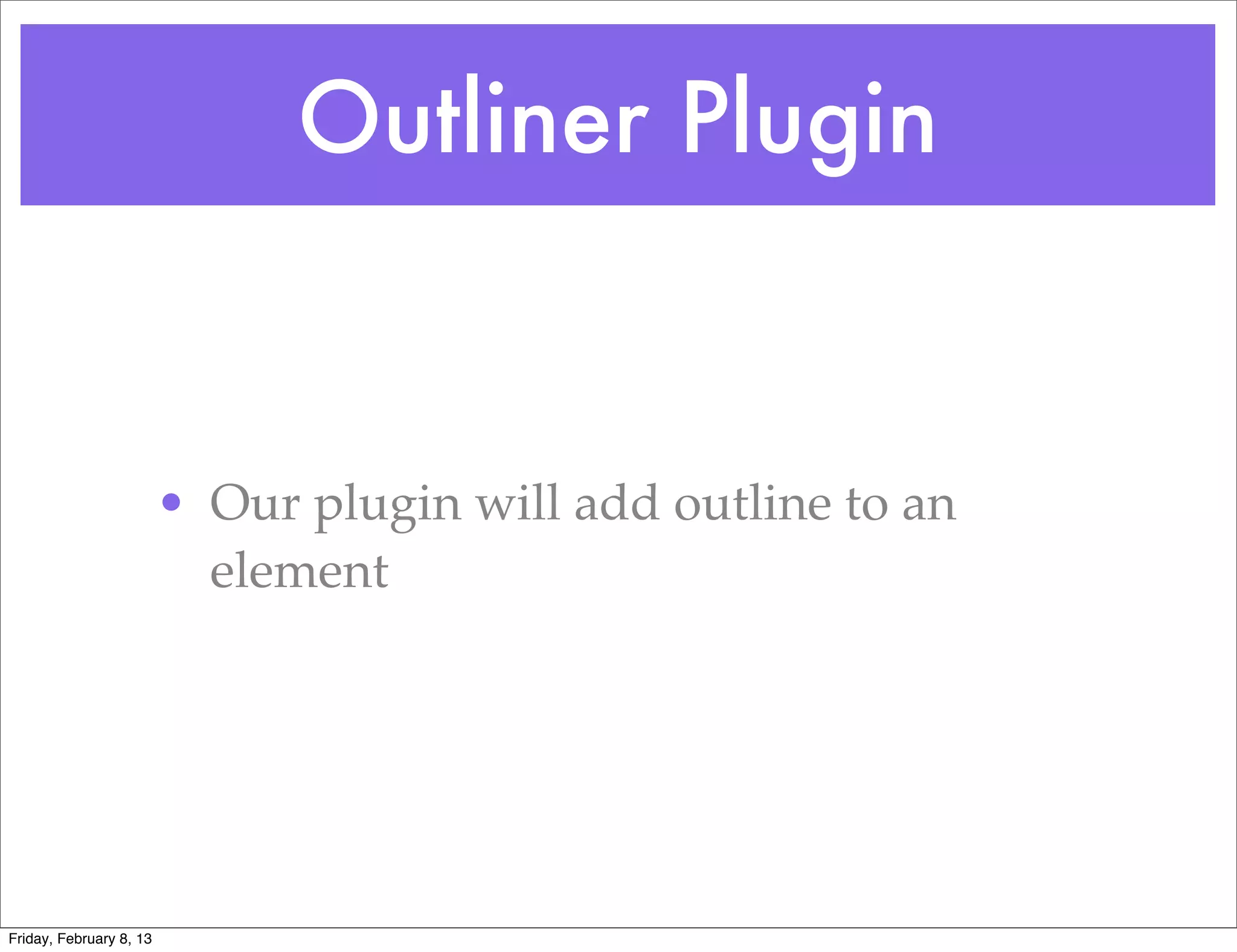

Outliner Plugin

• Our plugin will add outline to an
element

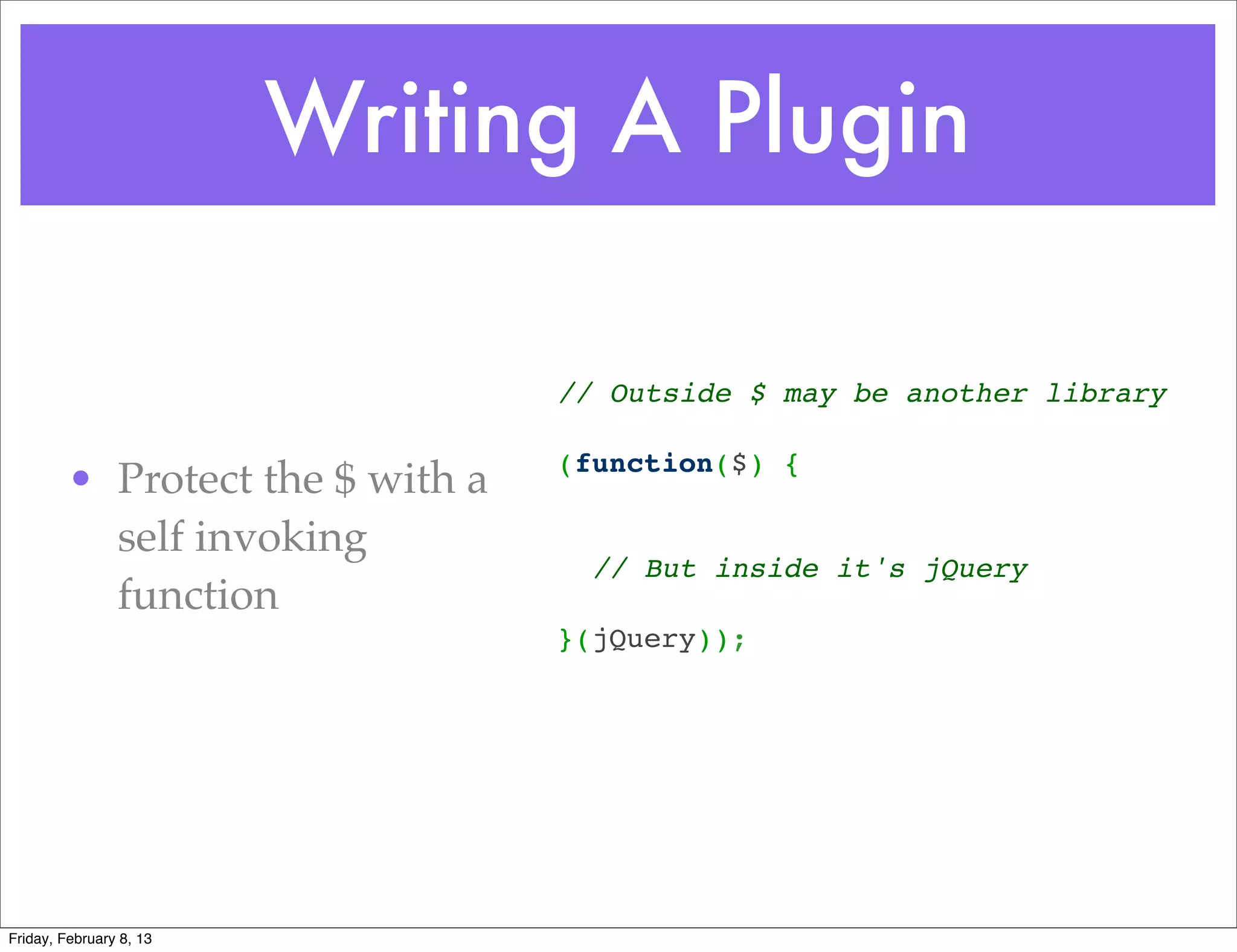

Writing A Plugin

// Outside $ may be another library

(function($) {
• Protect the $ with a
self invoking
// But inside it's jQuery
function
}(jQuery));

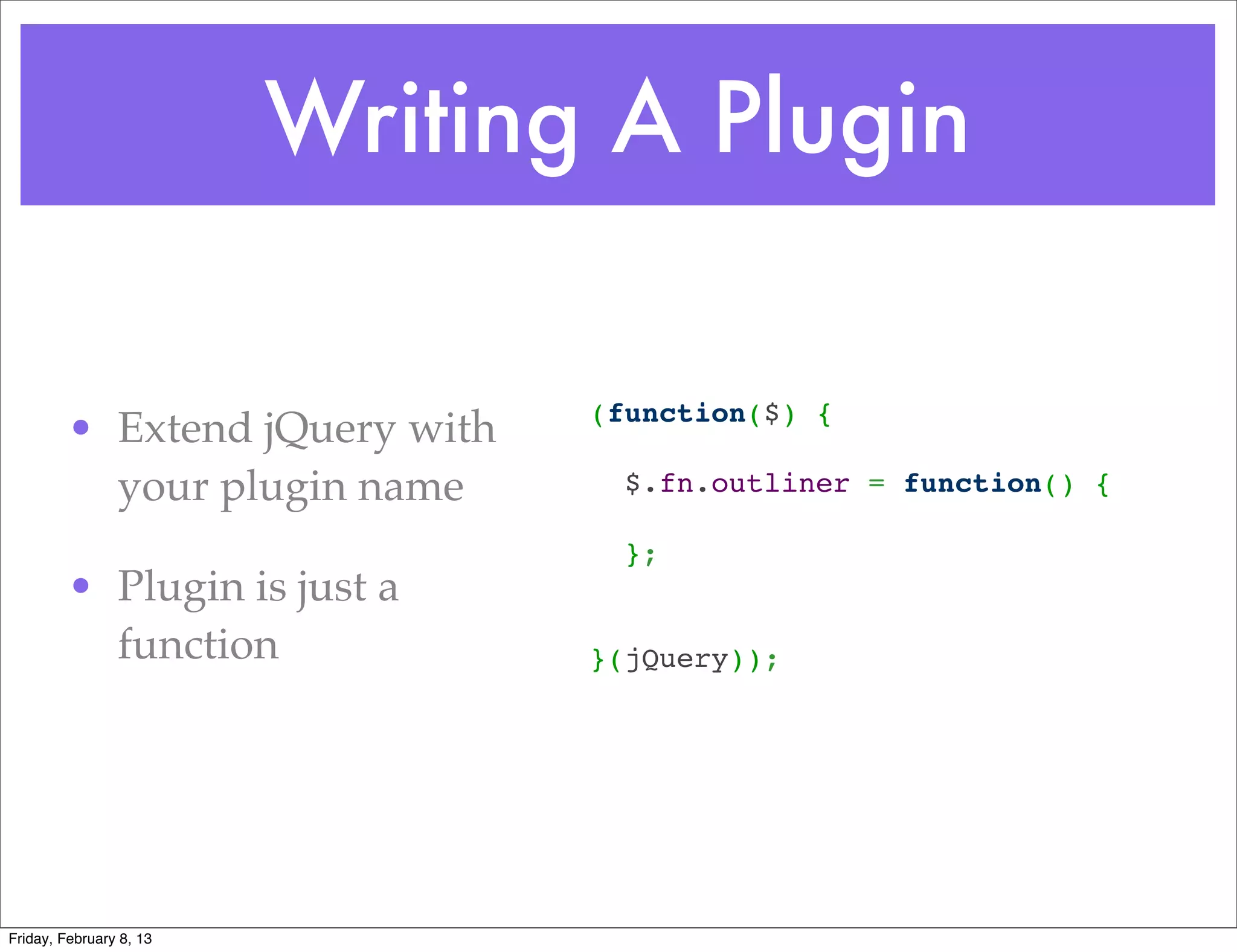

Writing A Plugin

(function($) {
• Extend jQuery with
your plugin name $.fn.outliner = function() {

};
• Plugin is just a

function }(jQuery));

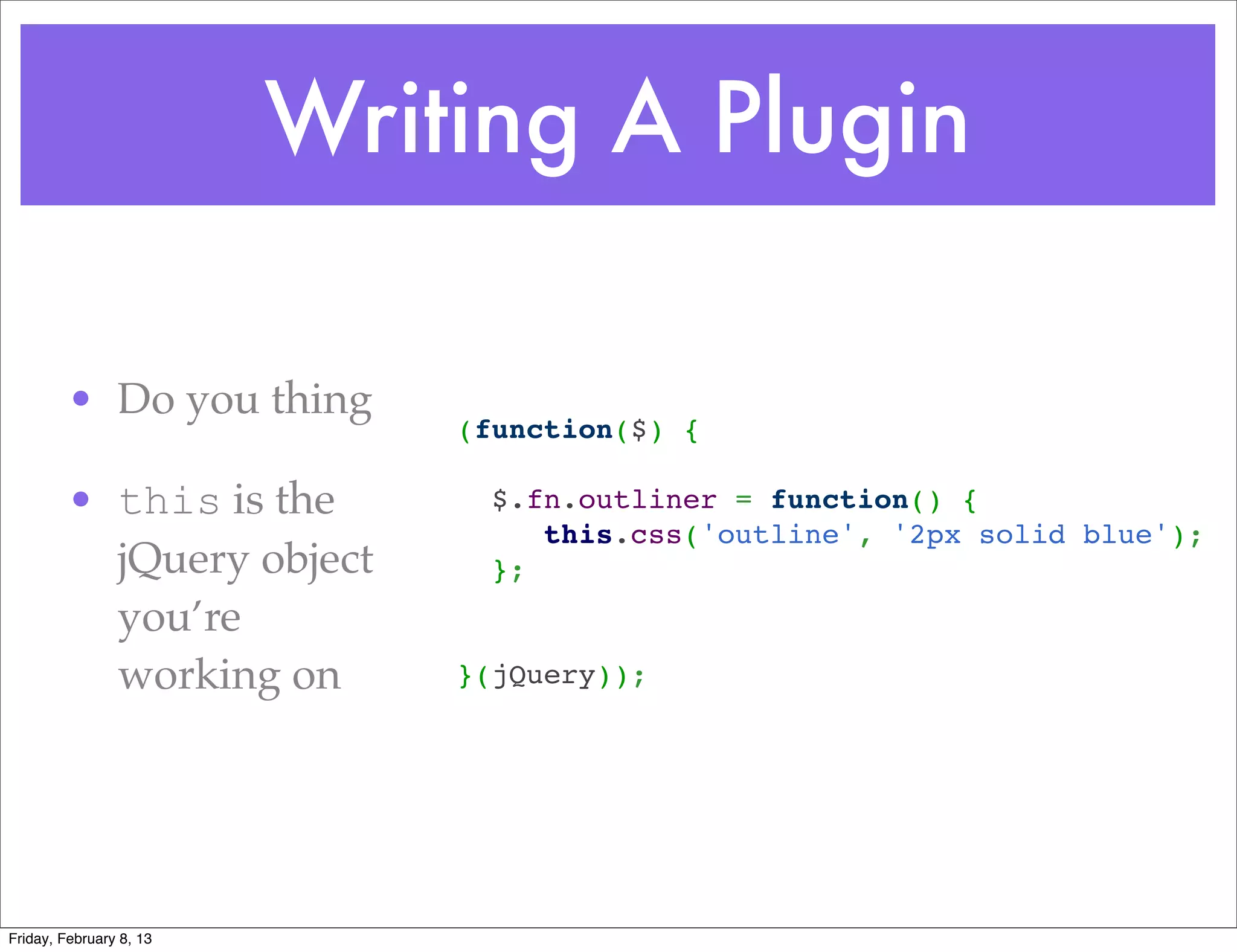

Writing A Plugin

• Do you thing
(function($) {

• this is the $.fn.outliner = function() {
this.css('outline', '2px solid blue');
jQuery object };

you’re
working on }(jQuery));

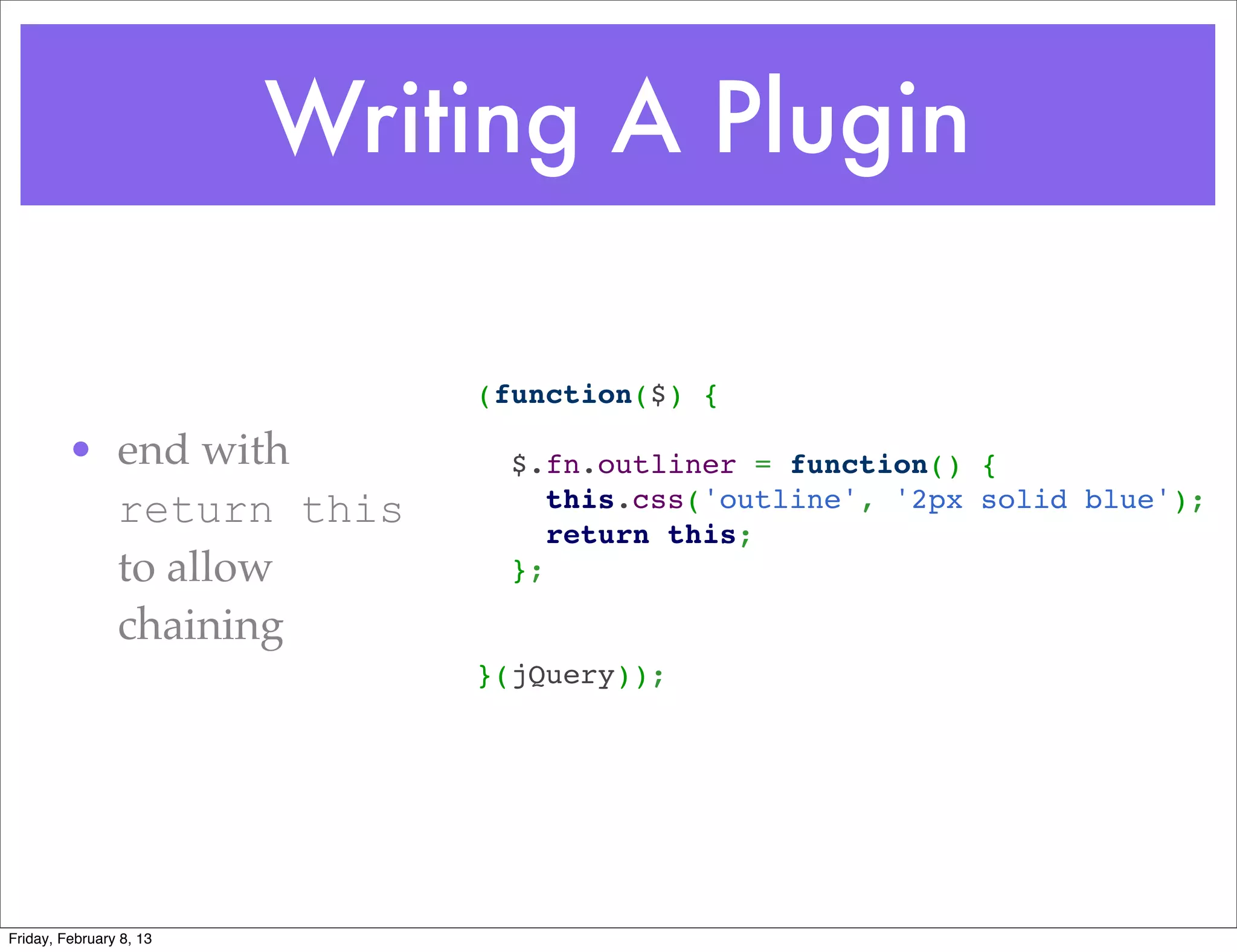

Writing A Plugin

(function($) {

• end with $.fn.outliner = function() {
return this this.css('outline', '2px solid blue');
return this;
to allow };

chaining
}(jQuery));

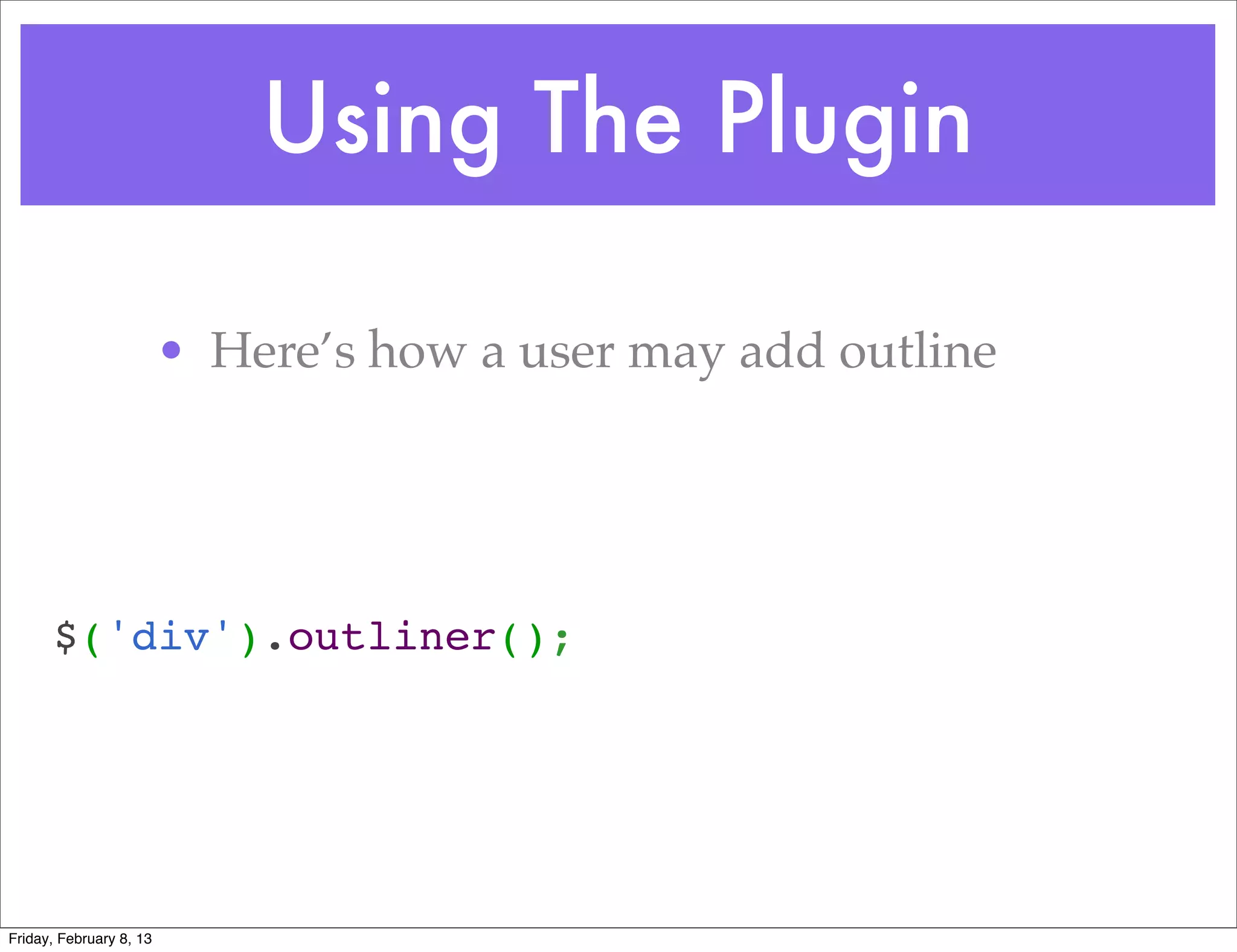

Using The Plugin

• Here’s how a user may add outline

$('div').outliner();

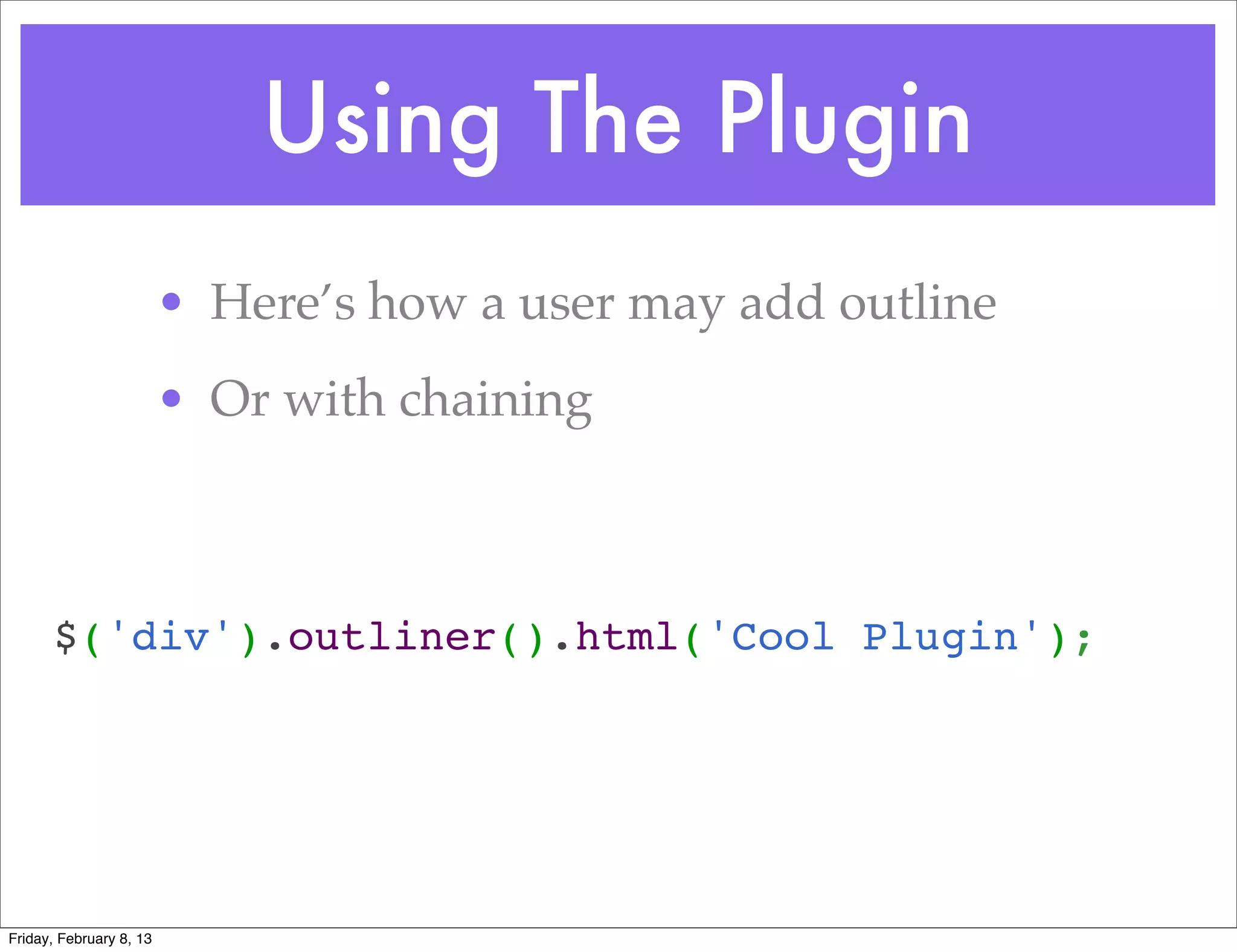

Using The Plugin
• Here’s how a user may add outline
• Or with chaining

$('div').outliner().html('Cool Plugin');

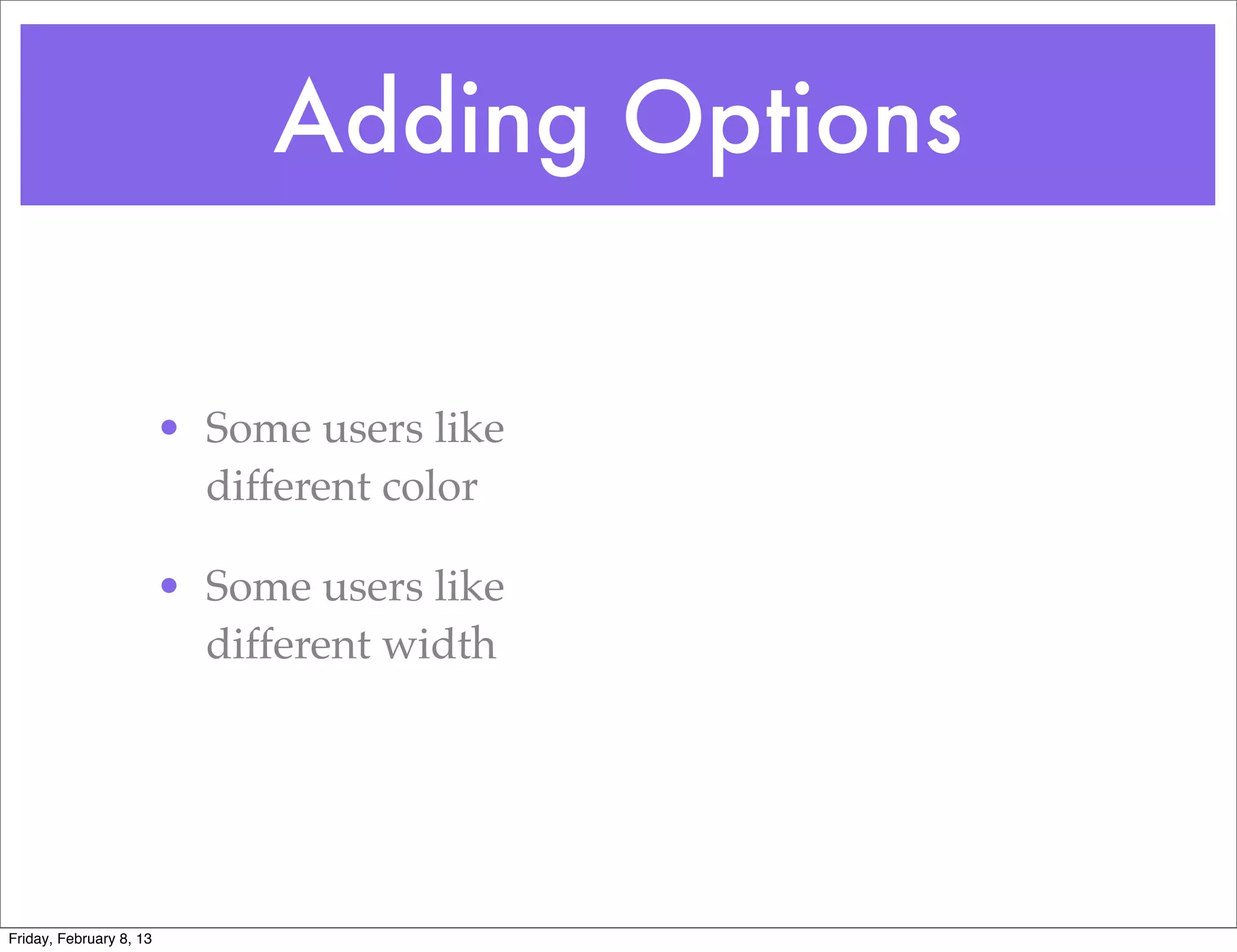

Adding Options

• Some users like
different color

• Some users like
different width

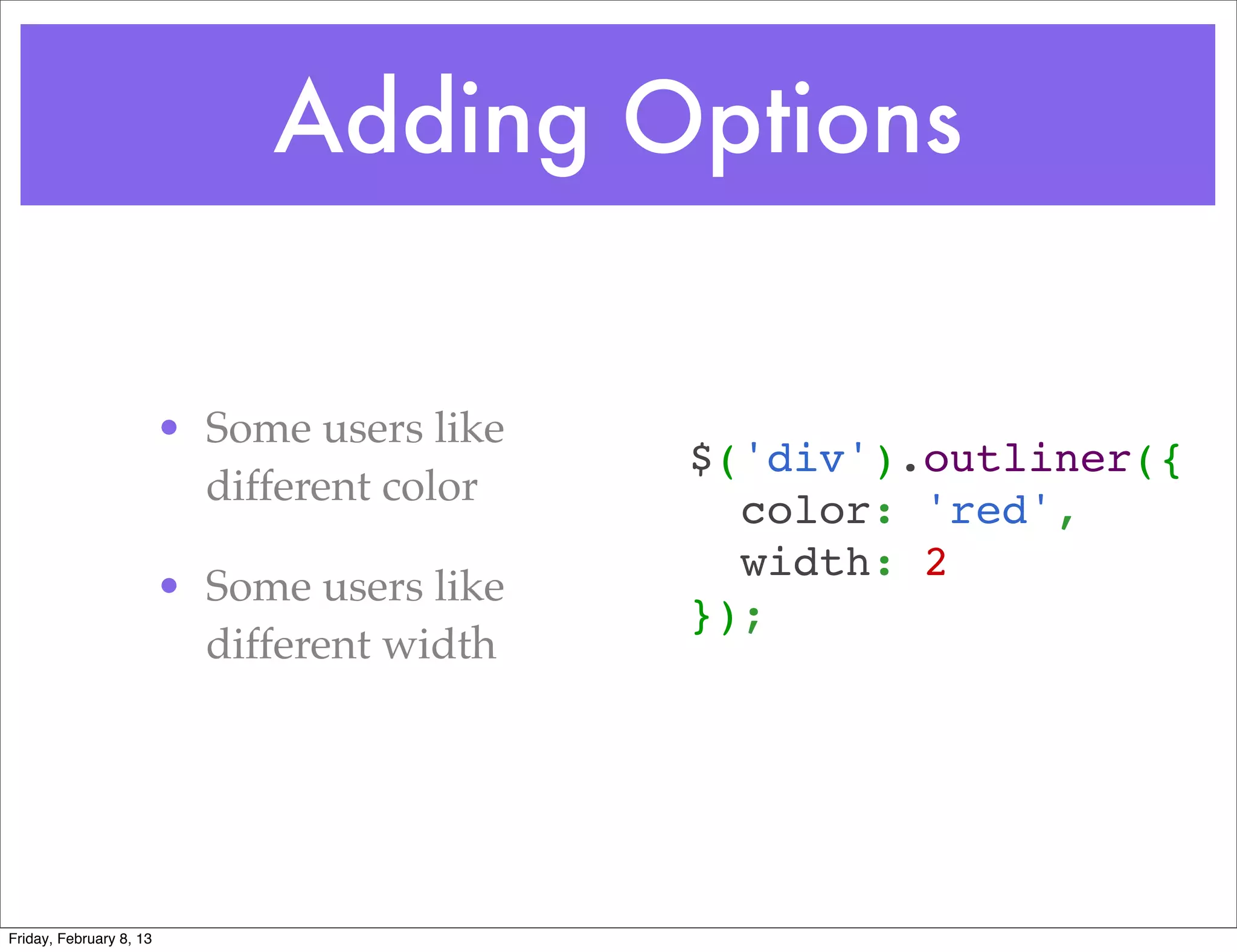

Adding Options

• Some users like
$('div').outliner({
different color
color: 'red',
width: 2
• Some users like
});
different width

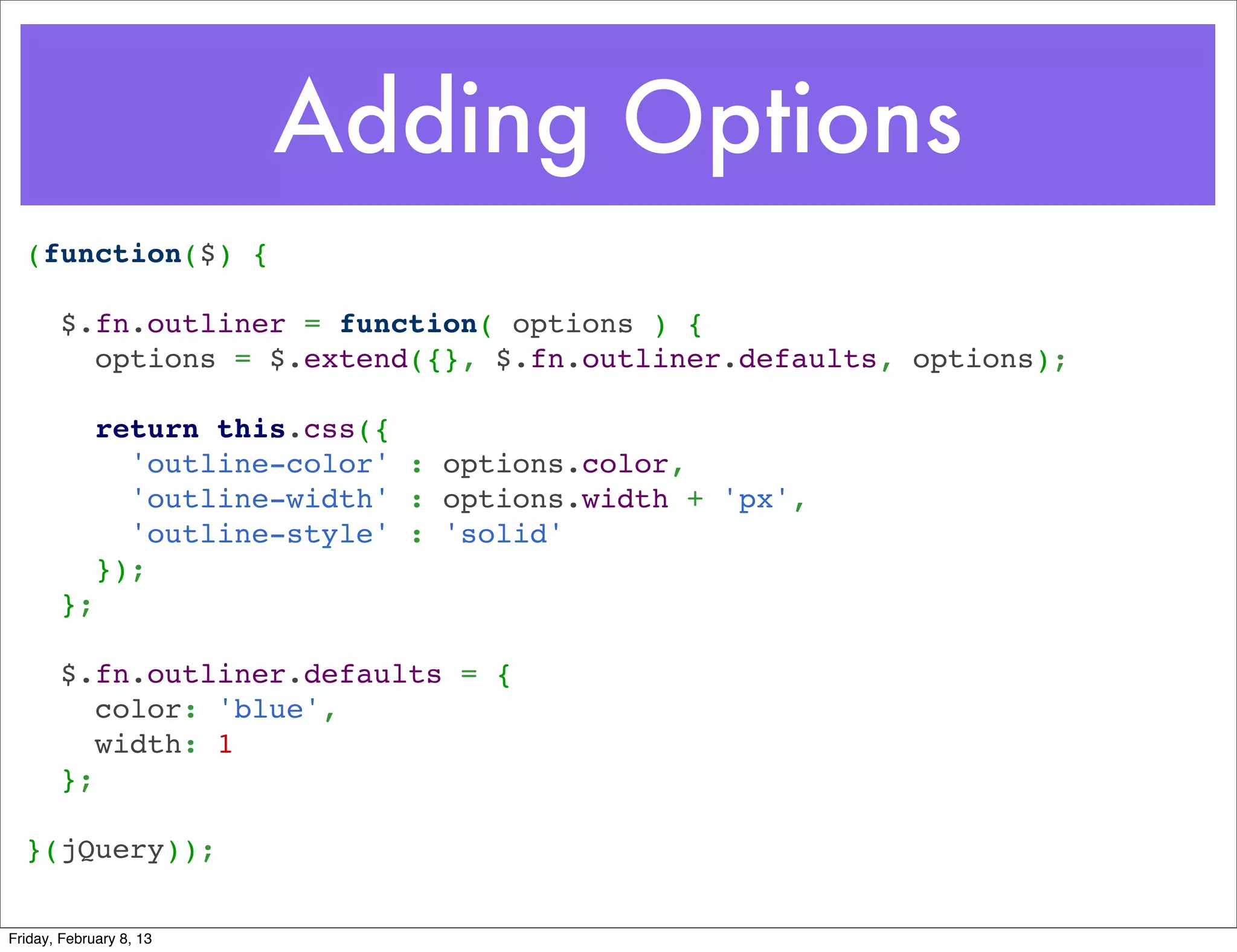

Adding Options
(function($) {

$.fn.outliner = function( options ) {
options = $.extend({}, $.fn.outliner.defaults, options);

return this.css({
'outline-color' : options.color,
'outline-width' : options.width + 'px',
'outline-style' : 'solid'
});
};

$.fn.outliner.defaults = {
color: 'blue',
width: 1
};

}(jQuery));

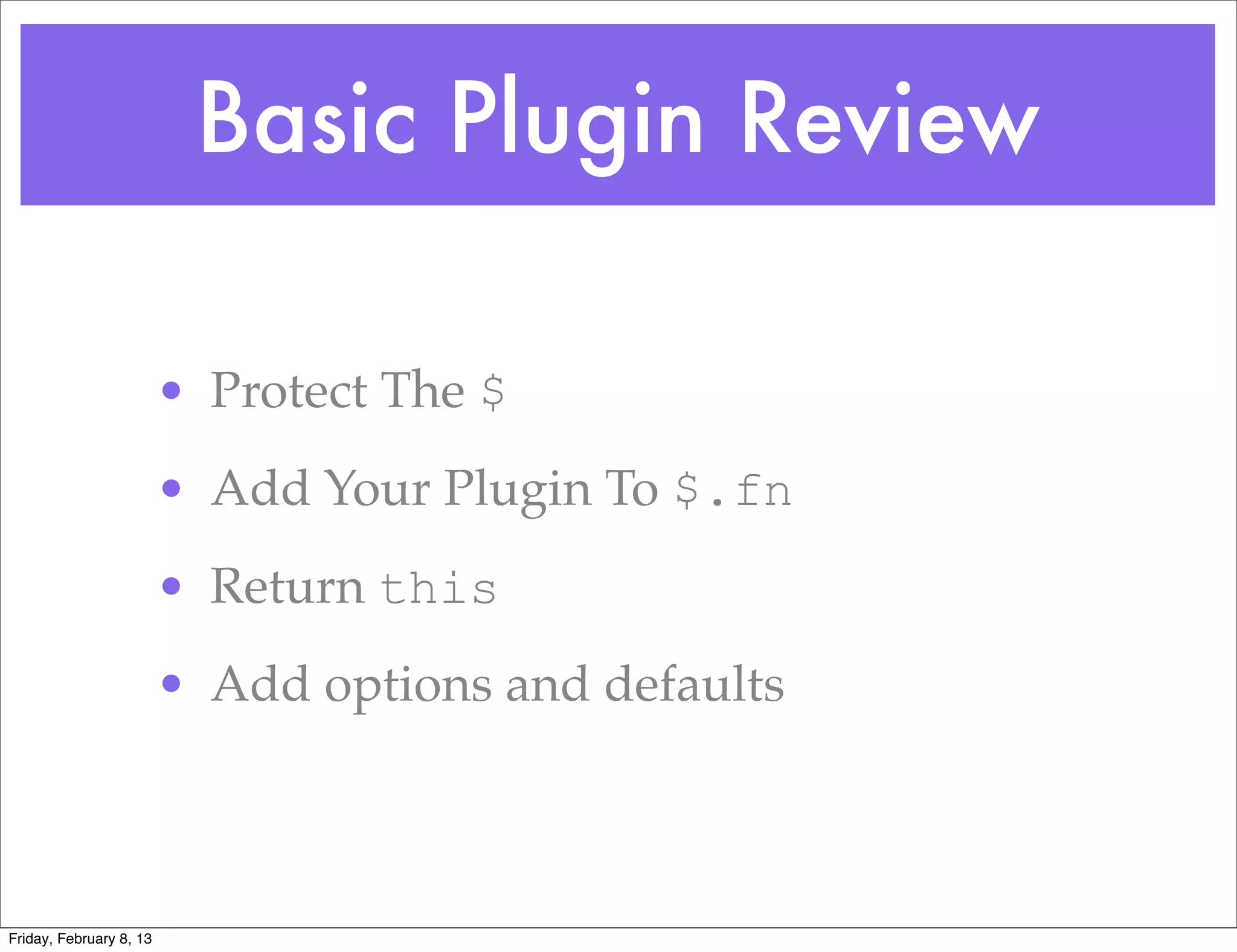

Basic Plugin Review

• Protect The $
• Add Your Plugin To $.fn
• Return this
• Add options and defaults

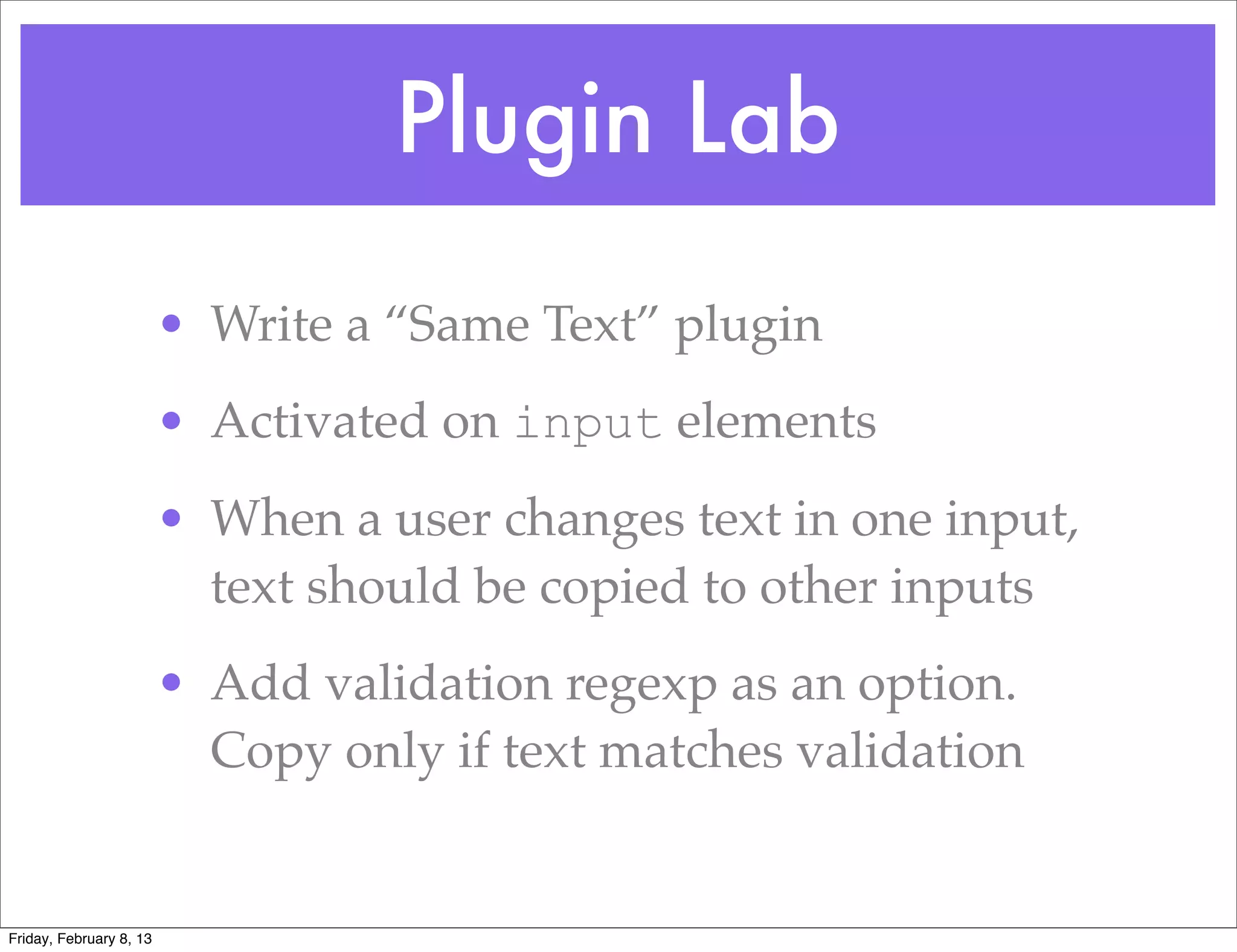

Plugin Lab
• Write a “Same Text” plugin
• Activated on input elements
• When a user changes text in one input,
text should be copied to other inputs
• Add validation regexp as an option.
Copy only if text matches validation


Q&A


DOM
Manipulating
Plugins

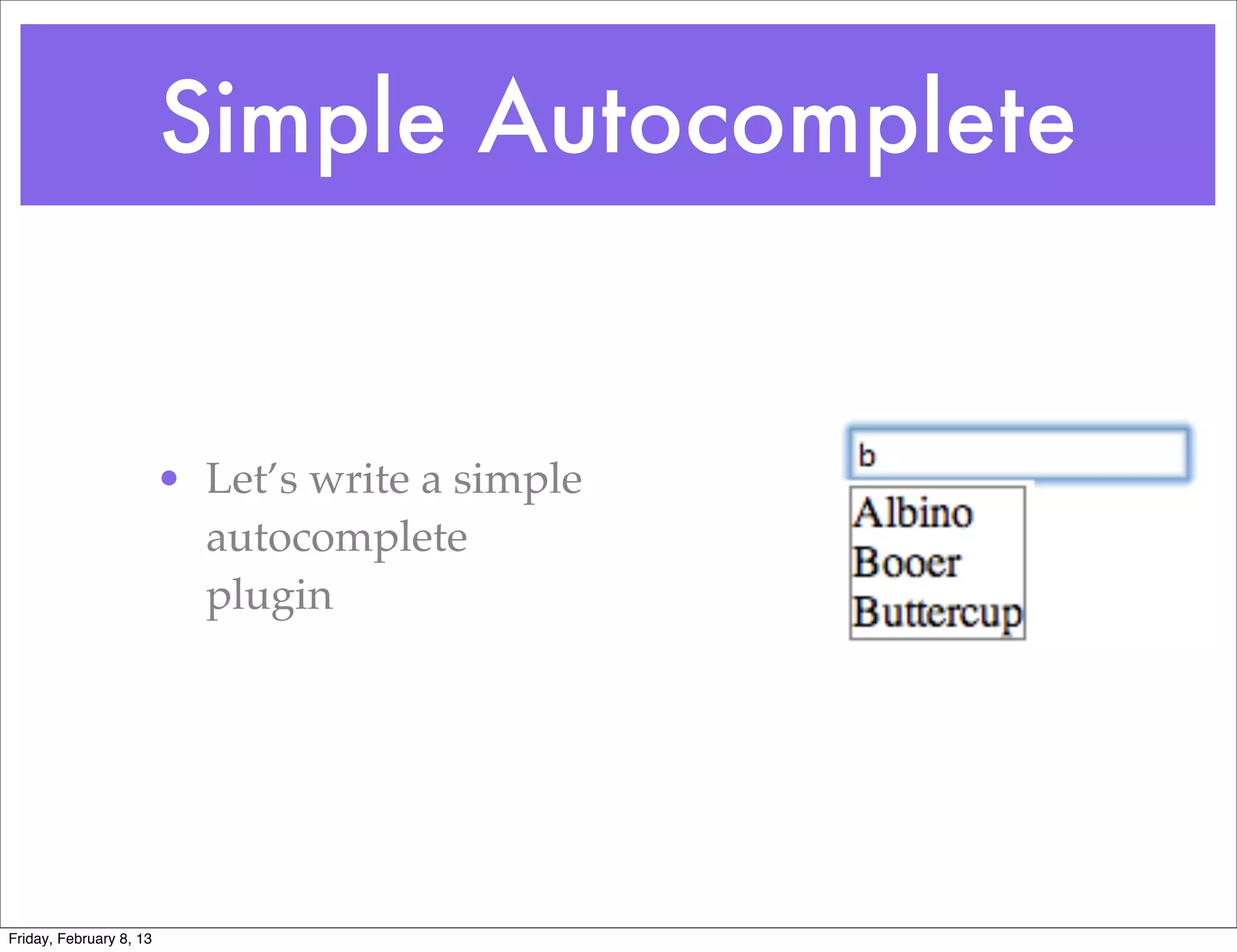

Simple Autocomplete

• Let’s write a simple
autocomplete
plugin

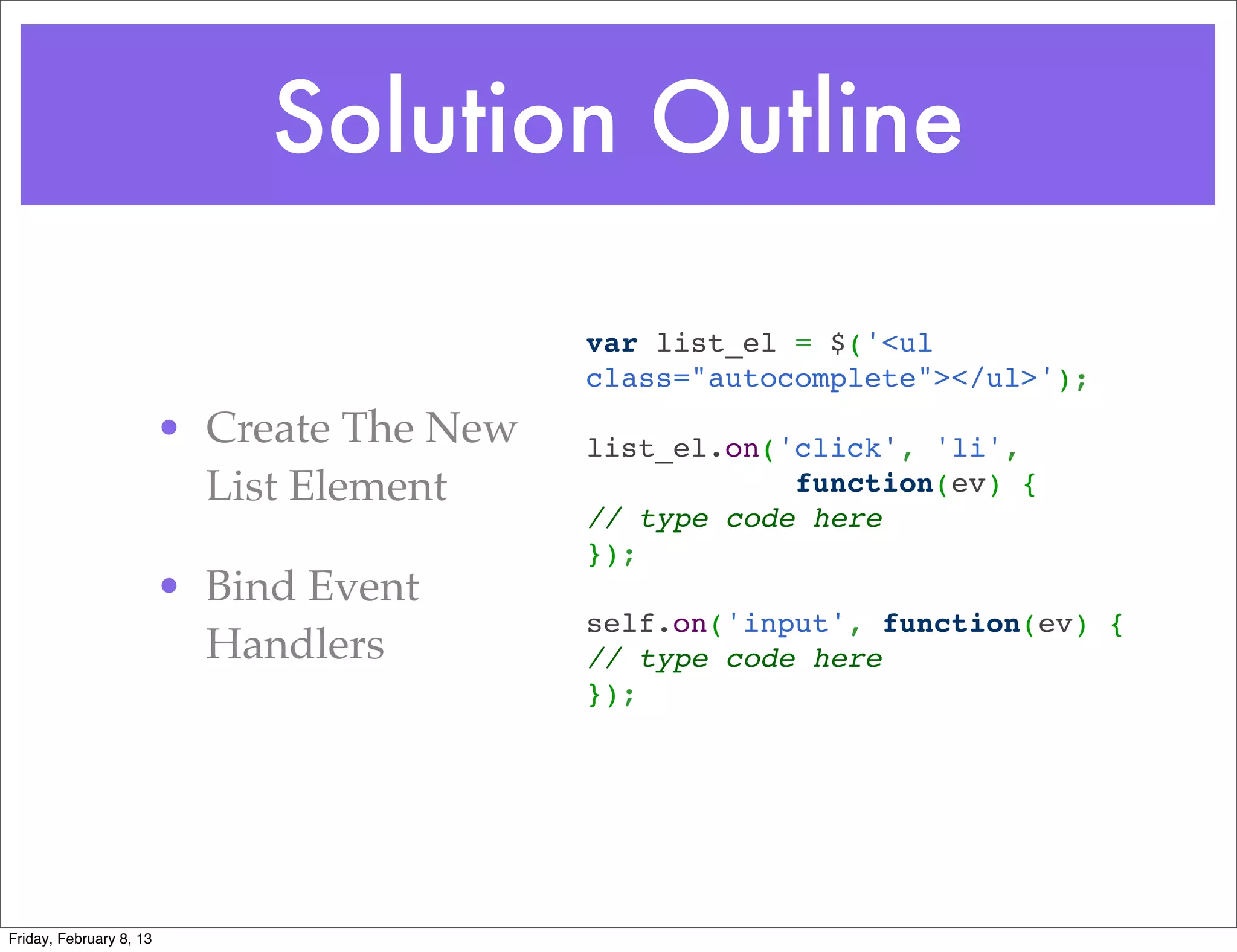

Solution Outline

var list_el = $('<ul
class="autocomplete"></ul>');

• Create The New list_el.on('click', 'li',
List Element function(ev) {
// type code here
});
• Bind Event
self.on('input', function(ev) {
Handlers // type code here
});

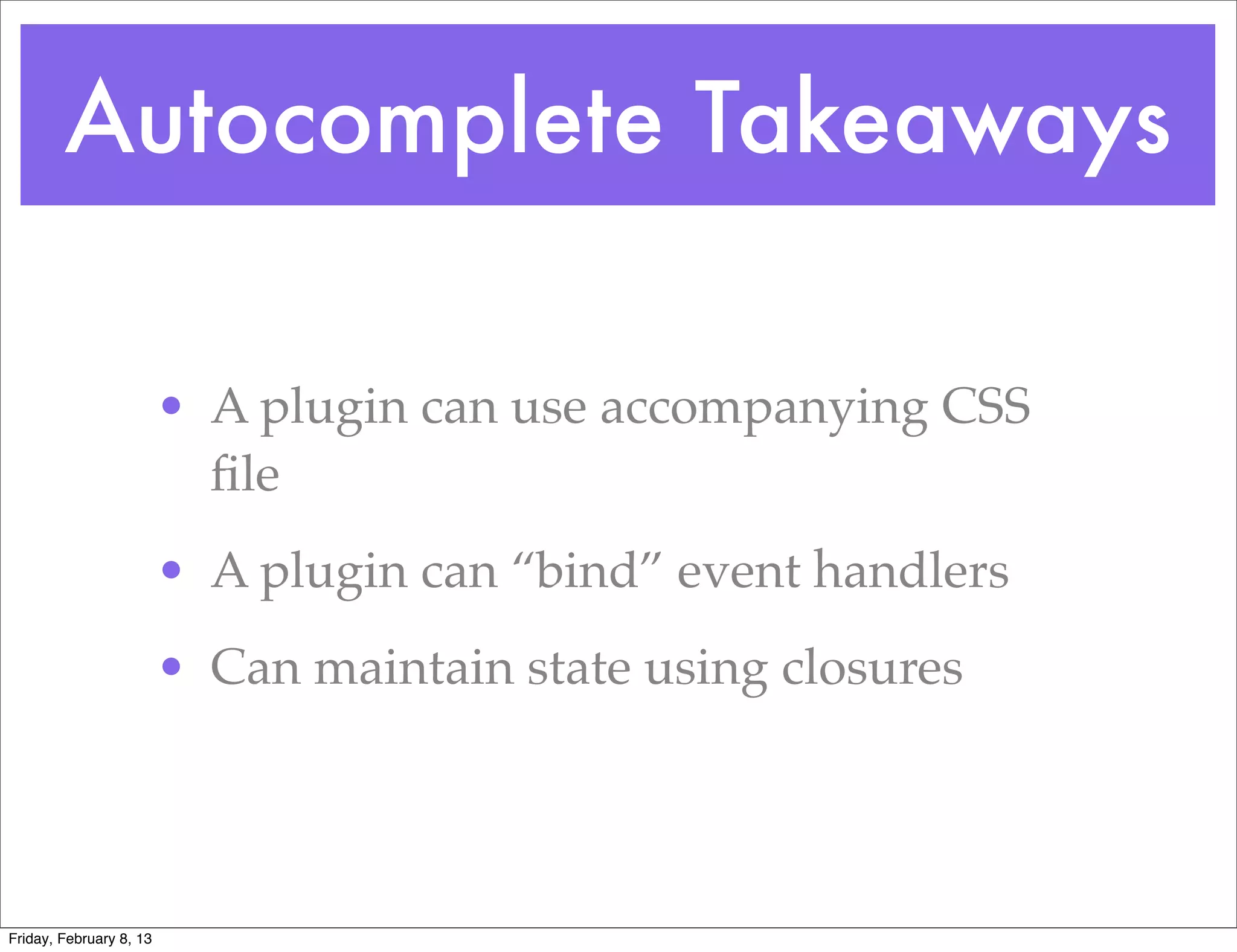

Autocomplete Takeaways

• A plugin can use accompanying CSS
ﬁle
• A plugin can “bind” event handlers
• Can maintain state using closures

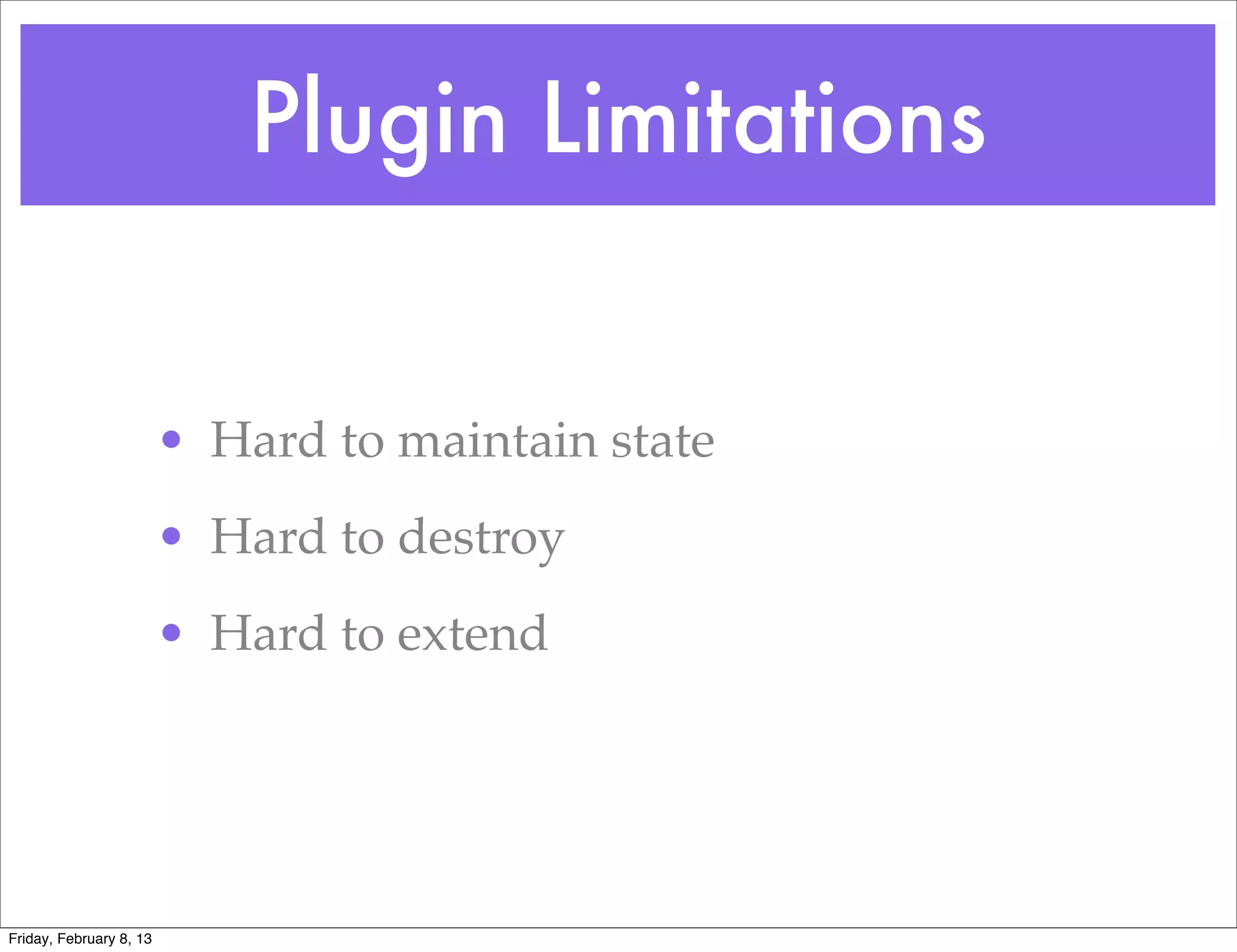

Plugin Limitations

• Hard to maintain state
• Hard to destroy
• Hard to extend

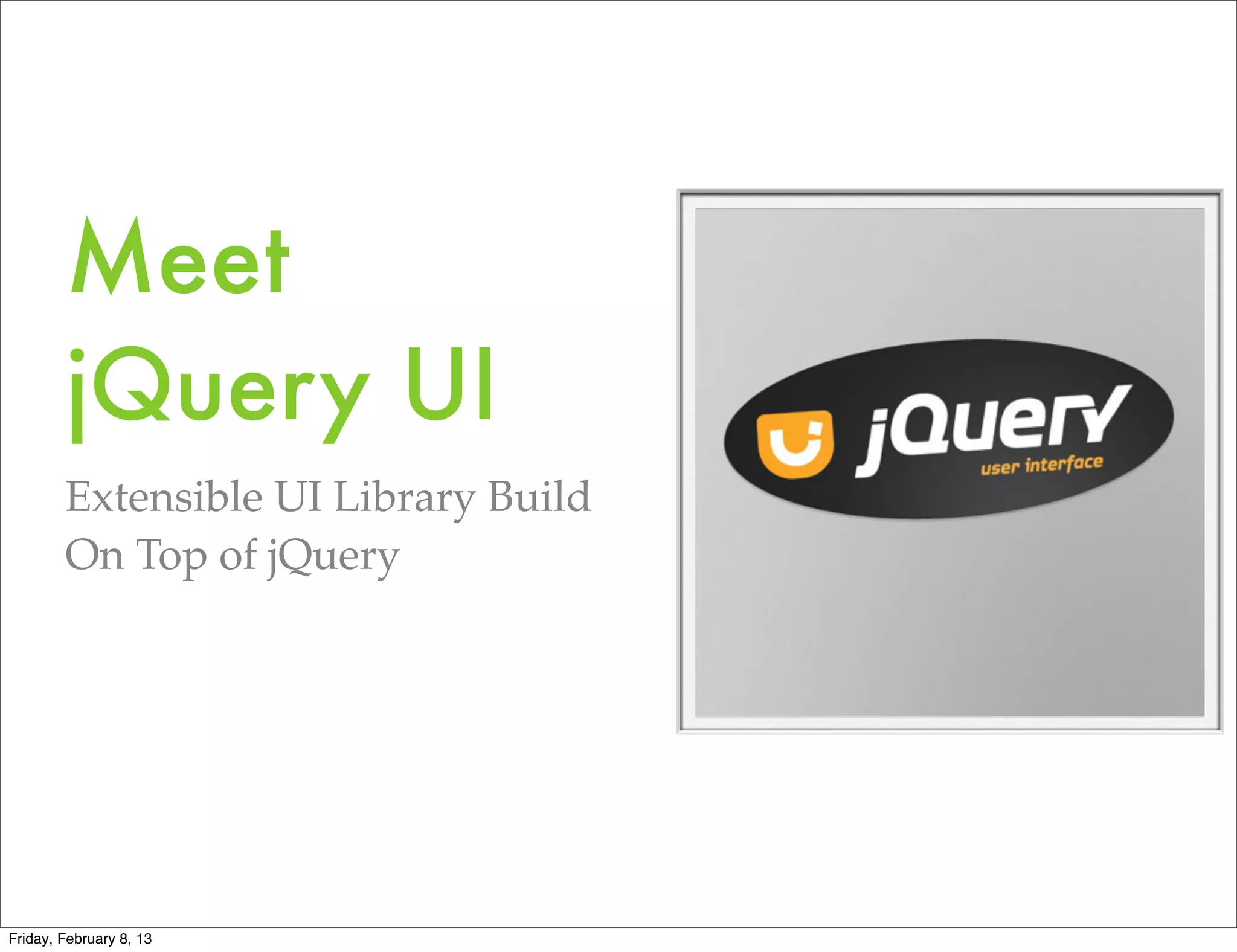

Meet
jQuery UI
Extensible UI Library Build
On Top of jQuery

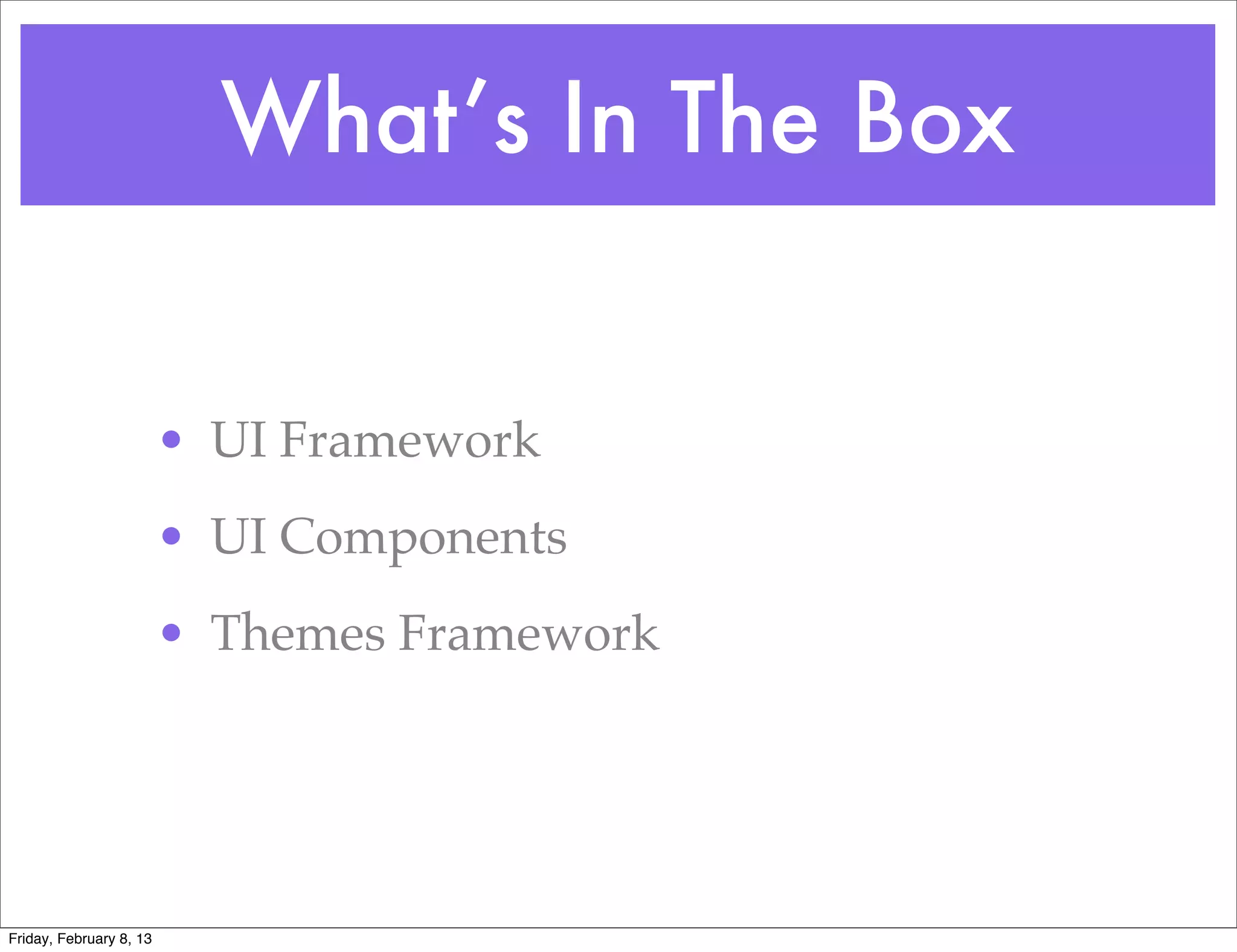

What’s In The Box

• UI Framework
• UI Components
• Themes Framework

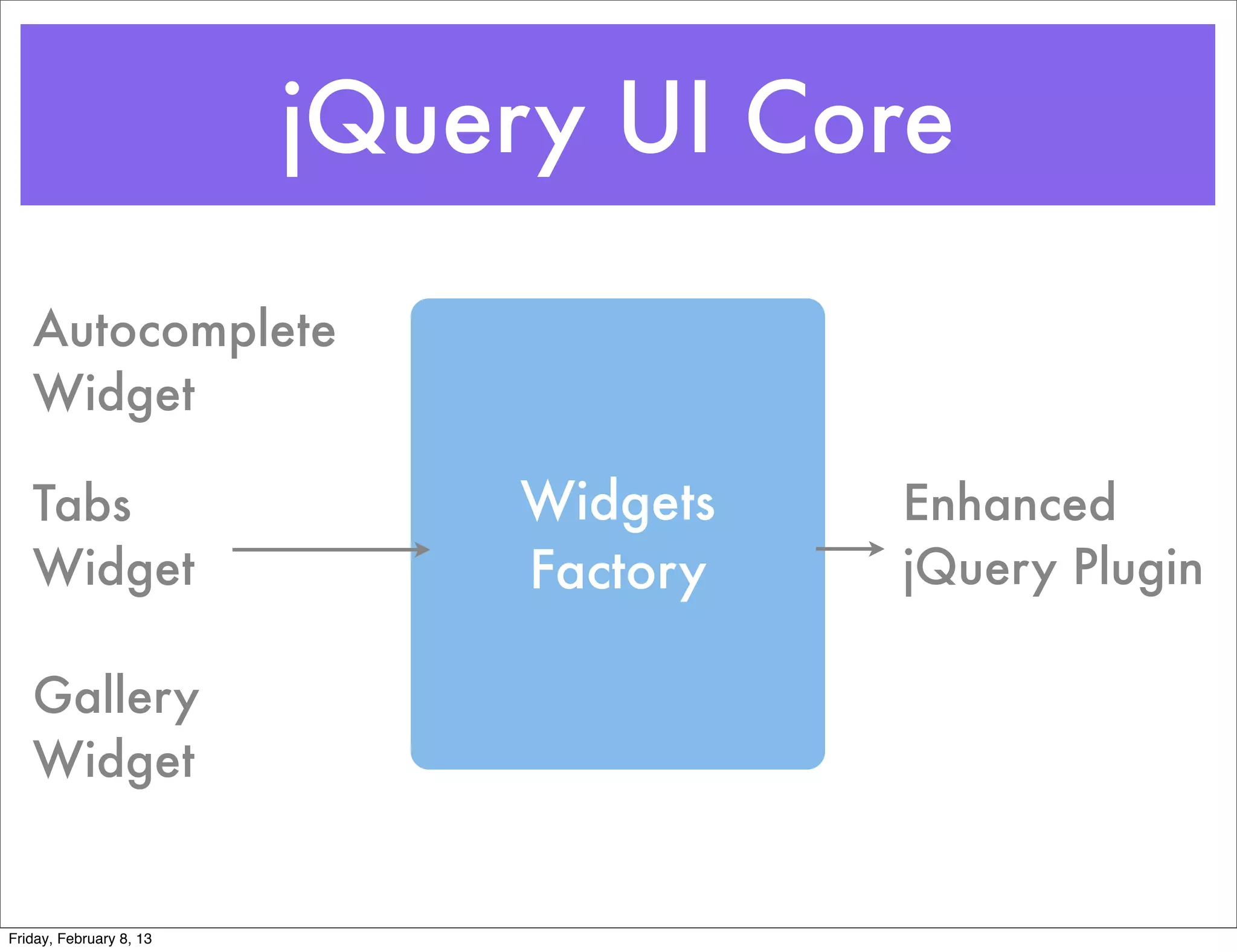

jQuery UI Core

Autocomplete
Widget

Tabs Widgets Enhanced
Widget Factory jQuery Plugin

Gallery
Widget

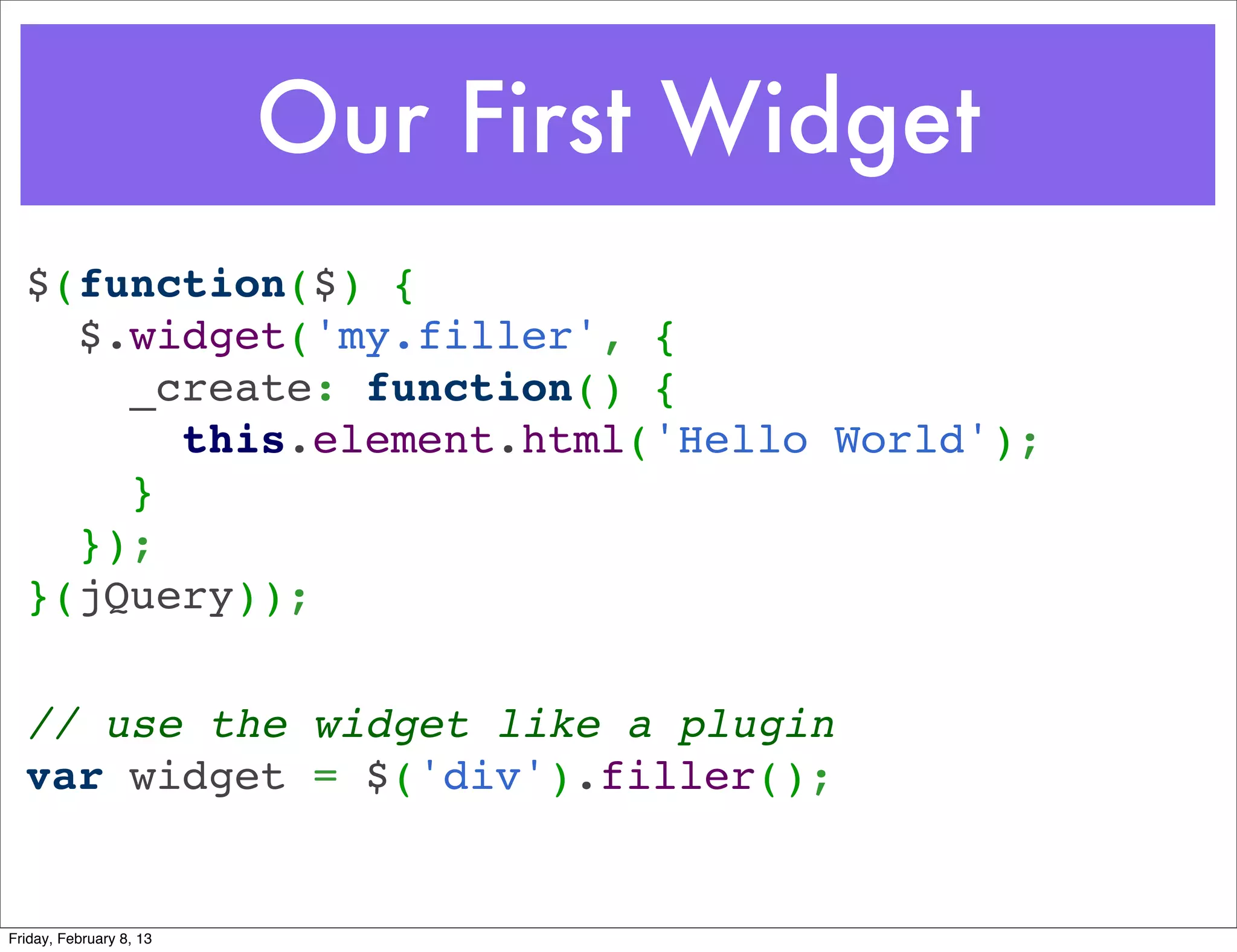

Our First Widget
$(function($) {
$.widget('my.filler', {
_create: function() {
this.element.html('Hello World');
}
});
}(jQuery));

// use the widget like a plugin
var widget = $('div').filler();

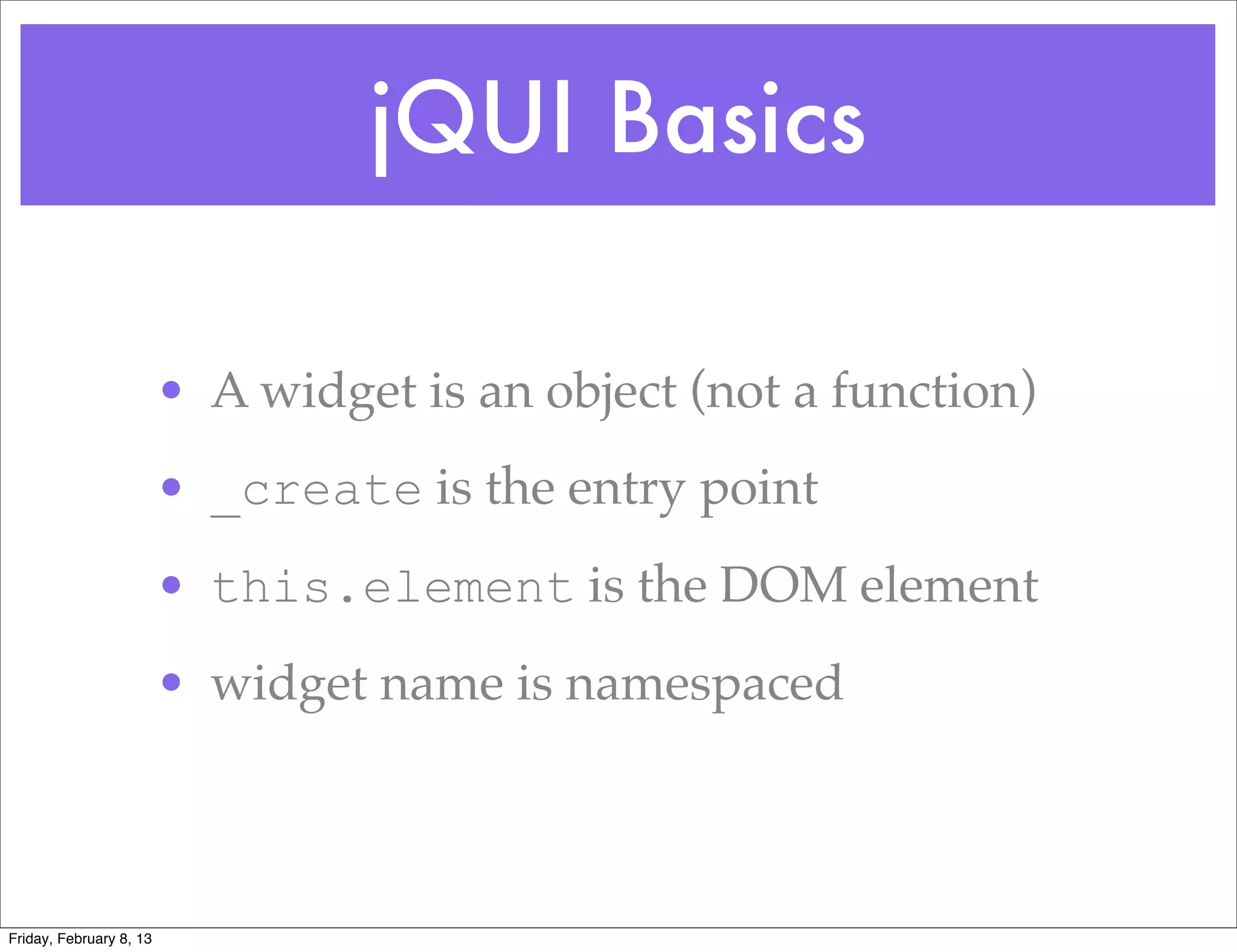

jQUI Basics

• A widget is an object (not a function)
• _create is the entry point
• this.element is the DOM element
• widget name is namespaced

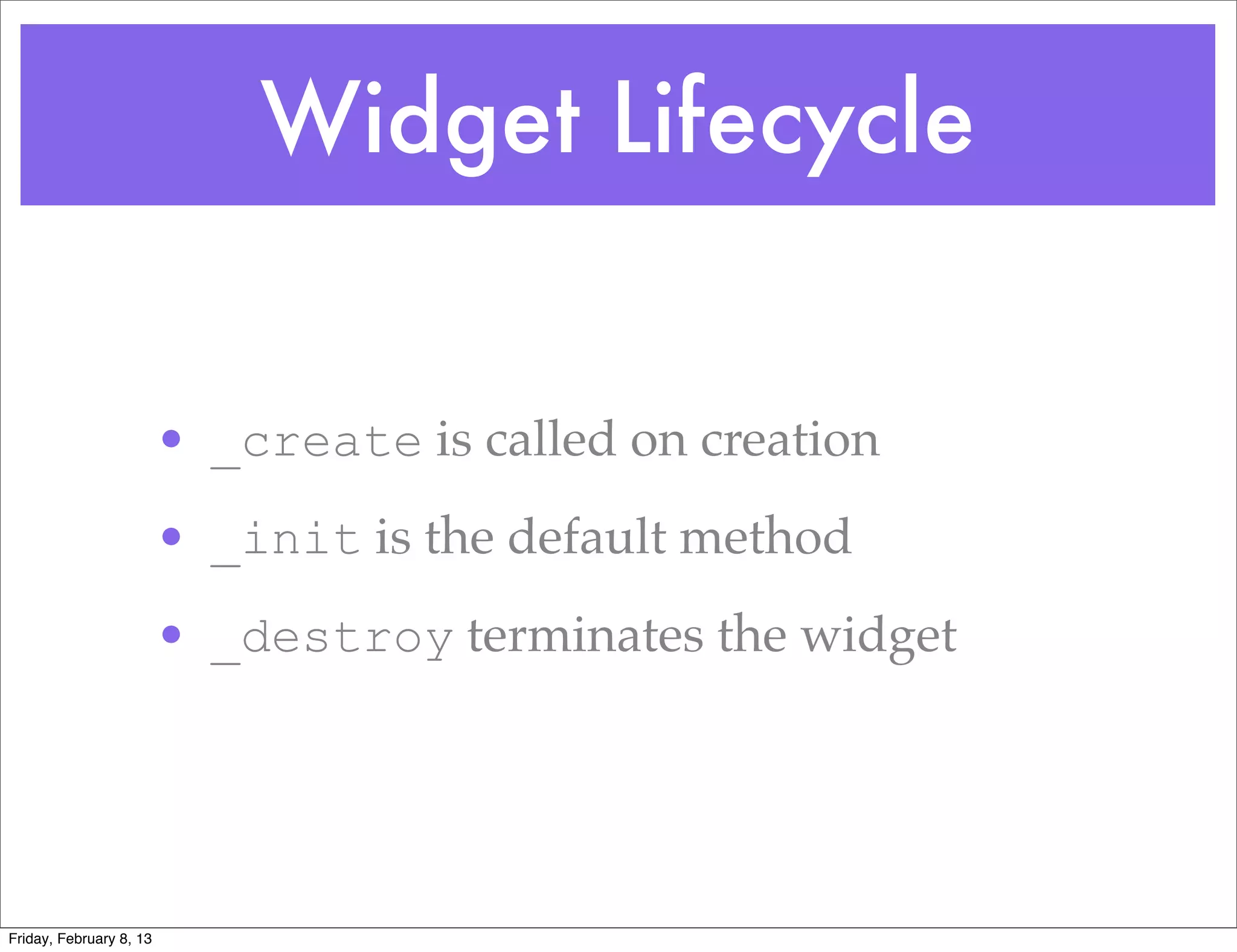

Widget Lifecycle

• _create is called on creation
• _init is the default method
• _destroy terminates the widget

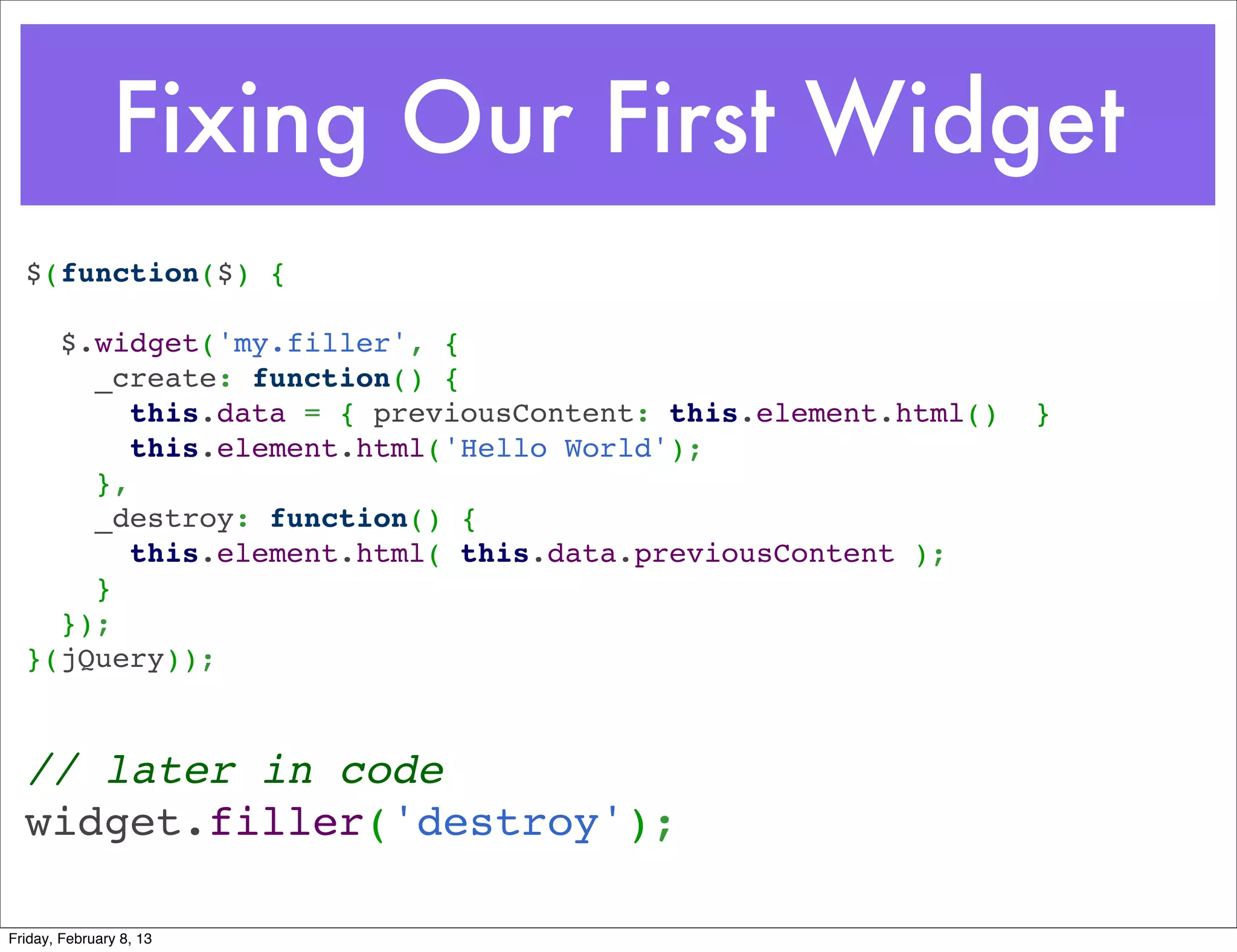

Fixing Our First Widget
$(function($) {

this.data = { previousContent: this.element.html() }
this.element.html('Hello World');
},
_destroy: function() {
this.element.html( this.data.previousContent );
}
});
}(jQuery));

// later in code
widget.filler('destroy');

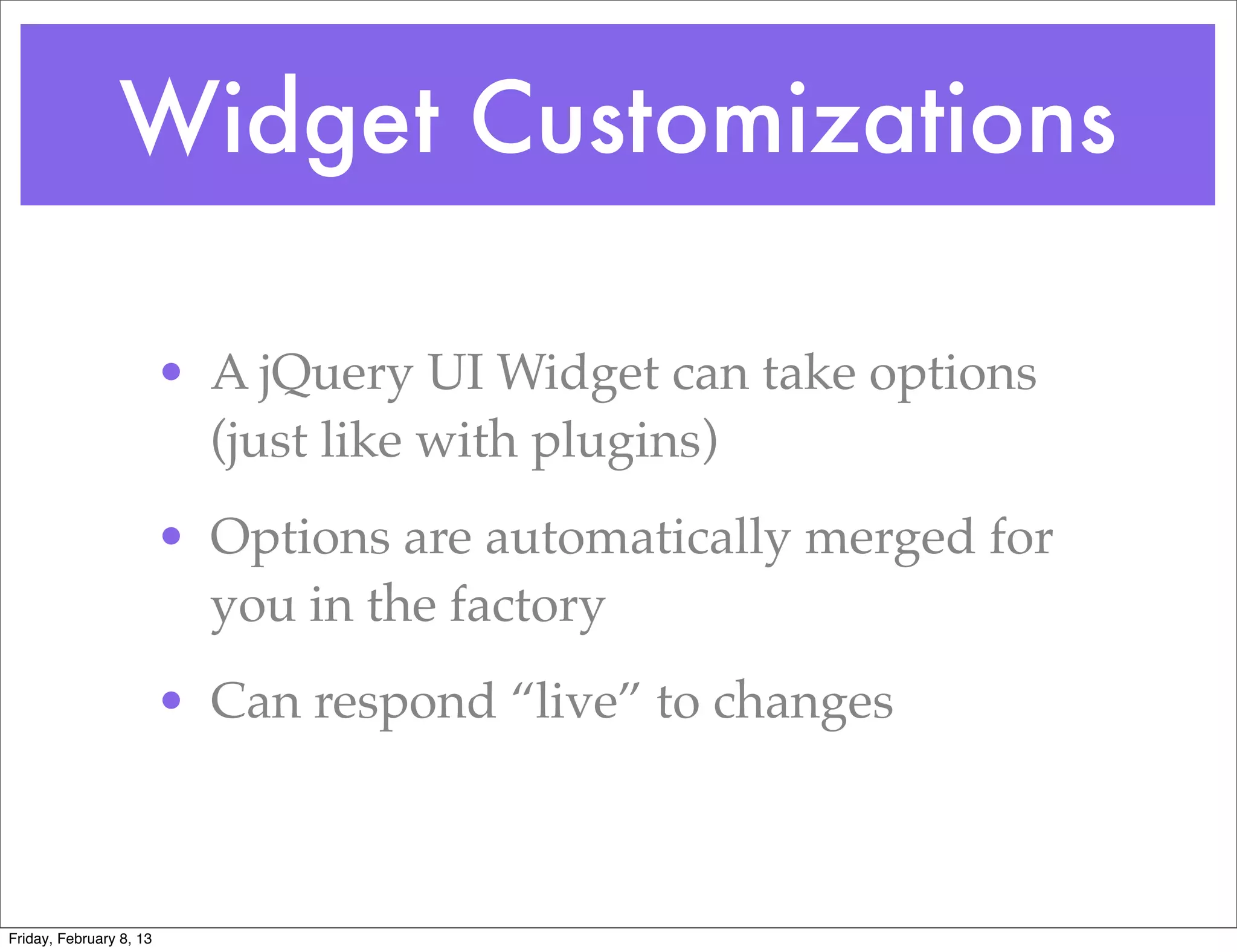

Widget Customizations

• A jQuery UI Widget can take options
(just like with plugins)
• Options are automatically merged for
you in the factory
• Can respond “live” to changes

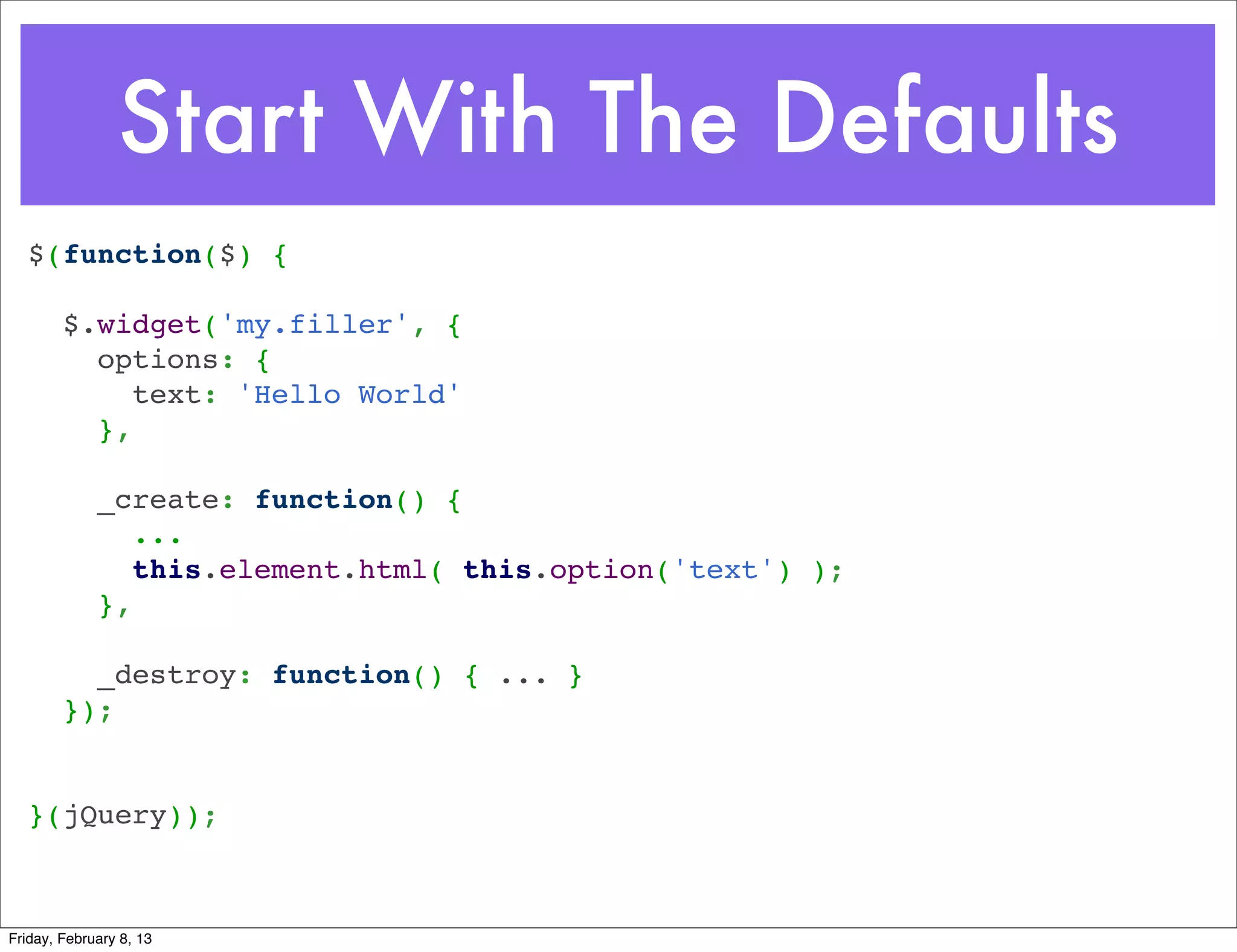

Start With The Defaults
$(function($) {

options: {
text: 'Hello World'
},

...
this.element.html( this.option('text') );
},

_destroy: function() { ... }
});

}(jQuery));

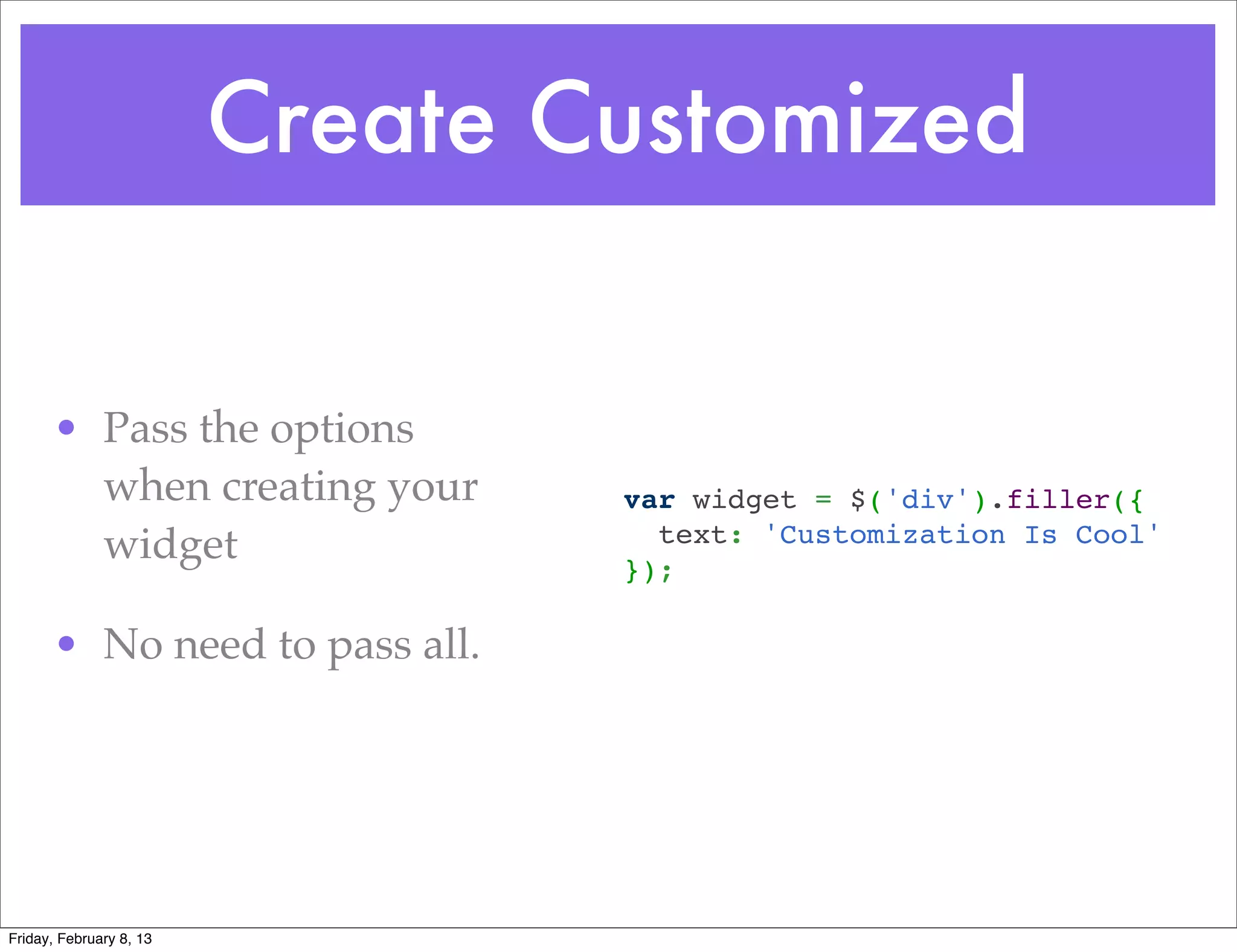

Create Customized

• Pass the options
when creating your var widget = $('div').filler({
text: 'Customization Is Cool'
widget });

• No need to pass all.

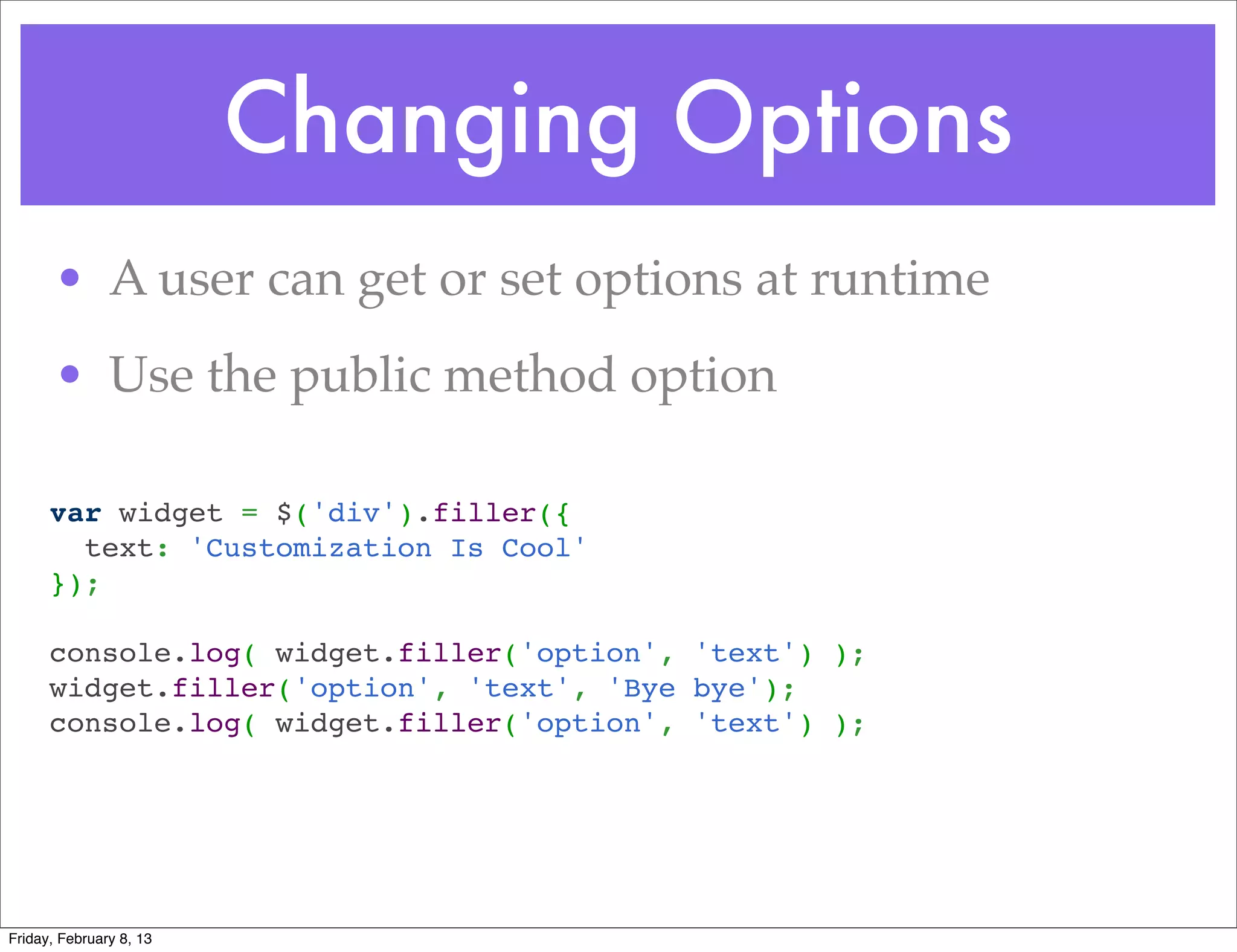

Changing Options
• A user can get or set options at runtime
• Use the public method option

var widget = $('div').filler({
});

console.log( widget.filler('option', 'text') );
widget.filler('option', 'text', 'Bye bye');

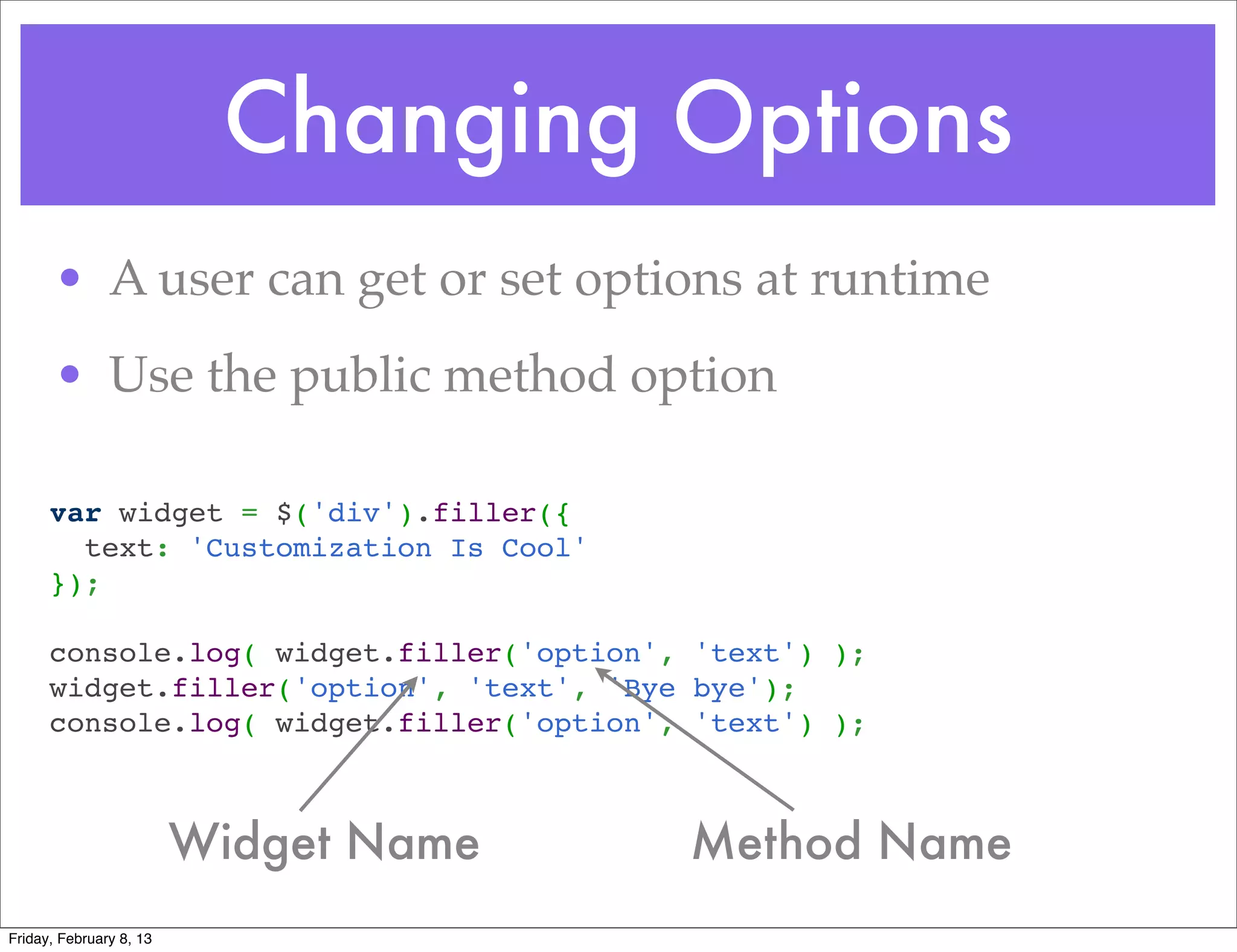

Changing Options
• A user can get or set options at runtime
• Use the public method option

});

widget.filler('option', 'text', 'Bye bye');

Widget Name Method Name

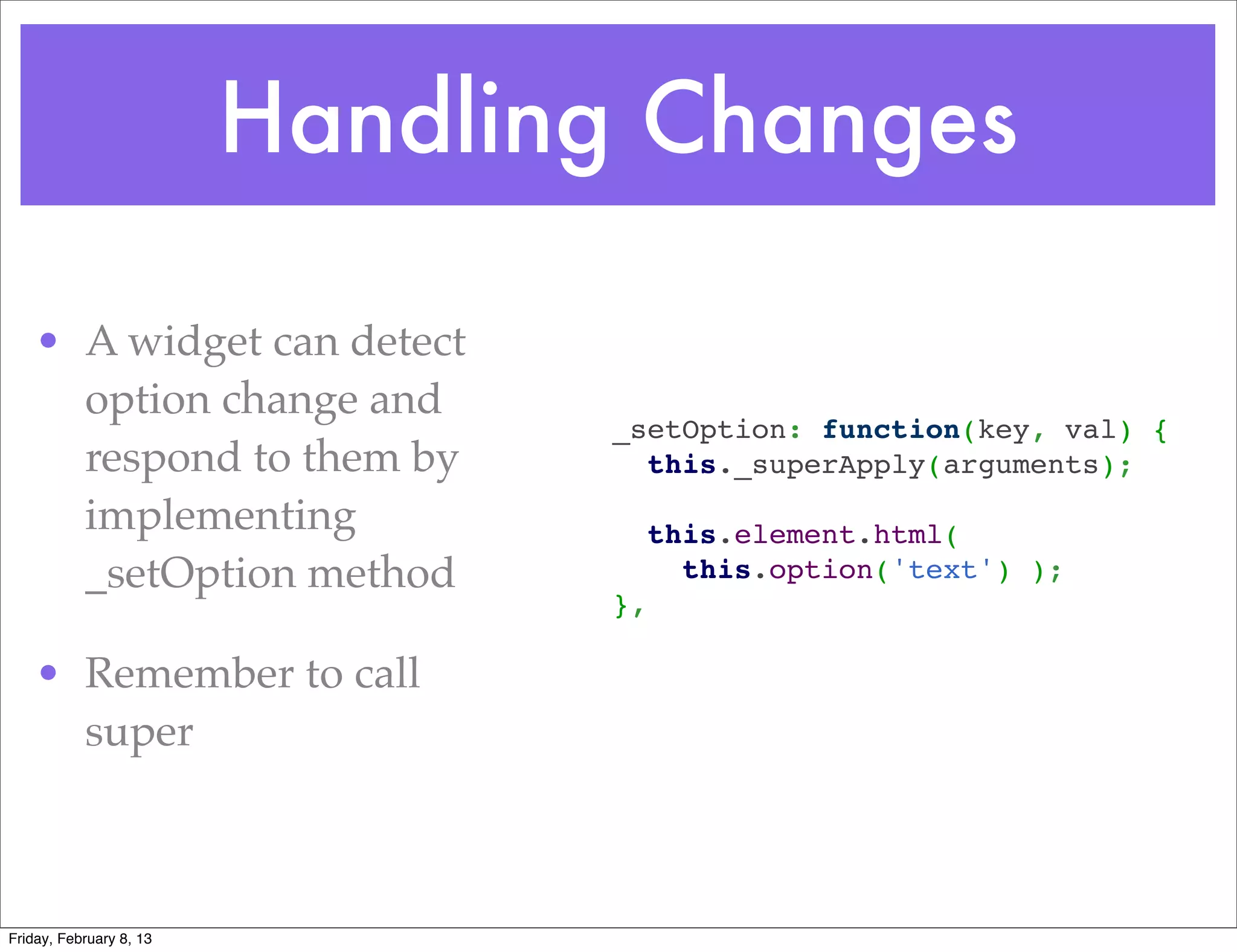

Handling Changes

• A widget can detect
option change and
_setOption: function(key, val) {
respond to them by this._superApply(arguments);

implementing this.element.html(
_setOption method this.option('text') );
},

• Remember to call
super

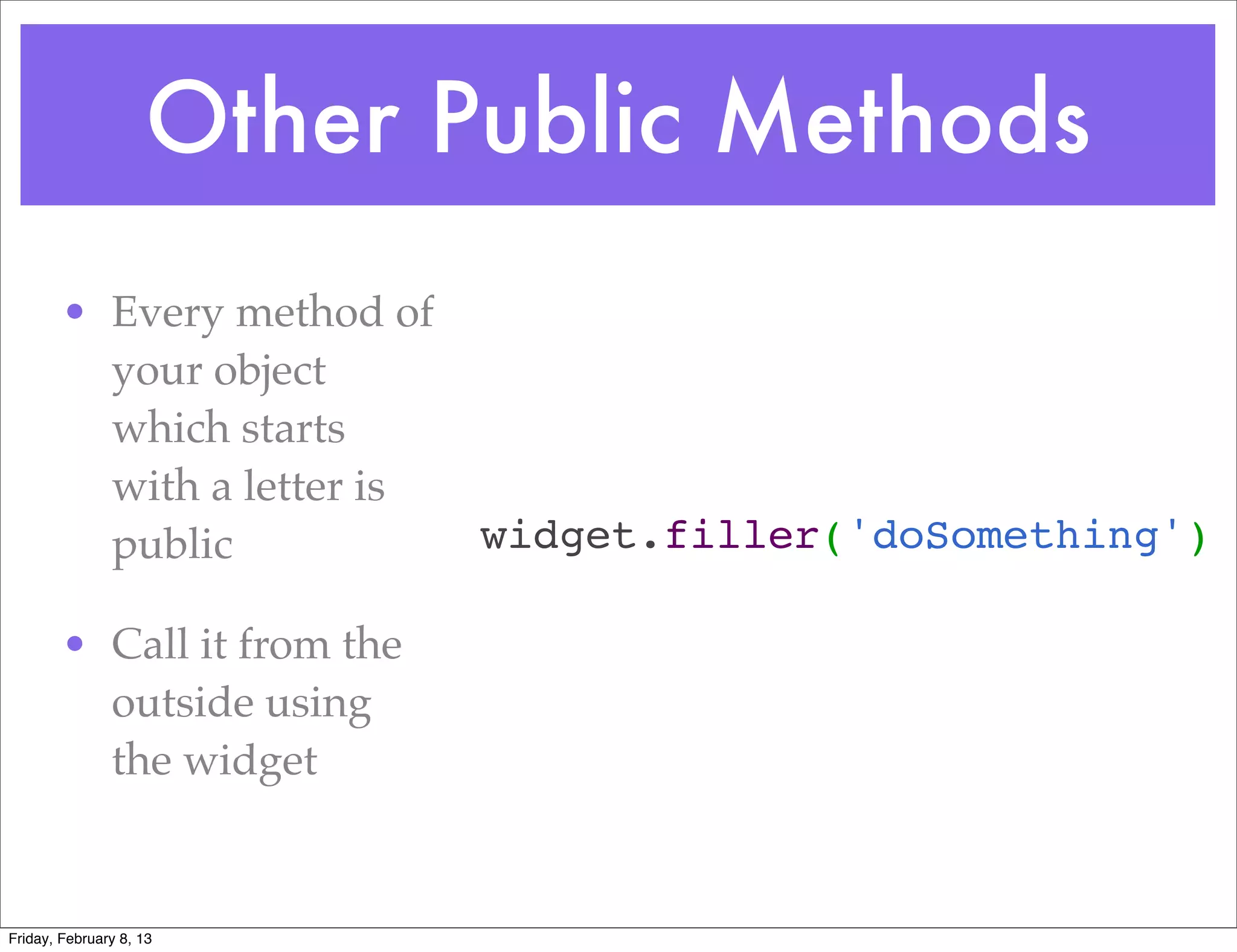

Other Public Methods
• Every method of
your object
which starts
with a letter is
public widget.filler('doSomething')

• Call it from the
outside using
the widget

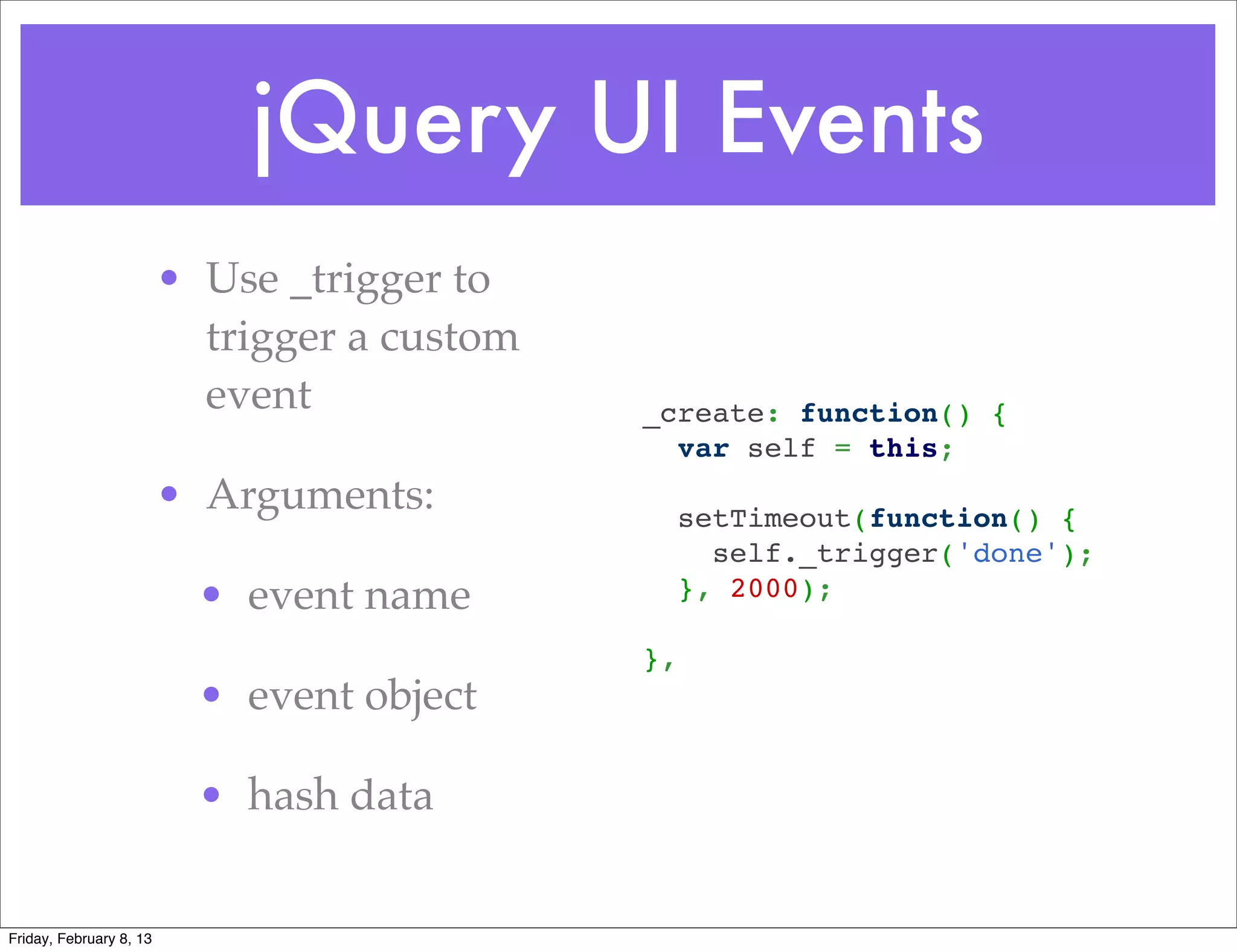

jQuery UI Events
• Use _trigger to
trigger a custom
event _create: function() {
var self = this;
• Arguments: setTimeout(function() {
self._trigger('done');
• event name }, 2000);

},
• event object

• hash data

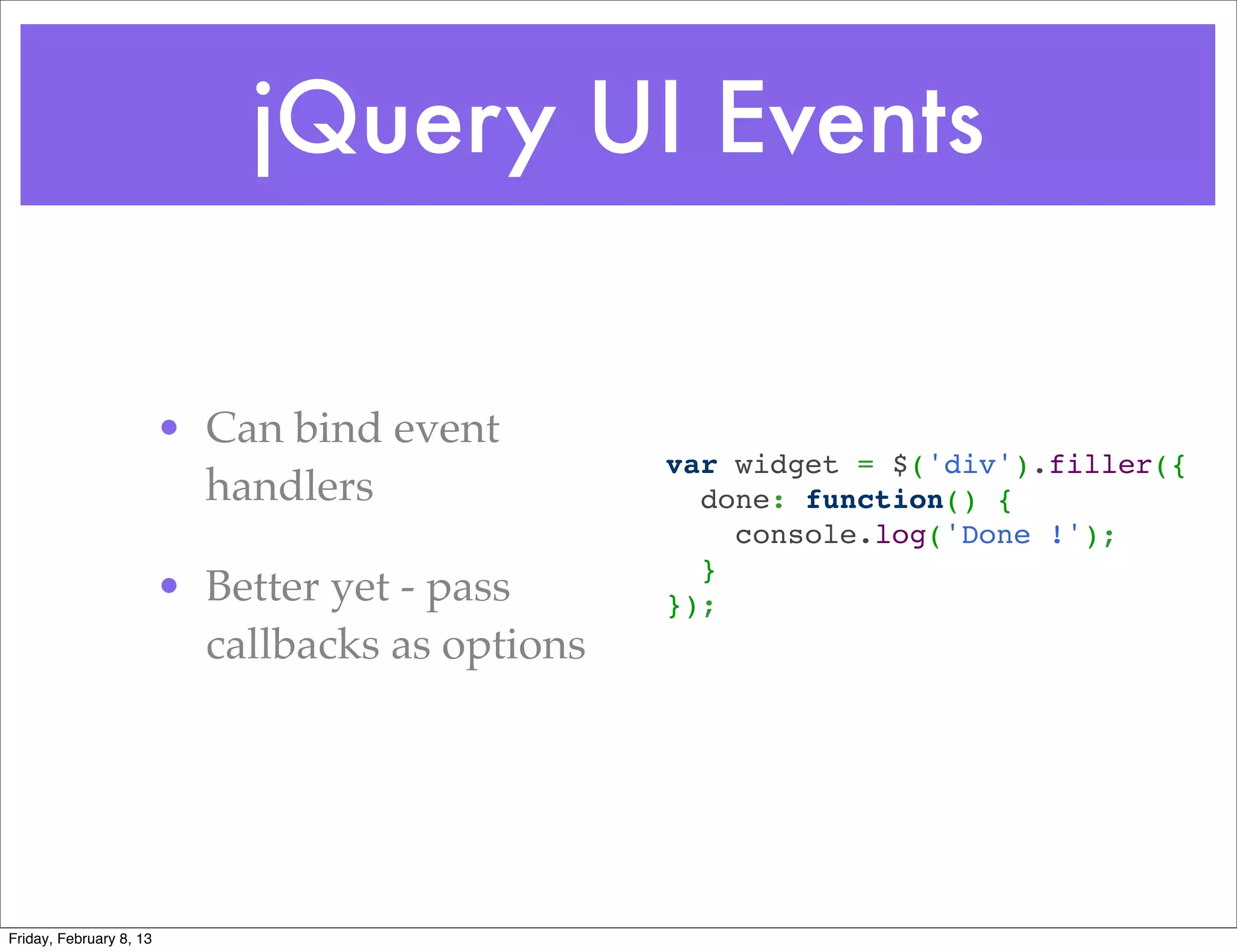

jQuery UI Events

• Can bind event
handlers done: function() {
console.log('Done !');
}
• Better yet - pass });
callbacks as options

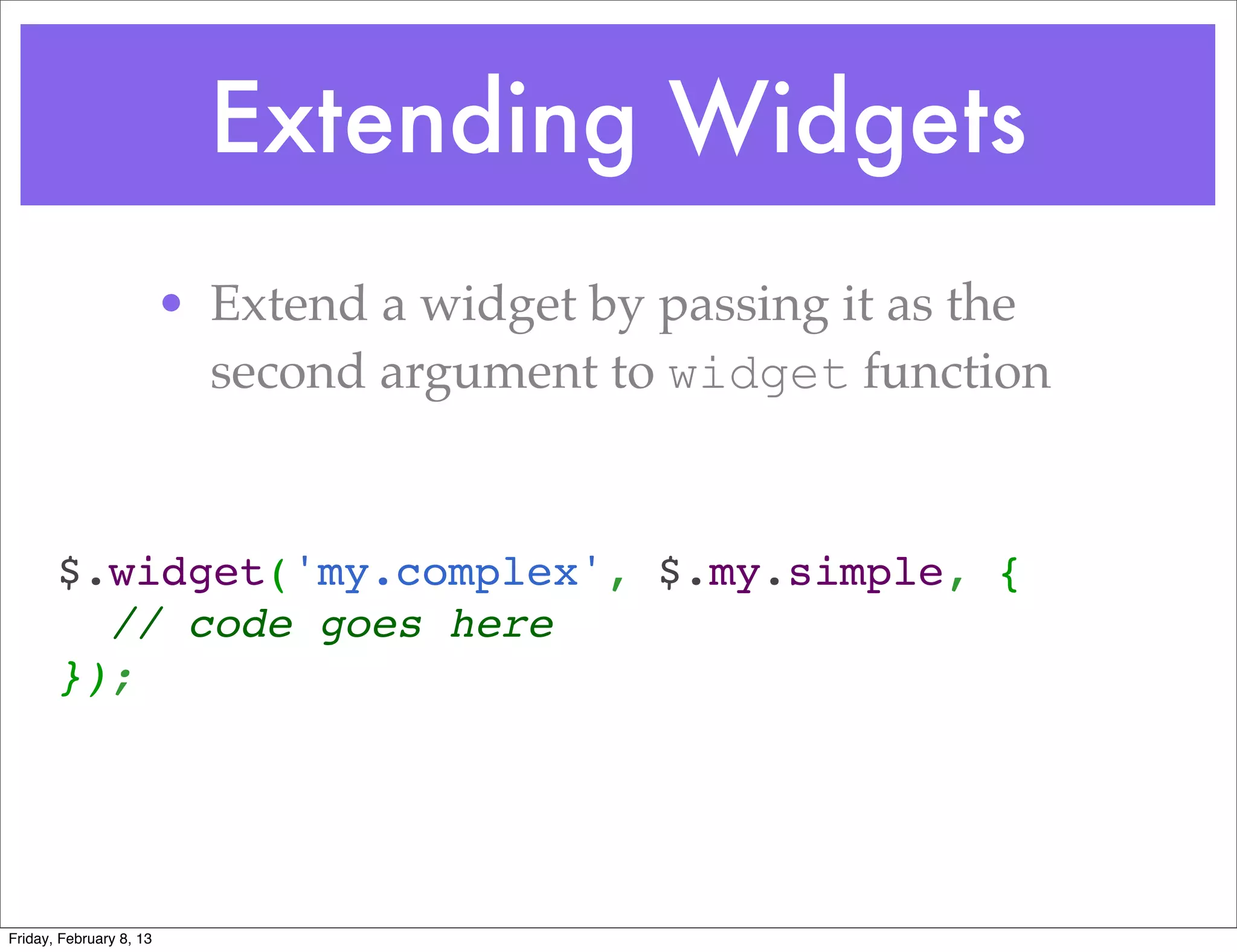

Extending Widgets
• Extend a widget by passing it as the
second argument to widget function

$.widget('my.complex', $.my.simple, {
// code goes here
});

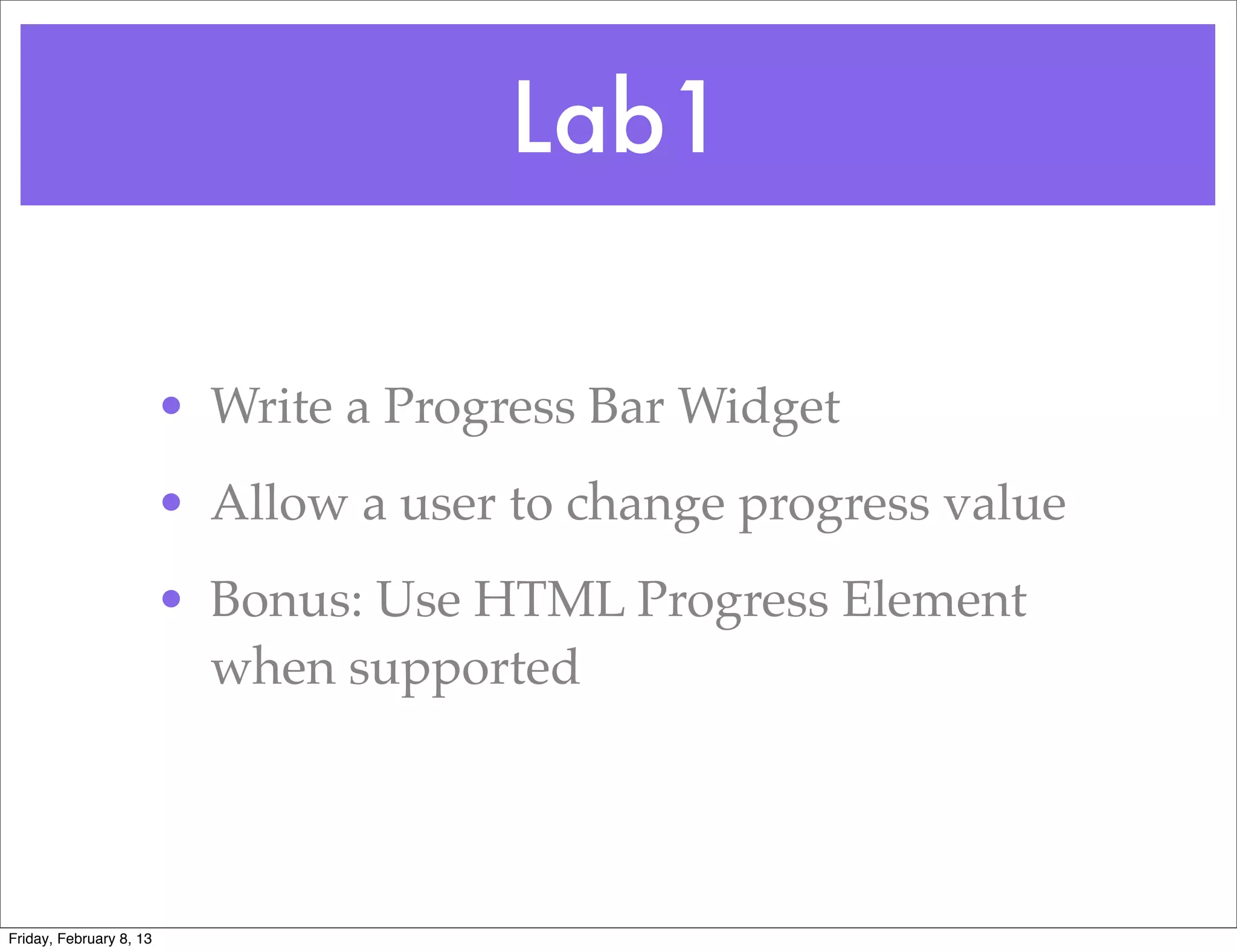

Lab1

• Write a Progress Bar Widget
• Allow a user to change progress value
• Bonus: Use HTML Progress Element
when supported

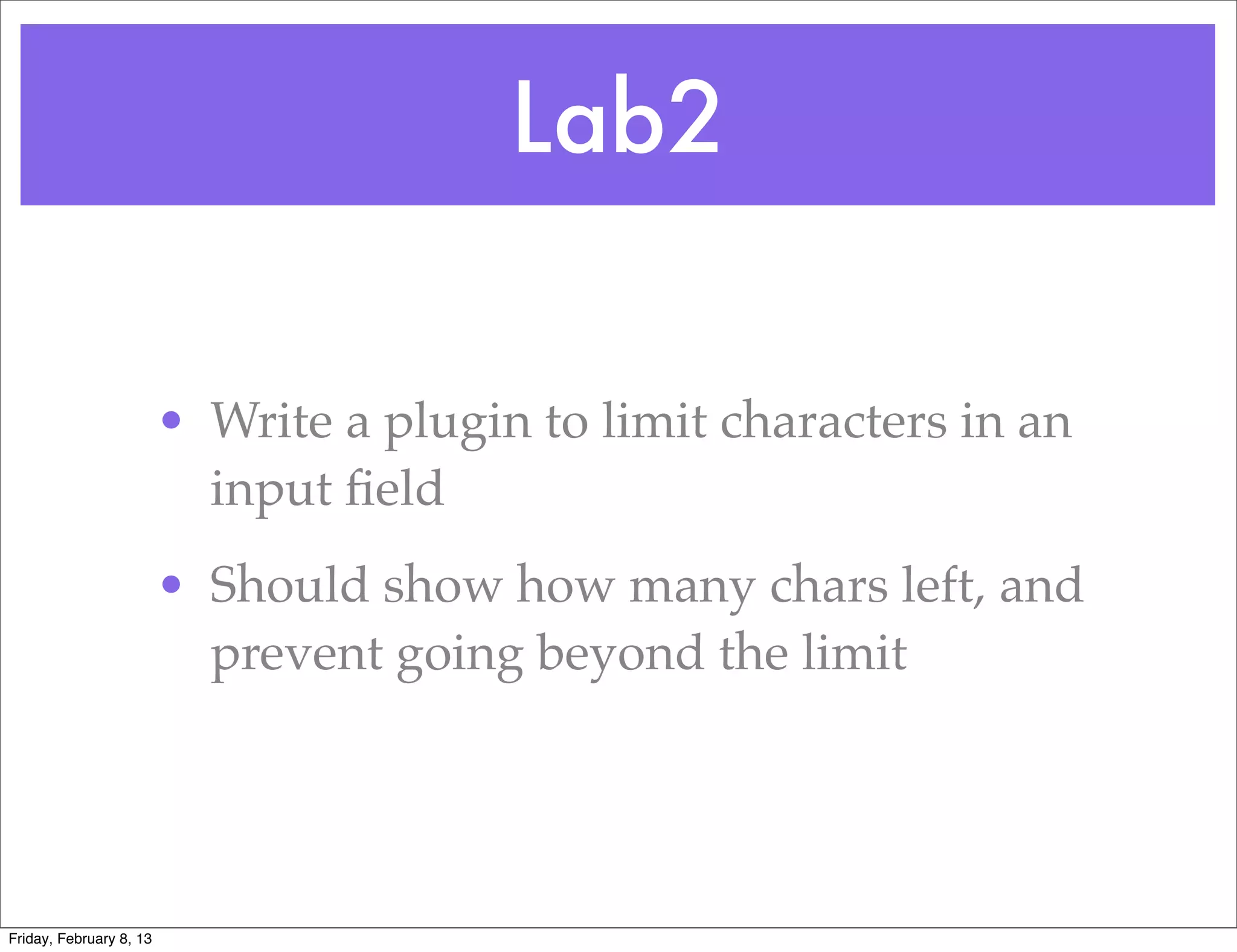

Lab2

• Write a plugin to limit characters in an
input ﬁeld
• Should show how many chars left, and
prevent going beyond the limit

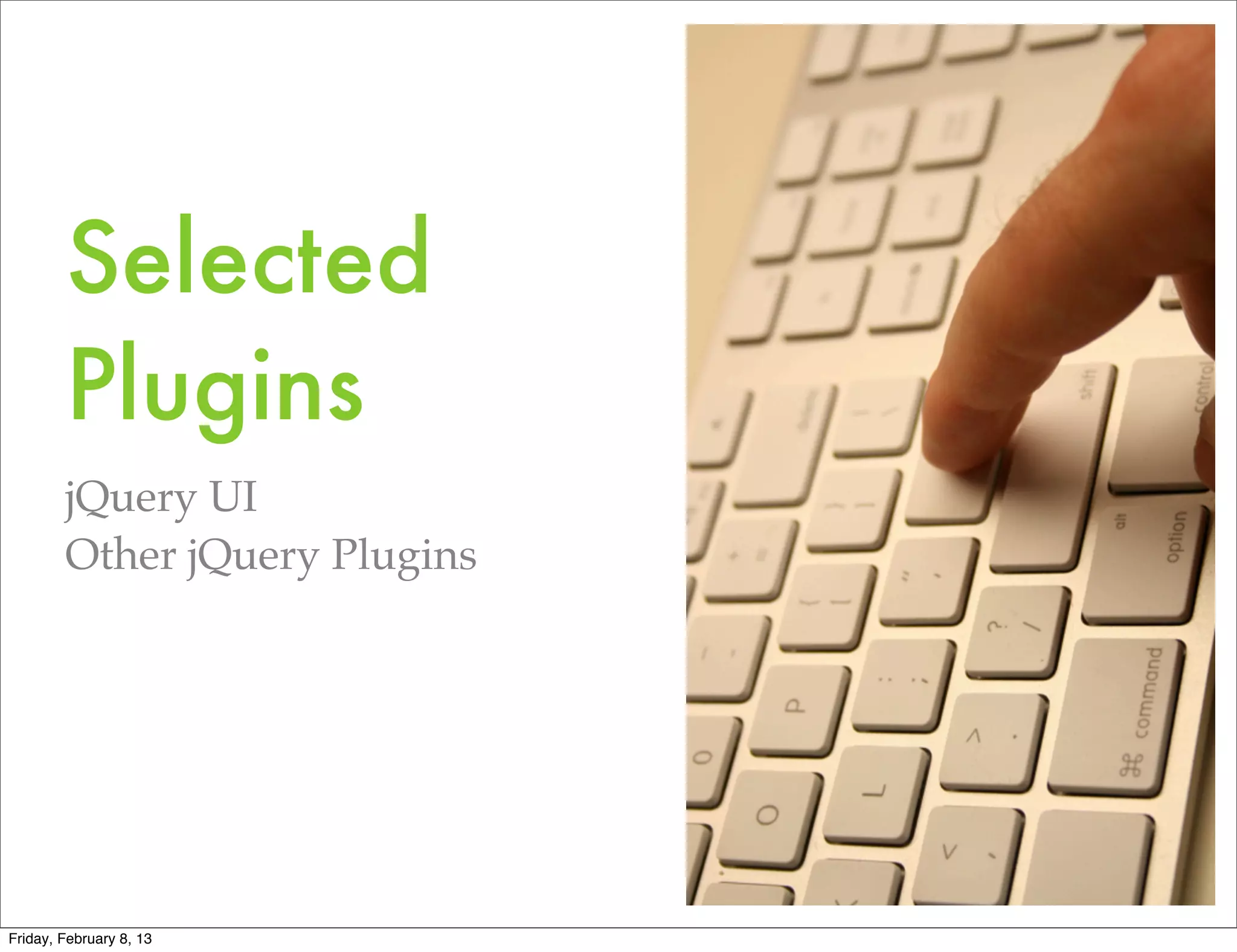

Selected
Plugins
jQuery UI
Other jQuery Plugins

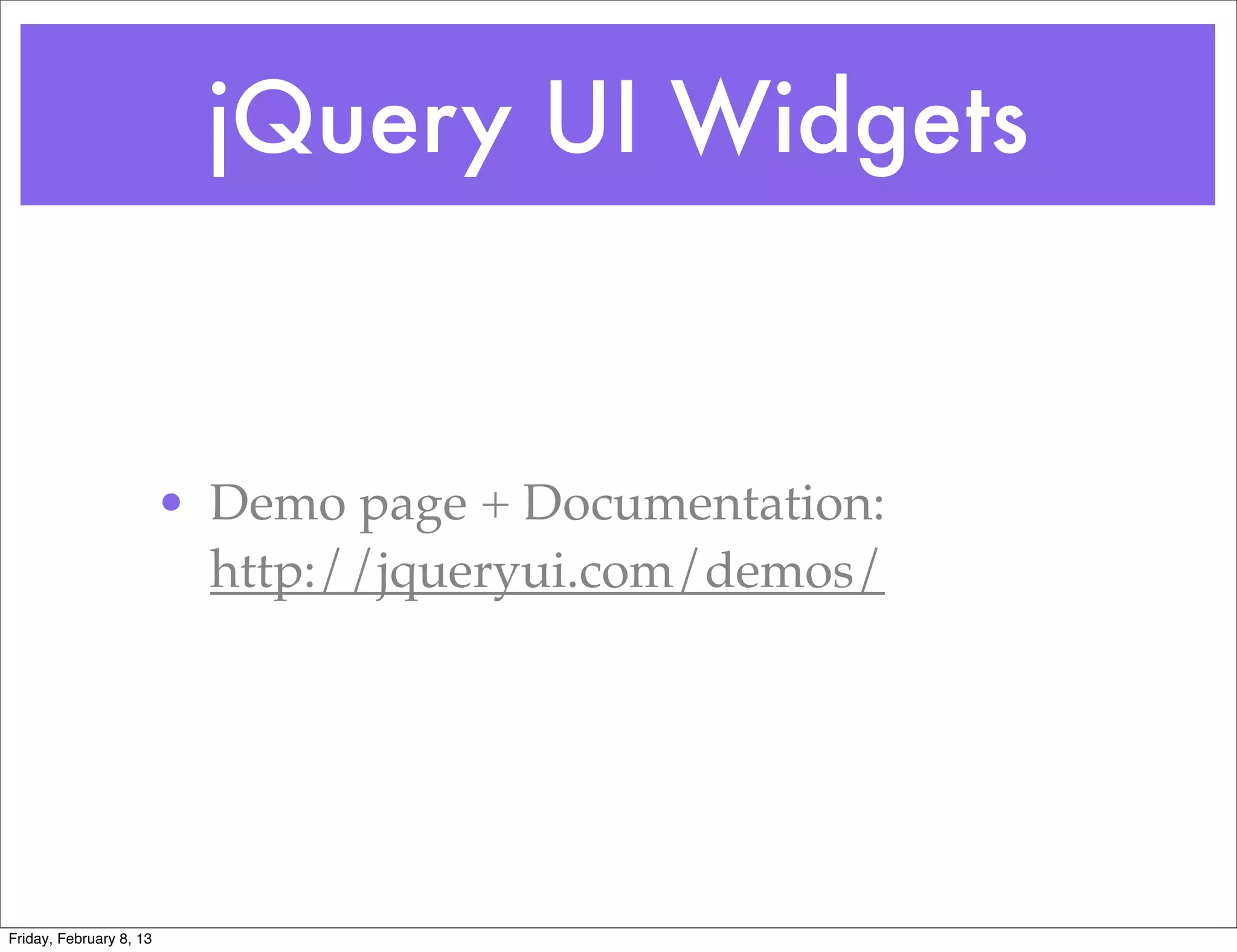

jQuery UI Widgets

• Demo page + Documentation:
http://jqueryui.com/demos/

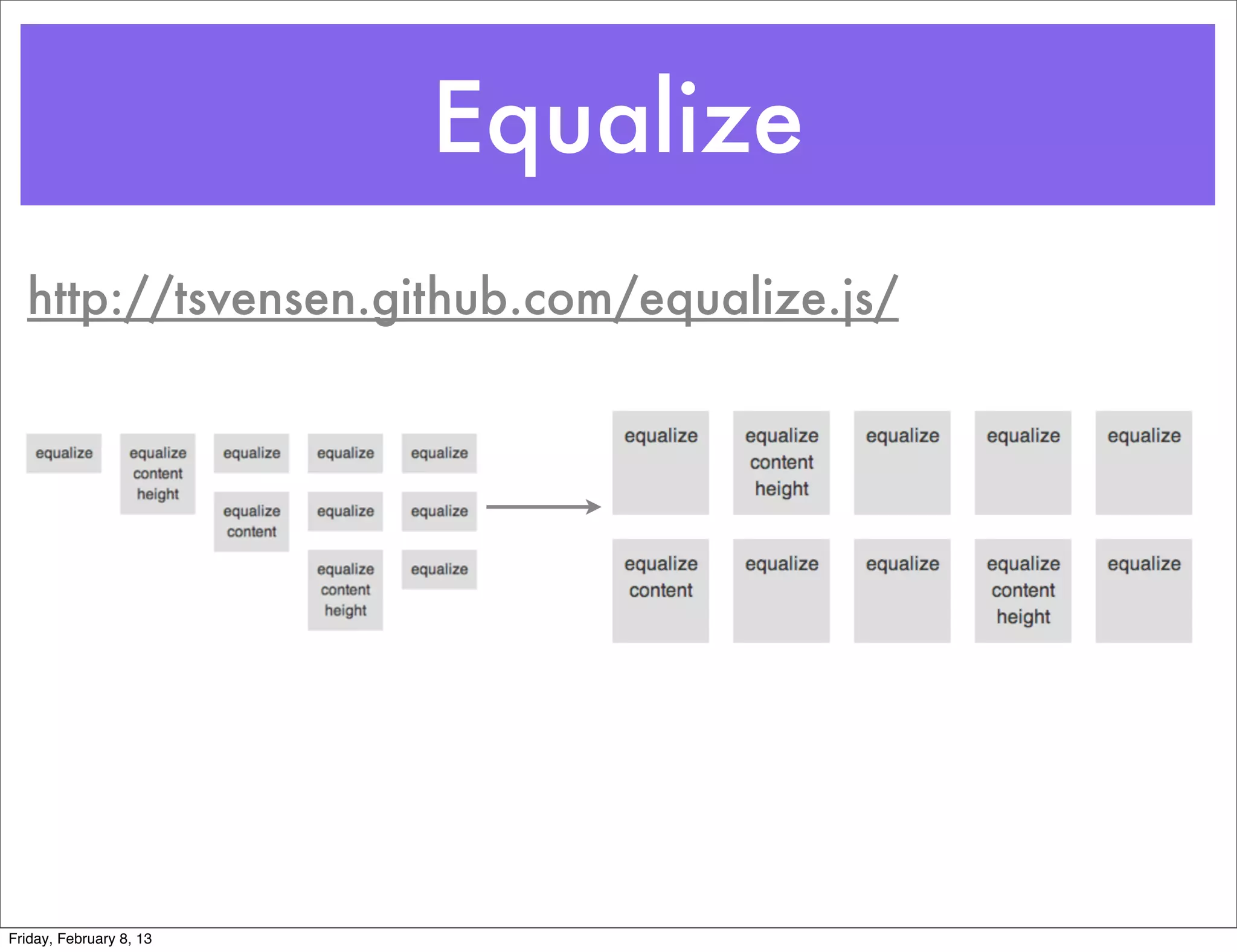

Equalize
http://tsvensen.github.com/equalize.js/

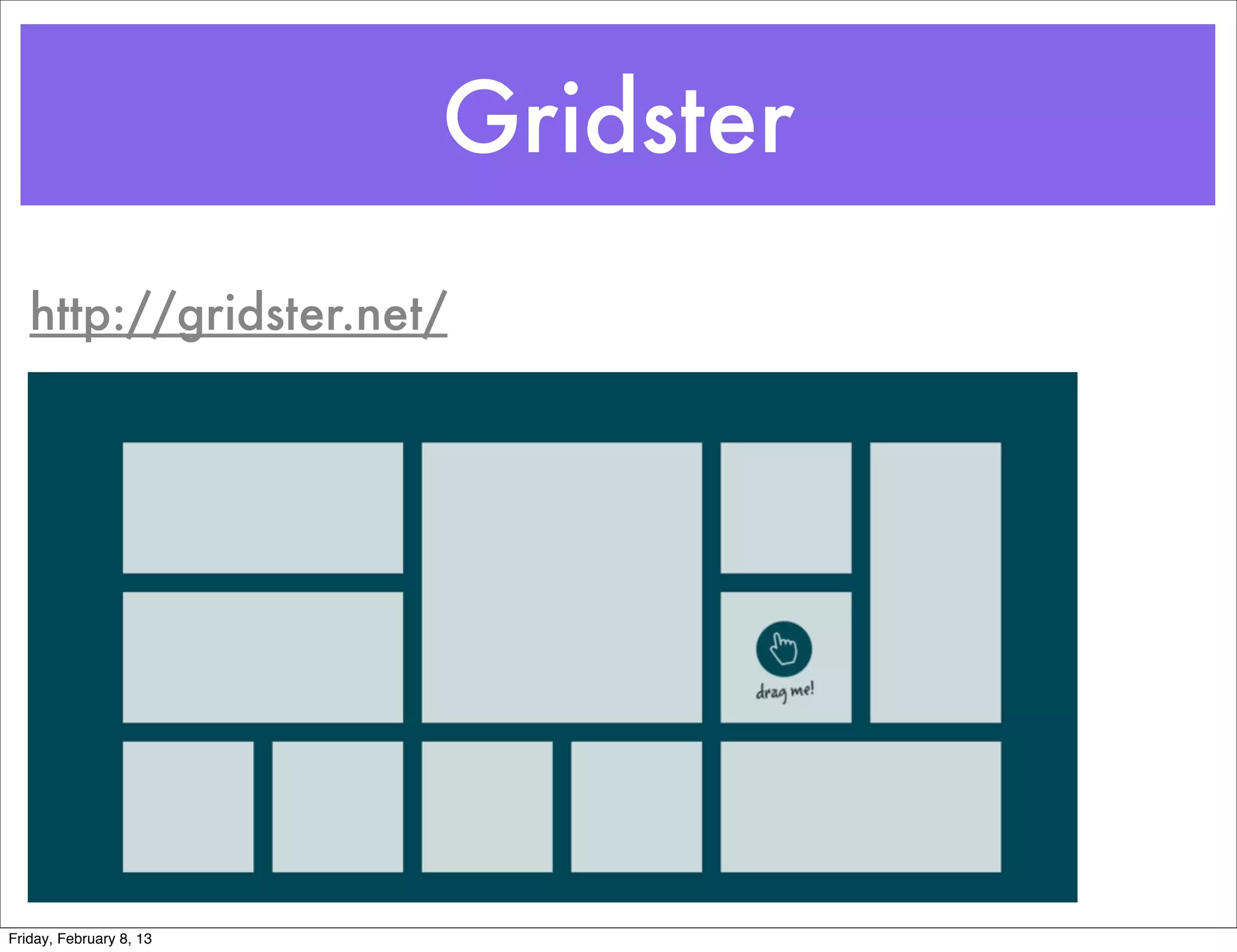

Gridster
http://gridster.net/

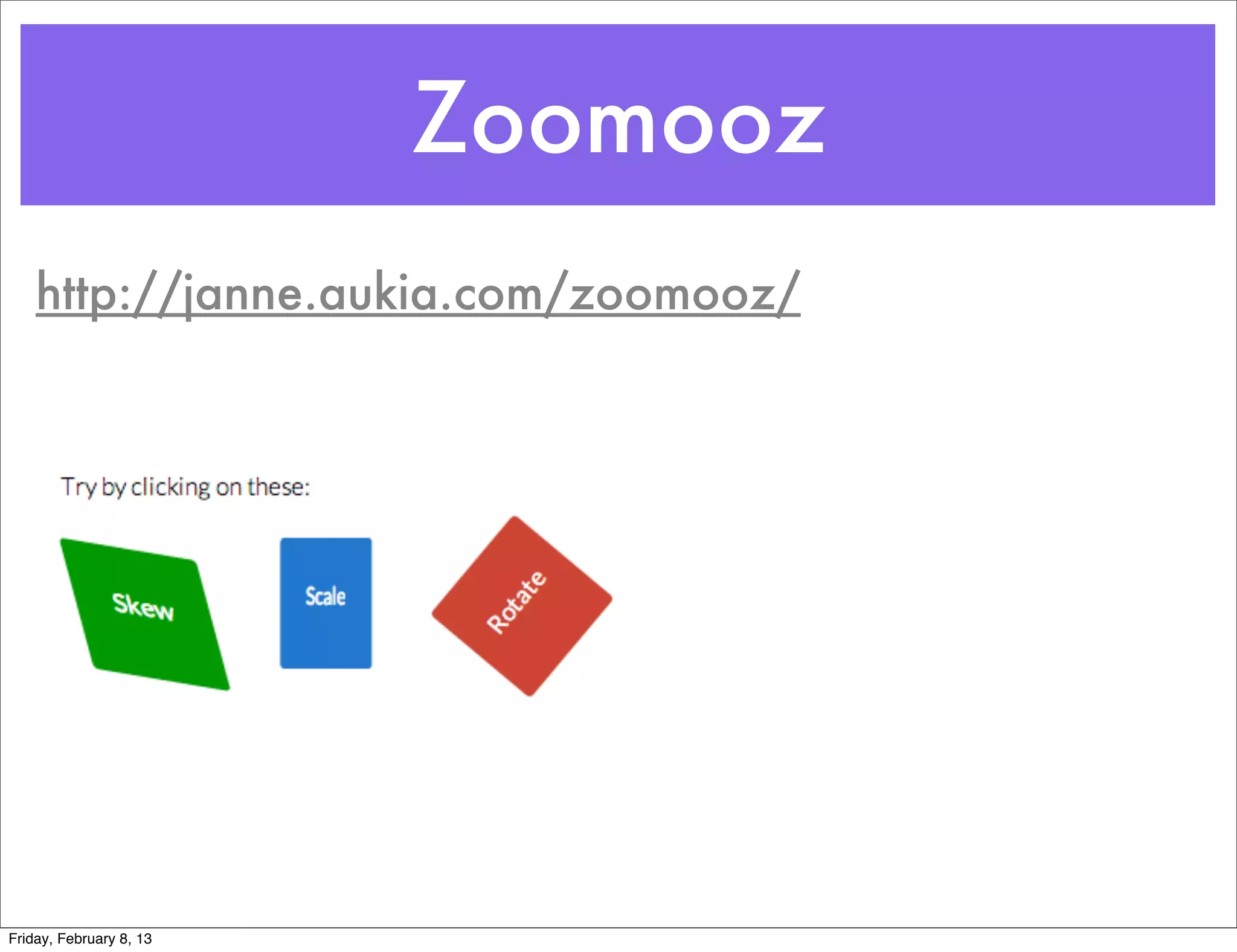

Zoomooz
http://janne.aukia.com/zoomooz/

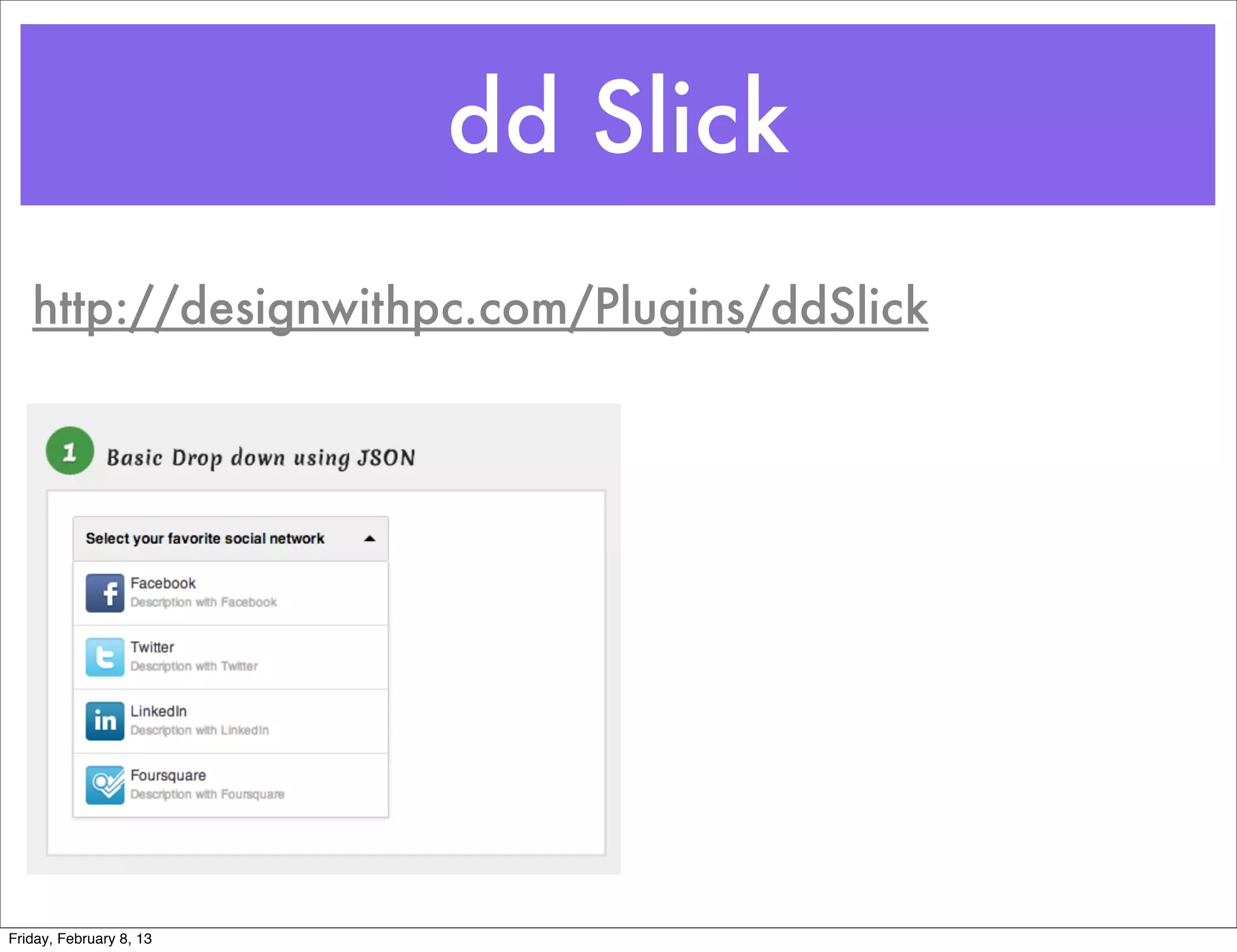

dd Slick
http://designwithpc.com/Plugins/ddSlick

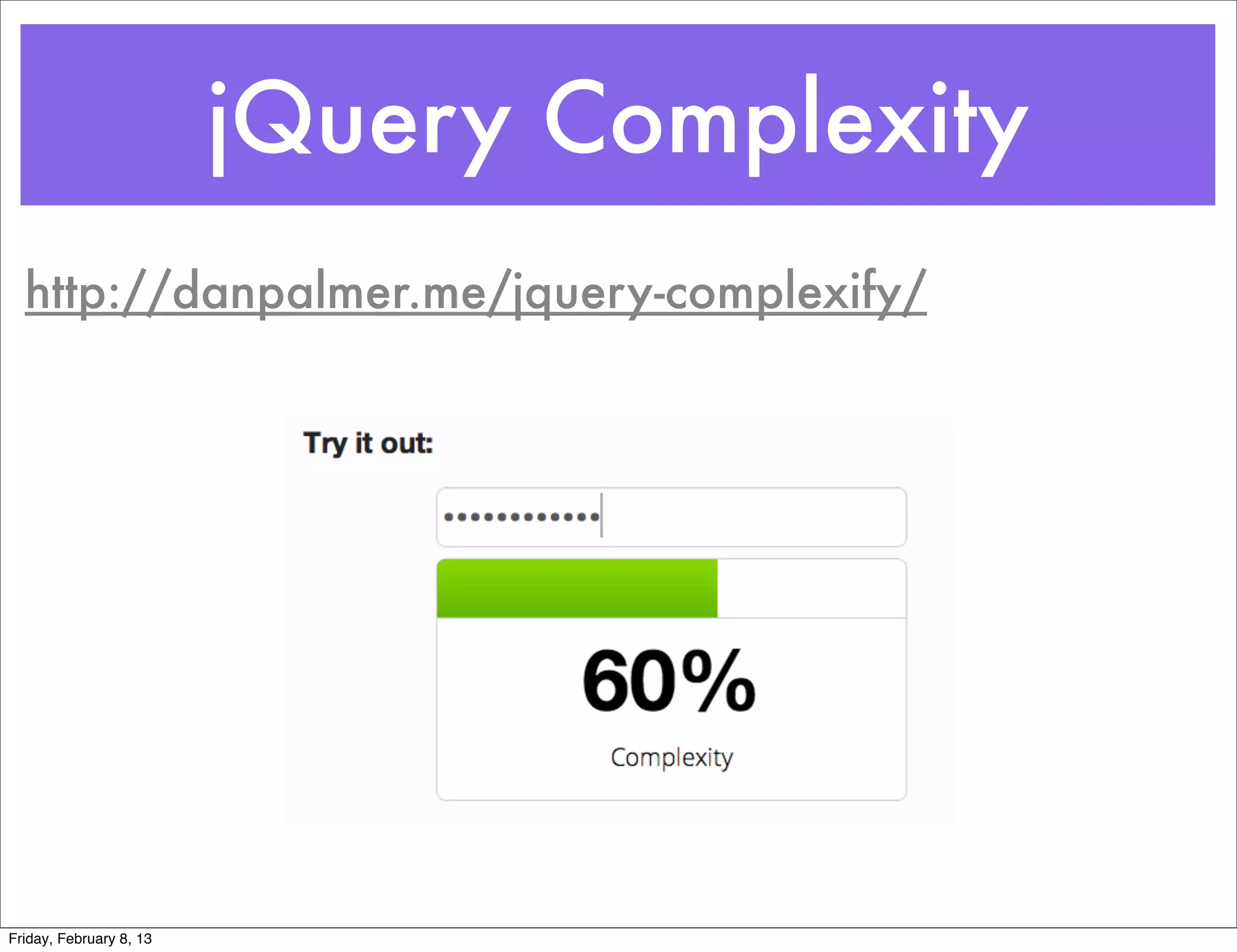

jQuery Complexity
http://danpalmer.me/jquery-complexify/

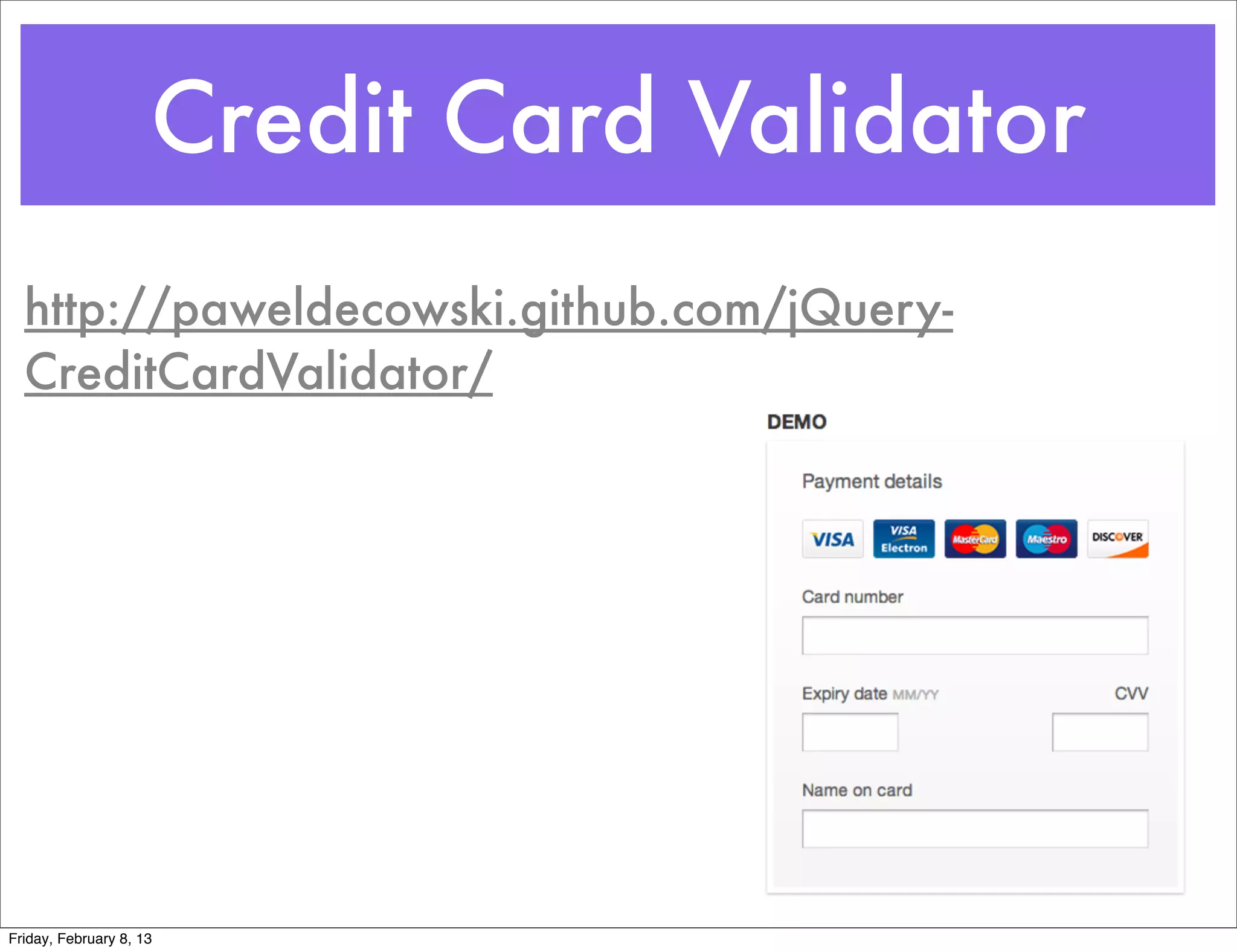

Credit Card Validator
http://paweldecowski.github.com/jQuery-
CreditCardValidator/

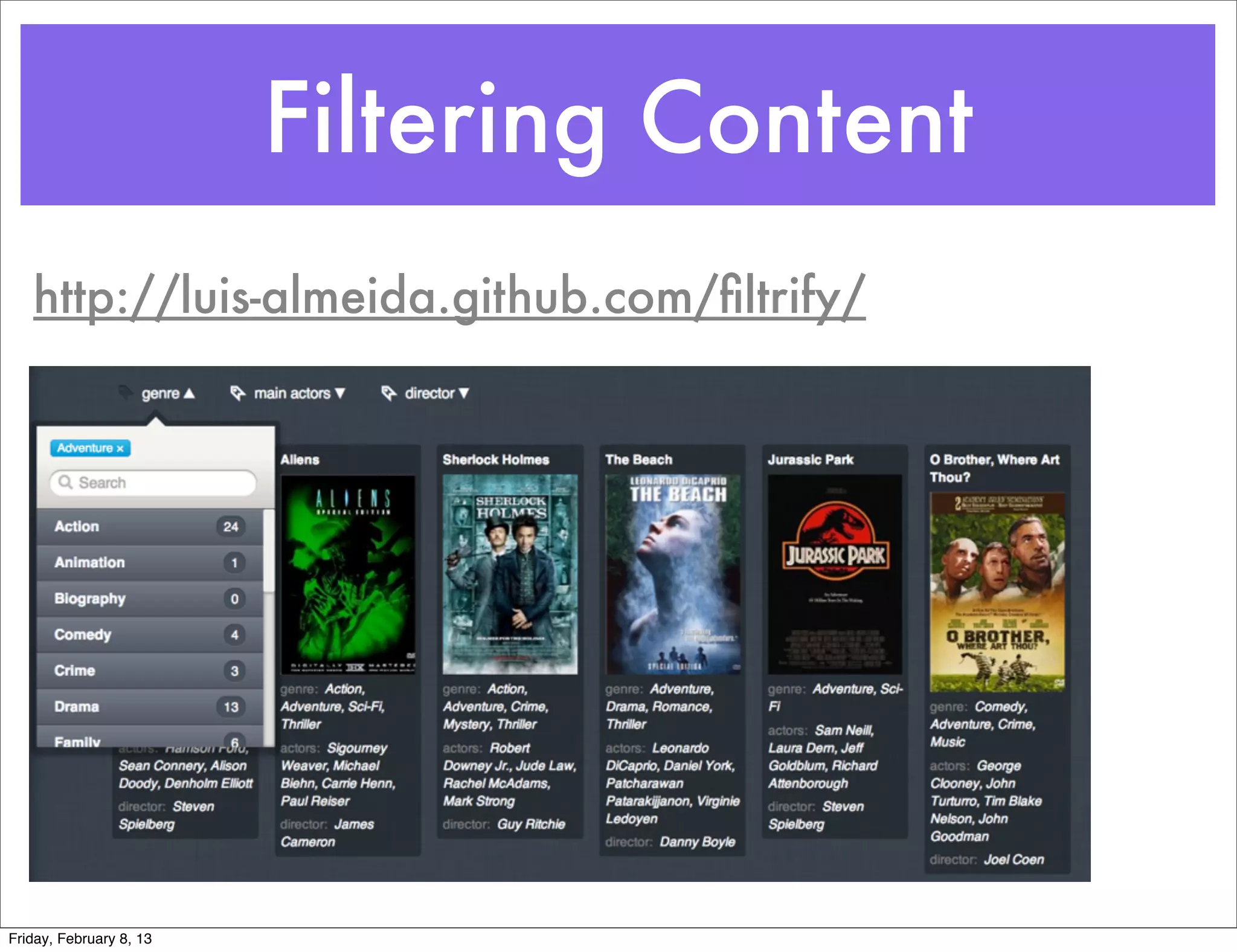

Filtering Content
http://luis-almeida.github.com/ﬁltrify/

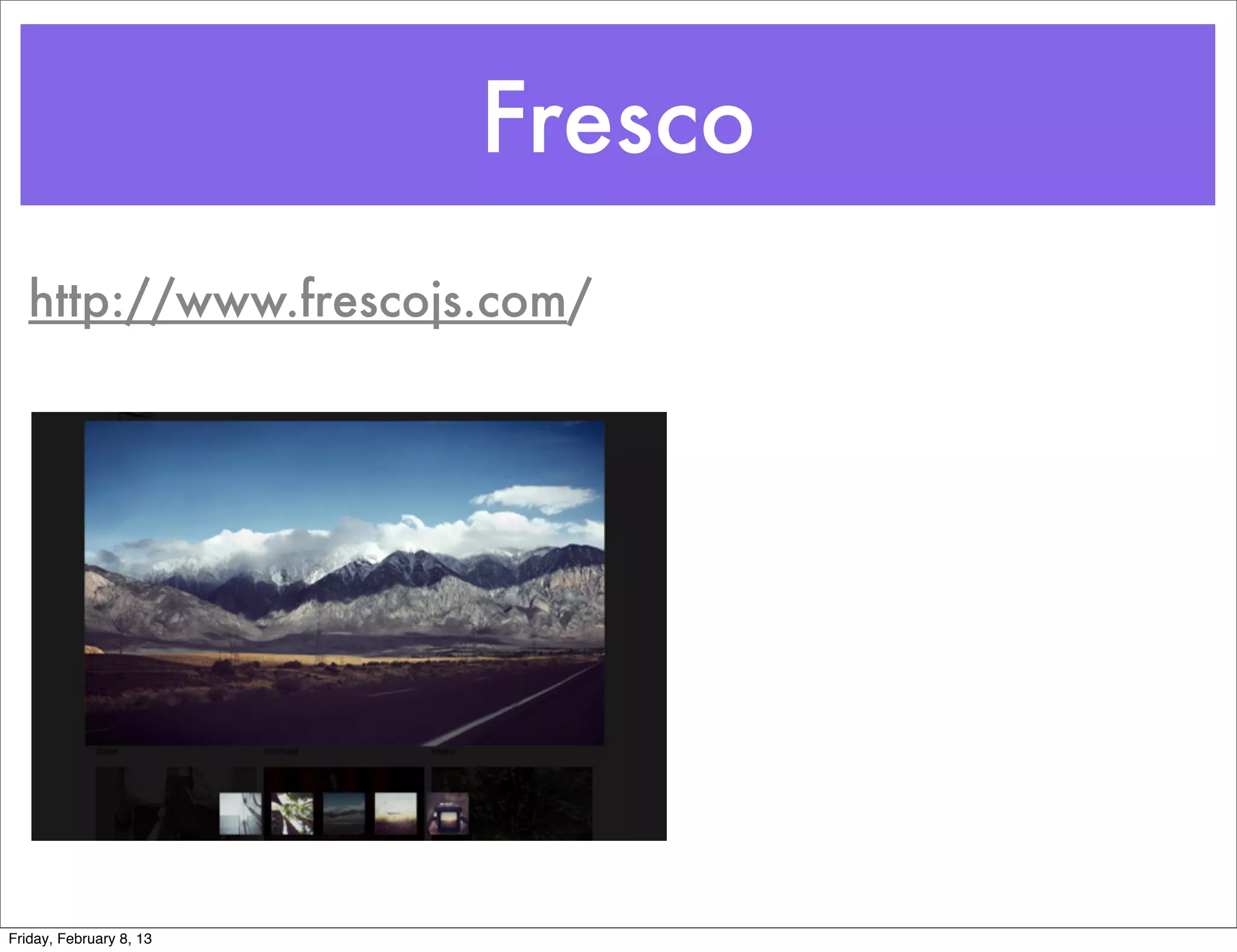

Fresco
http://www.frescojs.com/

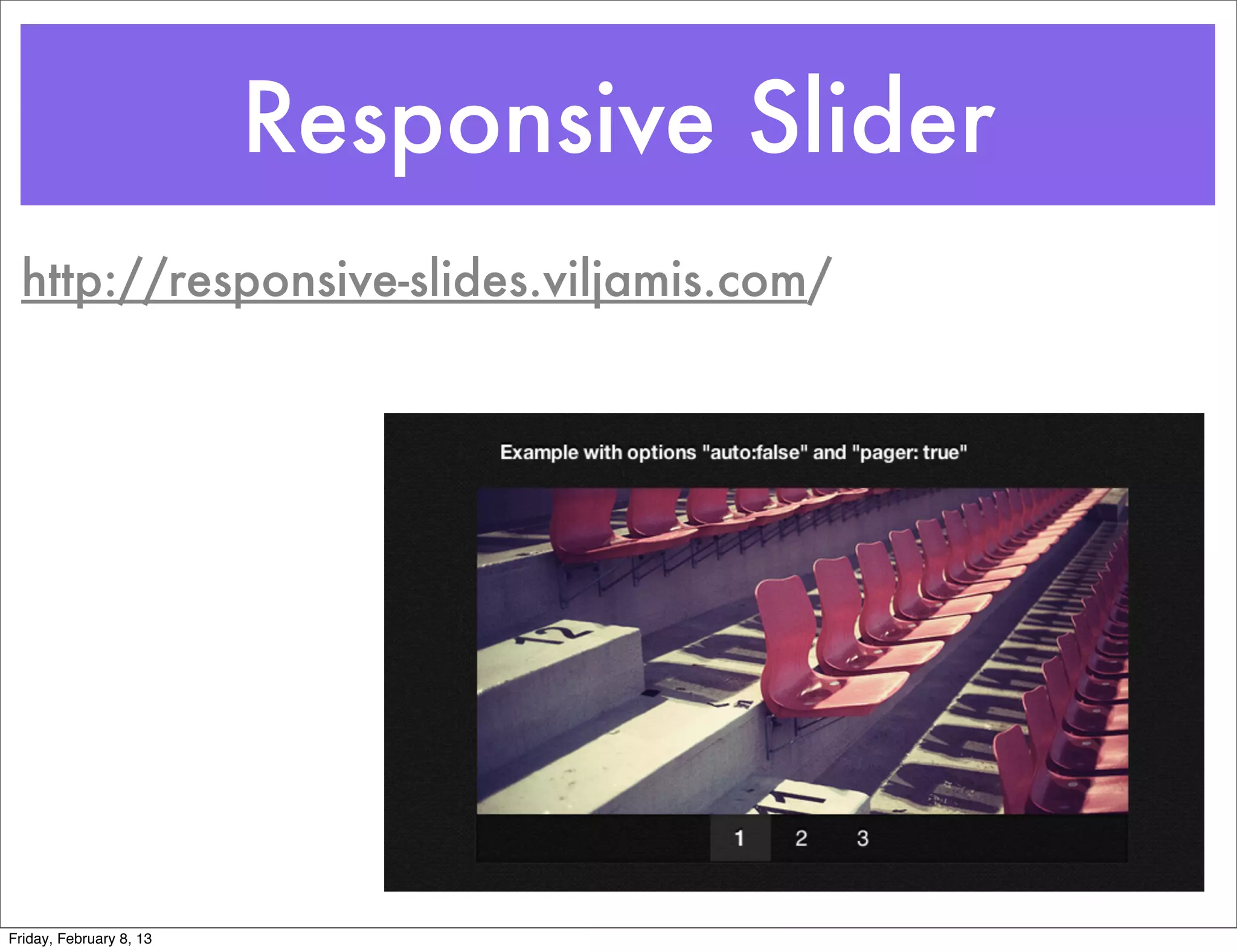

Responsive Slider
http://responsive-slides.viljamis.com/

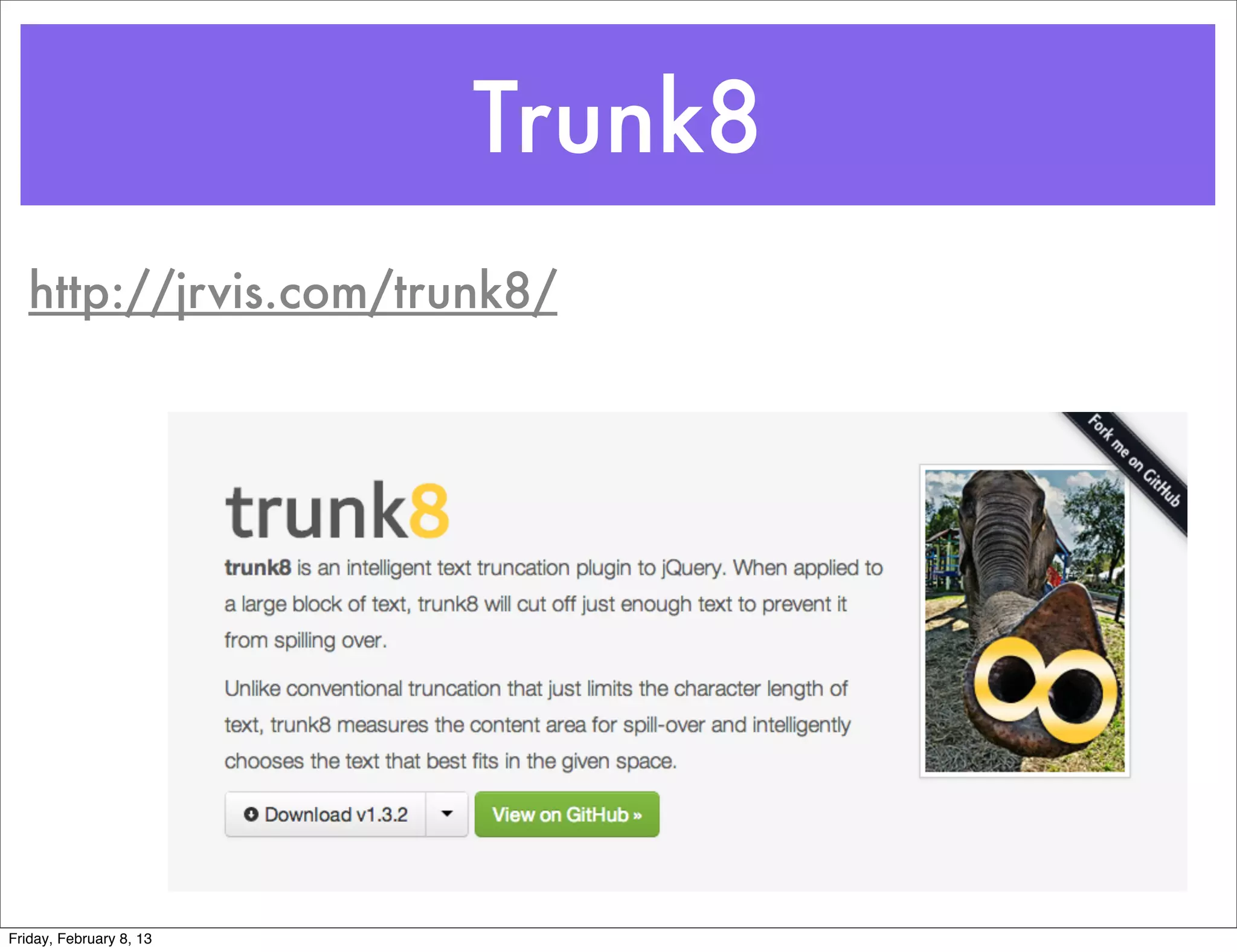

Trunk8
http://jrvis.com/trunk8/

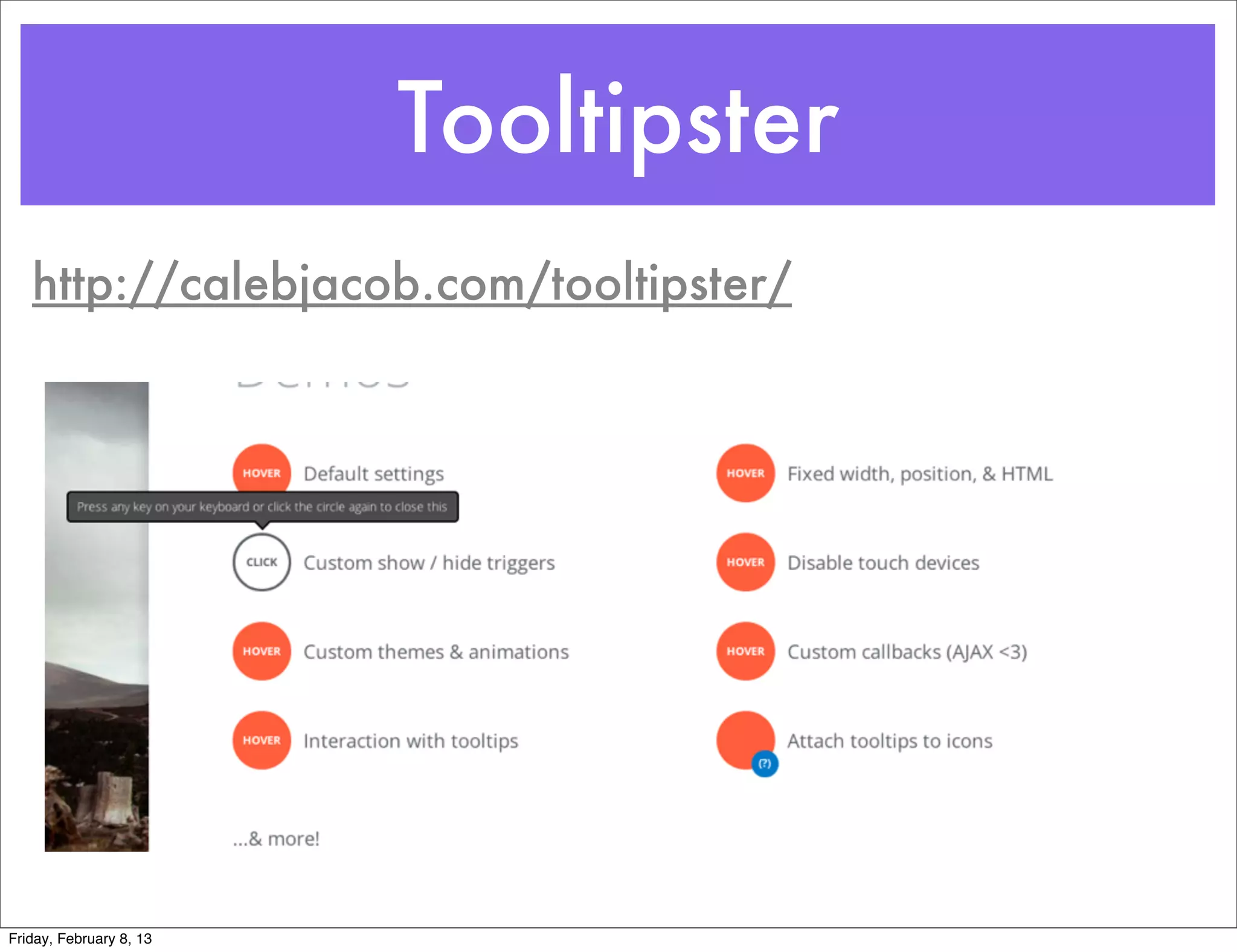

Tooltipster
http://calebjacob.com/tooltipster/

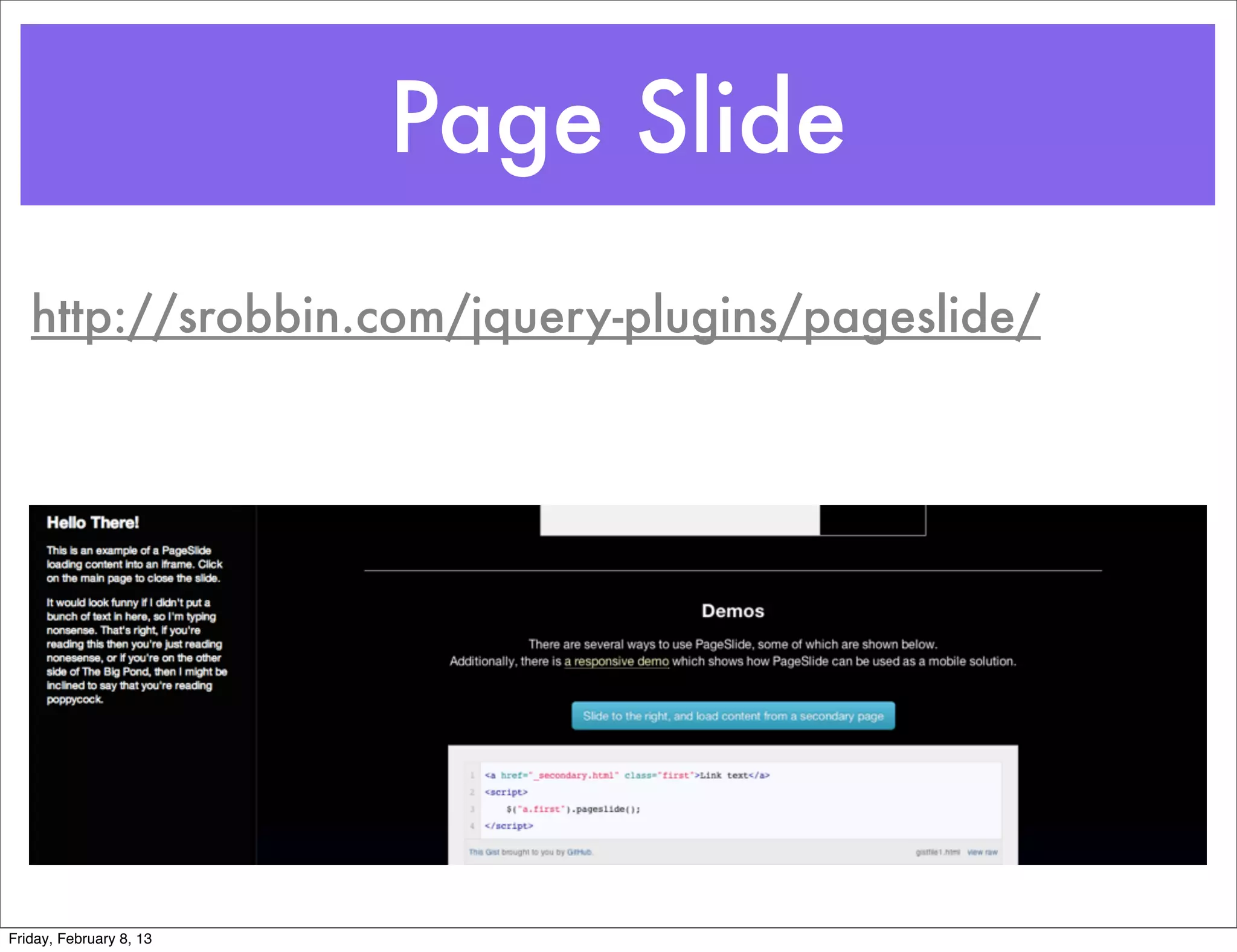

Page Slide
http://srobbin.com/jquery-plugins/pageslide/

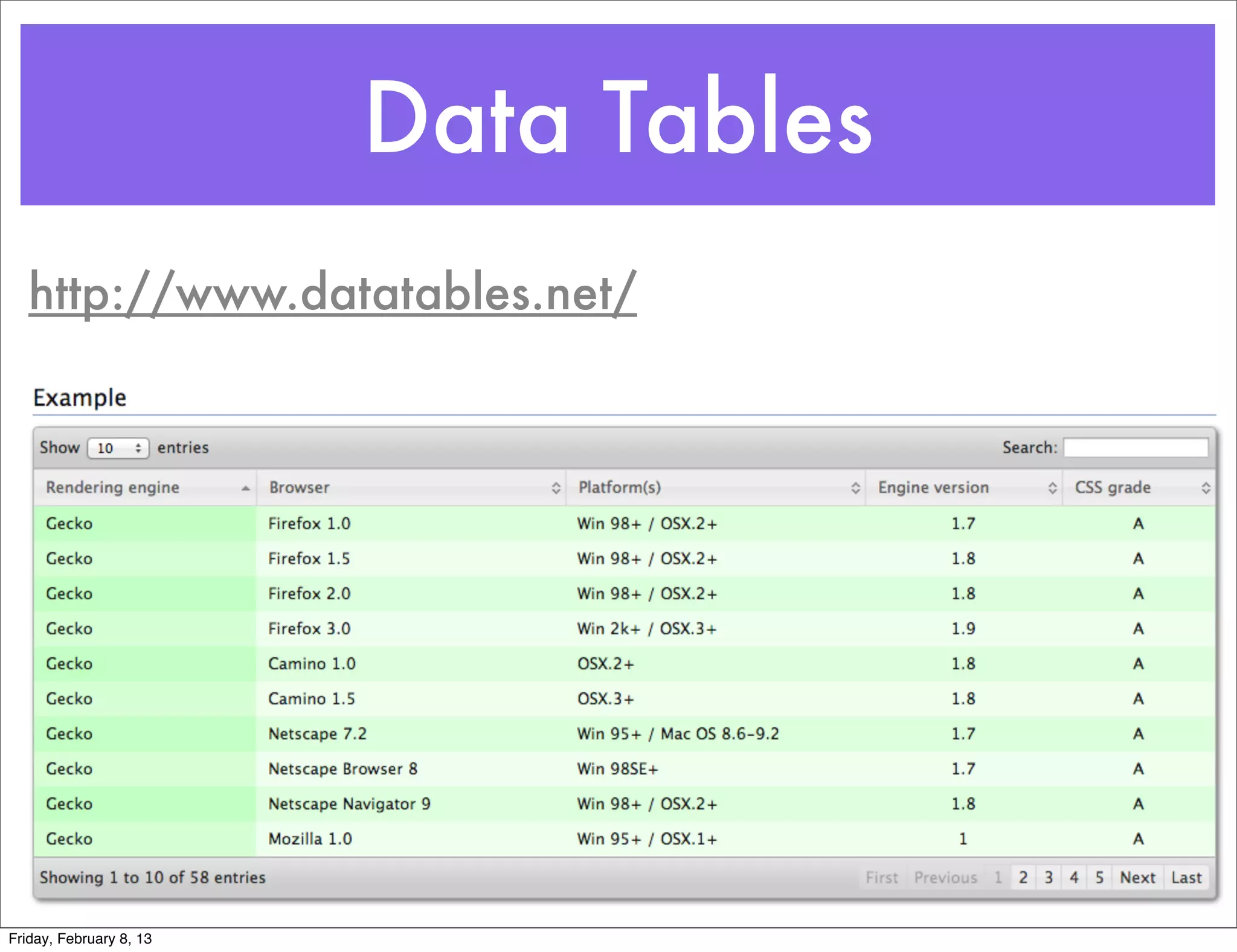

Data Tables
http://www.datatables.net/

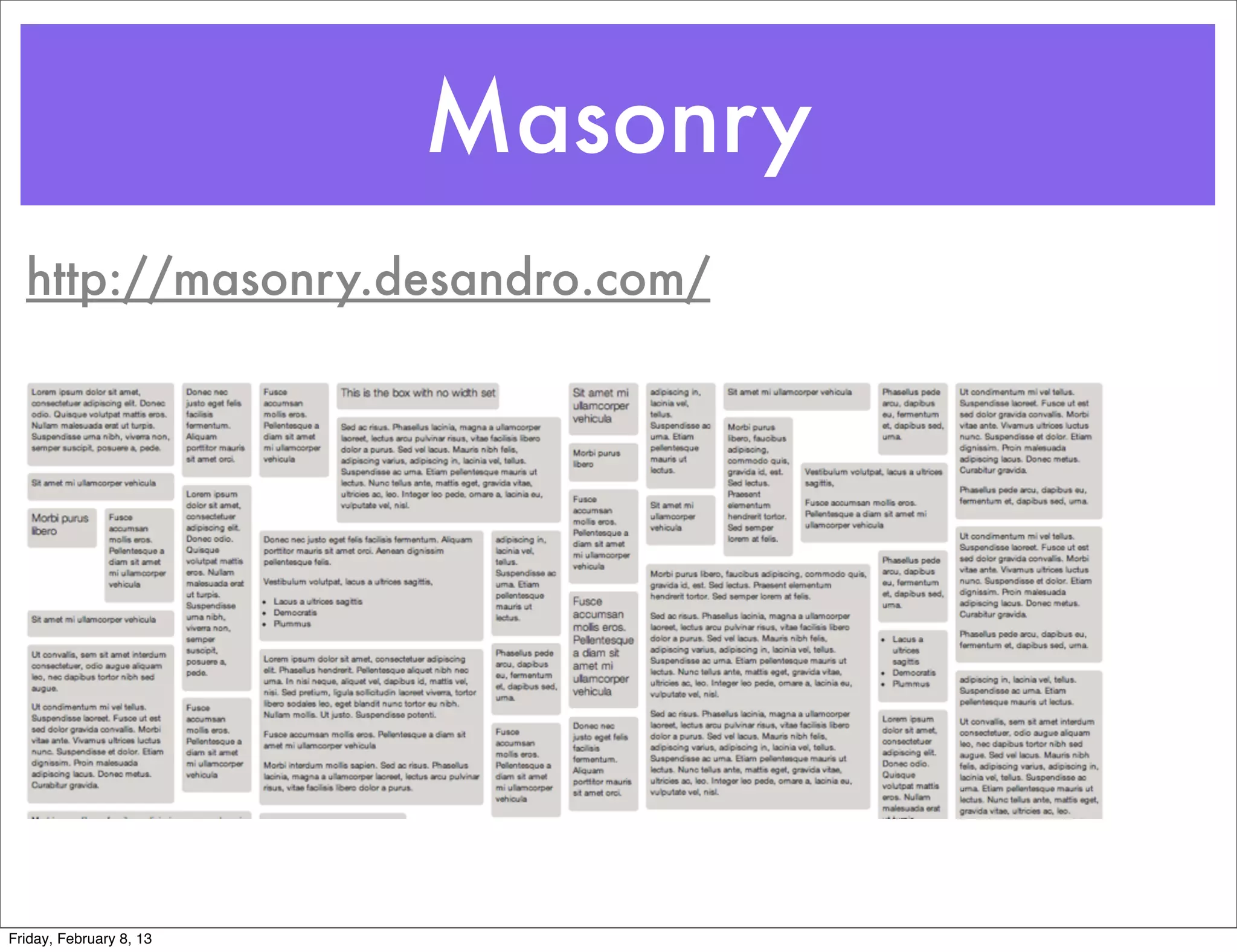

Masonry
http://masonry.desandro.com/

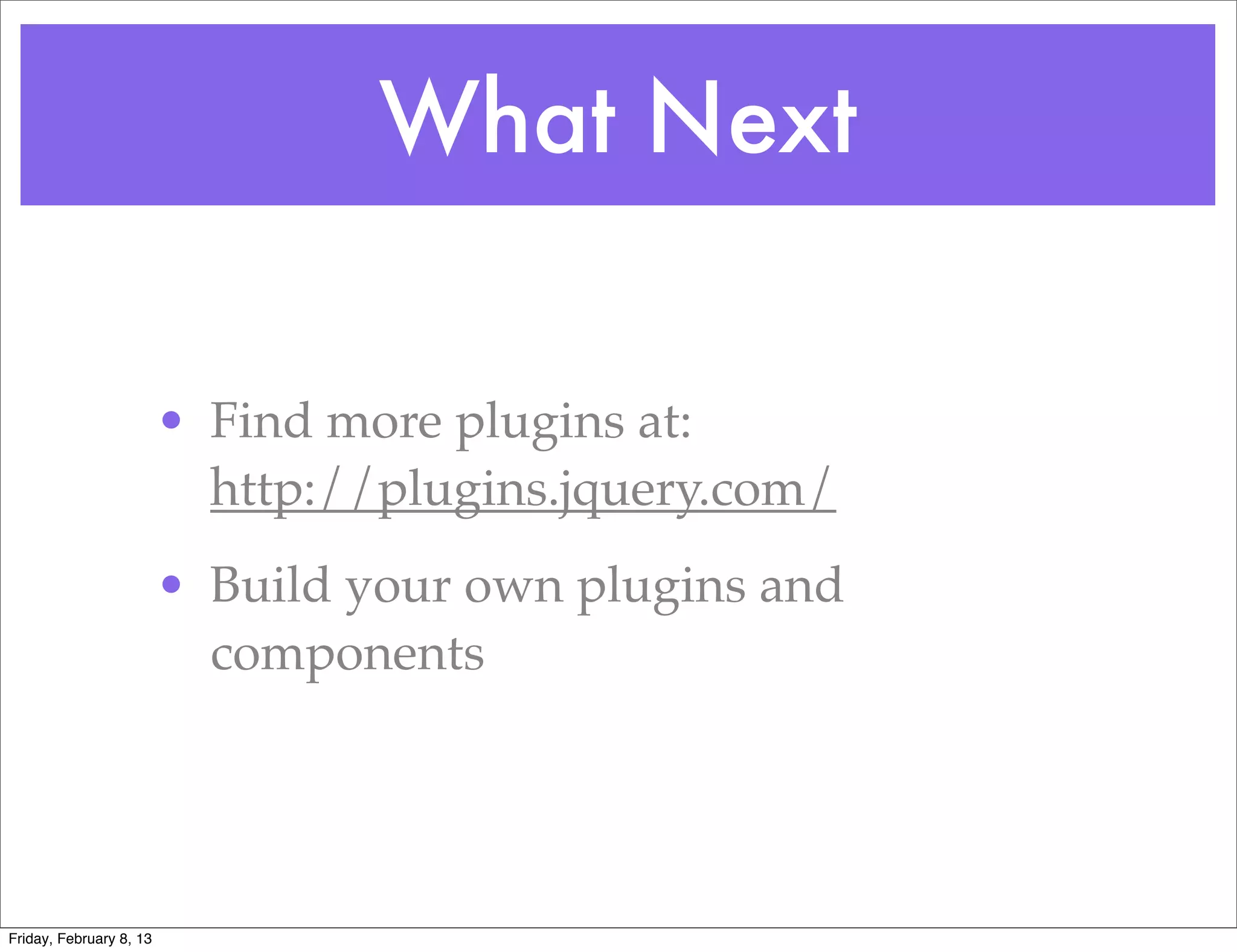

What Next

• Find more plugins at:
http://plugins.jquery.com/
• Build your own plugins and
components


Thanks For Listening

• Ynon Perek
• Talk to me: ynon@ynonperek.com
• Find more slides:
http://ynonperek.com
