1. Web versus native
Chris Mills // Mozilla cmills@mozilla.com // @chrisdavidmills

2. don’t worry about taking notes:
๏ These slides are all at slideshare.net/chrisdavidmills
๏ developer.mozilla.org
๏ @chrisdavidmills
๏ cmills@mozilla.com
๏ #mdn irc channel on mozilla irc
๏ dev-mdc@lists.mozilla.org mailing list

3. ๏ heavy metal drummer turned web nerd
๏ tech writer @ mozilla
๏ web tinkerer (HTML, CSS, JS)
๏ accessibility whiner
๏ educator
who am i?
mdn!!

4. what’s the
problem?

5. web versus native, the age-old struggle

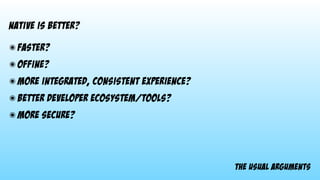

6. the usual arguments
native is better?
๏ faster?
๏ offine?
๏ more integrated, consistent experience?
๏ better developer ecosystem/tools?
๏ more secure?

7. the usual arguments
๏ web apps accessing other apps?
๏ web apps accessing
camera
contacts
SMS/MMs
dialler??

8. app ecosystem

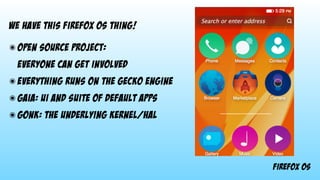

9. Firefox os
We have this firefox os thing!
๏ open source project:
everyone can get involved
๏ everything runs on the gecko engine
๏ Gaia: UI and suite of default apps
๏ Gonk: the underlying kernel/haL

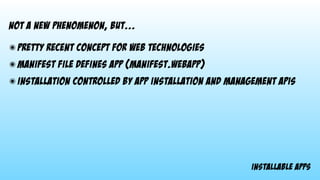

10. installable apps
not a new phenomenon, but...
๏ pretty recent concept for web technologies
๏ manifest file defines app (manifest.webapp)
๏ installation controlled by app installation and management apis

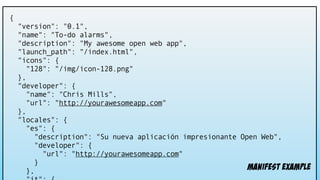

11. {
"version": "0.1",
"name": "To-do alarms",
"description": "My awesome open web app",
"launch_path": "/index.html",
"icons": {
"128": "/img/icon-128.png"
},
"developer": {
"name": "Chris Mills",
"url": "http://yourawesomeapp.com"
},
"locales": {
"es": {
"description": "Su nueva aplicación impresionante Open Web",
"developer": {
"url": "http://yourawesomeapp.com"
}
}, manifest example

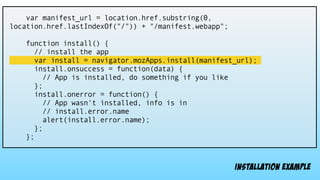

12. var manifest_url = location.href.substring(0,
location.href.lastIndexOf("/")) + "/manifest.webapp";
function install() {
// install the app
var install = navigator.mozApps.install(manifest_url);
install.onsuccess = function(data) {
// App is installed, do something if you like
};
install.onerror = function() {
// App wasn't installed, info is in
// install.error.name
alert(install.error.name);
};
};
installation example

13. app types
Apps can be:
๏ hosted: just like a normal web site, but with a manifest and install
functionality
๏ packaged: zipped up, hosted somewhere (like the firefox
marketplace), verified

14. app payments
you can charge money for web apps
๏ payments api uses payment providers like bango
๏ receipt verification to make sure payments are completed
๏ in-app payments also available (fxPay, mozpay)

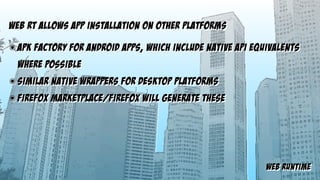

15. web runtime
web rt allows app installation on other platforms
๏ apk factory for android apps, which include native api equivalents
where possible
๏ similar native wrappers for desktop platforms
๏ firefox marketplace/Firefox will generate these

16. developer
experience

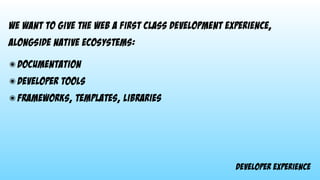

17. developer experience
we want to give the web a first class development experience,
alongside native ecosystems:
๏ documentation
๏ developer tools
๏ frameworks, templates, libraries

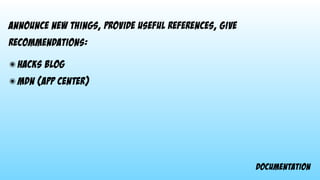

18. documentation
announce new things, provide useful references, give
recommendations:
๏ hacks blog
๏ mdn (app center)

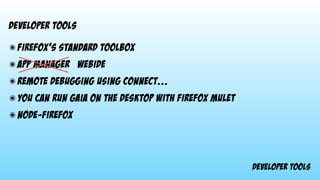

19. developer tools
developer tools
๏ firefox’s standard toolbox
๏ app manager webide
๏ remote debugging using connect...
๏ you can run gaia on the desktop with firefox mulet
๏ node-firefox

20. webide

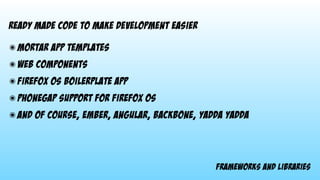

21. frameworks and libraries
ready made code to make development easier
๏ mortar app templates
๏ Web components
๏ firefox os boilerplate app
๏ phonegap support for firefox os
๏ and of course, ember, angular, backbone, yadda yadda

22. (device) apis

23. make it work on the web*...

24. *ok, ok, using web technologies!

25. apis!!!
we want to control everything using web technology
๏ apis to handle access to device hardware, system functions, etc.
๏ security handled by permissions, in the manifest

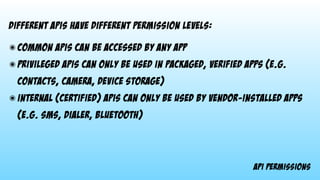

26. api permissions
different apis have different permission levels:
๏ common apis can be accessed by any app
๏ privileged apis can only be used in packaged, verified apps (e.g.
contacts, camera, device storage)
๏ internal (certified) apis can only be used by vendor-installed apps
(e.g. sms, dialer, bluetooth)

27. var pick = new MozActivity({
name: "pick",
data: {
type: ["image/png", "image/jpg", "image/jpeg"]
}
});
web activities (intents)

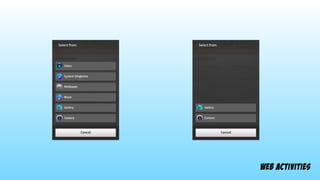

28. web activities

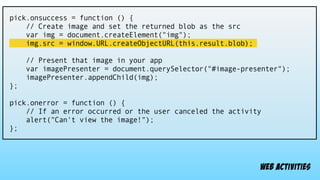

29. pick.onsuccess = function () {
// Create image and set the returned blob as the src
var img = document.createElement("img");
img.src = window.URL.createObjectURL(this.result.blob);
// Present that image in your app
var imagePresenter = document.querySelector("#image-presenter");
imagePresenter.appendChild(img);
};
pick.onerror = function () {
// If an error occurred or the user canceled the activity
alert("Can't view the image!");
};
web activities

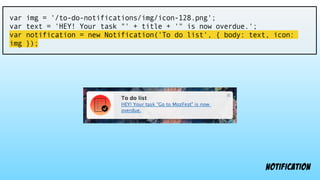

30. var img = '/to-do-notifications/img/icon-128.png';
var text = 'HEY! Your task "' + title + '" is now overdue.';
var notification = new Notification('To do list', { body: text, icon:
img });
notification

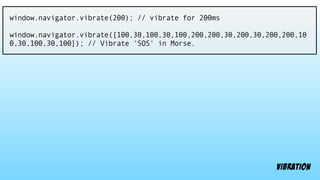

31. window.navigator.vibrate(200); // vibrate for 200ms
window.navigator.vibrate([100,30,100,30,100,200,200,30,200,30,200,200,10
0,30,100,30,100]); // Vibrate 'SOS' in Morse.
vibration

32. window.addEventListener('devicelight', function(event) {
var html = document.getElementsByTagName('html')[0];
if (event.value < 50) {
html.classList.add('darklight');
html.classList.remove('brightlight');
} else {
html.classList.add('brightlight');
html.classList.remove('darklight');
}
});
ambient light events

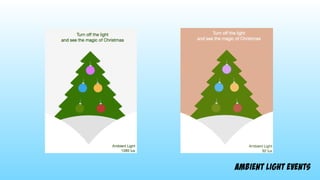

33. ambient light events

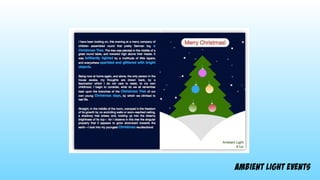

34. ambient light events

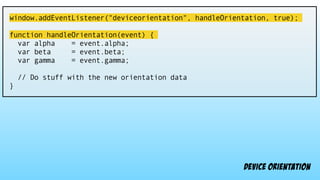

35. window.addEventListener("deviceorientation", handleOrientation, true);
function handleOrientation(event) {
var alpha = event.alpha;
var beta = event.beta;
var gamma = event.gamma;
// Do stuff with the new orientation data
}
device orientation

36. device orientation
alpha
betagamma

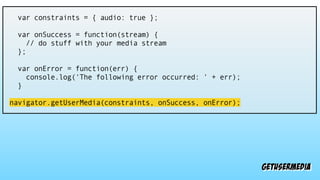

37. getusermedia
var constraints = { audio: true };
var onSuccess = function(stream) {
// do stuff with your media stream
};
var onError = function(err) {
console.log('The following error occurred: ' + err);
}
navigator.getUserMedia(constraints, onSuccess, onError);

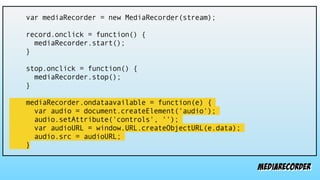

38. mediarecorder
var mediaRecorder = new MediaRecorder(stream);
record.onclick = function() {
mediaRecorder.start();
}
stop.onclick = function() {
mediaRecorder.stop();
}
mediaRecorder.ondataavailable = function(e) {
var audio = document.createElement('audio');
audio.setAttribute('controls', '');
var audioURL = window.URL.createObjectURL(e.data);
audio.src = audioURL;
}

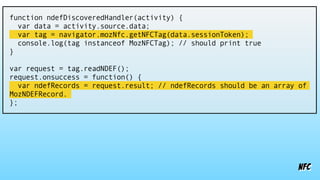

39. nfc
function ndefDiscoveredHandler(activity) {
var data = activity.source.data;
var tag = navigator.mozNfc.getNFCTag(data.sessionToken);
console.log(tag instanceof MozNFCTag); // should print true
}
var request = tag.readNDEF();
request.onsuccess = function() {
var ndefRecords = request.result; // ndefRecords should be an array of
MozNDEFRecord.
};

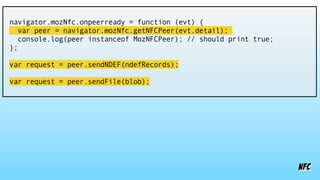

40. nfc
navigator.mozNfc.onpeerready = function (evt) {
var peer = navigator.mozNfc.getNFCPeer(evt.detail);
console.log(peer instanceof MozNFCPeer); // should print true;
};
var request = peer.sendNDEF(ndefRecords);
var request = peer.sendFile(blob);

41. Web speech API
๏ work in progress
๏ doing speech synthesis and recognition in javascript, client-side

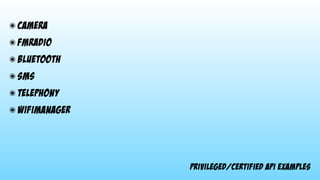

42. privileged/certified api examples
๏ CAmERA
๏ FMradio
๏ bluetooth
๏ sms
๏ telephony
๏ Wifimanager

43. advanced communication
sometimes the web model can be a pain
๏ same origin security
๏ cors/systemxhr
๏ broadcast channels/message channels
๏ request response model
๏ web sockets
๏ webrtc

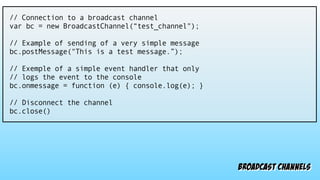

44. broadcast channels
// Connection to a broadcast channel
var bc = new BroadcastChannel(“test_channel");
// Example of sending of a very simple message
bc.postMessage("This is a test message.”);
// Exemple of a simple event handler that only
// logs the event to the console
bc.onmessage = function (e) { console.log(e); }
// Disconnect the channel
bc.close()

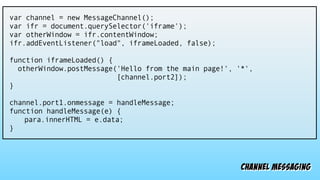

45. channel messaging
var channel = new MessageChannel();
var ifr = document.querySelector('iframe');
var otherWindow = ifr.contentWindow;
ifr.addEventListener("load", iframeLoaded, false);
function iframeLoaded() {
otherWindow.postMessage('Hello from the main page!', '*',
[channel.port2]);
}
channel.port1.onmessage = handleMessage;
function handleMessage(e) {
para.innerHTML = e.data;
}

46. offline apps

47. no connection = no experience

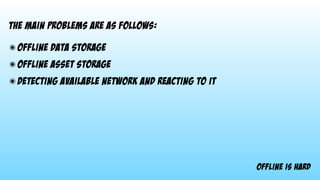

48. offline is hard
The main problems are as follows:
๏ offline data storage
๏ offline asset storage
๏ detecting available network and reacting to it

49. offline data
this is not so bad:
๏ indexeddb, localstorage, websql
๏ (datastore api for firefox os)
๏ there’s something available in most browsers
๏ localforage library polyfills across browsers

50. offline apps/assets
offline app assets are a pain
๏ firefox os packaged apps are installed and available offline
๏ this doesn’t help the web at large
๏ we had app cache…

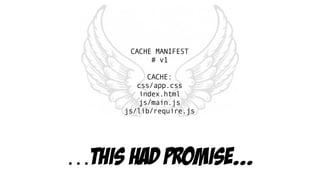

51. …this had promise...
CACHE MANIFEST
# v1
CACHE:
css/app.css
index.html
js/main.js
js/lib/require.js

52. ...but was actually evil.

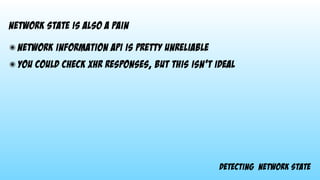

53. detecting network state
network state is also a pain
๏ Network information API is pretty unreliable
๏ you could check xhr responses, but this isn’t ideal

54. hello service workers!

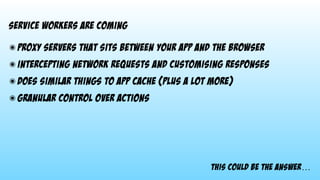

55. This could be the answer…
service workers are coming
๏ proxy servers that sits between your app and the browser
๏ intercepting network requests and customising responses
๏ does similar things to app cache (plus a lot more)
๏ granular control over actions

56. register service worker
if ('serviceWorker' in navigator) {
navigator.serviceWorker.register('/sw-test/sw.js', {
scope: '/*'
}).then(function(sw) {
// registration worked
console.log('Registration succeeded.');
}).catch(function() {
// registration failed
console.log('Registration failed.');
});
}

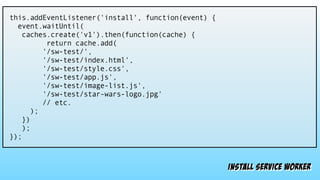

57. install service worker
this.addEventListener('install', function(event) {
event.waitUntil(
caches.create('v1').then(function(cache) {
return cache.add(
'/sw-test/',
'/sw-test/index.html',
'/sw-test/style.css',
'/sw-test/app.js',
'/sw-test/image-list.js',
'/sw-test/star-wars-logo.jpg'
// etc.
);
})
);
});

58. custom request responses
this.addEventListener('fetch', function(event) {
event.respondWith(
caches.match(event.request).catch(function() {
return event.default();
return caches.get('v1').then(function(cache) {
cache.add(event.request);
});
}).catch(function() {
return caches.match('/sw-test/gallery/myLittleVader.jpg');
})
);
});

59. performance
enhancers

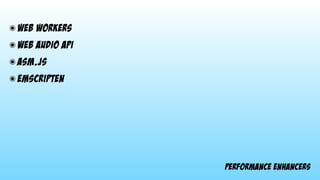

60. performance enhancers
๏ web workers
๏ web audio api
๏ asm.js
๏ emscripten

61. web workers
web workers
๏ run scripts in a background thread
๏ don’t block the main thread execution

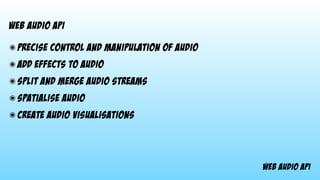

62. web audio api
web audio api
๏ precise control and manipulation of audio
๏ add effects to audio
๏ split and merge audio streams
๏ spatialise audio
๏ create audio visualisations

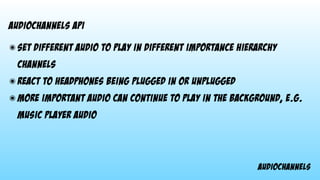

63. audiochannels
audiochannels api
๏ set different audio to play in different importance hierarchy
channels
๏ react to headphones being plugged in or unplugged
๏ more important audio can continue to play in the background, e.g.
music player audio

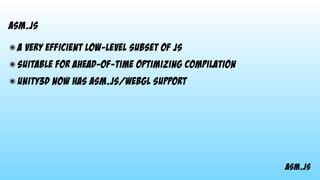

64. asm.js
asm.js
๏ a very efficient low-level subset of JS
๏ suitable for ahead-of-time optimizing compilation
๏ Unity3d now has asm.js/WebGL support

65. emscripten
emscripteN
๏ an LLVM to javascript compiler (well, asm.js, specifically)
๏ compile c++ (and others) into JS and run it on the web
๏ = “very fast shit” ™
๏ See emscripten.org

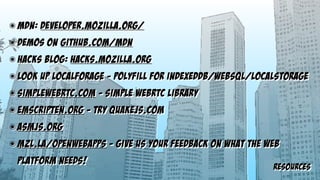

68. resources
๏ MDN: developer.mozilla.org/
๏ demos on github.com/mdn
๏ hacks blog: hacks.mozilla.org
๏ look up localforage - polyfill for indexeddb/websql/localstorage
๏ simplewebrtc.com - simple webrtc library
๏ emscripten.org - try quakejs.com
๏ asmjs.org
๏ mzl.la/openwebapps - give us your feedback on what the web
platform needs!

69. thanks for
listening!!
slideshare.net/chrisdavidmills cmills@mozilla.com // @chrisdavidmills
