AJAX allows updating parts of a web page without reloading the entire page. It uses the XMLHttpRequest object to asynchronously send and receive data from a web server in the background. Common techniques include using JavaScript and DOM manipulation to update specific elements on a page based on the asynchronous response received in JSON, XML, HTML or plain text format from the server. Popular sites like Gmail, Google Maps, and YouTube use AJAX to provide dynamic and interactive experiences on the web.

1. AJAX
Jussi Pohjolainen
Tampere University of Applied Sciences

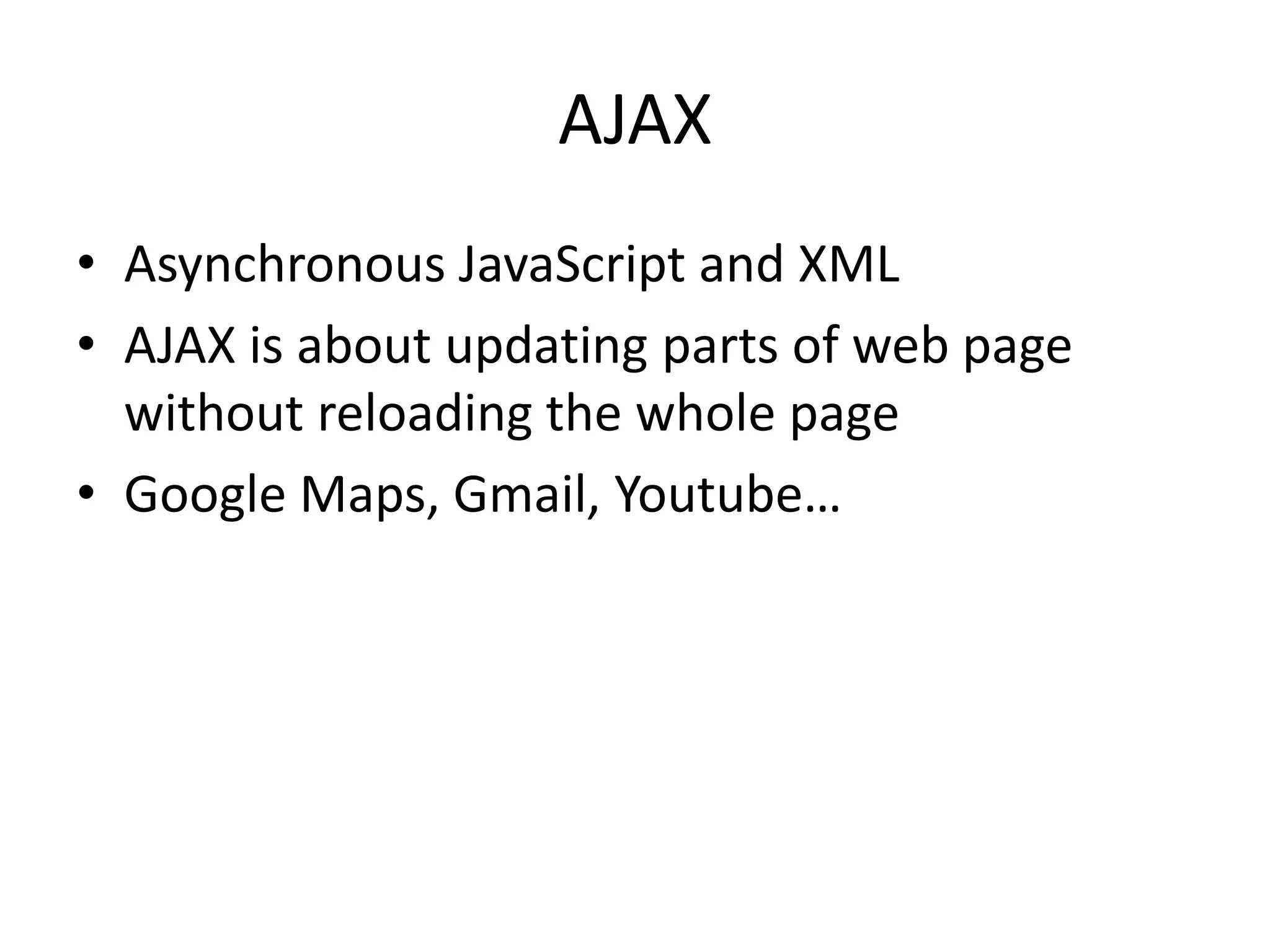

2. AJAX
• Asynchronous JavaScript and XML
• AJAX is about updating parts of web page
without reloading the whole page
• Google Maps, Gmail, Youtube…

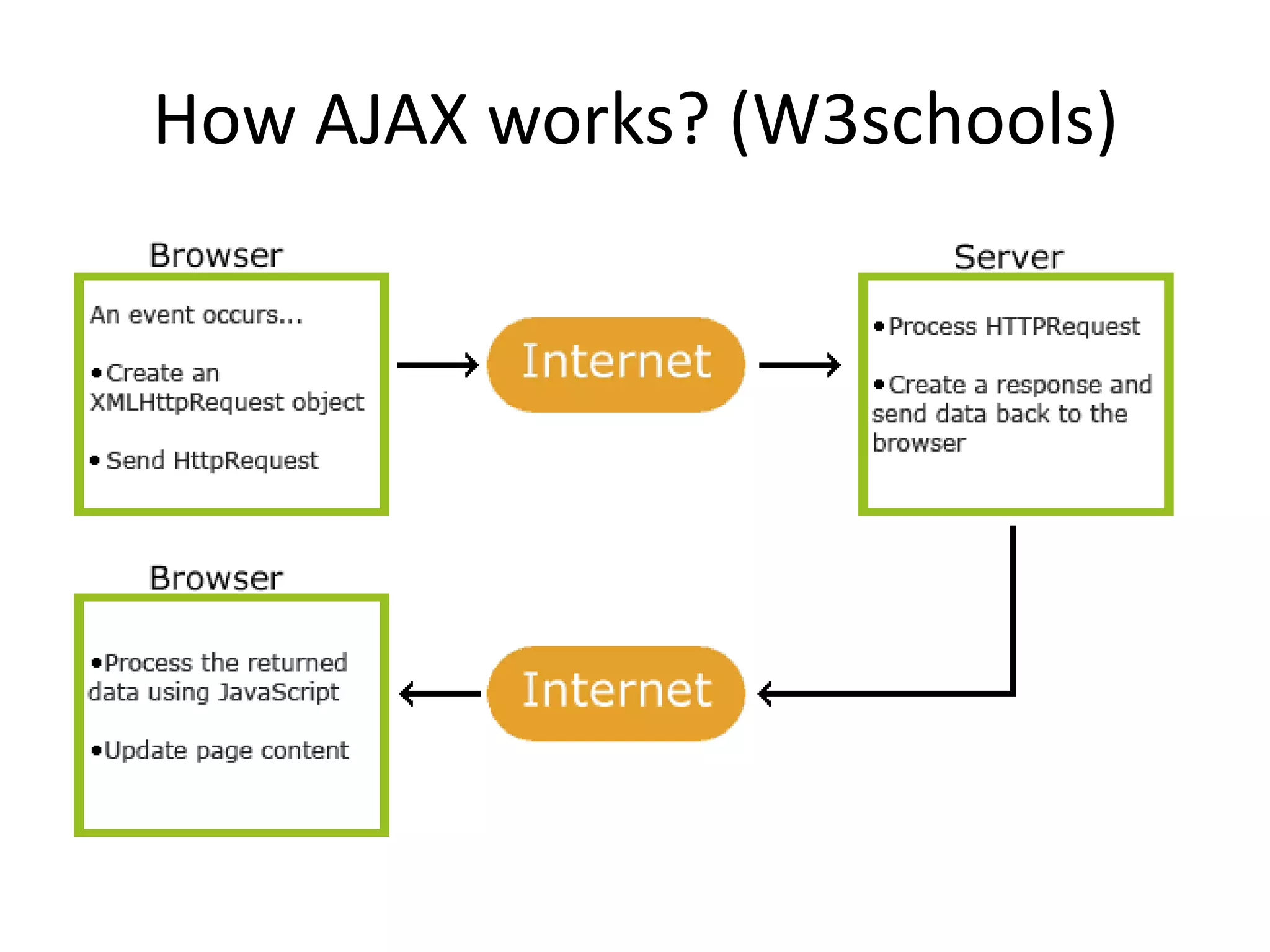

3. How AJAX works? (W3schools)

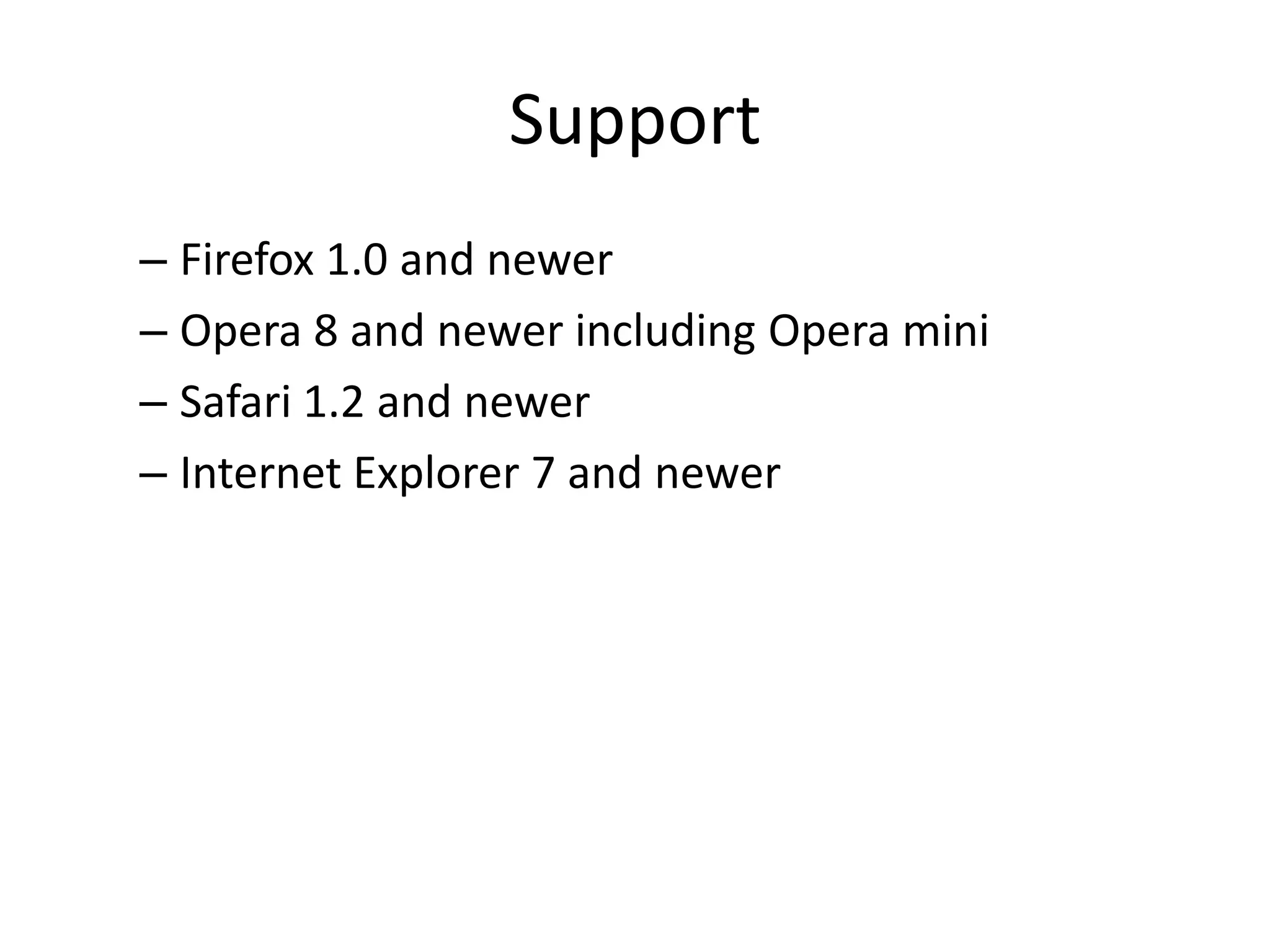

4. Support
– Firefox 1.0 and newer
– Opera 8 and newer including Opera mini
– Safari 1.2 and newer
– Internet Explorer 7 and newer

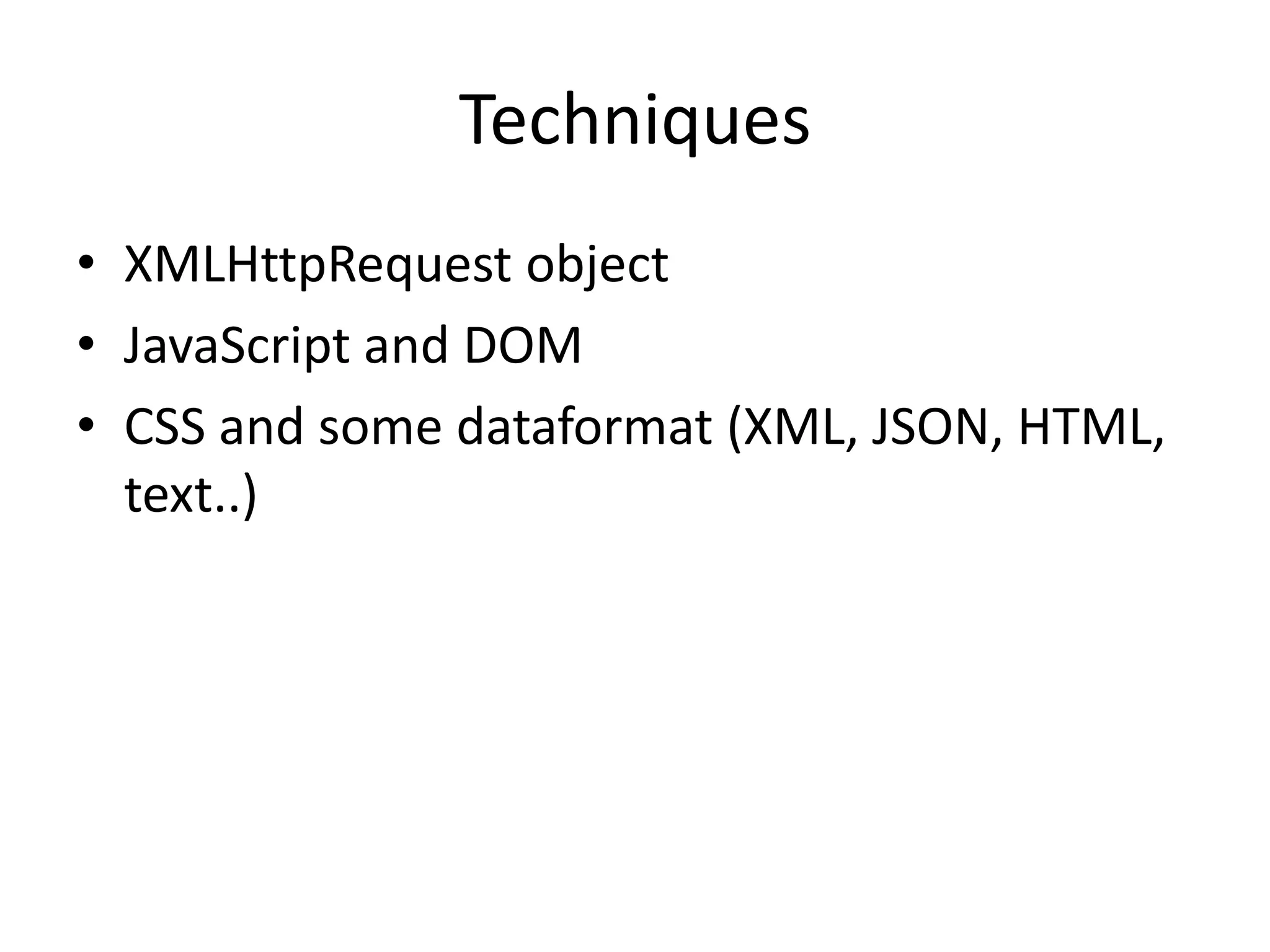

5. Techniques
• XMLHttpRequest object
• JavaScript and DOM
• CSS and some dataformat (XML, JSON, HTML,
text..)

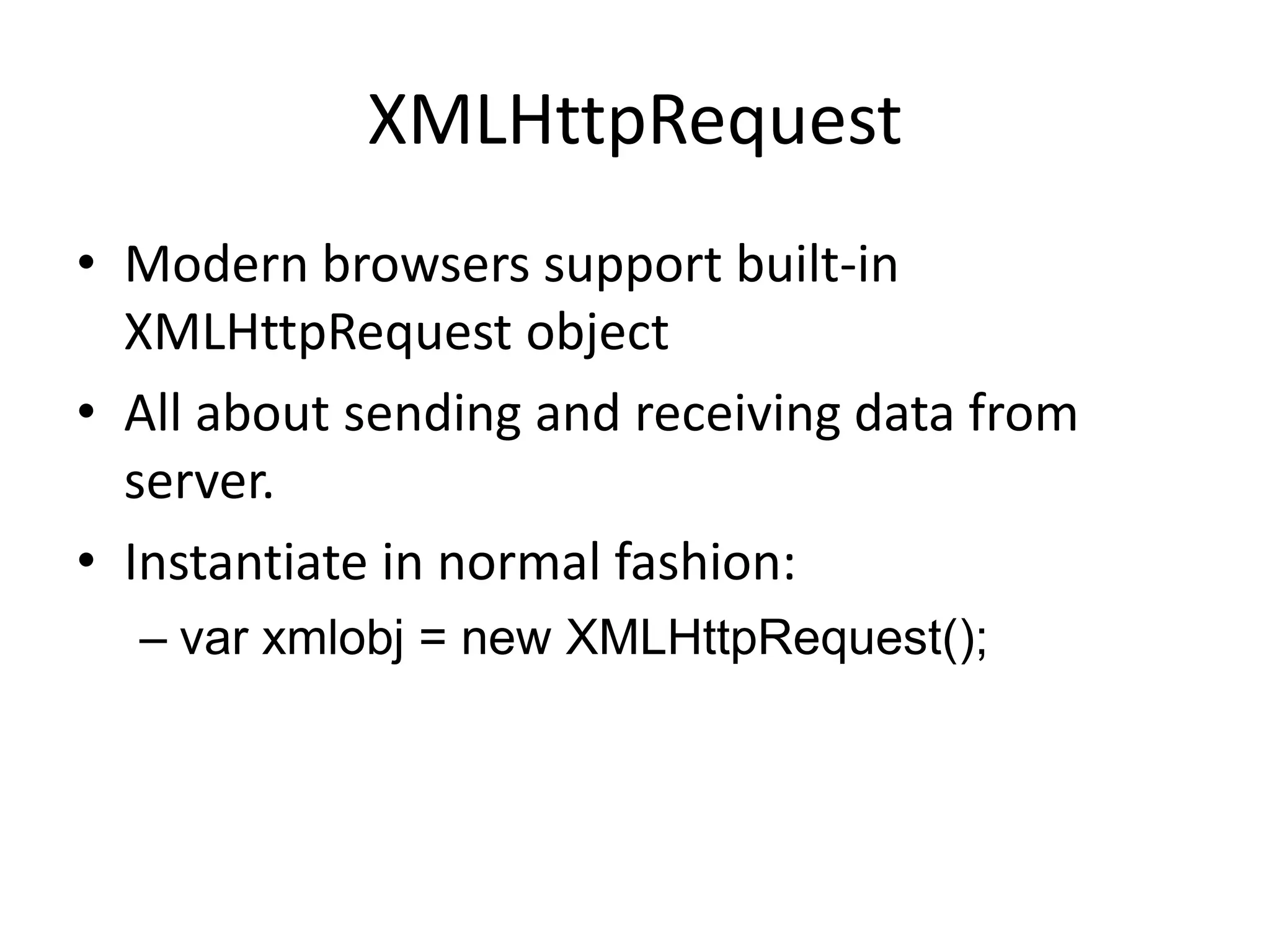

6. XMLHttpRequest
• Modern browsers support built-in
XMLHttpRequest object
• All about sending and receiving data from
server.
• Instantiate in normal fashion:
– var xmlobj = new XMLHttpRequest();

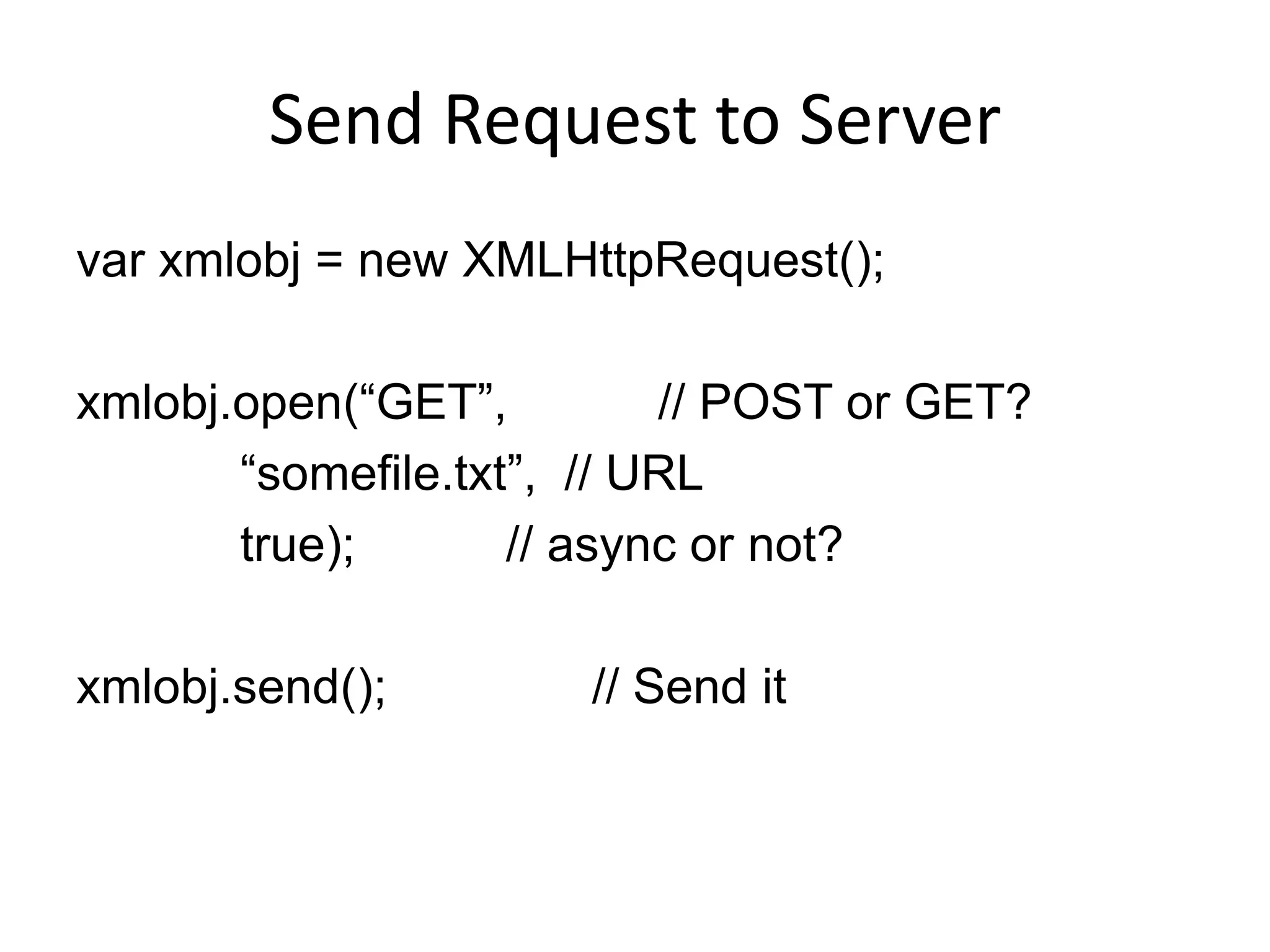

7. Send Request to Server
var xmlobj = new XMLHttpRequest();
xmlobj.open(“GET”, // POST or GET?
“somefile.txt”, // URL
true); // async or not?
xmlobj.send(); // Send it

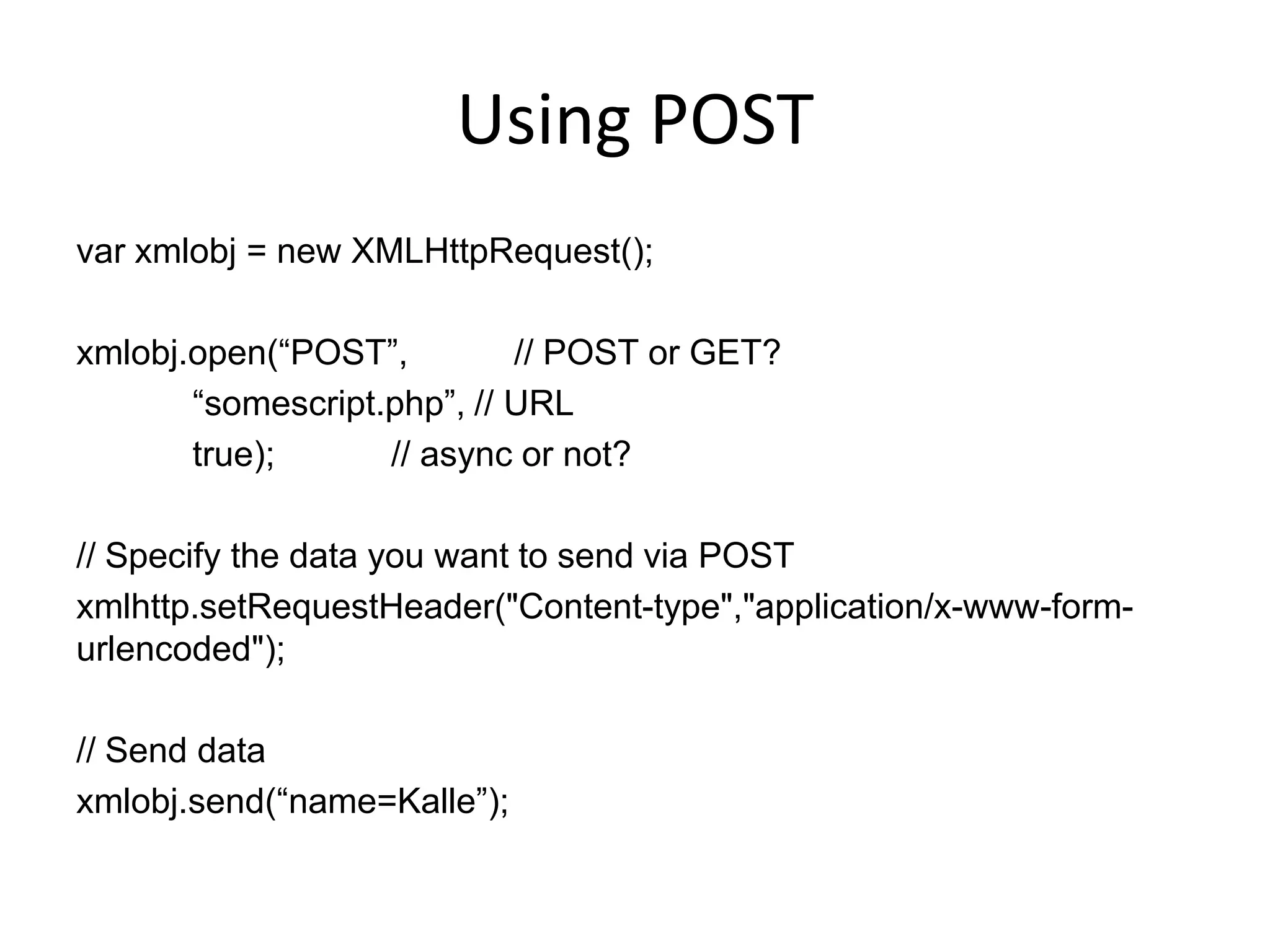

8. Using POST
var xmlobj = new XMLHttpRequest();
xmlobj.open(“POST”, // POST or GET?
“somescript.php”, // URL
true); // async or not?
// Specify the data you want to send via POST
xmlhttp.setRequestHeader("Content-type","application/x-www-form-
urlencoded");
// Send data
xmlobj.send(“name=Kalle”);

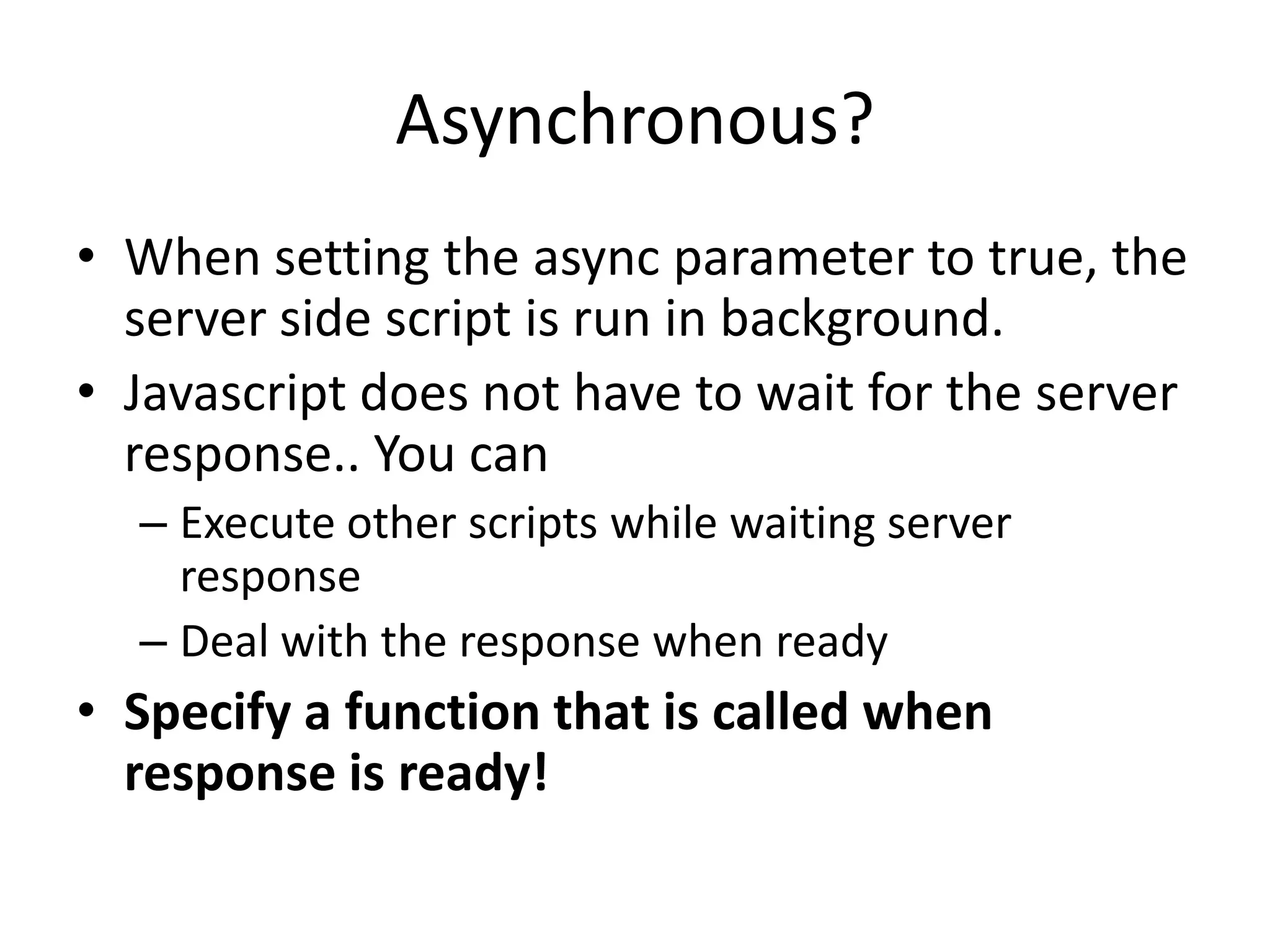

9. Asynchronous?
• When setting the async parameter to true, the
server side script is run in background.
• Javascript does not have to wait for the server
response.. You can
– Execute other scripts while waiting server
response
– Deal with the response when ready
• Specify a function that is called when
response is ready!

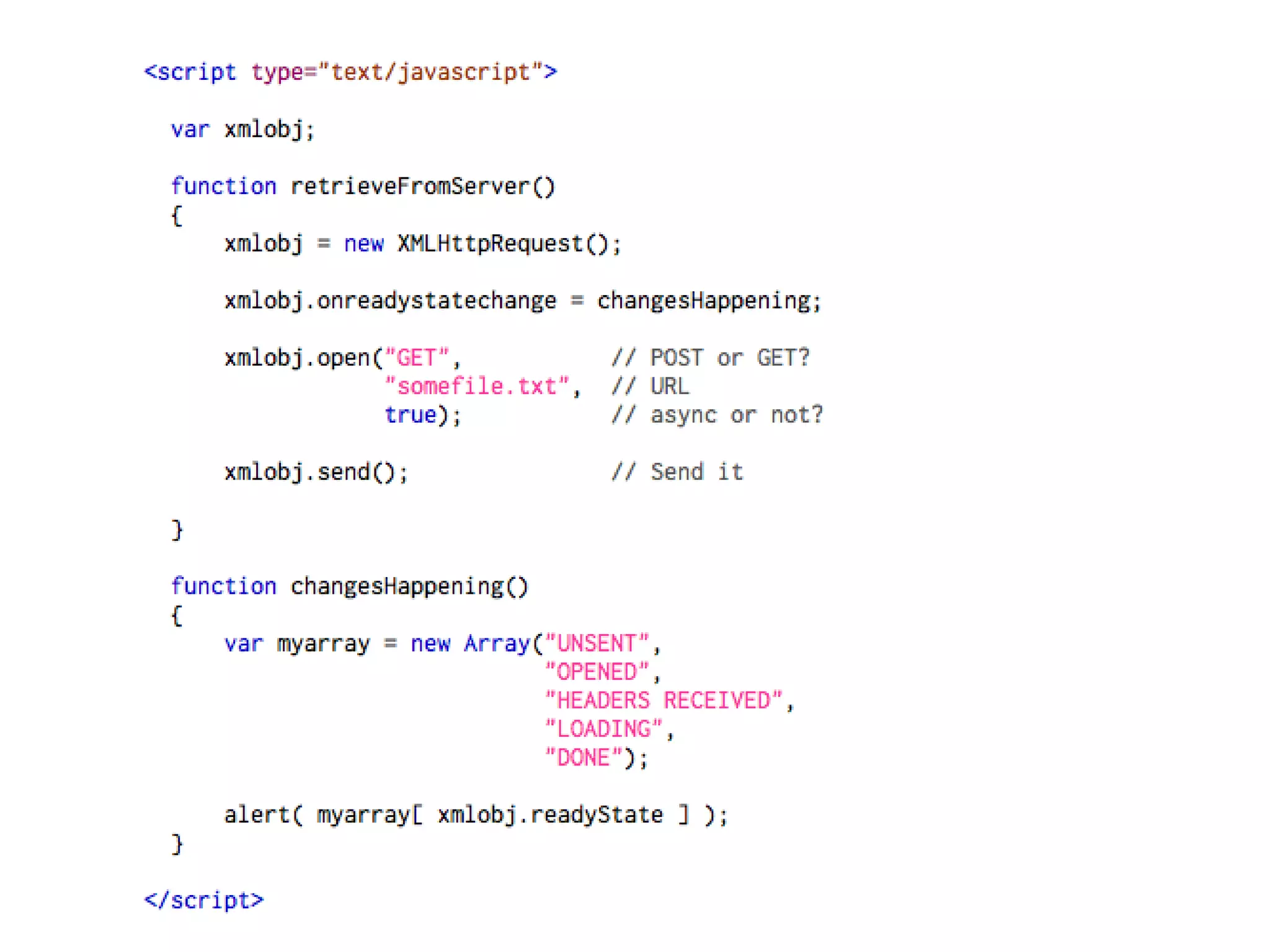

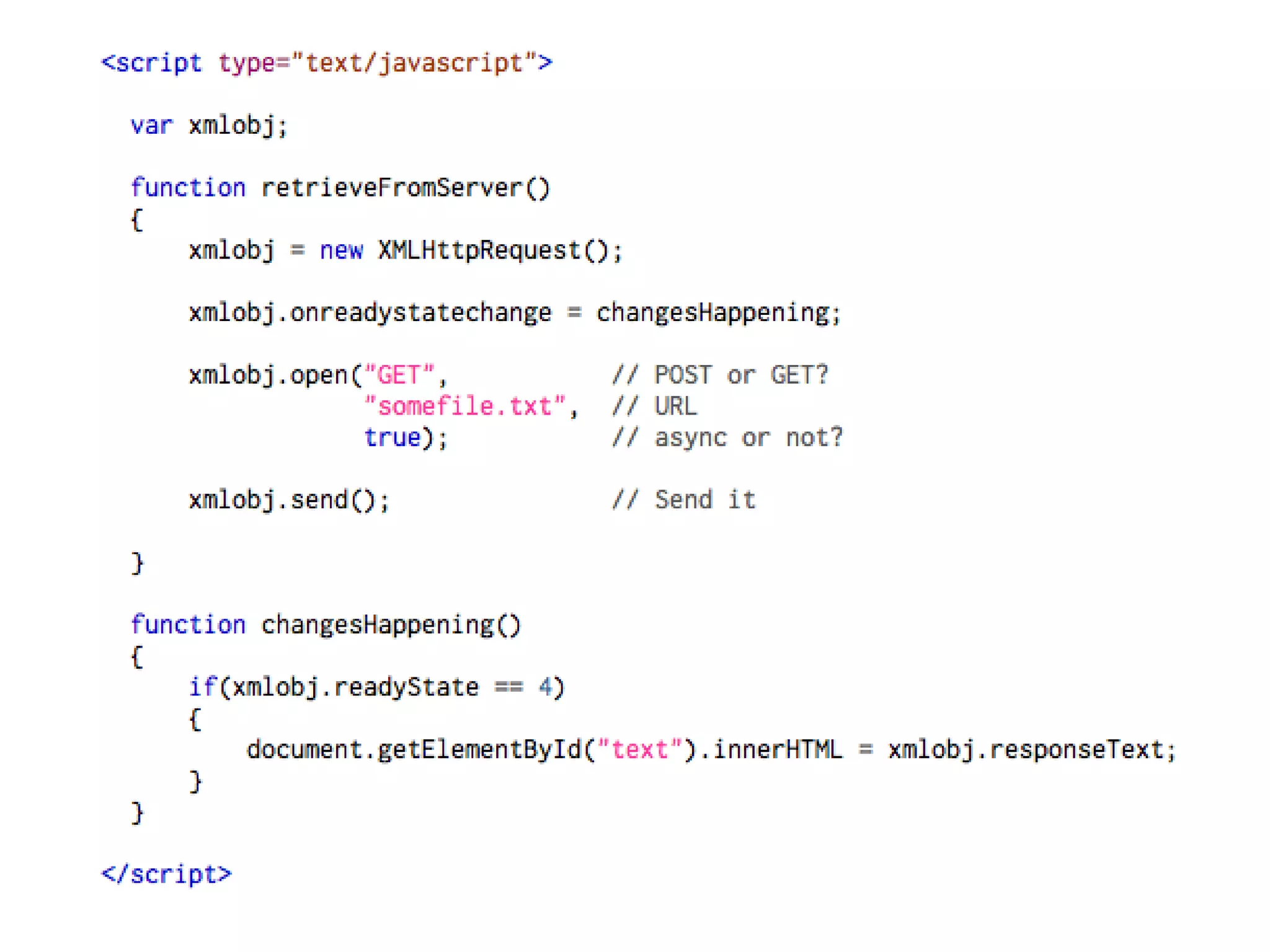

10. Example

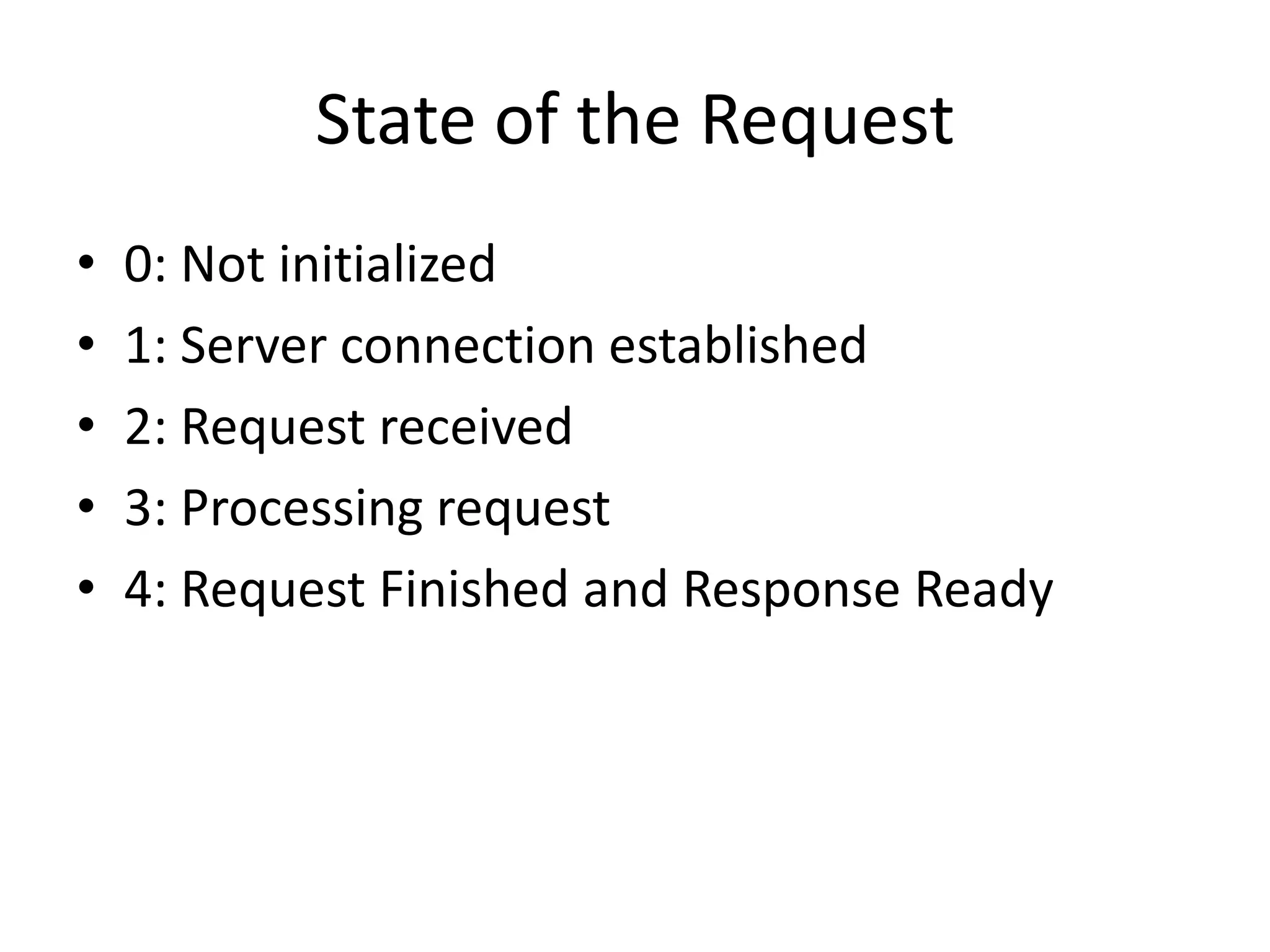

11. State of the Request
• 0: Not initialized
• 1: Server connection established
• 2: Request received
• 3: Processing request
• 4: Request Finished and Response Ready

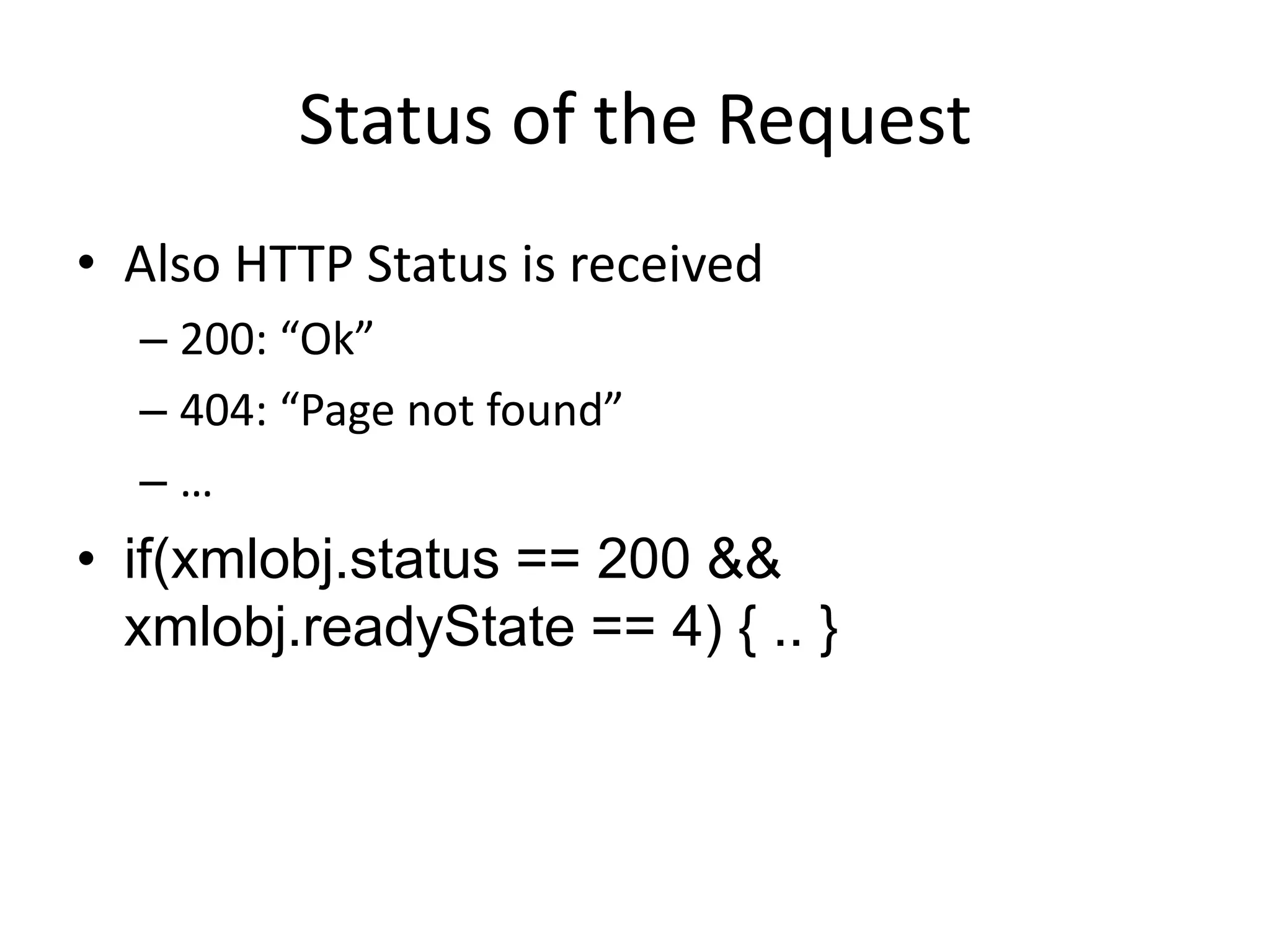

13. Status of the Request
• Also HTTP Status is received
– 200: “Ok”
– 404: “Page not found”
–…
• if(xmlobj.status == 200 &&
xmlobj.readyState == 4) { .. }

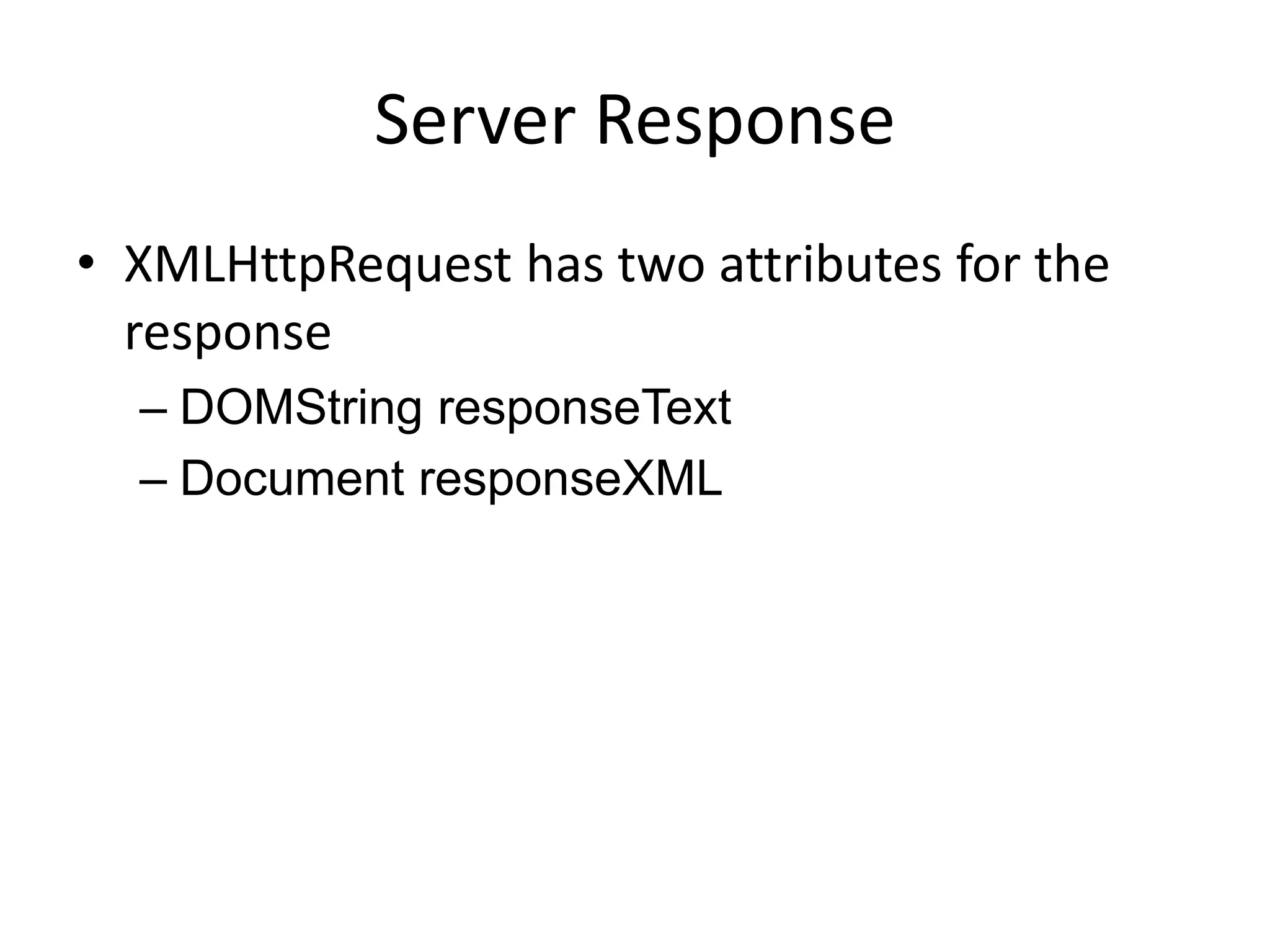

14. Server Response
• XMLHttpRequest has two attributes for the
response
– DOMString responseText
– Document responseXML

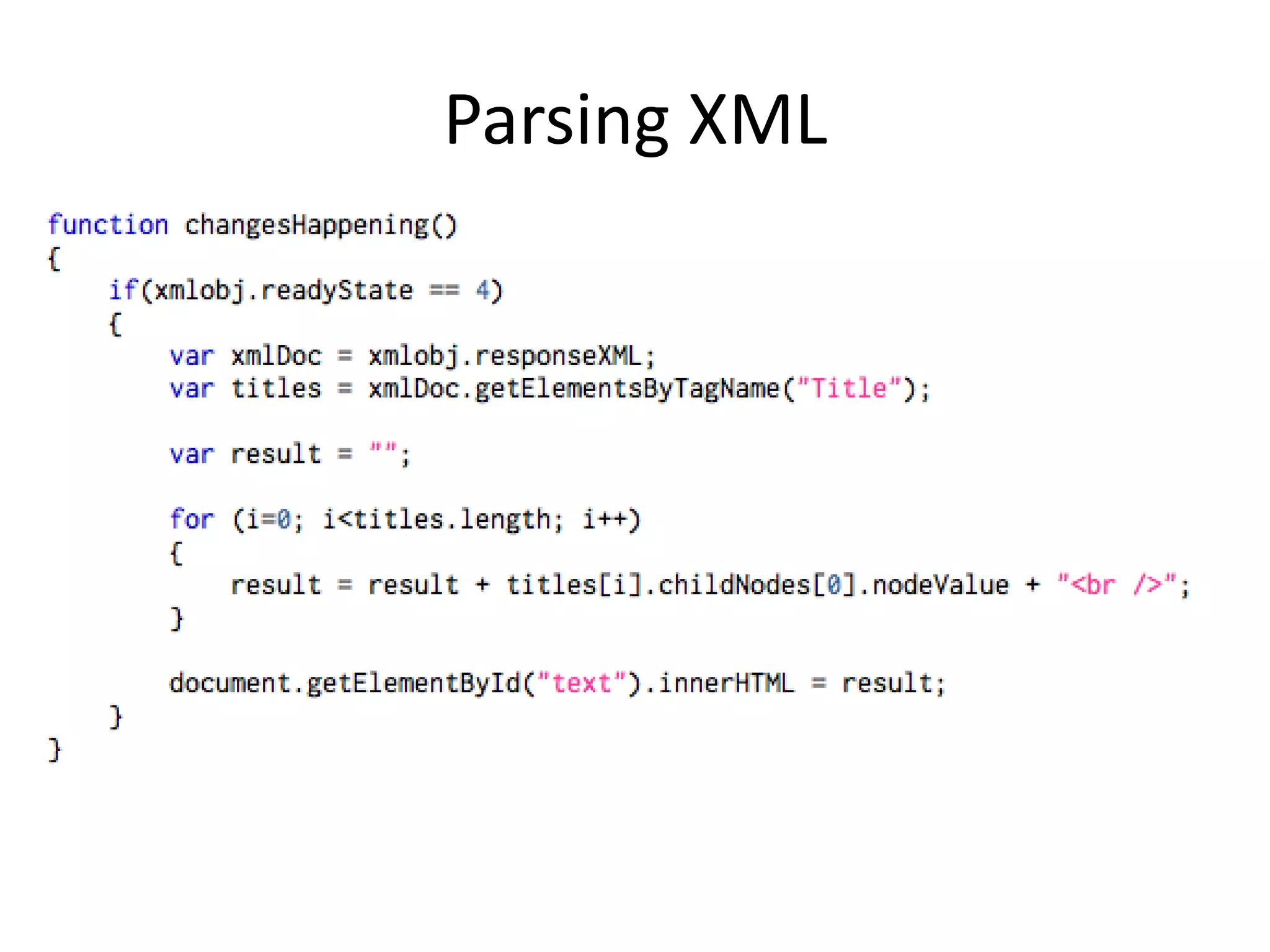

15. Parsing XML

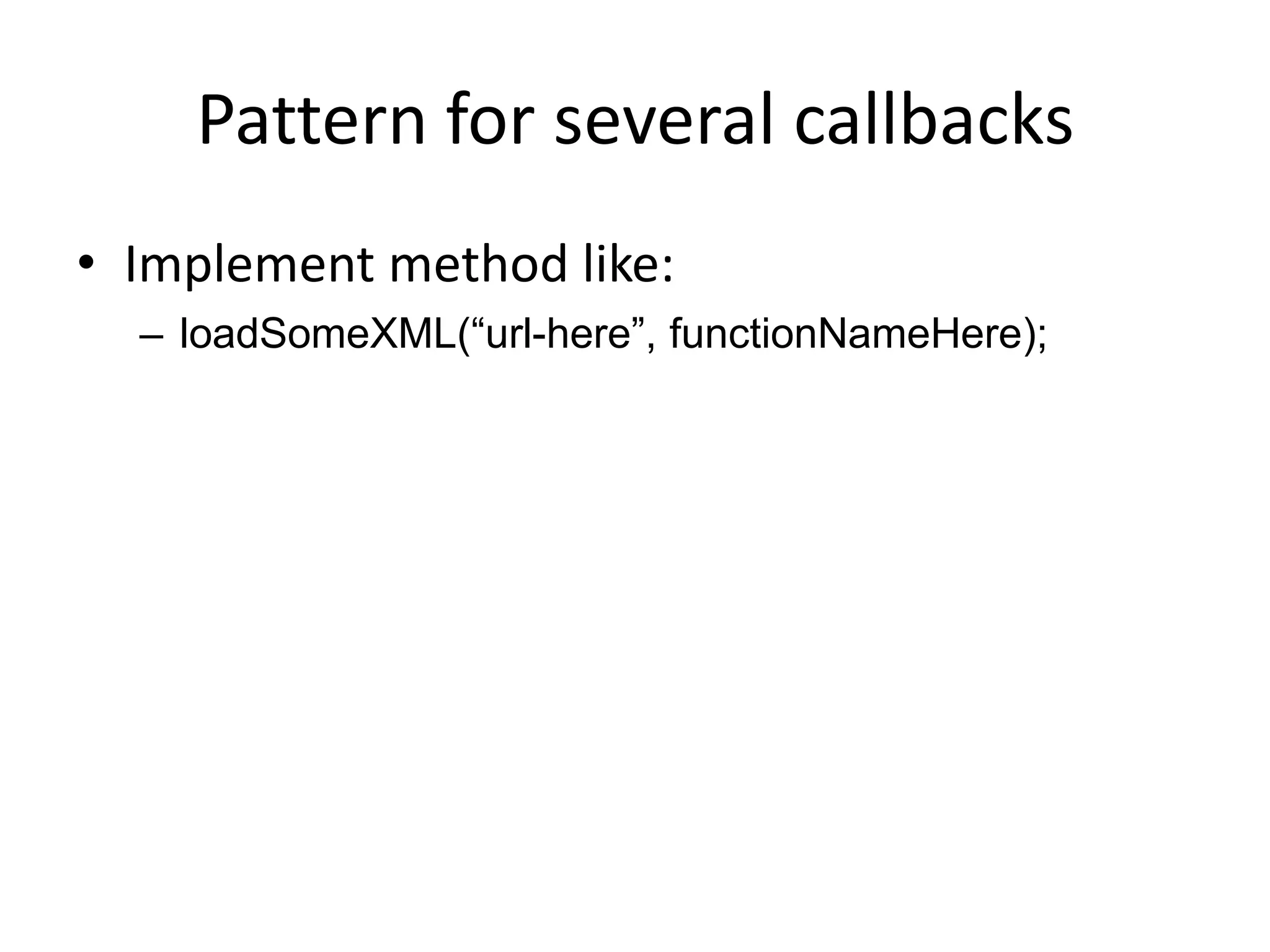

16. Pattern for several callbacks
• Implement method like:
– loadSomeXML(“url-here”, functionNameHere);

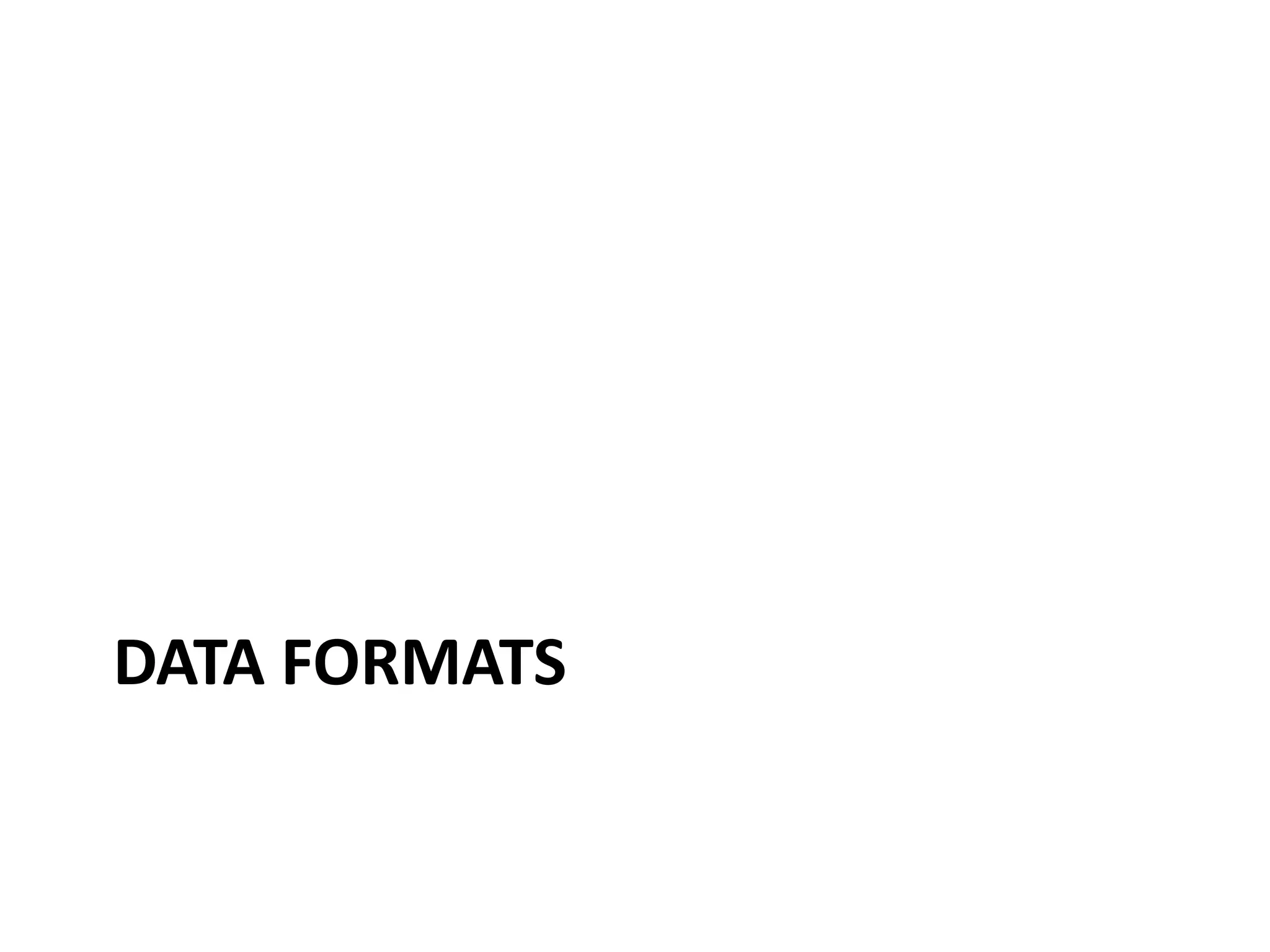

17. DATA FORMATS

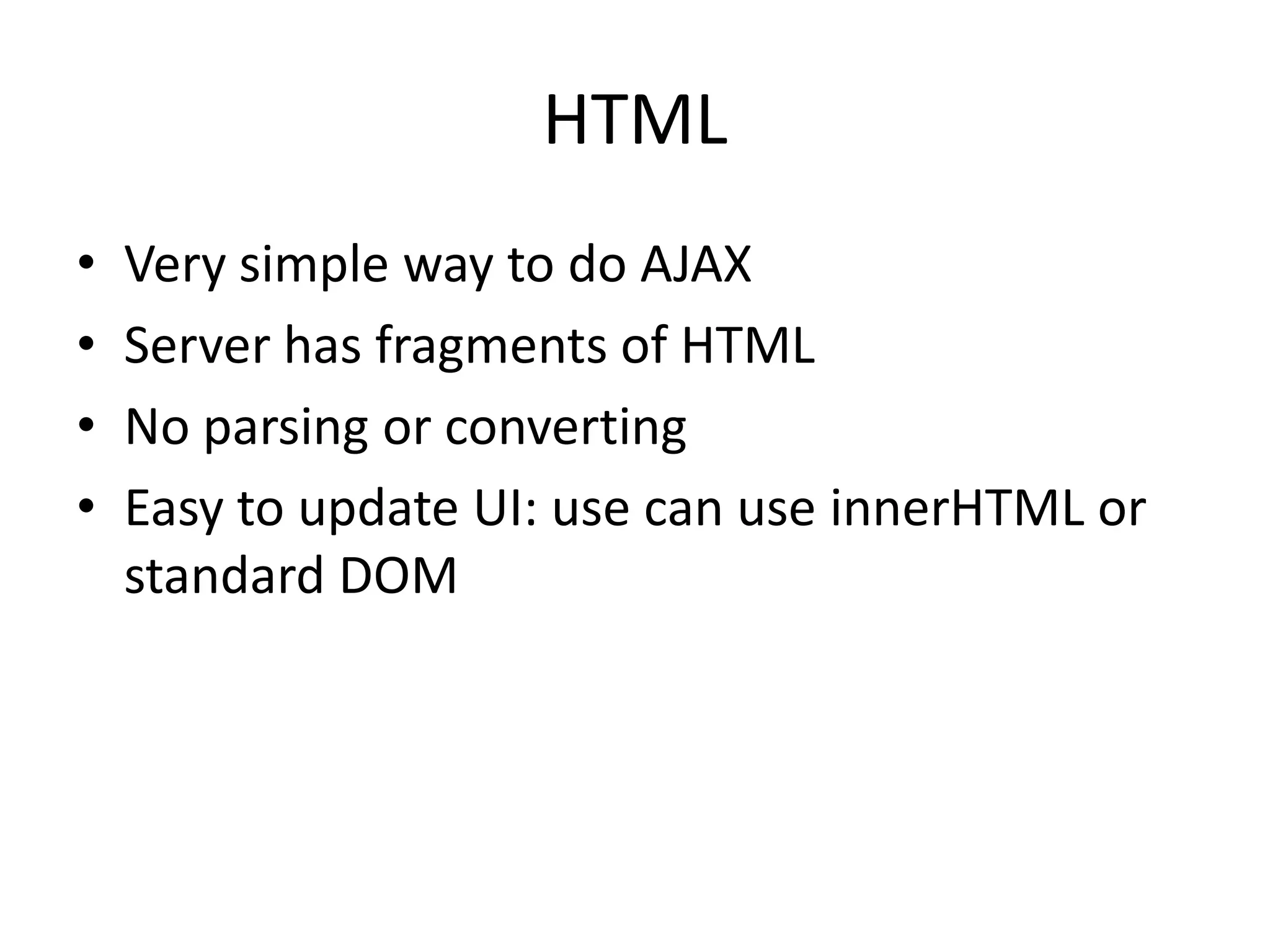

18. HTML
• Very simple way to do AJAX
• Server has fragments of HTML
• No parsing or converting
• Easy to update UI: use can use innerHTML or
standard DOM

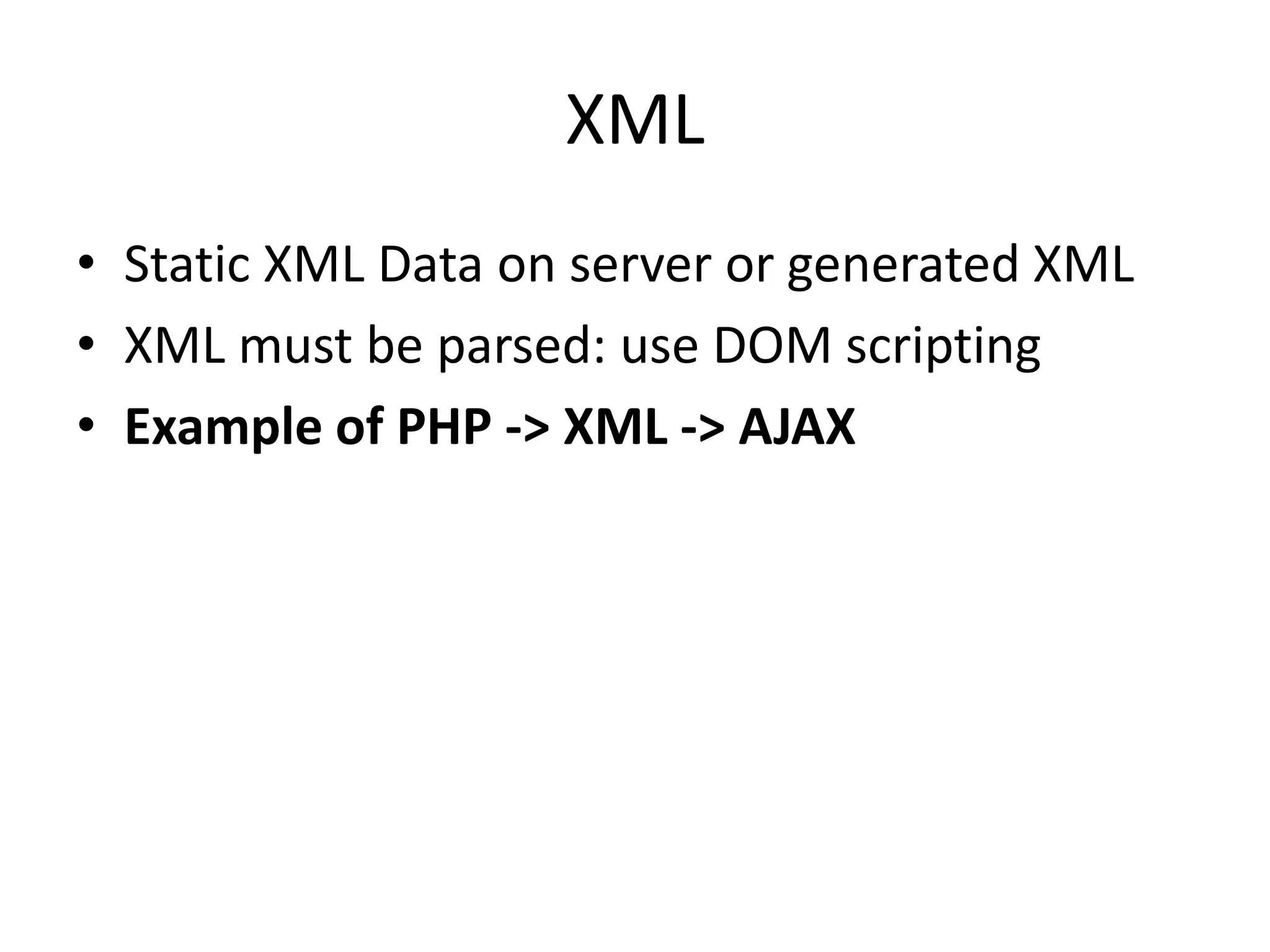

19. XML
• Static XML Data on server or generated XML
• XML must be parsed: use DOM scripting
• Example of PHP -> XML -> AJAX

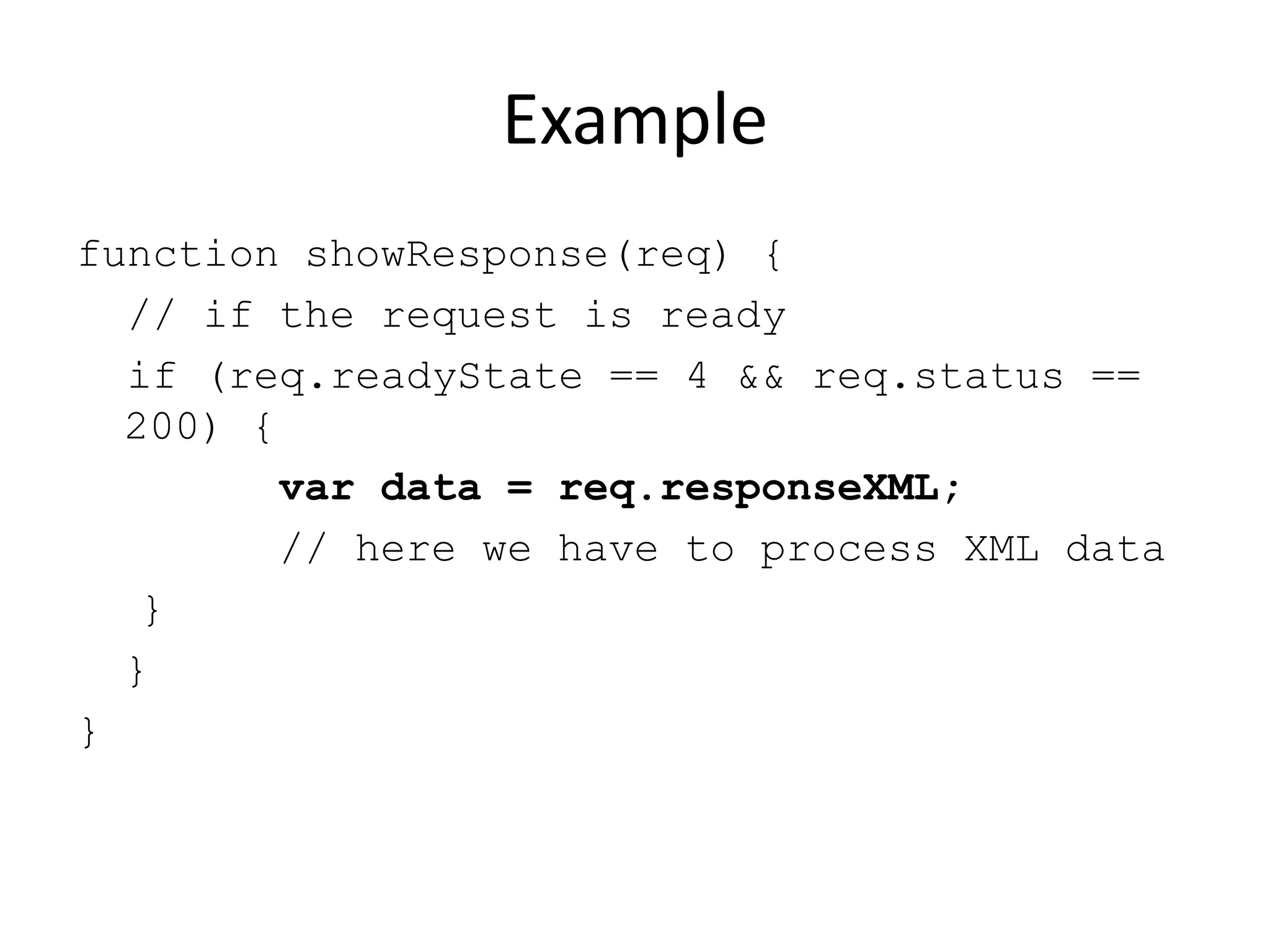

20. Example
function showResponse(req) {
// if the request is ready
if (req.readyState == 4 && req.status ==
200) {
var data = req.responseXML;
// here we have to process XML data
}
}
}

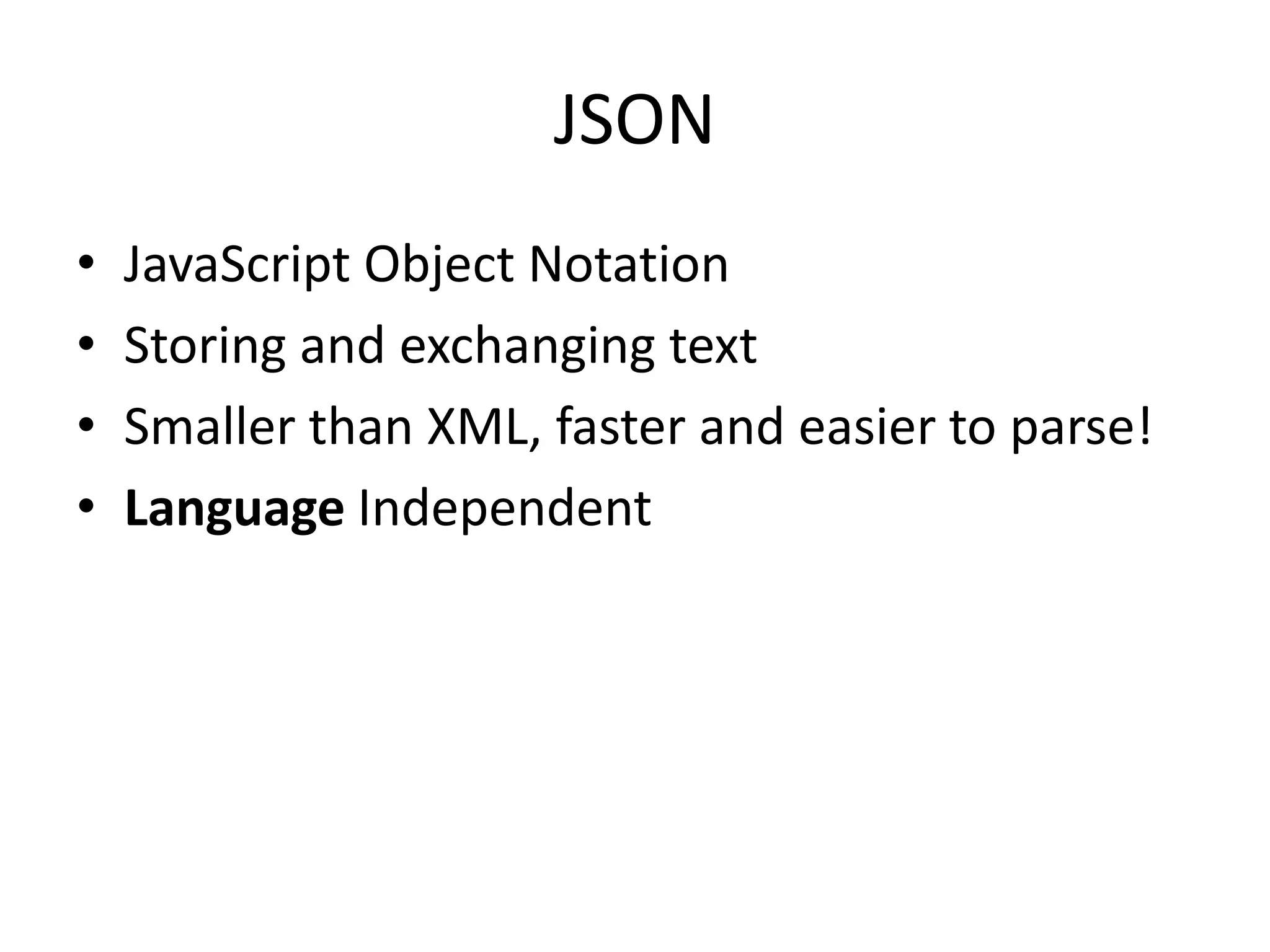

21. JSON
• JavaScript Object Notation
• Storing and exchanging text
• Smaller than XML, faster and easier to parse!
• Language Independent

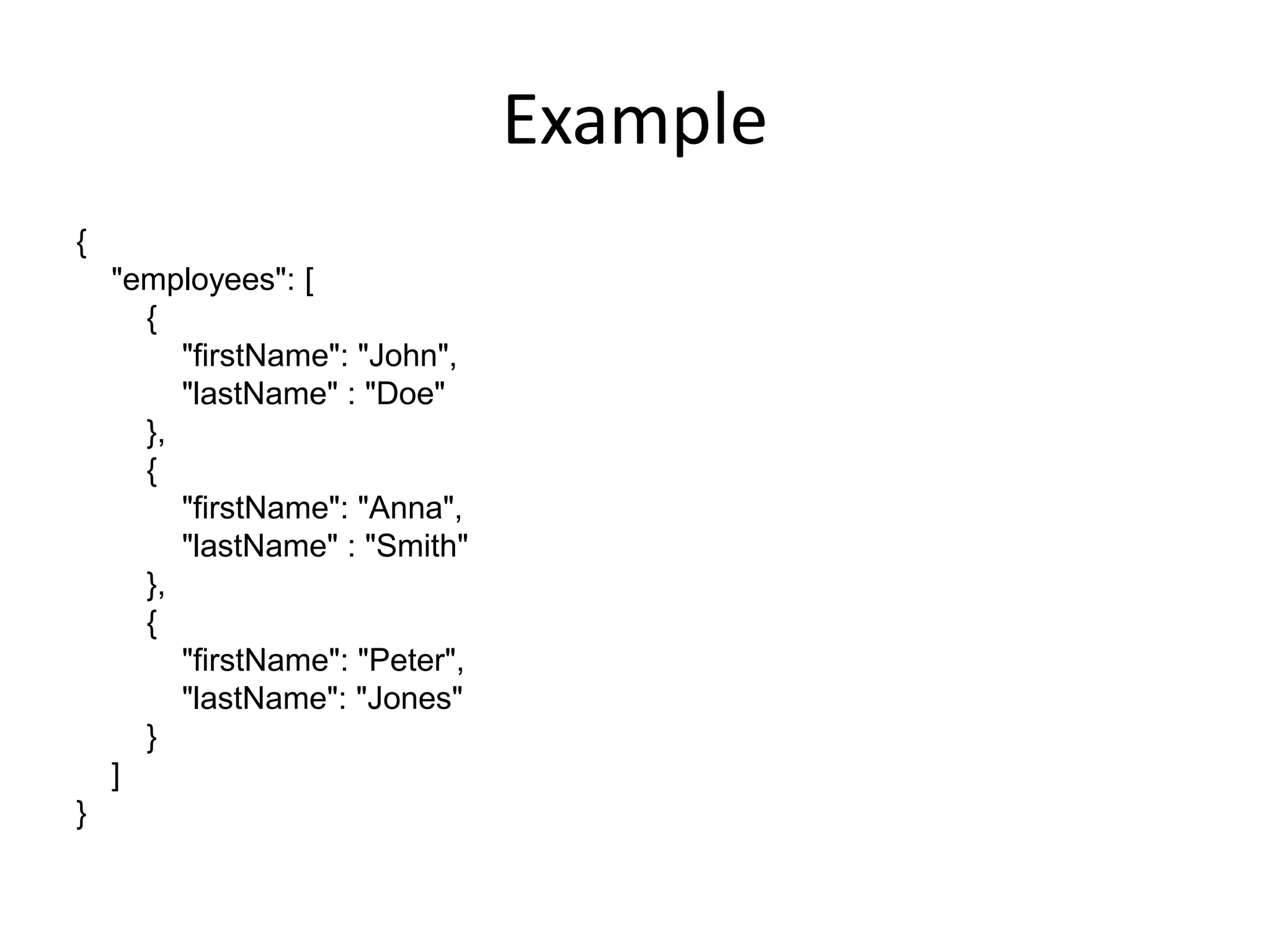

22. Example
{
"employees": [
{
"firstName": "John",
"lastName" : "Doe"
},
{
"firstName": "Anna",
"lastName" : "Smith"
},
{
"firstName": "Peter",
"lastName": "Jones"
}
]
}

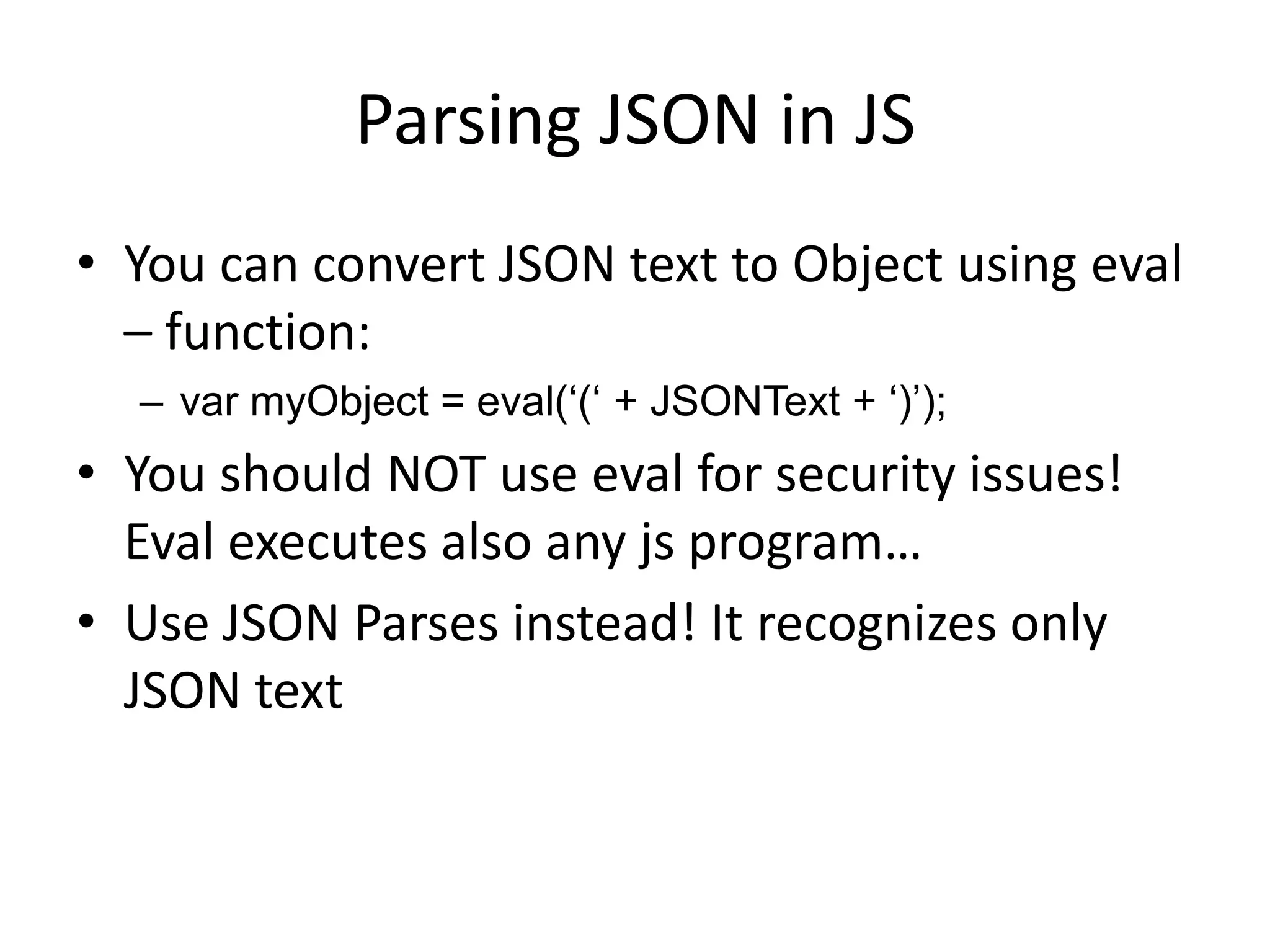

23. Parsing JSON in JS
• You can convert JSON text to Object using eval
– function:
– var myObject = eval(„(„ + JSONText + „)‟);
• You should NOT use eval for security issues!
Eval executes also any js program…
• Use JSON Parses instead! It recognizes only
JSON text

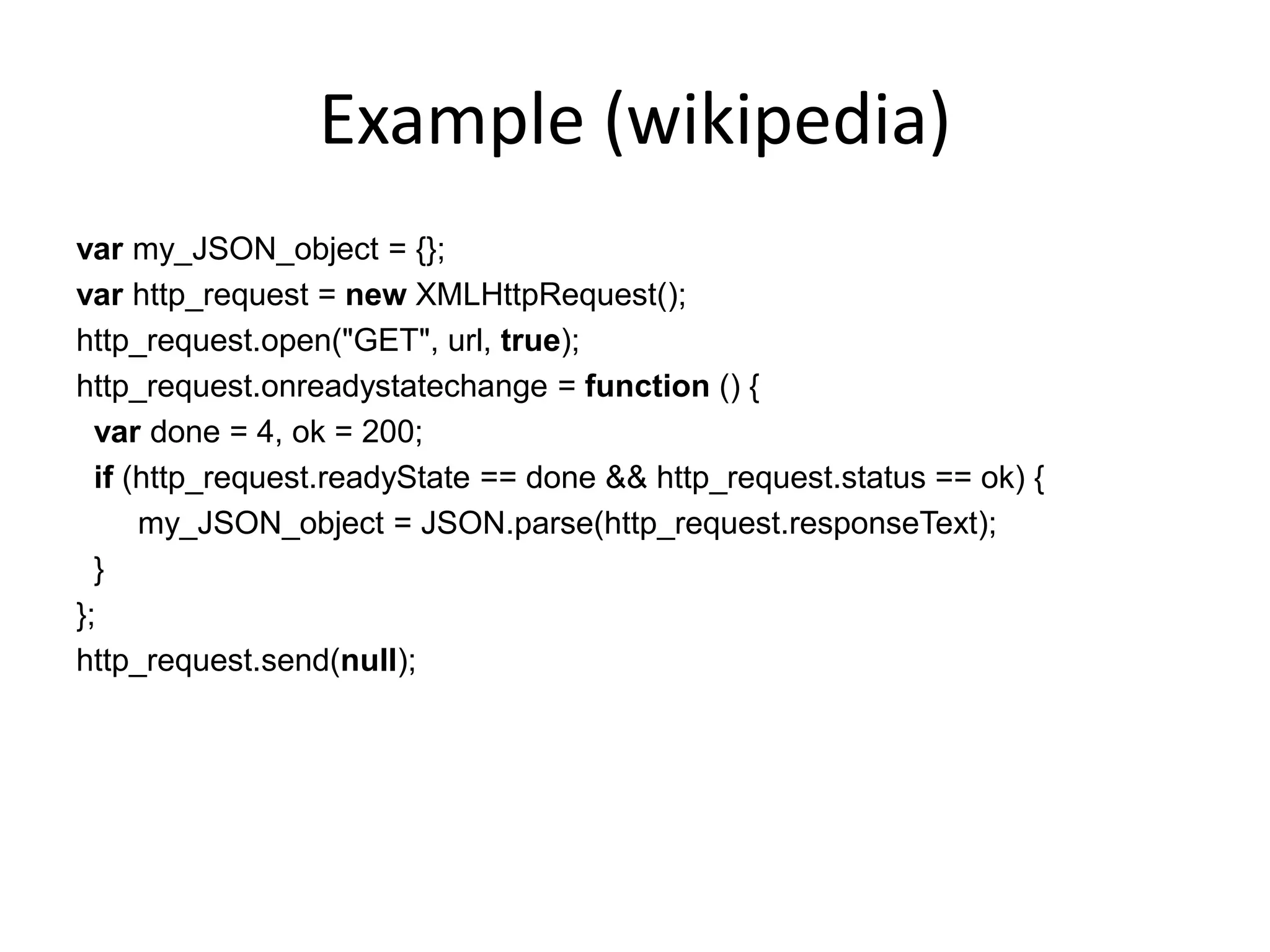

24. Example (wikipedia)
var my_JSON_object = {};
var http_request = new XMLHttpRequest();
http_request.open("GET", url, true);
http_request.onreadystatechange = function () {
var done = 4, ok = 200;
if (http_request.readyState == done && http_request.status == ok) {
my_JSON_object = JSON.parse(http_request.responseText);
}
};
http_request.send(null);

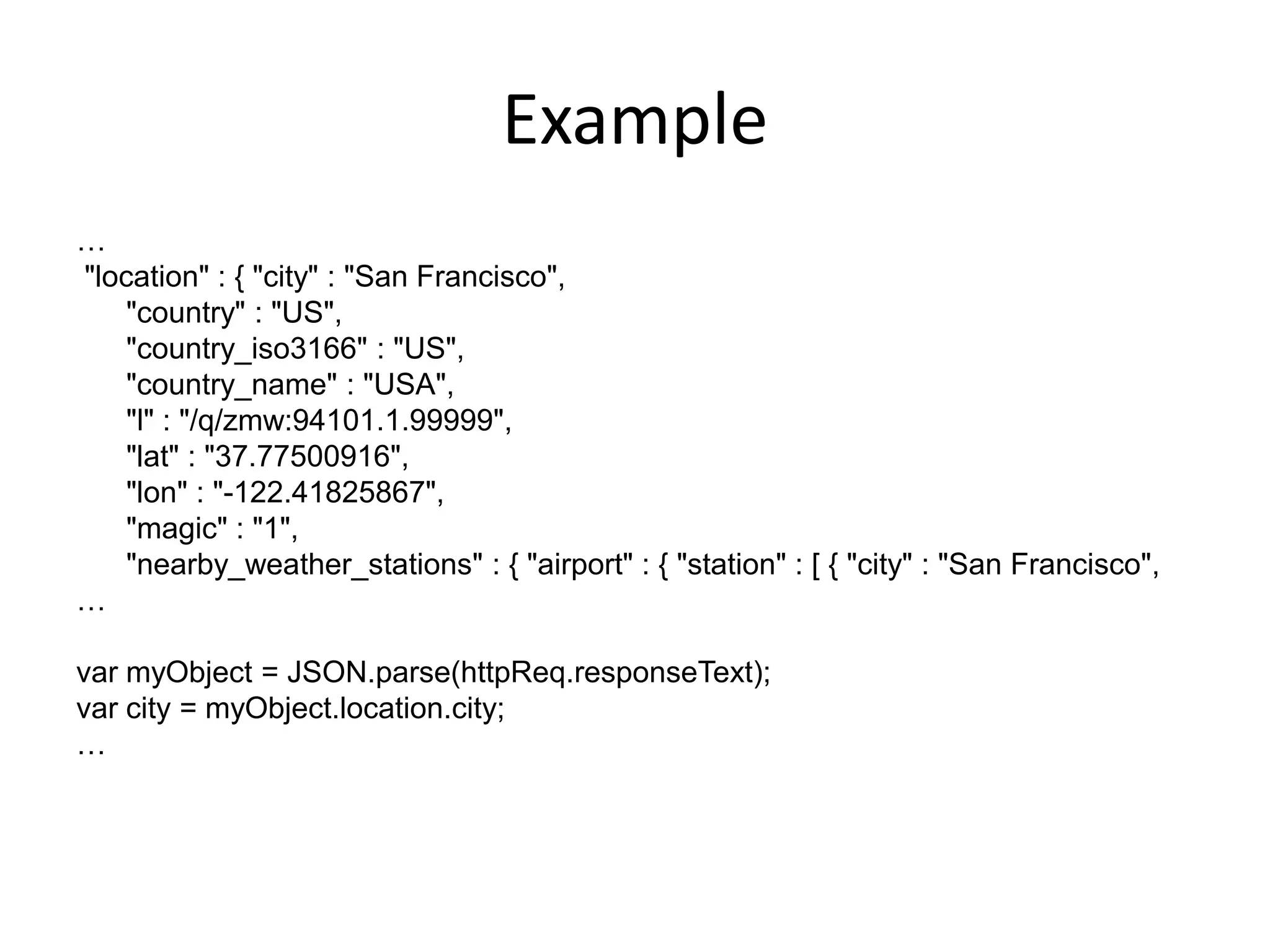

25. Example
…
"location" : { "city" : "San Francisco",
"country" : "US",
"country_iso3166" : "US",
"country_name" : "USA",
"l" : "/q/zmw:94101.1.99999",
"lat" : "37.77500916",
"lon" : "-122.41825867",
"magic" : "1",
"nearby_weather_stations" : { "airport" : { "station" : [ { "city" : "San Francisco",
…
var myObject = JSON.parse(httpReq.responseText);
var city = myObject.location.city;
…
