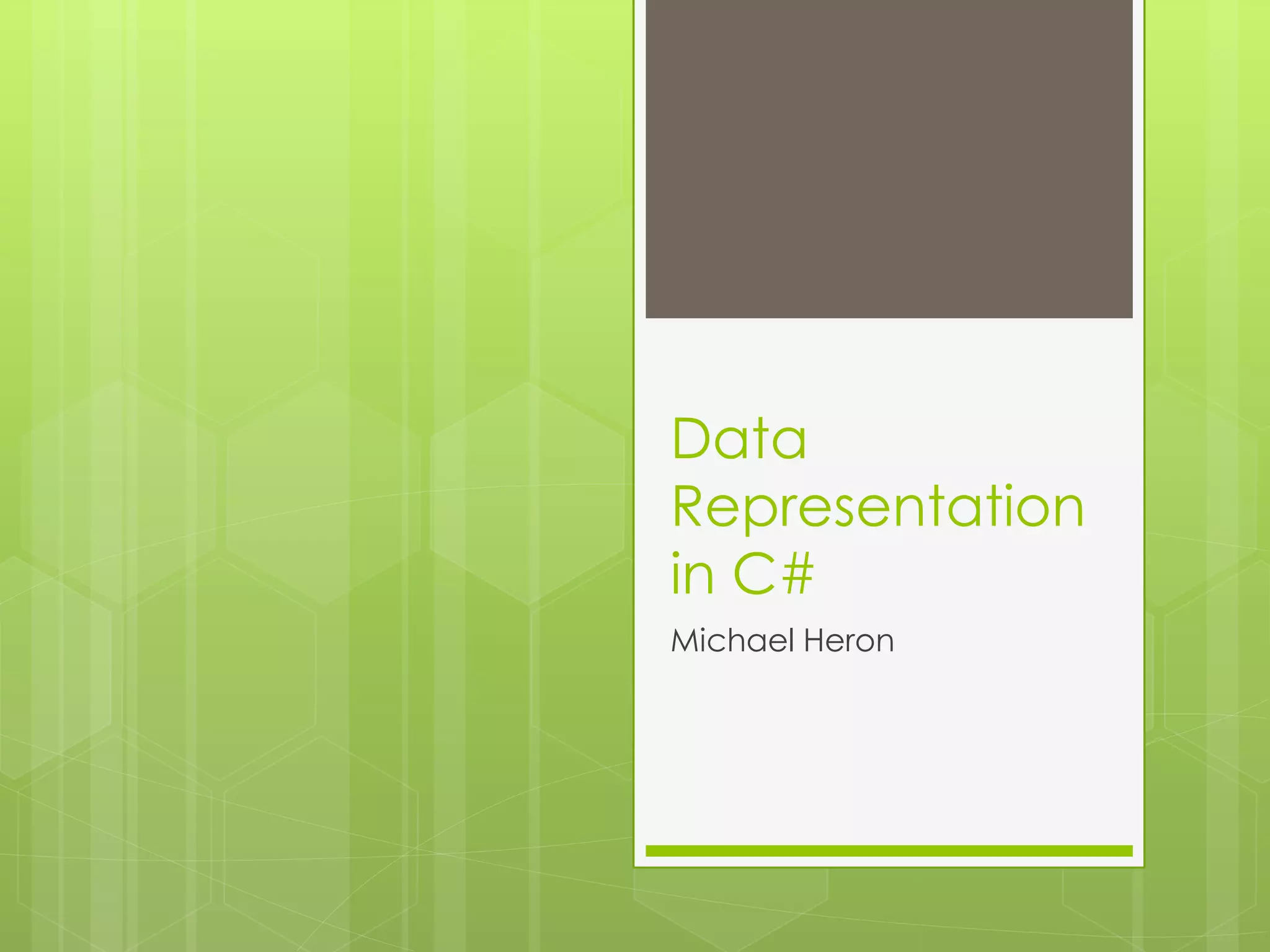

1. Data
Representation
in C#
Michael Heron

2. Introduction
 In the last lecture we looked at how event driven
application in .NET work.
 I’ll leave it (mostly) up to you to get to grips with
C# syntax.
 In this lecture we’re going to discuss the .NET data
model in relation to objects (which you know) and
ADO .NET (which you probably don’t.
 ADO .NET is the database engine at the core of
.NET.
 As mentioned in previous lectures, data
representation is key to eventual success with a
system.

3. C# Objects
 C# objects look very much like Java objects.
 Down to the syntax.
 The prime differentiators are:
 Declaration of a class within a namespace.
 Accessors handled as properties.
 Properties provide a syntactically consistent
method of handling getting and setting of
attributes.
 Rather than the convention driven methods of
Java.

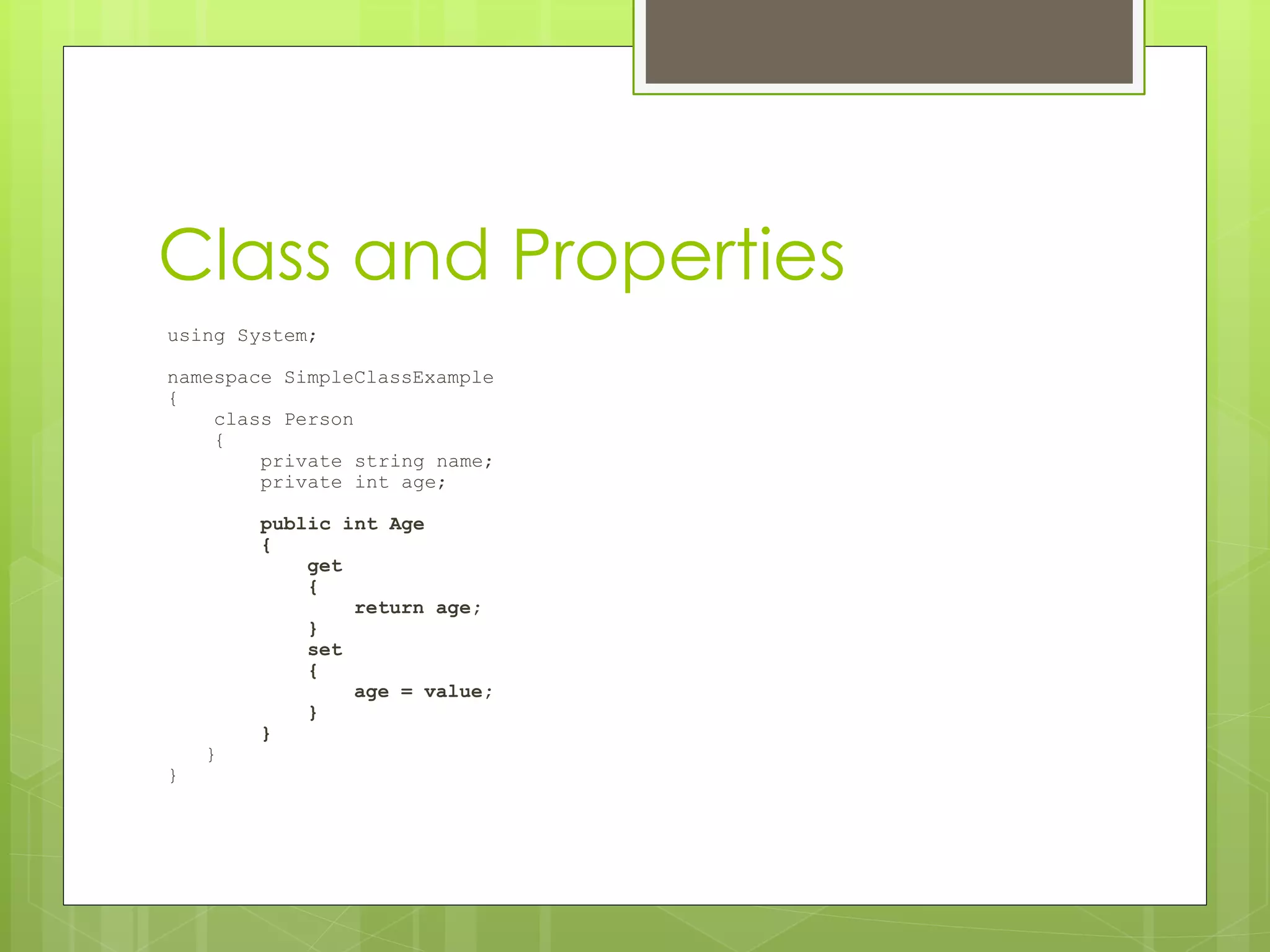

4. Class and Properties
using System;
namespace SimpleClassExample
{
class Person
{
private string name;
private int age;
public int Age
{
get
{
return age;
}
set
{
age = value;
}
}
}
}

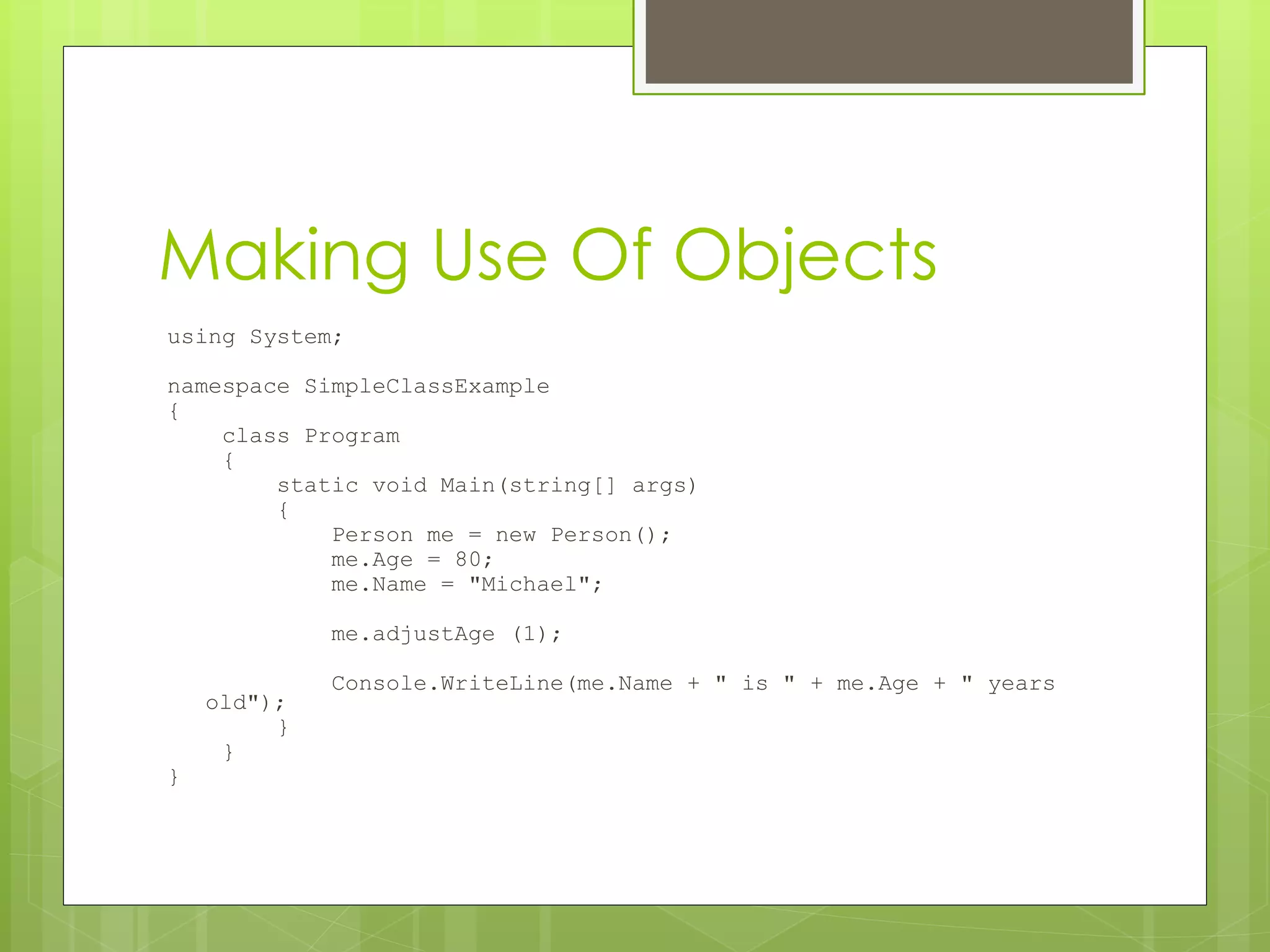

5. Making Use Of Objects
using System;
namespace SimpleClassExample
{
class Program
{
static void Main(string[] args)
{
Person me = new Person();
me.Age = 80;
me.Name = "Michael";
me.adjustAge (1);
Console.WriteLine(me.Name + " is " + me.Age + " years
old");
}
}
}

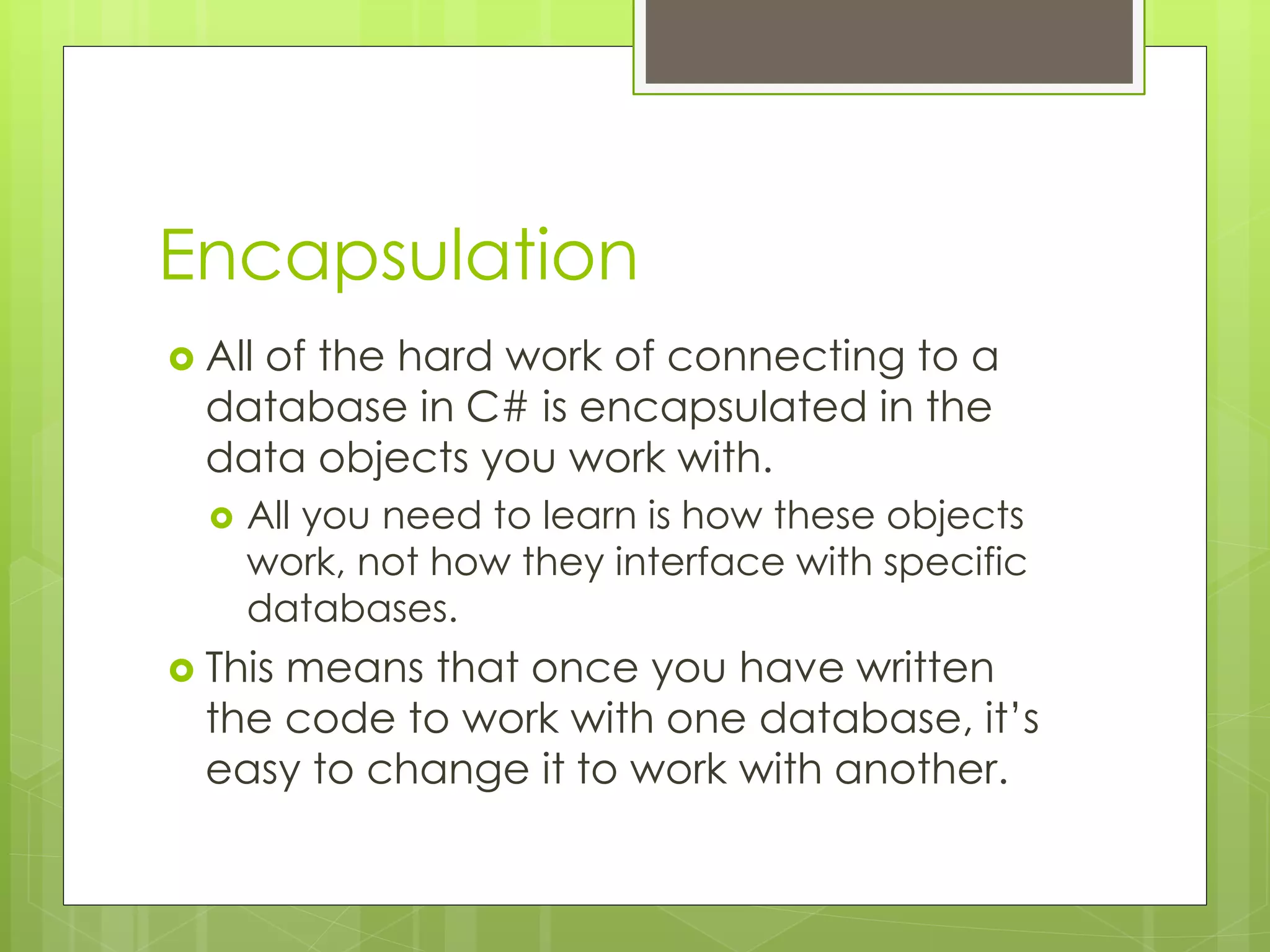

6. Encapsulation
 All of the hard work of connecting to a
database in C# is encapsulated in the
data objects you work with.
 All you need to learn is how these objects
work, not how they interface with specific
databases.
 This means that once you have written
the code to work with one database, it’s
easy to change it to work with another.

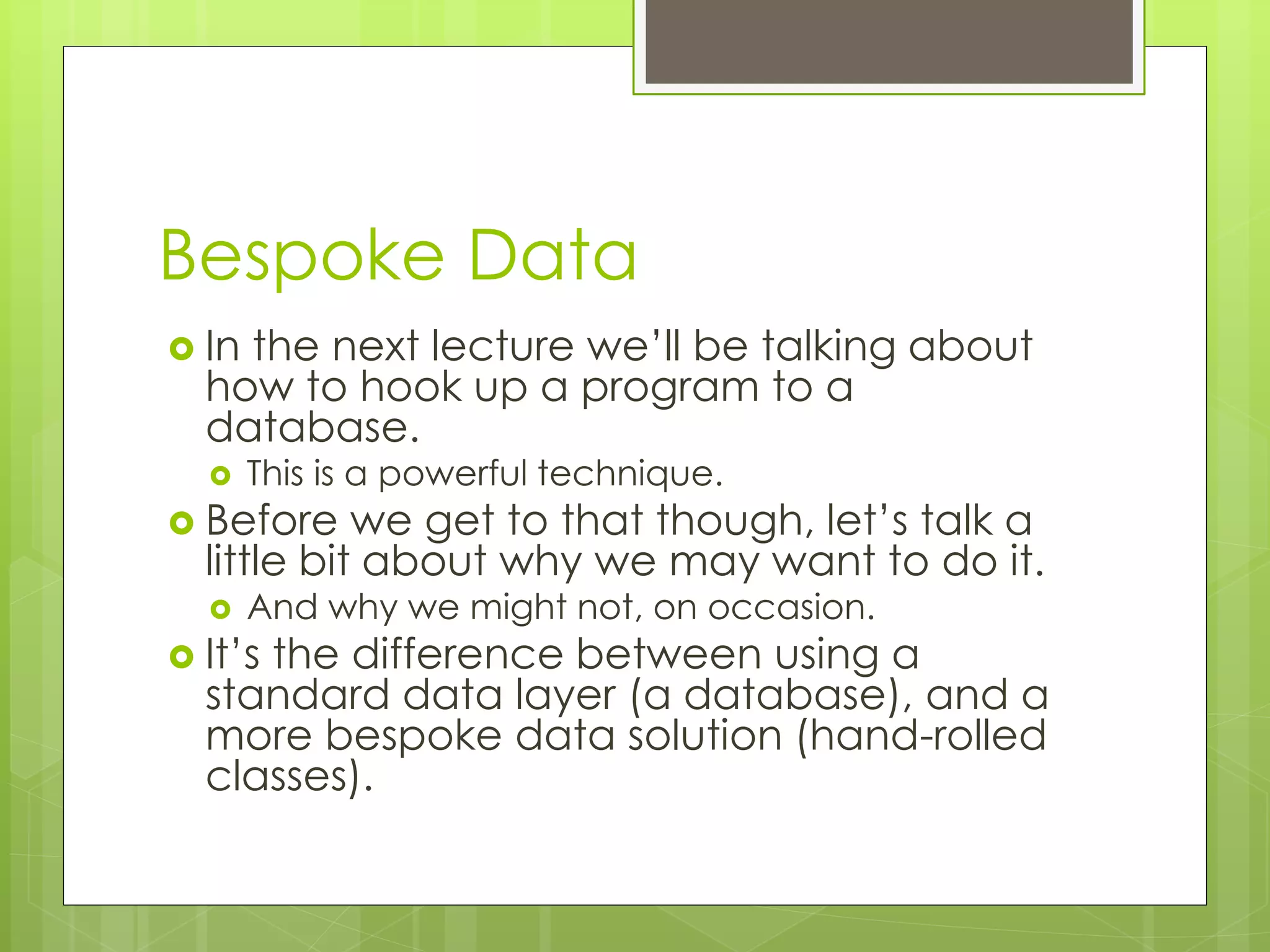

7. Bespoke Data
 In the next lecture we’ll be talking about
how to hook up a program to a
database.
 This is a powerful technique.
 Before we get to that though, let’s talk a
little bit about why we may want to do it.
 And why we might not, on occasion.
 It’s the difference between using a
standard data layer (a database), and a
more bespoke data solution (hand-rolled
classes).

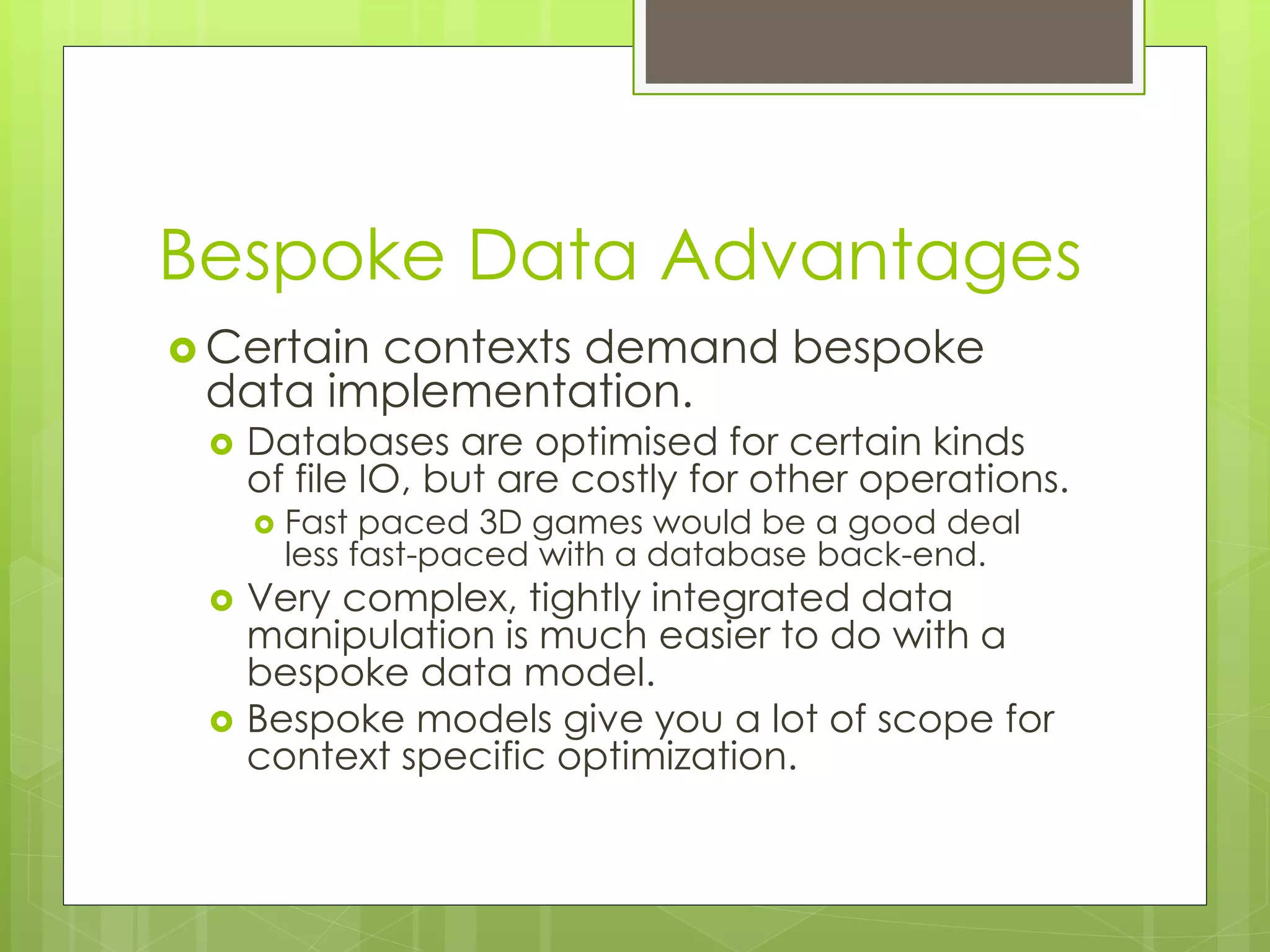

8. Bespoke Data Advantages
 Certain contexts demand bespoke
data implementation.
 Databases are optimised for certain kinds
of file IO, but are costly for other operations.
 Fast paced 3D games would be a good deal
less fast-paced with a database back-end.
 Very complex, tightly integrated data
manipulation is much easier to do with a
bespoke data model.
 Bespoke models give you a lot of scope for
context specific optimization.

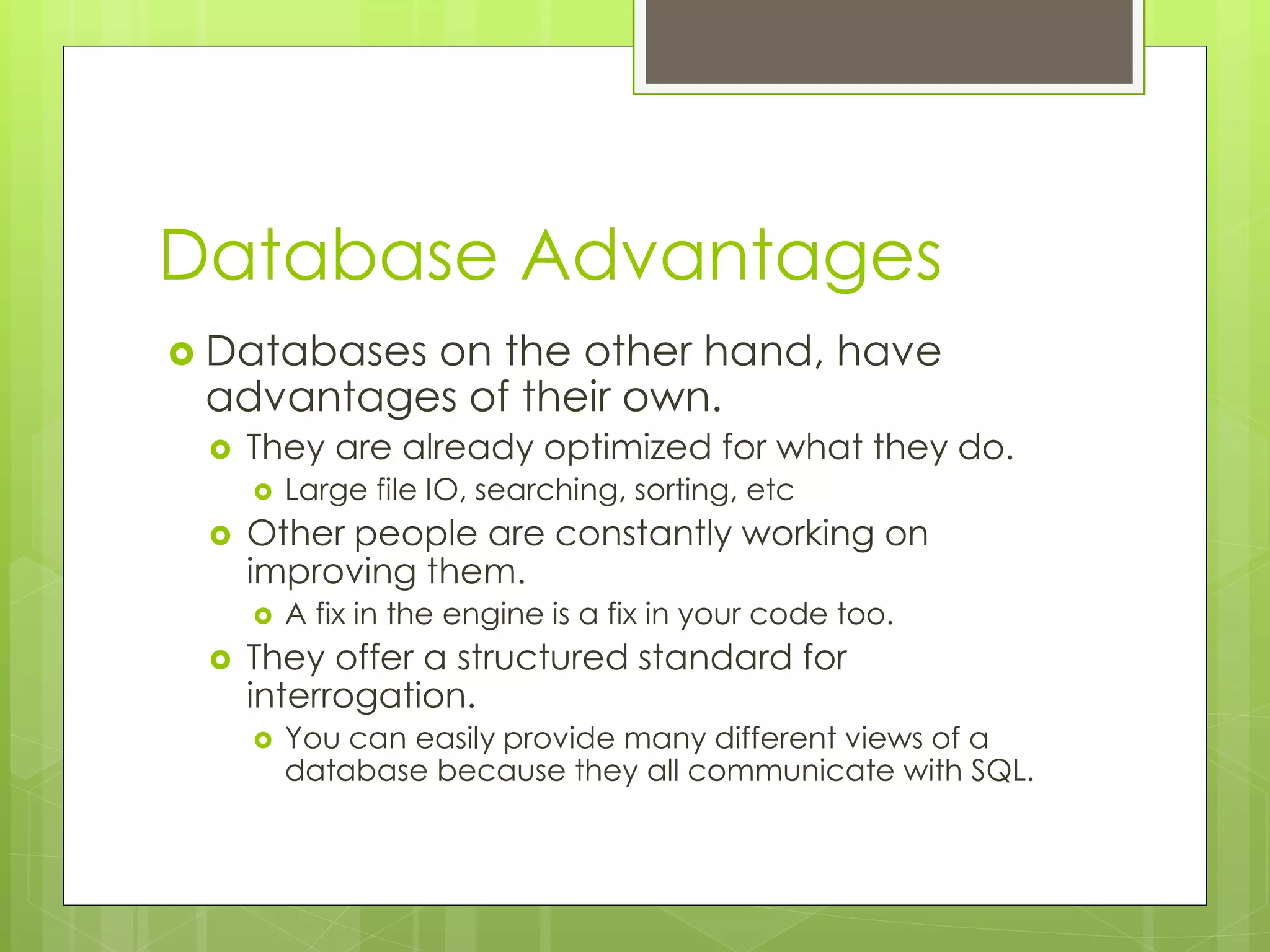

9. Database Advantages
 Databases on the other hand, have
advantages of their own.
 They are already optimized for what they do.
 Large file IO, searching, sorting, etc
 Other people are constantly working on
improving them.
 A fix in the engine is a fix in your code too.
 They offer a structured standard for
interrogation.
 You can easily provide many different views of a
database because they all communicate with SQL.

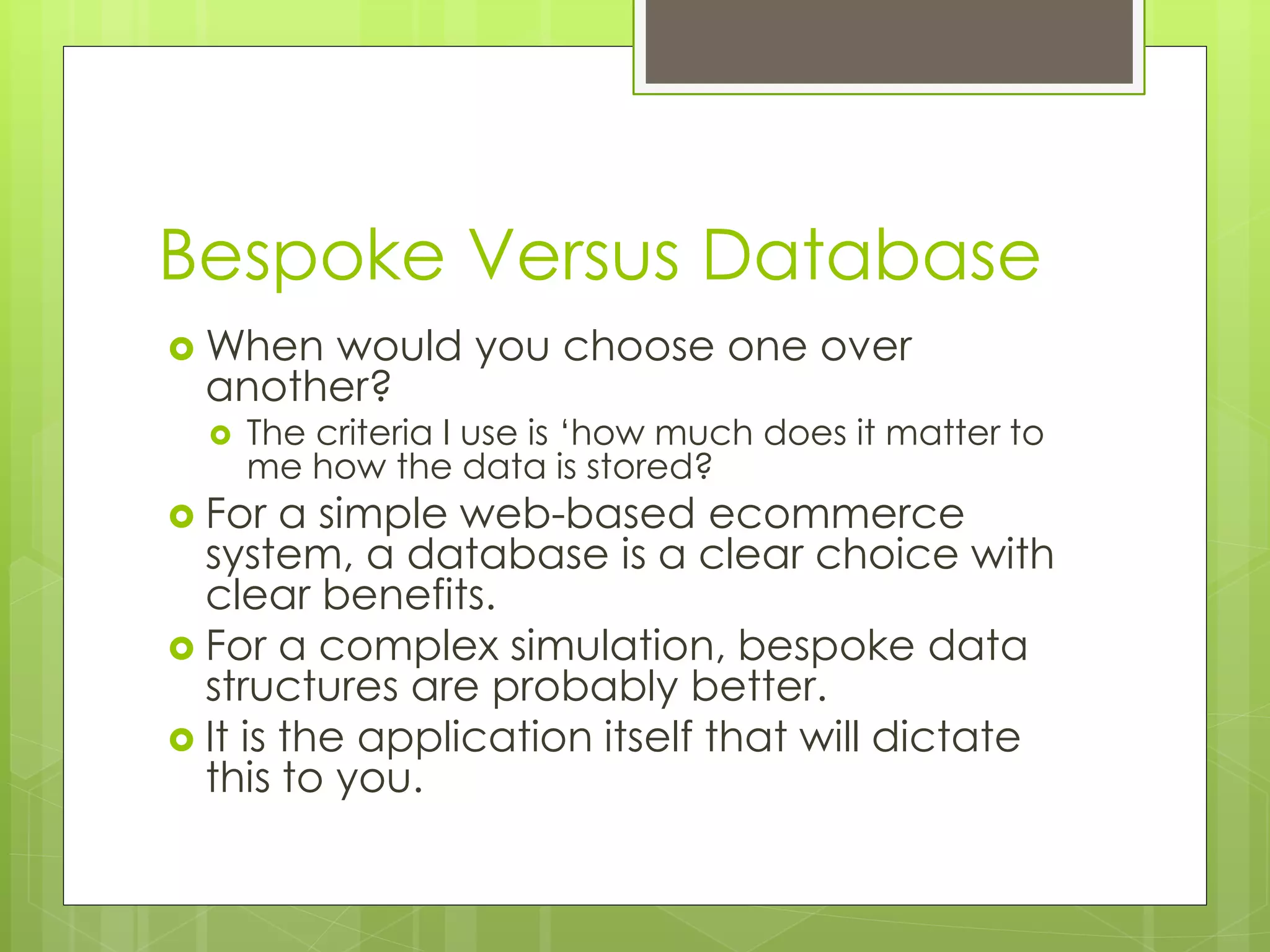

10. Bespoke Versus Database
 When would you choose one over
another?
 The criteria I use is ‘how much does it matter to
me how the data is stored?
 For a simple web-based ecommerce
system, a database is a clear choice with
clear benefits.
 For a complex simulation, bespoke data
structures are probably better.
 It is the application itself that will dictate
this to you.

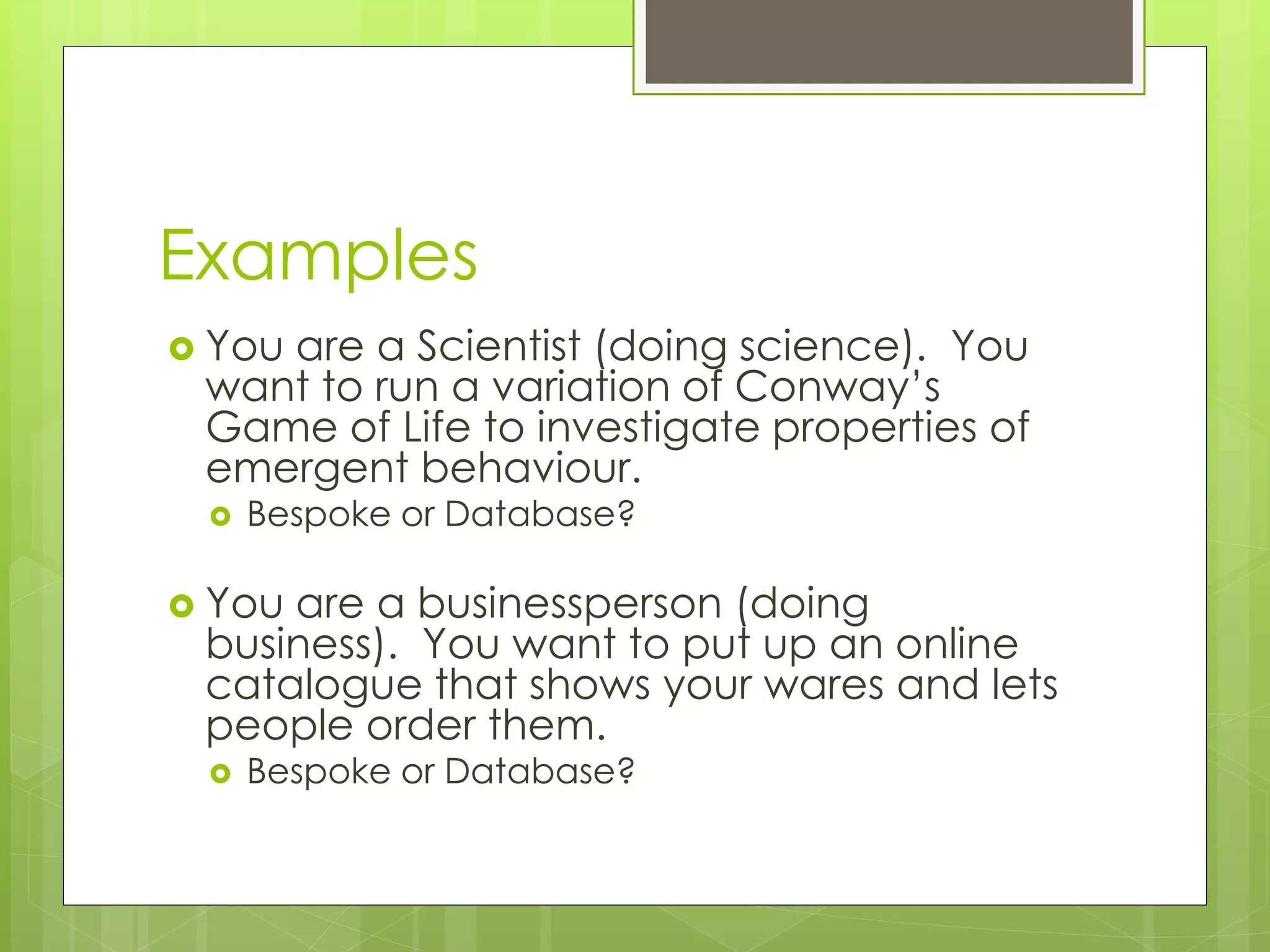

11. Examples
 You are a Scientist (doing science). You
want to run a variation of Conway’s
Game of Life to investigate properties of
emergent behaviour.
 Bespoke or Database?
 You are a businessperson (doing
business). You want to put up an online
catalogue that shows your wares and lets
people order them.
 Bespoke or Database?

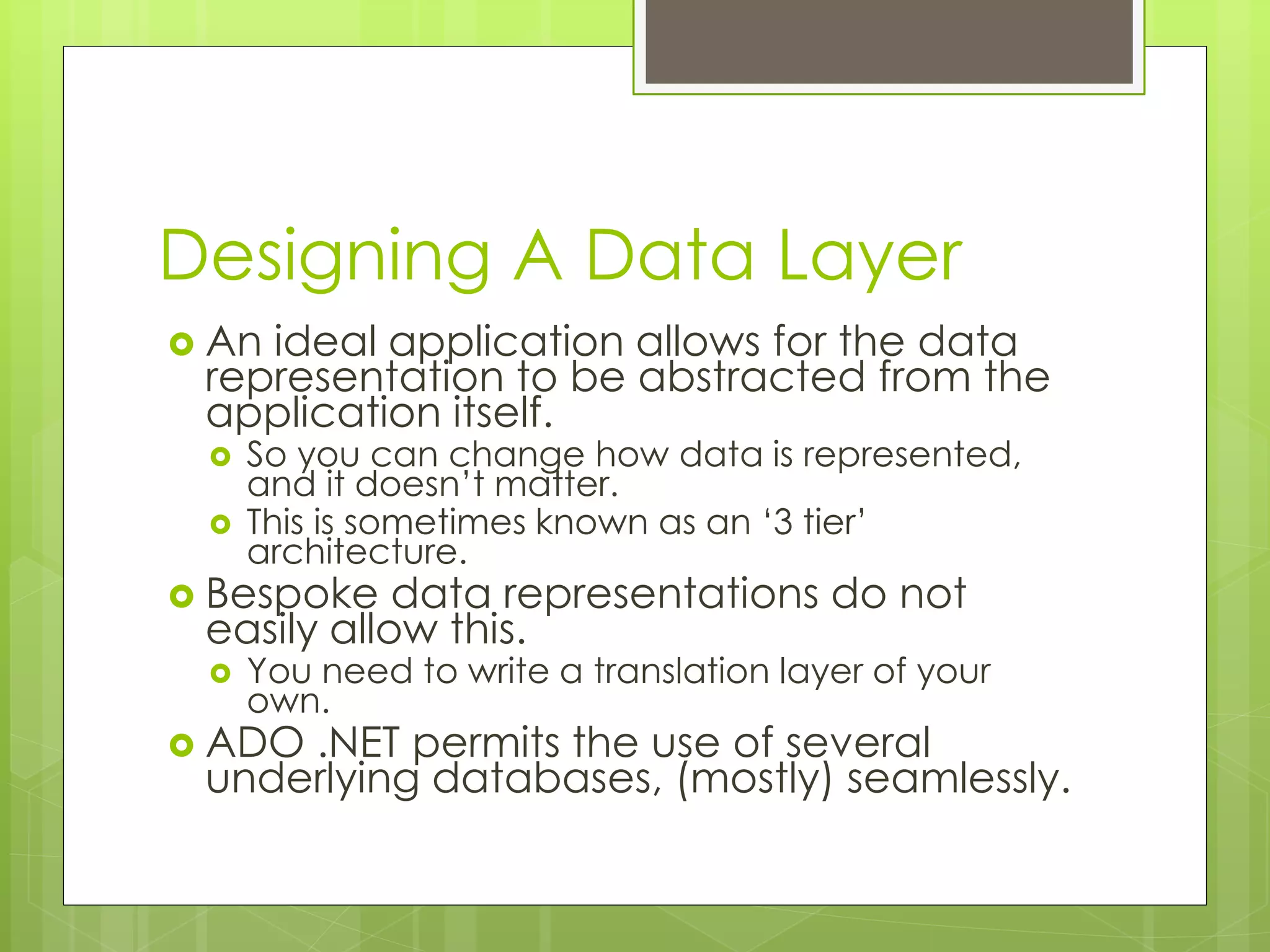

12. Designing A Data Layer
 An ideal application allows for the data
representation to be abstracted from the
application itself.
 So you can change how data is represented,
and it doesn’t matter.
 This is sometimes known as an ‘3 tier’
architecture.
 Bespoke data representations do not
easily allow this.
 You need to write a translation layer of your
own.
 ADO .NET permits the use of several
underlying databases, (mostly) seamlessly.

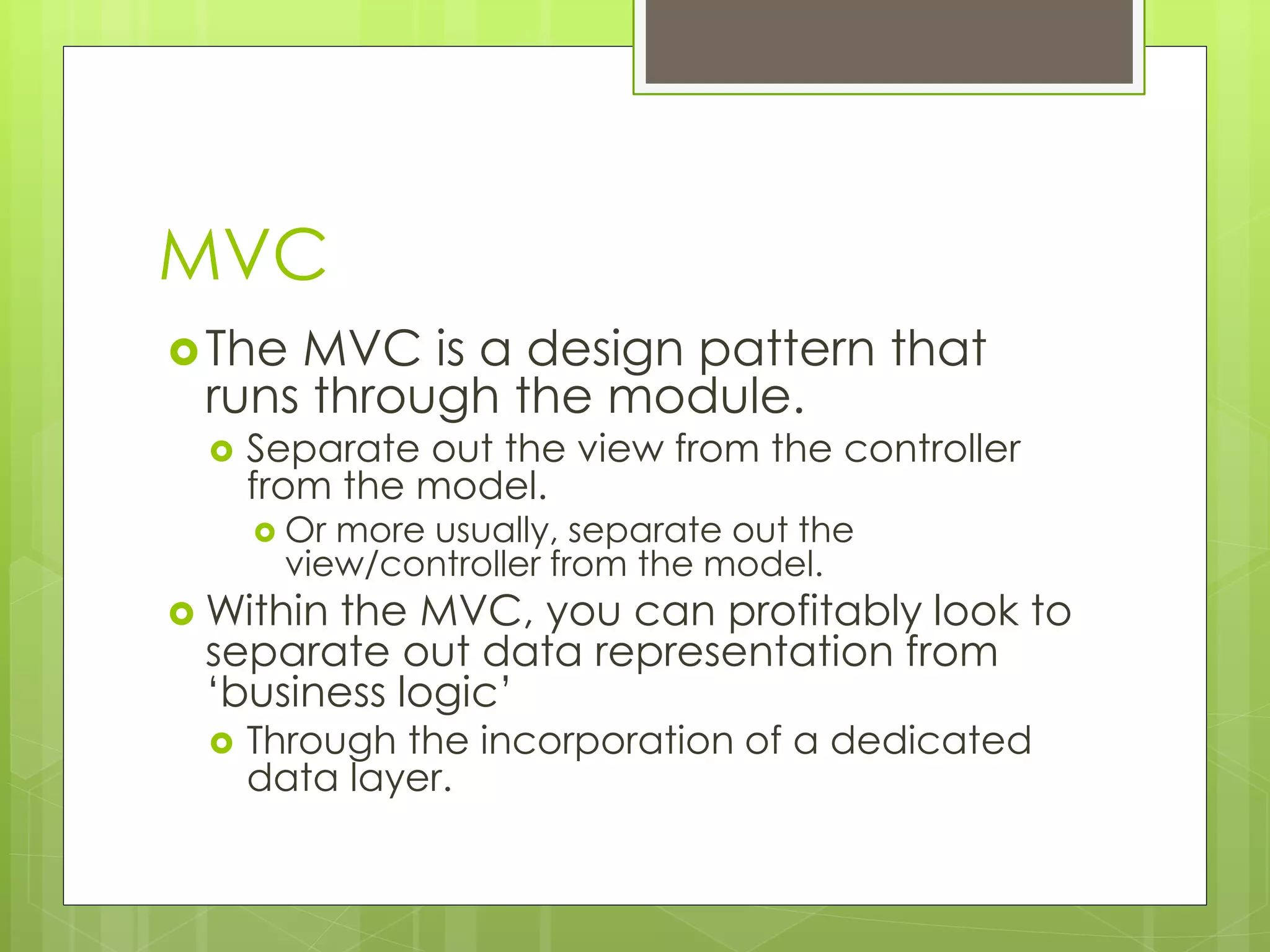

13. MVC
The MVC is a design pattern that
runs through the module.
 Separate out the view from the controller
from the model.
 Or more usually, separate out the
view/controller from the model.
 Within the MVC, you can profitably look to
separate out data representation from
‘business logic’
 Through the incorporation of a dedicated
data layer.

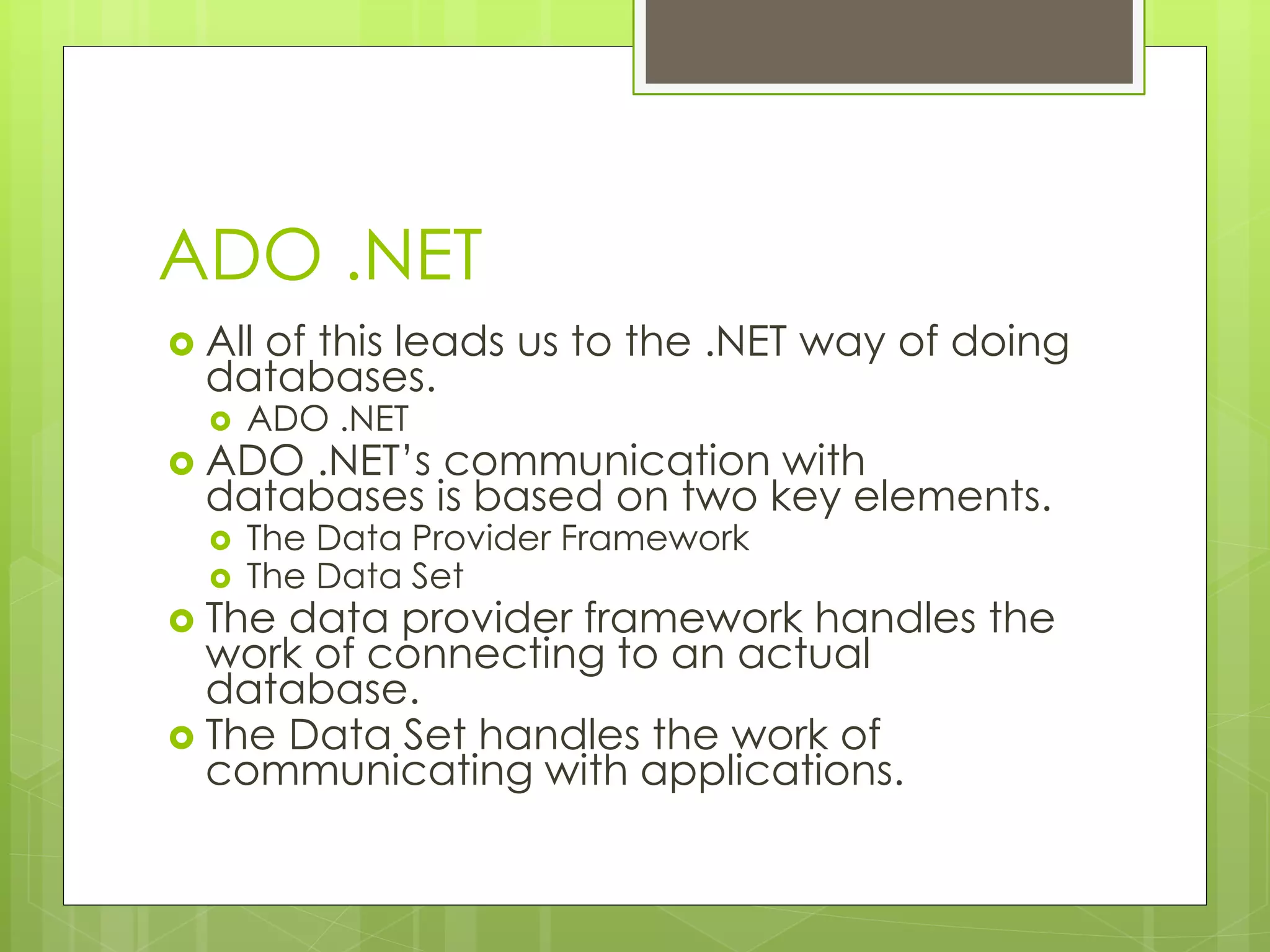

14. ADO .NET
 All of this leads us to the .NET way of doing
databases.
 ADO .NET
 ADO .NET’s communication with
databases is based on two key elements.
 The Data Provider Framework
 The Data Set
 The data provider framework handles the
work of connecting to an actual
database.
 The Data Set handles the work of
communicating with applications.

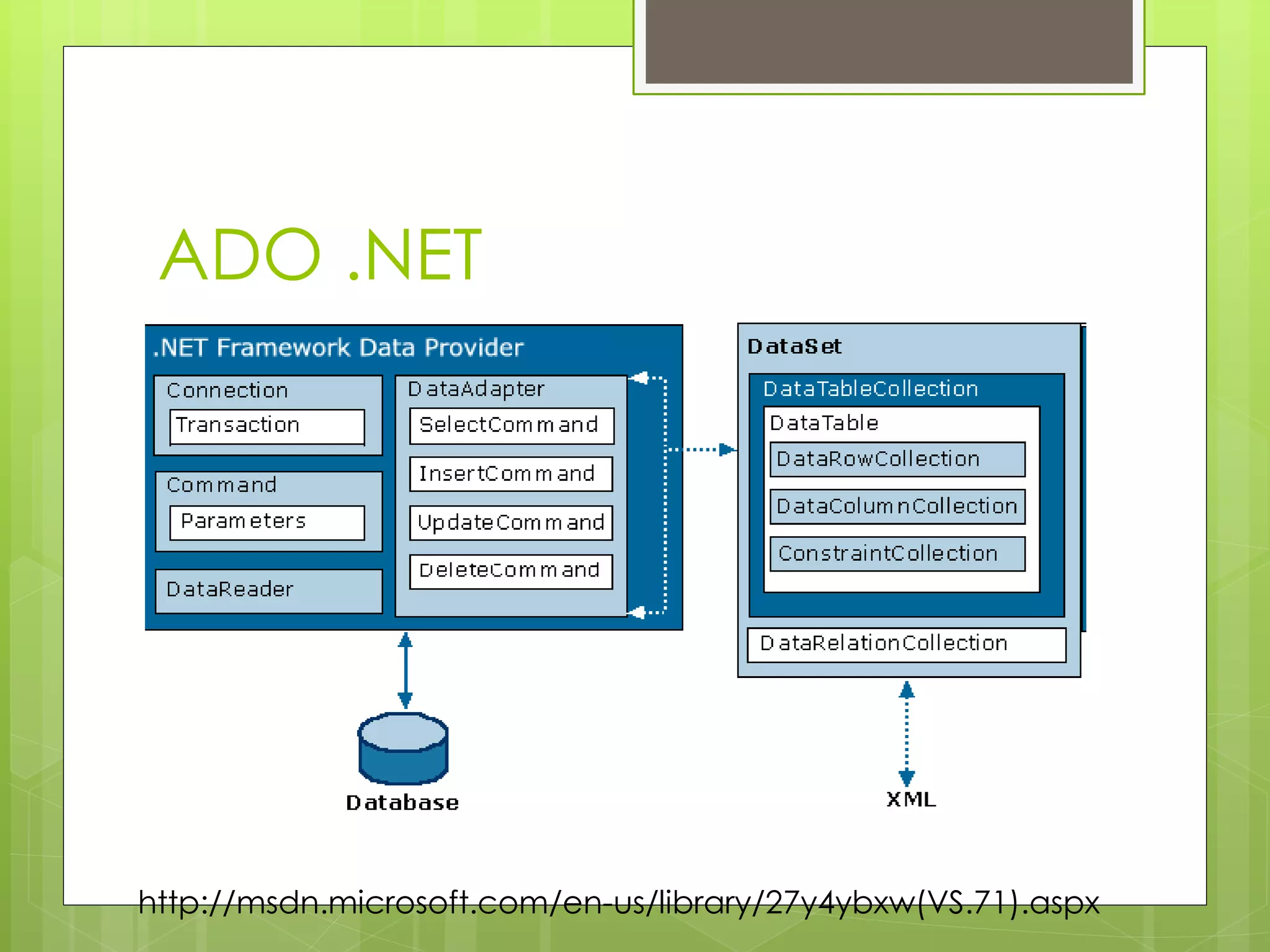

15. ADO .NET
http://msdn.microsoft.com/en-us/library/27y4ybxw(VS.71).aspx

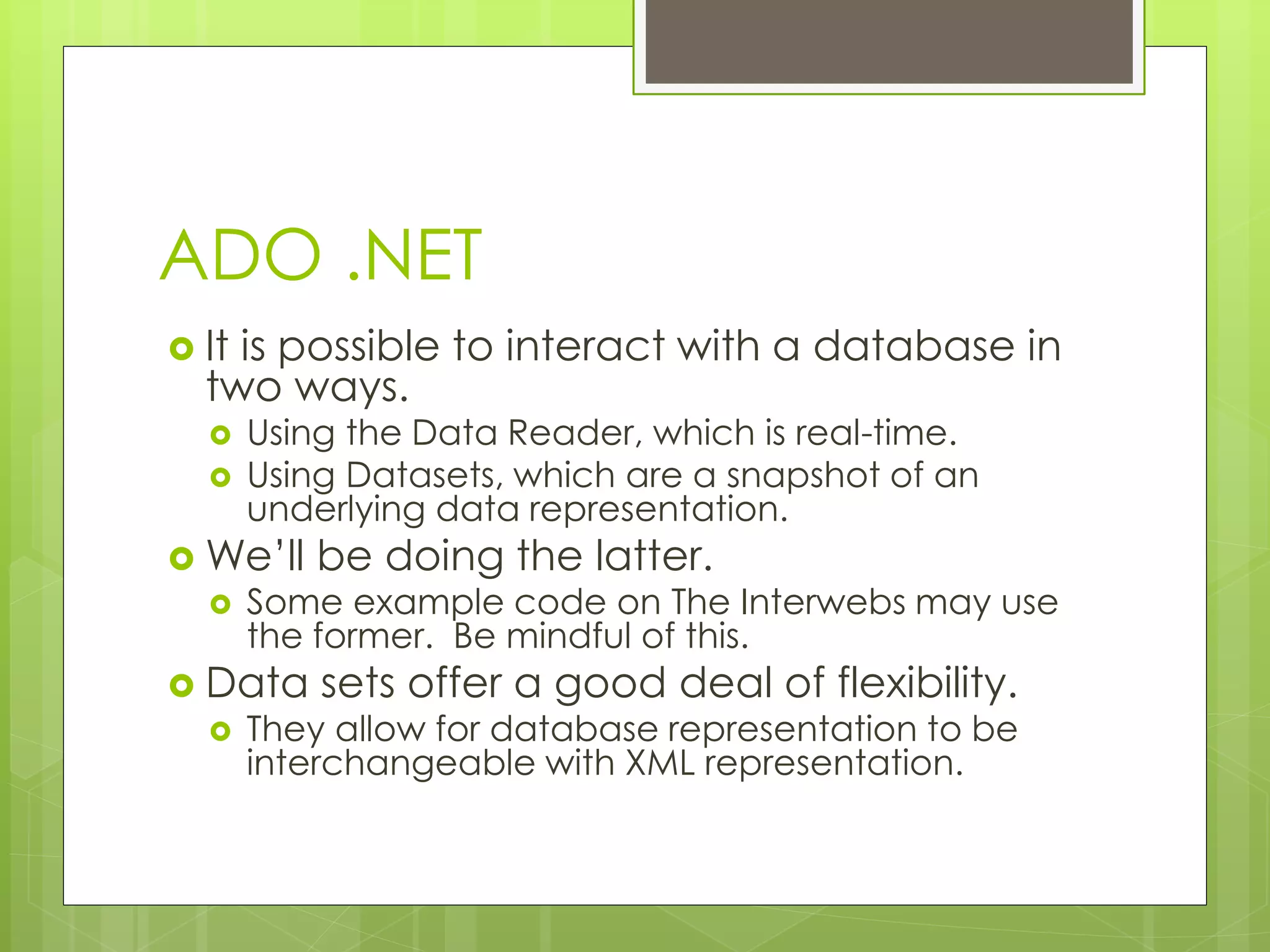

16. ADO .NET
 It is possible to interact with a database in
two ways.
 Using the Data Reader, which is real-time.
 Using Datasets, which are a snapshot of an
underlying data representation.
 We’ll be doing the latter.
 Some example code on The Interwebs may use
the former. Be mindful of this.
 Data sets offer a good deal of flexibility.
 They allow for database representation to be
interchangeable with XML representation.

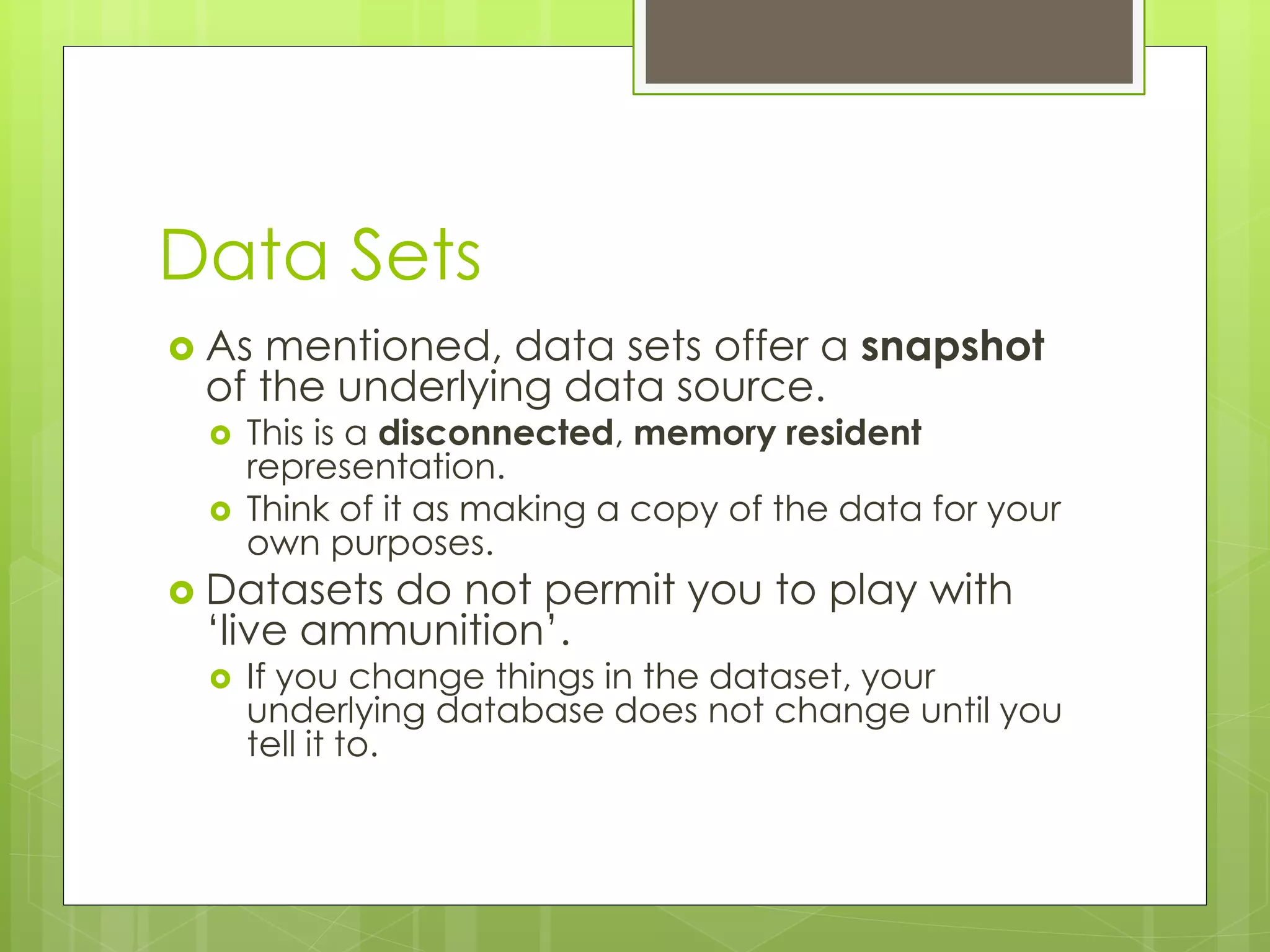

17. Data Sets
 As mentioned, data sets offer a snapshot
of the underlying data source.
 This is a disconnected, memory resident
representation.
 Think of it as making a copy of the data for your
own purposes.
 Datasets do not permit you to play with
‘live ammunition’.
 If you change things in the dataset, your
underlying database does not change until you
tell it to.

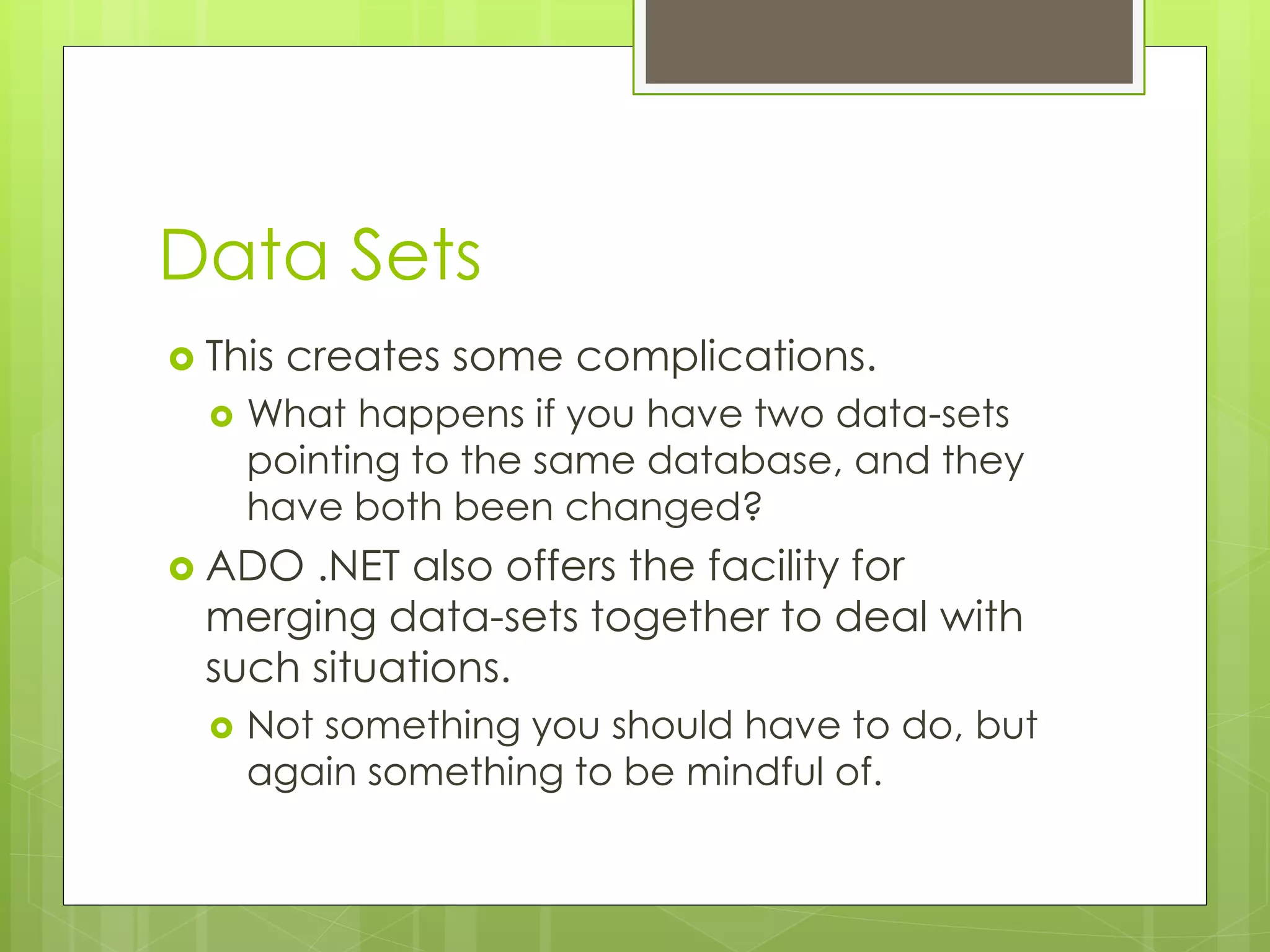

18. Data Sets
 This creates some complications.
 What happens if you have two data-sets
pointing to the same database, and they
have both been changed?
 ADO .NET also offers the facility for
merging data-sets together to deal with
such situations.
 Not something you should have to do, but
again something to be mindful of.

19. Data Sets
 One of the biggest benefits of Data Sets is
that they permit the access of underlying
data in the same style as associative
arrays.
 Or ‘hashmaps’, or ‘mappings’, whatever
term you may prefer.
 This greatly simplifies the task of
interacting with an underlying database.
 SQL, for all its power, is not an easy
language with which to Get Things Done.

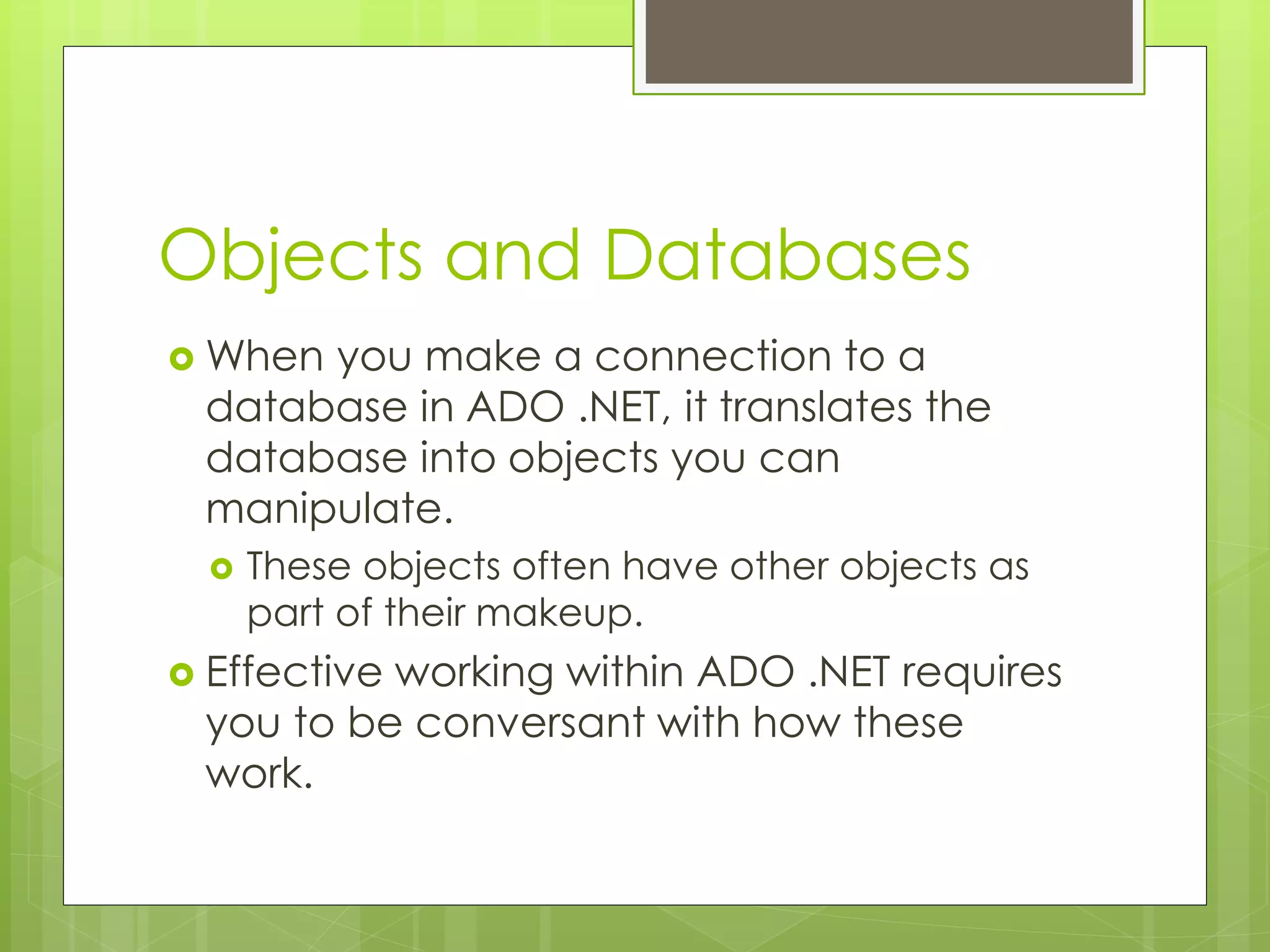

20. Objects and Databases
 When you make a connection to a
database in ADO .NET, it translates the
database into objects you can
manipulate.
 These objects often have other objects as
part of their makeup.
 Effective working within ADO .NET requires
you to be conversant with how these
work.

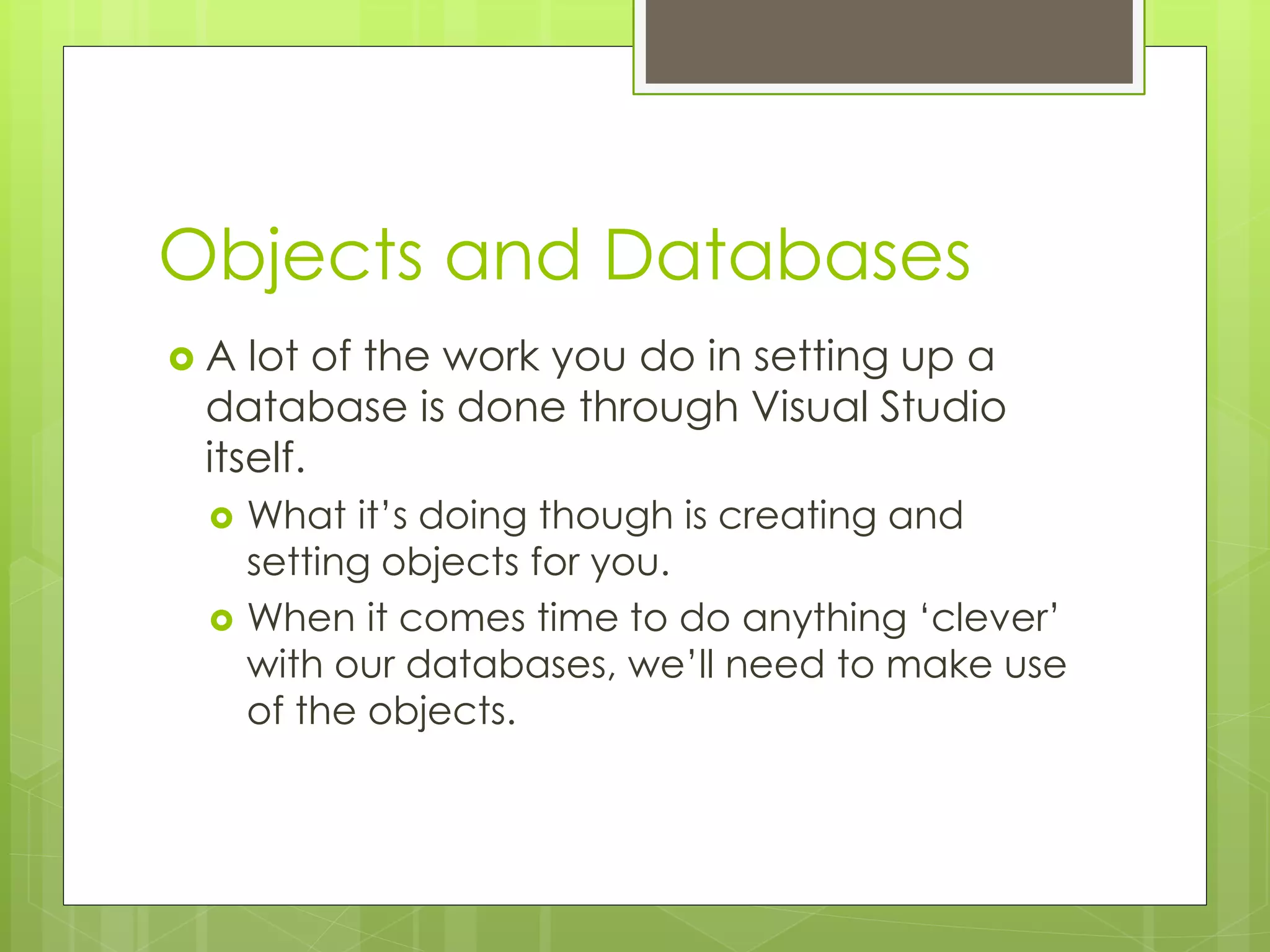

21. Objects and Databases
 A lot of the work you do in setting up a
database is done through Visual Studio
itself.
 What it’s doing though is creating and
setting objects for you.
 When it comes time to do anything ‘clever’
with our databases, we’ll need to make use
of the objects.

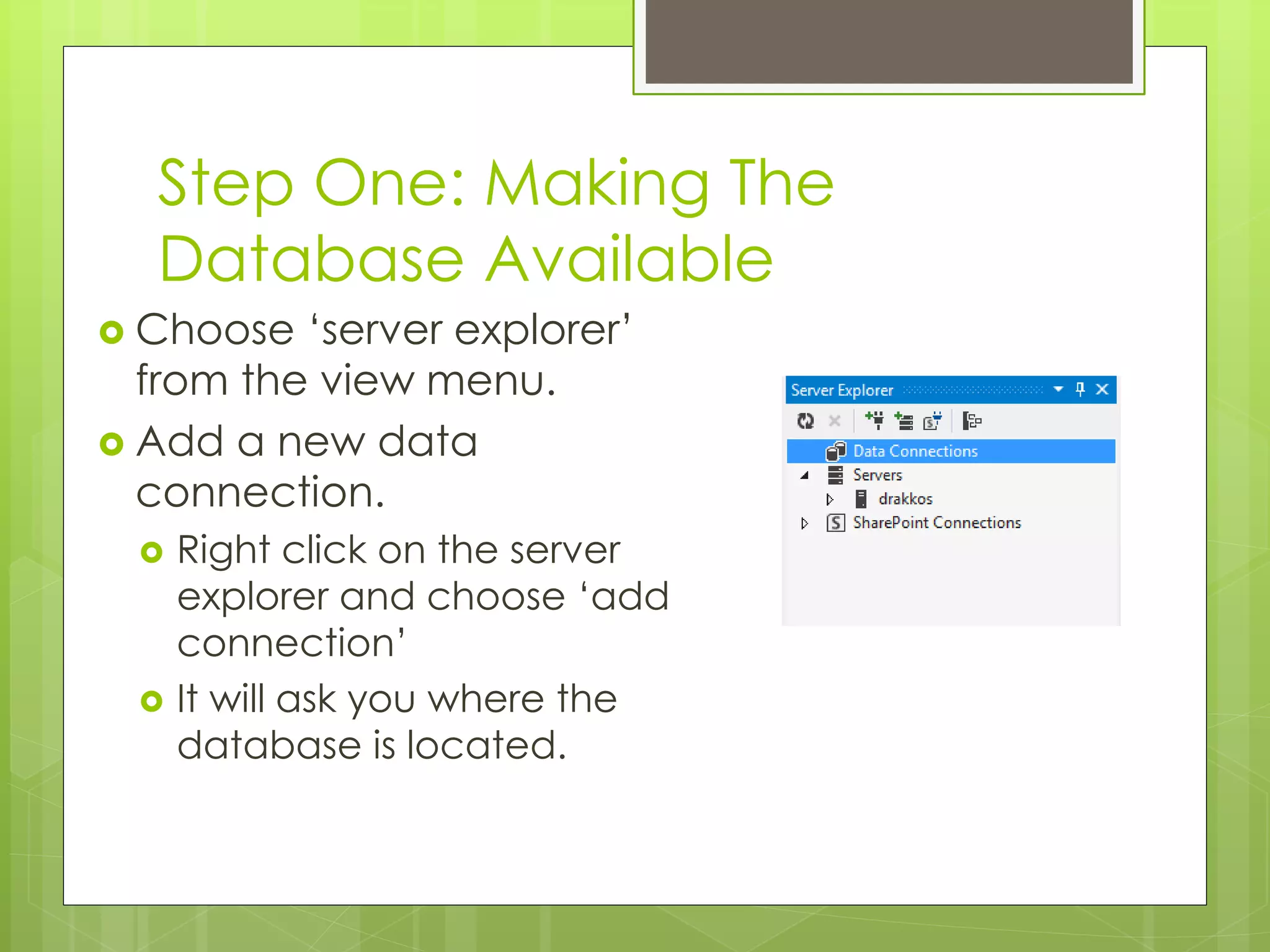

22. Step One: Making The
Database Available
 Choose ‘server explorer’
from the view menu.
 Add a new data
connection.
 Right click on the server
explorer and choose ‘add
connection’
 It will ask you where the
database is located.

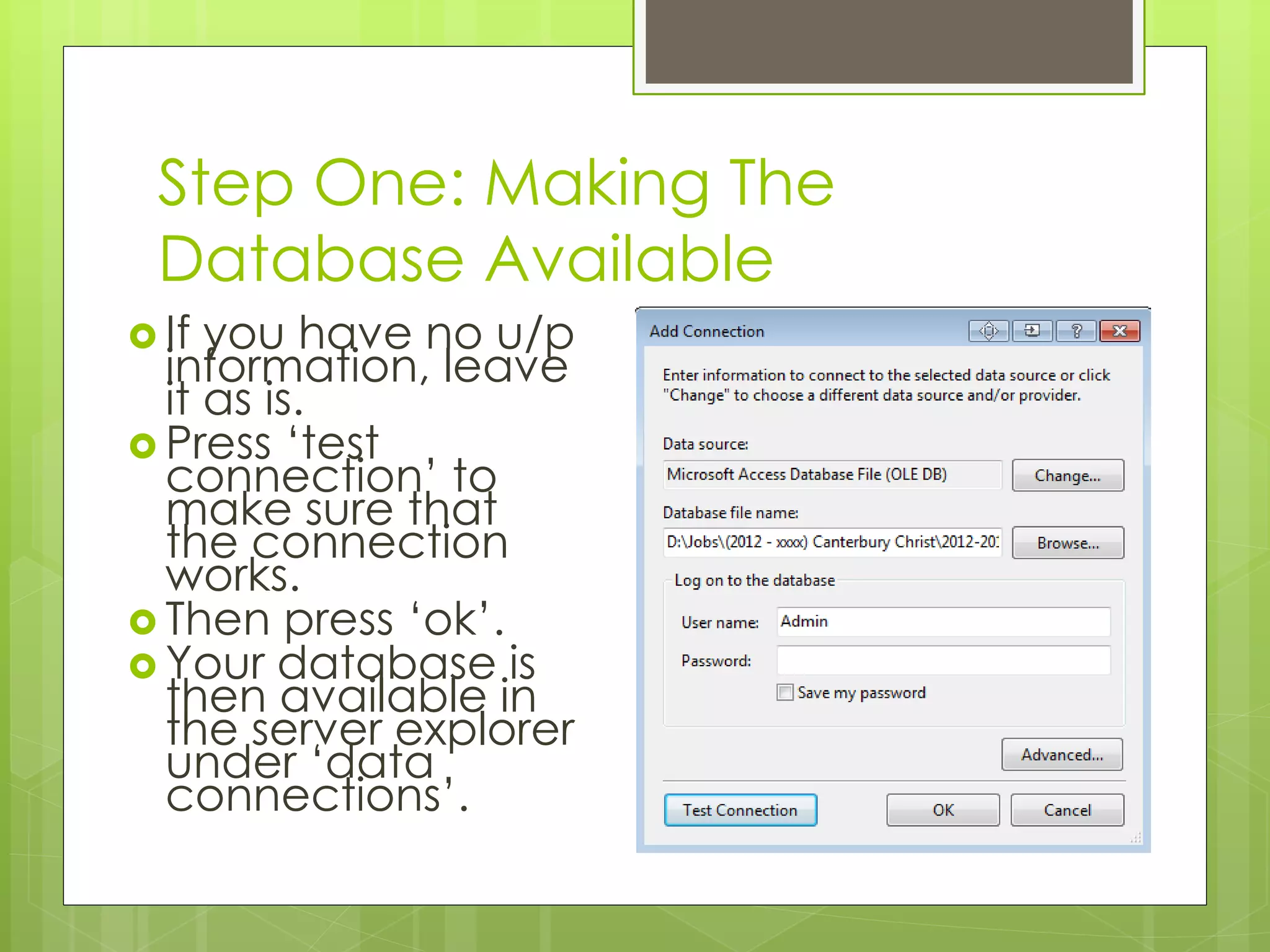

23. Step One: Making The
Database Available
 If you have no u/p
information, leave
it as is.
 Press ‘test
connection’ to
make sure that
the connection
works.
 Then press ‘ok’.
 Your database is
then available in
the server explorer
under ‘data
connections’.

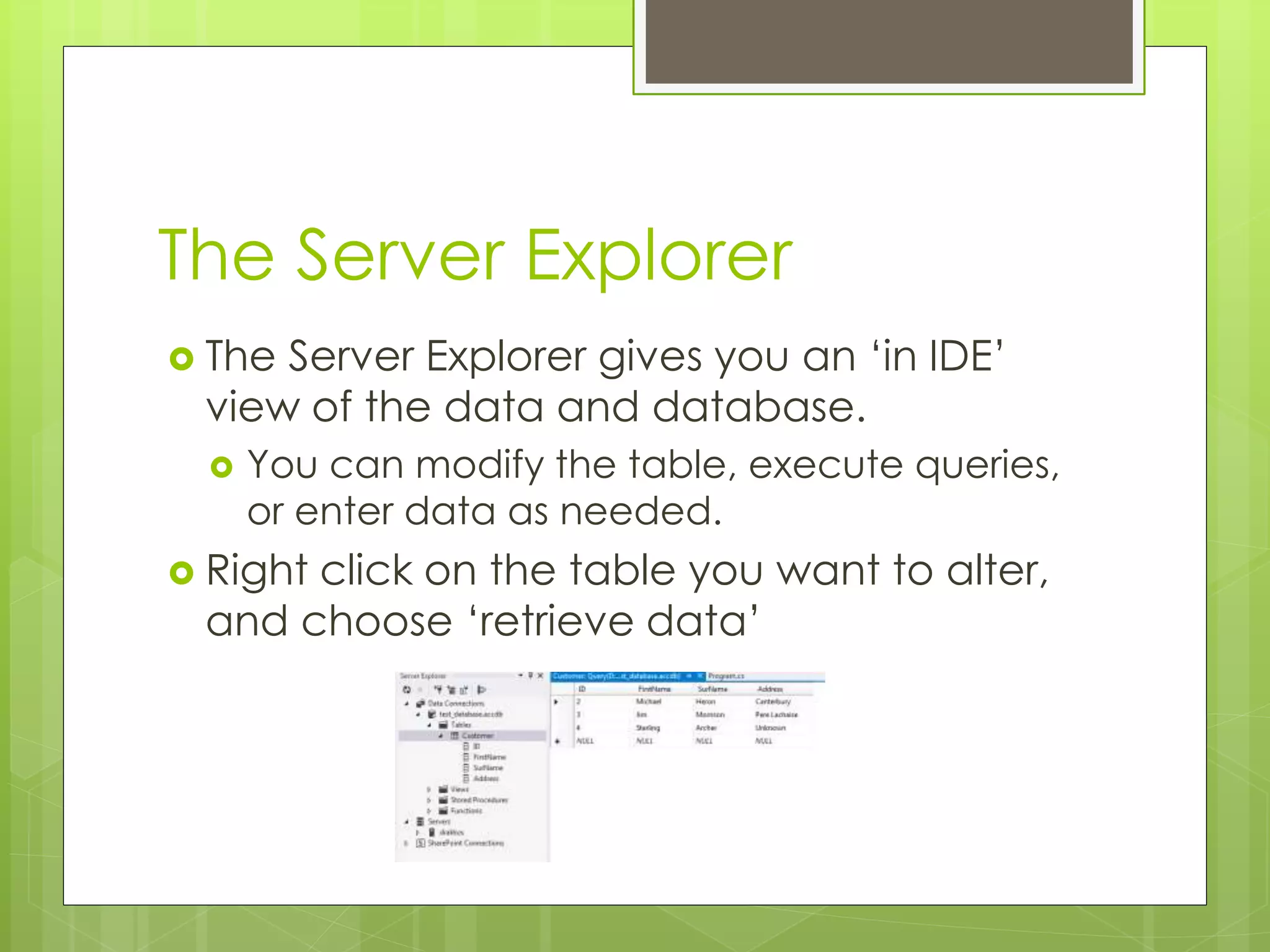

24. The Server Explorer
 The Server Explorer gives you an ‘in IDE’
view of the data and database.
 You can modify the table, execute queries,
or enter data as needed.
 Right click on the table you want to alter,
and choose ‘retrieve data’

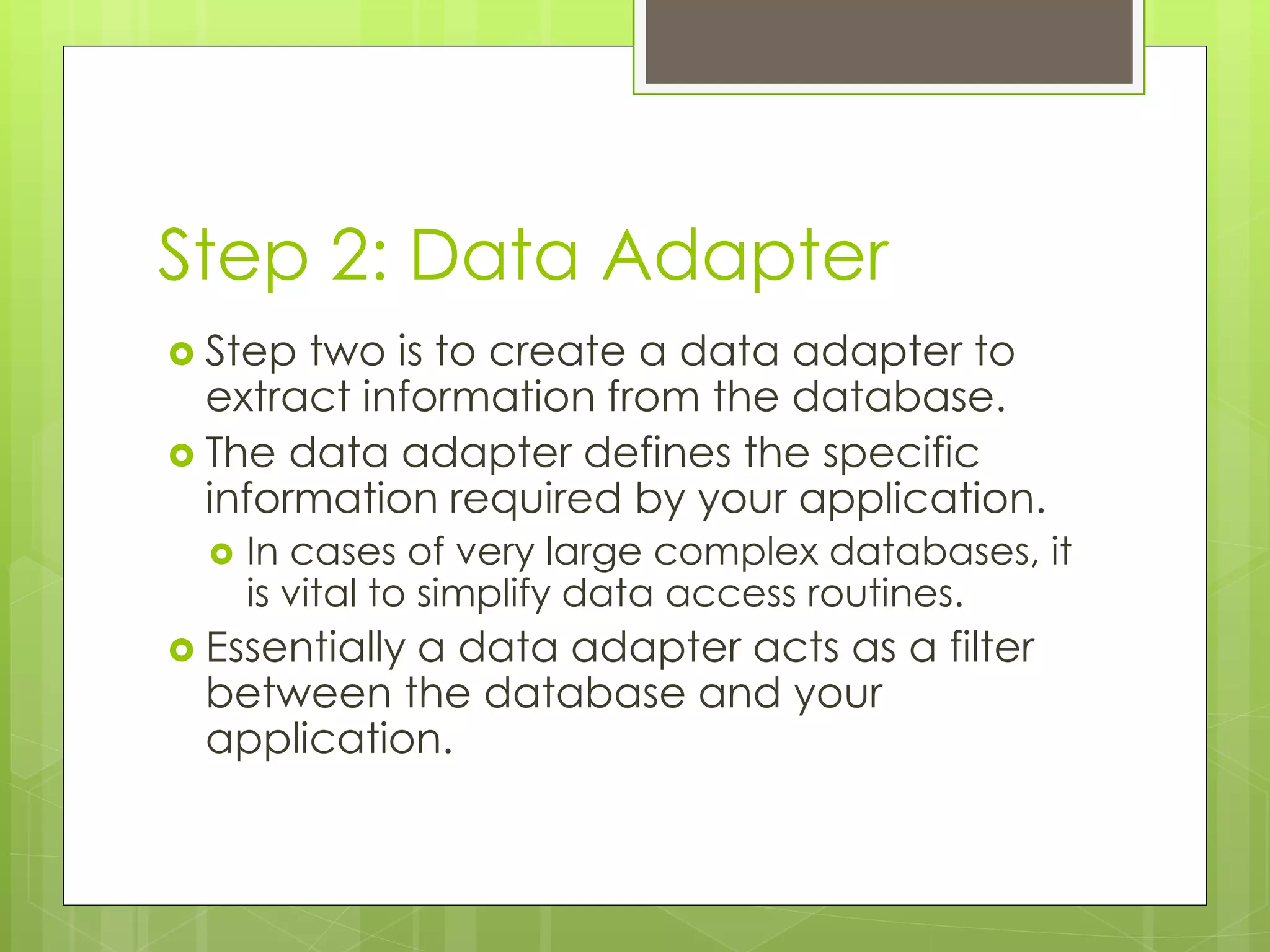

25. Step 2: Data Adapter
 Step two is to create a data adapter to
extract information from the database.
 The data adapter defines the specific
information required by your application.
 In cases of very large complex databases, it
is vital to simplify data access routines.
 Essentially a data adapter acts as a filter
between the database and your
application.

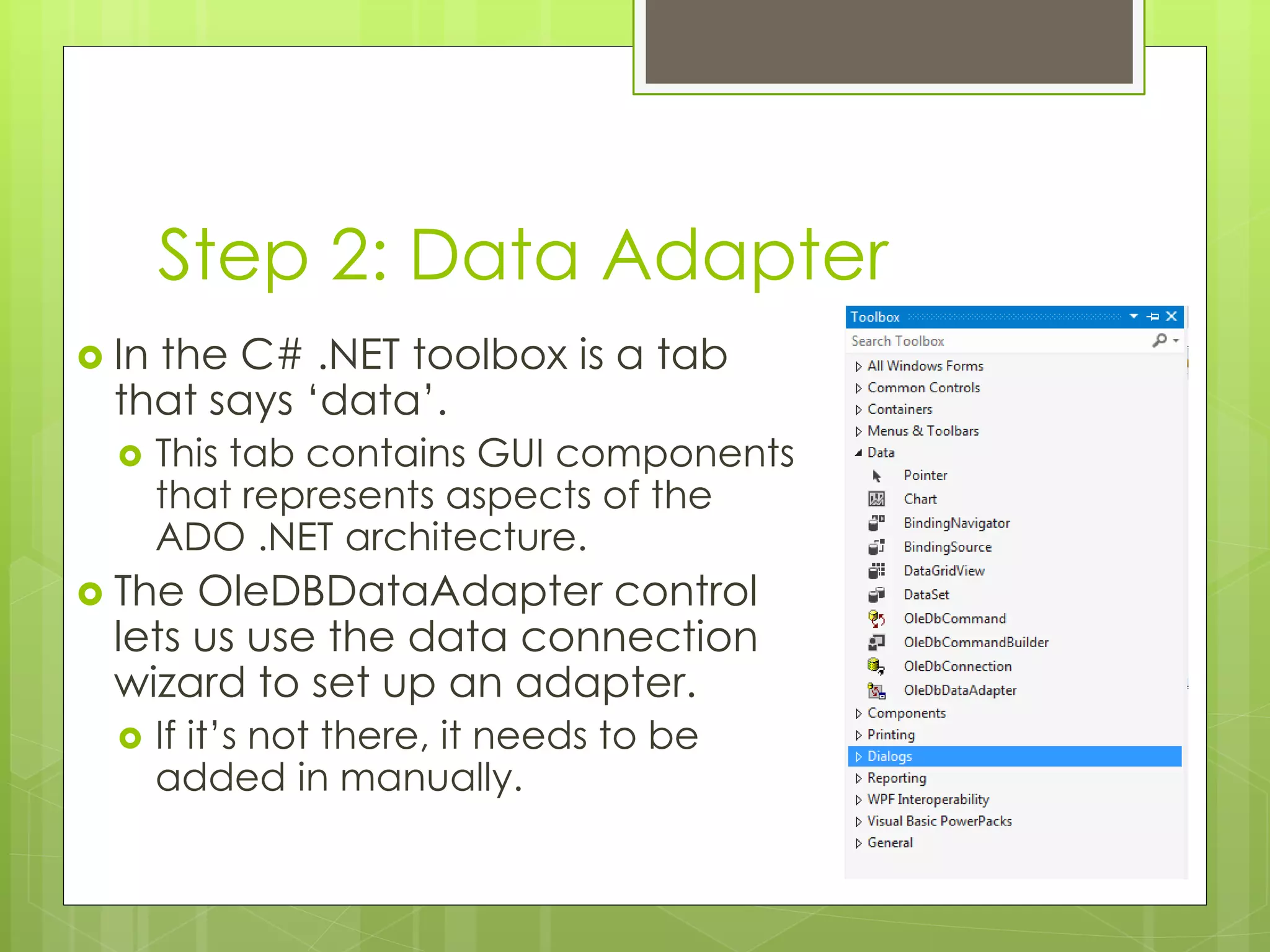

26. Step 2: Data Adapter
 In the C# .NET toolbox is a tab
that says ‘data’.
 This tab contains GUI components
that represents aspects of the
ADO .NET architecture.
 The OleDBDataAdapter control
lets us use the data connection
wizard to set up an adapter.
 If it’s not there, it needs to be
added in manually.

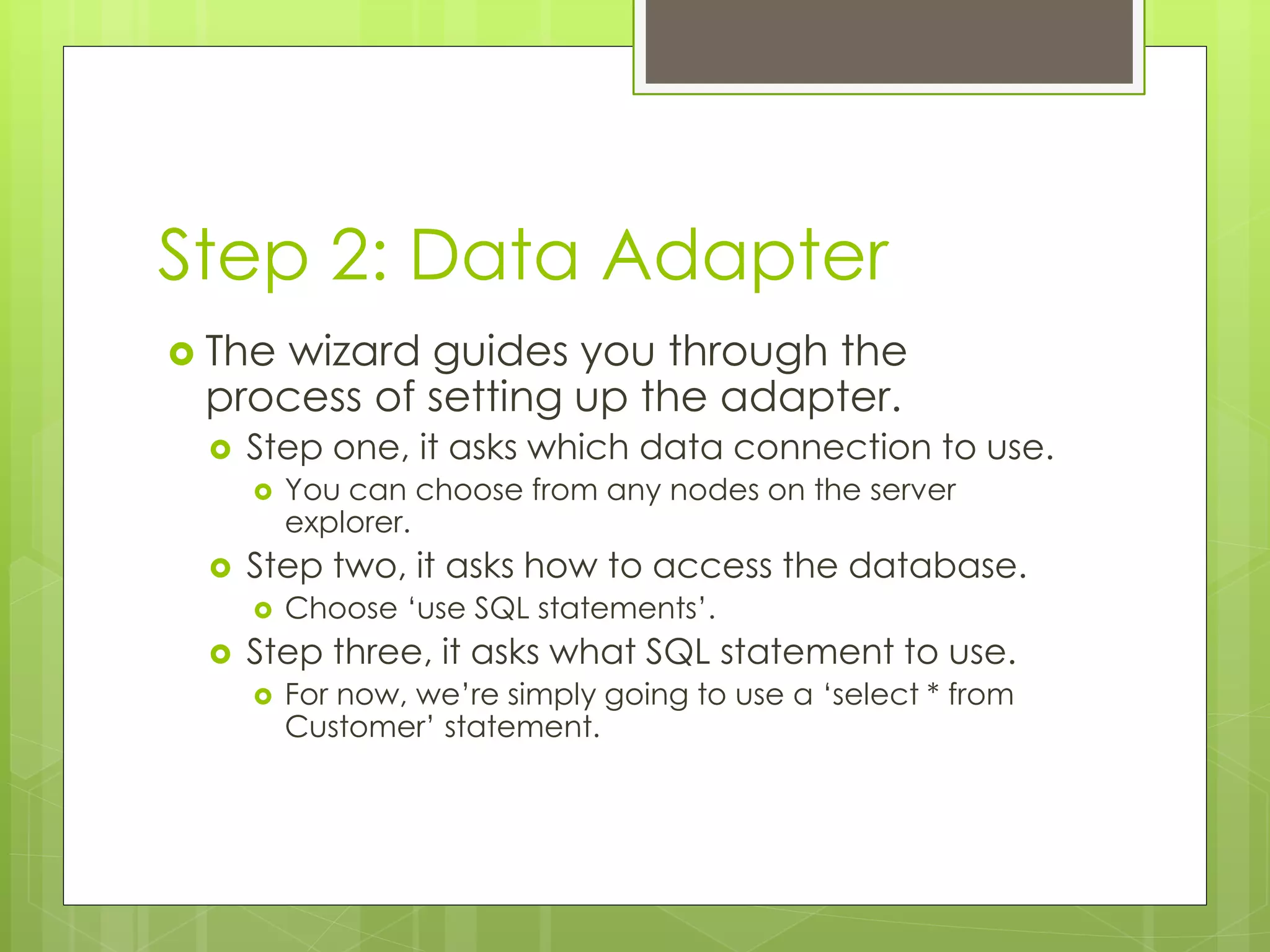

27. Step 2: Data Adapter
 The wizard guides you through the
process of setting up the adapter.
 Step one, it asks which data connection to use.
 You can choose from any nodes on the server
explorer.
 Step two, it asks how to access the database.
 Choose ‘use SQL statements’.
 Step three, it asks what SQL statement to use.
 For now, we’re simply going to use a ‘select * from
Customer’ statement.

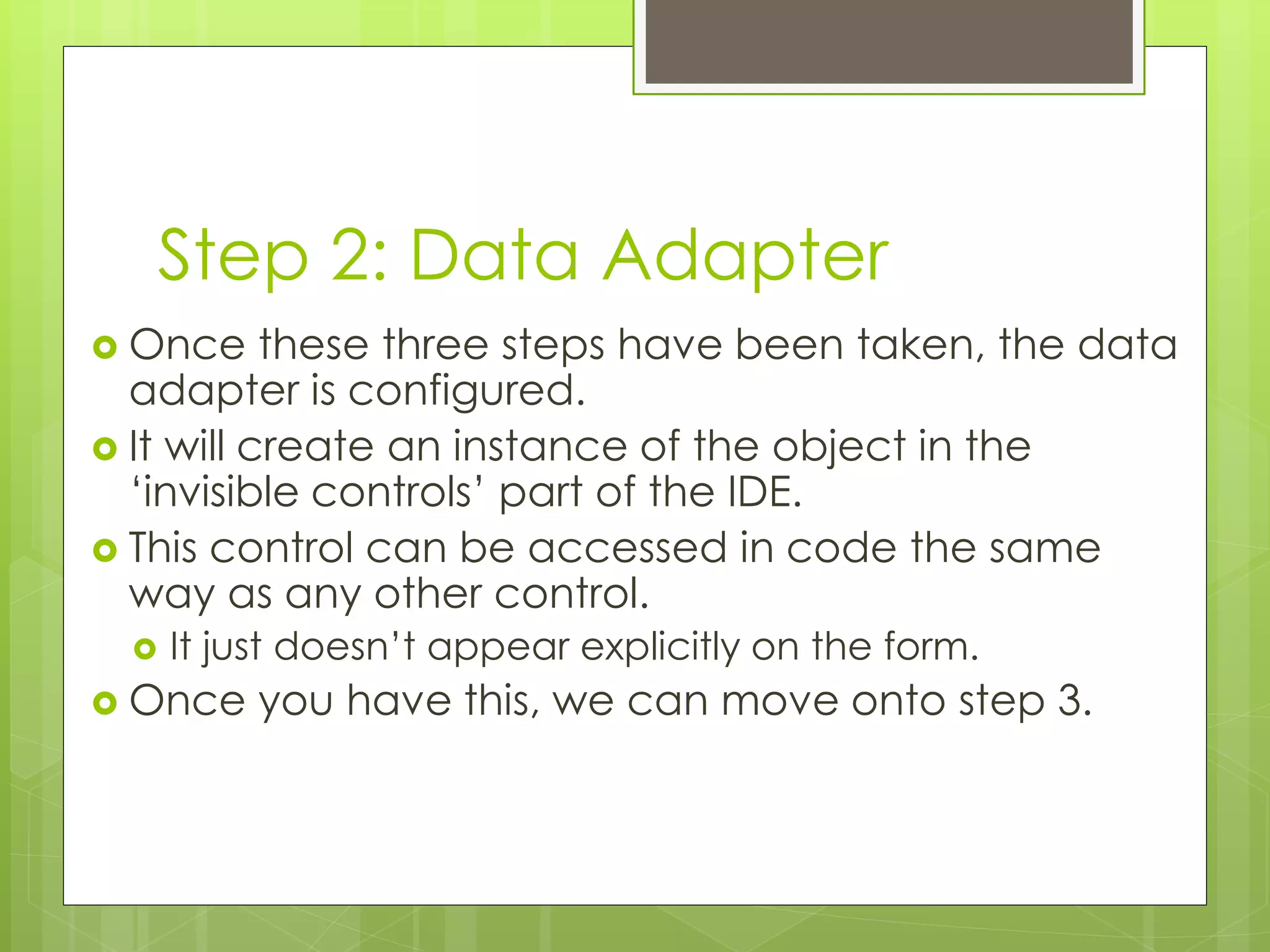

28. Step 2: Data Adapter
 Once these three steps have been taken, the data
adapter is configured.
 It will create an instance of the object in the
‘invisible controls’ part of the IDE.
 This control can be accessed in code the same
way as any other control.
 It just doesn’t appear explicitly on the form.
 Once you have this, we can move onto step 3.

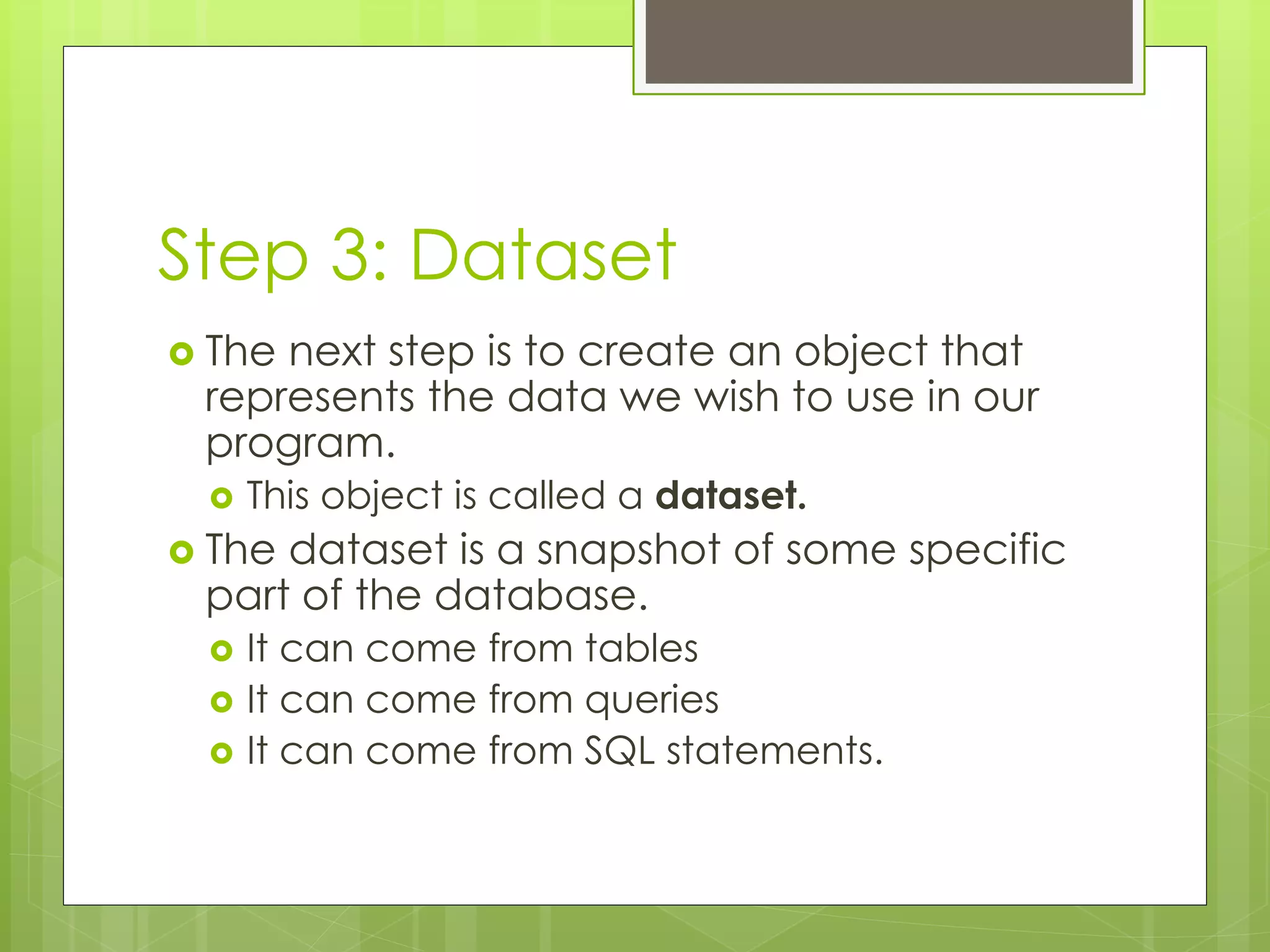

29. Step 3: Dataset
 The next step is to create an object that
represents the data we wish to use in our
program.
 This object is called a dataset.
 The dataset is a snapshot of some specific
part of the database.
 It can come from tables
 It can come from queries
 It can come from SQL statements.

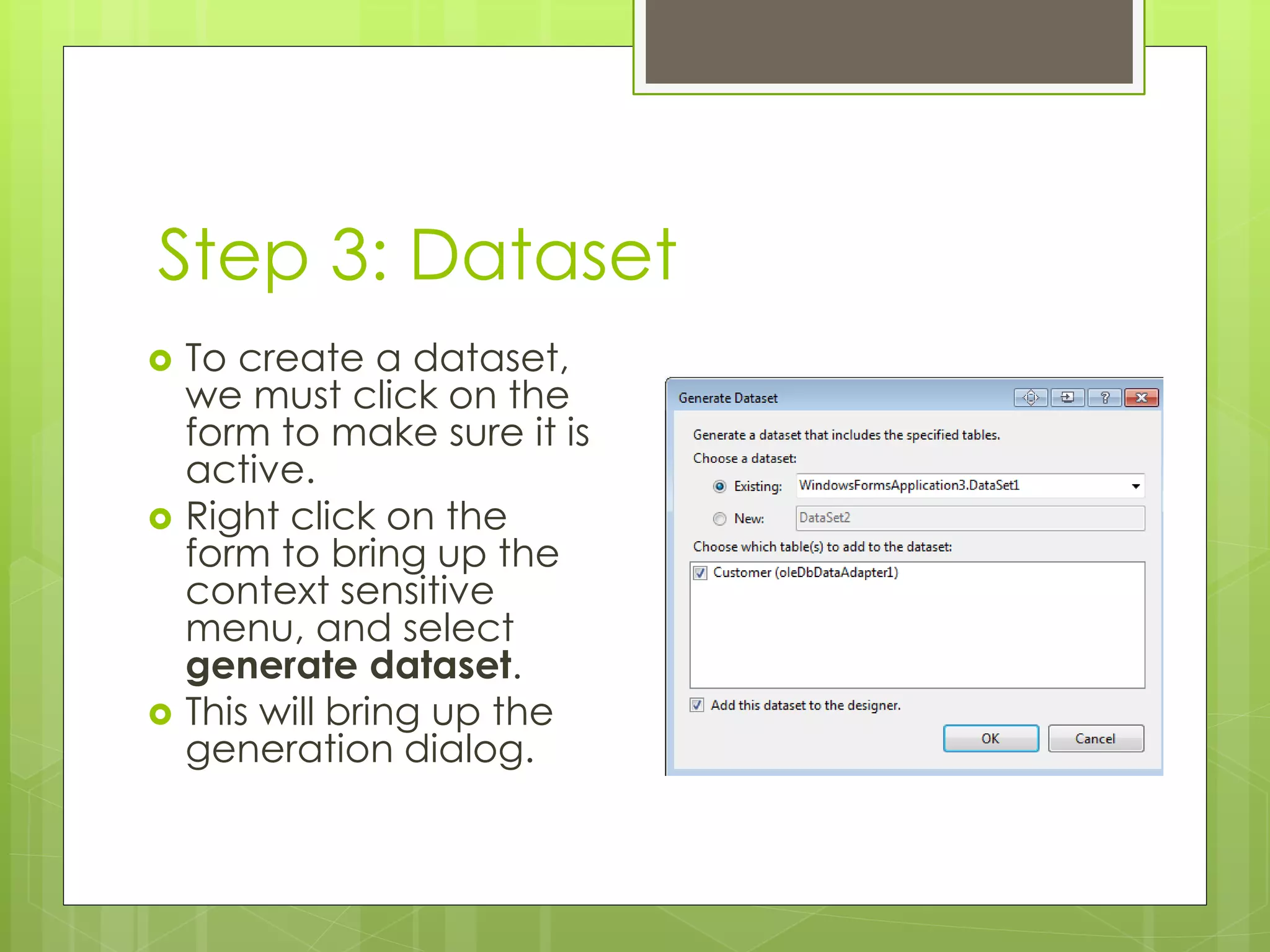

30. Step 3: Dataset
 To create a dataset,
we must click on the
form to make sure it is
active.
 Right click on the
form to bring up the
context sensitive
menu, and select
generate dataset.
 This will bring up the
generation dialog.

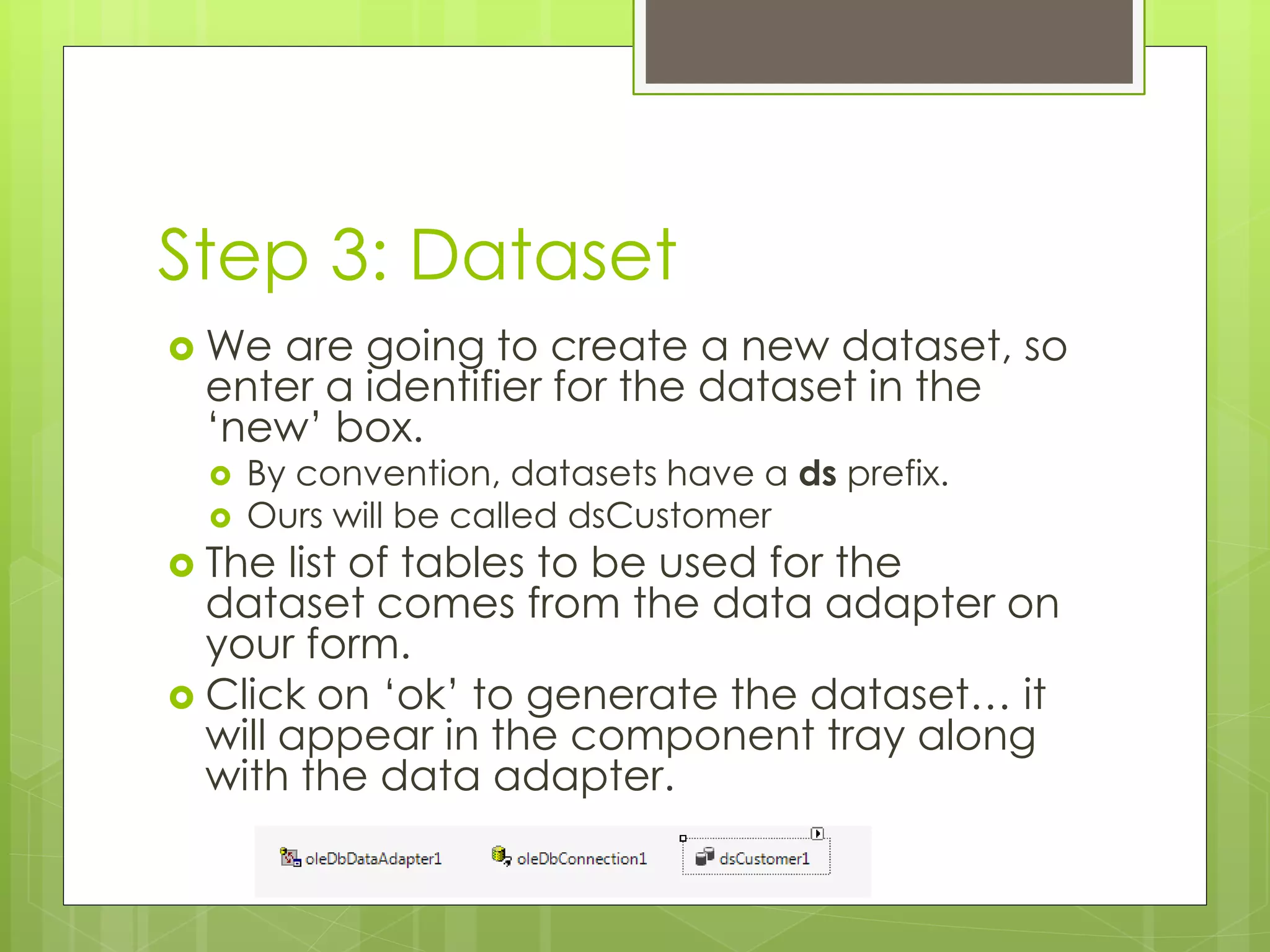

31. Step 3: Dataset
 We are going to create a new dataset, so
enter a identifier for the dataset in the
‘new’ box.
 By convention, datasets have a ds prefix.
 Ours will be called dsCustomer
 The list of tables to be used for the
dataset comes from the data adapter on
your form.
 Click on ‘ok’ to generate the dataset… it
will appear in the component tray along
with the data adapter.

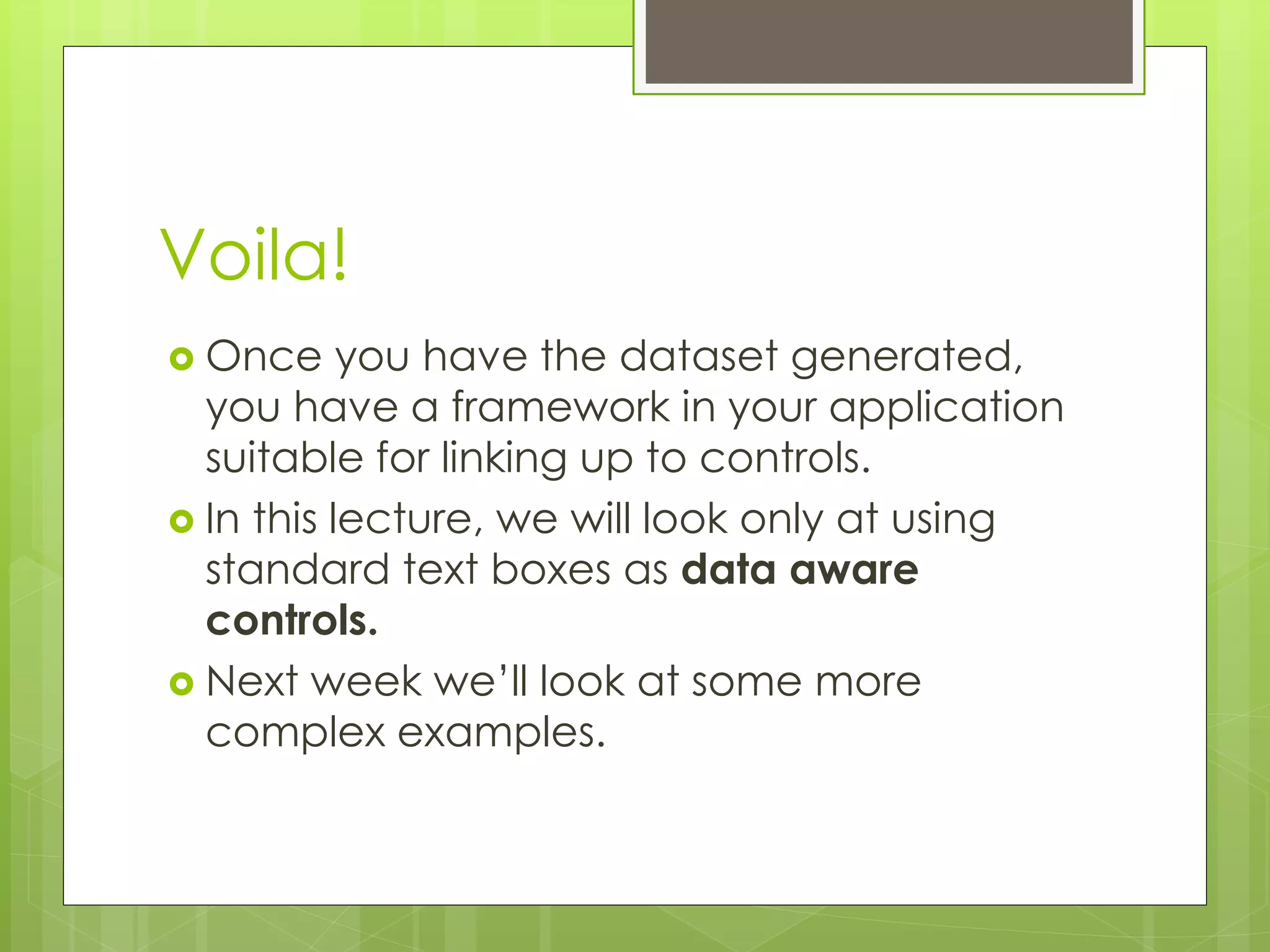

32. Voila!
 Once you have the dataset generated,
you have a framework in your application
suitable for linking up to controls.
 In this lecture, we will look only at using
standard text boxes as data aware
controls.
 Next week we’ll look at some more
complex examples.

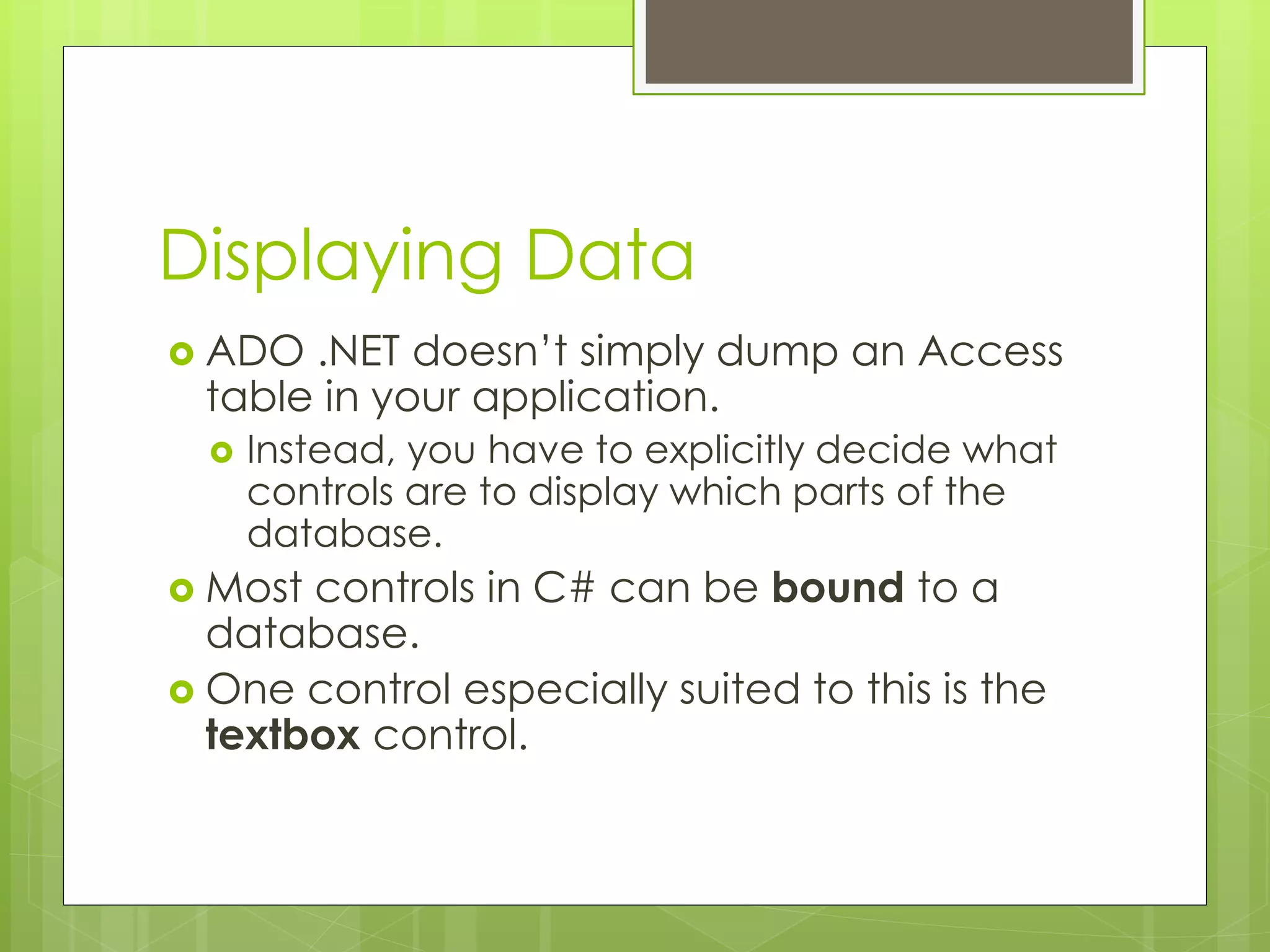

33. Displaying Data
 ADO .NET doesn’t simply dump an Access
table in your application.
 Instead, you have to explicitly decide what
controls are to display which parts of the
database.
 Most controls in C# can be bound to a
database.
 One control especially suited to this is the
textbox control.

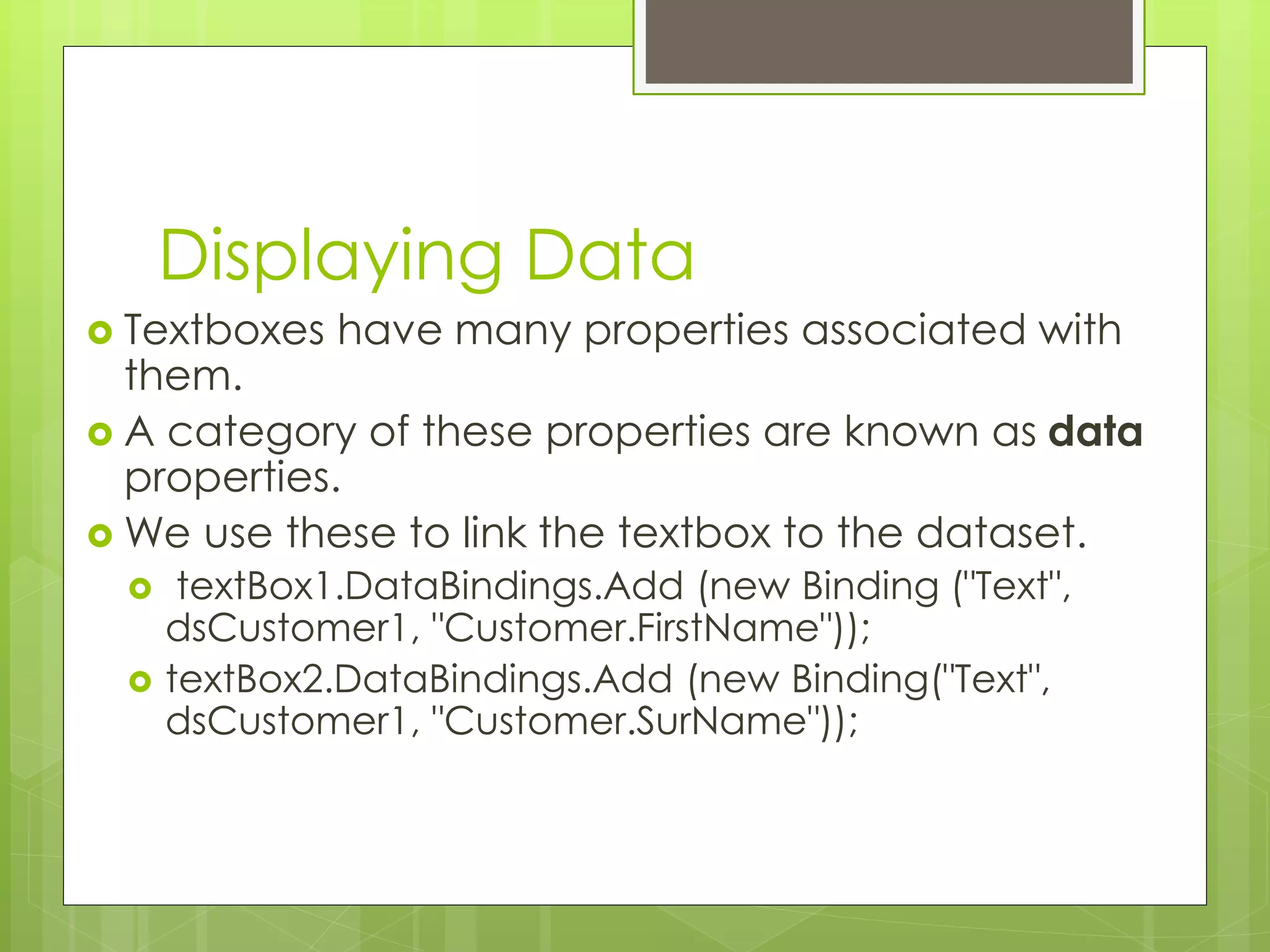

34. Displaying Data
 Textboxes have many properties associated with
them.
 A category of these properties are known as data
properties.
 We use these to link the textbox to the dataset.
 textBox1.DataBindings.Add (new Binding ("Text",
dsCustomer1, "Customer.FirstName"));
 textBox2.DataBindings.Add (new Binding("Text",
dsCustomer1, "Customer.SurName"));

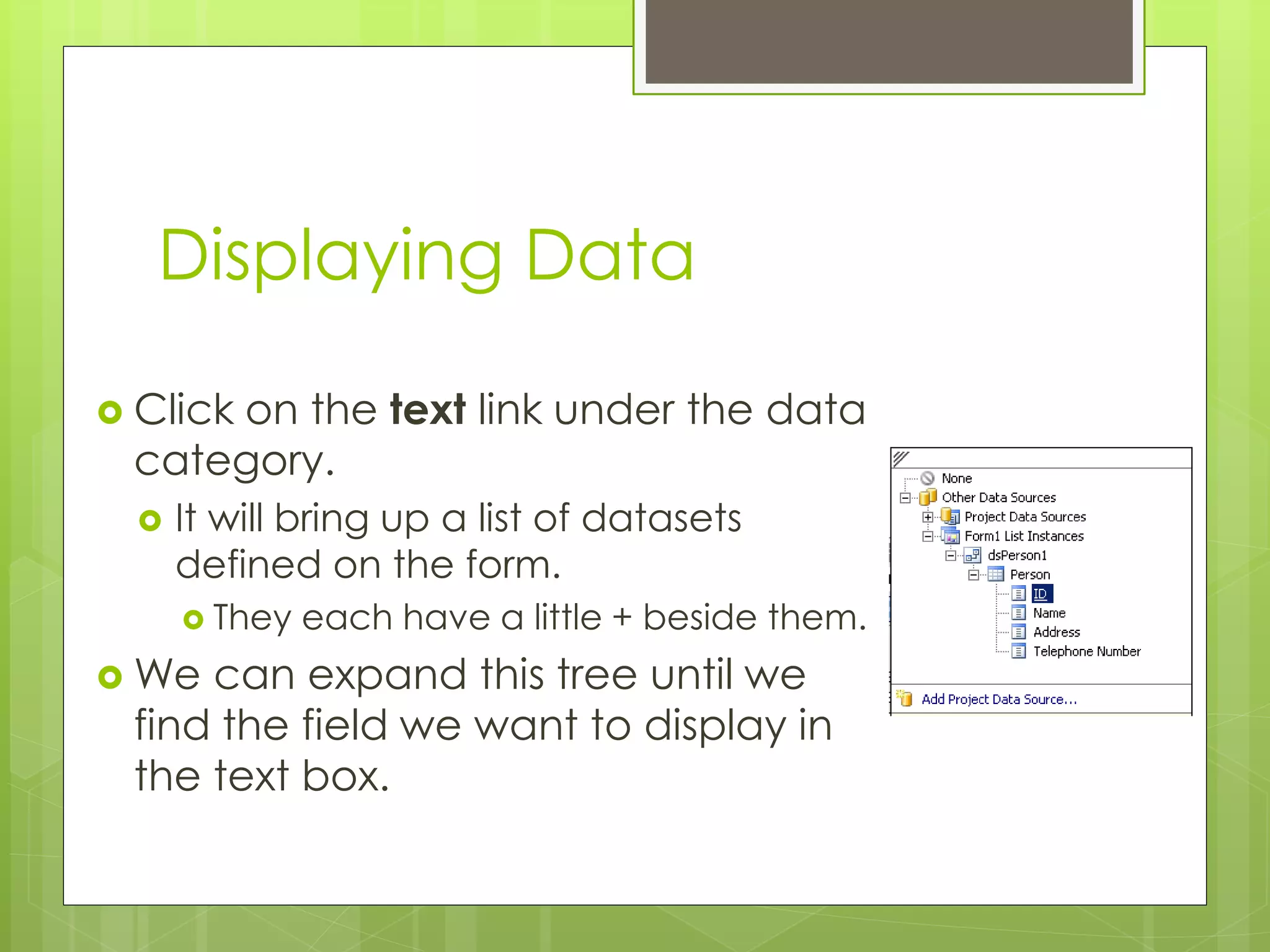

35. Displaying Data
 Click on the text link under the data
category.
 It will bring up a list of datasets
defined on the form.
 They each have a little + beside them.
 We can expand this tree until we
find the field we want to display in
the text box.

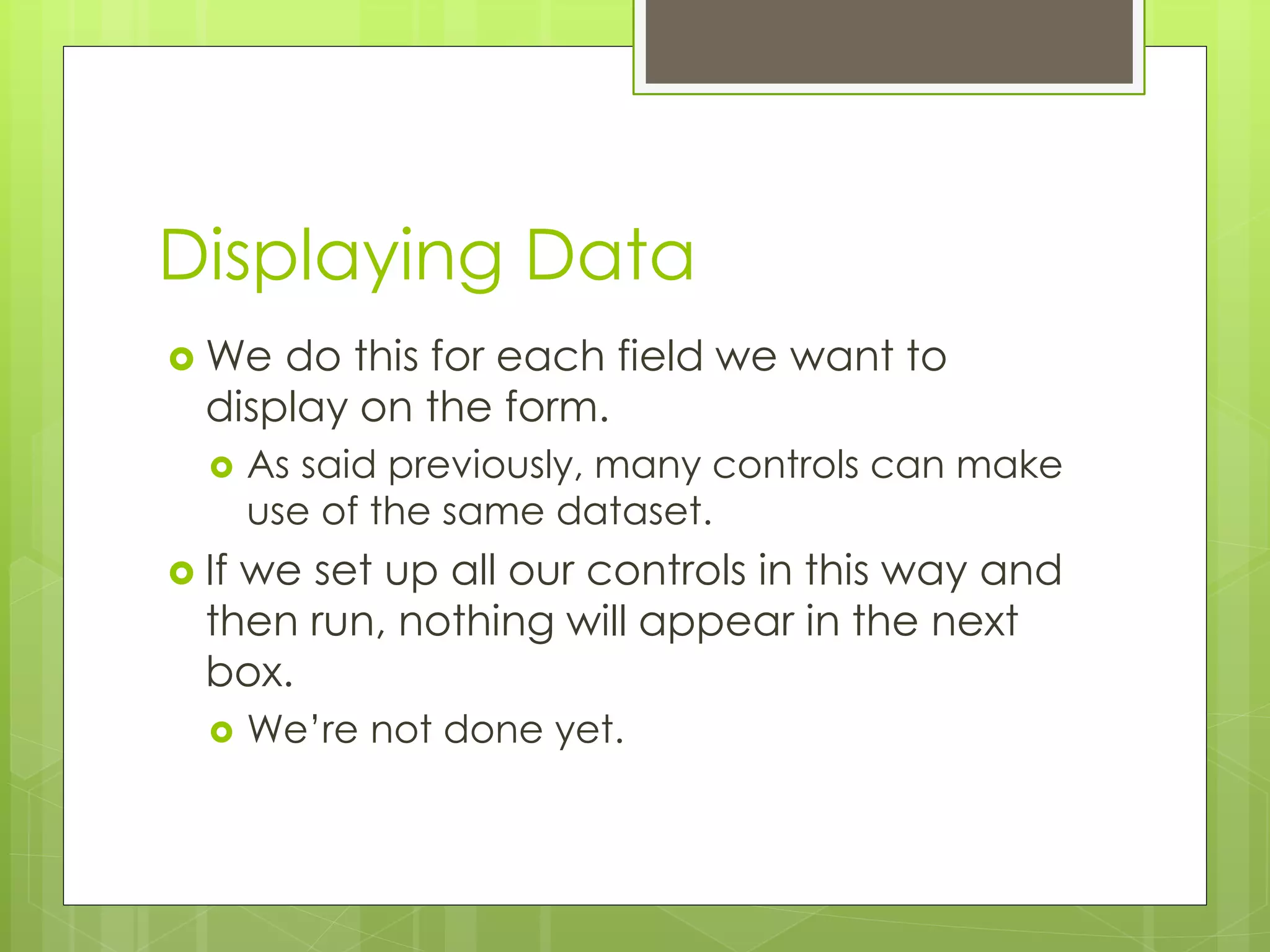

36. Displaying Data
 We do this for each field we want to
display on the form.
 As said previously, many controls can make
use of the same dataset.
 If we set up all our controls in this way and
then run, nothing will appear in the next
box.
 We’re not done yet.

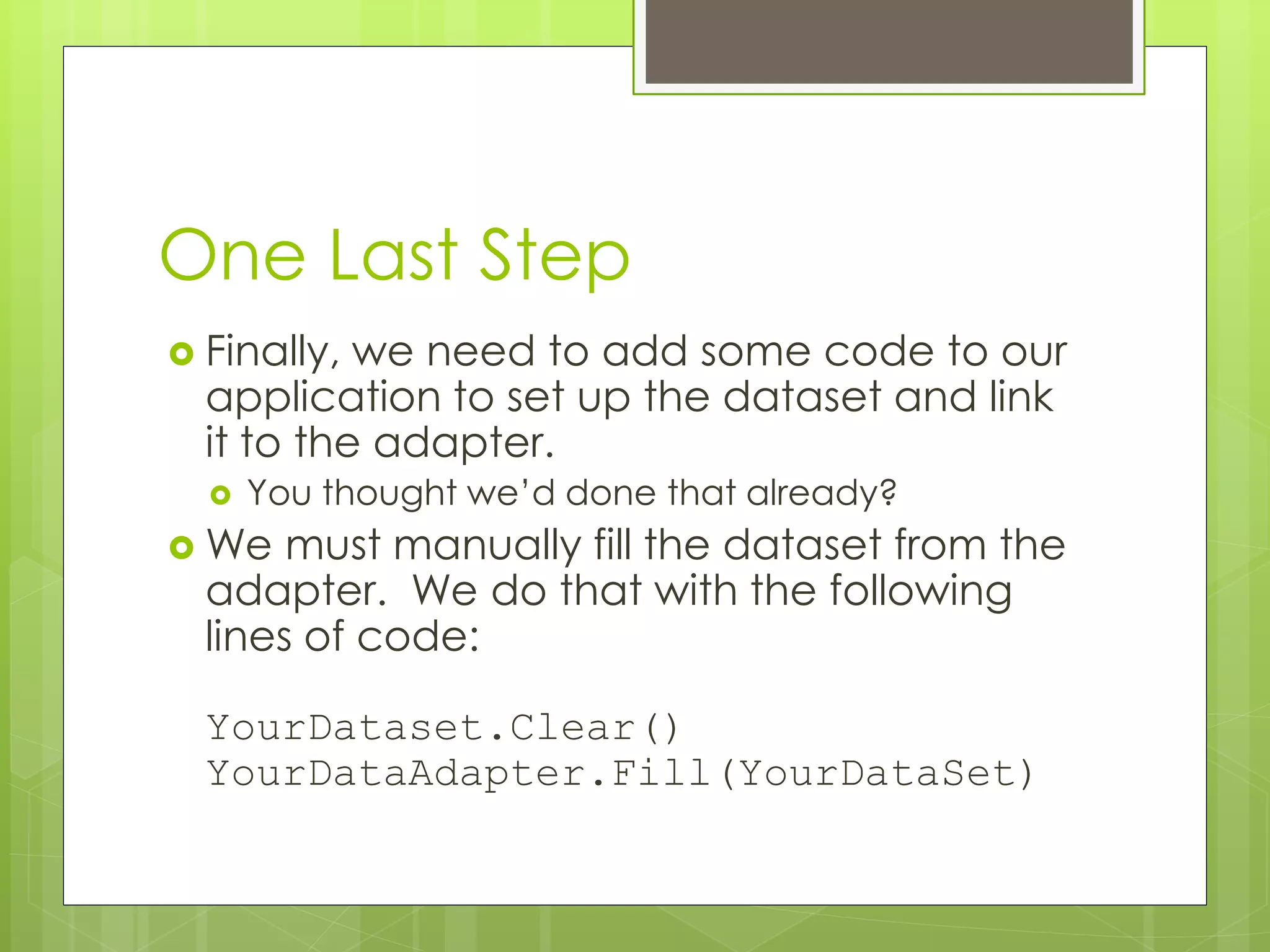

37. One Last Step
 Finally, we need to add some code to our
application to set up the dataset and link
it to the adapter.
 You thought we’d done that already?
 We must manually fill the dataset from the
adapter. We do that with the following
lines of code:
YourDataset.Clear()
YourDataAdapter.Fill(YourDataSet)

38. One Last Step
 For example, with a dataset called
dsMyStuff and a data adapter called
OleDBDataAdapter1:
dsMyStuff.Clear()
OleDBDataAdapter1.Fill (dsMyStuff)
 Where you do this depends on when you
want the dataset filled.
 In the load event of a form is good if you
want it done immediately.

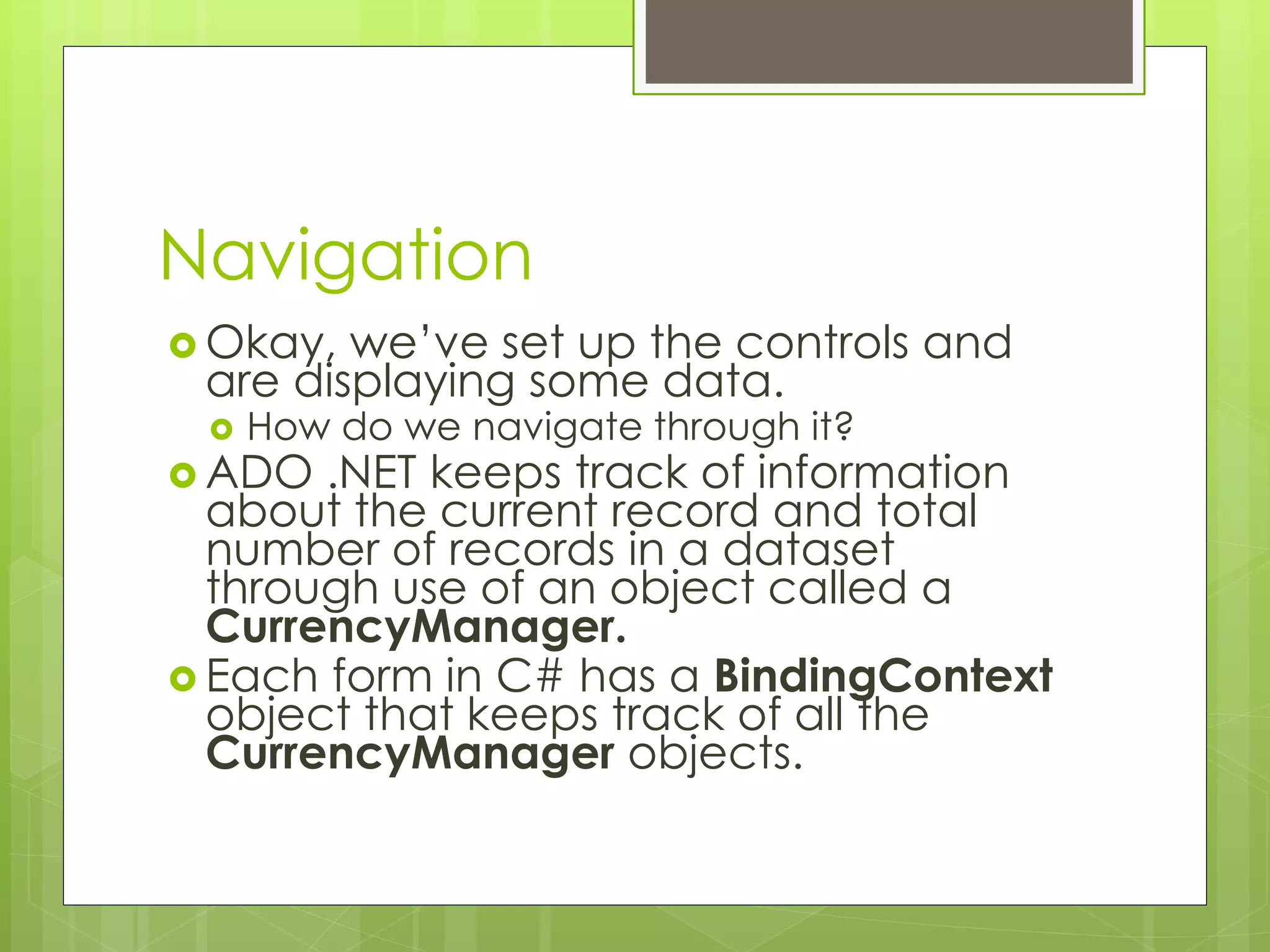

39. Navigation
 Okay, we’ve set up the controls and
are displaying some data.
 How do we navigate through it?
 ADO .NET keeps track of information
about the current record and total
number of records in a dataset
through use of an object called a
CurrencyManager.
 Each form in C# has a BindingContext
object that keeps track of all the
CurrencyManager objects.

40. Navigation
 The specifics of this are unimportant.
 All we want to know is ‘how to we
navigate through records?’.
 Despite the complex structure, the code
to navigate through controls is pretty
simple.
 We can access the BindingContext for a
dataset on a form using the this keyword.

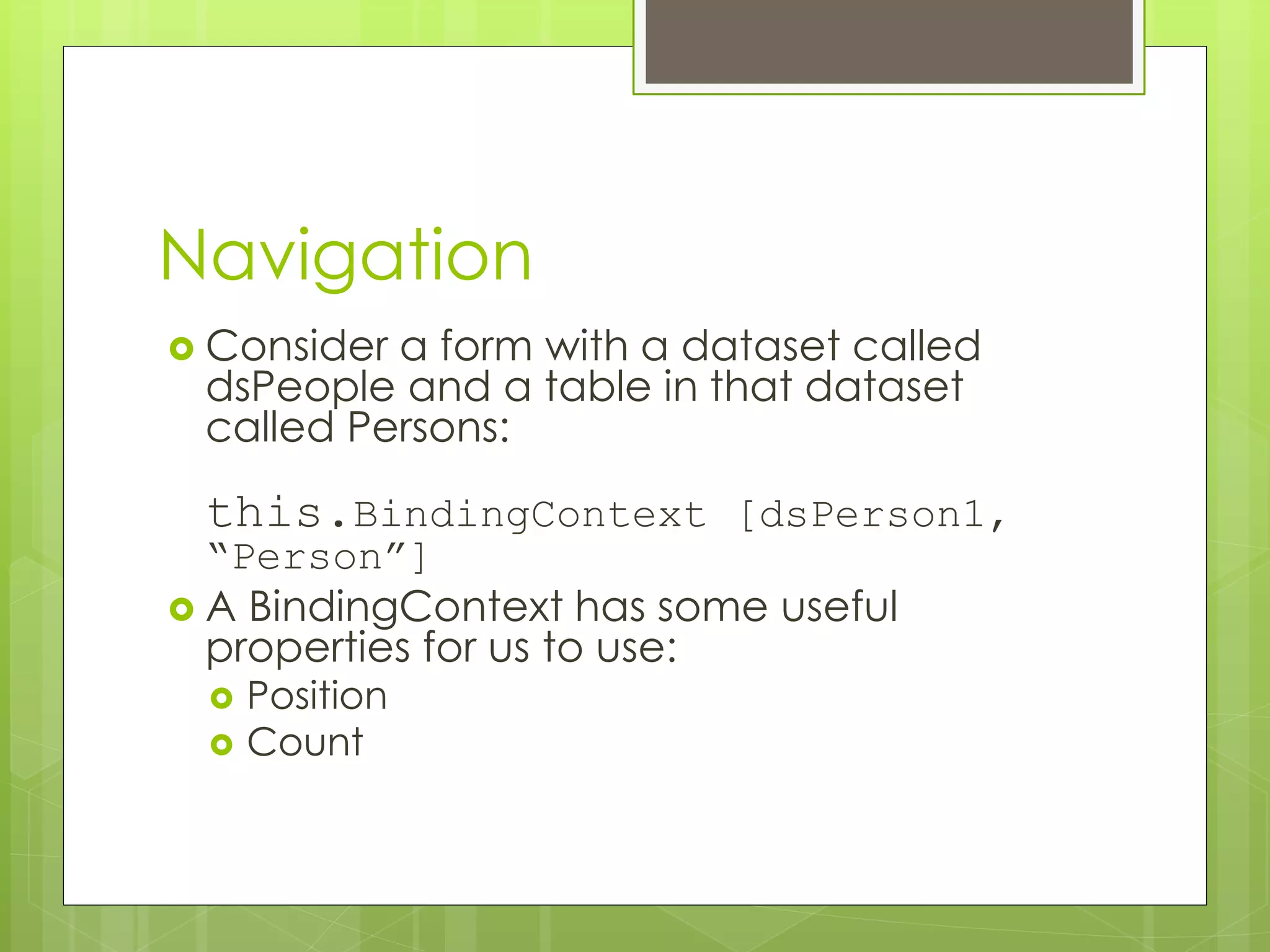

41. Navigation
 Consider a form with a dataset called
dsPeople and a table in that dataset
called Persons:
this.BindingContext [dsPerson1,
“Person”]
 A BindingContext has some useful
properties for us to use:
 Position
 Count

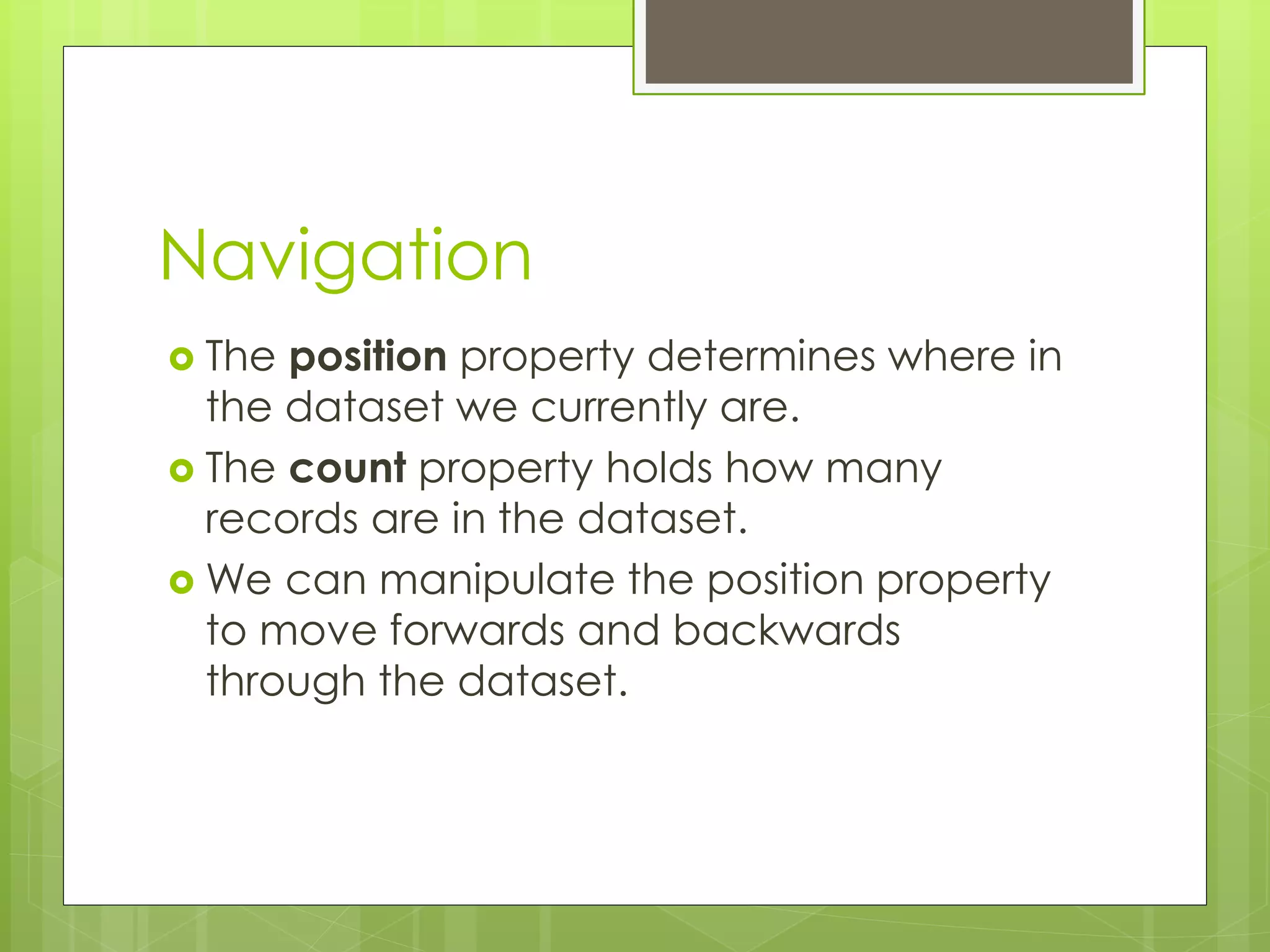

42. Navigation
 The position property determines where in
the dataset we currently are.
 The count property holds how many
records are in the dataset.
 We can manipulate the position property
to move forwards and backwards
through the dataset.

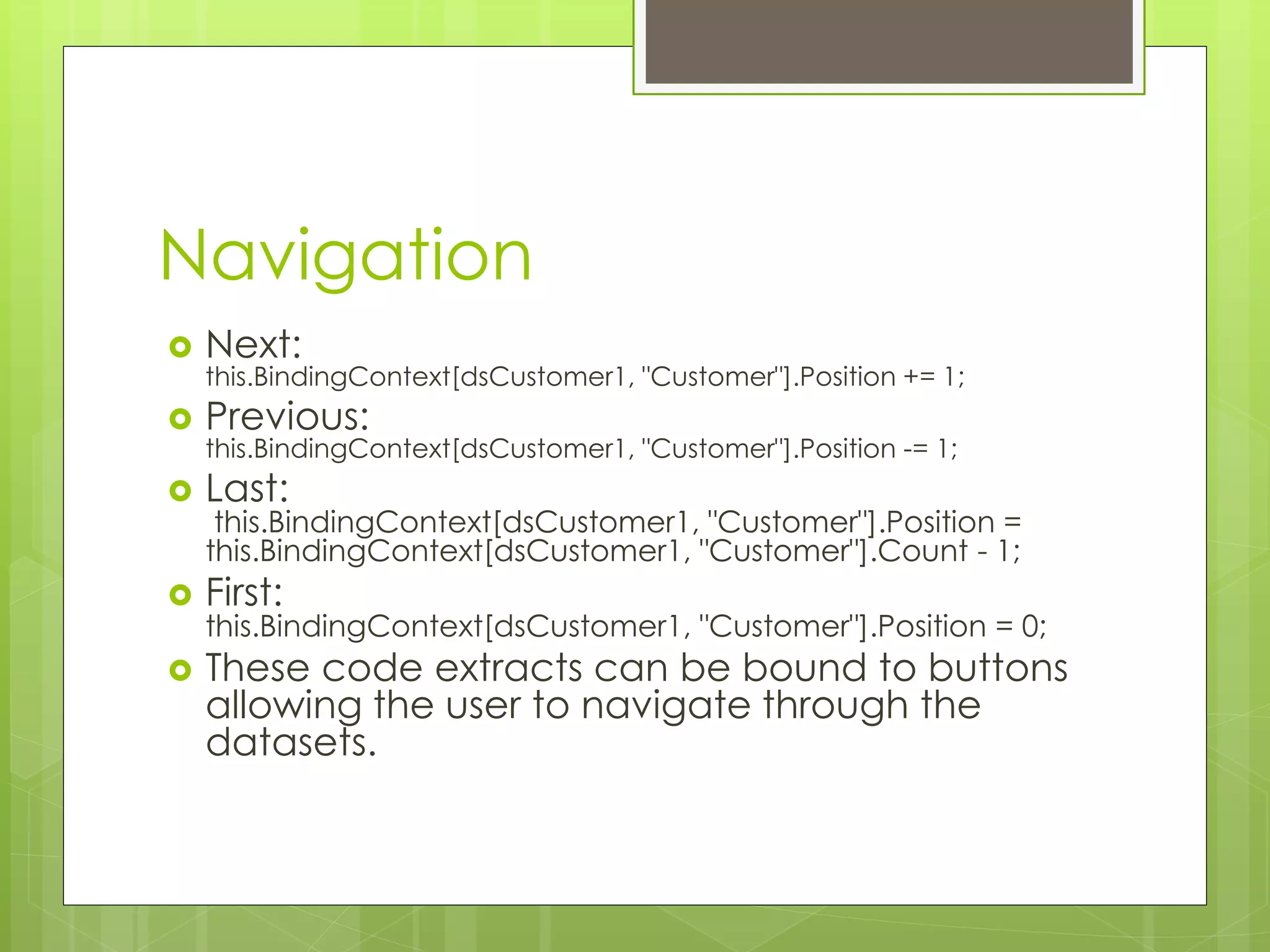

43. Navigation
 Next:
this.BindingContext[dsCustomer1, "Customer"].Position += 1;
 Previous:
this.BindingContext[dsCustomer1, "Customer"].Position -= 1;
 Last:
this.BindingContext[dsCustomer1, "Customer"].Position =
this.BindingContext[dsCustomer1, "Customer"].Count - 1;
 First:
this.BindingContext[dsCustomer1, "Customer"].Position = 0;
 These code extracts can be bound to buttons
allowing the user to navigate through the
datasets.

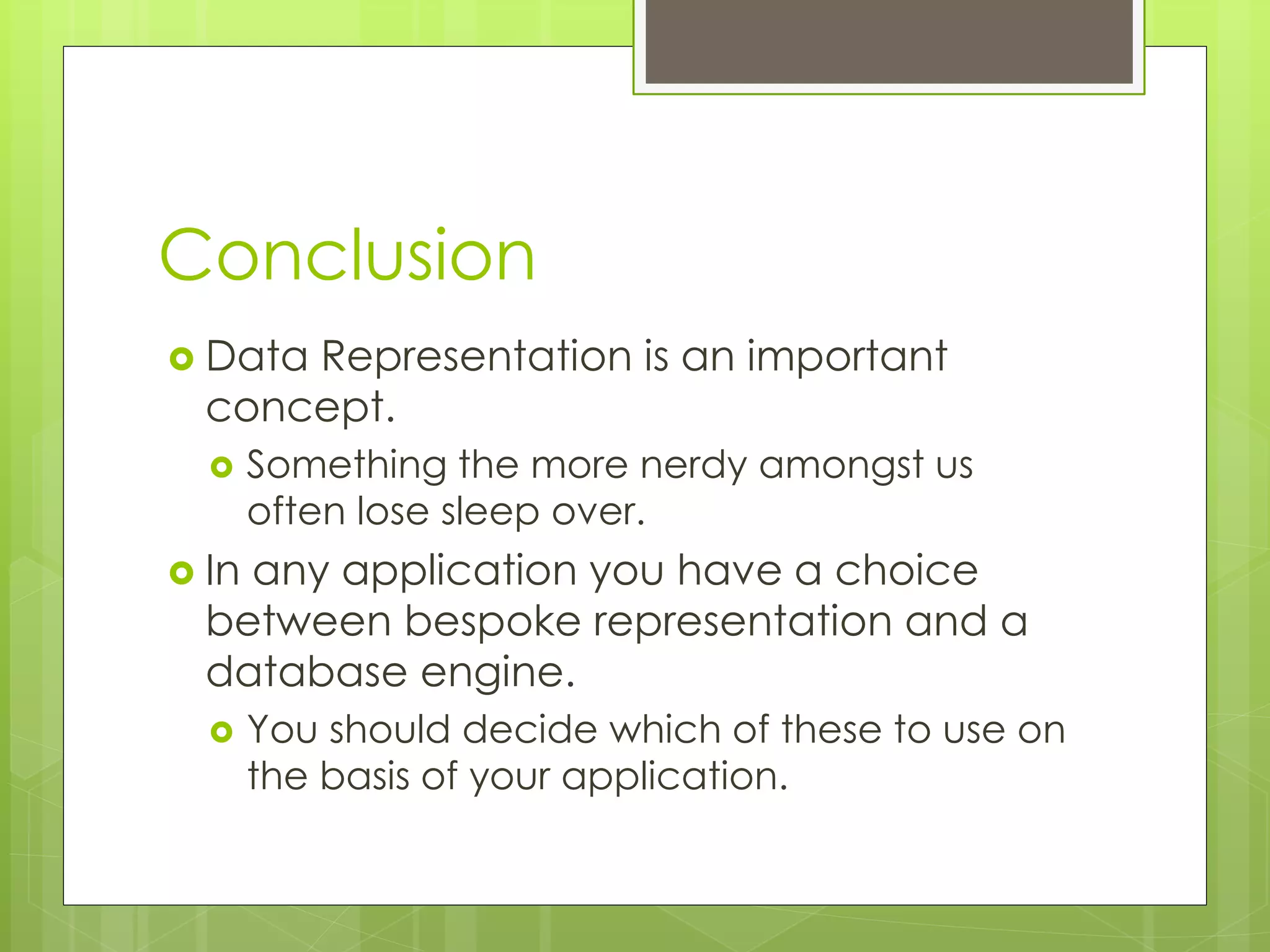

44. Conclusion
 Data Representation is an important
concept.
 Something the more nerdy amongst us
often lose sleep over.
 In any application you have a choice
between bespoke representation and a
database engine.
 You should decide which of these to use on
the basis of your application.
