1. ADO.NET & Data Persistence
Frameworks

2. Overview
Serialization
ADO.NET
Data Tier Approaches

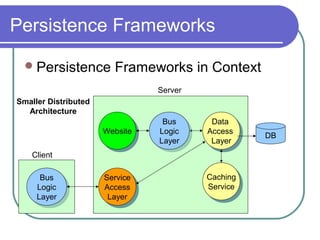

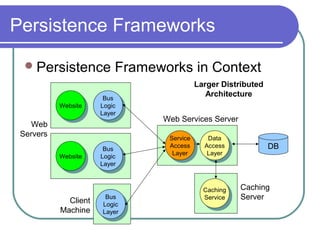

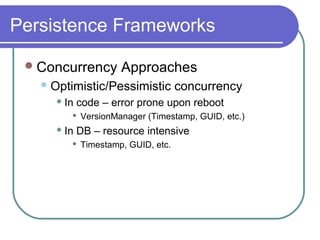

Persistence Frameworks

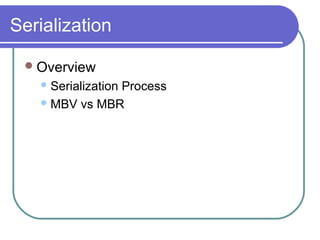

3. Serialization
Overview
Serialization Process
MBV vs MBR

4. Serialization

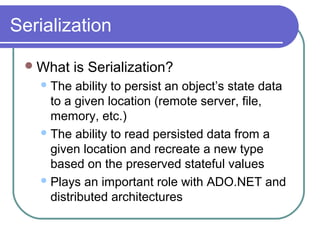

What is Serialization?
The ability to persist an object’s state data
to a given location (remote server, file,
memory, etc.)
The ability to read persisted data from a
given location and recreate a new type
based on the preserved stateful values
Plays an important role with ADO.NET and
distributed architectures

5. Serialization

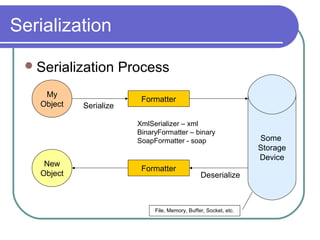

Serialization Process
My
Object
Some
Storage
Device
New
Object
Formatter
Formatter
File, Memory, Buffer, Socket, etc.
Serialize
Deserialize
XmlSerializer – xml
BinaryFormatter – binary
SoapFormatter - soap

6. Serialization
Serialization is used by .NET Remoting
and .NET Web Services to send objects
back and forth

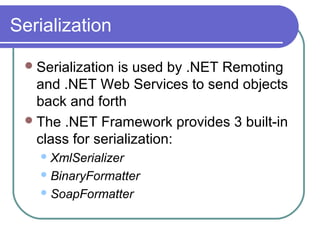

The .NET Framework provides 3 built-in
class for serialization:
XmlSerializer
BinaryFormatter
SoapFormatter

7. Serialization

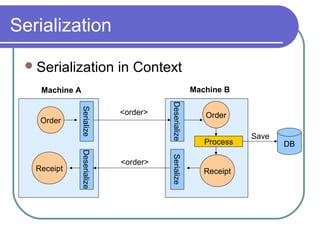

Serialization in Context
Order
Serialize
Deserialize
Order
Serialize
Deserialize
Process
ReceiptReceipt
Machine A Machine B
<order>
<order>
DB
Save

8. Serialization

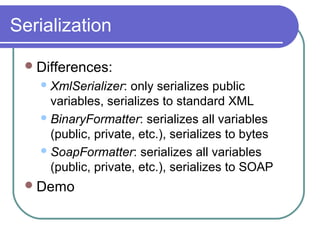

Differences:
XmlSerializer: only serializes public
variables, serializes to standard XML
BinaryFormatter: serializes all variables
(public, private, etc.), serializes to bytes
SoapFormatter: serializes all variables
(public, private, etc.), serializes to SOAP
Demo

9. Serialization
 Implications:
 BinaryFormatter is the fastest
 XmlSerializer is normally second fastest (depends
on the amount of non-public variables)
 SoapSerializer is normally the slowest
 XmlSerializer should be used for multi-
platform/language clients (used by Web Services)
 BinaryFormatter / SoapFormatter is targeted for
.NET environments

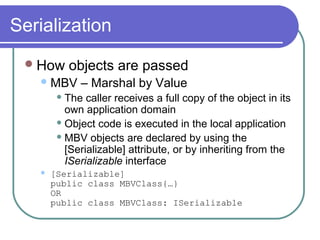

10. Serialization
How objects are passed
MBV – Marshal by Value
 The caller receives a full copy of the object in its
own application domain
 Object code is executed in the local application
 MBV objects are declared by using the
[Serializable] attribute, or by inheriting from the
ISerializable interface
 [Serializable]
public class MBVClass{…}
OR
public class MBVClass: ISerializable

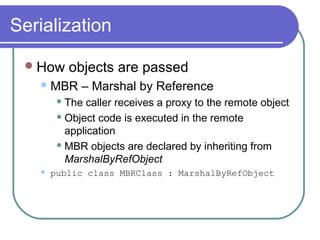

11. Serialization
How objects are passed
MBR – Marshal by Reference
 The caller receives a proxy to the remote object
 Object code is executed in the remote
application
 MBR objects are declared by inheriting from
MarshalByRefObject
 public class MBRClass : MarshalByRefObject

12. Serialization

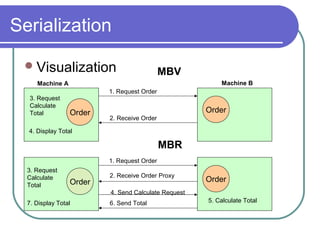

Visualization
Order Order
1. Request Order
2. Receive Order
Order Order
1. Request Order
2. Receive Order Proxy
3. Request
Calculate
Total
3. Request
Calculate
Total
4. Display Total
5. Calculate Total
4. Send Calculate Request
6. Send Total7. Display Total
MBV
MBR
Machine A Machine B

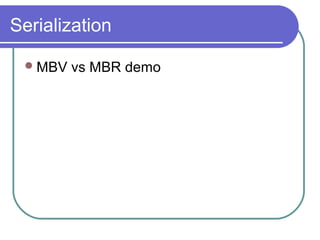

13. Serialization
MBV vs MBR demo

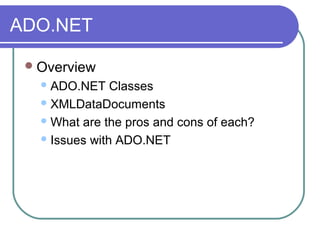

14. ADO.NET
Overview
ADO.NET Classes
XMLDataDocuments
What are the pros and cons of each?
Issues with ADO.NET

15. ADO.NET

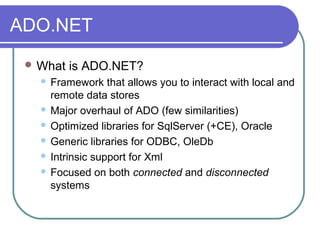

 What is ADO.NET?
 Framework that allows you to interact with local and
remote data stores
 Major overhaul of ADO (few similarities)
 Optimized libraries for SqlServer (+CE), Oracle
 Generic libraries for ODBC, OleDb
 Intrinsic support for Xml
 Focused on both connected and disconnected
systems

16. ADO.NET
High-Level View
IDbDataAdapter IDbCommand IDataReader
IDbConnection
DB
Client
A managed provider implements
these interfaces to provide access
to a specific type of data store
DataSet
In-Memory Disconnected

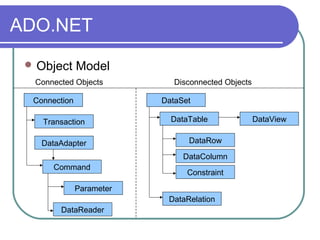

17. ADO.NET
 Object Model
Connection
Transaction
DataAdapter
Command
Parameter
DataReader
DataSet
DataTable
DataRow
DataColumn
Constraint
DataRelation
DataView
Connected Objects Disconnected Objects

18. ADO.NET

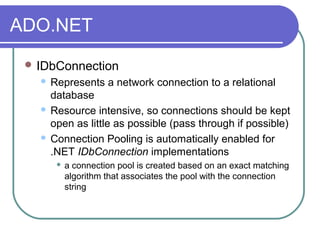

 IDbConnection
 Represents a network connection to a relational
database
 Resource intensive, so connections should be kept
open as little as possible (pass through if possible)
 Connection Pooling is automatically enabled for
.NET IDbConnection implementations
 a connection pool is created based on an exact matching
algorithm that associates the pool with the connection
string

19. ADO.NET

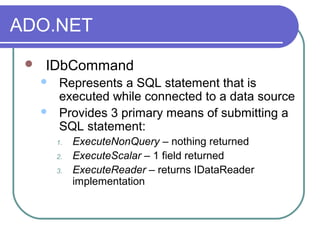

 IDbCommand
 Represents a SQL statement that is
executed while connected to a data source
 Provides 3 primary means of submitting a
SQL statement:
1. ExecuteNonQuery – nothing returned
2. ExecuteScalar – 1 field returned
3. ExecuteReader – returns IDataReader
implementation

20. ADO.NET

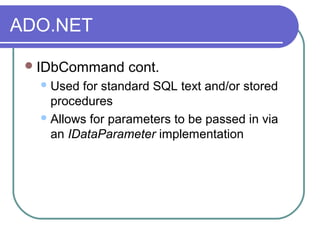

IDbCommand cont.
Used for standard SQL text and/or stored
procedures
Allows for parameters to be passed in via
an IDataParameter implementation

21. ADO.NET

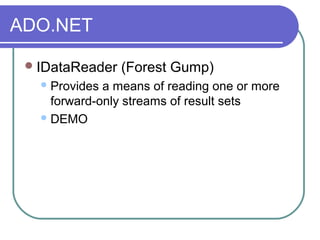

IDataReader (Forest Gump)
Provides a means of reading one or more
forward-only streams of result sets
DEMO

22. ADO.NET

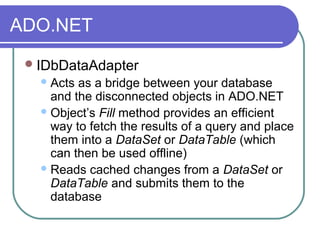

IDbDataAdapter
Acts as a bridge between your database
and the disconnected objects in ADO.NET
Object’s Fill method provides an efficient
way to fetch the results of a query and place
them into a DataSet or DataTable (which
can then be used offline)
Reads cached changes from a DataSet or
DataTable and submits them to the
database

23. ADO.NET
DataTable
One of the central objects in ADO.NET
Used by DataSet, DataView, etc.
Represents one table of data in-memory
Allows you to:
 Fetch data from a DB and store it in a DataTable
 Disconnect from the DB and work with the
DataTable offline
 Reconnect and synchronize changes

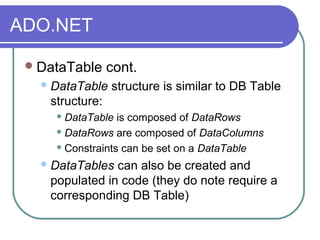

24. ADO.NET
DataTable cont.
DataTable structure is similar to DB Table
structure:
 DataTable is composed of DataRows
 DataRows are composed of DataColumns
 Constraints can be set on a DataTable
DataTables can also be created and
populated in code (they do note require a
corresponding DB Table)

25. ADO.NET

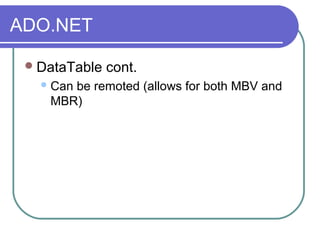

DataTable cont.
Can be remoted (allows for both MBV and
MBR)

26. ADO.NET

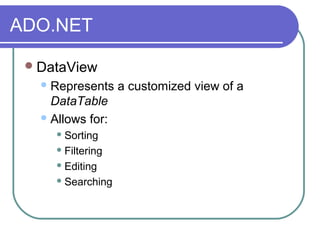

DataView
Represents a customized view of a
DataTable
Allows for:
 Sorting
 Filtering
 Editing
 Searching

27. ADO.NET
DataView cont.

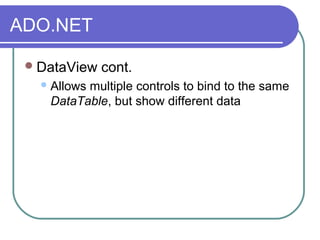

Allows multiple controls to bind to the same
DataTable, but show different data

28. ADO.NET

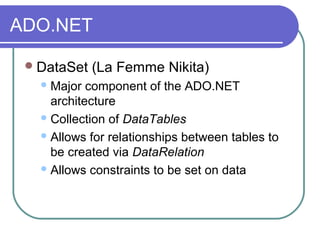

DataSet (La Femme Nikita)
Major component of the ADO.NET
architecture
Collection of DataTables
Allows for relationships between tables to
be created via DataRelation
Allows constraints to be set on data

29. ADO.NET

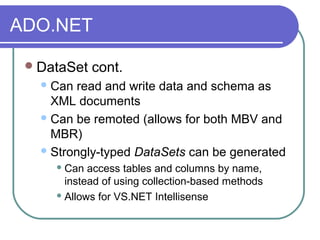

DataSet cont.
Can read and write data and schema as
XML documents
Can be remoted (allows for both MBV and
MBR)
Strongly-typed DataSets can be generated
 Can access tables and columns by name,
instead of using collection-based methods
 Allows for VS.NET Intellisense

30. ADO.NET
DataSet cont.
Ability to merge multiple DataSets
Ability to copy DataSets
Uses DiffGram (XML) to load and persist
changes
DEMO

31. ADO.NET

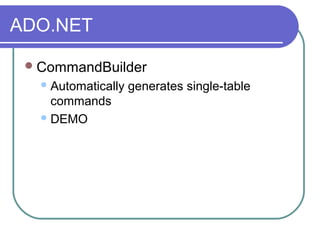

CommandBuilder
Automatically generates single-table
commands
DEMO

32. ADO.NET

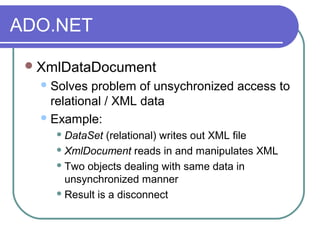

XmlDataDocument
Solves problem of unsychronized access to
relational / XML data
Example:
 DataSet (relational) writes out XML file
 XmlDocument reads in and manipulates XML
 Two objects dealing with same data in
unsynchronized manner
 Result is a disconnect

33. ADO.NET

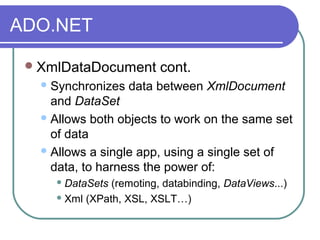

XmlDataDocument cont.
Synchronizes data between XmlDocument
and DataSet
Allows both objects to work on the same set
of data
Allows a single app, using a single set of
data, to harness the power of:
 DataSets (remoting, databinding, DataViews...)
 Xml (XPath, XSL, XSLT…)

34. ADO.NET

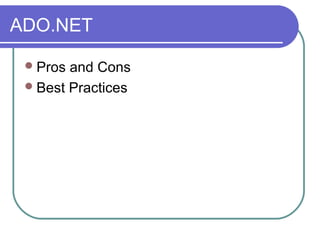

Pros and Cons
Best Practices

35. ADO.NET

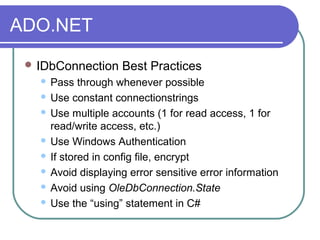

 IDbConnection Best Practices
 Pass through whenever possible
 Use constant connectionstrings
 Use multiple accounts (1 for read access, 1 for
read/write access, etc.)
 Use Windows Authentication
 If stored in config file, encrypt
 Avoid displaying error sensitive error information
 Avoid using OleDbConnection.State
 Use the “using” statement in C#

36. ADO.NET

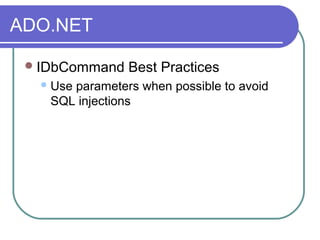

IDbCommand Best Practices
Use parameters when possible to avoid
SQL injections

37. ADO.NET

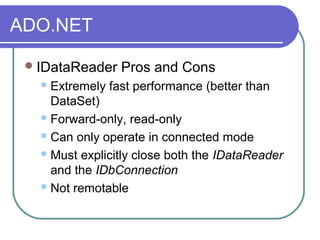

IDataReader Pros and Cons
Extremely fast performance (better than
DataSet)
Forward-only, read-only
Can only operate in connected mode
Must explicitly close both the IDataReader
and the IDbConnection
Not remotable

38. ADO.NET
 IDataReader Best Practices
 Use CommandBehavior.CloseConnection and
CommandBehavior.SequentialAccess when
possible
 Use IDataReader.Get[Type]() whenever possible
(performance boost)
 Call IDataReader.Cancel() if you’re done w/ a
DataSet but still have pending data
 Keep connection time to a minimum
 Use for large volumes of data to avoid memory
footprint

39. ADO.NET

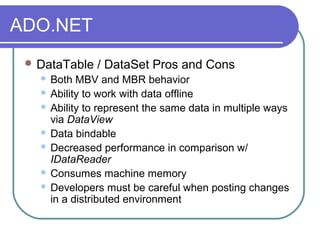

 DataTable / DataSet Pros and Cons
 Both MBV and MBR behavior
 Ability to work with data offline
 Ability to represent the same data in multiple ways
via DataView
 Data bindable
 Decreased performance in comparison w/
IDataReader
 Consumes machine memory
 Developers must be careful when posting changes
in a distributed environment

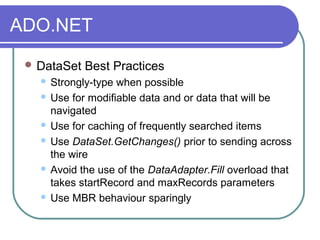

40. ADO.NET
 DataSet Best Practices
 Strongly-type when possible
 Use for modifiable data and or data that will be
navigated
 Use for caching of frequently searched items
 Use DataSet.GetChanges() prior to sending across
the wire
 Avoid the use of the DataAdapter.Fill overload that
takes startRecord and maxRecords parameters
 Use MBR behaviour sparingly

41. ADO.NET

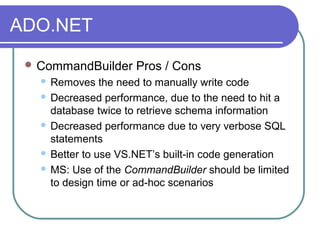

 CommandBuilder Pros / Cons
 Removes the need to manually write code
 Decreased performance, due to the need to hit a
database twice to retrieve schema information
 Decreased performance due to very verbose SQL
statements
 Better to use VS.NET’s built-in code generation
 MS: Use of the CommandBuilder should be limited
to design time or ad-hoc scenarios

42. ADO.NET

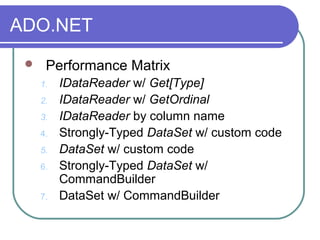

 Performance Matrix
1. IDataReader w/ Get[Type]
2. IDataReader w/ GetOrdinal
3. IDataReader by column name
4. Strongly-Typed DataSet w/ custom code
5. DataSet w/ custom code
6. Strongly-Typed DataSet w/
CommandBuilder
7. DataSet w/ CommandBuilder

43. ADO.NET

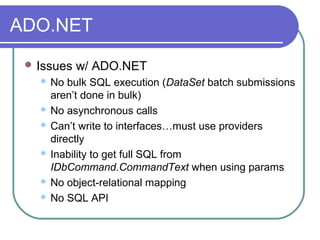

 Issues w/ ADO.NET
 No bulk SQL execution (DataSet batch submissions
aren’t done in bulk)
 No asynchronous calls
 Can’t write to interfaces…must use providers
directly
 Inability to get full SQL from
IDbCommand.CommandText when using params
 No object-relational mapping
 No SQL API

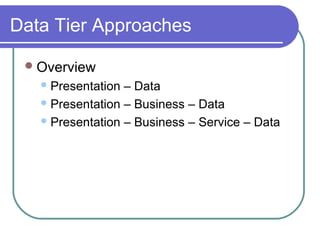

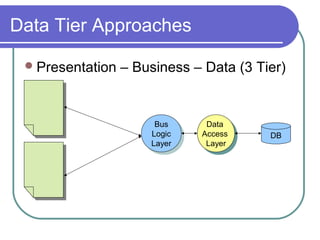

44. Data Tier Approaches
Overview
Presentation – Data

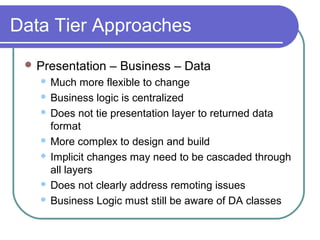

Presentation – Business – Data

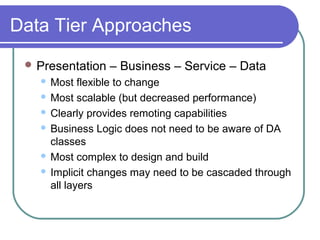

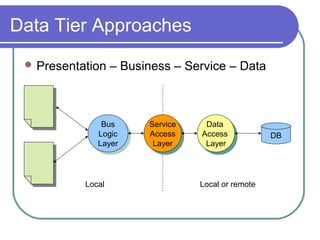

Presentation – Business – Service – Data

45. Data Tier Approaches

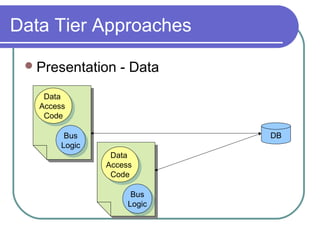

Presentation - Data
Data
Access
Code
Data
Access
Code
DBBus
Logic
Bus
Logic
Data
Access
Code
Data
Access
Code
Bus
Logic
Bus
Logic

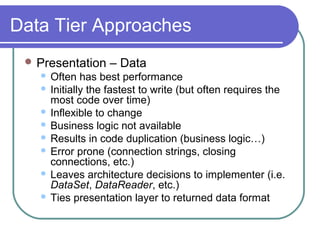

46. Data Tier Approaches
 Presentation – Data
 Often has best performance
 Initially the fastest to write (but often requires the
most code over time)
 Inflexible to change
 Business logic not available
 Results in code duplication (business logic…)
 Error prone (connection strings, closing
connections, etc.)
 Leaves architecture decisions to implementer (i.e.
DataSet, DataReader, etc.)
 Ties presentation layer to returned data format

47. Data Tier Approaches

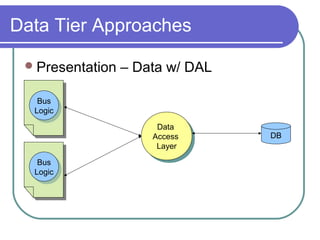

Presentation – Data w/ DAL
Data
Access
Layer
Data
Access
Layer
DB
Bus
Logic
Bus
Logic
Bus
Logic
Bus
Logic

48. Data Tier Approaches
Presentation – Data w/ DAL
Requires less code
Somewhat flexible to change
Business logic not available
Results in code duplication (business
logic…)
Ties presentation layer to returned data
format

49. Data Tier Approaches
Presentation – Business – Data (3 Tier)
Data
Access
Layer
Data
Access
Layer
DB
Bus
Logic
Layer
Bus
Logic
Layer

50. Data Tier Approaches
 Presentation – Business – Data
 Much more flexible to change
 Business logic is centralized
 Does not tie presentation layer to returned data
format
 More complex to design and build
 Implicit changes may need to be cascaded through
all layers
 Does not clearly address remoting issues
 Business Logic must still be aware of DA classes

51. Data Tier Approaches
 Presentation – Business – Service – Data
Data
Access
Layer
Data
Access
Layer
DB
Bus
Logic
Layer
Bus
Logic
Layer
Service
Access
Layer
Service
Access
Layer
Local Local or remote

52. Data Tier Approaches
 Presentation – Business – Service – Data
 Most flexible to change
 Most scalable (but decreased performance)
 Clearly provides remoting capabilities
 Business Logic does not need to be aware of DA
classes
 Most complex to design and build
 Implicit changes may need to be cascaded through
all layers

53. Persistence Frameworks

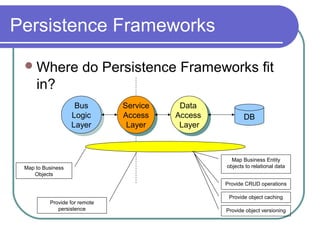

Where do Persistence Frameworks fit
in?
Data
Access
Layer
Data
Access
Layer
DB
Bus
Logic
Layer
Bus
Logic
Layer
Service
Access
Layer
Service
Access
Layer
Map Business Entity
objects to relational data
Provide CRUD operations
Provide object caching
Provide object versioning
Provide for remote
persistence
Map to Business
Objects

54. Persistence Frameworks

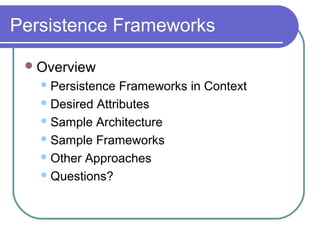

Overview
Persistence Frameworks in Context
Desired Attributes
Sample Architecture
Sample Frameworks
Other Approaches
Questions?

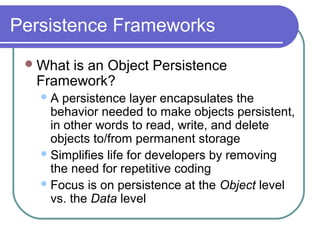

55. Persistence Frameworks
What is an Object Persistence
Framework?
A persistence layer encapsulates the
behavior needed to make objects persistent,
in other words to read, write, and delete
objects to/from permanent storage
Simplifies life for developers by removing
the need for repetitive coding
Focus is on persistence at the Object level
vs. the Data level

56. Persistence Frameworks
Persistence Frameworks in Context
Data
Access
Layer
Data
Access
Layer
Service
Access
Layer
Service
Access
Layer
DBWebsiteWebsite
Caching
Service
Caching
Service
Bus
Logic
Layer
Bus
Logic
Layer
Bus
Logic
Layer
Bus
Logic
Layer
Smaller Distributed
Architecture
Client
Server

57. Persistence Frameworks
Persistence Frameworks in Context
DB
WebsiteWebsite
Larger Distributed
Architecture
Caching
Server
Bus
Logic
Layer
Bus
Logic
Layer
Service
Access
Layer
Service
Access
Layer
Data
Access
Layer
Data
Access
Layer
Caching
Service
Caching
Service
WebsiteWebsite
Bus
Logic
Layer
Bus
Logic
Layer
Bus
Logic
Layer
Bus
Logic
Layer
Web Services Server
Client
Machine
Web
Servers

58. Persistence Frameworks

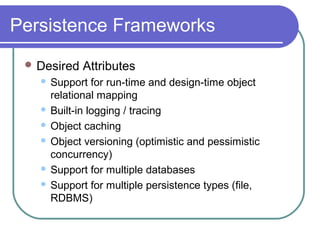

 Desired Attributes
 Support for run-time and design-time object
relational mapping
 Built-in logging / tracing
 Object caching
 Object versioning (optimistic and pessimistic
concurrency)
 Support for multiple databases
 Support for multiple persistence types (file,
RDBMS)

59. Persistence Frameworks

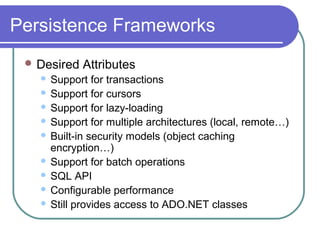

 Desired Attributes
 Support for transactions
 Support for cursors
 Support for lazy-loading
 Support for multiple architectures (local, remote…)
 Built-in security models (object caching
encryption…)
 Support for batch operations
 SQL API
 Configurable performance
 Still provides access to ADO.NET classes

60. Persistence Frameworks
Sample Architecture

61. Persistence Frameworks

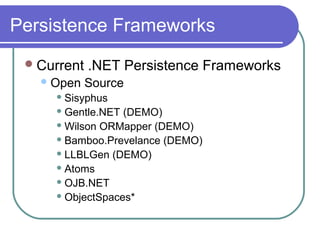

Current .NET Persistence Frameworks
Open Source
 Sisyphus
 Gentle.NET (DEMO)
 Wilson ORMapper (DEMO)
 Bamboo.Prevelance (DEMO)
 LLBLGen (DEMO)
 Atoms
 OJB.NET
 ObjectSpaces*

62. Persistence Frameworks

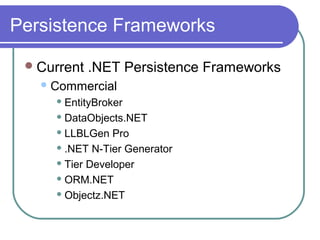

Current .NET Persistence Frameworks
Commercial
 EntityBroker
 DataObjects.NET
 LLBLGen Pro
 .NET N-Tier Generator
 Tier Developer
 ORM.NET
 Objectz.NET

63. Persistence Frameworks
Other Approaches
Poly Model (.NET Patterns)
Business Object JumpStart (Developing
.NET Enterprise Applications)
Serialize object to DB

64. Persistence Frameworks

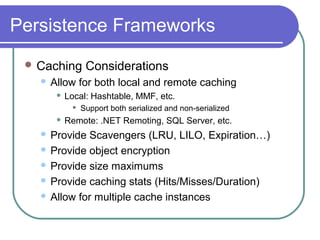

 Caching Considerations
 Allow for both local and remote caching
 Local: Hashtable, MMF, etc.
 Support both serialized and non-serialized
 Remote: .NET Remoting, SQL Server, etc.
 Provide Scavengers (LRU, LILO, Expiration…)
 Provide object encryption
 Provide size maximums
 Provide caching stats (Hits/Misses/Duration)
 Allow for multiple cache instances

65. Persistence Frameworks
Concurrency Approaches
Optimistic/Pessimistic concurrency
 In code – error prone upon reboot
 VersionManager (Timestamp, GUID, etc.)
 In DB – resource intensive
 Timestamp, GUID, etc.

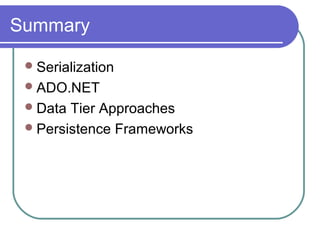

66. Summary
Serialization
ADO.NET
Data Tier Approaches
Persistence Frameworks

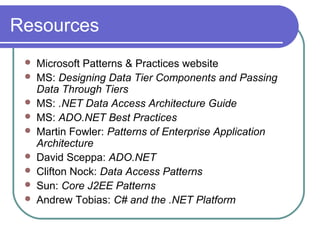

67. Resources
 Microsoft Patterns & Practices website
 MS: Designing Data Tier Components and Passing
Data Through Tiers
 MS: .NET Data Access Architecture Guide
 MS: ADO.NET Best Practices
 Martin Fowler: Patterns of Enterprise Application
Architecture
 David Sceppa: ADO.NET
 Clifton Nock: Data Access Patterns
 Sun: Core J2EE Patterns
 Andrew Tobias: C# and the .NET Platform
