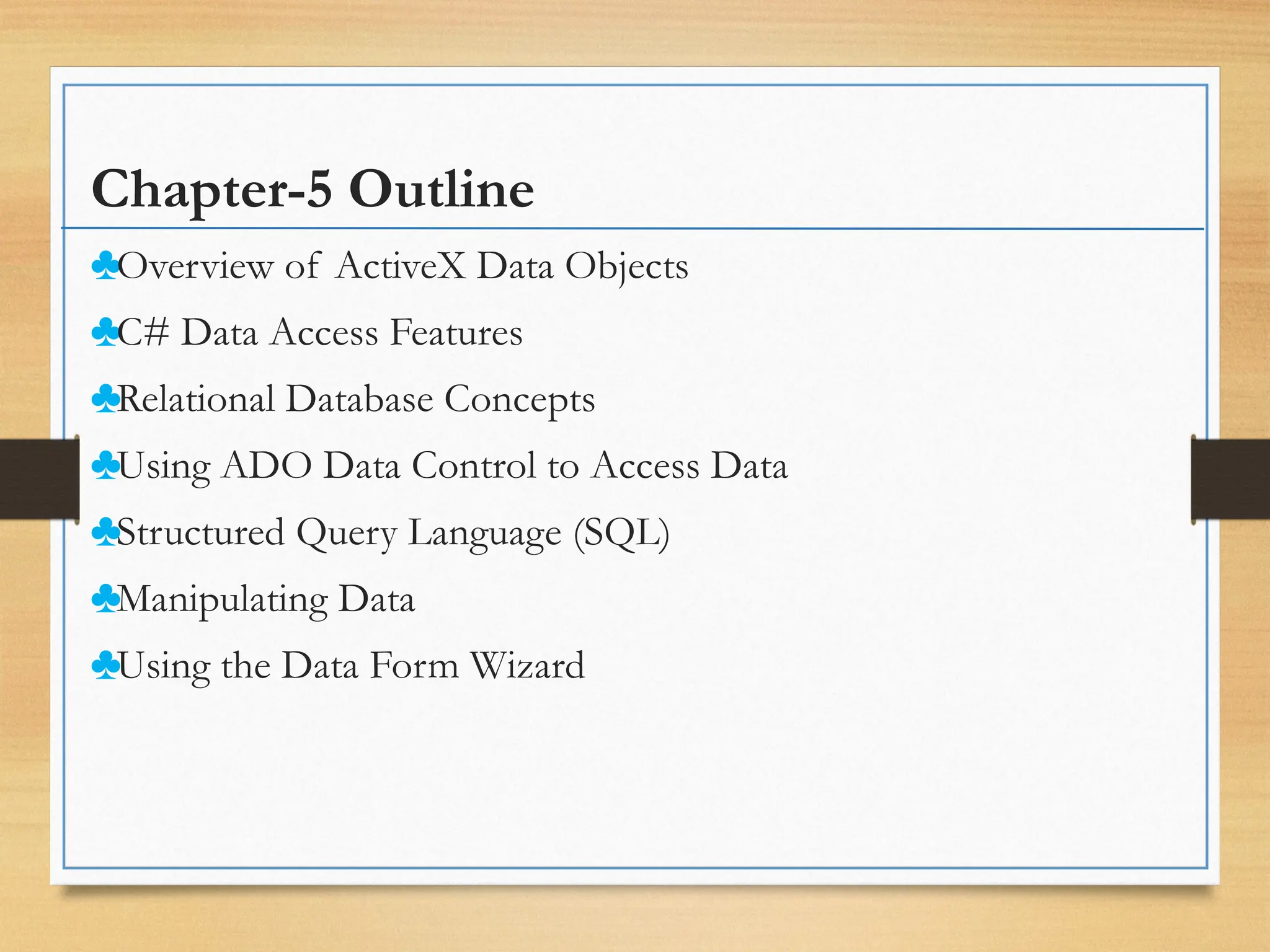

1. Chapter-5 Outline
♣Overview of ActiveX Data Objects
♣C# Data Access Features
♣Relational Database Concepts
♣Using ADO Data Control to Access Data
♣Structured Query Language (SQL)
♣Manipulating Data
♣Using the Data Form Wizard

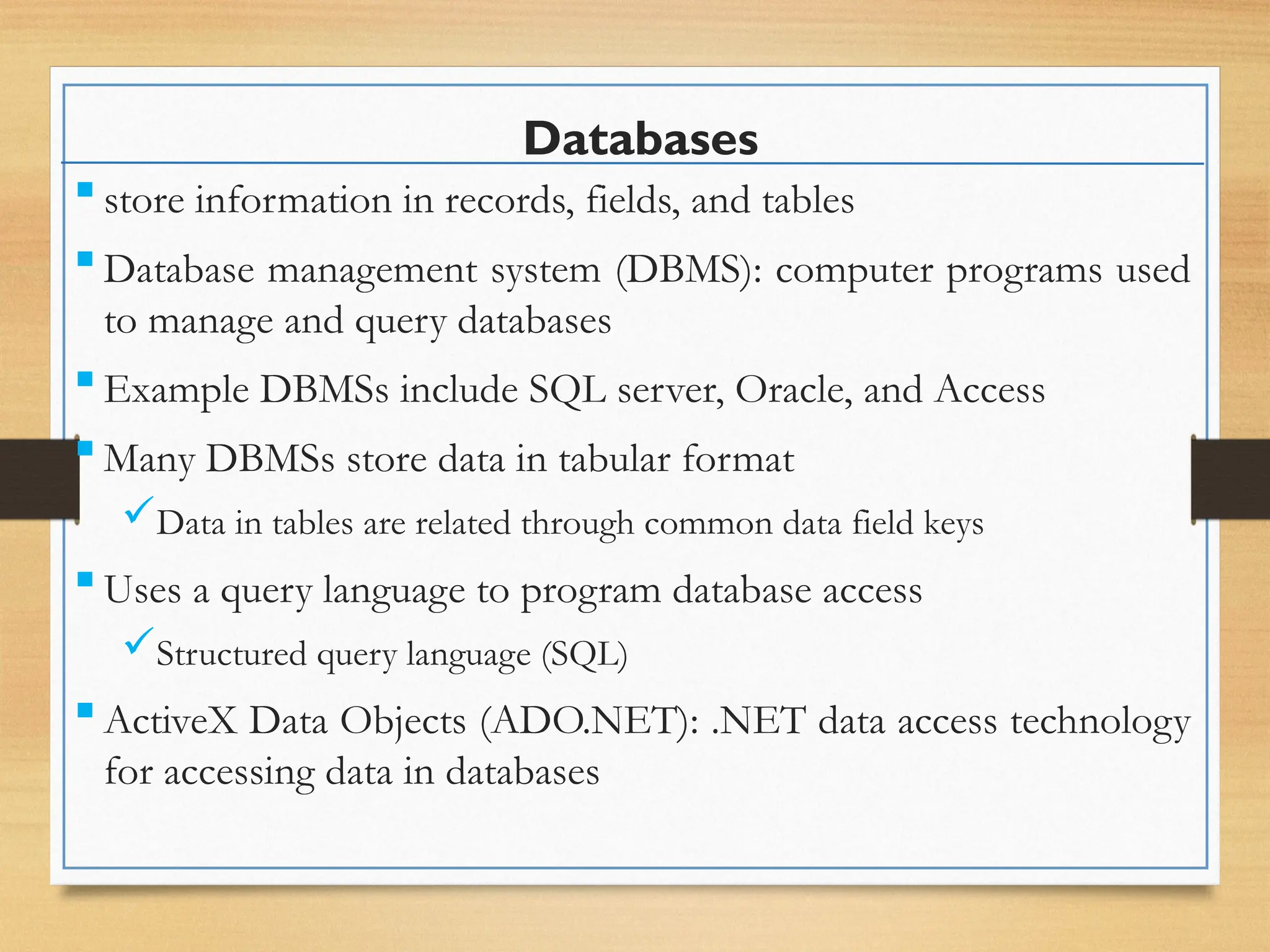

2. Databases
 store information in records, fields, and tables
 Database management system (DBMS): computer programs used
to manage and query databases
 Example DBMSs include SQL server, Oracle, and Access
 Many DBMSs store data in tabular format
Data in tables are related through common data field keys
 Uses a query language to program database access
Structured query language (SQL)
 ActiveX Data Objects (ADO.NET): .NET data access technology
for accessing data in databases

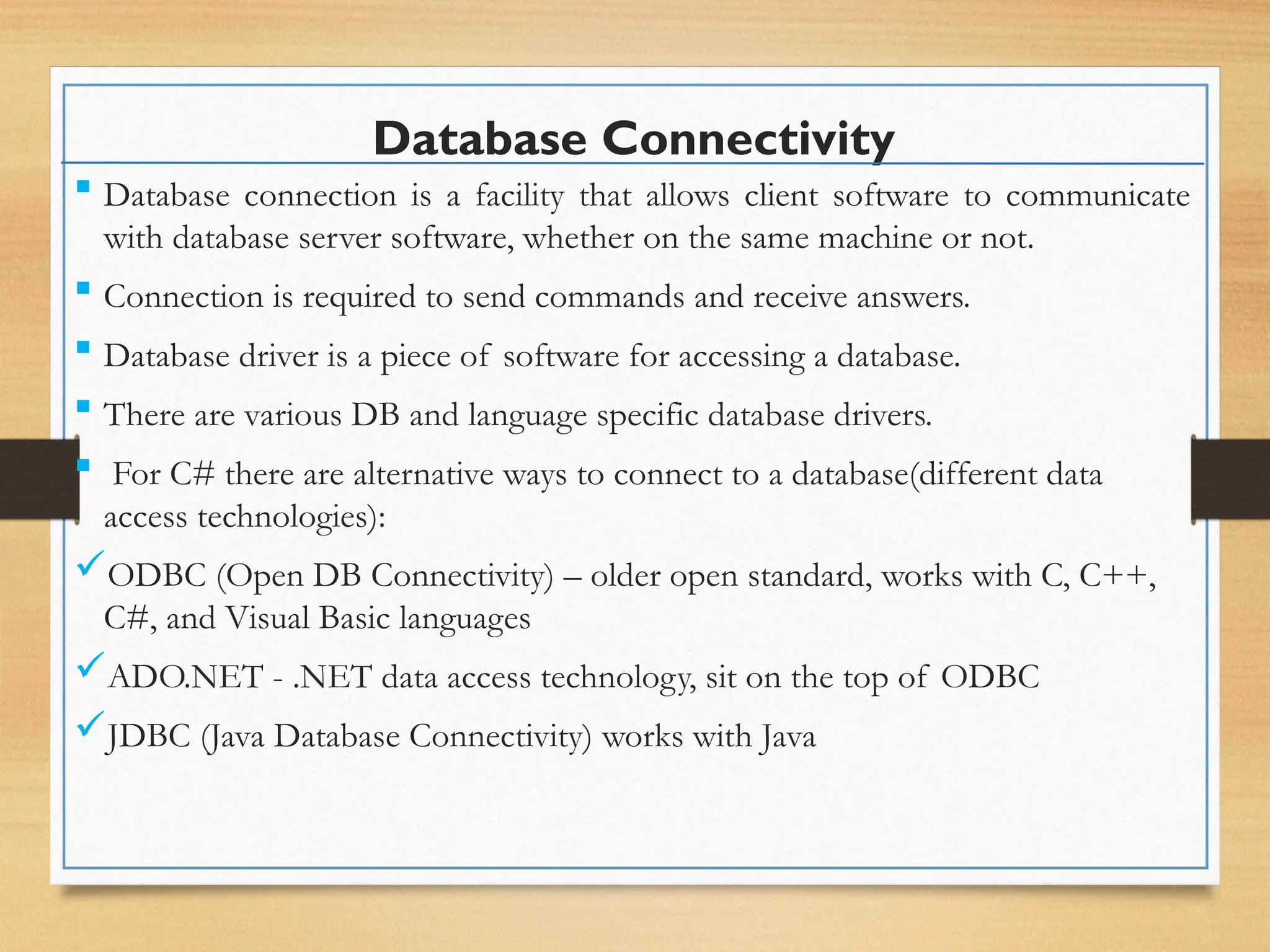

3. Database Connectivity
 Database connection is a facility that allows client software to communicate
with database server software, whether on the same machine or not.
 Connection is required to send commands and receive answers.
 Database driver is a piece of software for accessing a database.
 There are various DB and language specific database drivers.
 For C# there are alternative ways to connect to a database(different data
access technologies):
ODBC (Open DB Connectivity) – older open standard, works with C, C++,
C#, and Visual Basic languages
ADO.NET - .NET data access technology, sit on the top of ODBC
JDBC (Java Database Connectivity) works with Java

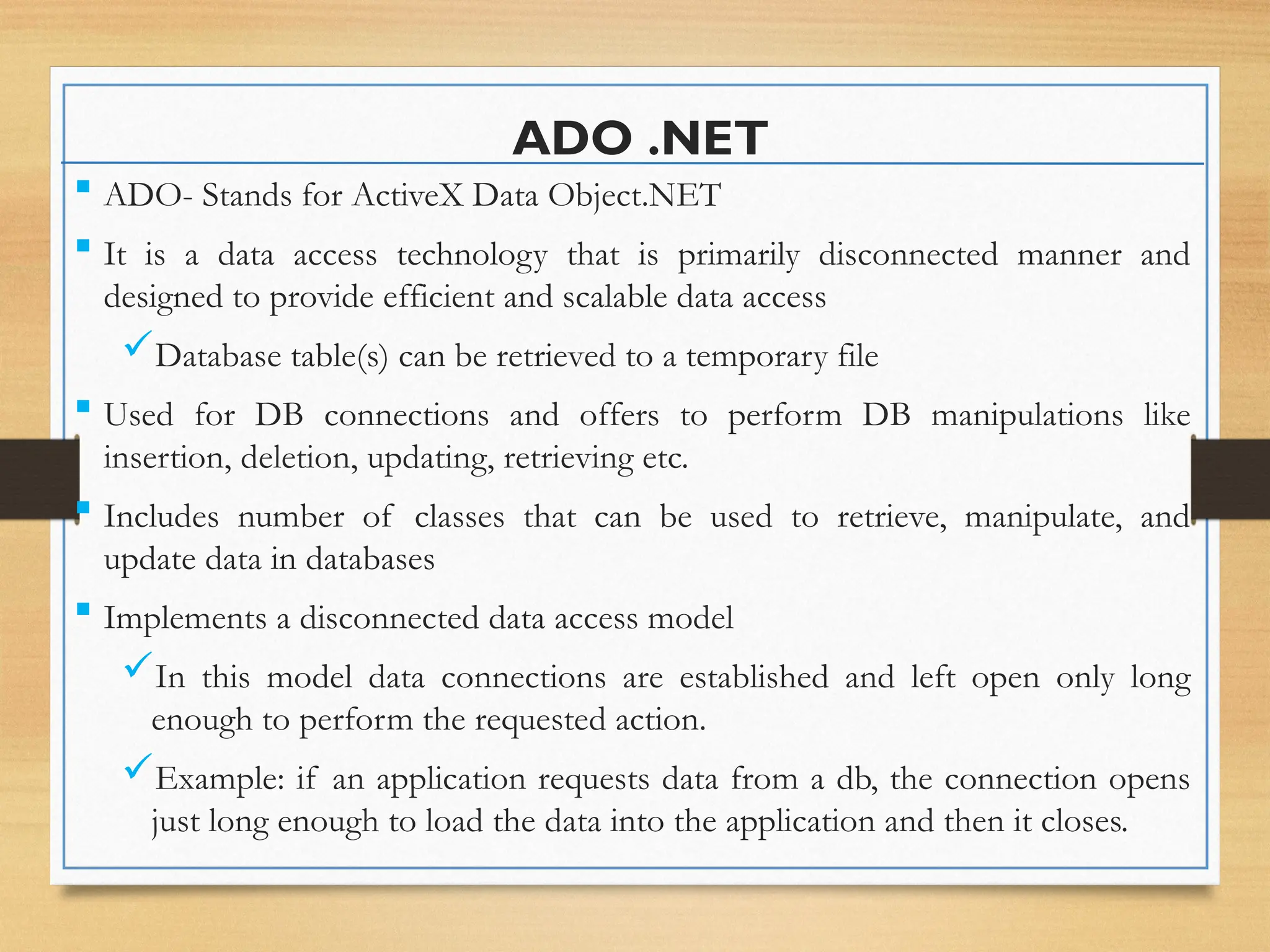

4. ADO .NET
 ADO- Stands for ActiveX Data Object.NET
 It is a data access technology that is primarily disconnected manner and
designed to provide efficient and scalable data access
Database table(s) can be retrieved to a temporary file
 Used for DB connections and offers to perform DB manipulations like
insertion, deletion, updating, retrieving etc.
 Includes number of classes that can be used to retrieve, manipulate, and
update data in databases
 Implements a disconnected data access model
In this model data connections are established and left open only long
enough to perform the requested action.
Example: if an application requests data from a db, the connection opens
just long enough to load the data into the application and then it closes.

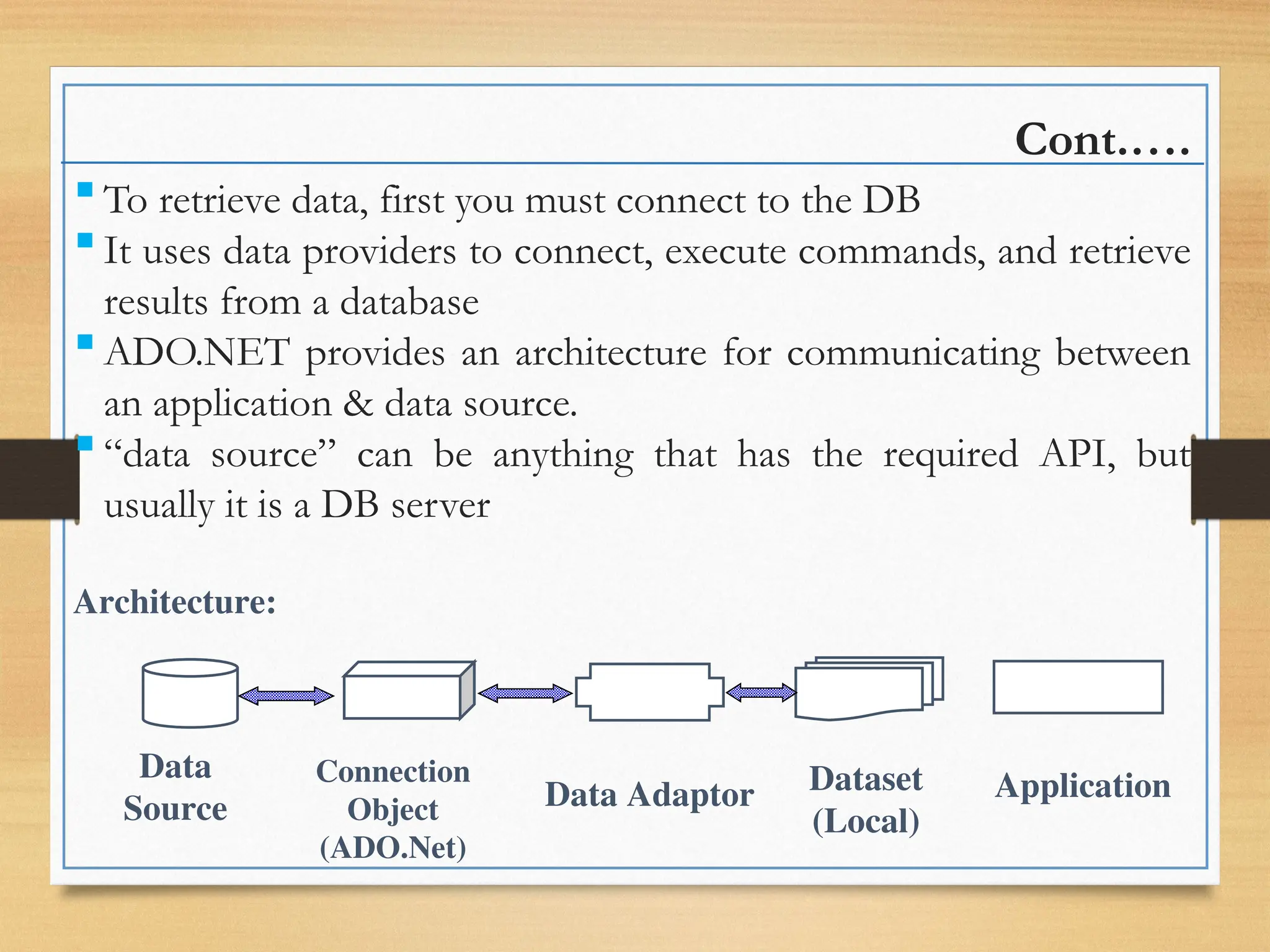

5. Cont.….
 To retrieve data, first you must connect to the DB
 It uses data providers to connect, execute commands, and retrieve
results from a database
 ADO.NET provides an architecture for communicating between
an application & data source.
 “data source” can be anything that has the required API, but
usually it is a DB server
Data
Source
Connection
Object
(ADO.Net)
Data Adaptor Dataset
(Local)
Application
Architecture:

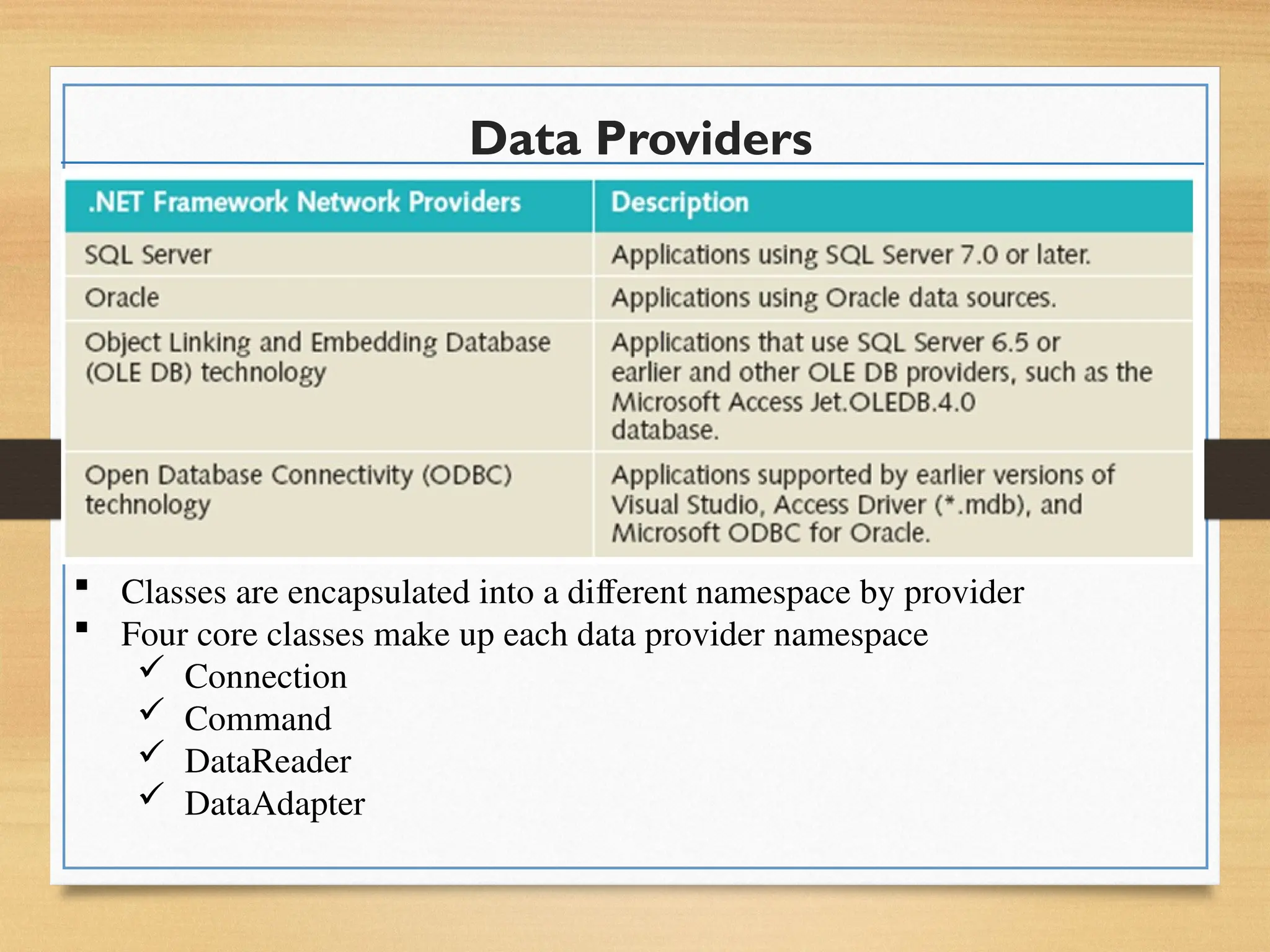

6. Data Providers
 Classes are encapsulated into a different namespace by provider
 Four core classes make up each data provider namespace
 Connection
 Command
 DataReader
 DataAdapter

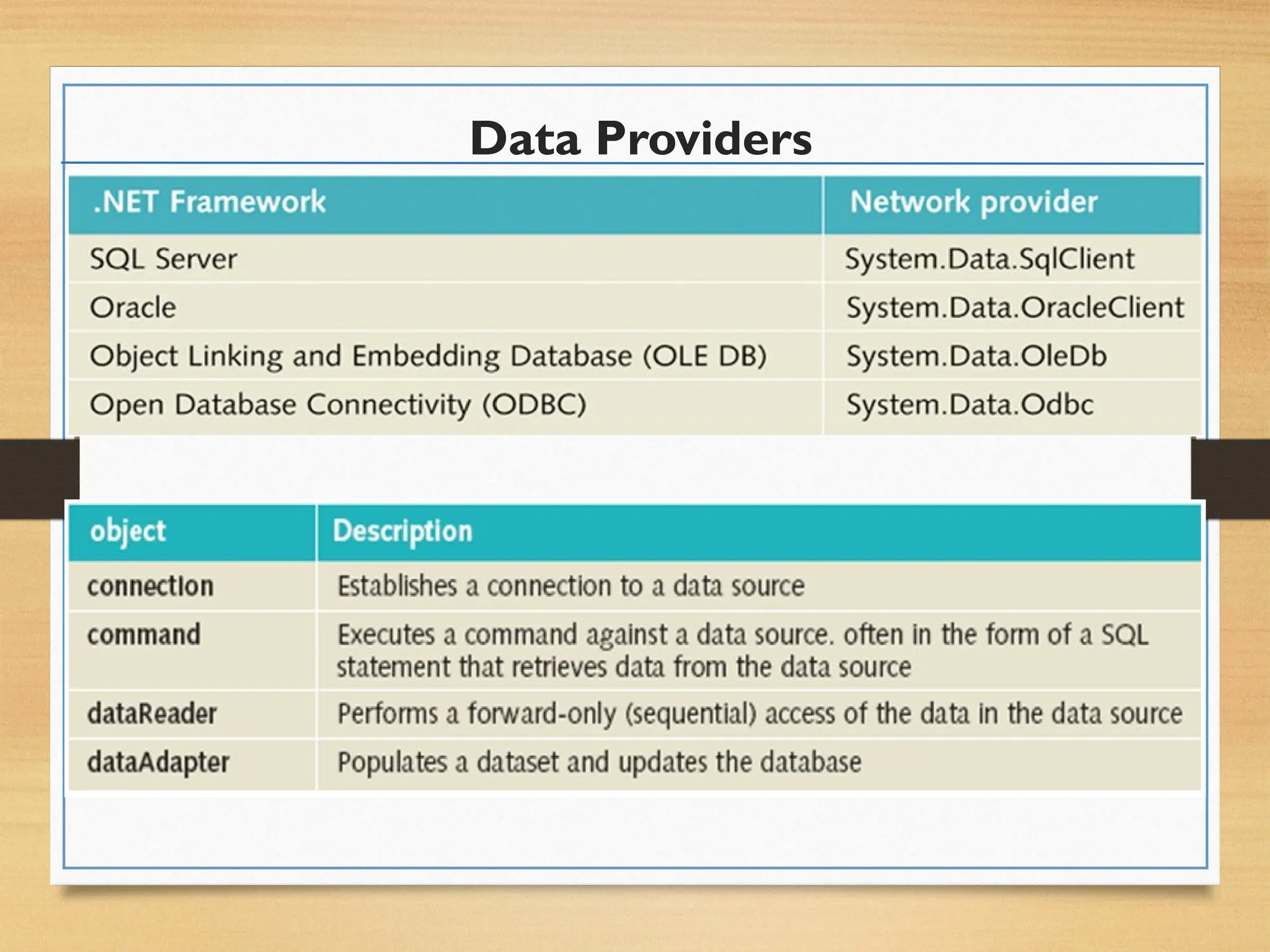

7. Data Providers

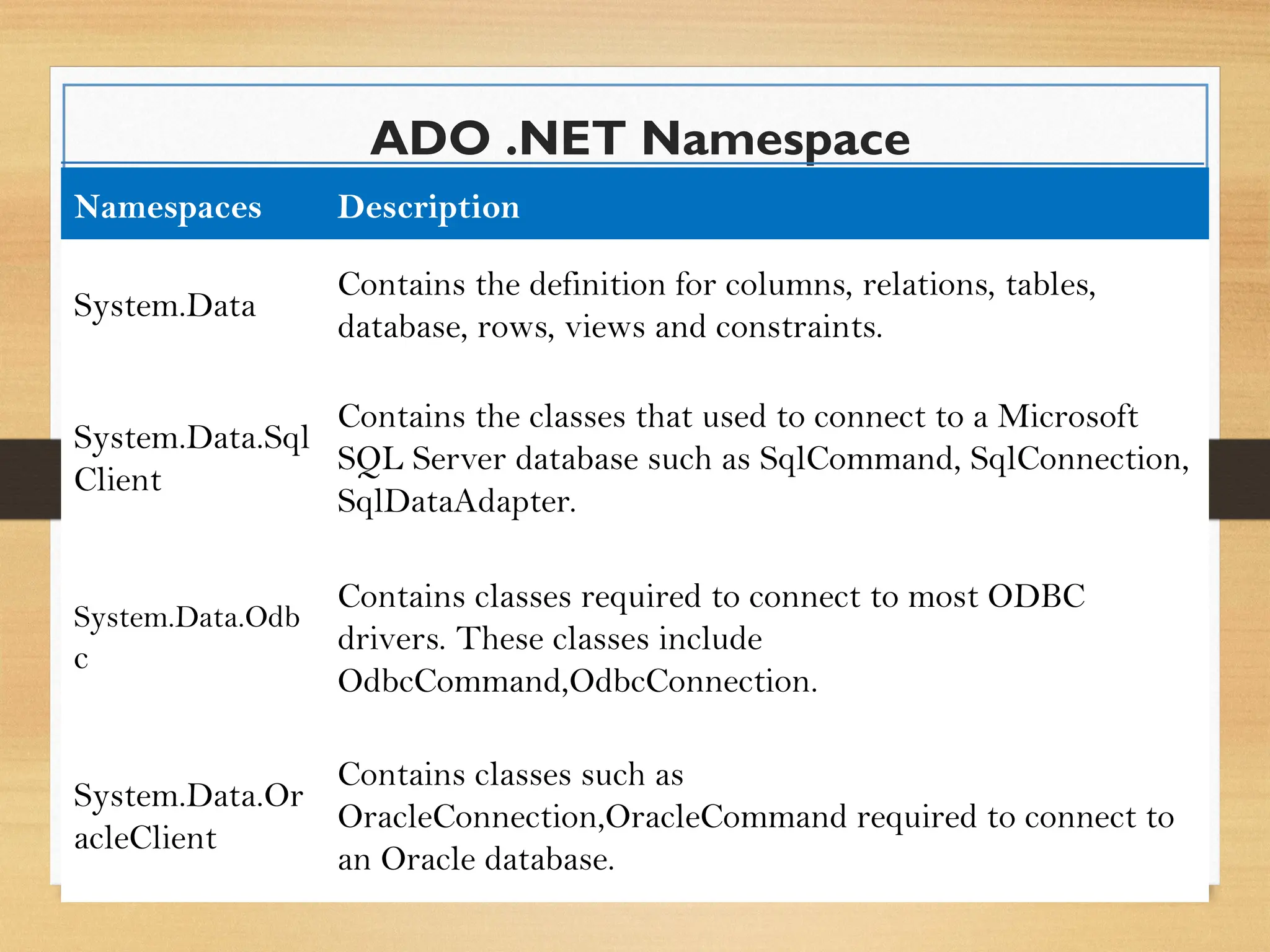

8. ADO .NET Namespace
Namespaces Description
System.Data
Contains the definition for columns, relations, tables,
database, rows, views and constraints.
System.Data.Sql
Client
Contains the classes that used to connect to a Microsoft
SQL Server database such as SqlCommand, SqlConnection,
SqlDataAdapter.
System.Data.Odb
c
Contains classes required to connect to most ODBC
drivers. These classes include
OdbcCommand,OdbcConnection.
System.Data.Or
acleClient
Contains classes such as
OracleConnection,OracleCommand required to connect to
an Oracle database.

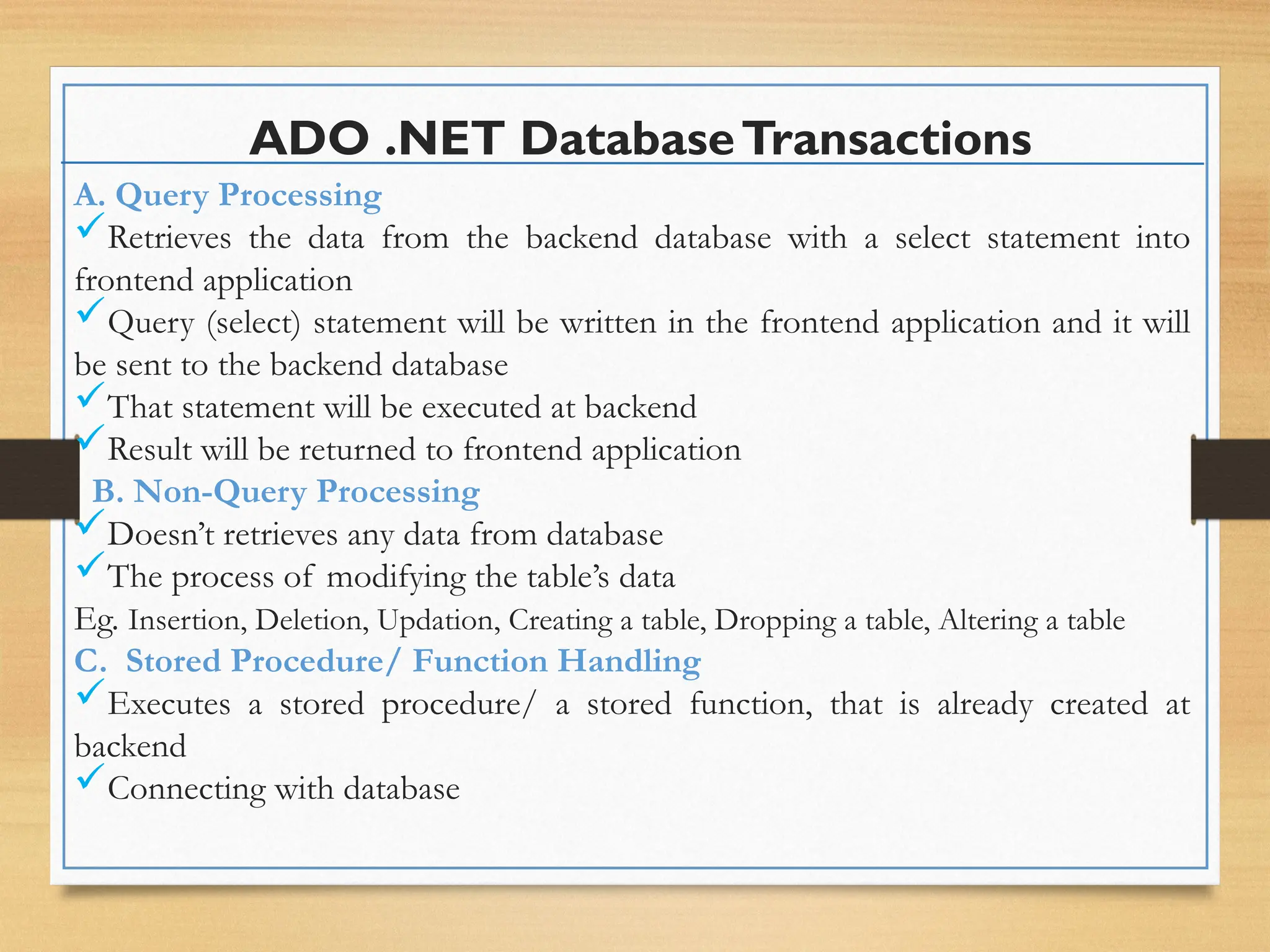

9. ADO .NET DatabaseTransactions
A. Query Processing
Retrieves the data from the backend database with a select statement into
frontend application
Query (select) statement will be written in the frontend application and it will
be sent to the backend database
That statement will be executed at backend
Result will be returned to frontend application
B. Non-Query Processing
Doesn’t retrieves any data from database
The process of modifying the table’s data
Eg. Insertion, Deletion, Updation, Creating a table, Dropping a table, Altering a table
C. Stored Procedure/ Function Handling
Executes a stored procedure/ a stored function, that is already created at
backend
Connecting with database

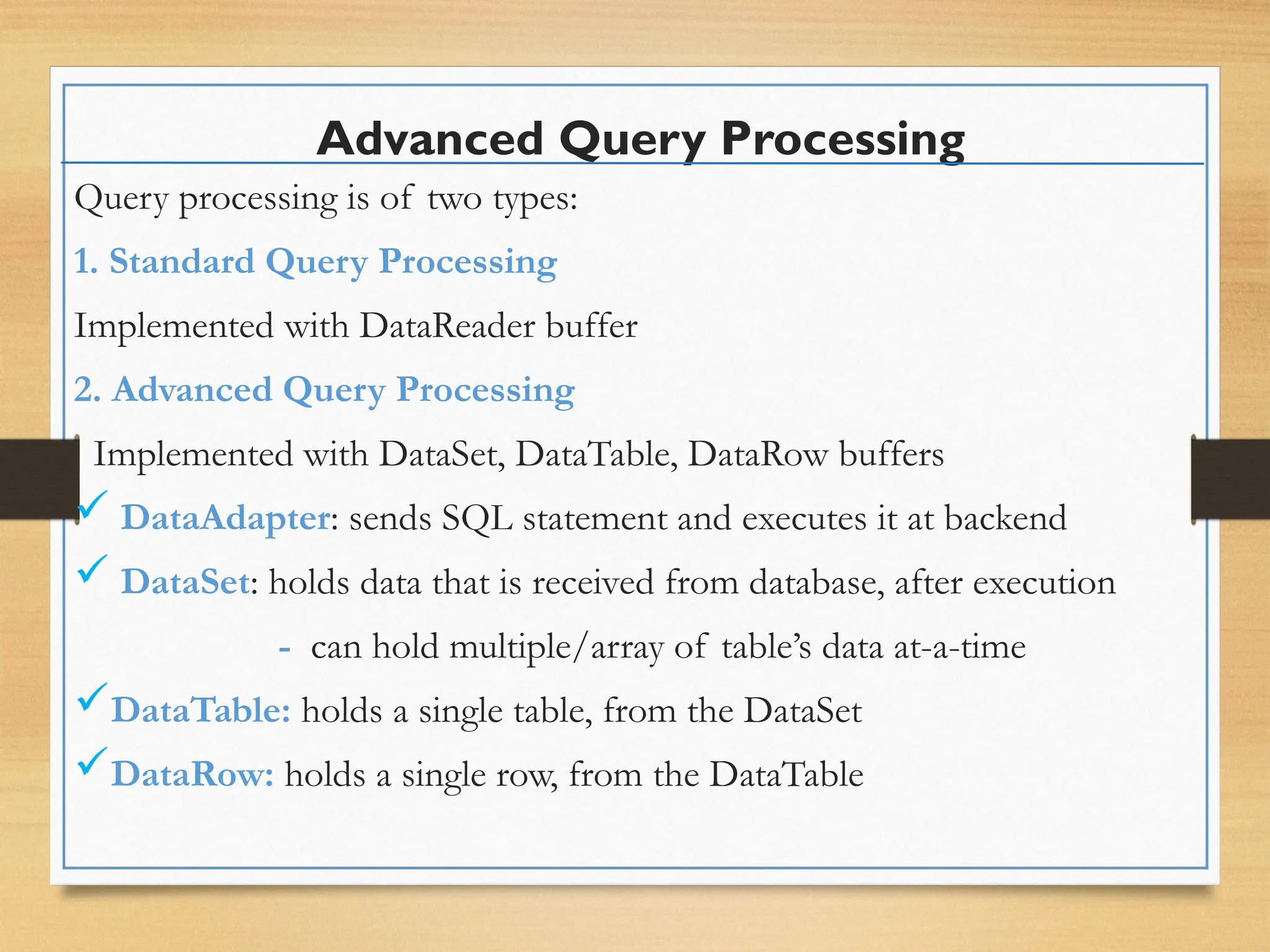

10. Advanced Query Processing
Query processing is of two types:
1. Standard Query Processing
Implemented with DataReader buffer
2. Advanced Query Processing
Implemented with DataSet, DataTable, DataRow buffers
 DataAdapter: sends SQL statement and executes it at backend
 DataSet: holds data that is received from database, after execution
- can hold multiple/array of table’s data at-a-time
DataTable: holds a single table, from the DataSet
DataRow: holds a single row, from the DataTable

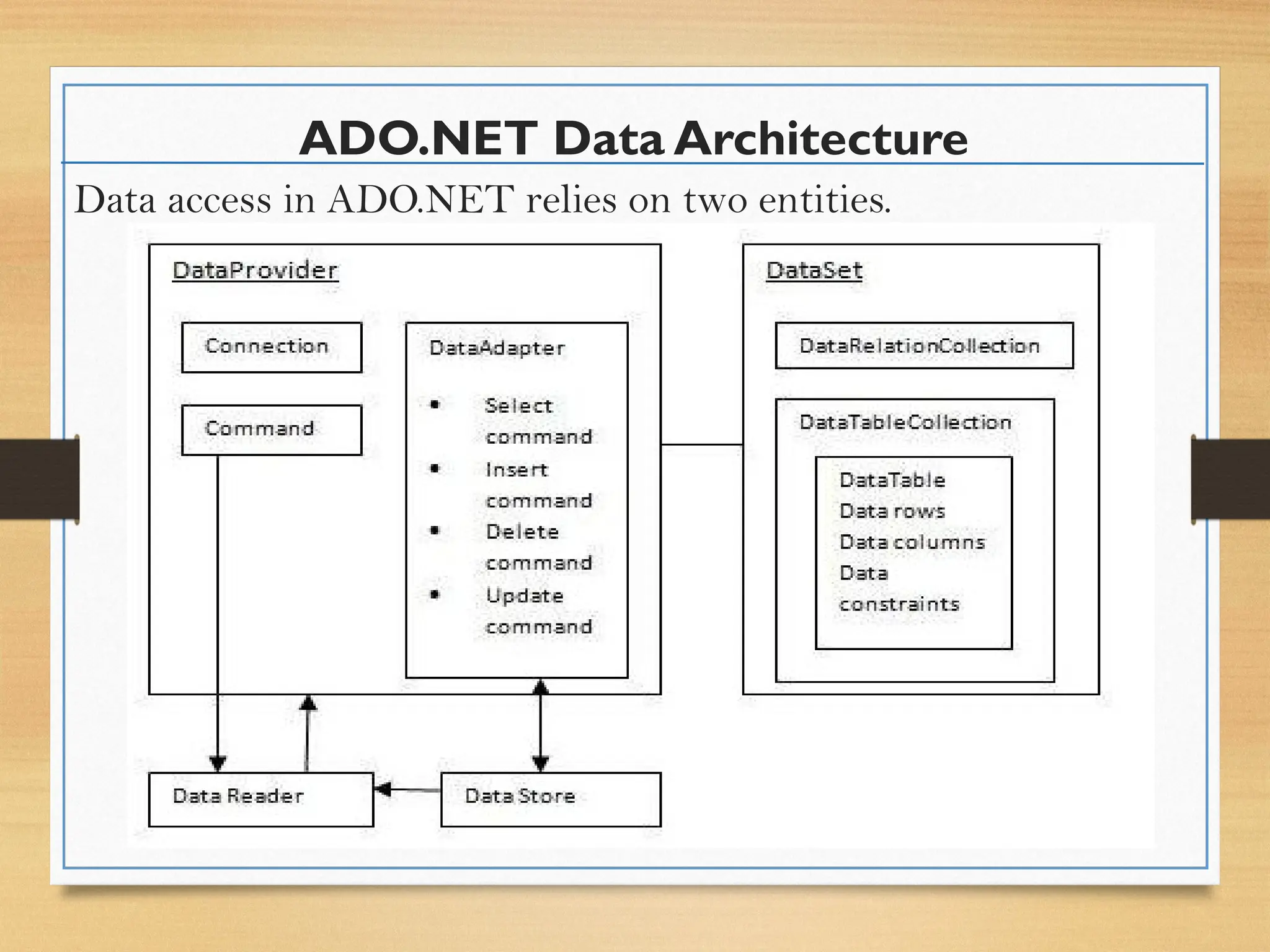

11. ADO.NET Data Architecture
Data access in ADO.NET relies on two entities.

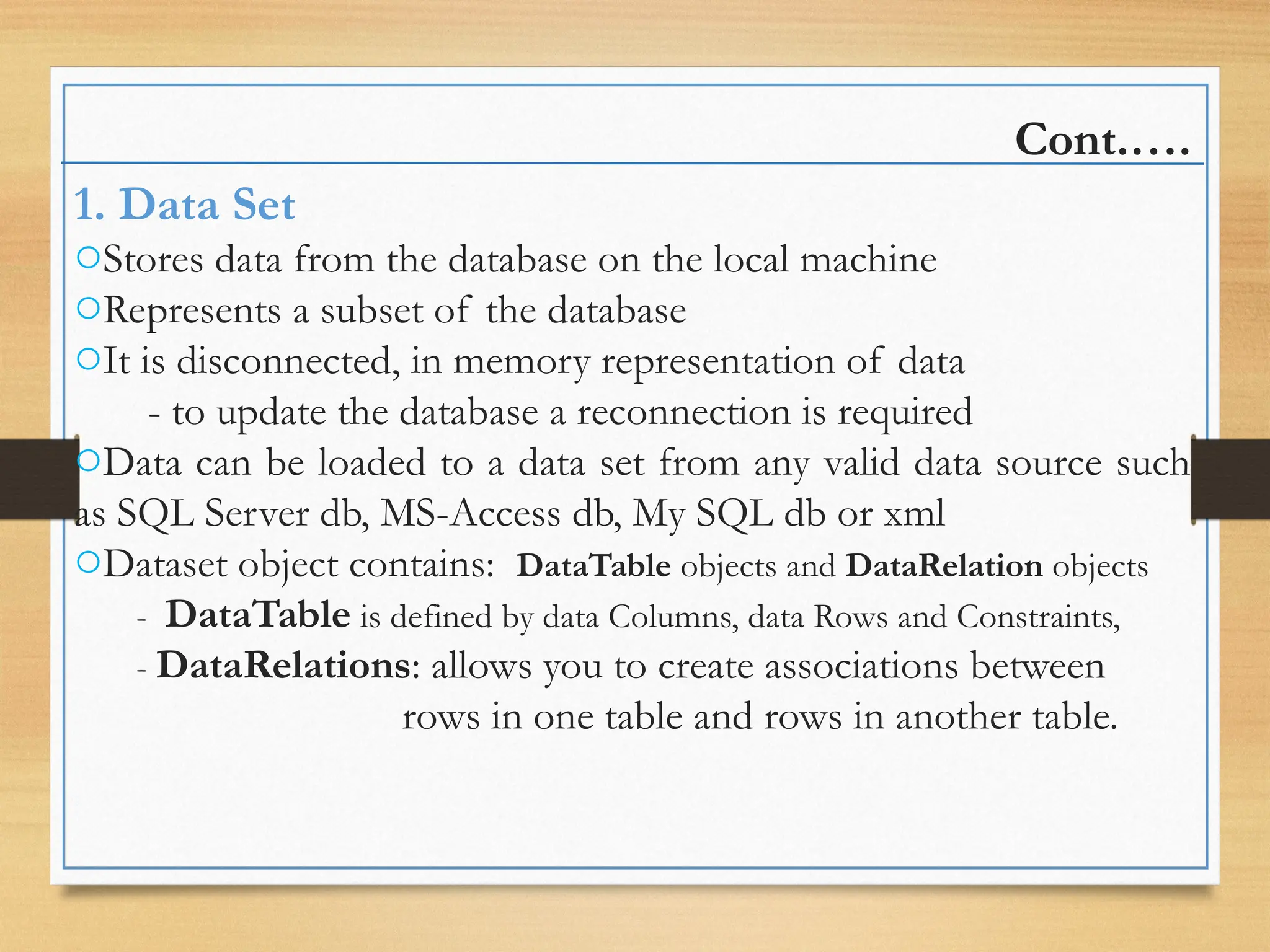

12. Cont.….
1. Data Set
oStores data from the database on the local machine
oRepresents a subset of the database
oIt is disconnected, in memory representation of data
- to update the database a reconnection is required
oData can be loaded to a data set from any valid data source such
as SQL Server db, MS-Access db, My SQL db or xml
oDataset object contains: DataTable objects and DataRelation objects
- DataTable is defined by data Columns, data Rows and Constraints,
- DataRelations: allows you to create associations between
rows in one table and rows in another table.

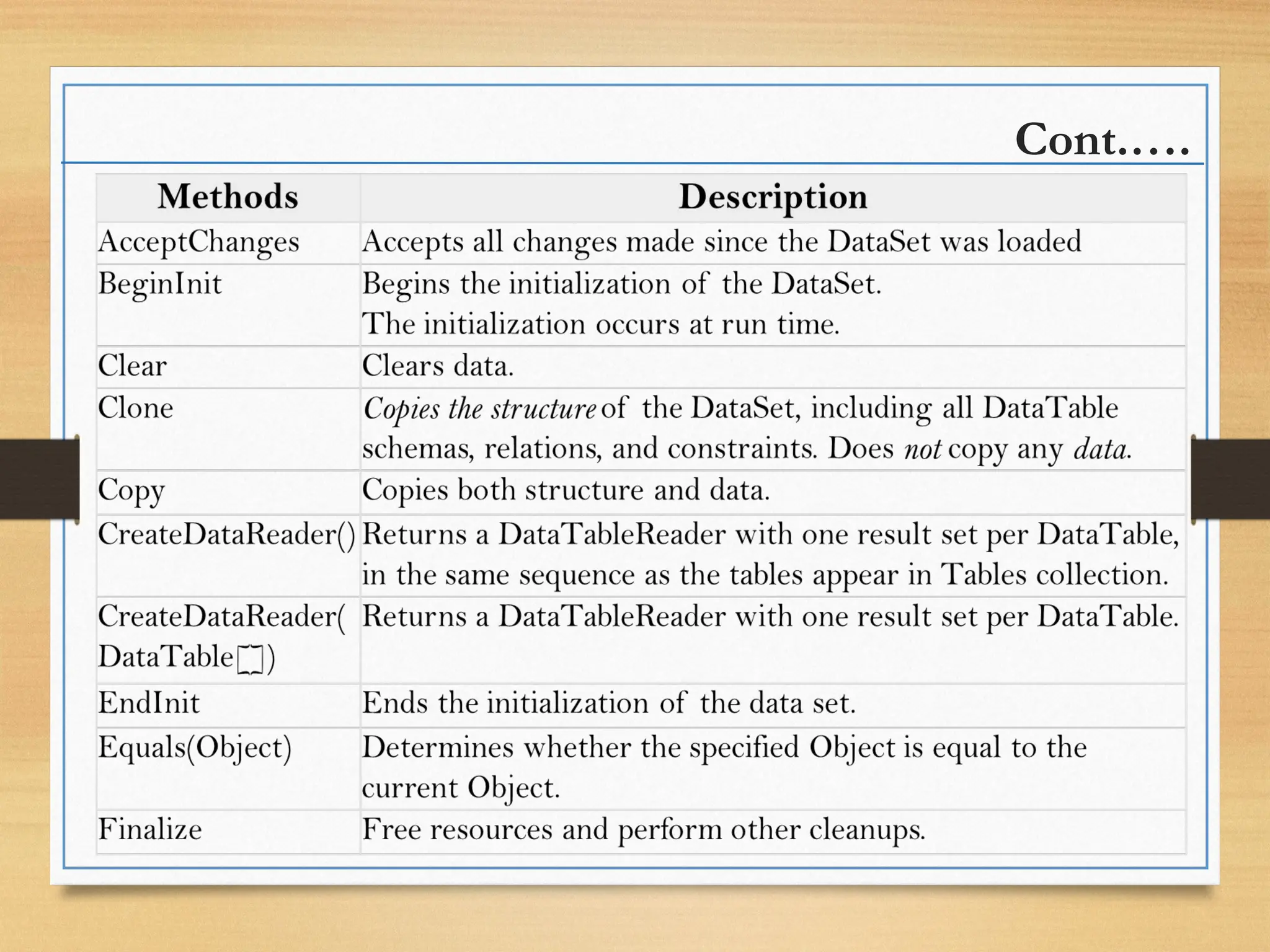

13. Cont.….

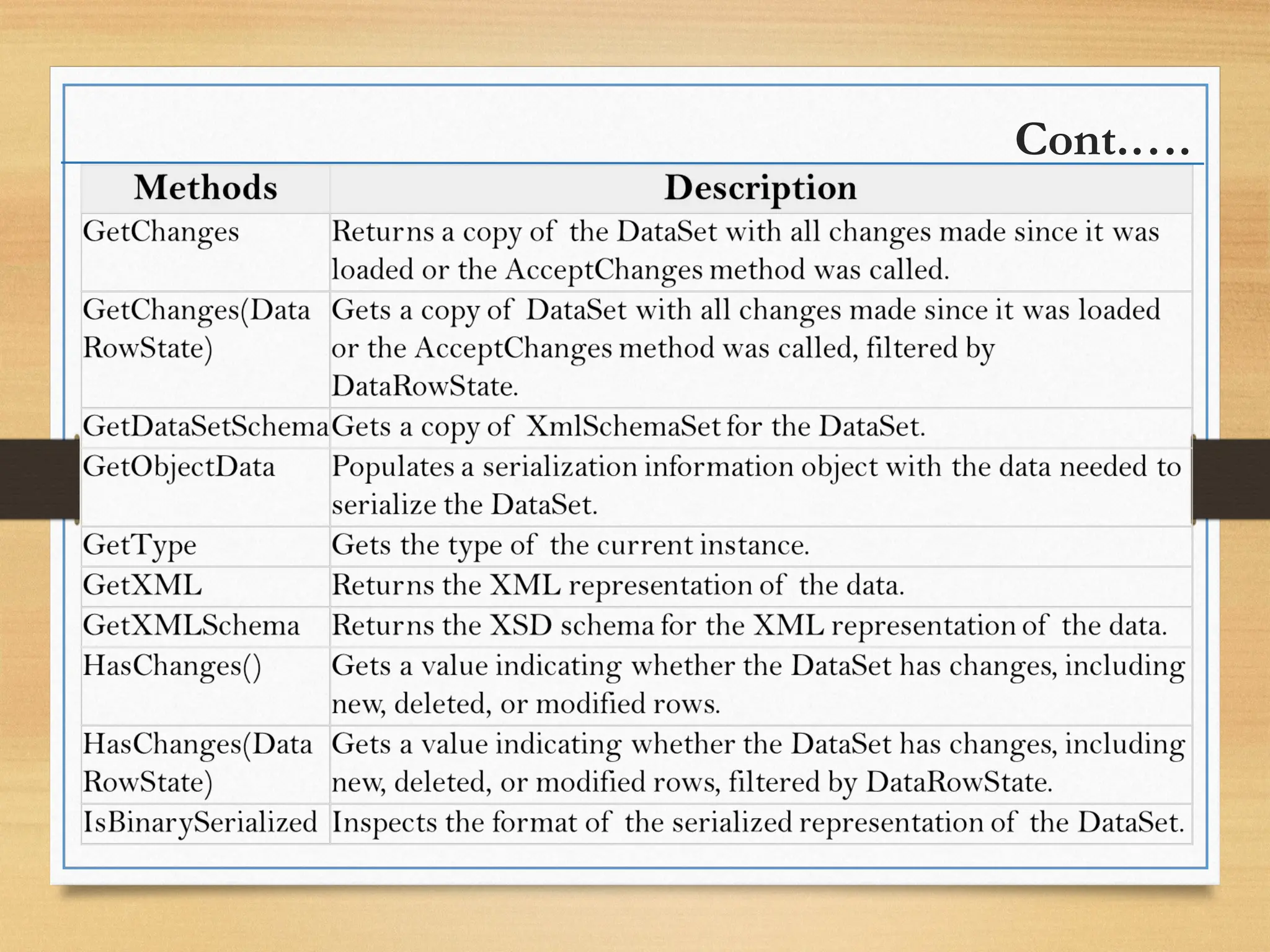

14. Cont.….

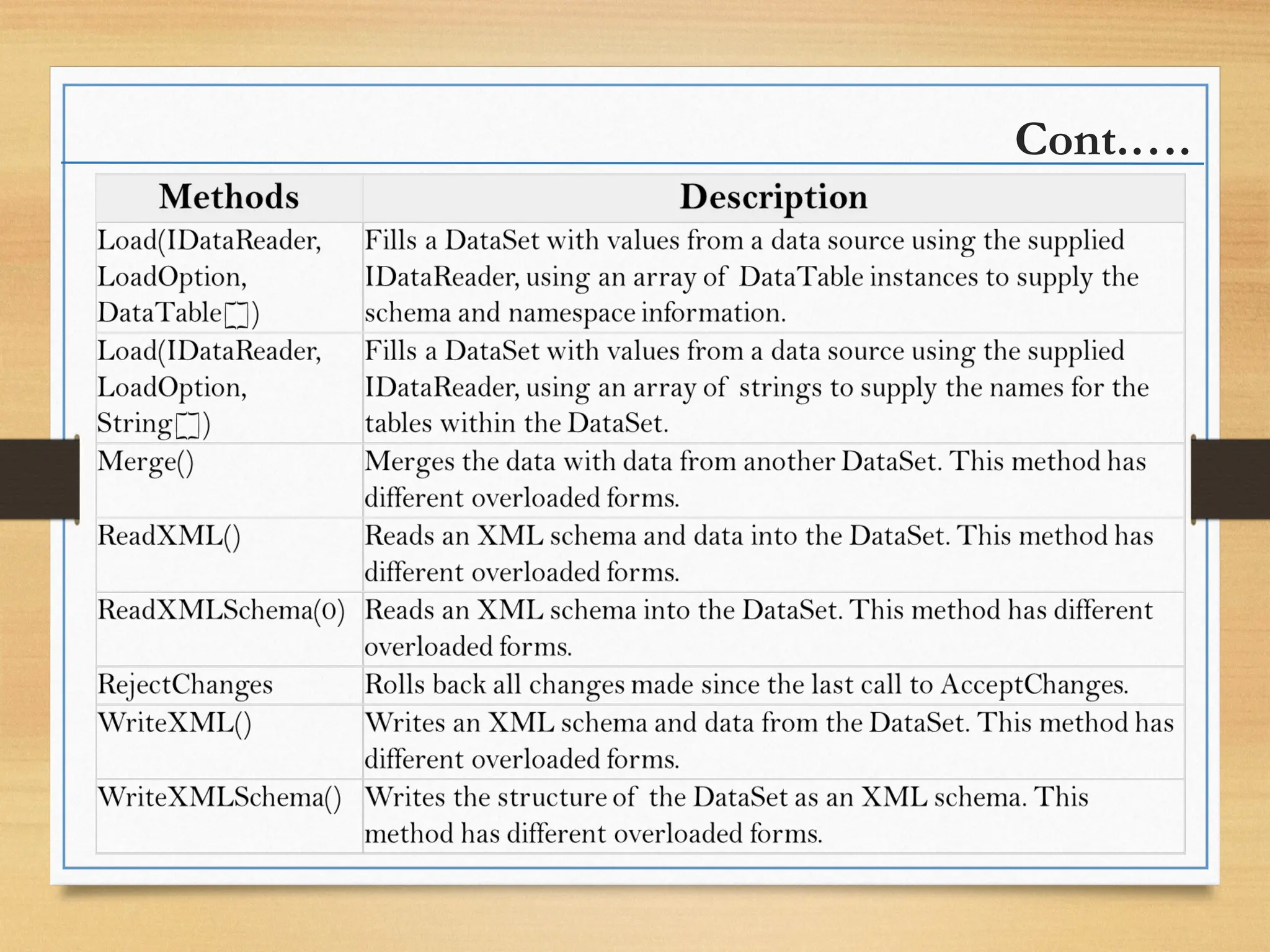

15. Cont.….

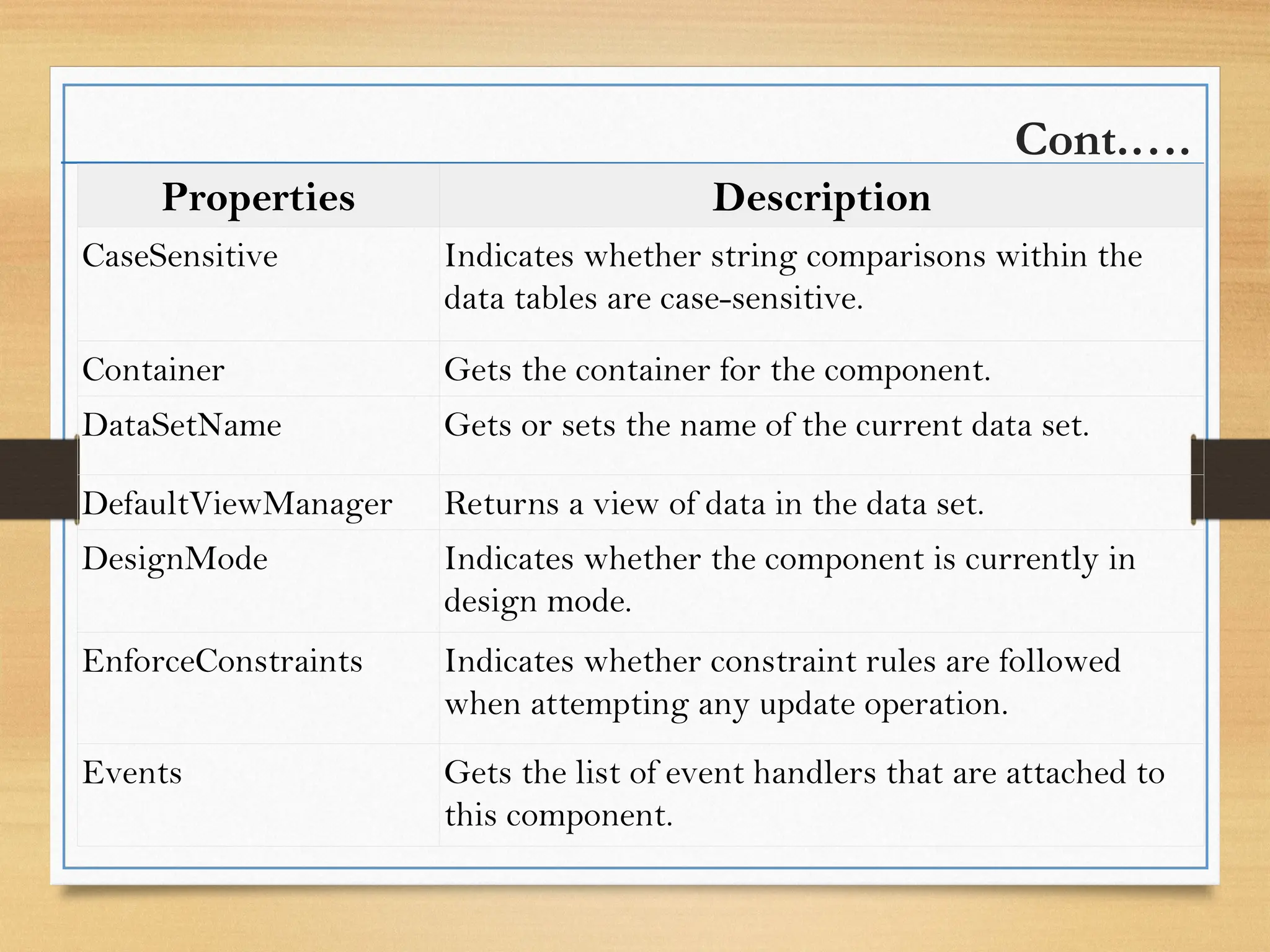

16. Cont.….
Properties Description
CaseSensitive Indicates whether string comparisons within the
data tables are case-sensitive.
Container Gets the container for the component.
DataSetName Gets or sets the name of the current data set.
DefaultViewManager Returns a view of data in the data set.
DesignMode Indicates whether the component is currently in
design mode.
EnforceConstraints Indicates whether constraint rules are followed
when attempting any update operation.
Events Gets the list of event handlers that are attached to
this component.

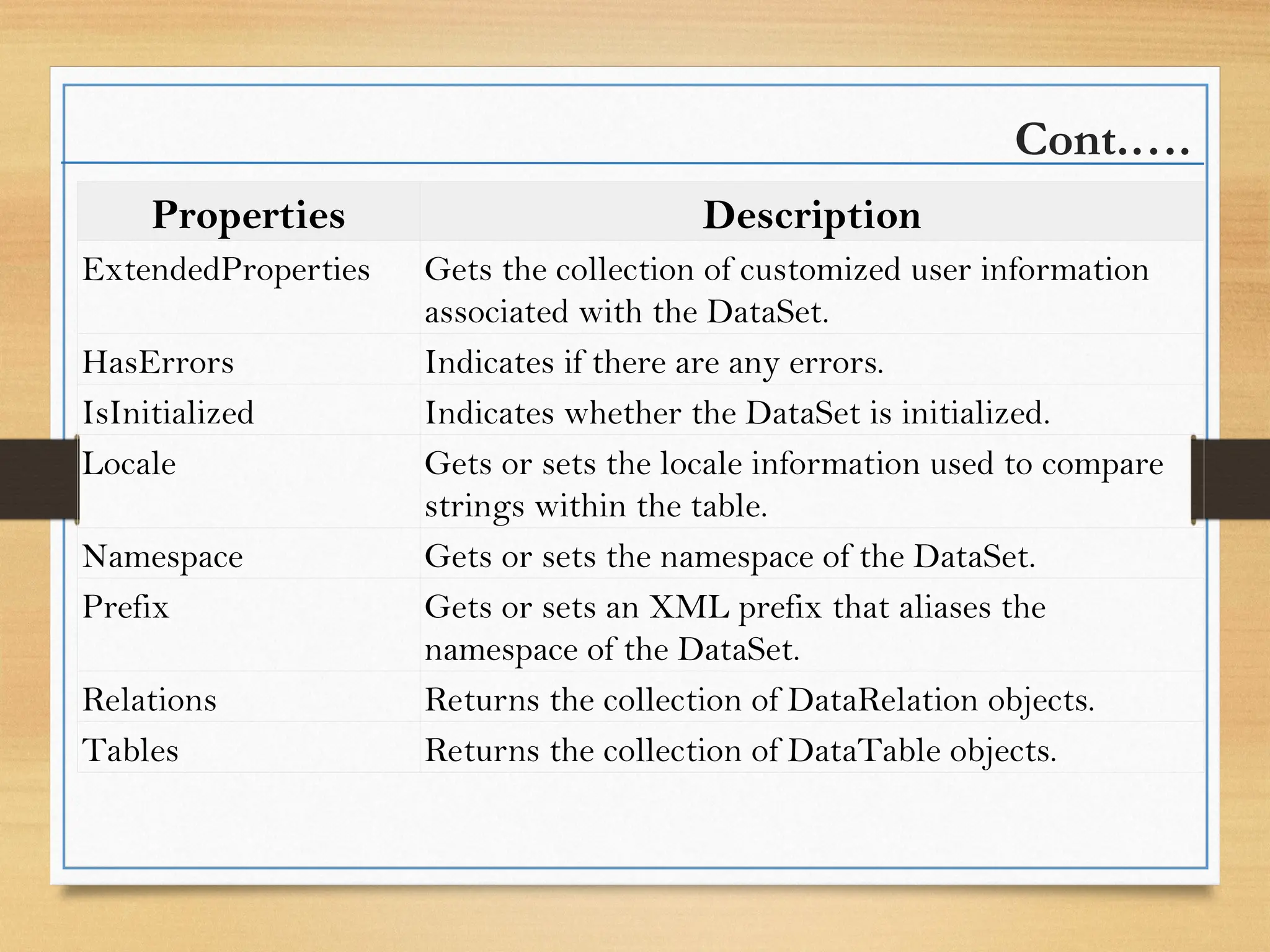

17. Cont.….
Properties Description
ExtendedProperties Gets the collection of customized user information
associated with the DataSet.
HasErrors Indicates if there are any errors.
IsInitialized Indicates whether the DataSet is initialized.
Locale Gets or sets the locale information used to compare
strings within the table.
Namespace Gets or sets the namespace of the DataSet.
Prefix Gets or sets an XML prefix that aliases the
namespace of the DataSet.
Relations Returns the collection of DataRelation objects.
Tables Returns the collection of DataTable objects.

18. Questions,
Ambiguities
