Darwino provides tools and services for building Java web applications, including pre-built servlets, filters, and services. It handles authentication, static resource caching, application initialization, and triggering data replication. The runtime automatically detects the environment and configuration can come from multiple locations. It also includes a basic server-side template engine.

1. Web Applications
JEE applications with Darwino

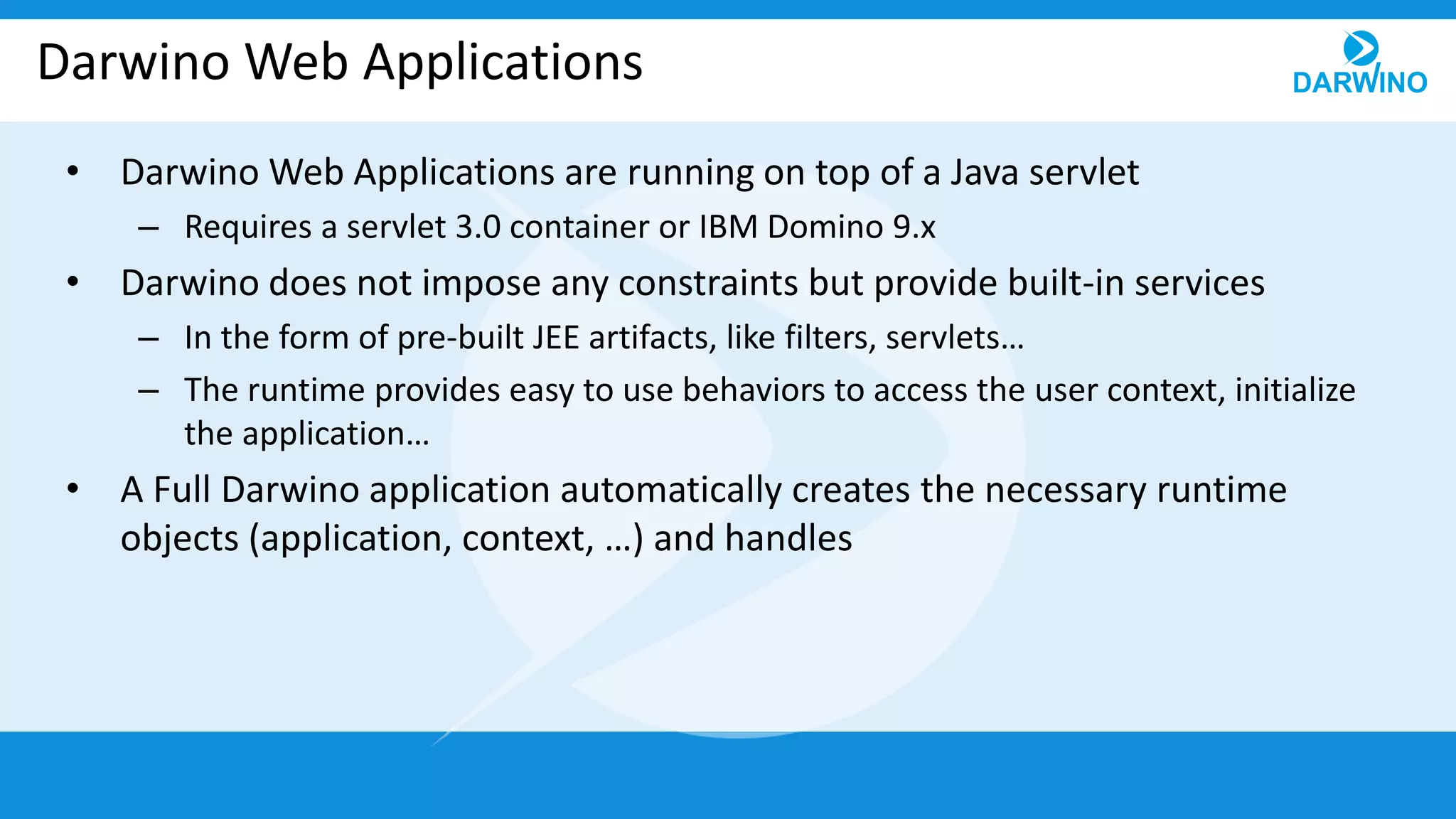

2. Darwino Web Applications
• Darwino Web Applications are running on top of a Java servlet
– Requires a servlet 3.0 container or IBM Domino 9.x
• Darwino does not impose any constraints but provide built-in services
– In the form of pre-built JEE artifacts, like filters, servlets…
– The runtime provides easy to use behaviors to access the user context, initialize
the application…
• A Full Darwino application automatically creates the necessary runtime
objects (application, context, …) and handles

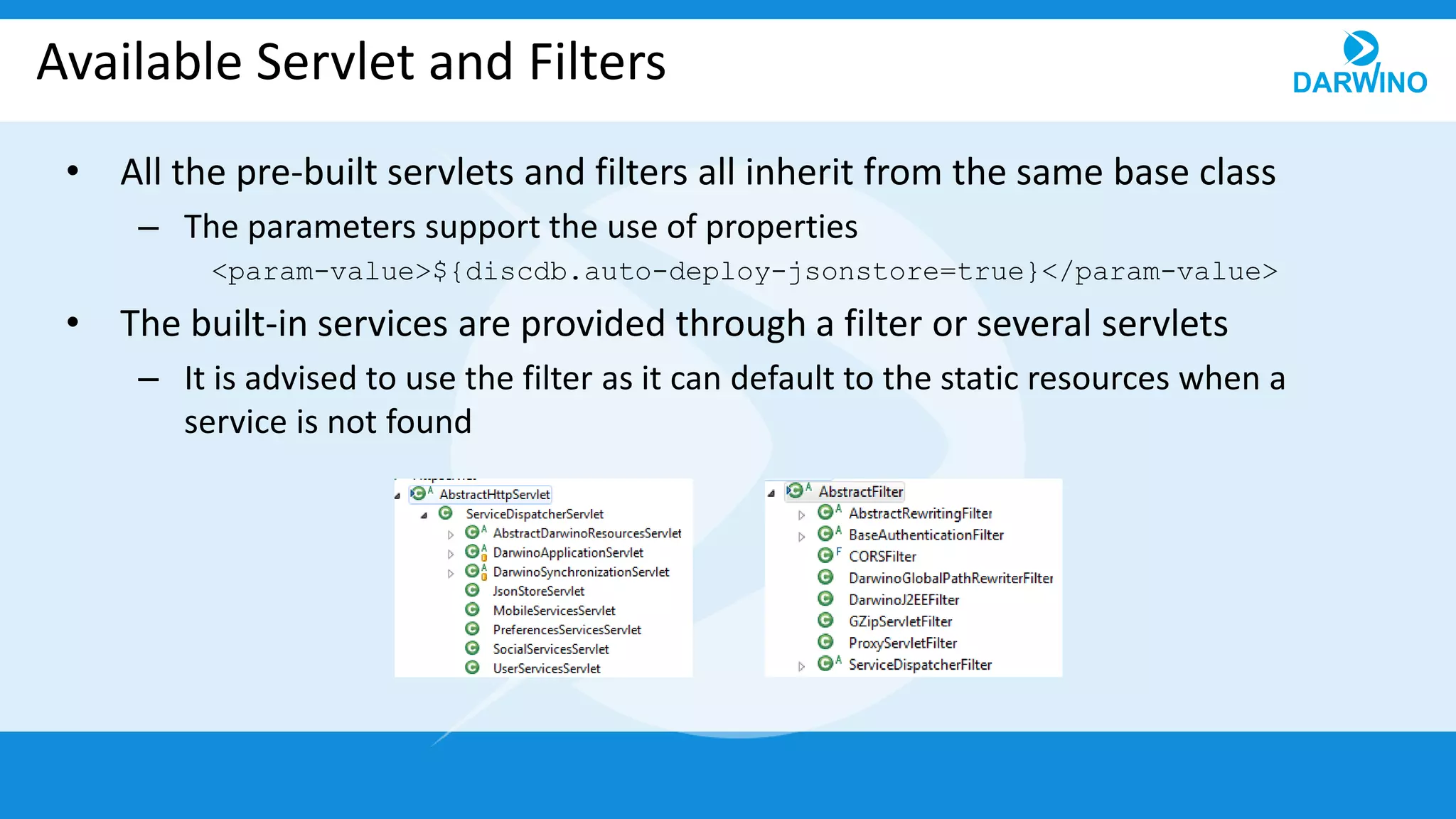

3. Available Servlet and Filters
• All the pre-built servlets and filters all inherit from the same base class
– The parameters support the use of properties
<param-value>${discdb.auto-deploy-jsonstore=true}</param-value>
• The built-in services are provided through a filter or several servlets
– It is advised to use the filter as it can default to the static resources when a
service is not found

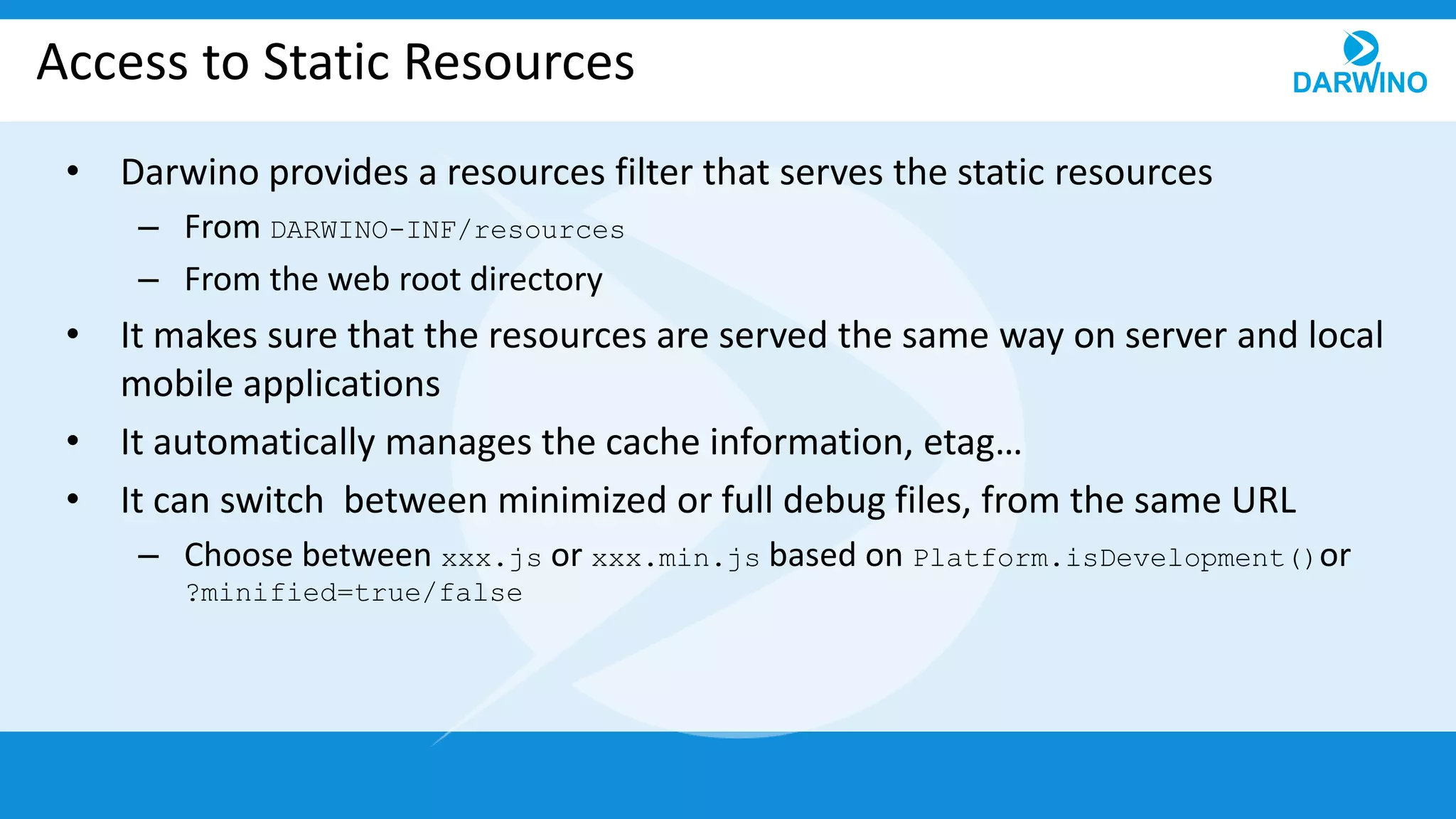

4. Access to Static Resources
• Darwino provides a resources filter that serves the static resources
– From DARWINO-INF/resources
– From the web root directory
• It makes sure that the resources are served the same way on server and local
mobile applications
• It automatically manages the cache information, etag…
• It can switch between minimized or full debug files, from the same URL
– Choose between xxx.js or xxx.min.js based on Platform.isDevelopment()or
?minified=true/false

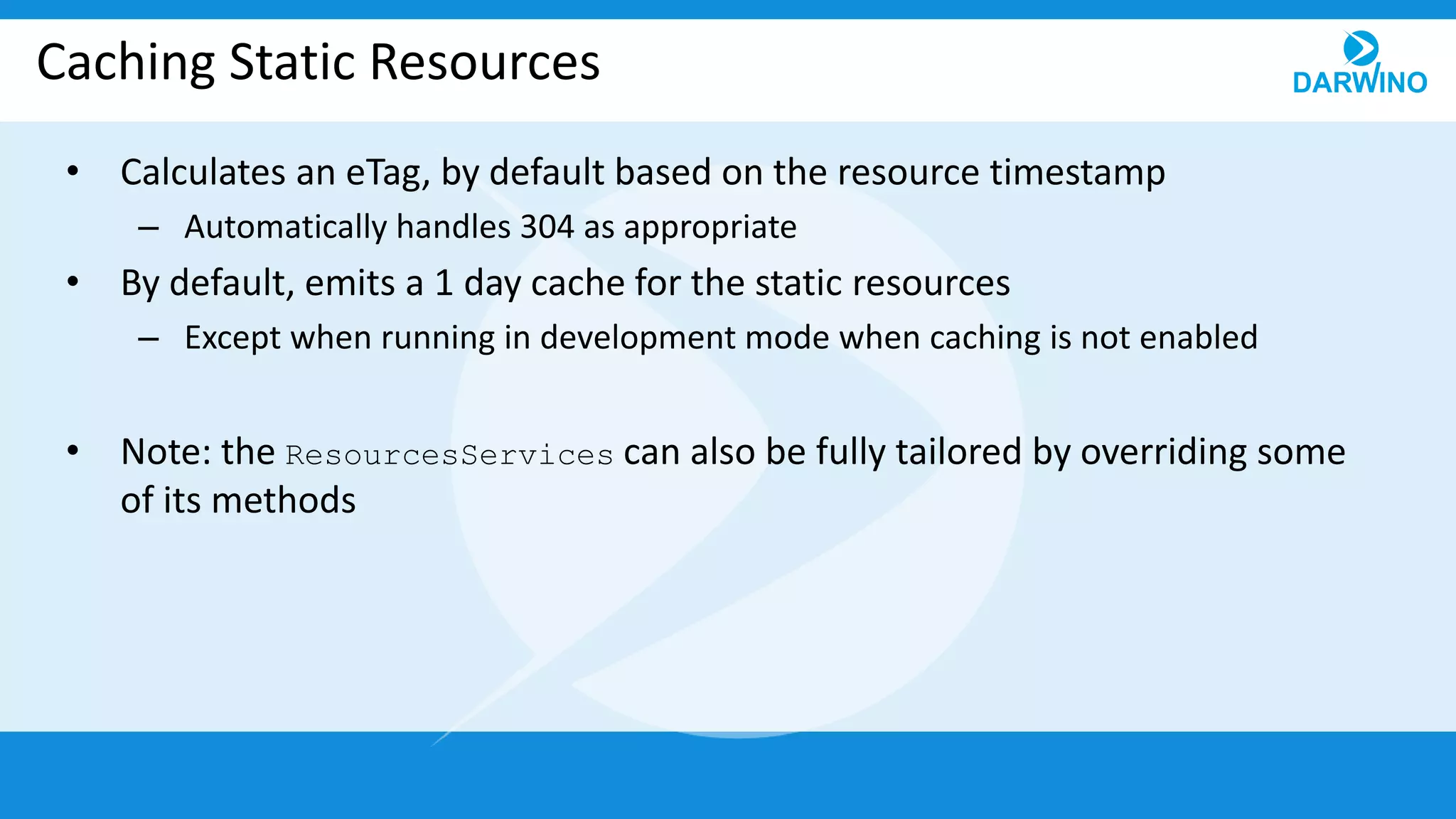

5. Caching Static Resources
• Calculates an eTag, by default based on the resource timestamp
– Automatically handles 304 as appropriate
• By default, emits a 1 day cache for the static resources
– Except when running in development mode when caching is not enabled
• Note: the ResourcesServices can also be fully tailored by overriding some
of its methods

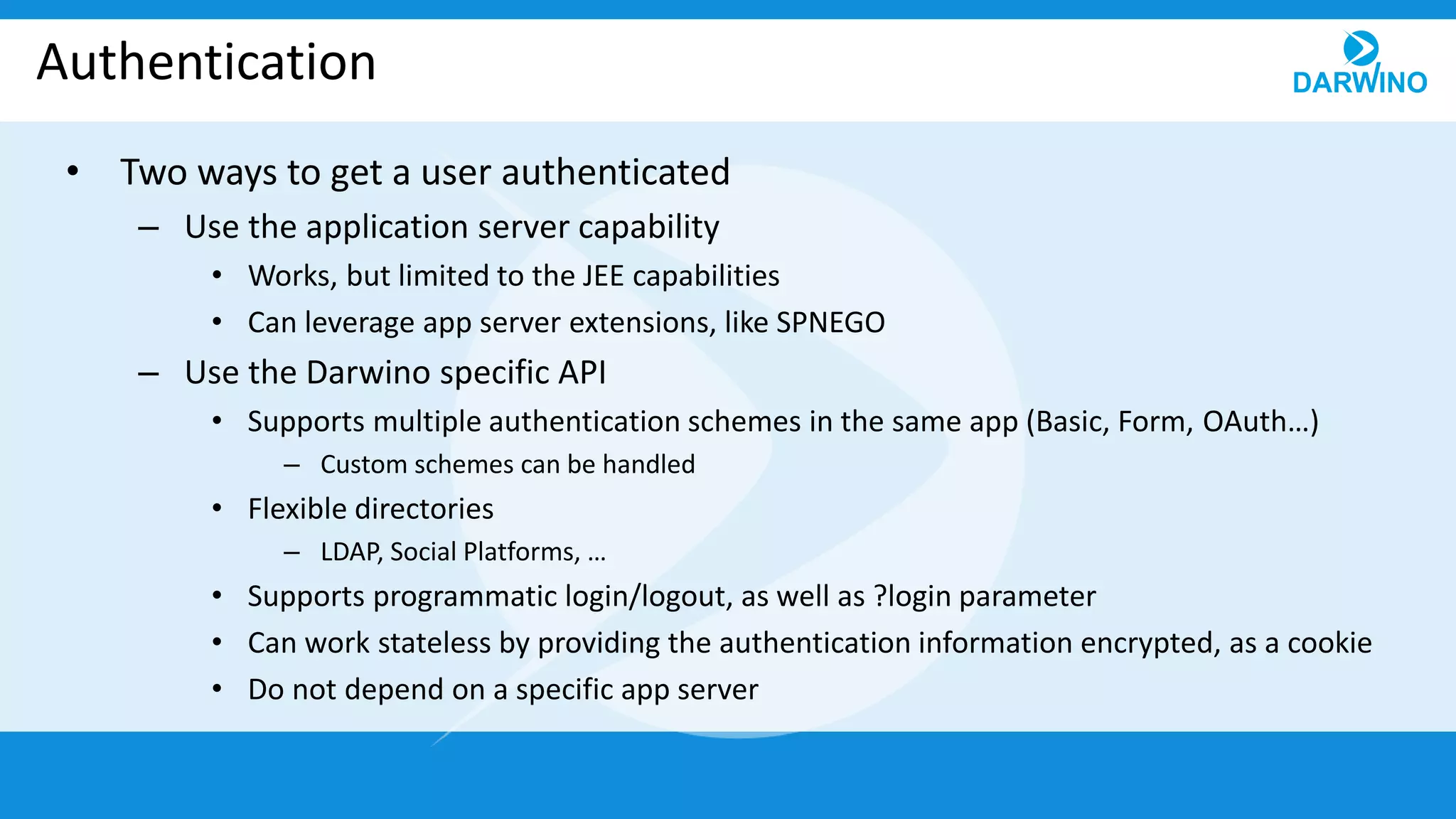

6. Authentication
• Two ways to get a user authenticated
– Use the application server capability
• Works, but limited to the JEE capabilities
• Can leverage app server extensions, like SPNEGO
– Use the Darwino specific API
• Supports multiple authentication schemes in the same app (Basic, Form, OAuth…)
– Custom schemes can be handled
• Flexible directories
– LDAP, Social Platforms, …
• Supports programmatic login/logout, as well as ?login parameter
• Can work stateless by providing the authentication information encrypted, as a cookie
• Do not depend on a specific app server

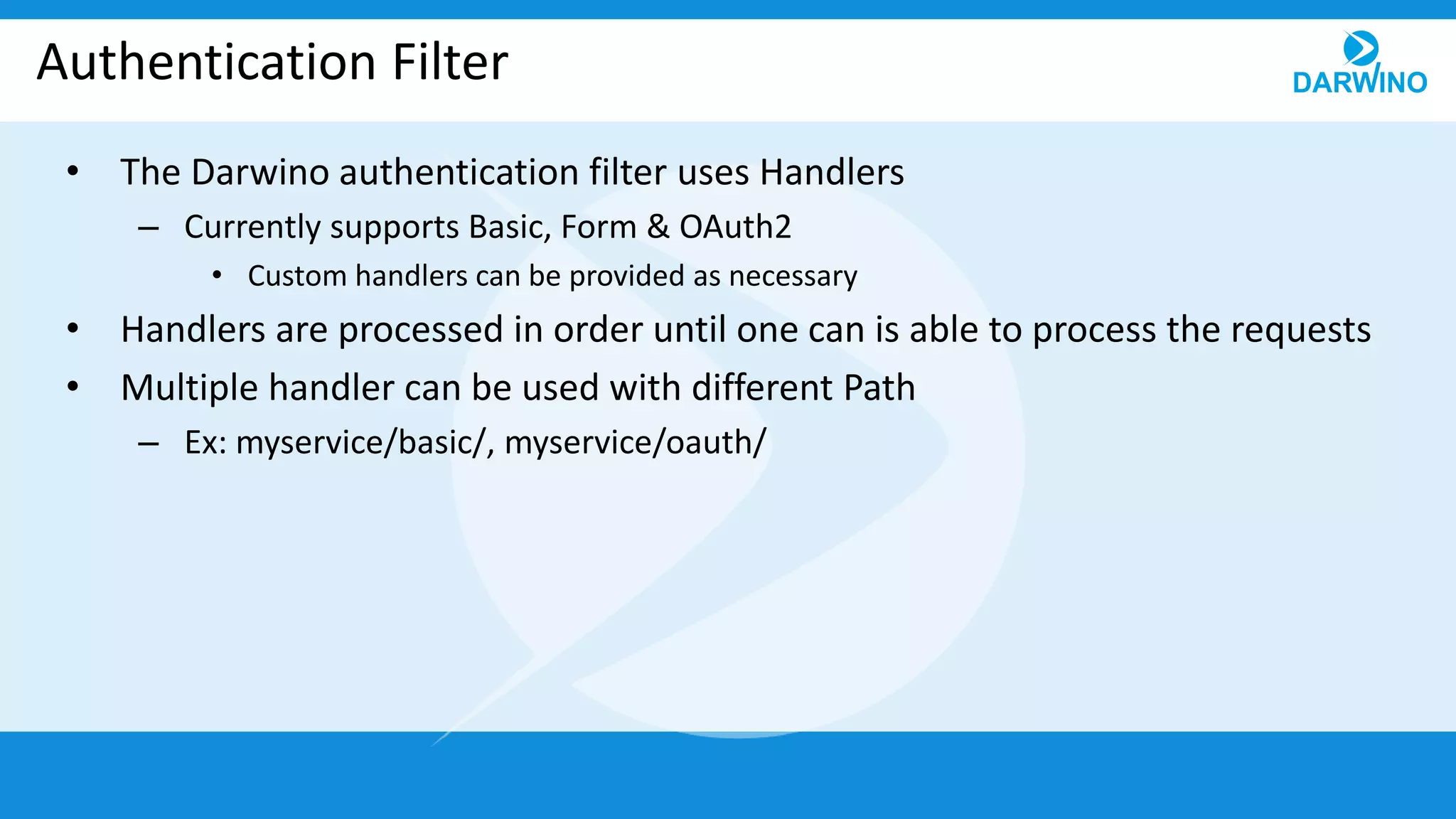

7. Authentication Filter
• The Darwino authentication filter uses Handlers
– Currently supports Basic, Form & OAuth2
• Custom handlers can be provided as necessary
• Handlers are processed in order until one can is able to process the requests
• Multiple handler can be used with different Path
– Ex: myservice/basic/, myservice/oauth/

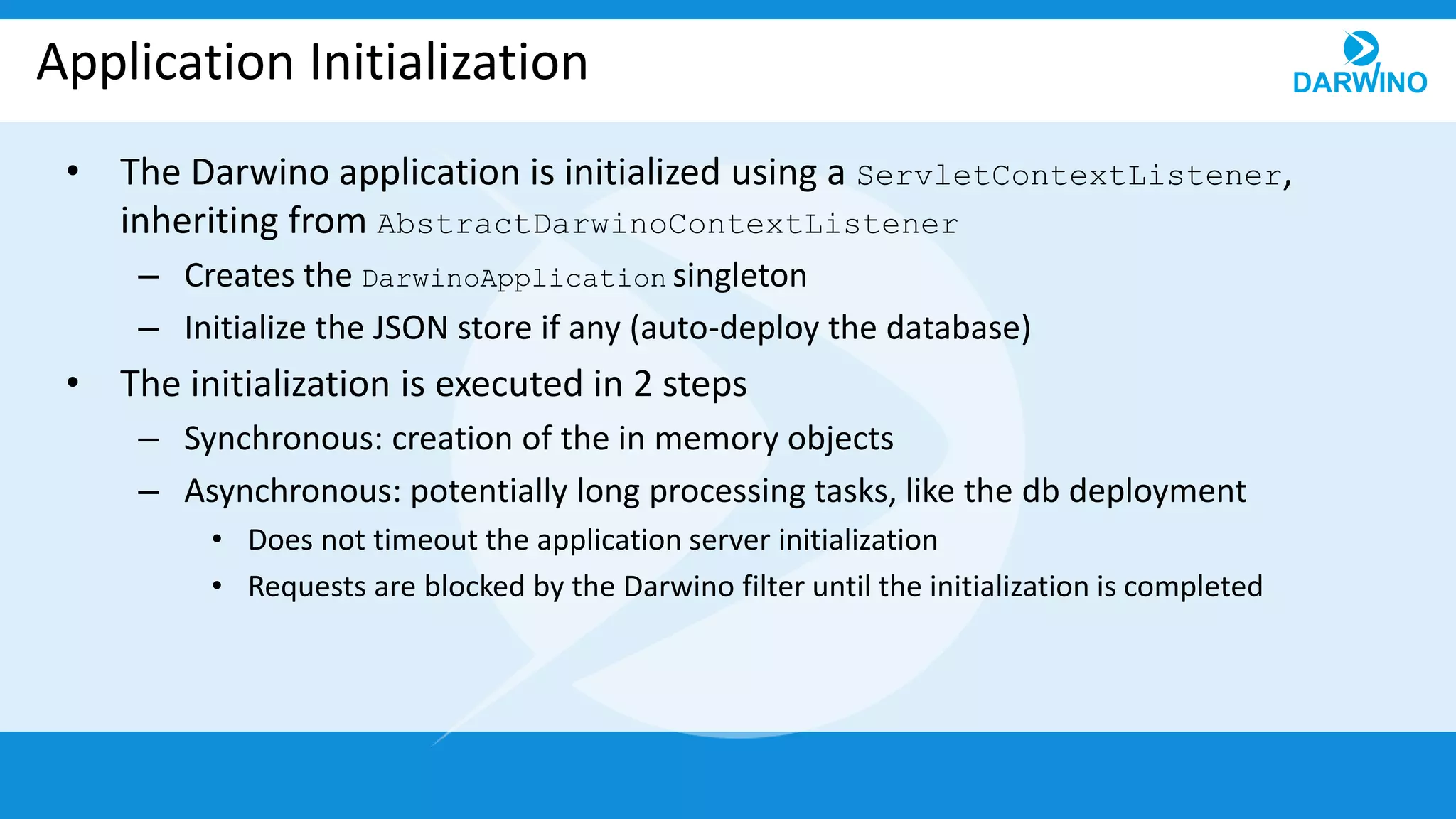

8. Application Initialization
• The Darwino application is initialized using a ServletContextListener,
inheriting from AbstractDarwinoContextListener
– Creates the DarwinoApplication singleton
– Initialize the JSON store if any (auto-deploy the database)
• The initialization is executed in 2 steps
– Synchronous: creation of the in memory objects
– Asynchronous: potentially long processing tasks, like the db deployment
• Does not timeout the application server initialization
• Requests are blocked by the Darwino filter until the initialization is completed

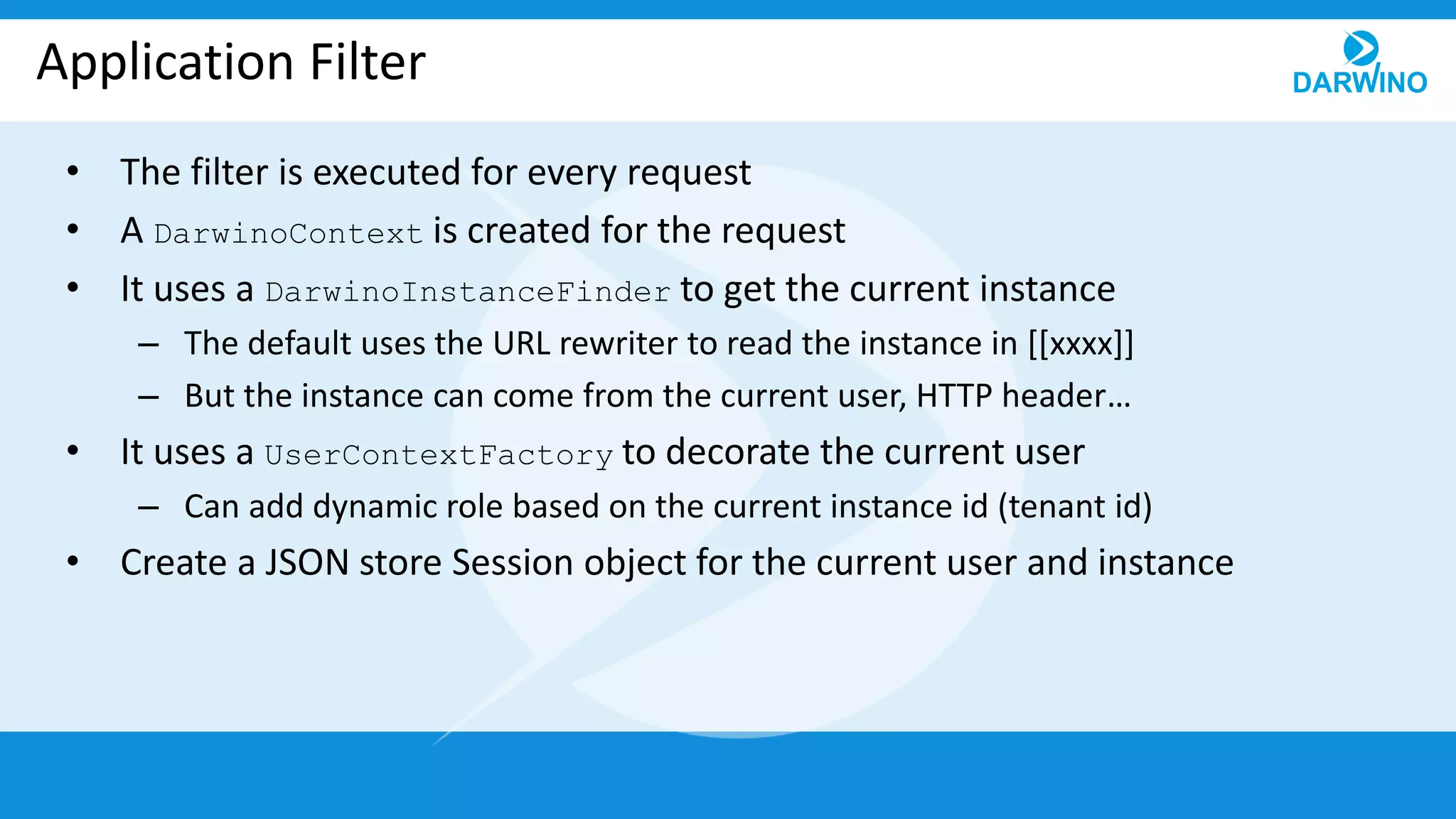

9. Application Filter
• The filter is executed for every request
• A DarwinoContext is created for the request
• It uses a DarwinoInstanceFinder to get the current instance
– The default uses the URL rewriter to read the instance in [[xxxx]]
– But the instance can come from the current user, HTTP header…
• It uses a UserContextFactory to decorate the current user
– Can add dynamic role based on the current instance id (tenant id)
• Create a JSON store Session object for the current user and instance

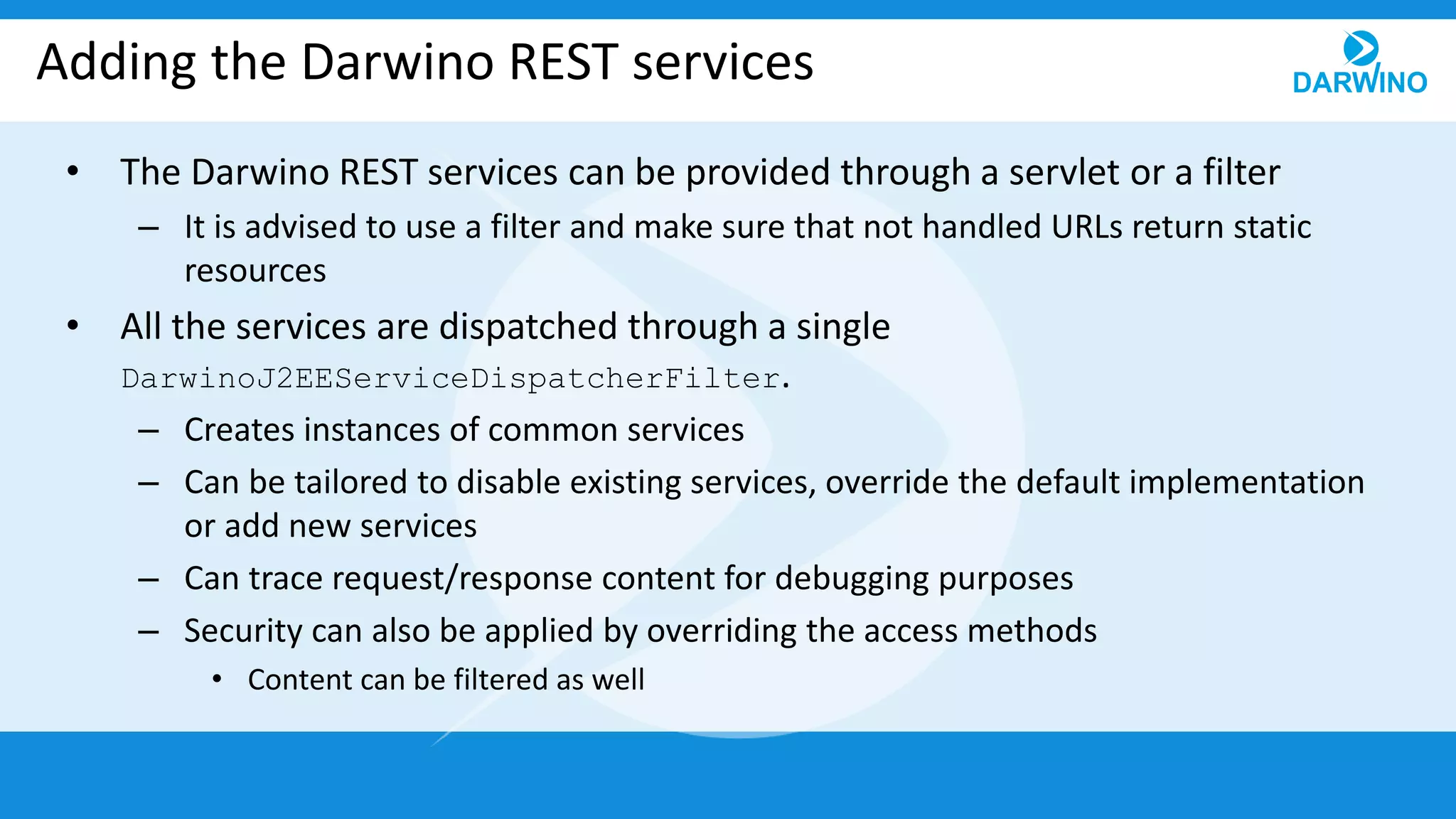

10. Adding the Darwino REST services
• The Darwino REST services can be provided through a servlet or a filter
– It is advised to use a filter and make sure that not handled URLs return static
resources
• All the services are dispatched through a single
DarwinoJ2EEServiceDispatcherFilter.
– Creates instances of common services
– Can be tailored to disable existing services, override the default implementation
or add new services
– Can trace request/response content for debugging purposes
– Security can also be applied by overriding the access methods
• Content can be filtered as well

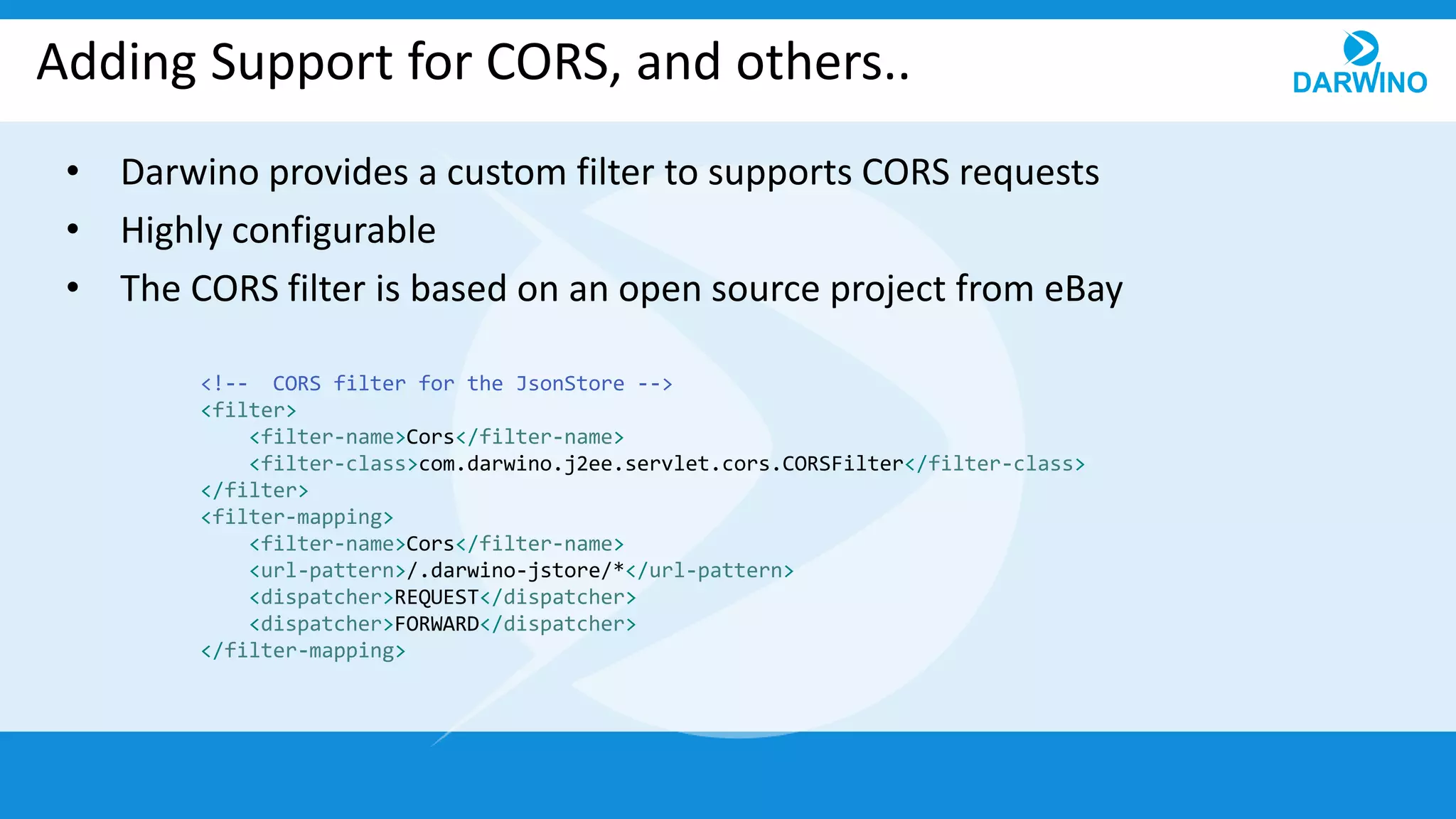

11. Adding Support for CORS, and others..
• Darwino provides a custom filter to supports CORS requests
• Highly configurable
• The CORS filter is based on an open source project from eBay
<!-- CORS filter for the JsonStore -->
<filter>
<filter-name>Cors</filter-name>
<filter-class>com.darwino.j2ee.servlet.cors.CORSFilter</filter-class>
</filter>
<filter-mapping>
<filter-name>Cors</filter-name>
<url-pattern>/.darwino-jstore/*</url-pattern>
<dispatcher>REQUEST</dispatcher>
<dispatcher>FORWARD</dispatcher>
</filter-mapping>

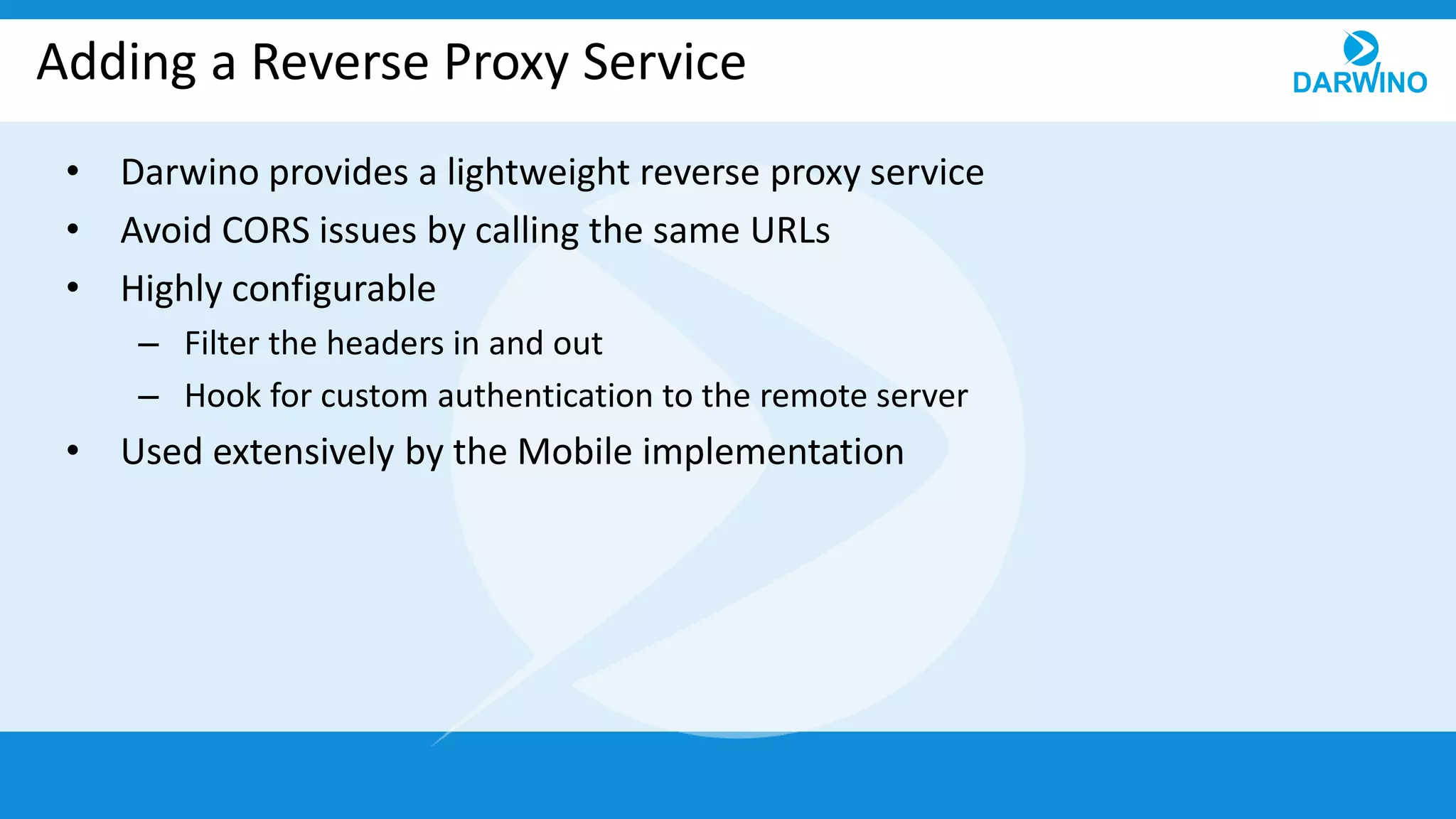

12. Adding a Reverse Proxy Service
• Darwino provides a lightweight reverse proxy service
• Avoid CORS issues by calling the same URLs
• Highly configurable
– Filter the headers in and out
– Hook for custom authentication to the remote server
• Used extensively by the Mobile implementation

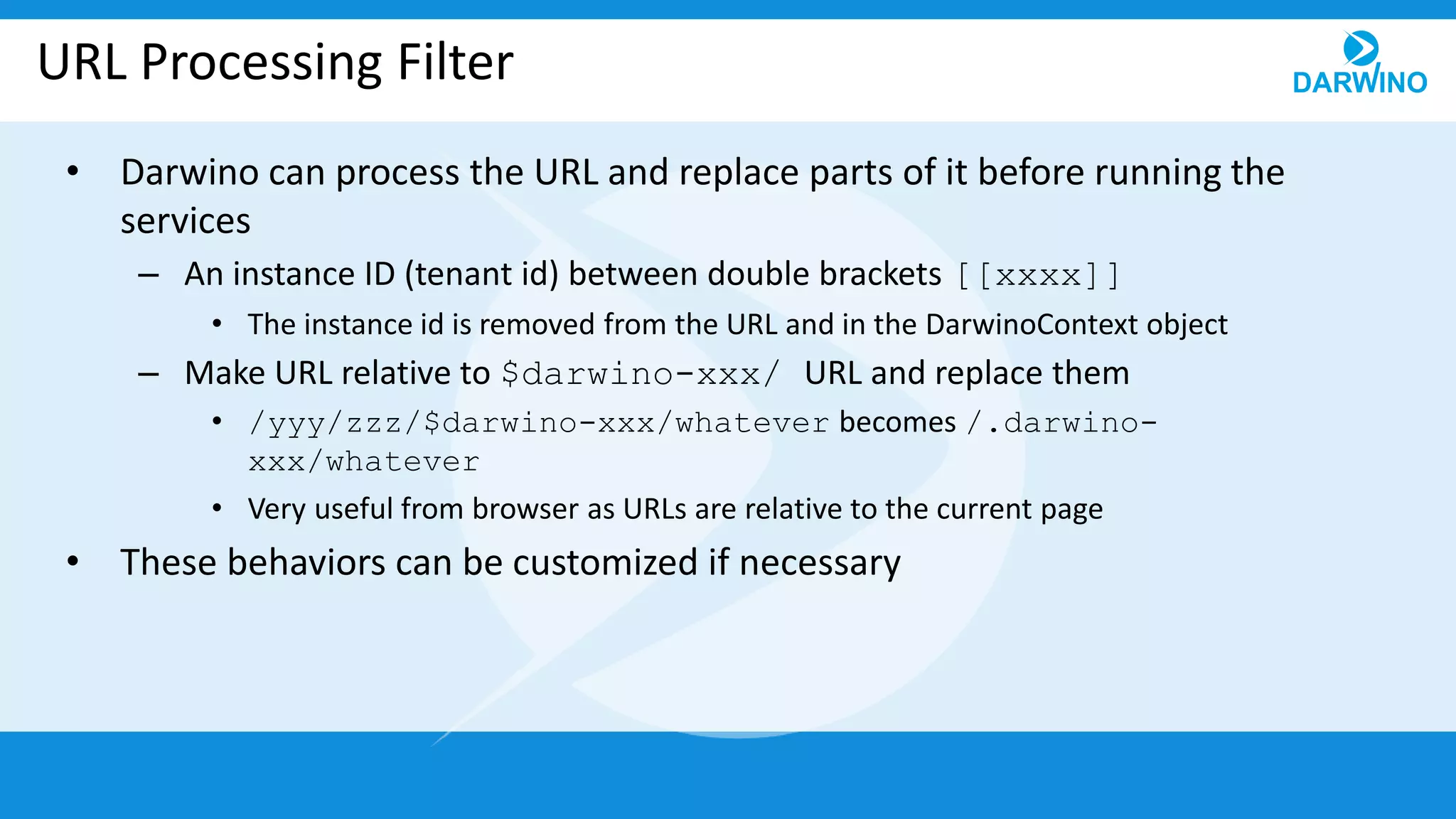

13. URL Processing Filter
• Darwino can process the URL and replace parts of it before running the
services
– An instance ID (tenant id) between double brackets [[xxxx]]
• The instance id is removed from the URL and in the DarwinoContext object
– Make URL relative to $darwino-xxx/ URL and replace them
• /yyy/zzz/$darwino-xxx/whatever becomes /.darwino-
xxx/whatever
• Very useful from browser as URLs are relative to the current page
• These behaviors can be customized if necessary

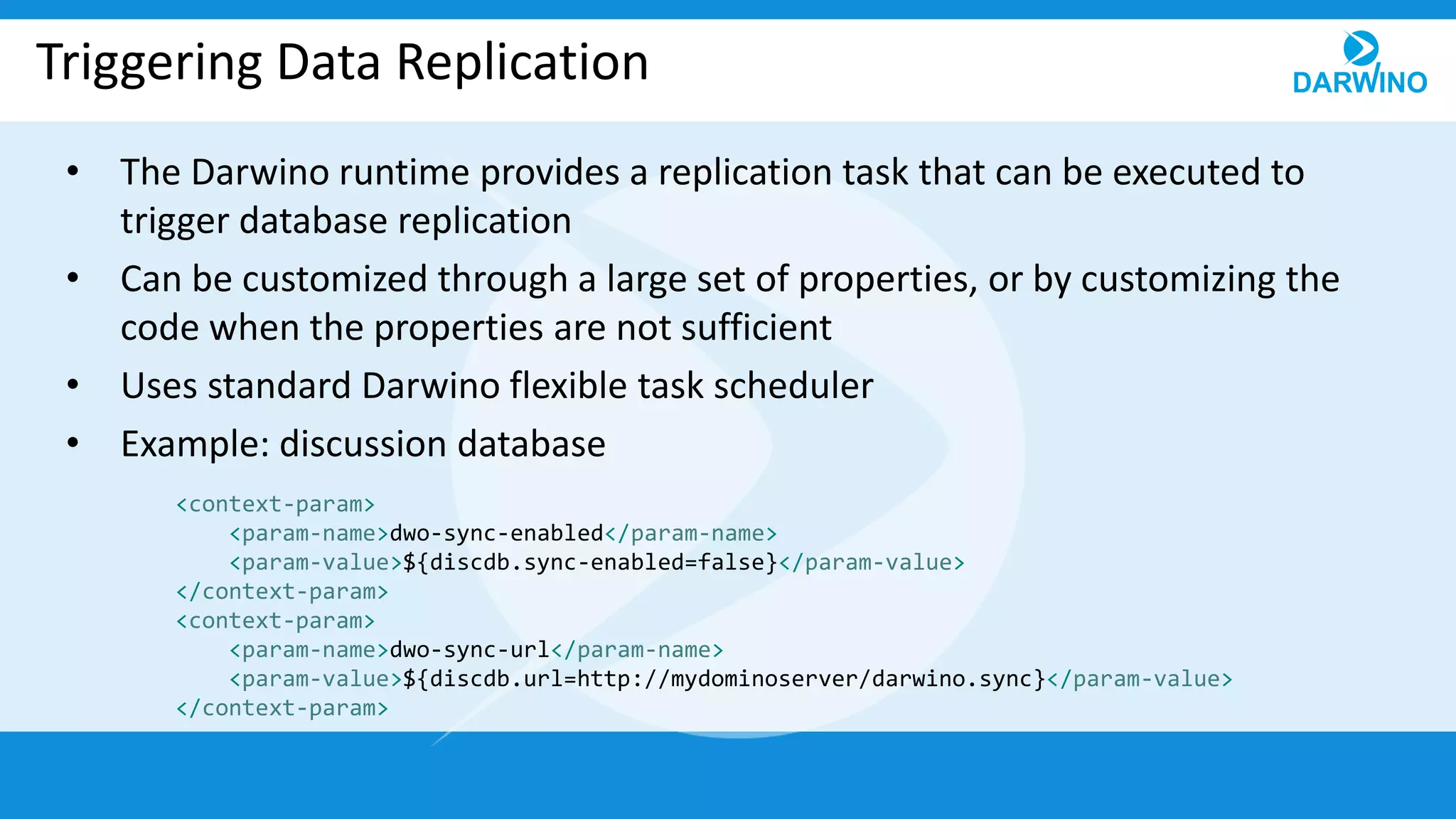

14. Triggering Data Replication
• The Darwino runtime provides a replication task that can be executed to
trigger database replication
• Can be customized through a large set of properties, or by customizing the
code when the properties are not sufficient
• Uses standard Darwino flexible task scheduler
• Example: discussion database
<context-param>
<param-name>dwo-sync-enabled</param-name>
<param-value>${discdb.sync-enabled=false}</param-value>
</context-param>
<context-param>
<param-name>dwo-sync-url</param-name>
<param-value>${discdb.url=http://mydominoserver/darwino.sync}</param-value>
</context-param>

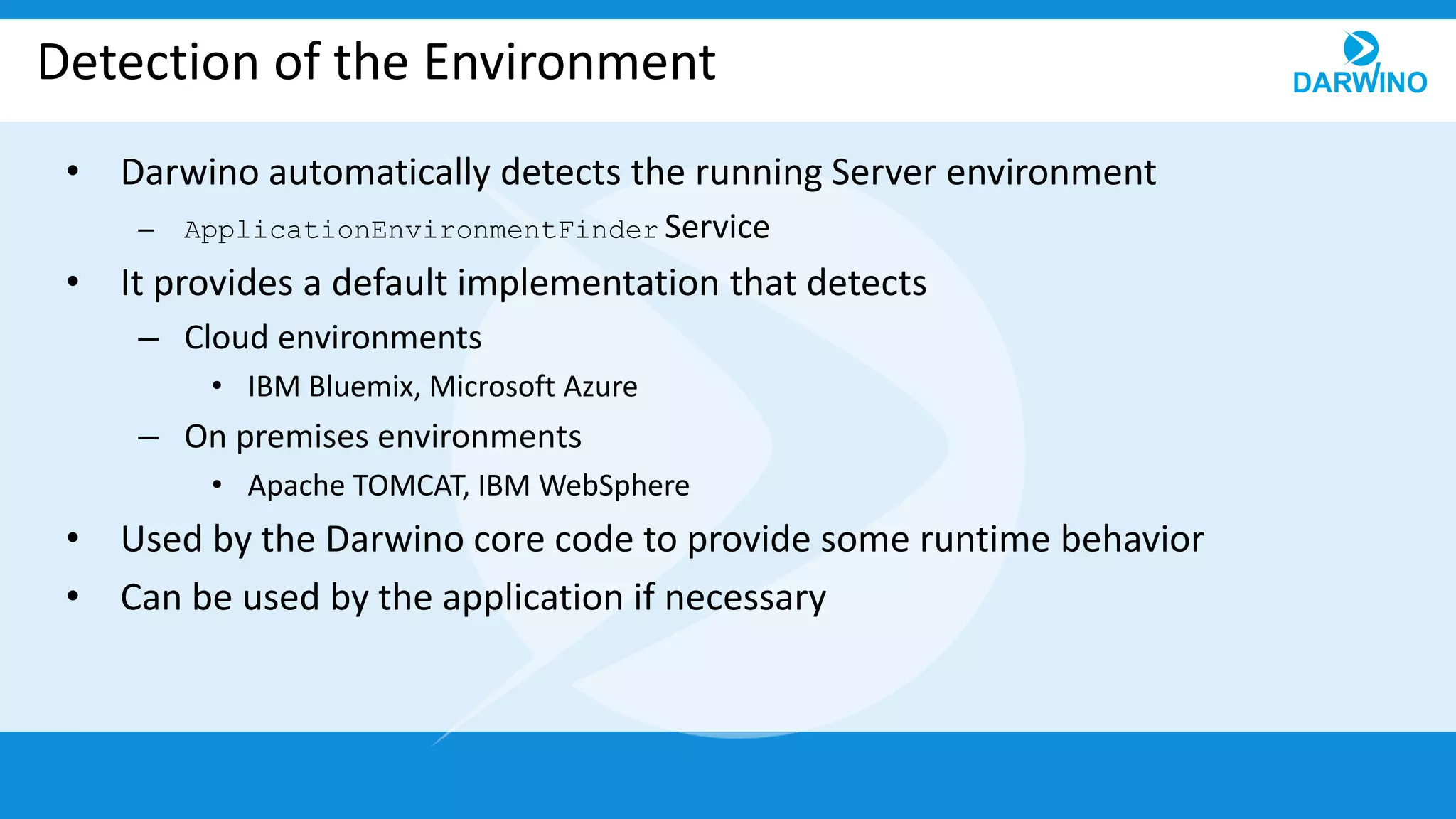

15. Detection of the Environment
• Darwino automatically detects the running Server environment
– ApplicationEnvironmentFinder Service
• It provides a default implementation that detects
– Cloud environments
• IBM Bluemix, Microsoft Azure
– On premises environments
• Apache TOMCAT, IBM WebSphere
• Used by the Darwino core code to provide some runtime behavior
• Can be used by the application if necessary

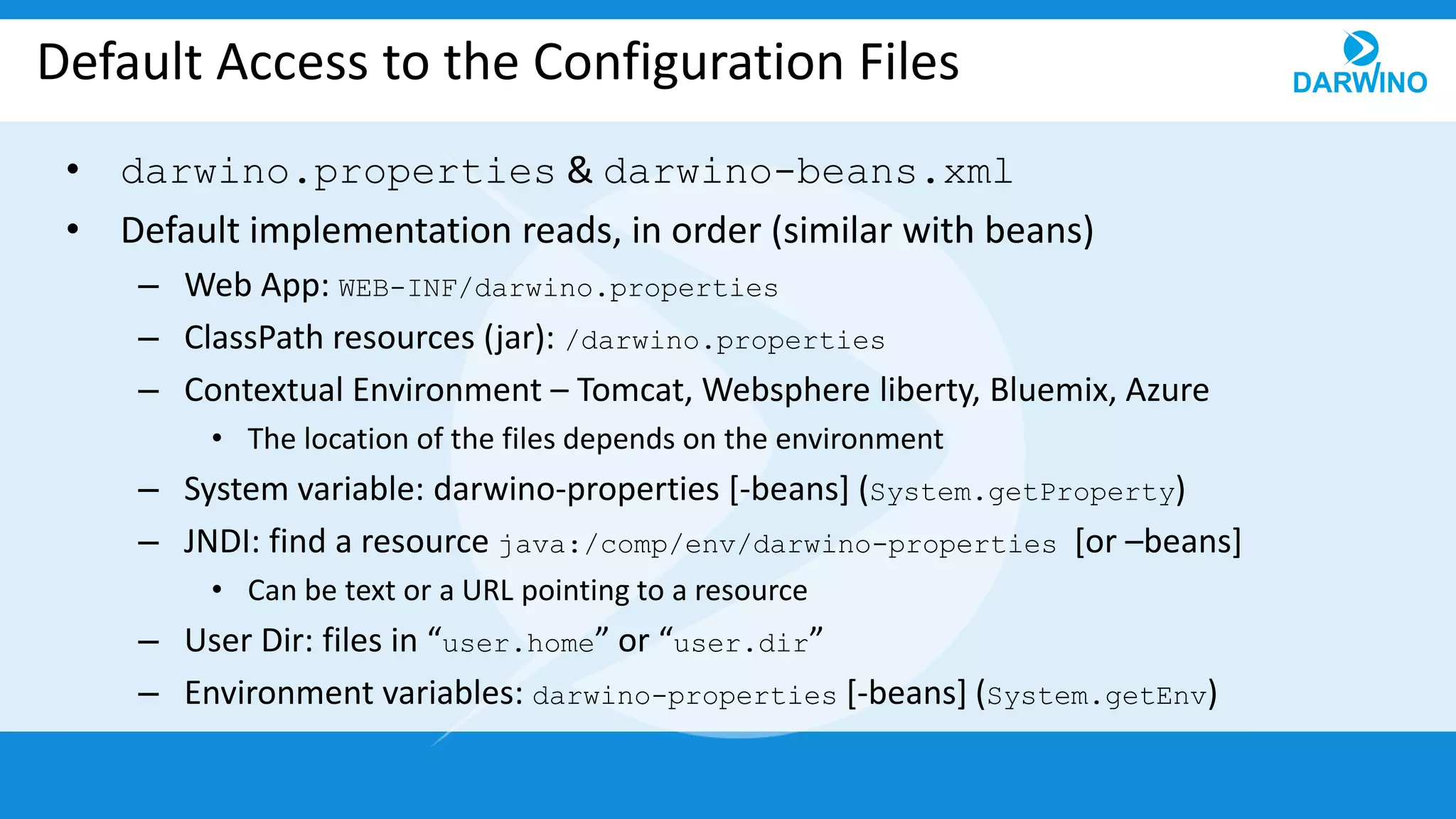

16. Default Access to the Configuration Files
• darwino.properties & darwino-beans.xml
• Default implementation reads, in order (similar with beans)
– Web App: WEB-INF/darwino.properties
– ClassPath resources (jar): /darwino.properties
– Contextual Environment – Tomcat, Websphere liberty, Bluemix, Azure
• The location of the files depends on the environment
– System variable: darwino-properties [-beans] (System.getProperty)
– JNDI: find a resource java:/comp/env/darwino-properties [or –beans]
• Can be text or a URL pointing to a resource
– User Dir: files in “user.home” or “user.dir”
– Environment variables: darwino-properties [-beans] (System.getEnv)

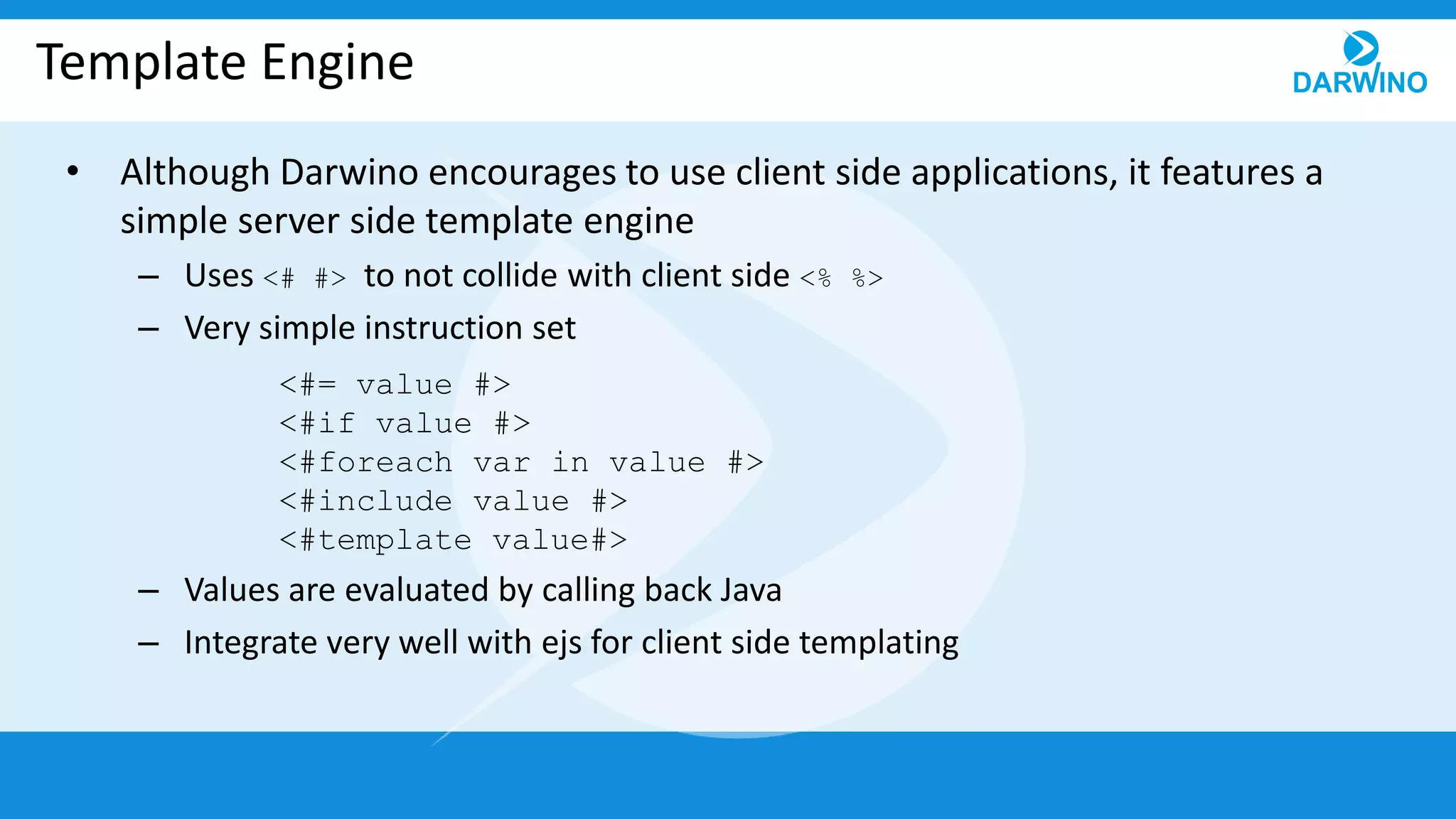

17. Template Engine
• Although Darwino encourages to use client side applications, it features a
simple server side template engine
– Uses <# #> to not collide with client side <% %>
– Very simple instruction set
– Values are evaluated by calling back Java
– Integrate very well with ejs for client side templating
<#= value #>
<#if value #>
<#foreach var in value #>
<#include value #>
<#template value#>

18. Thank you for your attention!
