Darwino offers a set of business APIs for user, mail, and preference services, which encapsulate access to these functionalities. The user service is designed to authenticate users from various sources like LDAP and integrates with multiple data providers, while allowing for role management and data configuration. The framework also supports a range of user service implementations, including static user lists and integrations with platforms like IBM Connections and Microsoft Azure AD.

1. Business APIs
Darwino high level APIs – User Service

2. Business APIs
• Darwino features a set of business APIs, providing an encapsulated access to
services
– User Service
– Mail Service
– Preference services
– API description
– Mobile validation
– Command and Profiler, Proxy….
• The set of encapsulated API will grow over time (File service…)

3. User Service and Data Providers
• The whole Darwino runtime uses a single User object encapsulation, along
with a service that acts on users
• The users can come from different sources
– LDAP, IBM Connections, MS Azure…
– Data from multiple sources can be aggregated and seen as one consistent user
object
• The user service can be user to authenticate a user, using a user/password

4. User Service Concepts
• There is one User Service per Darwino application (runtime)
– Main access point to the users
– Defines what is the unique ID of a user. Depends on the implementation
• LDAP dn/attribute, IBM Connections guid, …
• There might be one or multiple User Data Providers with a User Service
– A data provider extends users with extra data, coming from another source
• User attributes
• User binary pieces (pictures, …)
– A data provider uses an identity mapper to identify users between multiple
sources

5. Anatomy of a User
• A user is identified by a unique id, called a dn
– Note that the dn is internal to Darwino. It dows not have to be an LDAP dn
• A user has a series of attributes: common name, email…
– No constraint exist on the attributes, but a series of default names is provided as
constants. These names should used for the standard attributes
• A user can provide binary pieces (ex: photo, …)
• A user has groups and roles
– Groups are generally coming from the underlying directory
– Roles are generally provided by the application

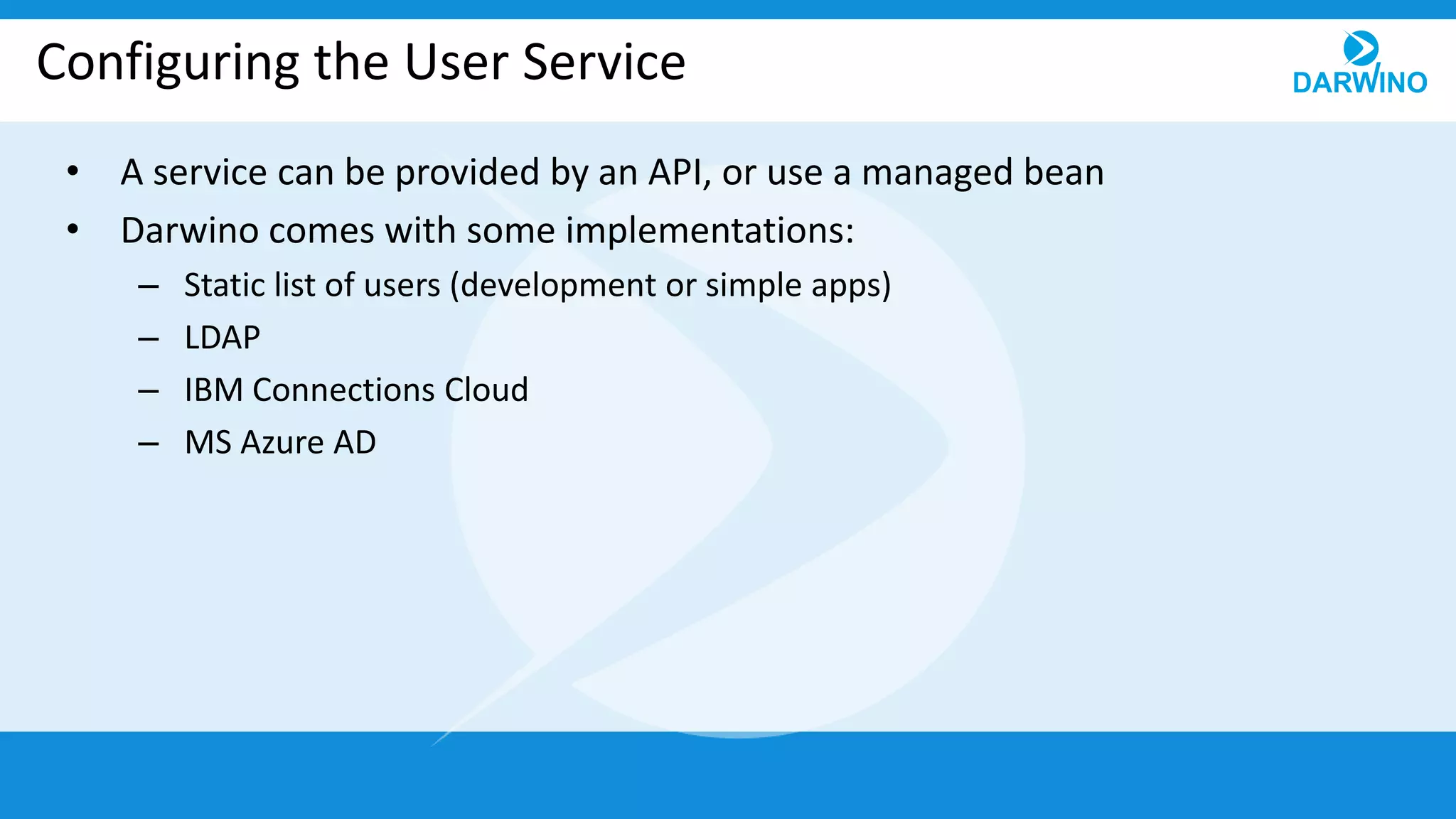

6. Configuring the User Service
• A service can be provided by an API, or use a managed bean
• Darwino comes with some implementations:
– Static list of users (development or simple apps)
– LDAP
– IBM Connections Cloud
– MS Azure AD

7. Configuring a Data Provider
• Data providers can be added to any user service
• Available providers
– IBM Connections (data, picture…)
– Gravatar (for user pictures)

8. <property name="uc">com.darwino.config.user.UserDirStatic$User</property>
<bean type="darwino/userdir" name="base" class="com.darwino.config.user.UserDirStatic" alias="demo,default">
<list name="providers">
<bean class='com.darwino.ibm.connections.IbmConnectionsUserProvider' optional='true'>
<property name='emailFilter'>*@triloggroup.com</property>
<property name='identityMapper'>
<bean class='com.triloggroup.darwino.user.TGLC45IdentityMapper'></bean>
</property>
</bean>
</list>
<list name="users">
<bean class='${uc}'>
<property name='dn'>cn=Philippe Riand,o=TRILOG</property>
<property name='cn'>Philippe Riand</property>
<property name='uid'>phil</property>
<property name='email'>phil@triloggroup.com</property>
<property name='password'>darwino</property>
<list name='roles'>
<value>admin</value>
</list>
<list name='groups'>
<value>darwino</value>
</list>
</bean>
</list>
</bean>
Configuring a Simple User Service
Property reusable across the file
Map static identity to IBM Connections
Get extra data from IBM Connections
Definition of a static user

9. Adding Application Roles to Users
• Roles are added to users using a role provider
• Static roles can easily be assigned, but a custom role provider
implementation can be provided to resolve more dynamic cases
• Roles can also be assigned on a per instance basis
– The same physical user can have different roles in different tenant
<bean name="roleProvider" class="com.darwino.config.user.UserRoleStatic">
<list name="roles">
<bean class='com.darwino.config.user.UserRoleStatic$Role'>
<property name='name'>admin</property>
<list name='users'>
<value>20098922</value>
</list>
</bean>
</list>
</bean>

10. Configuring an LDAP Service
• Several LDAP servers are supported out of the box through JNDI
– MS AD, IBM Tivoli, IBM Domino, Oracle Directory…
• Custom LDAP server or schemas can be supported
– By configuring the attribute mapping of the service
– By providing a custom service implementation

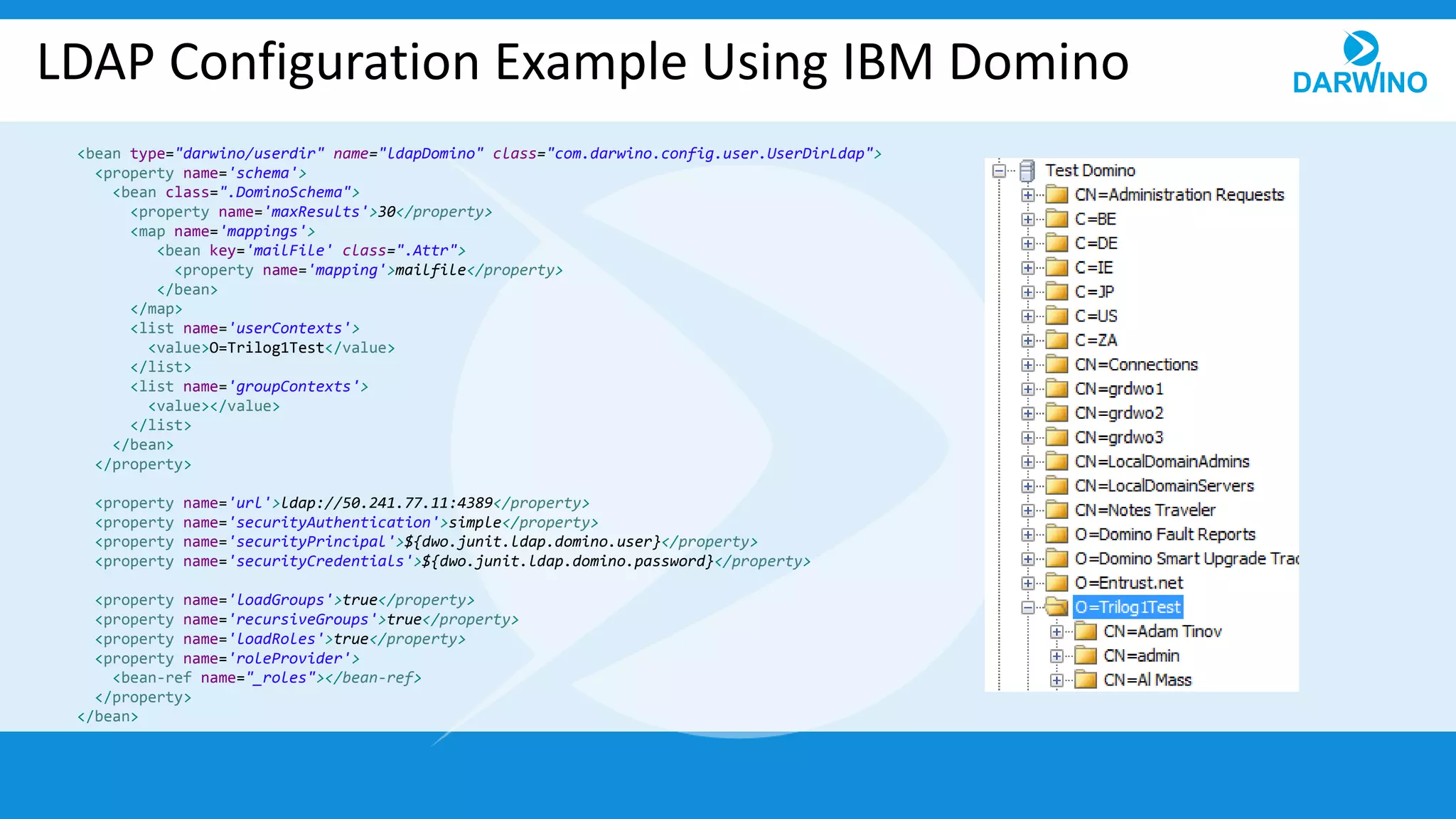

11. LDAP Configuration Example Using IBM Domino
<bean type="darwino/userdir" name="ldapDomino" class="com.darwino.config.user.UserDirLdap">
<property name='schema'>
<bean class=".DominoSchema">
<property name='maxResults'>30</property>
<map name='mappings'>
<bean key='mailFile' class=".Attr">
<property name='mapping'>mailfile</property>
</bean>
</map>
<list name='userContexts'>
<value>O=Trilog1Test</value>
</list>
<list name='groupContexts'>
<value></value>
</list>
</bean>
</property>
<property name='url'>ldap://50.241.77.11:4389</property>
<property name='securityAuthentication'>simple</property>
<property name='securityPrincipal'>${dwo.junit.ldap.domino.user}</property>
<property name='securityCredentials'>${dwo.junit.ldap.domino.password}</property>
<property name='loadGroups'>true</property>
<property name='recursiveGroups'>true</property>
<property name='loadRoles'>true</property>
<property name='roleProvider'>
<bean-ref name="_roles"></bean-ref>
</property>
</bean>

12. Configuring IBM Connections
<bean type="darwino/ibmconnections" name="tglc5demo" class="com.darwino.ibm.connections.IbmConnections">
<property name="url">https://tglc5demo.triloggroup.com/</property>
<property name="trustAllSSLCertificates">true</property>
<bean name="basicCredentials">
<property name="user">${connections.tglc5demo.basic.user}</property>
<property name="password">${connections.tglc5demo.basic.password}</property>
</bean>
<bean name="oauthCredentials">
<property name="consumerKey">${connections.tglc5demo.oauth2.clientid}</property>
<property name="consumerSecret">${connections.tglc5demo.oauth2.clientSecret}</property>
</bean>
</bean>
<bean type="darwino/userdir" name="base" class="com.darwino.ibm.connections.IbmConnectionsUserDir" alias="discdb">
<property name='allowUnknownUsers'>true</property>
<list name="providers">
<bean class='com.darwino.social.gravatar.GravatarUserProvider' optional='true' enabled='true'></bean>
</list>
<bean name="roleProvider" class="com.darwino.config.user.UserRoleStatic">
<list name="roles">
<bean class='com.darwino.config.user.UserRoleStatic$Role'>
<property name='name'>admin</property>
<list name='users'>
<value>20098922</value>
</list>
</bean>
</list>
</bean>
</bean>
Cloud or on-premises URL

13. Configuring Microsoft Azure AD
<bean type="darwino/msazure" name="azure" class="com.darwino.microsoft.o365.AzureAD" alias="demo,default">
<property name="trustAllSSLCertificates">true</property>
<property name="appId">${azure.oauth2.appid}</property>
<property name="tenantId">${azure.oauth2.tenantid}</property>
<bean name="webCredentials">
<property name="clientId">${azure.oauth2.web.clientid}</property>
<property name="clientSecret">${azure.oauth2.web.clientsecret}</property>
</bean>
</bean>
<bean type="darwino/userdir" name="base" class="com.darwino.microsoft.o365.AzureADUserDir" alias="discdb">
<property name='allowUnknownUsers'>true</property>
<list name="providers">
<bean class='com.darwino.social.gravatar.GravatarUserProvider' optional='true' enabled='true'></bean>
</list>
<bean name="roleProvider" class="com.darwino.config.user.UserRoleStatic">
<list name="roles">
<bean class='com.darwino.config.user.UserRoleStatic$Role'>
<property name='name'>admin</property>
<list name='users'>
<value>d442c454-838c-4875-8b16-6612e9ccd4ca</value>
</list>
</bean>
</list>
</bean>
</bean>

14. User Service Java API
• The user service is a singleton within the Darwino runtime
Platform.getService(UserService.class)

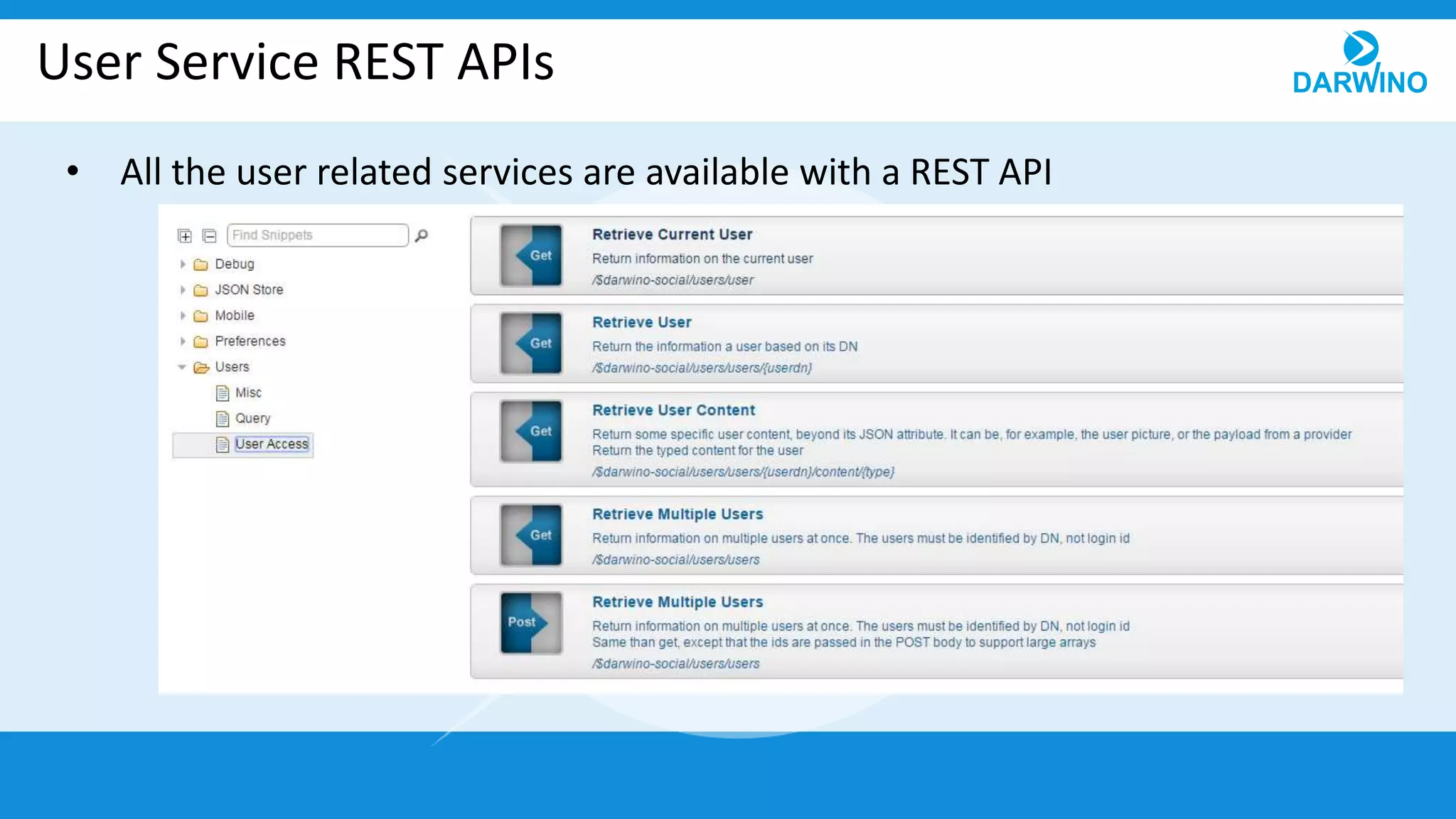

15. User Service REST APIs
• All the user related services are available with a REST API

16. User Service JavaScript API
• The JavaScript API runs within a browser and connects to the REST service
– The API is asynchronous
– When a user is not available, it returns a temporary object that will be updated
when the result comes back from the server
• It maintains an in memory cache to not duplicate the requests to the server
• It supports @me for the current user
• Can batches several user requests into a single one, to minimize the # of
requests
– Ex: result of a query with one use per row

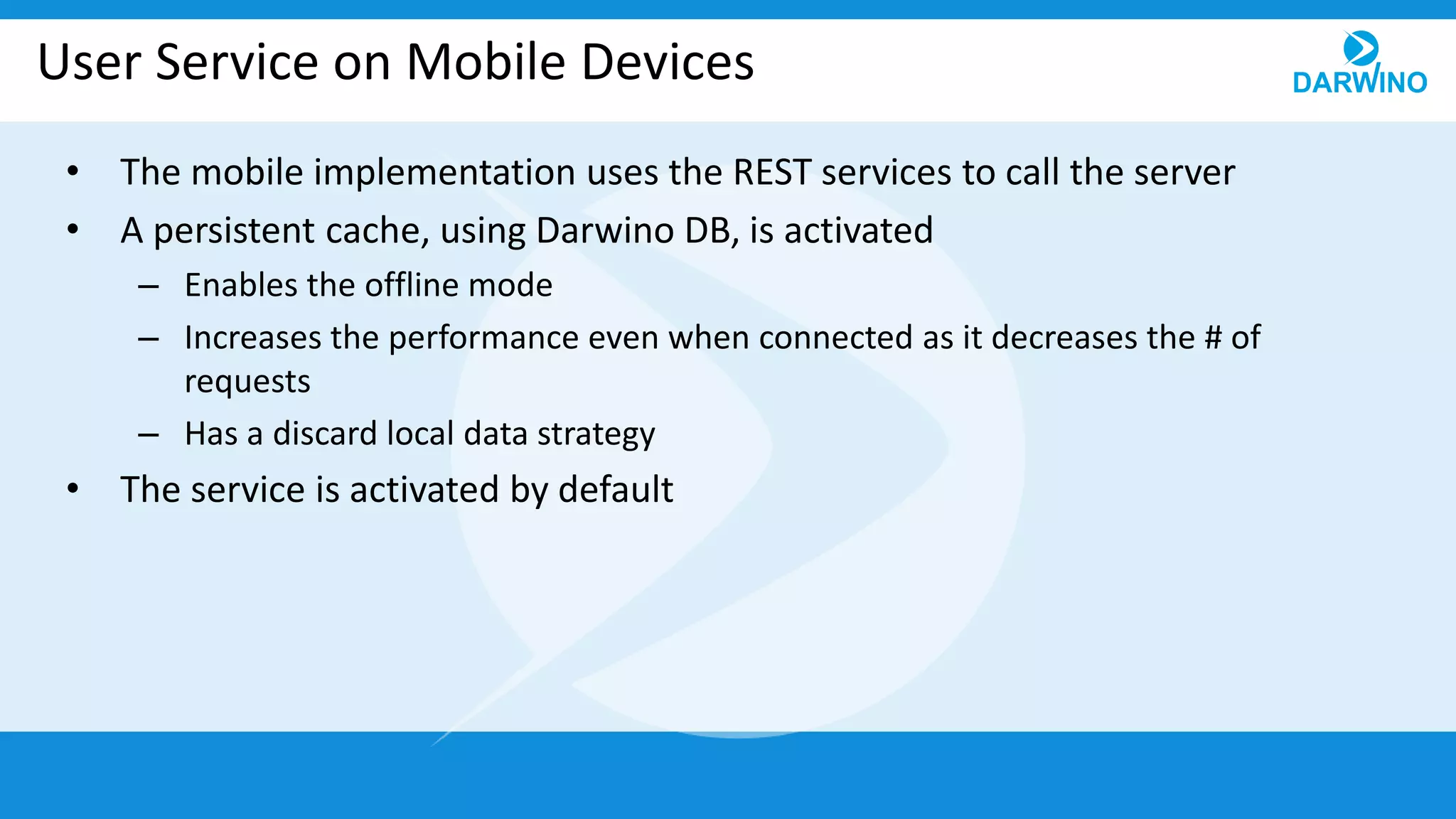

17. User Service on Mobile Devices
• The mobile implementation uses the REST services to call the server
• A persistent cache, using Darwino DB, is activated
– Enables the offline mode
– Increases the performance even when connected as it decreases the # of
requests
– Has a discard local data strategy
• The service is activated by default

18. Creating your Own User Service
• Creating a custom user service requires
– A user service inheriting from UserServiceImpl
• Handles many details, like in memory caching…
– A user object class inheriting from UserImpl
• Creating a custom data provider
– A data provider inheriting from UserProviderImpl
• See WebGate self registration database

19. Quick E-Mail Service Overview
• Darwino provides an easy service to sent e-mail
– Delegates to the underlying implementation through drivers
• Java Mail, JNDI Java Mail…
– Supports Basic, TLS or SSL transport
– Defined as a Bean
• Simple but complete APIs
– Sends text and HTML content
– Support binary attachments

20. Quick Preferences Service Overview
• The preference service can read and store preferences on a user basis
• Preferences are accessed using extensions
– Extension example is using in memory storage
• Creating a custom storage is easy
• The service will provide more storage options in the future
– JSON database
– Java preferences API

21. Thank you for your attention!
