1. Deploying Cloud Applications
IBM Bluemix, Microsoft Azure

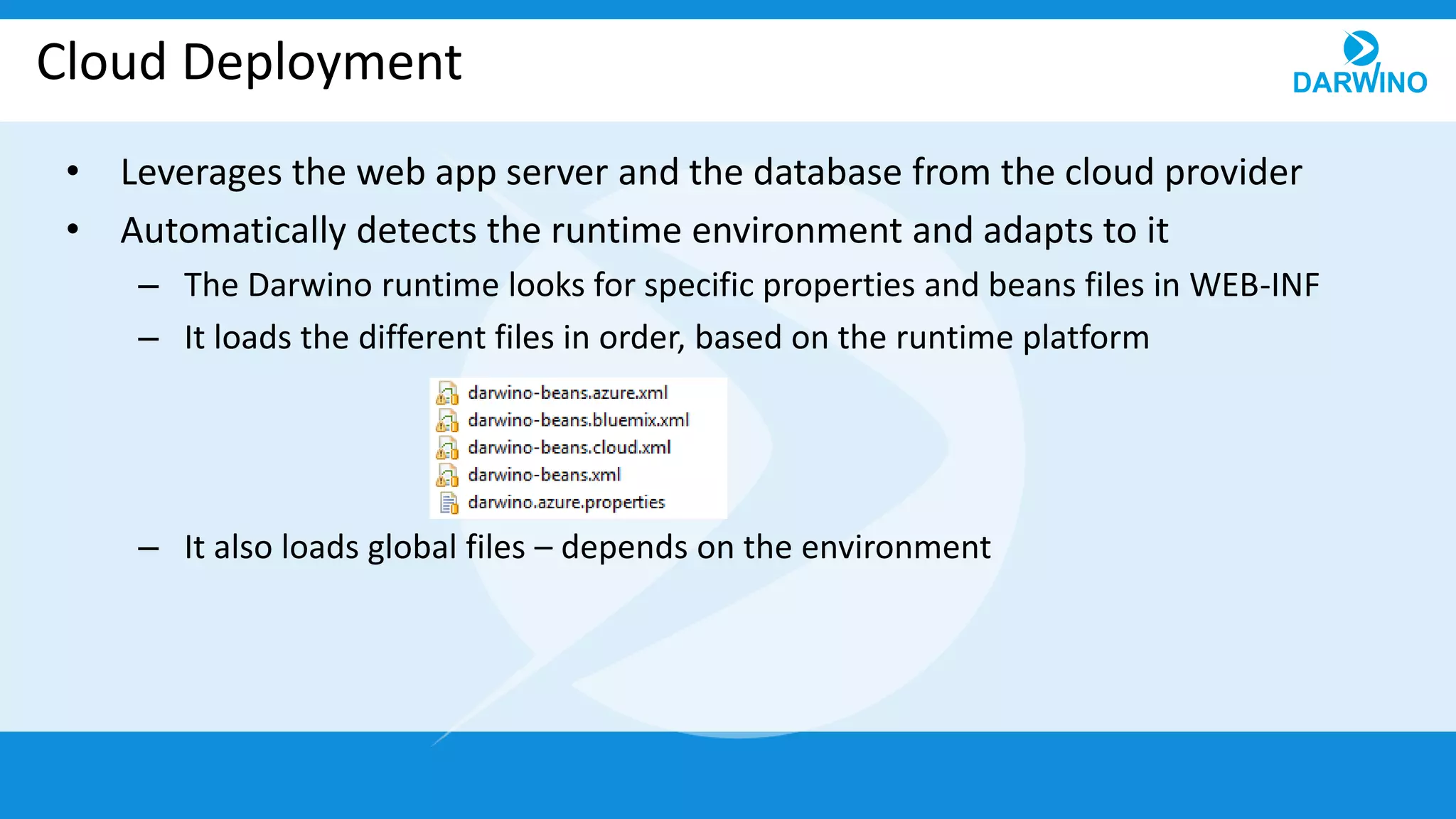

2. Cloud Deployment
• Leverages the web app server and the database from the cloud provider
• Automatically detects the runtime environment and adapts to it
– The Darwino runtime looks for specific properties and beans files in WEB-INF
– It loads the different files in order, based on the runtime platform
– It also loads global files – depends on the environment

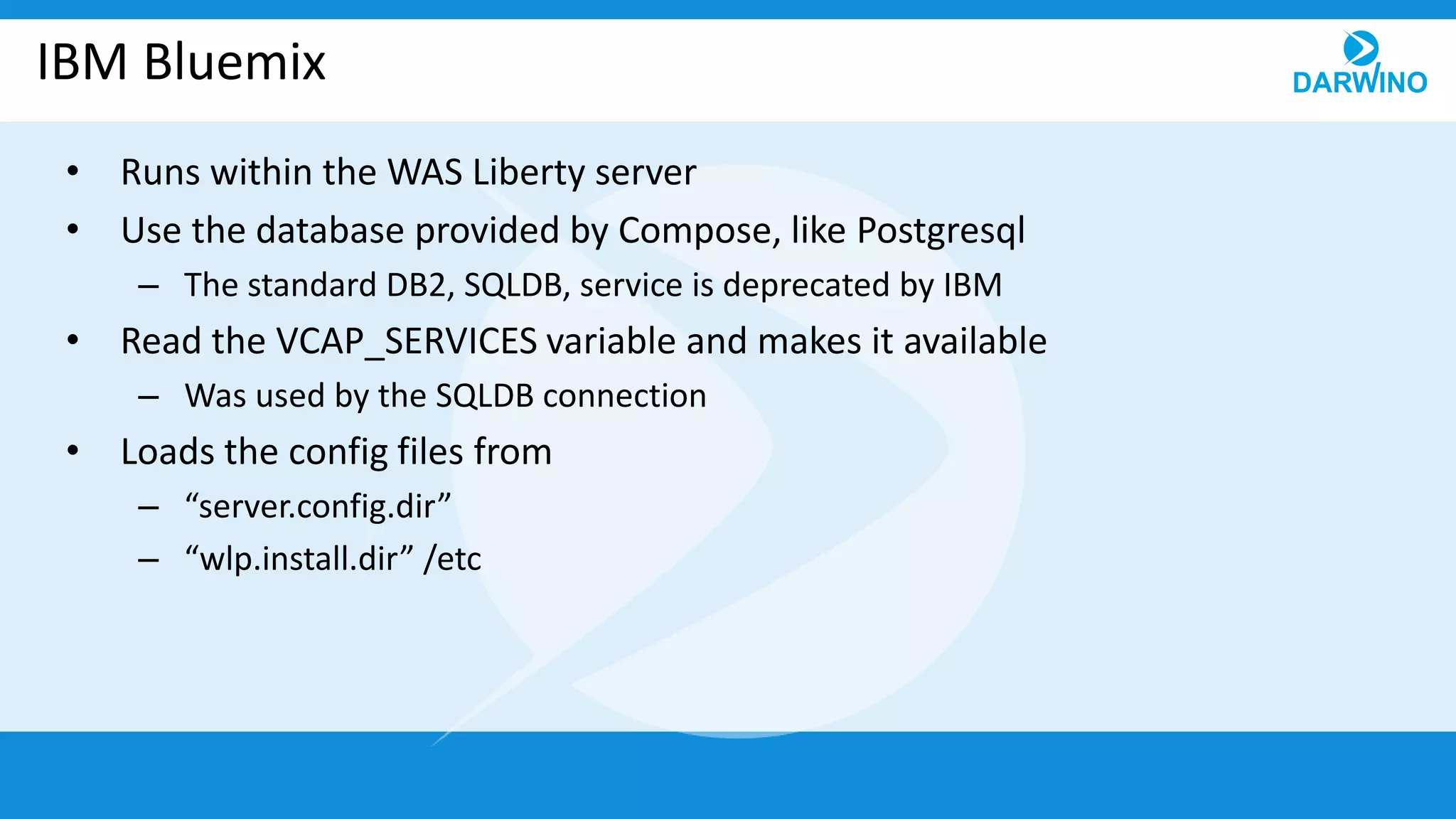

3. IBM Bluemix
• Runs within the WAS Liberty server
• Use the database provided by Compose, like Postgresql
– The standard DB2, SQLDB, service is deprecated by IBM
• Read the VCAP_SERVICES variable and makes it available
– Was used by the SQLDB connection
• Loads the config files from
– “server.config.dir”
– “wlp.install.dir” /etc

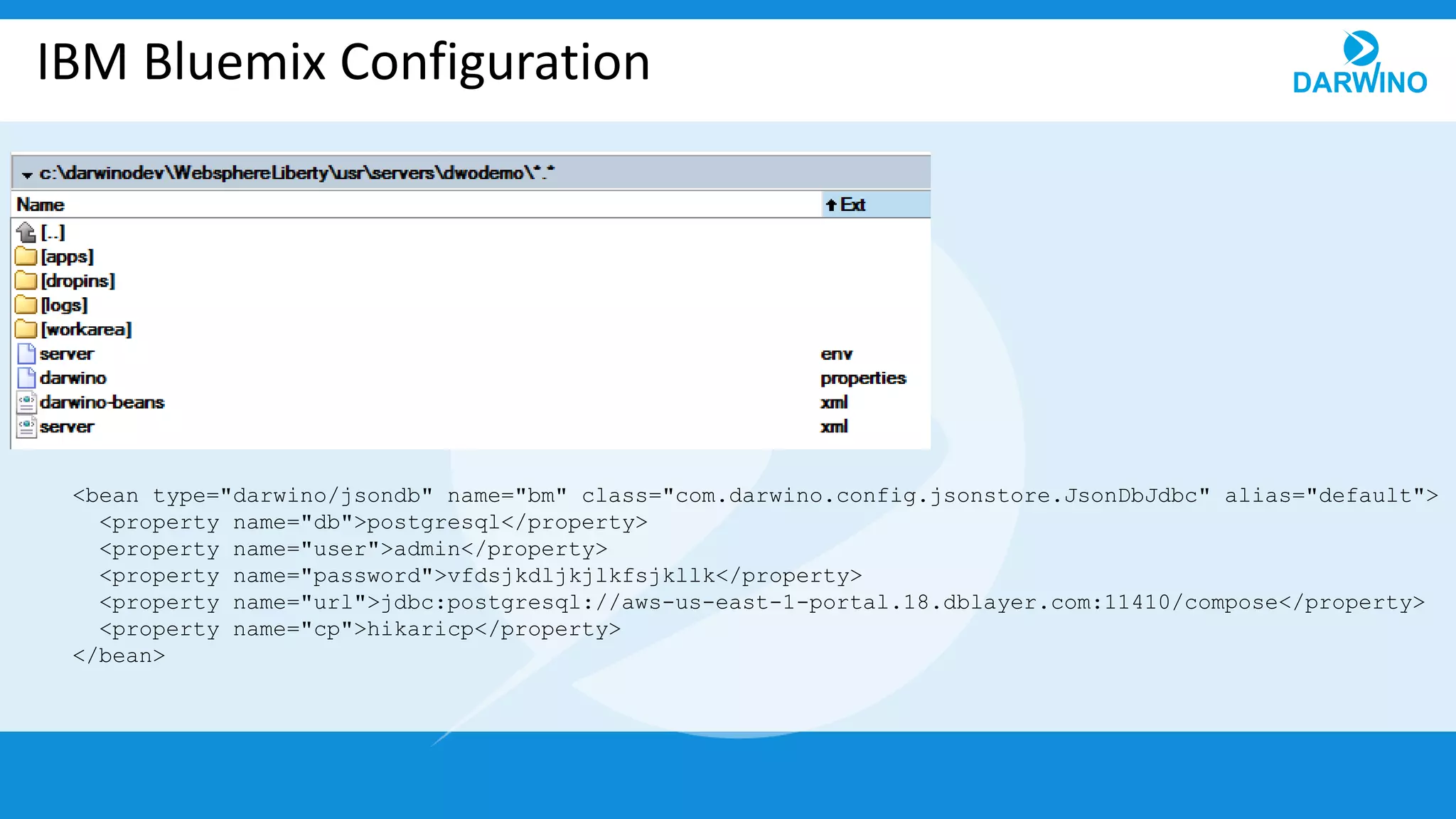

4. IBM Bluemix Configuration
<bean type="darwino/jsondb" name="bm" class="com.darwino.config.jsonstore.JsonDbJdbc" alias="default">
<property name="db">postgresql</property>
<property name="user">admin</property>
<property name="password">vfdsjkdljkjlkfsjkllk</property>
<property name="url">jdbc:postgresql://aws-us-east-1-portal.18.dblayer.com:11410/compose</property>
<property name="cp">hikaricp</property>
</bean>

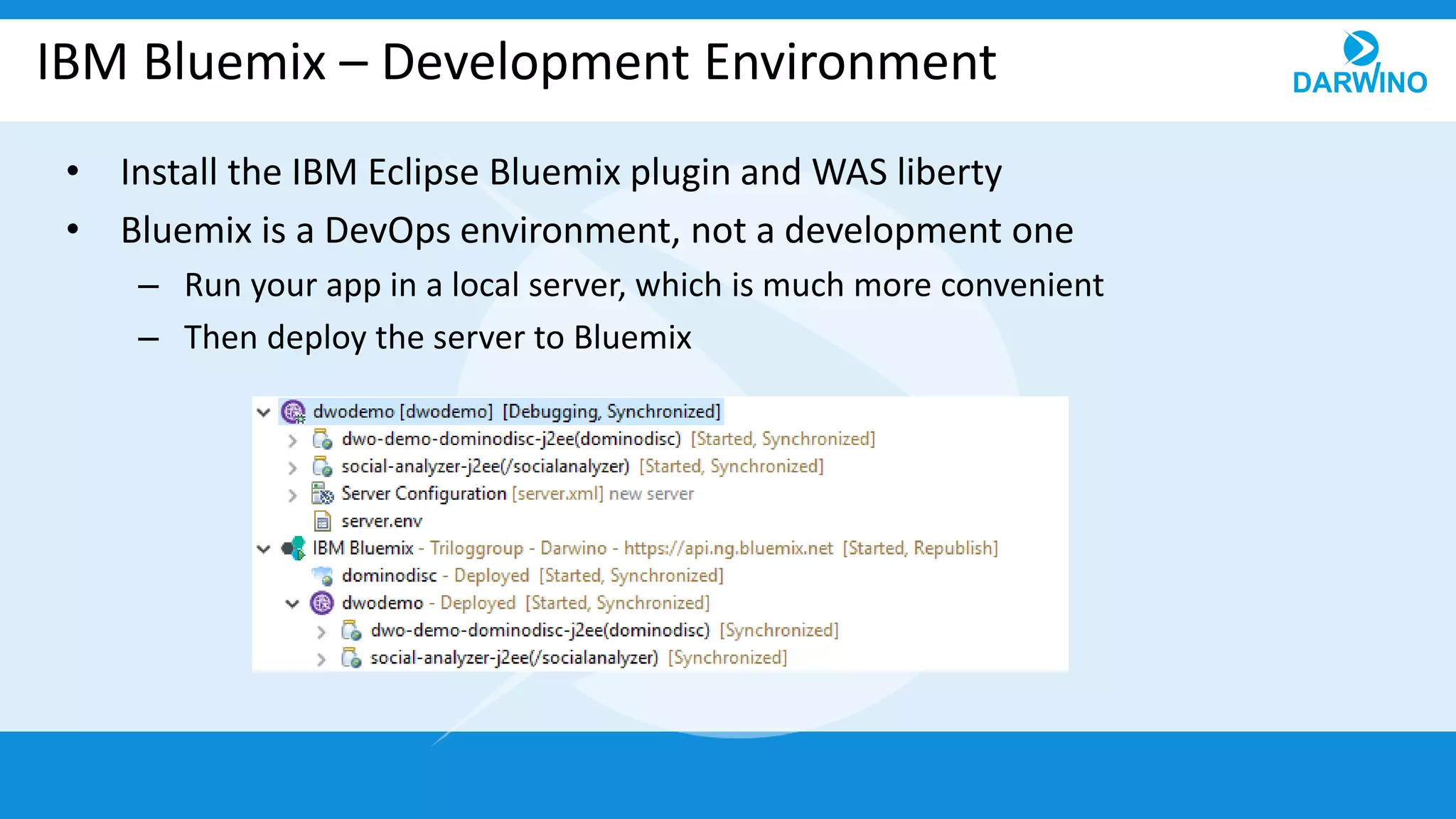

5. IBM Bluemix – Development Environment
• Install the IBM Eclipse Bluemix plugin and WAS liberty
• Bluemix is a DevOps environment, not a development one
– Run your app in a local server, which is much more convenient
– Then deploy the server to Bluemix

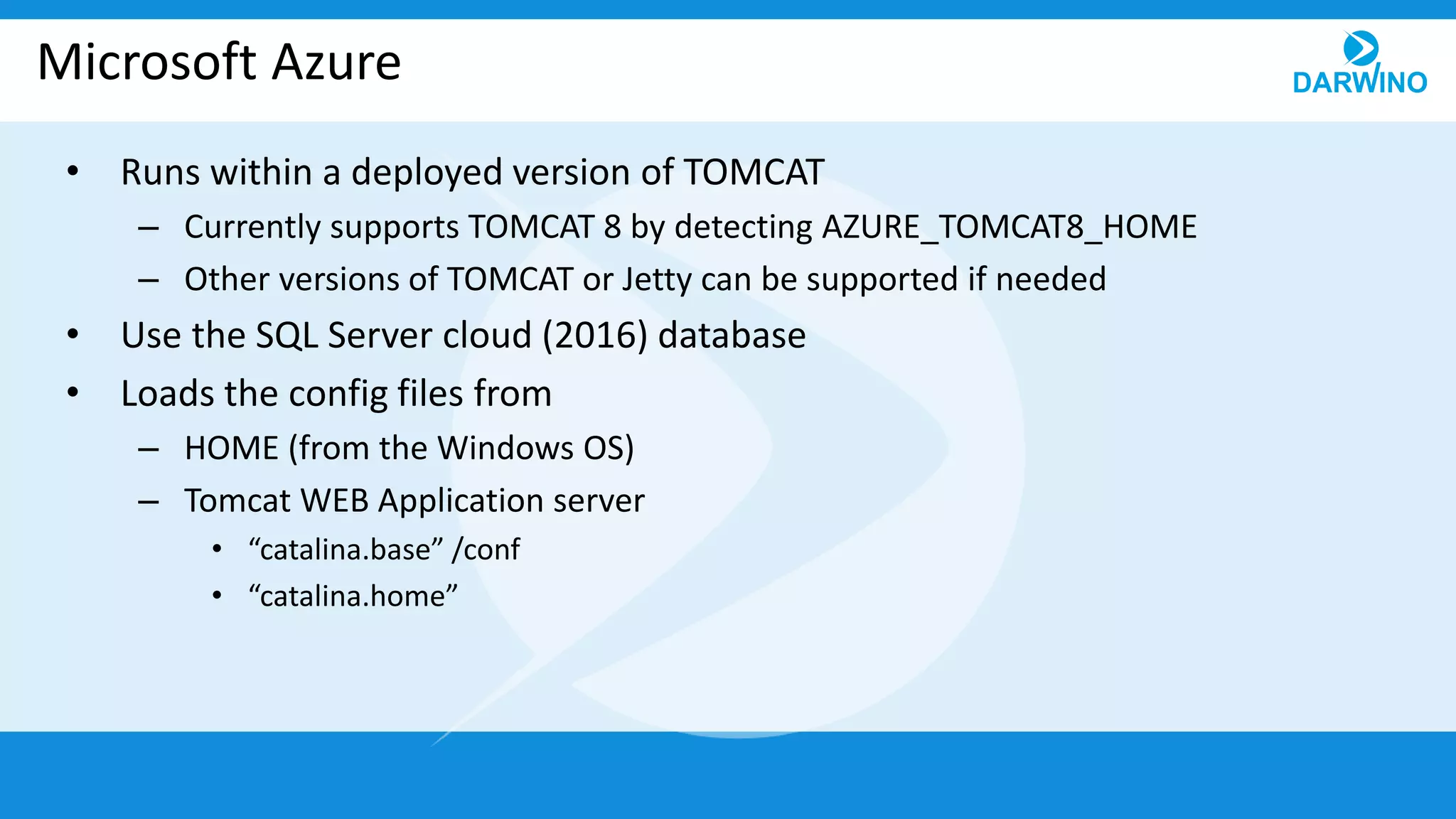

6. Microsoft Azure
• Runs within a deployed version of TOMCAT
– Currently supports TOMCAT 8 by detecting AZURE_TOMCAT8_HOME
– Other versions of TOMCAT or Jetty can be supported if needed
• Use the SQL Server cloud (2016) database
• Loads the config files from
– HOME (from the Windows OS)
– Tomcat WEB Application server
• “catalina.base” /conf
• “catalina.home”

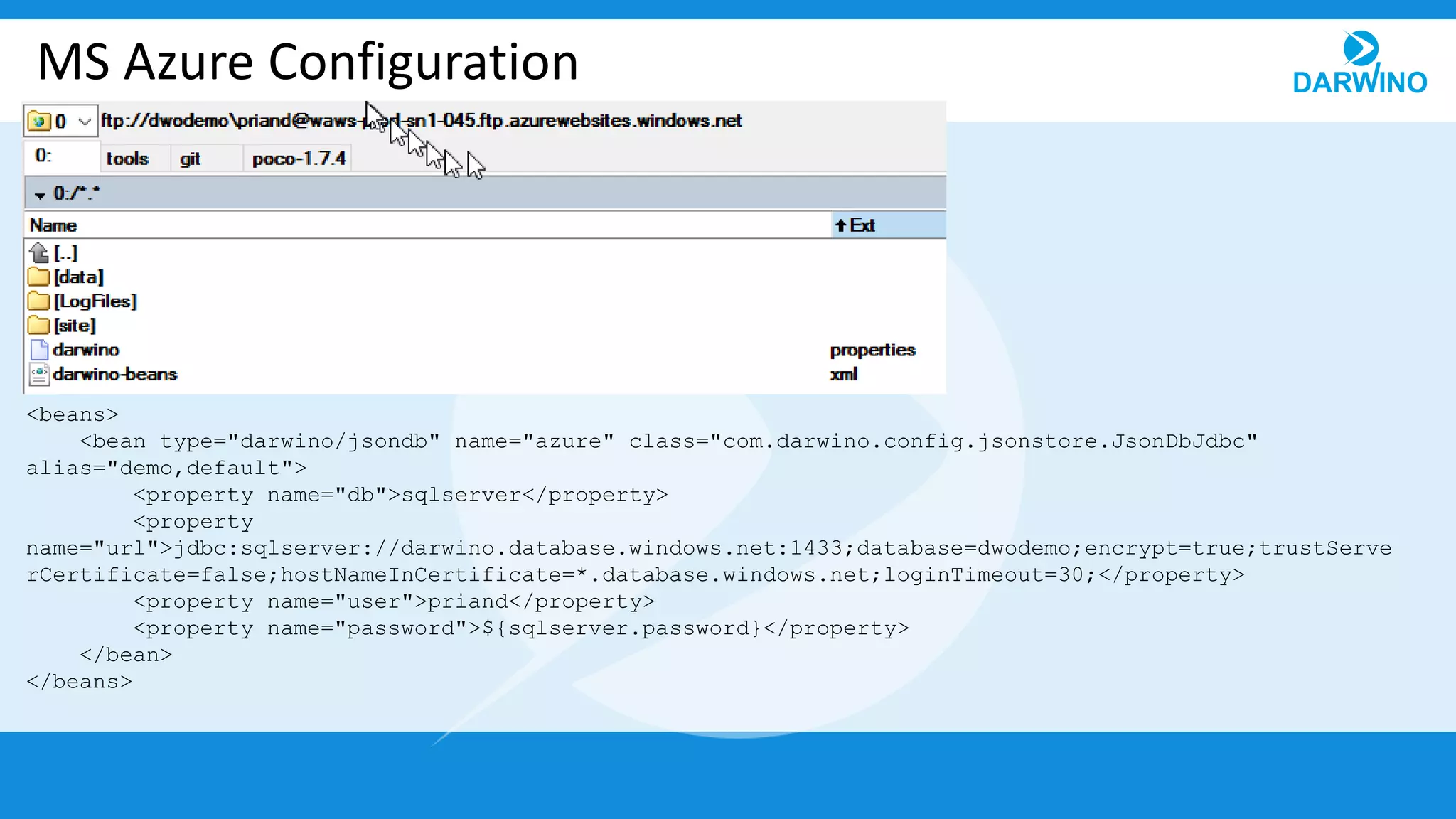

7. MS Azure Configuration
<beans>
<bean type="darwino/jsondb" name="azure" class="com.darwino.config.jsonstore.JsonDbJdbc"
alias="demo,default">
<property name="db">sqlserver</property>
<property
name="url">jdbc:sqlserver://darwino.database.windows.net:1433;database=dwodemo;encrypt=true;trustServe
rCertificate=false;hostNameInCertificate=*.database.windows.net;loginTimeout=30;</property>
<property name="user">priand</property>
<property name="password">${sqlserver.password}</property>
</bean>
</beans>

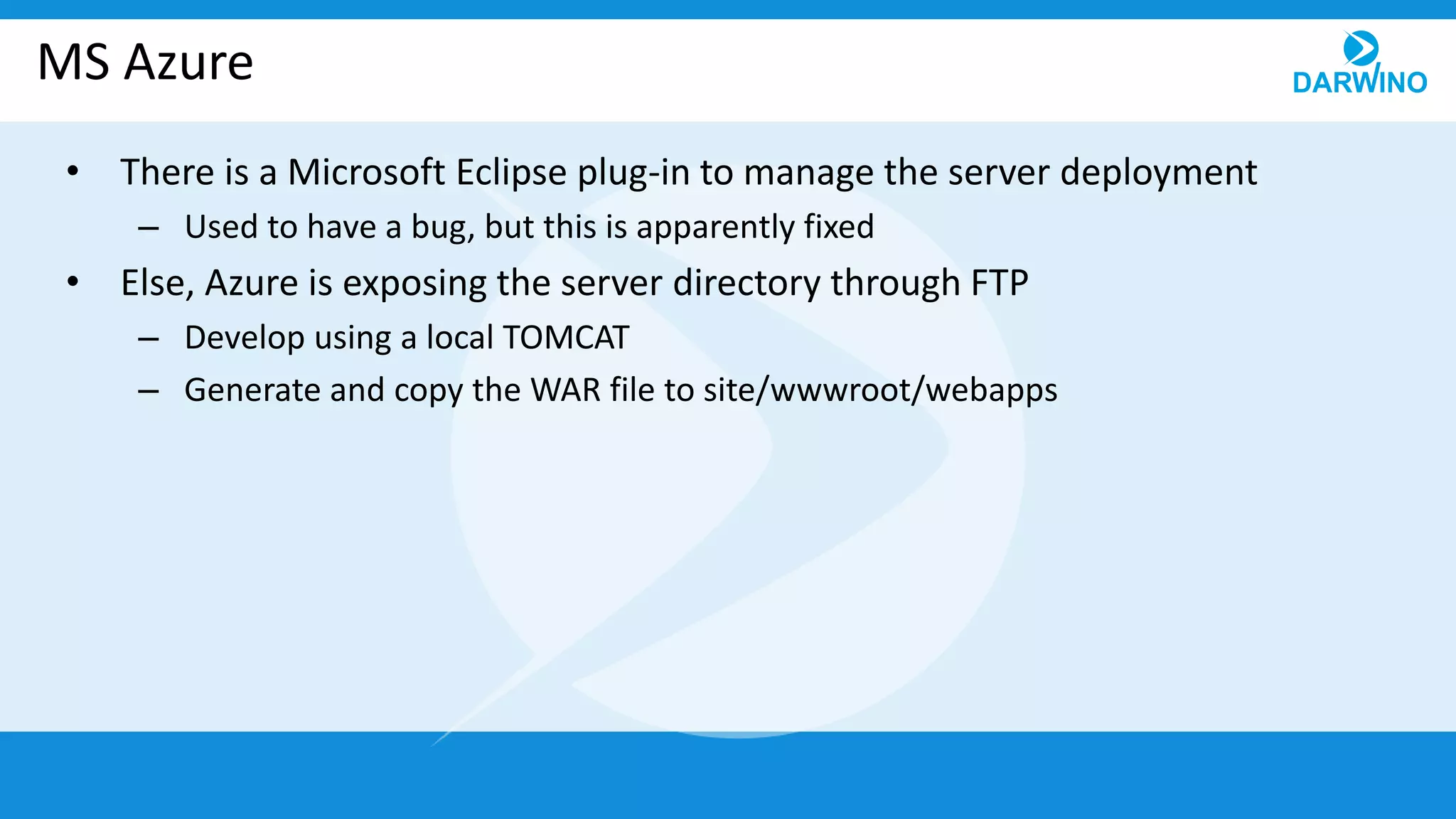

8. MS Azure
• There is a Microsoft Eclipse plug-in to manage the server deployment
– Used to have a bug, but this is apparently fixed
• Else, Azure is exposing the server directory through FTP
– Develop using a local TOMCAT
– Generate and copy the WAR file to site/wwwroot/webapps

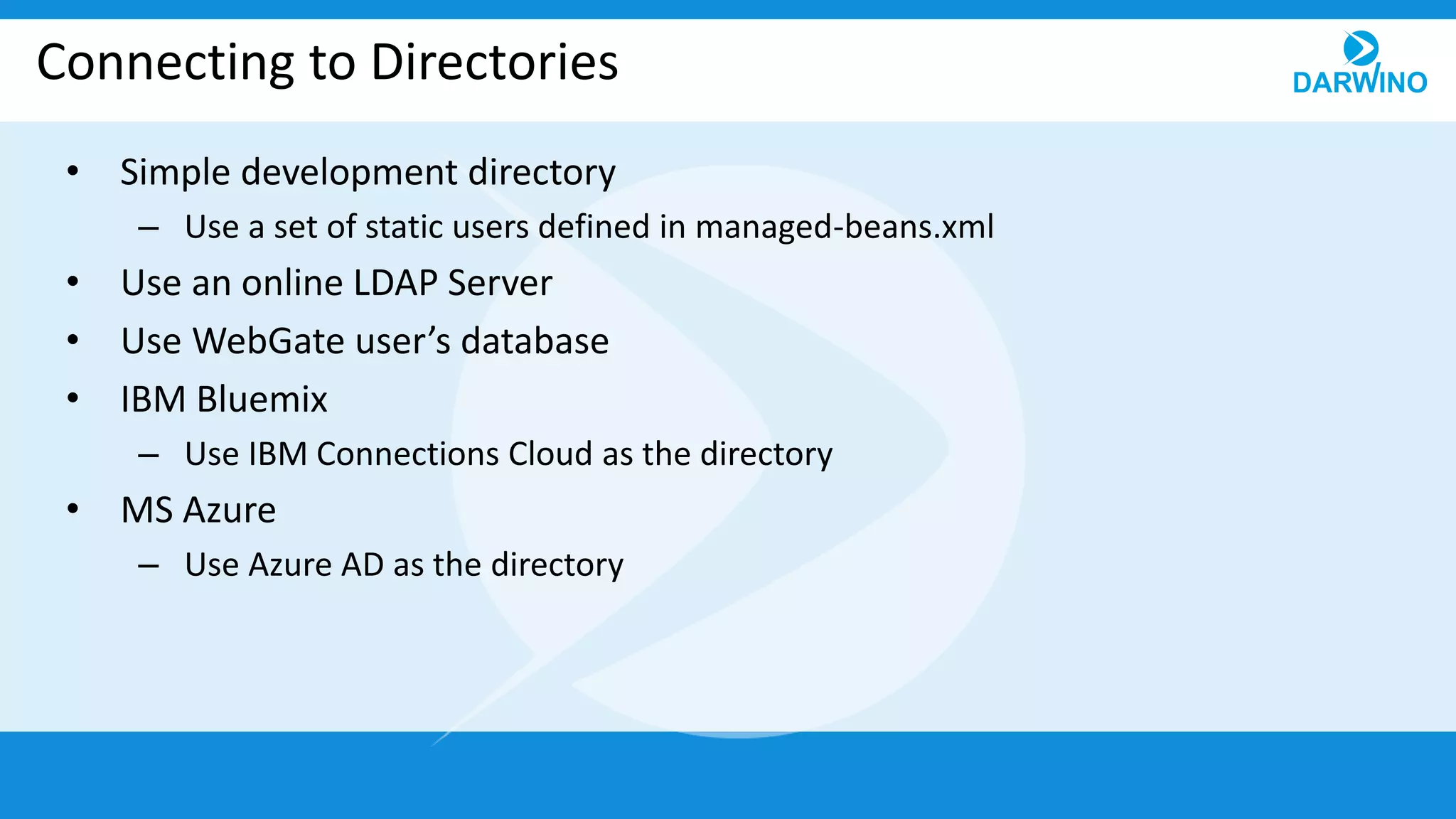

9. Connecting to Directories
• Simple development directory
– Use a set of static users defined in managed-beans.xml
• Use an online LDAP Server
• Use WebGate user’s database
• IBM Bluemix
– Use IBM Connections Cloud as the directory
• MS Azure
– Use Azure AD as the directory

10. Thank you for your attention!
