This document provides information about advanced configuration options for replicating documents from a Domino database to Darwino. It describes top-level commands, field options, array fields, security considerations, converter plugins, and includes an example of how to concatenate related fields into arrays.

1. Advanced Domino Replication

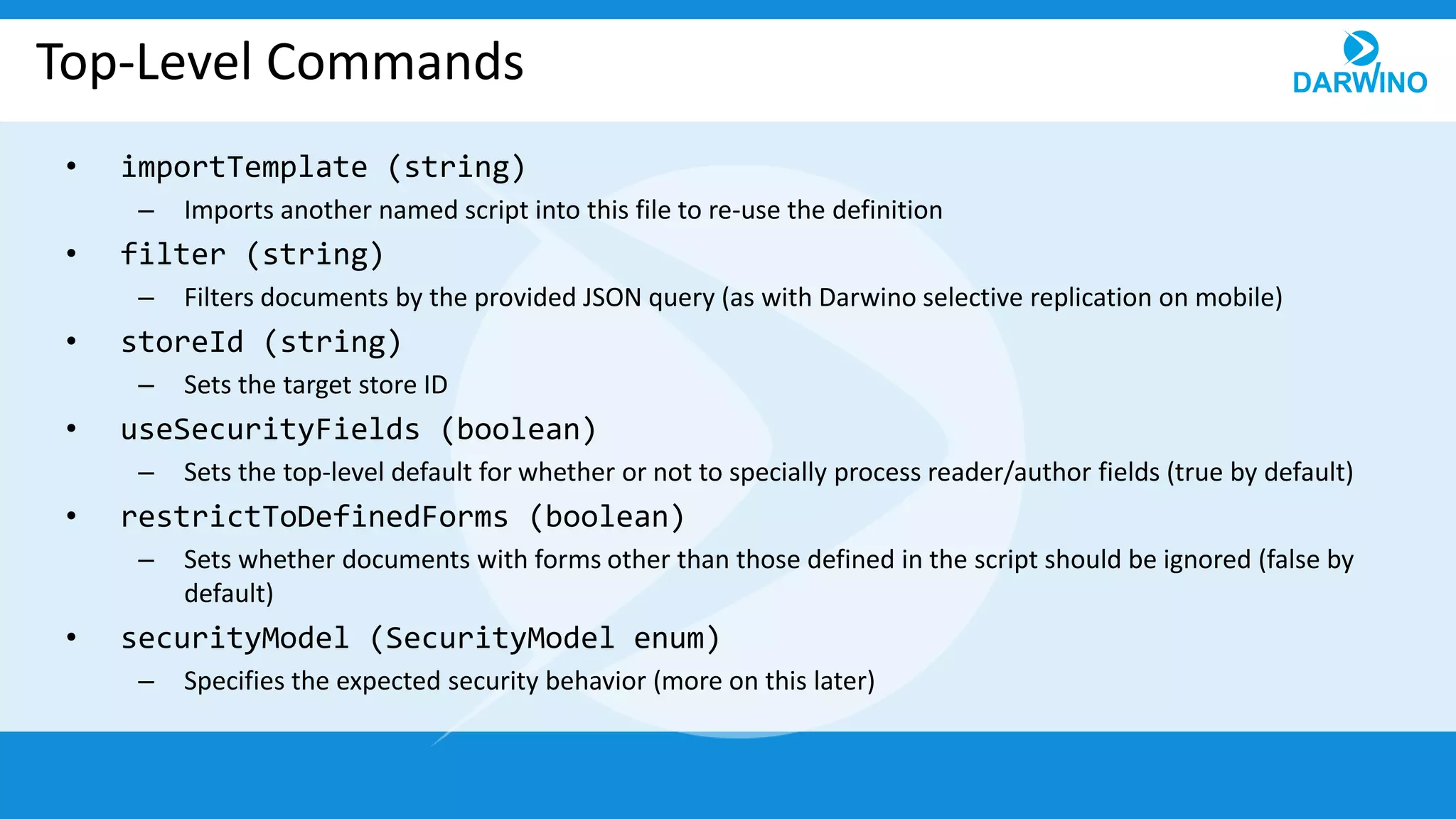

2. Top-Level Commands
• importTemplate (string)
– Imports another named script into this file to re-use the definition
• filter (string)
– Filters documents by the provided JSON query (as with Darwino selective replication on mobile)
• storeId (string)
– Sets the target store ID
• useSecurityFields (boolean)
– Sets the top-level default for whether or not to specially process reader/author fields (true by default)
• restrictToDefinedForms (boolean)
– Sets whether documents with forms other than those defined in the script should be ignored (false by
default)
• securityModel (SecurityModel enum)
– Specifies the expected security behavior (more on this later)

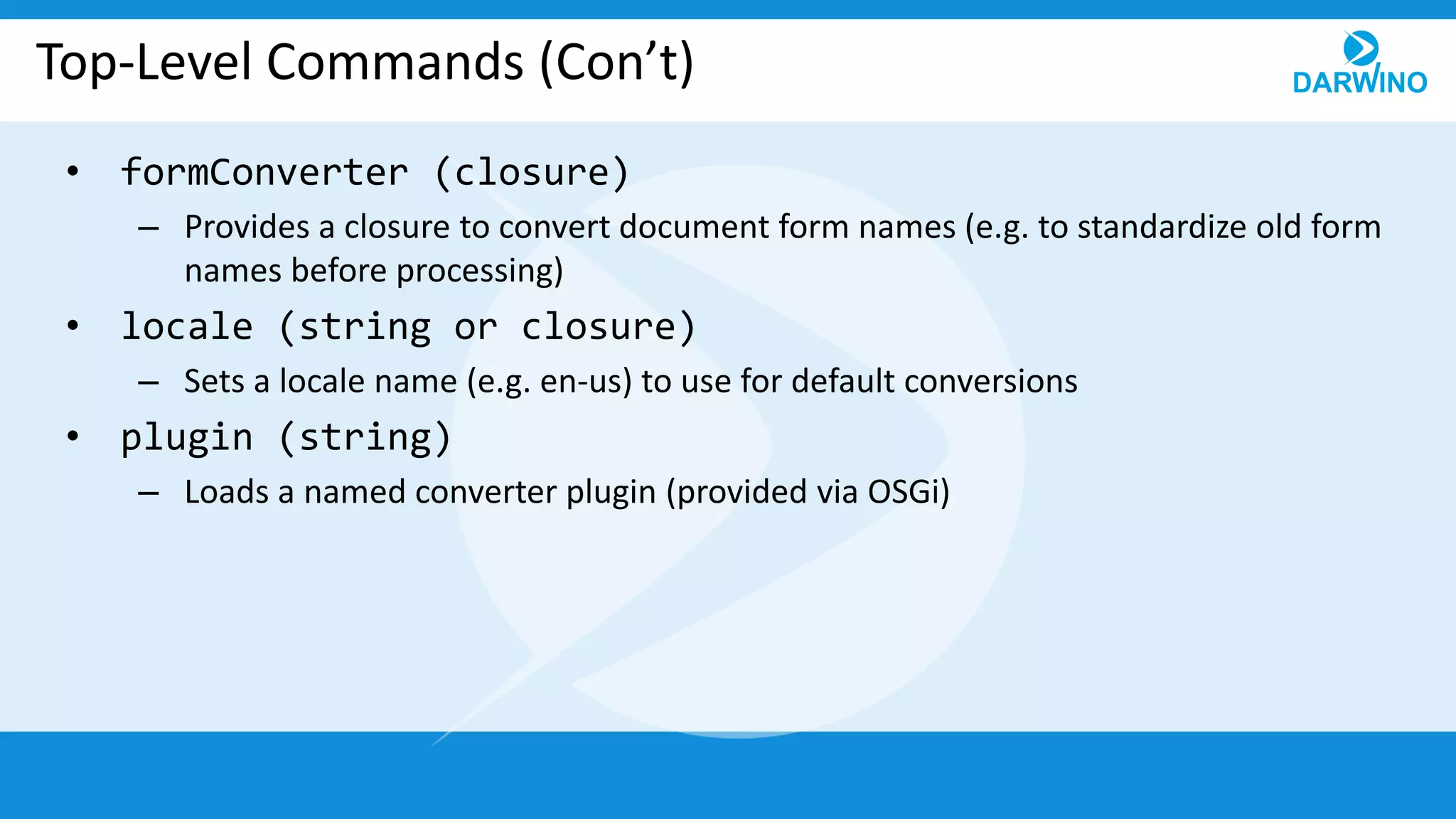

3. Top-Level Commands (Con’t)
• formConverter (closure)
– Provides a closure to convert document form names (e.g. to standardize old form
names before processing)
• locale (string or closure)
– Sets a locale name (e.g. en-us) to use for default conversions
• plugin (string)
– Loads a named converter plugin (provided via OSGi)

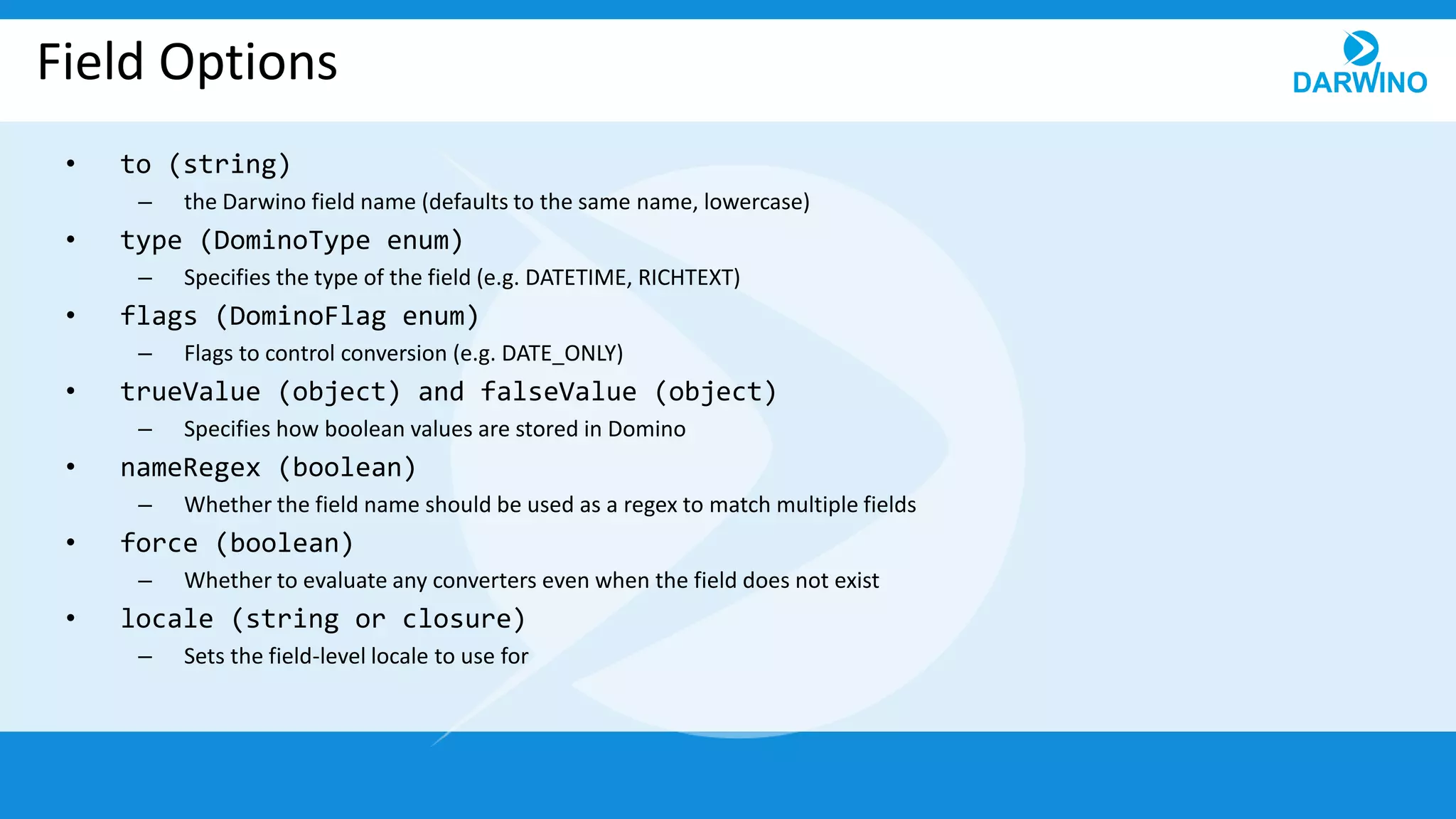

4. Field Options
• to (string)
– the Darwino field name (defaults to the same name, lowercase)
• type (DominoType enum)
– Specifies the type of the field (e.g. DATETIME, RICHTEXT)
• flags (DominoFlag enum)
– Flags to control conversion (e.g. DATE_ONLY)
• trueValue (object) and falseValue (object)
– Specifies how boolean values are stored in Domino
• nameRegex (boolean)
– Whether the field name should be used as a regex to match multiple fields
• force (boolean)
– Whether to evaluate any converters even when the field does not exist
• locale (string or closure)
– Sets the field-level locale to use for

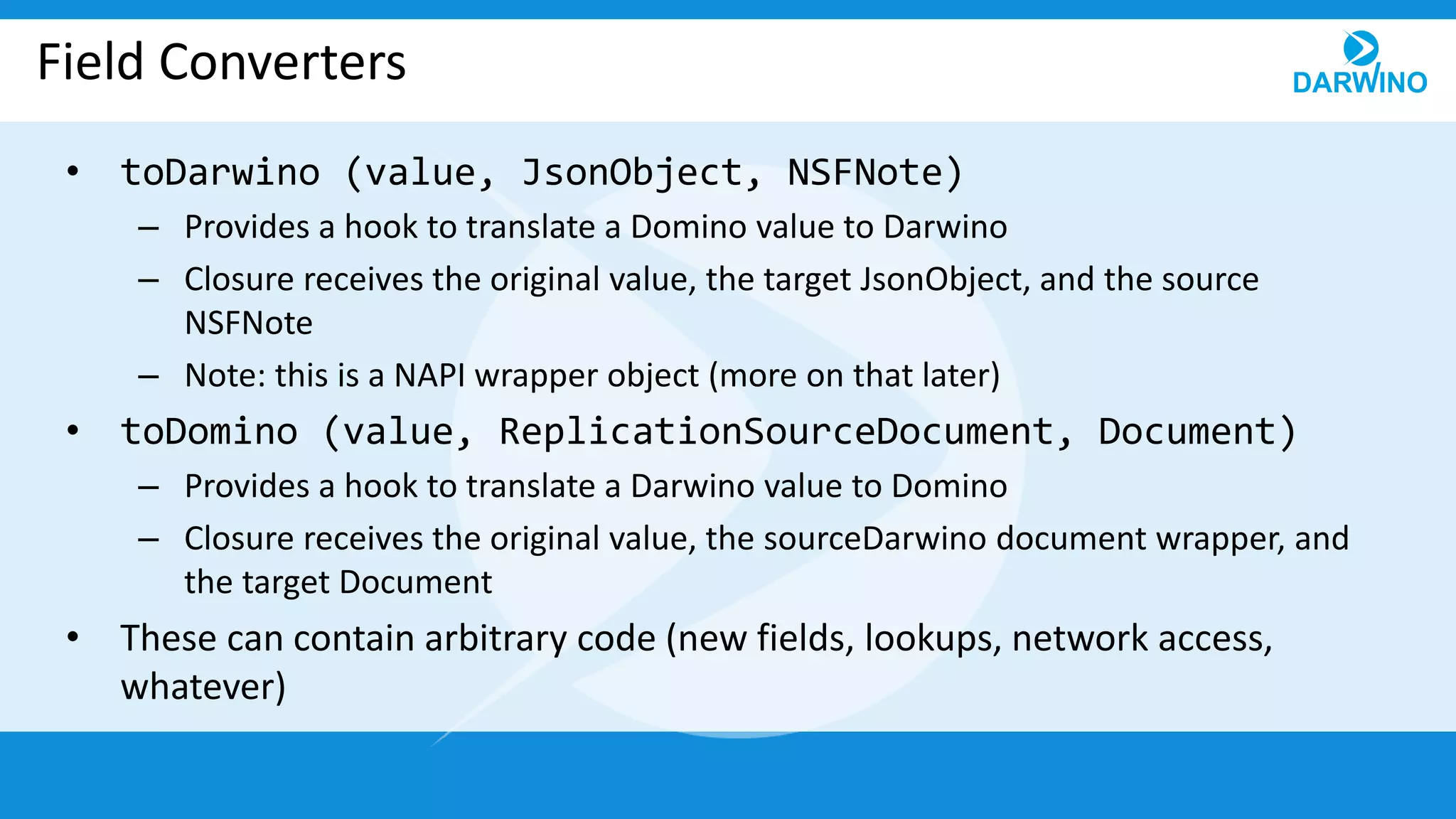

5. Field Converters
• toDarwino (value, JsonObject, NSFNote)
– Provides a hook to translate a Domino value to Darwino
– Closure receives the original value, the target JsonObject, and the source
NSFNote
– Note: this is a NAPI wrapper object (more on that later)
• toDomino (value, ReplicationSourceDocument, Document)
– Provides a hook to translate a Darwino value to Domino
– Closure receives the original value, the sourceDarwino document wrapper, and
the target Document
• These can contain arbitrary code (new fields, lookups, network access,
whatever)

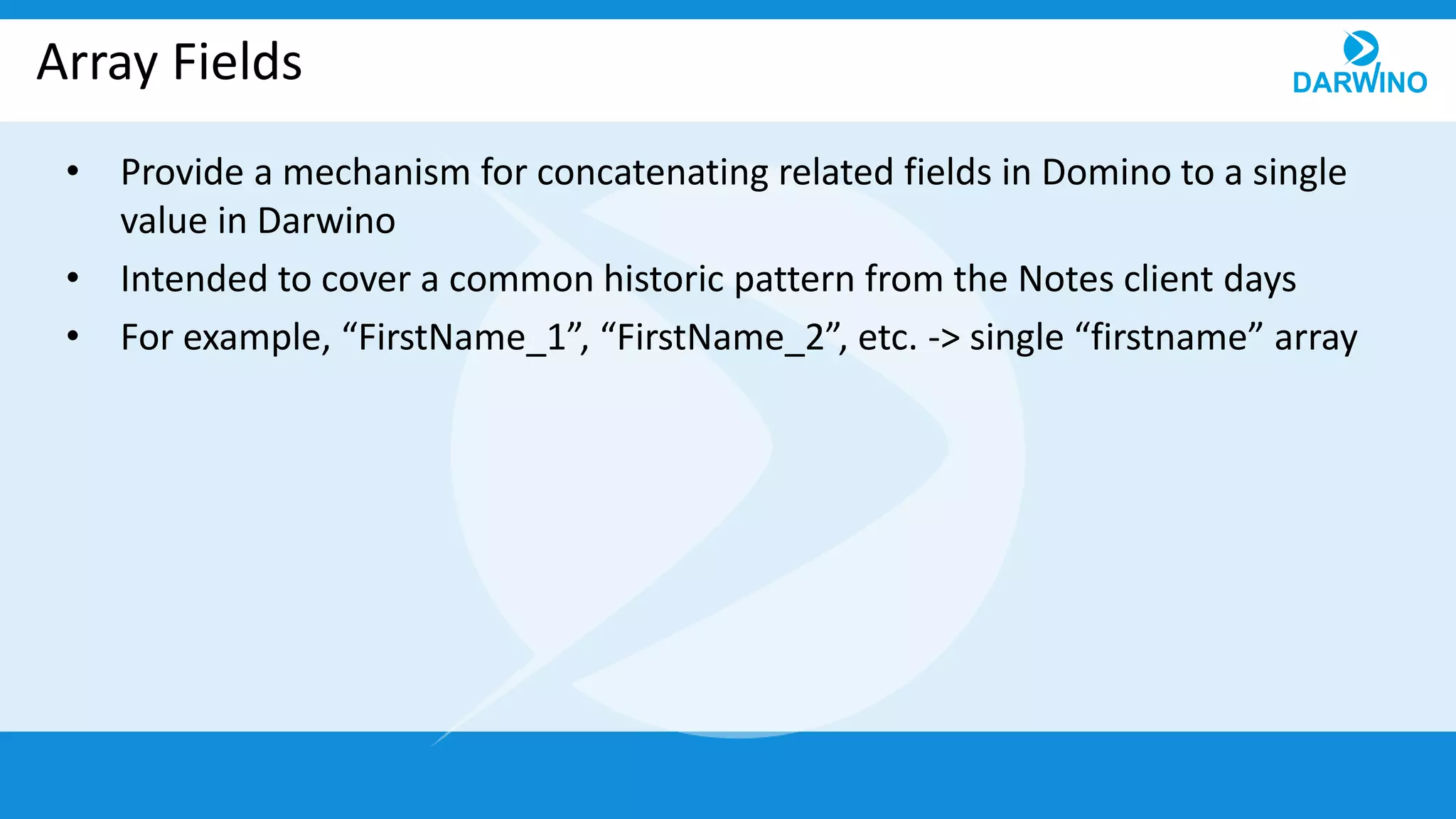

6. Array Fields
• Provide a mechanism for concatenating related fields in Domino to a single
value in Darwino
• Intended to cover a common historic pattern from the Notes client days
• For example, “FirstName_1”, “FirstName_2”, etc. -> single “firstname” array

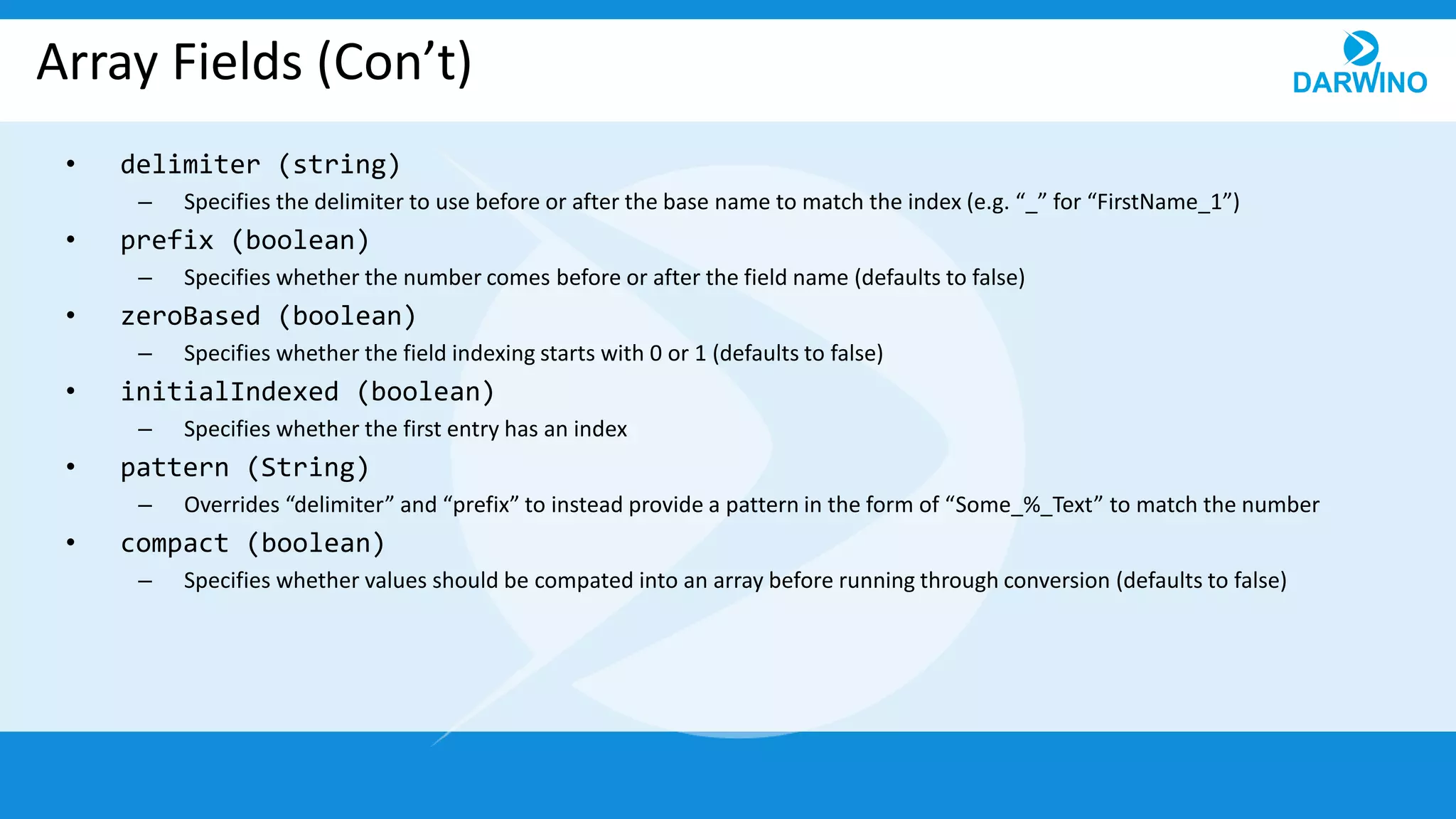

7. Array Fields (Con’t)
• delimiter (string)
– Specifies the delimiter to use before or after the base name to match the index (e.g. “_” for “FirstName_1”)
• prefix (boolean)
– Specifies whether the number comes before or after the field name (defaults to false)
• zeroBased (boolean)
– Specifies whether the field indexing starts with 0 or 1 (defaults to false)
• initialIndexed (boolean)
– Specifies whether the first entry has an index
• pattern (String)
– Overrides “delimiter” and “prefix” to instead provide a pattern in the form of “Some_%_Text” to match the number
• compact (boolean)
– Specifies whether values should be compated into an array before running through conversion (defaults to false)

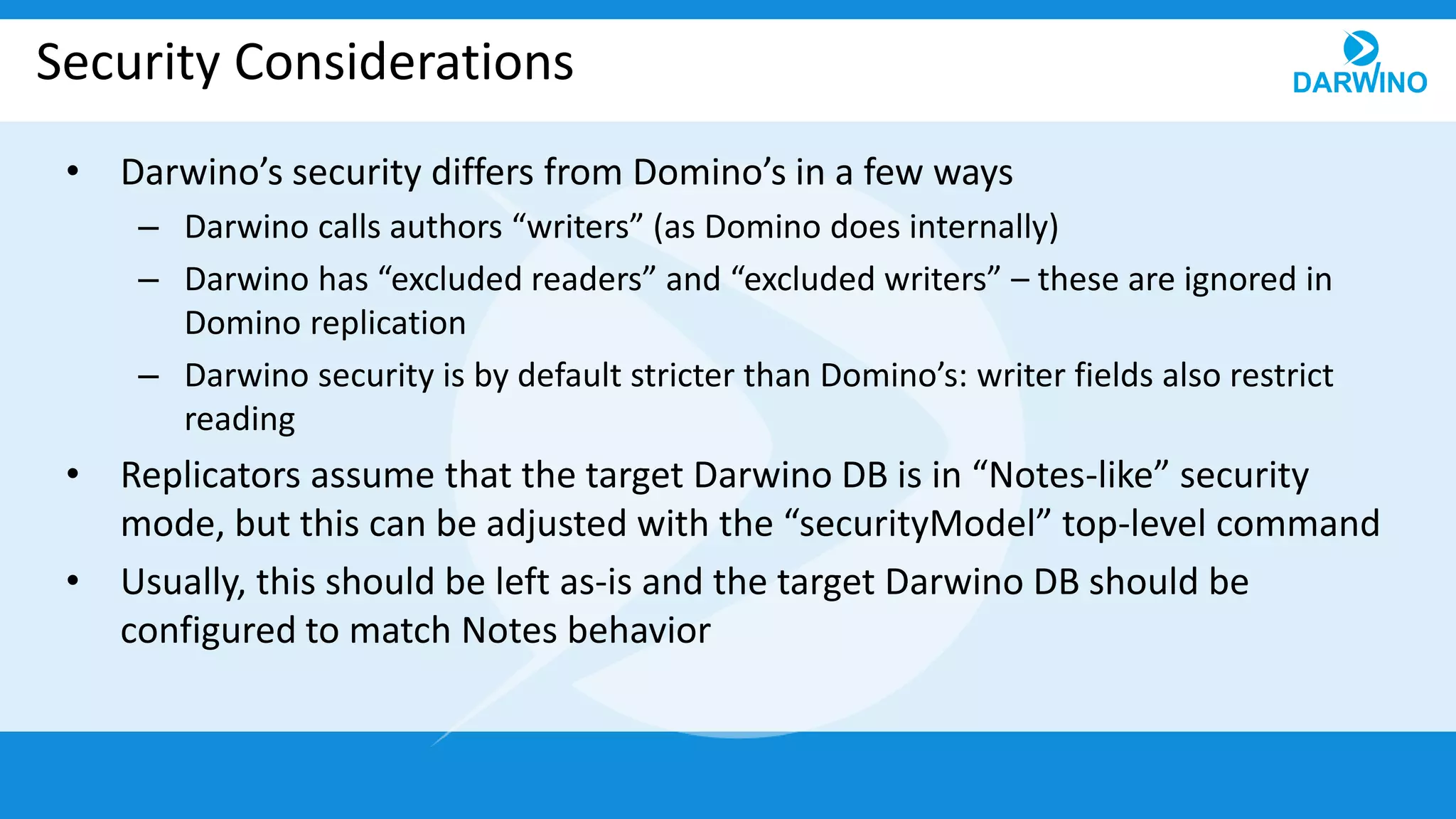

8. Security Considerations
• Darwino’s security differs from Domino’s in a few ways
– Darwino calls authors “writers” (as Domino does internally)
– Darwino has “excluded readers” and “excluded writers” – these are ignored in
Domino replication
– Darwino security is by default stricter than Domino’s: writer fields also restrict
reading
• Replicators assume that the target Darwino DB is in “Notes-like” security
mode, but this can be adjusted with the “securityModel” top-level command
• Usually, this should be left as-is and the target Darwino DB should be
configured to match Notes behavior

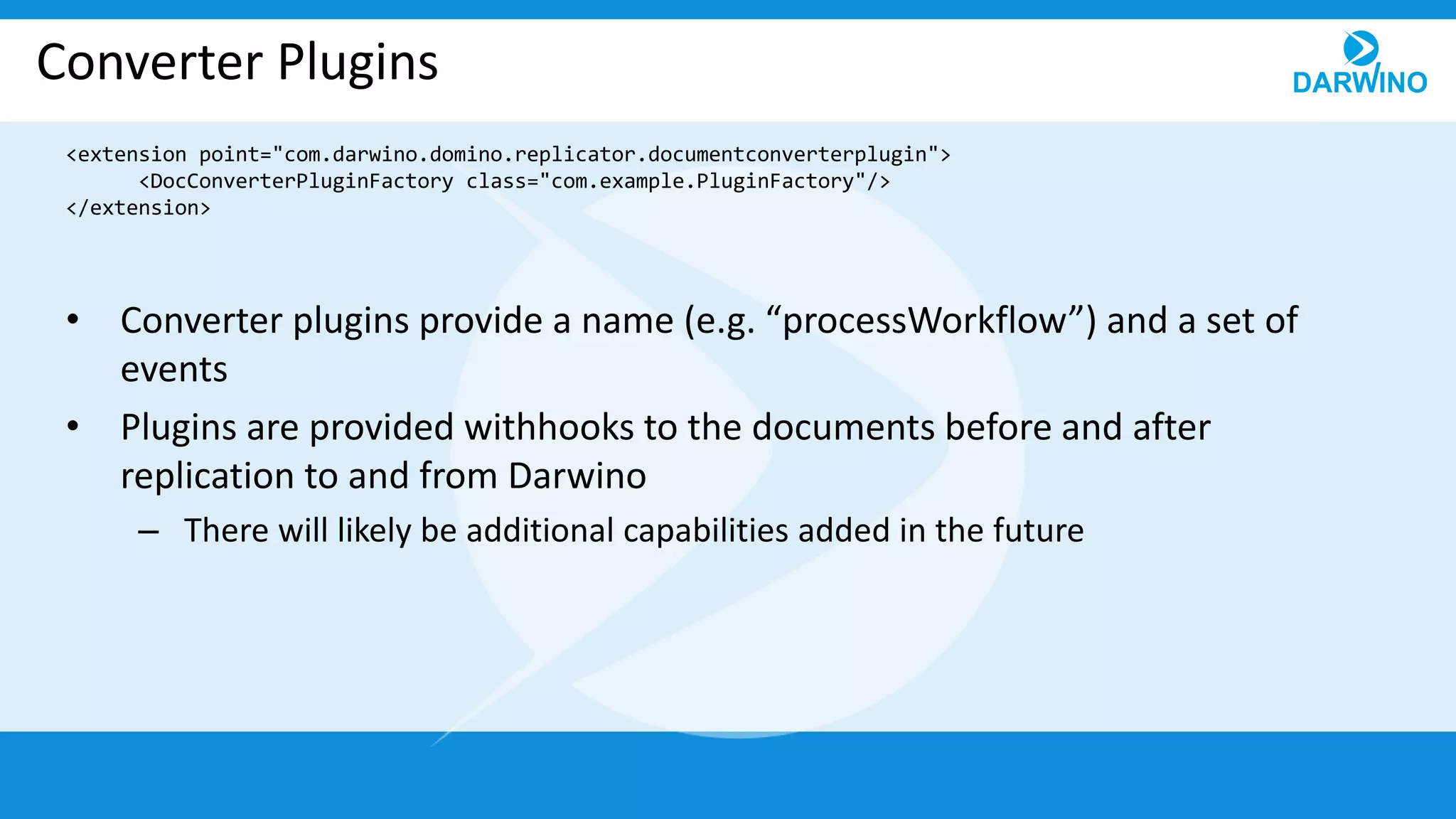

9. Converter Plugins
• Converter plugins provide a name (e.g. “processWorkflow”) and a set of
events
• Plugins are provided withhooks to the documents before and after
replication to and from Darwino
– There will likely be additional capabilities added in the future
<extension point="com.darwino.domino.replicator.documentconverterplugin">
<DocConverterPluginFactory class="com.example.PluginFactory"/>
</extension>

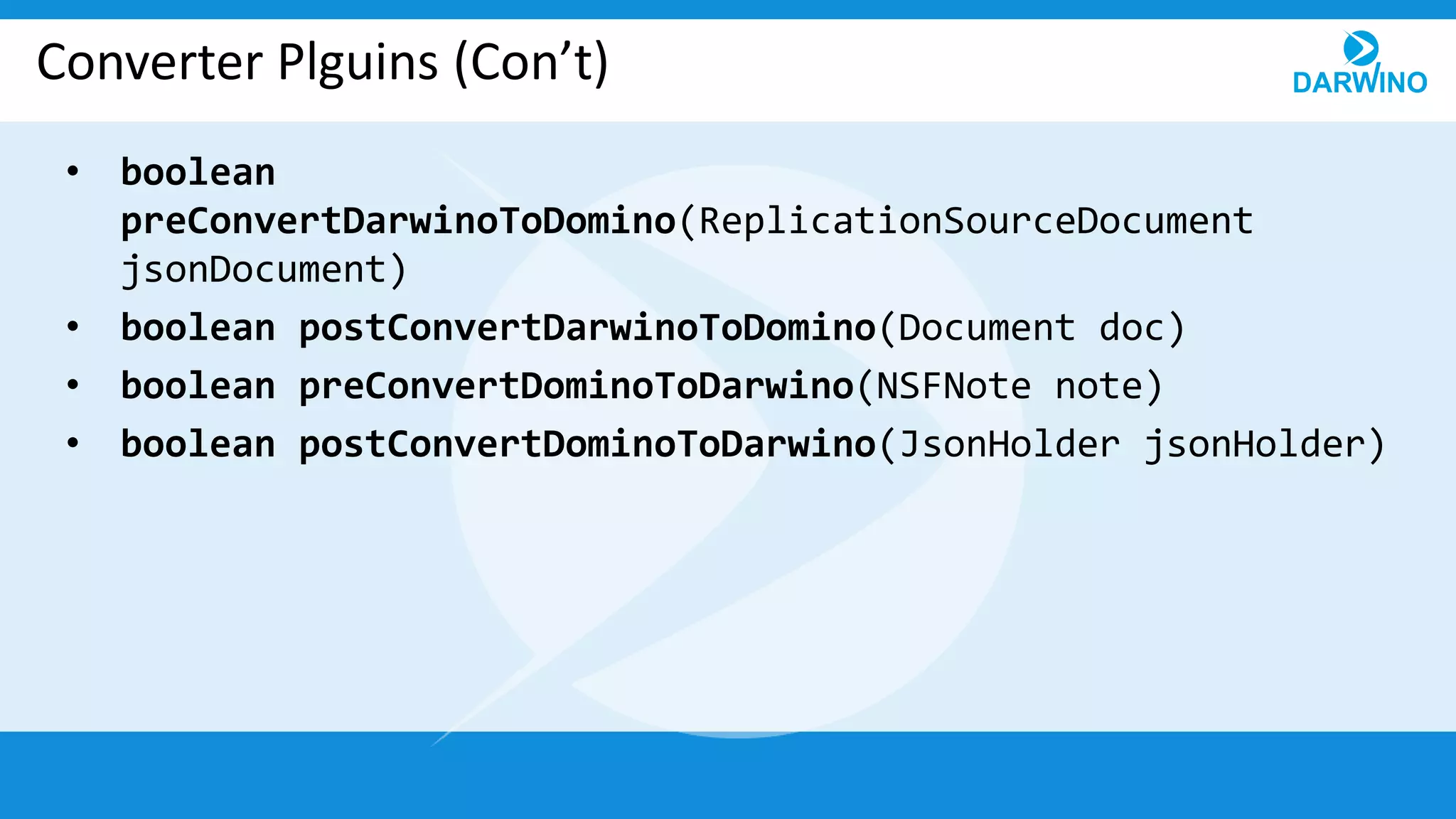

10. Converter Plguins (Con’t)
• boolean
preConvertDarwinoToDomino(ReplicationSourceDocument
jsonDocument)
• boolean postConvertDarwinoToDomino(Document doc)
• boolean preConvertDominoToDarwino(NSFNote note)
• boolean postConvertDominoToDarwino(JsonHolder jsonHolder)

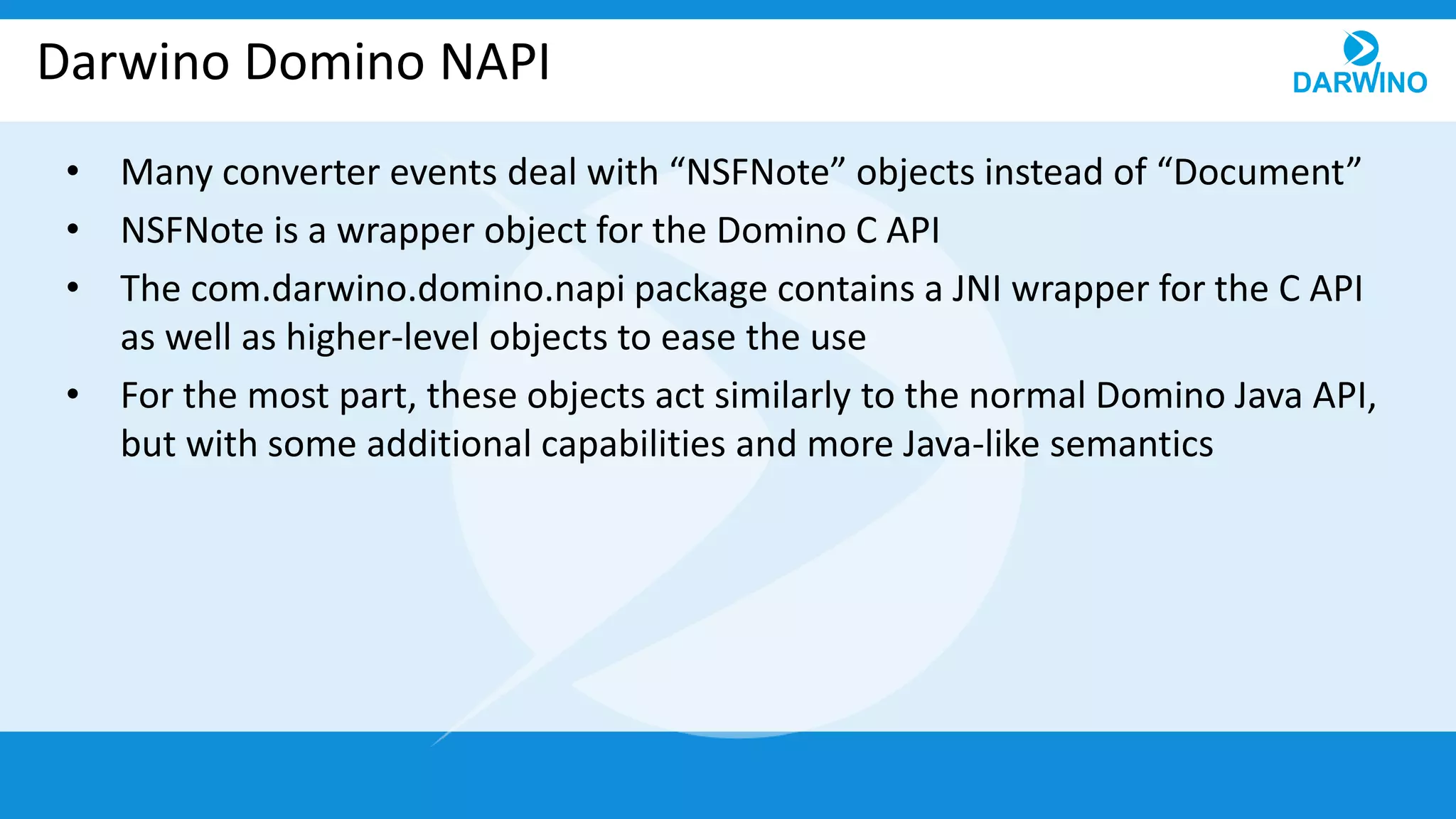

11. Darwino Domino NAPI
• Many converter events deal with “NSFNote” objects instead of “Document”
• NSFNote is a wrapper object for the Domino C API
• The com.darwino.domino.napi package contains a JNI wrapper for the C API
as well as higher-level objects to ease the use
• For the most part, these objects act similarly to the normal Domino Java API,
but with some additional capabilities and more Java-like semantics

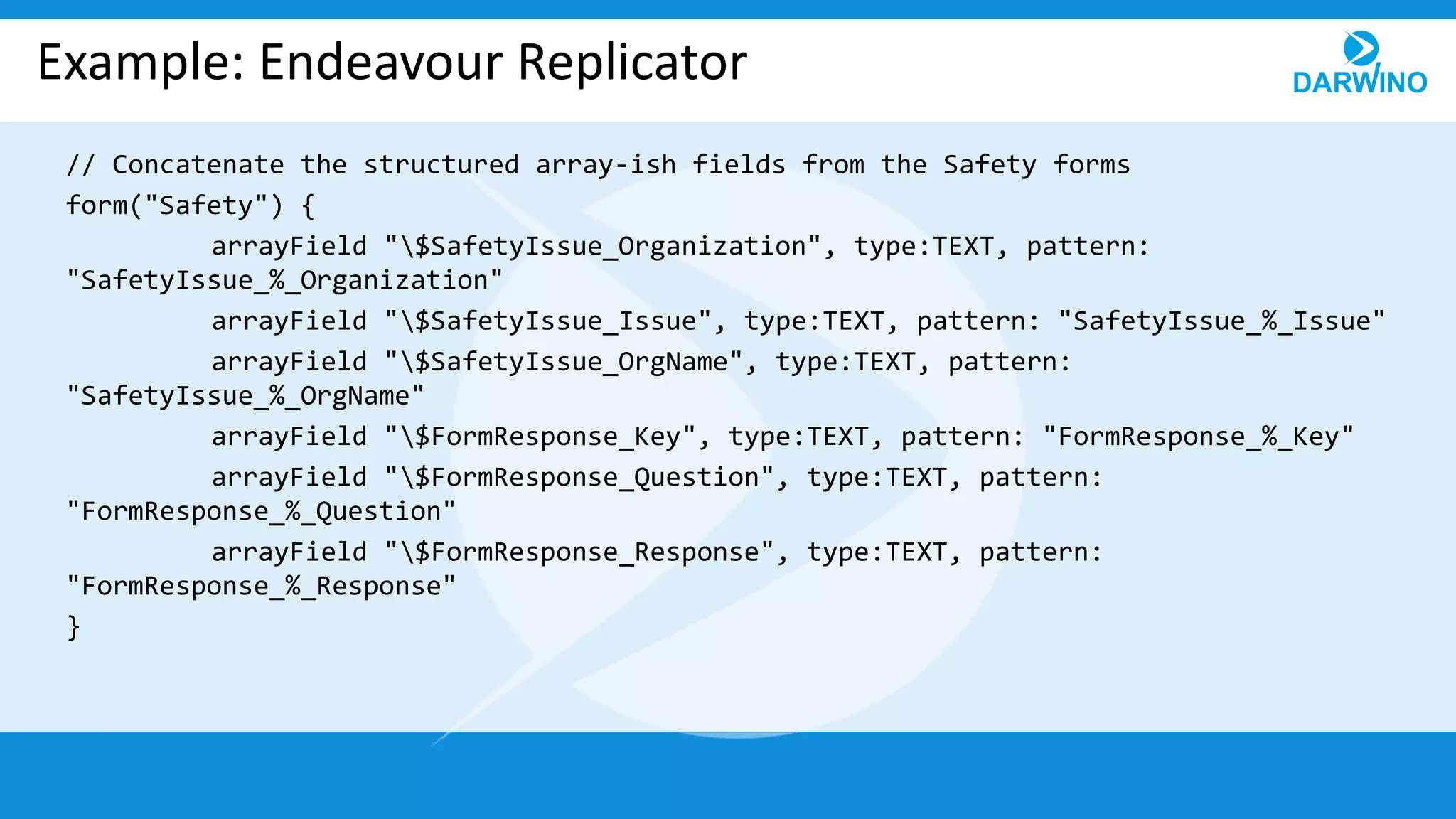

12. Example: Endeavour Replicator
// Concatenate the structured array-ish fields from the Safety forms
form("Safety") {
arrayField "$SafetyIssue_Organization", type:TEXT, pattern:
"SafetyIssue_%_Organization"
arrayField "$SafetyIssue_Issue", type:TEXT, pattern: "SafetyIssue_%_Issue"
arrayField "$SafetyIssue_OrgName", type:TEXT, pattern:
"SafetyIssue_%_OrgName"
arrayField "$FormResponse_Key", type:TEXT, pattern: "FormResponse_%_Key"
arrayField "$FormResponse_Question", type:TEXT, pattern:
"FormResponse_%_Question"
arrayField "$FormResponse_Response", type:TEXT, pattern:
"FormResponse_%_Response"
}

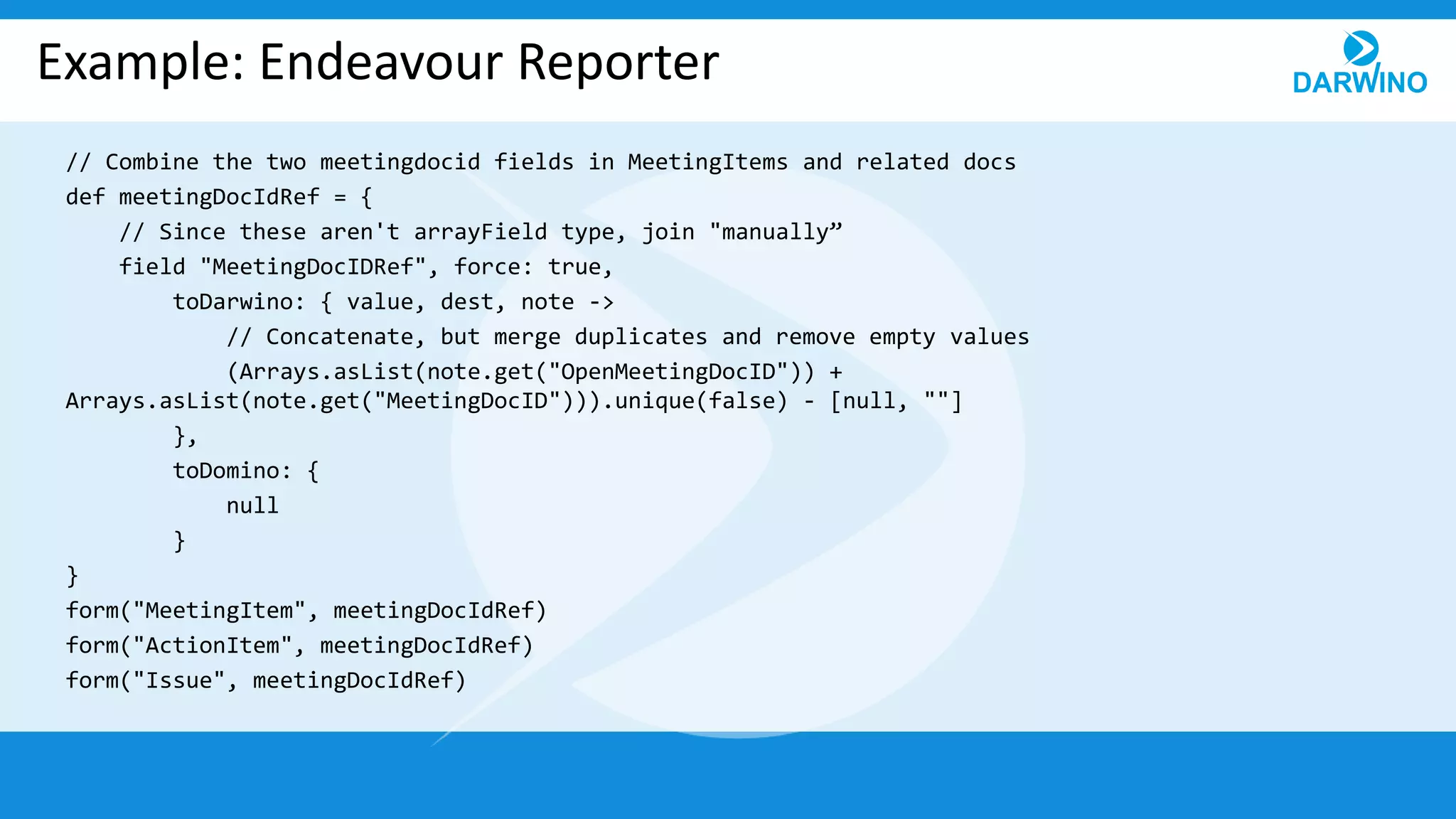

13. Example: Endeavour Reporter
// Combine the two meetingdocid fields in MeetingItems and related docs
def meetingDocIdRef = {
// Since these aren't arrayField type, join "manually”
field "MeetingDocIDRef", force: true,
toDarwino: { value, dest, note ->
// Concatenate, but merge duplicates and remove empty values
(Arrays.asList(note.get("OpenMeetingDocID")) +
Arrays.asList(note.get("MeetingDocID"))).unique(false) - [null, ""]
},
toDomino: {
null
}
}
form("MeetingItem", meetingDocIdRef)
form("ActionItem", meetingDocIdRef)
form("Issue", meetingDocIdRef)

14. Thank you for your attention!
