Johan Edstrom discussed scaling applications by making them more asynchronous and distributed. He covered several Apache projects like Camel, Karaf, ActiveMQ, Cassandra and CXF that can help achieve this. Specifically, he showed how to: 1. Use Camel and OSGi to build asynchronous microservices that communicate via an enterprise integration pattern like a message queue. 2. Store data in Cassandra for asynchronous and high-performance access across data centers. 3. Expose APIs asynchronously using CXF and handle requests with non-blocking techniques like futures. 4. Offload business logic to an asynchronous process running on a distributed cache like HazelCast for shared data and parallel processing across nodes

1. Johan Edstrom
SOA Executive and Apache developer.
Apache Member
Apache Camel PMC
Apache ServiceMix committer
Original CXF Blueprint Author
Cassandra client library developer
Author
jedstrom@savoirtech.com
joed@apache.org
Using common frameworks
Asynchronous applications

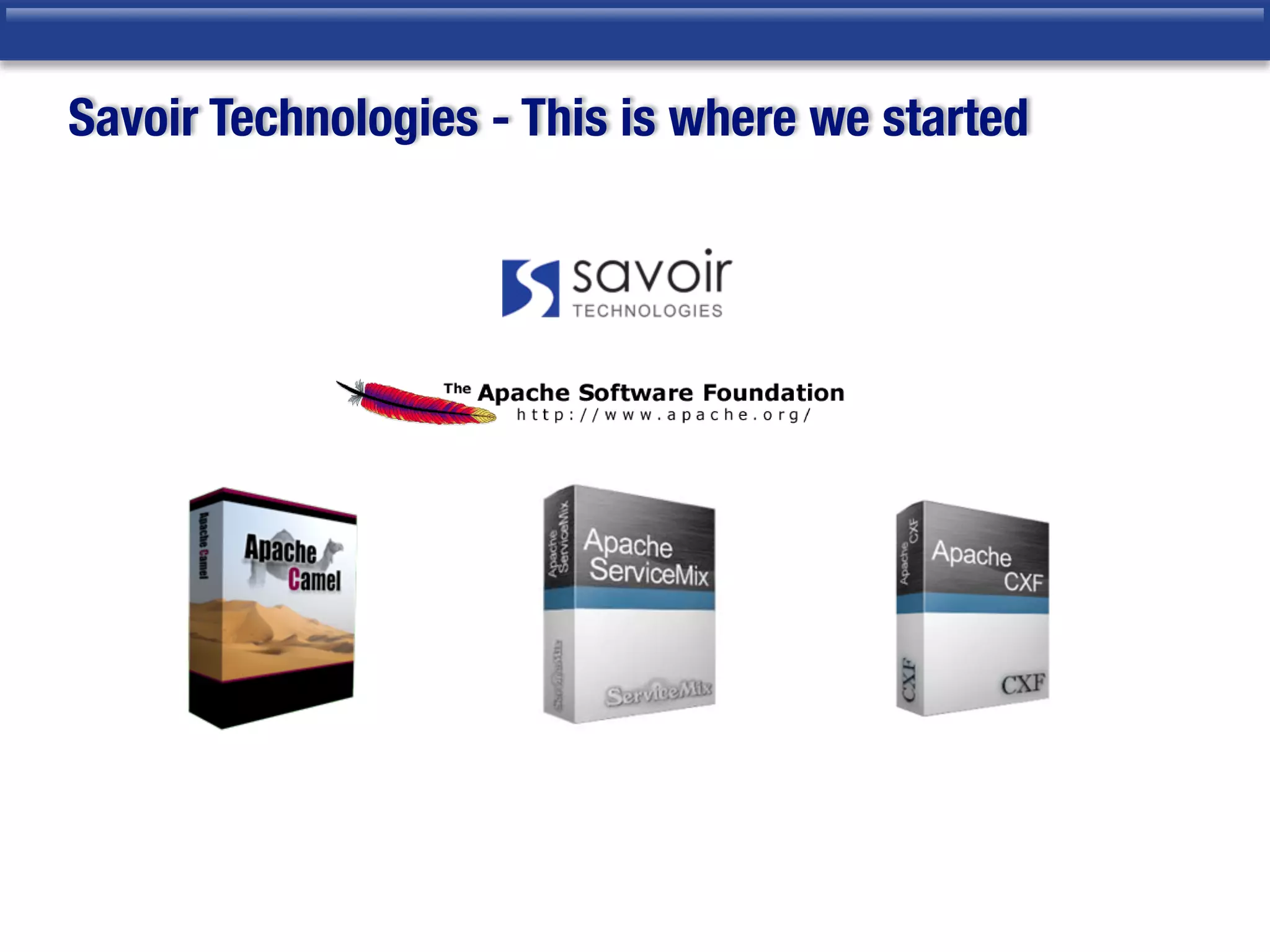

2. Savoir Technologies - This is where we started

3. Where are we now?
lWe have worked heavily with
• Governments
• Insurance
• Utilities
• Network companies
• Education companies
• Medical processing companies

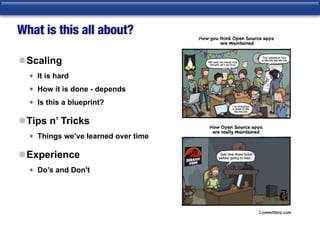

4. What is this all about?
lScaling
• It is hard
• How it is done - depends
• Is this a blueprint?
lTips n’ Tricks
• Things we’ve learned over time
lExperience
• Do’s and Don't

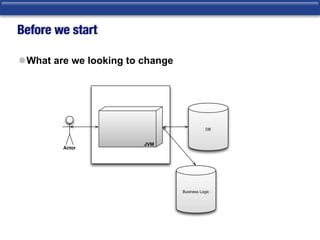

5. Before we start
lWhat are we looking to change
JVM
DB
Actor
Business Logic

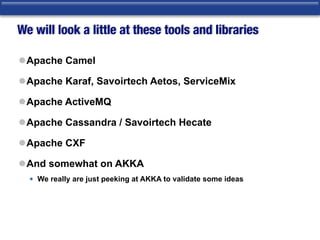

6. We will look a little at these tools and libraries
lApache Camel
lApache Karaf, Savoirtech Aetos, ServiceMix
lApache ActiveMQ
lApache Cassandra / Savoirtech Hecate
lApache CXF
lAnd somewhat on AKKA
• We really are just peeking at AKKA to validate some ideas

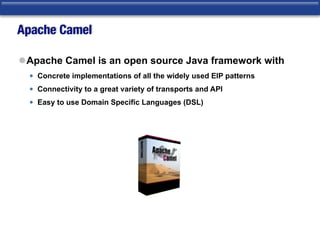

7. Apache Camel
lApache Camel is an open source Java framework with
• Concrete implementations of all the widely used EIP patterns
• Connectivity to a great variety of transports and API
• Easy to use Domain Specific Languages (DSL)

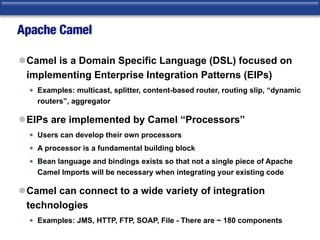

8. Apache Camel
lCamel is a Domain Specific Language (DSL) focused on
implementing Enterprise Integration Patterns (EIPs)
• Examples: multicast, splitter, content-based router, routing slip, “dynamic
routers”, aggregator
lEIPs are implemented by Camel “Processors”
• Users can develop their own processors
• A processor is a fundamental building block
• Bean language and bindings exists so that not a single piece of Apache
Camel Imports will be necessary when integrating your existing code
lCamel can connect to a wide variety of integration
technologies
• Examples: JMS, HTTP, FTP, SOAP, File - There are ~ 180 components

9. Apache Camel

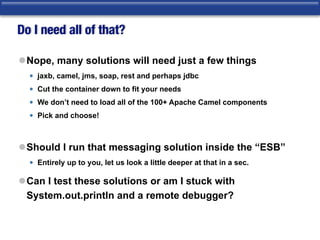

10. Do I need all of that?
lNope, many solutions will need just a few things
• jaxb, camel, jms, soap, rest and perhaps jdbc
• Cut the container down to fit your needs
• We don’t need to load all of the 100+ Apache Camel components
• Pick and choose!
lShould I run that messaging solution inside the “ESB”
• Entirely up to you, let us look a little deeper at that in a sec.
lCan I test these solutions or am I stuck with
System.out.println and a remote debugger?

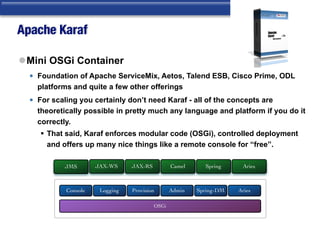

11. Apache Karaf
lMini OSGi Container
• Foundation of Apache ServiceMix, Aetos, Talend ESB, Cisco Prime, ODL
platforms and quite a few other offerings
• For scaling you certainly don’t need Karaf - all of the concepts are
theoretically possible in pretty much any language and platform if you do it
correctly.
§ That said, Karaf enforces modular code (OSGi), controlled deployment
and offers up many nice things like a remote console for “free”.
JMS JAX-WS JAX-RS Camel Spring Aries
OSGi
Console Logging Provision Admin Spring-DM Aries

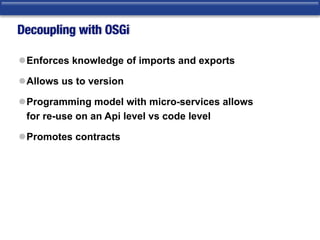

12. Decoupling with OSGi
lEnforces knowledge of imports and exports
lAllows us to version
lProgramming model with micro-services allows
for re-use on an Api level vs code level
lPromotes contracts

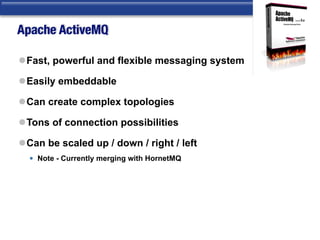

13. Apache ActiveMQ
lFast, powerful and flexible messaging system
lEasily embeddable
lCan create complex topologies
lTons of connection possibilities
lCan be scaled up / down / right / left
• Note - Currently merging with HornetMQ

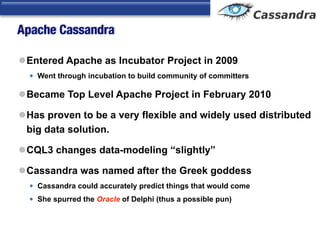

14. Apache Cassandra
lEntered Apache as Incubator Project in 2009
• Went through incubation to build community of committers
lBecame Top Level Apache Project in February 2010
lHas proven to be a very flexible and widely used distributed
big data solution.
lCQL3 changes data-modeling “slightly”
lCassandra was named after the Greek goddess
• Cassandra could accurately predict things that would come
• She spurred the Oracle of Delphi (thus a possible pun)

15. What are some language tools we can use?
lFutures, Promises, Continuations (Async JaxRs, RIFE),
JMS, Executors, Actors, Consumers, Producers, Runnables
• Let’s not go too deep here; frameworks in Java land
are there to help you not have to write super duper
low level code, like Mina / Netty for networking.
Guava for concurrency and collection handling.
CXF for JaxWs / JaxRs abstraction to just name a
few.

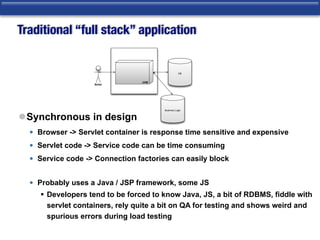

16. Traditional “full stack” application
lSynchronous in design
• Browser -> Servlet container is response time sensitive and expensive
• Servlet code -> Service code can be time consuming
• Service code -> Connection factories can easily block
• Probably uses a Java / JSP framework, some JS
§ Developers tend to be forced to know Java, JS, a bit of RDBMS, fiddle with
servlet containers, rely quite a bit on QA for testing and shows weird and
spurious errors during load testing
JVM
DB
Actor
Business Logic

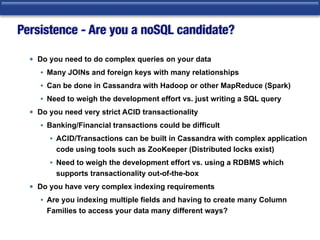

17. Persistence - Are you a noSQL candidate?
• Do you need to do complex queries on your data
• Many JOINs and foreign keys with many relationships
• Can be done in Cassandra with Hadoop or other MapReduce (Spark)
• Need to weigh the development effort vs. just writing a SQL query
• Do you need very strict ACID transactionality
• Banking/Financial transactions could be difficult
• ACID/Transactions can be built in Cassandra with complex application
code using tools such as ZooKeeper (Distributed locks exist)
• Need to weigh the development effort vs. using a RDBMS which
supports transactionality out-of-the-box
• Do you have very complex indexing requirements
• Are you indexing multiple fields and having to create many Column
Families to access your data many different ways?

18. Let us say we are.
lThe work here would be in data modeling
• The benefits we’d reap are eventual/controllable consistency
• Extremely fast and Asynchronous writes
• Automatic Data distribution and partitioning
• No single point of failure
• You have to unlearn some things
*Images courtesy of DataStax

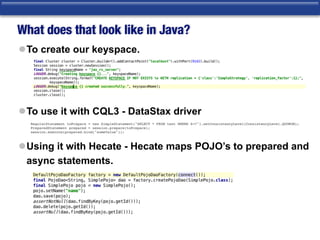

19. What does that look like in Java?
lTo create our keyspace.
lTo use it with CQL3 - DataStax driver
lUsing it with Hecate - Hecate maps POJO’s to prepared and
async statements.

20. Compared to a traditional RDBMS?
lIn one project we mapped in 17 registry services
• ~20 million users in the system more than 40 mil transactions / day
§ Handled all load-test scenarios on a 5 node Cassandra ring.
• We are talking about average response times < 100ms
end to end.
• We also don’t need to worry much about
§ Second and 1st level caches
§ Cache synchronization or distribution
§ Locking
§ Select for update
§ Autoscaling
§ Building out
§ Building out geographically
JVM
Actor
Business Logic

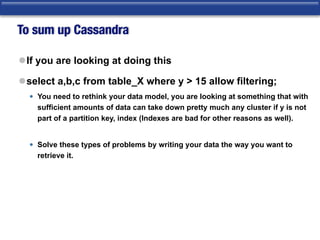

21. To sum up Cassandra
lIf you are looking at doing this
lselect a,b,c from table_X where y > 15 allow filtering;
• You need to rethink your data model, you are looking at something that with
sufficient amounts of data can take down pretty much any cluster if y is not
part of a partition key, index (Indexes are bad for other reasons as well).
• Solve these types of problems by writing your data the way you want to
retrieve it.

22. Front facing stuff
JVM
Actor
Business Logic

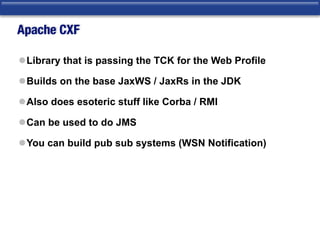

23. Apache CXF
lLibrary that is passing the TCK for the Web Profile
lBuilds on the base JaxWS / JaxRs in the JDK
lAlso does esoteric stuff like Corba / RMI
lCan be used to do JMS
lYou can build pub sub systems (WSN Notification)

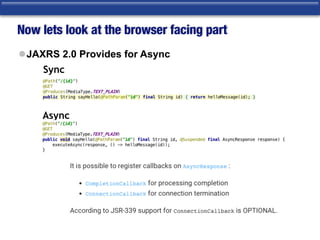

24. Now lets look at the browser facing part
lJAXRS 2.0 Provides for Async
Sync
Async

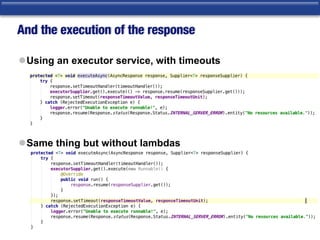

25. And the execution of the response
lUsing an executor service, with timeouts
lSame thing but without lambdas

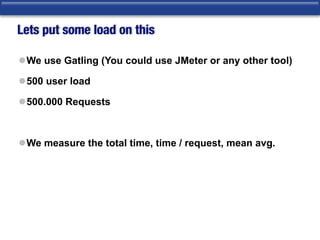

26. Lets put some load on this
lWe use Gatling (You could use JMeter or any other tool)
l500 user load
l500.000 Requests
lWe measure the total time, time / request, mean avg.

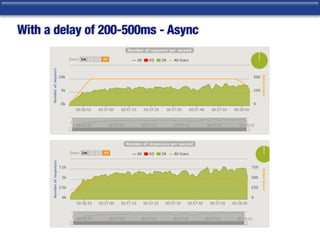

27. With a delay of 200-500ms - Async

28. Async ResponseTimes

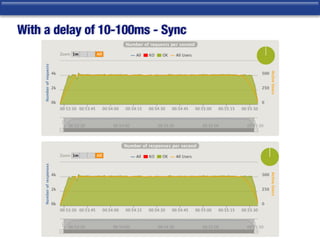

29. With a delay of 10-100ms - Sync

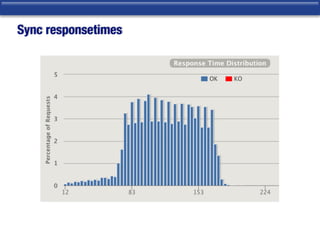

30. Sync responsetimes

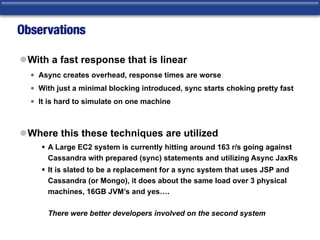

31. Observations
lWith a fast response that is linear
• Async creates overhead, response times are worse
• With just a minimal blocking introduced, sync starts choking pretty fast
• It is hard to simulate on one machine
lWhere this these techniques are utilized
§ A Large EC2 system is currently hitting around 163 r/s going against
Cassandra with prepared (sync) statements and utilizing Async JaxRs
§ It is slated to be a replacement for a sync system that uses JSP and
Cassandra (or Mongo), it does about the same load over 3 physical
machines, 16GB JVM’s and yes….
There were better developers involved on the second system

32. Onto the last part!
lLet’s make that business thing Async too!
lWe’ll make it an almost “BPEL’ey” process.
lWS Call from our main
web service, response
coming via a queue
lNow we could solve this
over JMS request/reply
but we want to cluster too.
JVM
Actor
Business Logic

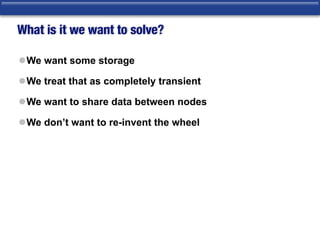

33. What is it we want to solve?
lWe want some storage
lWe treat that as completely transient
lWe want to share data between nodes
lWe don’t want to re-invent the wheel

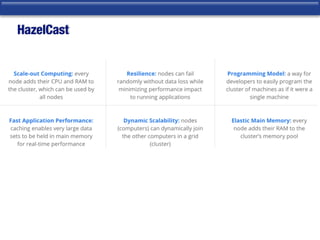

34. HazelCast

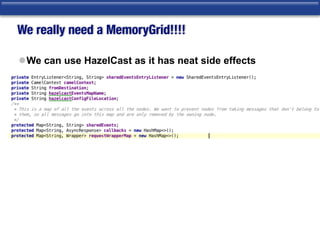

35. We really need a MemoryGrid!!!!
lWe can use HazelCast as it has neat side effects

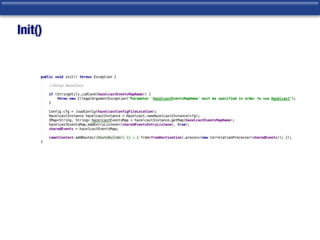

36. Init()

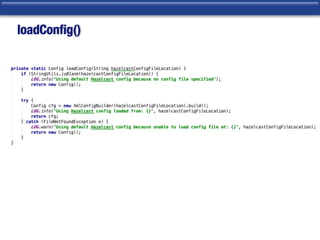

37. loadConfig()

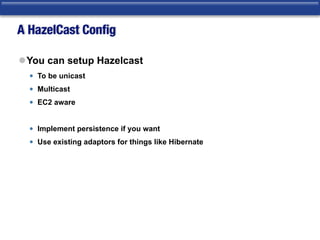

38. A HazelCast Config
lYou can setup Hazelcast
• To be unicast
• Multicast
• EC2 aware
• Implement persistence if you want
• Use existing adaptors for things like Hibernate

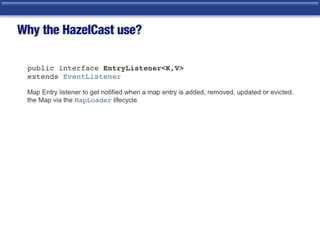

39. Why the HazelCast use?

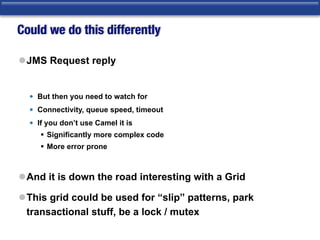

40. Could we do this differently
lJMS Request reply
• But then you need to watch for
• Connectivity, queue speed, timeout
• If you don’t use Camel it is
§ Significantly more complex code
§ More error prone
lAnd it is down the road interesting with a Grid
lThis grid could be used for “slip” patterns, park
transactional stuff, be a lock / mutex

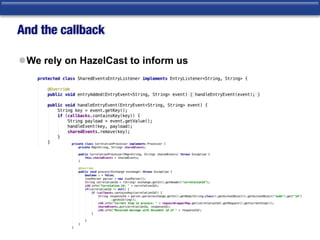

41. And the callback
lWe rely on HazelCast to inform us

42. And once we correlate
lWe can now resume our Webservice out of band!

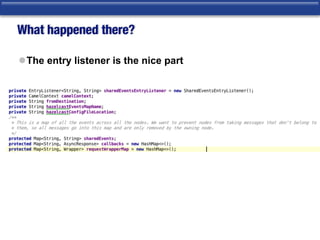

43. What happened there?
lThe entry listener is the nice part

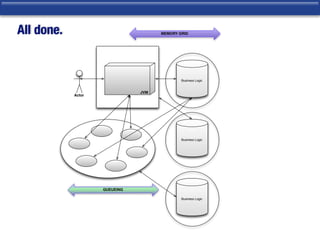

44. All done.
JVM
Actor
Business Logic
Business Logic
Business Logic
MEMORY GRID
QUEUEING

45. Summary
lWe had a monolithic app
lAnd we ended up with
• Replaced persistence with a more non blocking solution
• Replaced all of the synchronous web side
• Introduced queueing
• Introduced a memory grid
• We added asynchronous behavior to something BPEL’ey so that we can run
the process across multiple callers or multiple systems in parallel

46. Thank you!
